2

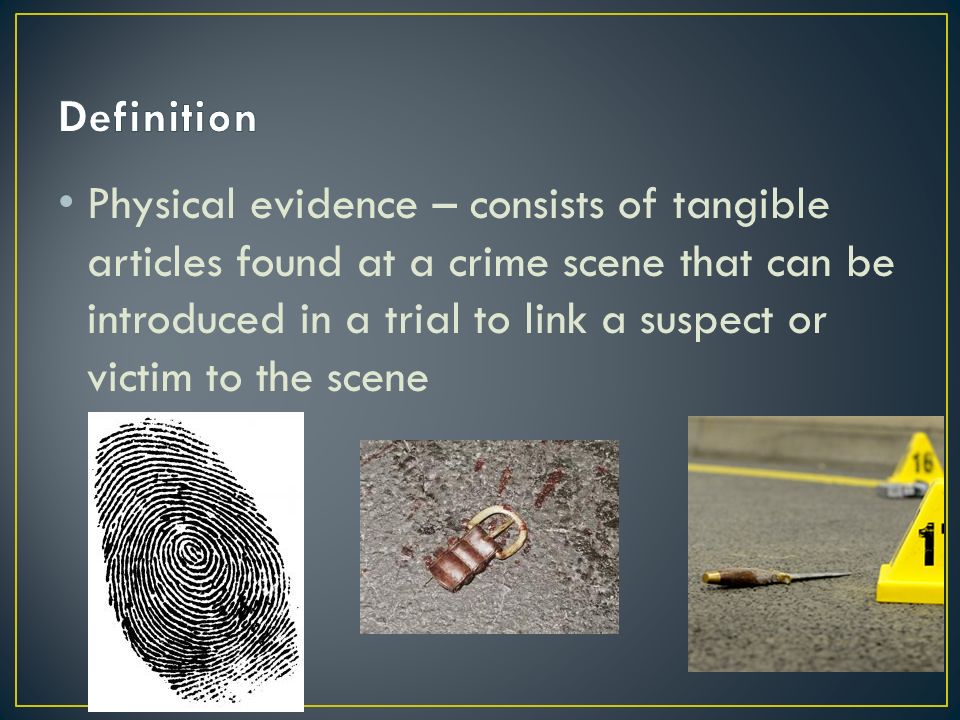

Physical evidence – consists of tangible articles found at a crime scene that can be introduced in a trial to link a suspect or victim to the scene
3

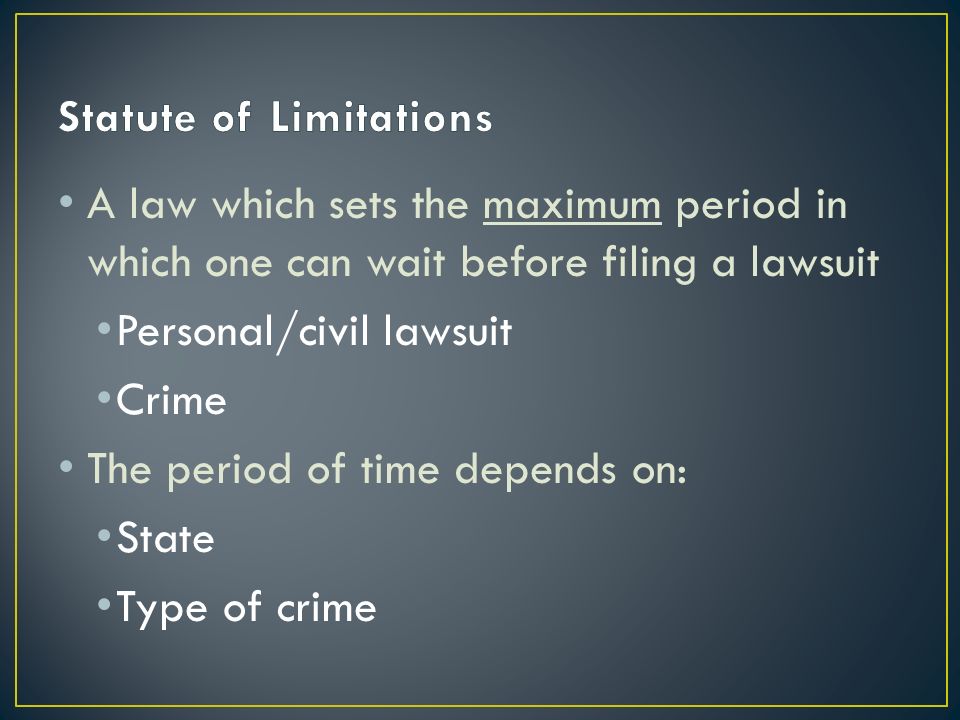

A law which sets the maximum period in which one can wait before filing a lawsuit Personal/civil lawsuit Crime The period of time depends on: State Type of crime
4

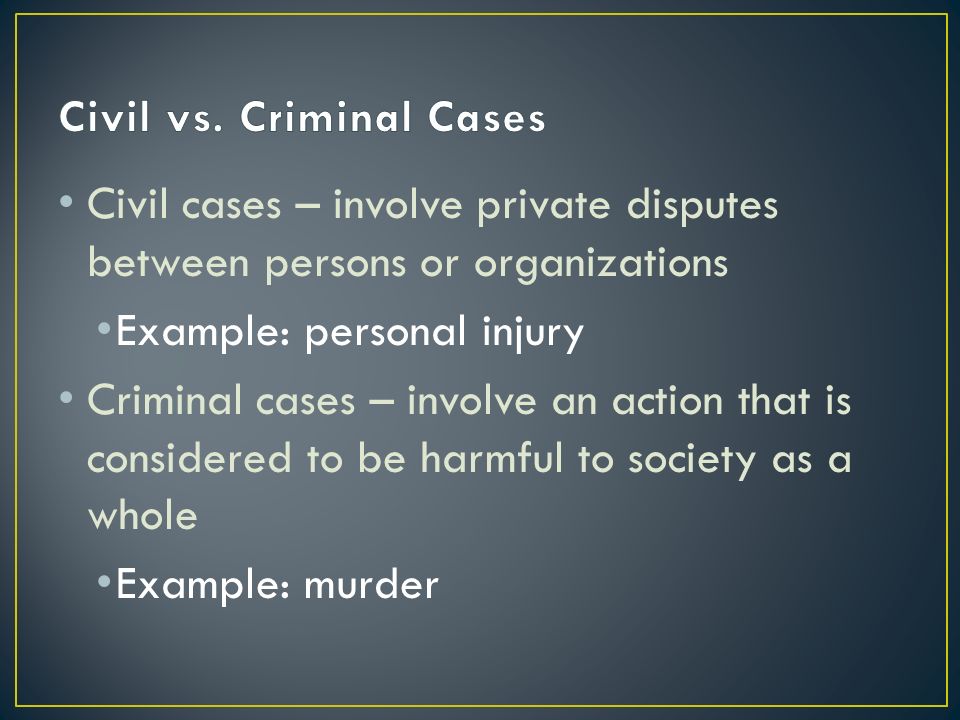

Civil cases – involve private disputes between persons or organizations Example: personal injury Criminal cases – involve an action that is considered to be harmful to society as a whole Example: murder
5

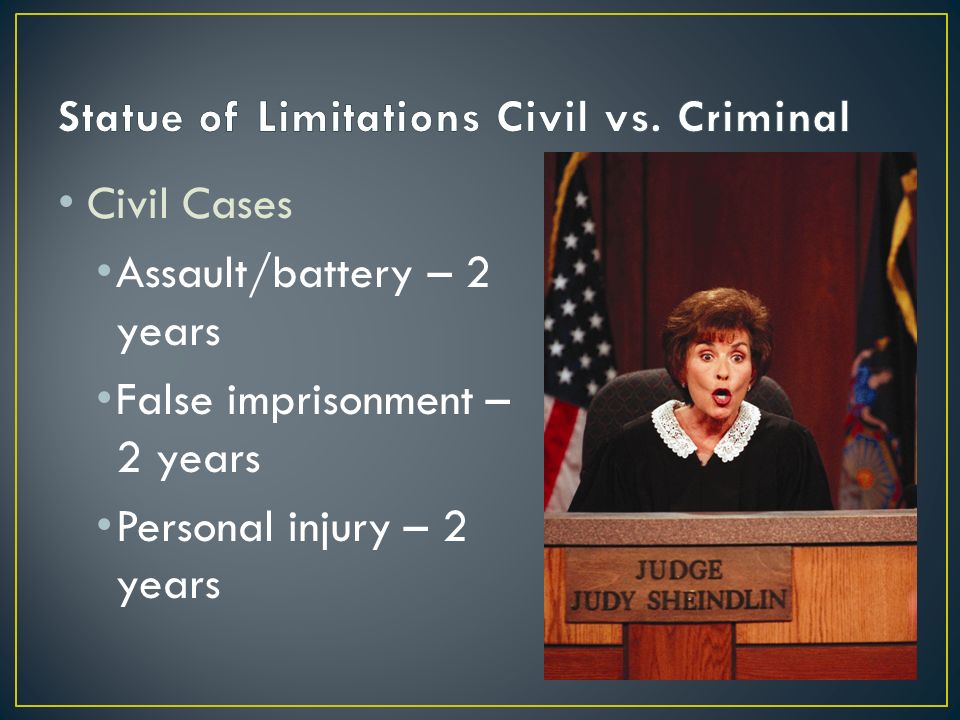

Civil Cases Assault/battery – 2 years False imprisonment – 2 years Personal injury – 2 years
6
Criminal Cases Assault – 1-5 years Rape – no limit Murder/manslaughter – no limit Kidnapping – 5 years
7

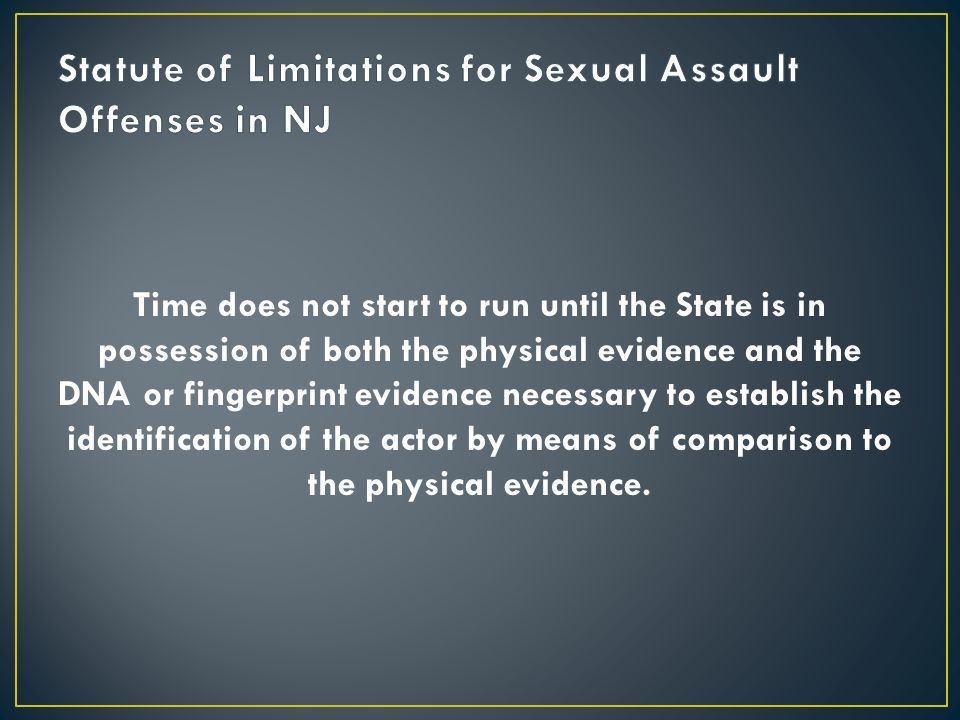

Time does not start to run until the State is in possession of both the physical evidence and the DNA or fingerprint evidence necessary to establish the identification of the actor by means of comparison to the physical evidence.
8

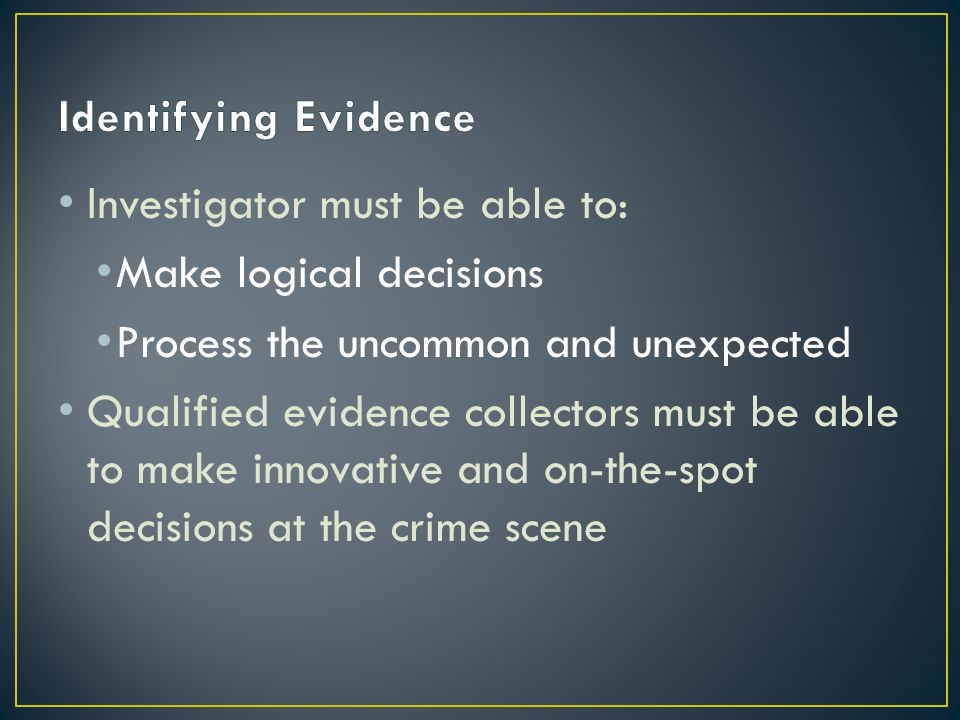

Investigator must be able to: Make logical decisions Process the uncommon and unexpected Qualified evidence collectors must be able to make innovative and on-the-spot decisions at the crime scene
9

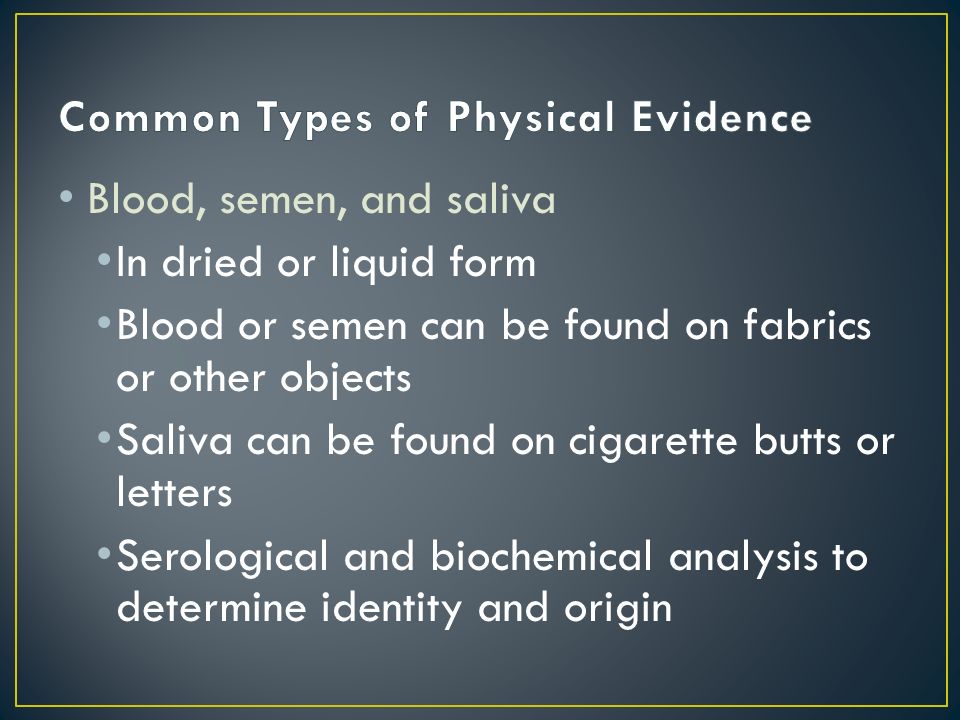

Blood, semen, and saliva In dried or liquid form Blood or semen can be found on fabrics or other objects Saliva can be found on cigarette butts or letters Serological and biochemical analysis to determine identity and origin
10
Blood, semen and saliva continued Tested for DNA Saliva – DNA from cheek cells Evidence goes to Biology unit
11

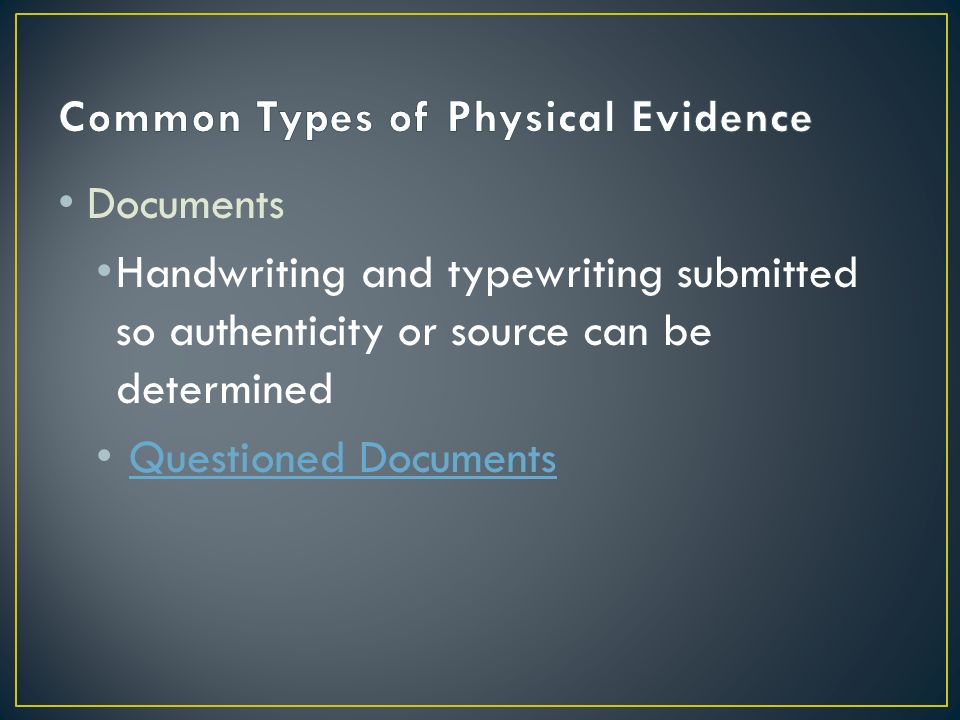

Documents Handwriting and typewriting submitted so authenticity or source can be determined Questioned Documents
12

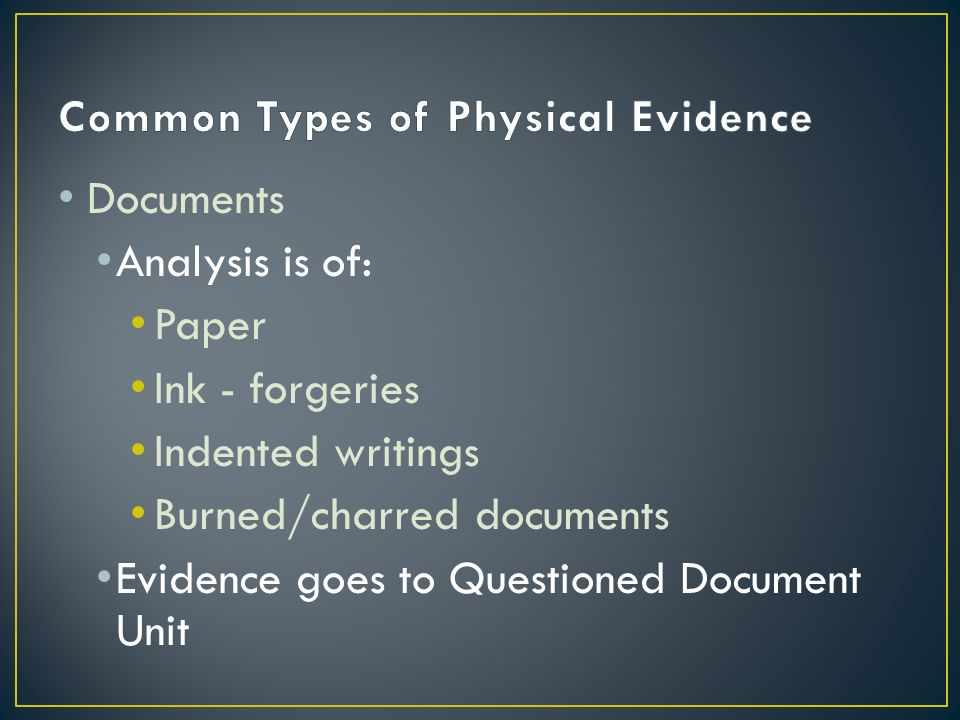

Documents Analysis is of: Paper Ink - forgeries Indented writings Burned/charred documents Evidence goes to Questioned Document Unit
13

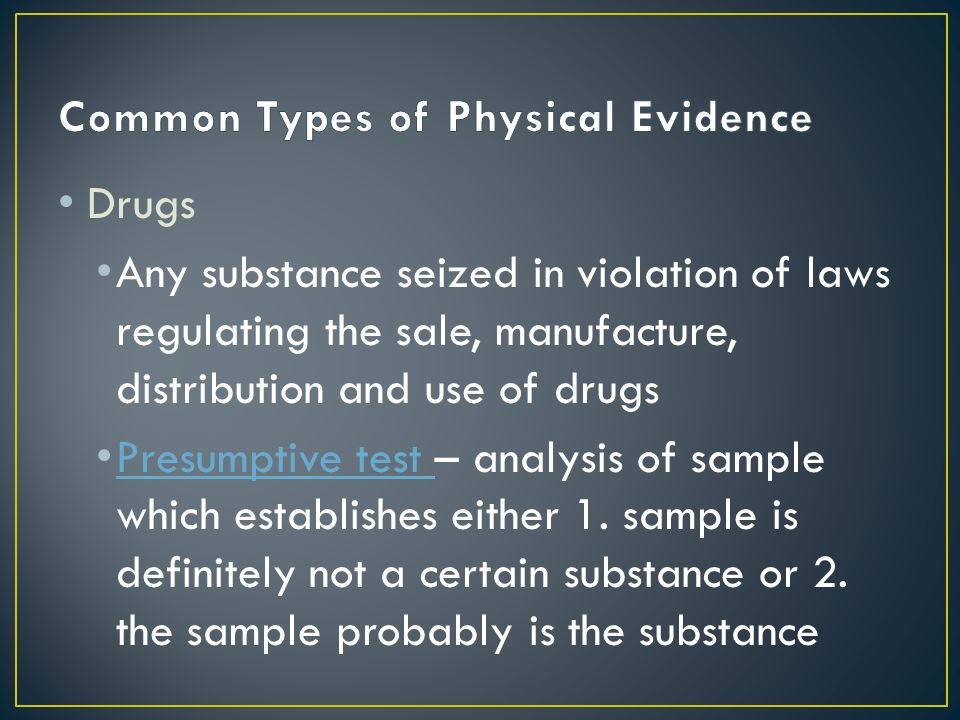

Drugs Any substance seized in violation of laws regulating the sale, manufacture, distribution and use of drugs Presumptive test – analysis of sample which establishes either 1. sample is definitely not a certain substance or 2. the sample probably is the substance Presumptive test
14

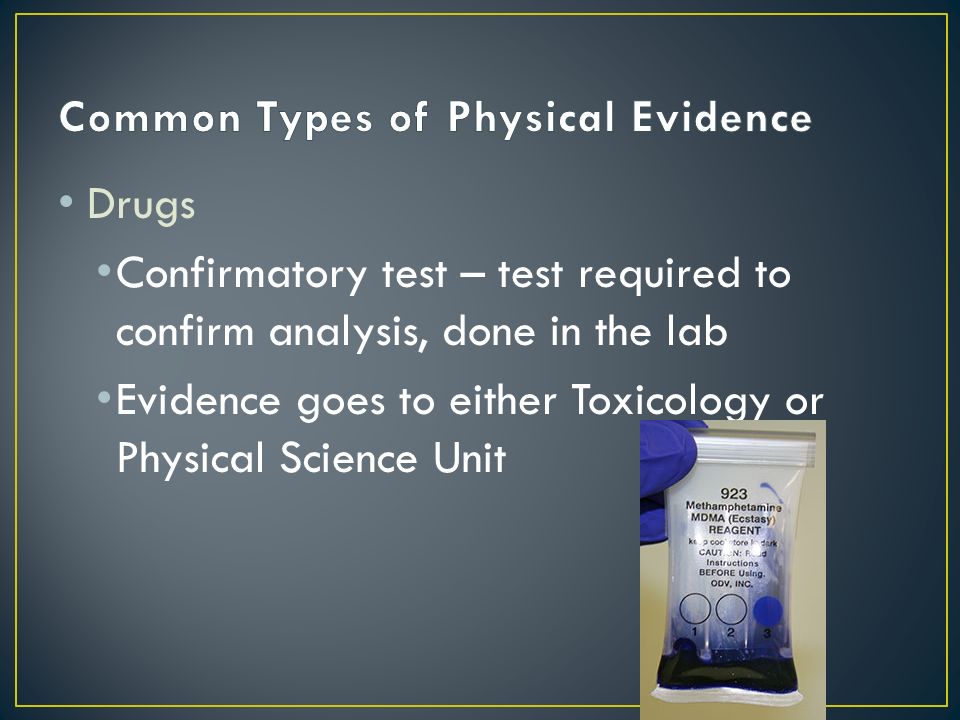

Drugs Confirmatory test – test required to confirm analysis, done in the lab Evidence goes to either Toxicology or Physical Science Unit
15

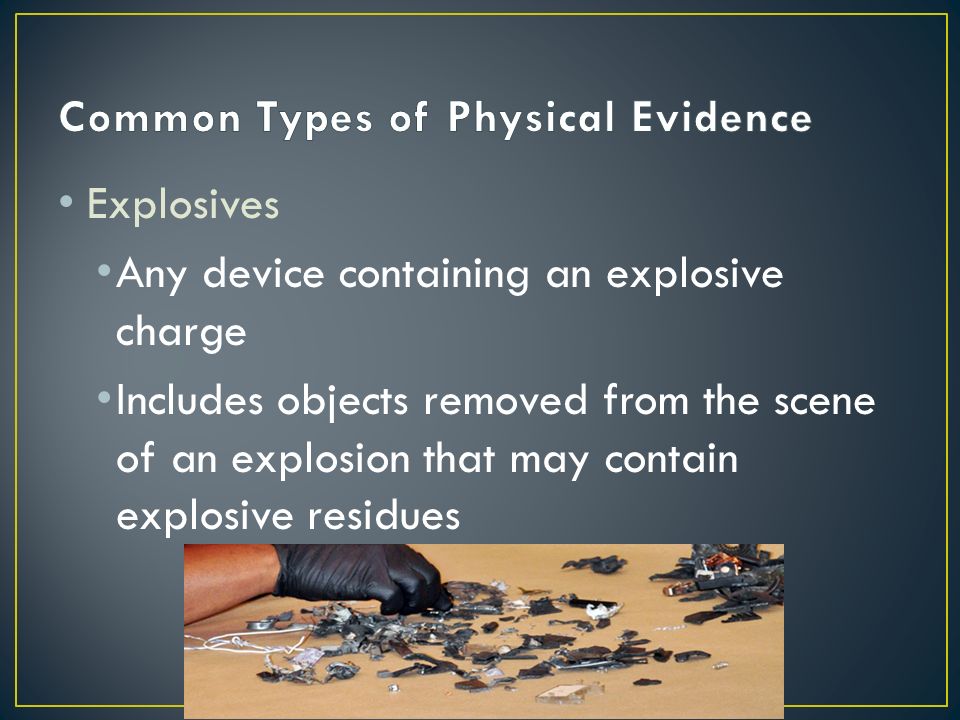

Explosives Any device containing an explosive charge Includes objects removed from the scene of an explosion that may contain explosive residues
16

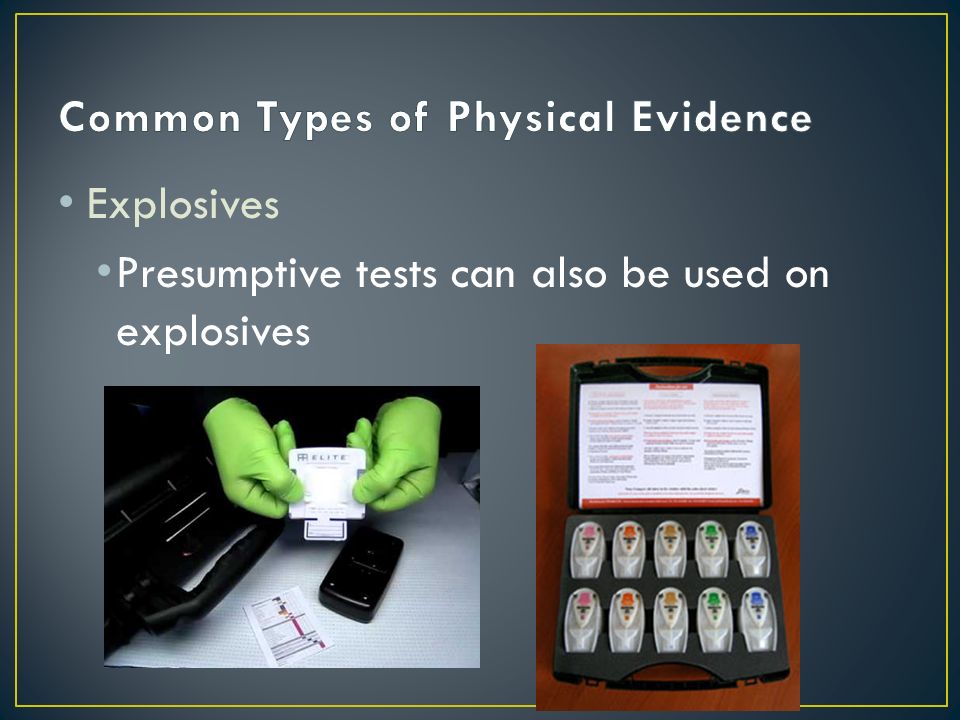

Explosives Presumptive tests can also be used on explosives
17

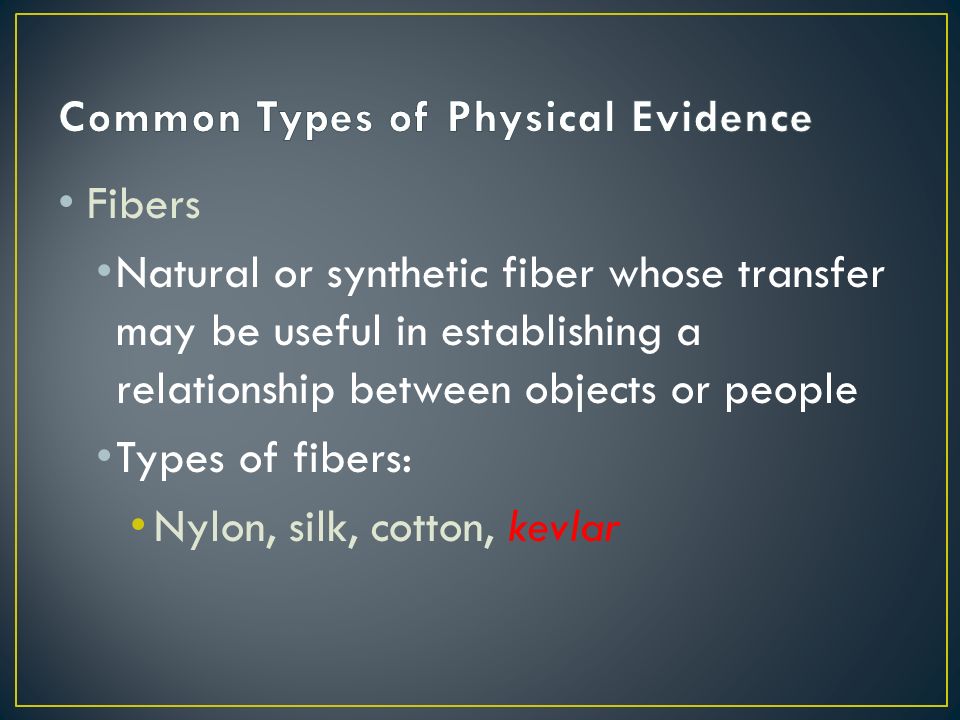

Fibers Natural or synthetic fiber whose transfer may be useful in establishing a relationship between objects or people Types of fibers: Nylon, silk, cotton, kevlar
18

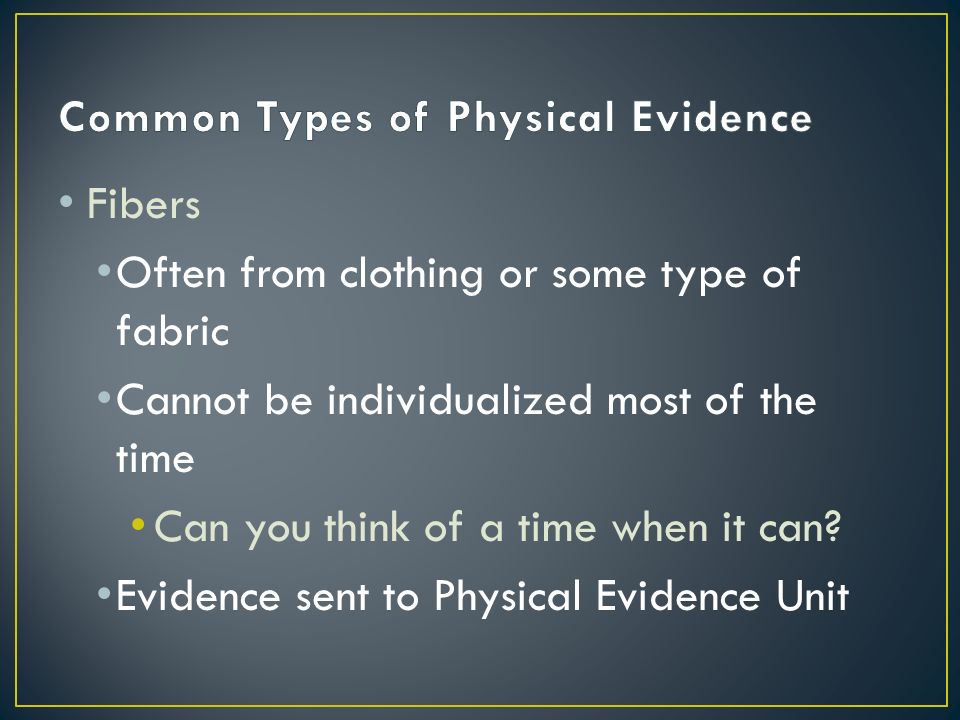

Fibers Often from clothing or some type of fabric Cannot be individualized most of the time Can you think of a time when it can? Evidence sent to Physical Evidence Unit
19

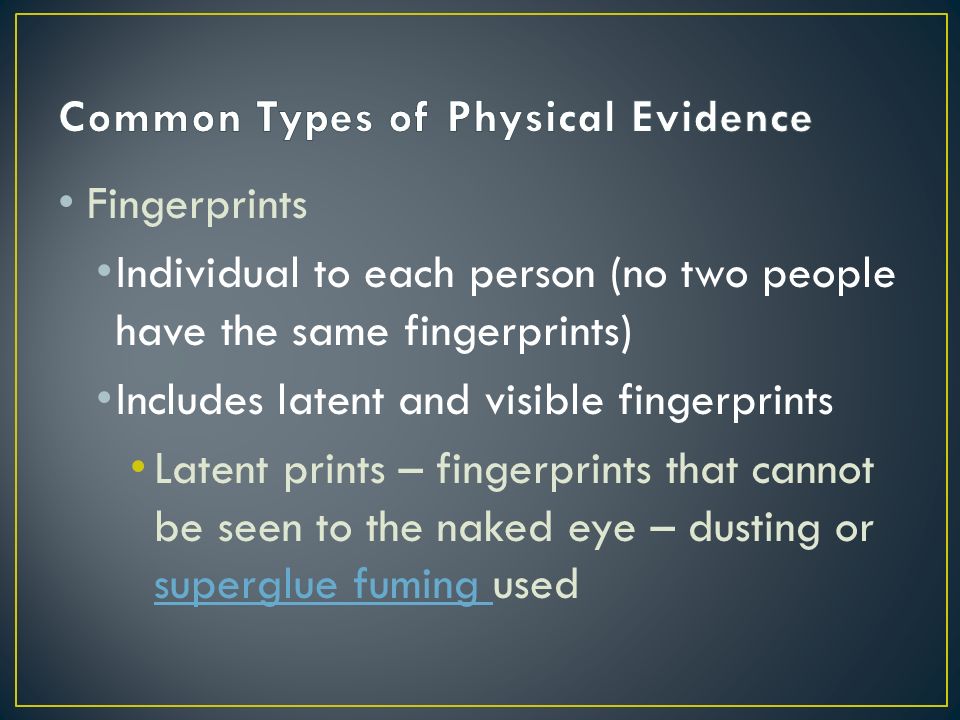

Fingerprints Individual to each person (no two people have the same fingerprints) Includes latent and visible fingerprints Latent prints – fingerprints that cannot be seen to the naked eye – dusting or superglue fuming used superglue fuming
20

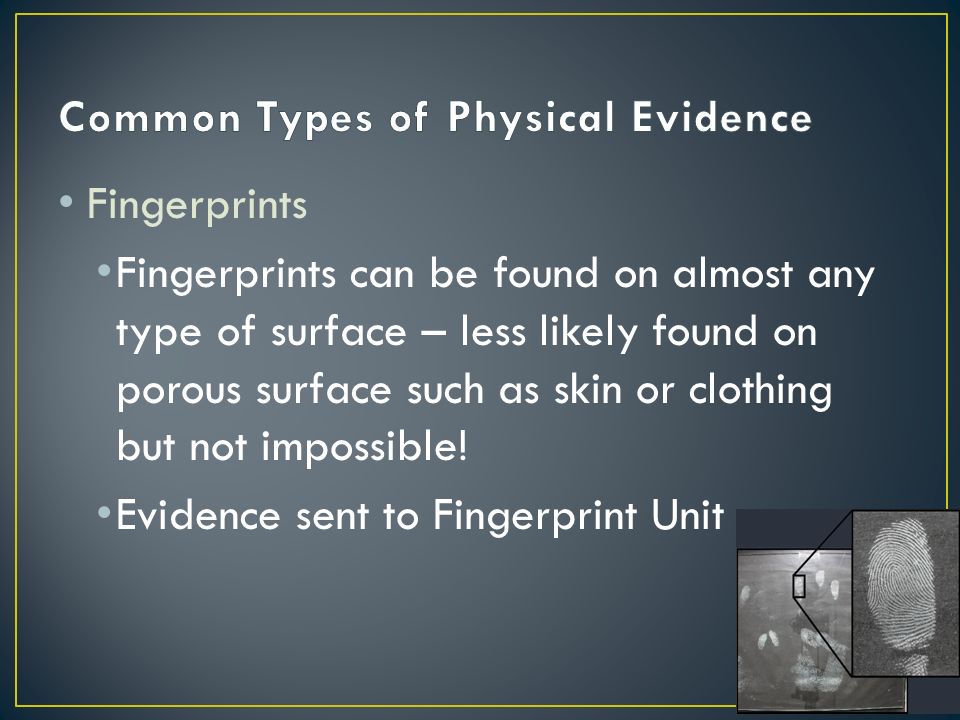

Fingerprints Fingerprints can be found on almost any type of surface – less likely found on porous surface such as skin or clothing but not impossible! Evidence sent to Fingerprint Unit
21

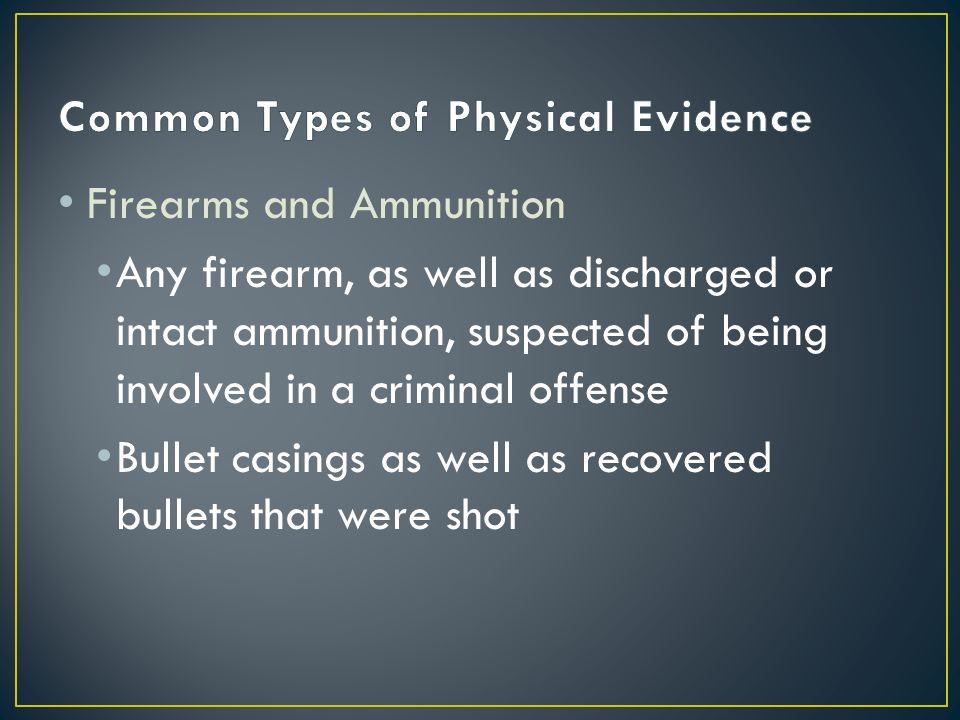

Firearms and Ammunition Any firearm, as well as discharged or intact ammunition, suspected of being involved in a criminal offense Bullet casings as well as recovered bullets that were shot
22

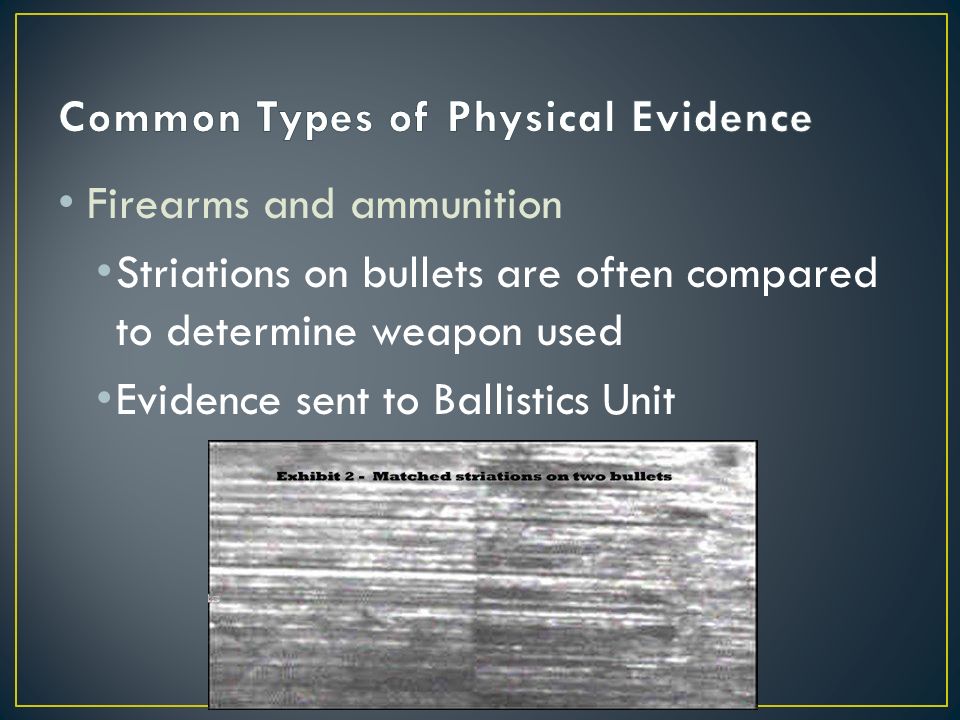

Firearms and ammunition Striations on bullets are often compared to determine weapon used Evidence sent to Ballistics Unit
23

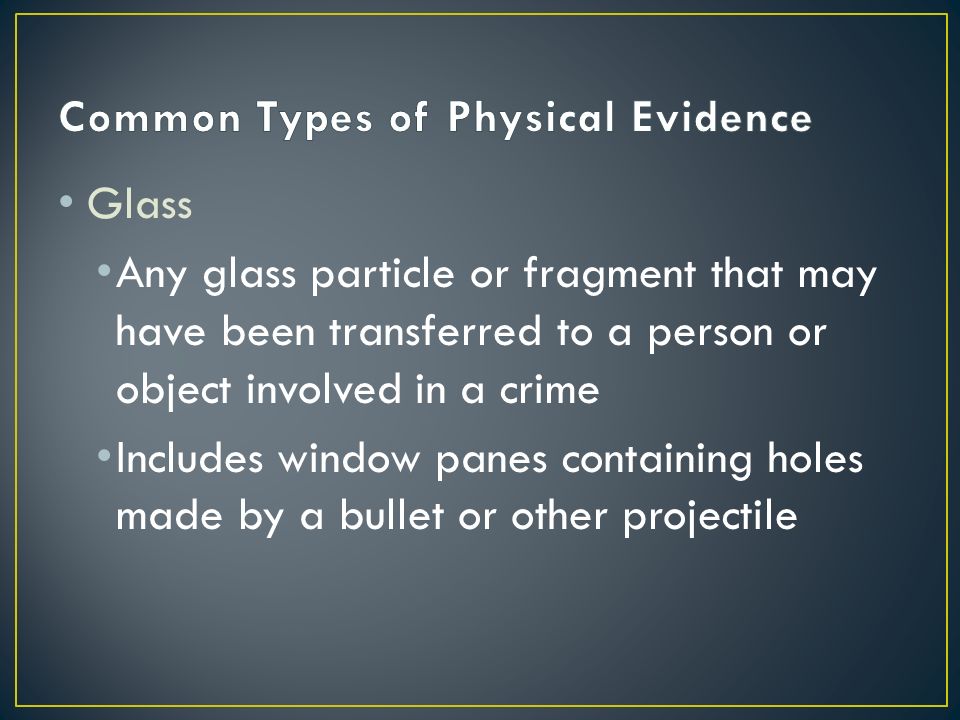

Glass Any glass particle or fragment that may have been transferred to a person or object involved in a crime Includes window panes containing holes made by a bullet or other projectile
24

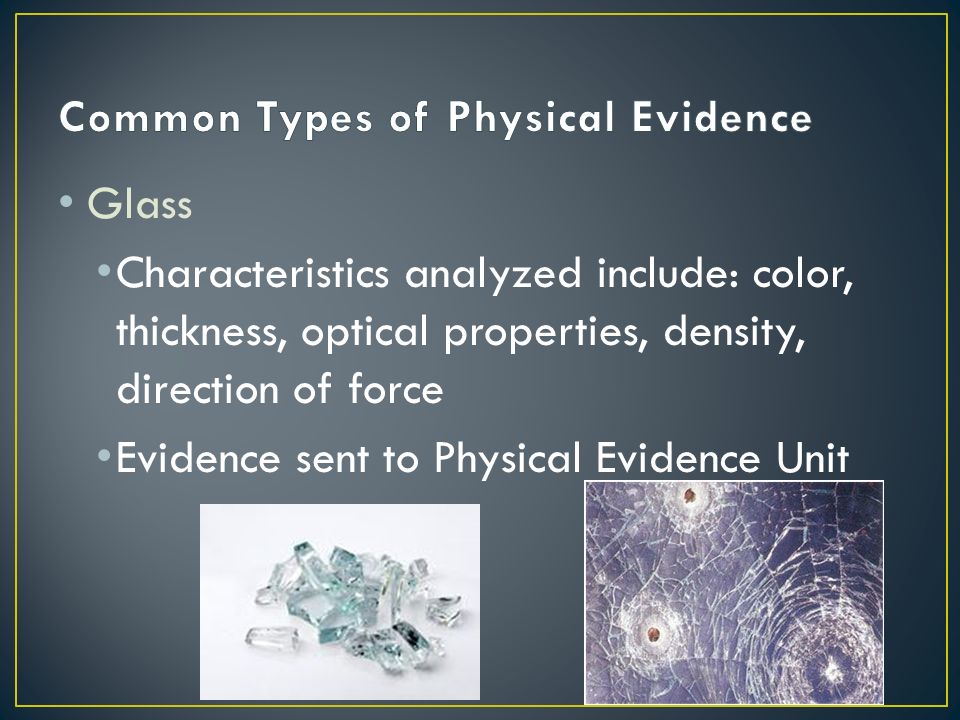

Glass Characteristics analyzed include: color, thickness, optical properties, density, direction of force Evidence sent to Physical Evidence Unit
25

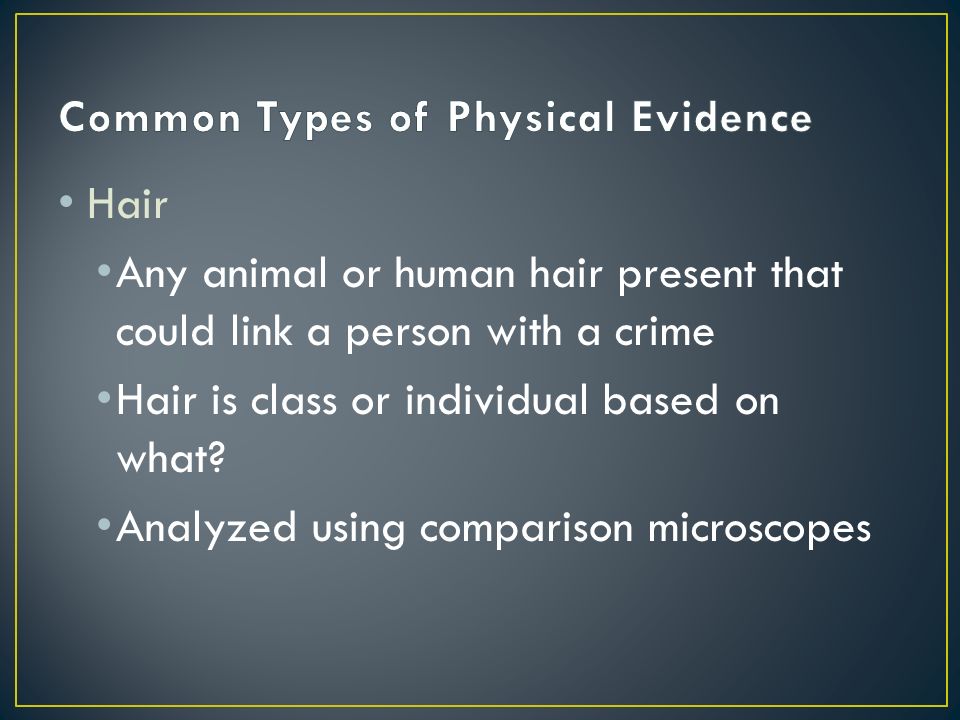

Hair Any animal or human hair present that could link a person with a crime Hair is class or individual based on what? Analyzed using comparison microscopes
27

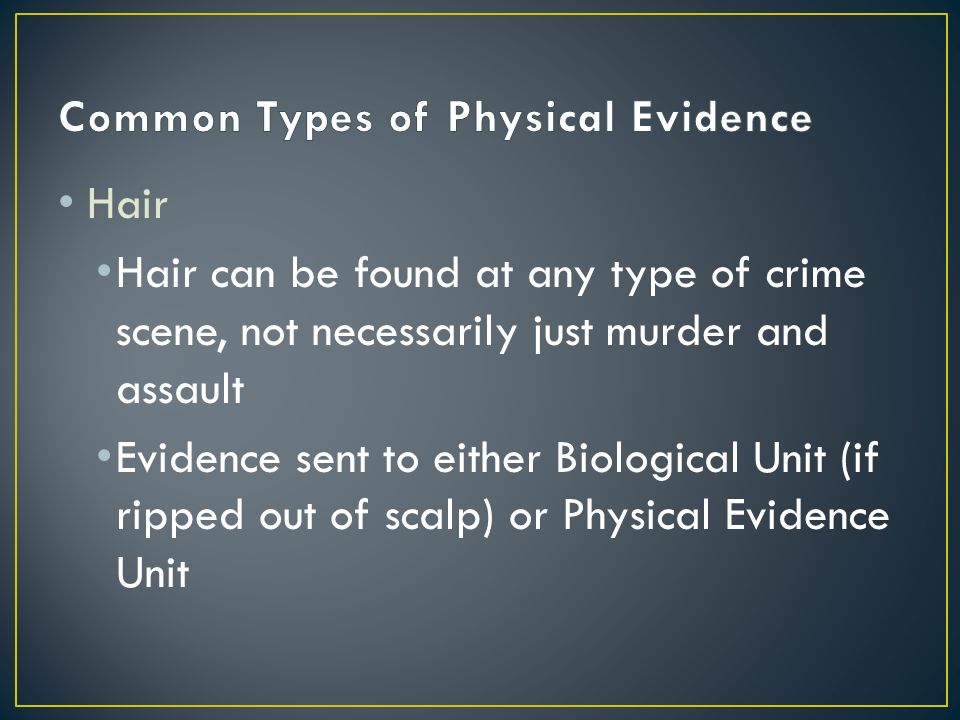

Hair Hair can be found at any type of crime scene, not necessarily just murder and assault Evidence sent to either Biological Unit (if ripped out of scalp) or Physical Evidence Unit
28

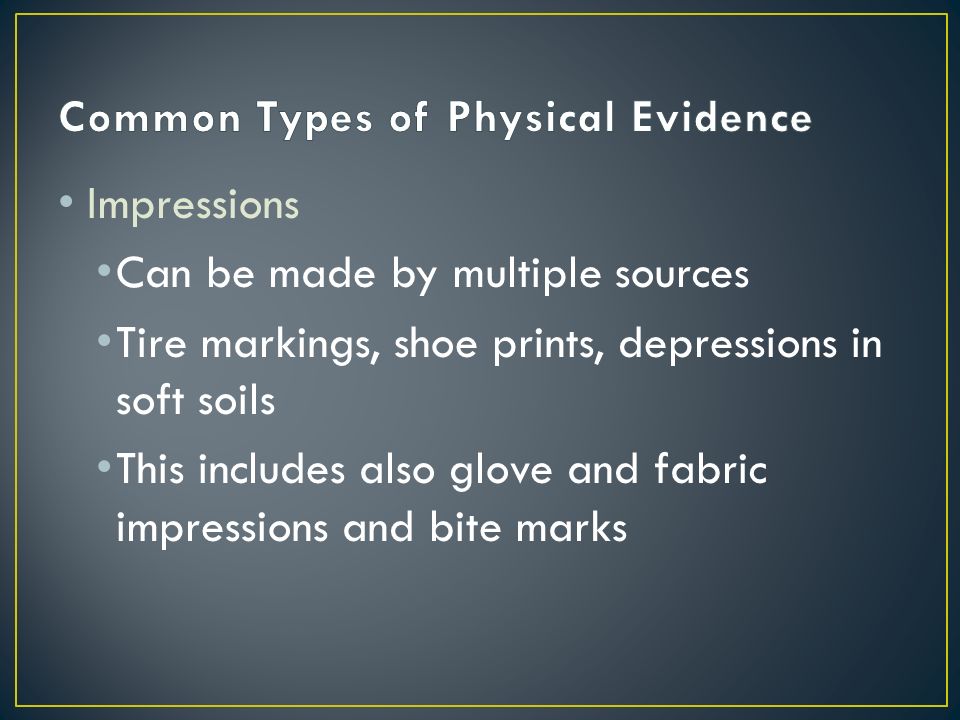

Impressions Can be made by multiple sources Tire markings, shoe prints, depressions in soft soils This includes also glove and fabric impressions and bite marks
29

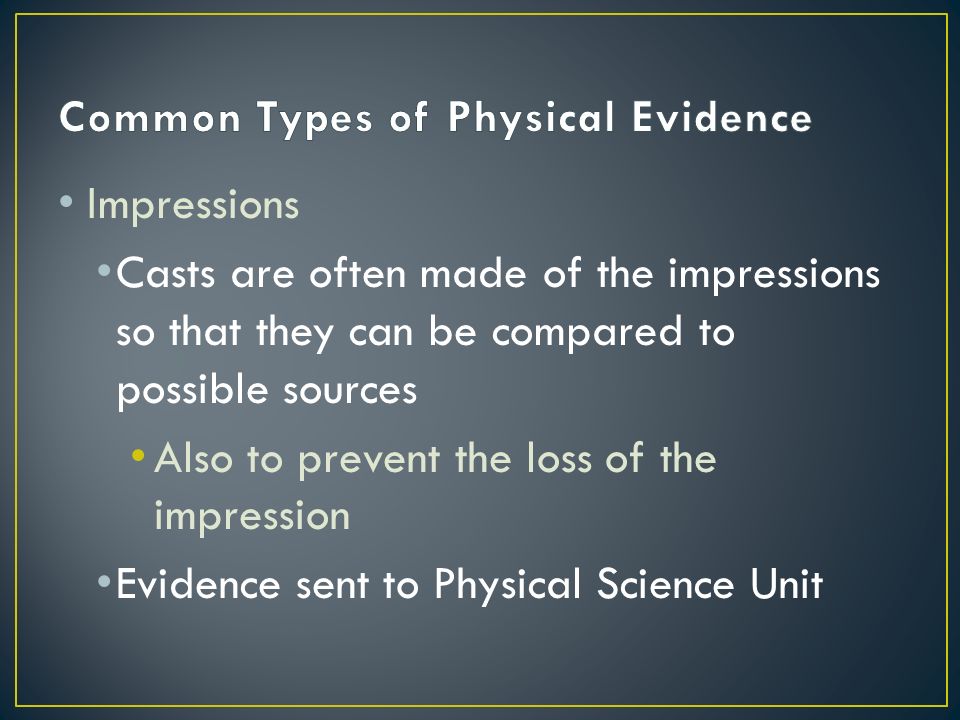

Impressions Casts are often made of the impressions so that they can be compared to possible sources Also to prevent the loss of the impression Evidence sent to Physical Science Unit
30

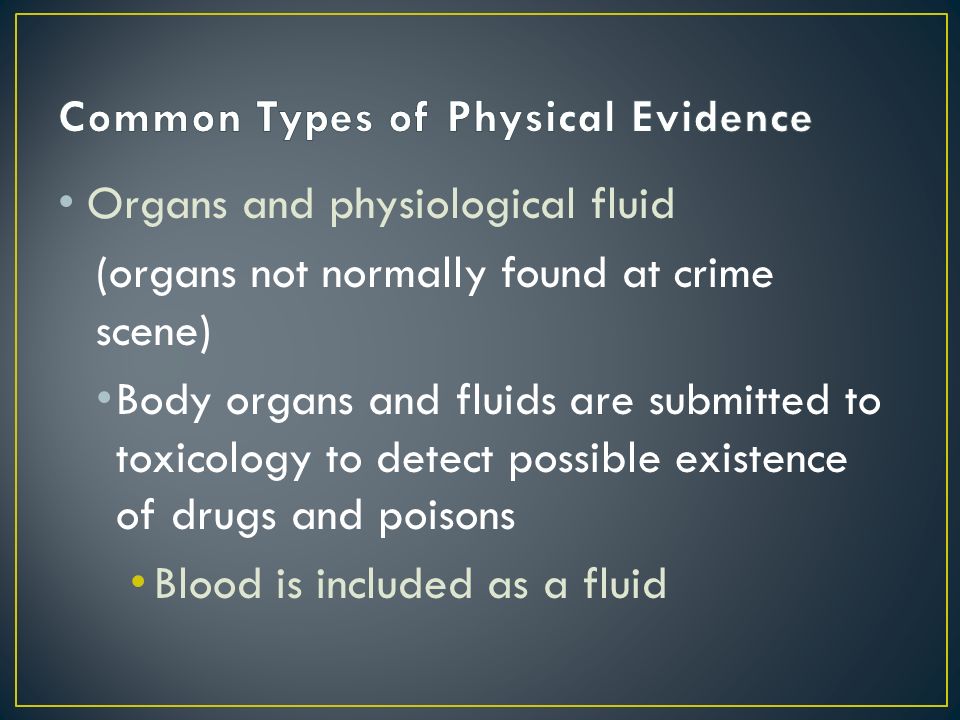

Organs and physiological fluid (organs not normally found at crime scene) Body organs and fluids are submitted to toxicology to detect possible existence of drugs and poisons Blood is included as a fluid
31

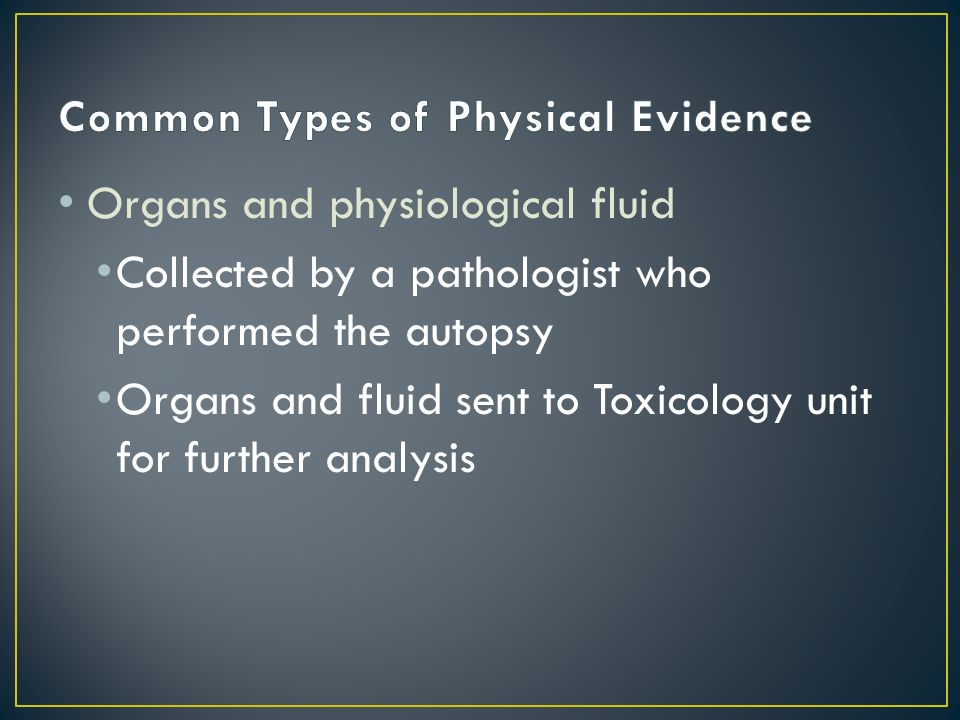

Organs and physiological fluid Collected by a pathologist who performed the autopsy Organs and fluid sent to Toxicology unit for further analysis
32

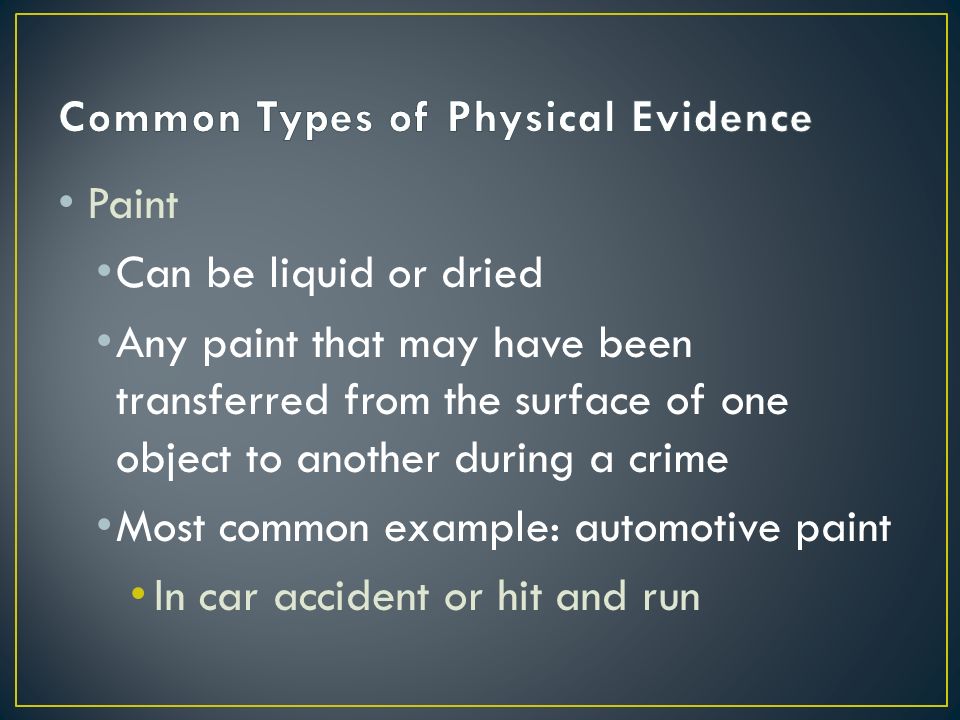

Paint Can be liquid or dried Any paint that may have been transferred from the surface of one object to another during a crime Most common example: automotive paint In car accident or hit and run
33
Paint Paint analysis is done using GC-MS in a lab – the chemical components of the paint are used to determine its origin Automotive paint – layers of colors help determine origin Evidence sent to Physical Science Unit
34

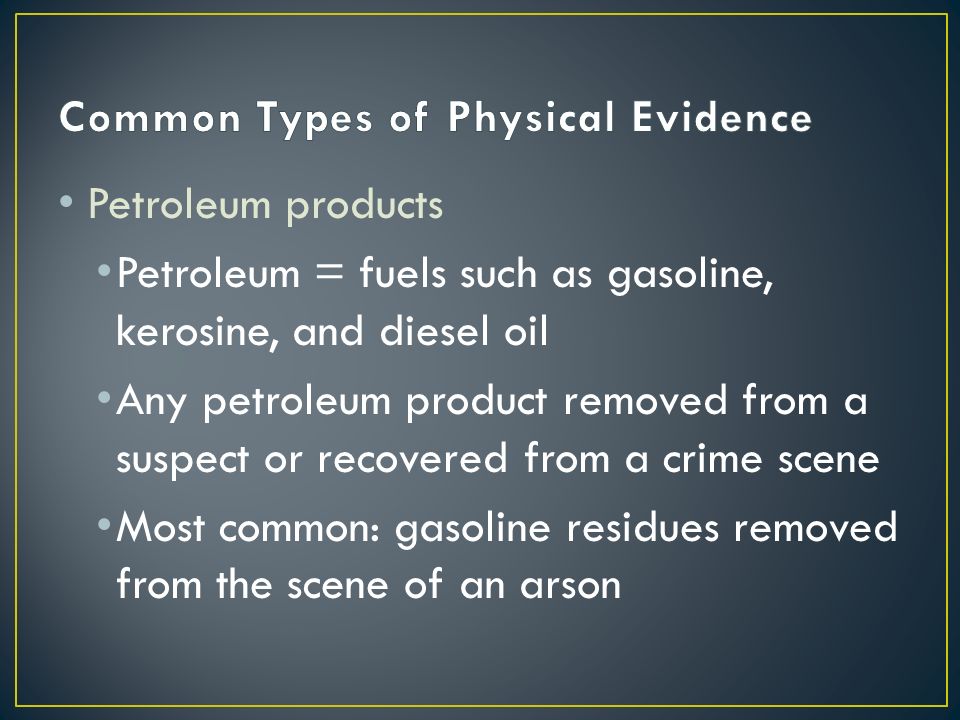

Petroleum products Petroleum = fuels such as gasoline, kerosine, and diesel oil Any petroleum product removed from a suspect or recovered from a crime scene Most common: gasoline residues removed from the scene of an arson
35

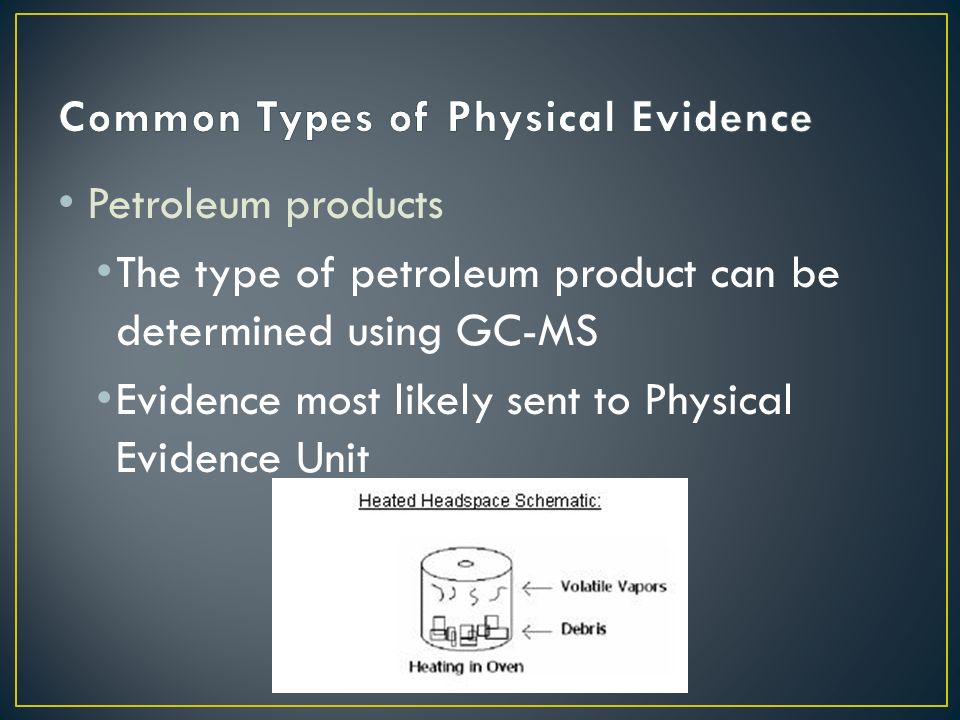

Petroleum products The type of petroleum product can be determined using GC-MS Evidence most likely sent to Physical Evidence Unit
36

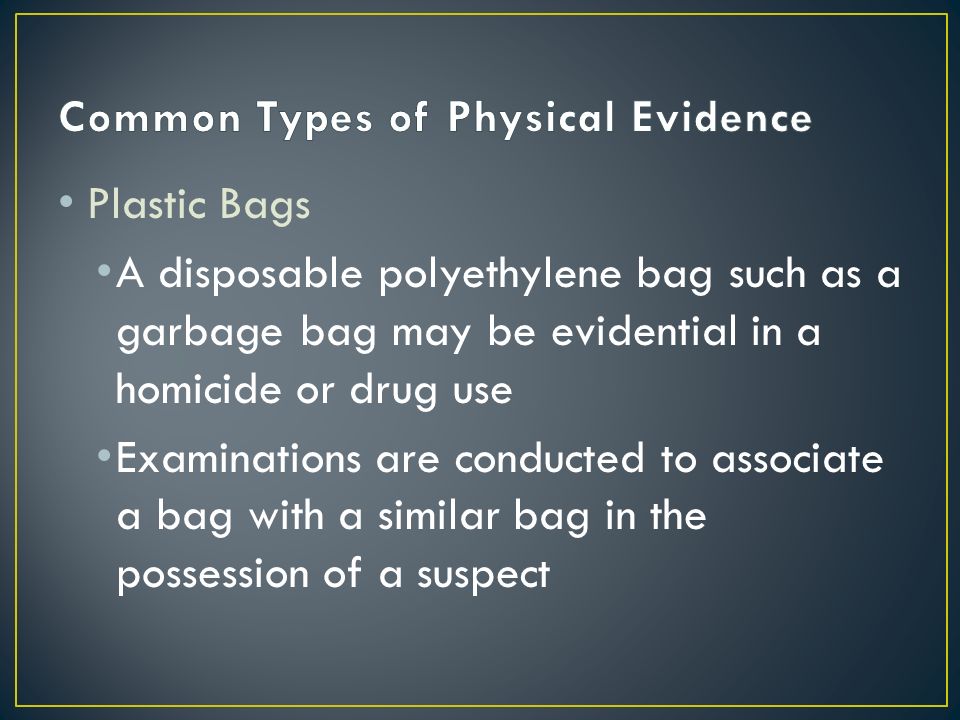

Plastic Bags A disposable polyethylene bag such as a garbage bag may be evidential in a homicide or drug use Examinations are conducted to associate a bag with a similar bag in the possession of a suspect
37
Plastic Bags Trace evidence such as hair or fibers can also be found on plastic bags in homicide cases Evidence sent to Physical Science Unit
38

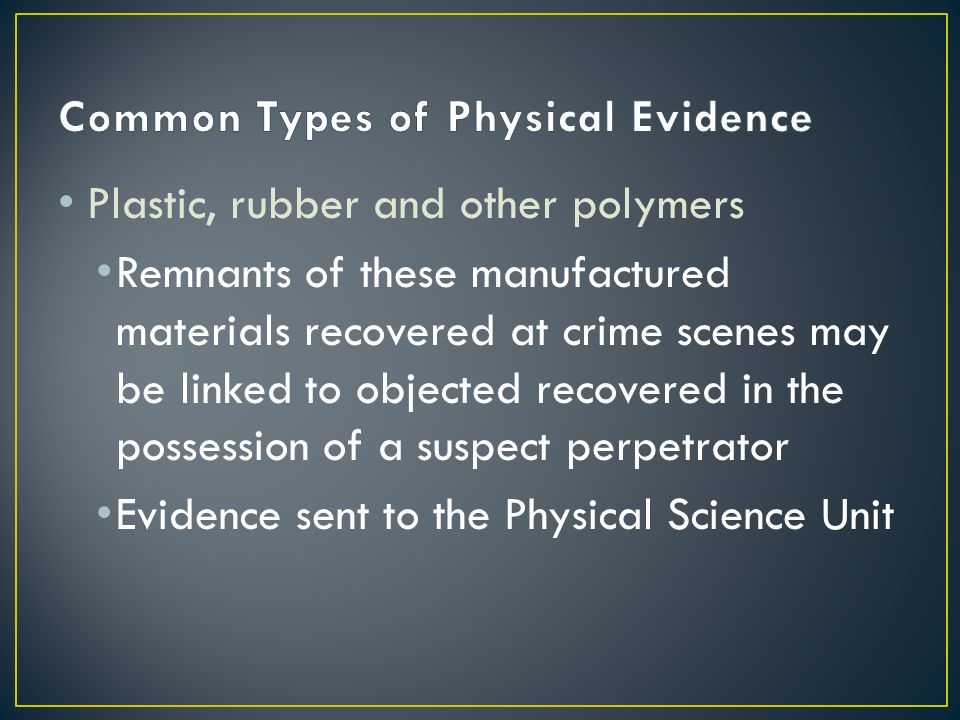

Plastic, rubber and other polymers Remnants of these manufactured materials recovered at crime scenes may be linked to objected recovered in the possession of a suspect perpetrator Evidence sent to the Physical Science Unit
39

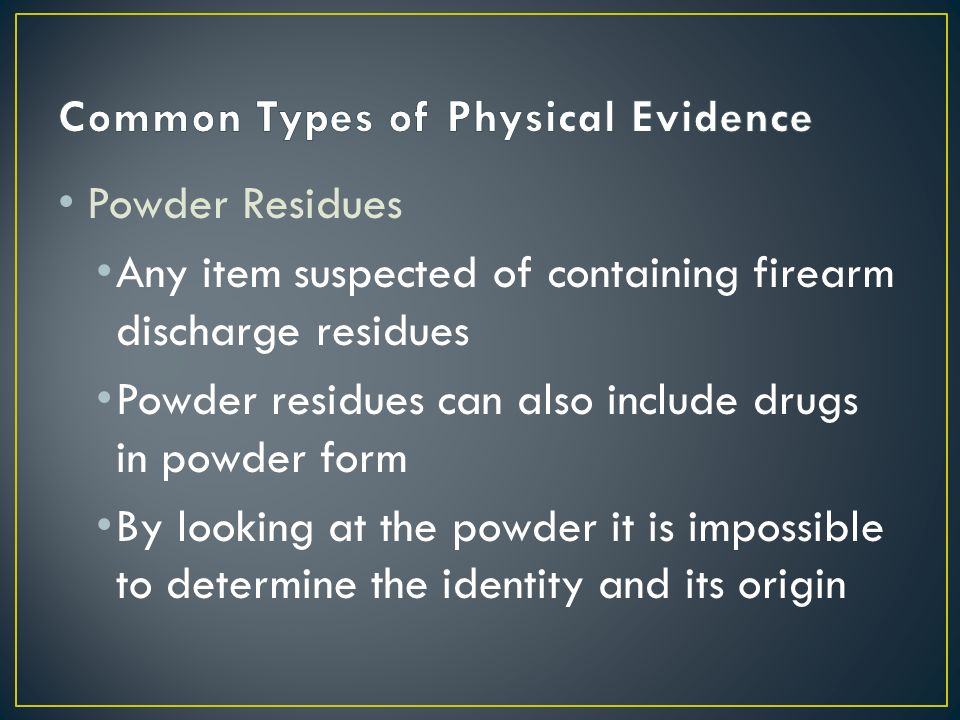

Powder Residues Any item suspected of containing firearm discharge residues Powder residues can also include drugs in powder form By looking at the powder it is impossible to determine the identity and its origin
40

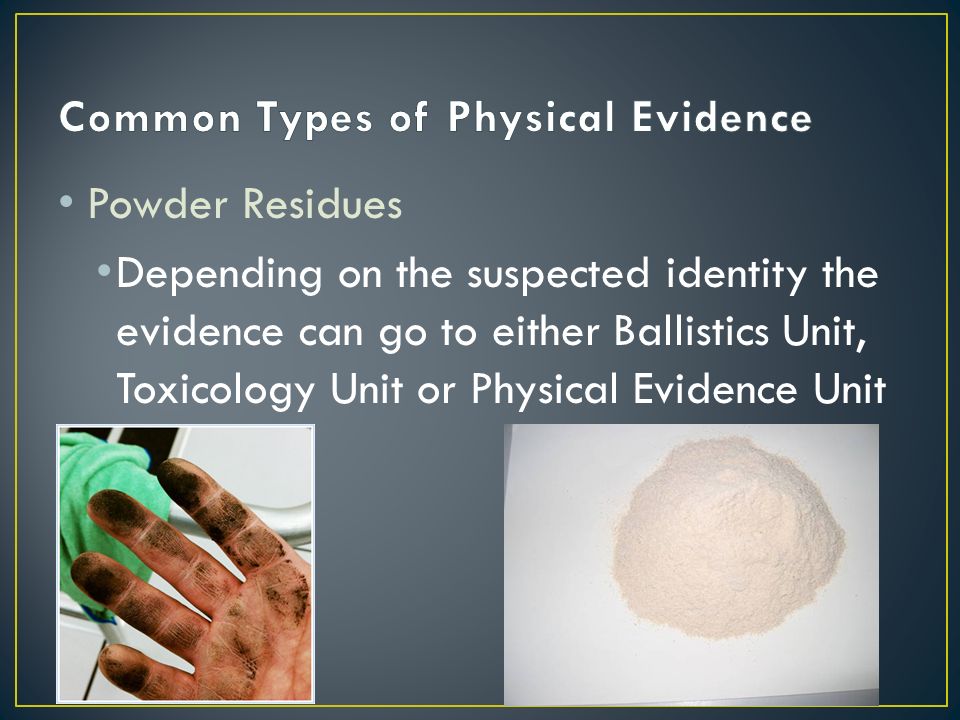

Powder Residues Depending on the suspected identity the evidence can go to either Ballistics Unit, Toxicology Unit or Physical Evidence Unit
41

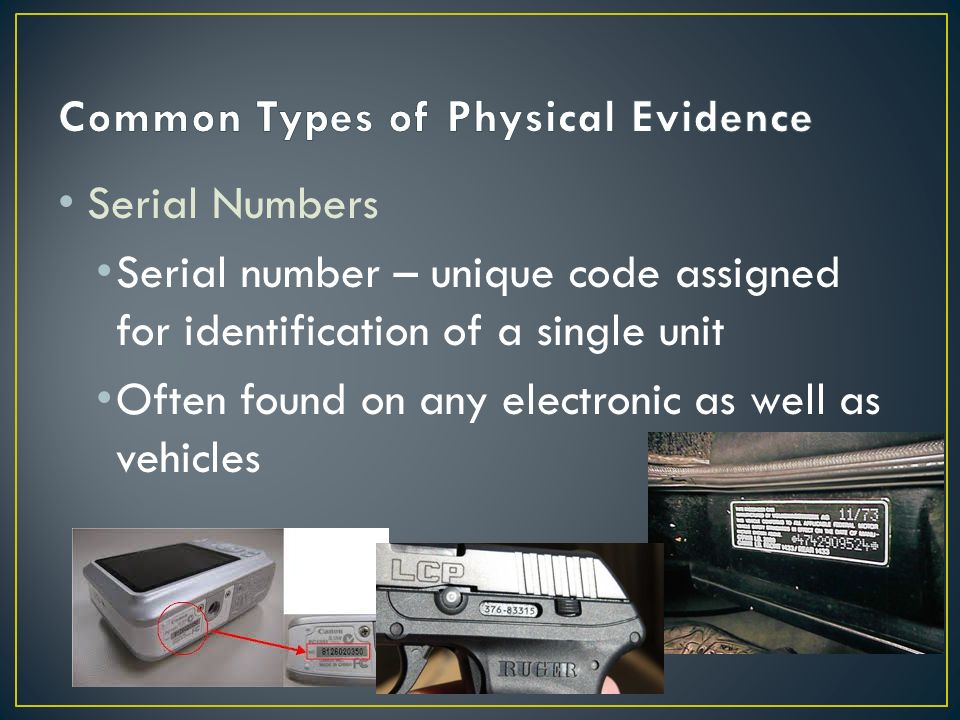

Serial Numbers Serial number – unique code assigned for identification of a single unit Often found on any electronic as well as vehicles
42

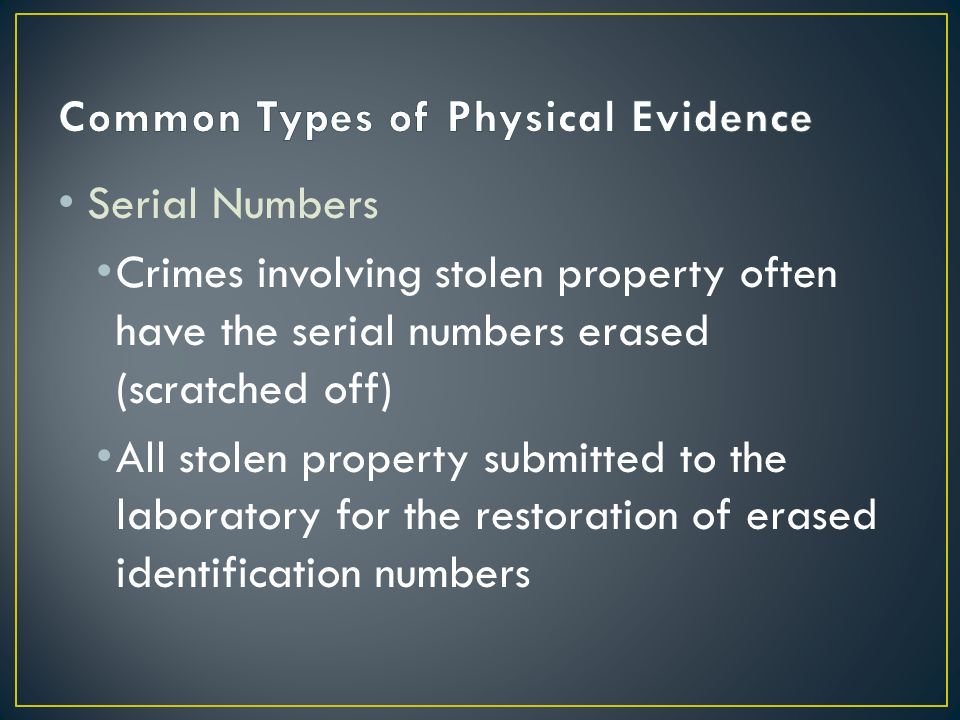

Serial Numbers Crimes involving stolen property often have the serial numbers erased (scratched off) All stolen property submitted to the laboratory for the restoration of erased identification numbers
43

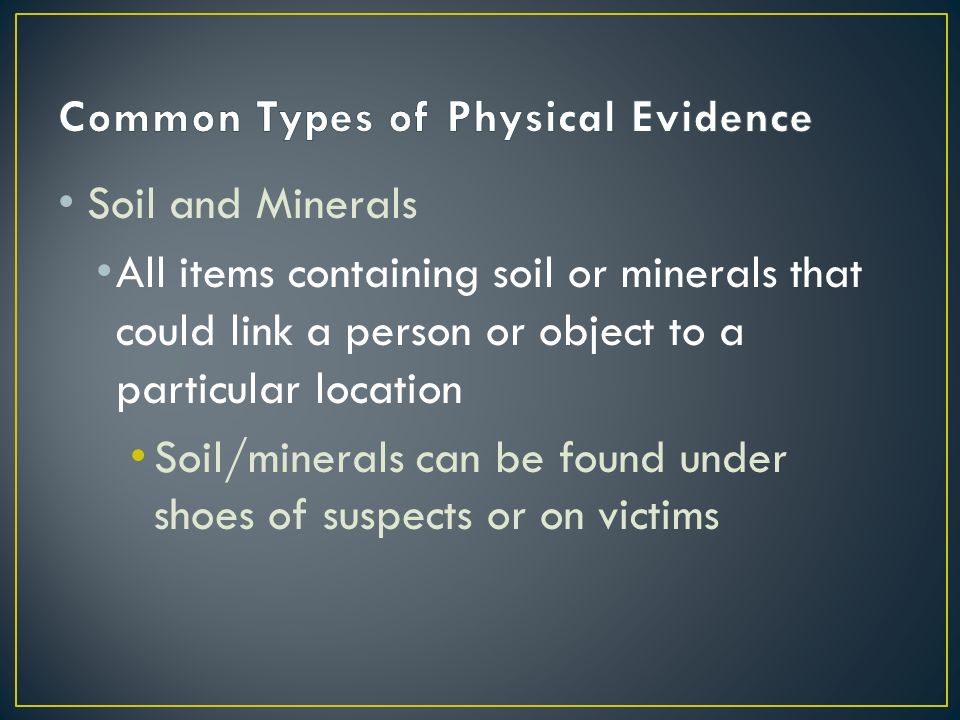

Soil and Minerals All items containing soil or minerals that could link a person or object to a particular location Soil/minerals can be found under shoes of suspects or on victims
44

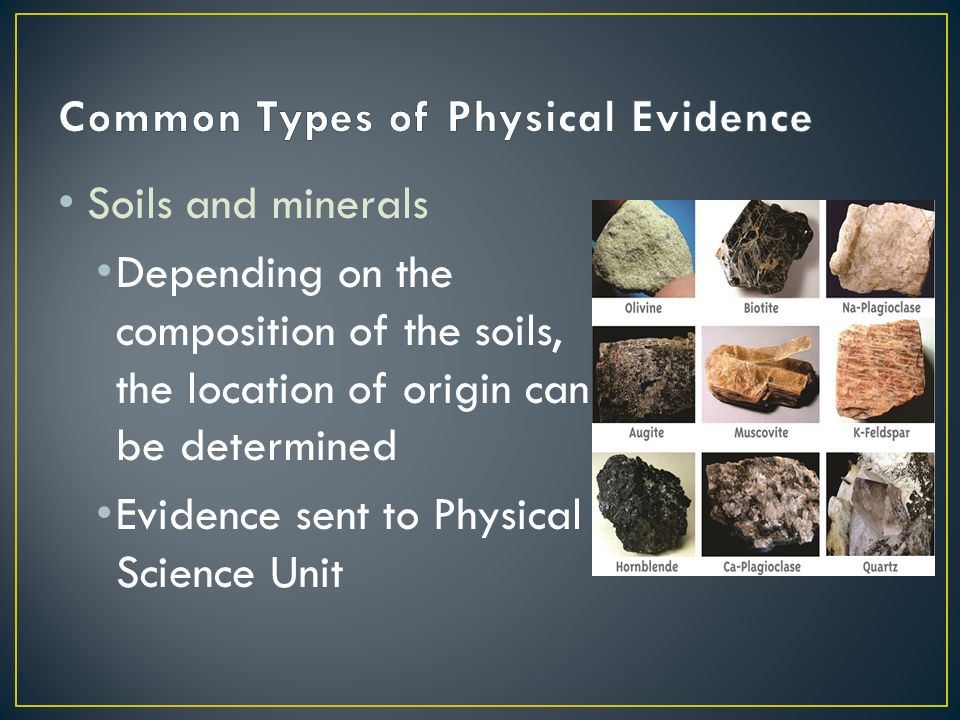

Soils and minerals Depending on the composition of the soils, the location of origin can be determined Evidence sent to Physical Science Unit
45
Tool Marks Any object suspected of containing the impression of another object that served as a tool in a crime A screwdriver or crowbar would produce tool marks by being impressed into or scraped along a surface of a wall
46

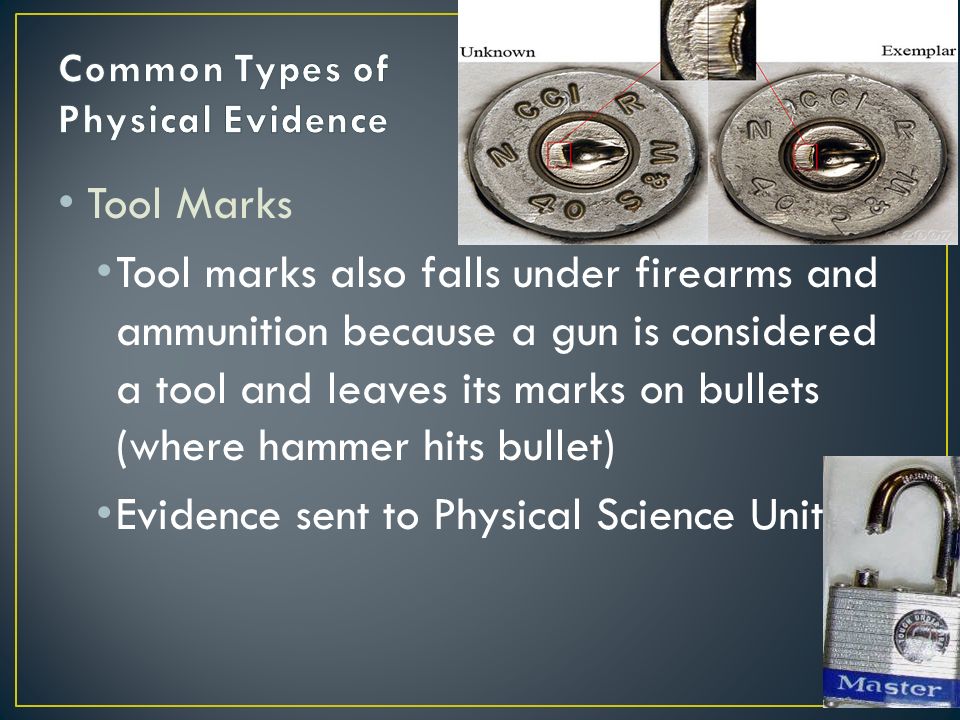

Tool Marks Tool marks also falls under firearms and ammunition because a gun is considered a tool and leaves its marks on bullets (where hammer hits bullet) Evidence sent to Physical Science Unit
47

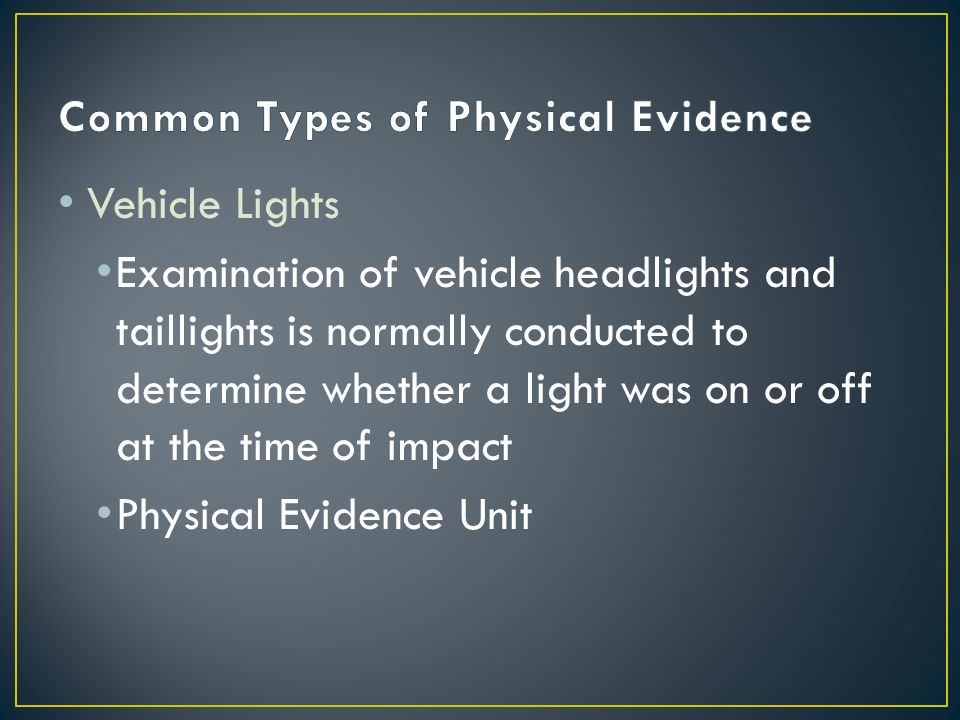

Vehicle Lights Examination of vehicle headlights and taillights is normally conducted to determine whether a light was on or off at the time of impact Physical Evidence Unit
48

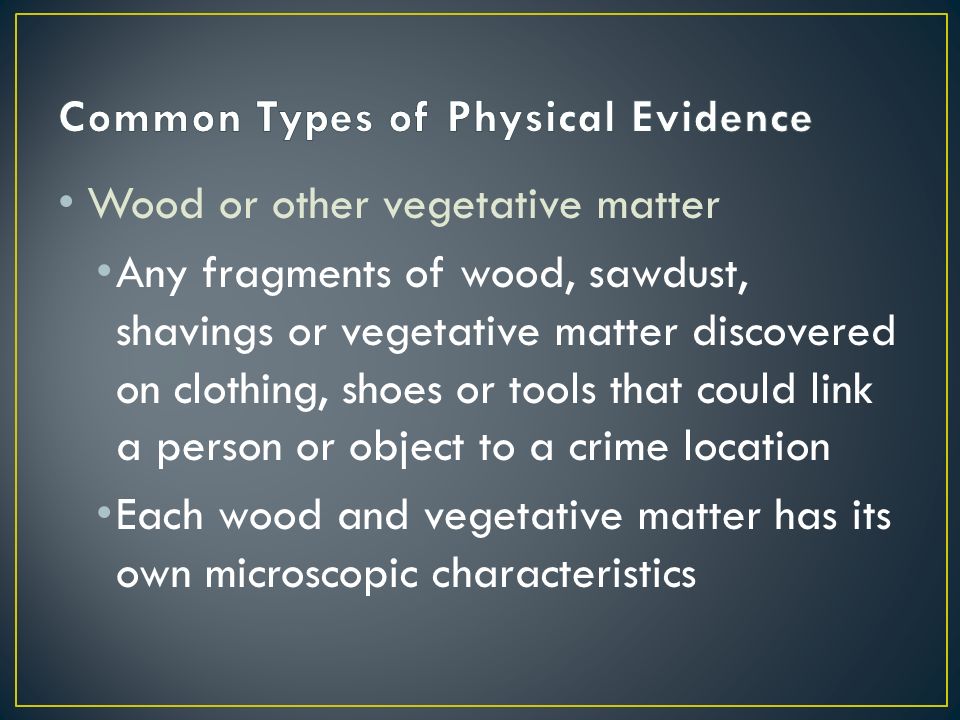

Wood or other vegetative matter Any fragments of wood, sawdust, shavings or vegetative matter discovered on clothing, shoes or tools that could link a person or object to a crime location Each wood and vegetative matter has its own microscopic characteristics
49

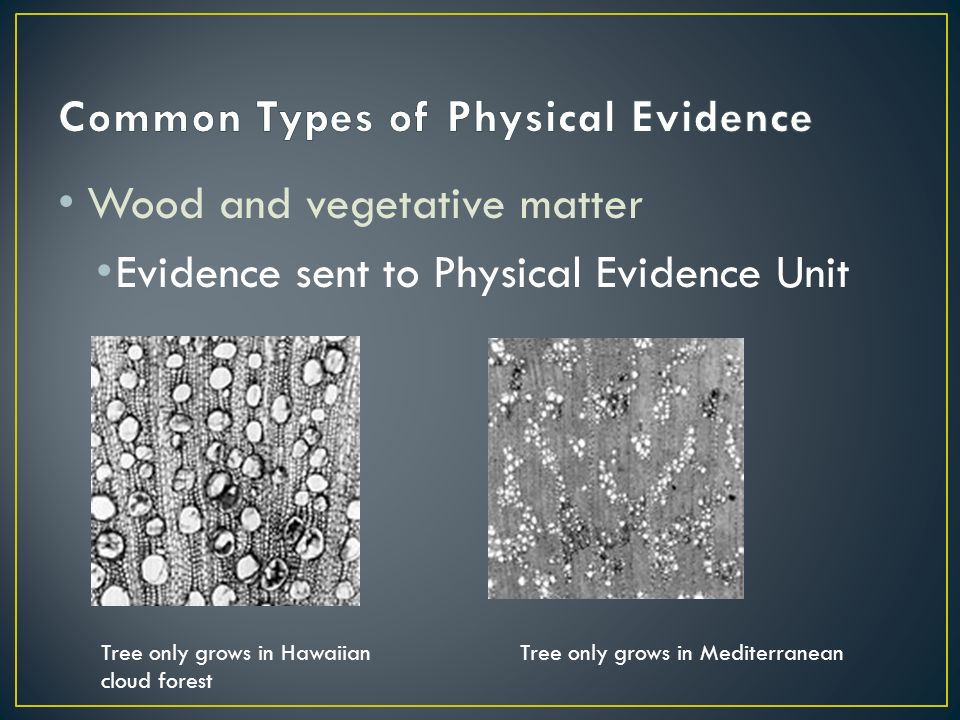

Wood and vegetative matter Evidence sent to Physical Evidence Unit Tree only grows in Hawaiian cloud forest Tree only grows in Mediterranean
50

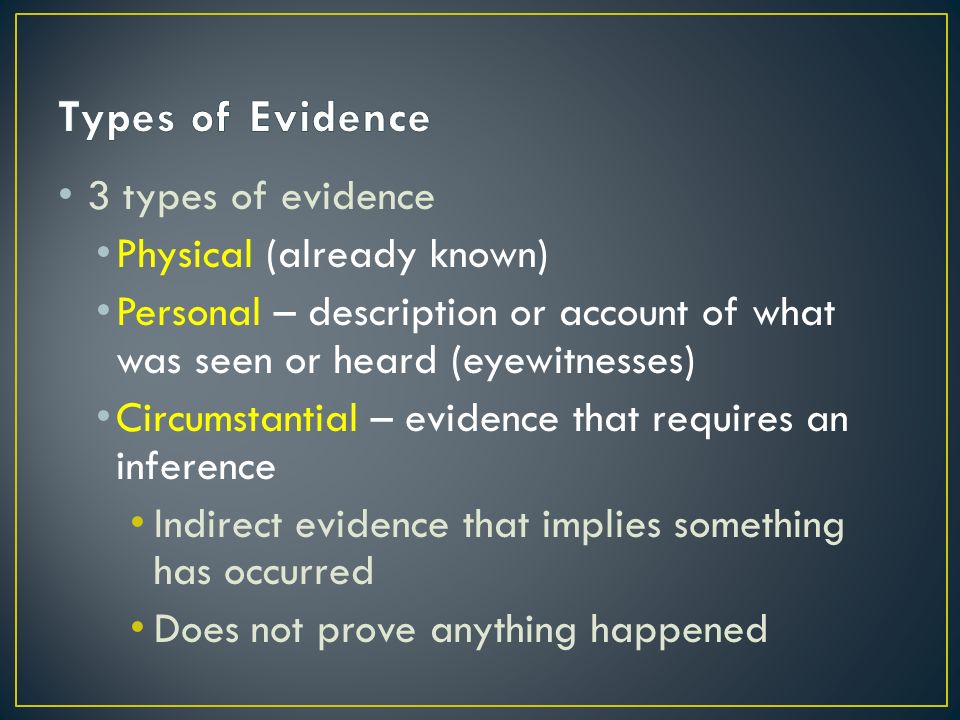

3 types of evidence Physical (already known) Personal – description or account of what was seen or heard (eyewitnesses) Circumstantial – evidence that requires an inference Indirect evidence that implies something has occurred Does not prove anything happened
51

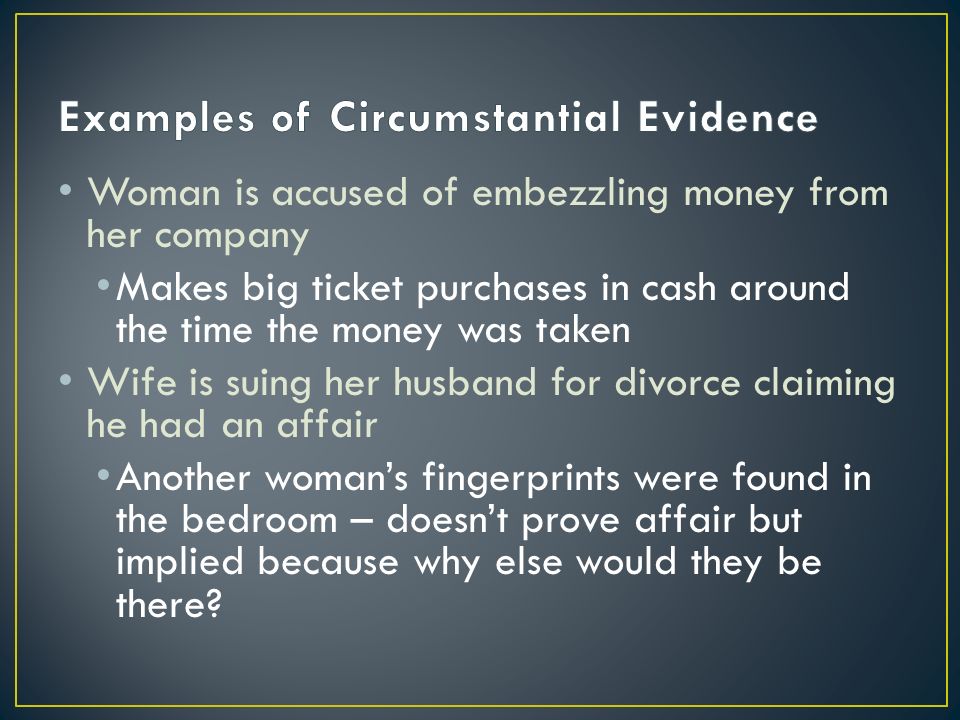

Woman is accused of embezzling money from her company Makes big ticket purchases in cash around the time the money was taken Wife is suing her husband for divorce claiming he had an affair Another woman’s fingerprints were found in the bedroom – doesn’t prove affair but implied because why else would they be there?
52

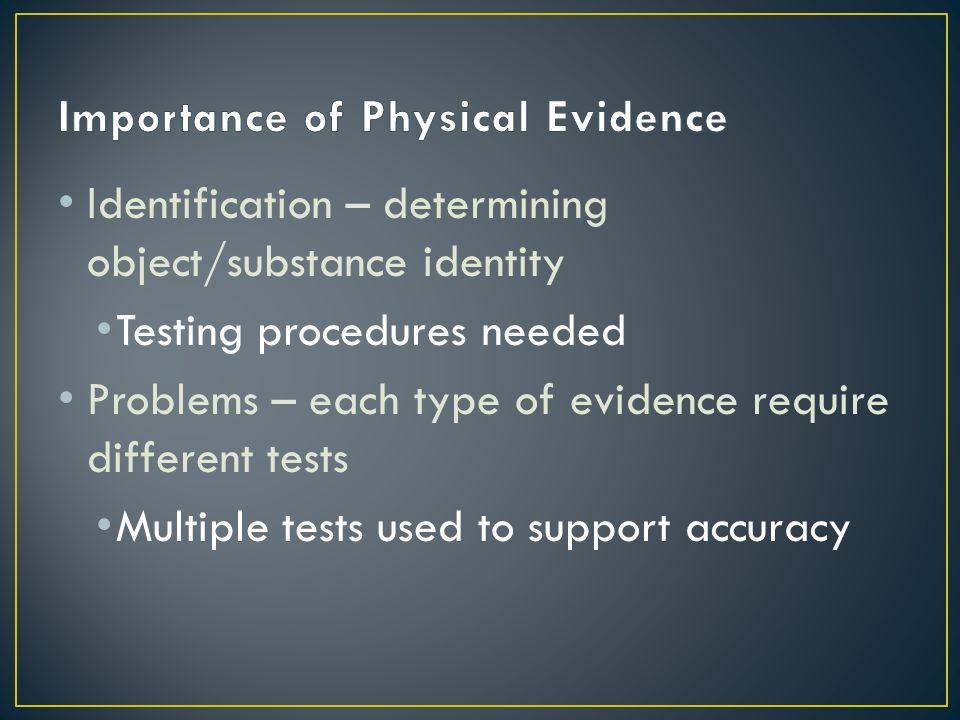

Identification – determining object/substance identity Testing procedures needed Problems – each type of evidence require different tests Multiple tests used to support accuracy
53

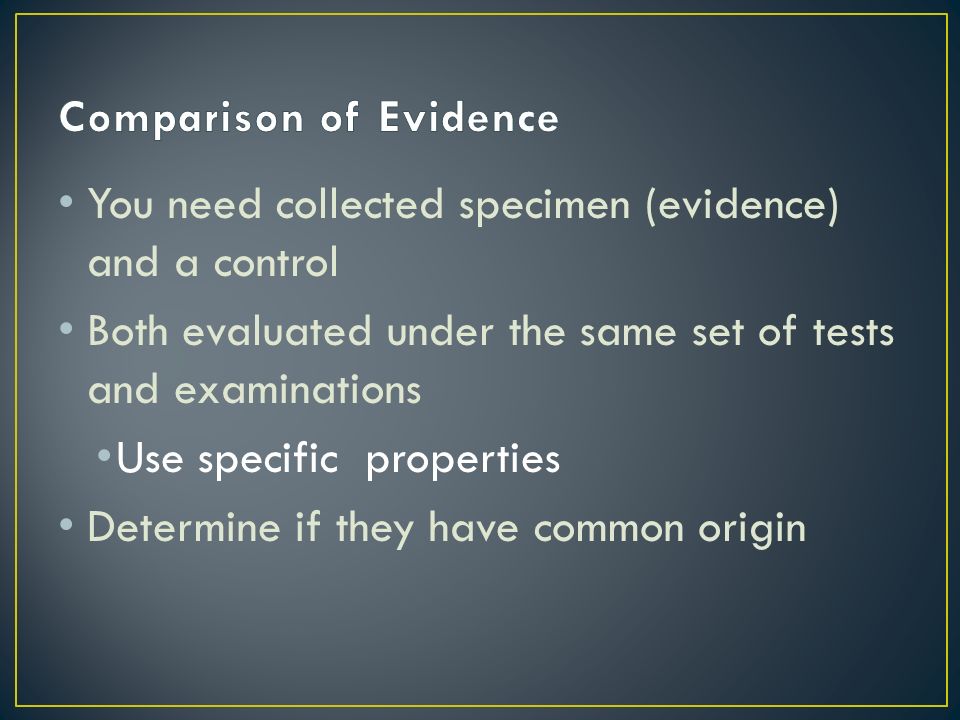

You need collected specimen (evidence) and a control Both evaluated under the same set of tests and examinations Use specific properties Determine if they have common origin
54

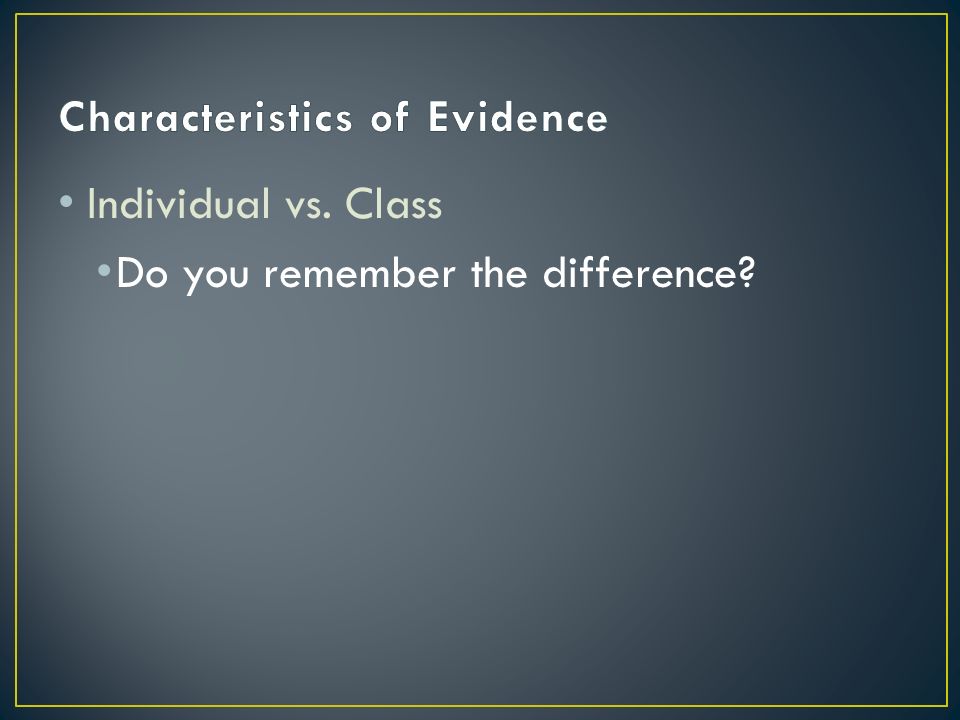

Individual vs. Class Do you remember the difference?
55

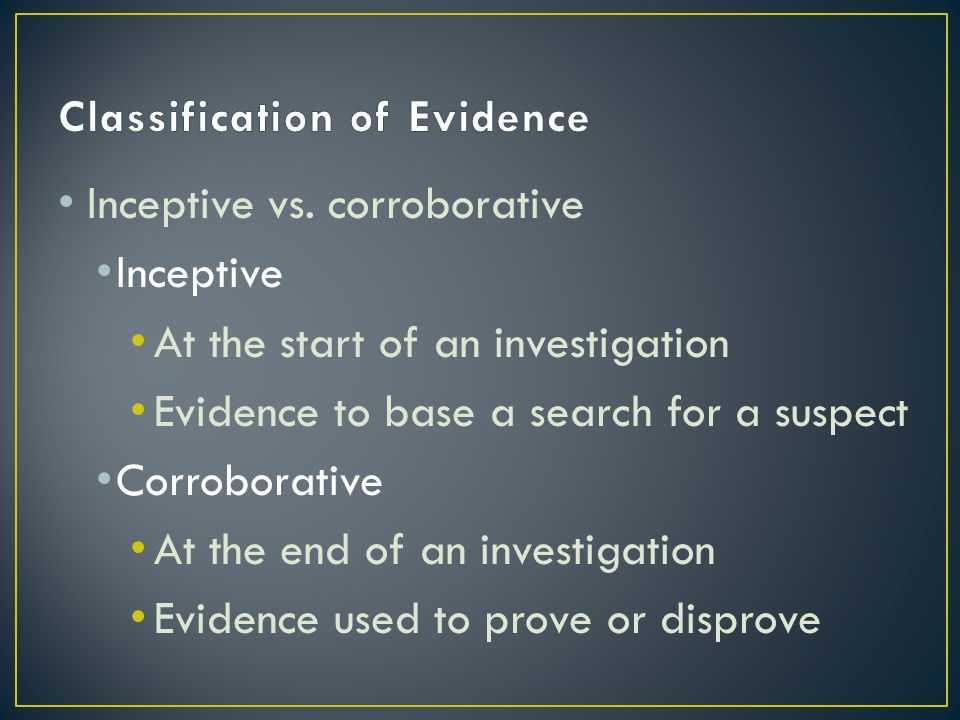

Inceptive vs. corroborative Inceptive At the start of an investigation Evidence to base a search for a suspect Corroborative At the end of an investigation Evidence used to prove or disprove
56

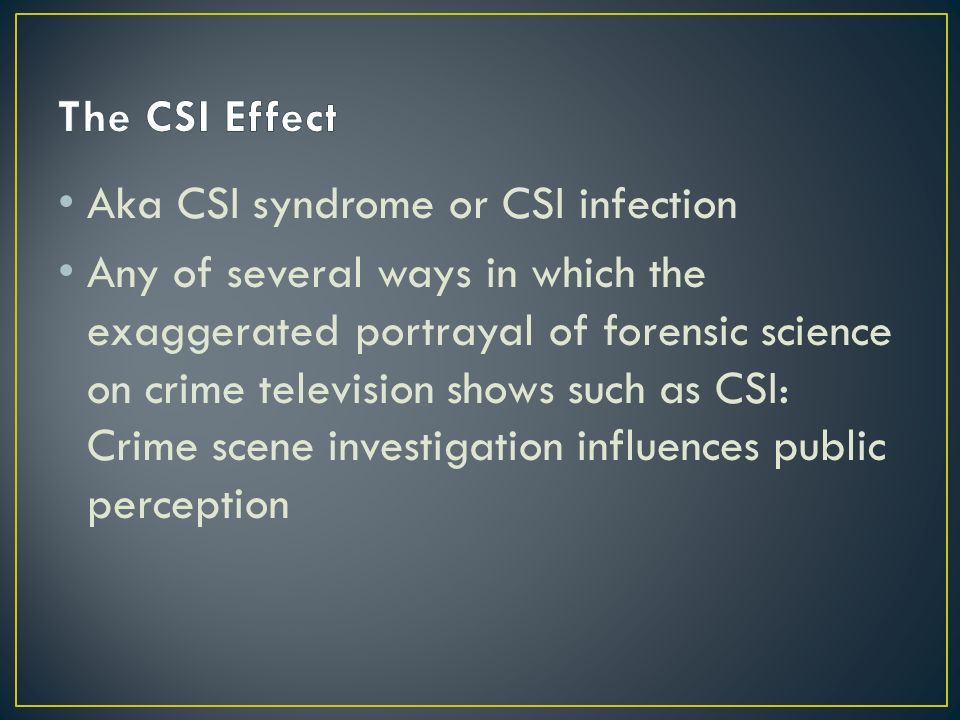

Aka CSI syndrome or CSI infection Any of several ways in which the exaggerated portrayal of forensic science on crime television shows such as CSI: Crime scene investigation influences public perception
