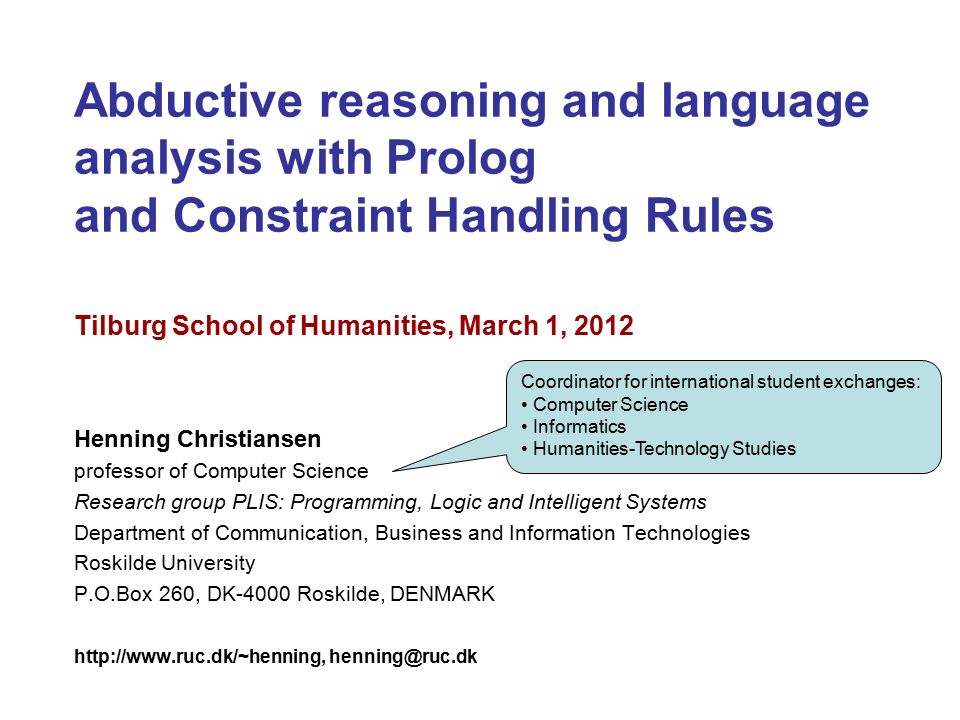

1. Abductive reasoning and language analysis with Prolog and Constraint Handling Rules Tilburg School of Humanities, March 1, 2012 Henning Christiansen professor of Computer Science Research group PLIS: Programming, Logic and Intelligent Systems Department of Communication, Business and Information Technologies Roskilde University P.O.Box 260, DK-4000 Roskilde, DENMARK http://www.ruc.dk/~henning, henning@ruc.dk Coordinator for international student exchanges: Computer Science Informatics Humanities-Technology Studies

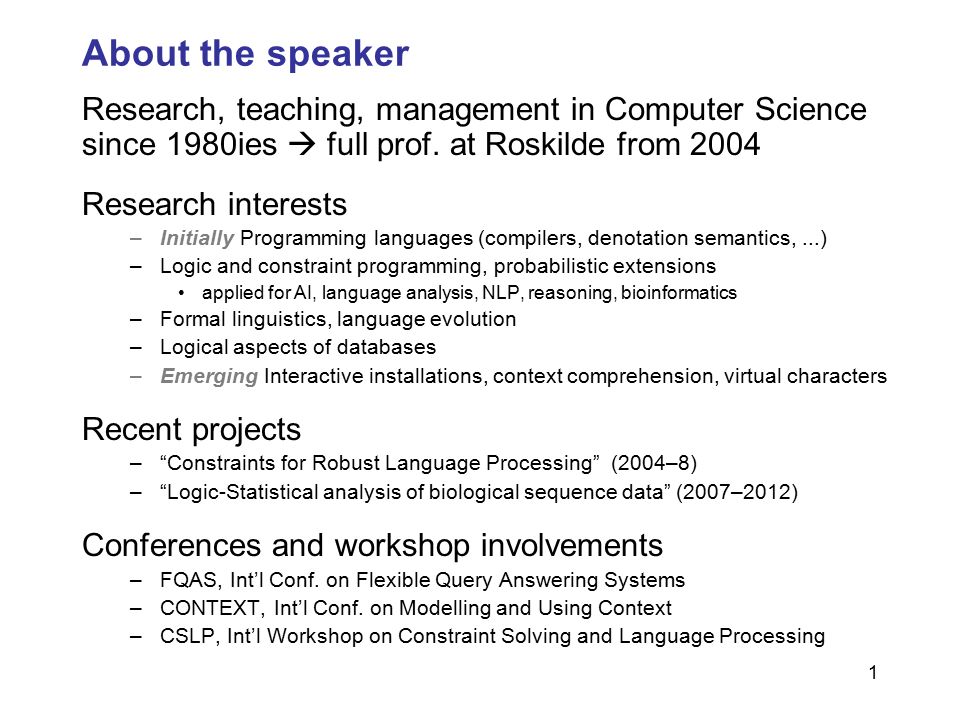

2. 1 About the speaker Research, teaching, management in Computer Science since 1980ies  full prof. at Roskilde from 2004 Research interests –Initially Programming languages (compilers, denotation semantics,...) –Logic and constraint programming, probabilistic extensions applied for AI, language analysis, NLP, reasoning, bioinformatics –Formal linguistics, language evolution –Logical aspects of databases –Emerging Interactive installations, context comprehension, virtual characters Recent projects –“Constraints for Robust Language Processing” (2004–8) –“Logic-Statistical analysis of biological sequence data” (2007–2012) Conferences and workshop involvements –FQAS, Int’l Conf. on Flexible Query Answering Systems –CONTEXT, Int’l Conf. on Modelling and Using Context –CSLP, Int’l Workshop on Constraint Solving and Language Processing

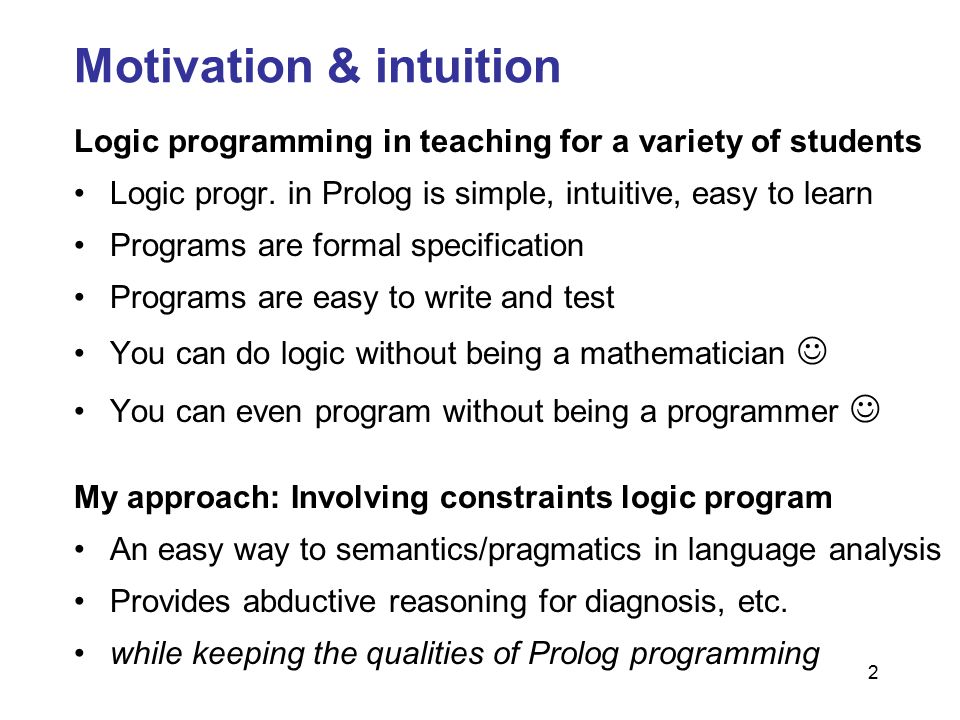

3. 2 Motivation & intuition Logic programming in teaching for a variety of students Logic progr. in Prolog is simple, intuitive, easy to learn Programs are formal specification Programs are easy to write and test You can do logic without being a mathematician You can even program without being a programmer My approach: Involving constraints logic program An easy way to semantics/pragmatics in language analysis Provides abductive reasoning for diagnosis, etc. while keeping the qualities of Prolog programming

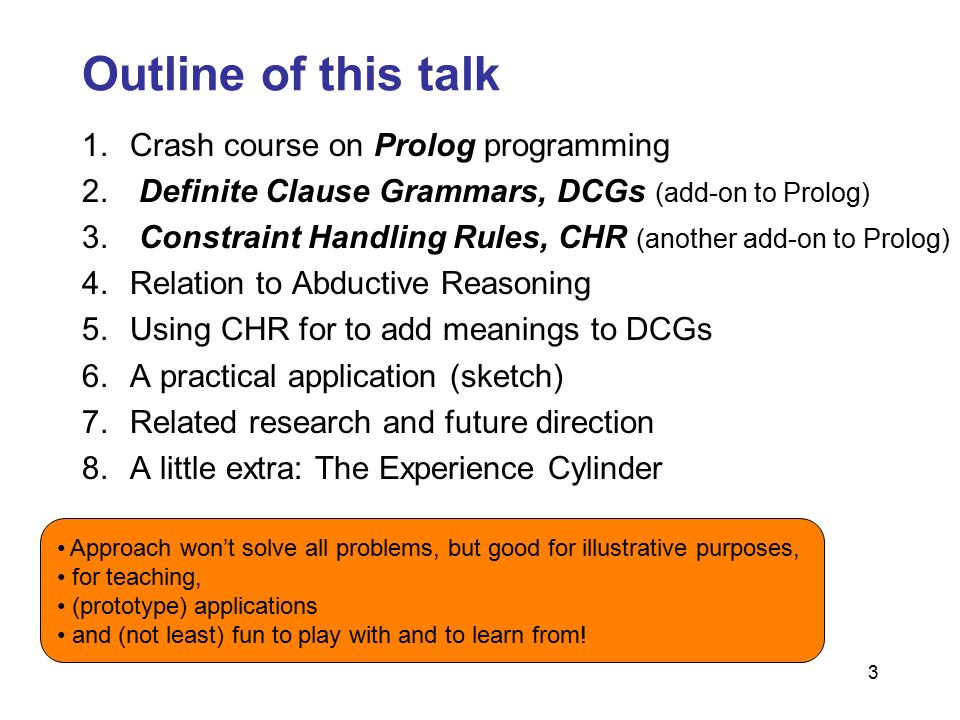

4. 3 Outline of this talk 1.Crash course on Prolog programming 2. Definite Clause Grammars, DCGs (add-on to Prolog) 3. Constraint Handling Rules, CHR (another add-on to Prolog) 4.Relation to Abductive Reasoning 5.Using CHR for to add meanings to DCGs 6.A practical application (sketch) 7.Related research and future direction 8.A little extra: The Experience Cylinder Approach won’t solve all problems, but good for illustrative purposes, for teaching, (prototype) applications and (not least) fun to play with and to learn from!

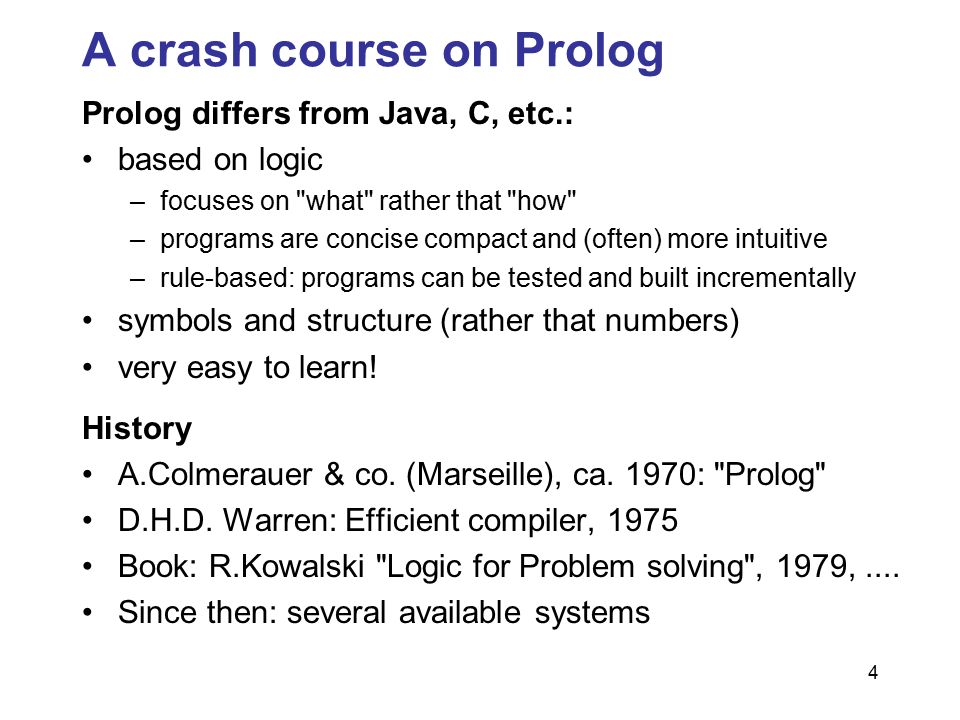

5. A crash course on Prolog Prolog differs from Java, C, etc.: based on logic –focuses on "what" rather that "how" –programs are concise compact and (often) more intuitive –rule-based: programs can be tested and built incrementally symbols and structure (rather that numbers) very easy to learn! History A.Colmerauer & co. (Marseille), ca. 1970: "Prolog" D.H.D. Warren: Efficient compiler, 1975 Book: R.Kowalski "Logic for Problem solving", 1979,.... Since then: several available systems 4

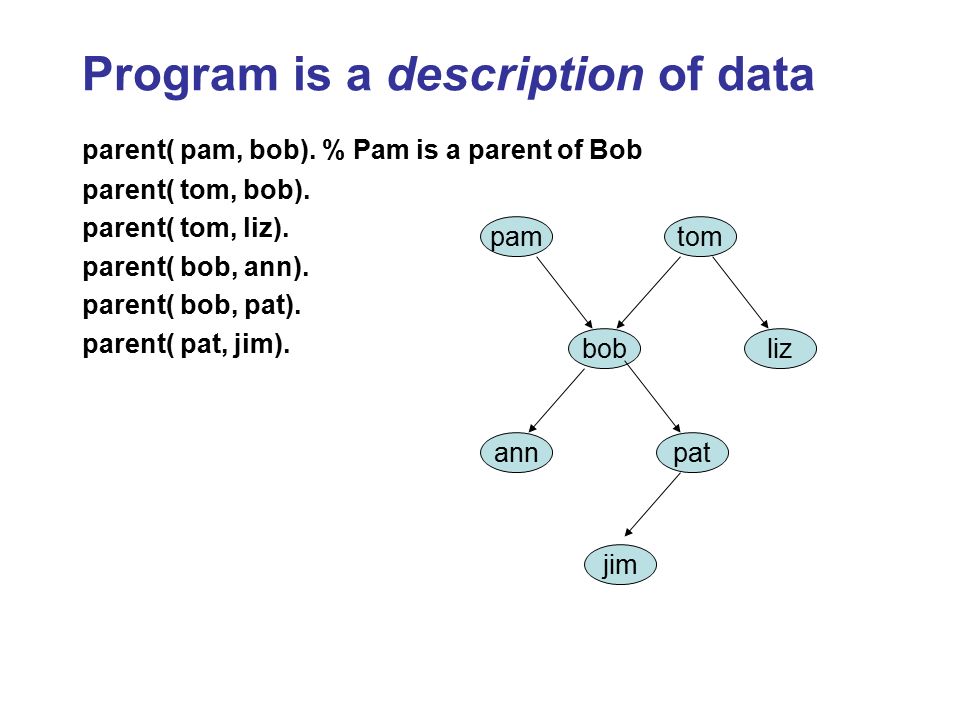

6. Program is a description of data parent( tom, bob). parent( tom, liz). parent( bob, ann). parent( bob, pat). parent( pat, jim). parent( pam, bob). % Pam is a parent of Bob pamtom bobliz annpat jim

7. Basic notions: predicates: parent –describes a relation –defined by facts, rules, collectively called clauses constants: tom, bob, x, y variables: X, Y, Tom simple goals: parent(A,a) Queries....

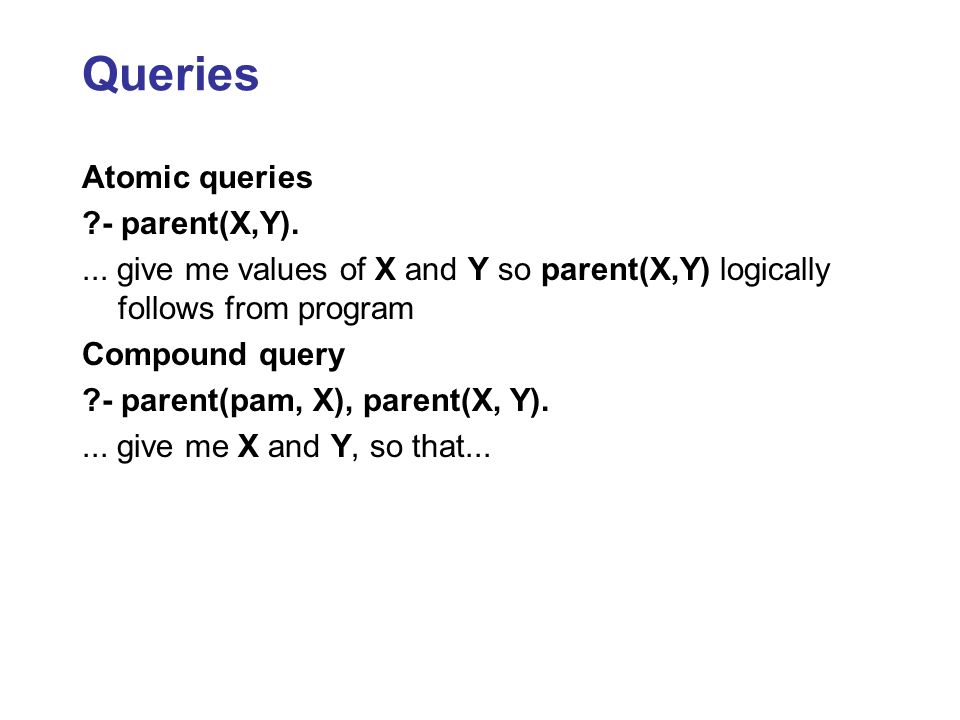

8. Queries Atomic queries ?- parent(X,Y).... give me values of X and Y so parent(X,Y) logically follows from program Compound query ?- parent(pam, X), parent(X, Y).... give me X and Y, so that...

9. Procedural semantics parent( pam, bob). parent( tom, bob). parent( tom, liz). parent( bob, ann). parent( bob, pat). parent( pat, jim). ?- parent(pam, X), parent(X, Y). X=bob ?- parent(bob, Y). Y=ann Success! Other solutions? Y=pat Success! Other Solutions? No more solutions with X=bob :/ No more possible solutions at all  Unification term=term? from left to right from start to end backtracking ≈ undo and try new choices

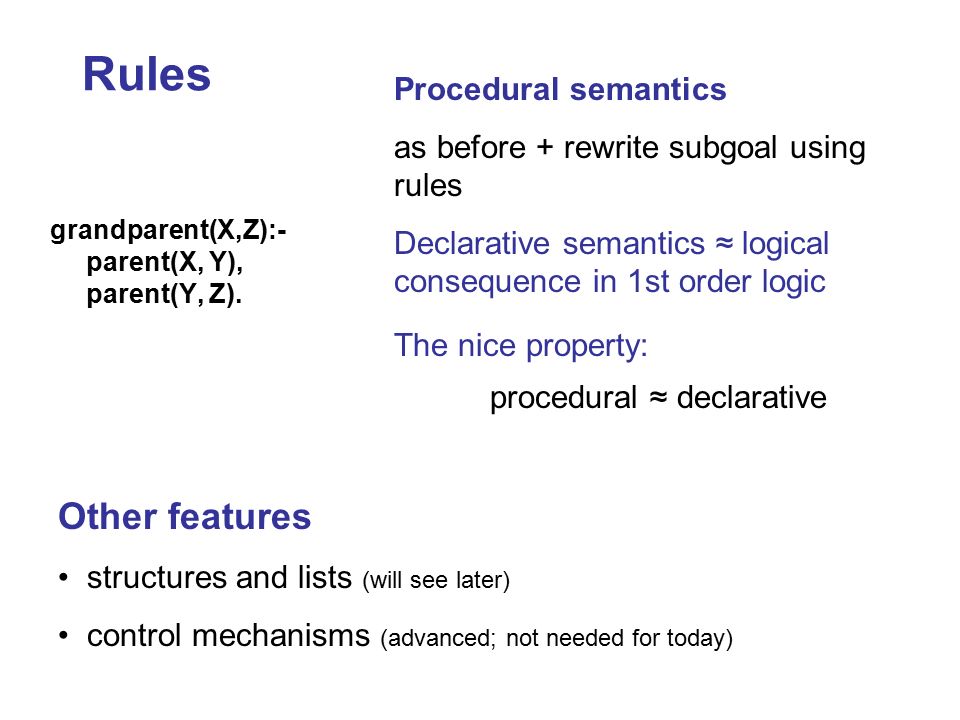

10. Rules grandparent(X,Z):- parent(X, Y), parent(Y, Z). Procedural semantics as before + rewrite subgoal using rules Declarative semantics ≈ logical consequence in 1st order logic The nice property: procedural ≈ declarative Other features structures and lists (will see later) control mechanisms (advanced; not needed for today)

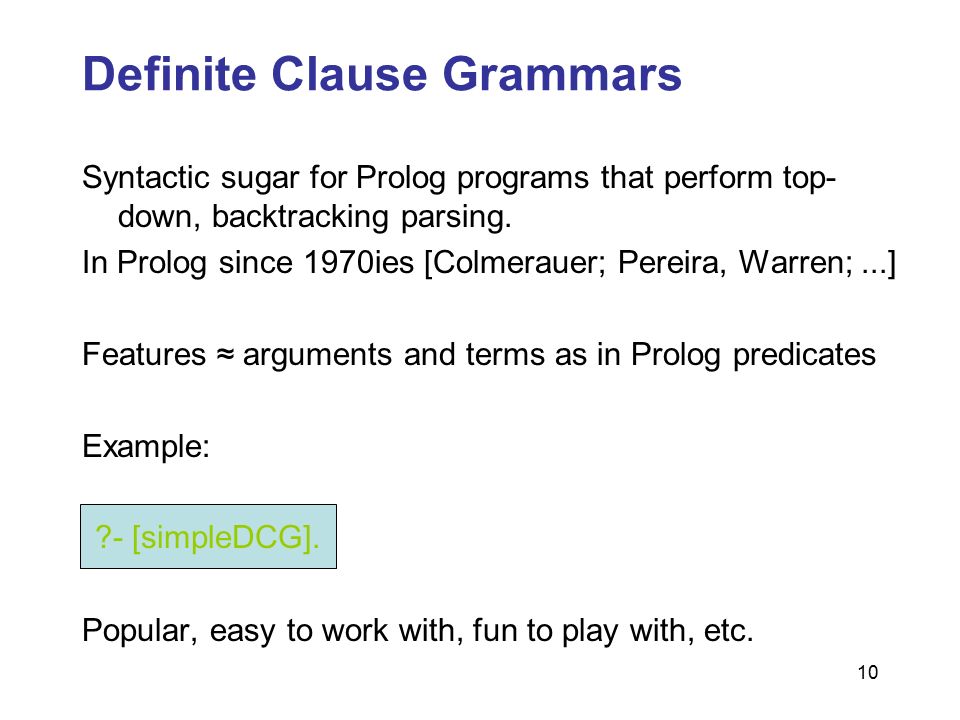

11. 10 Definite Clause Grammars Syntactic sugar for Prolog programs that perform top- down, backtracking parsing. In Prolog since 1970ies [Colmerauer; Pereira, Warren;...] Features ≈ arguments and terms as in Prolog predicates Example: Popular, easy to work with, fun to play with, etc. ?- [simpleDCG].

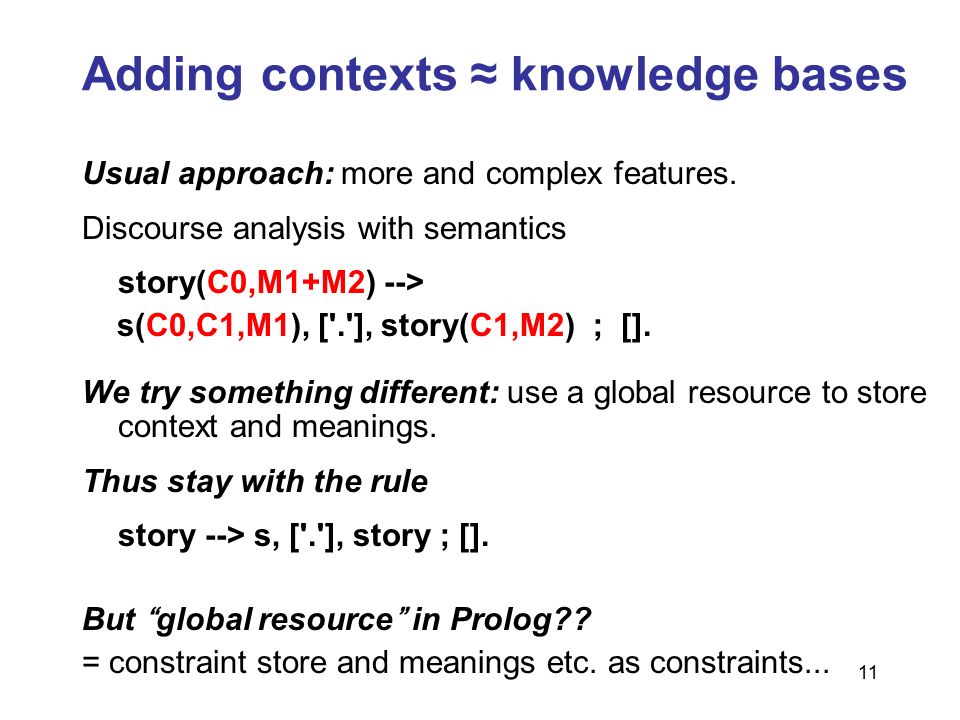

12. 11 Adding contexts ≈ knowledge bases Usual approach: more and complex features. Discourse analysis with semantics story(C0,M1+M2) --> s(C0,C1,M1), ['.'], story(C1,M2) ; []. We try something different: use a global resource to store context and meanings. Thus stay with the rule story --> s, ['.'], story ; []. But “global resource” in Prolog?? = constraint store and meanings etc. as constraints...

13. 12 Constraint Handling Rules, CHR A recent addition to Prolog; available in several major Prologs [Frühwirth, 1992, 1998] A “glass box” approach to constraint solving: defining constraints and their behaviour in a declarative language Prolog: Backward chaining CHR: Forward chaining Prolog+CHR by an example that anticipates applications for reasoning and language analysis... ?- [happy1].?- [happy2].?- [happy3].

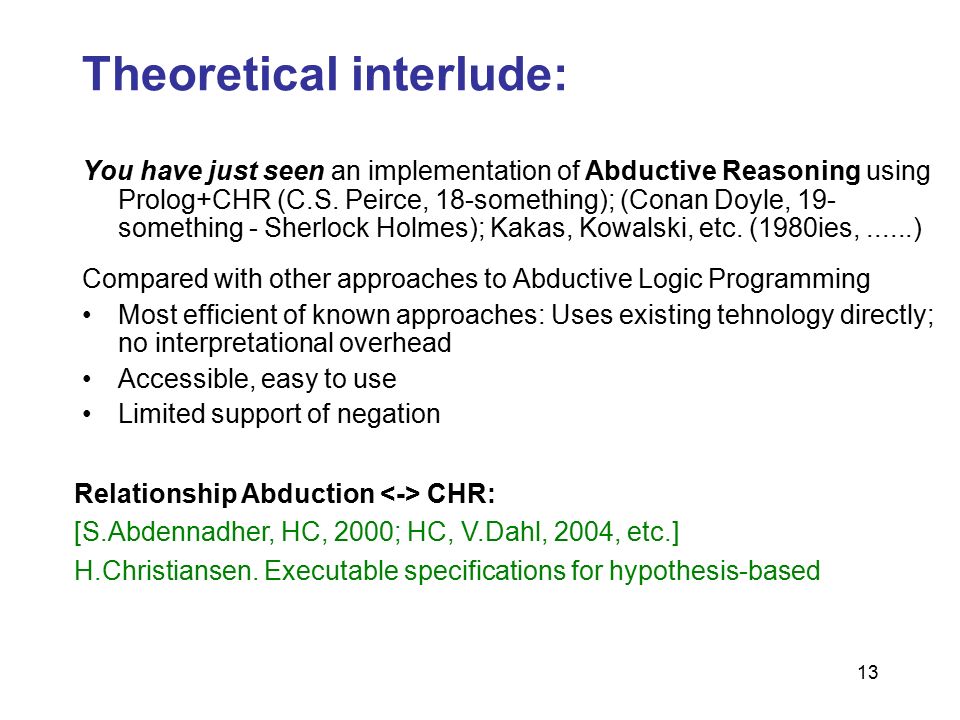

14. 13 Theoretical interlude: You have just seen an implementation of Abductive Reasoning using Prolog+CHR (C.S. Peirce, 18-something); (Conan Doyle, 19- something - Sherlock Holmes); Kakas, Kowalski, etc. (1980ies,......) Compared with other approaches to Abductive Logic Programming Most efficient of known approaches: Uses existing tehnology directly; no interpretational overhead Accessible, easy to use Limited support of negation Relationship Abduction CHR: [S.Abdennadher, HC, 2000; HC, V.Dahl, 2004, etc.]

15. 14 Back to CHR Three kinds of rules: Propagatec, c,..., c ==> Guard |... c... adds constraints Simplify c, c,..., c Guard |... c... replaces constraints Simpagate c,... \ c,... Guard |... c... remove some, keep some and add others ——————————————————————— Declarative semantics: as indicated by the arrow shapes Theorem: Our implementation of abduction is correct :)

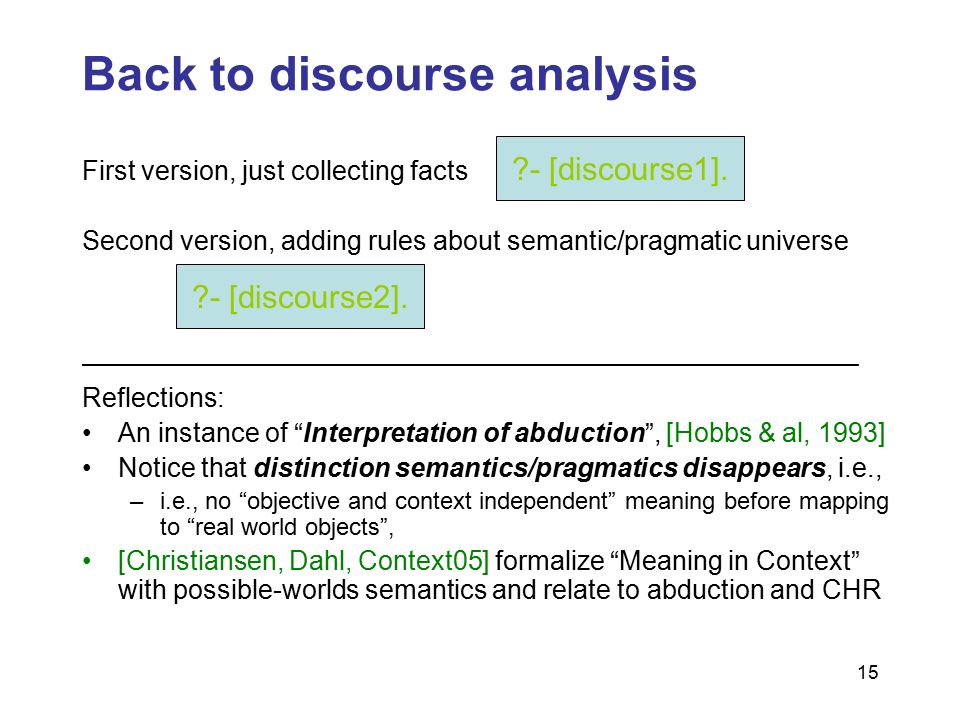

16. 15 Back to discourse analysis First version, just collecting facts Second version, adding rules about semantic/pragmatic universe ————————————————————————————— Reflections: An instance of “Interpretation of abduction”, [Hobbs & al, 1993] Notice that distinction semantics/pragmatics disappears, i.e., –i.e., no “objective and context independent” meaning before mapping to “real world objects”, [Christiansen, Dahl, Context05] formalize “Meaning in Context” with possible-worlds semantics and relate to abduction and CHR ?- [discourse1]. ?- [discourse2].

17. 16 An practical application (sketch) Mapping use case text (a la OOP/OOD) into UML diagrams Example of discourse analysis, building a knowledge base ≈ context ≈ constraint store Features: non-trivial properties of semantic/pragmatic universe resolution of pronouns based on well-defined heuristics [Christiansen, Have, Tveitane, RANLP2007, CSLP2007]

18. The setting... Use Cases –Textual examples of what an IT system does without specifying how. –Used in the inception phase of the object oriented software development process. Restricted English language, unambiguous meaning but preserving natural flow Interpretation as abduction by DCG+CHR: –extract “programmatic semantics” –Build knowledge base as Constraint store ≈ abducibles –Result: Diagrammatic representation (UML)

19. Extracted knowledge Classes and objects Methods Properties Inheritance Instantiation Temporality (not shown here)

20. Overview of the process by example Use case text: “The professor teaches.” class(professor) method(professor, teach) Abductive analysis with DCG+CHR A little code that exports to GraphViz

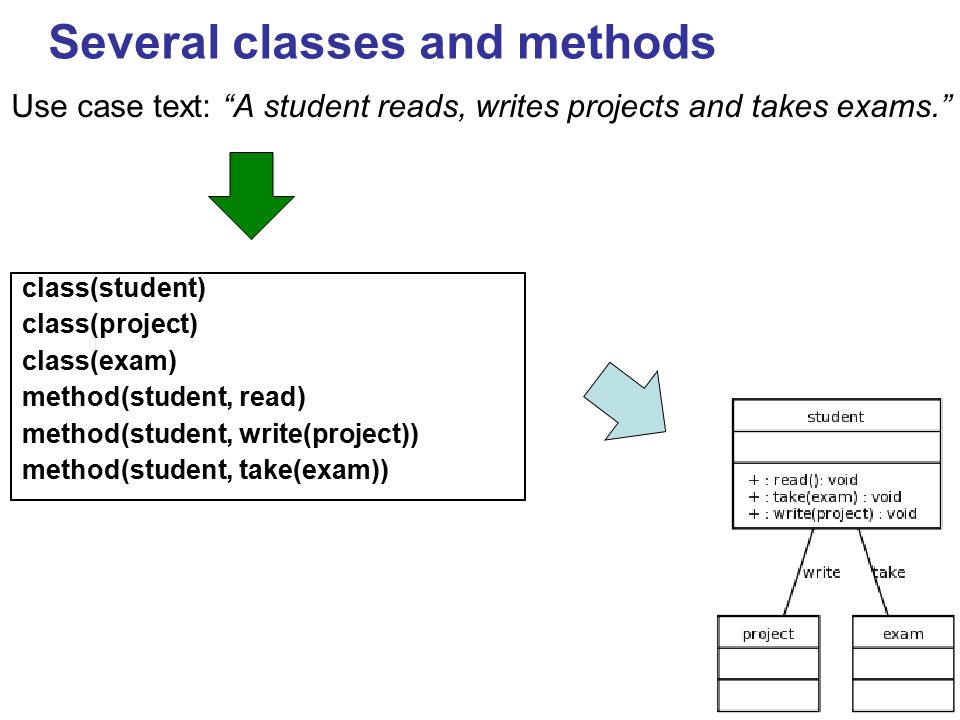

21. Several classes and methods Use case text: “A student reads, writes projects and takes exams.” class(student) class(project) class(exam) method(student, read) method(student, write(project)) method(student, take(exam))

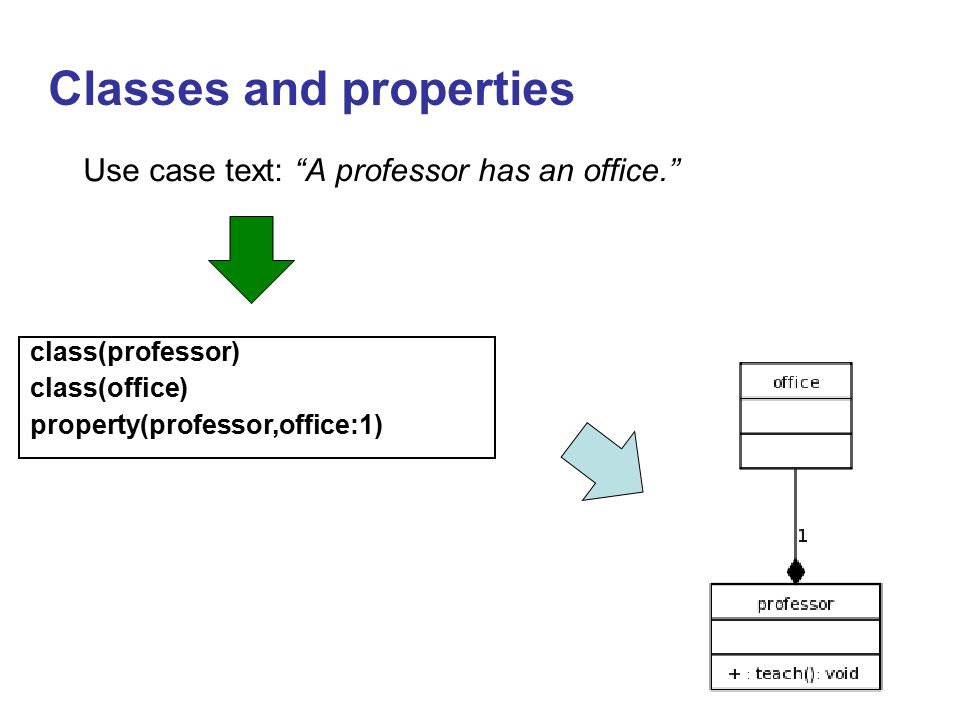

22. Classes and properties Use case text: “A professor has an office.” class(professor) class(office) property(professor,office:1)

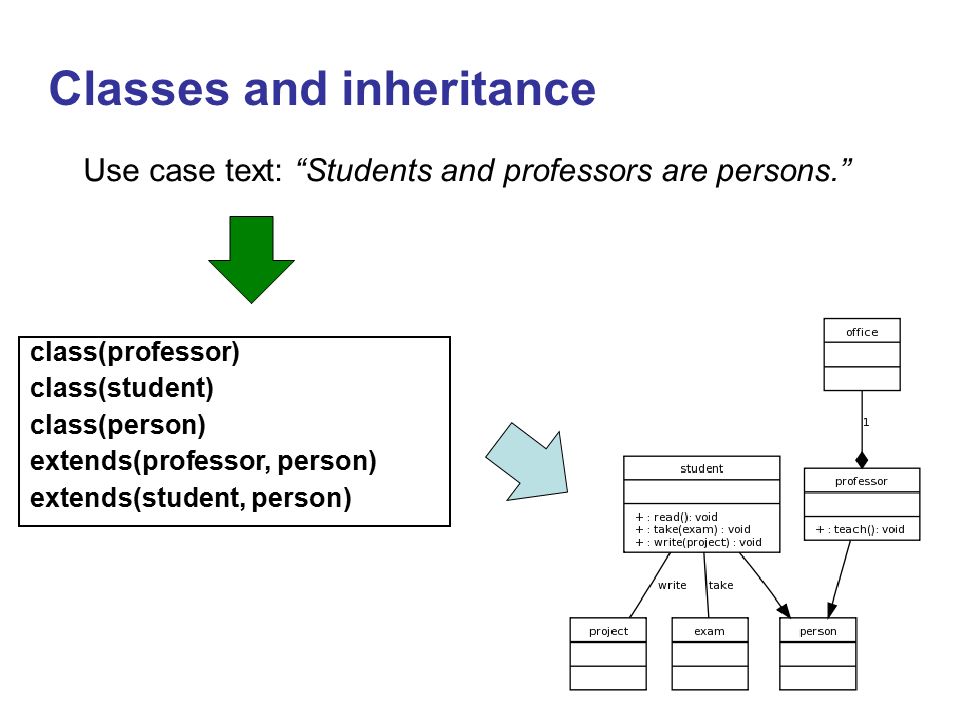

23. Classes and inheritance Use case text: “Students and professors are persons.” class(professor) class(student) class(person) extends(professor, person) extends(student, person)

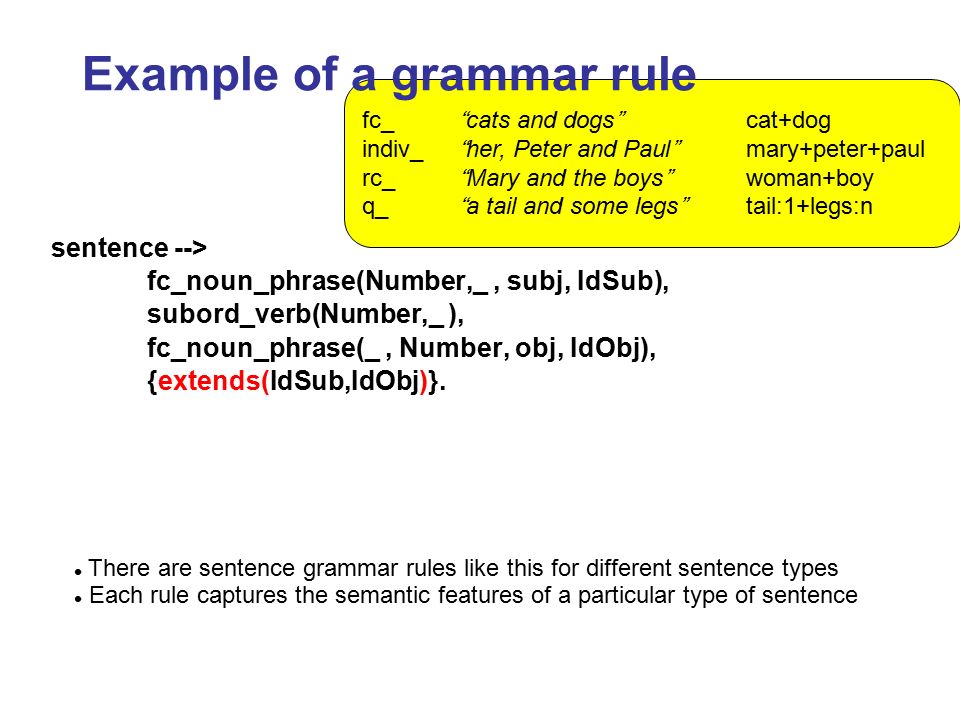

24. sentence --> fc_noun_phrase(Number,_, subj, IdSub), subord_verb(Number,_ ), fc_noun_phrase(_, Number, obj, IdObj), {extends(IdSub,IdObj)}. There are sentence grammar rules like this for different sentence types Each rule captures the semantic features of a particular type of sentence fc_ “cats and dogs” cat+dog indiv_“her, Peter and Paul” mary+peter+paul rc_ “Mary and the boys” woman+boy q_ “a tail and some legs”tail:1+legs:n Example of a grammar rule

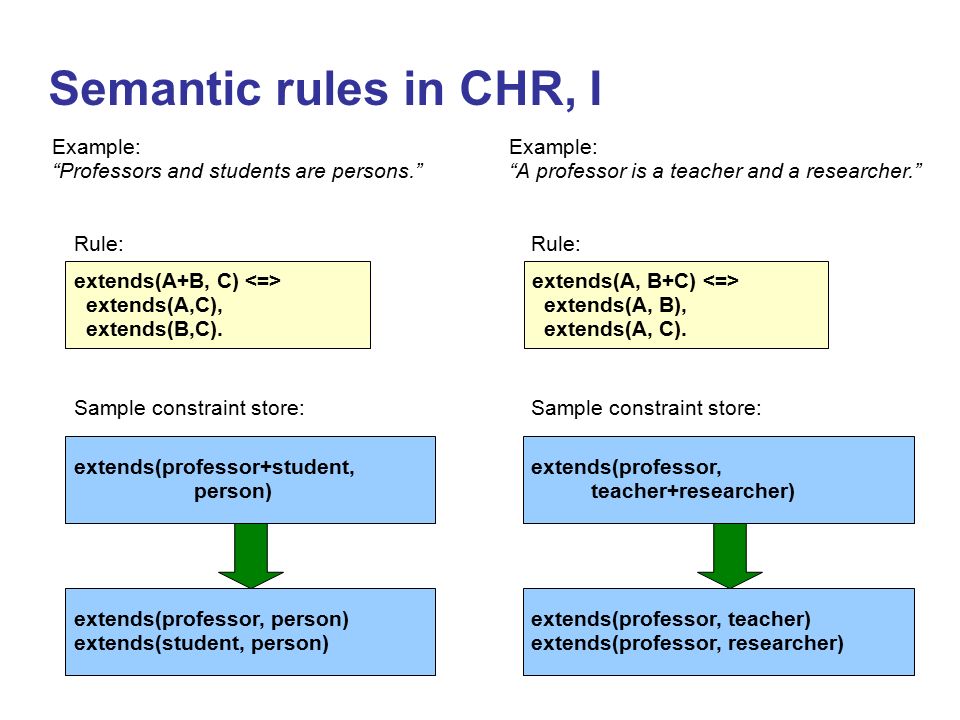

25. Semantic rules in CHR, I extends(A+B, C) extends(A,C), extends(B,C). extends(A, B+C) extends(A, B), extends(A, C). Example: “Professors and students are persons.” extends(professor+student, person) extends(professor, person) extends(student, person) extends(professor, teacher+researcher) Example: “A professor is a teacher and a researcher.” extends(professor, teacher) extends(professor, researcher) Rule: Sample constraint store:

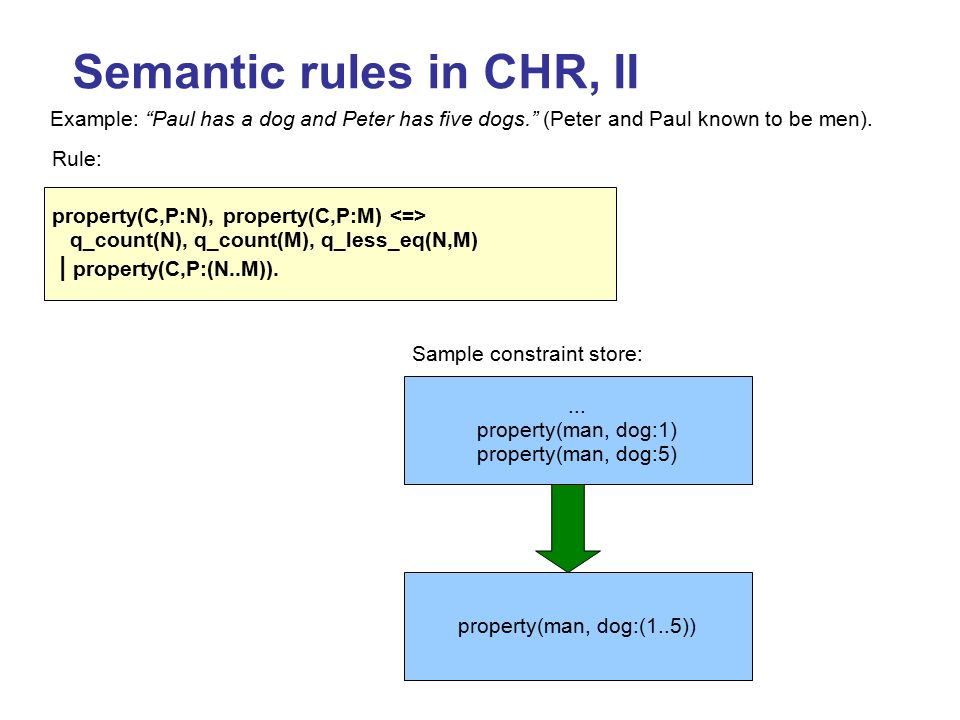

26. Semantic rules in CHR, II property(C,P:N), property(C,P:M) q_count(N), q_count(M), q_less_eq(N,M) | property(C,P:(N..M)). Example: “Paul has a dog and Peter has five dogs.” (Peter and Paul known to be men).... property(man, dog:1) property(man, dog:5) Rule: property(man, dog:(1..5)) Sample constraint store:

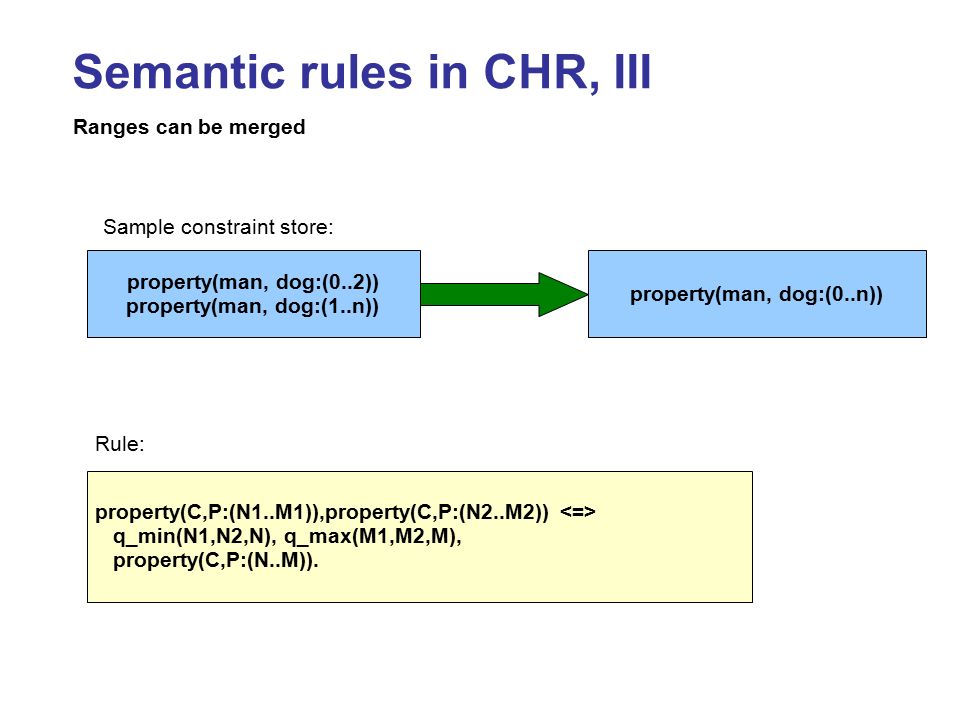

27. Semantic rules in CHR, III Ranges can be merged property(C,P:(N1..M1)),property(C,P:(N2..M2)) q_min(N1,N2,N), q_max(M1,M2,M), property(C,P:(N..M)). property(man, dog:(0..2)) property(man, dog:(1..n)) property(man, dog:(0..n)) Rule: Sample constraint store:

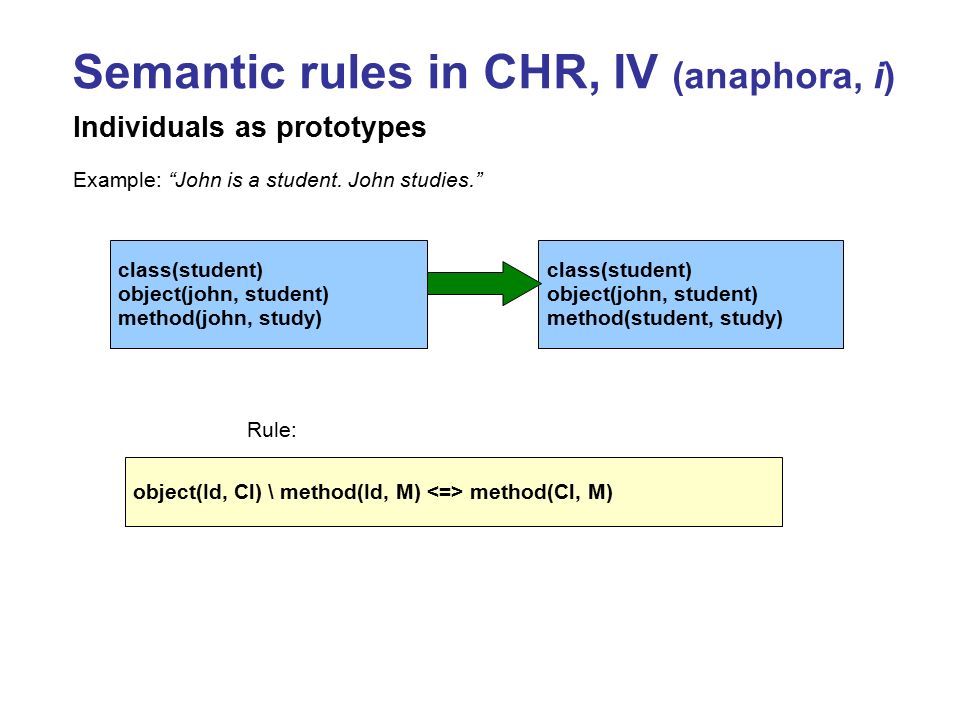

28. Semantic rules in CHR, IV (anaphora, i) Individuals as prototypes Example: “John is a student. John studies.” class(student) object(john, student) method(john, study) class(student) object(john, student) method(student, study) object(Id, Cl) \ method(Id, M) method(Cl, M) Rule:

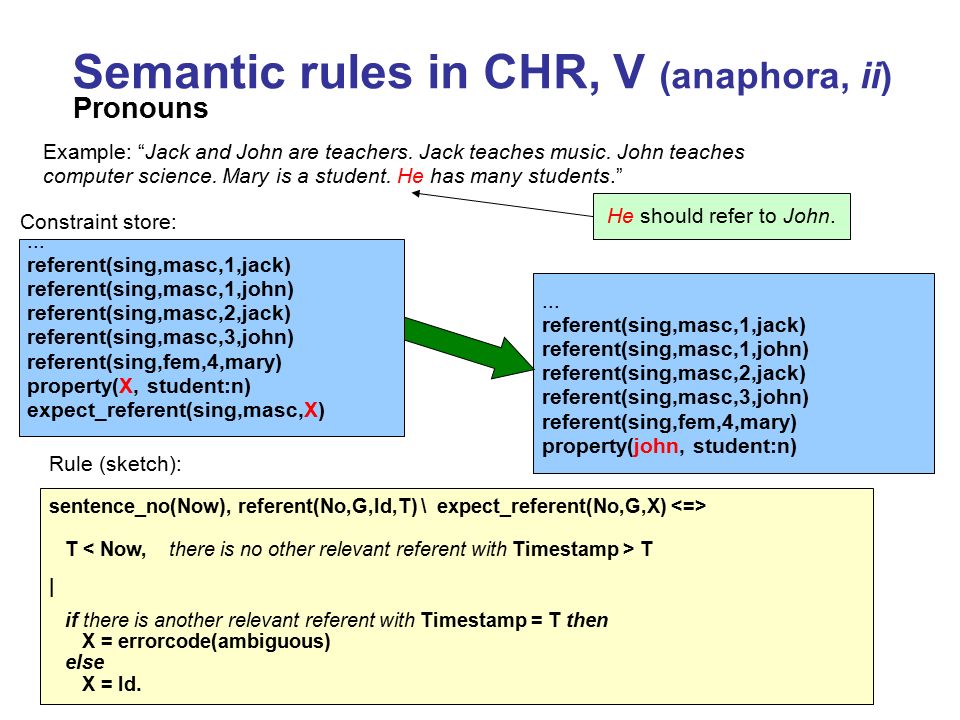

29. Example: “Jack and John are teachers. Jack teaches music. John teaches computer science. Mary is a student. He has many students.” He should refer to John. Constraint store: Principle Referents are labelled with the sentence number in which they occur. Resolve to the most recent entity matching number and gender Ambiguous pronouns are rejected. sentence_no(Now), referent(No,G,Id,T) \ expect_referent(No,G,X) T T | if there is another relevant referent with Timestamp = T then X = errorcode(ambiguous) else X = Id. Rule (sketch): Semantic rules in CHR, V (anaphora, ii) Pronouns... referent(sing,masc,1,jack) referent(sing,masc,1,john) referent(sing,masc,2,jack) referent(sing,masc,3,john) referent(sing,fem,4,mary) property(john, student:n)... referent(sing,masc,1,jack) referent(sing,masc,1,john) referent(sing,masc,2,jack) referent(sing,masc,3,john) referent(sing,fem,4,mary) property(X, student:n) expect_referent(sing,masc,X)

30. 29 Conclusions Example shows an application of discourse analysis with restricted language concise and “shallow” semantics a desire of an unambiguous interpretation Demonstrates Prolog+DCG+CHR applied for “interpretation as abduction”: flexibility and ease of modeling concise, executable specifications –logic embedded in a full programming language, i.e., you can hack the logic if you feel like it apply existing technology directly –no interpretational overhead –no additional tools and notations to learn

31. 30 Related research and future direction CHR grammars [Christiansen, 2002-3, TPLP2005] –Grammar notation on top of CHR (analogous to DCG on top of Prolog) –Features powerful context-sensitive rules and a lot of other stuff Probabilistic abduction [Christiansen, LNCS 5388, 2008; Christiansen, Saleh, CHR-workshop, 2011 ] –identify most probable explanation, best-first search; only prototype impl’s The LoSt project: Apply probabilistic-logic models in bioinformatics [several publ.; see http://akira.ruc.dk/~henning/publications/] adaptation of T.Sato & al’s PRISM system to huuuuuge sequences Possible new directions Apply (probabilistic) abduction in interactive installations –guess user intentions and foci of interest –assist virtual robots inside installations Integrate analysis of biological sequences and metabolic/control pathways (abduction+induction)

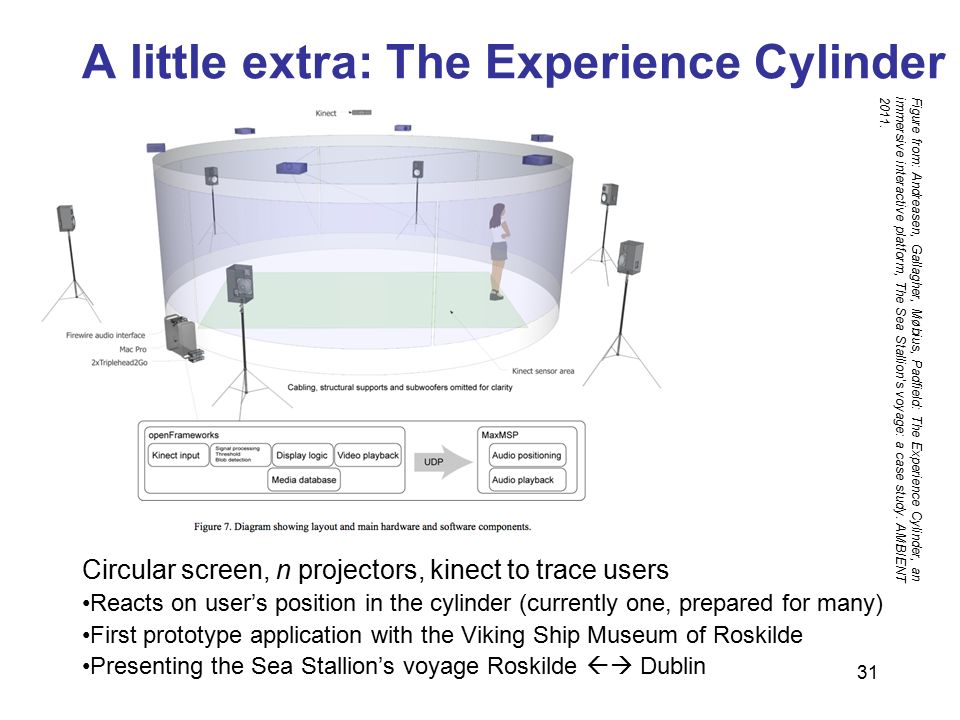

32. 31 A little extra: The Experience Cylinder Circular screen, n projectors, kinect to trace users Reacts on user’s position in the cylinder (currently one, prepared for many) First prototype application with the Viking Ship Museum of Roskilde Presenting the Sea Stallion’s voyage Roskilde  Dublin Figure from: Andreasen, Gallagher, Møbius, Padfield: The Experience Cylinder, an immersive interactive platform, The Sea Stallion's voyage: a case study. AMBIENT 2011.

33. References Texts Intro to Prolog with CHR, abduction for language analysis and diagnosis H.Christiansen: Logic Programming for Linguistics: A short introduction to Prolog, and Logic Grammars with Constraints as an easy way to Syntax and Semantics, (2010) http://www.ruc.dk/~henning/LP-For-Linguists/ Intro to Prolog, focus on DCG P.Blackburn, J.Bos, and K.Striegnitz: Learn Prolog Now! (2001) http://www.learnprolognow.org Good Prolog systems with CHR SICStus Prolog (costs money, institution license? 30 days test version) http://www.sics.se/isl/sicstuswww/site/index.html SWI Prolog, free http://www.swi-prolog.org/ Software systems: HYPROLOG: http://www.ruc.dk/~henning/hyprolog/ CHR Grammars: http://www.ruc.dk/~henning/chrg/ More information: http://www.ruc.dk/~henning, henning@ruc.dk 32

34. 33 The end
