Presentation on theme: "Enterprise Resource Planning. Content ERP SugarCRM System Requirement Installation Client setting."— Presentation transcript:

1 Enterprise Resource Planning

2 Content ERP SugarCRM System Requirement Installation Client setting

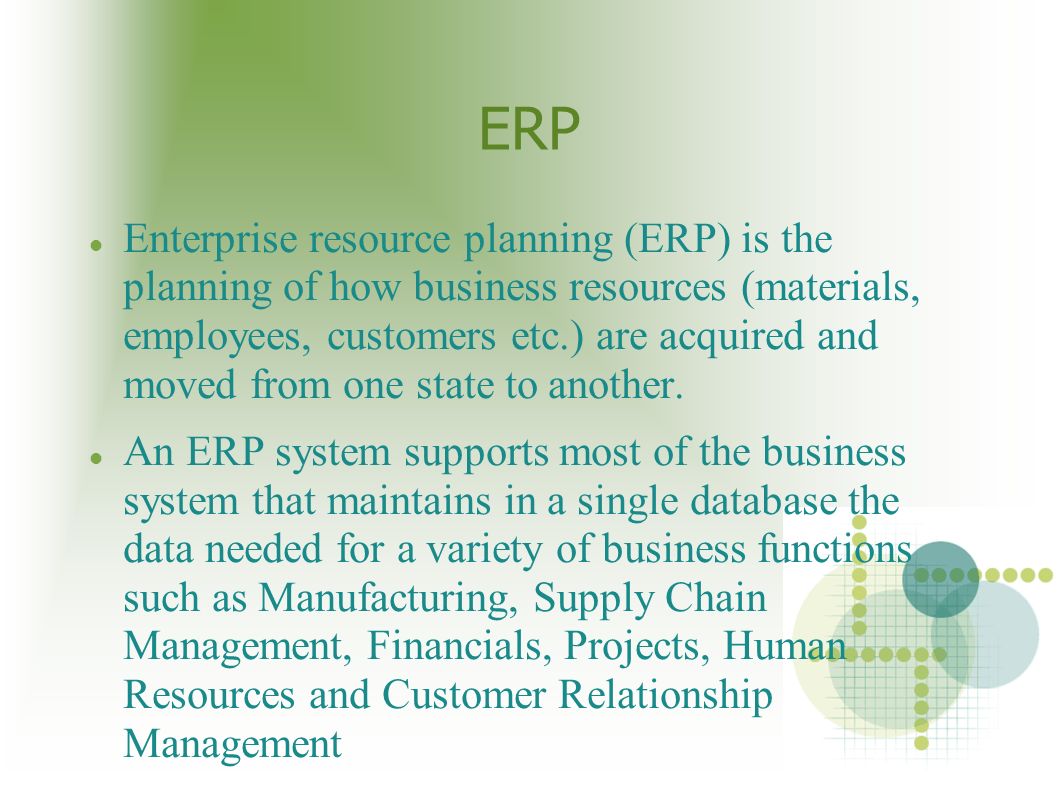

3 ERP Enterprise resource planning (ERP) is the planning of how business resources (materials, employees, customers etc.) are acquired and moved from one state to another. An ERP system supports most of the business system that maintains in a single database the data needed for a variety of business functions such as Manufacturing, Supply Chain Management, Financials, Projects, Human Resources and Customer Relationship Management

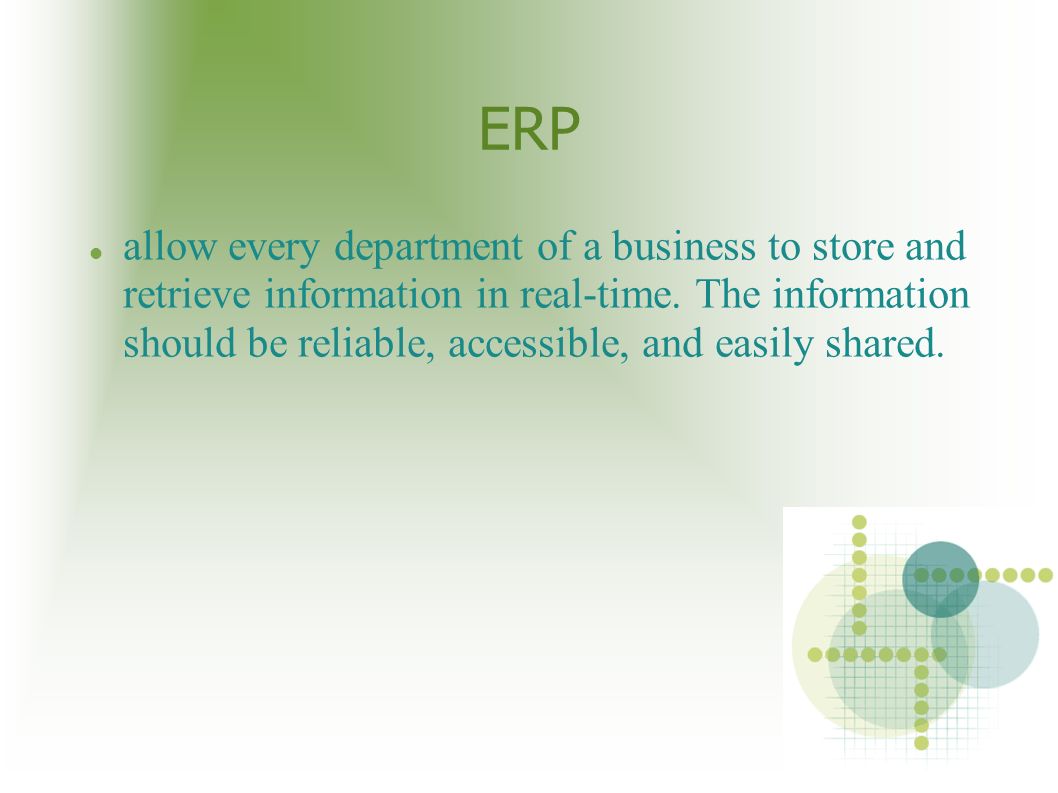

4 ERP allow every department of a business to store and retrieve information in real-time. The information should be reliable, accessible, and easily shared.

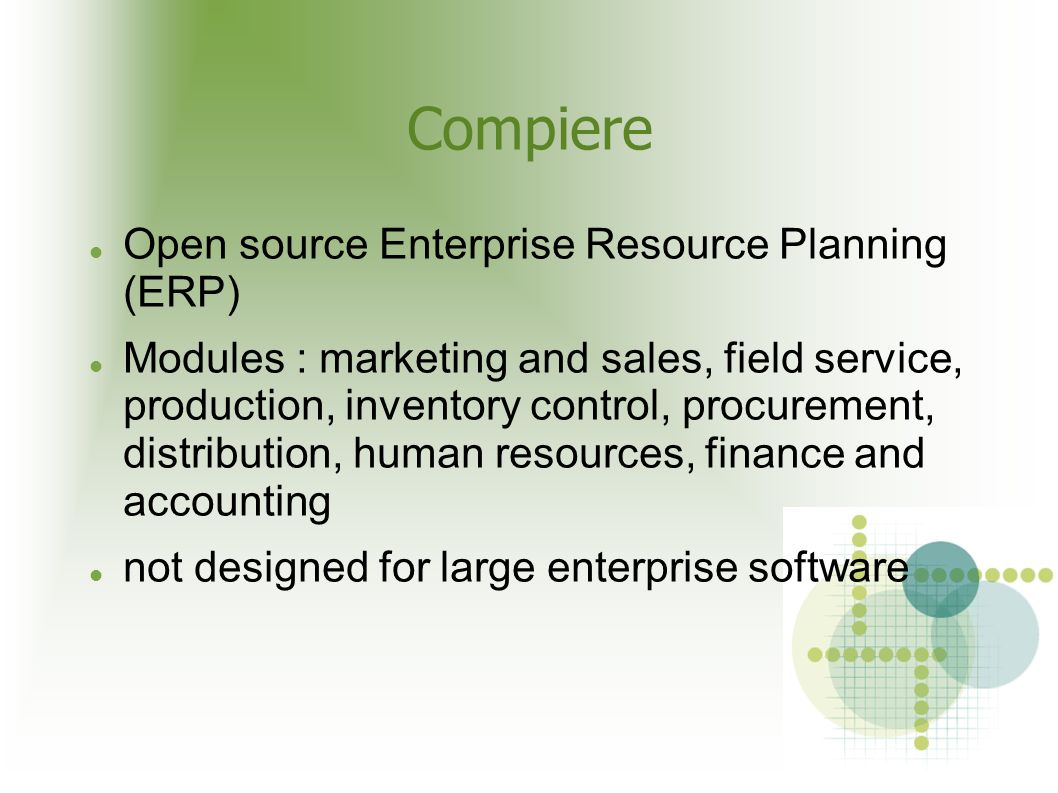

5 Compiere Open source Enterprise Resource Planning (ERP)‏ Modules : marketing and sales, field service, production, inventory control, procurement, distribution, human resources, finance and accounting not designed for large enterprise software

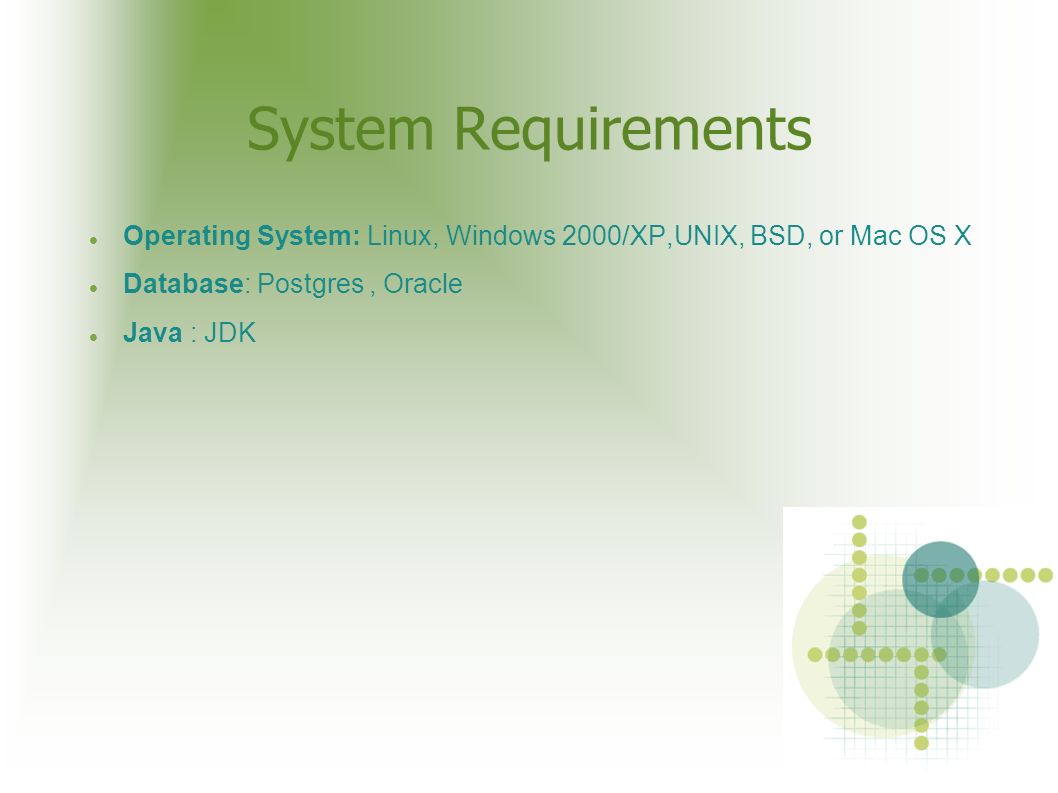

6 System Requirements Operating System: Linux, Windows 2000/XP,UNIX, BSD, or Mac OS X Database: Postgres, Oracle Java : JDK

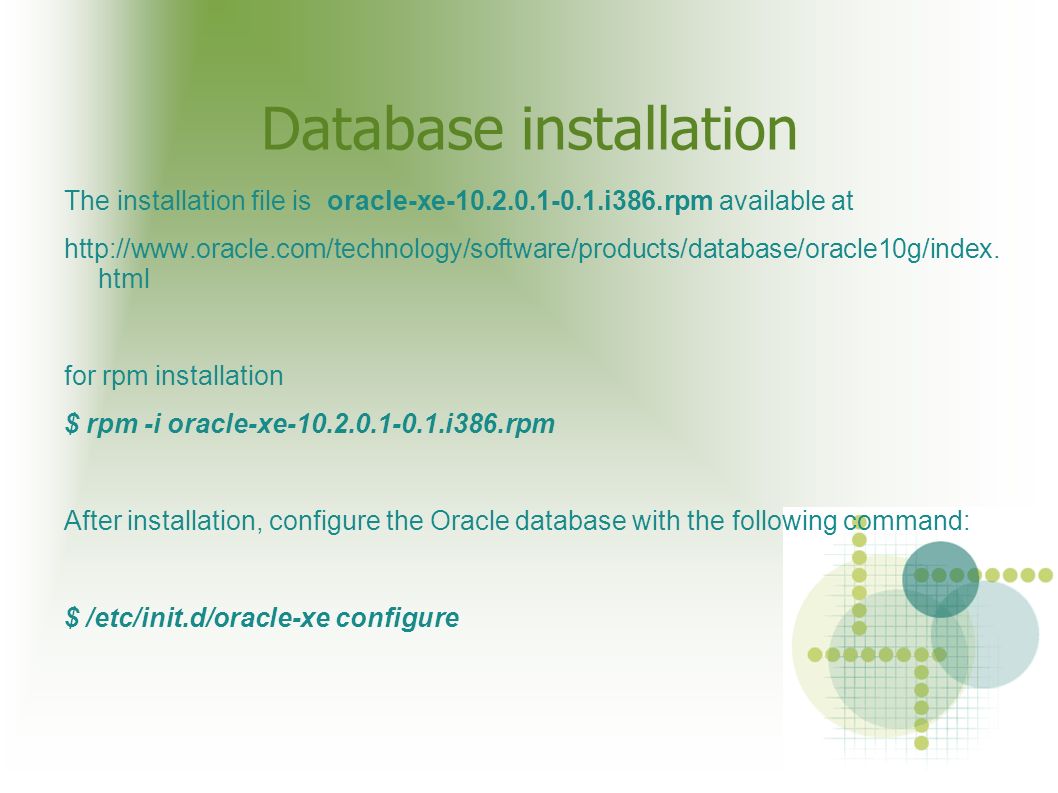

7 Database installation The installation file is oracle-xe-10.2.0.1-0.1.i386.rpm available at http://www.oracle.com/technology/software/products/database/oracle10g/index. html for rpm installation $ rpm -i oracle-xe-10.2.0.1-0.1.i386.rpm After installation, configure the Oracle database with the following command: $ /etc/init.d/oracle-xe configure

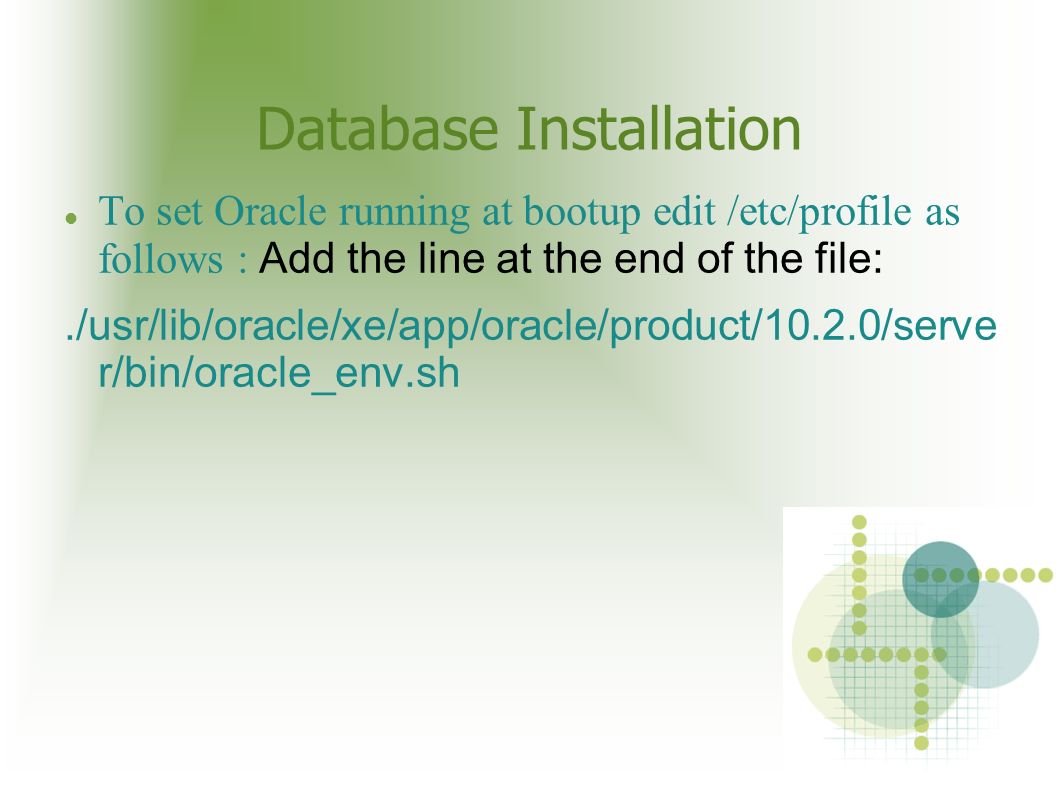

8 Database Installation To set Oracle running at bootup edit /etc/profile as follows : Add the line at the end of the file:./usr/lib/oracle/xe/app/oracle/product/10.2.0/serve r/bin/oracle_env.sh

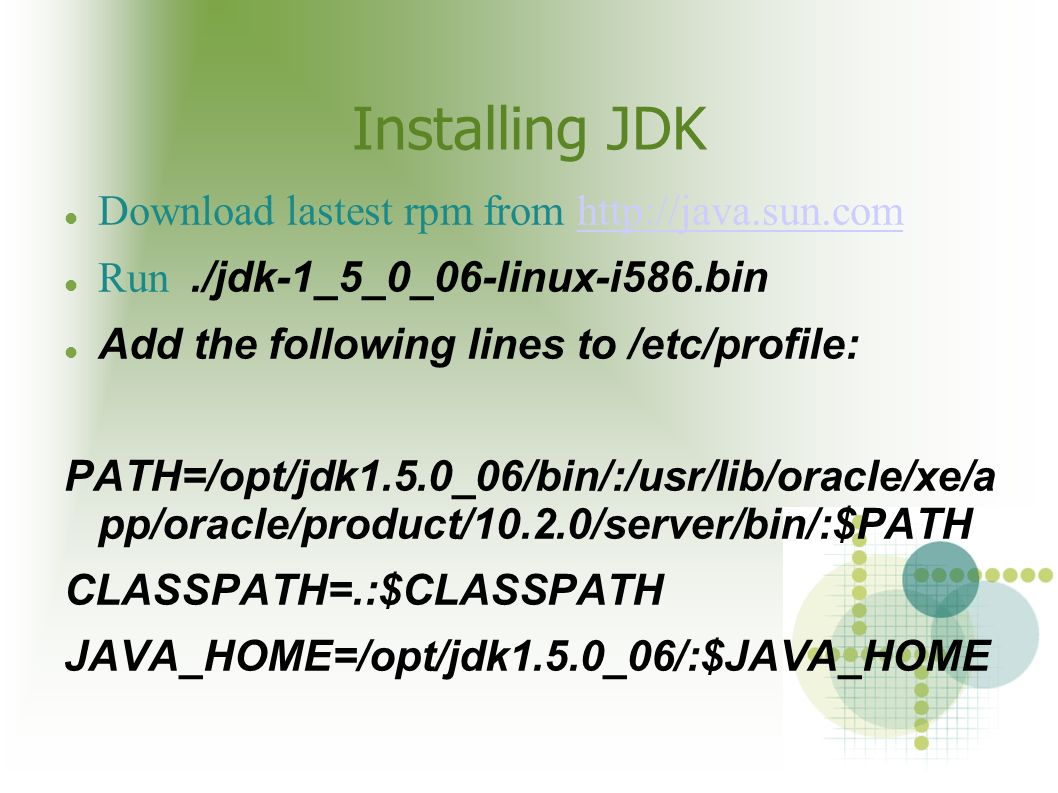

9 Installing JDK Download lastest rpm from http://java.sun.comhttp://java.sun.com Run./jdk-1_5_0_06-linux-i586.bin Add the following lines to /etc/profile: PATH=/opt/jdk1.5.0_06/bin/:/usr/lib/oracle/xe/a pp/oracle/product/10.2.0/server/bin/:$PATH CLASSPATH=.:$CLASSPATH JAVA_HOME=/opt/jdk1.5.0_06/:$JAVA_HOME

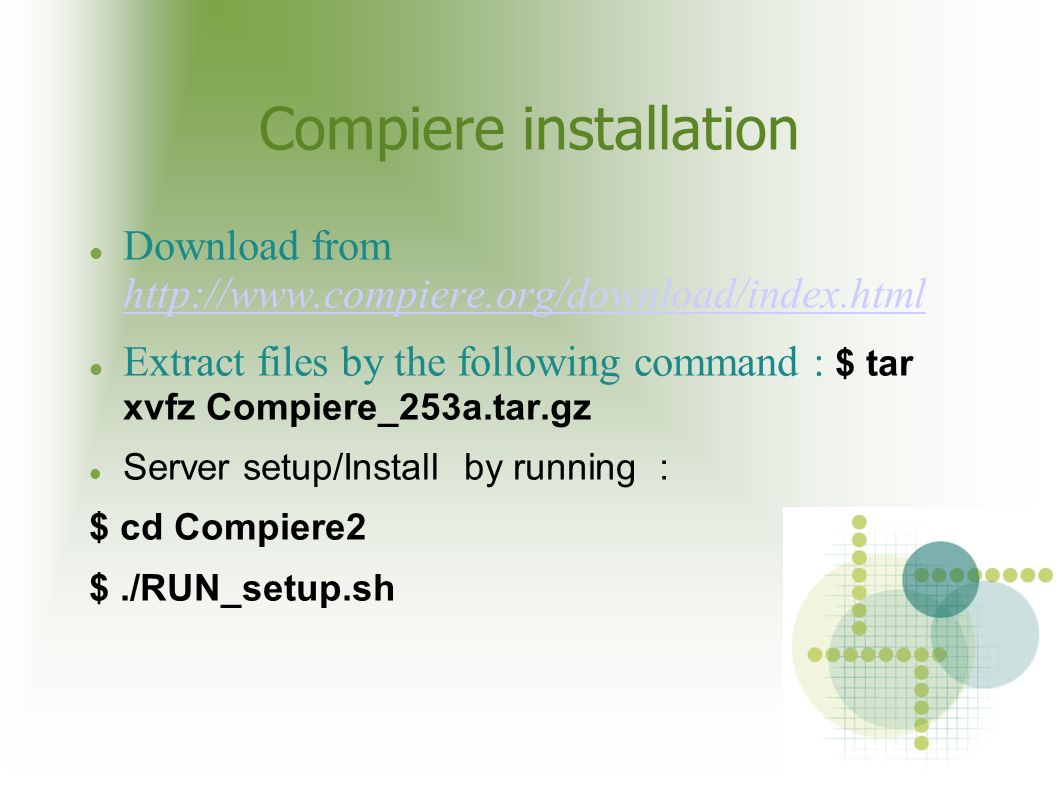

10 Compiere installation Download from http://www.compiere.org/download/index.html http://www.compiere.org/download/index.html Extract files by the following command : $ tar xvfz Compiere_253a.tar.gz Server setup/Install by running : $ cd Compiere2 $./RUN_setup.sh

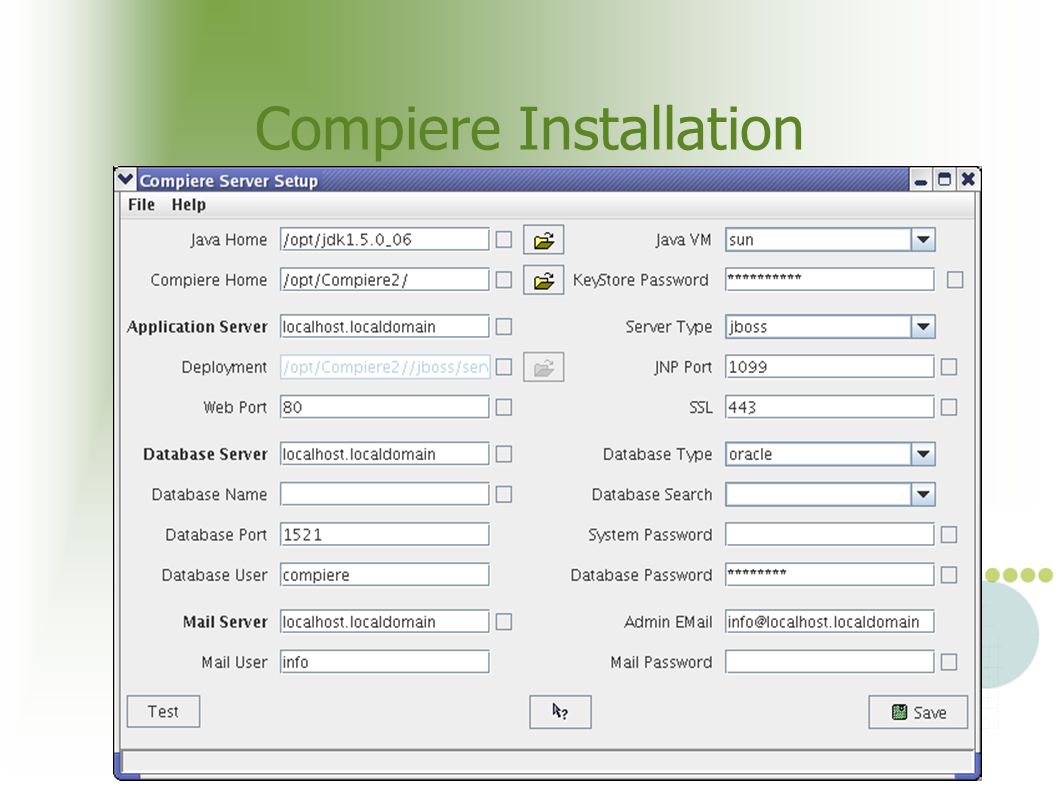

11 Compiere Installation

12 Setting database Enter the COMPIERE_HOME/utils directory and run the following script: $./RUN_ImportCompiere.sh Run the following command in the utils directory: $./RUN_Env.sh

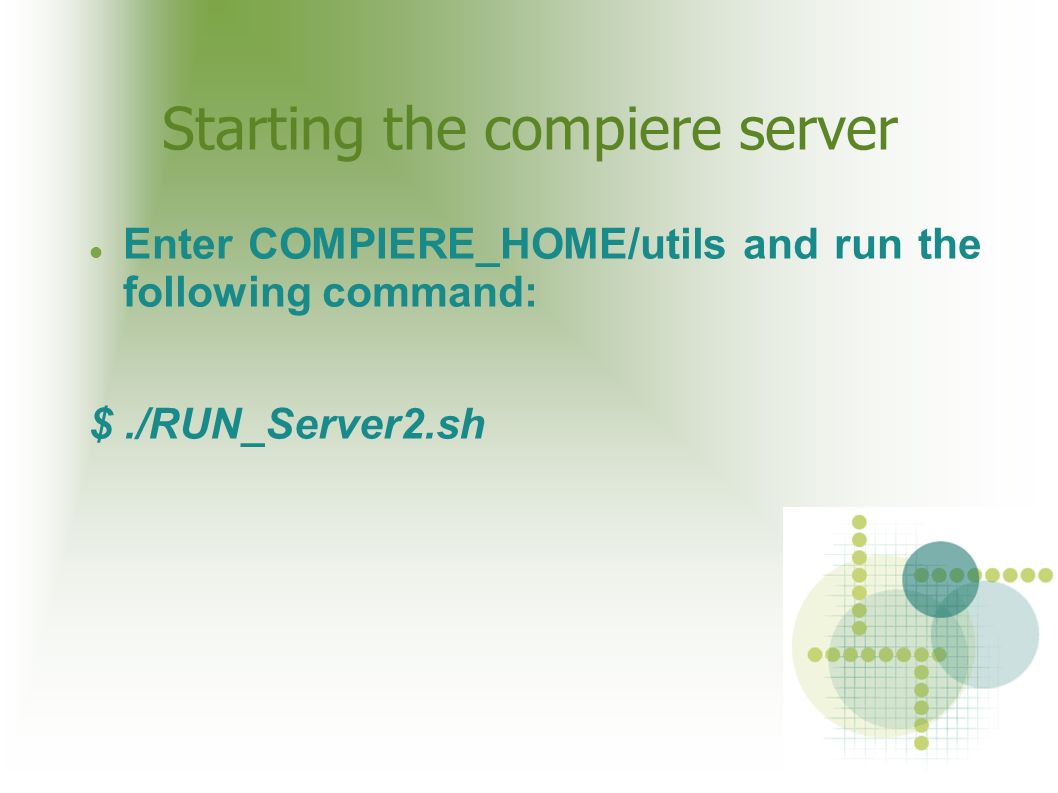

13 Starting the compiere server Enter COMPIERE_HOME/utils and run the following command: $./RUN_Server2.sh

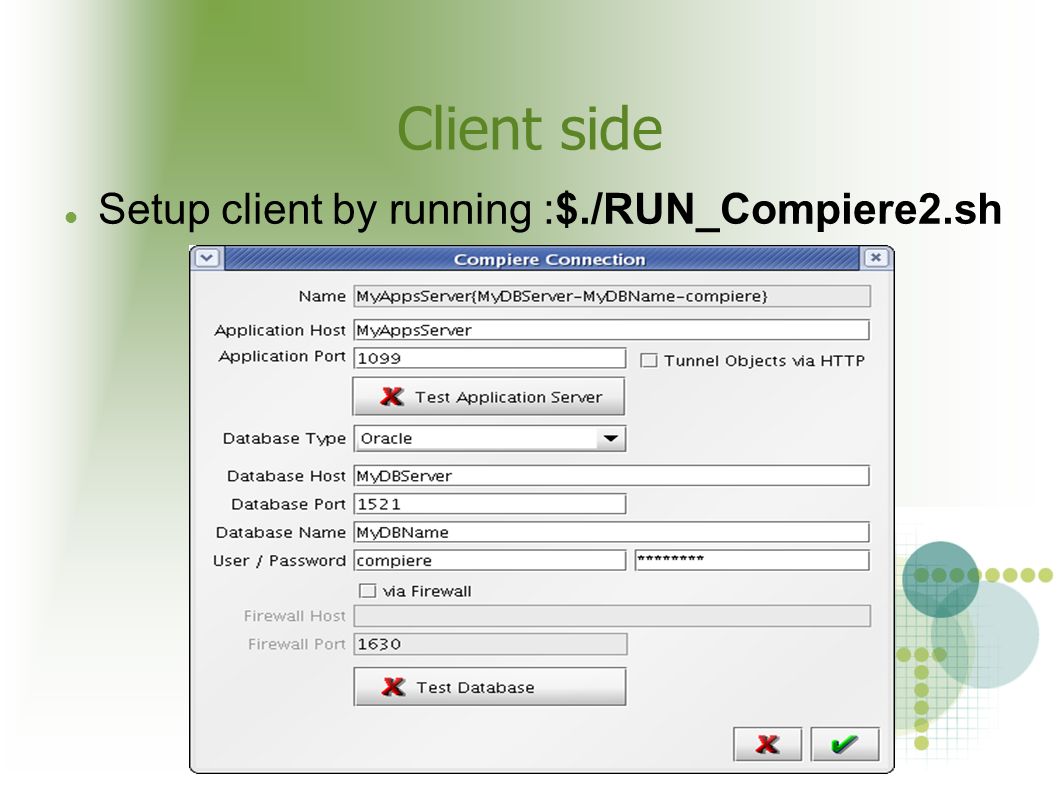

14 Client side Setup client by running :$./RUN_Compiere2.sh

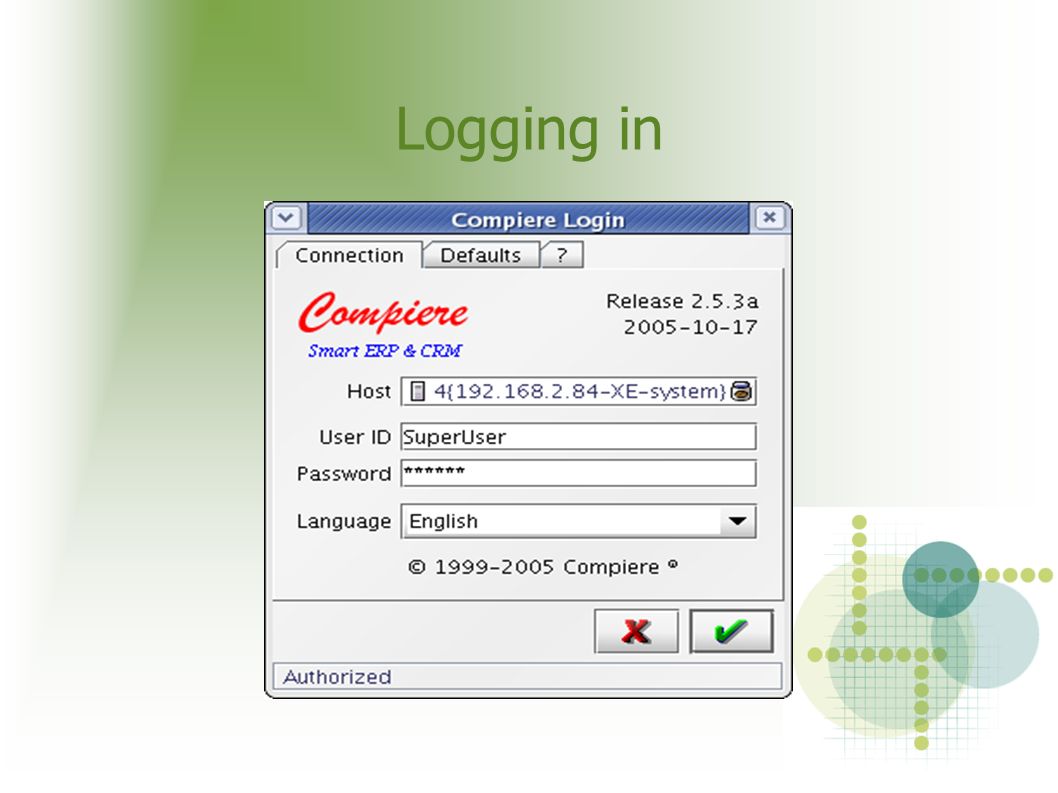

15 Logging in

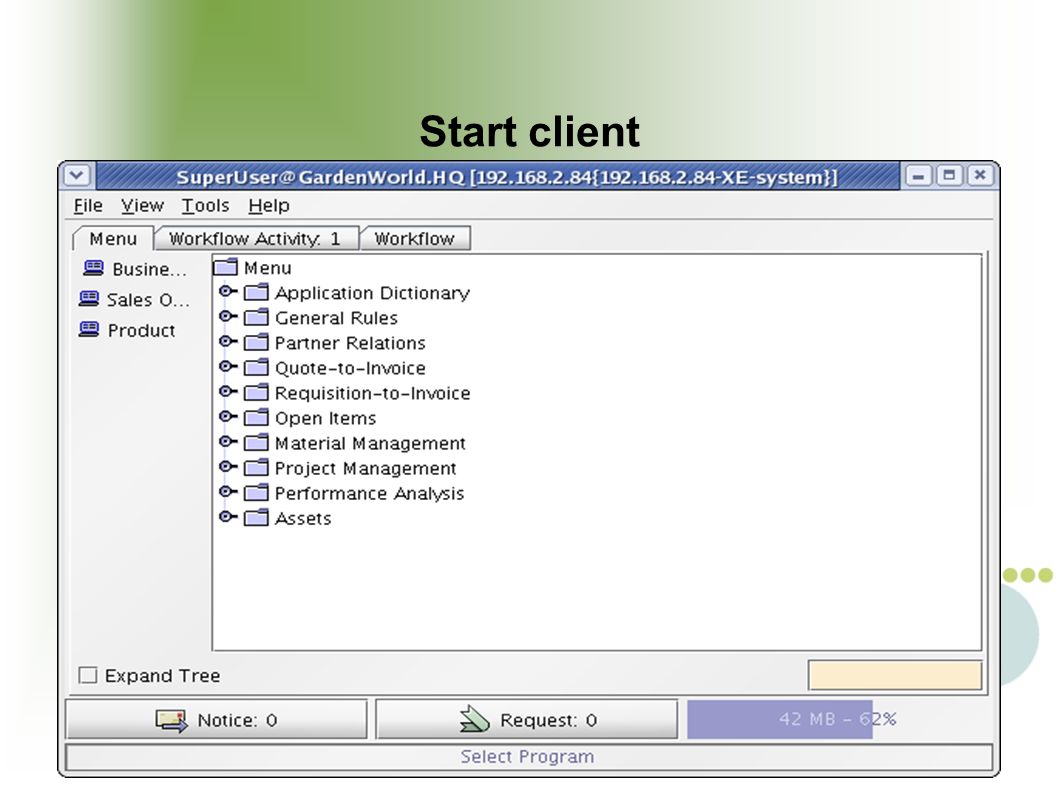

16 Start client

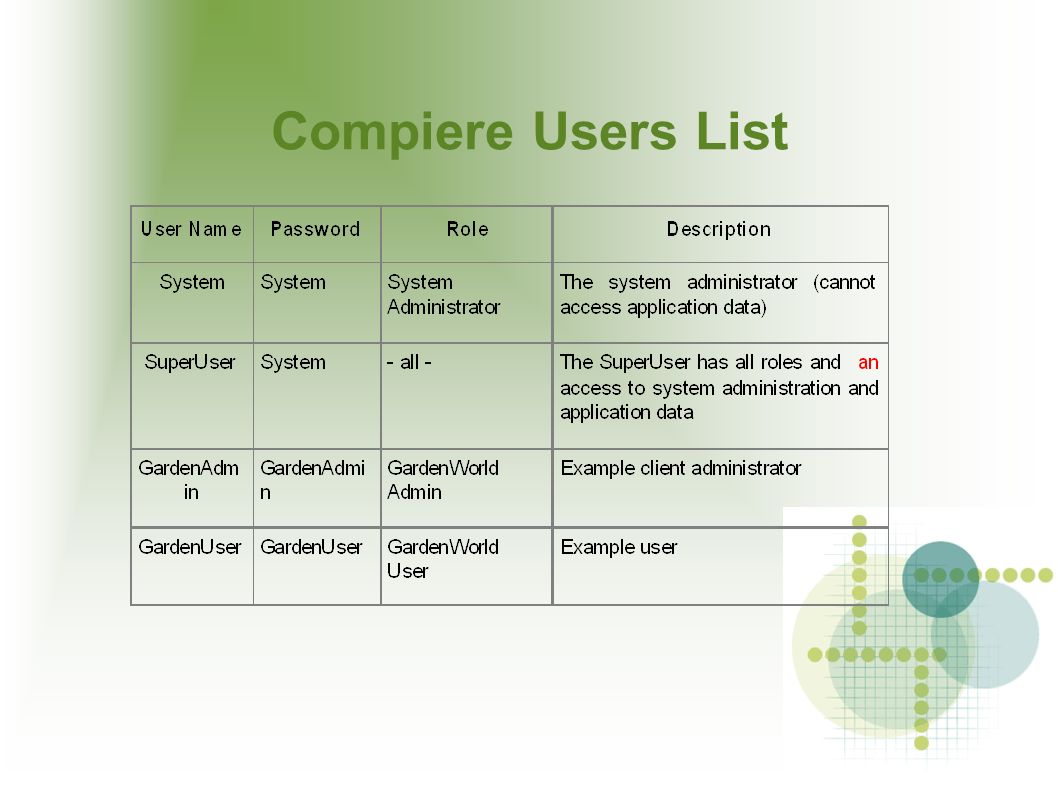

17 Compiere Users List

18 Group member Muazzam Ali Krich Nasingkun Chee M. Lin Hlaing Ei Ko Jon athan Khor Johan Hasan
