1. Chapter 8 Basic Concepts of Chemical Bonding

2. Chemical Bonds, Lewis Symbols, and the Octet Rule
Chemical bond: attractive force holding two or more atoms together.
Covalent bond results from sharing electrons between the atoms. Usually found between nonmetals.
Ionic bond results from the transfer of electrons from a metal to a nonmetal.
Metallic bond: attractive force holding pure metals together.

3. Lewis Symbols
As a pictorial understanding of where the electrons are in an atom, we represent the electrons as dots around the symbol for the element.
The number of electrons available for bonding are indicated by unpaired dots.
These symbols are called Lewis symbols.
We generally place the electrons one four sides of a square around the element symbol.

4. Lewis Symbols

5. The Octet Rule All noble gases except He has an s2p6 configuration.
Octet rule: atoms tend to gain, lose, or share electrons until they are surrounded by 8 valence electrons (4 electron pairs).
Caution: there are many exceptions to the octet rule.

6. Ionic Bonding The reaction is violently exothermic.
We infer that the NaCl is more stable than its constituent elements. Why?
Na has lost an electron to become Na+ and chlorine has gained the electron to become Cl-. Note: Na+ has an Ne electron configuration and Cl- has an Ar configuration.
That is, both Na+ and Cl- have an octet of electrons surrounding the central ion.

7. Ionic Bonding Arrangement

8. Energetics of Ionic Bond Formation
Lattice energy: the energy required to completely separate an ionic solid into its gaseous ions.
Lattice energy depends on the charges on the ions and the sizes of the ions:
k is a constant (8.99 x 10 9 J·m/C2), Q1 and Q2 are the charges on the ions, and d is the distance between ions.

10. Electron Configurations of Ions of the Representative Elements
These are derived from the electron configuration of elements with the required number of electrons added or removed from the most accessible orbital.
Electron configurations can predict stable ion formation:
Mg: [Ne]3s2
Mg+: [Ne]3s1 not stable
Mg2+: [Ne] stable
Cl: [Ne]3s23p5
Cl-: [Ne]3s23p6 = [Ar] stable

11. Transition Metal Ions and Polyatomic Ions
Lattice energies compensate for the loss of up to three electrons.
In general, electrons are removed from orbitals in order of decreasing n (i.e. electrons are removed from 4s before the 3d).
Polyatomic Ions
Polyatomic ions are formed when there is an overall charge on a compound containing covalent bonds. E.g. SO42-, NO3-.

12. Covalent Bonding
When two similar atoms bond, none of them wants to lose or gain an electron to form an octet.
When similar atoms bond, they share pairs of electrons to each obtain an octet.
Each pair of shared electrons constitutes one chemical bond.
Example: H + H  H2 has electrons on a line connecting the two H nuclei.

13. Covalent Bonding

14. Lewis Structures
Covalent bonds can be represented by the Lewis symbols of the elements:
In Lewis structures, each pair of electrons in a bond is represented by a single line:

15. Multiple Bonds
It is possible for more than one pair of electrons to be shared between two atoms (multiple bonds):
One shared pair of electrons = single bond (e.g. H2);
Two shared pairs of electrons = double bond (e.g. O2);
Three shared pairs of electrons = triple bond (e.g. N2).
Generally, bond distances decrease as we move from single through double to triple bonds.

16. Bond Polarity and Electronegativity
In a covalent bond, electrons are shared.
Sharing of electrons to form a covalent bond does not imply equal sharing of those electrons.
There are some covalent bonds in which the electrons are located closer to one atom than the other.
Unequal sharing of electrons results in polar bonds.

17. Electronegativity
Electronegativity: The ability of one atoms in a molecule to attract electrons to itself.
Pauling set electronegativities on a scale from 0.7 (Cs) to 4.0 (F).
Electronegativity increases
across a period and
down a group.

18. Electronegativity

19. Bond Polarity and Electronegativity
Difference in electronegativity is a gauge of bond polarity:
electronegativity differences around 0 result in non-polar covalent bonds (equal or almost equal sharing of electrons);
electronegativity differences around 2 result in polar covalent bonds (unequal sharing of electrons);
electronegativity differences around 3 result in ionic bonds (transfer of electrons).

20. Bond Polarity and Electronegativity
There is no sharp distinction between bonding types.
The positive end (or pole) in a polar bond is represented + and the negative pole -.

21. Dipole Moments Consider HF:
The difference in electronegativity leads to a polar bond.
There is more electron density on F than on H.
Since there are two different “ends” of the molecule, we call HF a dipole.
Dipole moment, m, is the magnitude of the dipole:
where Q is the magnitude of the charges.
Dipole moments are measured in debyes, D.

22. Bond Types and Nomenclature
In general, the least electronegative element is named first.
The name of the more electronegative element ends in –ide.
Ionic compounds are named according to their ions, including the charge on the cation if it is variable.

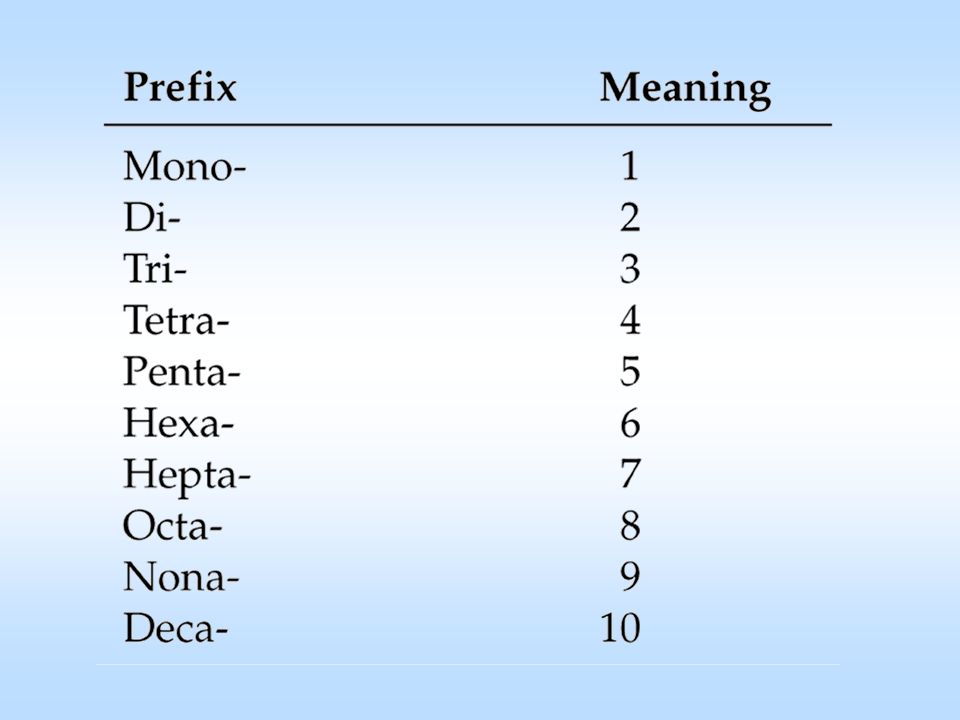

Molecular compounds are named with prefixes.

24. Bond Types and Nomenclature
Ionic
Molecular
MgH2
Magnesium hydride
H2S
Hydrogen sulfide
FeF2
Iron(II) fluoride
OF2
Oxygen difluoride
Mn2O3
Manganese(III) oxide
Cl2O3
Dichlorine trioxide

25. Drawing Lewis Structures
Add the valence electrons of all atoms.
Write symbols for the atoms and show which atoms are connected to which.
Complete the octet for all atoms bounded to the central atom.
Place leftover electrons on the central atom even if it results in more than an octet of electrons around the atoms. (see section 8.7 for expanded octet rule)
If there are not enough electrons to give the central atom an octet, try multiple bonds.

26. Formal Charge
It is possible to draw more than one Lewis structure with the octet rule obeyed for all the atoms.
To determine which structure is most reasonable, we use formal charge.
Formal charge is the charge on an atom that it would have if all the atoms had the same electronegativity (i.e., if the electrons are shared equally between atoms).

27. valence electrons - number of bonds - lone pair electrons
Formal Charge
To calculate formal charge:
All nonbonding electrons are assigned to the atom on which they are found.
Half the bonding electrons are assigned to each atom in a bond.
Formal charge is:
valence electrons - number of bonds - lone pair electrons

28. Formal Charge Consider: For C:
There are 4 valence electrons (from periodic table).
In the Lewis structure there are 2 nonbonding electrons and 3 from the triple bond. There are 5 electrons from the Lewis structure.
Formal charge: = -1.

29. Formal Charge Consider: For N: We write:
There are 5 valence electrons.
In the Lewis structure there are 2 nonbonding electrons and 3 from the triple bond. There are 5 electrons from the Lewis structure.
Formal charge = = 0.
We write:

30. Formal Charge The most stable structure has:
the lowest formal charge on each atom (i.e., closest to zero),
the most negative formal charge on the most electronegative atoms.
Remember, formal charges are a way of bookkeeping and do not represent the real charges on atoms. The actual charge distributions in molecules and ions are determined by a variety of factors including the electronegativity difference in atoms.

31. Resonance Structures
Some molecules are not well described by Lewis Structures.
Typically, structures with multiple bonds can have similar structures with the multiple bonds between different pairs of atoms
Example: experimentally, ozone has two identical bonds whereas the Lewis Structure requires one single (longer) and one double bond (shorter).

32. Resonance Structures

33. Resonance Structures
Resonance structures are attempts to represent a real structure that is a mix between several extreme possibilities.

34. Resonance Structures
Example: in ozone the extreme possibilities have one double and one single bond. The resonance structure has two identical bonds of intermediate character.
Common examples: O3, NO3-, SO42-, NO2, and benzene.

35. Resonance in Benzene
Benzene consists of 6 carbon atoms in a hexagon. Each C atom is attached to two other C atoms and one hydrogen atom.
There are alternating double and single bonds between the C atoms.
Experimentally, the C-C bonds in benzene are all the same length.
Experimentally, benzene is planar.

36. Resonance in Benzene
We write resonance structures for benzene in which there are single bonds between each pair of C atoms and the 6 additional electrons are delocalized over the entire ring:
Benzene belongs to a category of organic molecules called aromatic compounds (due to their odor).

37. Exceptions to the Octet Rule
There are three classes of exceptions to the octet rule:
Molecules with an odd number of electrons;
Molecules in which one atom has less than an octet;
Molecules in which one atom has more than an octet.

38. Odd Number of Electrons
Few examples. Generally molecules such as ClO2, NO, and NO2 have an odd number of electrons.

39. Less than an Octet Relatively rare.
Molecules with less than an octet are typical for compounds of Groups 1A, 2A, and 3A.
Most typical example is BF3.
Formal charges indicate that the Lewis structure with an incomplete octet is more important than the ones with double bonds.

40. More than an Octet This is the largest class of exceptions.
Atoms from the 3rd period onwards can accommodate more than an octet.
Beyond the third period, the d-orbitals are low enough in energy to participate in bonding and accept the extra electron density.

41. Strengths of Covalent Bonds
The energy required to break a covalent bond is called the bond dissociation enthalpy, D. That is, for the Cl2 molecule, D(Cl-Cl) is given by H for the reaction:
Cl2(g)  2Cl(g).
When more than one bond is broken:
CH4(g)  C(g) + 4H(g) H = 1660 kJ
the bond enthalpy is a fraction of H for the atomization reaction:
D(C-H) = ¼H = ¼(1660 kJ) = 415 kJ.
Bond enthalpies can either be positive or negative.

42. Bond Enthalpies (kJ/mol)

43. Bond Enthalpies and the Enthalpies of Reactions
We can use bond enthalpies to calculate the enthalpy for a chemical reaction.
We recognize that in any chemical reaction bonds need to be broken and then new bonds get formed.
The enthalpy of the reaction is given by the sum of bond enthalpies for bonds broken less the sum of bond enthalpies for bonds formed.

44. Bond Enthalpies and the Enthalpies of Reactions
Mathematically, if Hrxn is the enthalpy for a reaction, then
We illustrate the concept with the reaction between methane, CH4, and chlorine:
CH4(g) + Cl2(g)  CH3Cl(g) + HCl(g) Hrxn = ?

46. Bond Enthalpies and the Enthalpies of Reactions
In this reaction one C-H bond and one Cl-Cl bond gets broken while one C-Cl bond and one H-Cl bond gets formed.
The overall reaction is exothermic which means than the bonds formed are stronger than the bonds broken.
The above result is consistent with Hess’s law.

47. Bond Enthalpy and Bond Length
We know that multiple bonds are shorter than single bonds.
We can show that multiple bonds are stronger than single bonds.
As the number of bonds between atoms increases, the atoms are held closer and more tightly together.

48. Strengths of Covalent Bonds
