1. PRAGMA Summit, 3/17/2008 Cindy Zheng PRAGMA Grid Coordinator Pacific Rim Application and Grid Middleware Assembly http://www.pragma-grid.net http://goc.pragma-grid.net Applications and Middleware Work in PRAGMA Grid

2. PRAGMA Summit, 3/17/2008 Overview Introduction to PRAGMA Grid –People –Hardware –Software –Operations Grid Applications Grid Middleware –Security –Infrastructure –Services Education Grid Collaborations/Integrations Grid Interoperations

3. PRAGMA Summit, 3/17/2008 PRAGMA Grid 32 institutions in 16 countries/regions, 27 compute sites (+ 10 in preparation) UZH Switzerland NECTEC ThaiGrid Thailand UoHyd India MIMOS USM Malaysia CUHK HongKong ASGC NCHC Taiwan HCMUT HUT IOIT-HCM Vietnam AIST OsakaU UTsukuba TITech Japan BII IHPC NGO NTU Singapore MU Australia APAC QUT Australia KISTI Korea JLU China SDSC USA CICESE Mexico UNAM Mexico UCN Chile UChile Chile UUtah USA NCSA USA BU USA CeNAT-ITCR Costa Rica BESTGrid New Zealand CNIC GUCAS China LZU China UPRM Puerto Rico UZH Switzerland LZU China ASTI Philippines SKU UI Indonesia

4. PRAGMA Summit, 3/17/2008 PRAGMA Grid Members and Team http://goc.pragma-grid.net/wiki/index.php/Site_status_and_tasks http://goc.pragma-grid.net/wiki/index.php/Site_status_and_tasks Sites –23 sites from PRAGMA member institutions –15 sites from Non-PRAGMA member institutions –27 sites contributed compute clusters Team members –190 and growing –one management contact / site –1~3 technical support contact / site –1~4 application drivers / application team –1~5 / Middleware development team

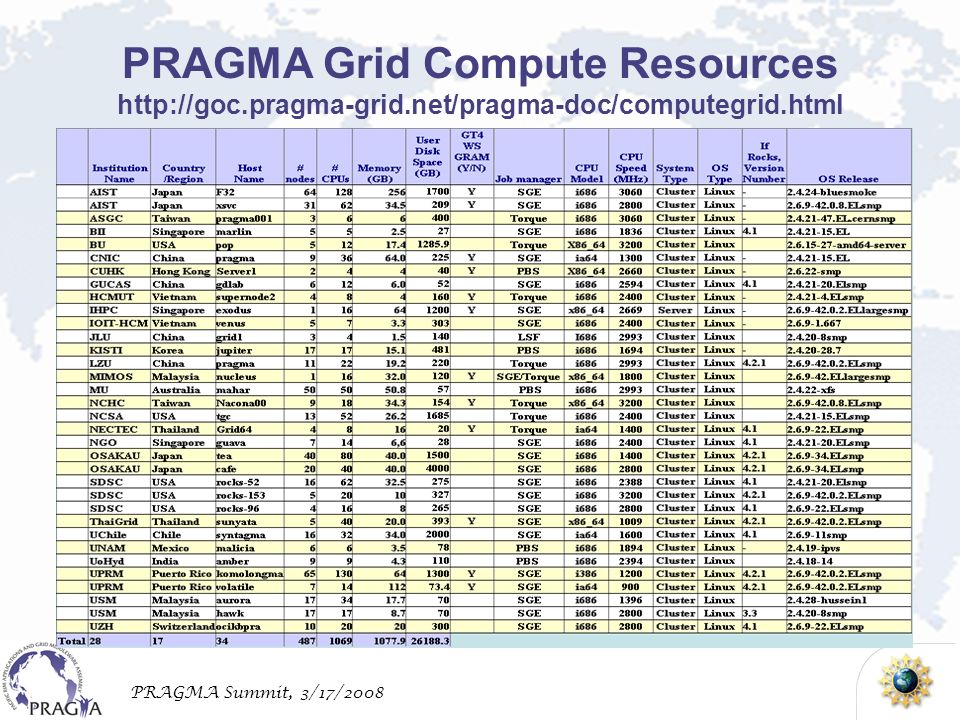

5. PRAGMA Summit, 3/17/2008 PRAGMA Grid Compute Resources http://goc.pragma-grid.net/pragma-doc/computegrid.html

6. PRAGMA Summit, 3/17/2008 Characteristics of PRAGMA Grid Grass-root –Voluntary contribution –Open (PRAGMA member or not, pacific rim or not) –Long-term collaborative working experiment Heterogeneous –Funding –No uniform infrastructure management –Variety of sciences and applications –Site policies, system and network environments Realistically tough –Good for development, collaborations, integrations and testing

7. PRAGMA Summit, 3/17/2008 PRAGMA Grid Software Layers http://goc.pragma-grid.net/pragma-doc/userguide/join.html http://goc.pragma-grid.net/pragma-doc/userguide/join.html Local job scheduler (require one) Globus (required) Application Middleware Applications Infrastructure Middleware SGEPBSLSFSQMS… Ninf-GNimrod/GMpich-GX…GfarmSCMSWebMOGASCSF Phylogenetic…FMOCSTFTSavannahMM5AMBERSiesta …

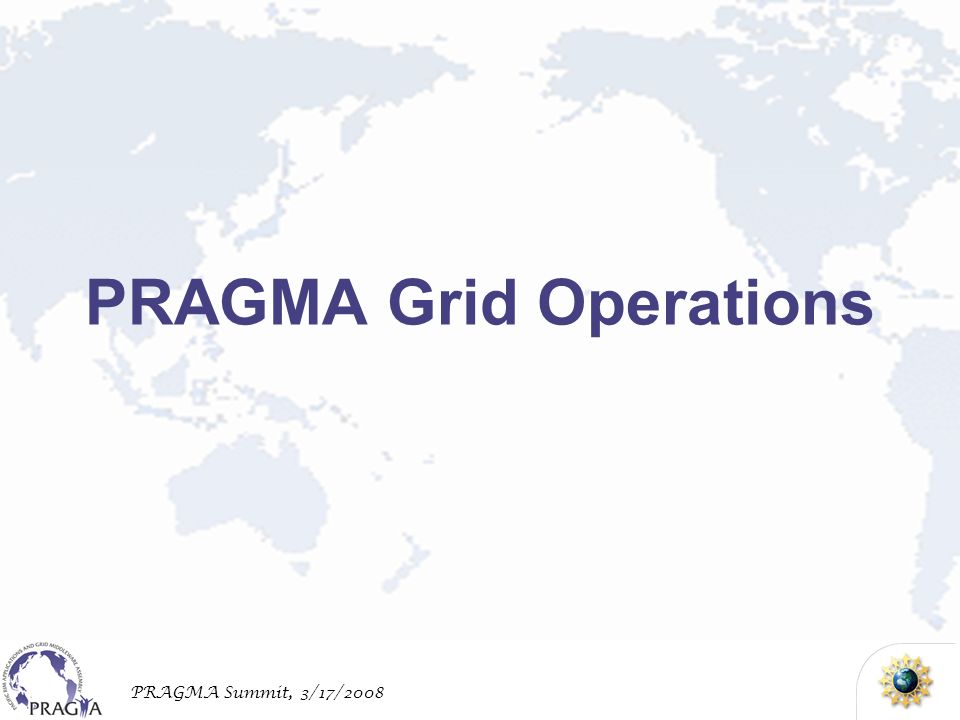

8. PRAGMA Summit, 3/17/2008 PRAGMA Grid Operations

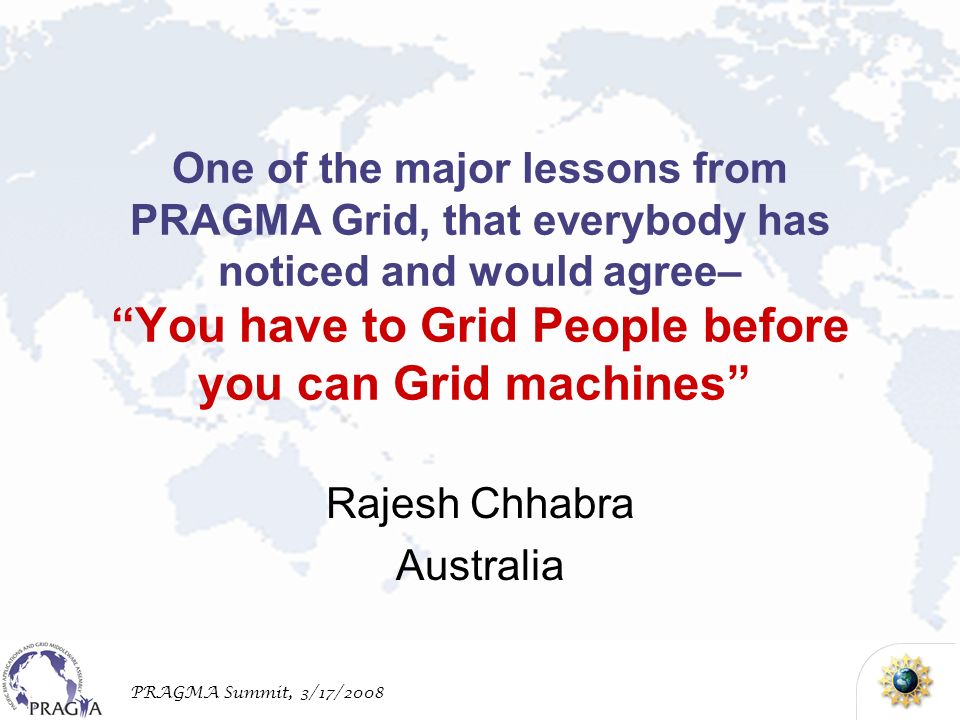

9. PRAGMA Summit, 3/17/2008 One of the major lessons from PRAGMA Grid, that everybody has noticed and would agree– You have to Grid People before you can Grid machines Rajesh Chhabra Australia

10. PRAGMA Summit, 3/17/2008 Grid Operation http://goc.pragma-grid.net, http://wiki.pragma-grid.net http://goc.pragma-grid.nethttp://wiki.pragma-grid.net Develop and maintain mutual beneficial and happy relationships among all people involved –Geographies, time-zones, languages –Funding, chain-of-command, priorities –Mutual benefit, consensus, active leadership –Coordinator, site contacts Collaboration tools –Mailing lists, VTCs, Skype, semi-annual workshops –Grid Operation Center (GOC) –Wiki, all sites and application, middleware teams collaborate Heterogeneity –Tolerate, technology, overcome and take advantage –Software inventory instead of software stack –Many sub-grids for applications –Recommendation instead of requirements –Software license (Amber grid-wide license)

11. PRAGMA Summit, 3/17/2008 Create New Ways To Operate http://goc.pragma-grid.net, http://wiki.pragma-grid.net http://goc.pragma-grid.nethttp://wiki.pragma-grid.net Lack precedence Everyone contributes ideas, suggestions Evolving and improving over time Everyone document and update (wiki) –Create new procedures New site setup to join PRAGMA Grid http://goc.pragma-grid.net/pragma-doc/userguide/join.html New user/application to run in PRAGMA grid http://goc.pragma-grid.net/pragma- doc/userguide/pragma_user_guide.html –Tabulate information Application pages, site pages, resources tables, status pages –Publish instructions Software deployment procedures, tools

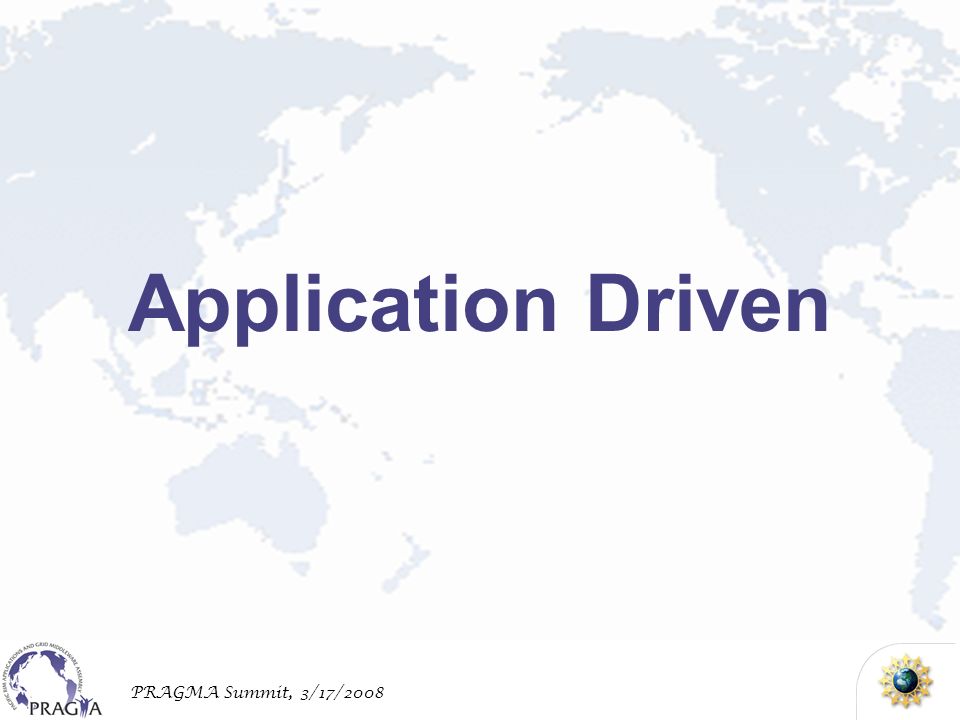

12. PRAGMA Summit, 3/17/2008 Application Driven

13. PRAGMA Summit, 3/17/2008 Applications and Middleware http://goc.pragma-grid.net/applications/default.html http://goc.pragma-grid.net/applications/default.html Real science applications paired with and drive middleware development Open to applications of all scientific disciplines Achieve long-run and scientific results ~30 applications in 3 years: –Structure biology Phaser (MU, Australia) –Quantum-mechanics, quantum-chemistry: TDDFT, QM-MD, FMO/Ninf-G (AIST, Japan) –Climate simulation Savannah/Nimrod (MU, Australia) MM5/Mpich-Gx (CICESE, Mexico; KISTI, Korea) –Genomics and meta-genomics iGAP/Gfarm/CSF (UCSD, USA; AIST, Japan; JLU, China) HPM: genomics (IOIT-HCM, Vietnam) mpiBlast/Mpich-G2 (ASGC, Taiwan) Phylogenetic/Gfarm/CFS (UWisc and UCSD, USA) –Computational chemistry and fluid dynamics CSE-Online (UUtah, USA) e-AIRS (KISTI, Korea) Gamess-APBS/Nimrod (UZurich, Switzerland) –Molecular simulation Siesta/Nimrod (UZurich, Switzerland; MU, Australia) Amber/Gfarm ( USM, Malaysia; AIST, Japan) –Environmental Science CSTFT/Ninf-G (UPRM, Puerto Rico)

14. PRAGMA Summit, 3/17/2008 Grid Middleware

15. PRAGMA Summit, 3/17/2008 Ninf-G http://ninf.apgrid.org Developed by AIST, Japan Based on GridRPC model Support parallel computing Integrated to NMI release 8 (first non-US software in NMI) Integrate with Rocks OGF standard 4 applications ran in PRAGMA grid, 2 ran across multi-grid –TDDFT –QM/MD –FMO –CSTFT (UPRM) Achieved long runs (50 days) Improved fault-tolerance Simplified deployment procedures Speed-up development cycles

16. PRAGMA Summit, 3/17/2008 Nimrod/G http://www.csse.monash.edu.au/~davida/nimrod http://www.csse.monash.edu.au/~davida/nimrod Developed by Monash University (MU), Australia Supports large scale parameter sweeps on Grid infrastructure Easy user interface – Nimrod portals –MU, Australia –UZurich, Switzerland –UCSD, USA 4 applications ran in PRAGMA grid and 2 run in multi-grids –Savanah climate simulation (MU, Australia)) –GAMESS/APBS (UZurich, Switzerland) –Siesta (UZurich, Switzerland) –Structure biology (MU, Australia) Developed interface to Unicore with UZH Achieved long runs (90 different scenarios of 6 weeks each Improved fault-tolerance (innovate time_step) Enhancements in data and storage handling Job 1Job 2Job 3 Job 4Job 5Job 6 Job 7Job 8Job 9 Job 10Job 11Job 12 Job 13Job 14Job 15 Job 16Job 17Job 18 Description of Parameters PLAN FILE

17. PRAGMA Summit, 3/17/2008 Mpich-Gx http://www.moredream.org/mpich.htm http://www.moredream.org/mpich.htm Mpich-GX –Korea Institute of Science and Technology Information (KISTI), Korea –Based on Mpich-g2 –Grid-enabled MPI, support Private IP Fault tolerance MM5 and WRF –CICESE, Mexico –Medium scale atmospheric simulation model Experiment –KGrid –WRF work well with MPICH-GX –MM5 experienced scaling problems with MPICH-GX when use more than 24 processors in a cluster –Functionality of the private IP is usable –Performance of the private IP is reasonable

18. PRAGMA Summit, 3/17/2008 Education Grid http://prime.ucsd.edu http://prius.ics.es.osaka-u.ac.jp/en/index.html http://prime.ucsd.eduhttp://prius.ics.es.osaka-u.ac.jp/en/index.html PRIME - Pacific Rim Undergraduate Experiences, providing UCSD undergraduate students international interdisciplinary research internships and Cultural experiences, in collaboration with PRAGMA since 2004. PRIUS - Pacific Rim International UniverSity, provide Osaka University students expert lectures and internship abroad, in collaboration with PRAGMA since 2005 Sample middleware projects –MOGAS –Grid security analysis Sample applications ran in PRAGMA grid this year: –Climate modeling –Multi-walled carbon nanotube and polyethylene oxide composite computer visualization model –Metabolic regulation of ionic currents and pumps in rabbit ventricular myocyte model –Improving binding energy using quantum mechanics –Cardiac mechanics modeling –H5N1 simulation –Shp2 Protein Tyrosine Phosphatase Inhibitor simulation for cancer research

19. PRAGMA Summit, 3/17/2008 Science Technologies Collaborations Integrations

20. PRAGMA Summit, 3/17/2008 Grid security –Naregi (Japan), APGrid, GAMA (SDSC, USA) Grid infrastructure –Monitoring - SCMSWeb (ThaiGrid, Thailand) –Accounting - MOGAS (NTU Singapore) –Metascheduling - Community Scheduler Framework (JLU, China) –Cyber-environment - CSE-Online (UUtah, USA) –Rocks and middleware (SDSC, USA; …) Ninf-G, SCE, Gfarm, Bio, K*Rocks, Condor, … Science, datagrid, sensor, network –Biosciences – Avian Flu, portal, … –Gfarm-fuse (AIST, Japan) –GEON data network –GLEON sensor network –OptIPuter High performance networked TDW Telescience Collaborations With Science and Technology Teams

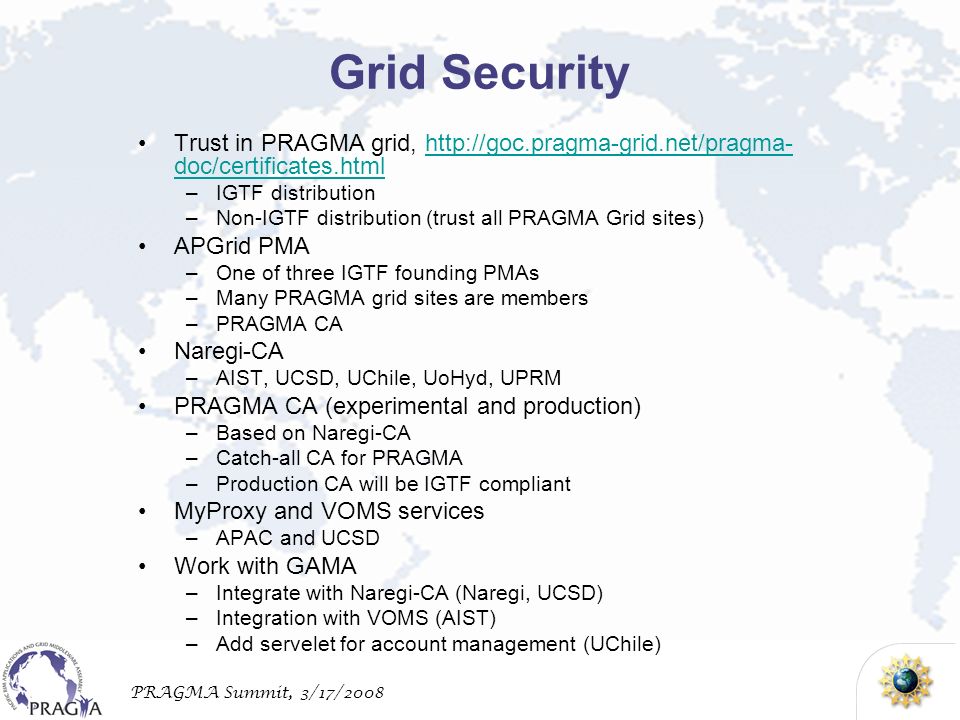

21. PRAGMA Summit, 3/17/2008 Grid Security Trust in PRAGMA grid, http://goc.pragma-grid.net/pragma- doc/certificates.htmlhttp://goc.pragma-grid.net/pragma- doc/certificates.html –IGTF distribution –Non-IGTF distribution (trust all PRAGMA Grid sites) APGrid PMA –One of three IGTF founding PMAs –Many PRAGMA grid sites are members –PRAGMA CA Naregi-CA –AIST, UCSD, UChile, UoHyd, UPRM PRAGMA CA (experimental and production) –Based on Naregi-CA –Catch-all CA for PRAGMA –Production CA will be IGTF compliant MyProxy and VOMS services –APAC and UCSD Work with GAMA –Integrate with Naregi-CA (Naregi, UCSD) –Integration with VOMS (AIST) –Add servelet for account management (UChile)

22. PRAGMA Summit, 3/17/2008 Gfarm Grid File System http://datafarm.apgrid.org http://datafarm.apgrid.org UTsukuba, Open source development at SourceForge.net Grid file system that Federates storage of each site Meta-server keeps track of file copies and locations Can be mounted from cluster nodes and clients (GfarmFS-FUSE) Parallel I/O, near site copy for scalable performance Replication for fault tolerance Use GSI authentication Easy application deployment, file sharing Distributed Meta-servers?

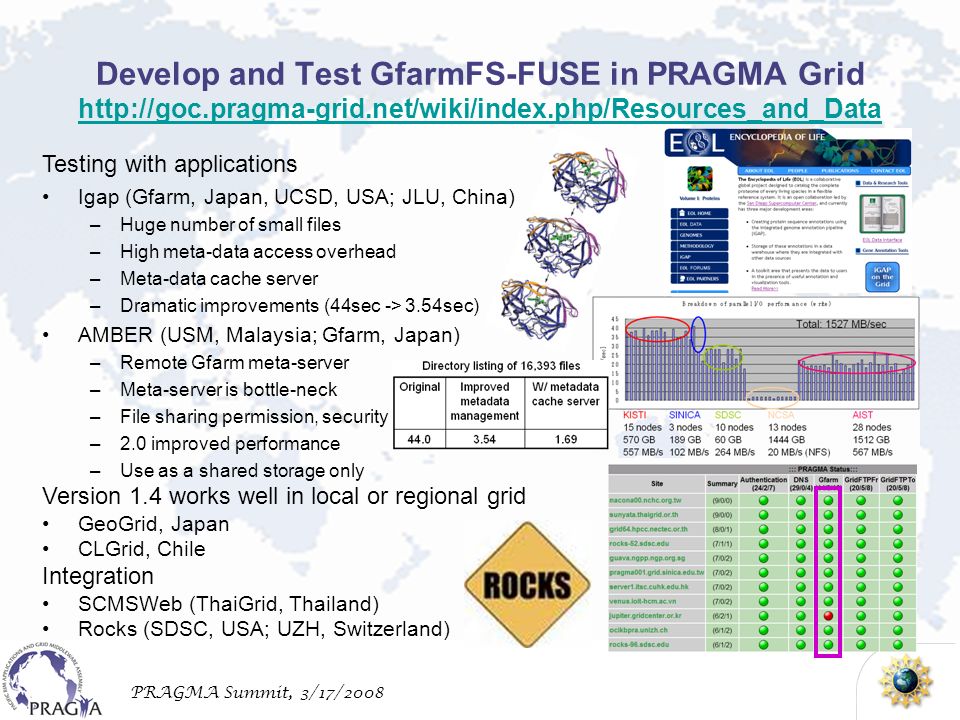

23. PRAGMA Summit, 3/17/2008 Testing with applications Igap (Gfarm, Japan, UCSD, USA; JLU, China) –Huge number of small files –High meta-data access overhead –Meta-data cache server –Dramatic improvements (44sec -> 3.54sec) AMBER (USM, Malaysia; Gfarm, Japan) –Remote Gfarm meta-server –Meta-server is bottle-neck –File sharing permission, security –2.0 improved performance –Use as a shared storage only Version 1.4 works well in local or regional grid GeoGrid, Japan CLGrid, Chile Integration SCMSWeb (ThaiGrid, Thailand) Rocks (SDSC, USA; UZH, Switzerland) Develop and Test GfarmFS-FUSE in PRAGMA Grid http://goc.pragma-grid.net/wiki/index.php/Resources_and_Data http://goc.pragma-grid.net/wiki/index.php/Resources_and_Data

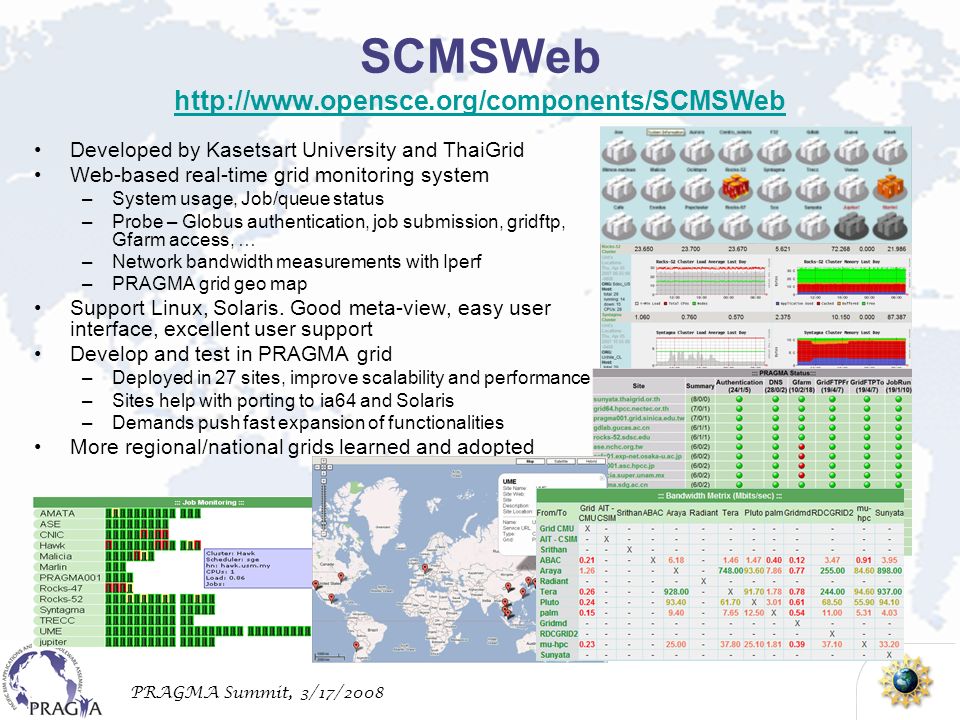

24. PRAGMA Summit, 3/17/2008 SCMSWeb http://www.opensce.org/components/SCMSWeb http://www.opensce.org/components/SCMSWeb Developed by Kasetsart University and ThaiGrid Web-based real-time grid monitoring system –System usage, Job/queue status –Probe – Globus authentication, job submission, gridftp, Gfarm access, … –Network bandwidth measurements with Iperf –PRAGMA grid geo map Support Linux, Solaris. Good meta-view, easy user interface, excellent user support Develop and test in PRAGMA grid –Deployed in 27 sites, improve scalability and performance –Sites help with porting to ia64 and Solaris –Demands push fast expansion of functionalities More regional/national grids learned and adopted

25. PRAGMA Summit, 3/17/2008 SCMSWeb Collaborations and Integrations Grid Interoperation Now (GIN, OGF) http://forge.gridforum.org/sf/wiki/do/viewPage/projects.gin/wiki/GinOps http://forge.gridforum.org/sf/wiki/do/viewPage/projects.gin/wiki/GinOps –Worked with PRAGMA grid, TeraGrid, OSG, NorduGrid and EGEE on GIN testbed monitoring http://goc.pragma-grid.net/cgi-bin/scmsweb/probe.cgi, added probes to handle various grid service configurations/tests.http://goc.pragma-grid.net/cgi-bin/scmsweb/probe.cgi –Worked with CERN and Implemented a XML-> LDIF translator for GIN geo map http://maps.google.com/maps?q=http://lfield.home.cern.ch/lfield/gin.kml http://maps.google.com/maps?q=http://lfield.home.cern.ch/lfield/gin.kml –Worked with many grid monitor software developers on a common schema for cross-grid monitoring http://wiki.pragma- grid.net/index.php?title=GIN_%28Grid_Inter-operation_Now%29_Monitoringhttp://wiki.pragma- grid.net/index.php?title=GIN_%28Grid_Inter-operation_Now%29_Monitoring Software integration and interoperations –Rocks – SCE roll –MOGAS – grid accounting –Bandwidth measurements –Data federator for grid applications Provide site software information Standardize data extractions and formats Improve data storage with RDBMS –Condor, CSF, … – provide resource info –Interoperate with other monitoring software Ganglia support

26. PRAGMA Summit, 3/17/2008 MOGAS http://ntu-cg.ntu.edu.sg/pragma/index.jsp http://ntu-cg.ntu.edu.sg/pragma/index.jsp Multi-Organization Grid Accounting System (MOGAS) –Lead by NanYang University, funded by National Grid Office in Singapore –Build on globus core (gridftp, GRAM, GSI) –Support GT2,3,4; SGE, PBS –Job/user/cluster/OU/grid levels usages; job logs; metering and charging tools Develop and test in PRAGMA grid –Deployed on 14 sites: different GT versions, job schedulers, GRAM scripts, security policies –Feedbacks, improve, automate deployment procedure –Decentralized servers and better database to improve scalability and performance –Collaborations and integrations with applications and other middleware teams push the development of easy database interface and more efficient data collection

27. PRAGMA Summit, 3/17/2008 Community Scheduler Framework, v4 – meta-scheduler –Developed by Jilin University, China –Grid services host in GT4, WSRF compliant, execution Component in Globus Toolkit 4 –Open Source, http://sourceforge.net/projects/gcsfhttp://sourceforge.net/projects/gcsf –Support GT2&4, LSF, PBS, SGE, Condor –Easy user interface - portal Testing and collaborating in PRAGMA –Testing with application iGAP, AFG (UCSD, AIST, KISTI, …) –Collaborate and integrate with Gfarm on data staging (AIST, Japan) –Setup a CSF server and portal (SDSC, USA) –Collaborate/integrate with SCMSWeb for resource information (Thaigrid, Thailand) –Leverage resources and global grid testing environment CSF4 http://goc.pragma-grid.net/wiki/index.php/CSF_server_and_portal http://goc.pragma-grid.net/wiki/index.php/CSF_server_and_portal

28. PRAGMA Summit, 3/17/2008 Computational Science & Engineering Online http://cse-online.net http://cse-online.net Developed by University of Utah, USA (Thanh N. Truong) Desktop tool, user friendly interface enables seamless access to remote data, tools and grid computing resources Currently support computational Chemistry Can be customized for other domain science Developed interface to TeraGrid Collaborate with ThaiGrid as case study –Used for Computational workshop –Extend grid access to portal architecture –Improved security Working on interface PRAGMA grid –Heterogeneity Quantum ChemistryNano-materialsDrug Design

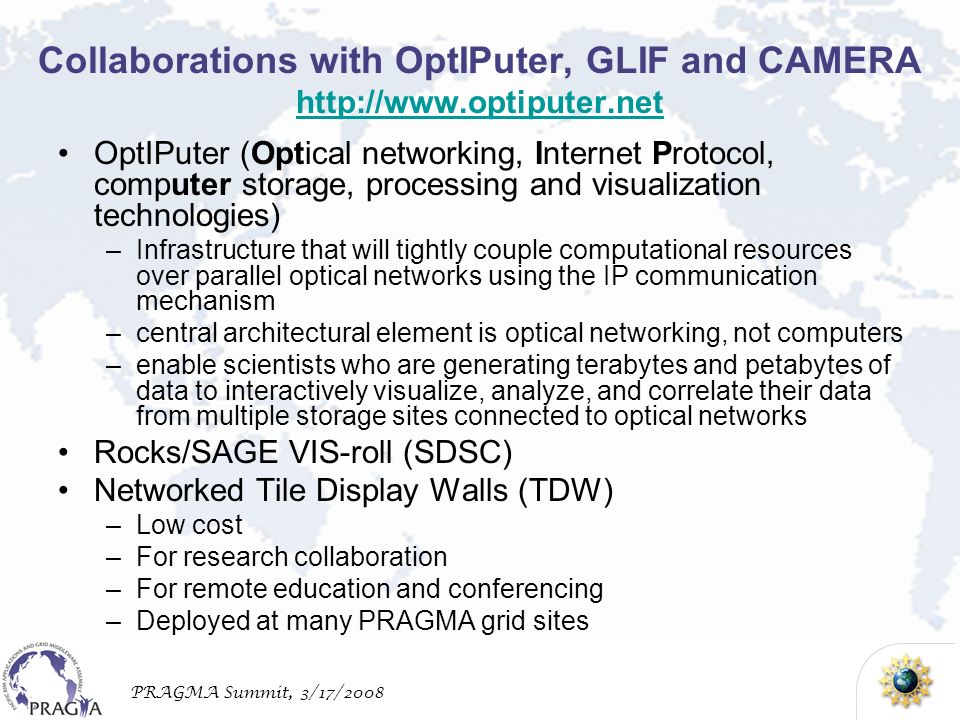

29. PRAGMA Summit, 3/17/2008 Collaborations with OptIPuter, GLIF and CAMERA http://www.optiputer.net http://www.optiputer.net OptIPuter (Optical networking, Internet Protocol, computer storage, processing and visualization technologies) –Infrastructure that will tightly couple computational resources over parallel optical networks using the IP communication mechanism –central architectural element is optical networking, not computers –enable scientists who are generating terabytes and petabytes of data to interactively visualize, analyze, and correlate their data from multiple storage sites connected to optical networks Rocks/SAGE VIS-roll (SDSC) Networked Tile Display Walls (TDW) –Low cost –For research collaboration –For remote education and conferencing –Deployed at many PRAGMA grid sites

30. PRAGMA Summit, 3/17/2008 Build a Rocks / SAGE OptIPortal NCMIR@UCSD SIO@UCSD UIC Calit2@UCI KISTI NCSA & TRECC Calit2@UCSD AIST UZurich CNIC NCHC Osaka U

31. PRAGMA Summit, 3/17/2008 Global Lambda Integrated Facility (GLIF) http://www.glif.is http://www.glif.is Visualization courtesy of Bob Patterson, NCSA. –Map to many PRAGMA grid sites –PRAGMA grid use GLIF to solve grid application bandwidth problem

32. PRAGMA Summit, 3/17/2008 Intergrate CAMERA and PRAGMA Grid Microbial Metagenomicist Userbase Over 1300 Registered Users From 48 Countries

33. PRAGMA Summit, 3/17/2008 Calit2/PRAGMA/CAMERA/LambdaGrid Collaborations Add CAMERA Server to PRAGMA Grid Testbed –Ad hoc Supercomputing –NIMROD? –New Bioinformatics Apps Set up PRAGMA OptIPortal LambdaGrid for several PRAGMA Sites –KISTI, Konkuk U (Korea) –AIST, Osaka U (Japan) –CNIC (China) –NCHC (Taiwan) –APAC, UMelbourne, Monash U, U Queensland (Australia) –CICESE (Mexico) –UZurich (Switzerland) –Plus Other Volunteers! Source: Paul Gilna, Kayo Arima, Calit2 PRAGMA Countries with CAMERA Registered Users

34. PRAGMA Summit, 3/17/2008 Grid Interoperation

35. PRAGMA Summit, 3/17/2008 Open Grid Forum and GIN GIN-OPS (lead by PRAGMA) GIN testbed (February, 2006 – On going) –One or more clusters from each grid –Still part of each production grid –Running real science applications –Explore interoperation issues –Develop solutions –Provide insight to standardization effort Application driven –TDDFT/Ninf-G (PRAGMA - AIST, Japan) PRAGMA, TeraGrid, OSG, NorduGrid; EGEE –Savanah fire simulation (PRAGMA – Monash University, Australia) PRAGMA, TeraGrid, OSG Grid Interoperation Now (GIN) http://forge.gridforum.org/sf/wiki/do/viewPage/projects.gin/wiki/GinOps

36. PRAGMA Summit, 3/17/2008 Software interface and integration –Ninf-G (AIST/PRAGMA) - NorduGrid –Nimrod/G (MU-PRIME/PRAGMA) – Unicore –SCMSWeb (ThaiGrid/PRAGMA) – Condor (UWisc/OSG) –SCMSWeb (ThaiGrid/PRAGMA) – BDII (CERN) –VDT (OSG) and Rocks (SDSC/PRAGMA) integration Multi-Grid monitoring –Lead by ThaiGrid/PRAGMA –SCMSWeb probe matrix (PRAGMA - ThaiGrid, Thailand) –Common schema (http://goc.pragma- grid.net/wiki/index.php?title=GIN_%28Grid_Inter-operation_Now%29_Monitoring)http://goc.pragma- grid.net/wiki/index.php?title=GIN_%28Grid_Inter-operation_Now%29_Monitoring PRAGMA – SCMSWeb, MOGAS TeraGrid – Globus Gt4.0.1, Ganglia, NAGIOS EGEE – MonAlisa NorduGrid/ARC – NorduGrid/MDS2, NorduGrid/Grid Monitor Grid Interoperation Now (GIN) http://forge.gridforum.org/sf/wiki/do/viewPage/projects.gin/wiki/GinOps

37. PRAGMA Summit, 3/17/2008

38. Different from GIN testbed –More resources and support from each grid –Either uni-directional or bi-directional application run –Long run to achieve scientific results OSG PRAGMA (January, 2007 – on-going) –How Each grid identify management, application drivers, resources supporters All participants document application requirements, meetings, issues, solutions, status, results, … at wiki.pragma-grid.net –Resources OSG – FermilabGrid, will add UWisc PRAGMA grid - any sites application driver choose to use –Applications OSG – GISolve, spatial Interpolation (UIowa, USA) PRAGMA –FMO/Ninf-G, quantum Chemistry (AIST, Japan) – completed –Structure biology (MU, Australia) – start soon Peer-grid Interoperation Experiments http://goc.pragma-grid.net/wiki/index.php/Main_Page#Grid_Inter-operations

39. PRAGMA Summit, 3/17/2008 OSG-PRAGMA Grid Interoperation Experiments http://goc.pragma-grid.net/wiki/index.php/Main_Page#Grid_Inter-operations More resources and support from each grid, but no special arrangements Application long-run –GridFMO/Ninf-G – Large scale quantum Chemistry (Tsutomo Ikegami, AIST, Japan) –240 CPUs from OSG and PRAGMA grid, 10 days x 7 calculations –Fault-tolerance enabled long-run –Meaningful and usable scientific results

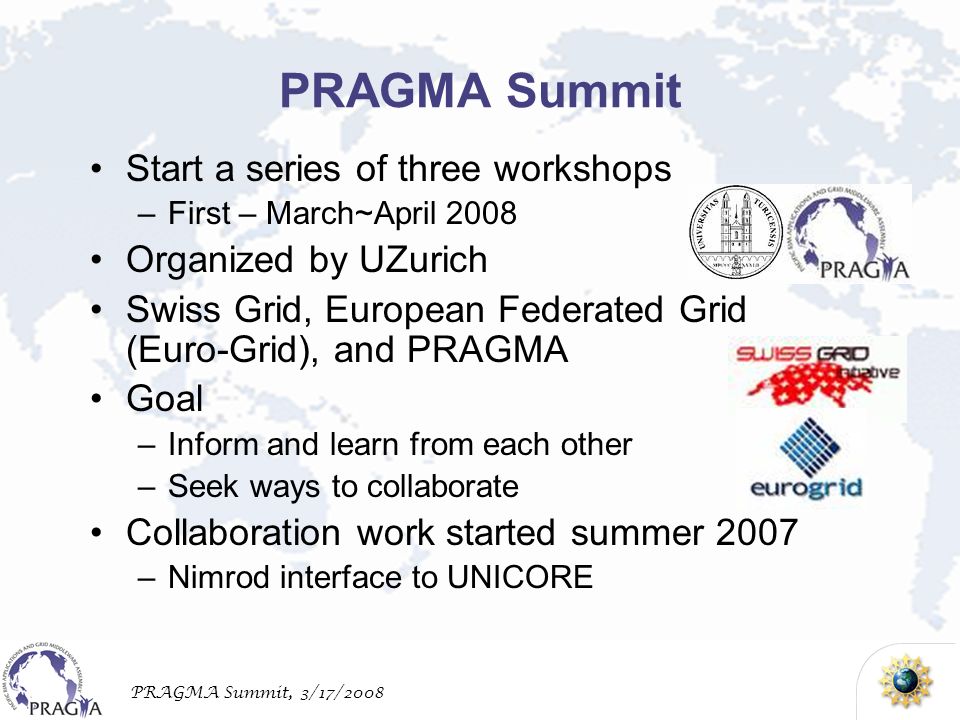

40. PRAGMA Summit, 3/17/2008 Start a series of three workshops –First – March~April 2008 Organized by UZurich Swiss Grid, European Federated Grid (Euro-Grid), and PRAGMA Goal –Inform and learn from each other –Seek ways to collaborate Collaboration work started summer 2007 –Nimrod interface to UNICORE PRAGMA Summit

41. PRAGMA Summit, 3/17/2008 Lessons Learned From Grid Interoperation http://forge.gridforum.org/sf/wiki/do/viewPage/projects.gin/wiki/GinOps Grid interoperation make large scale calculations possible Differences among grids provide learning, collaboration and integration opportunities –IGTF, VOMS (GIN) –Common Software Area (TeraGrid) –Ninf-G – NorduGrid –Nimrod/G – Unicore –SCMSWeb – Condor –SCMSWeb – BDII –SCMSWeb probe matrix for GIN testbed monitoring –Common schema among many grid monitoring software –VDT (OSG) and Rocks (SDSC/PRAGMA) integration Differences in grid environment are source of difficulties for users and applications –Different user access setup procedure - take extra effort –Different job submission protocols GRAM, Sandbox, gridftp, modified GRAM, … One-to-one interface - is it scalable? Possible standards? Middleware fault tolerance and flexible resource management is important –Cope with unfamiliar fault conditions, lack of parallel computation support, …

42. PRAGMA Summit, 3/17/2008 Collaborate in Publishing Research Results Some published papers in 2007: Amaro, RE, Minh DDL, Cheng LS, Lindstrom, WM Jr, Olson AJ, Lin JH, Li WW, and McCammon JA. Remarkable Loop Flexibility in Avian Influenza N1 and Its Implications for Antiviral Drug Design. J. AM. CHEM. SOC. 2007, 129, 7764-7765 (PRIME) Choi Y, Jung S, Kim D, Lee J, Jeong K, Lim SB, Heo D, Hwang S, and Byeon OH."Glyco-MGrid: A Collaborative Molecular Simulation Grid for e-Glycomics," in 3rd IEEE International Conference on e-Science and Grid Computing, Banglore, India, 2007. Accepted. Ding Z, Wei W, Luo Y, Ma D, Arzberger PW, and Li WW, "Customized Plug-in Modules in Metascheduler CSF4 for Life Sciences Applications," New Generation Computing, p. In Press, 2007. Ding Z, Wei S, Ma, D and Li WW, "VJM -- A Deadlock Free Resource Co-allocation Model for Cross Domain Parallel Jobs," in HPC Asia 2007, Seoul, Korea, 2007, p. In Press. Görgen K, Lynch H, Abramson D, Beringer J and Uotila P. "Savanna fires increase monsoon rainfall as simulated using a distributed computing environment", to appear, Geophysical Research Letters. Ichikawa K, Date S, Krishnan S, Li W, Nakata K, Yonezawa Y, Nakamura H, and Shimojo S, "Opal OP: An extensible Grid-enabling wrapping approach for legacy applications", GCA2007 - Proceedings of the 3rd workshop on Grid Computing & Applications -, pp.117-127, Singapore, June 2007 a. (PRIUS) Ichikawa K, Date S, and Shimojo S. A Framework for Meta-Scheduling WSRF Based Services, Proceedings of 2007 IEEE Pacific Rim Conference on Communications, Computers and Signal Processing (PACRIM 2007), Victoria, Canada, pp. 481-484, Aug. 2007 b. (PRIUS) Kuwabara S, Ichikawa K, Date S, and Shimojo S. A Built-in Application Control Module for SAGE, Proceedings of 2007 IEEE Pacific Rim Conference on Communications, Computers and Signal Processing (PACRIM 2007), Victoria, Canada, pp. 117-120, Aug. 2007. (PRIUS) Takeda S, Date S, Zhang J, Lee BU, and Shimojo S. Security Monitoring Extension For MOGAS, GCA2007 - Proceedings of the 3rd workshop on Grid Computing & Applications -, pp.128-137 Singapore, June 2007. (PRIUS) Tilak S, Hubbard P, Miller M, and Fountain T, ``The Ring Buffer Network Bus (RBNB) DataTurbine Streaming Data Middleware for Environmental Observing Systems," to appear in the Proceedings of the e-Science 2007 Zheng C, Katz M, Papadopoulos P, Abramson D, Ayyub S, Enticott C, Garic S, Goscinski W, Arzberger P, Lee B S, Phatanapherom S, Sriprayoonsakul S, Uthayopas P, Tanaka Y, Tanimura Y, Tatebe O. Lesson Learned Through Driving Science Applications in the PRAGMA Grid. Int. J. Web and Grid Servies, Vol.3, No.3, pp287- 312. 2007 …

43. PRAGMA Summit, 3/17/2008 Summary PRAGMA grid –Shared vision lower resistance to use others software, test on others resources –Formed new development collaborations –Size and heterogeneity, explore issues which functional grid must resolve Management, resources and software coordination Identity and fault management Scalability and performance Feedback between application and middleware help improve software and promote software integration Heterogeneous global grid –Is realistic and challenging –Can be good for middleware development and testing –Can be useful for real science Impact –Software dissemination (Rocks, Ninf-G, Nimrod, SCMSWeb, Naregi-CA, …) –Help new national/regional grids (Chile, Vietnam, Hong kong, …) Key is people, is collaboration

44. PRAGMA Summit, 3/17/2008 How Can I Participate? Get involved now –PRAGMA or similar collaborative communities Cost a little Benefit a lot –Being a part of larger grid effort –Learn from doing –Build collaborations –Develop bigger/better ideas/projects –Push the use of network and other infrastructure

45. PRAGMA Summit, 3/17/2008 A Grass Roots Effort One of the most important lessons of the Internet is that it grows most successfully where grass roots initiatives are encouraged and enabled. The Internet has historically grown from the bottom up, and this aspect continues to fuel its continued growth in the academic and commercial sectors. –Vint Cert, UN Economic and Social Council in 2000

46. PRAGMA Summit, 3/17/2008 http://www.pragma-grid.net http://goc.pragma-grid.net http://wiki.pragma-grid.net Thank You PRAGMA is supported by the National Science Foundation (Grant No. INT-0216895, INT- 0314015, OCI -0627026) and by member institutions PRIME is supported by the National Science Foundation under NSF INT 04007508 PRAGMA grid is the result of contributions and support from all PRAGMA grid team members

47. PRAGMA Summit, 3/17/2008 http://www. pragma -grid.net Overarching Goals PRAGMA A Practical Collaborative Framework People and applications Strengthen Existing and Establish New Collaborations Work with Science Teams to Advance Grid Technologies and Improve the Underlying Infrastructure In the Pacific Rim and Globally

48. PRAGMA Summit, 3/17/2008 PRAGMA Member Institutions KU NECTEC TNGC Thailand UoHyd India MIMOS USM Malaysia ASGCC NCHC Taiwan AIST CCS CMC NARC OsakaU TITech Japan BII IHPC NGO Singapore MU Australia APAC Australia JLU China CalIT2 CRBS SDSC UCSD USA CICESE Mexico NCSA StarLight TransPAC2 USA CNIC China CRAY PNWG USA KBSI KISTI Konkuk Korea APAN Japan http://www.pragma-grid.net 33 institutions from 12 countries/regions Founded 2002 Supported by Members UUtah USA BeSTGRID New Zealand

49. PRAGMA Summit, 3/17/2008 Overview and Approach Process to Promote Routine Use Team Science Application-Driven Collaborations ApplicationsMiddleware Routine Use Lab/Testbed Testing Applications Building Grid and GOC Multiway Dissemination Key Middleware Workshops and Organization Information Exchange Planning and Review New Collaborations New Members Expand Users Expand Impact Outcomes Improved middleware Broader Use New Collaborations Transfer Tech. Standards Publications New Knowledge Data Access Education

50. PRAGMA Summit, 3/17/2008 PRAGMA Working Groups Bioscience Telescience Geo-science Resources and data –Grid middleware interoperability –Global grid usability and productivity PRAGMA Grid effort is led by resources and data working group, but rely on collaborations and contributions among all working groups.

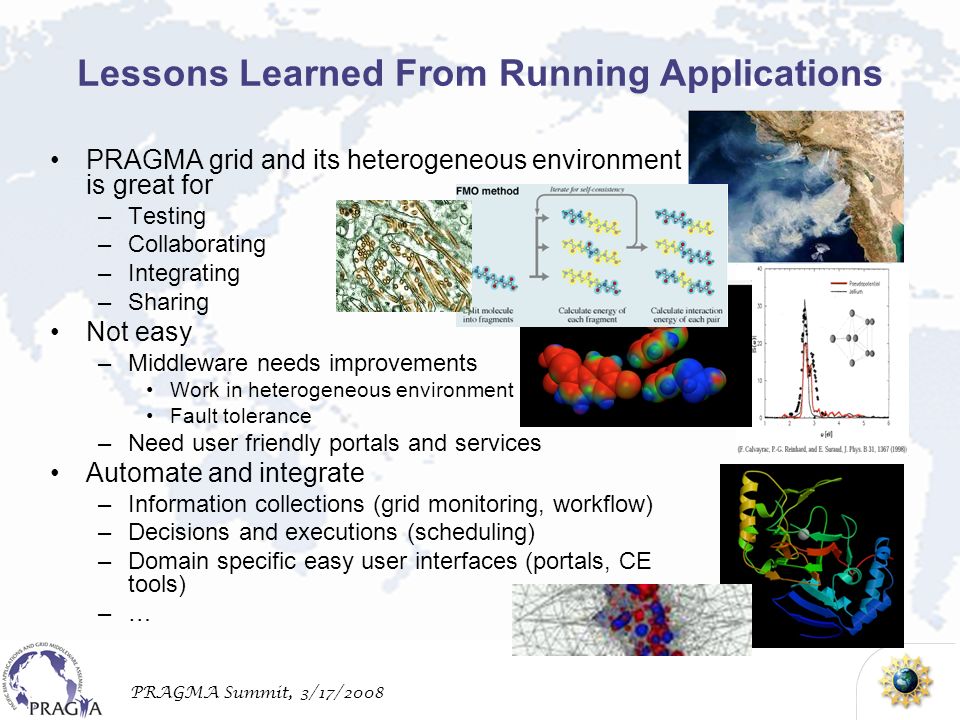

51. PRAGMA Summit, 3/17/2008 PRAGMA grid and its heterogeneous environment is great for –Testing –Collaborating –Integrating –Sharing Not easy –Middleware needs improvements Work in heterogeneous environment Fault tolerance –Need user friendly portals and services Automate and integrate –Information collections (grid monitoring, workflow) –Decisions and executions (scheduling) –Domain specific easy user interfaces (portals, CE tools) –… Lessons Learned From Running Applications

52. PRAGMA Summit, 3/17/2008 MM5-WRF/Mpich-GX Experiment pluto eolo Hurricane Marty Simulation Santana Winds Simulation output CICESE Ensenada USA México SDSC Private IP support Fault Tolerance support Mpich-GX KGrid

53. PRAGMA Summit, 3/17/2008 PRAGMA is a great model and needs to be emulated. Has helped weaken barriers between different research groups across different continents and allowed people to trust and collaborate rather than compete. Arun Agarwal UoHyd, India

54. PRAGMA Summit, 3/17/2008 PRAGMA Gfarm Datagrid http://goc.pragma-grid.net/pragma-doc/datagrid.html http://goc.pragma-grid.net/pragma-doc/datagrid.html - Compute Cluster
