1. TinyOS 1/2
Onsystech
Sangjae Han

2. 목차 TinyOS 개요 TinyOS 설치(실습) TinyOS Architecture TinyOS Structure
프로그램 다운로드 및 설치
디렉토리 구성
개발 방법
Atmega128L & TinyOS
Blink Application 포팅및 동작확인

3. TinyOS 개요 TinyOS Developed at University of California in Berkeley
Professors David Culler & Kris Pister
David Culler --> TinyOS & Intel Research Berkeley
Kris Pister --> Dust networks (Smart Dust)
Key Engineer --> Jason Hill, etc.
Use more than 300 academic groups & industrial organizations
Open-source software development
Simple operation system
Programming language and model Set of services

4. TinyOS Architecture 1/2 Designed for Low Power Sensor Networks
Key Elements
Sensing, Computation, Communication, Power
Resource Constrained
Power, Memory, Processing
Adapt to Changing Technology
Modularity & Re-use

5. TinyOS Architecture 2/2
TinyOS Layers

6. TinyOS Categories Events Tasks Time Critical
Interrupts cause Events (Timer, ADC, Sensors)
Small / short duration
Suspend Tasks
Tasks
Time Flexible
Run sequentially by TOS Scheduler
Run to completion with other Tasks
Interruptible

7. TinyOS Kernel

8. TinyOS structure overview
Configuration
A “wiring” of Components together
Component
Provides a specific Service
Message Handling, Signal Processing
Implemented in a Module (code)
Wired up of other components in a Configuration

9. Components structure Interface Implementation
Declares the Services provided
Implementation
Defines internal workings of a Component
May include “wires” to other components
A Message Handler might use Radio and UART communication components

10. Component Anatomy Modules Configurations
Contain application code, implementing one or more interfaces
Does NOT contain the wiring to other components
CC1000ControlM.nc – Radio Control
Configurations
Configurations are used to assemble other components together, connecting interfaces between User and Implementations.
SingleTimerC.nc – uses TimerM.c

11. TinyOS Component Interface
Commands
Provides Services to User (“Caller”)
Events
Sends Signals to the User autonomously
Mandatory (implicit) Commands
.init – invoked on boot-up
.start – enables the component services
.stop – halt or disable the component

12. TinyOS components Implementation
Defines ‘how’ the component works.
Allows multiple Implementations for an Interface
e.g. different implementations of a MAC layer with one standard Interface to the User
All Commands & Signals declared in the INTERFACE must be implemented
Including .init, .start, & .stop
Implemented under the MODULE keyword

13. TinyOS Implementation Syntax
module LedsC {
provides
interface Leds; }
implementation Leds
uint8_t ledsOn;
async command result_t Leds.redOn()
atomic
TOSH_CLR_RED_LED_PIN();
ledsOn |= RED_BIT;
return SUCCESS;
} //implementation
}//module

14. Async and Atomic
Commands and Events that are executed as part of a Hardware Event handler must be declared with the async keyword
Indicates that this code may execute asynchronously to Tasks and other processes.
Races are avoided by
accessing shared data exclusively within Tasks
Because Tasks can’t interrupt each other
Use atomic statement to access shared variables

15. TinyOS configuration Ties Components together
Every TOS Application has a single top-level CONFIGURATION file
A “wire” connects the Component’s Interface to another Component

16. Configuration Example
configuration BlinkTask { }
implementation {
components Main, BlinkTaskM, SingleTimer,
LedsC;
Main.StdControl -> BlinkTaskM.StdControl;
Main.StdControl -> SingleTimer;
BlinkTaskM.Timer -> SingleTimer.Timer;
BlinkTaskM.Leds -> LedsC;

17. TinyOS installation Download programs
Double click “tinyos is.exe”

18. TinyOS installation

19. TinyOS installation

20. TinyOS installation

21. TinyOS installation

22. What is being Installed?
TinyOS & Tools: event-driven OS for wireless sensor networks; tools for debugging
nesC: a extension of C-language designed for TinyOS
Cygwin: a Linux-like environment for Windows
AVR Tools: a suite of software development tools for Atmel's AVR processors
Java 1.4 JDK & Java COMM 2.0: for host PC applications and port communications
Graphviz (from AT&T Labs): to view files made from make docs

23. Directory Structure

24. TinyOS 1.1.x Standard TinyOS applications and test programs
User contributions included
Documentation and On-line Tutorial
Development utilities and programs
TinyOS modules and interfaces

25. TOS subdirectory

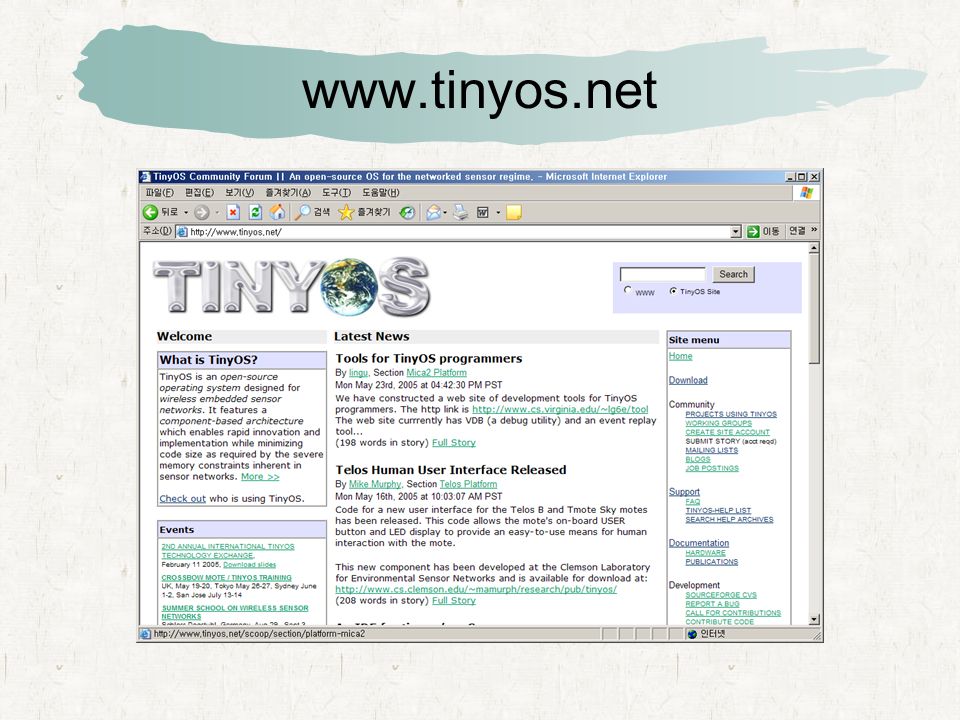

28. TinyOS directory structure

29. 개발환경 /opt/tinyos-1.x /opt/tinyos-1.x/apps /opt/tinyos-1.x/tos
관련 어플리케이션
/opt/tinyos-1.x/tos
TinyOS관련 소스및 라이브러리
/opt/tinyos-1.x/tos/platform
개별 플랫폼별 적용가능한 소스코드(mica2사용)
유저프로그램(실습)
/opt/tinyos-1.x/apps/xxxapp 생성후 작업!!!

30. 실습(LED Blank) Blank 디렉토리 파일을 참고하여 실습보드의 Led를 깜빡이는 프로그램을 작성한다. 참고사항.
1. Timer만을 이용
2. Task를 이용( keyword- task, post )
참고사항.
해당 보드의 설정파일을 확인한다.( platform/mica2)
Blank디렉토리의 파일을 참고하여 /apps/xxx에 자신의 프로그램을 작성한다.
작성된 프로그램을 컴파일한다.
Make mica2
컴파일된 이미지를 보드에 프로그래밍한다.
Ponyprog를 이용하여 다운로드
다운로드후 실행, 보드 리셋(or power on reset)을 하여 프로그램 동작을 확인한다.
타이머를 조절하여 깜빡이는 주기를 변경해본다.
프로그램 동작하면 조별이름으로 압축하여 제출후 퇴실.
