1 Chapter 2. Signals Husheng Li The University of Tennessee

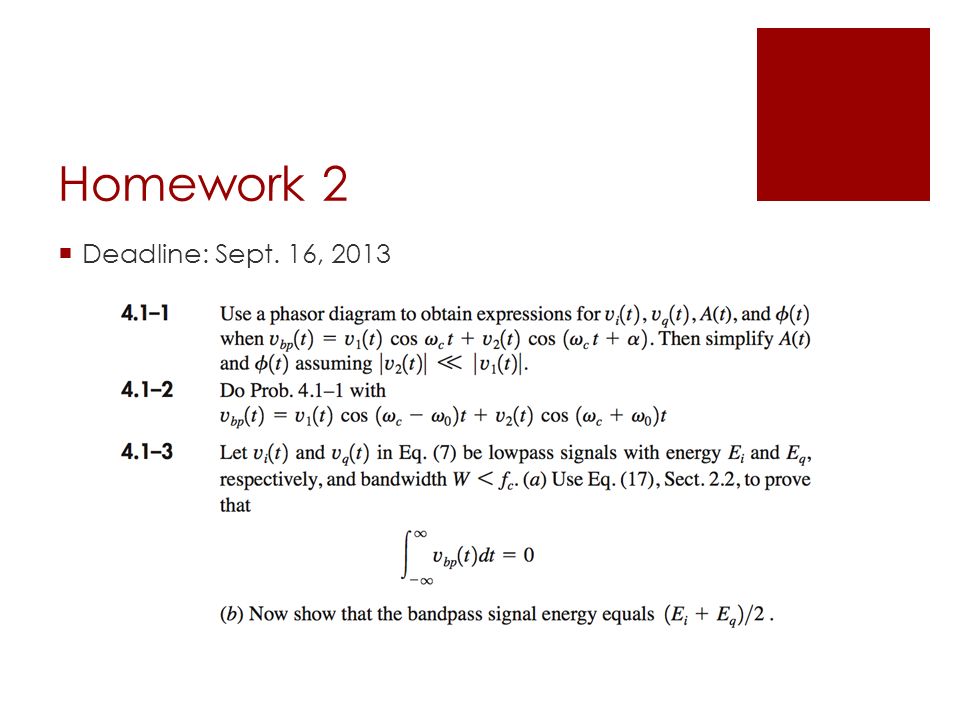

2 Homework 2  Deadline: Sept. 16, 2013

3 Spectrum  Physically, the signal is transmitted in the time domain.  It is more convenient to study the signal in the frequency domain.  The frequency domain description is called the spectrum.  The frequency description of signal can be obtained from Fourier transform:

4 Example: Rectangular Pulse Time domain Frequency domain

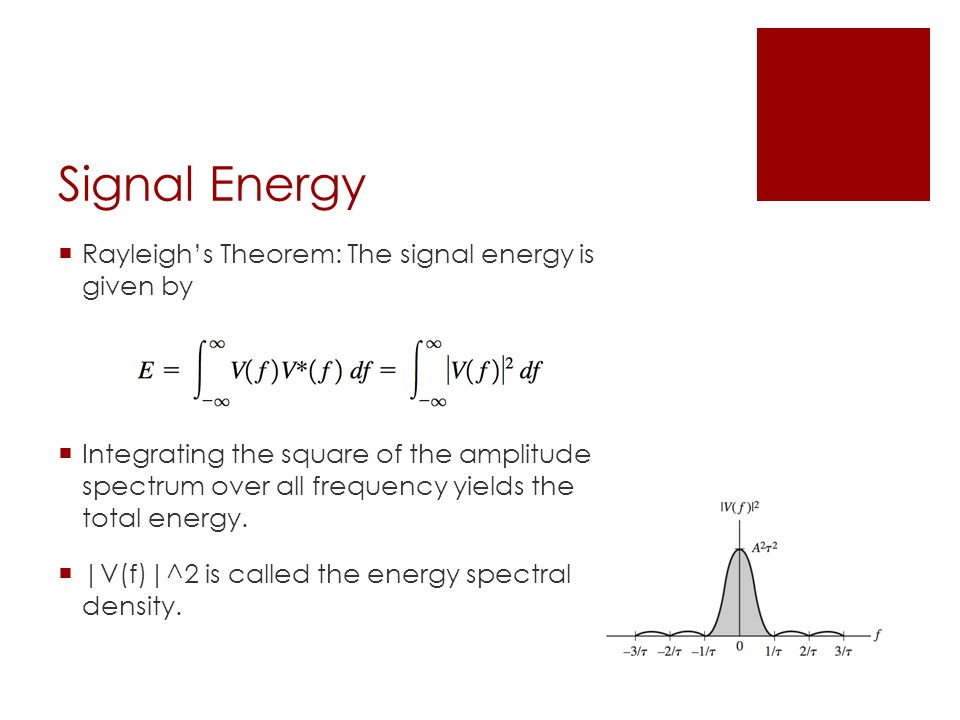

5 Signal Energy  Rayleigh’s Theorem: The signal energy is given by  Integrating the square of the amplitude spectrum over all frequency yields the total energy.  |V(f)|^2 is called the energy spectral density.

6 Band Limited Signals  A signal should not use all bandwidth. Hence, we have to limit its band.  Sinc function is a band limited one  A band limited signal is infinite in the time, which is impossible in practice.

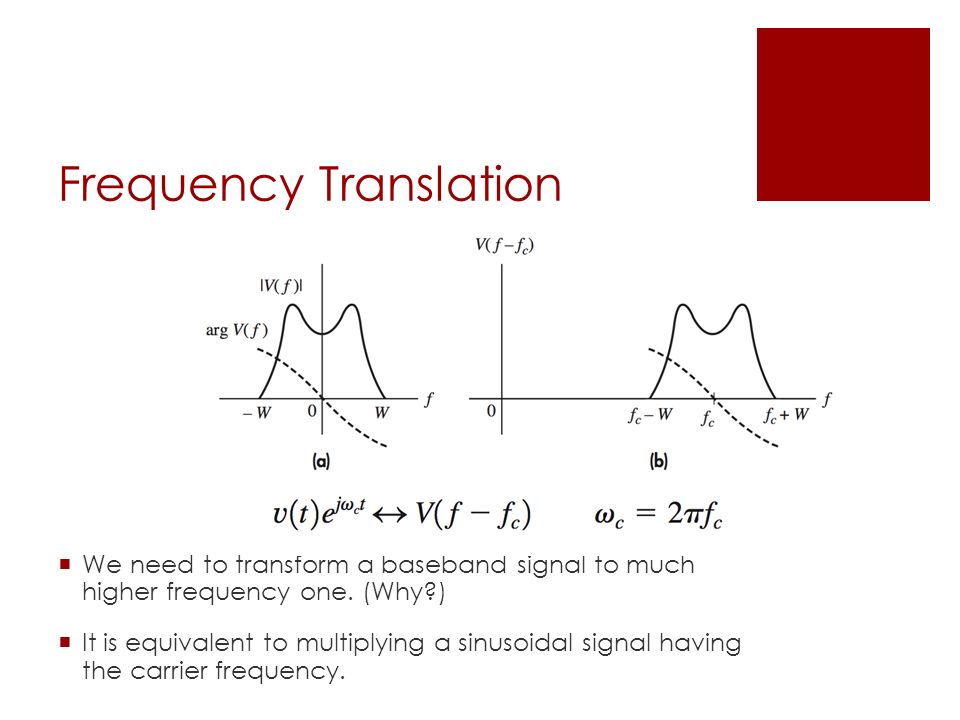

7 Frequency Translation  We need to transform a baseband signal to much higher frequency one. (Why?)  It is equivalent to multiplying a sinusoidal signal having the carrier frequency.

8 RF Pulse time frequency

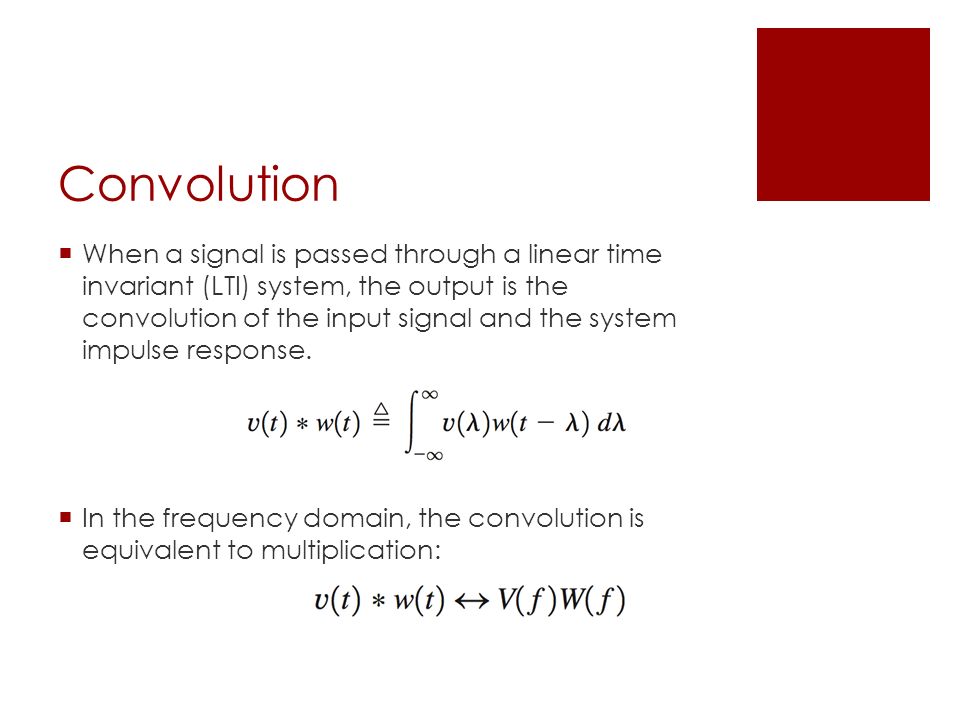

9 Convolution  When a signal is passed through a linear time invariant (LTI) system, the output is the convolution of the input signal and the system impulse response.  In the frequency domain, the convolution is equivalent to multiplication:

10 Transfer Function Each LTI system can be represented by its transfer function.

11 Signal Transmission: Distortionless Case  The output is undistorted if it differs from the input only by a multiplying constant and a finite time delay:  In the frequency domain, it is equivalent to  In practice, the signal is always distorted.

12 Linear Distortion: Amplitude  Linear distortion includes any amplitude or delay distortion associated with a linear transmission system, which is easily descried in the frequency domain.  The amplitude could be distorted. Low frequency attenuated High frequency attenuated

13 Linear Distortion: Phase  If the phase shift is not linear, the various frequency components suffer different amounts of time delay, called phase or delay distortion.  The delay is given by

14 Two Waveforms: Example

15 Equalization  Linea distortion is theoretically curable through the use of equalization networks. Digital transversal filter

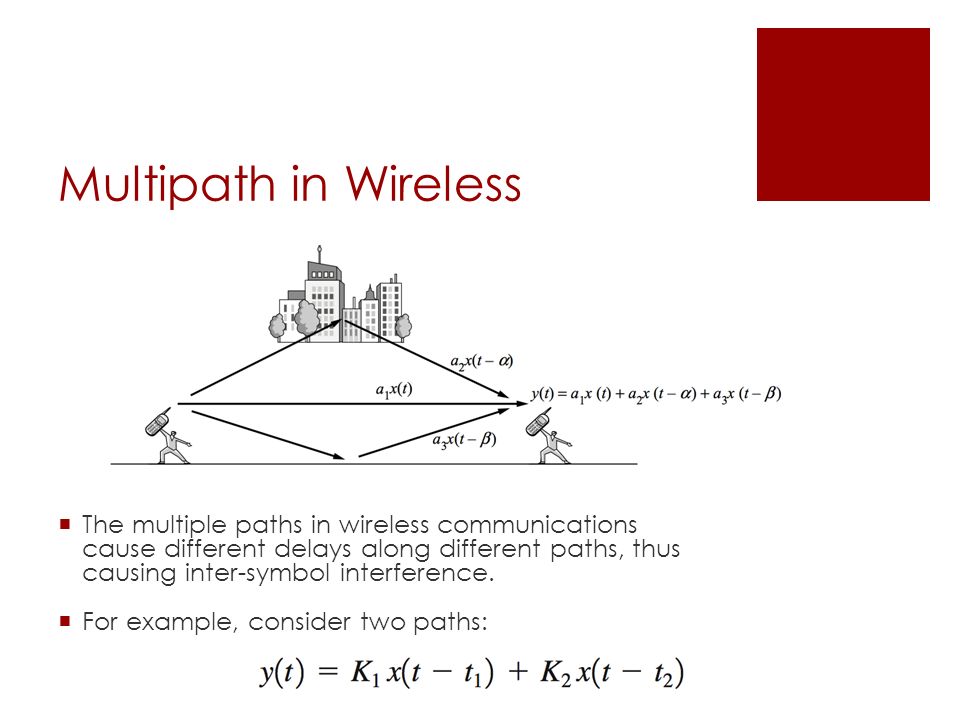

16 Multipath in Wireless  The multiple paths in wireless communications cause different delays along different paths, thus causing inter-symbol interference.  For example, consider two paths:

17 Destructive Interference (two-path)

18 Nonlinear Distortion  Many devices could have nonlinear transfer characteristics.  The nonlinear transfer characteristic may arouse harmonics.

19 Transmission Loss  Power gain: g=P_out / P_in  dB scale: g_dB = 10 log_10 g  For linear system of communication channel, we have

20 Typical Values of Power Loss

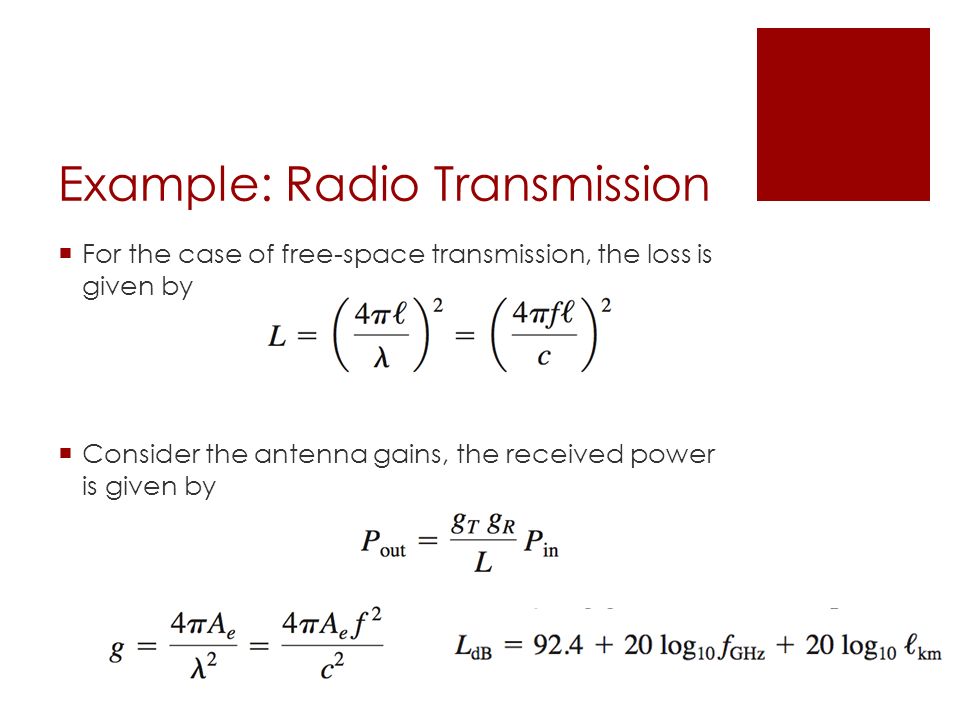

21 Example: Radio Transmission  For the case of free-space transmission, the loss is given by  Consider the antenna gains, the received power is given by

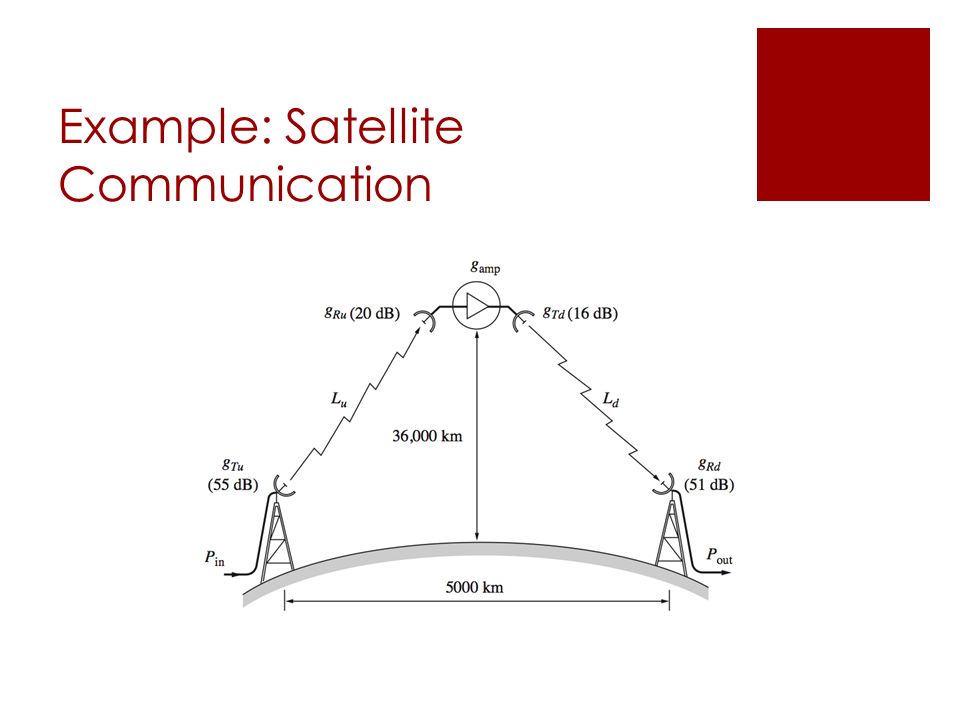

22 Example: Satellite Communication

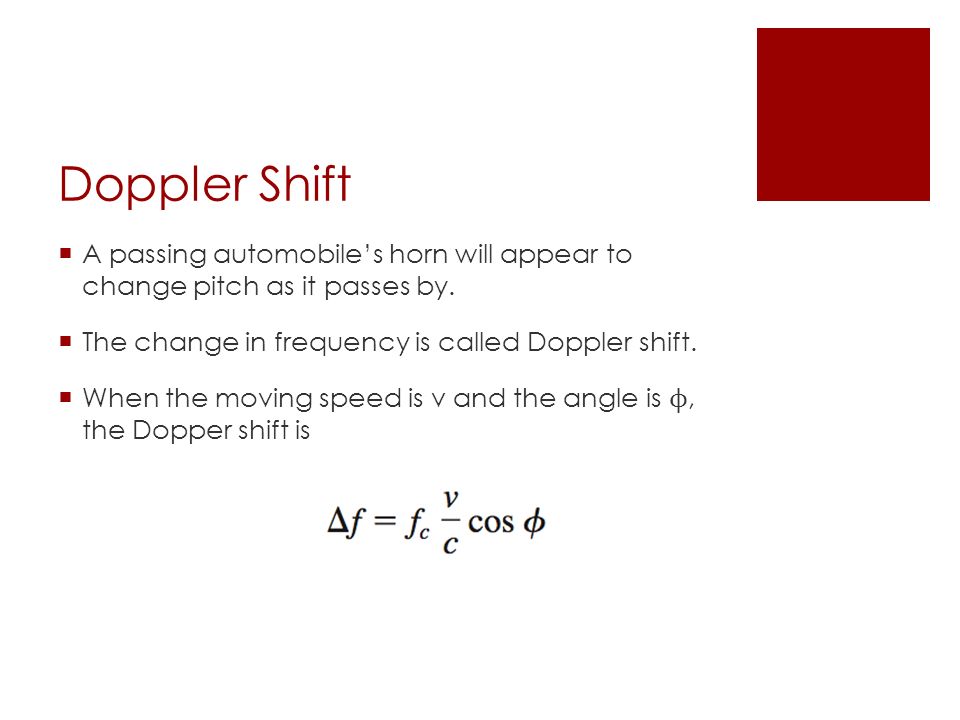

23 Doppler Shift  A passing automobile’s horn will appear to change pitch as it passes by.  The change in frequency is called Doppler shift.  When the moving speed is v and the angle is ϕ, the Dopper shift is

24 Homework Deadline: Sept. 9, 2013

25 Ideal Filter  An ideal bandpass filter is given by

26 Filtering  Perfect bandlimitiing and timelimiting are mutually incompatible.  Rise time is a measure of the ‘speed’ of a step response:

27 Quadrature Filter  A quadrature filter is an allpass network that merely shifts the phase of the positive frequency components by -90 degrees.  The output of a quadrature filter is called the Hilbert transform of the input.

28 Properties of Hilbert Transform

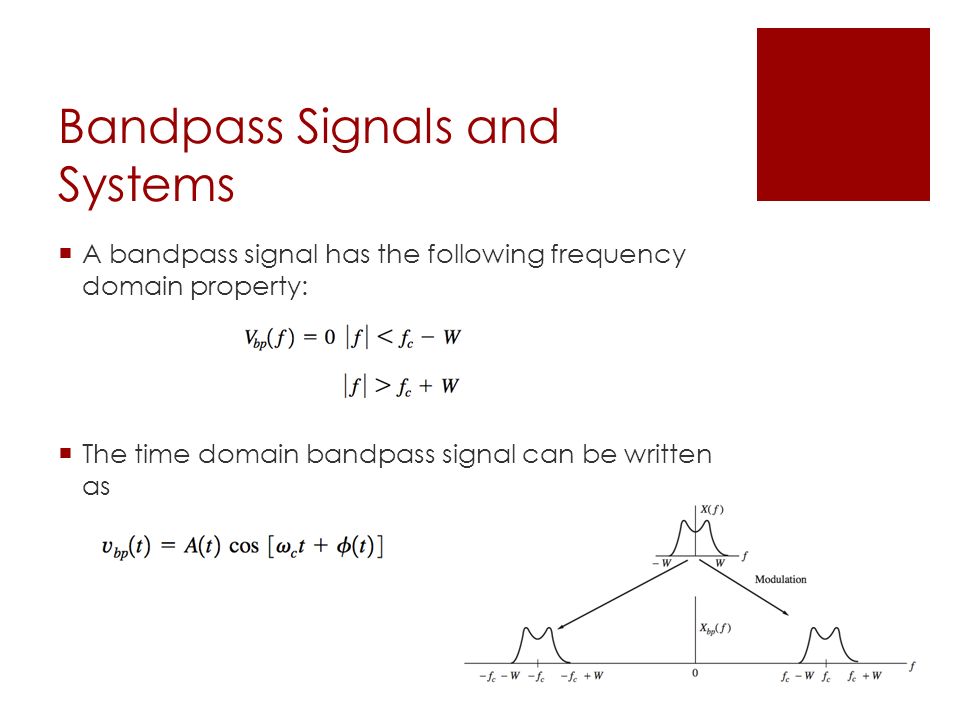

29 Bandpass Signals and Systems  A bandpass signal has the following frequency domain property:  The time domain bandpass signal can be written as

30 Spectrum and Waveform of Bandpass Signal

31 Quadrature-Carrier Description of Bandpass Signal  A bandpass signal can be decomposed to in- phase and quadrature components:

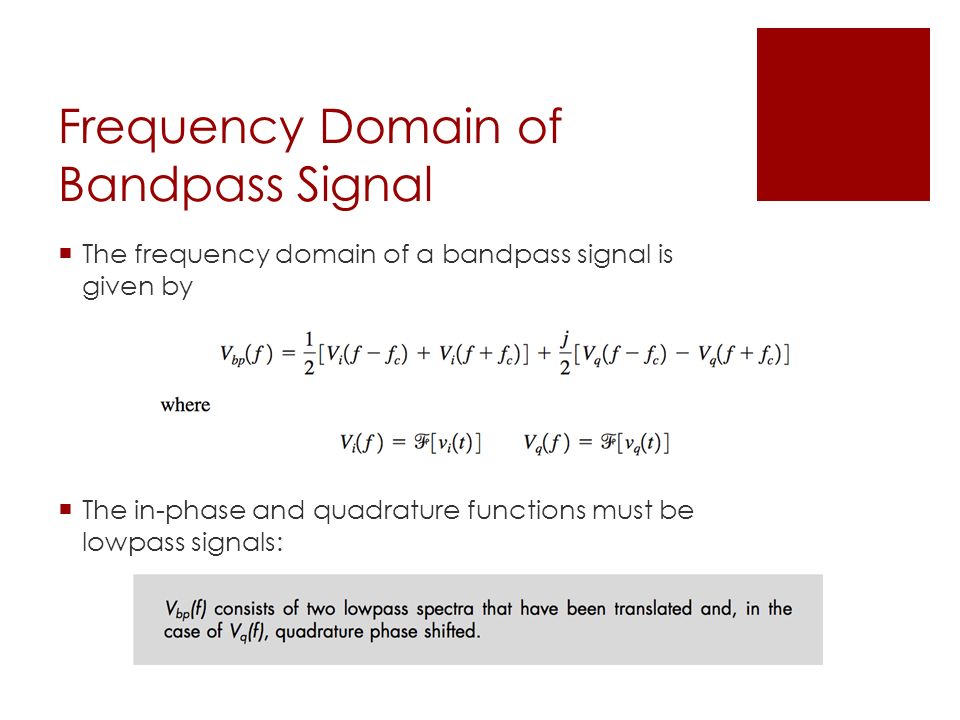

32 Frequency Domain of Bandpass Signal  The frequency domain of a bandpass signal is given by  The in-phase and quadrature functions must be lowpass signals:

33 Lowpass Equivalent Signal  In the frequency domain, we have the low pass equivalent spectrum:  In the time domain, we have the lowpass equivalent signal:  In the frequency domain, we have

34 Lowpass-to-bandpass transformation  The connection between and is given by  In the frequency domain, we have

35 Bandpass Transmission  We can work on the lowpass equivalent spectra directly:

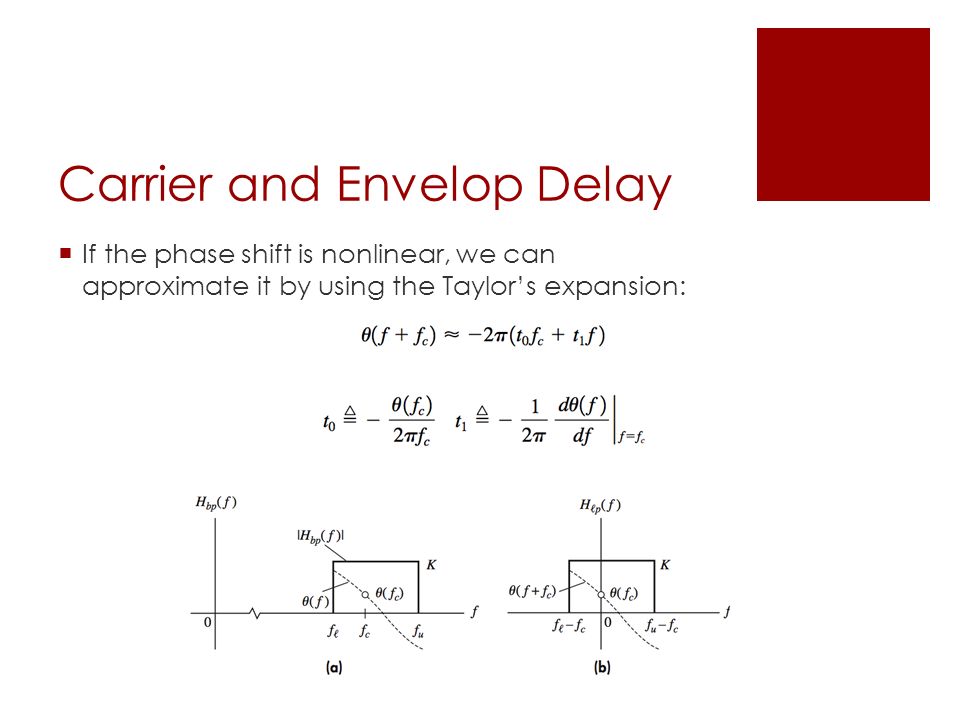

36 Carrier and Envelop Delay  If the phase shift is nonlinear, we can approximate it by using the Taylor’s expansion:

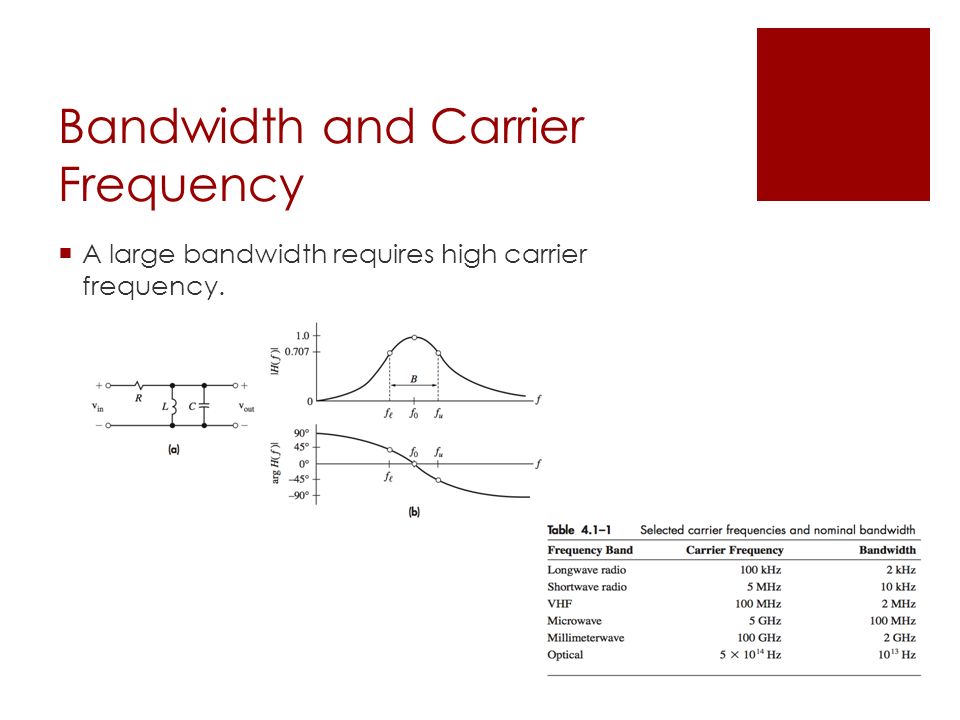

37 Bandwidth and Carrier Frequency  A large bandwidth requires high carrier frequency.

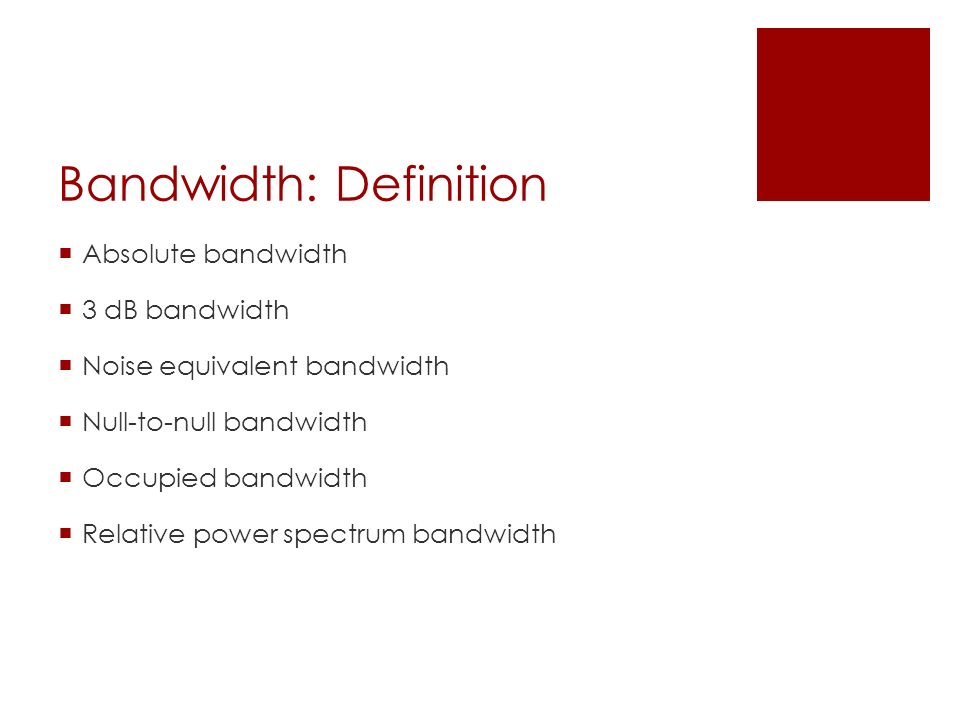

38 Bandwidth: Definition  Absolute bandwidth  3 dB bandwidth  Noise equivalent bandwidth  Null-to-null bandwidth  Occupied bandwidth  Relative power spectrum bandwidth
