1. 李正中 Display Technology Center Nov. 12, 2012 Flexible Display Technology and Applications

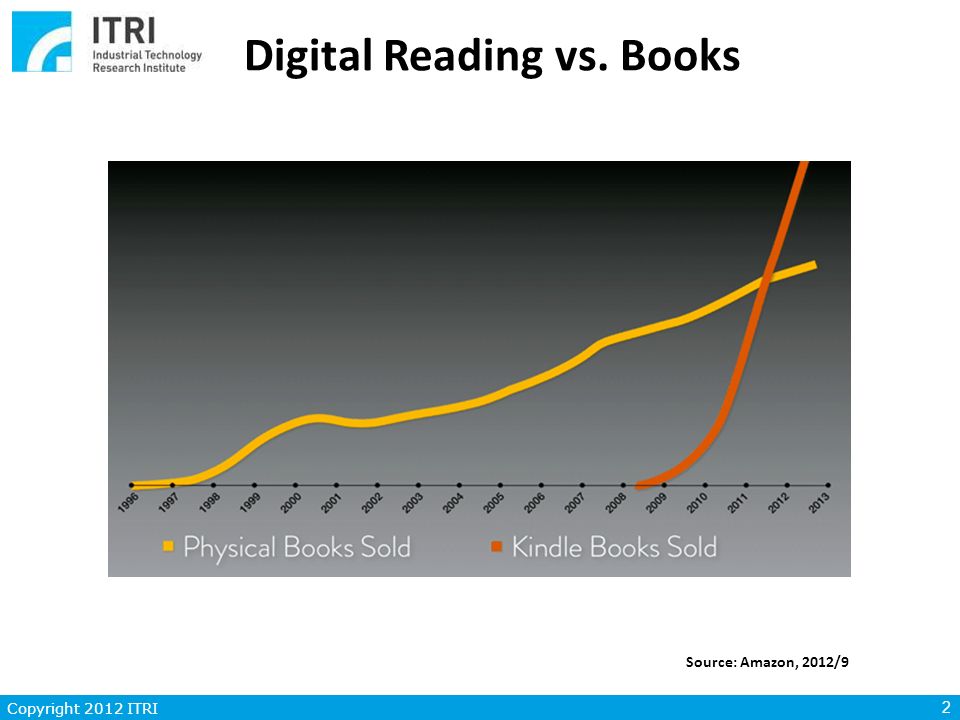

2. Copyright 2012 ITRI 2 Digital Reading vs. Books Source: Amazon, 2012/9

3. Copyright 2012 ITRI Image Source: Amazon, B&N, Borders, Bookeen, iRex, Sony, Ectaco, Hanvon, Kyobo 3 1999~2006 2007 Amazon “Kindle” Digital Reading - e-Reader 2009~2011 “Nook” Sony“PRS-650.950” “iLiad DR800” Hanvon “N800” “Kindle 3” “Kyobo” ” Bambook Sunflower“ “Kindle Paperwhite” 2012~ Display Media ： EPD, QRLPD, MEMS… Characteristics ： Reflective and bi-stable Issues ： Video rate and color

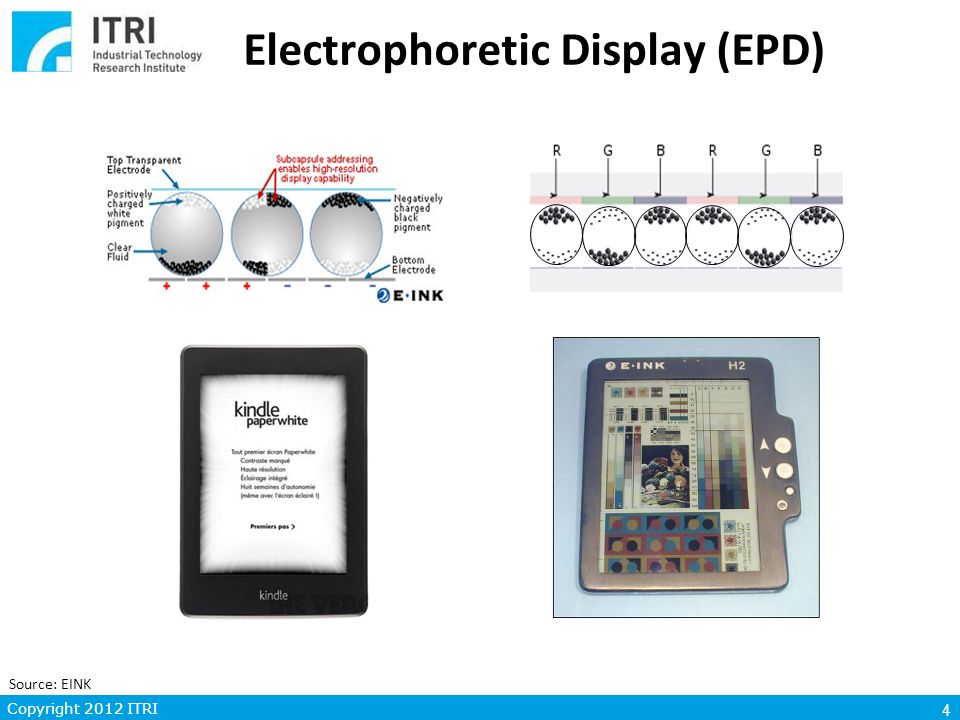

4. Copyright 2012 ITRI Electrophoretic Display (EPD) Source: EINK 4

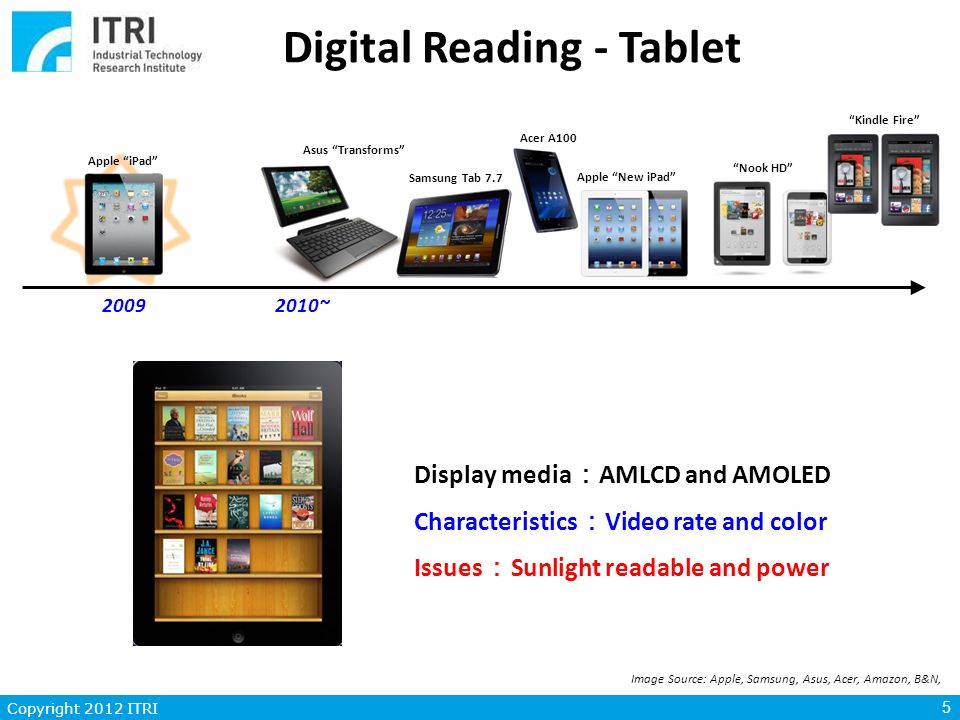

5. Copyright 2012 ITRI 5 2009 Apple “iPad” “Nook HD” 2010~ Asus “Transforms” Samsung Tab 7.7 Acer A100 Apple “New iPad” “Kindle Fire” Display media ： AMLCD and AMOLED Characteristics ： Video rate and color Issues ： Sunlight readable and power Image Source: Apple, Samsung, Asus, Acer, Amazon, B&N, Digital Reading - Tablet

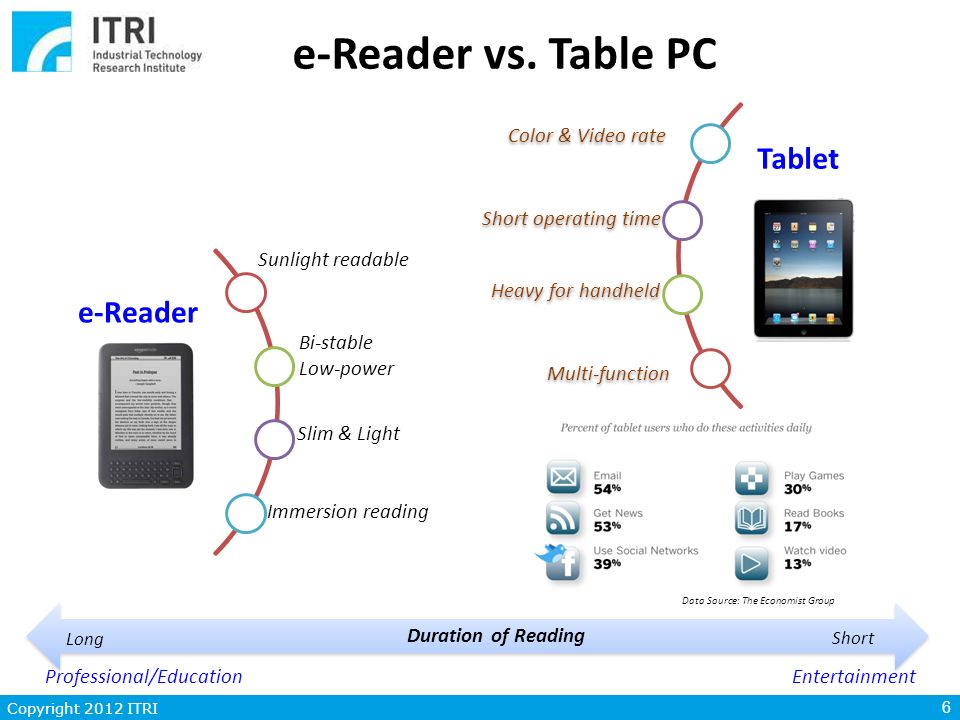

6. Copyright 2012 ITRI 6 Professional/EducationEntertainment Duration of Reading Long Short e-Reader vs. Table PC Bi-stable Low-power Slim & Light Sunlight readable Immersion reading e-Reader Heavy for handheld Multi-function Color & Video rate Tablet Short operating time Data Source: The Economist Group

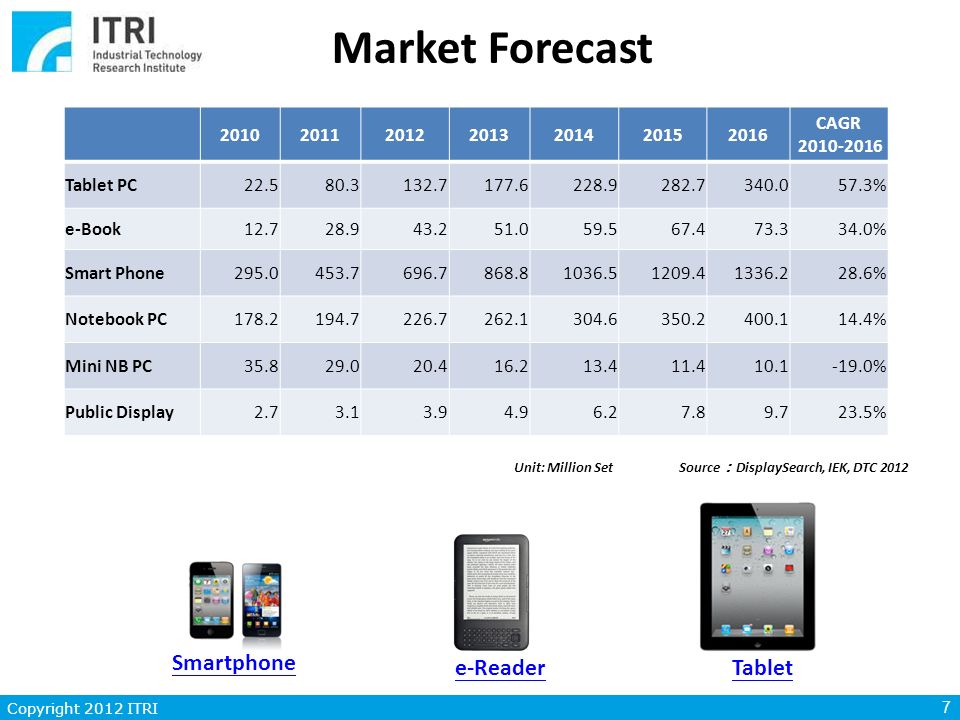

7. Copyright 2012 ITRI 2010201120122013201420152016 CAGR 2010-2016 Tablet PC22.580.3132.7177.6228.9282.7340.057.3% e-Book12.728.943.251.059.567.473.334.0% Smart Phone295.0453.7696.7868.81036.51209.41336.228.6% Notebook PC178.2194.7226.7262.1304.6350.2400.114.4% Mini NB PC35.829.020.416.213.411.410.1-19.0% Public Display2.73.13.94.96.27.89.723.5% 7 Unit: Million Set Source ： DisplaySearch, IEK, DTC 2012 Smartphone Tablet Market Forecast e-Reader

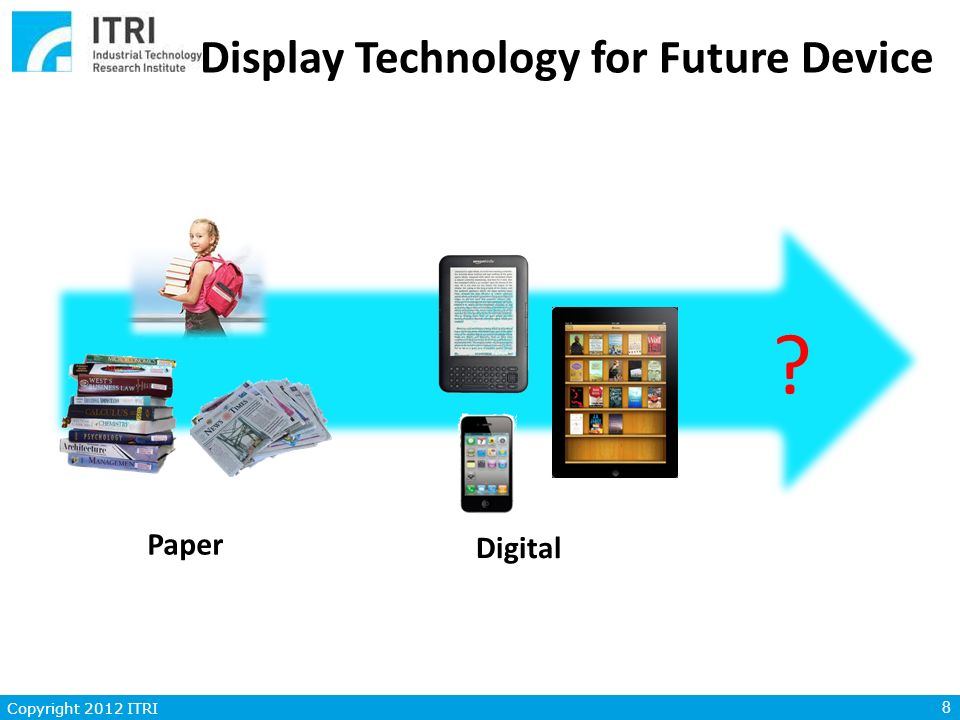

8. Copyright 2012 ITRI 8 ? Display Technology for Future Device Paper Digital

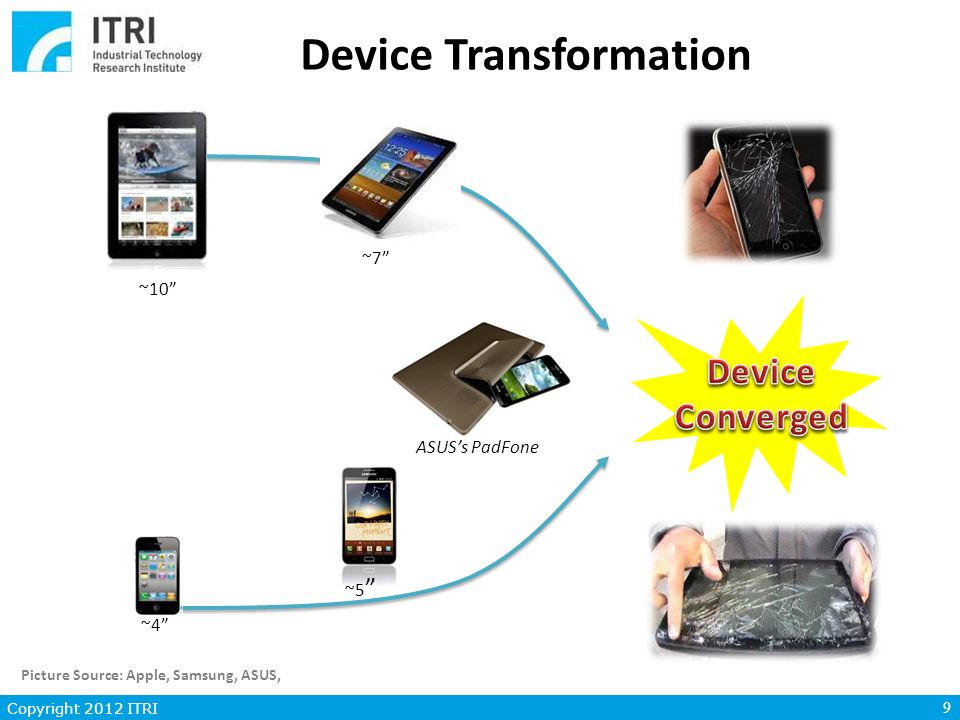

9. Copyright 2012 ITRI 9 ASUS’s PadFone ~10” Picture Source: Apple, Samsung, ASUS, Device Transformation ~7” ~4” ~5 ”

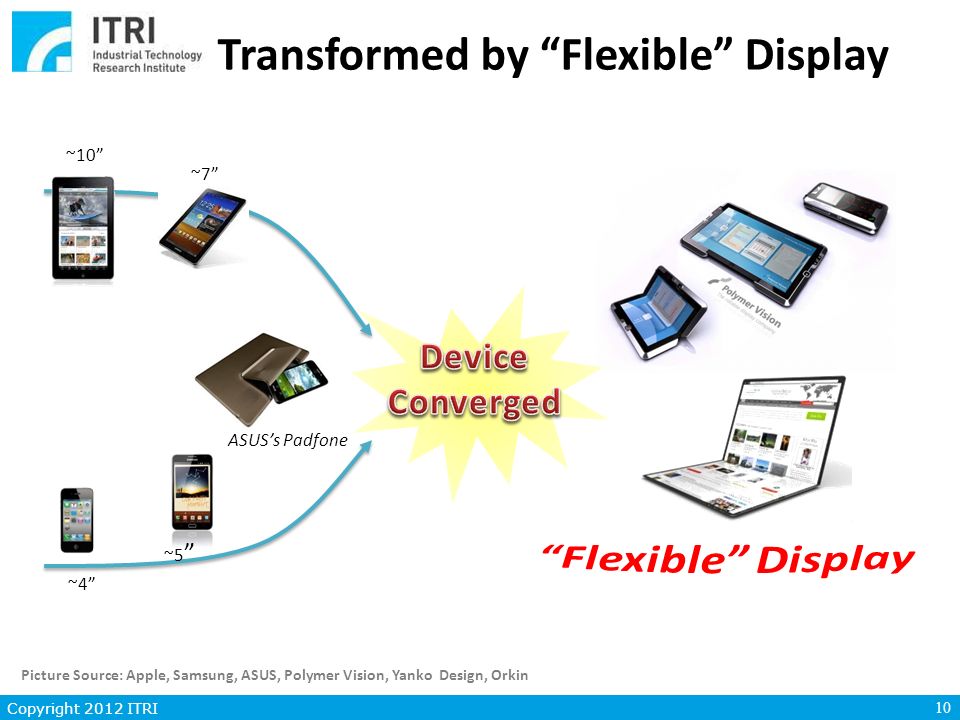

10. Copyright 2012 ITRI 10 Picture Source: Apple, Samsung, ASUS, Polymer Vision, Yanko Design, Orkin Transformed by “Flexible” Display ASUS’s Padfone ~10” ~7” ~4” ~5 ”

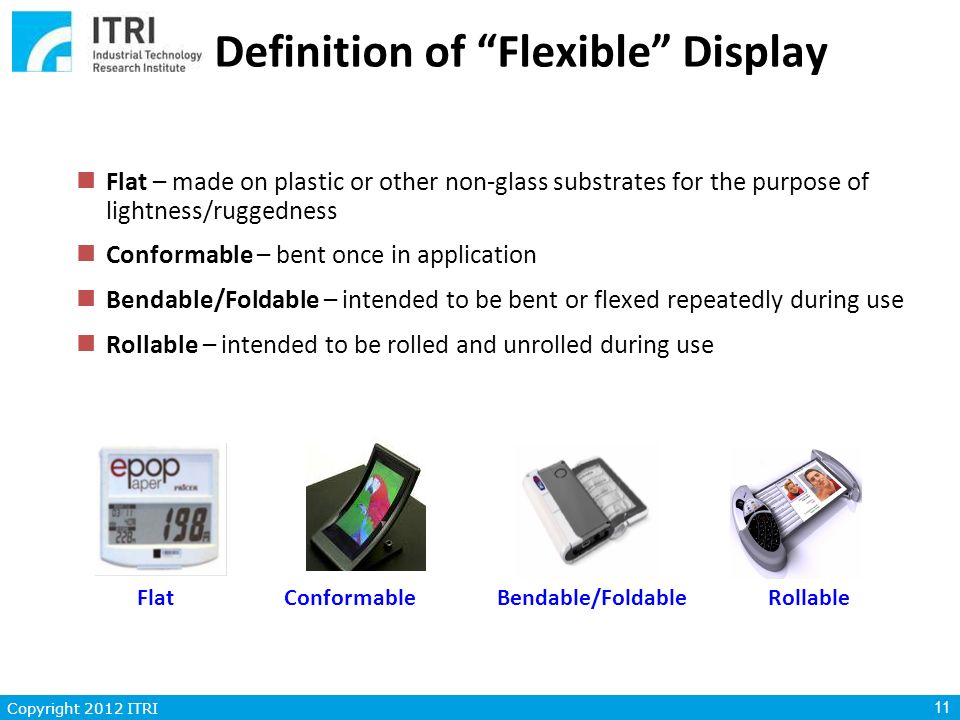

11. Copyright 2012 ITRI Definition of “Flexible” Display Flat – made on plastic or other non-glass substrates for the purpose of lightness/ruggedness Conformable – bent once in application Bendable/Foldable – intended to be bent or flexed repeatedly during use Rollable – intended to be rolled and unrolled during use 11 Flat Bendable/Foldable ConformableRollable

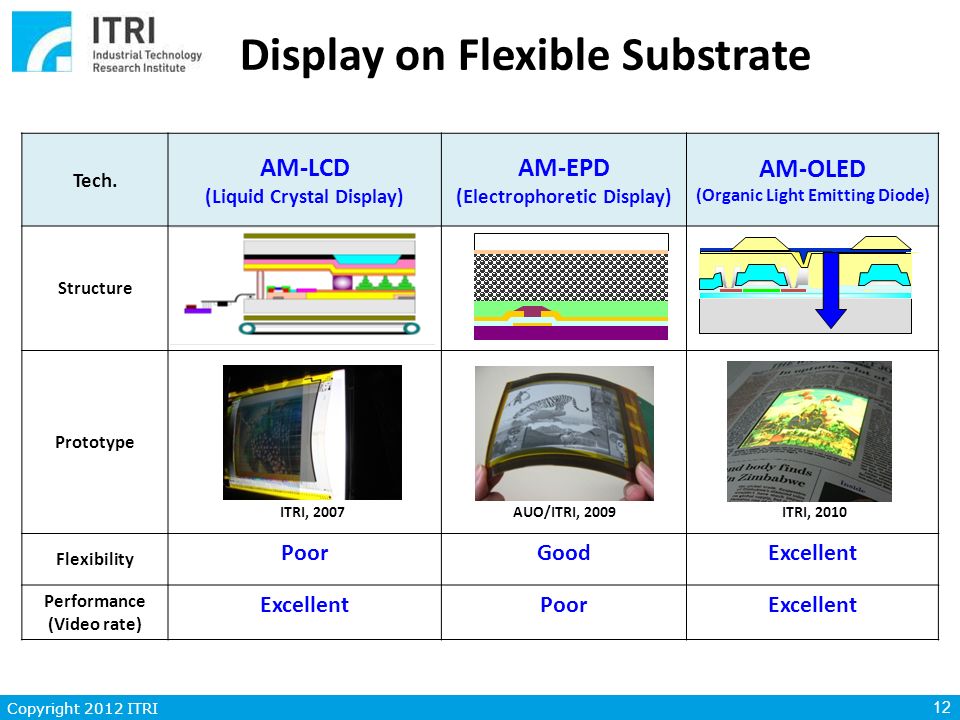

12. Copyright 2012 ITRI 12 Tech. AM-LCD (Liquid Crystal Display) AM-EPD (Electrophoretic Display) AM-OLED (Organic Light Emitting Diode) Structure Prototype Flexibility PoorGoodExcellent Performance (Video rate) ExcellentPoorExcellent AUO/ITRI, 2009 ITRI, 2010 ITRI, 2007 Display on Flexible Substrate

13. Copyright 2012 ITRI 13 2000 ~ 2005 ~ 2010 Flexible AM-L CD Flexible AM-EPD Polymer Vision Plastics Logic Flexible AM-OLED Flexible Display in the World

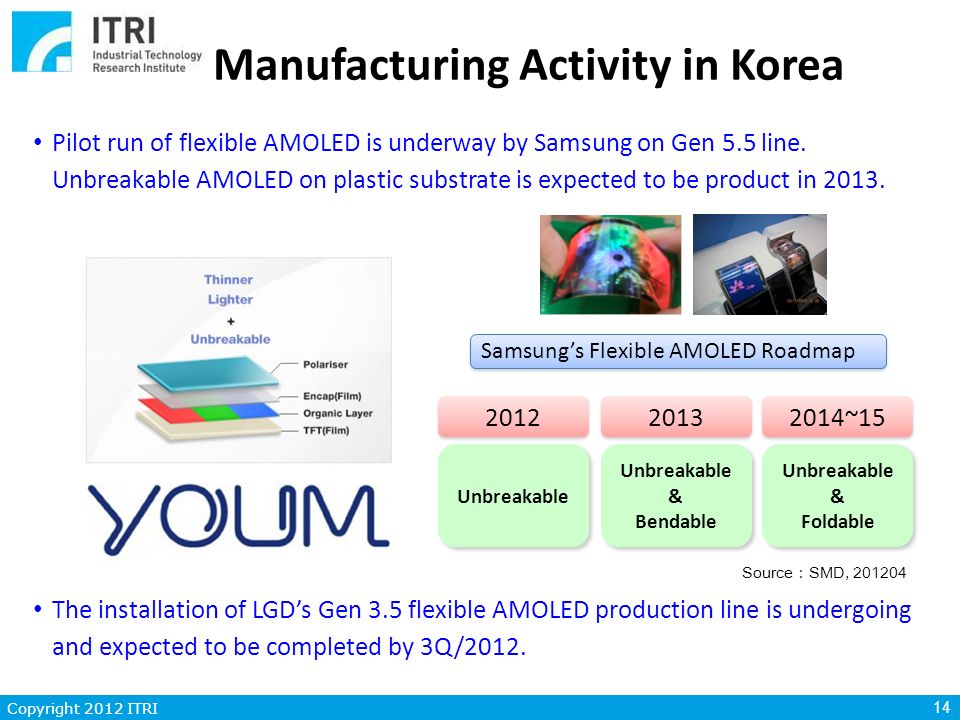

14. Copyright 2012 ITRI 14 Pilot run of flexible AMOLED is underway by Samsung on Gen 5.5 line. Unbreakable AMOLED on plastic substrate is expected to be product in 2013. The installation of LGD’s Gen 3.5 flexible AMOLED production line is undergoing and expected to be completed by 3Q/2012. Manufacturing Activity in Korea Source ： SMD, 201204 Samsung’s Flexible AMOLED Roadmap 2012 2013 2014~15 Unbreakable Unbreakable & Bendable Unbreakable & Bendable Unbreakable & Foldable Unbreakable & Foldable 14

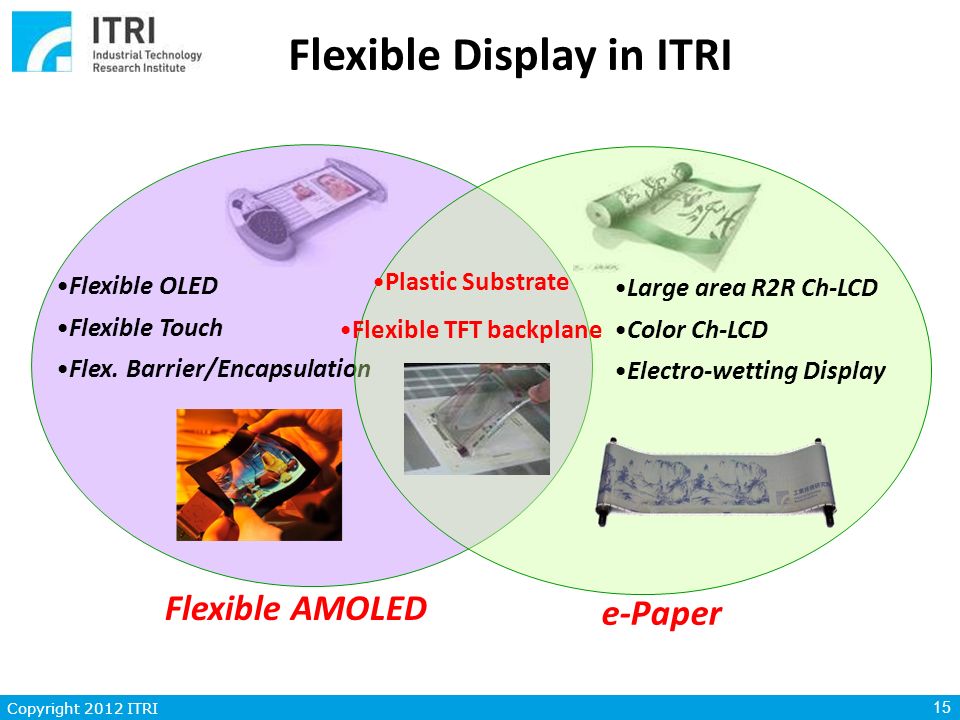

15. Copyright 2012 ITRI 15 Flexible OLED Flexible Touch Flex. Barrier/Encapsulation Flexible Display in ITRI Large area R2R Ch-LCD Color Ch-LCD Electro-wetting Display Plastic Substrate Flexible TFT backplane Flexible AMOLED e-Paper

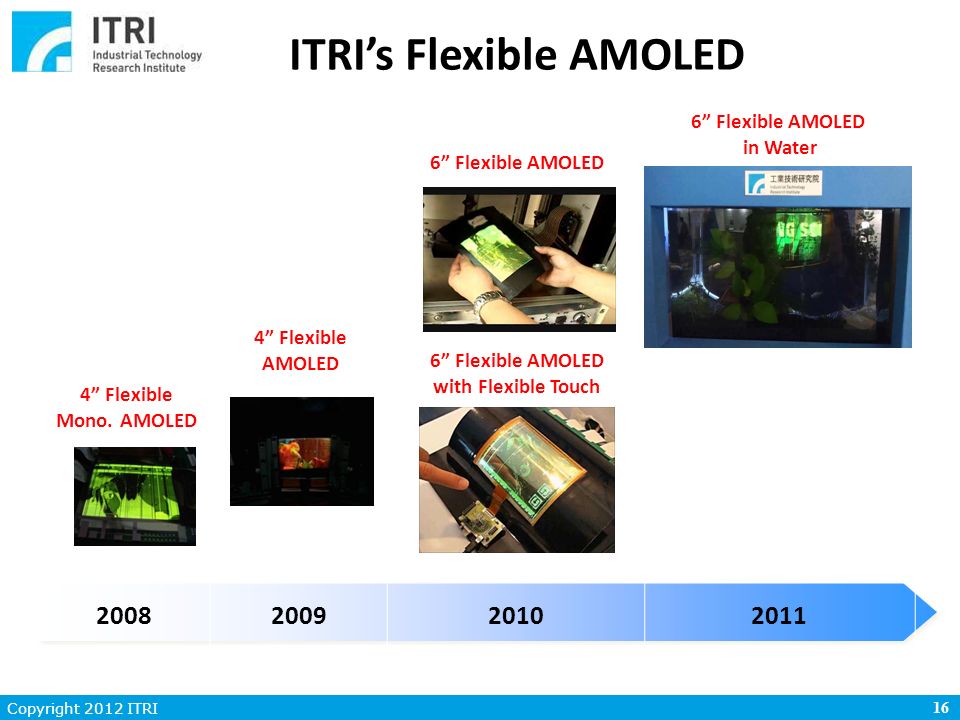

16. Copyright 2012 ITRI 2008200920102011 4” Flexible Mono. AMOLED ITRI’s Flexible AMOLED 6” Flexible AMOLED 6” Flexible AMOLED with Flexible Touch 4” Flexible AMOLED 16 6” Flexible AMOLED in Water

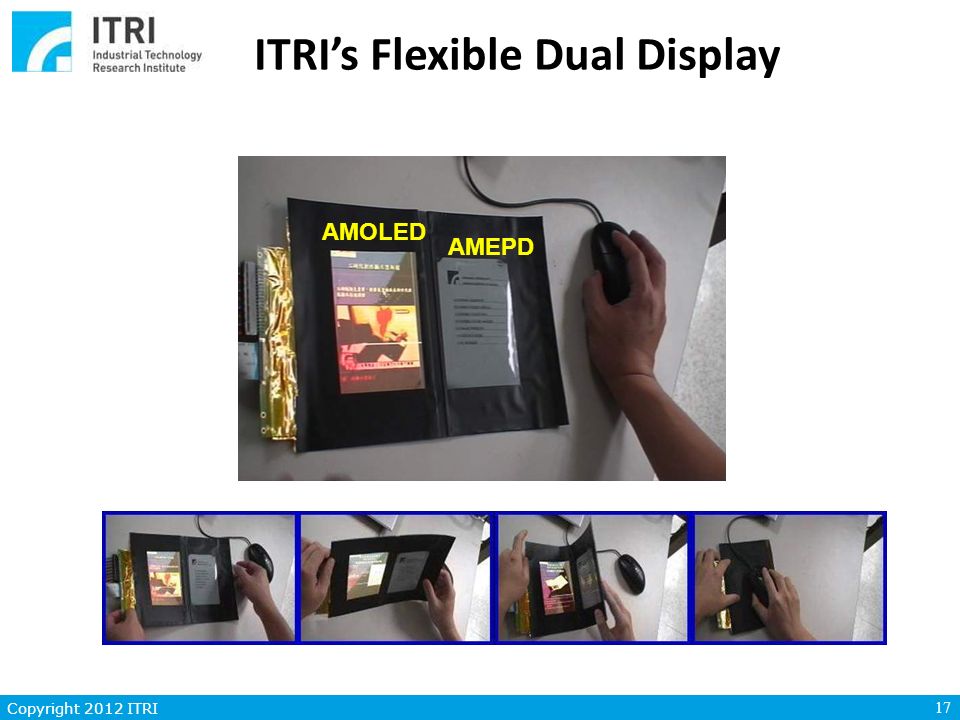

17. Copyright 2012 ITRI AMOLED AMEPD 17 ITRI’s Flexible Dual Display

18. Copyright 2012 ITRI ITRI’s i2R e-Paper by Thermal Writing i2R e-Paper, re-writable and re-usable electronic paper technology > 300 dpi high resolution > 250 times writing

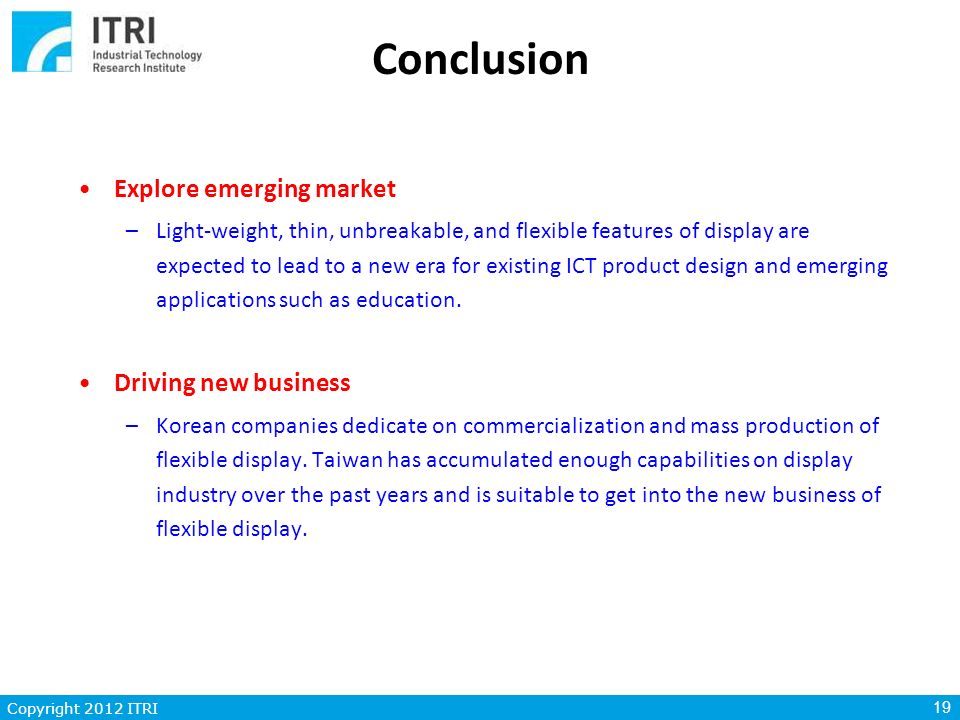

19. Copyright 2012 ITRI Conclusion Explore emerging market –Light-weight, thin, unbreakable, and flexible features of display are expected to lead to a new era for existing ICT product design and emerging applications such as education. Driving new business –Korean companies dedicate on commercialization and mass production of flexible display. Taiwan has accumulated enough capabilities on display industry over the past years and is suitable to get into the new business of flexible display. 19
