1. Newest Results from MINOS Alexandre Sousa University of Oxford for the MINOS Collaboration International Workshop on Next Nucleon decay and Neutrino detectors NNN 08 Laboratoire APC, Paris, France September 11, 2008

2. NNN 08, Paris, 11/09/08 2 Alex Sousa, University of Oxford Argonne Arkansas Tech Athens Benedictine Brookhaven Caltech Cambridge Campinas Fermilab Harvard IIT Indiana Minnesota-Duluth Minnesota-Twin Cities Oxford Pittsburgh Rutherford Sao Paulo South Carolina Stanford Sussex Texas A&M Texas-Austin Tufts UCL Warsaw William & Mary The MINOS Collaboration

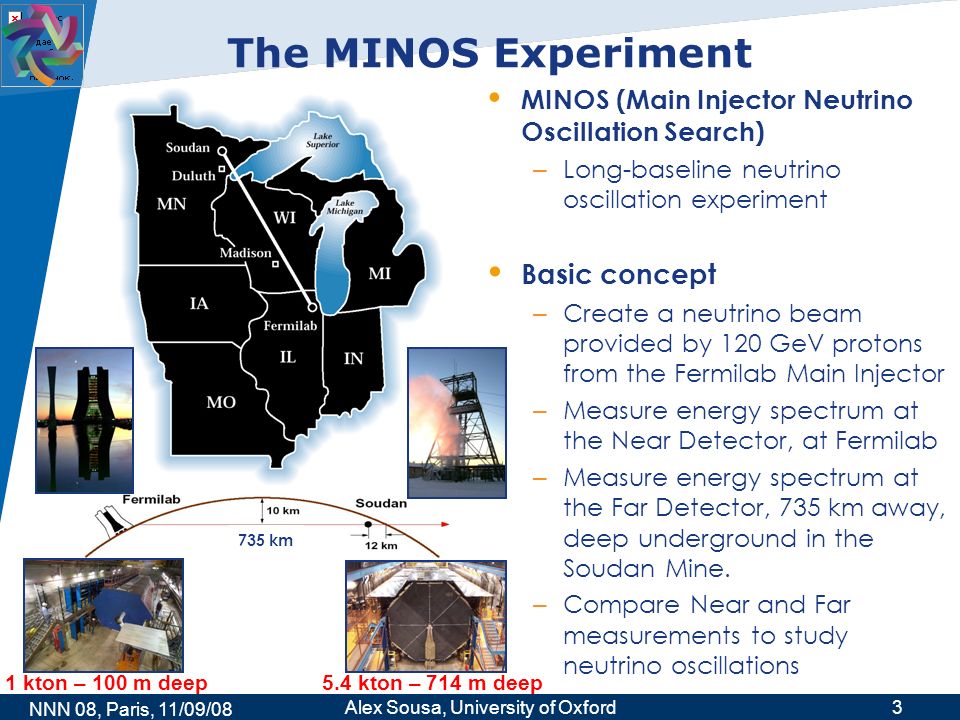

3. NNN 08, Paris, 11/09/08 3 Alex Sousa, University of Oxford 735 km MINOS (Main Injector Neutrino Oscillation Search) – Long-baseline neutrino oscillation experiment Basic concept – Create a neutrino beam provided by 120 GeV protons from the Fermilab Main Injector – Measure energy spectrum at the Near Detector, at Fermilab – Measure energy spectrum at the Far Detector, 735 km away, deep underground in the Soudan Mine. – Compare Near and Far measurements to study neutrino oscillations The MINOS Experiment 1 kton – 100 m deep 5.4 kton – 714 m deep

4. NNN 08, Paris, 11/09/08 4 Alex Sousa, University of Oxford MINOS Physics Goals Precise measurements of |  m 2 32 | and sin 2 2  23 via  disappearance Search for or constrain exotic physics such as sterile Search for sub-dominant  → e oscillations via e appearance Compare, oscillations Atmospheric neutrino and cosmic ray physics Study interactions and cross sections using the high statistics Near Detector data set

5. NNN 08, Paris, 11/09/08 5 Alex Sousa, University of Oxford ν μ CC Event ν e CC Event NC Event ν μ CC Event UZ VZ long μ track & hadronic activity at vertex 3.5m Monte Carlo NC Event short event, often diffuse 1.8m ν e CC Event short, with typical EM shower profile 2.3m Energy resolution π ± : 55%/  E(GeV) μ ± : 6% range, 10% curvature Event Topologies

6. NNN 08, Paris, 11/09/08 6 Alex Sousa, University of Oxford Charged Current Analysis of 3.36×10 20 POT of MINOS Data - Precision measurement of |m 2 | and sin 2 2-

7. NNN 08, Paris, 11/09/08 7 Alex Sousa, University of Oxford CC Event Selection CC / NC Event classification is performed with a k-nearest neighbor (kNN) based algorithm with four inputs: 1.Track length (planes) For hits belonging to the track: 2.Mean pulse height/plane 3.Fluctuation in pulse height 4.Transverse track profile

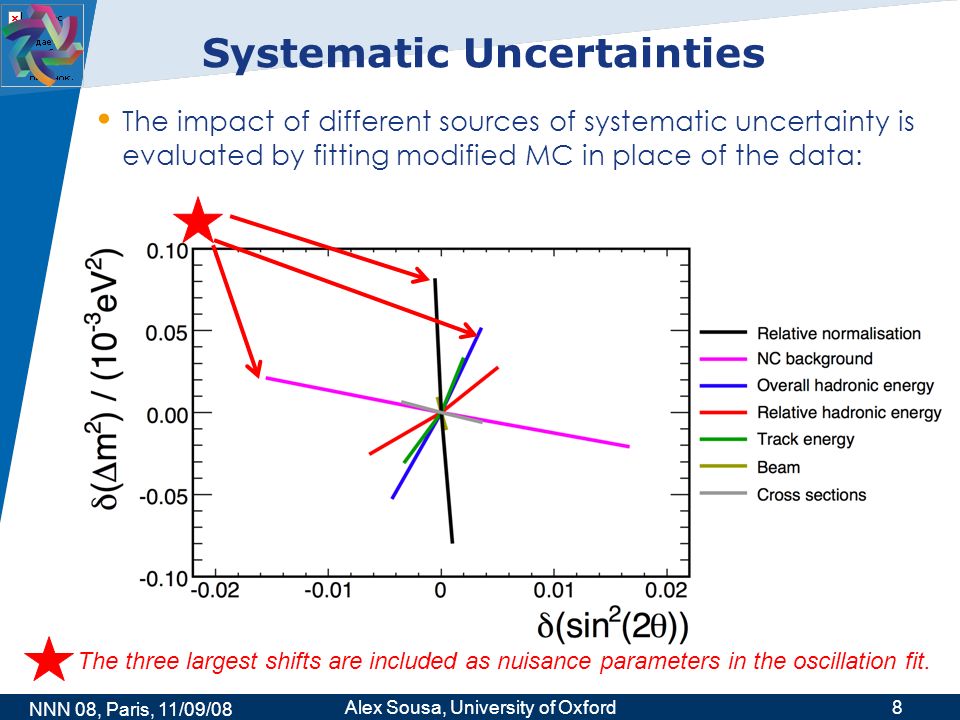

8. NNN 08, Paris, 11/09/08 8 Alex Sousa, University of Oxford Systematic Uncertainties The impact of different sources of systematic uncertainty is evaluated by fitting modified MC in place of the data: The three largest shifts are included as nuisance parameters in the oscillation fit.

9. NNN 08, Paris, 11/09/08 9 Alex Sousa, University of Oxford CC Energy Spectrum Fit Best Fit: |  m 2 | = 2.43x10 -3 eV 2 sin 2 (2  ) =1.00 Fit the energy distribution to the oscillation hypothesis: Including the three largest sources of systematic uncertainty as nuisance parameters – Absolute hadronic energy scale: 10.3% – Normalization: 4% – NC contamination: 50%

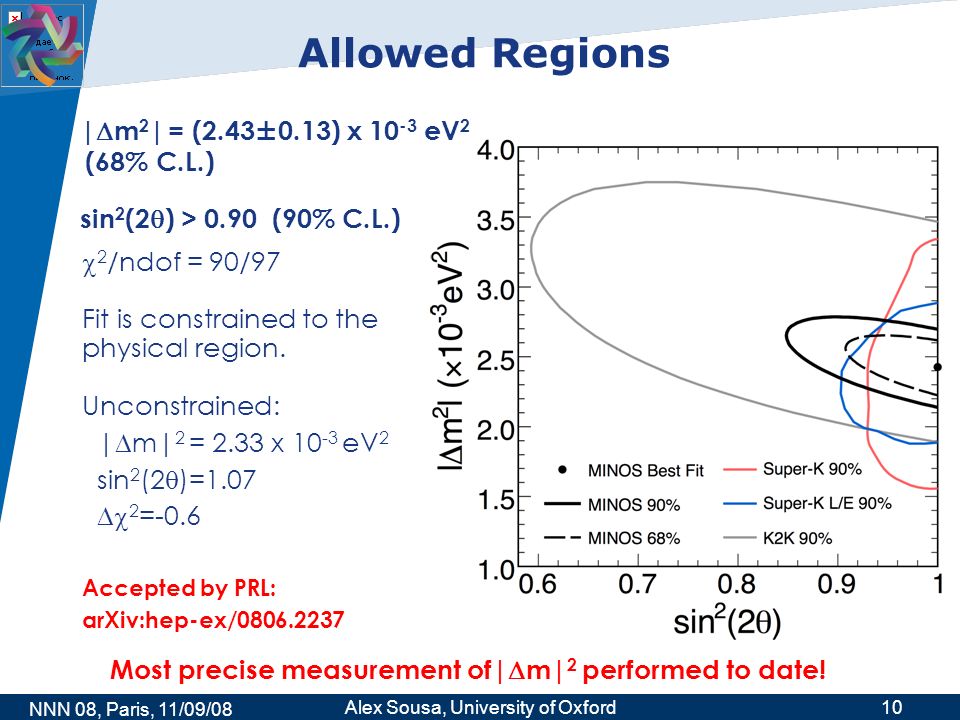

10. NNN 08, Paris, 11/09/08 10 Alex Sousa, University of Oxford Allowed Regions |  m 2 | = (2.43±0.13) x 10 -3 eV 2 (68% C.L.) sin 2 (2  ) > 0.90 (90% C.L.)  2 /ndof = 90/97 Fit is constrained to the physical region. Unconstrained: |  m| 2 = 2.33 x 10 -3 eV 2 sin 2 (2  )=1.07  2 =-0.6 Accepted by PRL: arXiv:hep-ex/0806.2237 Most precise measurement of|  m| 2 performed to date!

11. NNN 08, Paris, 11/09/08 11 Alex Sousa, University of Oxford Alternative Hypotheses Decay:  2 /ndof = 104/97  2 = 14 disfavored at 3.7  V. Barger et al., PRL82:2640(1999) Decoherence:  2 /ndof = 123/97  2 = 33 disfavored at 5.7  G.L. Fogli et al., PRD67:093006(2003)

12. NNN 08, Paris, 11/09/08 12 Alex Sousa, University of Oxford Neutral Current Analysis of 2.46×10 20 POT of MINOS Data - Looking for sterile neutrino mixing -

13. NNN 08, Paris, 11/09/08 13 Alex Sousa, University of Oxford Event classified as NC-like if: − event length < 60 planes − has no reconstructed track or − has one reconstructed track that does not protrude more than 5 planes beyond the shower NC/CC Event Separation NC events are typically shorter than CC events Expect showers and no tracks or very short tracks reconstructed for NC events Main background from inelastic (high-y) ν μ CC events Excluded

14. NNN 08, Paris, 11/09/08 14 Alex Sousa, University of Oxford NC Analysis Results - Rate Compare the NC energy spectrum with the expectation of standard 3-flavor oscillation physics – Depletion of Far Detector NC spectrum may indicate sterile neutrino mixing Fix the oscillation parameter values – sin 2 2Θ 23 = 1 – Δm 2 32 = 2.43x10 -3 eV 2 – Δm 2 21 = 7.59x10 -5 eV 2, Θ 12 = 0.61 from KamLAND+SNO – Θ 13 = 0 or 0.21 (normal MH, δ=3π/2) from CHOOZ Limit N.B. CC e are classified as NC by the analysis Make comparisons in terms of the R statistic: For different energy ranges – 0-3 GeV – 3-120 GeV – All events (0-120 GeV) From MINOS 2008 CC measurement Predicted CC background from all flavors Predicted NC interaction signal

15. NNN 08, Paris, 11/09/08 15 Alex Sousa, University of Oxford NC Analysis Results - Rate MINOS Far Detector NC Spectrum Plot shows the selected FD NC energy spectrum for Data and oscillated MC predictions Expect largest NC disappearance for E < 3 GeV if sterile mixing is driven by Δm 2 32 Depletion of total NC event rate (1- R ) < 17% at 90% C.L. for the 0-120 GeV range Data is consistent with no NC deficit at FD and thus with no sterile neutrino mixing

16. NNN 08, Paris, 11/09/08 16 Alex Sousa, University of Oxford Assume one sterile neutrino and that mixing between ν μ, ν s and ν τ occurs at a single Δm 2 Survival and sterile oscillation probabilities become: Simultaneous fit to CC and NC energy spectra yields the fraction of ν μ that oscillate to ν s : Submitted to PRL (arXiv:hep-ex/0807.2424) NC Analysis Results – f s Fit

17. NNN 08, Paris, 11/09/08 17 Alex Sousa, University of Oxford e Appearance Analysis - Constraining    -

18. NNN 08, Paris, 11/09/08 18 Alex Sousa, University of Oxford e Selection NC and short  CC events are the dominant backgrounds Neural Network e selection algorithm based on characteristics of electromagnetic showers MC tuned to bubble chamber experiments for hadronization models Data/MC comparisons show disagreements due to hadronic model Correct the model to match the data using data-driven methods in ND Background predictions from two methods agree within statistical uncertainty

19. NNN 08, Paris, 11/09/08 19 Alex Sousa, University of Oxford Future  13 Limits Expect 12 signal and 42 bg events at the CHOOZ limit for the current exposure Data-driven systematics are hoped to drop to 5% in future years Inverted hierarchy shown only for lowest exposure for simplicity MINOS can improve the CHOOZ limit on θ 13 by a factor of 2!

20. NNN 08, Paris, 11/09/08 20 Alex Sousa, University of Oxford Summary and Conclusions |  m| 2 =(2.43±0.13)x10 -3 eV 2 (68% C.L.) sin 2 (2  ) > 0.90 (90% C.L.) The MINOS Experiment is making several contributions to our understanding of Neutrino Physics New measurement of atmospheric oscillation parameters from μ disappearance: – – Decay and decoherence models are disfavored at 3.7σ and 5.7σ, respectively New results from search for oscillations into sterile neutrinos: – 1- R < 17% at 90% C.L., 0 < E < 120 GeV – – Consistent with no sterile neutrino mixing First results on e appearance expected later this year and have sensitivity below the CHOOZ limit.

21. NNN 08, Paris, 11/09/08 21 Alex Sousa, University of Oxford Backup Slides

22. NNN 08, Paris, 11/09/08 22 Alex Sousa, University of Oxford Beam energy spectrum can be modified by varying the relative positions of target and horns. Beam composition in the LE configuration: Beam performance: – 10μs spill of 120 GeV protons every 2.2s – Intensity: 3.0  10 13 POT/spill – 0.275 MW beam power – 10 18 POT/day The NuMI Neutrino Beam

23. NNN 08, Paris, 11/09/08 23 Alex Sousa, University of Oxford 2006 CC Publication 2008 NC (LE only) 2008 CC Accumulated Beam Data RUN I - 1.27x10 20 POT Higher energy beam 0.15x10 20 POT RUN IIa 1.23x10 20 POT RUN IIb 0.71x10 20 POT RUN III 1.2x10 20 POT Many thanks to Fermilab’s Accelerator Division

24. NNN 08, Paris, 11/09/08 24 Alex Sousa, University of Oxford Beam spot Coil 3.8m 4.8m Located 1km downstream of the target ~1kt (980t) total mass Shaped as squashed octagon (4.8  3.8  15m 3 ) Partially instrumented (282 steel, 153 scintillator planes) Fast QIE readout electronics, continuous sampling during beam spill 8m Coil Veto shield Located 735km away in Soudan mine, MN 5.4kt, 2 supermodules Shaped as octagonal prism (8  8  30m 3 ) 486 steel planes, 484 scintillator planes Veto shield (scintillator modules) Spill times from Fermilab for beam trigger Near Detector Far Detector The MINOS Detectors

25. NNN 08, Paris, 11/09/08 25 Alex Sousa, University of Oxford Near to Far Extrapolation FD Decay Pipe π+π+ Target ND p E  ~ 0.43E π / (1+  π 2 θ 2 ) × = Far detector energy spectrum without oscillations is not the same as the Near detector spectrum Start with near detector data and extrapolate to the far detector – Use Monte Carlo to provide corrections due to energy smearing and acceptance – Encode pion decay kinematics and the geometry of the beamline into a beam transport matrix used to transform the ND spectrum into the FD energy spectrum

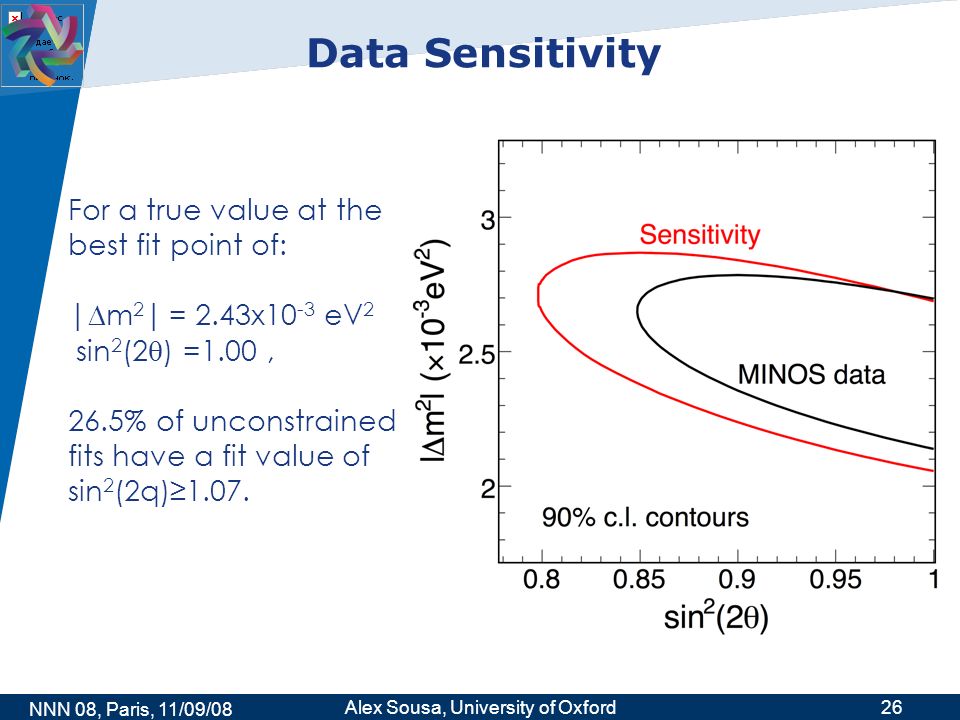

26. NNN 08, Paris, 11/09/08 26 Alex Sousa, University of Oxford Data Sensitivity For a true value at the best fit point of: |  m 2 | = 2.43x10 -3 eV 2 sin 2 (2  ) =1.00, 26.5% of unconstrained fits have a fit value of sin 2 (2q)≥1.07.

27. NNN 08, Paris, 11/09/08 27 Alex Sousa, University of Oxford Good agreement between Data and Monte Carlo Discrepancies much smaller than systematic uncertainties NC events are selected with 90% efficiency and 60% purity Neutral Current NC Energy Spectrum NC selected Data and MC energy spectra for Near Detector

28. NNN 08, Paris, 11/09/08 28 Alex Sousa, University of Oxford Relative Normalization :  4% – POT counting, Near/Far reconstruction efficiency, fiducial mass Relative Hadronic Calibration:  3% – Inter-Detector calibration uncertainty Absolute Hadronic Calibration:  11% – Hadronic Shower Energy Scale(  6%), Intranuclear rescattering(  10%) Muon energy scale:  2% – Uncertainty in dE/dX in MC CC Contamination of NC-like sample:  15% NC contamination of CC-like sample:  25% Cross-section uncertainties: – m A (qe) and m A (res):  15% – KNO scaling:  33% Poorly reconstructed events:  10% Near Detector NC Selection:  8% in 0-1 GeV bin Far Detector NC Selection:  4% if E 1 GeV Beam uncertainty: 1  error band around beam fit results Systematic Errors Effect of the most relevant systematic uncertainties on R

29. NNN 08, Paris, 11/09/08 29 Alex Sousa, University of Oxford  to sterile in SuperK High energy experience matter effects which suppress oscillations to sterile – Matter effects not seen in up-  or high-energy PC data – Reduction in neutral current interactions also not seen – constrains s component of  disappearance oscillations Pure  -> s disfavored – s fraction < 20% at 90% c.l. Result published only in conference proceedings

30. NNN 08, Paris, 11/09/08 30 Alex Sousa, University of Oxford e Selection Neural Network e selection algorithm based on characteristics of electromagnetic showers MC tuned to bubble chamber experiments for hadronization models Data/MC comparisons show disagreements due to hadronic model Developed two data-driven methods to correct the model to match the data Muon Removed CC Events ( MRCC ) – Use well understood μ CC data sample with removed track hits to correct NC event number – Beam e known from MC, subtract from NC component to obtain μ CC Horns on/off – pions are not focused with horns off and energy spectrum peak disappears – Estimate NC and μ CC from differences between horns on/off data samples and MC Extrapolate each background to FD to obtain data-driven sensitivities

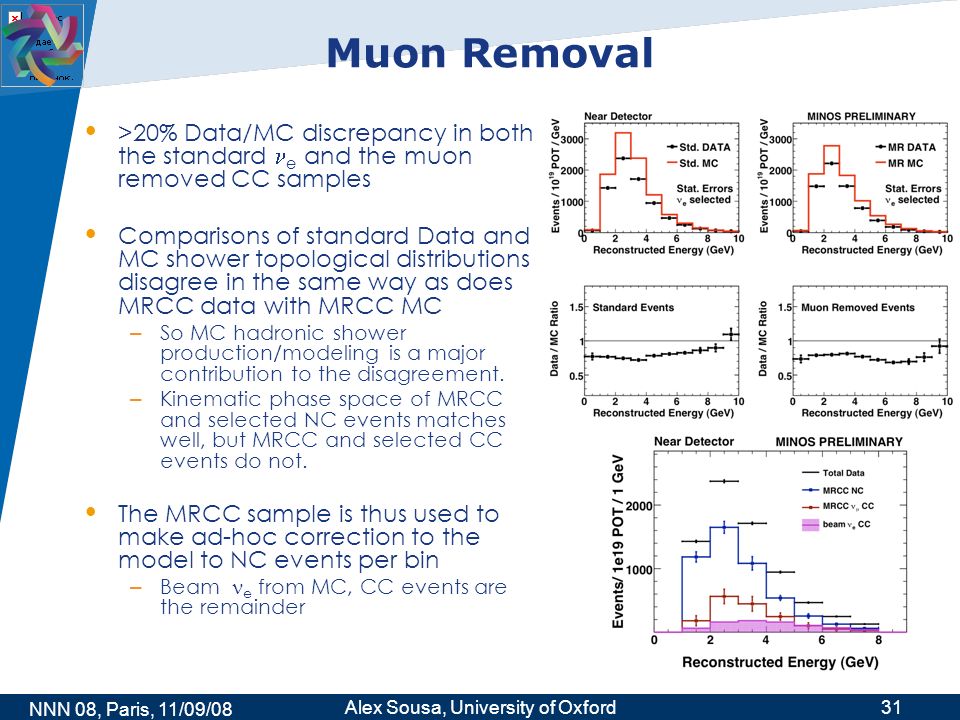

31. NNN 08, Paris, 11/09/08 31 Alex Sousa, University of Oxford Muon Removal >20% Data/MC discrepancy in both the standard e and the muon removed CC samples Comparisons of standard Data and MC shower topological distributions disagree in the same way as does MRCC data with MRCC MC – So MC hadronic shower production/modeling is a major contribution to the disagreement. – Kinematic phase space of MRCC and selected NC events matches well, but MRCC and selected CC events do not. The MRCC sample is thus used to make ad-hoc correction to the model to NC events per bin – Beam e from MC, CC events are the remainder

32. NNN 08, Paris, 11/09/08 32 Alex Sousa, University of Oxford Horn on/off Method After applying e selection cuts to Near Detector data, the composition of the selected events is quite different with the NuMI focusing horns on or off. Get horn on/off ratios from MC, then solve for NC and CC backgrounds in bins of energy, get beam e from the beam MC (a well understood number) – Independent of hadronic modeling N on = N NC + N CC + N e (1) N off = r NC *N NC + r CC *N CC + r e *N e (2) from MC: r NC(CC,e) = N NC(CC,e) off /N NC(CC,e) on
