1. Medical Imaging Resource Center A Tour of the MIRC Community

2. MIRC The Objective: Support the production, storage, indexing and distribution of medical imaging resources: –Teaching files –Scientific & technical documentation –Research images & datasets –Clinical trials data

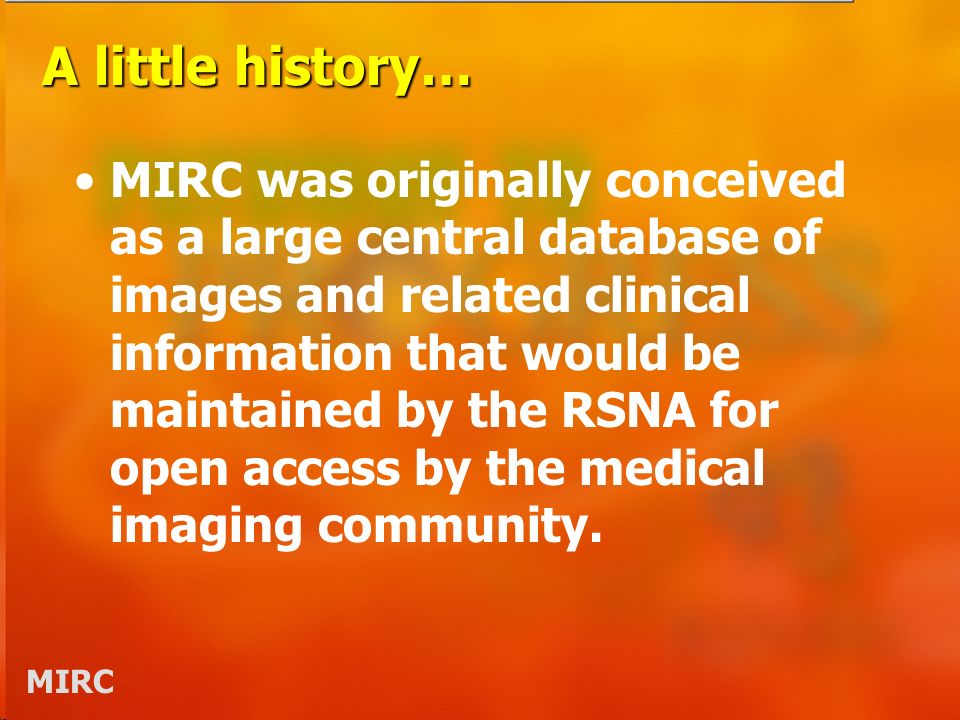

3. MIRC A little history… MIRC was originally conceived as a large central database of images and related clinical information that would be maintained by the RSNA for open access by the medical imaging community.

4. MIRC Evolution of the concept… It soon become evident that a more effective strategy would be to leverage existing on-line electronic resources while creating new ones.

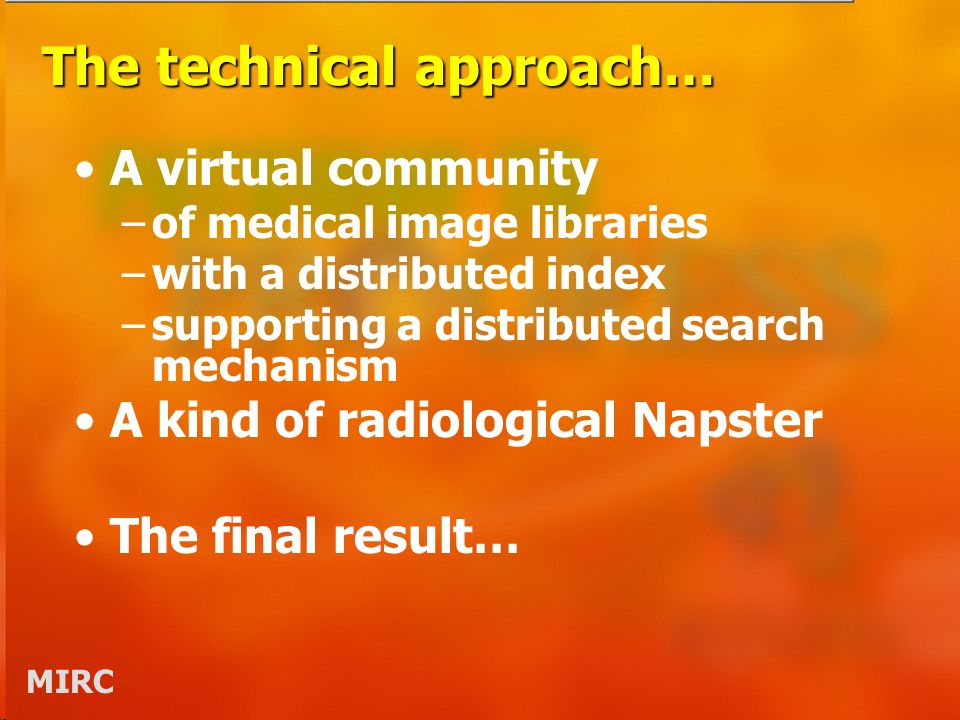

5. MIRC The technical approach… A virtual community –of medical image libraries –with a distributed index –supporting a distributed search mechanism A kind of radiological Napster The final result…

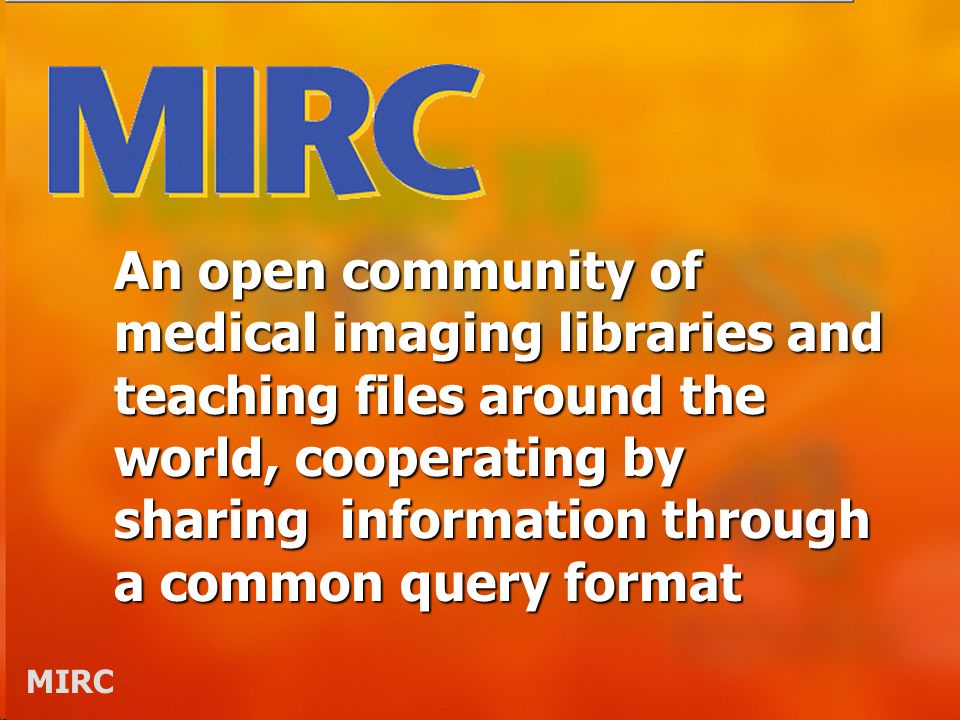

6. MIRC An open community of medical imaging libraries and teaching files around the world, cooperating by sharing information through a common query format

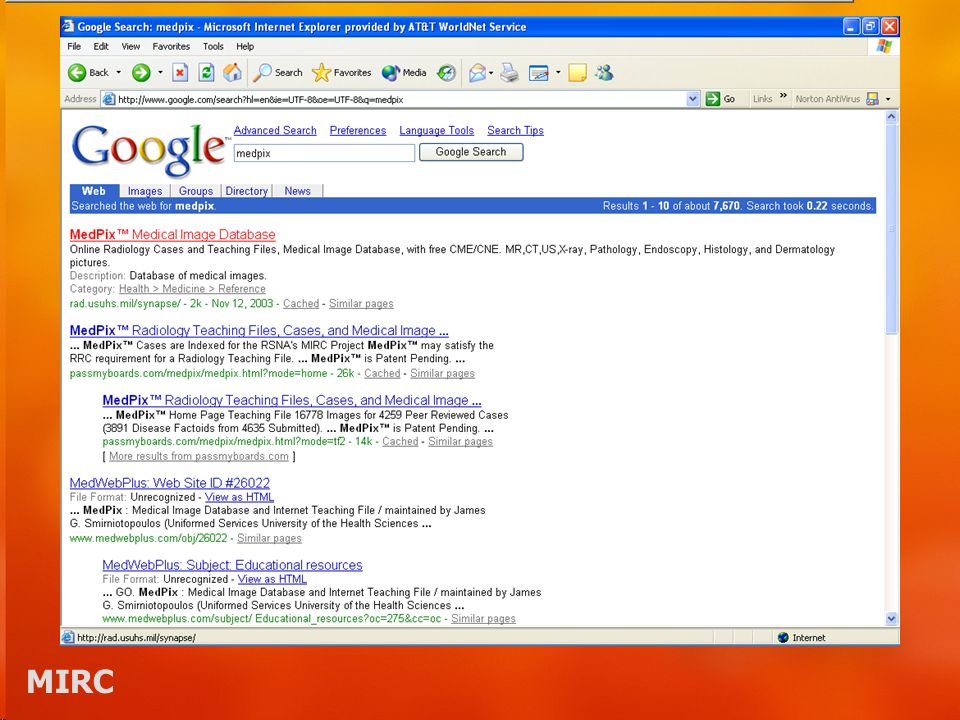

7. MIRC Image Searching Prior to MIRC Use of a search engine or multiple search engines to locate specific images or information. Alternatively, find a website with multiple links to teaching files.

8. MIRC

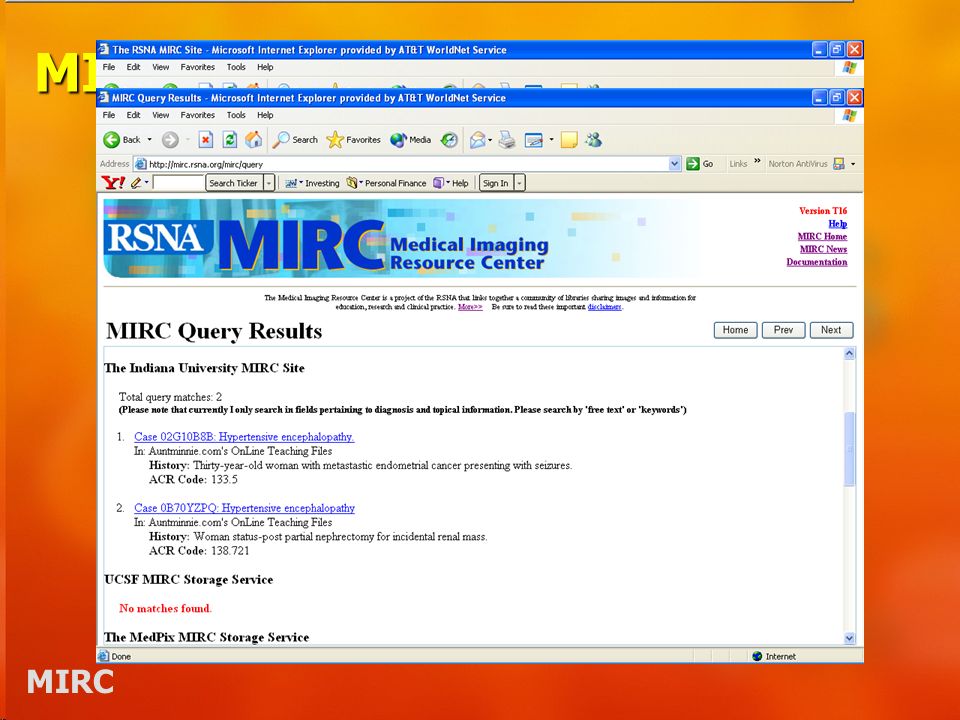

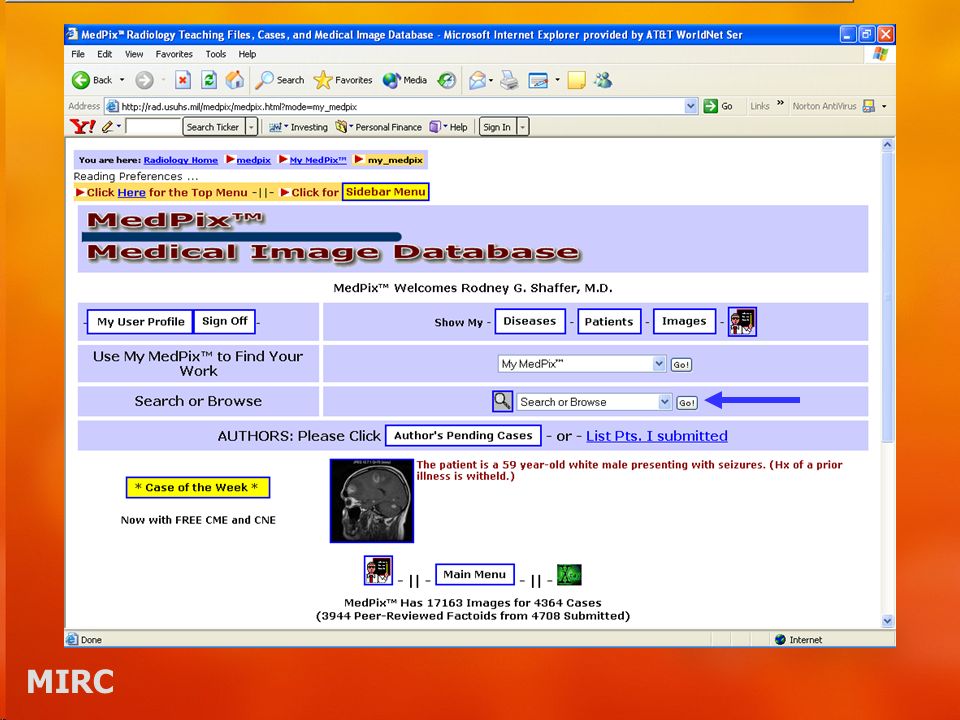

13. Image Searching Prior to MIRC Or… Find another database link via the search engine.

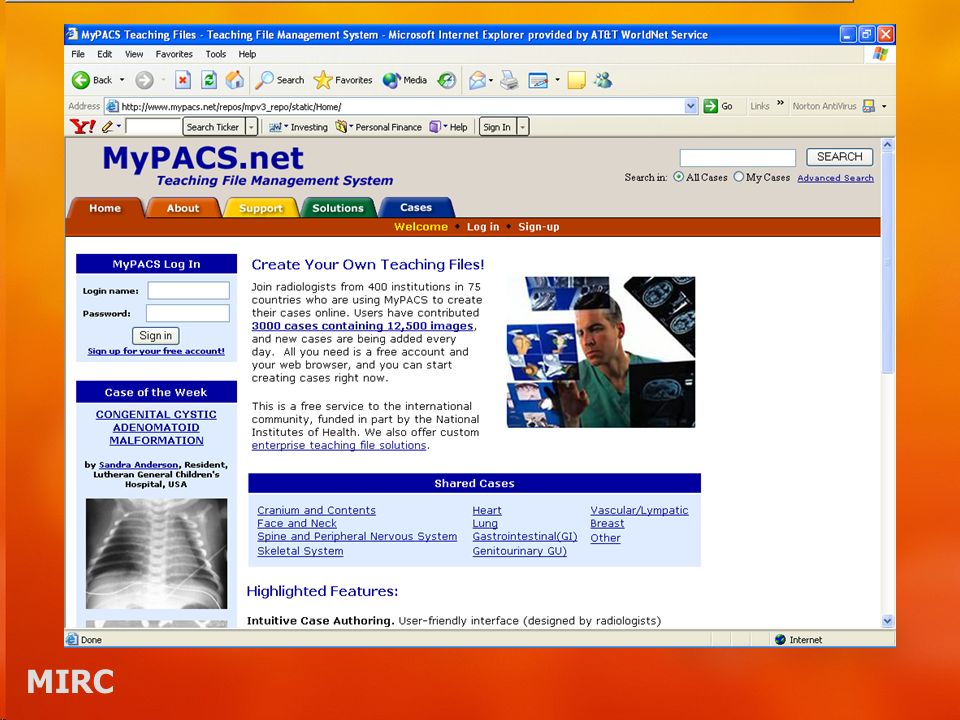

14. MIRC

15. MIRC Sites Query Service –An entry point into the MIRC community for a user on the Internet Storage Service –A cooperating library Index: the librarys card catalog Server: the librarys shelves

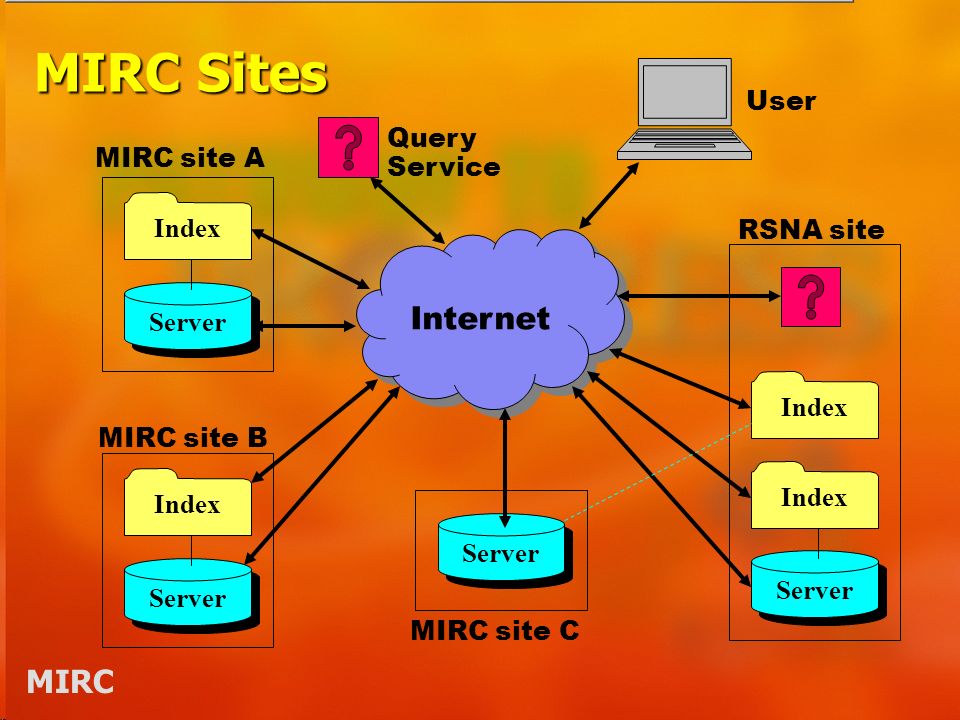

16. MIRC MIRC Sites Internet Server Index Server Index MIRC site B Server Index Query Service MIRC site C Server Index RSNA site User MIRC site A

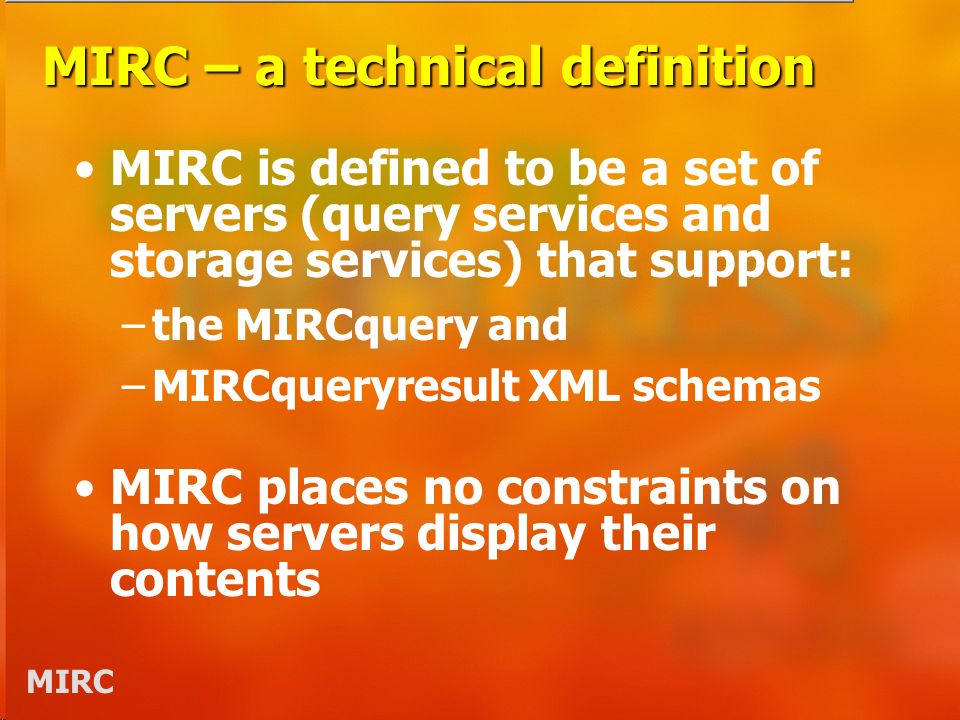

17. MIRC MIRC – a technical definition MIRC is defined to be a set of servers (query services and storage services) that support: –the MIRCquery and –MIRCqueryresult XML schemas MIRC places no constraints on how servers display their contents

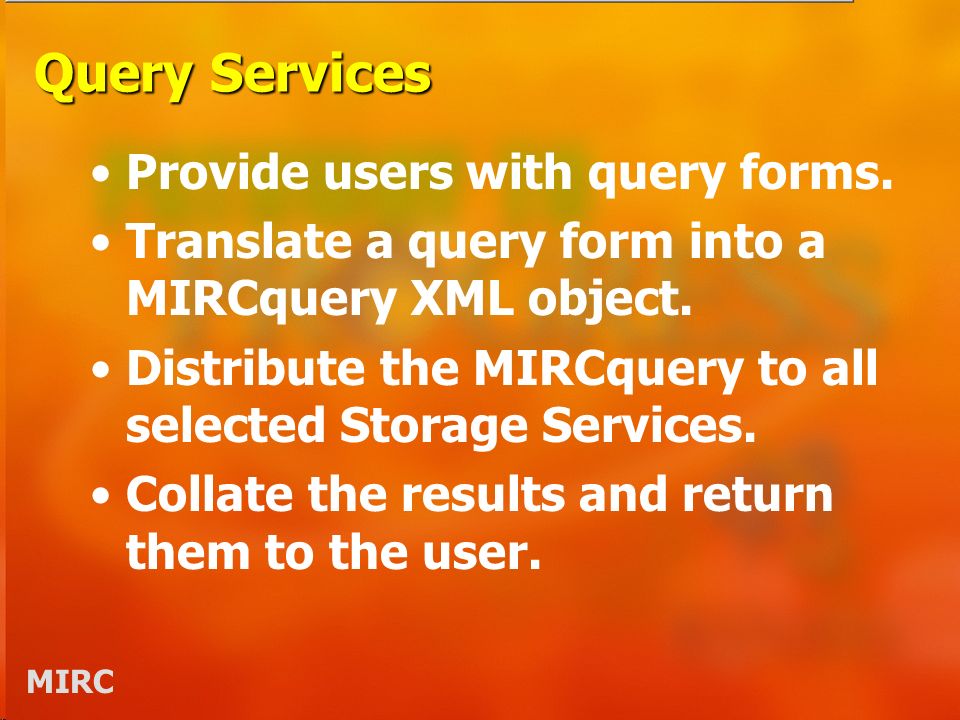

18. MIRC Query Services Provide users with query forms. Translate a query form into a MIRCquery XML object. Distribute the MIRCquery to all selected Storage Services. Collate the results and return them to the user.

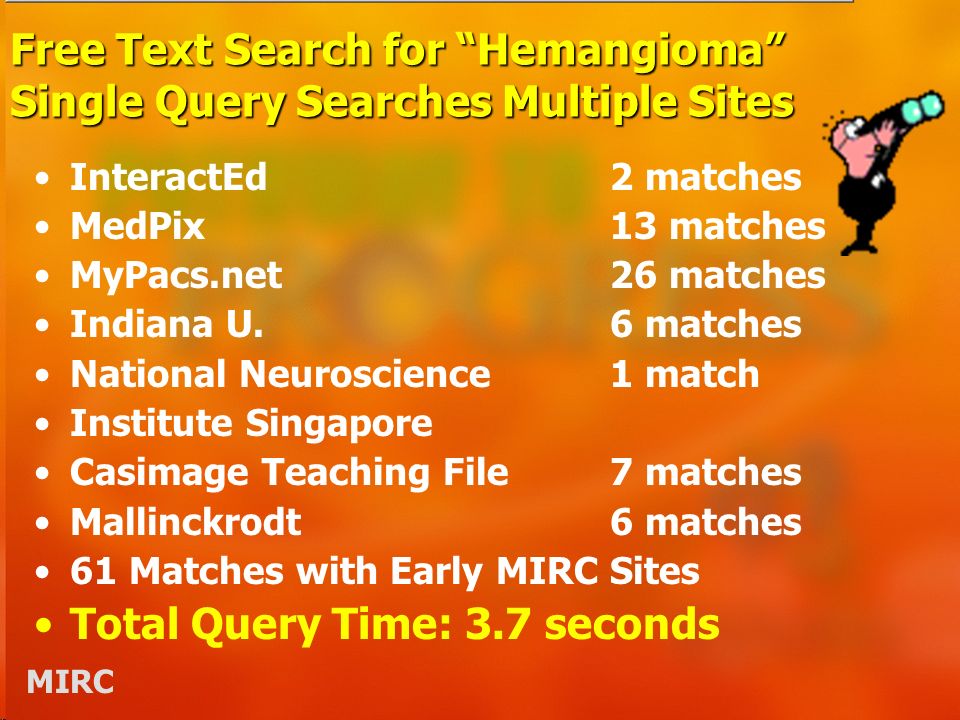

19. MIRC Free Text Search for Hemangioma Single Query Searches Multiple Sites InteractEd2 matches MedPix13 matches MyPacs.net26 matches Indiana U.6 matches National Neuroscience1 match Institute Singapore Casimage Teaching File7 matches Mallinckrodt 6 matches 61 Matches with Early MIRC Sites Total Query Time: 3.7 seconds

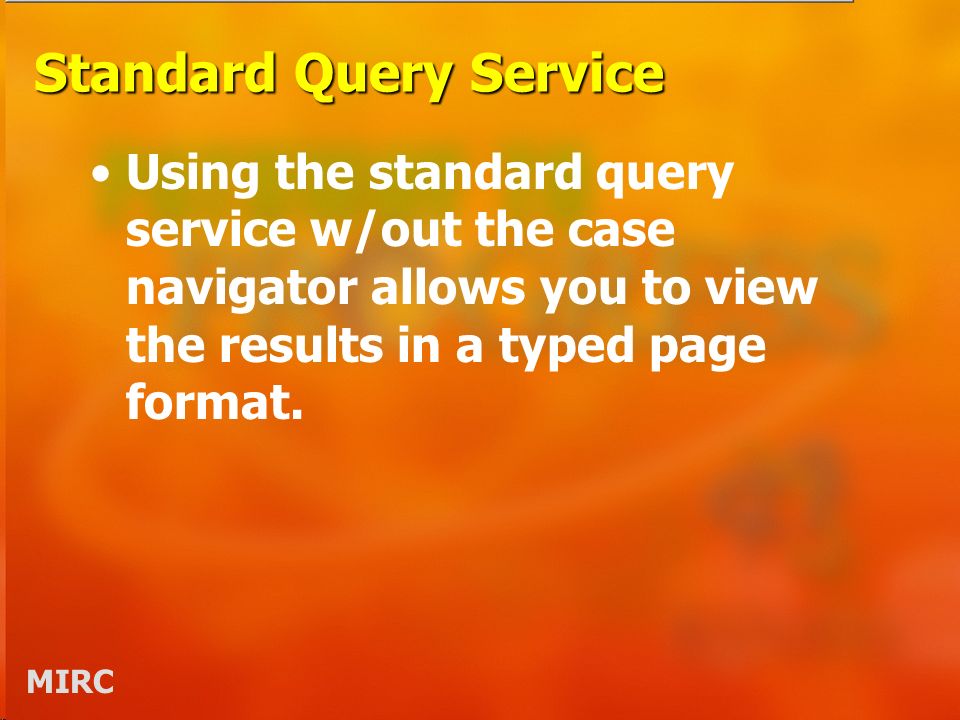

20. MIRC Standard Query Service Using the standard query service w/out the case navigator allows you to view the results in a typed page format.

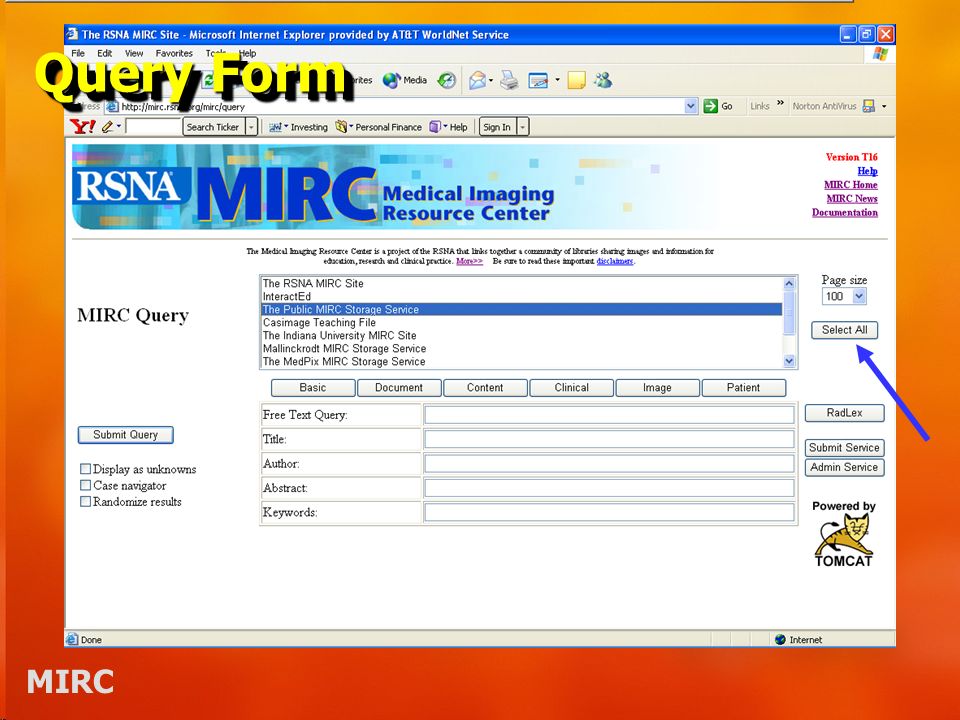

21. MIRC Query Form

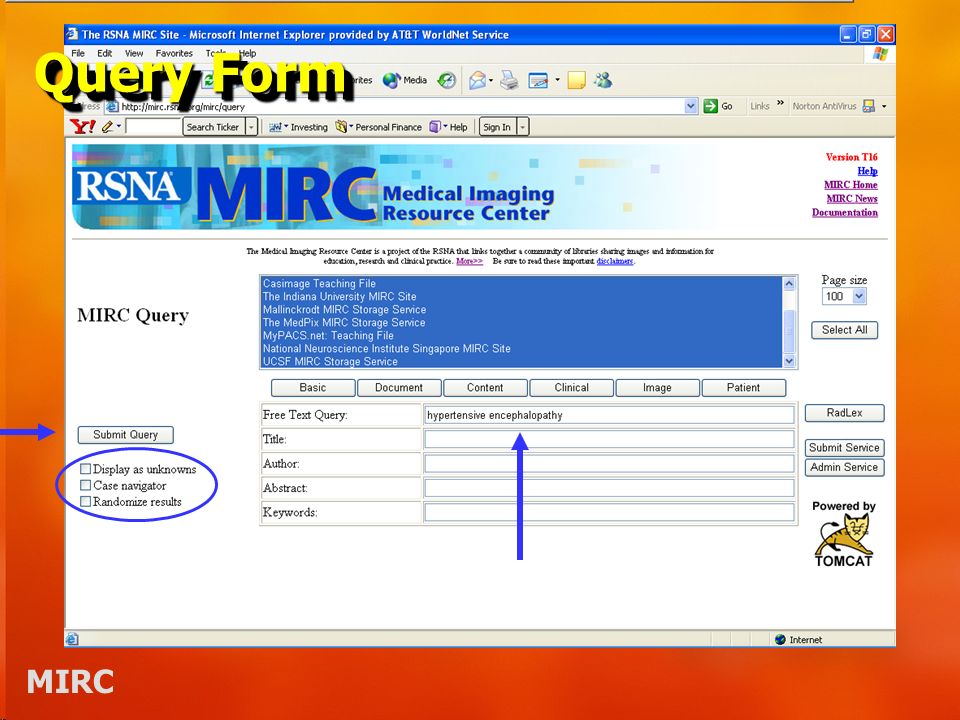

22. MIRC Query Form

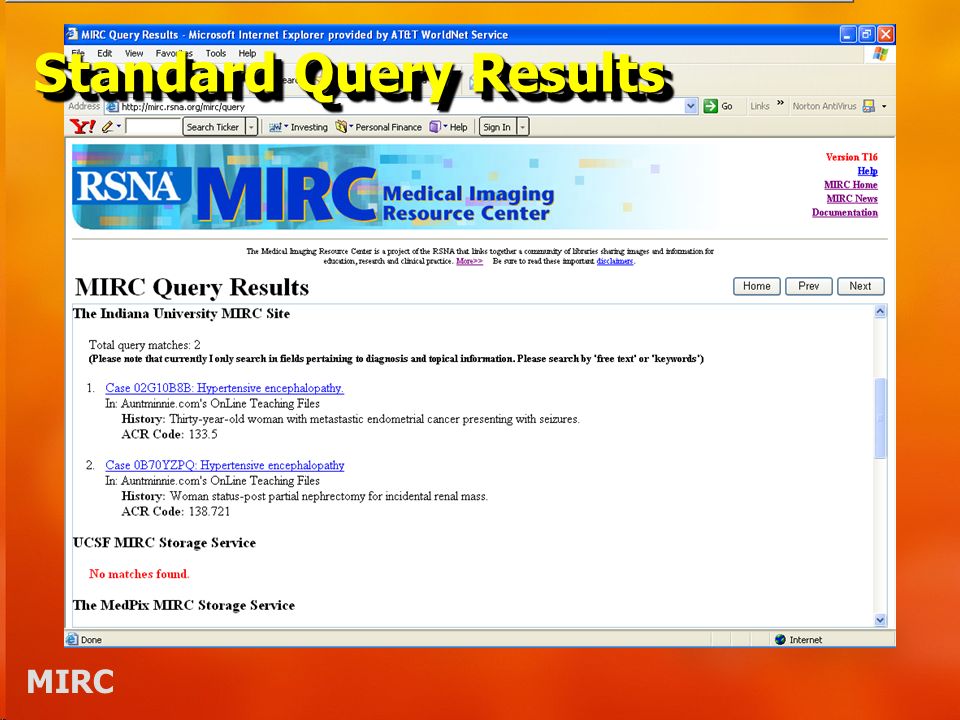

23. MIRC Standard Query Results

24. MIRC Query Services Selecting the case navigator will take you directly to the first case. The next case will be just a click away.

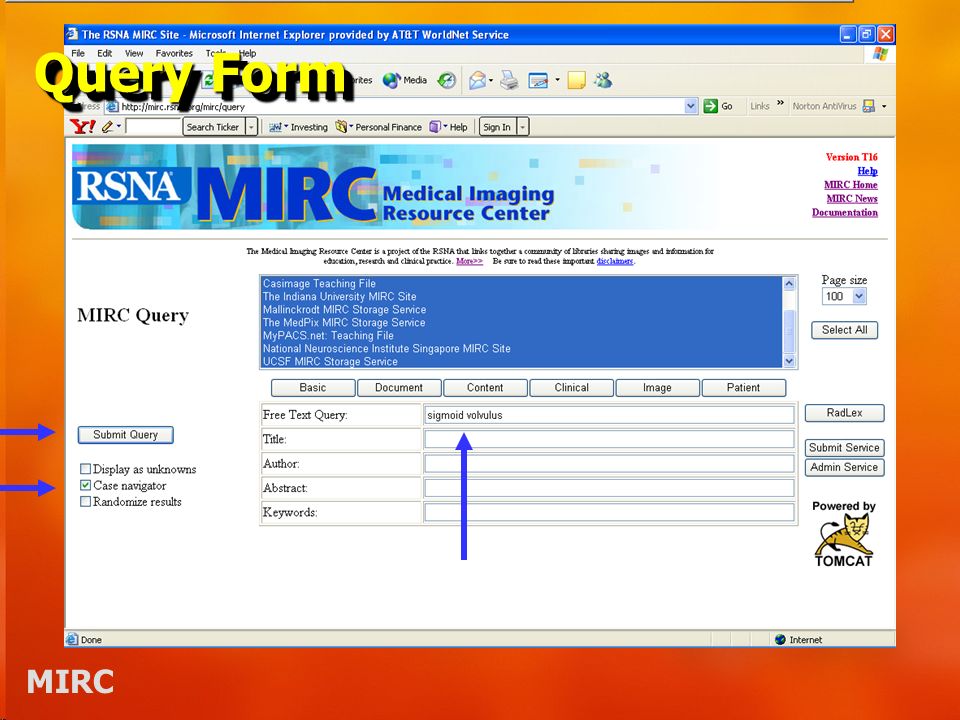

25. MIRC Query Form

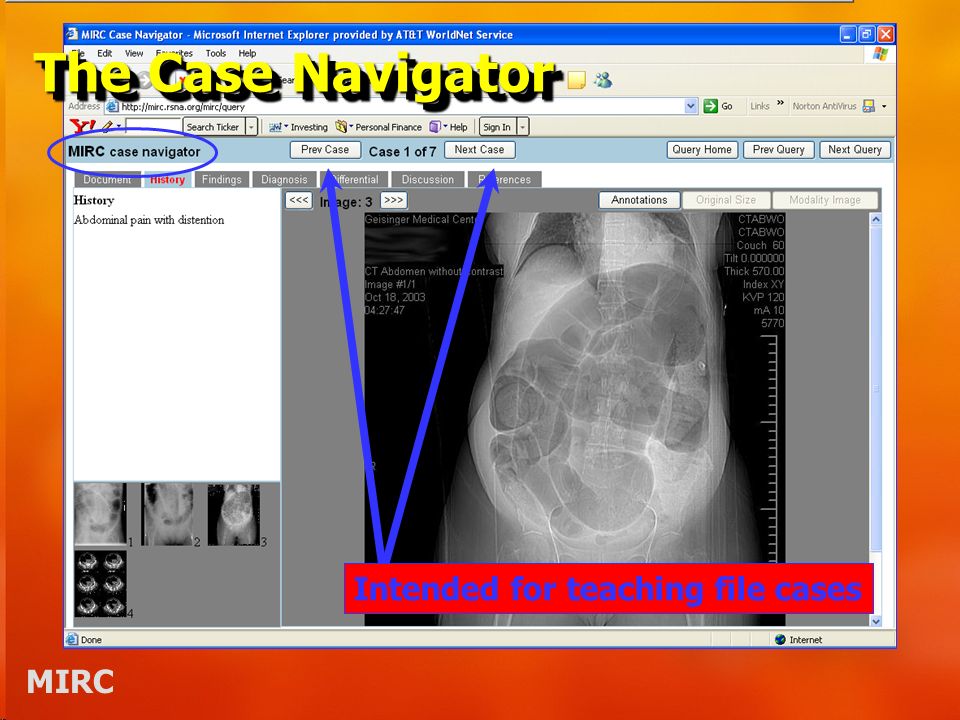

26. MIRC The Case Navigator Intended for teaching file cases

27. MIRC Storage Services Respond to queries from Query Services and serve content to users. Each storage service maintains its own index Each storage service is responsible for the display format of its content

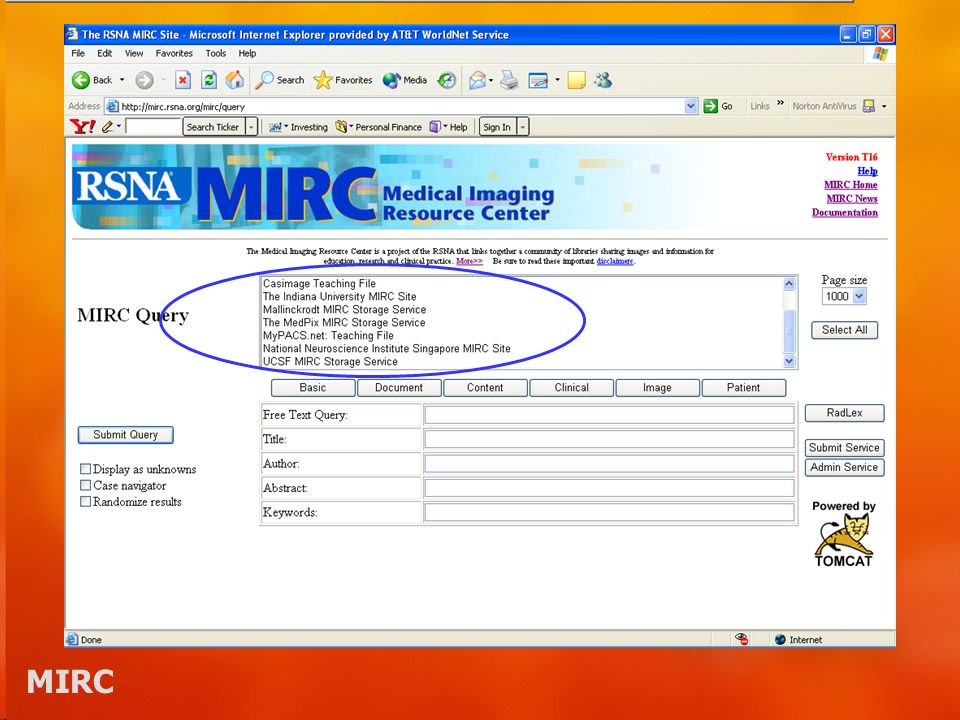

28. MIRC

29. Casimage Case Display

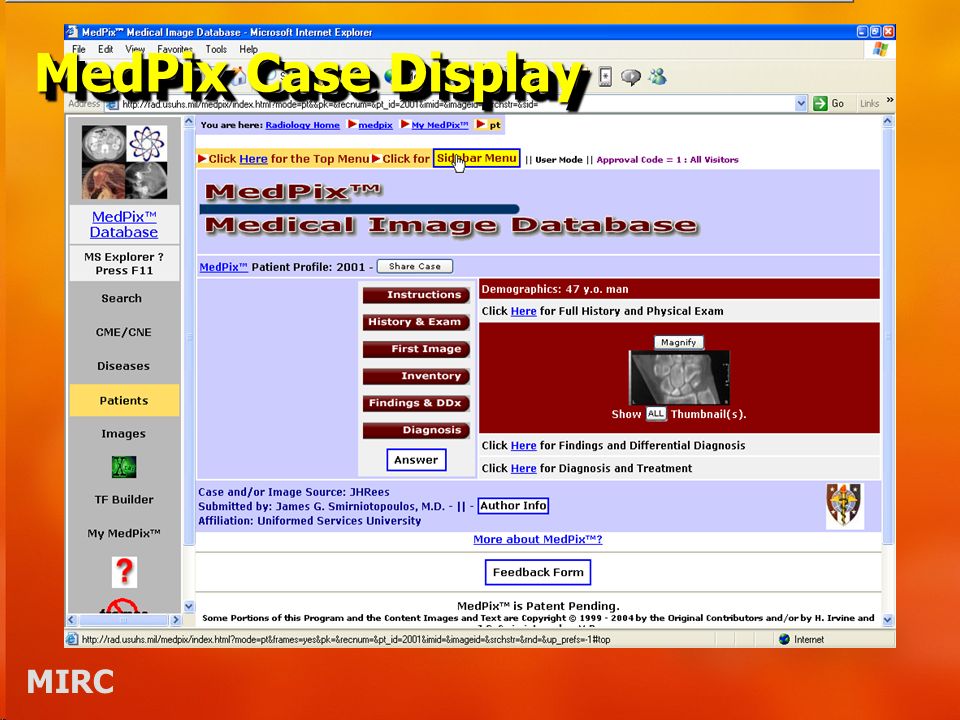

30. MIRC MedPix Case Display

31. MIRC MyPACS.net Case Display

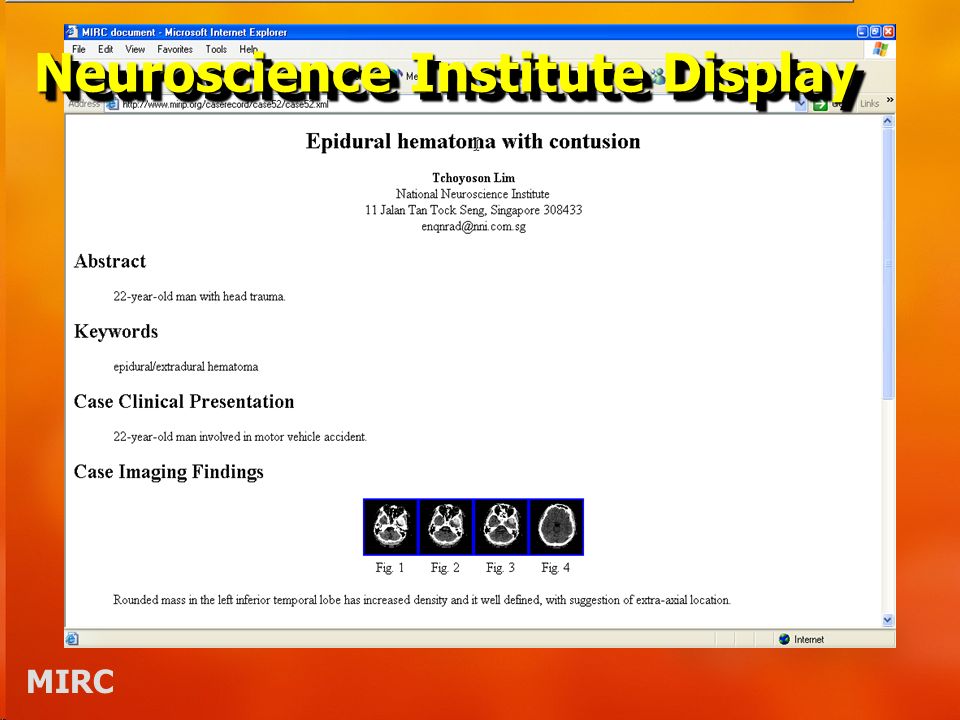

32. MIRC Neuroscience Institute Display

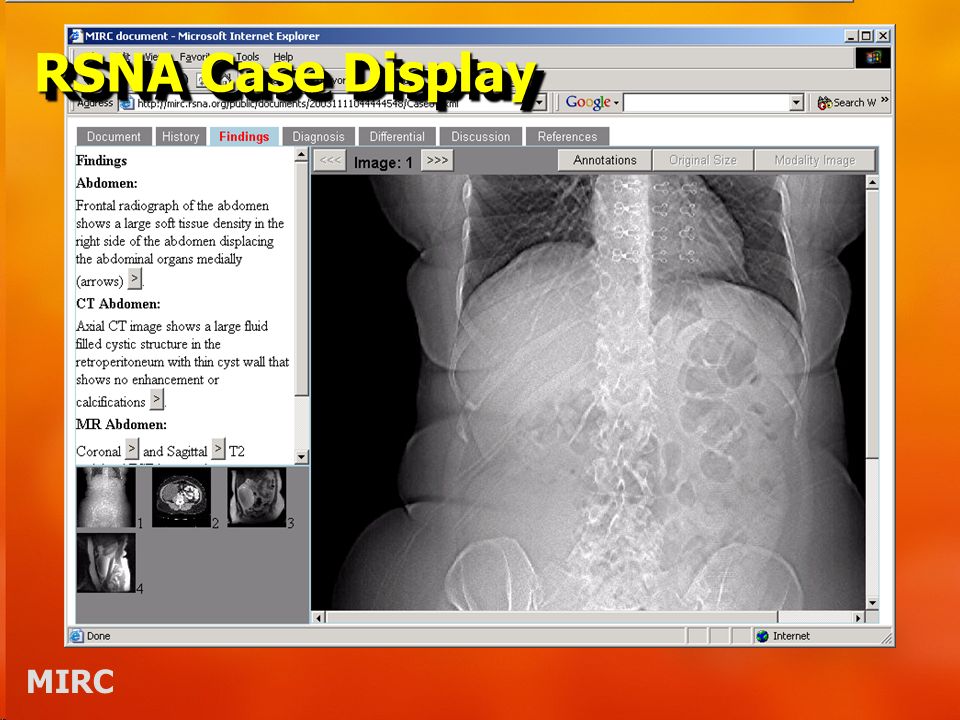

33. MIRC RSNA Case Display

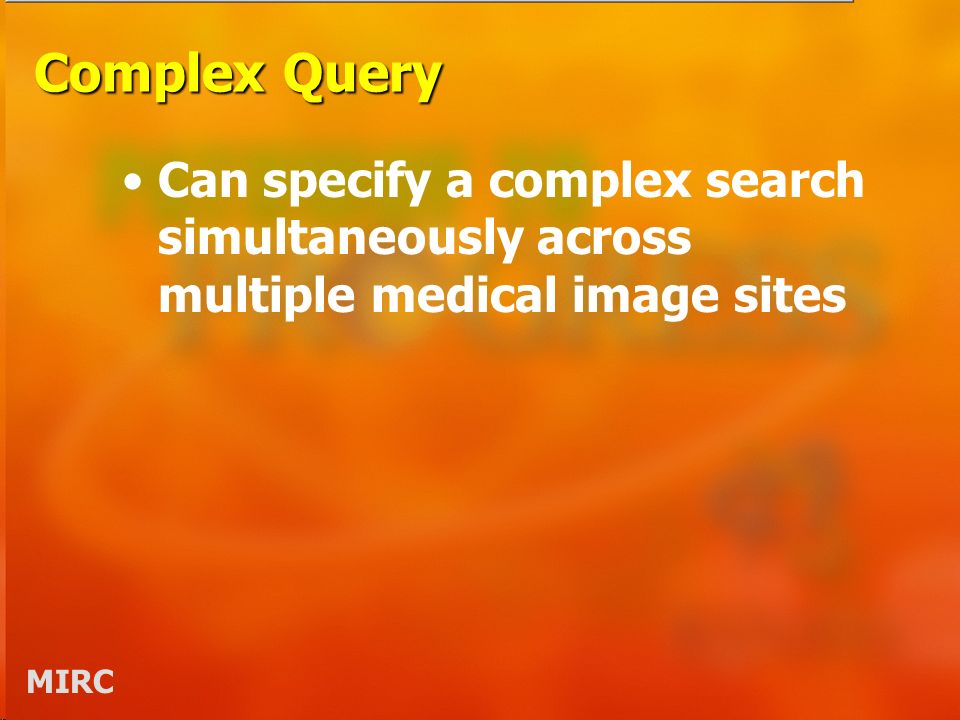

34. MIRC Complex Query Can specify a complex search simultaneously across multiple medical image sites

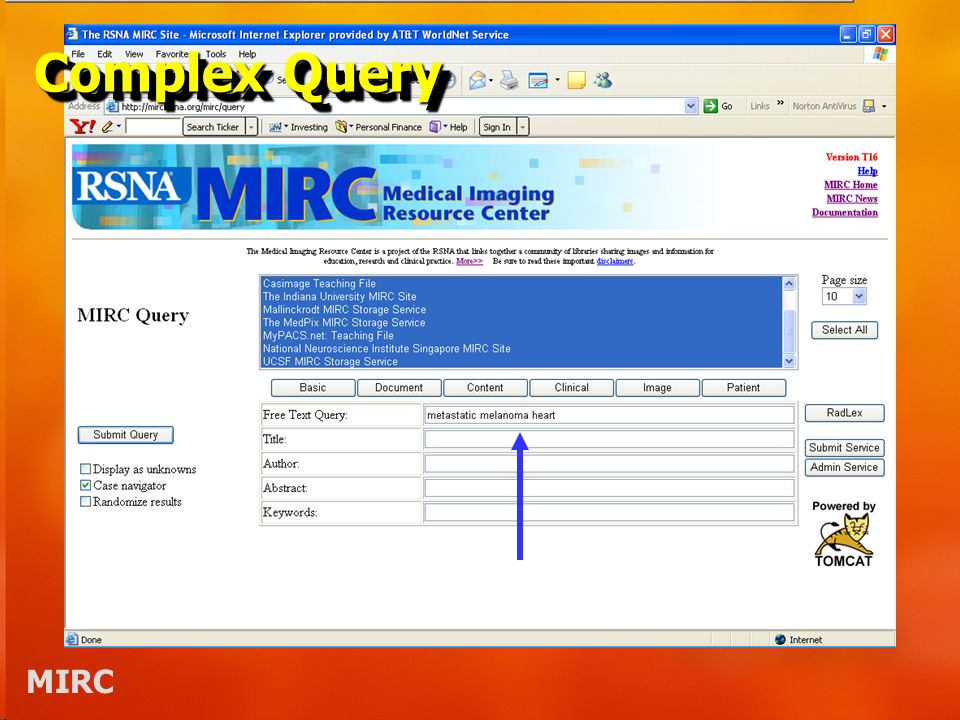

35. MIRC Complex Query

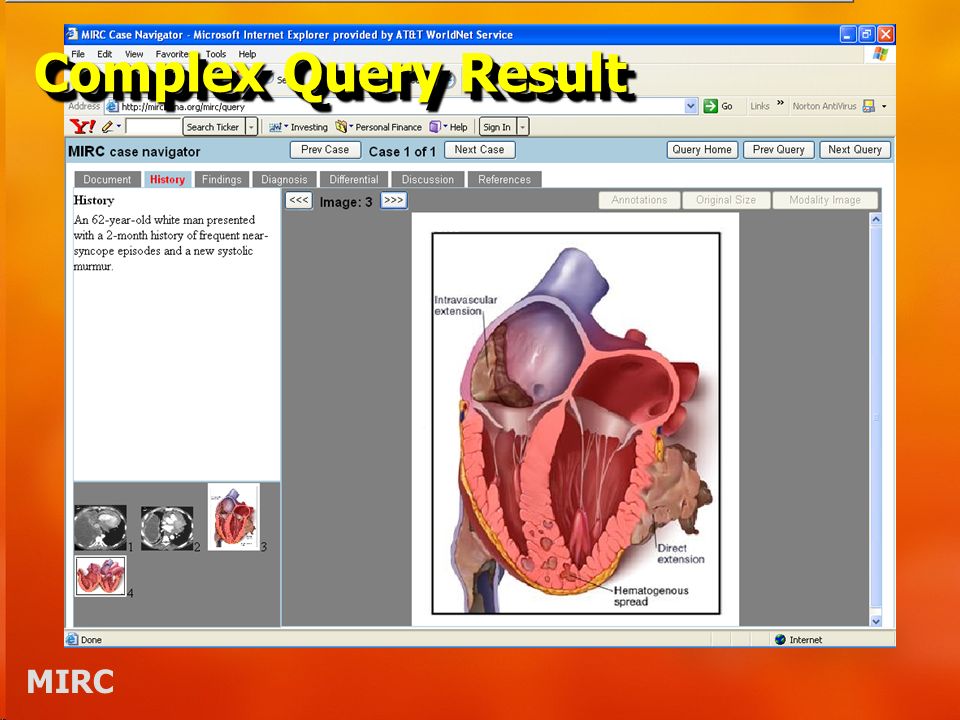

36. MIRC Complex Query Result

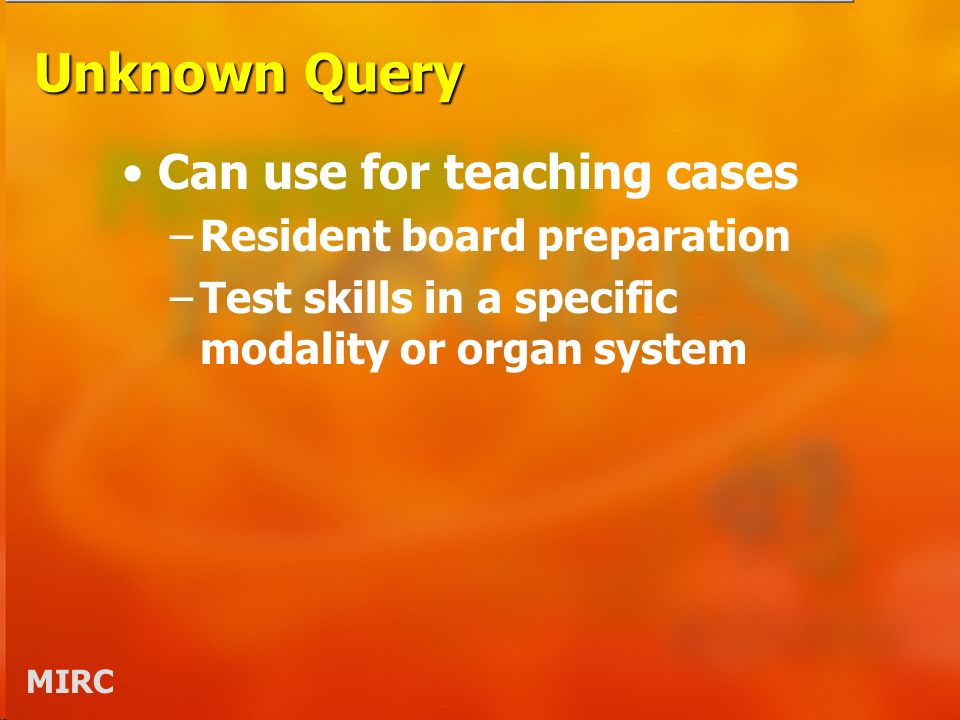

37. MIRC Unknown Query Can use for teaching cases –Resident board preparation –Test skills in a specific modality or organ system

38. MIRC Unknown Query

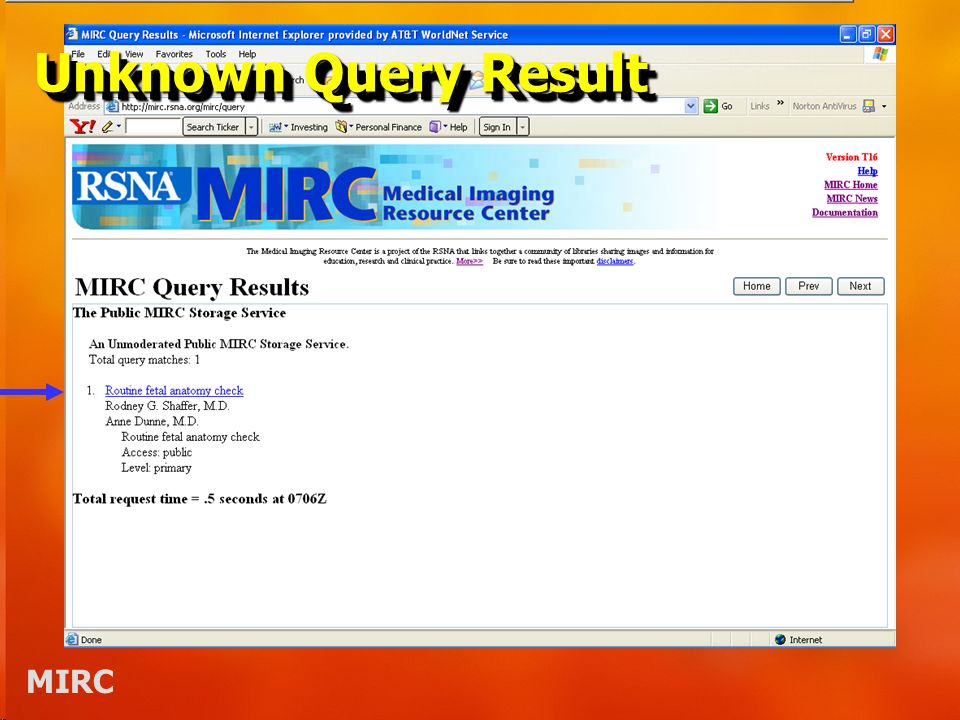

39. MIRC Unknown Query Result

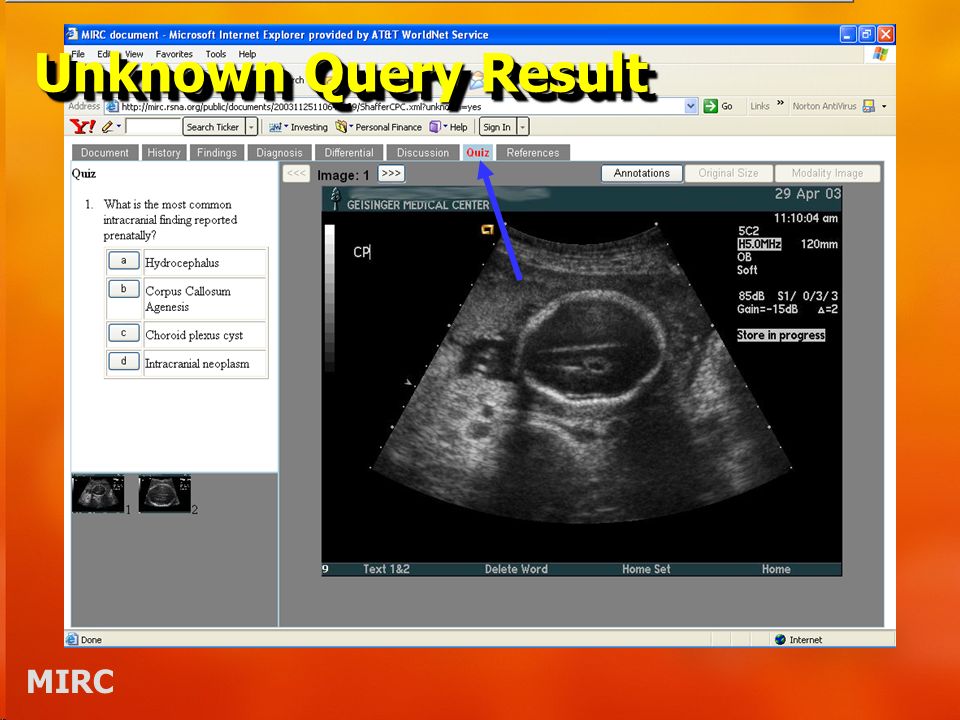

40. MIRC Unknown Query Result

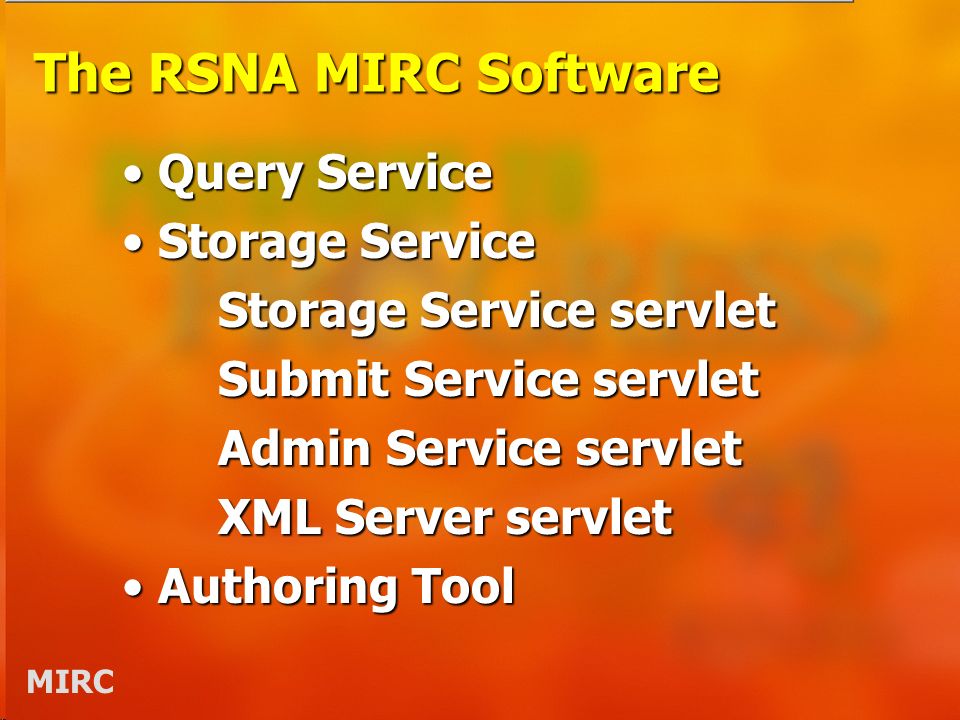

41. MIRC The RSNA MIRC Software Query ServiceQuery Service Storage ServiceStorage Service Storage Service servlet Submit Service servlet Admin Service servlet XML Server servlet Authoring ToolAuthoring Tool

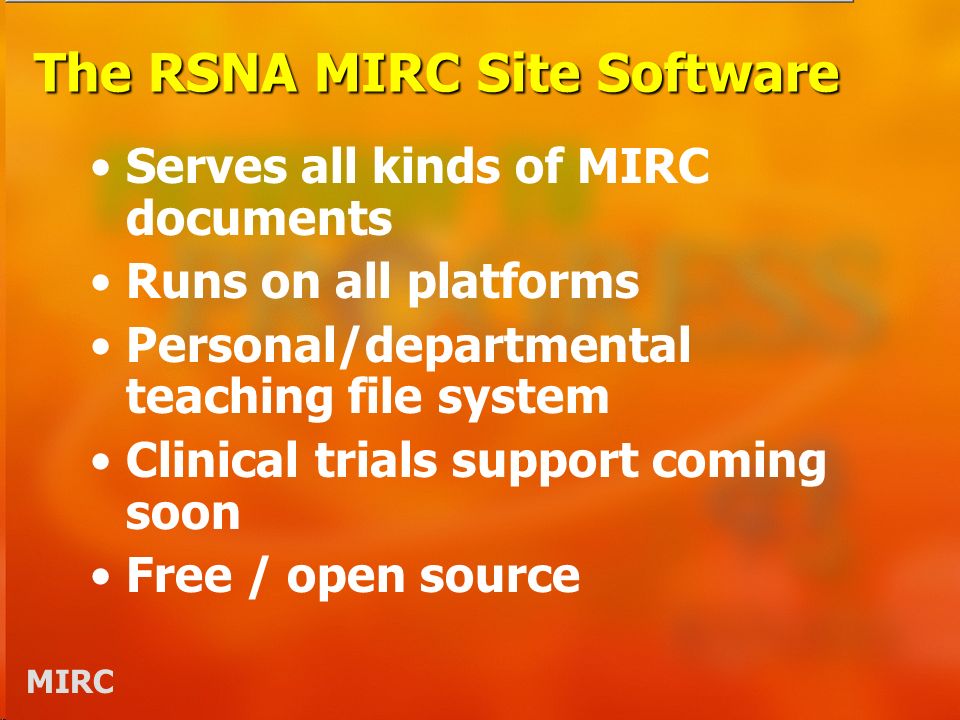

42. MIRC The RSNA MIRC Site Software Serves all kinds of MIRC documents Runs on all platforms Personal/departmental teaching file system Clinical trials support coming soon Free / open source

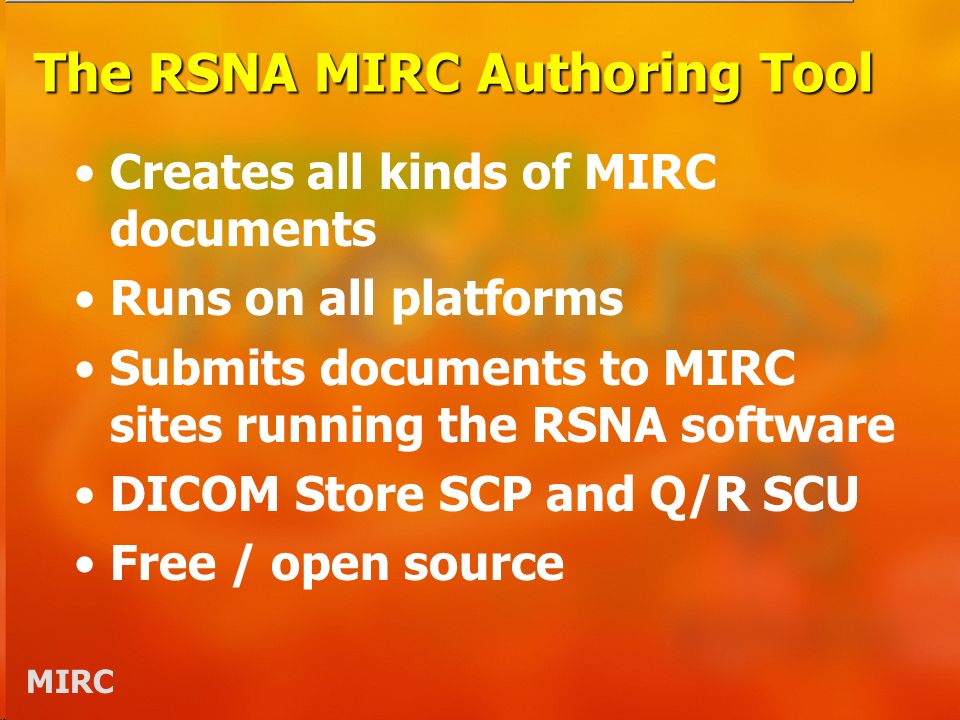

43. MIRC The RSNA MIRC Authoring Tool Creates all kinds of MIRC documents Runs on all platforms Submits documents to MIRC sites running the RSNA software DICOM Store SCP and Q/R SCU Free / open source

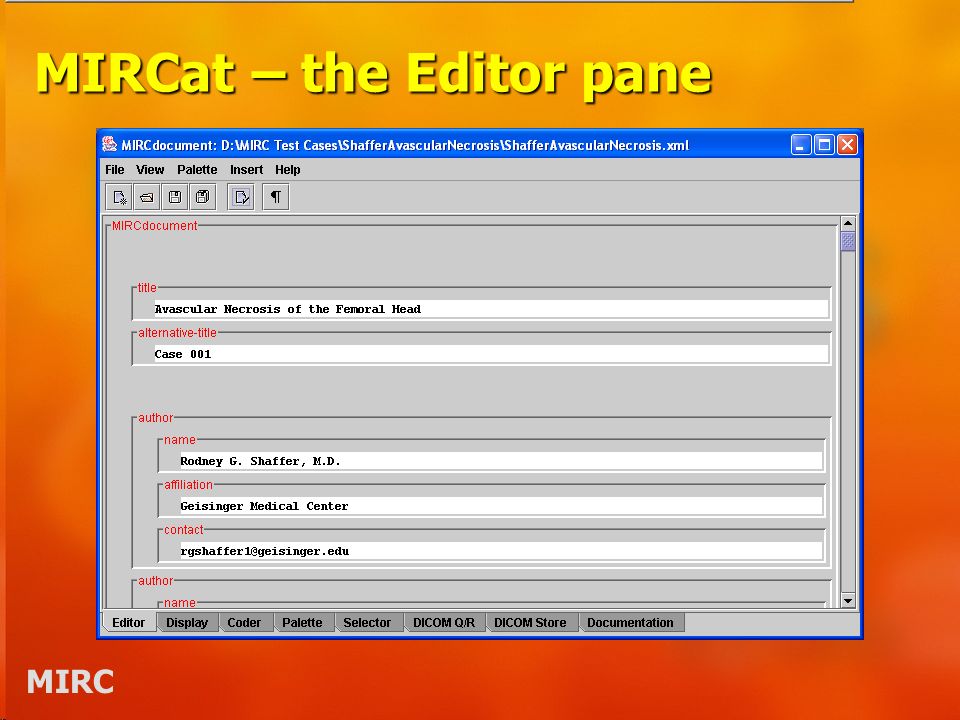

44. MIRC MIRCat – the Editor pane

45. MIRC MIRCat – the Display pane

46. MIRC MIRCat – the ACR code pane

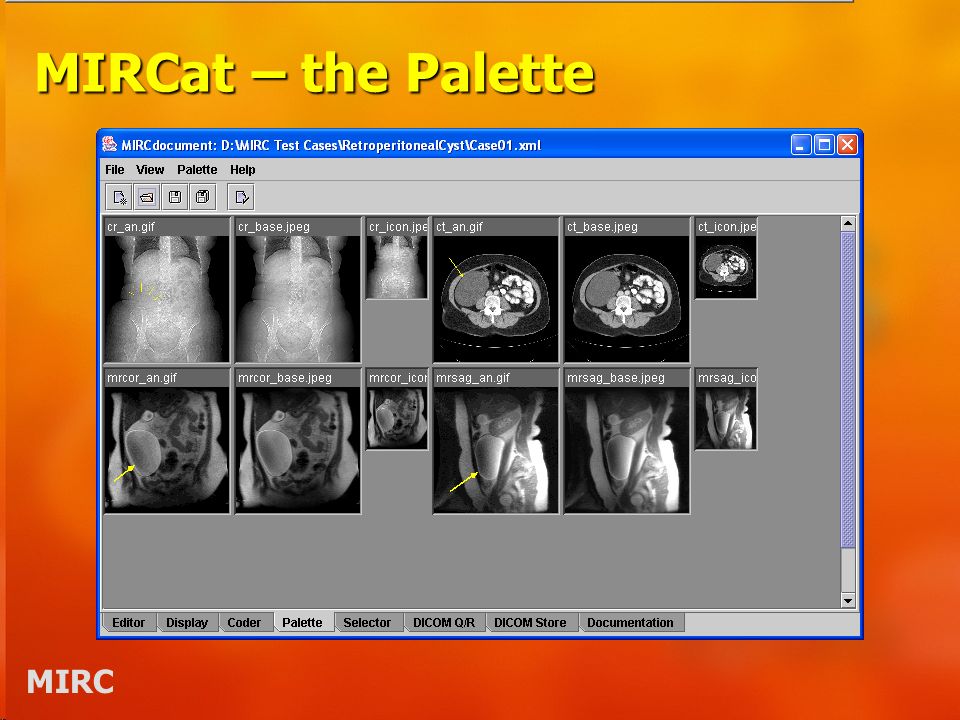

47. MIRC MIRCat – the Palette

48. MIRC MIRCat – the Selector

49. MIRC MIRCat – DICOM Q/R

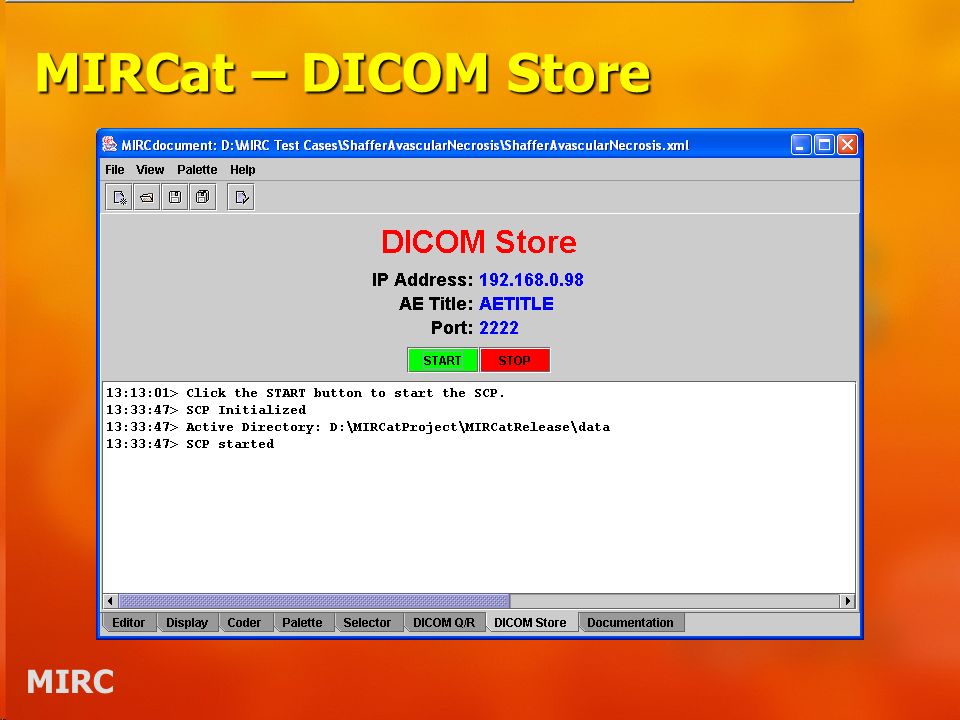

50. MIRC MIRCat – DICOM Store

51. MIRC Case submission

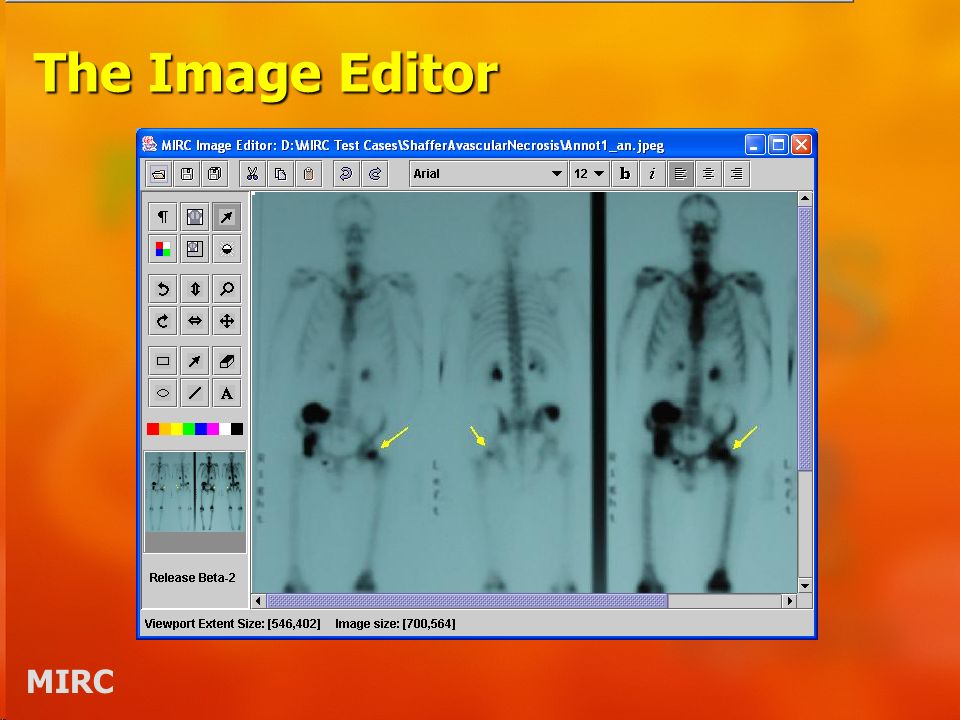

52. MIRC The Image Editor

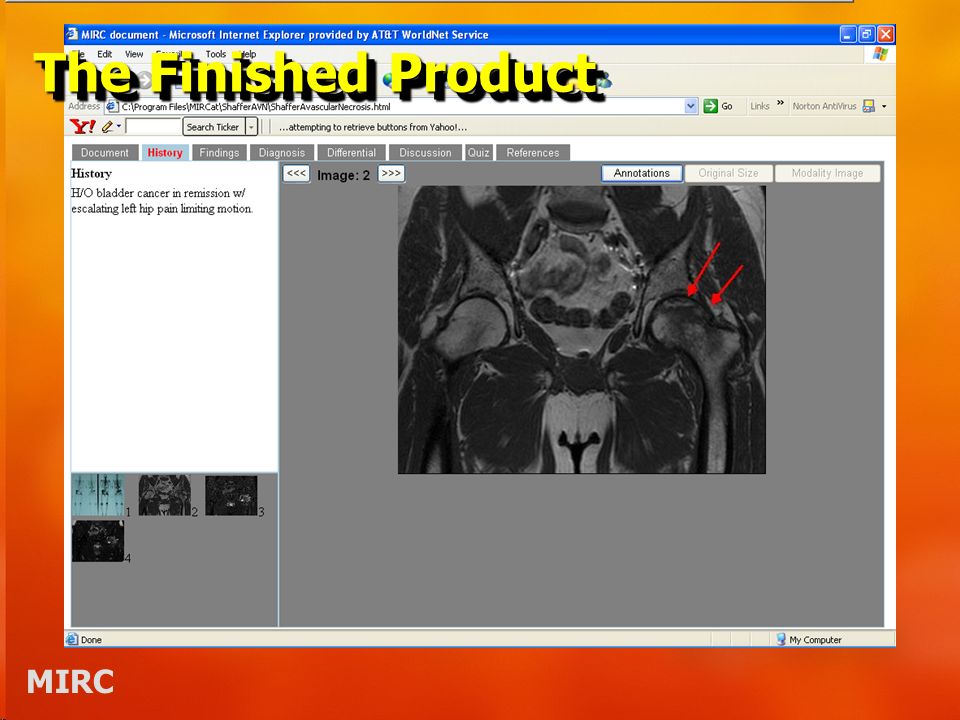

53. MIRC The Finished Product

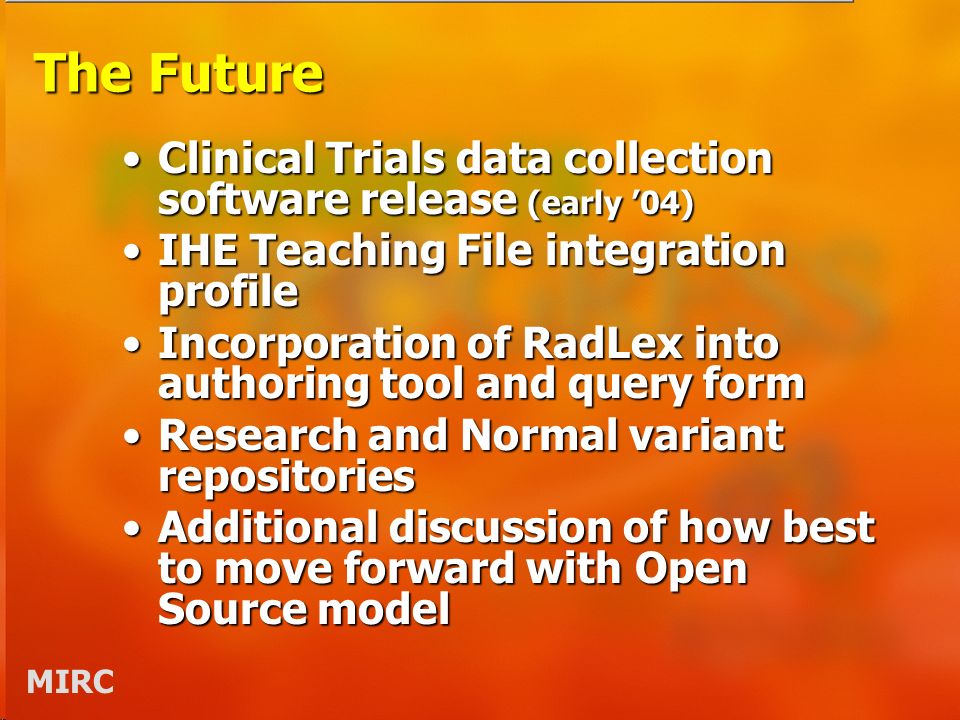

54. MIRC The Future Clinical Trials data collection software release (early 04)Clinical Trials data collection software release (early 04) IHE Teaching File integration profileIHE Teaching File integration profile Incorporation of RadLex into authoring tool and query formIncorporation of RadLex into authoring tool and query form Research and Normal variant repositoriesResearch and Normal variant repositories Additional discussion of how best to move forward with Open Source modelAdditional discussion of how best to move forward with Open Source model

55. MIRC Questions/Answers & Help MIRC Site –http://mirc.rsna.orghttp://mirc.rsna.org RSNA Forums: –http://forums.rsna.orghttp://forums.rsna.org –User Comments, Questions and Answers –RSNA MIRC Software Announcements –MIRC Implementers Corner –MIRC Technical Review Committee Subscribe on the Forums site

56. MIRC Other Courses This Week How to Author MIRC Teaching File DocumentsHow to Author MIRC Teaching File Documents –12 p.m. MIRC Classroom How to Set Up a Personal Teaching File SystemHow to Set Up a Personal Teaching File System –10:30 a.m. MIRC Classroom Inside the RSNA MIRC SoftwareInside the RSNA MIRC Software –1:30 p.m. MIRC Classroom Tour of MIRC CommunityTour of MIRC Community –3:00 p.m. MIRC Classroom
