Presentation on theme: "Solids Solid is a state of matter in which materials have a definite shape and a definite volume. Molecules/Atoms are tightly packed in a pattern and vibrate."— Presentation transcript:

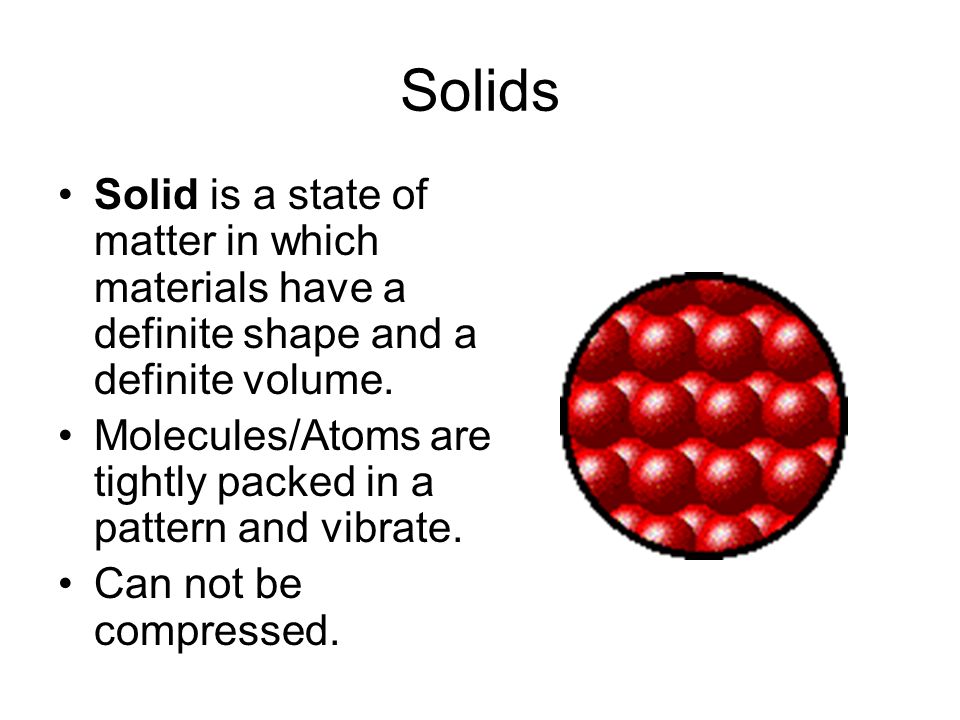

1 Solids Solid is a state of matter in which materials have a definite shape and a definite volume. Molecules/Atoms are tightly packed in a pattern and vibrate. Can not be compressed.

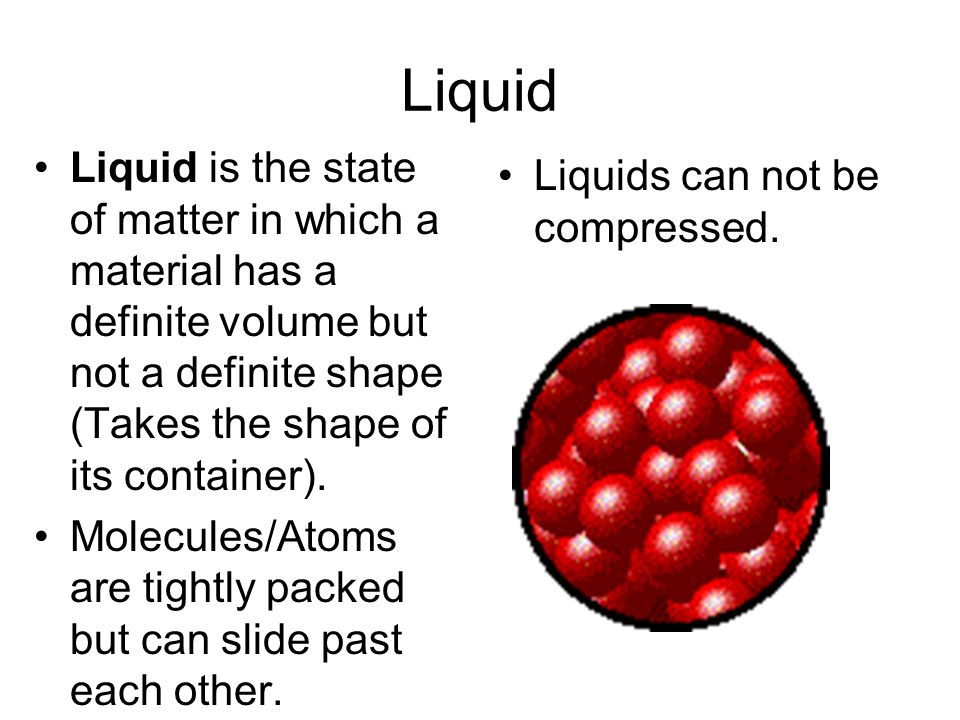

2 Liquid Liquid is the state of matter in which a material has a definite volume but not a definite shape (Takes the shape of its container). Molecules/Atoms are tightly packed but can slide past each other. Liquids can not be compressed.

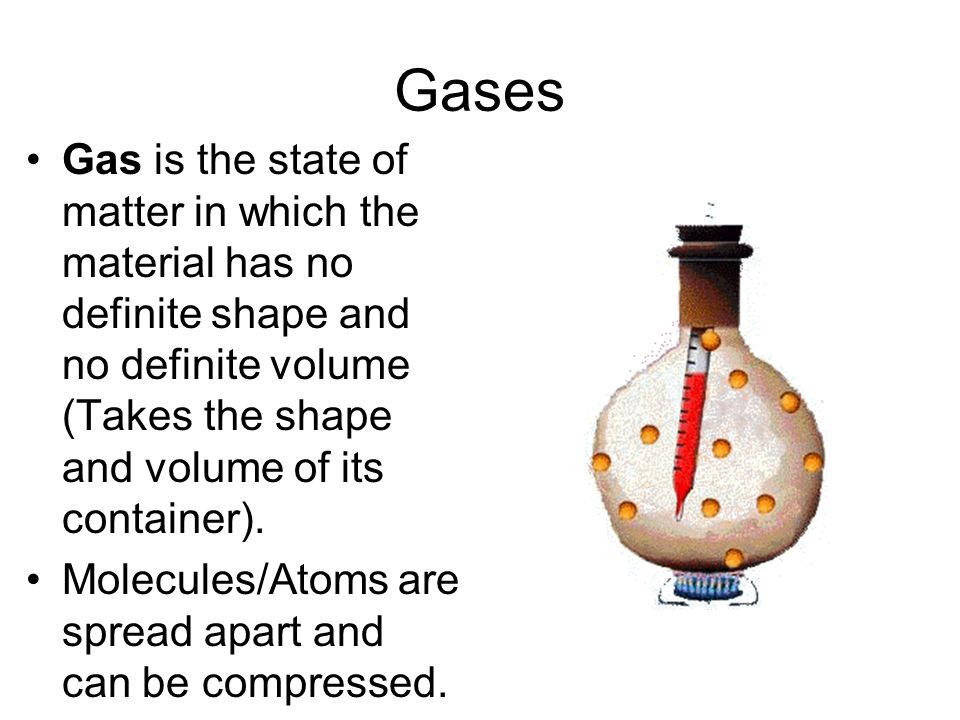

3 Gases Gas is the state of matter in which the material has no definite shape and no definite volume (Takes the shape and volume of its container). Molecules/Atoms are spread apart and can be compressed.

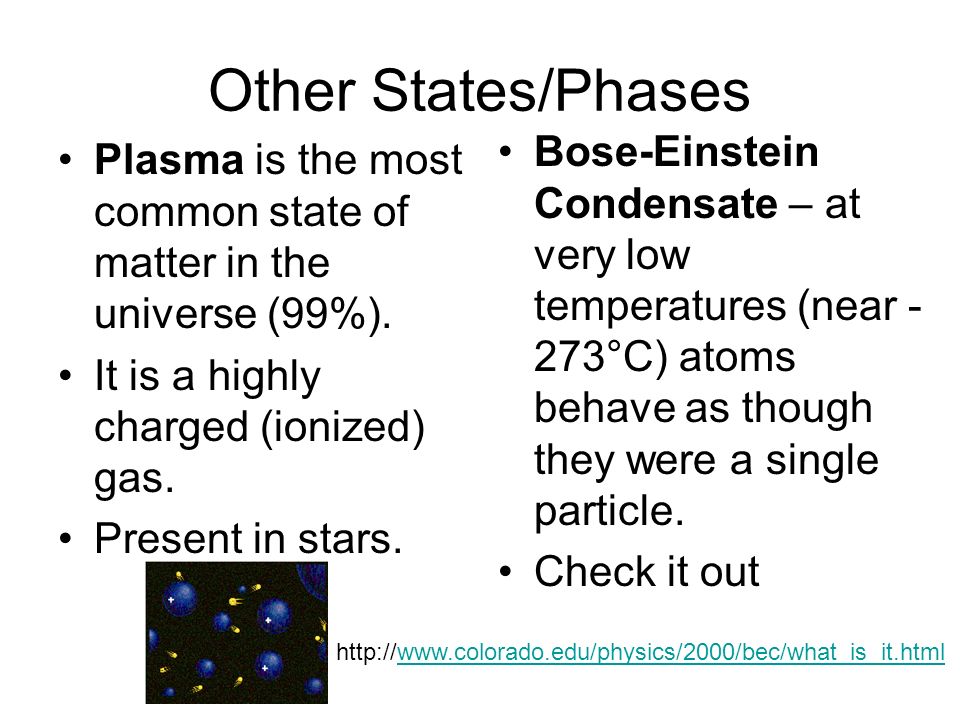

4 Other States/Phases Plasma is the most common state of matter in the universe (99%). It is a highly charged (ionized) gas. Present in stars. Bose-Einstein Condensate – at very low temperatures (near - 273°C) atoms behave as though they were a single particle. Check it out http://www.colorado.edu/physics/2000/bec/what_is_it.htmlwww.colorado.edu/physics/2000/bec/what_is_it.html

5

6

7

8

9

10

11

12

13

14

15 Kinetic Theory Kinetic Energy is the energy an object has due to its motion. The faster an object moves the more energy it possesses. http://www.harcourtschool. com/activity/states_of_m atter/ The Kinetic Theory says that all particles of matter are in constant motion. Most Energy Gas Liquid Solid Least Energy

16 Kinetic Theory of Gas Gas –Particles in a gas are in constant, random motion. –The motion of one particle in unaffected by the motion of other particles unless the particles collide. –Forces of attraction among particles in a gas can be ignored under ordinary conditions.

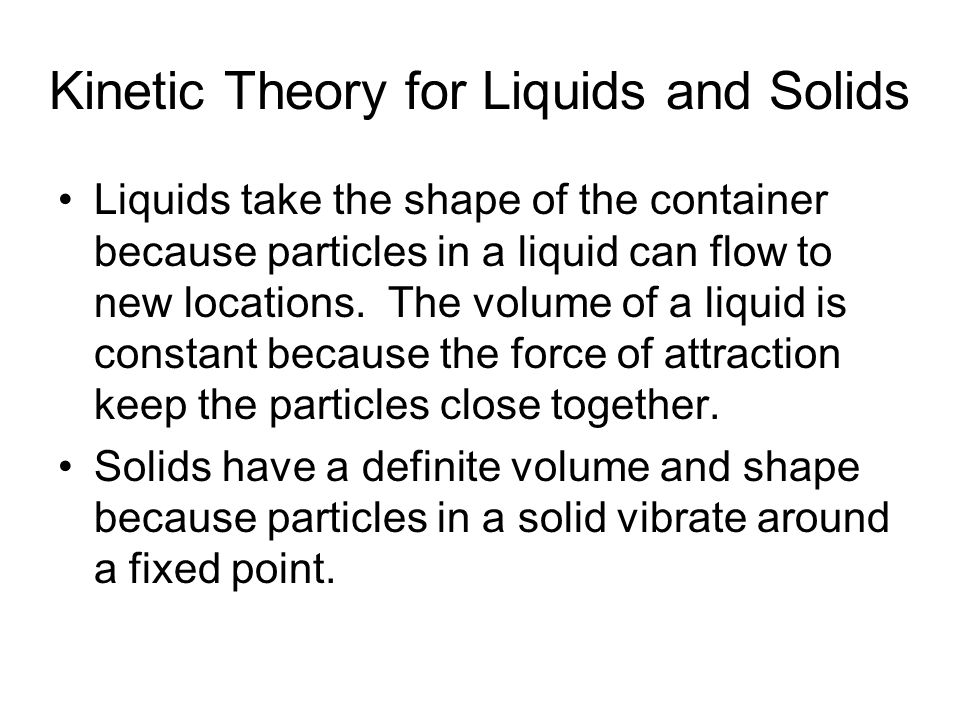

17 Kinetic Theory for Liquids and Solids Liquids take the shape of the container because particles in a liquid can flow to new locations. The volume of a liquid is constant because the force of attraction keep the particles close together. Solids have a definite volume and shape because particles in a solid vibrate around a fixed point.

18 Gas Laws Pressure is the result of a force (Push) distributed over an area. –Unit pascal (Pa) or Newton/meter 2 (N/m 2 ) Collisions between particles of a gas and the walls of the container cause the pressure in a closed container of gas. Raising the temperature of a gas will increase its pressure if the volume and the number of particles are constant. Reducing the volume of a gas will increase the pressure if the volume and the number of particles are constant.

19 Charles’s Law V 1 /T 1 =V 2 /T 2 Charles’s Law states that a volume of gas is directly proportional to its temperature in kelvins if the pressure and the number of particles remains constant. V = Volume T = Temperature 1 = before the change 2 = after the change Absolute Zero (0 K) is the temperature at which the atoms/molecules of matter stop moving. 0 K = -273°C 273 K = 0°C 373 K = 100°C

20 Boyle’s Law P 1 V 1 =P 2 V 2 Boyle’s Law states that the volume of a gas is inversely proportional to its pressure if the temperature and the number of particles are constant. P = Pressure V = Volume Combination of the two laws. P 1 V 1 = P 2 V 2 T 1 T 2

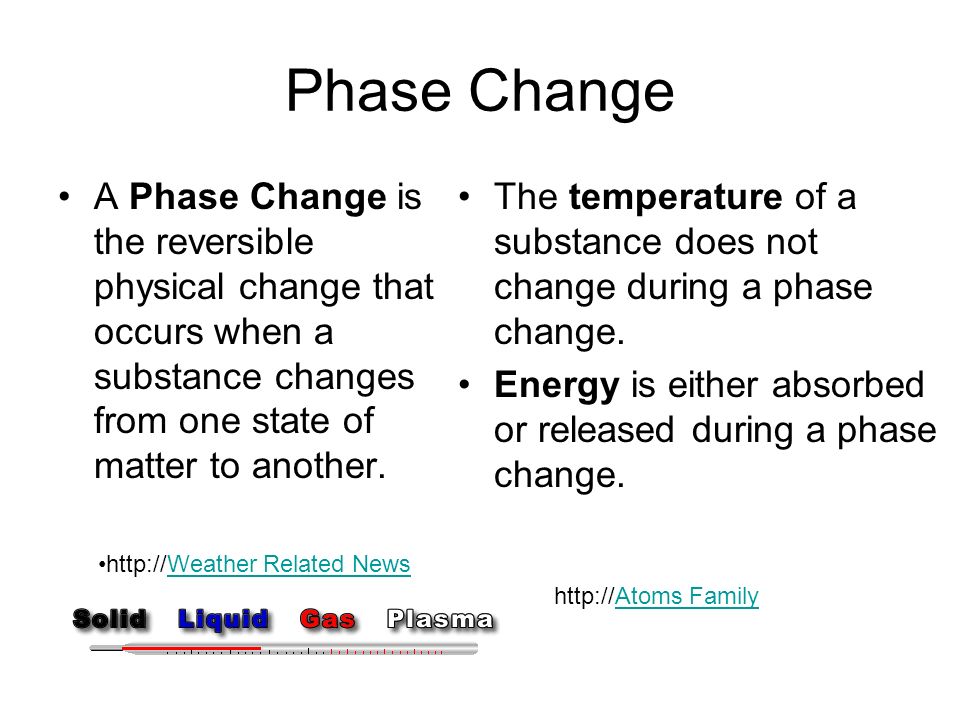

21 Phase Change A Phase Change is the reversible physical change that occurs when a substance changes from one state of matter to another. The temperature of a substance does not change during a phase change. Energy is either absorbed or released during a phase change. http://Atoms FamilyAtoms Family http://Weather Related NewsWeather Related News

22 Energy Endothermic – Energy taken in Exothermic – Energy given off Heat of Fusion – amount of energy absorbed by a substance as it changes from a solid to a liquid. Heat of Vaporization – amount of energy absorbed by a substance as it goes from a liquid to a gas.

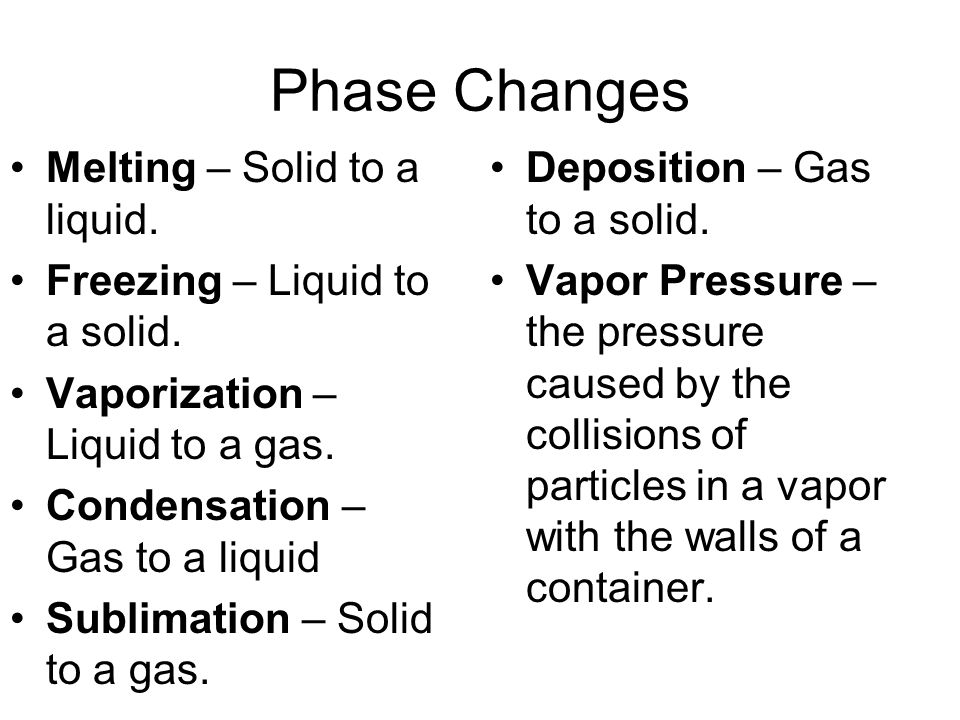

23 Phase Changes Melting – Solid to a liquid. Freezing – Liquid to a solid. Vaporization – Liquid to a gas. Condensation – Gas to a liquid Sublimation – Solid to a gas. Deposition – Gas to a solid. Vapor Pressure – the pressure caused by the collisions of particles in a vapor with the walls of a container.
