1. Chapter 4: Document Type Definitions

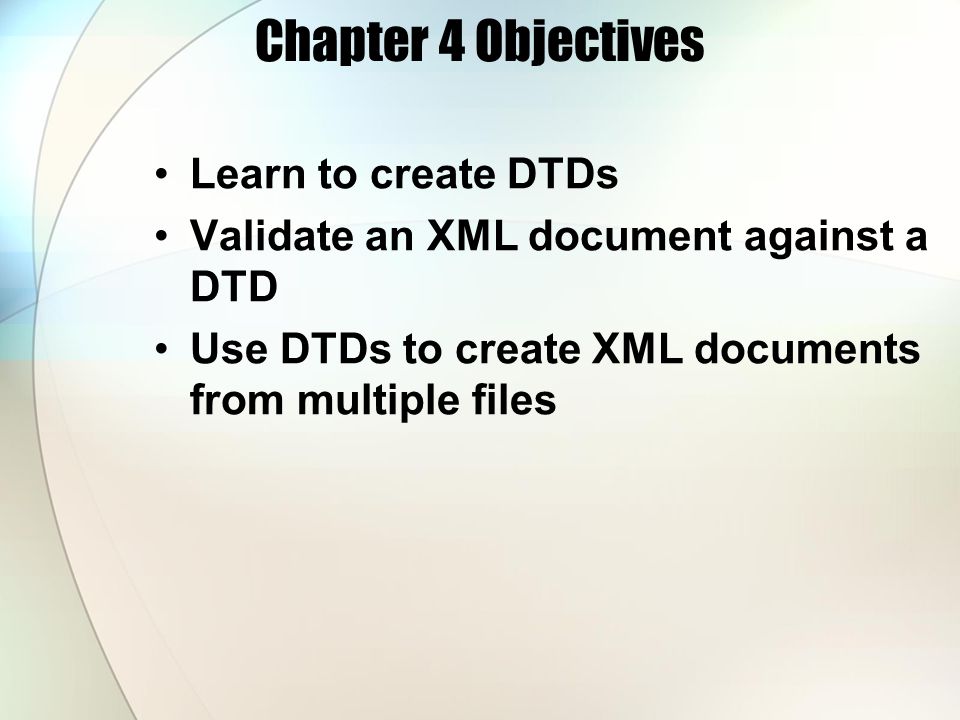

2. Chapter 4 Objectives Learn to create DTDs Validate an XML document against a DTD Use DTDs to create XML documents from multiple files

3. My First DTD <!DOCTYPE name [ ]> John Fitzgerald Johansen Doe

4. Preparing the Ground

5. What’s in a Name? <!DOCTYPE name [ ]> John Fitzgerald Johansen Doe

6. Try It Out What’s in a Name?

7. The Document Type Declaration System Identifiers

8. The Document Type Declaration Public Identifiers

9. Try It Out The External DTD

10. Using External DTD John Quincy Public

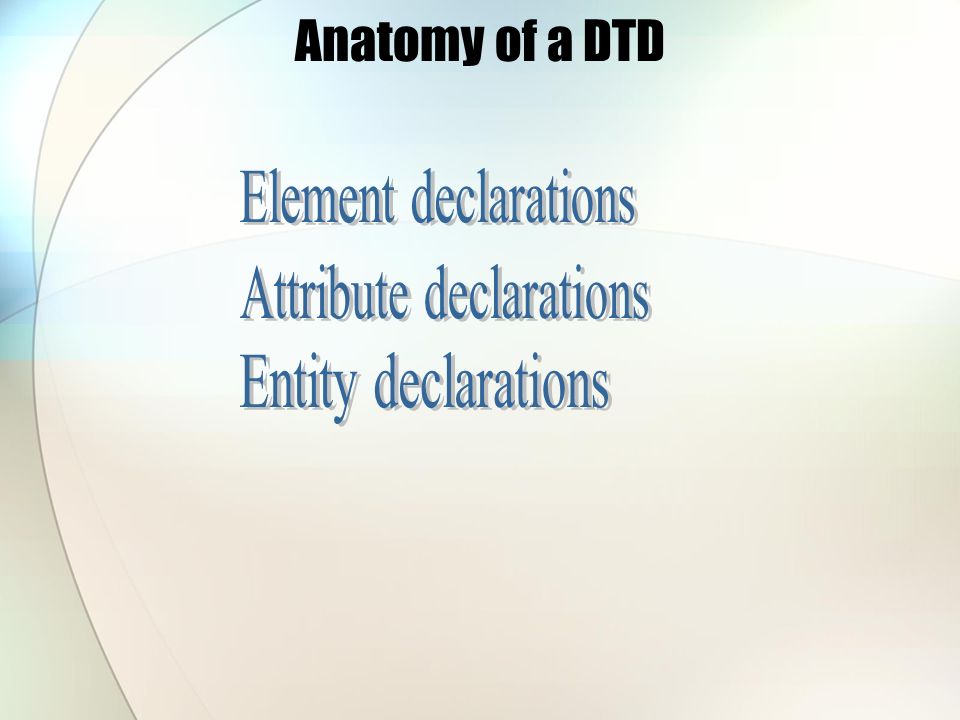

11. Anatomy of a DTD

12. Element Declarations Element declarations consist of three basic parts: The ELEMENT declaration The element name The element content model

13. Element Content Or

14. Sequences John Fitzgerald Johansen Doe

15. Choices

16. Combining Sequences and Choice Using Groups

17. Cardinality IndicatorDescription [none]As we have seen in all of our content models thus far, when no cardinality indicator is used, it indicates that the element must appear once and only once. This is the default behavior for elements used in content models. ?Indicates that the element may appear either once or not at all. +Indicates that the element may appear one or more times. *Indicates that the element may appear zero or more times.

18. Mixed Content

19. Mixed Content Jeff is a developer and author for Beginning XML 4 th edition. Jeff loves XML!

20. Empty and Any

21. Try It Out “Making Contact” Part 1 “Making Contact” Part 2

22. Cardinalities How would you: guarantee that a contact had a least one first name? specify that a list of contacts could have many contacts on it?

23. Attribute Declarations An ATTLIST declaration consists of three basic parts: *The ATTLIST keyword *The associated element’s name *The list of declared attributes *The attribute name *The attribute type *The attribute value declaration source CDATA #IMPLIED

24. Attribute Types TypeDescription CDATAIndicates that the attribute value is character data IDIndicates that the attribute value uniquely identifies the containing element IDREFIndicates that the attribute value is a reference, by ID, to a uniquely identifiable element IDREFSIndicates that the attribute value is a whitespace-separated list of IDREF values ENTITYIndicates that the attribute value is a reference to an external unparsed entity (we will learn more about entities later). The unparsed entity might be an image file or some other external resource such as an MP3 or some other binary file ENTITIESIndicates that the attribute value is a whitespace-separated list of ENTITY values NMTOKENIndicates that the attribute value is a name token. An NMTOKEN is a string of character data consisting of standard name characters NMTOKENSIndicates that the attribute value is a whitespace-separated list of NMTOKEN values Enumerated List Apart from using the default types, you can also declare an enumerated list of possible values for the attribute

25. Attribute Value Declarations Has a default value Has a fixed value Is required Is implied

26. Specifying Multiple Attributes <!ATTLIST contacts version CDATA #FIXED “1.0” source CDATA #IMPLIED>

27. Try It Out “Making Contact” Part 3

28. Entities Jeff is a developer & author for Beginning XML 4th edition © 2006 Wiley Publishing. Jeff loves XML! *Built-in entities *Character entities *General entities *Parameter entities

29. Built-in Entities &—the & character <—the < character >—the > character &apos;—the ‘ character "—the “ character Jeff is a developer & author for Beginning XML 4th edition © 2006 Wiley Publishing. Jeff loves XML!

30. Character Entities ©the © character

31. General Entities Internal External or <!ENTITY jeff-description PUBLIC "-//Beginning XML//Jeff Description//EN" "jeff.txt"> Referencing &jeff-description;

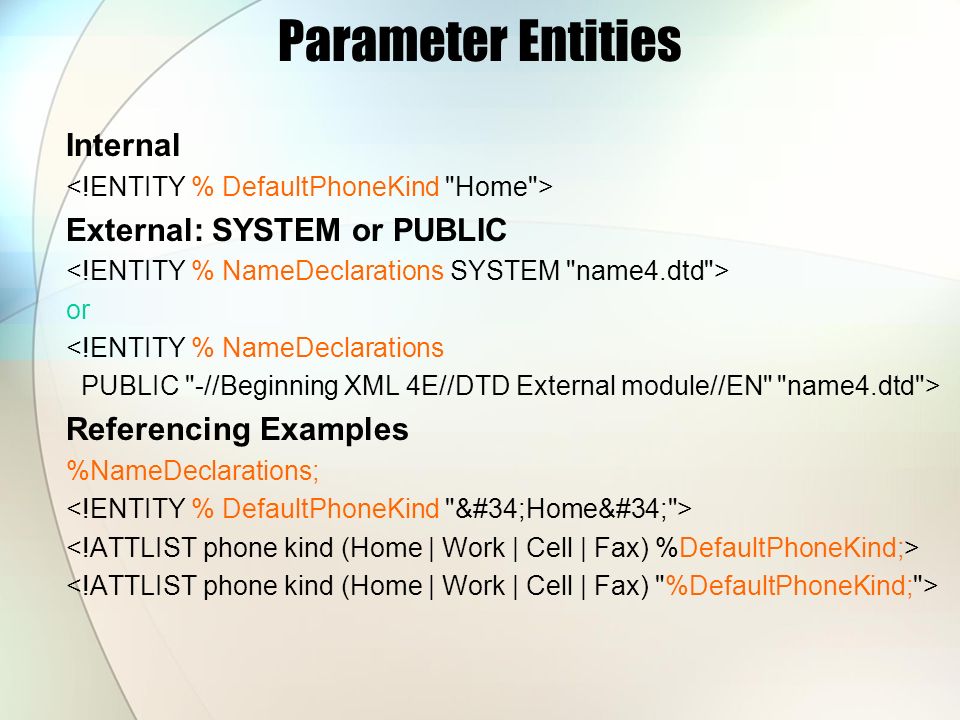

32. Parameter Entities Internal External: SYSTEM or PUBLIC or <!ENTITY % NameDeclarations PUBLIC "-//Beginning XML 4E//DTD External module//EN" "name4.dtd"> Referencing Examples %NameDeclarations;

33. Developing DTDs For example, the following is valid: The following is not valid: <!ATTLIST contacts source CDATA #IMPLIED>

34. DTD Limitations Some limitations of DTDs include: Differences between DTD syntax and XML syntax Poor support for XML namespaces Poor data typing Limited content model descriptions

35. Try It Out “Making Contact” Part 3 “Making Contact” Part 4 “Making Contact” Part 5

36. Other Validating Tools XSD Some of the restrictions with DTDs are resolved using XML Schema Definitions. Use XML syntax. More powerful than DTD files Example: http://www.uniprot.org/docs/uniprot.xsd RELAX NG Simple and easy to learn It supports XML Schema datatypes Two syntaxes: XML and compact syntax
