1 i-4 routing scalability Taekyoung Kwon Some slides are from Geoff Huston, Michalis Faloutsos, Paul Barford, Jim Kurose, Paul Francis, and Jennifer Rexford

2 outline What is routing? Current Internet routing –Focus on BGP Routing scalability A case study in IP routing: ViAggre What is the design space?

3 routing How do packets get from A to B in the Internet? A B Internet What is routing

4 One example Connectionless forwarding –Each router (switch) makes a LOCAL decision to forward the packet towards B A B R1 R4 R2 R3 R6 R7 R5 R8

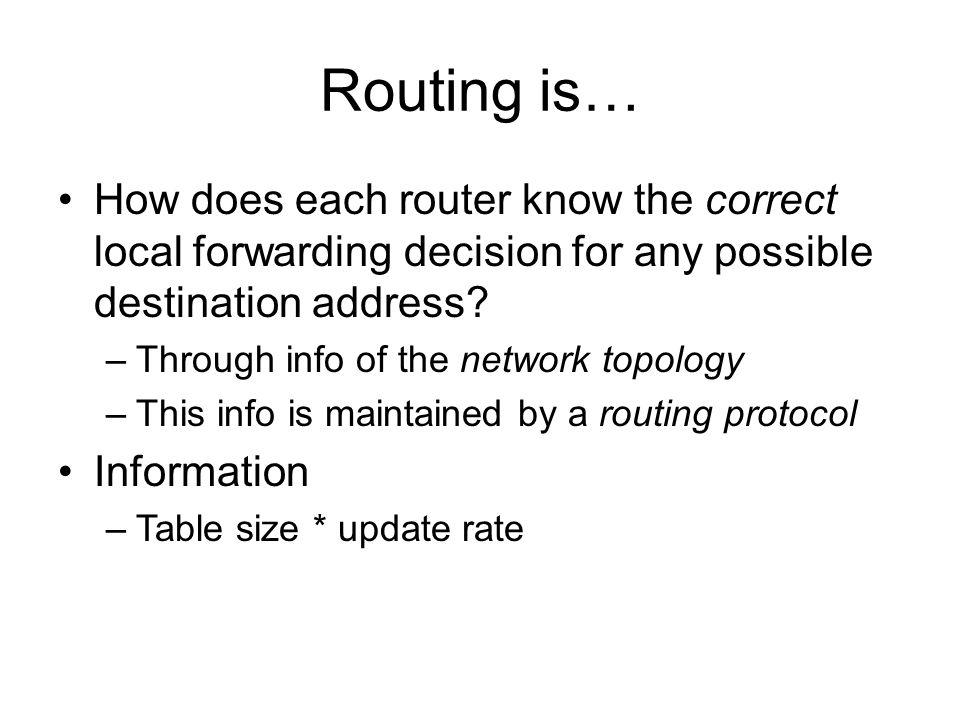

5 Routing is… How does each router know the correct local forwarding decision for any possible destination address? –Through info of the network topology –This info is maintained by a routing protocol Information –Table size * update rate

6 Routing taxonomy Distributed* vs. centralized Static vs. dynamic* –# of hops vs. traffic load Intra-domain vs. inter-domain

7 Goals of internet routing Inter-connection Fault-tolerant Scalability performance …. Current Internet routing

8 Internet routing: two levels Autonomous system (AS) level –Inter-domain –BGP Router level –Intra-domain –RIP, OSPF,…

9 Internet structure Original idea Backbone service provider Large corporation Small corporation “ Consumer ” ISP “Consumer” ISP “ Consumer” ISP “ Consumer ” ISP Small corporation Small corporation Small corporation

10 Internet structure The reality is… Source: Arbor Networks * Why peering?

11 Internet structure And many tiers Tier 1 ISP Tier-2 ISP local ISP local ISP local ISP local ISP local ISP Tier 3 ISP local ISP local ISP local ISP

12 Internet routing Prefix is advertised across ASs 1 2 3 4 5 6 7 Client SNU 147.46.0.0/16 Path: 6, 5, 4, 3, 2, 1

13 Inter-AS routing: BGP BGP (Border Gateway Protocol): the de facto standard BGP provides each AS a means to: 1.Obtain subnet reachability information from neighboring ASs. 2.Propagate reachability information to all AS- internal routers. 3.Determine “good” routes to subnets based on reachability information and policy. allows subnet to advertise its existence to rest of Internet: “I am here”

14 BGP basics pairs of routers (BGP peers) exchange routing info over semi-permanent TCP connections: BGP sessions when AS1 advertises a prefix of AS2 to AS3: –AS1 promises it will forward datagrams towards that prefix. –AS1 can aggregate prefixes in its advertisement 3b 1d 3a 1c 2a AS3 AS1 AS2 1a 2c 2b 1b 3c eBGP session iBGP session 2.3.4.0/24 2.0.0.0/8 2.3.0.0/16

15 Distributing reachability info using eBGP session between 3a and 1c, AS3 sends prefix reachability info to AS1. –1c can then use iBGP do distribute new prefix info to all routers in AS1 –1b can then re-advertise new reachability info to AS2 over 1b-to-2a eBGP session when router learns of new prefix, it creates entry for prefix in its forwarding table. 3b 1d 3a 1c 2a AS3 AS1 AS2 1a 2c 2b 1b 3c eBGP session iBGP session

16 Path attributes & BGP routes advertised prefix includes BGP attributes. –prefix + attributes = “route” two important attributes: –AS-PATH: contains ASs through which prefix advertisement has passed: e.g. AS 6431, AS 7018 –NEXT-HOP: indicates specific internal-AS router to next-hop AS. (may be multiple links from current AS to next-hop-AS) when gateway router receives route advertisement, uses import policy to accept/decline.

17 Network Layer4-17 BGP route selection router may learn about more than 1 route to some prefix. Router must select a route. elimination rules: 1.local preference value attribute: policy decision 2.shortest AS-PATH 3.closest NEXT-HOP router: hot potato routing 4.additional criteria

18 Network Layer4-18 BGP messages BGP messages exchanged using TCP. BGP messages: –OPEN: opens TCP connection to peer and authenticates sender –UPDATE: advertises new path (or withdraws old) –KEEPALIVE keeps connection alive in absence of UPDATES; also ACKs OPEN request –NOTIFICATION: reports errors in previous msg; also used to close connection

19 Network Layer4-19 BGP routing policy (1/2)  A,B,C are provider networks  X,W,Y are customers (of provider networks)  X is dual-homed: attached to two networks  X does not want to route from B via X to C .. so X will not advertise to B a route to C A B C W X Y legend : customer network: provider network

20 Network Layer4-20 BGP routing policy (2/2)  A advertises path AW to B  B advertises path BAW to X  Should B advertise path BAW to C?  No way! B gets no “revenue” for routing CBAW since neither W nor C are B’s customers  B wants to force C to route to w via A  B wants to route only to/from its customers! A B C W X Y legend : customer network: provider network

21 Network Layer4-21 Why Intra- and Inter-AS routing different? Policy: Inter-AS: admin wants control over how its traffic routed, who routes through its net. Intra-AS: single admin, so no policy decisions needed Scale: hierarchical routing saves table size, reduced update traffic Performance: Intra-AS: can focus on performance Inter-AS: policy may dominate over performance

22 Routing table (RT) growth Multi-homing Traffic engineering Non-aggregatable prefix allocation Routing scalability

23 routing message updates BGP update messages

24 Why routing scalability matters? FIB is expensive ViAggre

25 Virtual aggregation (ViAggre)

26 ViAggre: Basic Idea

27

28 ViAggre: Control Plane

29 More practically,…

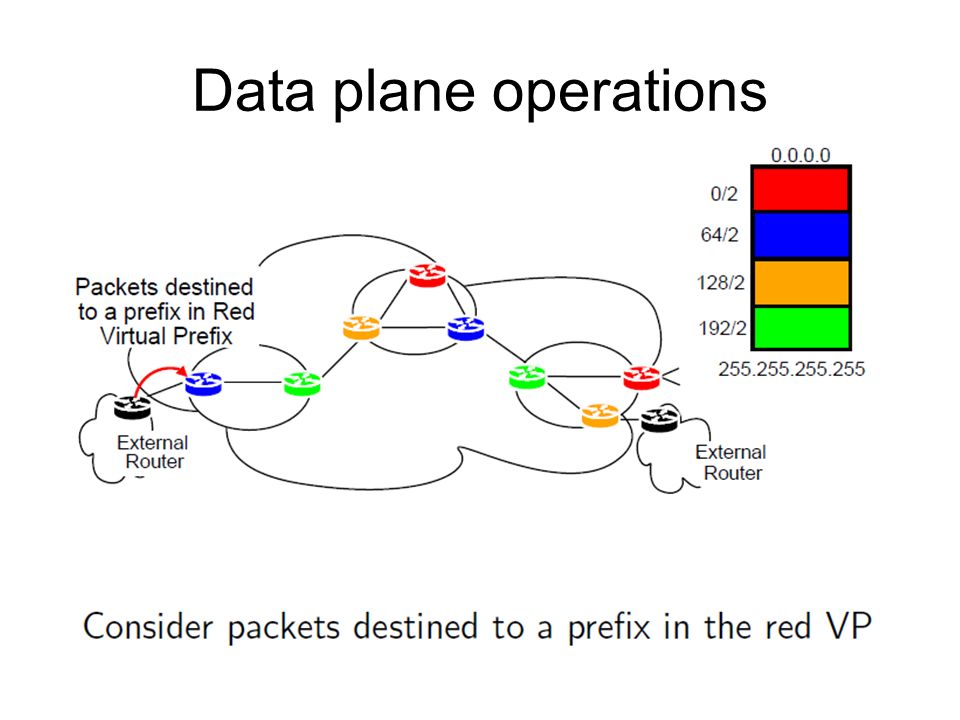

30 Data plane operations

31 Route stretch

32 Ingress -> aggregation point

33 Aggregation point -> egress (1/3)

34 Aggregation point -> egress (2/3)

35 Aggregation point -> egress (3/3)

36 now We will consider general routing design space –IP is just one of the possibilities –But IP networking environments had better be considered as much as possible Design Space

37 Design goal of routing 1. Scalability (memory): e.g. sublinear RT size scaling 2. Quality (stretch): the length of a chosen path by a routing scheme compared to shortest path 3. Reliability: fast convergence upon topology changes while minimizing communication costs to maintain coherent non-local knowledge about network topology 4. Name-independent routing: accommodate node addresses/labels assigned independently of the topology (otherwise need to split locator and ID parts in addressing architecture) 5. Message overhead

38 Issue 1: Addressing and routing Rekhter’s Law: “Addressing can follow topology or topology can follow addressing. Choose one.” 000102 03 10 11 1213 20 22 21 23 30 31 32 33 2 10 5 15 6 138 1 3 1612 9 14 1147 Name-dependent routing Name-independent routing

39 Issue 2: state vs. stretch routing debate We want small state!!We want small stretch!! State: the routing table size describing the network topology Stretch: path length found by the routing algorithm optimal path length ≥1

40 More general trade-off Triangle of trade-offs: Adaptation costs = convergence measures (e.g. number of messages per topology change) Memory space = routing table size Stretch = path length inflation
