1. WINDSOR UNIVERSITY SCHOOL OF MEDICINE St.Kitts
DEPARTMENT OF ANATOMY
UPPER LIMB
FOREARM
Dr. SREEKANTH THOTA

2. FOREARM
The forearm is the part of the upper limb that extends between the elbow joint and the wrist joint.
As in the arm, the forearm is divided into anterior and posterior compartments

3. Compartments of forearm
Muscles in the anterior compartment of the forearm flex the wrist and digits and pronate the hand.
Muscles in the posterior compartment extend the wrist and digits and supinate the hand.

4. ANTERIOR COMPARTMENT OF THE FOREARM
Muscles in the anterior (flexor) compartment of the forearm occur in three layers:
1. Superficial
2. Intermediate
3.Deep
All muscles in the anterior compartment of the forearm are innervated by the median nerve, except for the flexor carpi ulnaris muscle and the medial half of the flexor digitorum profundus muscle, which are innervated by the ulnar nerve.

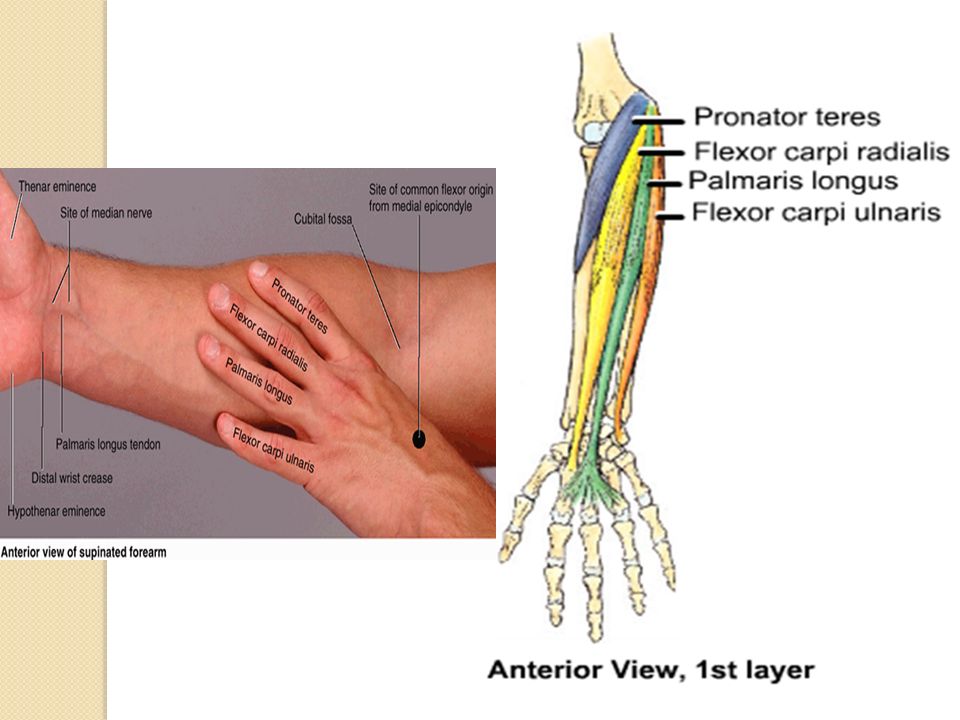

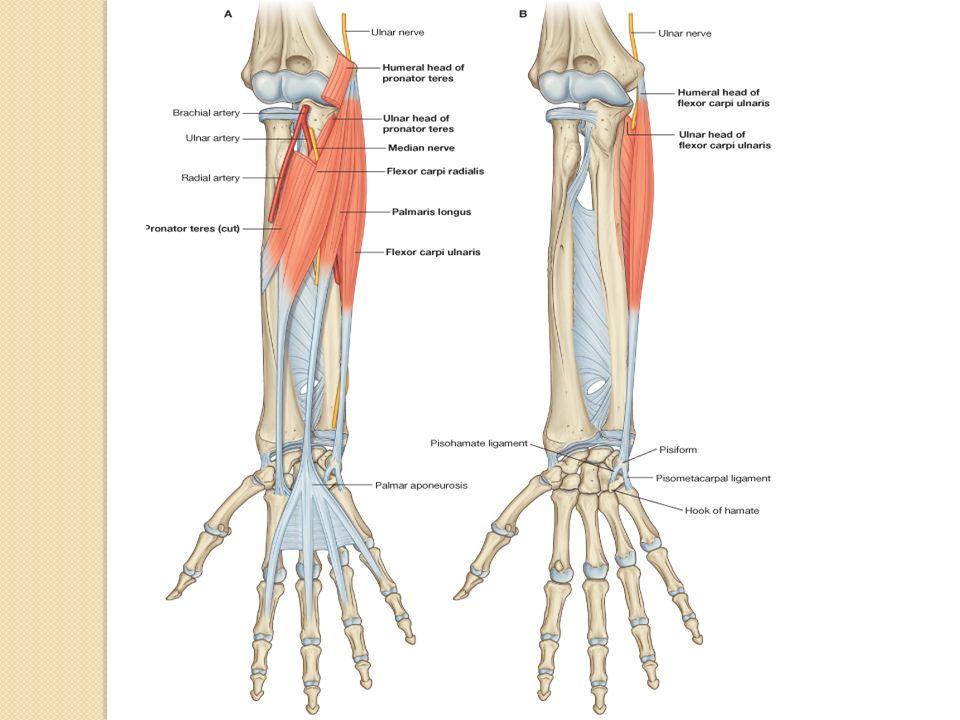

5. Superficial layer Four muscles in the superficial layer-
1.flexor carpi ulnaris
2.palmaris longus
3.flexor carpi radialis
4. pronator teres-
All four muscles have a common origin from the medial epicondyle of the humerus, and, except for pronator teres, extend distally from the forearm into the hand

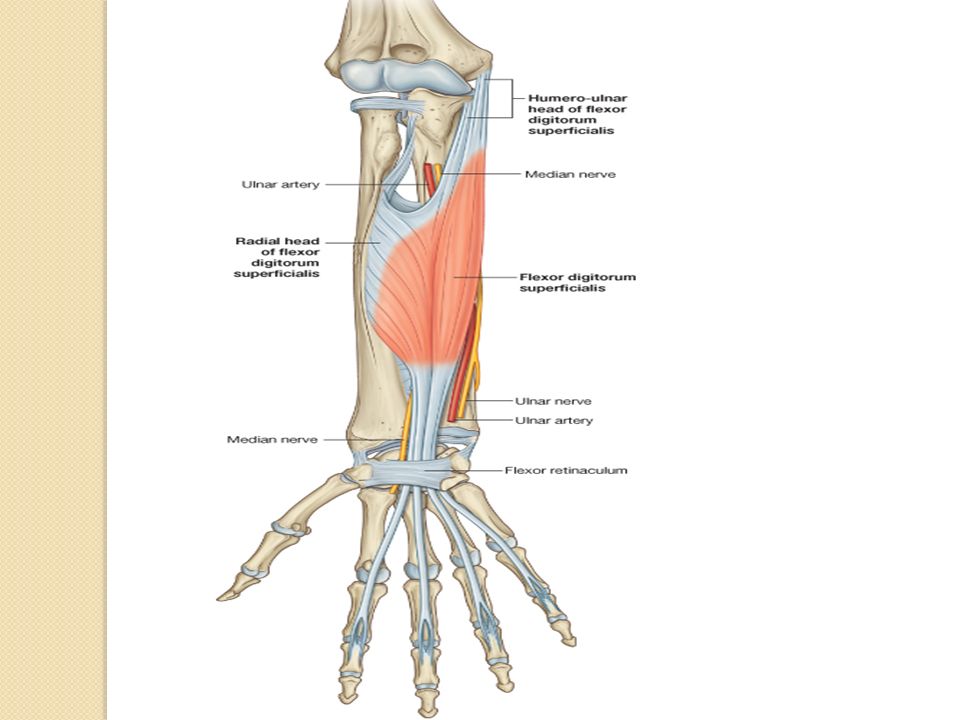

8. Intermediate layer
Flexor digitorum superficialis

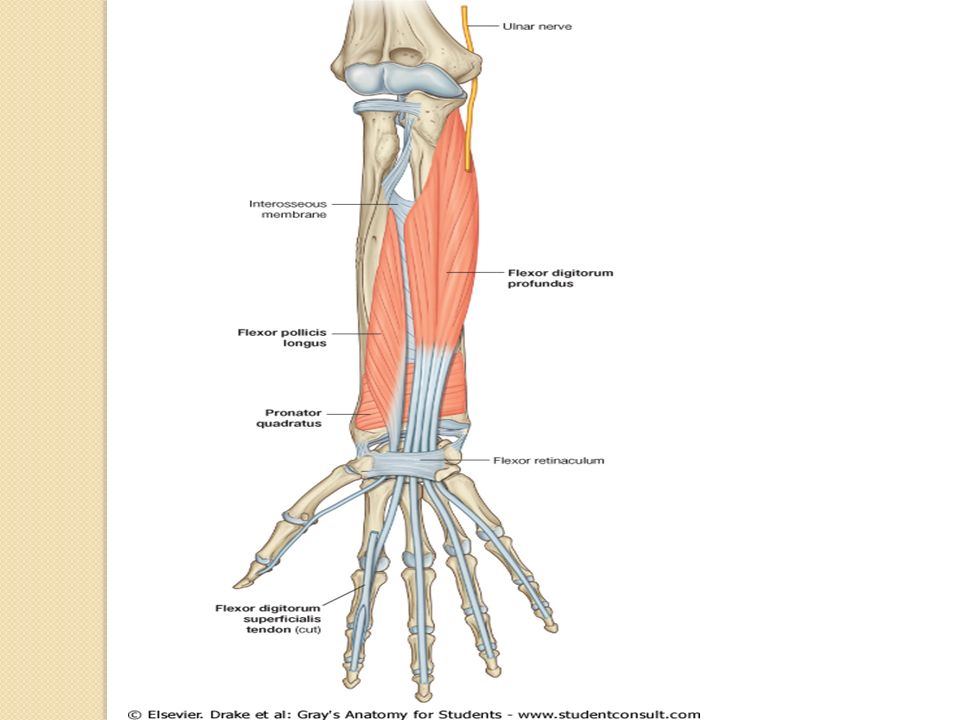

10. Deep layer 1.flexor digitorum profundus 2.flexor pollicis longus
3.pronator quadratus

12. Anterior Forearm Pronator Teres
Pronates and flexes forearm at the elbow
Flexor
Carpi
Radialis
Flexes and abducts hand
(at the wrist)
Palmarus
Longus
Flexes hand at the wrist and tightens palmar aponeurosis
Ulnaris
Flexes and adducts hand at the wrist

13. Flexor Digitorum Superficialis Flexor Digitorum Profundus
Flexes middle phalanges at the proximal interphalangeal joints of medial four digits; acting more strongly, it also flexes proximal phalanges at metacarpophalangeal joints and hand[wrist]
Flexor Digitorum Profundus
Flexes distal phalanges at distal interphalangeal joints of medial four digits; assist with flexion of hand
Flexor pollicis Longus
Flexes 1st digit (thumb)
Pronator Quadratus
Pronates forearm; deep fibers bind radius and ulna together

14. Arteries of the anterior compartment of the forearm.
At the apex of the cubital fossa, Brachial artery divides into its two major branches, the radial and ulnar arteries.

15. Radial artery
In the distal forearm, the radial artery can be located using the flexor carpi radialis muscle as a landmark.
Radial artery lies immediately lateral to the large tendon of the flexor carpi radialis muscle.

16. Radial pulse
The radial pulse can be felt by gently palpating the radial artery against the underlying muscle and bone.

17. Nerves
Nerves in the anterior compartment of the forearm are the median and ulnar nerves, and the superficial branch of the radial nerve.

18. Median nerve
The median nerve innervates the muscles in the anterior compartment of the forearm except for the flexor carpi ulnaris and the medial part of the flexor digitorum profundus (ring and little fingers).
It leaves the forearm and enters the palm of the hand by passing through the carpal tunnel deep to the flexor retinaculum.

19. Branches of median nerve
1. Anterior interosseous nerve: innervates the muscles in the deep layer
2. A small palmar branch originates from the median nerve in the distal forearm immediately proximal to the flexor retinaculum.
Innervates the skin over the base and central palm.
This palmar branch is spared in carpal tunnel syndrome because it passes into the hand superficial to the flexor retinaculum of the wrist.

20. Cutaneous branches of median and ulnar nerve

21. Ulnar nerve
In the forearm, the ulnar nerve innervates only the flexor carpi ulnaris muscle and the medial part (ring and little fingers) of the flexor digitorum profundus muscle.
Branches in forearm:
1.Palmar branch originates in the middle of the forearm and passes into the hand to supply skin on the medial side of the palm

22. Radial nerve
The radial nerve bifurcates into deep and superficial branches under the margin of the brachioradialis muscle in the lateral border of the cubital fossa.
The deep branch is predominantly motor and passes between the two heads of the supinator muscle to access and supply muscles in the posterior compartment of the forearm.
The superficial branch of the radial nerve is sensory.

23. POSTERIOR COMPARTMENT OF THE FOREARM

24. POSTERIOR COMPARTMENT OF THE FOREARM
Muscles in the posterior compartment of the forearm occur in two layers:
1.Superficial
2.Deep layer
The muscles are associated with:
1.Movement of the wrist joint
2.Extension of the fingers and thumb
3.Supination.
All muscles in the posterior compartment of the forearm are innervated by the radial nerve.

25. Superficial layer Seven muscles 1.Brachioradialis
2.Extensor carpi radialis longus
3.Extensor carpi radialis brevis
4.Extensor digitorum
5.Extensor digiti minimi
6.Extensor carpi ulnaris
7.Anconeus

26. Posterior view

27. Brachioradialis
Action
Flexes forearm

28. Extensor carpi radialis longus and brevis
Action
Extends and abducts hand at wrist joint

29. Extensor digitorum Action
Extends the medial four digits at metacarpo – phalangeal, IP joint and extends hand at wrist

30. Extensor digiti minimi
Action
Extends the 5th digit at the metacarpal- phalangeal and interphalangeal joints

31. Extensor carpi ulnaris
Action
Extends and adducts hand at the wrist

32. Anconeus
Action
accessory extensor of the elbow joint

33. Tennis elbow(Lateral epicondylitis)
It occurs at the common extensor tendon that originates from the lateral epicondyle.
The acute pain that a person might feel occurs as one fully extends the arm.

34. Deep layer Five muscles 1-Supinator 2-Abductor pollicis longus
3-Extensor pollicis brevis
4-Extensor pollicis longus
5-Extensor indicis

35. Supinator
Action
Supinates forearm

36. Abductor pollicis longus
Action
Abducts thumb

37. Extensor pollicis longus and brevis
Action
1. Extensor Pollicis Longus
Extends distal phalanx of thumb
2. Extensor Pollicis Brevis
Extends proximal phalanx of thumb

38. Extensor indicis
Action
Extends index finger

39. ANATOMICAL SNUFFBOX

40. ANATOMICAL SNUFFBOX Boundries Medially
-Extensor pollicis longus tendon
Laterally
Abductor pollicis longus tendon
Extensor pollicis brevis tendon
Clinical importance
1- Scaphoid bone
2- Radial pulsation

42. Radial nerve
The nerve of the posterior compartment of the forearm is the radial nerve .
In the lateral wall of the cubital fossa, and before dividing into superficial and deep branches, the radial nerve innervates the brachioradialis and extensor carpi radialis longus muscles.
Posterior interosseous nerve supplies the remaining muscles in the posterior compartment.

43. Posterior interosseous nerve

44. Radial Nerve Injury in the Forearm
Injury to the deep branch of the radial nerve may occur when wounds of the forearm are deep (penetrating). Severance of the deep branch of the radial nerve results in an inability to extend the thumb and the metacarpophalangeal (MP) joints of the other digits.

45. Testing the radial nerve
Integrity of the deep radial nerve may be tested by asking the person to extend the MP joints while the examiner provides resistance
