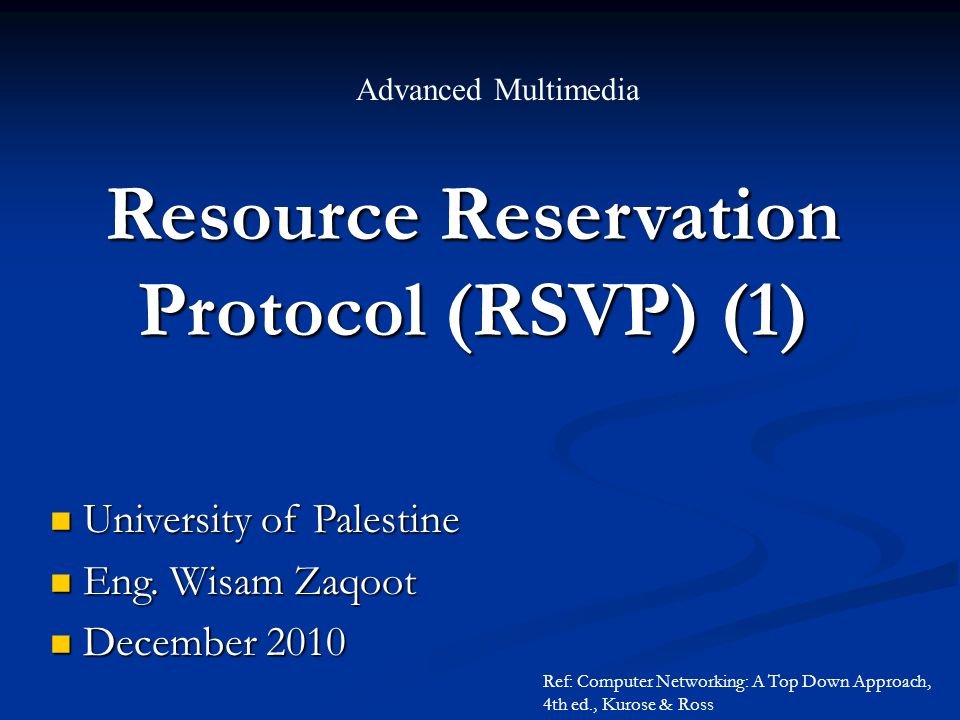

1. Resource Reservation Protocol (RSVP) (1) Advanced Multimedia University of Palestine University of Palestine Eng. Wisam Zaqoot Eng. Wisam Zaqoot December 2010 December 2010 Ref: Computer Networking: A Top Down Approach, 4th ed., Kurose & Ross

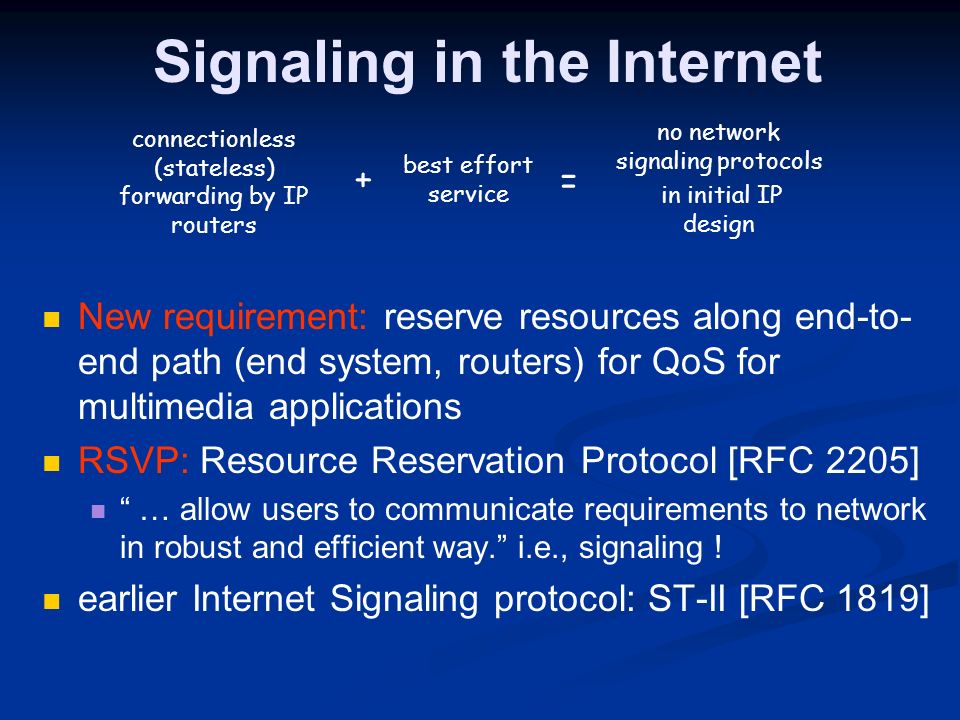

2. Signaling in the Internet connectionless (stateless) forwarding by IP routers best effort service no network signaling protocols in initial IP design + = New requirement: reserve resources along end-to- end path (end system, routers) for QoS for multimedia applications RSVP: Resource Reservation Protocol [RFC 2205] “ … allow users to communicate requirements to network in robust and efficient way.” i.e., signaling ! earlier Internet Signaling protocol: ST-II [RFC 1819]

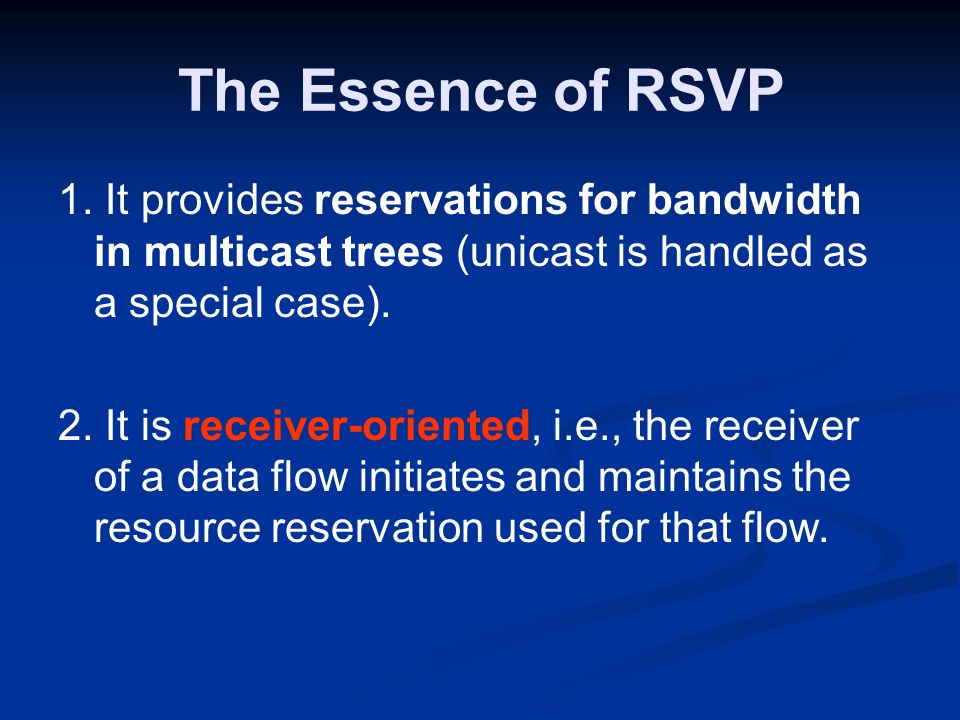

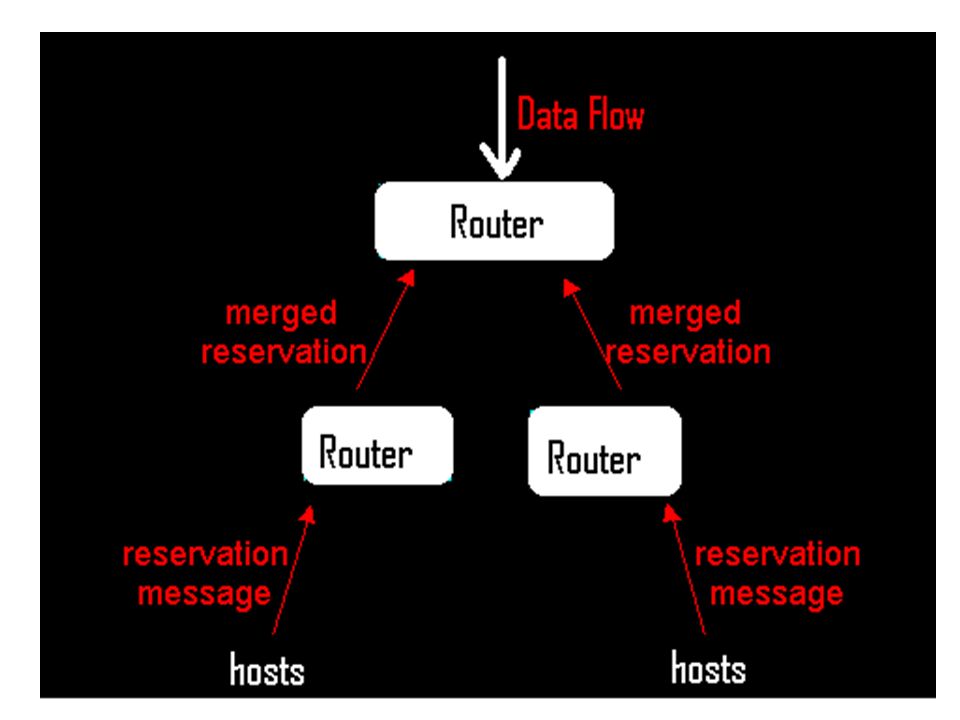

3. The Essence of RSVP 1. It provides reservations for bandwidth in multicast trees (unicast is handled as a special case). 2. It is receiver-oriented, i.e., the receiver of a data flow initiates and maintains the resource reservation used for that flow.

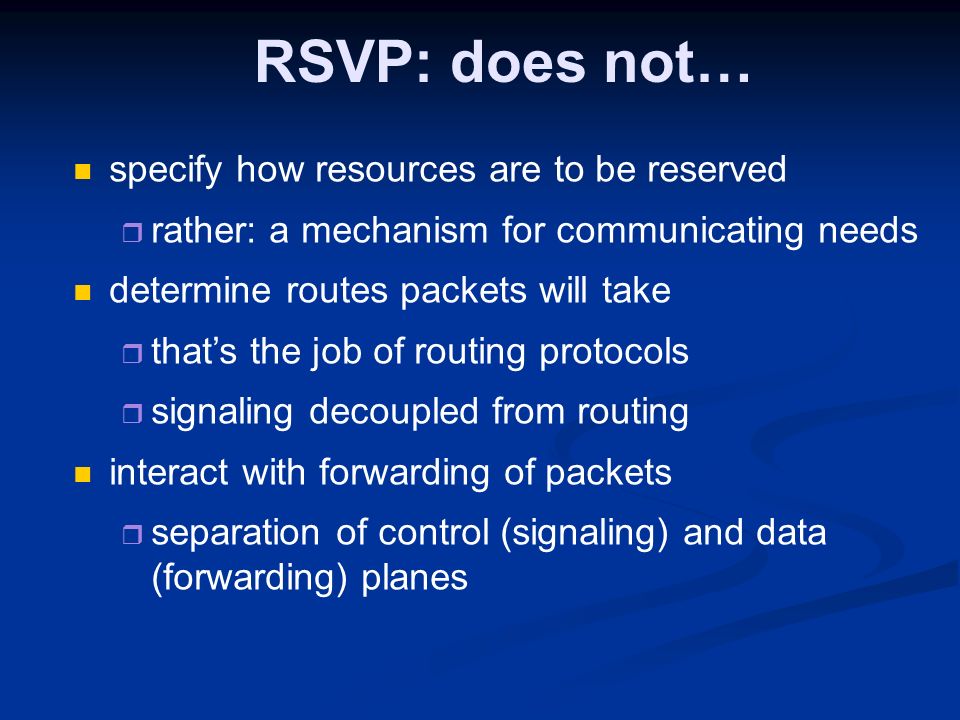

5. RSVP: does not… specify how resources are to be reserved r rather: a mechanism for communicating needs determine routes packets will take r that’s the job of routing protocols r signaling decoupled from routing interact with forwarding of packets r separation of control (signaling) and data (forwarding) planes

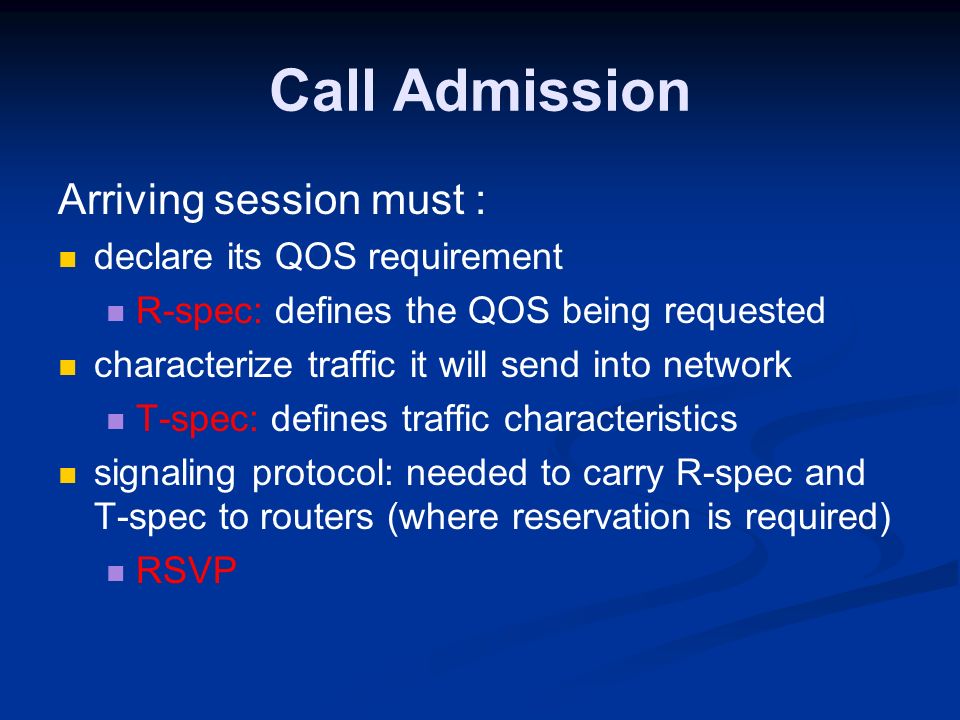

6. Call Admission Arriving session must : declare its QOS requirement R-spec: defines the QOS being requested characterize traffic it will send into network T-spec: defines traffic characteristics signaling protocol: needed to carry R-spec and T-spec to routers (where reservation is required) RSVP

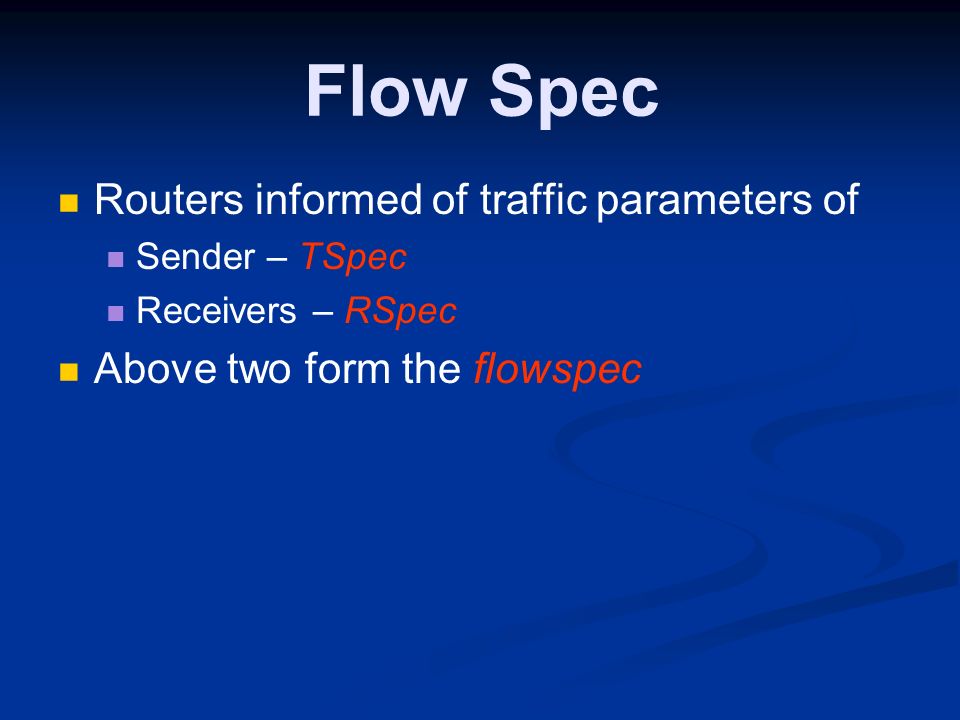

7. Flow Spec Routers informed of traffic parameters of Sender – TSpec Receivers – RSpec Above two form the flowspec

8. RSVP: Example 1

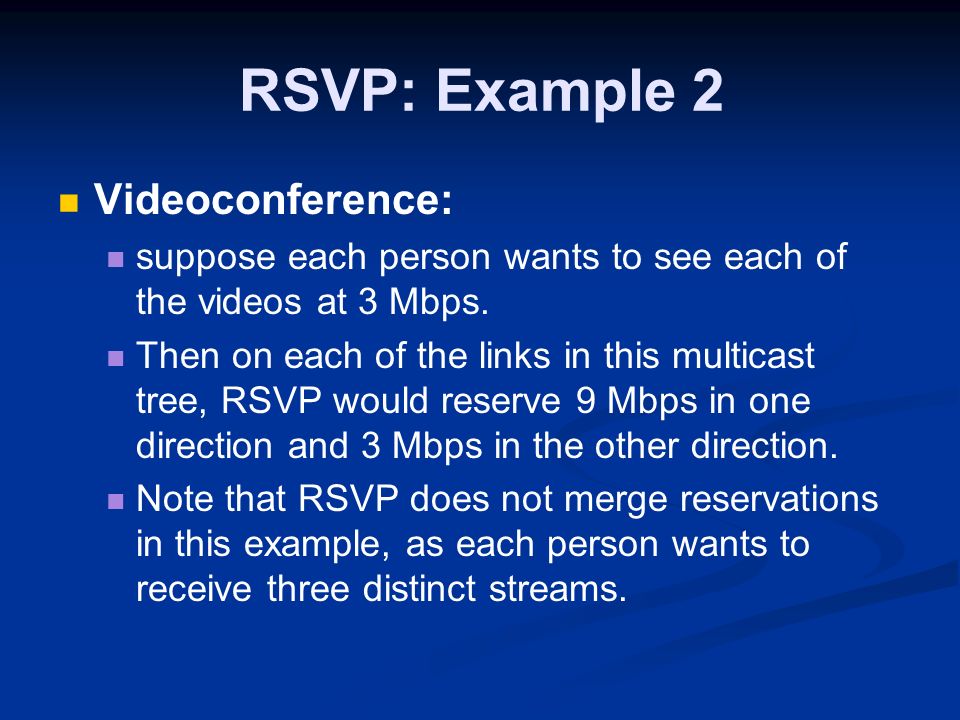

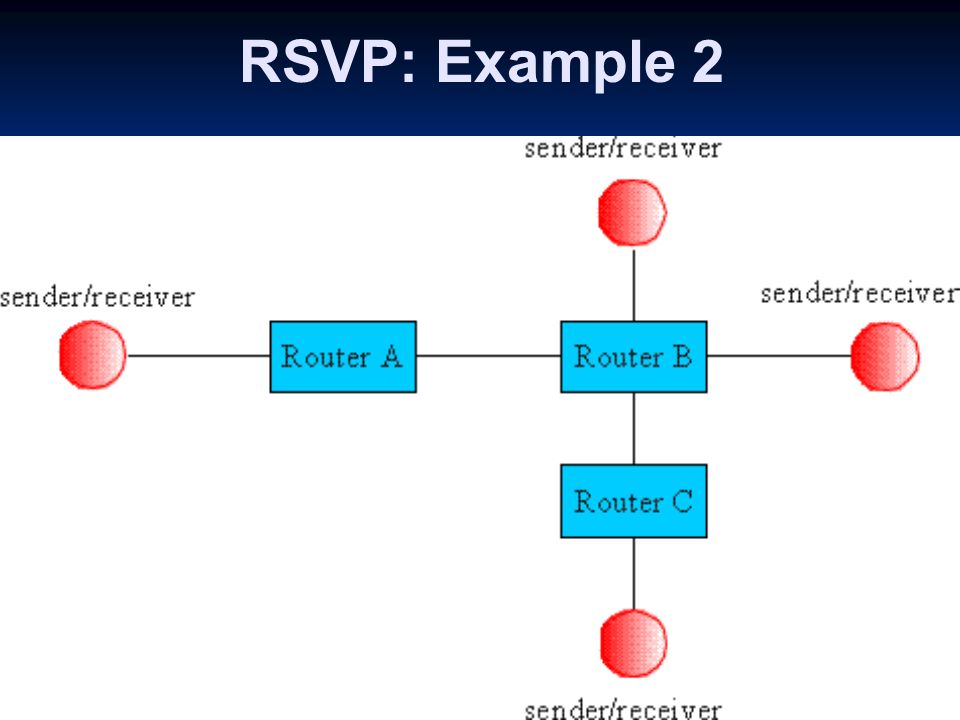

9. RSVP: Example 2 Videoconference: suppose each person wants to see each of the videos at 3 Mbps. Then on each of the links in this multicast tree, RSVP would reserve 9 Mbps in one direction and 3 Mbps in the other direction. Note that RSVP does not merge reservations in this example, as each person wants to receive three distinct streams.

10. RSVP: Example 2

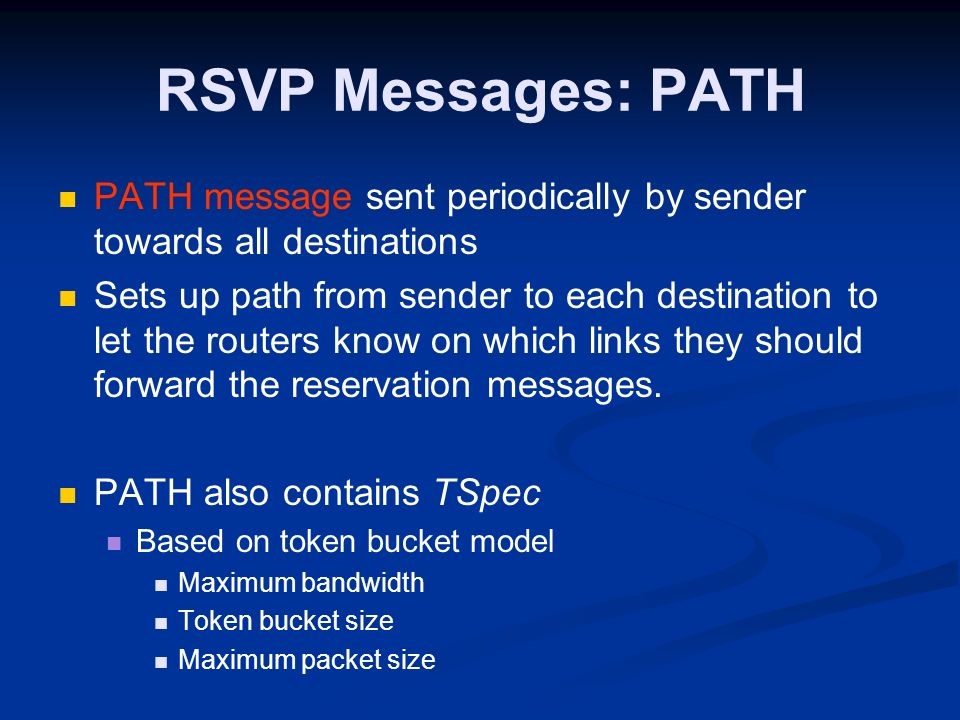

11. RSVP Messages: PATH PATH message sent periodically by sender towards all destinations Sets up path from sender to each destination to let the routers know on which links they should forward the reservation messages. PATH also contains TSpec Based on token bucket model Maximum bandwidth Token bucket size Maximum packet size

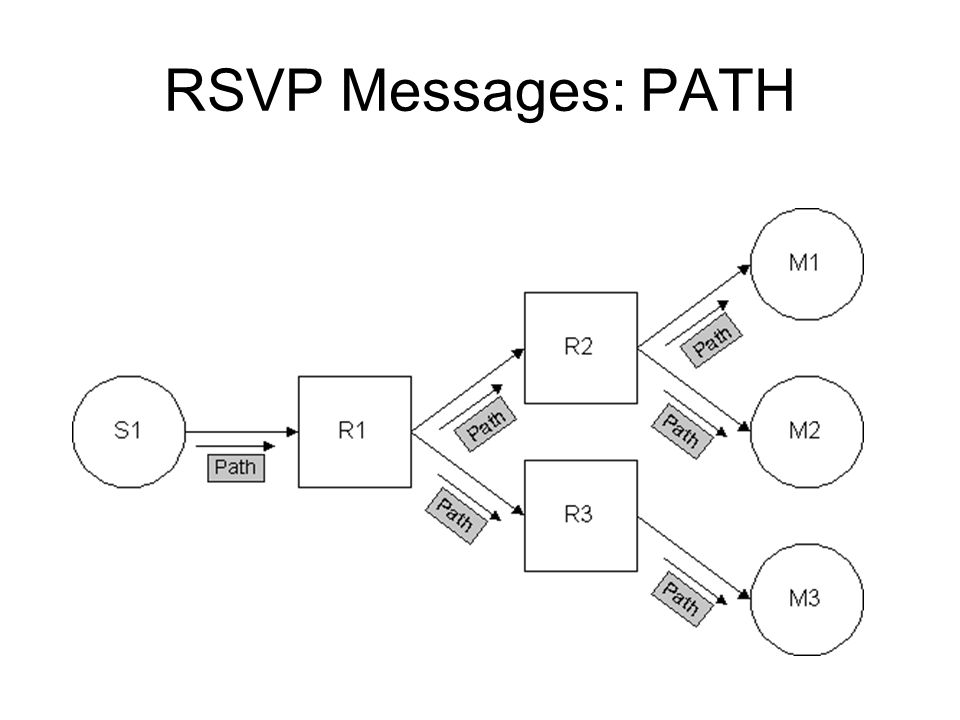

12. RSVP Messages: PATH

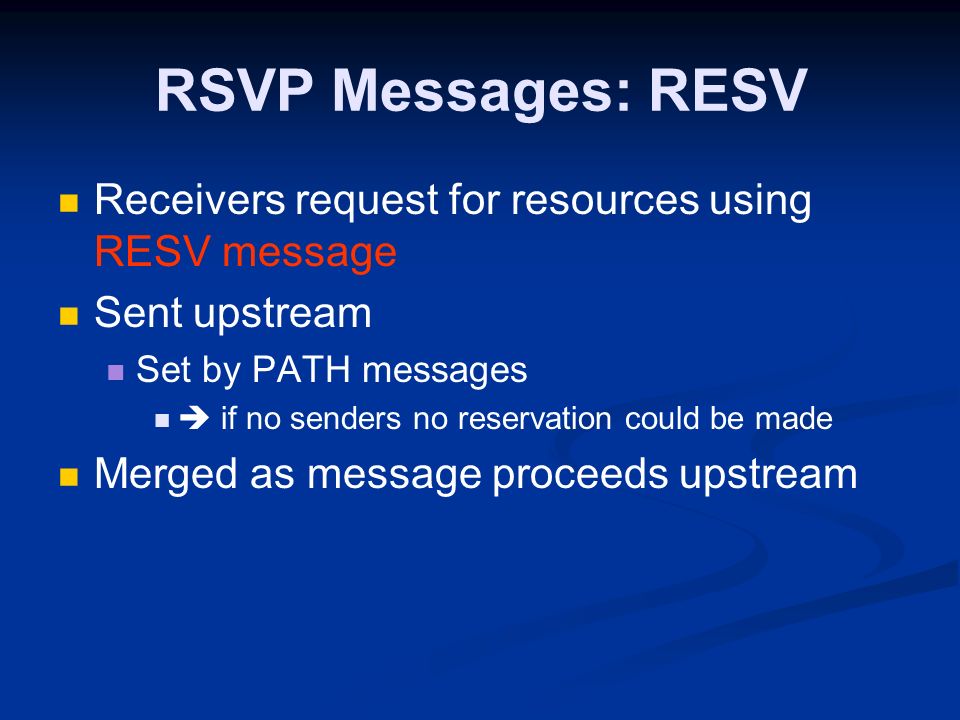

13. RSVP Messages: RESV Receivers request for resources using RESV message Sent upstream Set by PATH messages  if no senders no reservation could be made Merged as message proceeds upstream

14. RSVP Messages: RESV RESV messages propagated upward only if: Reservation at that particular router is less than requested QoS parameters Helps in conserving resources in a multicast setting

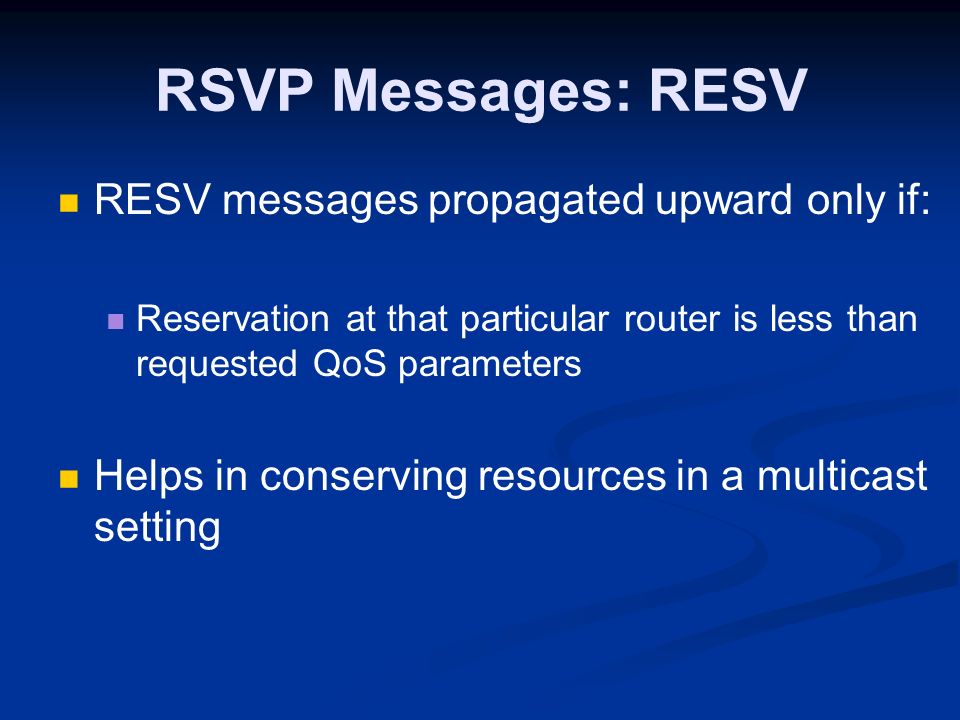

15. RSVP Messages: RESV

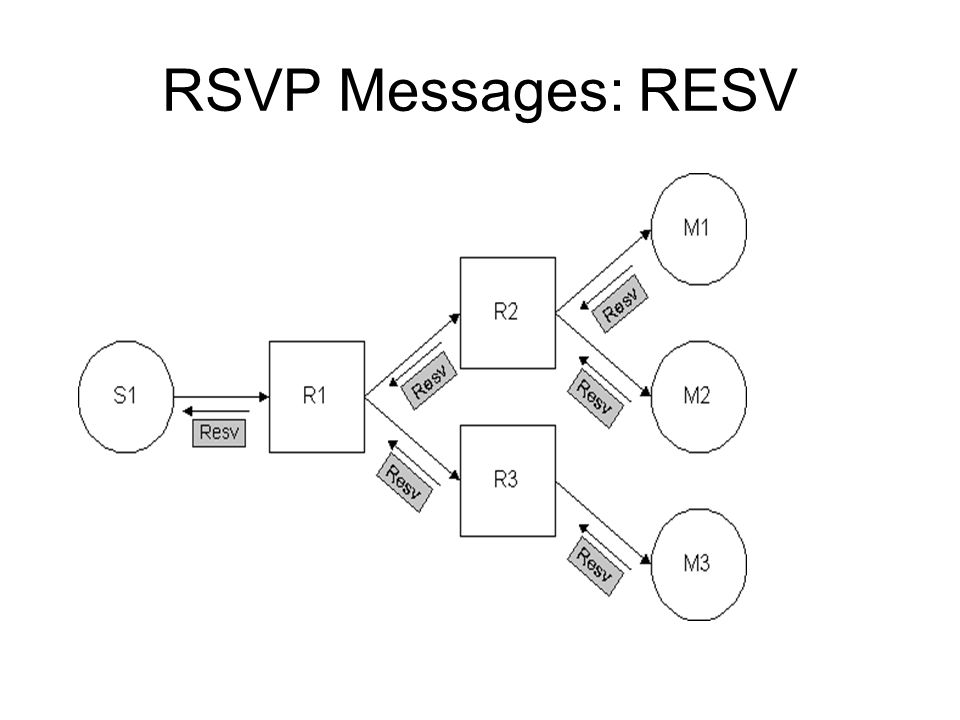

16. RSVP Messages: Teardown Two types of tear down pathtear Initiated by sender resvtear Initiated by receiver
