Presentation on theme: "© Novell, Inc. All rights reserved. 1 PlateSpin Protect Virtualize your Disaster Recovery."— Presentation transcript:

1 © Novell, Inc. All rights reserved. 1 PlateSpin Protect Virtualize your Disaster Recovery

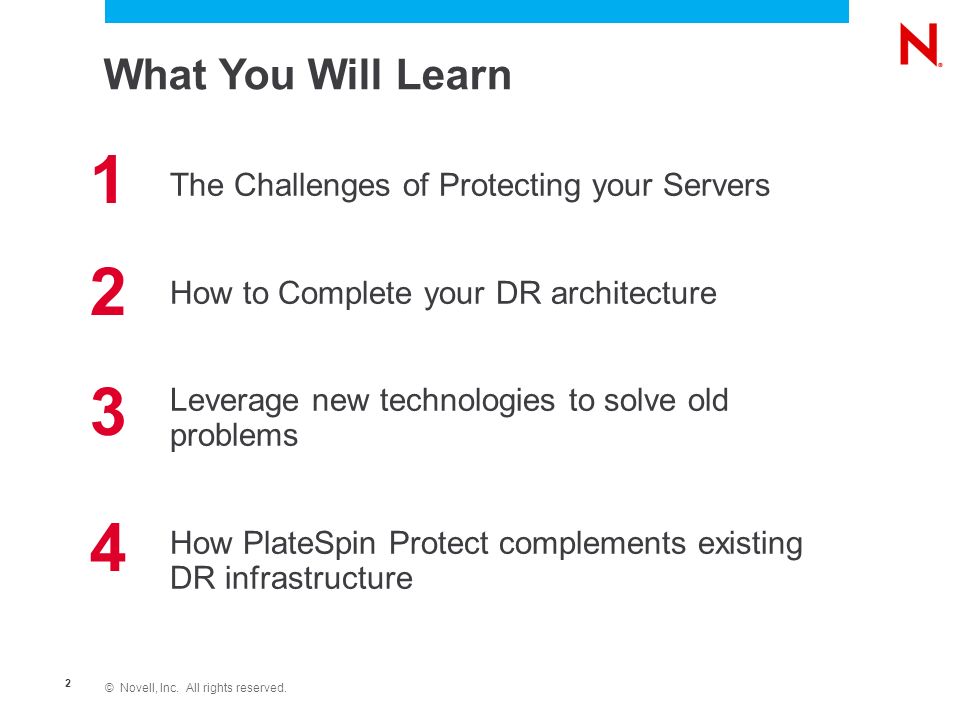

2 © Novell, Inc. All rights reserved. 2 What You Will Learn The Challenges of Protecting your Servers How to Complete your DR architecture Leverage new technologies to solve old problems How PlateSpin Protect complements existing DR infrastructure 1 3 2 4

3 © Novell, Inc. All rights reserved. 3 Disaster Recovery

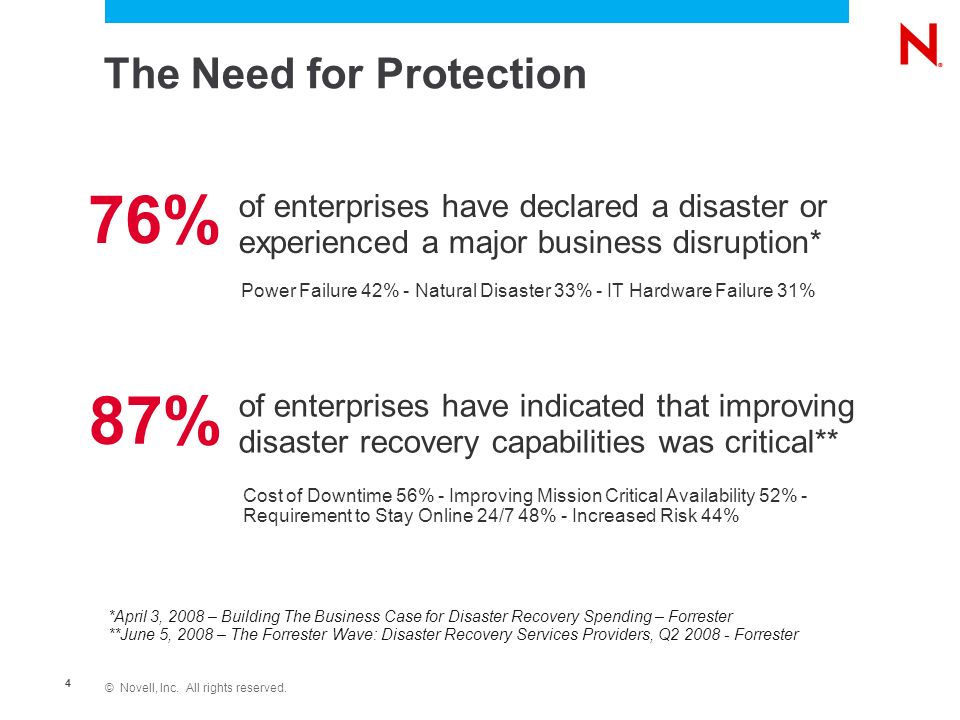

4 © Novell, Inc. All rights reserved. 4 The Need for Protection *April 3, 2008 – Building The Business Case for Disaster Recovery Spending – Forrester **June 5, 2008 – The Forrester Wave: Disaster Recovery Services Providers, Q2 2008 - Forrester of enterprises have declared a disaster or experienced a major business disruption* 76% 87% of enterprises have indicated that improving disaster recovery capabilities was critical** Power Failure 42% - Natural Disaster 33% - IT Hardware Failure 31% Cost of Downtime 56% - Improving Mission Critical Availability 52% - Requirement to Stay Online 24/7 48% - Increased Risk 44%

5 © Novell, Inc. All rights reserved. 5 The Challenge

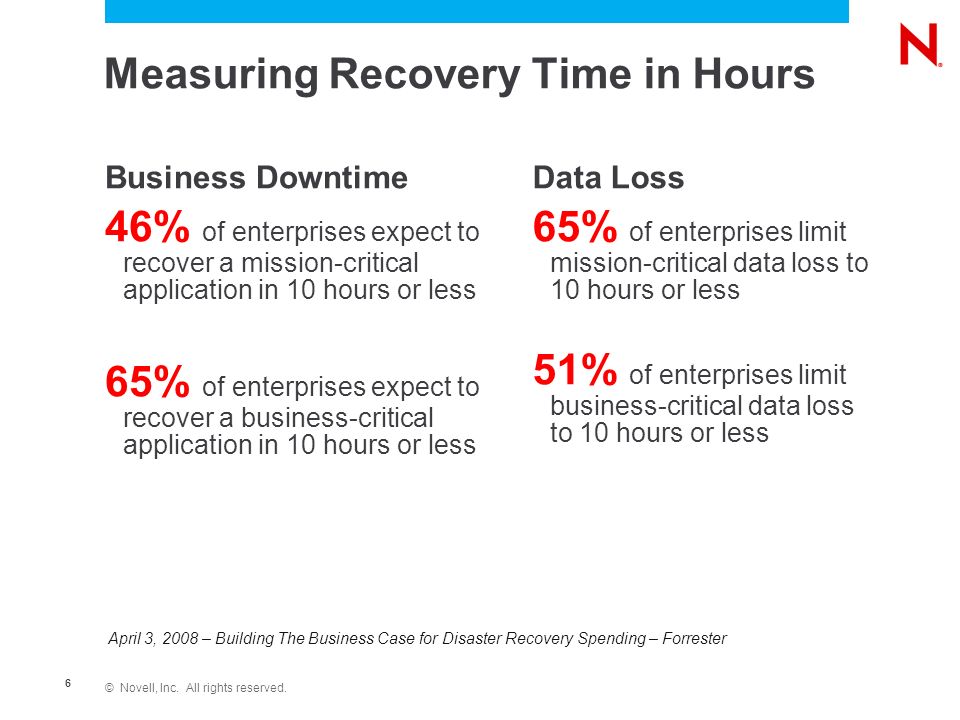

6 © Novell, Inc. All rights reserved. 6 Measuring Recovery Time in Hours Business Downtime 46% of enterprises expect to recover a mission-critical application in 10 hours or less 65% of enterprises expect to recover a business-critical application in 10 hours or less Data Loss 65% of enterprises limit mission-critical data loss to 10 hours or less 51% of enterprises limit business-critical data loss to 10 hours or less April 3, 2008 – Building The Business Case for Disaster Recovery Spending – Forrester

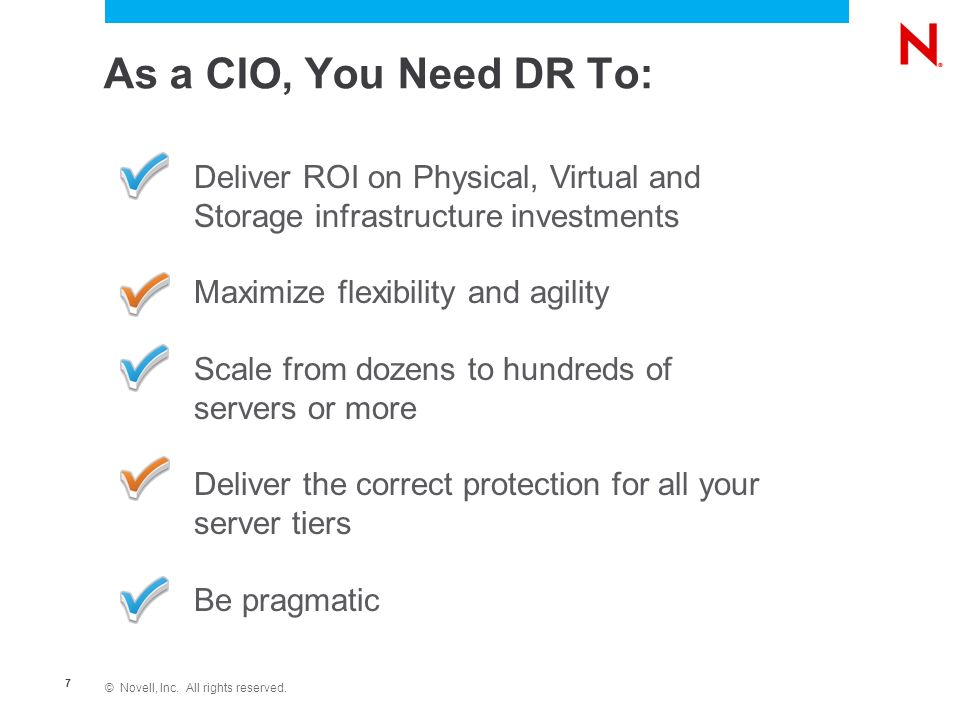

7 © Novell, Inc. All rights reserved. 7 As a CIO, You Need DR To: Deliver ROI on Physical, Virtual and Storage infrastructure investments Maximize flexibility and agility Scale from dozens to hundreds of servers or more Deliver the correct protection for all your server tiers Be pragmatic

8 © Novell, Inc. All rights reserved. 8 The PlateSpin Solution

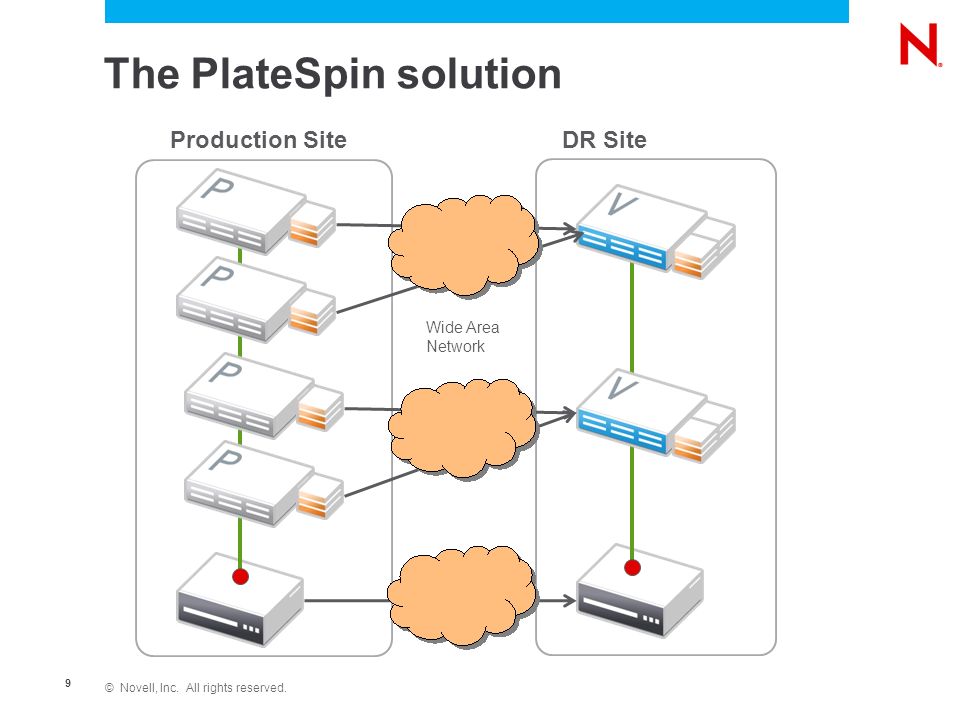

9 © Novell, Inc. All rights reserved. 9 The PlateSpin solution Production SiteDR Site Wide Area Network

10 © Novell, Inc. All rights reserved. 10 PlateSpin Protect

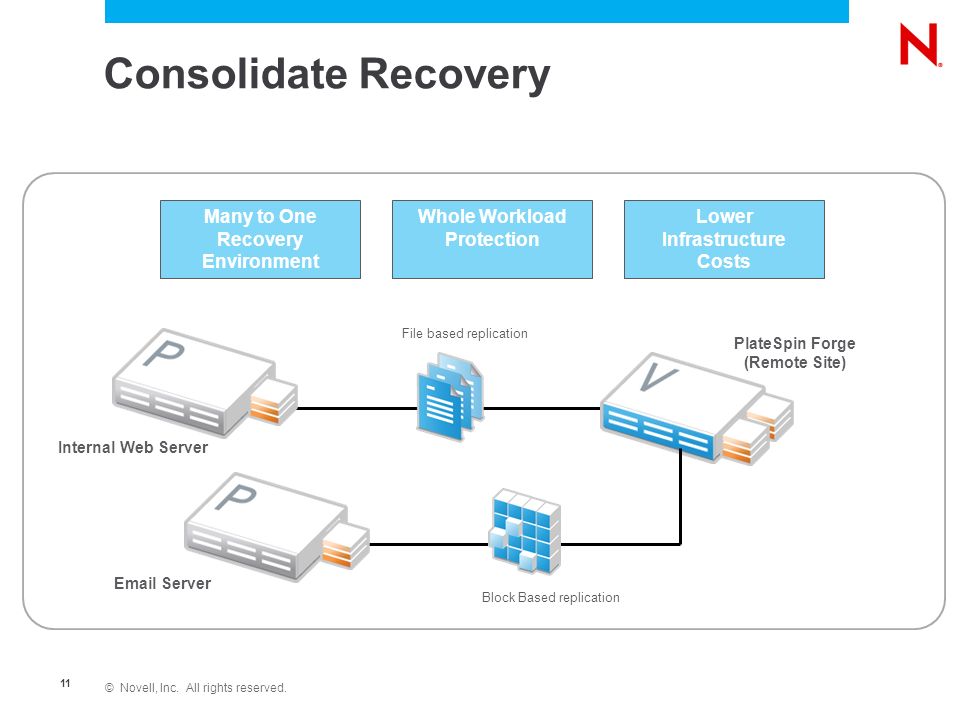

11 © Novell, Inc. All rights reserved. 11 Consolidate Recovery Many to One Recovery Environment Whole Workload Protection Lower Infrastructure Costs Internal Web Server Email Server PlateSpin Forge (Remote Site) File based replication Block Based replication

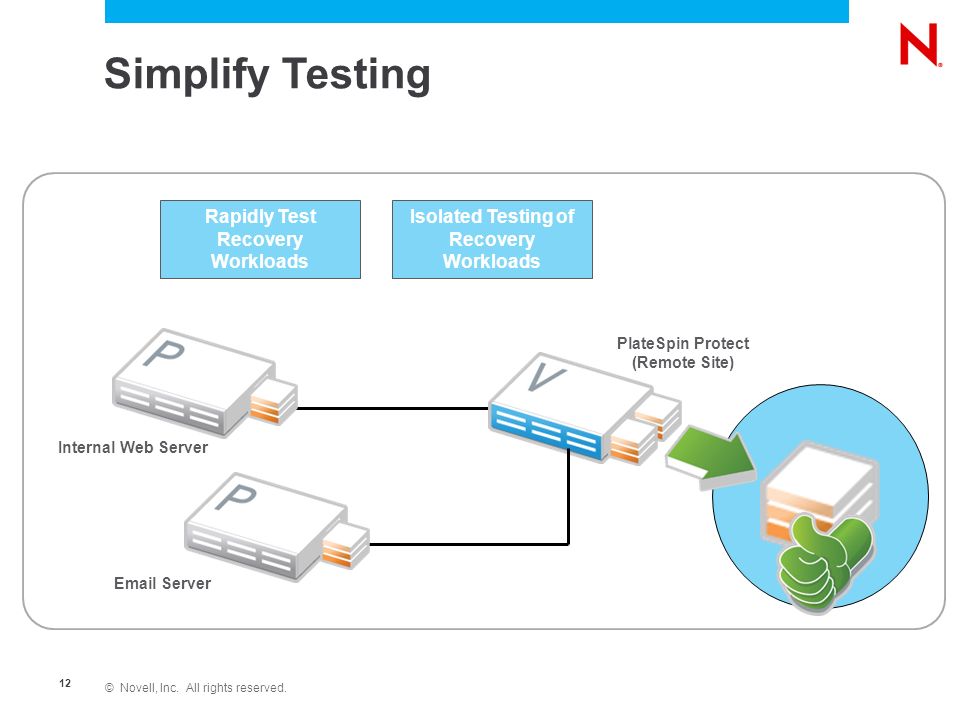

12 © Novell, Inc. All rights reserved. 12 Simplify Testing Rapidly Test Recovery Workloads Isolated Testing of Recovery Workloads Internal Web Server Email Server PlateSpin Protect (Remote Site)

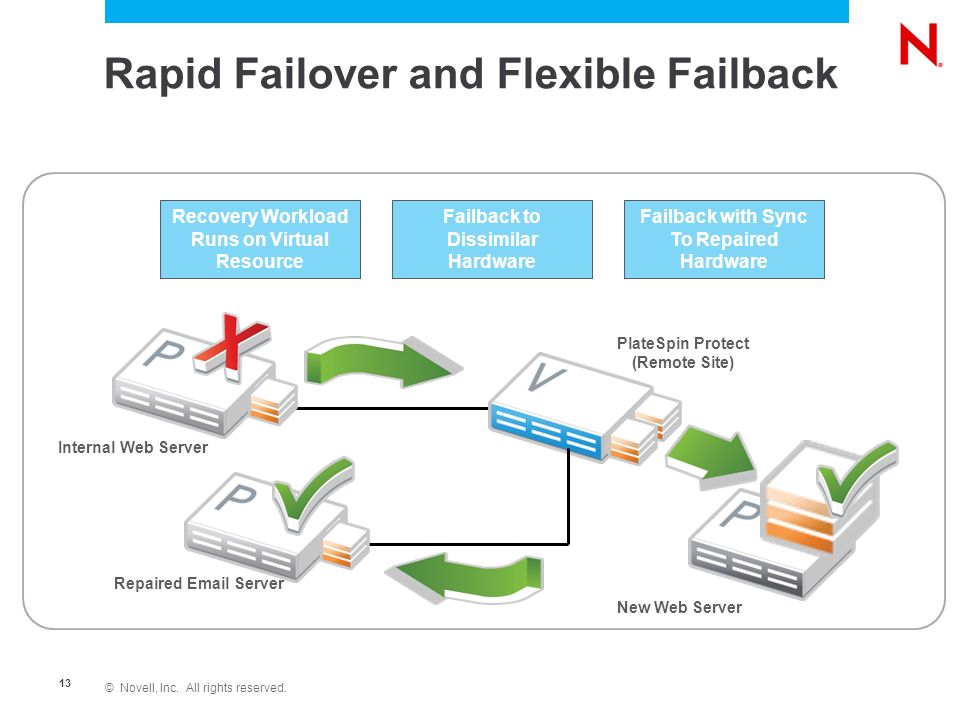

13 © Novell, Inc. All rights reserved. 13 Rapid Failover and Flexible Failback Recovery Workload Runs on Virtual Resource Failback to Dissimilar Hardware Failback with Sync To Repaired Hardware Internal Web Server Repaired Email Server PlateSpin Protect (Remote Site) New Web Server

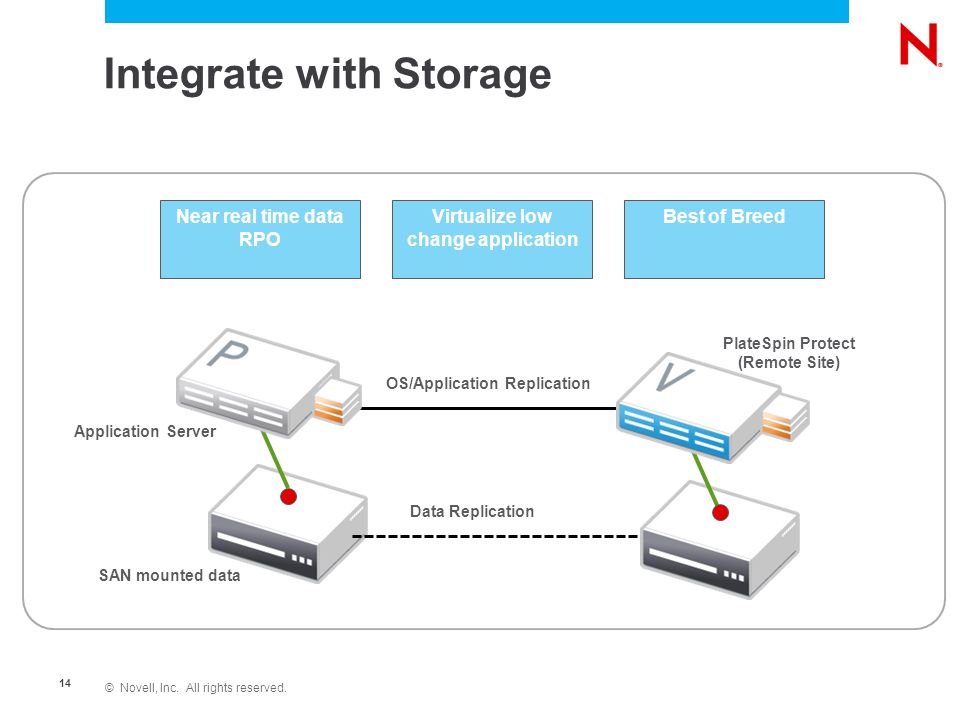

14 © Novell, Inc. All rights reserved. 14 Integrate with Storage Near real time data RPO Virtualize low change application Best of Breed Application Server SAN mounted data PlateSpin Protect (Remote Site) OS/Application Replication Data Replication

15 © Novell, Inc. All rights reserved. 15 More Information available: http://www.novell.com/products/protect/ http://www.novell.com/products/protect/

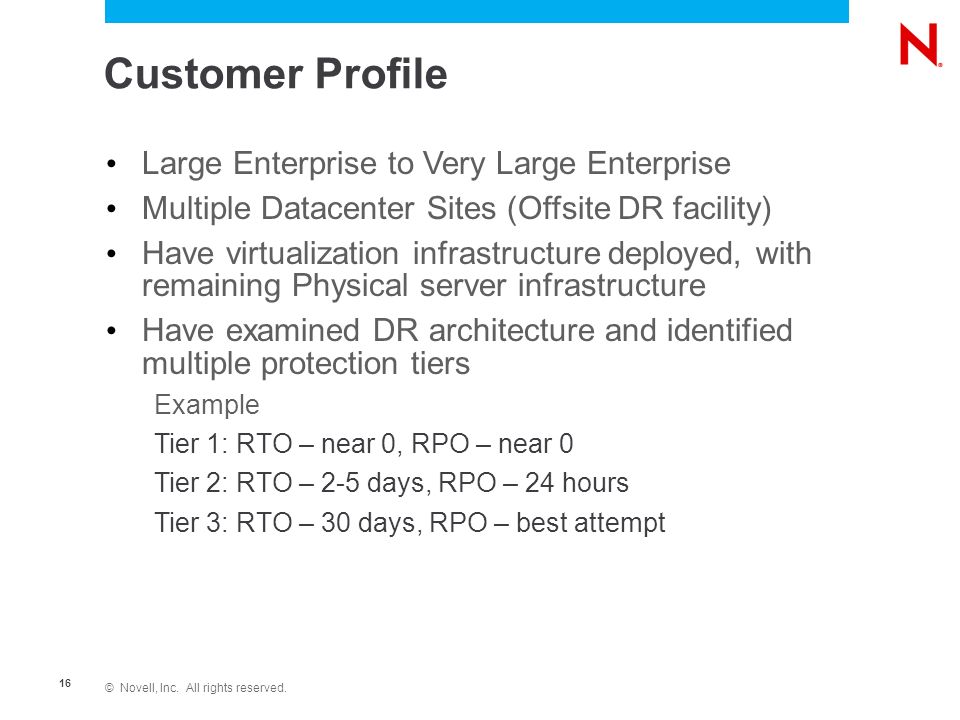

16 © Novell, Inc. All rights reserved. 16 Customer Profile Large Enterprise to Very Large Enterprise Multiple Datacenter Sites (Offsite DR facility) Have virtualization infrastructure deployed, with remaining Physical server infrastructure Have examined DR architecture and identified multiple protection tiers Example Tier 1: RTO – near 0, RPO – near 0 Tier 2: RTO – 2-5 days, RPO – 24 hours Tier 3: RTO – 30 days, RPO – best attempt

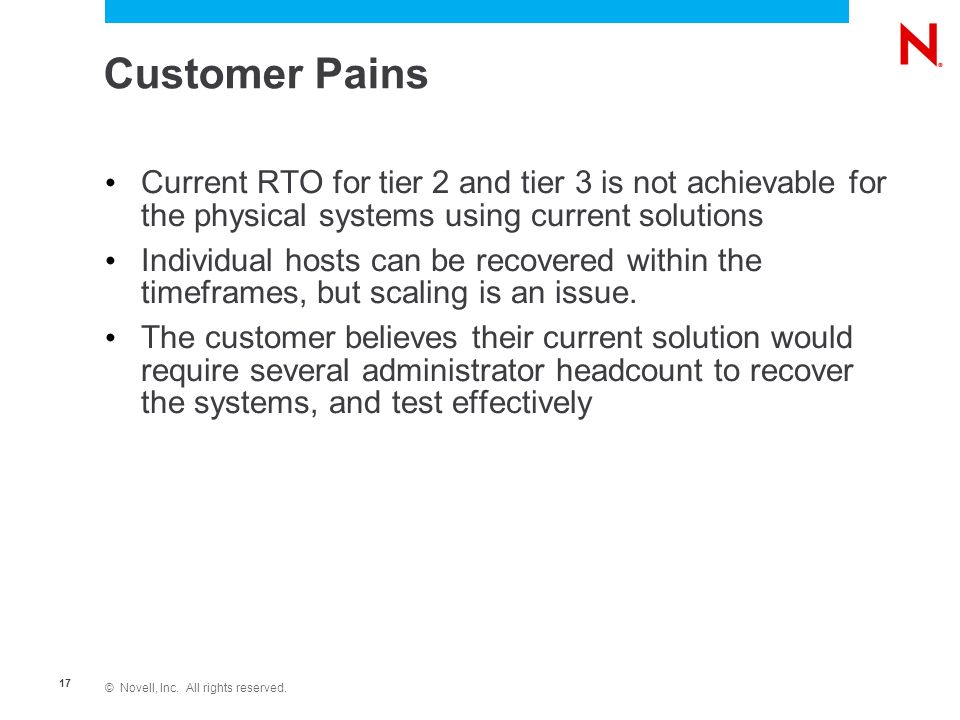

17 © Novell, Inc. All rights reserved. 17 Customer Pains Current RTO for tier 2 and tier 3 is not achievable for the physical systems using current solutions Individual hosts can be recovered within the timeframes, but scaling is an issue. The customer believes their current solution would require several administrator headcount to recover the systems, and test effectively

18 © Novell, Inc. All rights reserved. 18 The PlateSpin solution Using block based replication (with VSS), replicate physical systems to ESX servers running at the secondary site Nightly backups staggered throughout replication window Multiple PlateSpin Protect servers running at DR site (up to 20 physical servers per PlateSpin Protect server) Flexible image option for tier 3 systems (cheaper DR implementation)

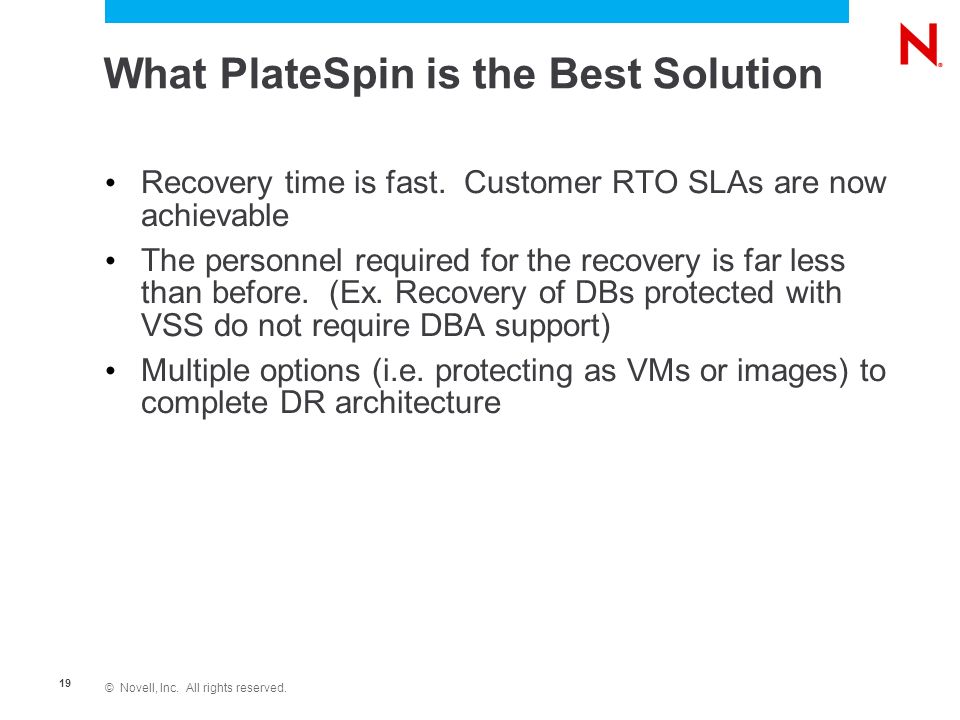

19 © Novell, Inc. All rights reserved. 19 What PlateSpin is the Best Solution Recovery time is fast. Customer RTO SLAs are now achievable The personnel required for the recovery is far less than before. (Ex. Recovery of DBs protected with VSS do not require DBA support) Multiple options (i.e. protecting as VMs or images) to complete DR architecture
