1. CBSE 2014 Component specification

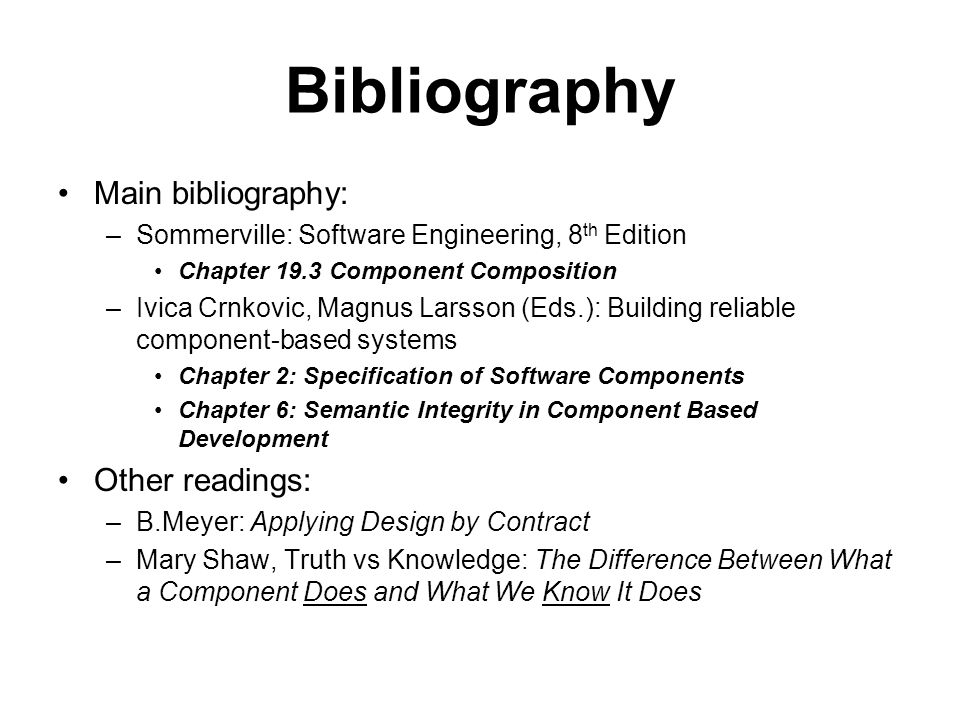

2. Bibliography Main bibliography: –Sommerville: Software Engineering, 8 th Edition Chapter 19.3 Component Composition –Ivica Crnkovic, Magnus Larsson (Eds.): Building reliable component-based systems Chapter 2: Specification of Software Components Chapter 6: Semantic Integrity in Component Based Development Other readings: –B.Meyer: Applying Design by Contract –Mary Shaw, Truth vs Knowledge: The Difference Between What a Component Does and What We Know It Does

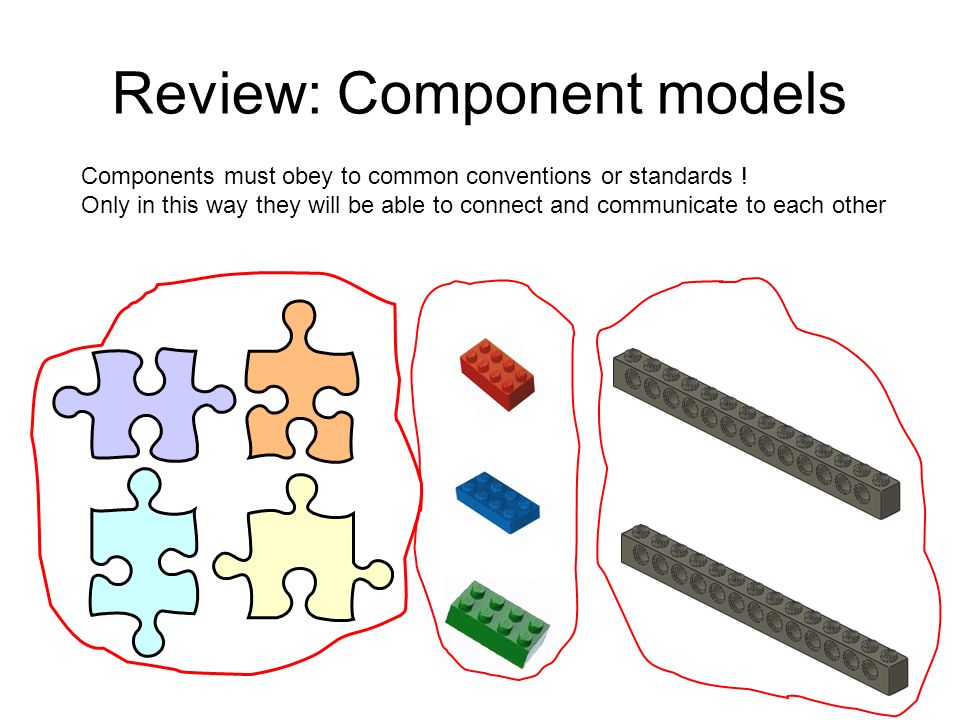

3. Review: Component models Components must obey to common conventions or standards ! Only in this way they will be able to connect and communicate to each other

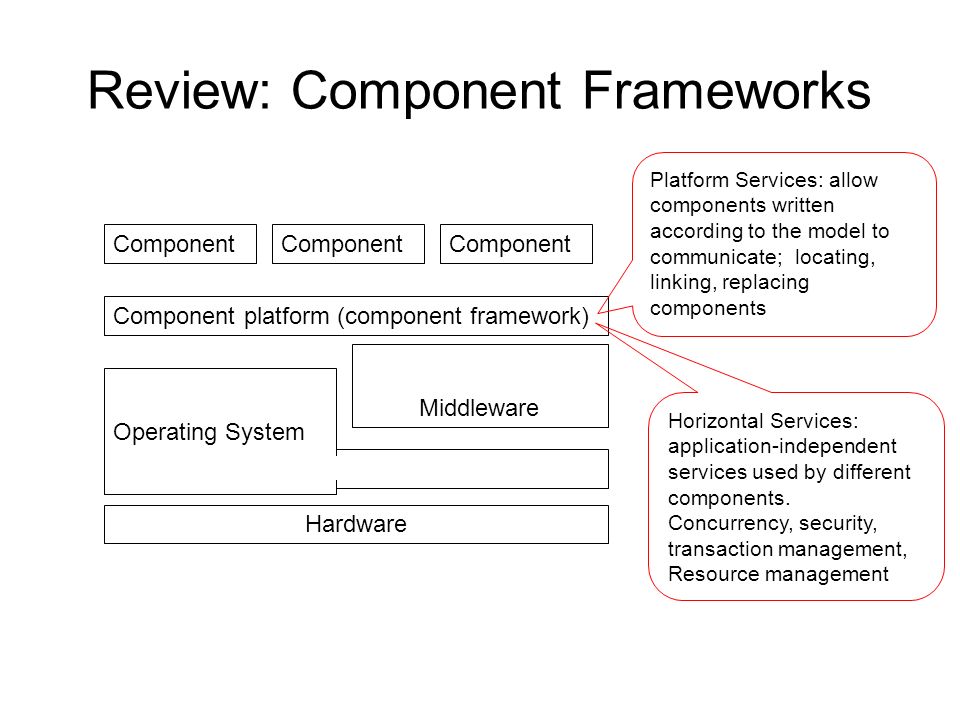

4. Review: Component Frameworks Component Component platform (component framework) Operating System Middleware Hardware Platform Services: allow components written according to the model to communicate; locating, linking, replacing components Horizontal Services: application-independent services used by different components. Concurrency, security, transaction management, Resource management

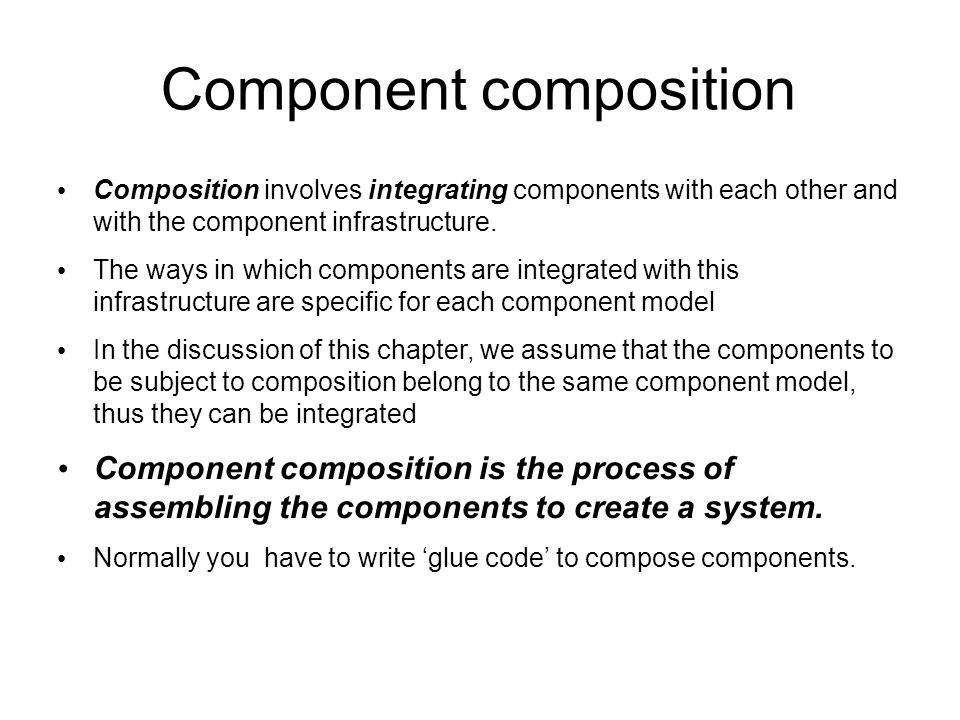

5. Component composition Composition involves integrating components with each other and with the component infrastructure. The ways in which components are integrated with this infrastructure are specific for each component model In the discussion of this chapter, we assume that the components to be subject to composition belong to the same component model, thus they can be integrated Component composition is the process of assembling the components to create a system. Normally you have to write ‘glue code’ to compose components.

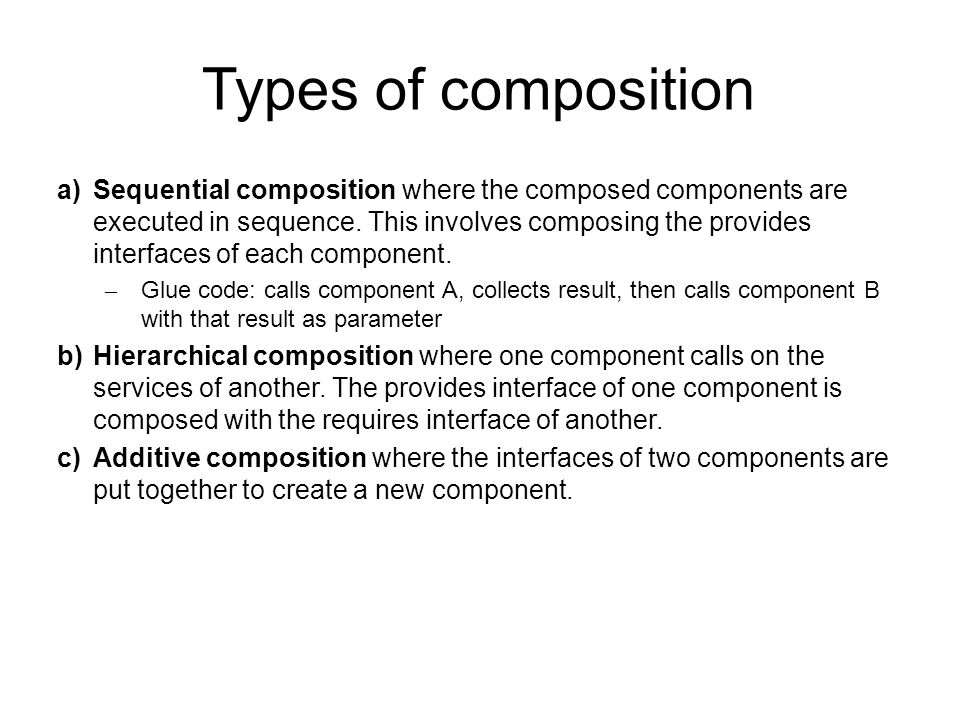

6. Types of composition a)Sequential composition where the composed components are executed in sequence. This involves composing the provides interfaces of each component. – Glue code: calls component A, collects result, then calls component B with that result as parameter b)Hierarchical composition where one component calls on the services of another. The provides interface of one component is composed with the requires interface of another. c)Additive composition where the interfaces of two components are put together to create a new component.

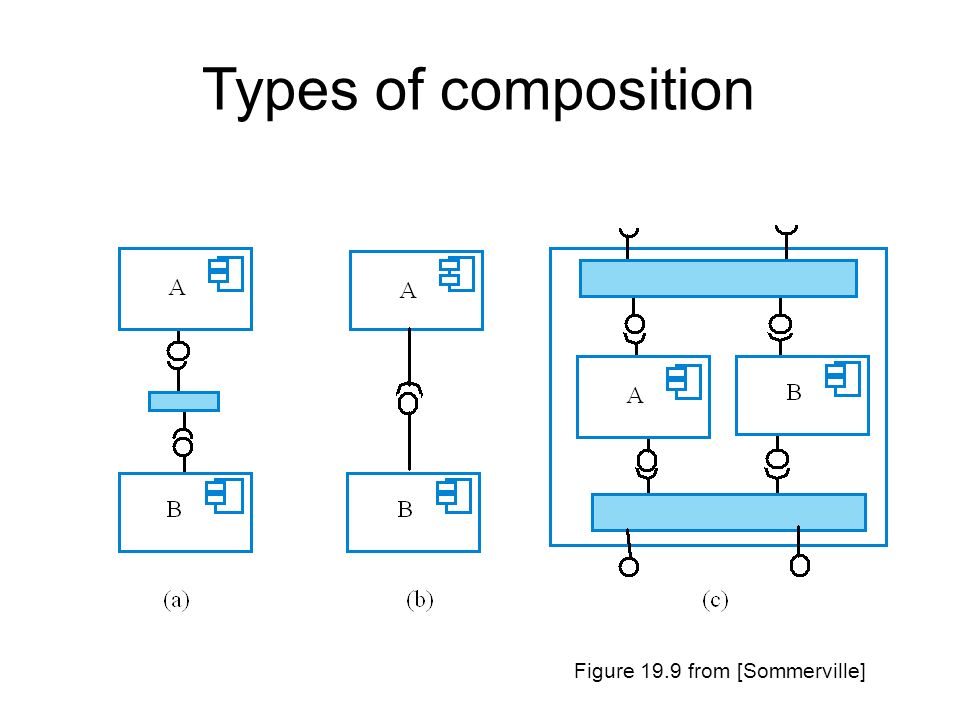

7. Types of composition Figure 19.9 from [Sommerville]

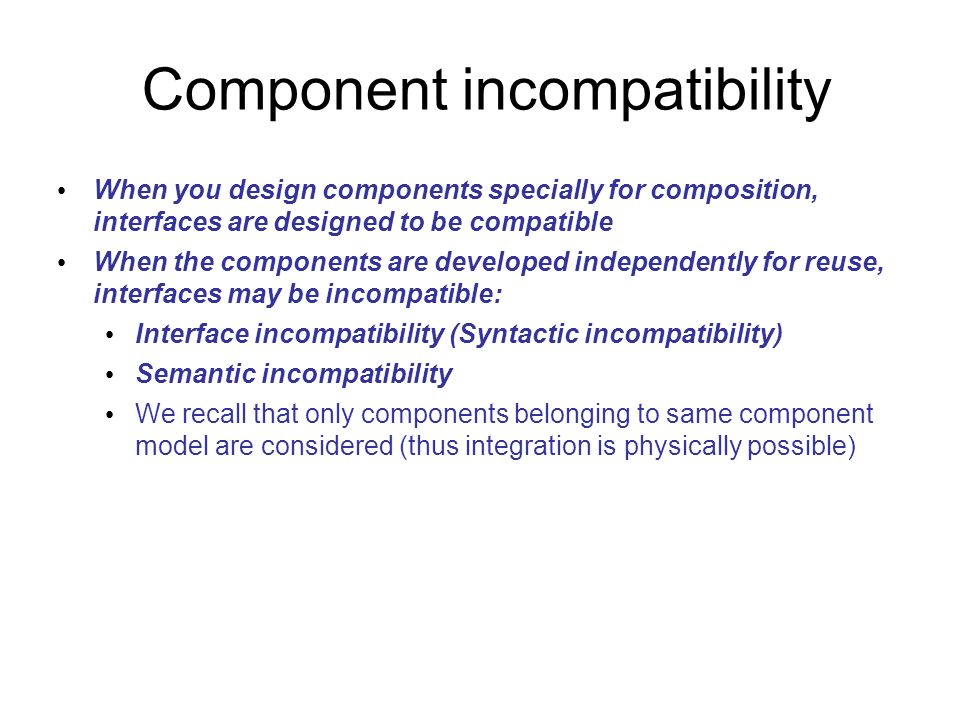

8. Component incompatibility When you design components specially for composition, interfaces are designed to be compatible When the components are developed independently for reuse, interfaces may be incompatible: Interface incompatibility (Syntactic incompatibility) Semantic incompatibility We recall that only components belonging to same component model are considered (thus integration is physically possible)

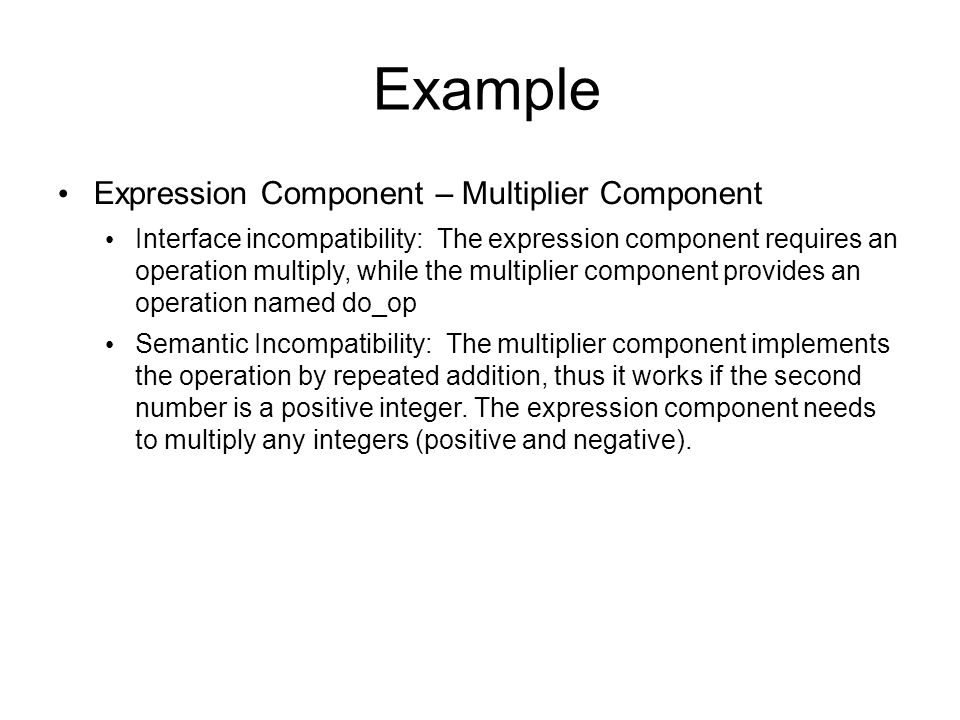

9. Example Expression Component – Multiplier Component Interface incompatibility: The expression component requires an operation multiply, while the multiplier component provides an operation named do_op Semantic Incompatibility: The multiplier component implements the operation by repeated addition, thus it works if the second number is a positive integer. The expression component needs to multiply any integers (positive and negative).

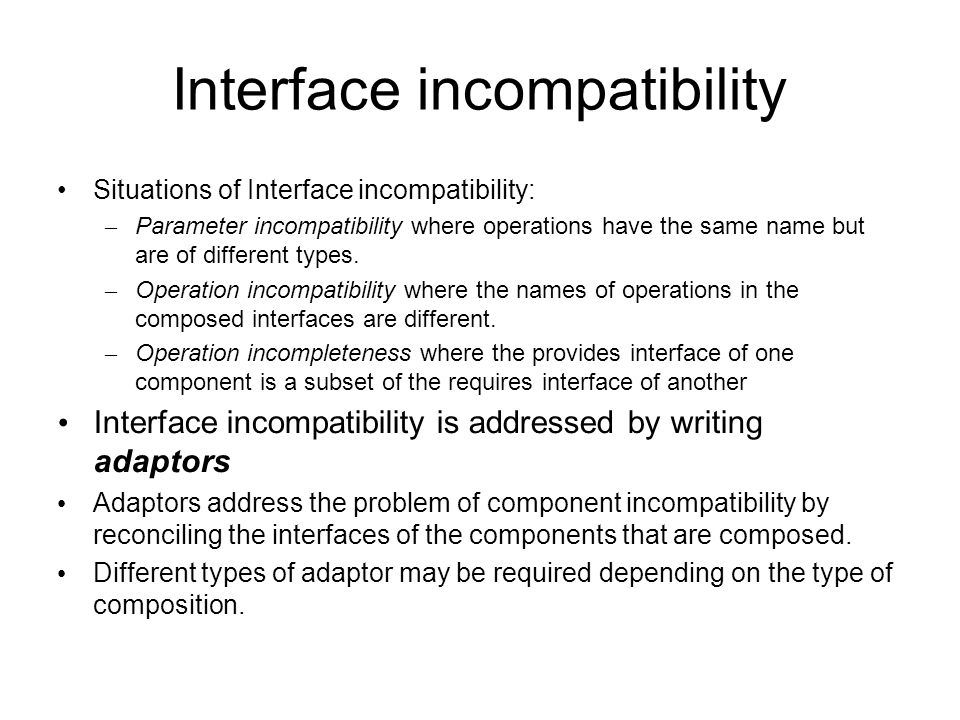

10. Interface incompatibility Situations of Interface incompatibility: – Parameter incompatibility where operations have the same name but are of different types. – Operation incompatibility where the names of operations in the composed interfaces are different. – Operation incompleteness where the provides interface of one component is a subset of the requires interface of another Interface incompatibility is addressed by writing adaptors Adaptors address the problem of component incompatibility by reconciling the interfaces of the components that are composed. Different types of adaptor may be required depending on the type of composition.

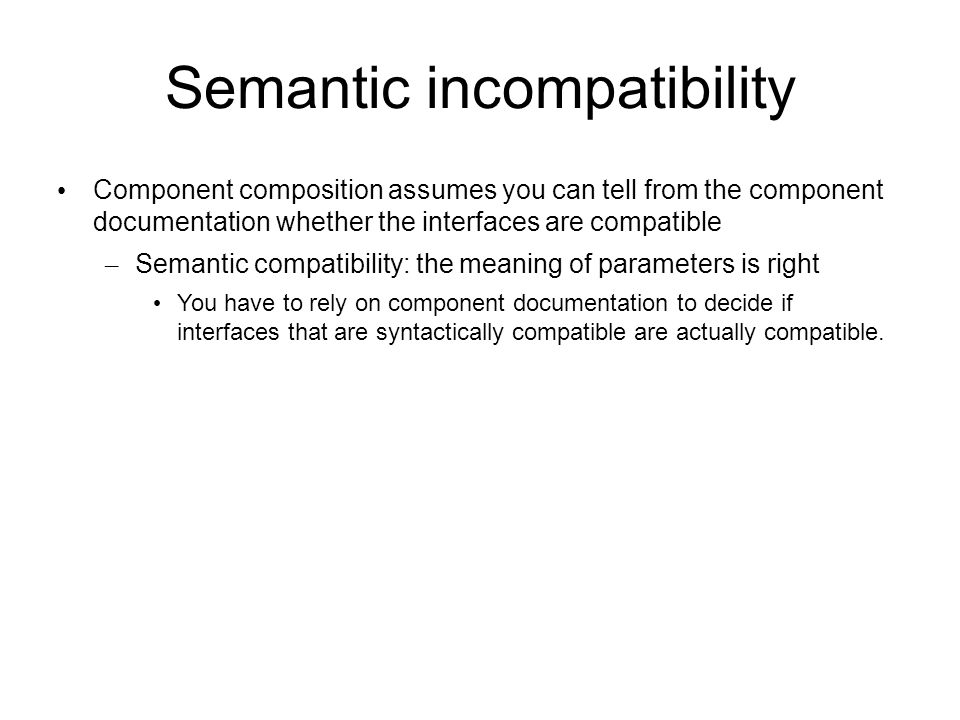

11. Semantic incompatibility Component composition assumes you can tell from the component documentation whether the interfaces are compatible – Semantic compatibility: the meaning of parameters is right You have to rely on component documentation to decide if interfaces that are syntactically compatible are actually compatible.

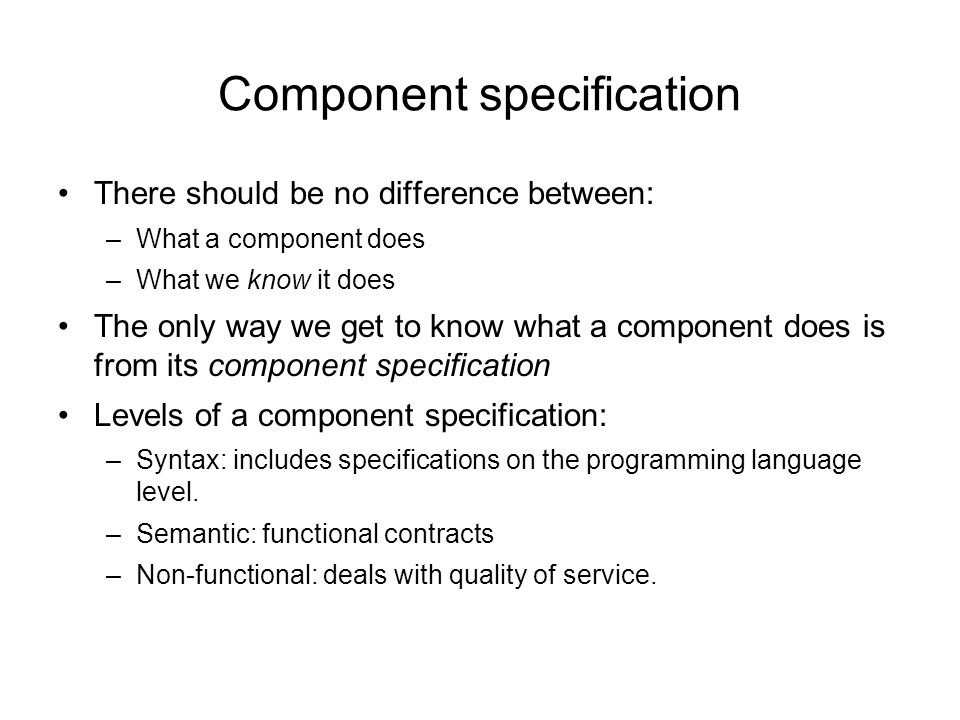

12. Component specification There should be no difference between: –What a component does –What we know it does The only way we get to know what a component does is from its component specification Levels of a component specification: –Syntax: includes specifications on the programming language level. –Semantic: functional contracts –Non-functional: deals with quality of service.

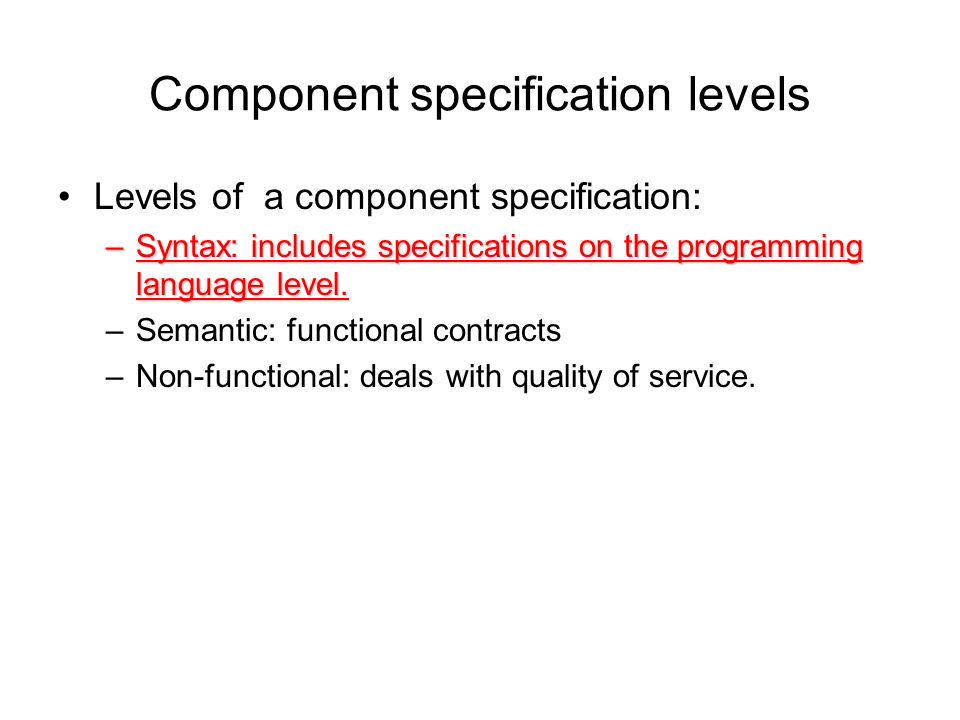

13. Component specification levels Levels of a component specification: –Syntax: includes specifications on the programming language level. –Semantic: functional contracts –Non-functional: deals with quality of service.

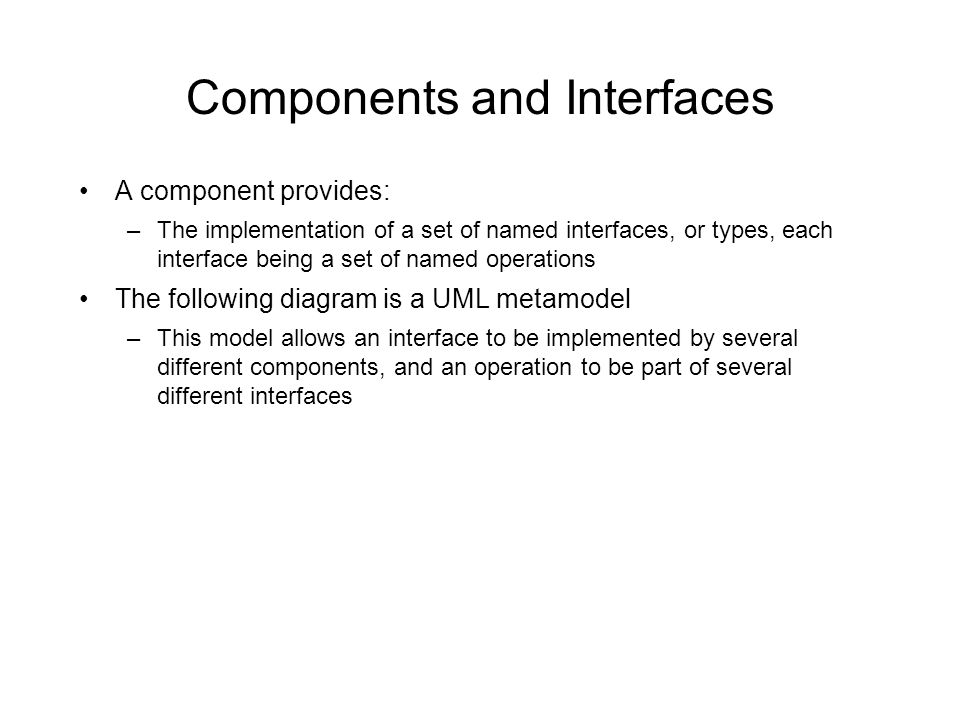

14. Components and Interfaces A component provides: –The implementation of a set of named interfaces, or types, each interface being a set of named operations The following diagram is a UML metamodel –This model allows an interface to be implemented by several different components, and an operation to be part of several different interfaces

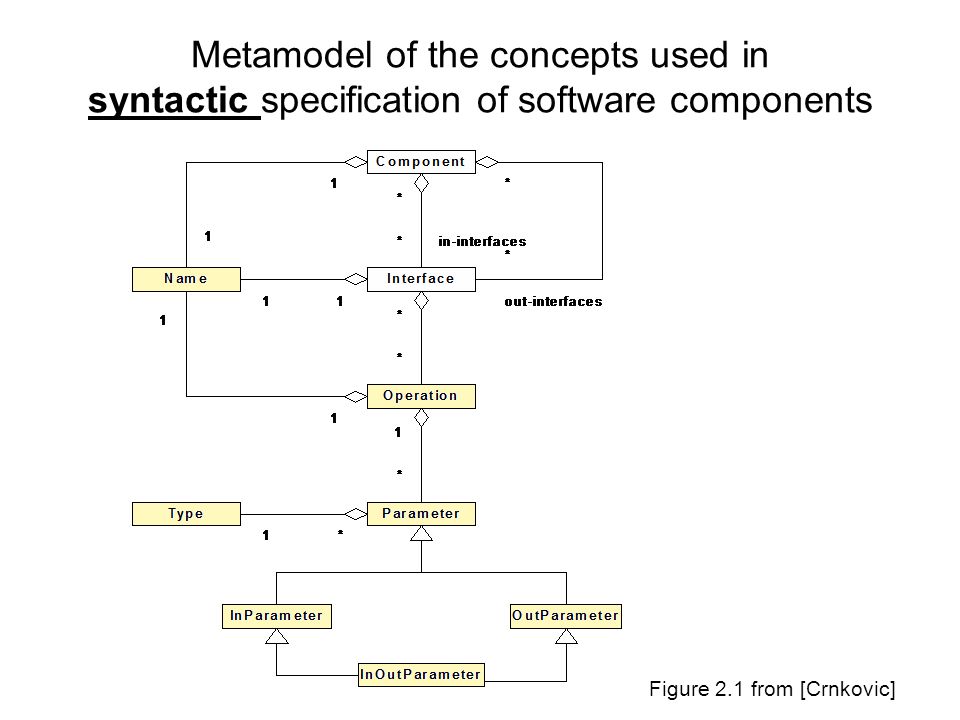

15. Metamodel of the concepts used in syntactic specification of software components Figure 2.1 from [Crnkovic]

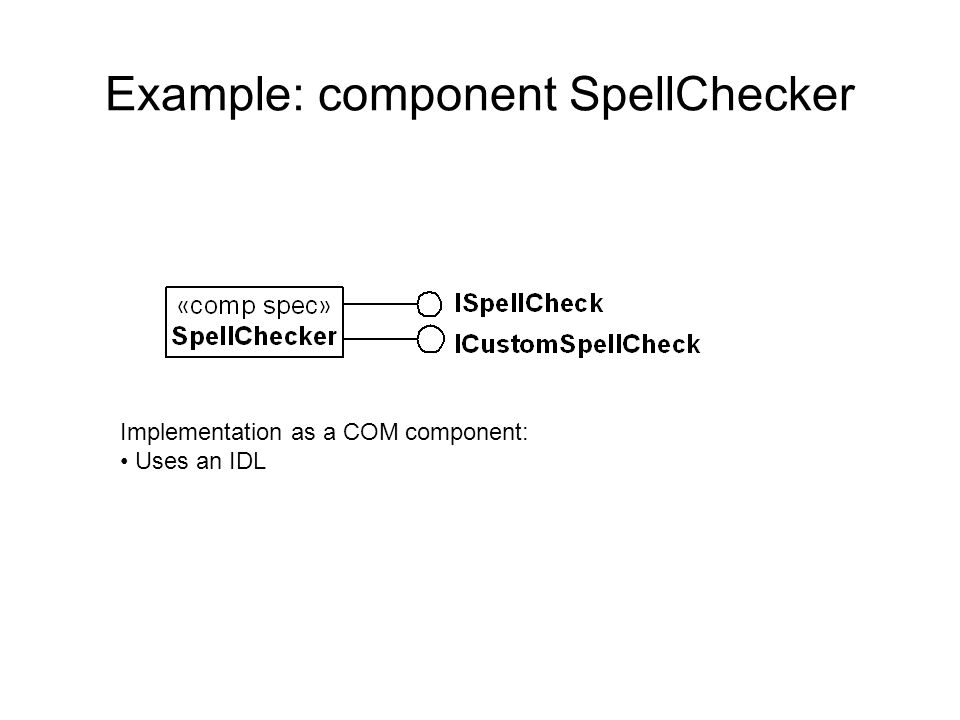

16. Example: component SpellChecker Implementation as a COM component: Uses an IDL

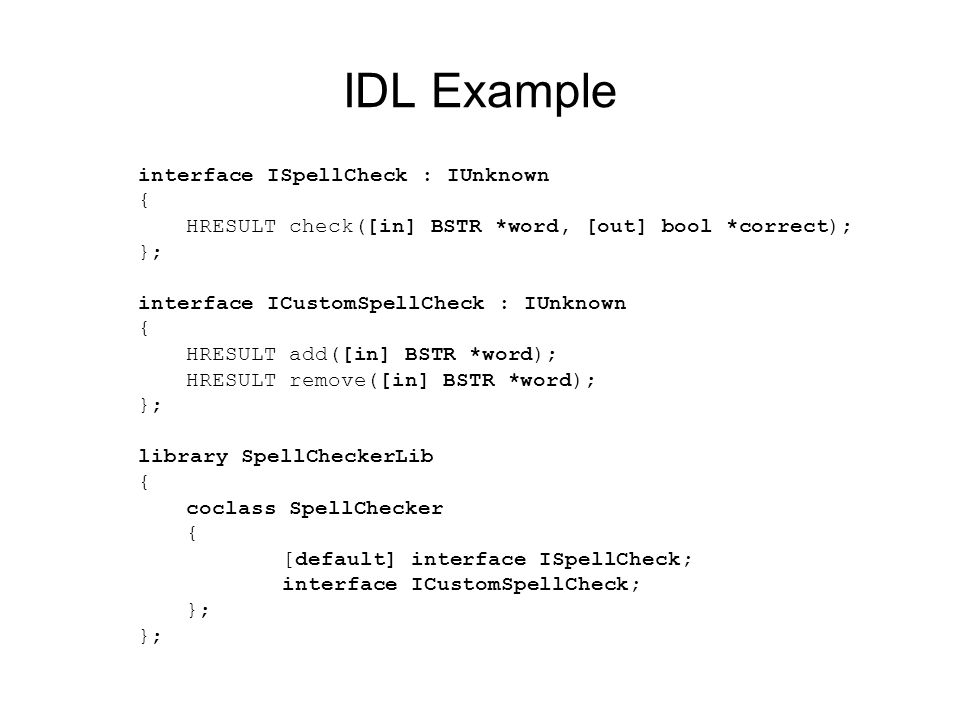

17. IDL Example interface ISpellCheck : IUnknown { HRESULT check([in] BSTR *word, [out] bool *correct); }; interface ICustomSpellCheck : IUnknown { HRESULT add([in] BSTR *word); HRESULT remove([in] BSTR *word); }; library SpellCheckerLib { coclass SpellChecker { [default] interface ISpellCheck; interface ICustomSpellCheck; };

18. Uses of Syntactic Specification The primary uses of syntactic specifications are: –Type checking (static of dynamic) of client code. –Base for interoperability between independently developed components and applications. Interoperability may be achieved in different ways: –Binary format for interfaces –IDL to programming language mappings An important aspect of interface specifications is how they relate to substitution and evolution of components

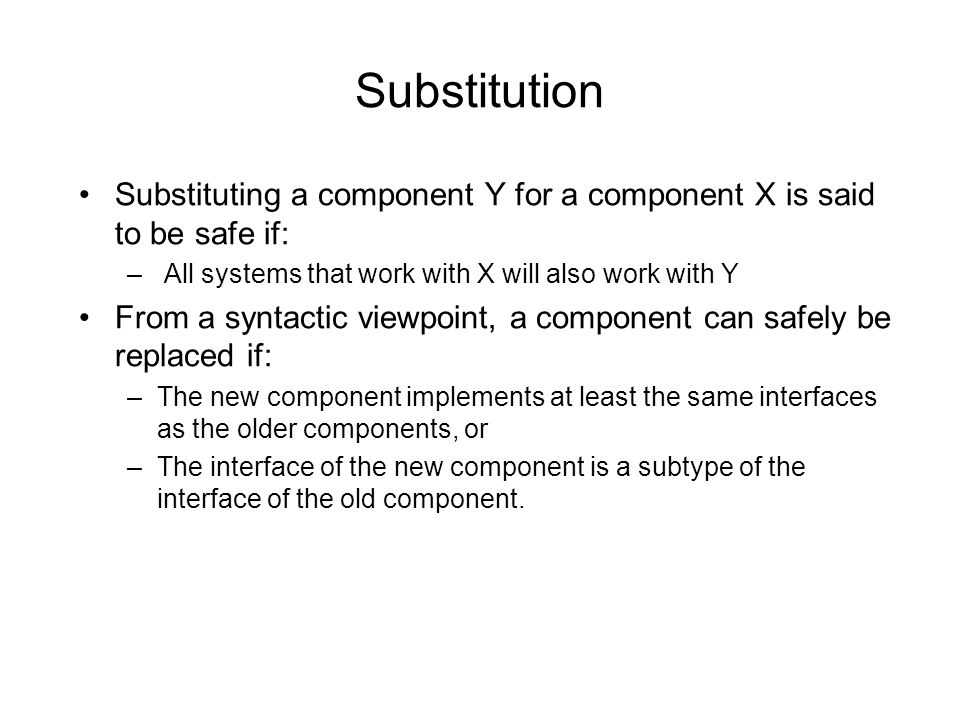

19. Substitution Substituting a component Y for a component X is said to be safe if: – All systems that work with X will also work with Y From a syntactic viewpoint, a component can safely be replaced if: –The new component implements at least the same interfaces as the older components, or –The interface of the new component is a subtype of the interface of the old component.

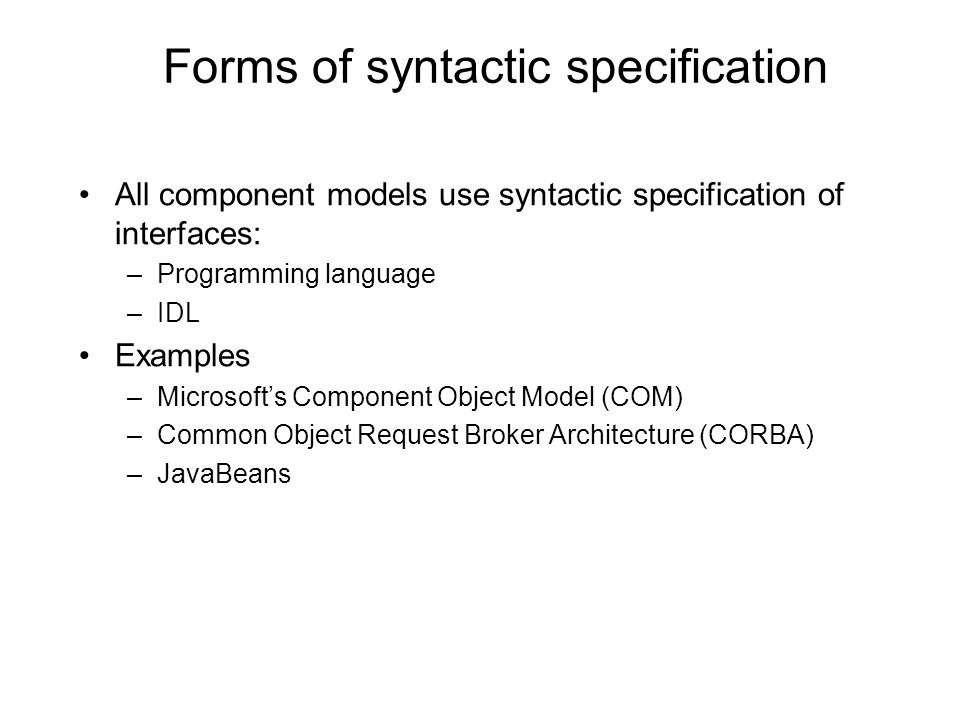

20. Forms of syntactic specification All component models use syntactic specification of interfaces: –Programming language –IDL Examples –Microsoft’s Component Object Model (COM) –Common Object Request Broker Architecture (CORBA) –JavaBeans

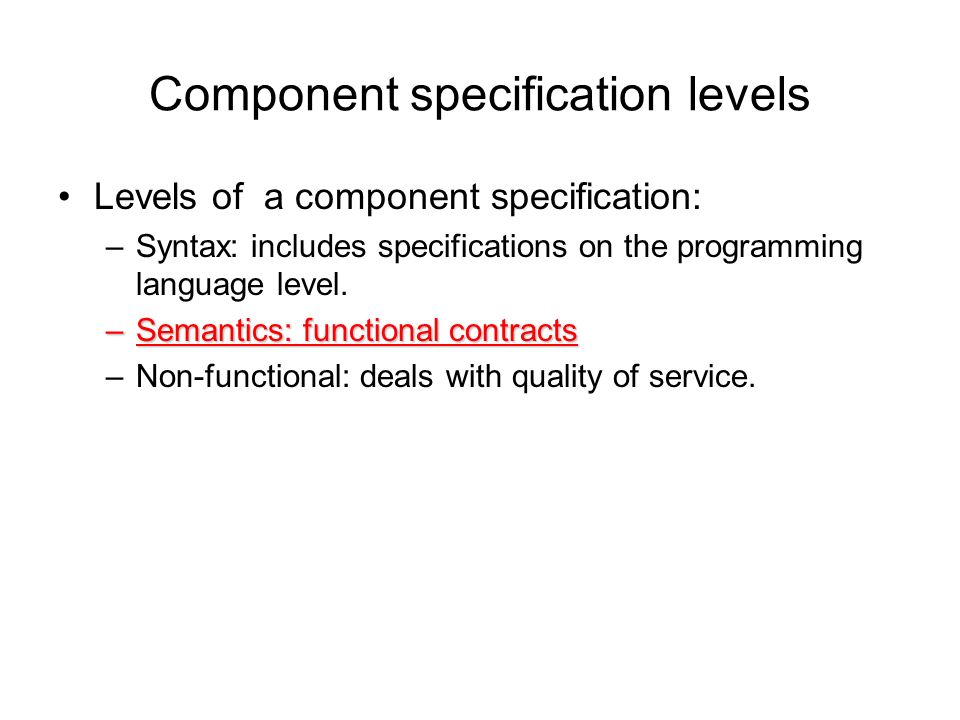

21. Component specification levels Levels of a component specification: –Syntax: includes specifications on the programming language level. –Semantics: functional contracts –Non-functional: deals with quality of service.

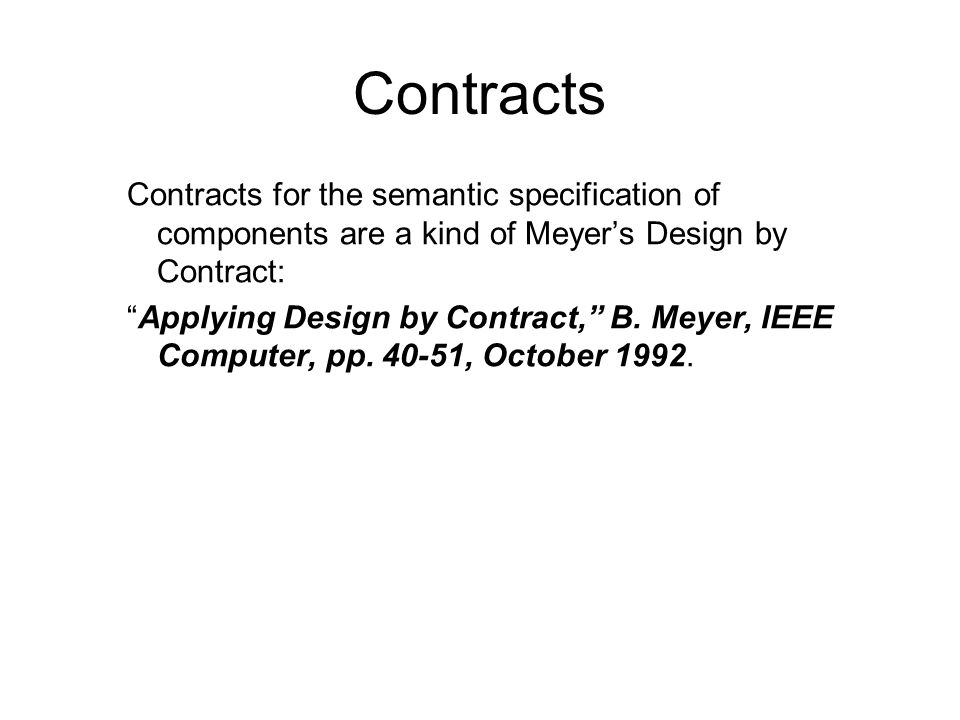

22. Contracts Contracts for the semantic specification of components are a kind of Meyer’s Design by Contract: “Applying Design by Contract,” B. Meyer, IEEE Computer, pp. 40-51, October 1992.

23. Design-by-contract background A Client-Server Design Server Objects –Provides services for client objects to use –The object whose methods are being invoked Client Object –Consumes the services offered by the supplier object –The object that invokes the methods of the supplier object Contract –A set of benefits and obligations that are mutually agreed upon by the client and supplier –In practice, specified by the supplier object –Clients implicitly accept the contract by using objects of the supplier class Good contracts are always in writing!

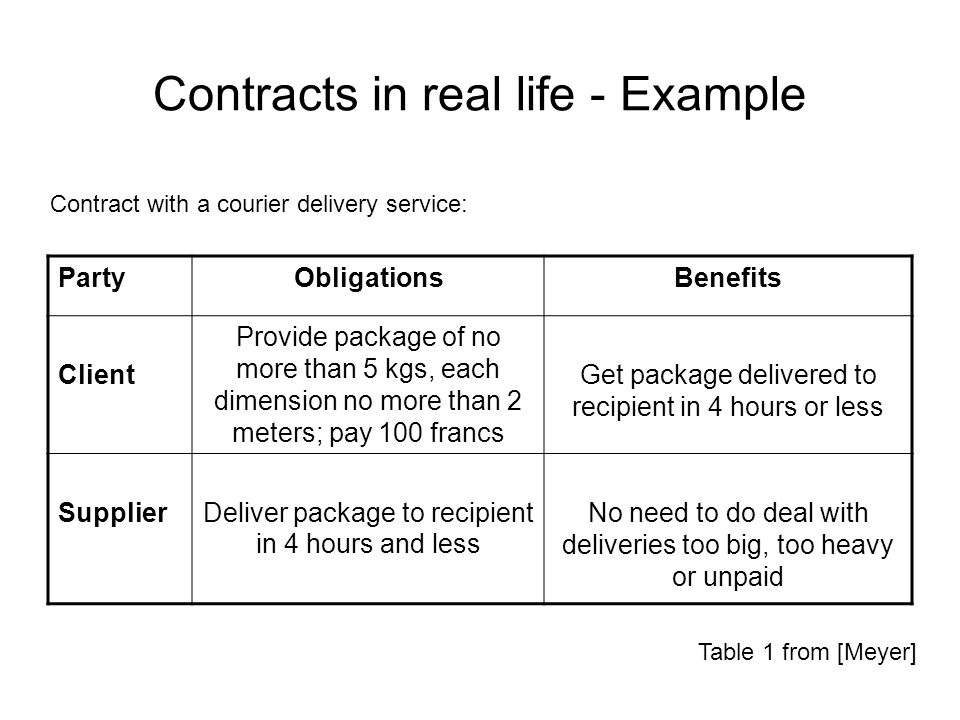

24. Contracts in real life - Example Table 1 from [Meyer] Contract with a courier delivery service: PartyObligationsBenefits Client Provide package of no more than 5 kgs, each dimension no more than 2 meters; pay 100 francs Get package delivered to recipient in 4 hours or less SupplierDeliver package to recipient in 4 hours and less No need to do deal with deliveries too big, too heavy or unpaid

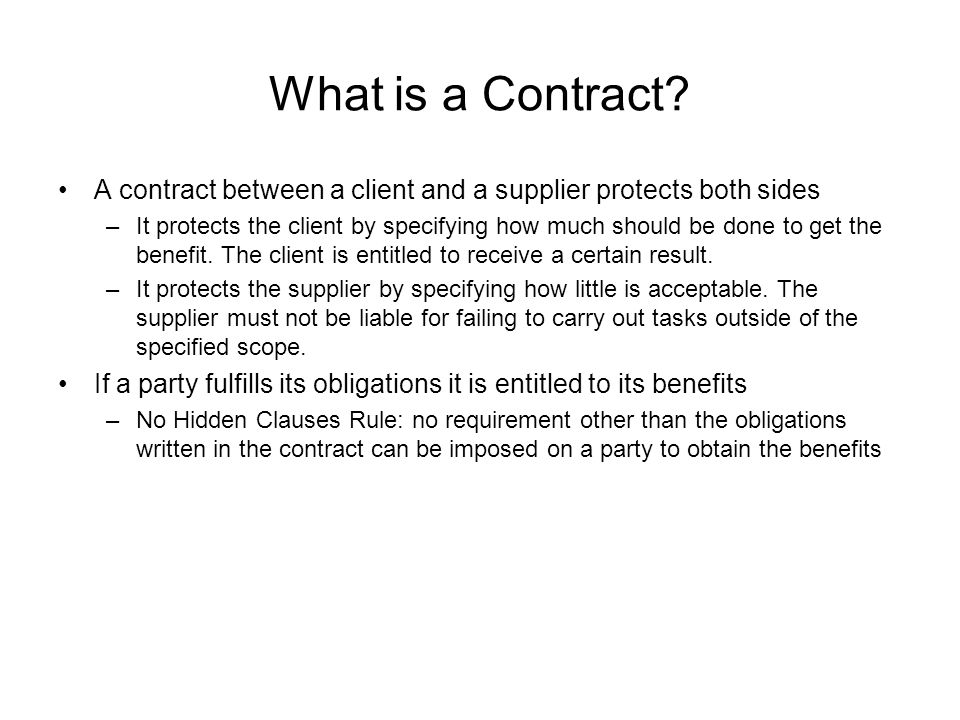

25. What is a Contract? A contract between a client and a supplier protects both sides –It protects the client by specifying how much should be done to get the benefit. The client is entitled to receive a certain result. –It protects the supplier by specifying how little is acceptable. The supplier must not be liable for failing to carry out tasks outside of the specified scope. If a party fulfills its obligations it is entitled to its benefits –No Hidden Clauses Rule: no requirement other than the obligations written in the contract can be imposed on a party to obtain the benefits

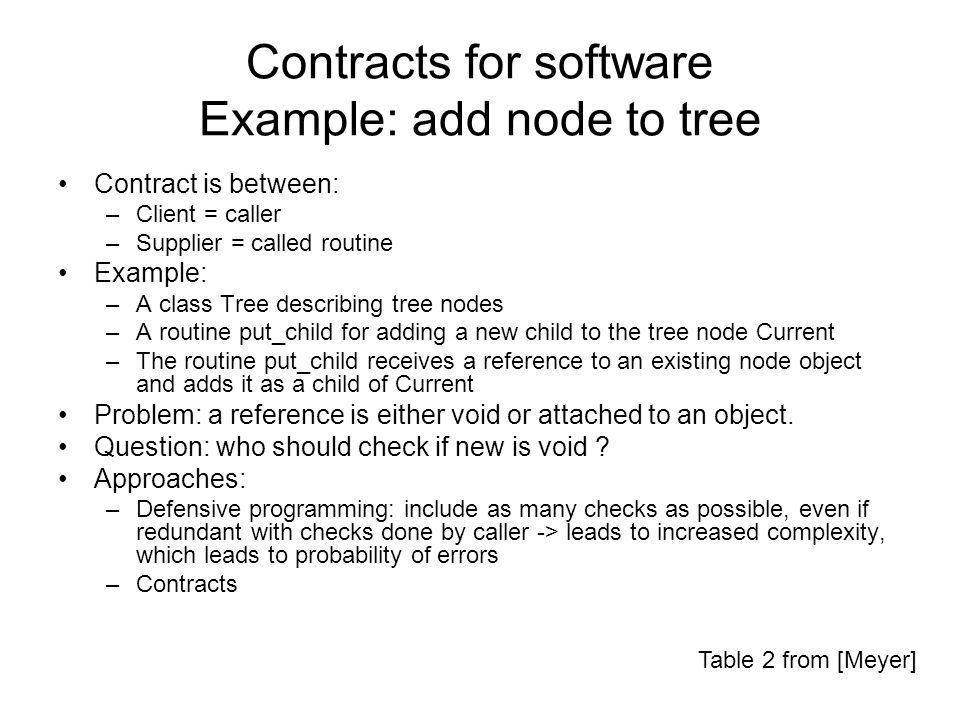

26. Contracts for software Example: add node to tree Contract is between: –Client = caller –Supplier = called routine Example: –A class Tree describing tree nodes –A routine put_child for adding a new child to the tree node Current –The routine put_child receives a reference to an existing node object and adds it as a child of Current Problem: a reference is either void or attached to an object. Question: who should check if new is void ? Approaches: –Defensive programming: include as many checks as possible, even if redundant with checks done by caller -> leads to increased complexity, which leads to probability of errors –Contracts Table 2 from [Meyer]

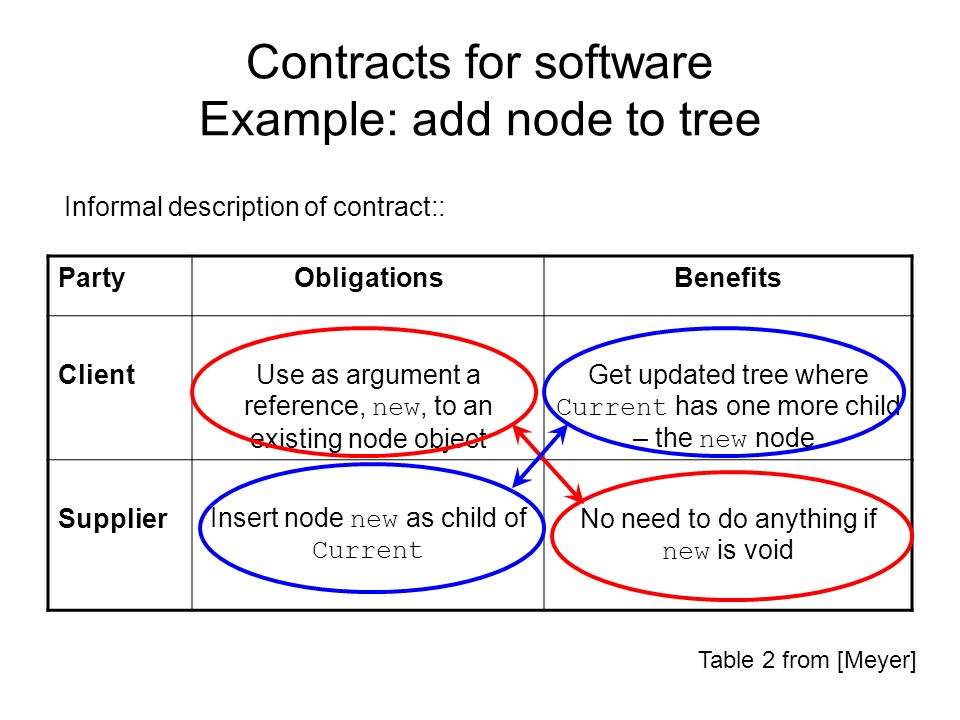

27. Contracts for software Example: add node to tree Table 2 from [Meyer] Informal description of contract:: PartyObligationsBenefits ClientUse as argument a reference, new, to an existing node object Get updated tree where Current has one more child – the new node. Supplier Insert node new as child of Current No need to do anything if new is void

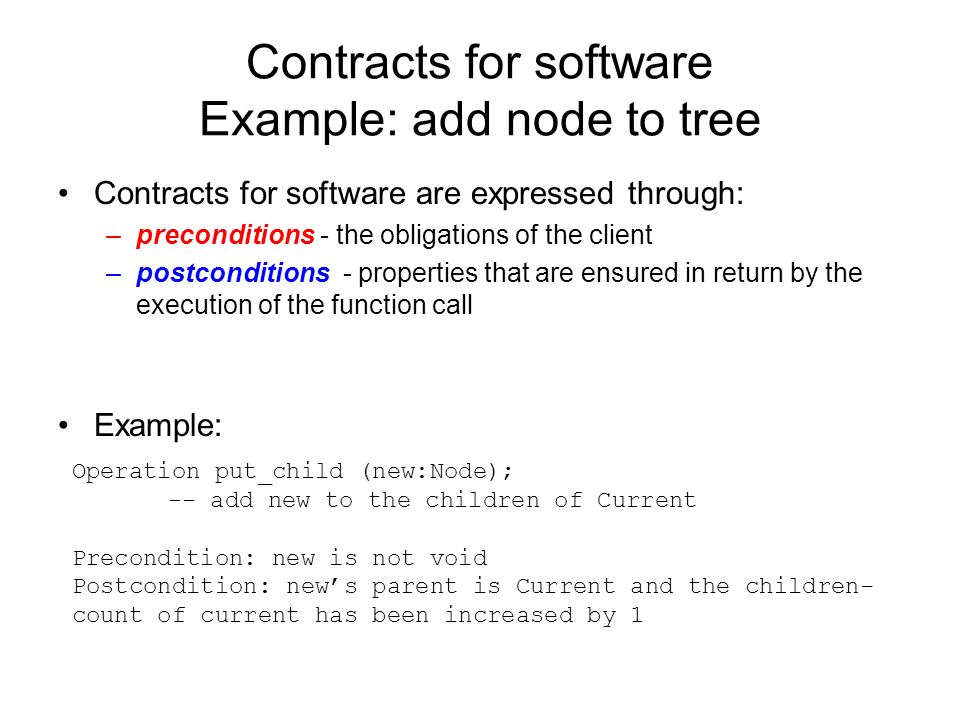

28. Contracts for software Example: add node to tree Contracts for software are expressed through: –preconditions - the obligations of the client –postconditions - properties that are ensured in return by the execution of the function call Example: Operation put_child (new:Node); -- add new to the children of Current Precondition: new is not void Postcondition: new’s parent is Current and the children- count of current has been increased by 1

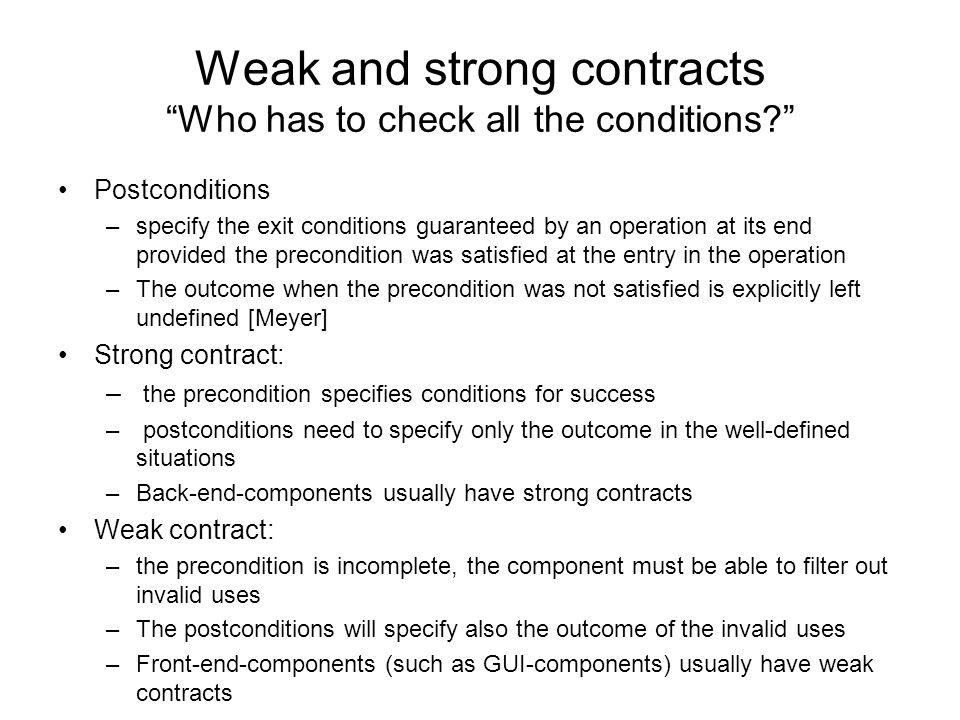

29. Weak and strong contracts “Who has to check all the conditions?” Postconditions –specify the exit conditions guaranteed by an operation at its end provided the precondition was satisfied at the entry in the operation –The outcome when the precondition was not satisfied is explicitly left undefined [Meyer] Strong contract: – the precondition specifies conditions for success – postconditions need to specify only the outcome in the well-defined situations –Back-end-components usually have strong contracts Weak contract: –the precondition is incomplete, the component must be able to filter out invalid uses –The postconditions will specify also the outcome of the invalid uses –Front-end-components (such as GUI-components) usually have weak contracts

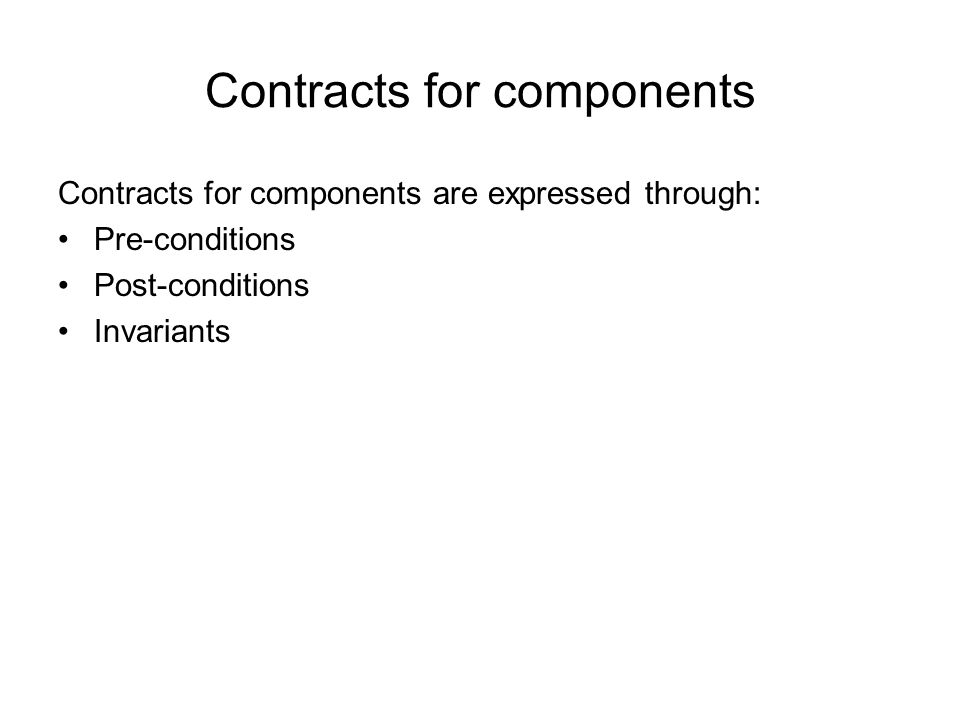

30. Contracts for components Contracts for components are expressed through: Pre-conditions Post-conditions Invariants

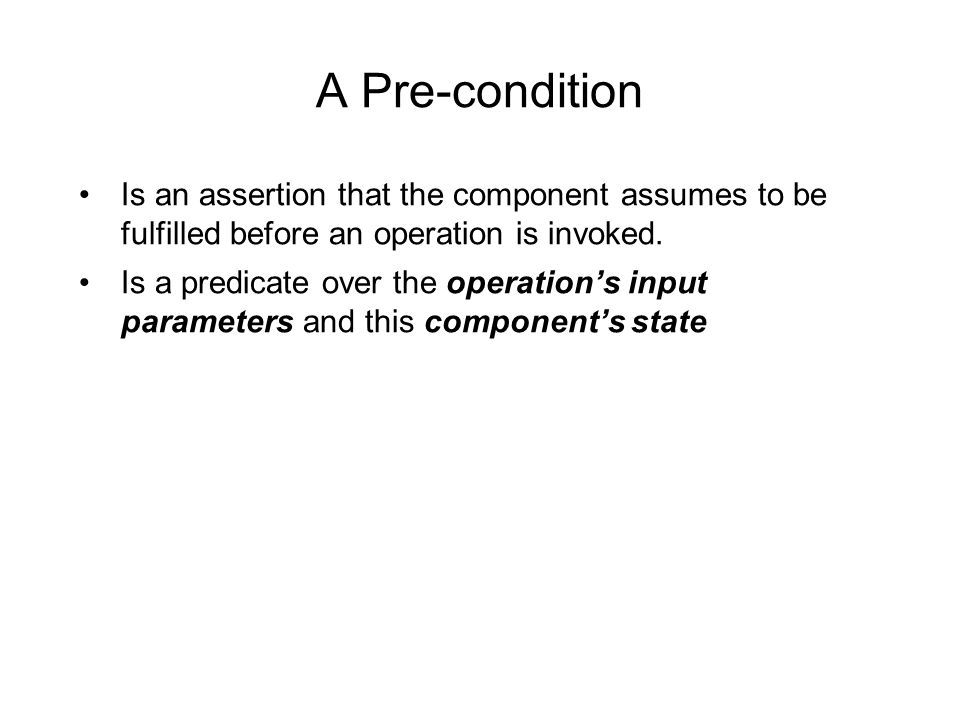

31. A Pre-condition Is an assertion that the component assumes to be fulfilled before an operation is invoked. Is a predicate over the operation’s input parameters and this component’s state

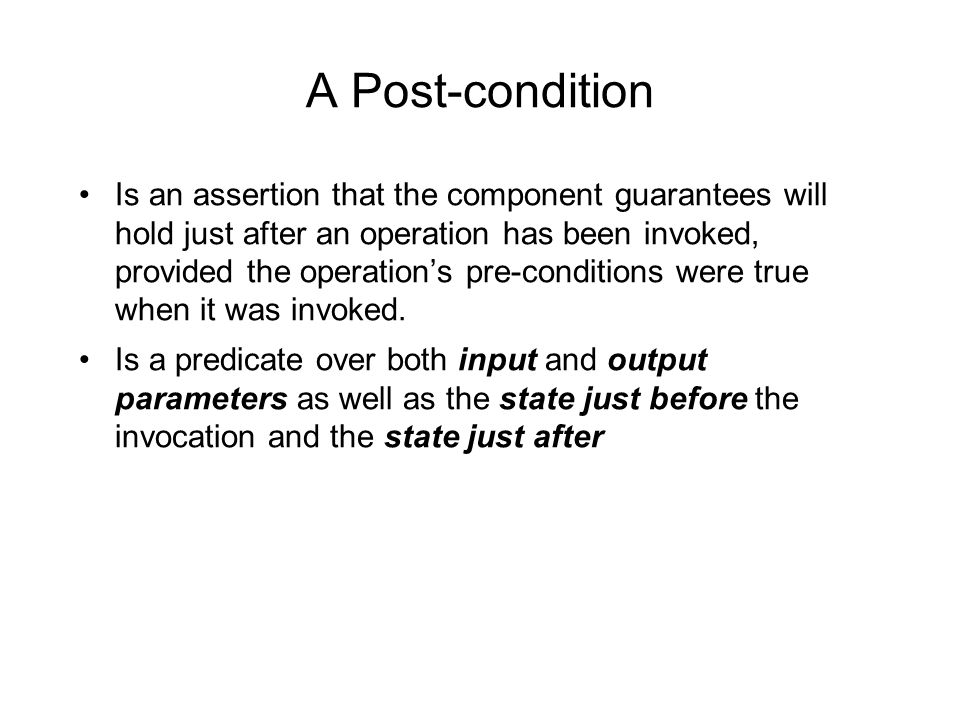

32. A Post-condition Is an assertion that the component guarantees will hold just after an operation has been invoked, provided the operation’s pre-conditions were true when it was invoked. Is a predicate over both input and output parameters as well as the state just before the invocation and the state just after

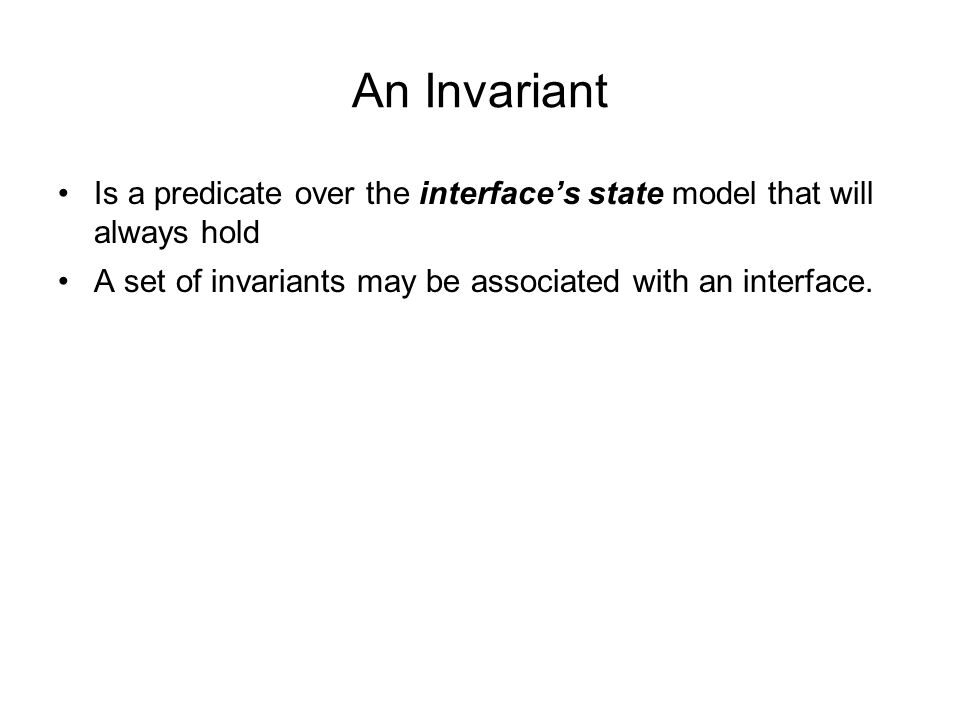

33. An Invariant Is a predicate over the interface’s state model that will always hold A set of invariants may be associated with an interface.

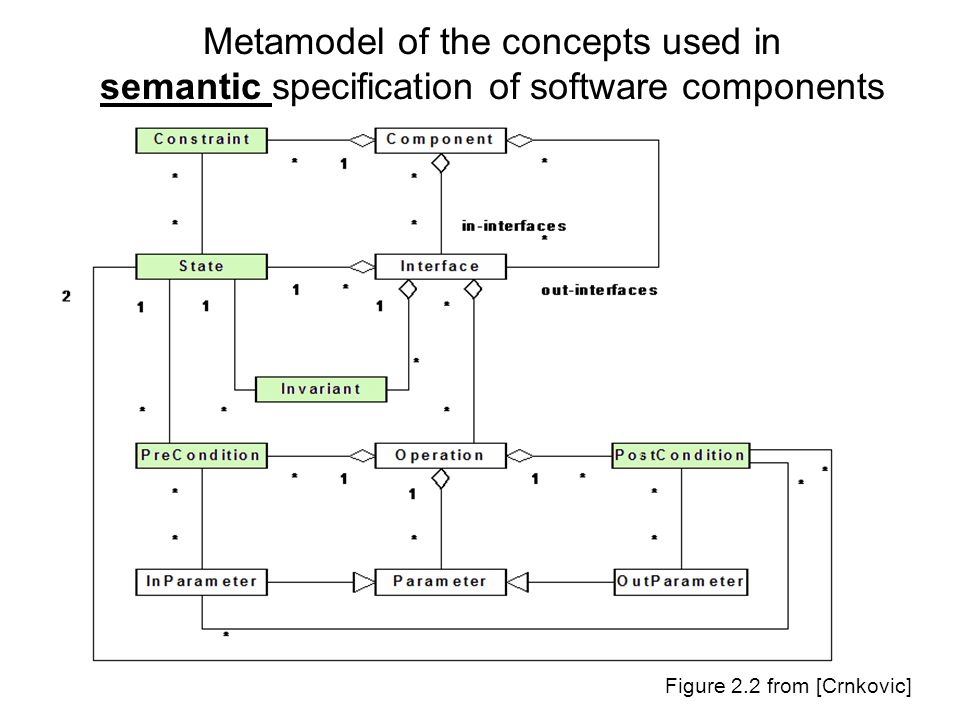

34. Metamodel of the concepts used in semantic specification of software components Figure 2.2 from [Crnkovic]

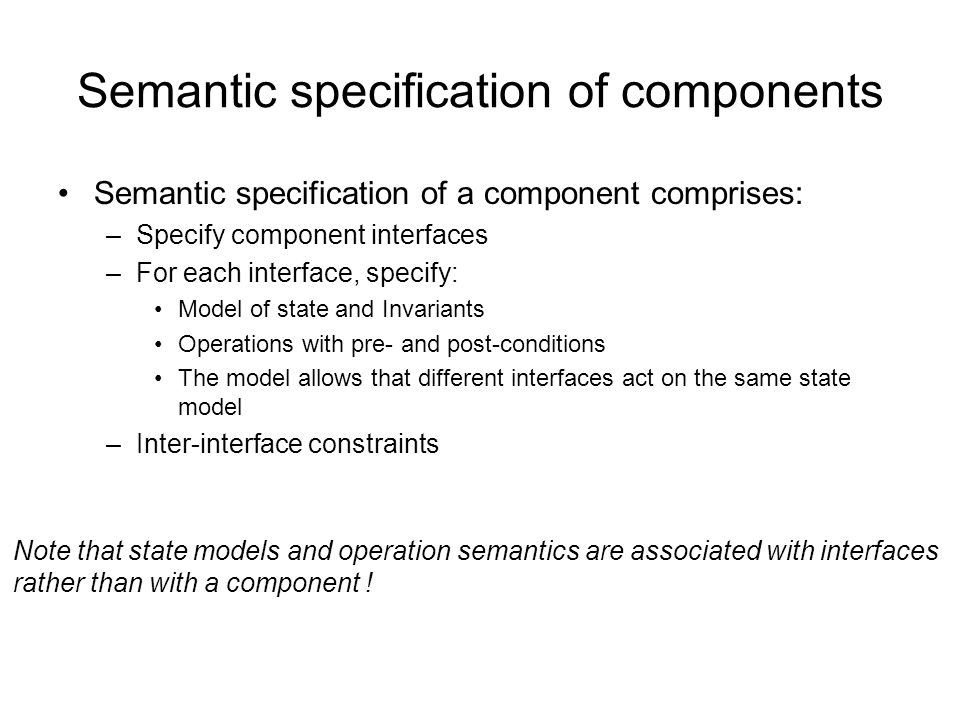

35. Semantic specification of components Semantic specification of a component comprises: –Specify component interfaces –For each interface, specify: Model of state and Invariants Operations with pre- and post-conditions The model allows that different interfaces act on the same state model –Inter-interface constraints Note that state models and operation semantics are associated with interfaces rather than with a component !

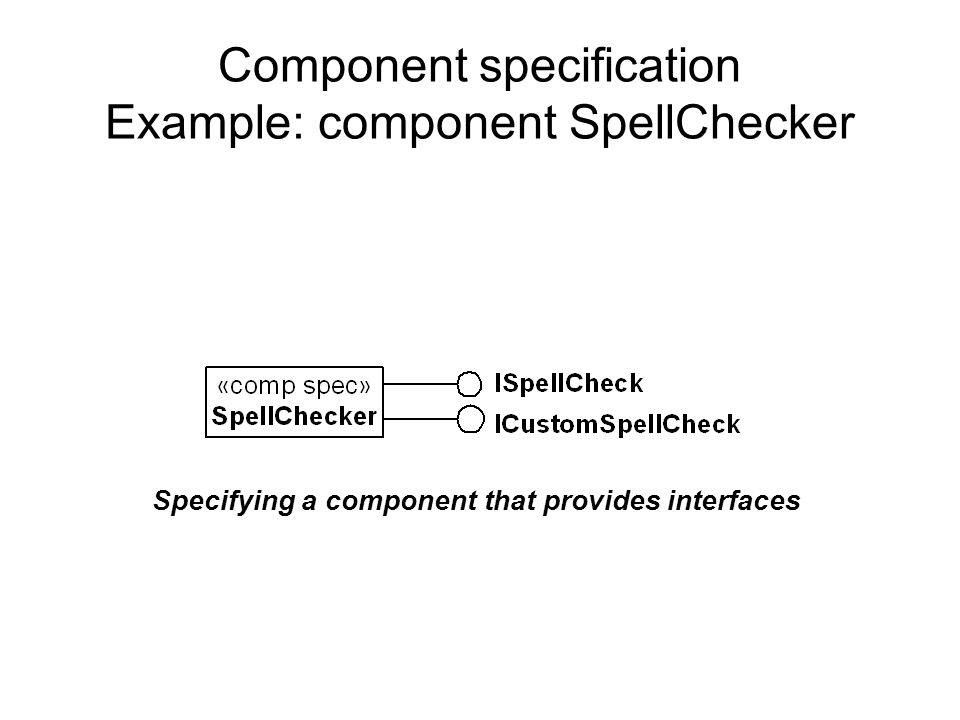

36. Component specification Example: component SpellChecker Specifying a component that provides interfaces

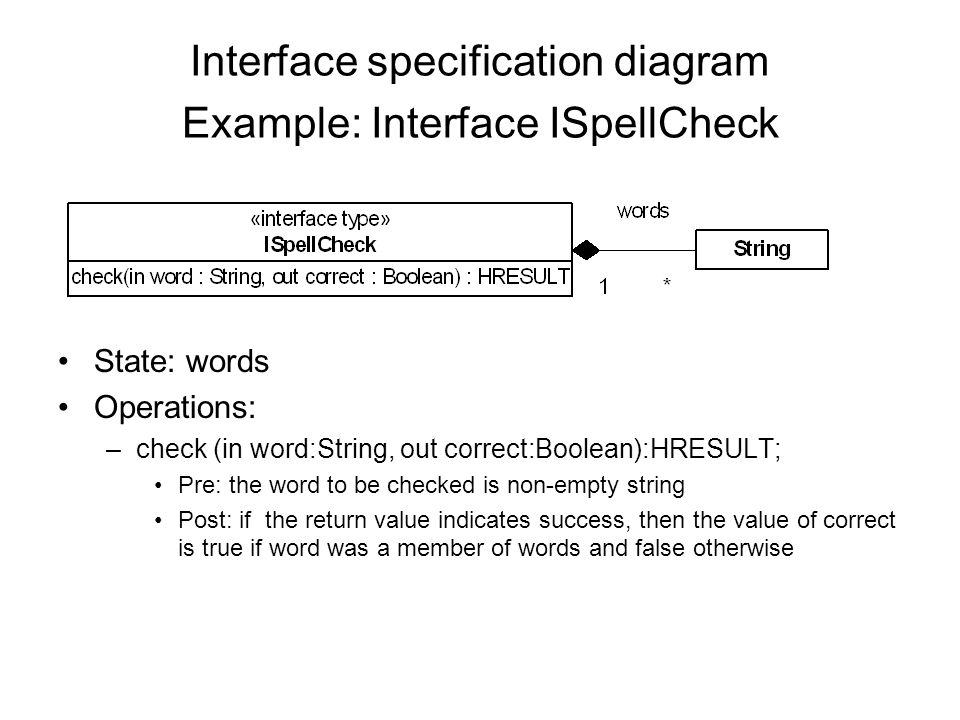

37. Interface specification diagram Example: Interface ISpellCheck State: words Operations: –check (in word:String, out correct:Boolean):HRESULT; Pre: the word to be checked is non-empty string Post: if the return value indicates success, then the value of correct is true if word was a member of words and false otherwise

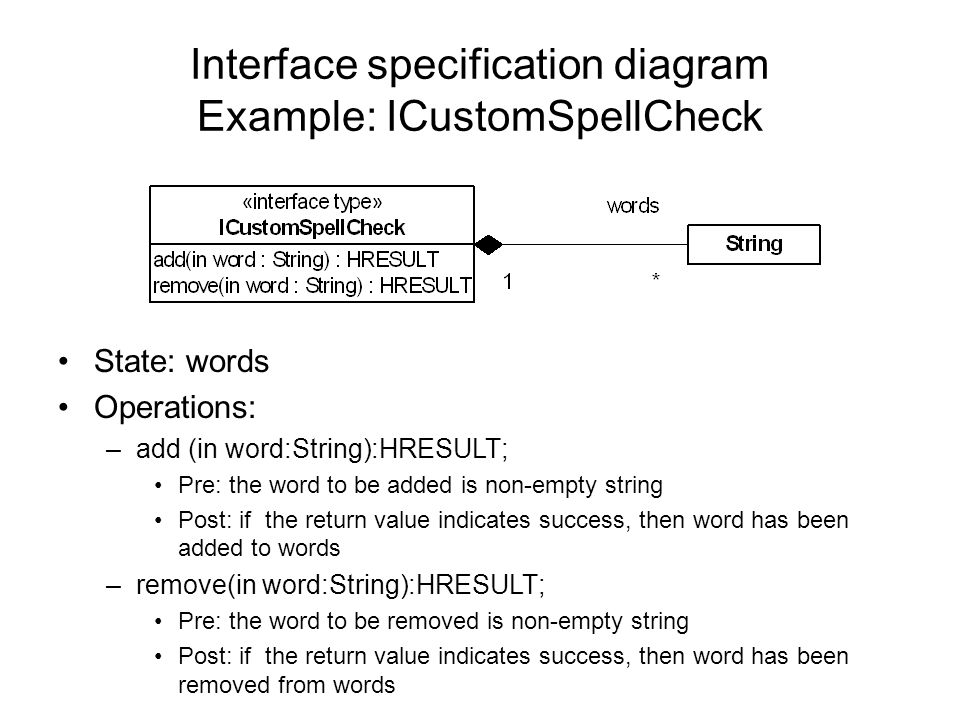

38. Interface specification diagram Example: ICustomSpellCheck State: words Operations: –add (in word:String):HRESULT; Pre: the word to be added is non-empty string Post: if the return value indicates success, then word has been added to words –remove(in word:String):HRESULT; Pre: the word to be removed is non-empty string Post: if the return value indicates success, then word has been removed from words

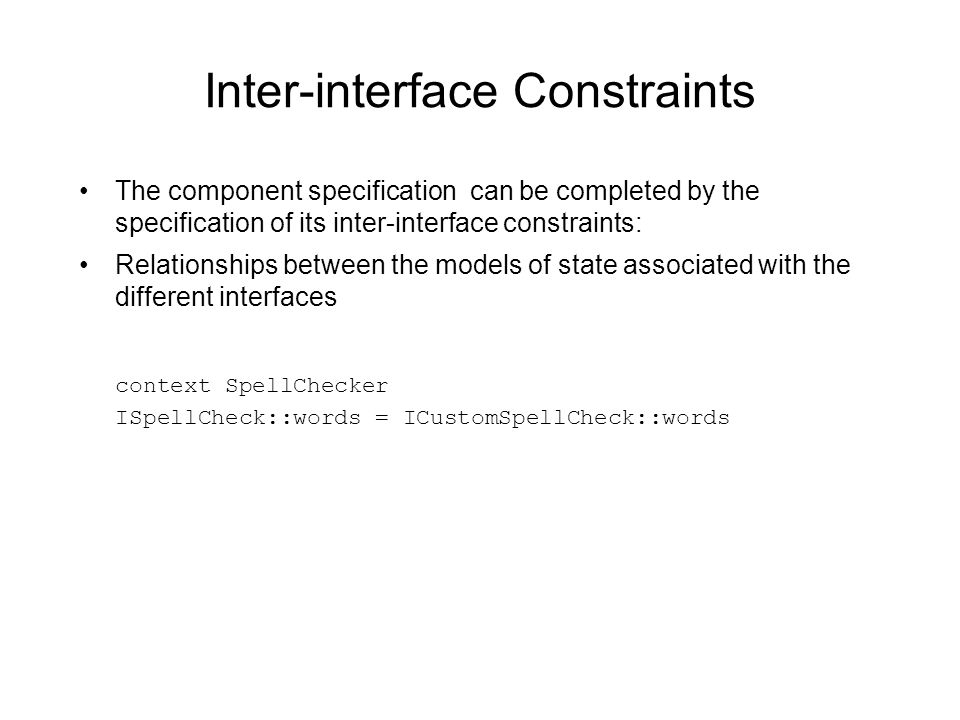

39. Inter-interface Constraints The component specification can be completed by the specification of its inter-interface constraints: Relationships between the models of state associated with the different interfaces context SpellChecker ISpellCheck::words = ICustomSpellCheck::words

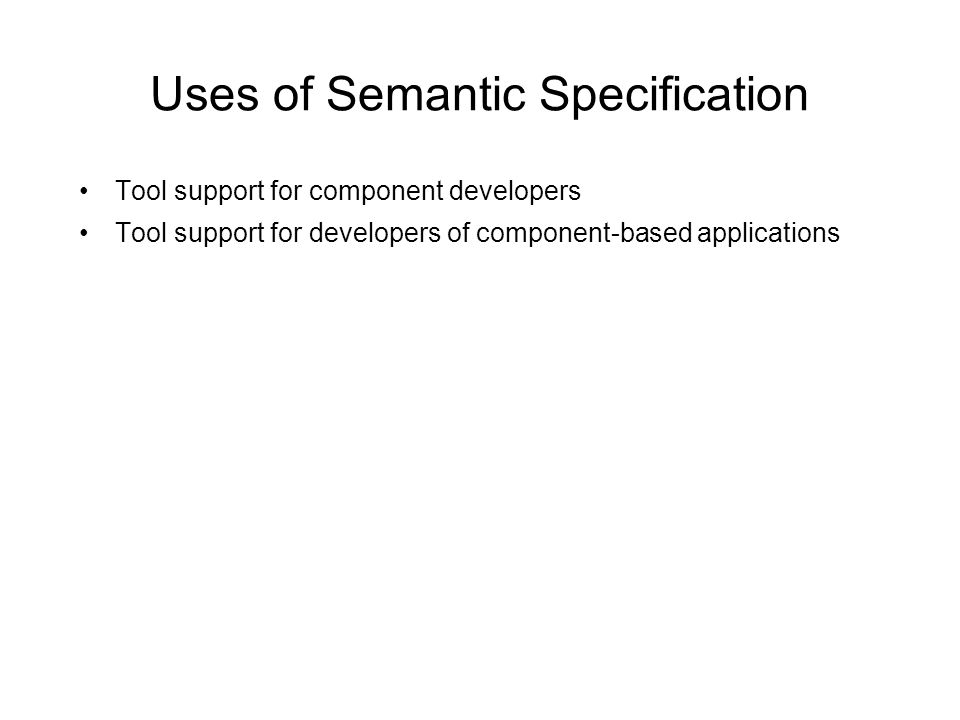

40. Uses of Semantic Specification Tool support for component developers Tool support for developers of component-based applications

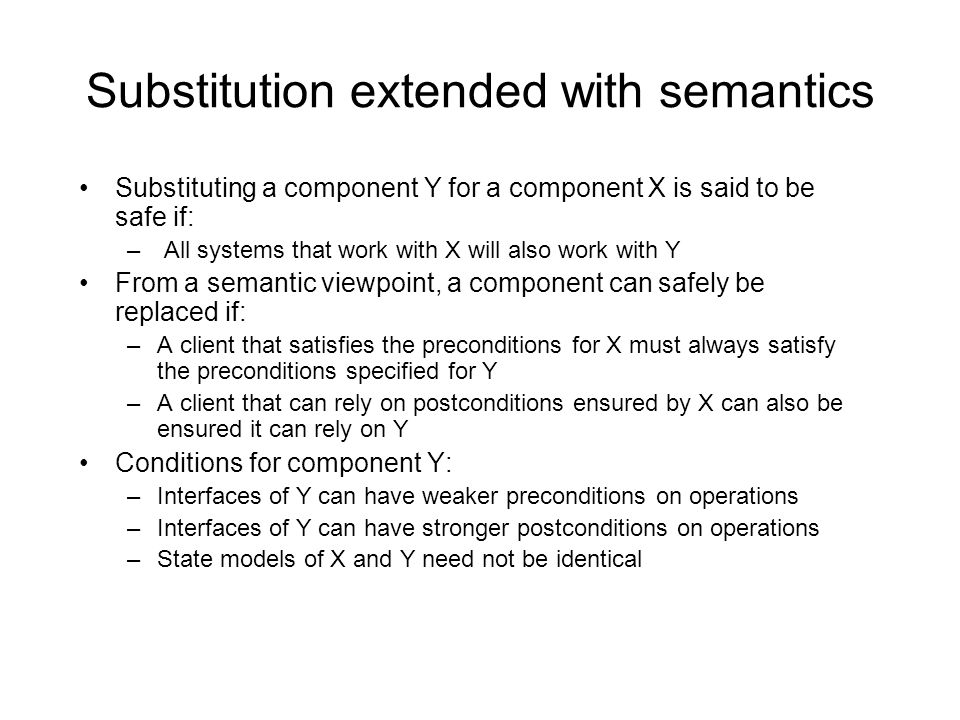

41. Substitution extended with semantics Substituting a component Y for a component X is said to be safe if: – All systems that work with X will also work with Y From a semantic viewpoint, a component can safely be replaced if: –A client that satisfies the preconditions for X must always satisfy the preconditions specified for Y –A client that can rely on postconditions ensured by X can also be ensured it can rely on Y Conditions for component Y: –Interfaces of Y can have weaker preconditions on operations –Interfaces of Y can have stronger postconditions on operations –State models of X and Y need not be identical

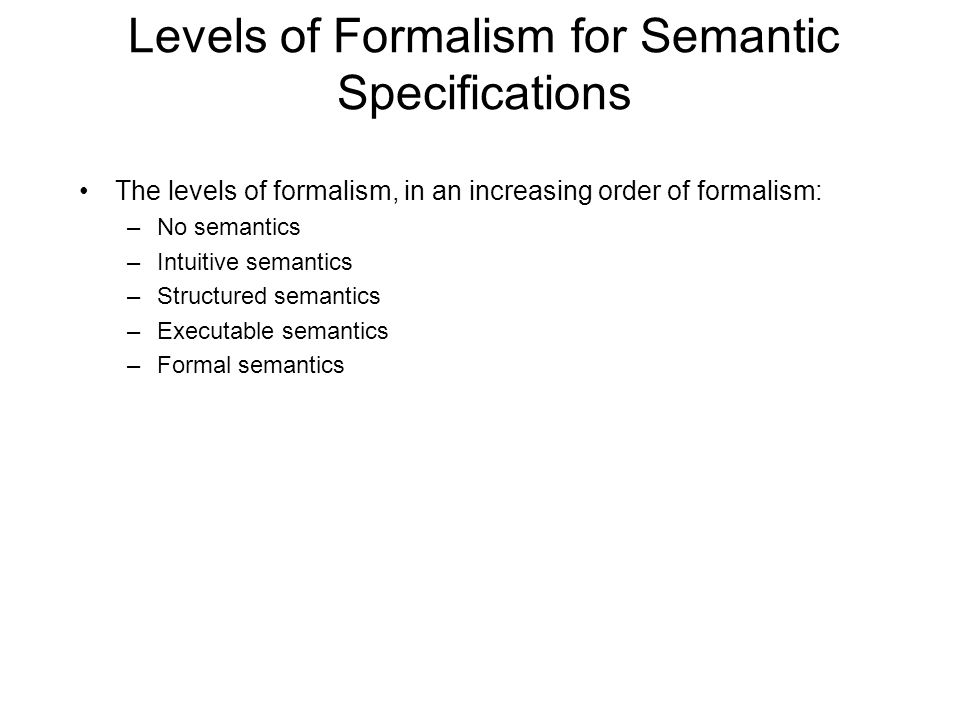

42. Levels of Formalism for Semantic Specifications The levels of formalism, in an increasing order of formalism: –No semantics –Intuitive semantics –Structured semantics –Executable semantics –Formal semantics

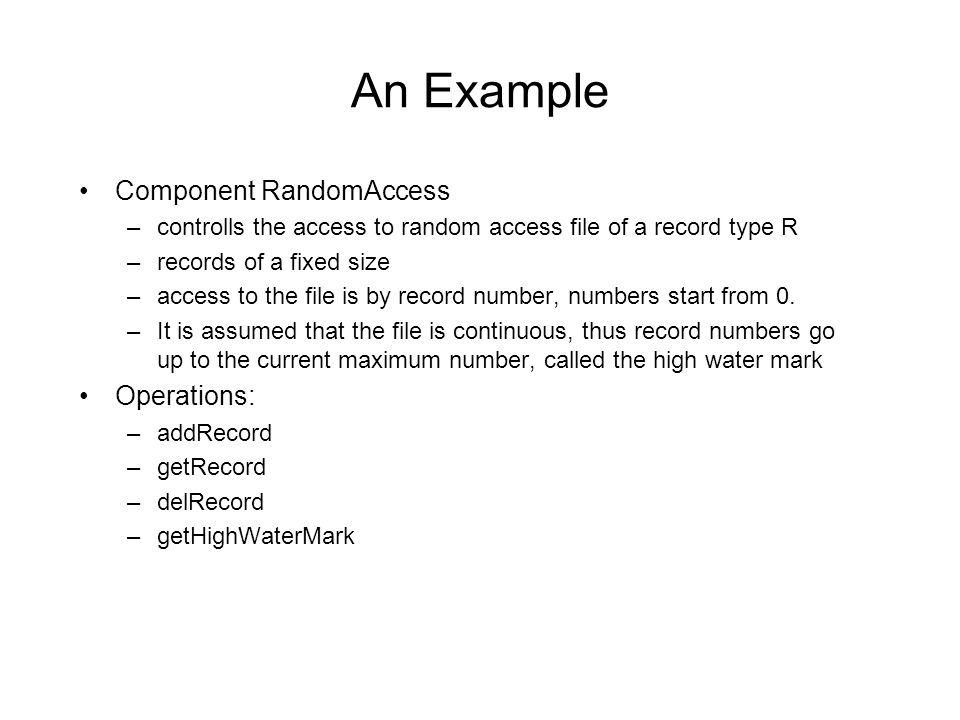

43. An Example Component RandomAccess –controlls the access to random access file of a record type R –records of a fixed size –access to the file is by record number, numbers start from 0. –It is assumed that the file is continuous, thus record numbers go up to the current maximum number, called the high water mark Operations: –addRecord –getRecord –delRecord –getHighWaterMark

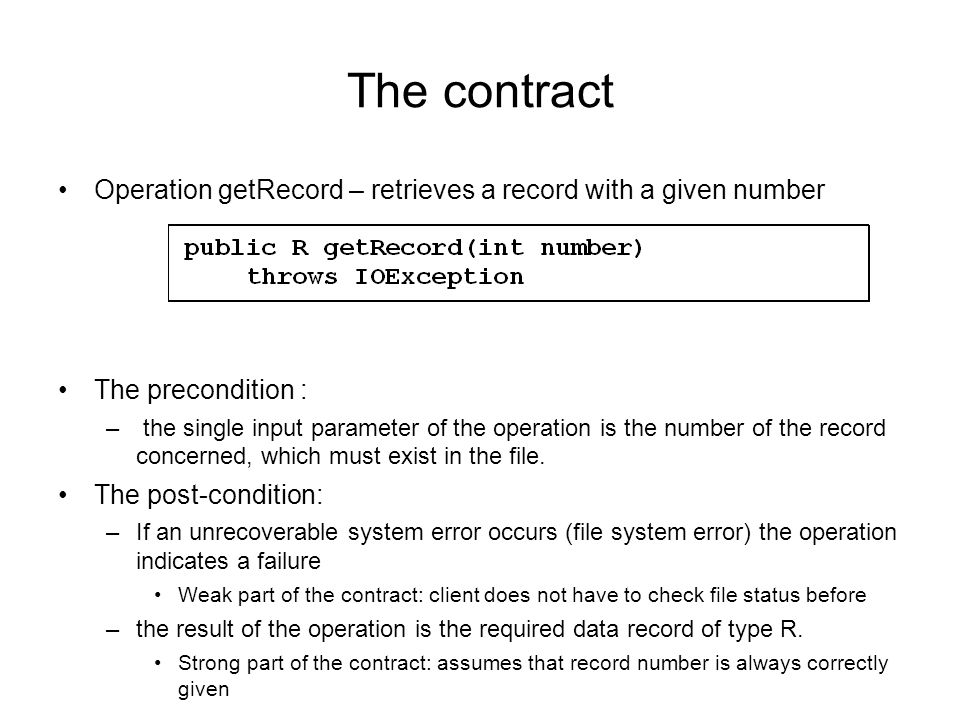

44. The contract Operation getRecord – retrieves a record with a given number The precondition : – the single input parameter of the operation is the number of the record concerned, which must exist in the file. The post-condition: –If an unrecoverable system error occurs (file system error) the operation indicates a failure Weak part of the contract: client does not have to check file status before –the result of the operation is the required data record of type R. Strong part of the contract: assumes that record number is always correctly given

45. Level 0: No Semantics The following definition of the operation getRecord illustrates how a purely syntactic specification would be given:

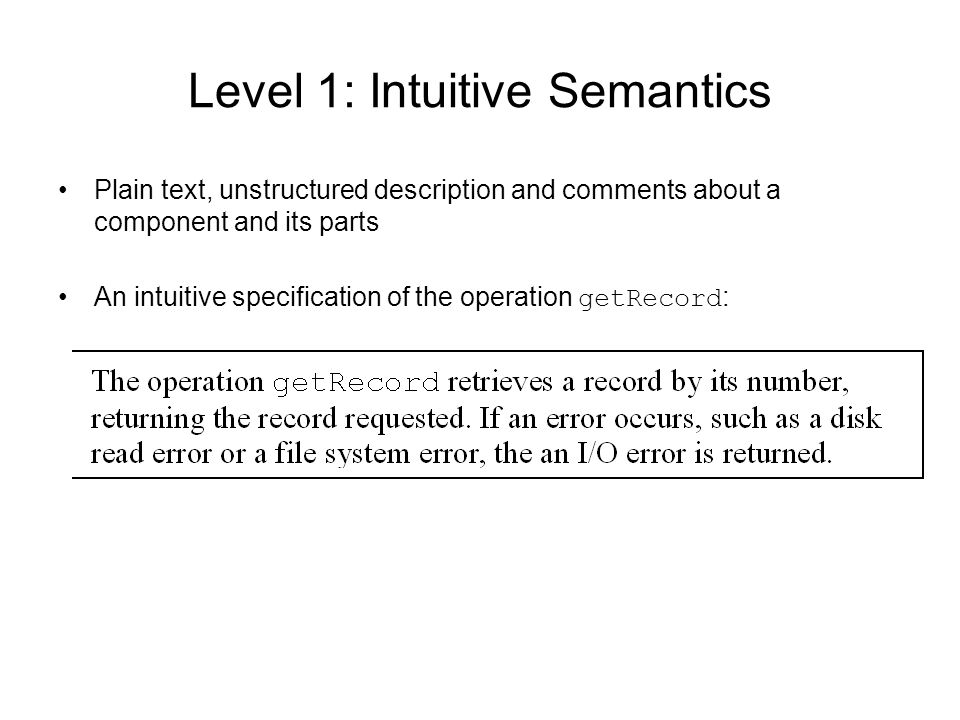

46. Level 1: Intuitive Semantics Plain text, unstructured description and comments about a component and its parts An intuitive specification of the operation getRecord :

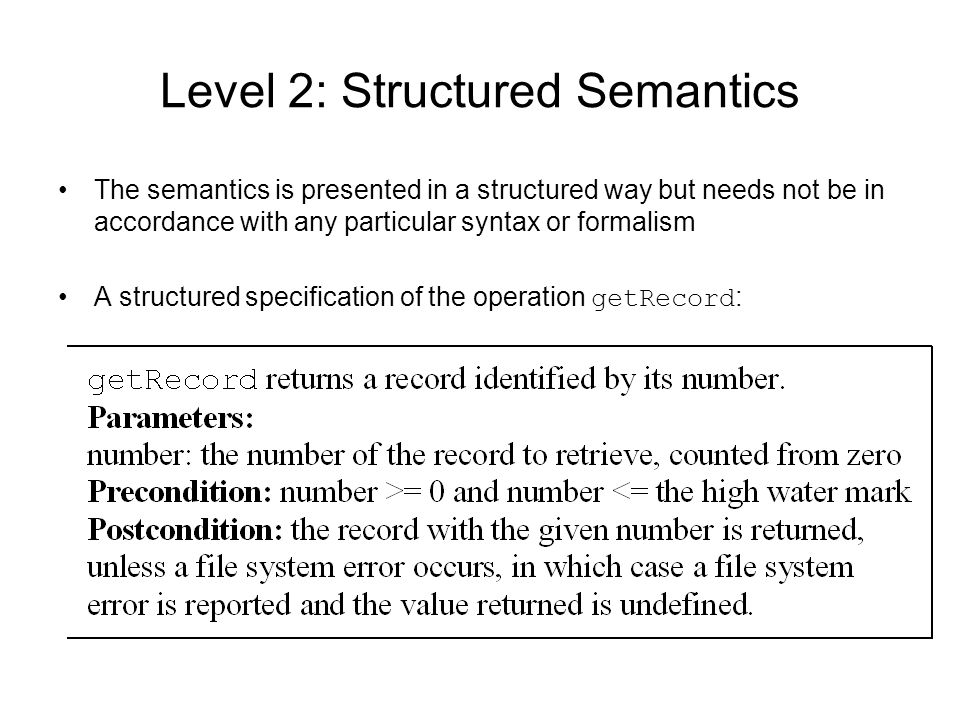

47. Level 2: Structured Semantics The semantics is presented in a structured way but needs not be in accordance with any particular syntax or formalism A structured specification of the operation getRecord :

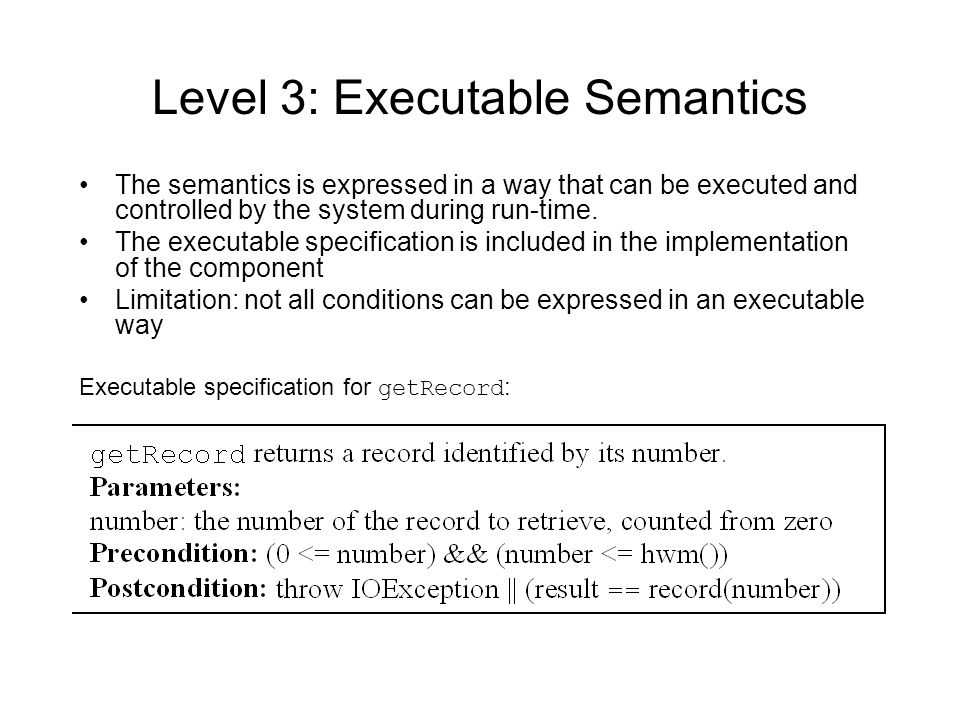

48. Level 3: Executable Semantics The semantics is expressed in a way that can be executed and controlled by the system during run-time. The executable specification is included in the implementation of the component Limitation: not all conditions can be expressed in an executable way Executable specification for getRecord :

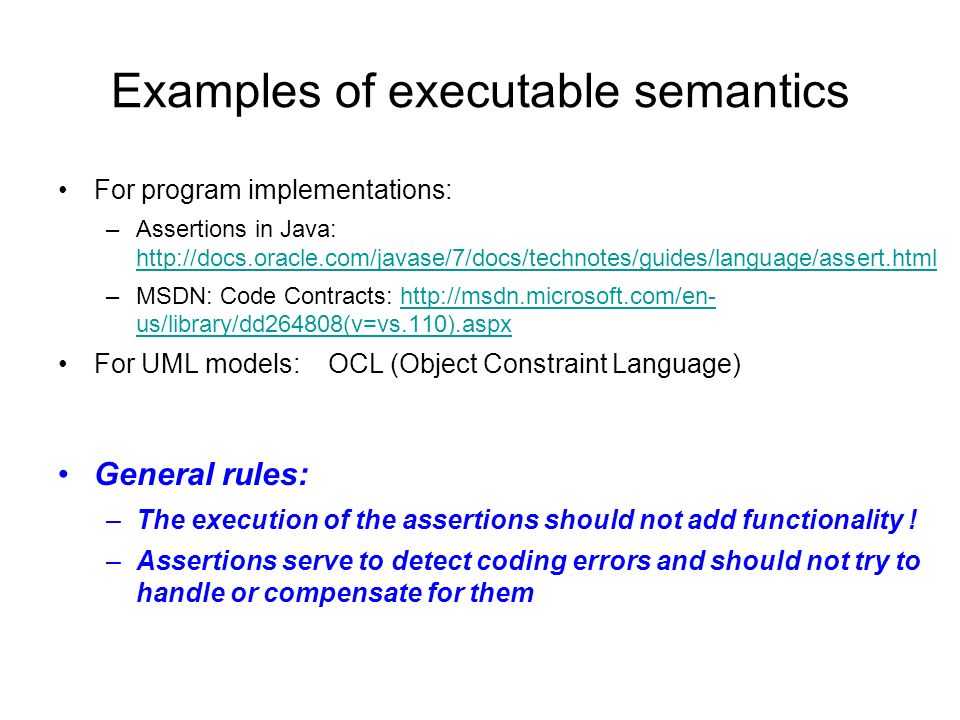

49. Examples of executable semantics For program implementations: –Assertions in Java: http://docs.oracle.com/javase/7/docs/technotes/guides/language/assert.html http://docs.oracle.com/javase/7/docs/technotes/guides/language/assert.html –MSDN: Code Contracts: http://msdn.microsoft.com/en- us/library/dd264808(v=vs.110).aspxhttp://msdn.microsoft.com/en- us/library/dd264808(v=vs.110).aspx For UML models: OCL (Object Constraint Language) General rules: –The execution of the assertions should not add functionality ! –Assertions serve to detect coding errors and should not try to handle or compensate for them

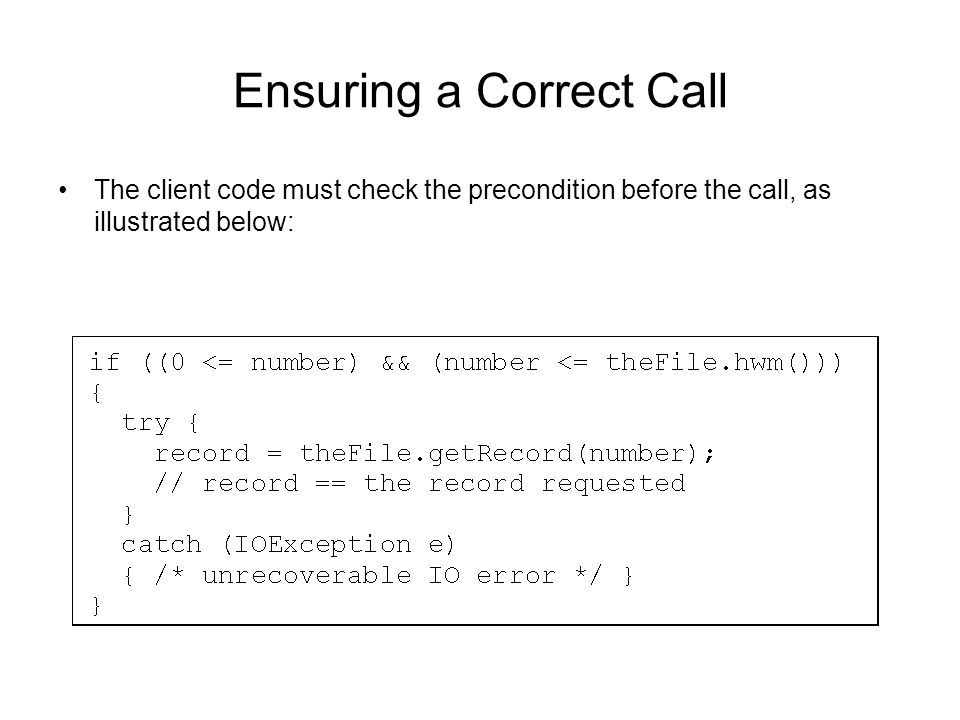

50. Ensuring a Correct Call The client code must check the precondition before the call, as illustrated below:

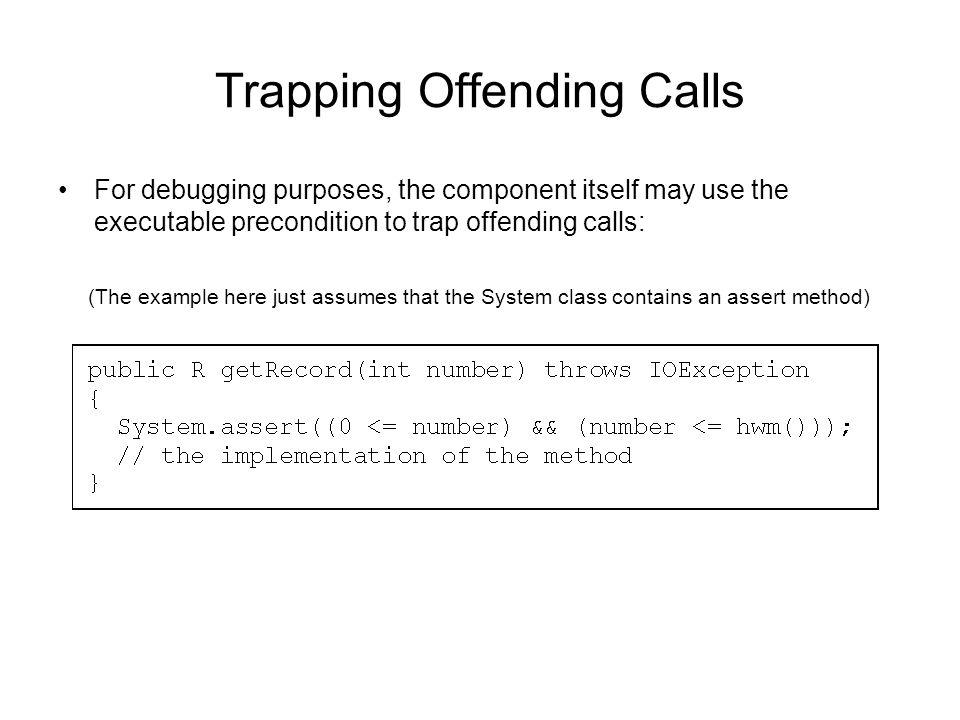

51. Trapping Offending Calls For debugging purposes, the component itself may use the executable precondition to trap offending calls: (The example here just assumes that the System class contains an assert method)

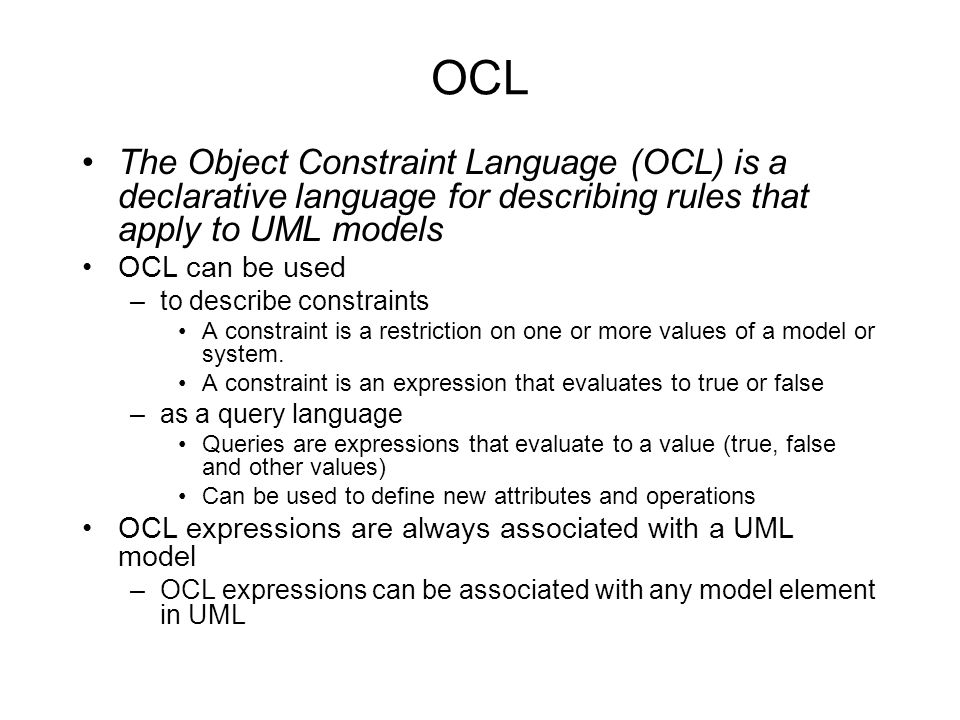

52. OCL The Object Constraint Language (OCL) is a declarative language for describing rules that apply to UML models OCL can be used –to describe constraints A constraint is a restriction on one or more values of a model or system. A constraint is an expression that evaluates to true or false –as a query language Queries are expressions that evaluate to a value (true, false and other values) Can be used to define new attributes and operations OCL expressions are always associated with a UML model –OCL expressions can be associated with any model element in UML

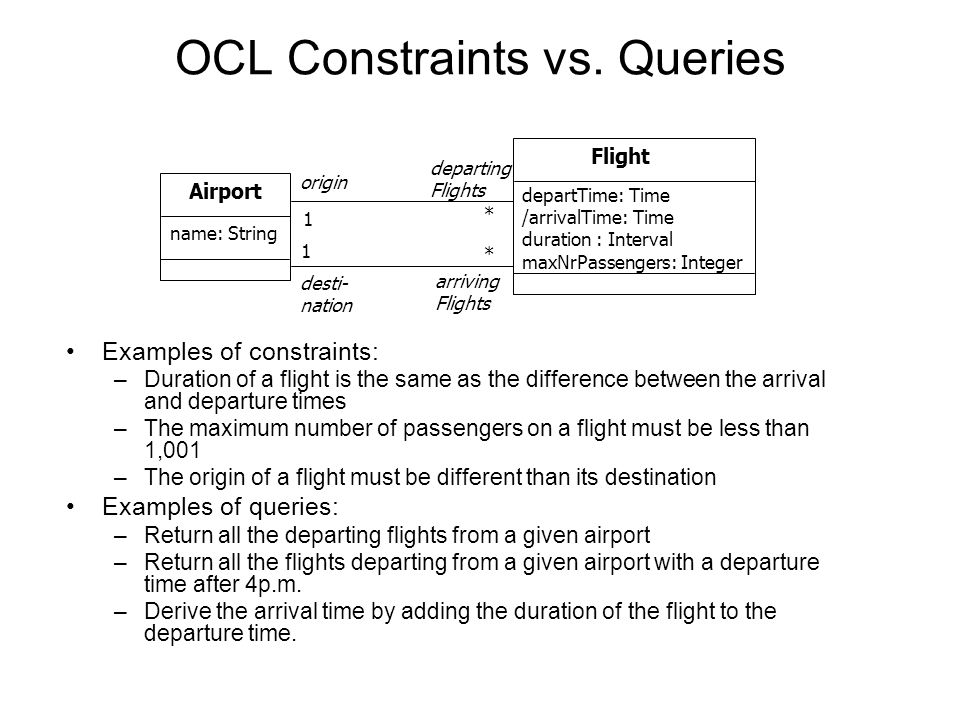

53. OCL Constraints vs. Queries Examples of constraints: –Duration of a flight is the same as the difference between the arrival and departure times –The maximum number of passengers on a flight must be less than 1,001 –The origin of a flight must be different than its destination Examples of queries: –Return all the departing flights from a given airport –Return all the flights departing from a given airport with a departure time after 4p.m. –Derive the arrival time by adding the duration of the flight to the departure time. Airport Flight * * departTime: Time /arrivalTime: Time duration : Interval maxNrPassengers: Integer origin desti- nation name: String arriving Flights departing Flights 1 1

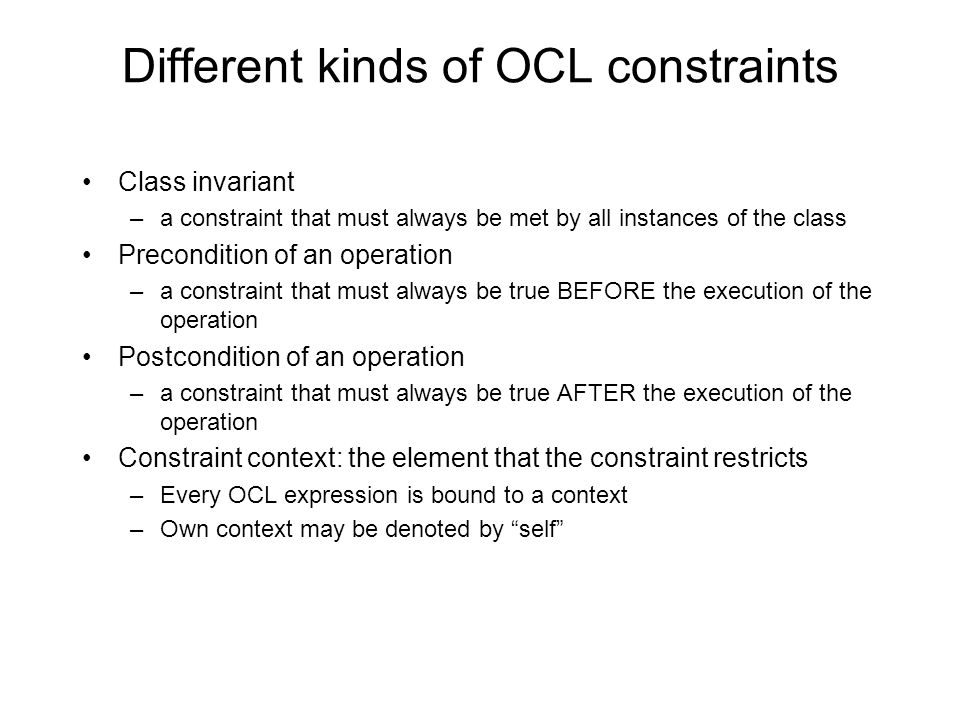

54. Different kinds of OCL constraints Class invariant –a constraint that must always be met by all instances of the class Precondition of an operation –a constraint that must always be true BEFORE the execution of the operation Postcondition of an operation –a constraint that must always be true AFTER the execution of the operation Constraint context: the element that the constraint restricts –Every OCL expression is bound to a context –Own context may be denoted by “self”

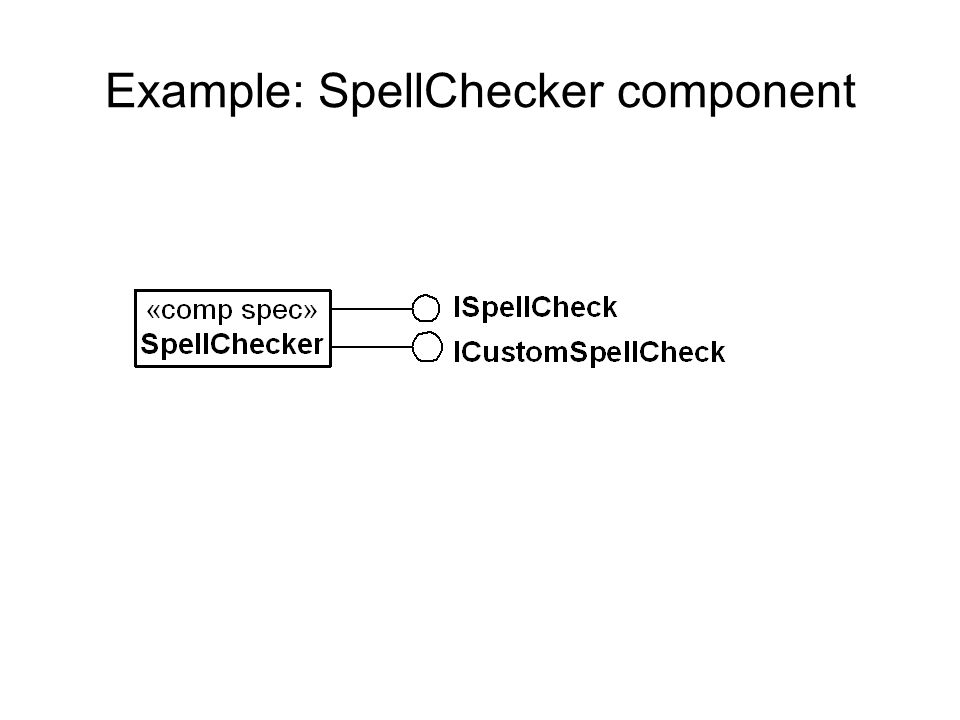

55. Example: SpellChecker component

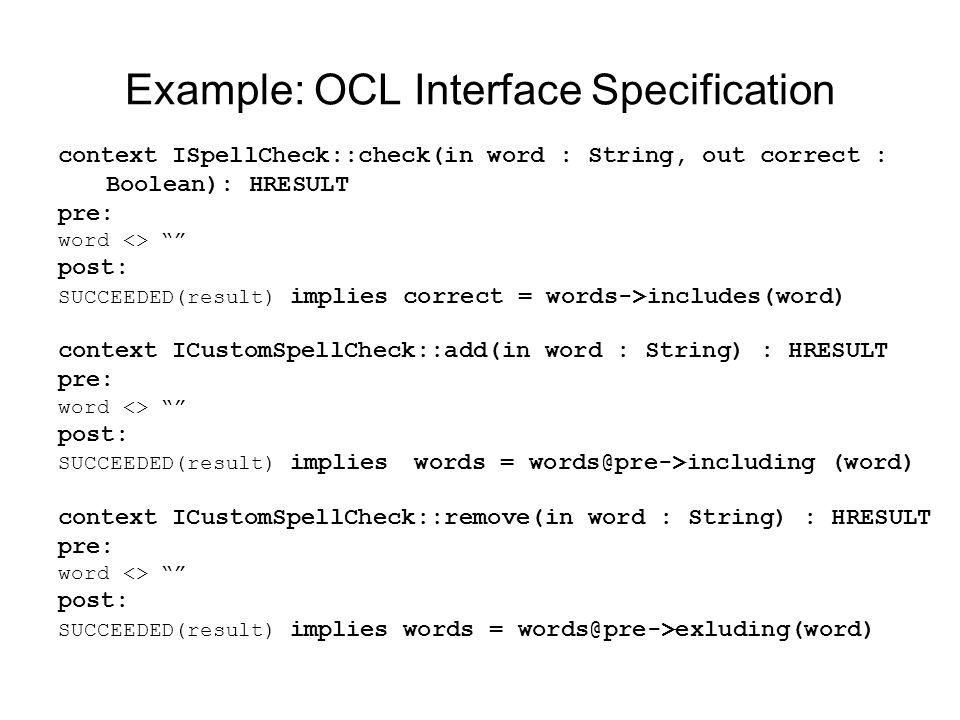

56. Example: OCL Interface Specification context ISpellCheck::check(in word : String, out correct : Boolean): HRESULT pre: word <> “” post: SUCCEEDED(result) implies correct = words->includes(word) context ICustomSpellCheck::add(in word : String) : HRESULT pre: word <> “” post: SUCCEEDED(result) implies words = words@pre->including (word) context ICustomSpellCheck::remove(in word : String) : HRESULT pre: word <> “” post: SUCCEEDED(result) implies words = words@pre->exluding(word)

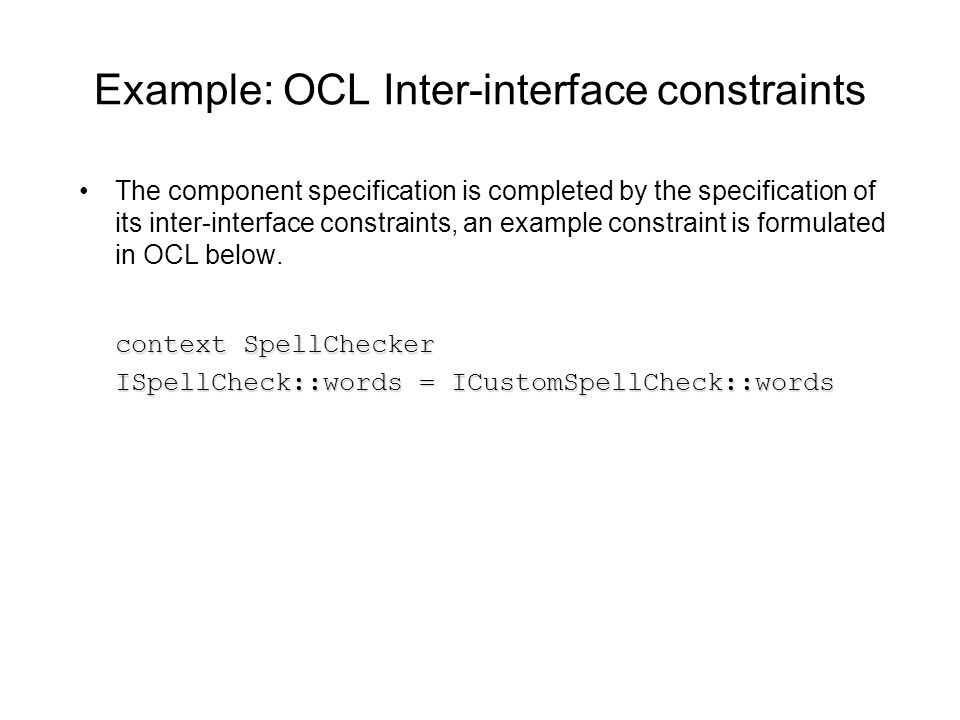

57. Example: OCL Inter-interface constraints The component specification is completed by the specification of its inter-interface constraints, an example constraint is formulated in OCL below. context SpellChecker ISpellCheck::words = ICustomSpellCheck::words

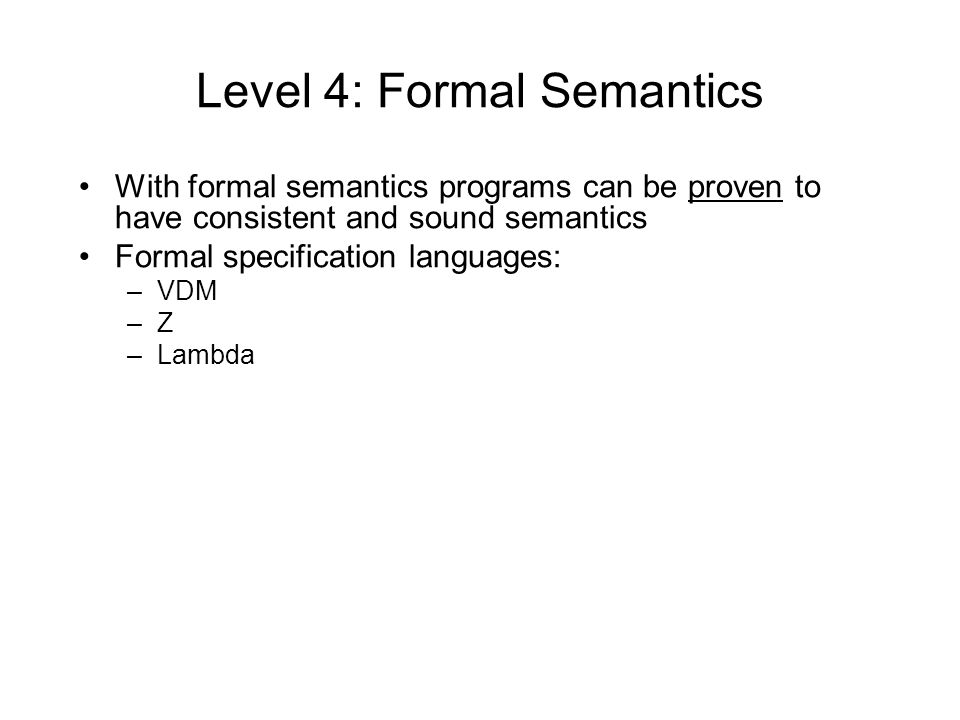

58. Level 4: Formal Semantics With formal semantics programs can be proven to have consistent and sound semantics Formal specification languages: –VDM –Z –Lambda

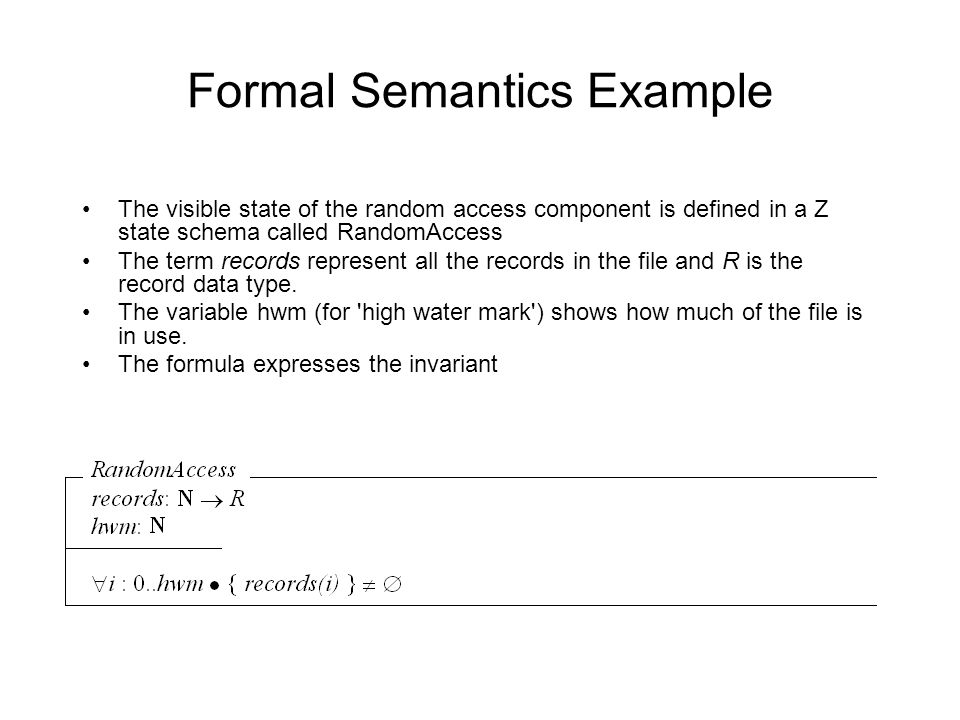

59. Formal Semantics Example The visible state of the random access component is defined in a Z state schema called RandomAccess The term records represent all the records in the file and R is the record data type. The variable hwm (for 'high water mark') shows how much of the file is in use. The formula expresses the invariant

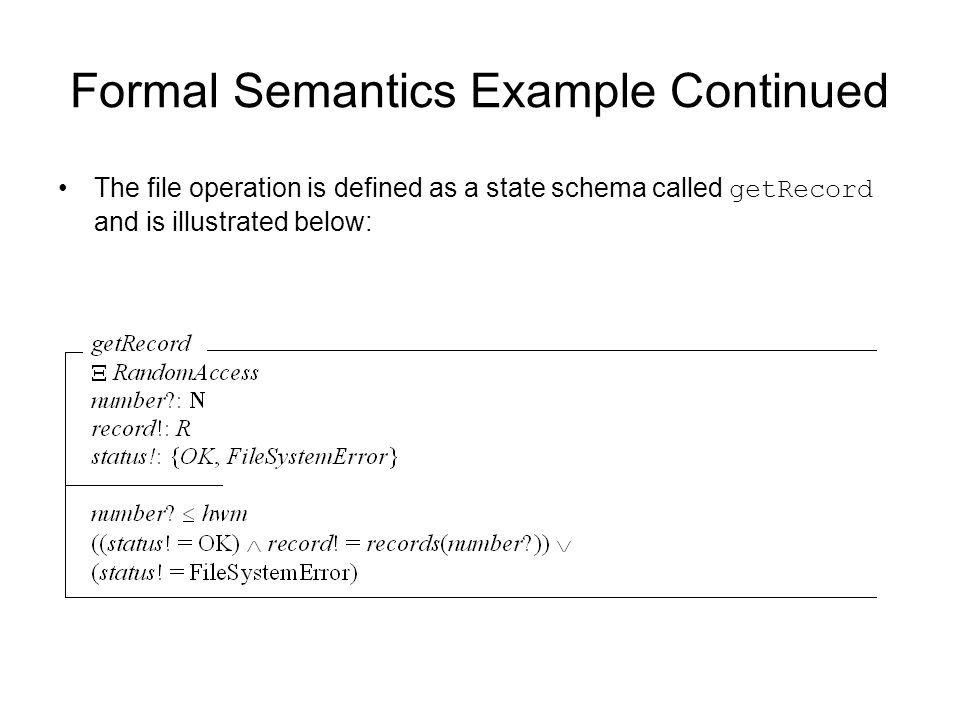

60. Formal Semantics Example Continued The file operation is defined as a state schema called getRecord and is illustrated below:

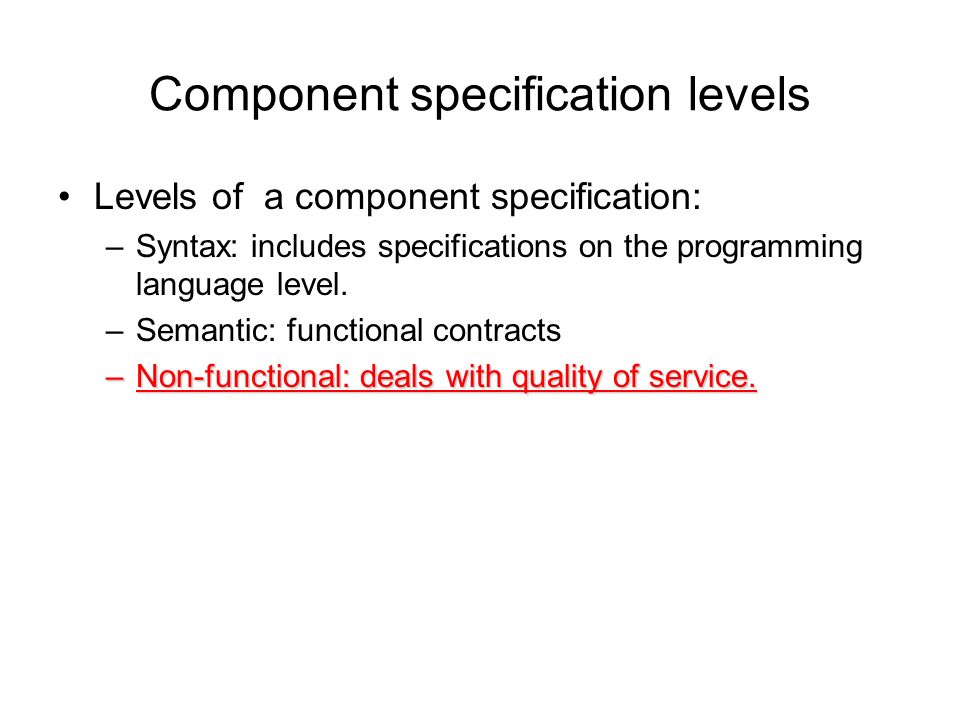

61. Component specification levels Levels of a component specification: –Syntax: includes specifications on the programming language level. –Semantic: functional contracts –Non-functional: deals with quality of service.

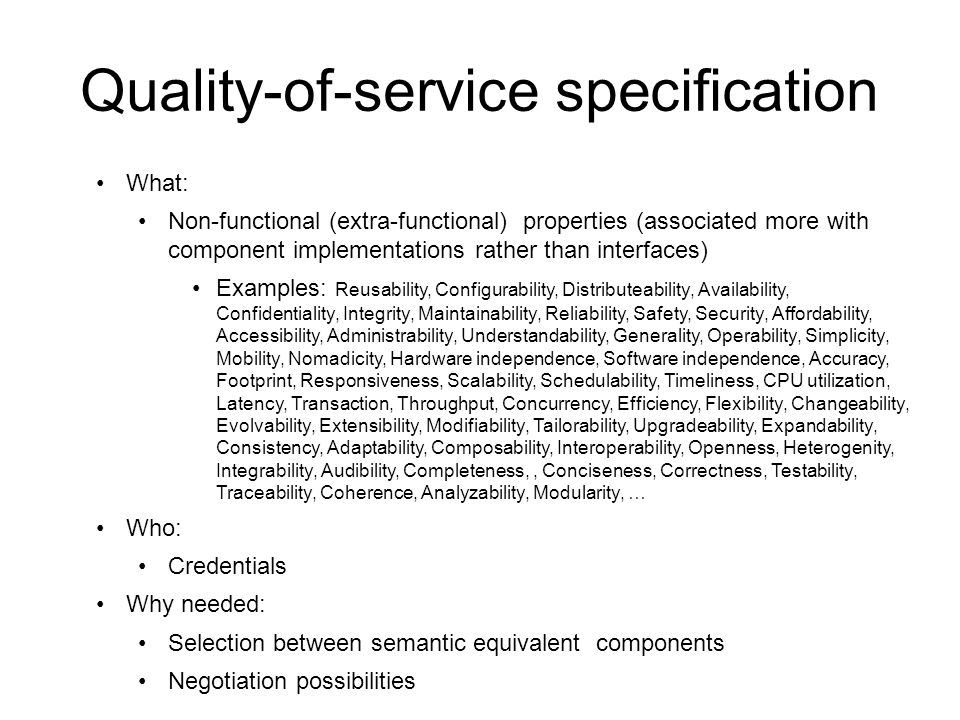

62. Quality-of-service specification What: Non-functional (extra-functional) properties (associated more with component implementations rather than interfaces) Examples: Reusability, Configurability, Distributeability, Availability, Confidentiality, Integrity, Maintainability, Reliability, Safety, Security, Affordability, Accessibility, Administrability, Understandability, Generality, Operability, Simplicity, Mobility, Nomadicity, Hardware independence, Software independence, Accuracy, Footprint, Responsiveness, Scalability, Schedulability, Timeliness, CPU utilization, Latency, Transaction, Throughput, Concurrency, Efficiency, Flexibility, Changeability, Evolvability, Extensibility, Modifiability, Tailorability, Upgradeability, Expandability, Consistency, Adaptability, Composability, Interoperability, Openness, Heterogenity, Integrability, Audibility, Completeness,, Conciseness, Correctness, Testability, Traceability, Coherence, Analyzability, Modularity, … Who: Credentials Why needed: Selection between semantic equivalent components Negotiation possibilities

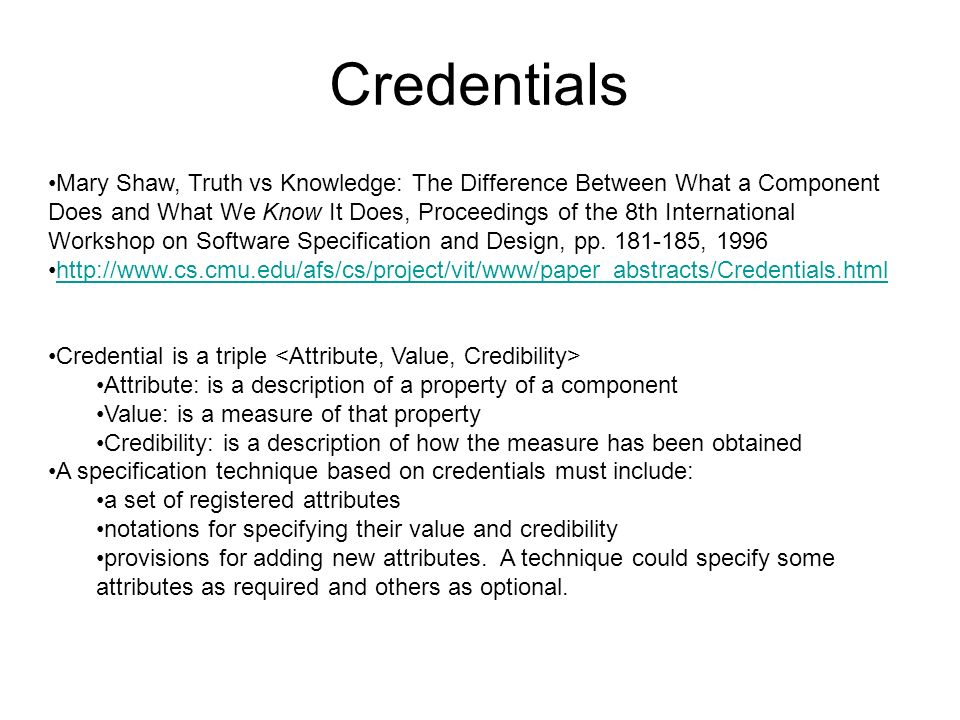

63. Credentials Mary Shaw, Truth vs Knowledge: The Difference Between What a Component Does and What We Know It Does, Proceedings of the 8th International Workshop on Software Specification and Design, pp. 181-185, 1996 http://www.cs.cmu.edu/afs/cs/project/vit/www/paper_abstracts/Credentials.html Credential is a triple Attribute: is a description of a property of a component Value: is a measure of that property Credibility: is a description of how the measure has been obtained A specification technique based on credentials must include: a set of registered attributes notations for specifying their value and credibility provisions for adding new attributes. A technique could specify some attributes as required and others as optional.

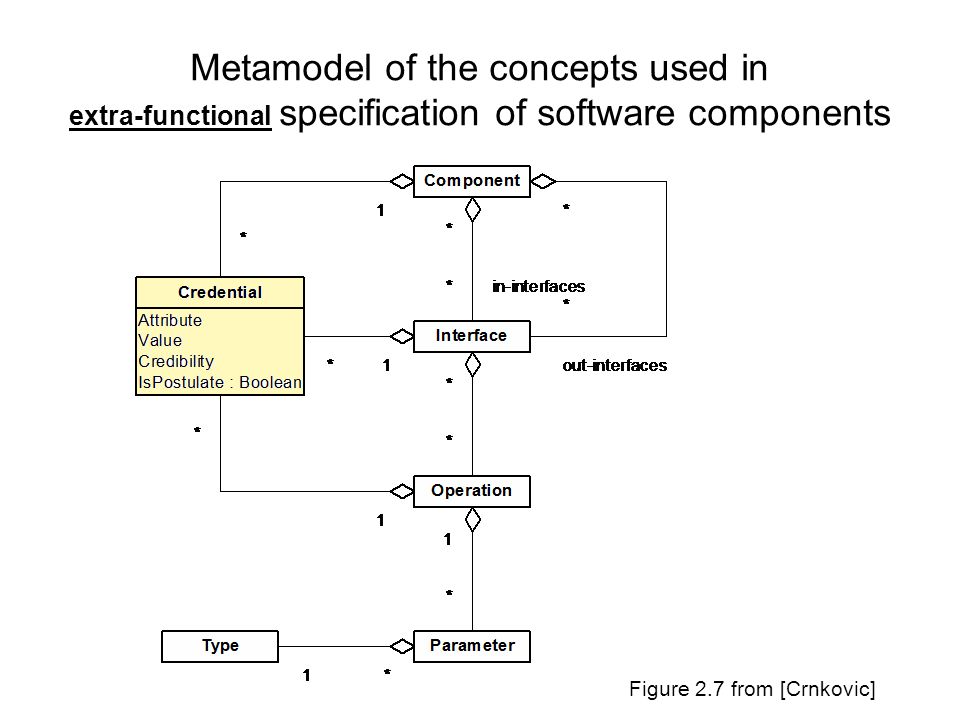

64. Metamodel of the concepts used in extra-functional specification of software components Figure 2.7 from [Crnkovic]

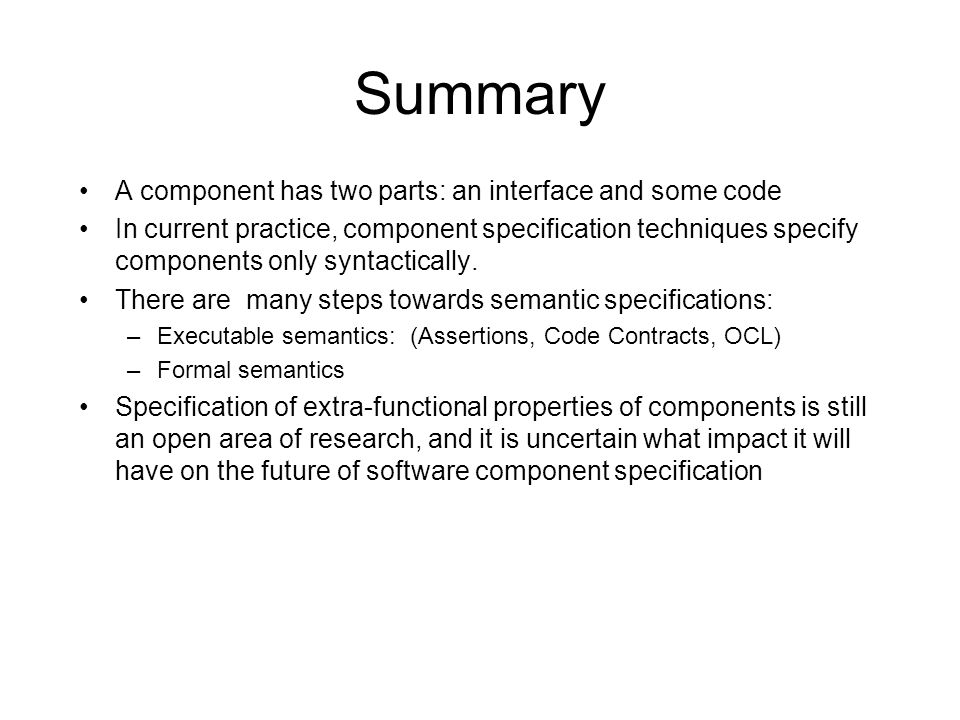

65. Summary A component has two parts: an interface and some code In current practice, component specification techniques specify components only syntactically. There are many steps towards semantic specifications: –Executable semantics: (Assertions, Code Contracts, OCL) –Formal semantics Specification of extra-functional properties of components is still an open area of research, and it is uncertain what impact it will have on the future of software component specification

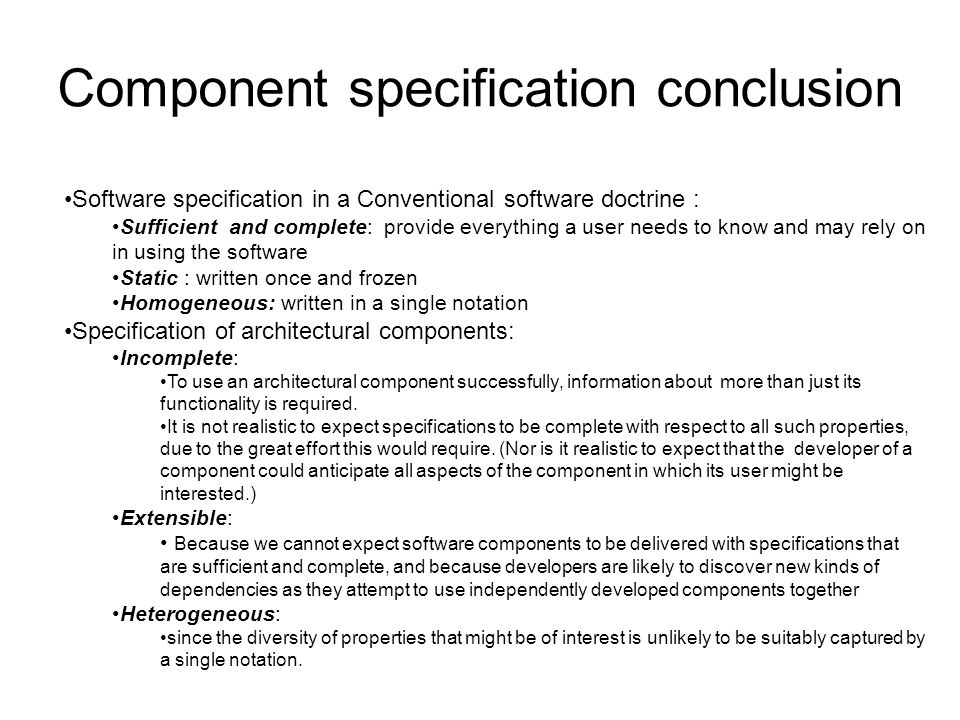

66. Component specification conclusion Software specification in a Conventional software doctrine : Sufficient and complete: provide everything a user needs to know and may rely on in using the software Static : written once and frozen Homogeneous: written in a single notation Specification of architectural components: Incomplete: To use an architectural component successfully, information about more than just its functionality is required. It is not realistic to expect specifications to be complete with respect to all such properties, due to the great effort this would require. (Nor is it realistic to expect that the developer of a component could anticipate all aspects of the component in which its user might be interested.) Extensible: Because we cannot expect software components to be delivered with specifications that are sufficient and complete, and because developers are likely to discover new kinds of dependencies as they attempt to use independently developed components together Heterogeneous: since the diversity of properties that might be of interest is unlikely to be suitably captured by a single notation.
