1. Tutorial session 1 Network generation Exploring PPI networks using Cytoscape EMBO Practical Course Session 8 Nadezhda Doncheva and Piet Molenaar

2. Overview  Focus: Network generation  Importing pre-formatted networks  Generating new networks  Visualizing networks  Saving and exporting network data  Concepts  Layouts  Data  Drosophila protein network 9/12/20152

3. Let’s start: GUI basics (Demo) 9/12/20153

4. Loading networks  Import pre-formatted networks  SIF  GML, XGMML  BioPAX  PSI-MI 1 & 2.5  SBML Level 2  Import your own data from a table  Excel file  Delimited text (tab, comma, etc…) 9/12/20154

5. Loading networks (Demo) 9/12/20155

6. Layouts  Many algorithms available through plugins  Simple: grid, not very informative  Hierarchical: layout data as a tree or hierarchy (works best when there are no loops)  Circular (Radial): arrange nodes around a circle, could use node attributes to govern position, e.g. degree sorted  Force-Directed: simulate edges as springs (nodes repel and edges pull), good for up to 500 nodes  Multi-layer layouts: partition graph, layout each partition and then layout partitions  … 9/12/20156

7. Layouts (Demo) 9/12/20157

8. Tips & Tricks: Layouts  Use layouts to convey the relationships between the nodes  Layout algorithms may need to be ”tuned” to fit your network (Layouts  Settings... menu)  Consider laying out portions of your network  Adjust the layout manually  Load network into a drawing program (e.g. Illustrator) and adjust labels 9/12/20158

9. Use case: Drosophila Protein network  Although from fly, serves as model for human  Groundbreaking work now done in model systems  What did they do  Bait-Protein interactions  Statistical analysis; highly confident set 9/12/20159

10. Use case: Assignment 1.1 1. Open the DrosophilaBasicSession.cys file 2. Test several layouts; which one is informative? http://cytoscape.org/manual/Cytoscape2_8Manual.html#Import Free-Format Table Files http://cytoscape.org/manual/Cytoscape2_8Manual.html#Automatic Layout Algorithms 9/12/201510

11. Generating networks  Import network from web services supported by Cytoscape  Pathway commons (only well-studied organisms)  PSICQUIC Universal Client (collection of many public databases)  MiMI (Michigan Molecular Interactions database)  BisoGenet (SysBiomics database)  Generate a network using a Cytoscape plugin  AgilentLiteratureSearch (based on text mining) 9/12/201511

12. Generating networks (Demo) 9/12/201512

13. Use case; Assignment 1.2 1. Try to locate the protein complexes found in the article in the network 2. Lookup existing interactions for one of the MCM genes in the PathwayCommons webservice http://cytoscape.org/manual/Cytoscape2_8Manual.html#Example #3: Retrieving Pathways and Networks from Pathway Commons 9/12/201513

14. Tips & Tricks: Network view  When you open a large network, you will not get a view by default  To improve interactive performance, Cytoscape has the concept of ”Levels of Detail”  Some visual attributes will only be apparent when you zoom in  The level of detail for various attributes can be changed in the preferences  To see what things will look like at full detail: go to View  Show Graphics Details 9/12/201514

15. Exporting & saving data  Sessions save pretty much everything: Networks, Properties, Visual styles, Screen sizes  Export networks in different formats: SIF, GML, XGMML, BioPAX, PSI-MI 1 & 2.5  Publication quality graphics in several formats: PDF, EPS, SVG, PNG, JPEG, and BMP  Export Session to HTML for Web (SessionForWeb plugin) 9/12/201515

16. Exporting & saving data (Demo) 9/12/201516

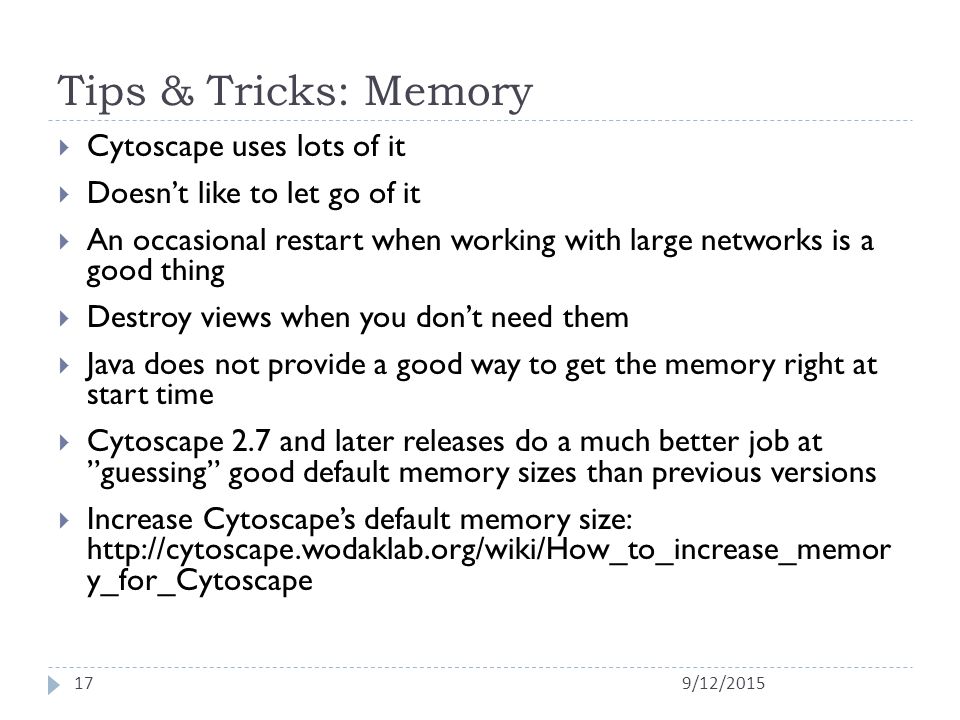

17. Tips & Tricks: Memory  Cytoscape uses lots of it  Doesn’t like to let go of it  An occasional restart when working with large networks is a good thing  Destroy views when you don’t need them  Java does not provide a good way to get the memory right at start time  Cytoscape 2.7 and later releases do a much better job at ”guessing” good default memory sizes than previous versions  Increase Cytoscape’s default memory size: http://cytoscape.wodaklab.org/wiki/How_to_increase_memor y_for_Cytoscape 9/12/201517

18. Tips & Tricks: General  By default, Cytoscape writes it’s logs to the Error Dialog: Help  Error Dialog  Change the ”logger.console” preference in Edit  Preferences  Properties... to write it to the console .cytoscape directory  Your defaults and any plugins downloaded from the plugin manager will go here  Sometimes, if things get really messed up, deleting (or renaming) this directory can give you a ”clean slate”  Plugin manager  ”Outdated” doesn’t necessarily mean ”won’t work”  Plugin authors don’t always update their plugins immediately after new releases  Open source; sometimes bugs occur! 9/12/201518

19. Use case: Assignment 1.3 1. Export the network view as figure 2. Find out in which format you’d best save your network 3. Save your session for later use http://cytoscape.org/manual/Cytoscape2_8Manual.html#Supported Network File Formats 9/12/201519

20. Cytoscape extended functionality 9/12/201520  Cytoscape extends its functionality with plugins  Developed by third parties  Listed at http://apps.cytoscape.org/  Usually available through the Plugin Manager  Can be downloaded from the plugins’s websites  Cover many diverse areas of application

21. Cytoscape Plugin Manager (Demo) 9/12/201521

22. Use case: Assignment 1.4 1. Explore available plugins for PPi relevance http://cytoscape.org/manual/Cytoscape2_8Manual.html#Plugins and the Plugin Manager 9/12/201522

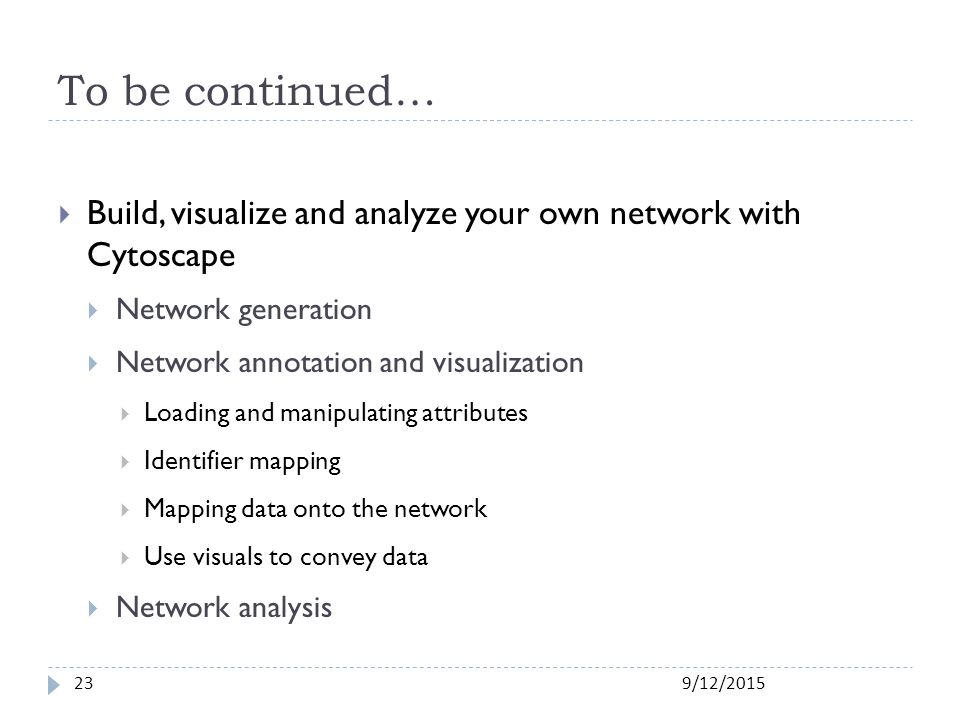

23. To be continued…  Build, visualize and analyze your own network with Cytoscape  Network generation  Network annotation and visualization  Loading and manipulating attributes  Identifier mapping  Mapping data onto the network  Use visuals to convey data  Network analysis 9/12/201523
