1. Student Planner April 22, 2015 Place this in the proper place Astronomy night Wednesday April 29 (note change of date) You need planner, notes, pen/pencil

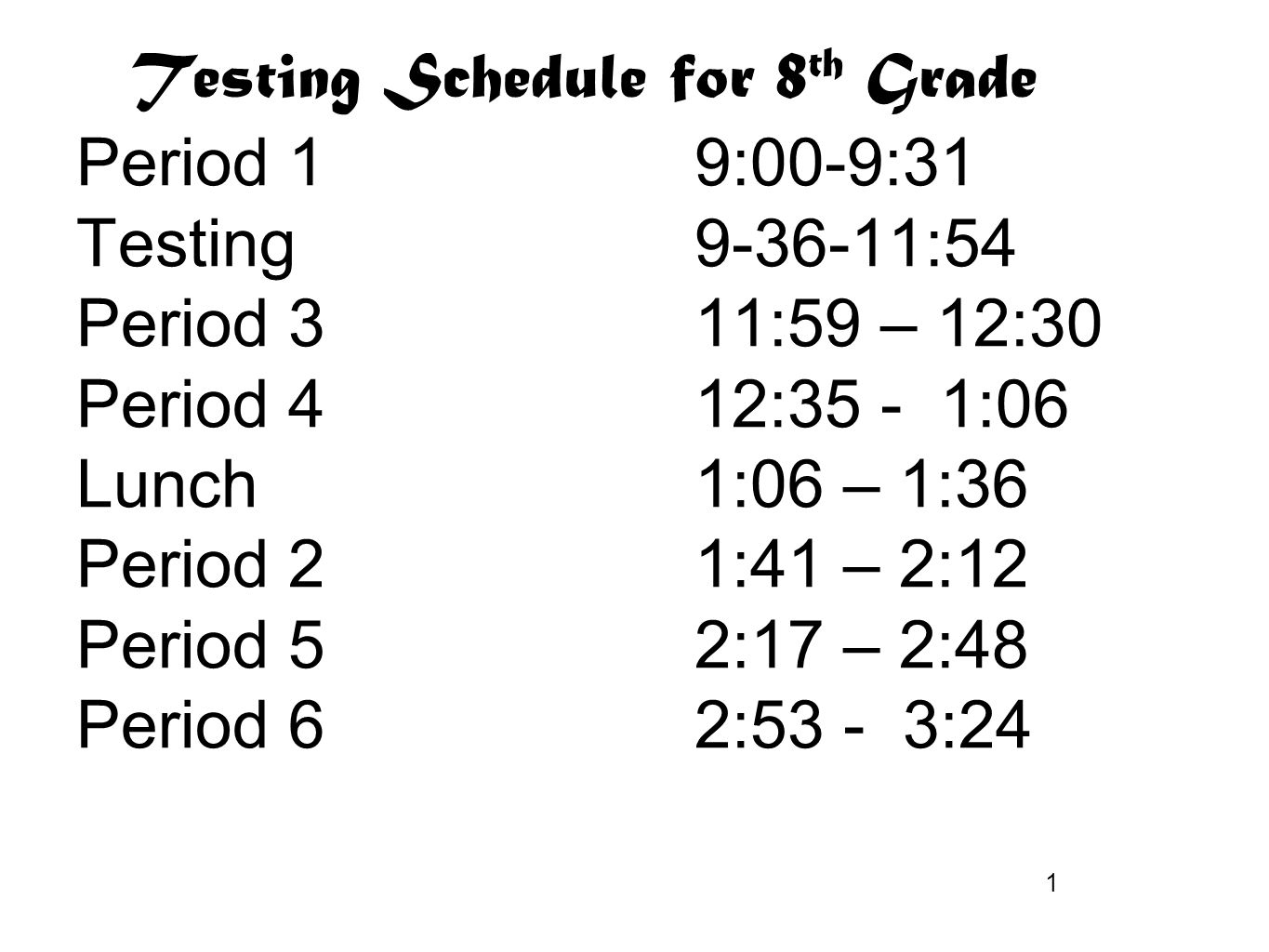

2. Testing Schedule for 8 th Grade Period 19:00-9:31 Testing9-36-11:54 Period 311:59 – 12:30 Period 412:35 - 1:06 Lunch1:06 – 1:36 Period 21:41 – 2:12 Period 52:17 – 2:48 Period 62:53 - 3:24 1

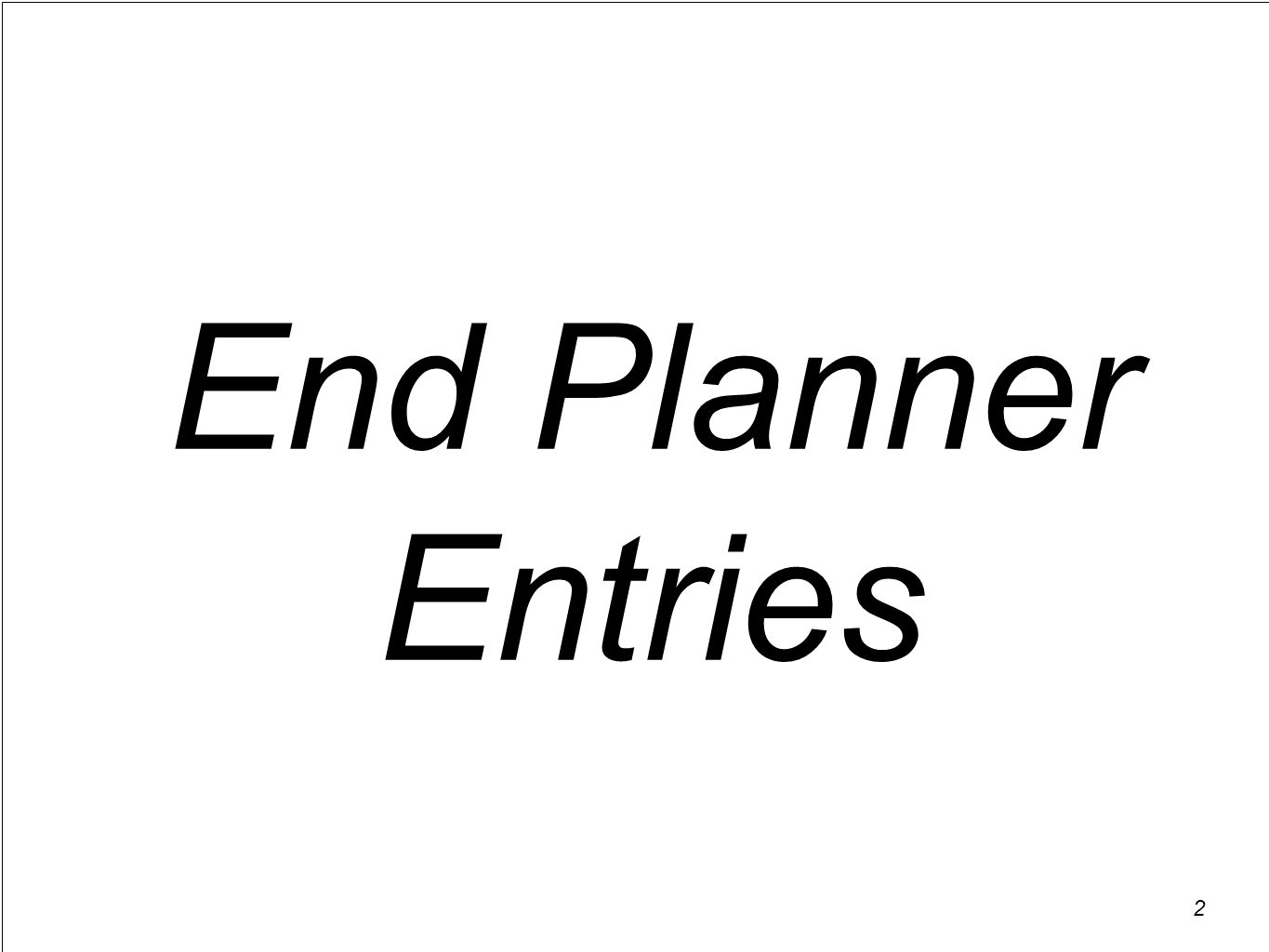

3. 2 End Planner Entries

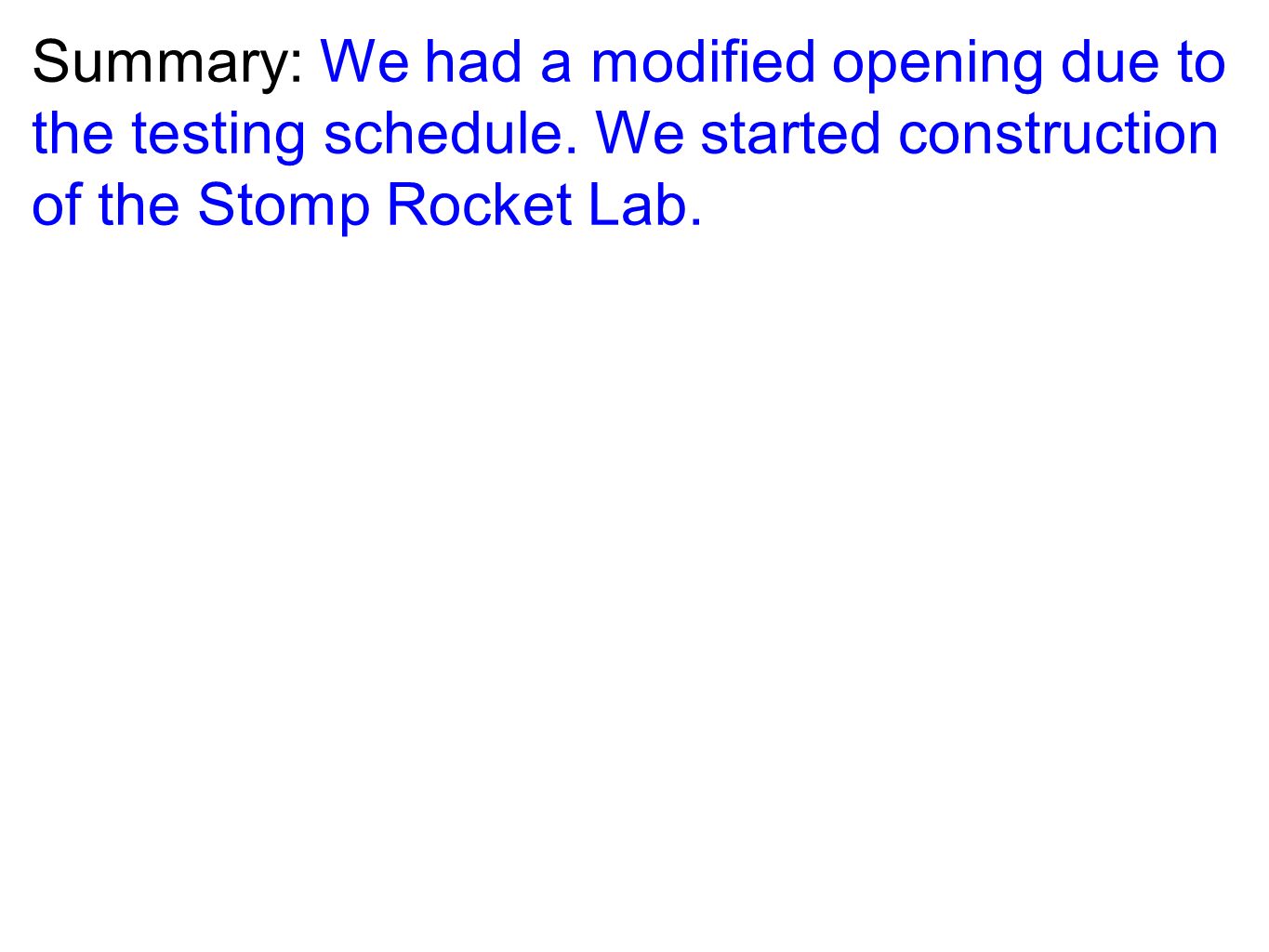

4. Summary: We had a modified opening due to the testing schedule. We started construction of the Stomp Rocket Lab.

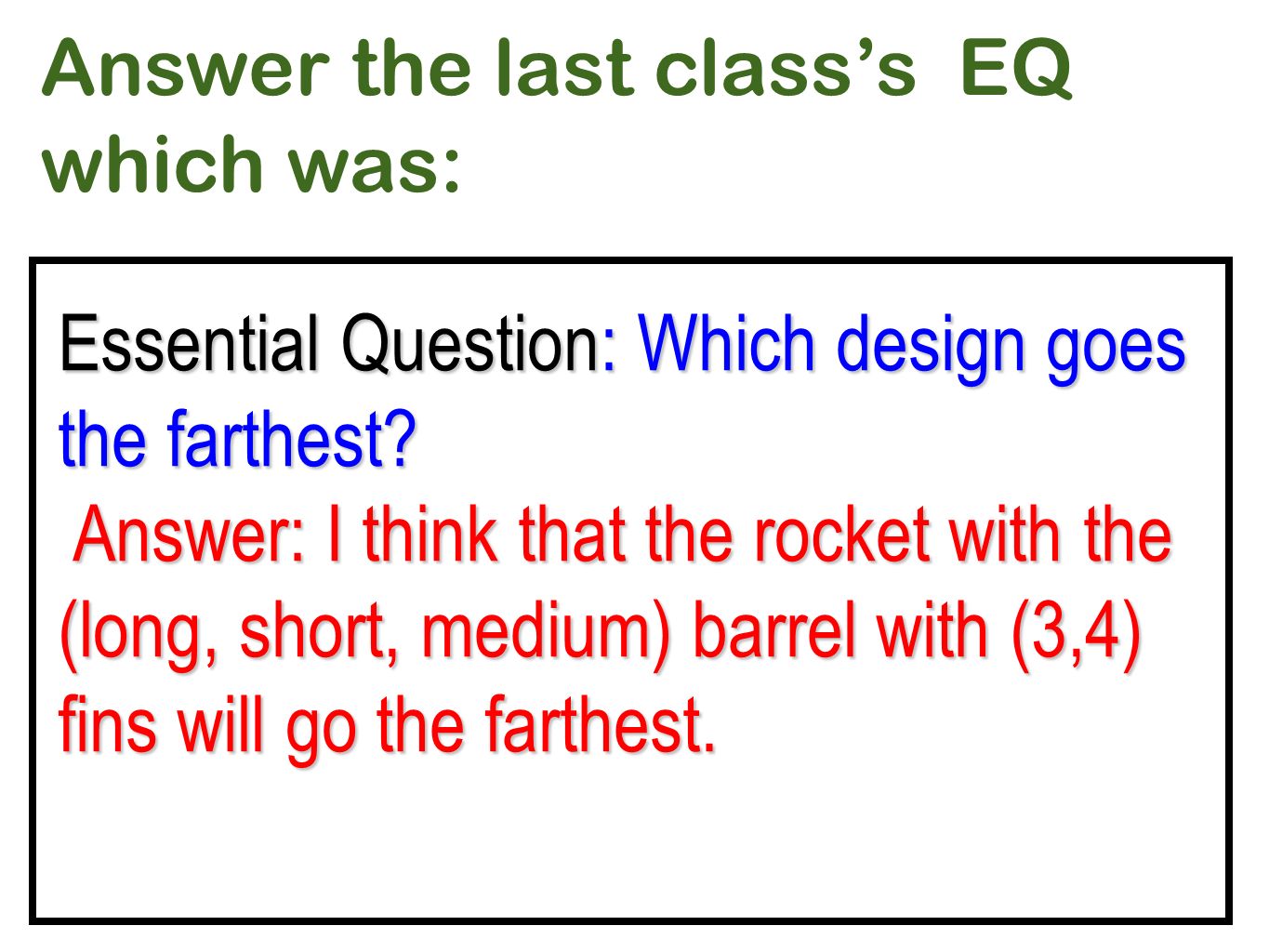

5. Answer the last class’s EQ which was: Essential Question: Which design goes the farthest? Answer: I think that the rocket with the (long, short, medium) barrel with (3,4) fins will go the farthest. Answer: I think that the rocket with the (long, short, medium) barrel with (3,4) fins will go the farthest.

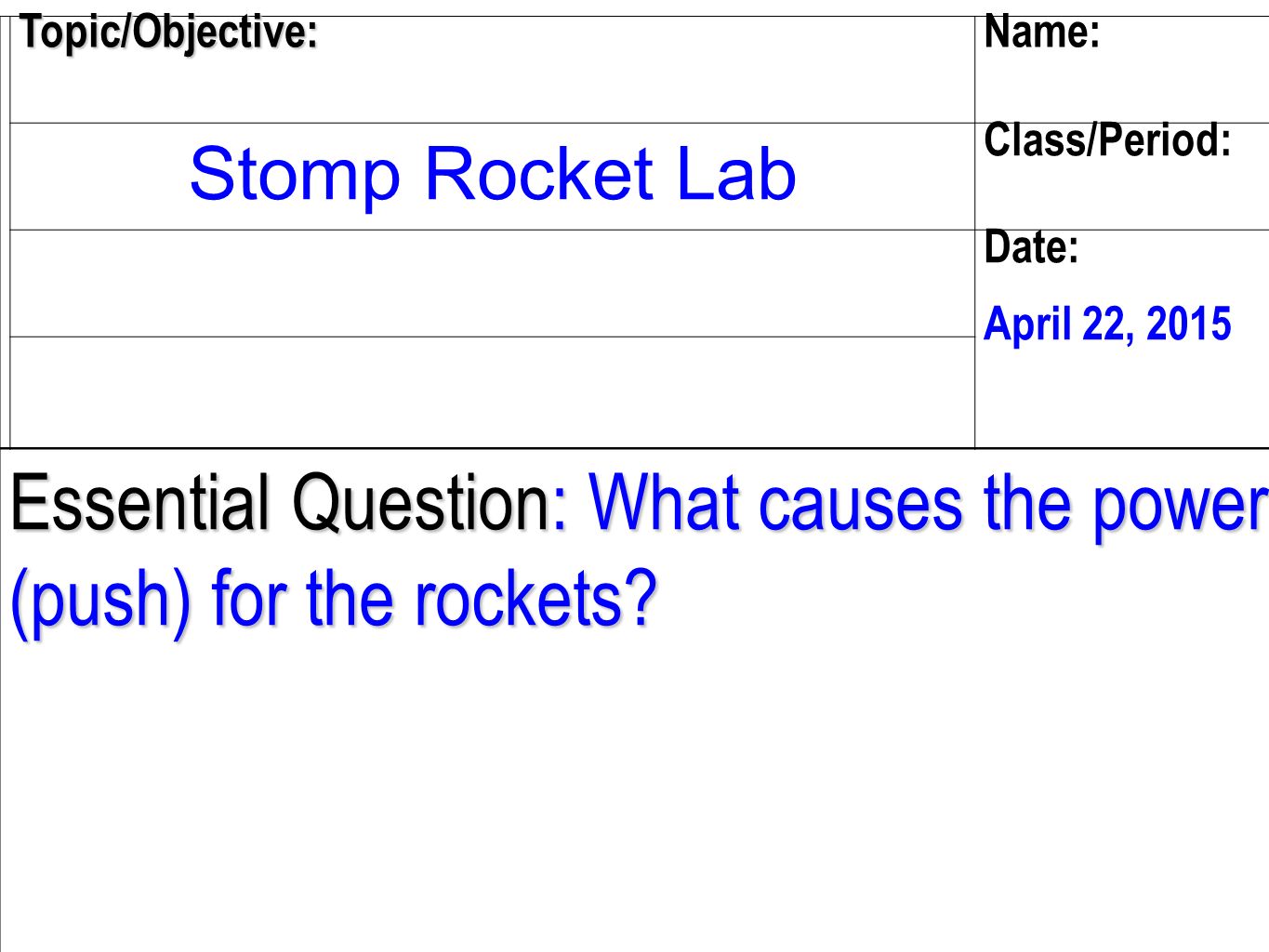

6. Topic/Objective: Name: Stomp Rocket Lab Class/Period: Date: April 22, 2015 Essential Question: What causes the power (push) for the rockets?

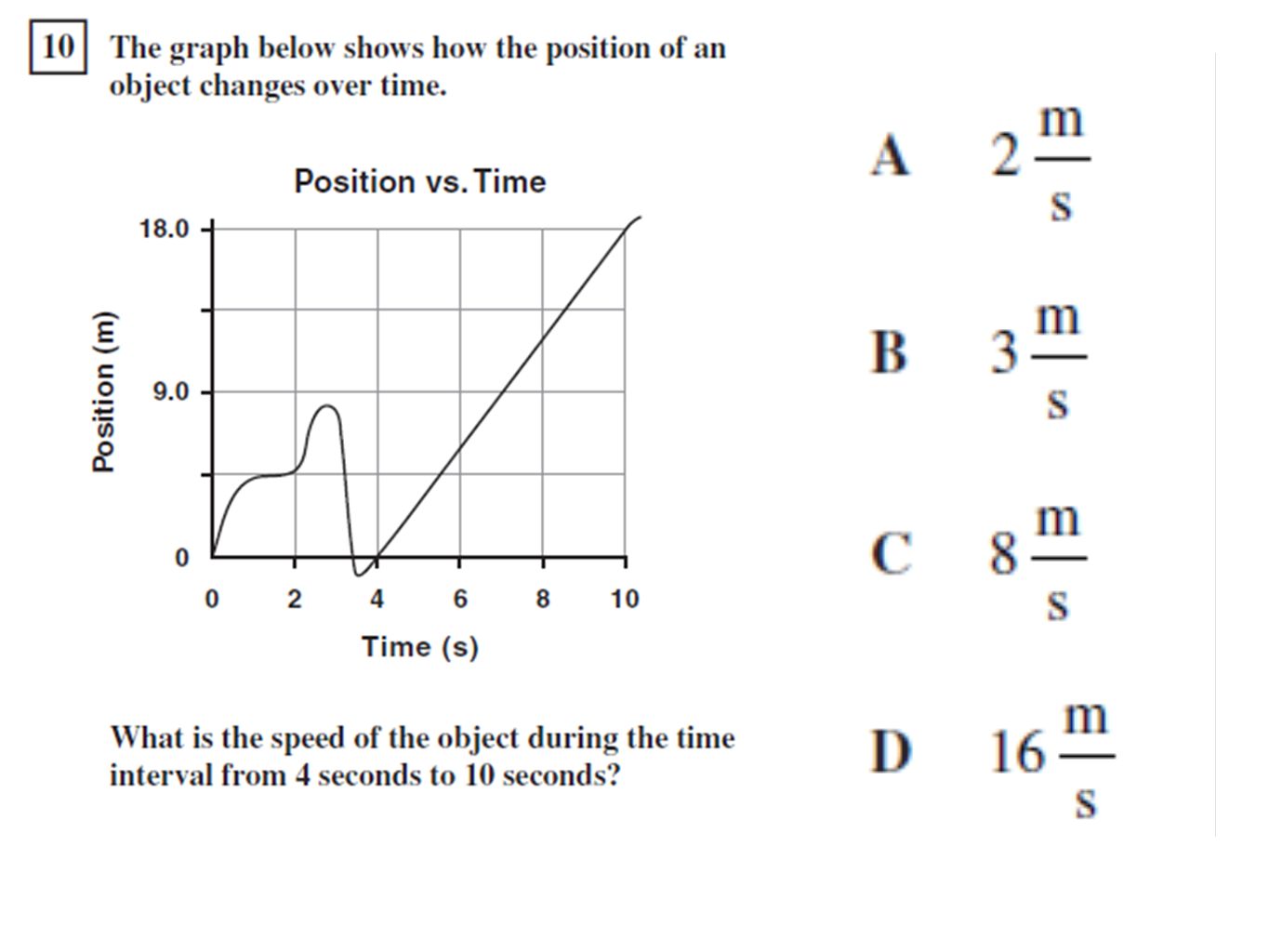

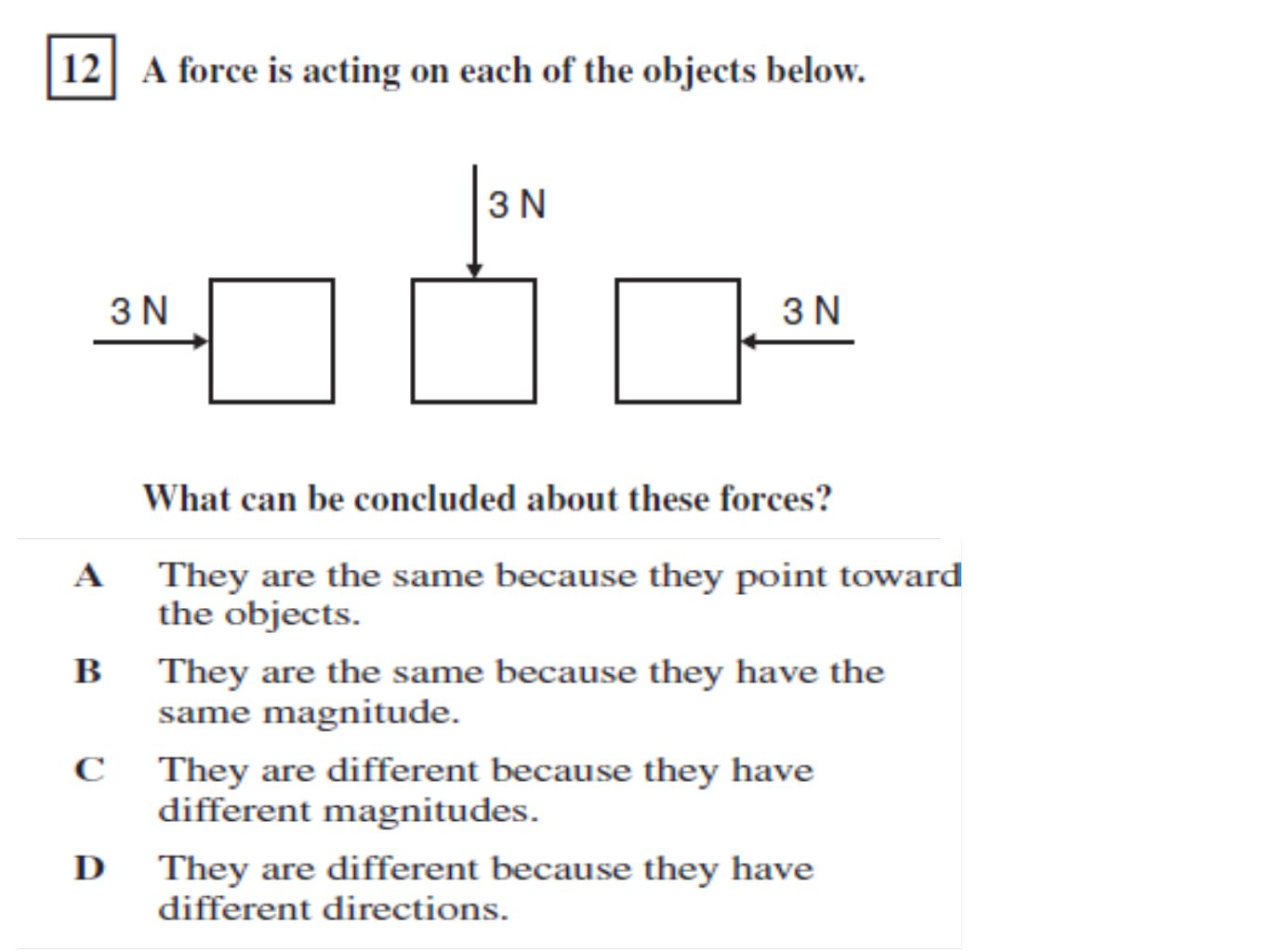

7. Warm Up

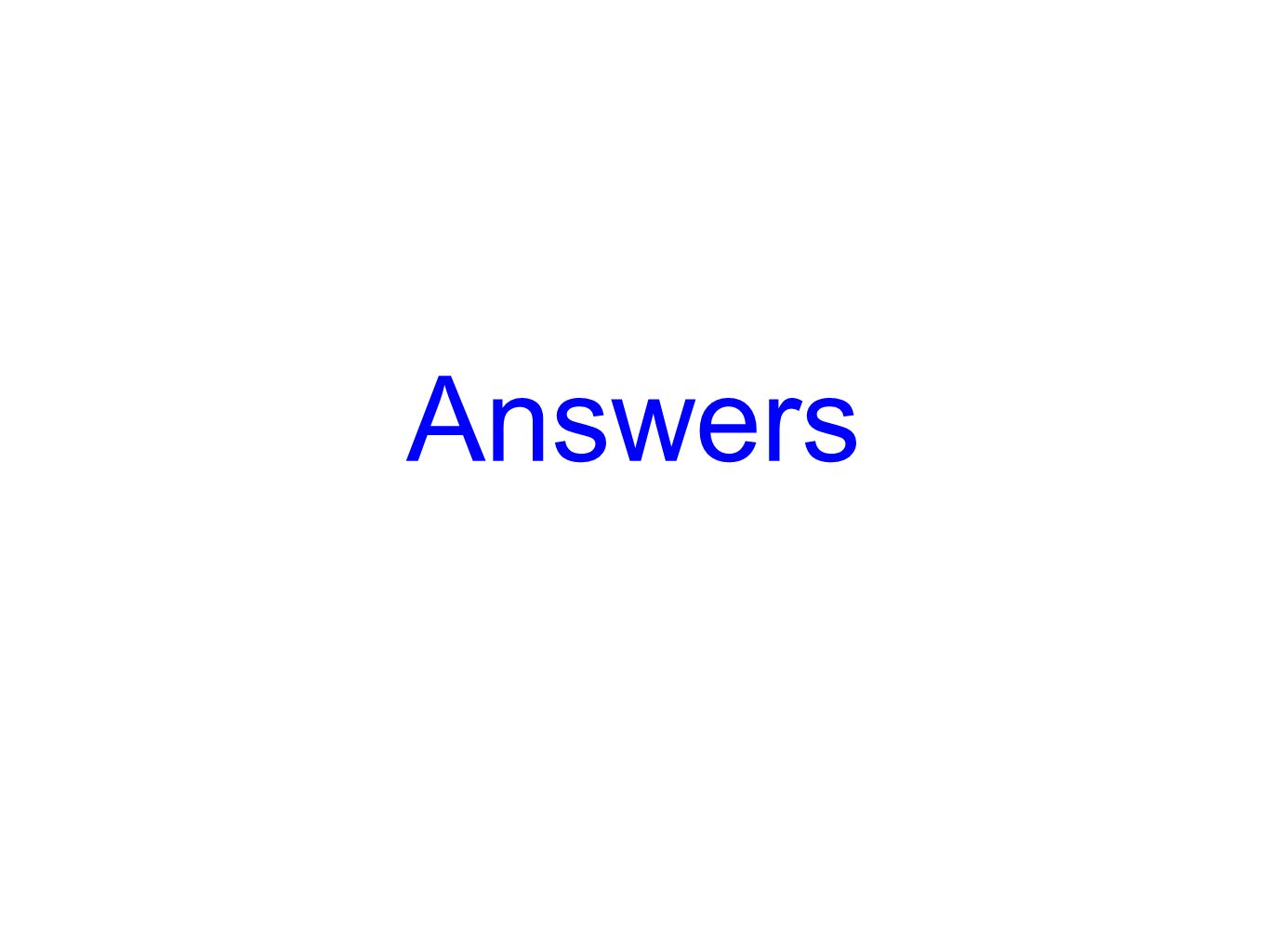

12. Answers

17. Today’s Homework Astronomy night postponed to next Wednesday

18. Today’s Class No Safety Test? NO rocket launch! Come in before school, after school or lunch. Build Rockets

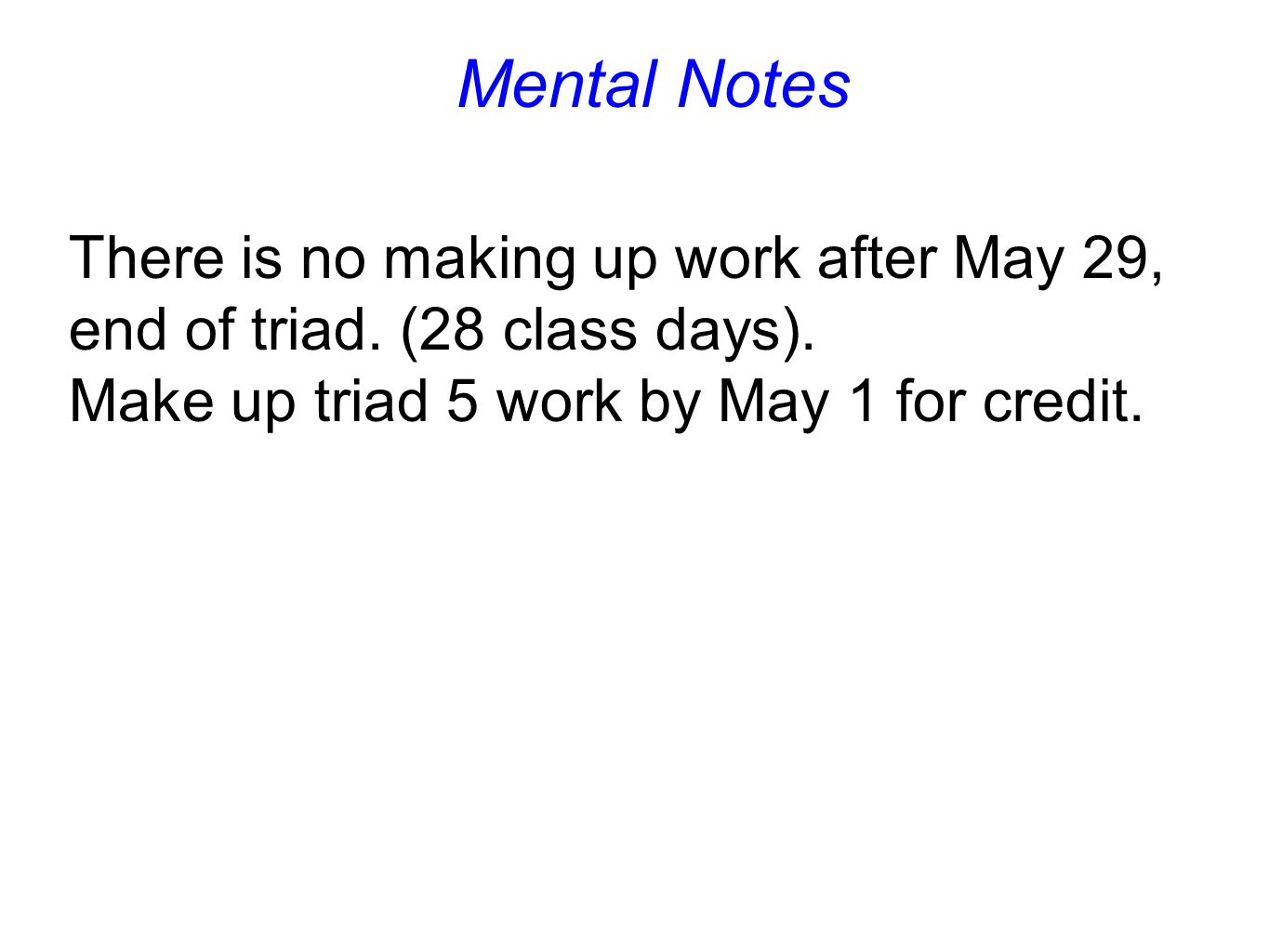

19. Mental Notes There is no making up work after May 29, end of triad. (28 class days). Make up triad 5 work by May 1 for credit.

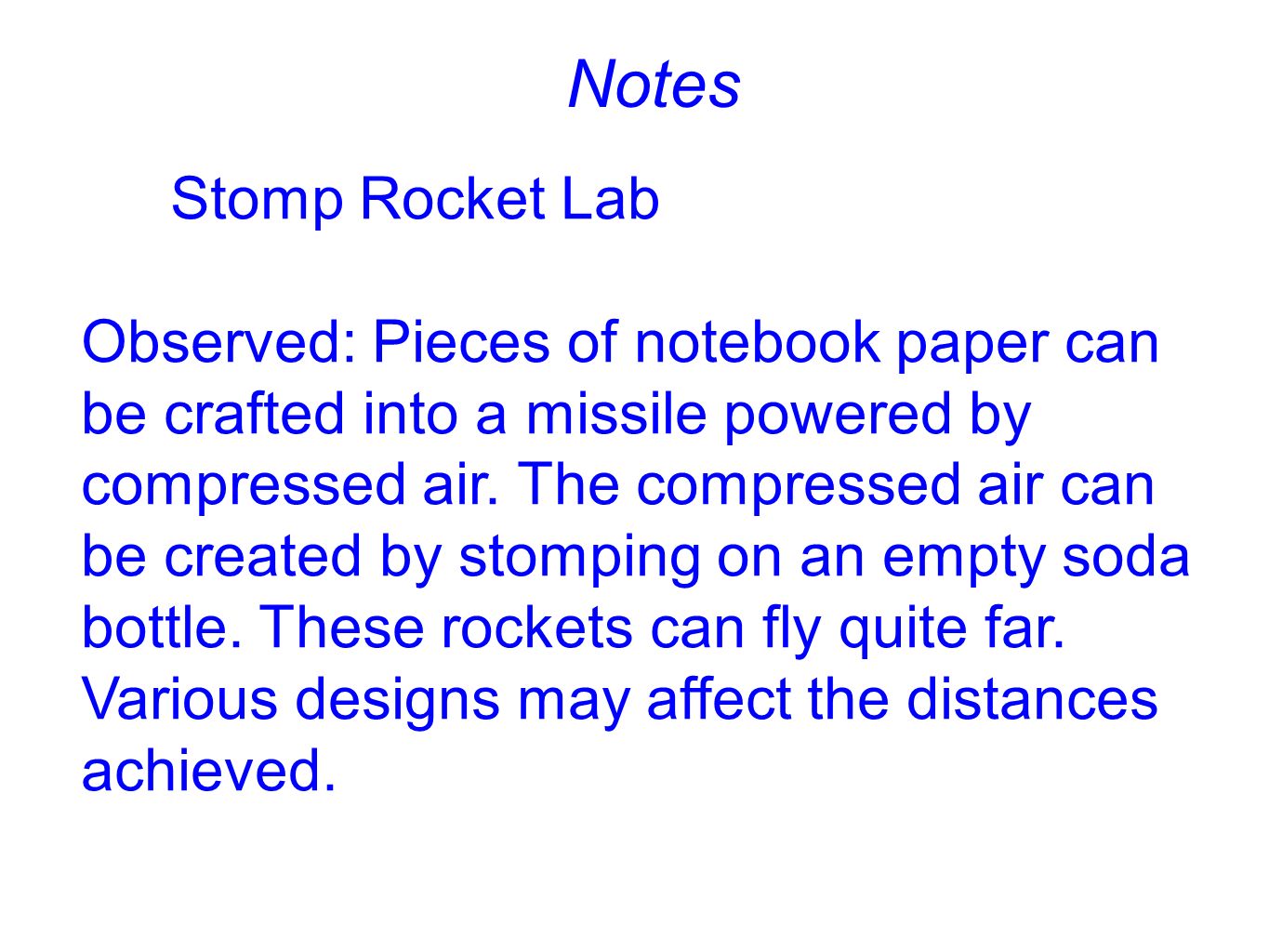

20. Notes Stomp Rocket Lab Observed: Pieces of notebook paper can be crafted into a missile powered by compressed air. The compressed air can be created by stomping on an empty soda bottle. These rockets can fly quite far. Various designs may affect the distances achieved.

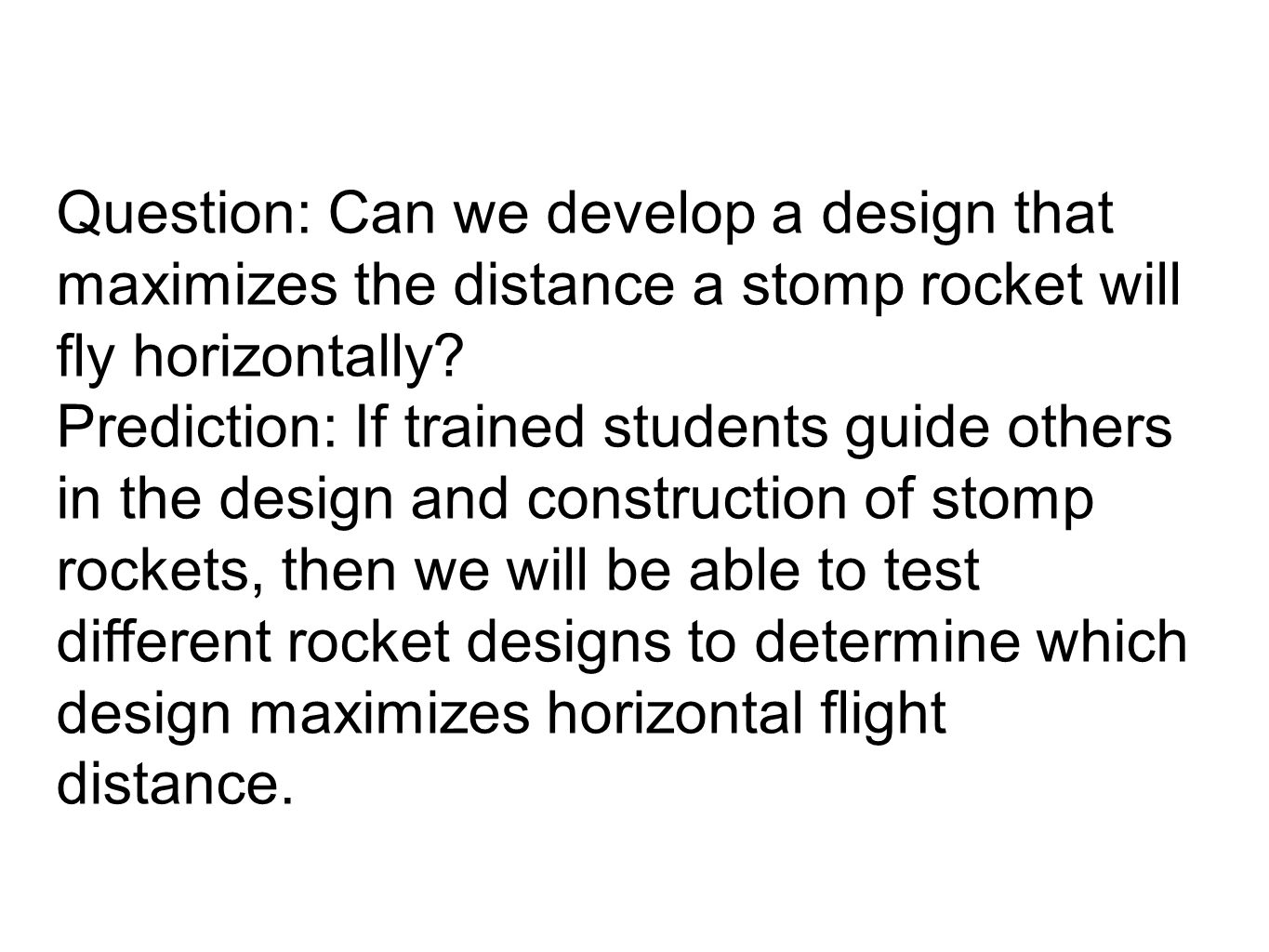

21. Question: Can we develop a design that maximizes the distance a stomp rocket will fly horizontally? Prediction: If trained students guide others in the design and construction of stomp rockets, then we will be able to test different rocket designs to determine which design maximizes horizontal flight distance.

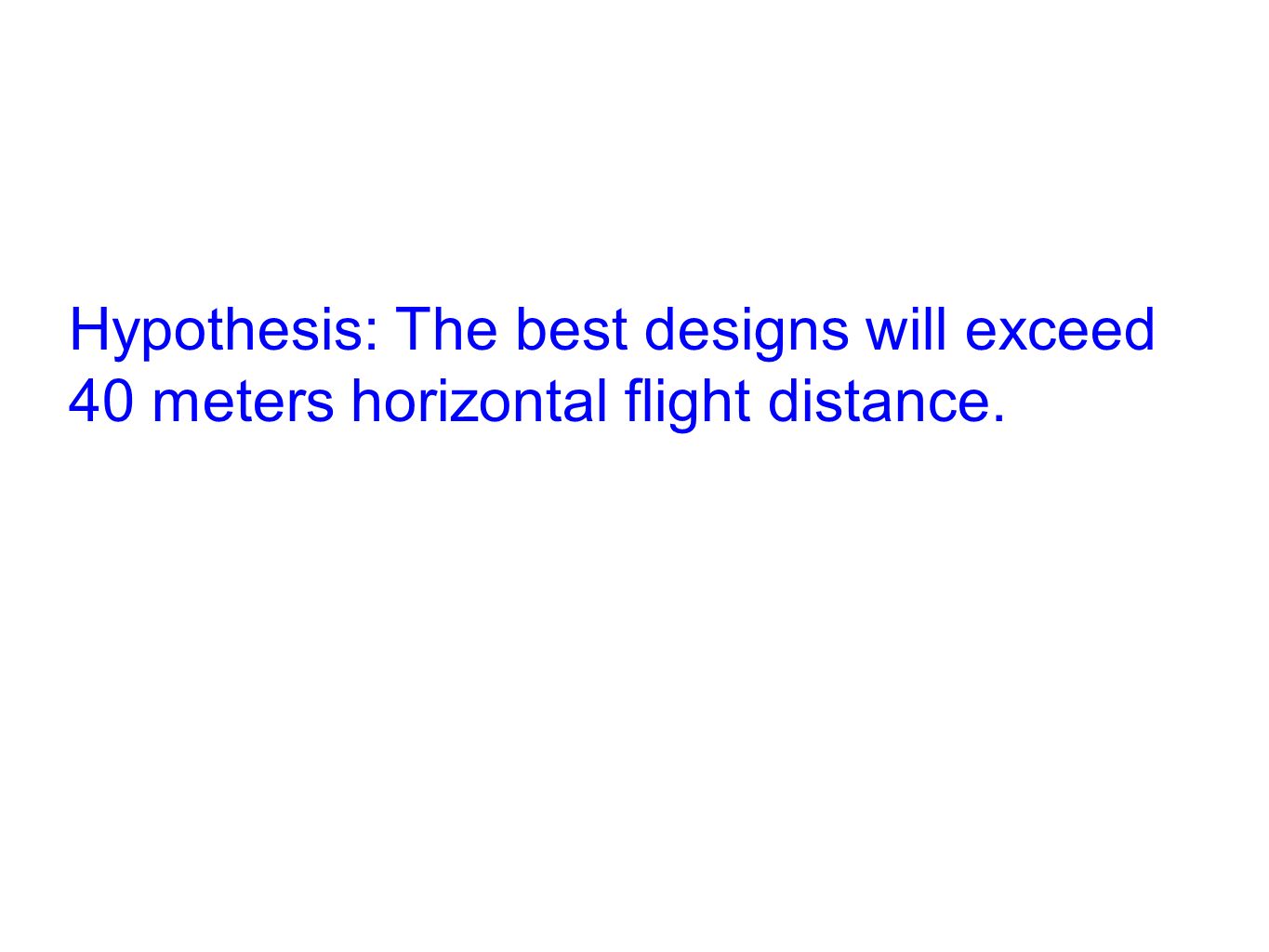

22. Hypothesis: The best designs will exceed 40 meters horizontal flight distance.

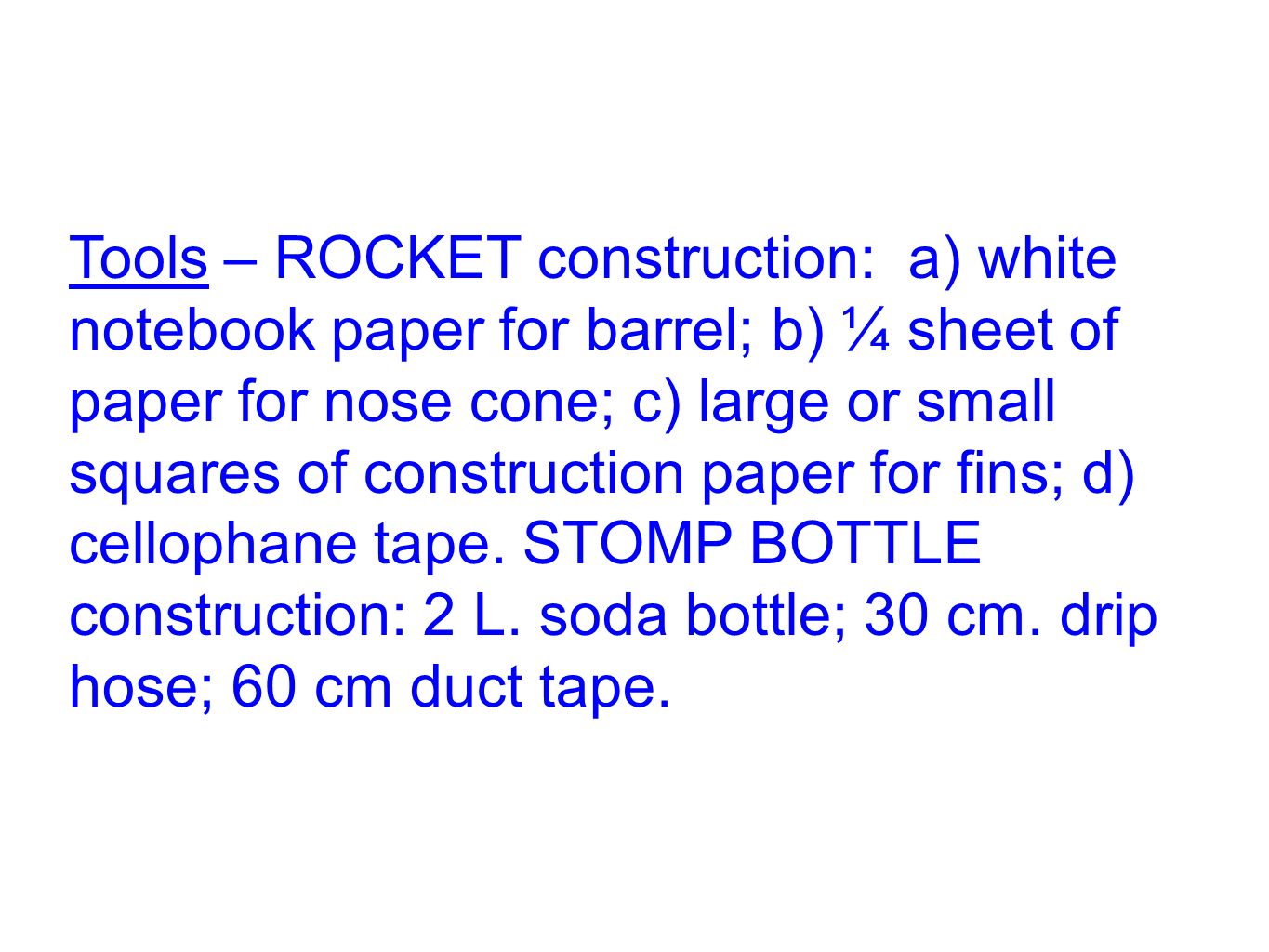

23. Tools – ROCKET construction: a) white notebook paper for barrel; b) ¼ sheet of paper for nose cone; c) large or small squares of construction paper for fins; d) cellophane tape. STOMP BOTTLE construction: 2 L. soda bottle; 30 cm. drip hose; 60 cm duct tape.

24. Procedure: Construct rocket using white notebook paper for the barrel. The barrel opening must allow the drip hose to be inserted. The nose cone must be sealed around the tip and the joint with the barrel. The stabilizing fins may be large, small, or a combination of each. 3 or 4 fins per rocket. Put your name on the rocket barrel and fins.

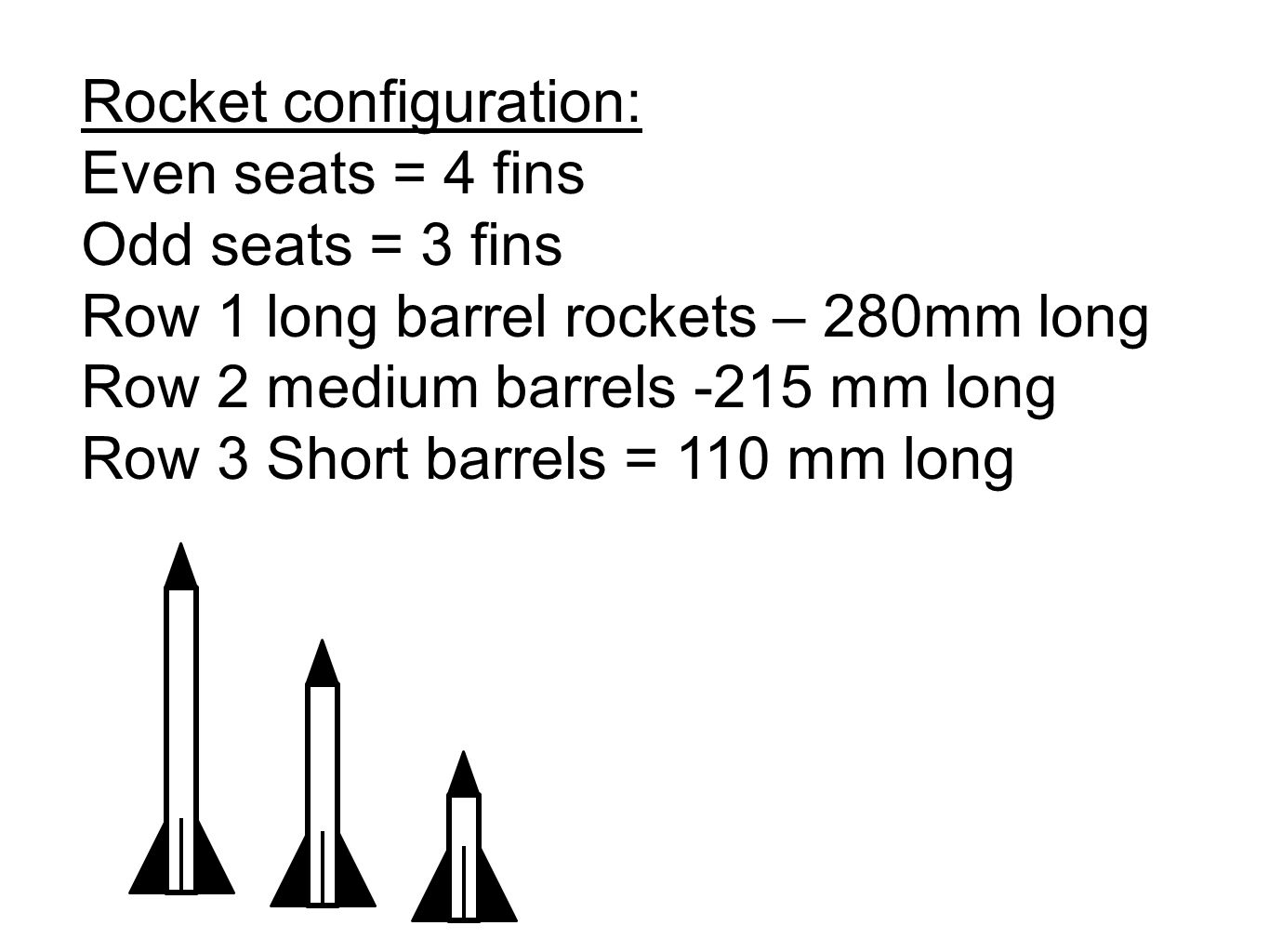

25. Rocket configuration: Even seats = 4 fins Odd seats = 3 fins Row 1 long barrel rockets – 280mm long Row 2 medium barrels -215 mm long Row 3 Short barrels = 110 mm long

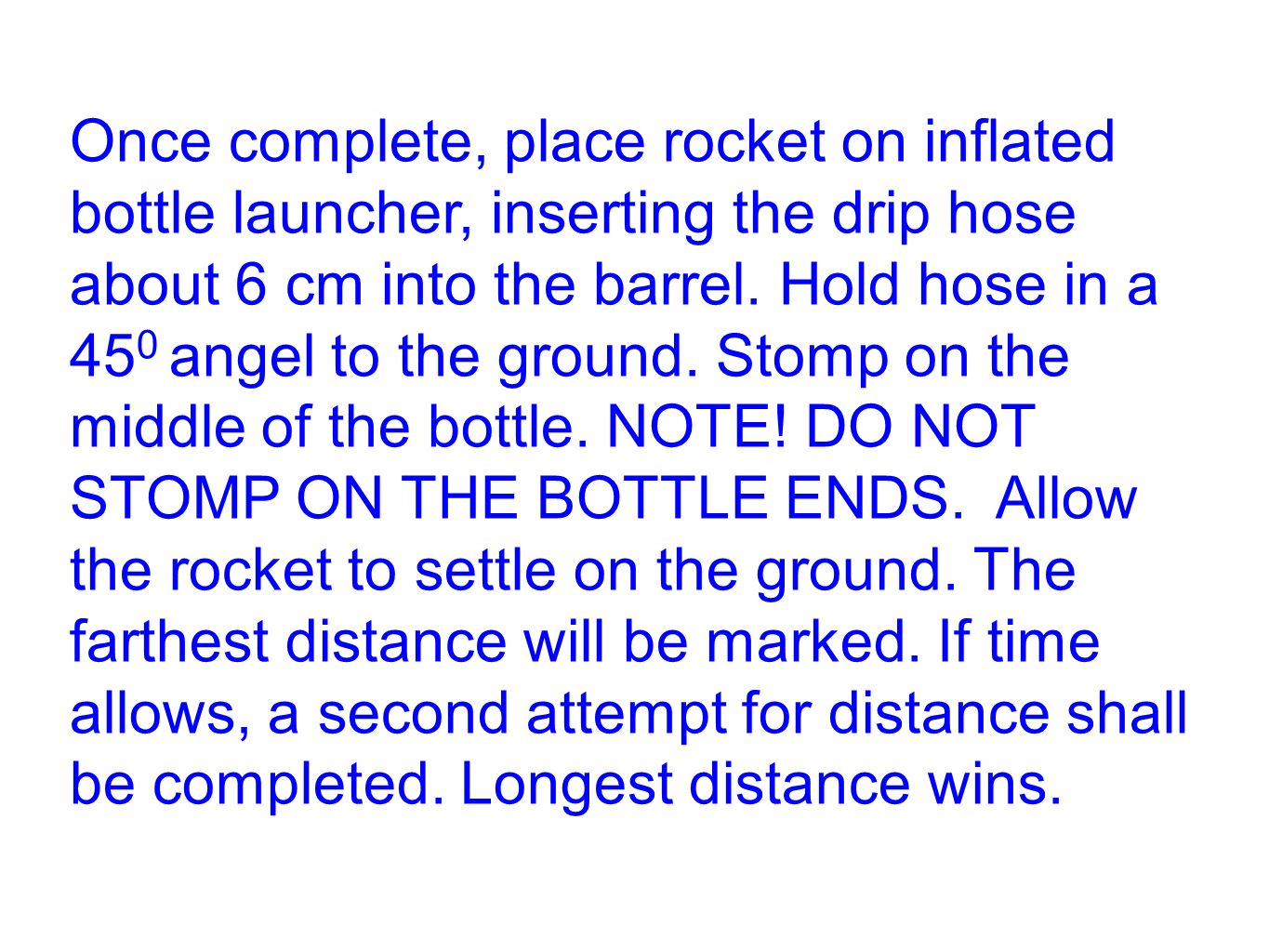

26. Once complete, place rocket on inflated bottle launcher, inserting the drip hose about 6 cm into the barrel. Hold hose in a 45 0 angel to the ground. Stomp on the middle of the bottle. NOTE! DO NOT STOMP ON THE BOTTLE ENDS. Allow the rocket to settle on the ground. The farthest distance will be marked. If time allows, a second attempt for distance shall be completed. Longest distance wins.

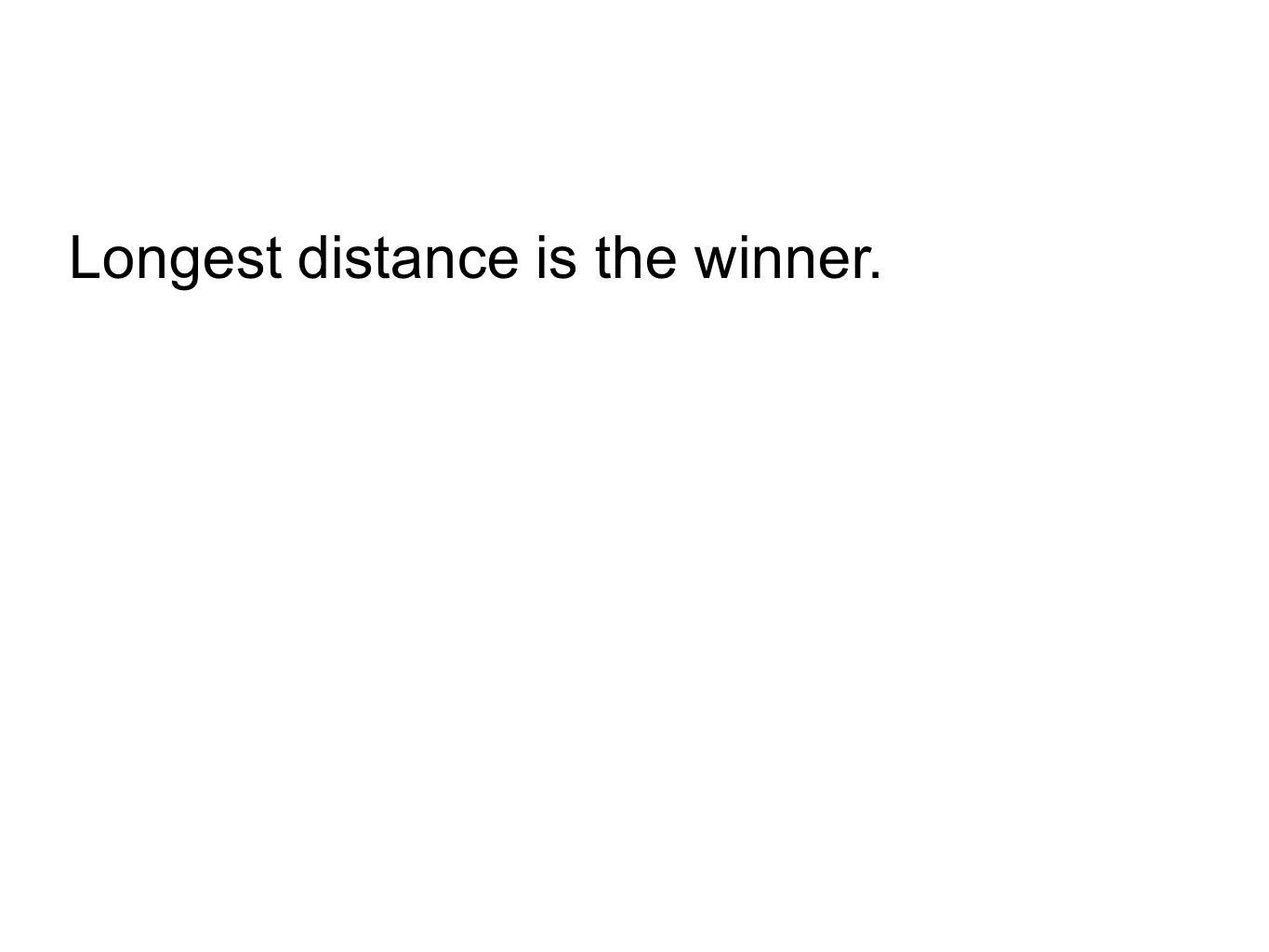

27. Longest distance is the winner.
