1. Molecular Control Engineering Nonlinear Control at the Nanoscale Raj Chakrabarti PSE Seminar Feb 8, 2013

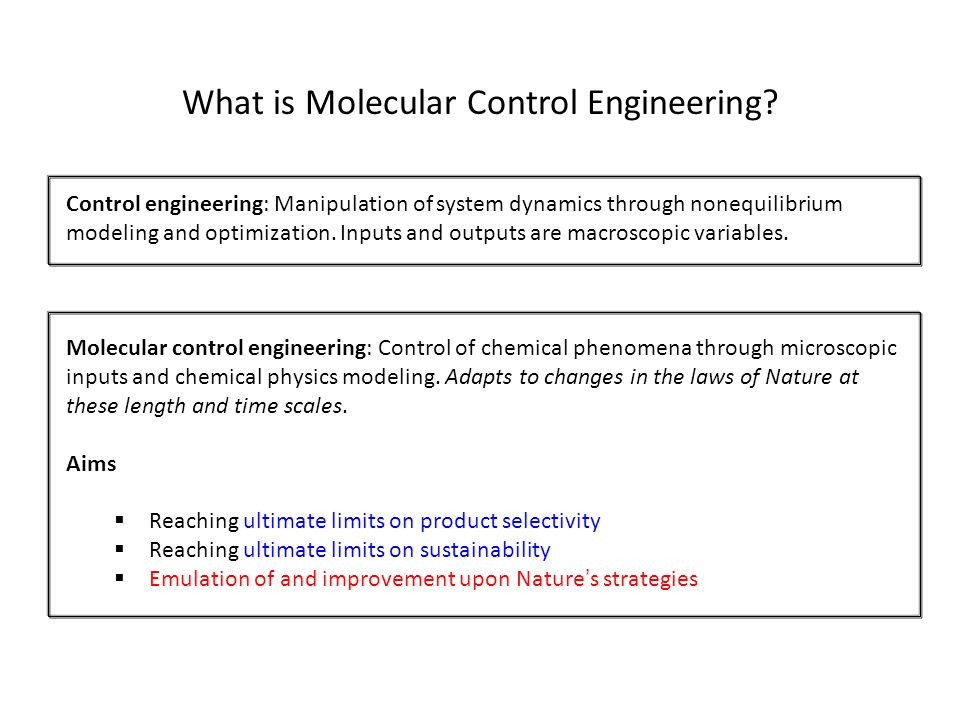

2. What is Molecular Control Engineering? Control engineering: Manipulation of system dynamics through nonequilibrium modeling and optimization. Inputs and outputs are macroscopic variables. Molecular control engineering: Control of chemical phenomena through microscopic inputs and chemical physics modeling. Adapts to changes in the laws of Nature at these length and time scales. Aims  Reaching ultimate limits on product selectivity  Reaching ultimate limits on sustainability  Emulation of and improvement upon Nature’s strategies

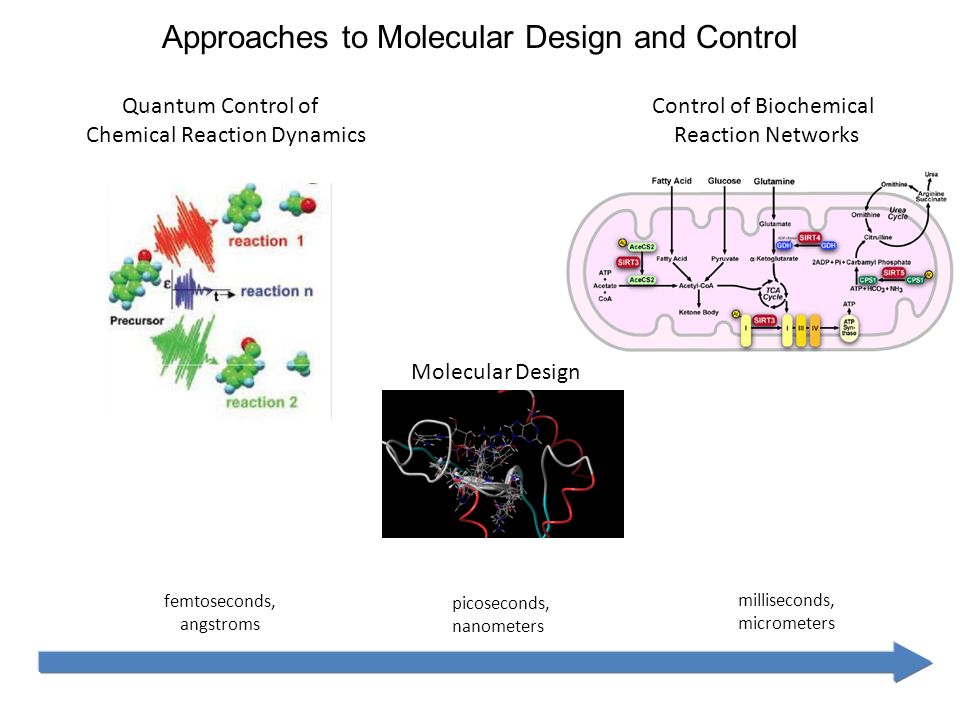

3. Approaches to Molecular Design and Control Static Optimization Molecular Design Control of Biochemical Reaction Networks [protein pic] femtoseconds, angstroms milliseconds, micrometers picoseconds, nanometers Quantum Control of Chemical Reaction Dynamics

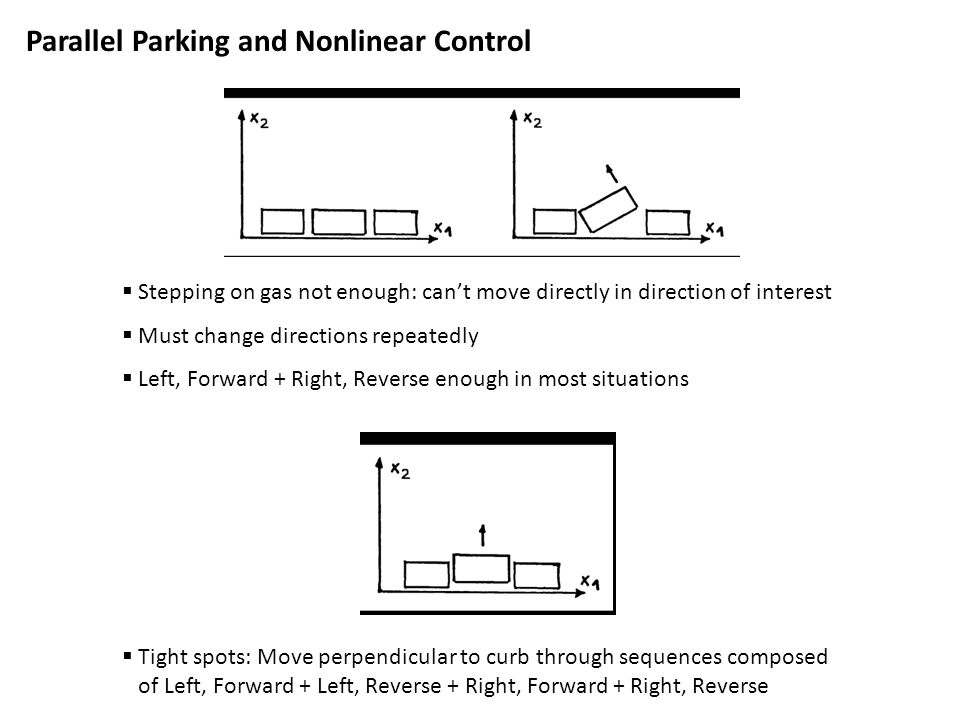

4. Parallel Parking and Nonlinear Control  Tight spots: Move perpendicular to curb through sequences composed of Left, Forward + Left, Reverse + Right, Forward + Right, Reverse  Stepping on gas not enough: can’t move directly in direction of interest  Must change directions repeatedly  Left, Forward + Right, Reverse enough in most situations

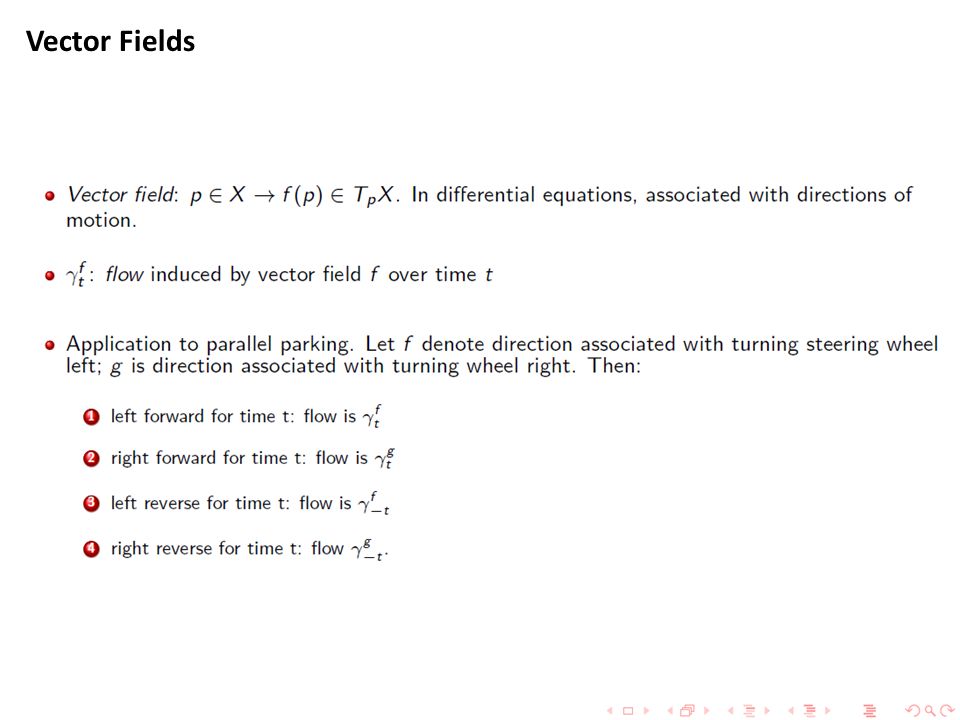

5. 8. Finalize these Vector Fields

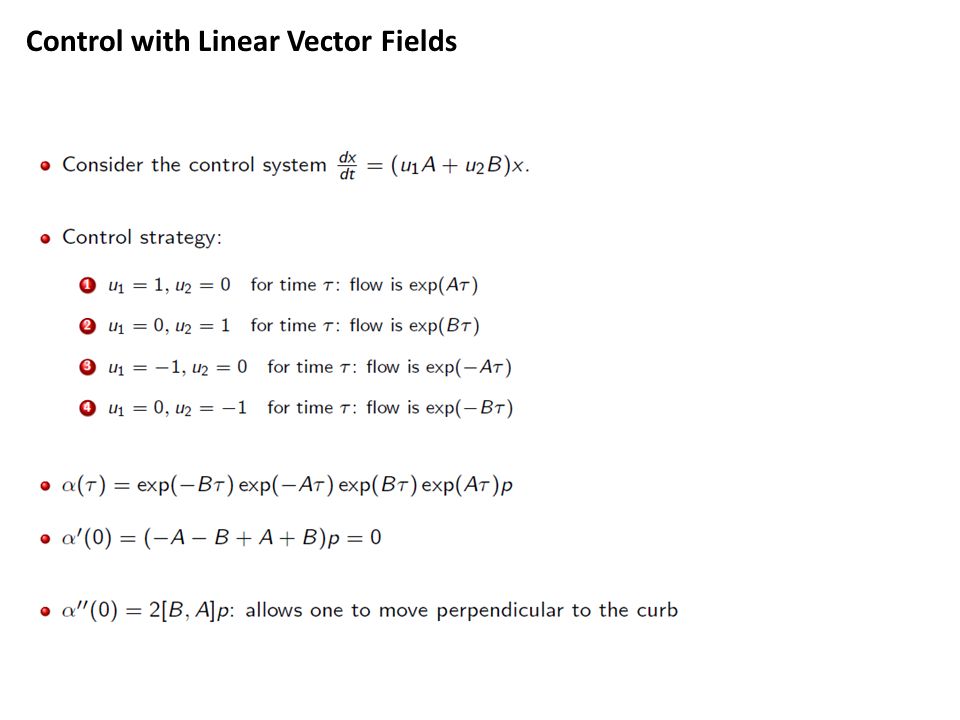

6. Control with Linear Vector Fields

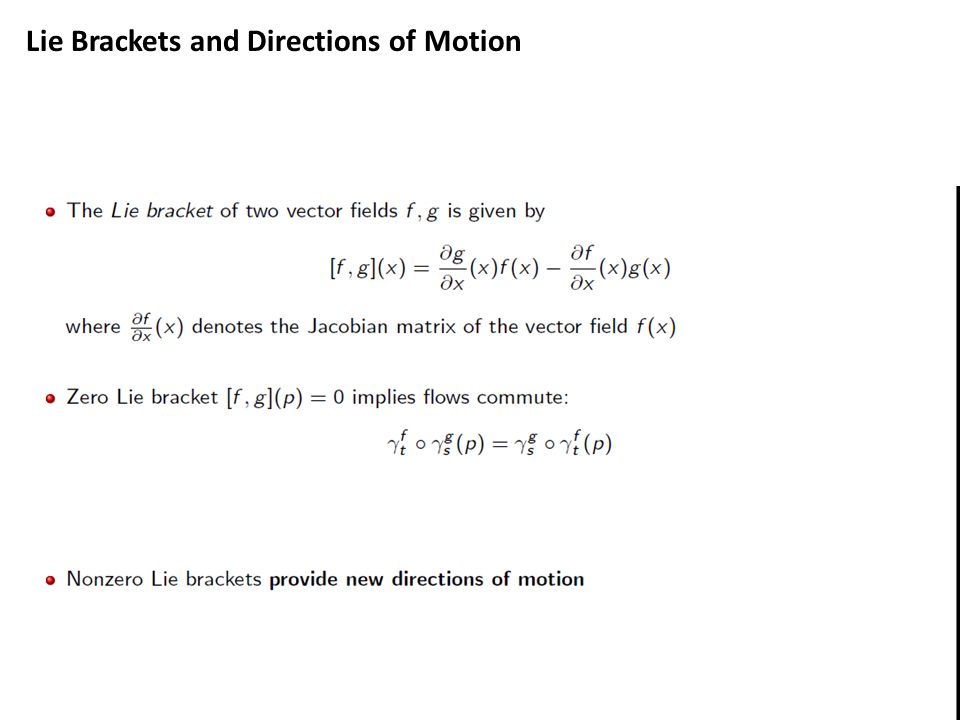

7. Lie Brackets and Directions of Motion

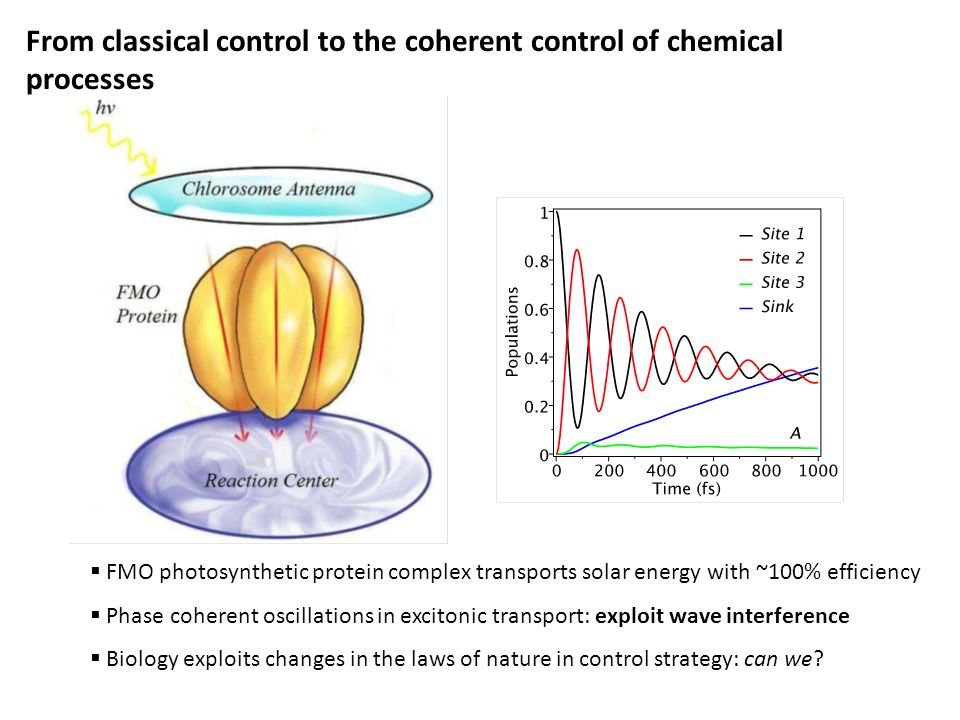

8.  FMO photosynthetic protein complex transports solar energy with ~100% efficiency  Phase coherent oscillations in excitonic transport: exploit wave interference  Biology exploits changes in the laws of nature in control strategy: can we? From classical control to the coherent control of chemical processes

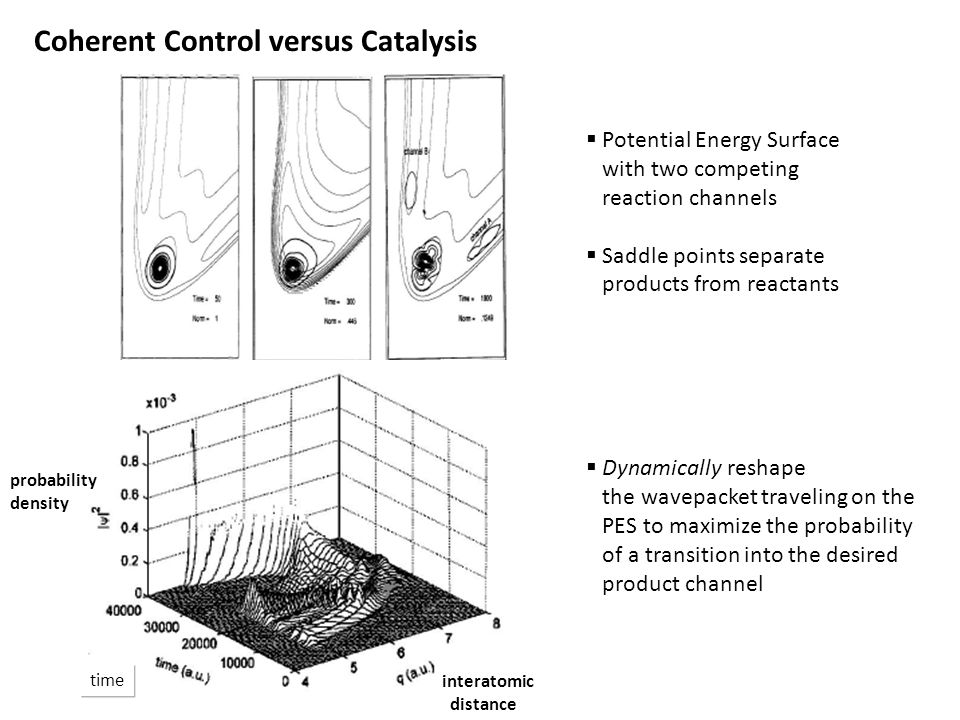

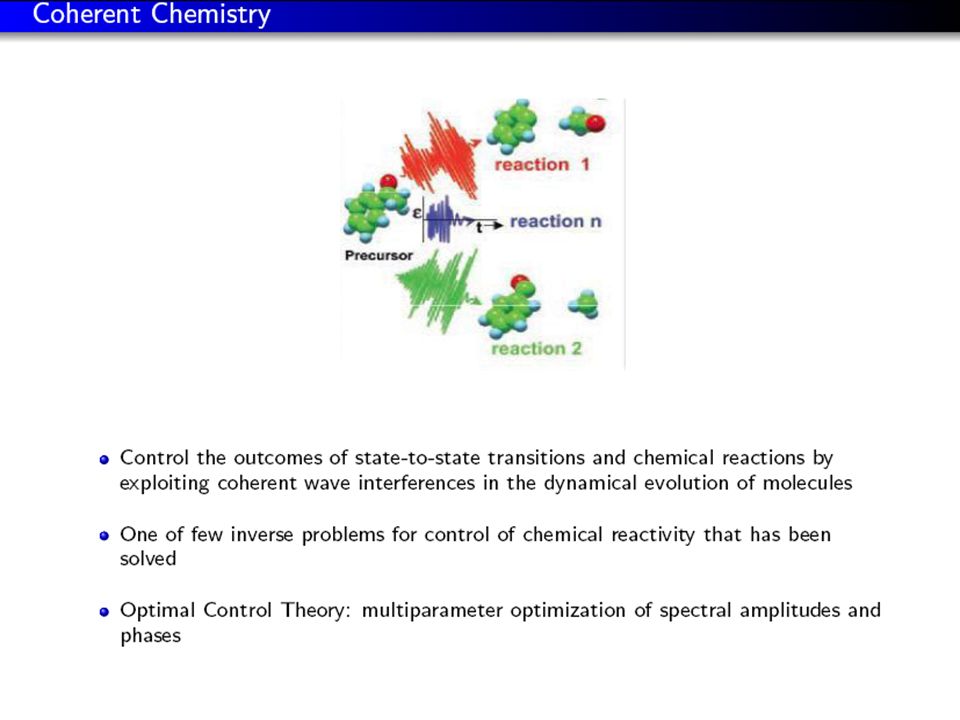

10.  Potential Energy Surface with two competing reaction channels  Saddle points separate products from reactants  Dynamically reshape the wavepacket traveling on the PES to maximize the probability of a transition into the desired product channel Coherent Control versus Catalysis probability density time interatomic distance

11. C. Brif, R. Chakrabarti and H. Rabitz, New J. Physics, 2010. C. Brif, R. Chakrabarti and H. Rabitz, Control of Quantum Phenomena. Advances in Chemical Physics, 2011.

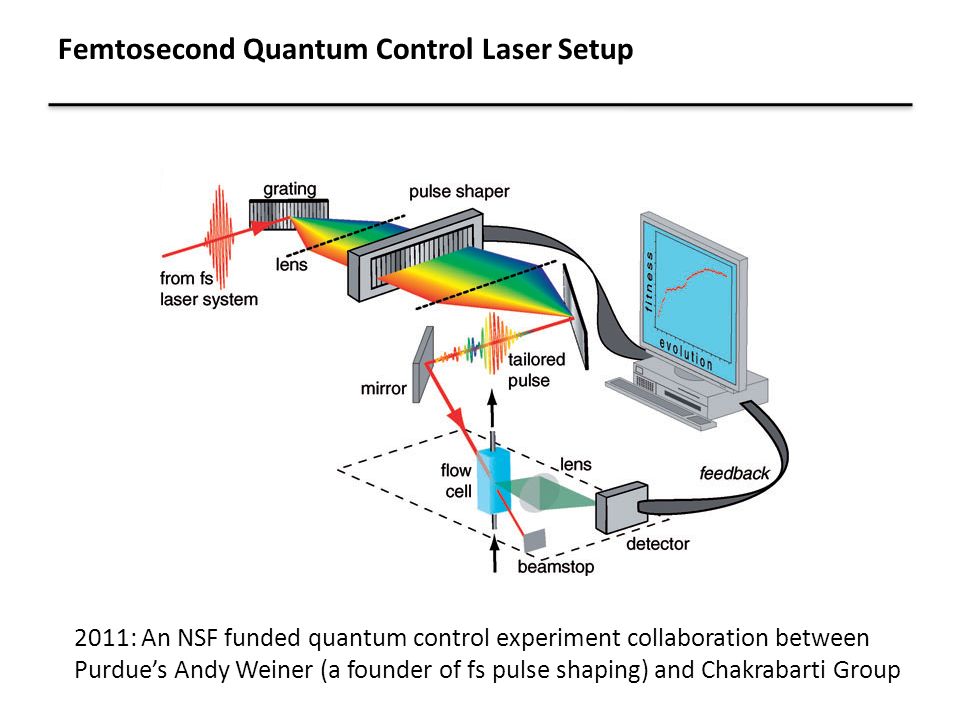

12. Femtosecond Quantum Control Laser Setup 2011: An NSF funded quantum control experiment collaboration between Purdue’s Andy Weiner (a founder of fs pulse shaping) and Chakrabarti Group

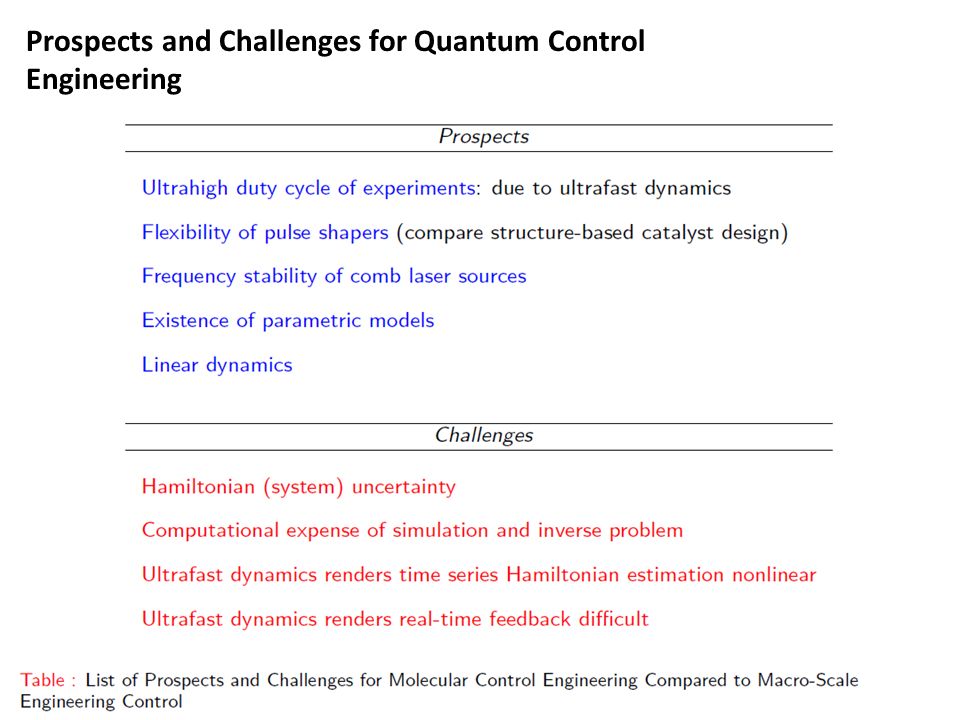

13. Prospects and Challenges for Quantum Control Engineering

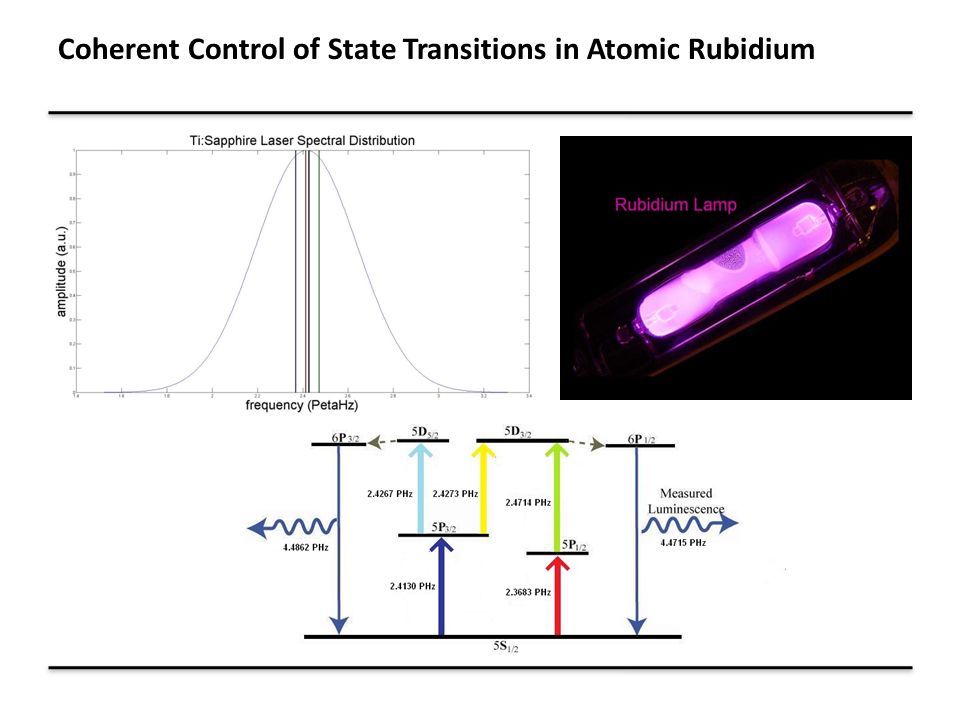

14. Coherent Control of State Transitions in Atomic Rubidium http://www.lamptech.co.uk

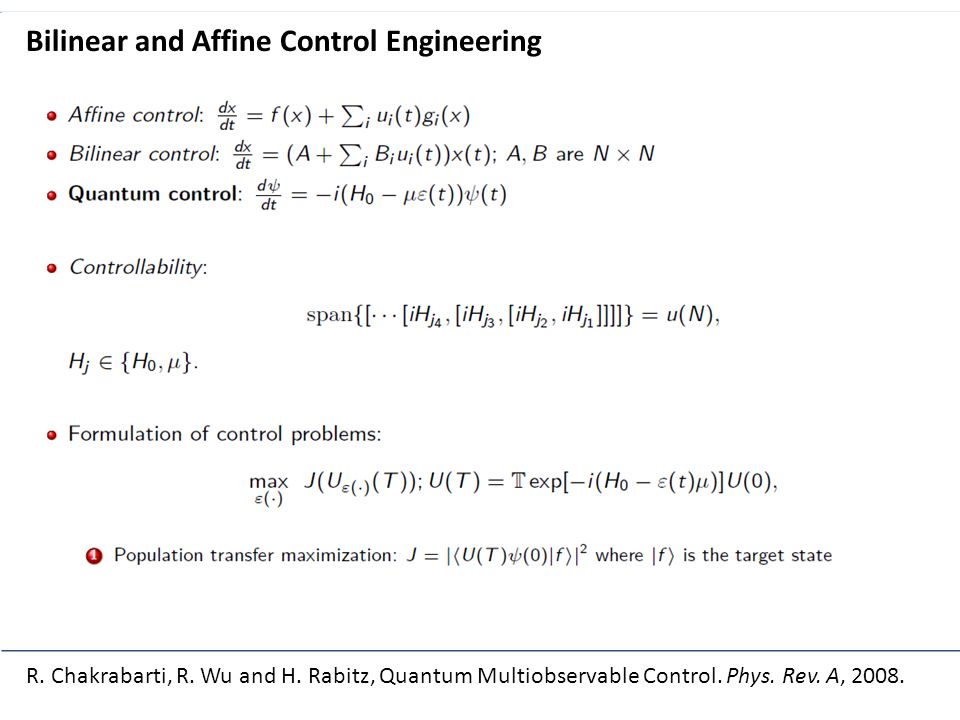

15. R. Chakrabarti, R. Wu and H. Rabitz, Quantum Multiobservable Control. Phys. Rev. A, 2008. Possibly move one of these below Bilinear and Affine Control Engineering

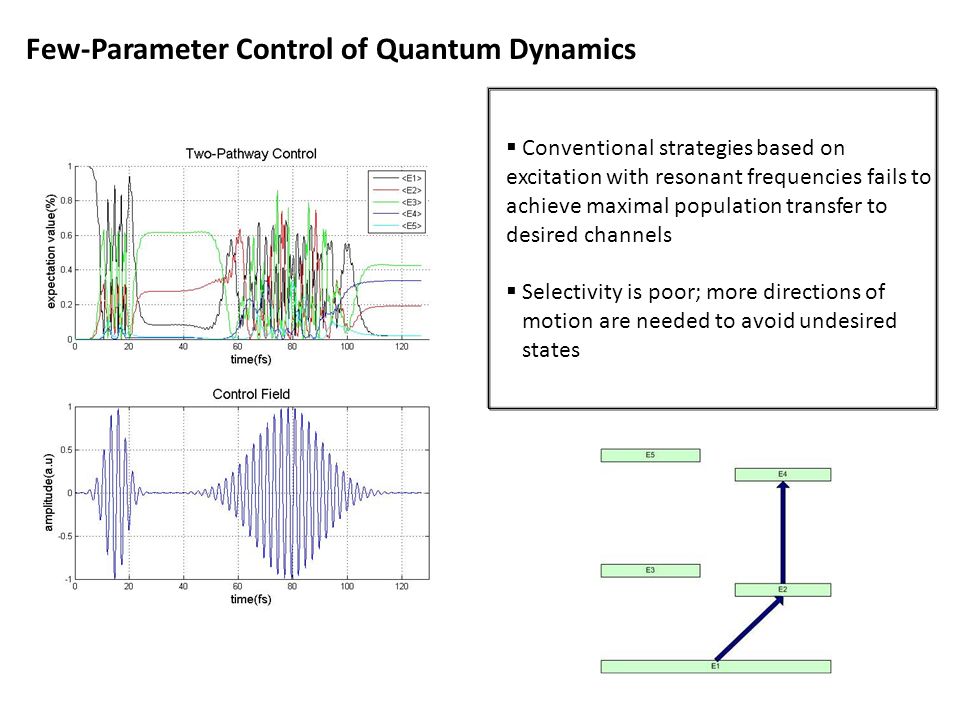

16. Few-Parameter Control of Quantum Dynamics  Conventional strategies based on excitation with resonant frequencies fails to achieve maximal population transfer to desired channels  Selectivity is poor; more directions of motion are needed to avoid undesired states

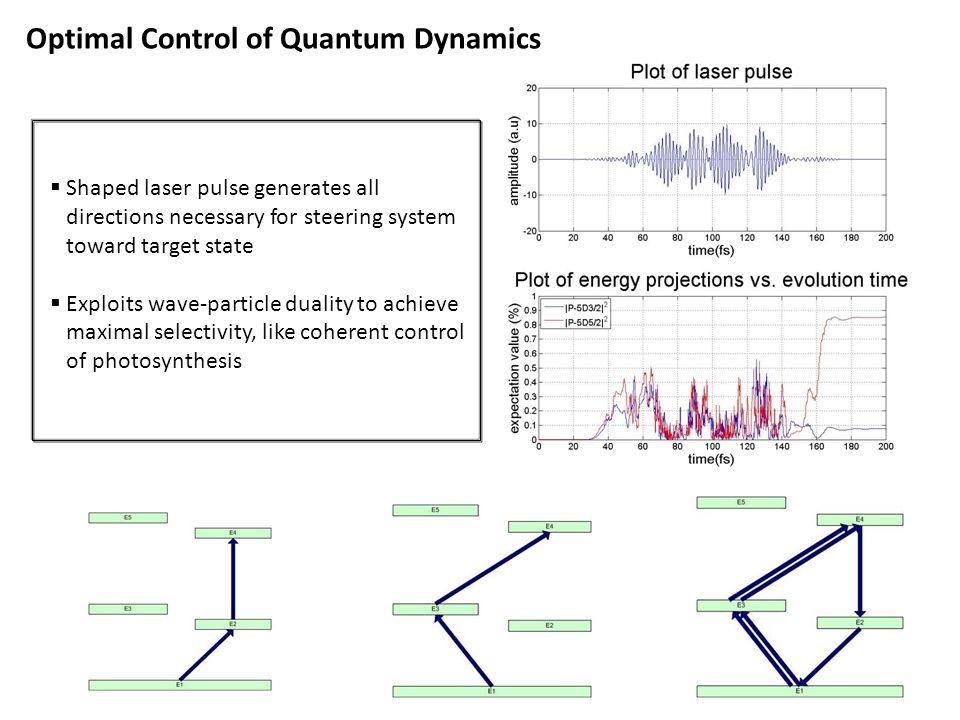

17. Optimal Control of Quantum Dynamics  Shaped laser pulse generates all directions necessary for steering system toward target state  Exploits wave-particle duality to achieve maximal selectivity, like coherent control of photosynthesis

18. Remove the lambdas Need to introduce V_I We don’t show the intermediate states here; should we for consistency w below? 9. Finalize these Understanding Interferences

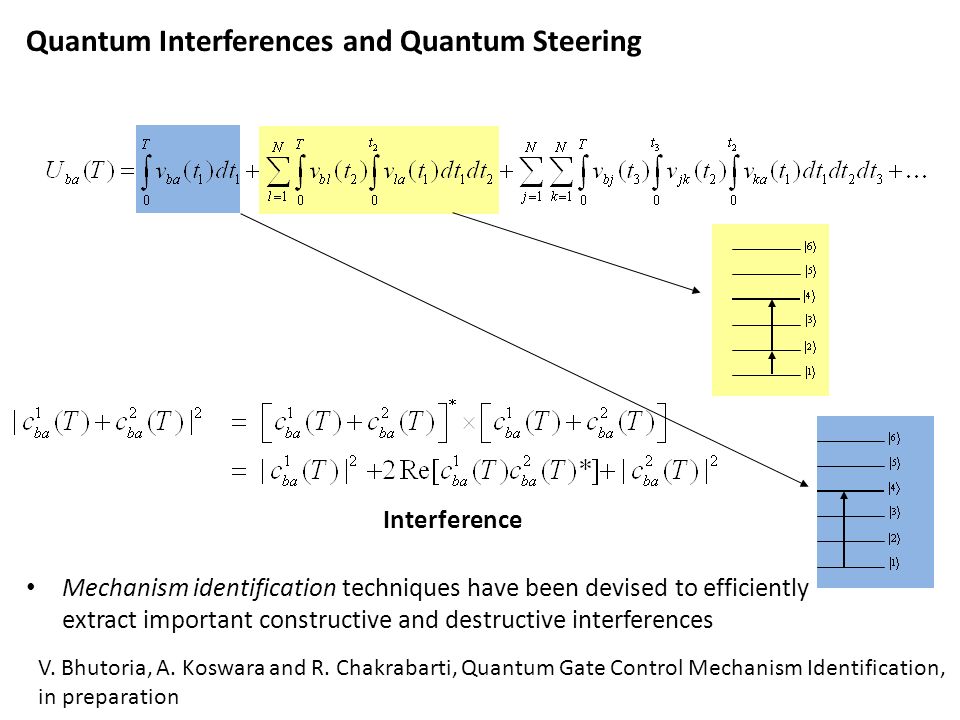

19. Mechanism identification techniques have been devised to efficiently extract important constructive and destructive interferences Interference Quantum Interferences and Quantum Steering V. Bhutoria, A. Koswara and R. Chakrabarti, Quantum Gate Control Mechanism Identification, in preparation i is part of v

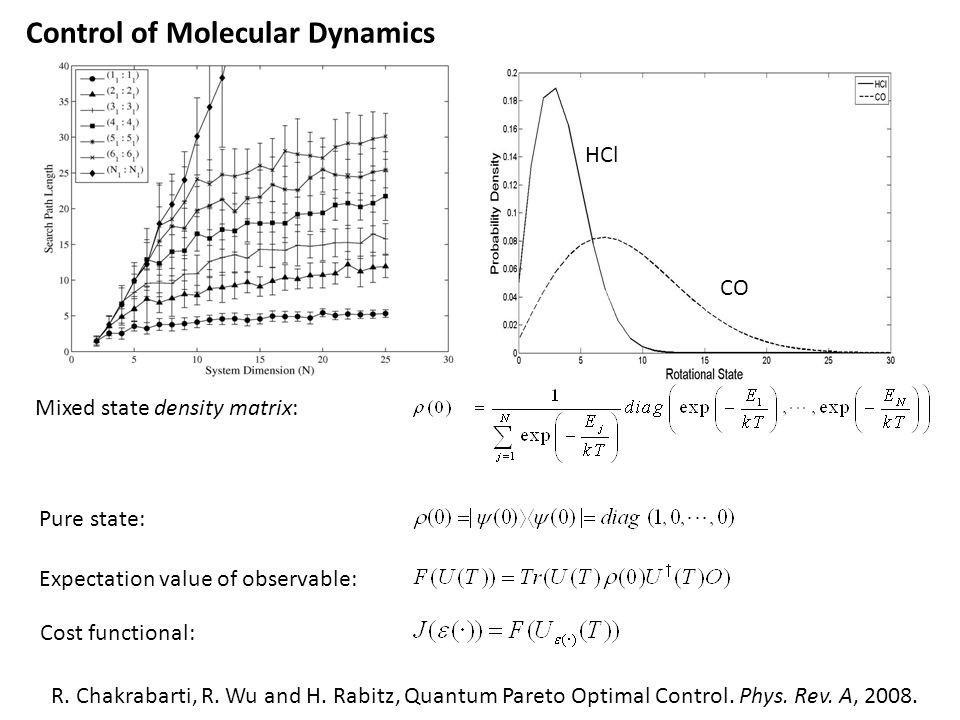

20. Would need to define rho, O, mentioning Boltzmann, with Pif case indicated (get above eqns from book slides, now that removed from slide above), show GR figs regarding scaling w examples of rhos; then this fig on topology with the eqns from the next slide \begin{equation}\label{kincost} J(\varepsilon(\cdot))= F_1(\psi_T) = Tr(\rho_T \Theta) = \langle \psi_T| \Theta | \psi_T \rangle, \end{equation} 2. Do in mathtype since figs needed; start by prepping beamer code; paste figs here Mixed state density matrix: Pure state: Expectation value of observable: Cost functional: Control of Molecular Dynamics HCl CO R. Chakrabarti, R. Wu and H. Rabitz, Quantum Pareto Optimal Control. Phys. Rev. A, 2008.

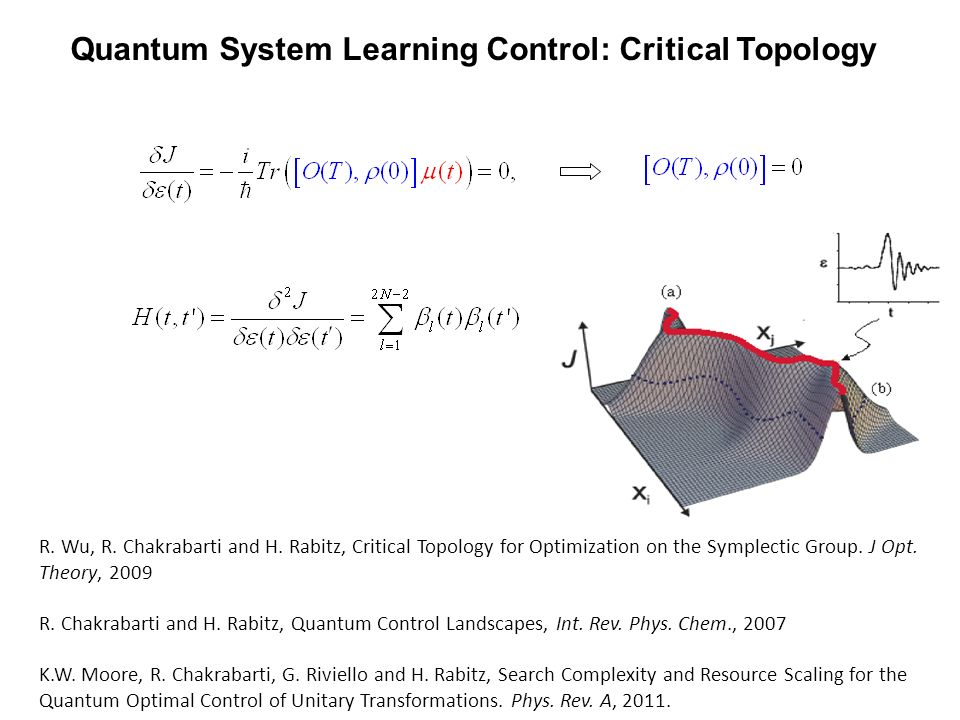

21. Quantum System Learning Control: Critical Topology R. Wu, R. Chakrabarti and H. Rabitz, Critical Topology for Optimization on the Symplectic Group. J Opt. Theory, 2009 R. Chakrabarti and H. Rabitz, Quantum Control Landscapes, Int. Rev. Phys. Chem., 2007 K.W. Moore, R. Chakrabarti, G. Riviello and H. Rabitz, Search Complexity and Resource Scaling for the Quantum Optimal Control of Unitary Transformations. Phys. Rev. A, 2011.

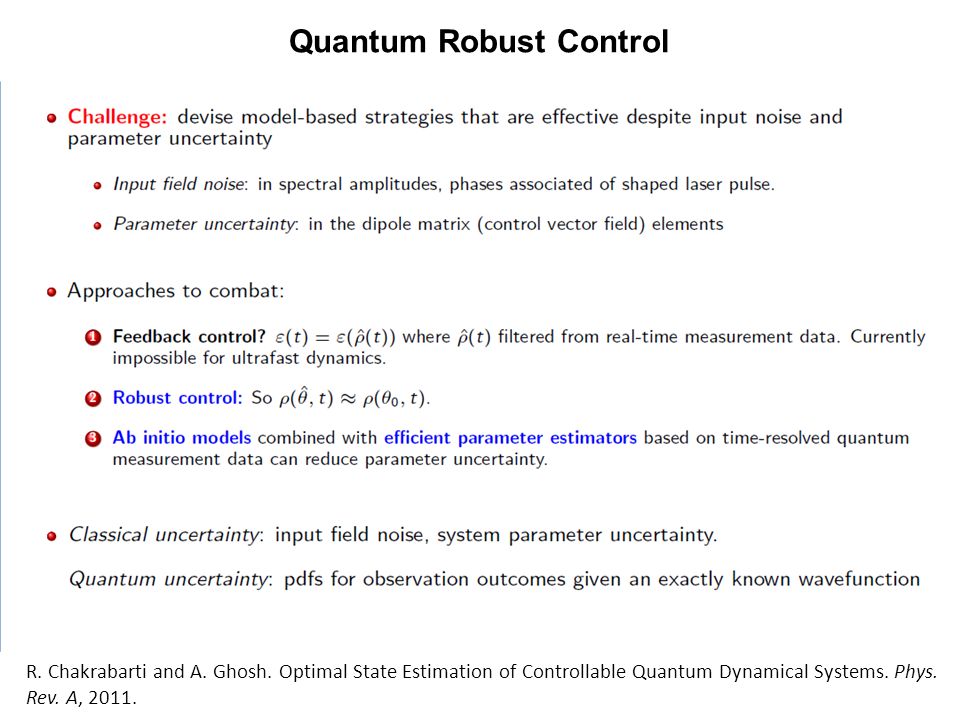

22. Quantum Robust Control R. Chakrabarti and A. Ghosh. Optimal State Estimation of Controllable Quantum Dynamical Systems. Phys. Rev. A, 2011.

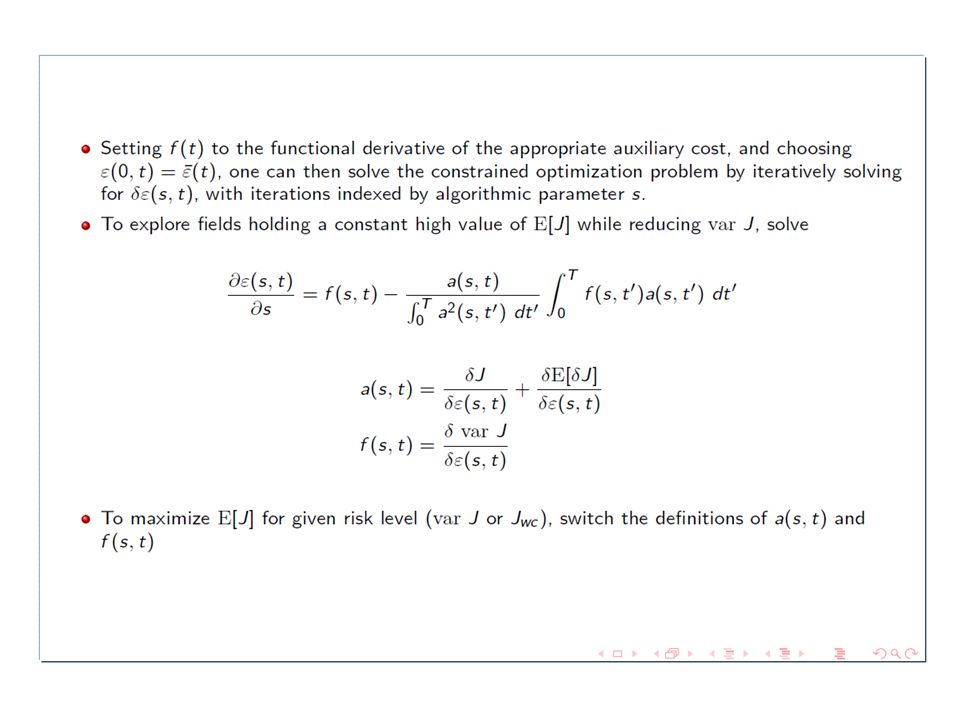

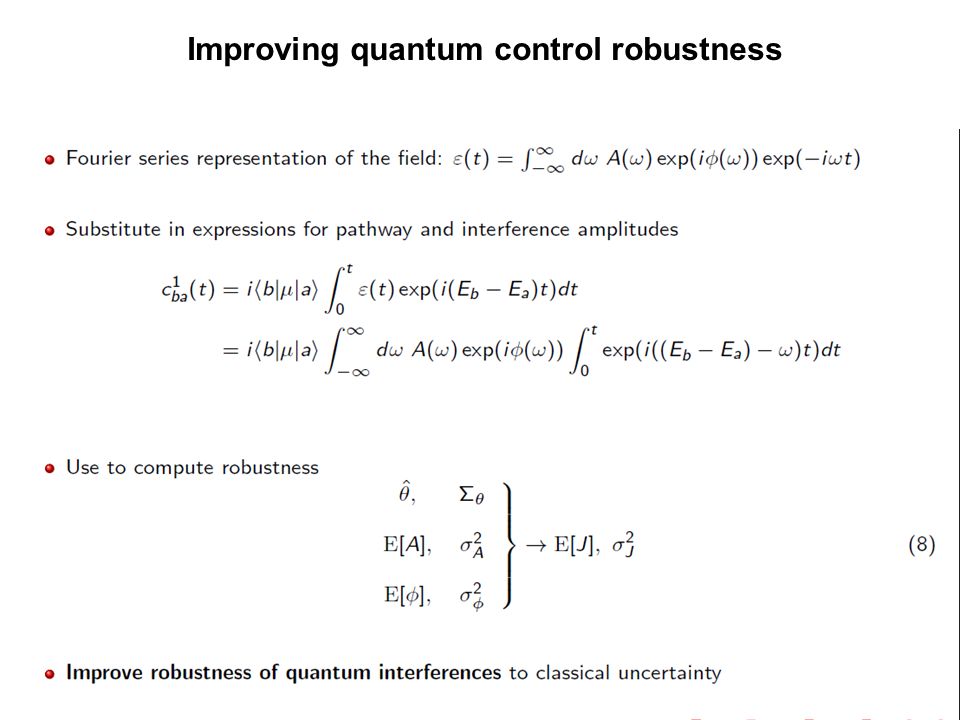

23. Improving quantum control robustness Check sign, fix index

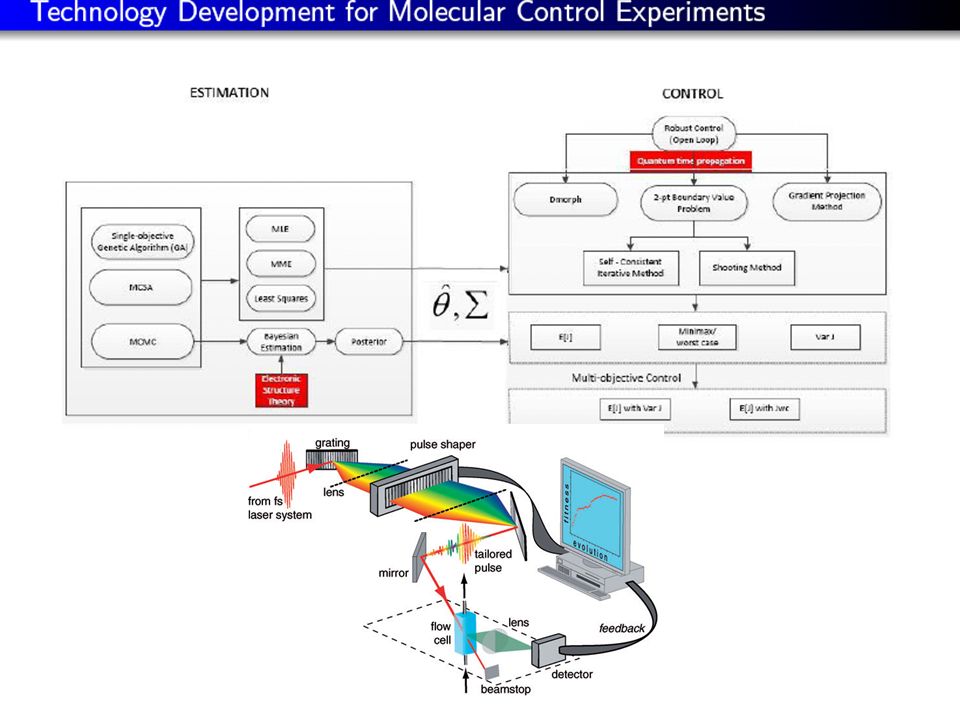

24. May omit one of these slides

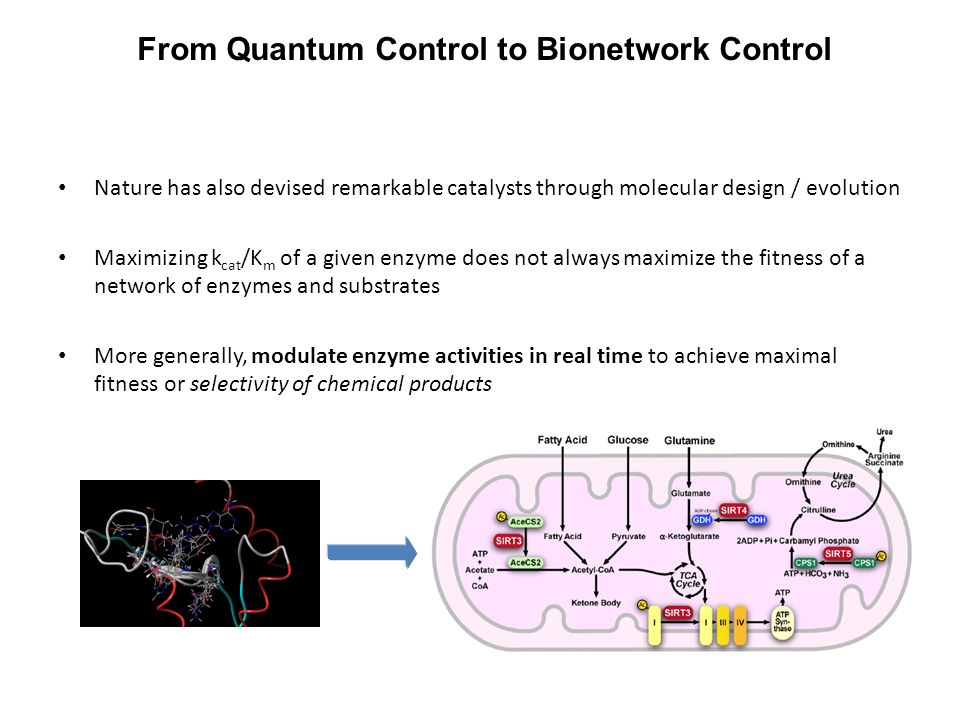

25. Nature has also devised remarkable catalysts through molecular design / evolution Maximizing k cat /K m of a given enzyme does not always maximize the fitness of a network of enzymes and substrates More generally, modulate enzyme activities in real time to achieve maximal fitness or selectivity of chemical products From Quantum Control to Bionetwork Control

26. The Polymerase Chain Reaction: An example of bionetwork control Nobel Prize in Chemistry 1994; one of the most cited papers in Science (12757 citations in Science alone) Produce millions of DNA molecules starting from one (geometric growth) Used every day in every Biochemistry and Molecular Biology lab ( Diagnosis, Genome Sequencing, Gene Expression, etc.) March 2005: Roche Molecular Diagnostics PCR patents expire 2007: Celera Licenses and Roche negotiates for Chemical PCR patents Generality of biomolecular amplification: propagation of molecular information - a key feature of living, replicating systems

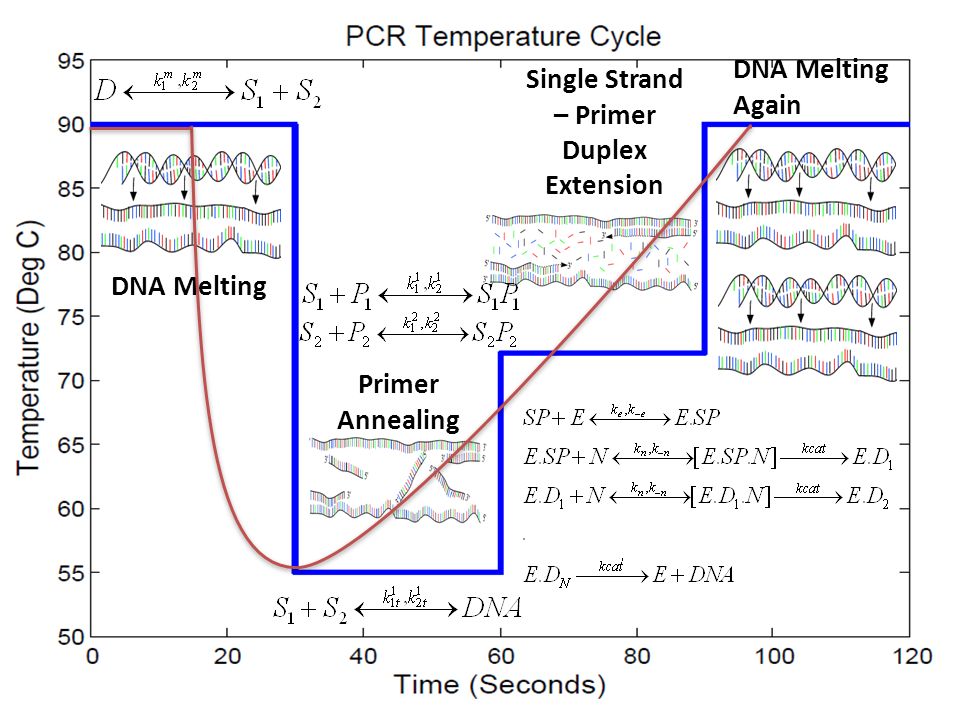

27. 9/12/2015 School of Chemical Engineering, Purdue University 27 DNA Melting Primer Annealing Single Strand – Primer Duplex Extension DNA Melting Again

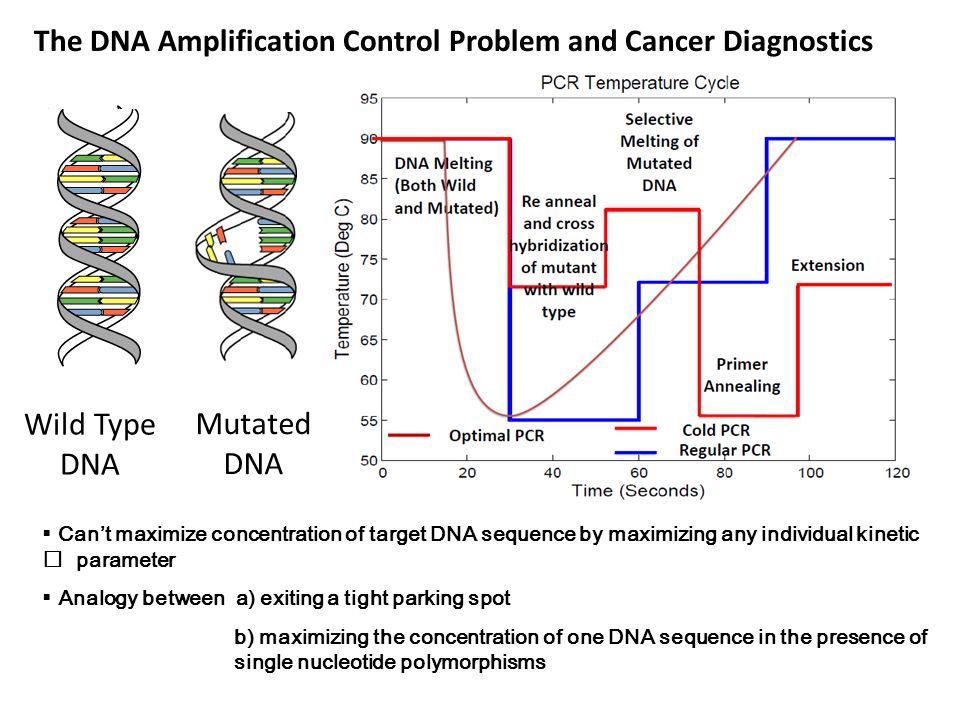

28. Wild Type DNA Mutated DNA The DNA Amplification Control Problem and Cancer Diagnostics  Can’t maximize concentration of target DNA sequence by maximizing any individual kinetic parameter  Analogy between a) exiting a tight parking spot b) maximizing the concentration of one DNA sequence in the presence of single nucleotide polymorphisms

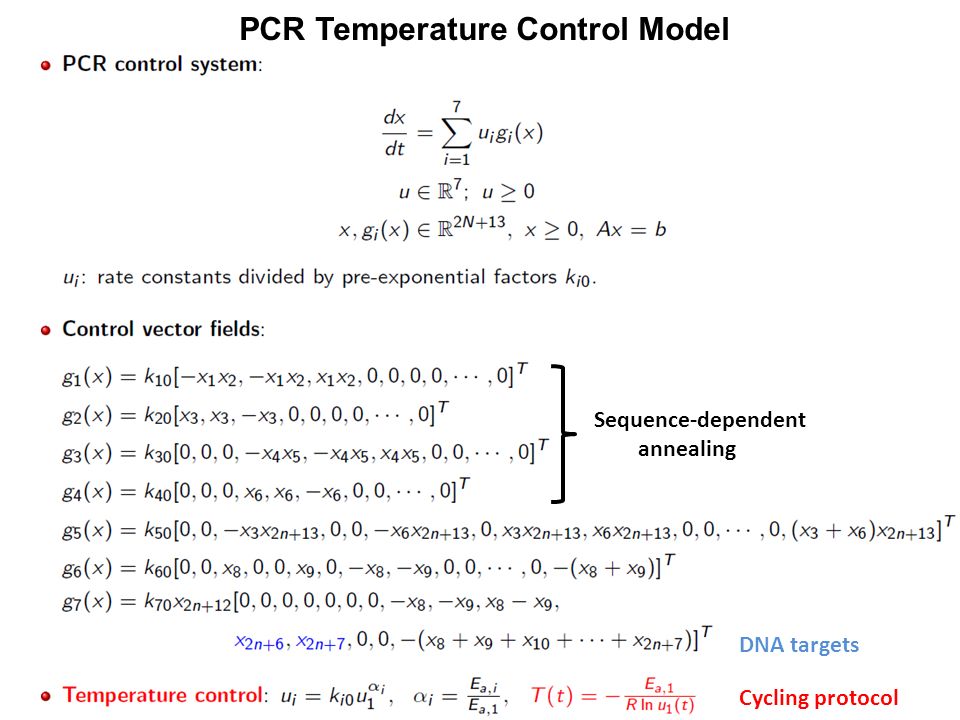

29. PCR Temperature Control Model Sequence-dependent annealing DNA targets Cycling protocol

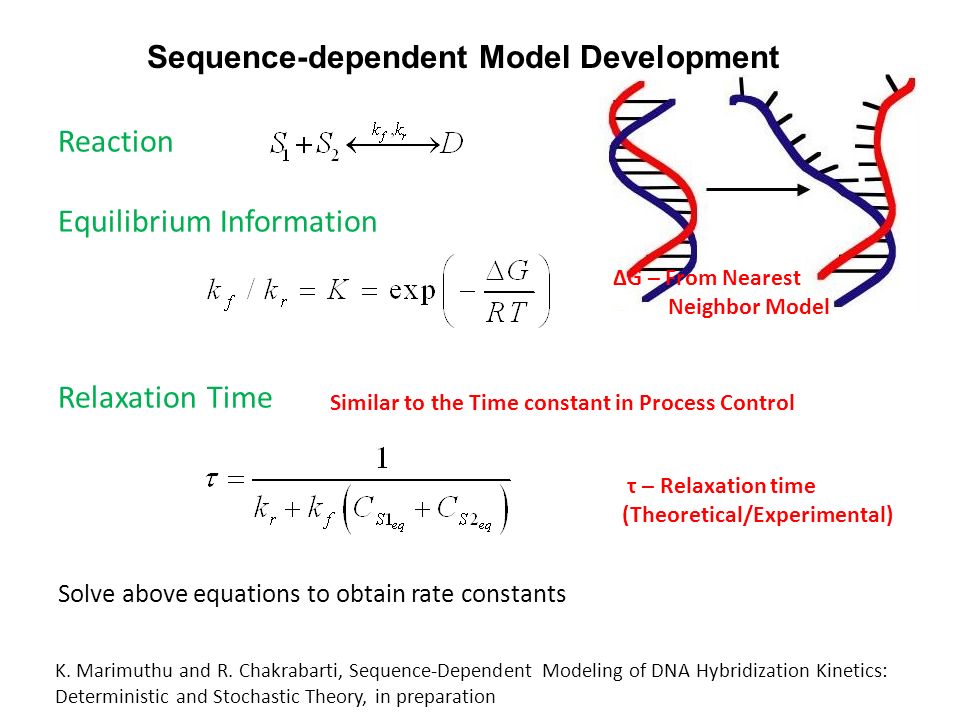

30. ΔG – From Nearest Neighbor Model τ – Relaxation time (Theoretical/Experimental) Solve above equations to obtain rate constants Reaction Equilibrium Information Relaxation Time Similar to the Time constant in Process Control Sequence-dependent Model Development K. Marimuthu and R. Chakrabarti, Sequence-Dependent Modeling of DNA Hybridization Kinetics: Deterministic and Stochastic Theory, in preparation

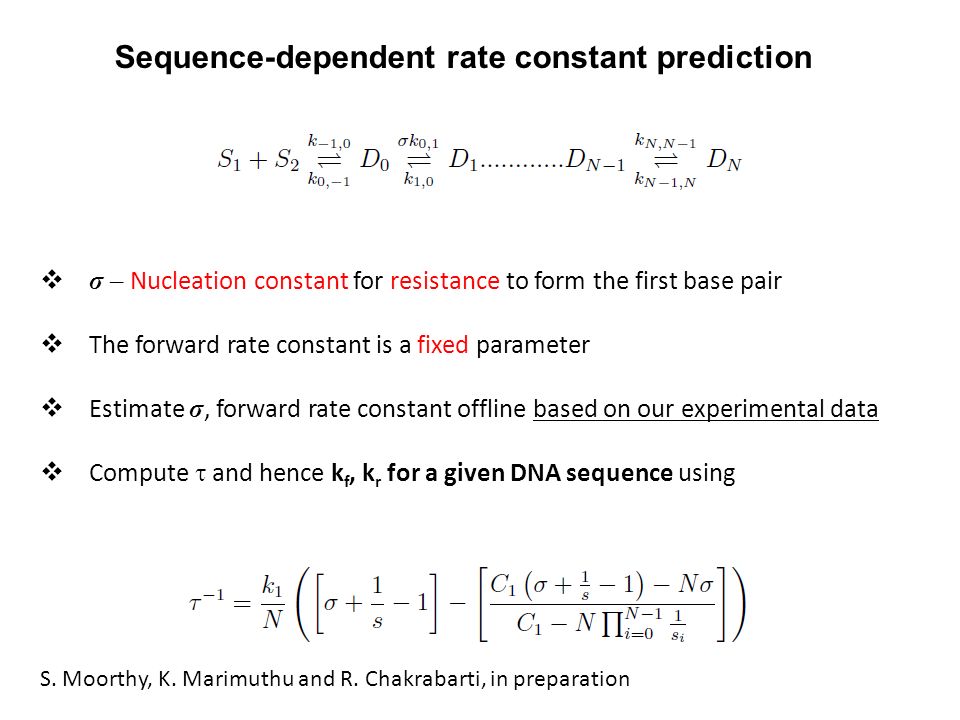

31. Reaction Mechanism  σ – Nucleation constant for resistance to form the first base pair  The forward rate constant is a fixed parameter  Estimate σ, forward rate constant offline based on our experimental data  Compute  and hence k f, k r for a given DNA sequence using Sequence-dependent rate constant prediction S. Moorthy, K. Marimuthu and R. Chakrabarti, in preparation  Sequence dependence comes from s_i = k i-1 /k i+1 - Stability constant for each base pair formation – Can be obtained from known NN parameters.

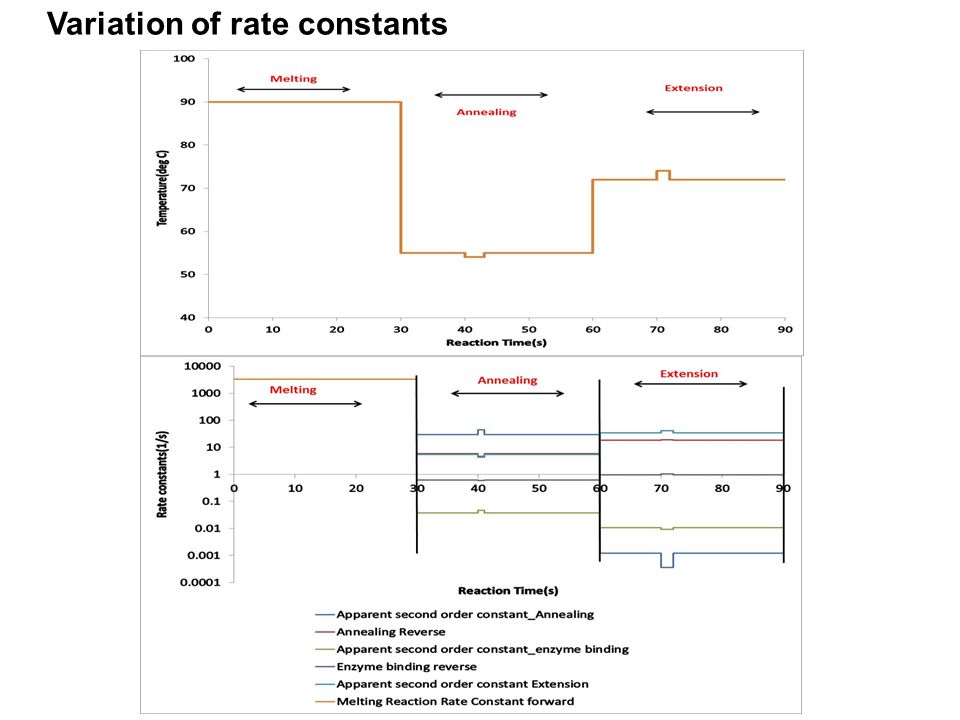

32. Leave this in terms of just one primer? Variation of rate constants

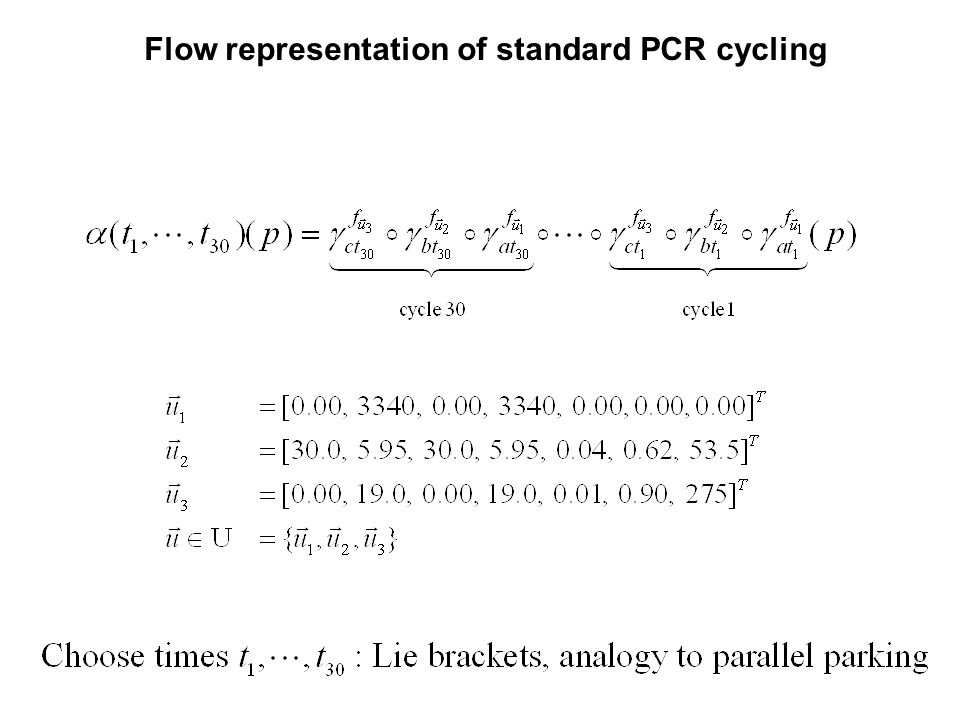

33. Insert comments on parallel parking analogy, Lie brackets from above Choose times Flow representation of standard PCR cycling

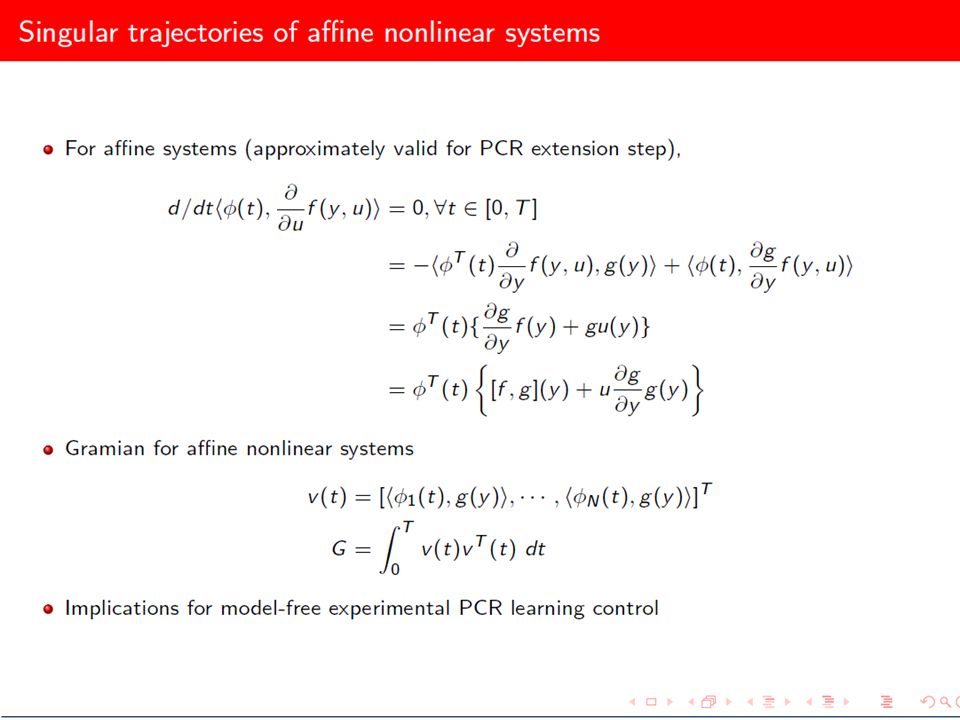

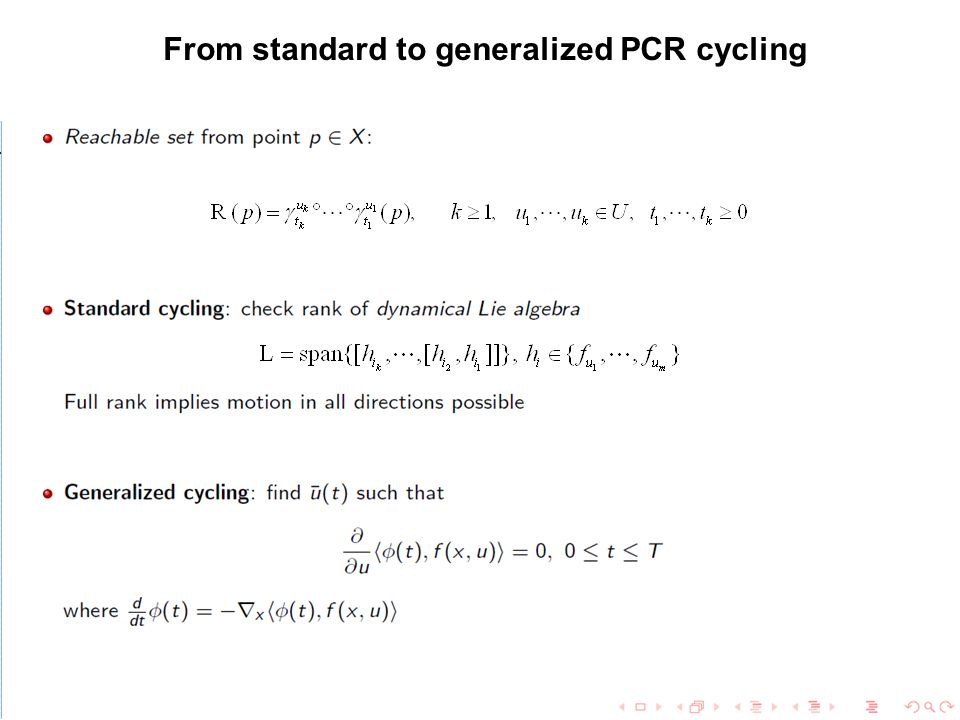

34. Accessibility May mention reachable set here rather than above May show affine extension state equations in u,f,g format PCR gradient, mentioning PMP and definition of \phi(t) (can then indicate below that gradient components in 2 nd cycle will be ~ null) Project flow w Gramian in terms of \phi(t) – for comments on model-free learning control of competitive problems below) Then transition to full OCT – for nonlinear problem, application of vector fields in arbitrary combinations Specify controls in finite set Reachable set Now parameterizing vector fields by controls $u$ (manipulated inputs), The \emph{reachable set} from point $p \in X$ at time $t$ is a submanifold of the state space $X$ May remove / send to backup 6. Decide what to show, finalize From standard to generalized PCR cycling

35. For N nucleotide template – 2N + 13 state equations Typically N ~ 10 3 Optimal Control of DNA Amplification R. Chakrabarti et al. Optimal Control of Evolutionary Dynamics, Phys. Rev. Lett., 2008 K. Marimuthu and R. Chakrabarti, Optimally Controlled DNA amplification, in preparation

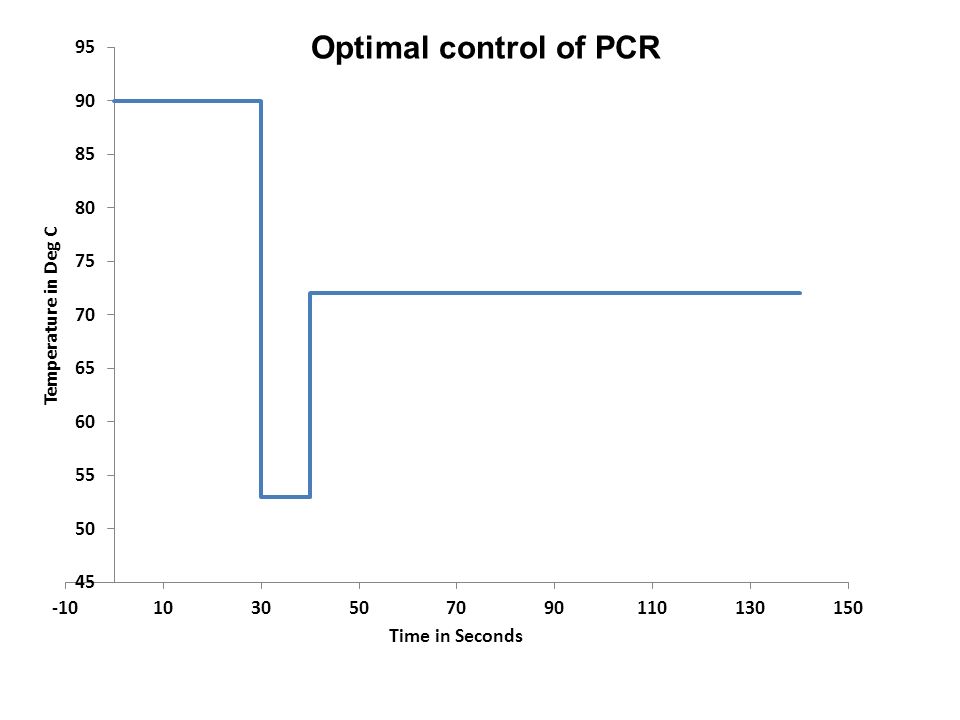

36. Optimal control of PCR

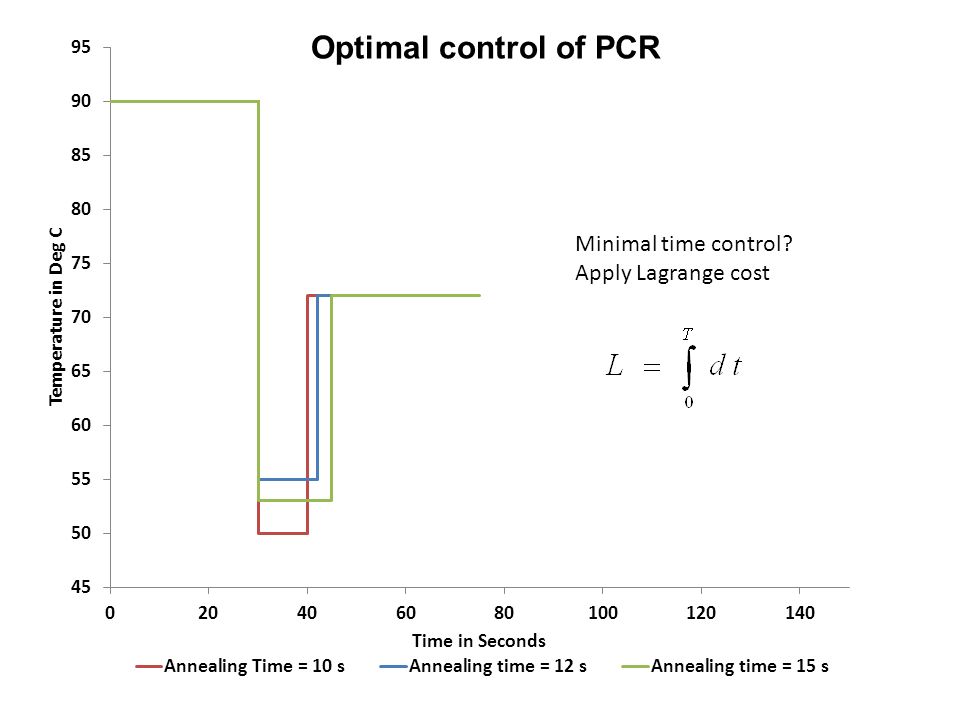

37. Minimal time control? Apply Lagrange cost

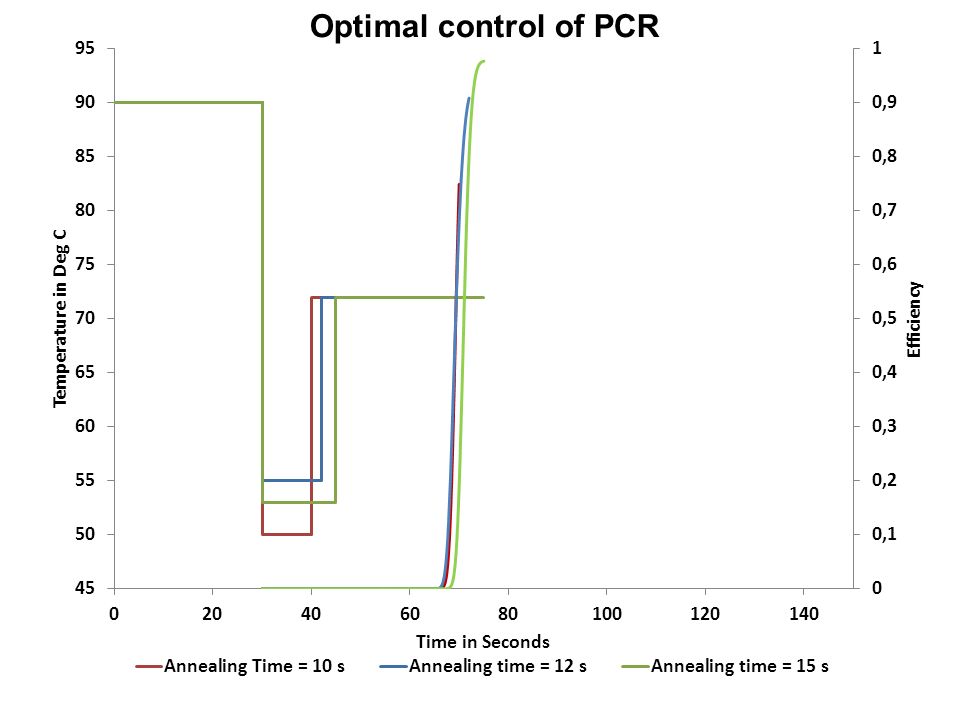

38. Optimal control of PCR

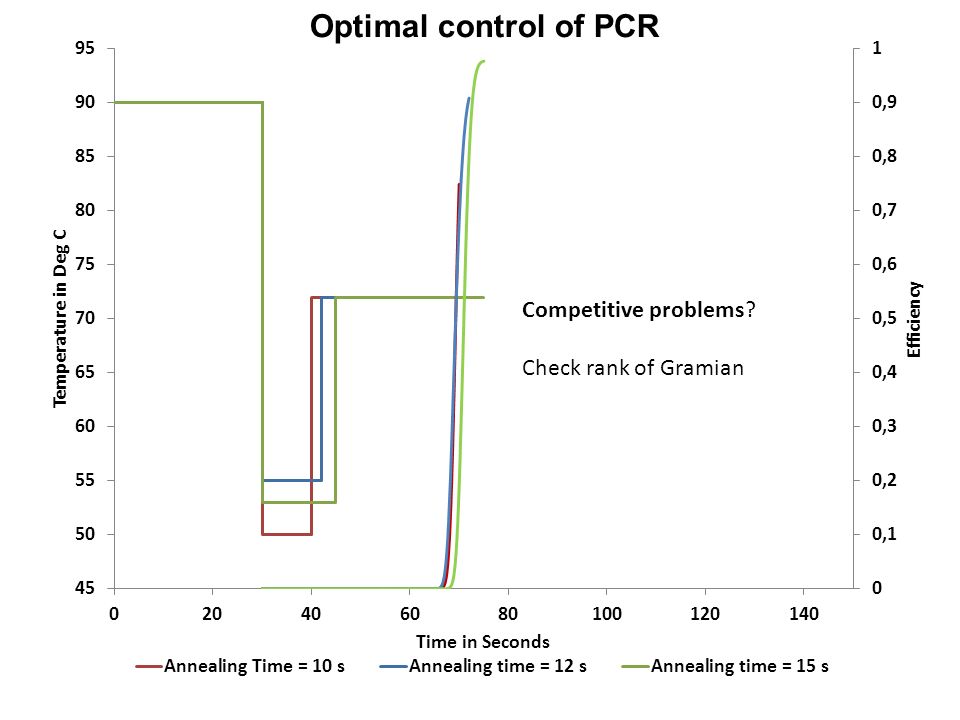

39. Competitive problems? Check rank of Gramian

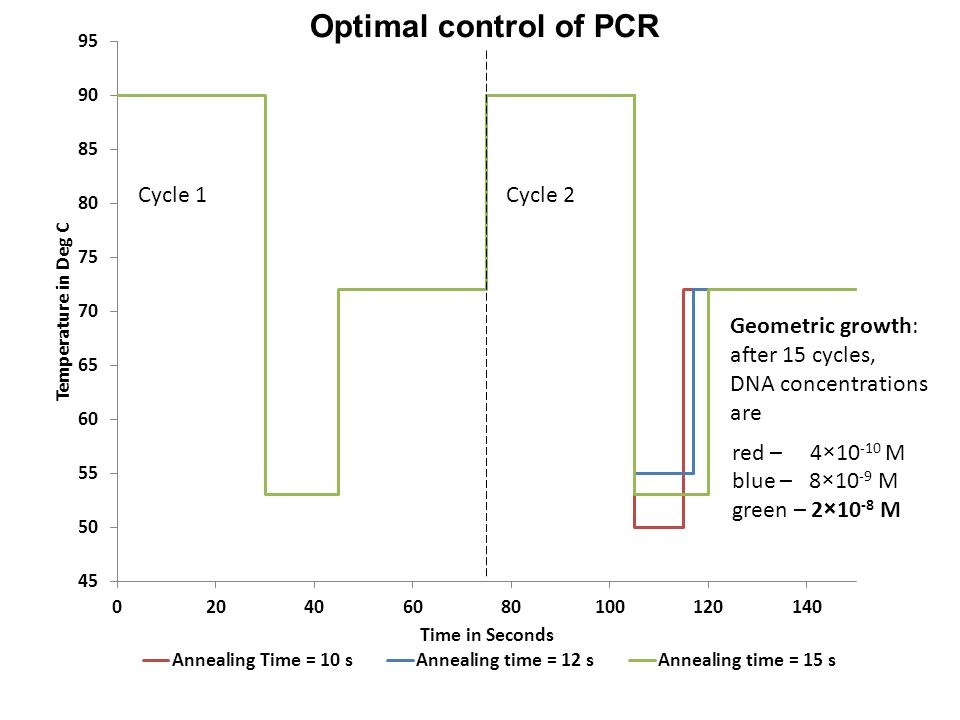

40. Optimal control of PCR Cycle 1 Cycle 2 Geometric growth: after 15 cycles, DNA concentrations are red – 4×10 -10 M blue – 8×10 -9 M green – 2×10 -8 M

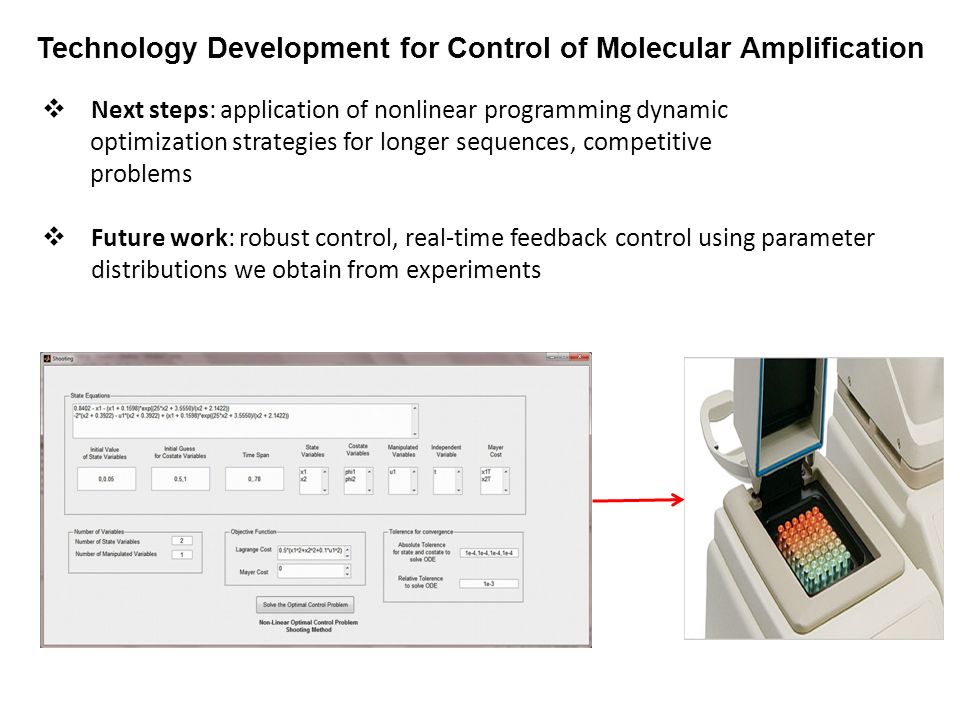

41.  Next steps: application of nonlinear programming dynamic optimization strategies for longer sequences, competitive problems  Future work: robust control, real-time feedback control using parameter distributions we obtain from experiments Technology Development for Control of Molecular Amplification

42. Summary Can reach ultimate limits in sustainable and selective chemical engineering through advanced dynamical control strategies at the nanoscale Requires balance of systems strategies and chemical physics New approaches to the integration of computational and experimental design are being developed

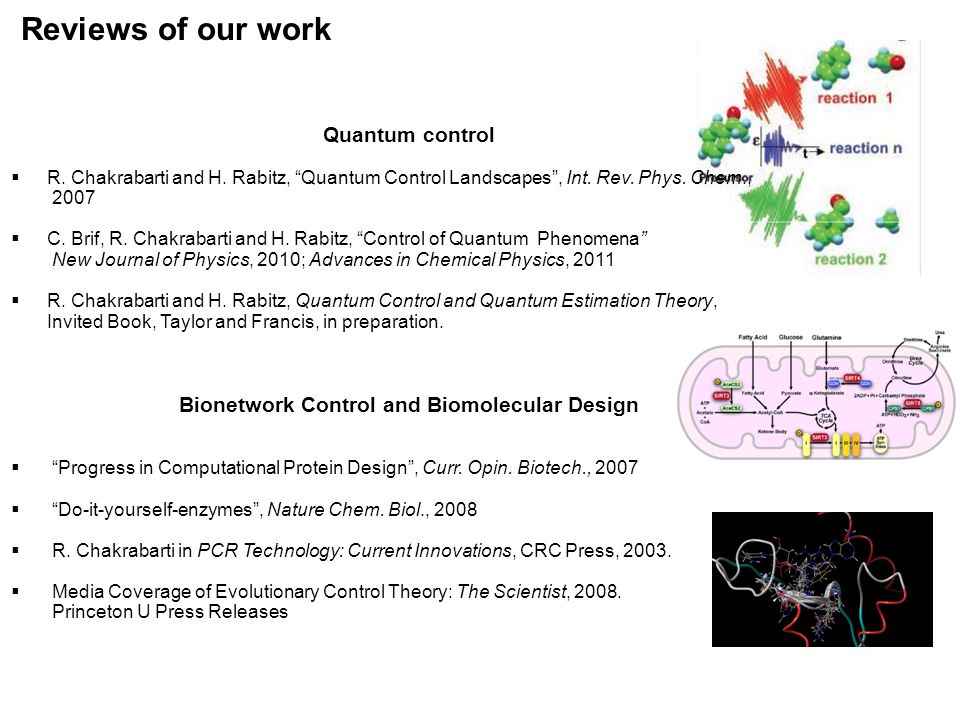

43. Reviews of our work Quantum control  R. Chakrabarti and H. Rabitz, “Quantum Control Landscapes”, Int. Rev. Phys. Chem., 2007  C. Brif, R. Chakrabarti and H. Rabitz, “Control of Quantum Phenomena” New Journal of Physics, 2010; Advances in Chemical Physics, 2011  R. Chakrabarti and H. Rabitz, Quantum Control and Quantum Estimation Theory, Invited Book, Taylor and Francis, in preparation. Bionetwork Control and Biomolecular Design  “Progress in Computational Protein Design”, Curr. Opin. Biotech., 2007  “Do-it-yourself-enzymes”, Nature Chem. Biol., 2008  R. Chakrabarti in PCR Technology: Current Innovations, CRC Press, 2003.  Media Coverage of Evolutionary Control Theory: The Scientist, 2008. Princeton U Press Releases

45. Insert more slides here: A) Affine control system (edit slide above to precede bilinear w affine?) B) possibly Magnus expansion vis-à-vis controllability. Possibly geometric picture of Lie brackets, Ad formula vis-à-vis CBH \item The Campbell-Baker-Hausdorff formula(s) provides... \begin{align*} \exp(A)\exp(B)&=\exp(A+B+\frac{1}{2!}[A,B]+\f rac{1}{12}[A,[A,B]]+\frac{1}{12}[B,[A,B]]\cdots\ \ \end{align*} \item Application of the CBH formula to a bilinear control system $$\frac{dy}{dt}=H(t)y(t)=(A+u(t)B(t))y(t)$$ gives \begin{align*} \mathbb{T}\exp\left\{\int_0^t H(t')~dt'\right\} &= \exp\biggr\{ \int_0^t H(t')~dt'+\frac{1}{2!}\int_0^t \int_0^{t'}\left[H(t'), H(t'')\right]~dt"dt' +\\ &\frac{1}{12}\int_0^t\int_0^{t'} \int_0^{t'} \left[H(t'), \left[H(t"), H(t''')\right]\right]~dt'''dt"dt' + \cdots \end{align*} where $\mathbb{T}$ denotes the time- ordering operator \item In quantum control, $H(t) = -i(H_0 - \mu\e(t))$, where $H_0$ and $\mu$ are Hermitian matrices Simplify – may show only magnus, or completely avoid it since we will be showing Dyson later. Could use beamer decide last

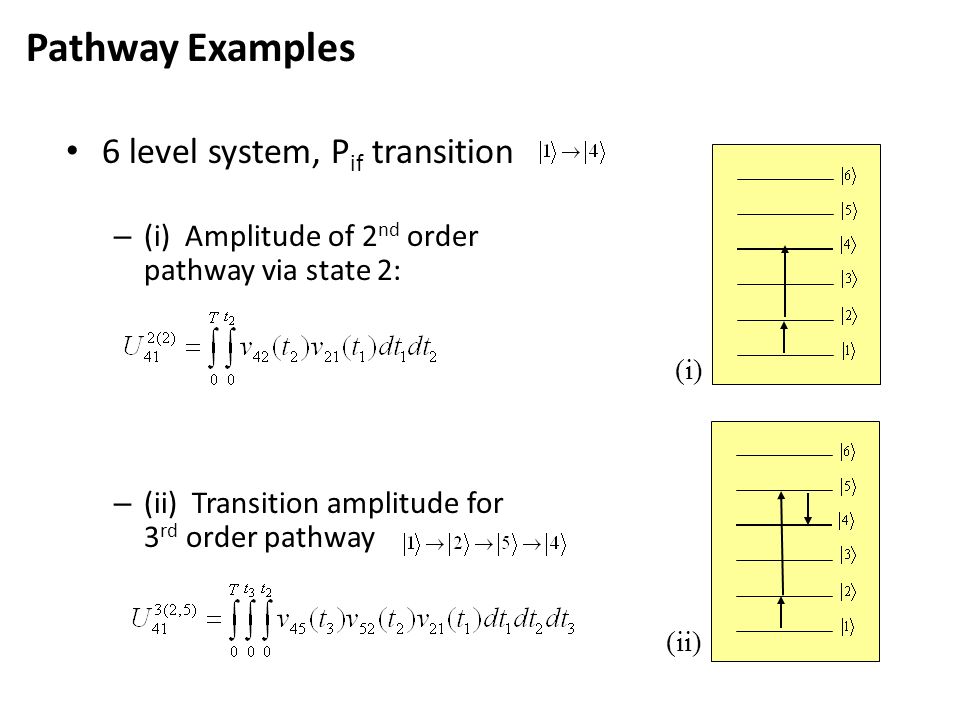

46. 6 level system, P if transition – (i) Amplitude of 2 nd order pathway via state 2: – (ii) Transition amplitude for 3 rd order pathway (i) (ii) Pathway Examples

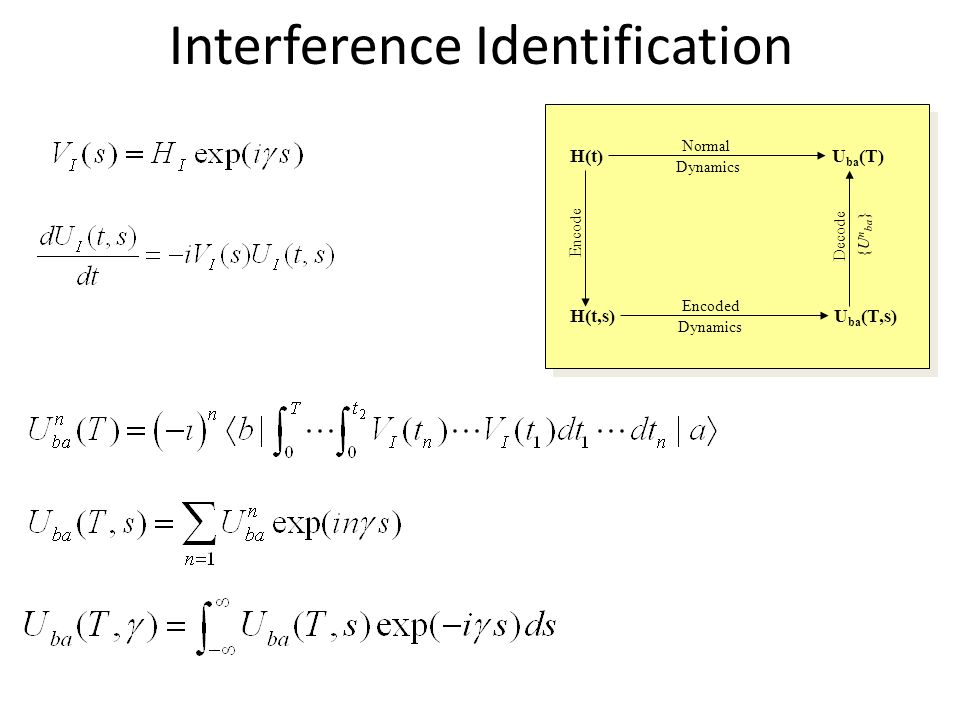

47. Interference Identification Fix for composite pathways, or redo slide for orders H(t) H(t,s) U ba (T) U ba (T,s) Encode Normal Dynamics Encoded Dynamics Decode {U n ba } Must show example of MI inverse FFT w arrow pointing to an n-th order pathway

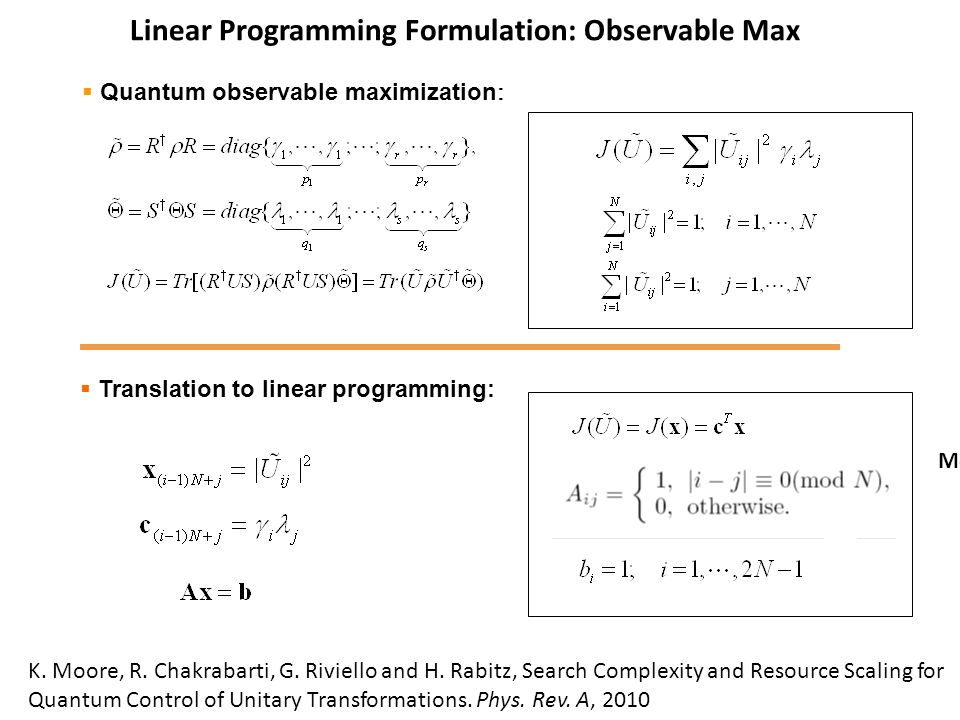

48.  Quantum observable maximization :  Translation to linear programming: Mention riemannian geometry working paper Linear Programming Formulation: Observable Max K. Moore, R. Chakrabarti, G. Riviello and H. Rabitz, Search Complexity and Resource Scaling for Quantum Control of Unitary Transformations. Phys. Rev. A, 2010.

49.  Maximum weighted bipartite matching (assignment prob): Given N agents and N tasks Any agent can be assigned to perform any task, incurring some cost depending on assignment Goal: perform all tasks by assigning exactly one agent to each task so as to maximize/minimize total cost The analogy to the “assignment problem”

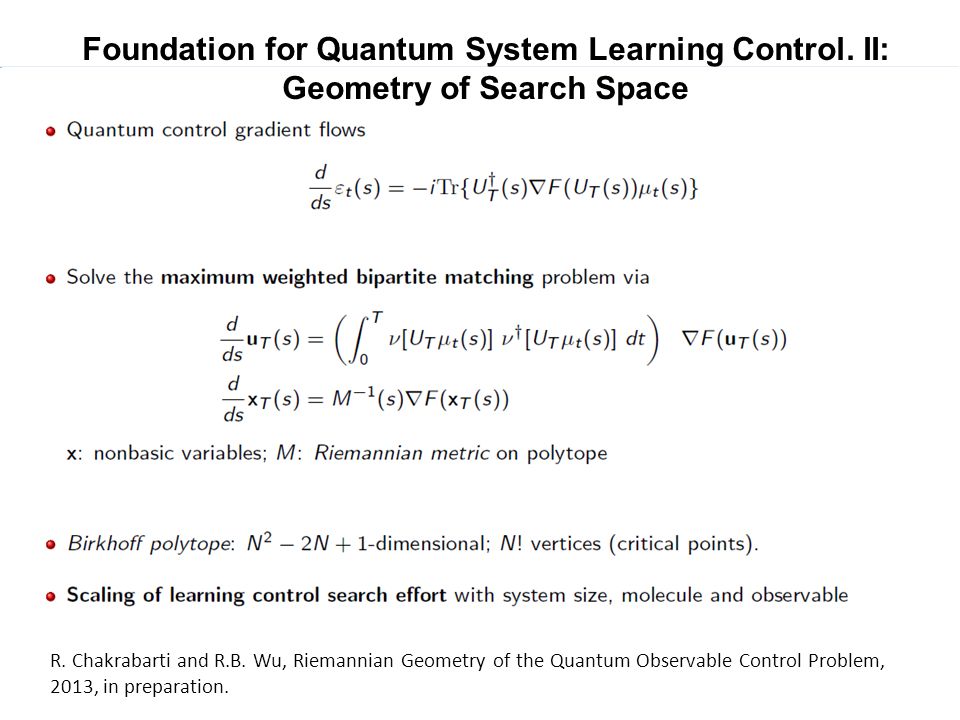

50. Maximum weighted bipartite matching of \gamma_i,\lambda_j Birkhoff polytope: flows start from points within polytopes and proceed to optimal vertex Replace w polytope formulation 5. Maximum weighted bipartite matching (assignment prob):Would need to mention Birkhoff polytope and then indicate the two examples shown in notes in a separate slide, then show projected flow on polytope in terms of just one matrix G_thick, indicate it is inverse metric due to compatibility cond’n, and indicate in bullet point that flows start from points within polytopes and proceed to optimal vertex (do not need to draw the polytopes now) M: inverse Gramian, Riemannian metric on polytope Foundation for Quantum System Learning Control. II: Geometry of Search Space R. Chakrabarti and R. Wu, Riemannian Geometry of the Quantum Observable Control Problem R. Chakrabarti and R.B. Wu, Riemannian Geometry of the Quantum Observable Control Problem, 2013, in preparation.

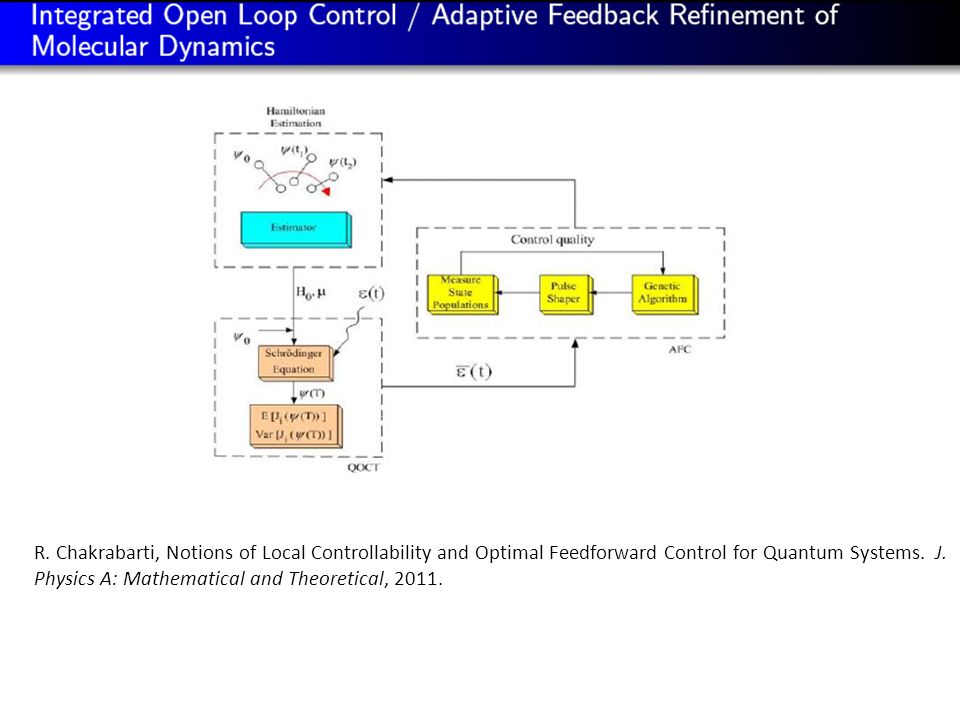

51. R. Chakrabarti, Notions of Local Controllability and Optimal Feedforward Control for Quantum Systems. J. Physics A: Mathematical and Theoretical, 2011.

52. Quantum Estimation

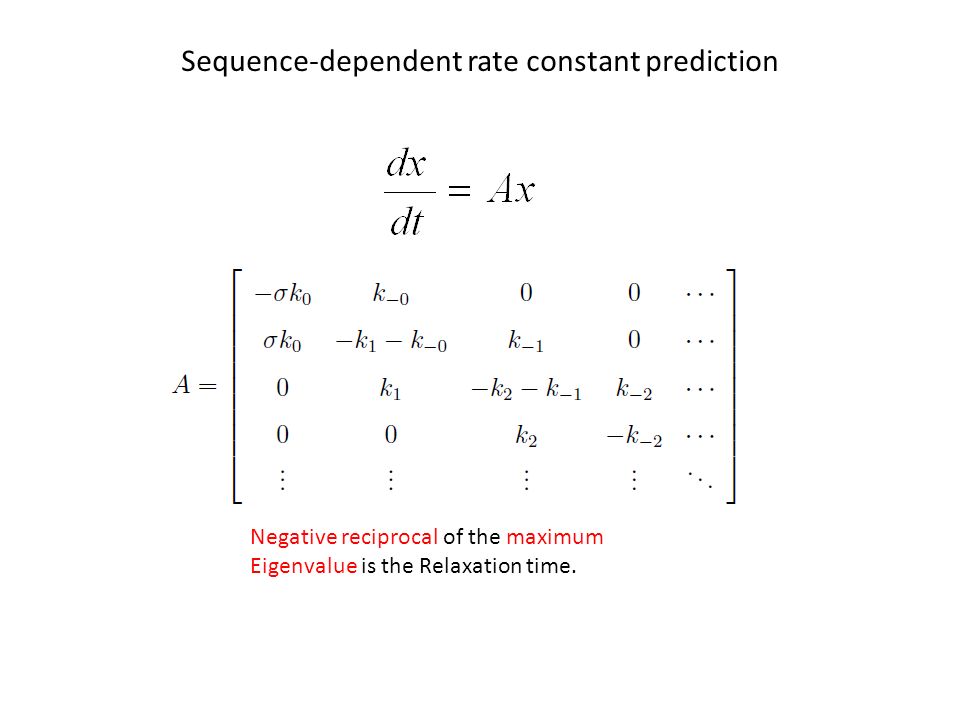

53. Sequence-dependent rate constant prediction bionetwork and biomolecular amplification control; sequence dependence of rate constants Mention KM JCP working paper, possibly ACS, here 4. Consolidate wrt KM’s prelim slides Negative reciprocal of the maximum Eigenvalue is the Relaxation time. Connection to first principles stochastic models: away from thermodynamic limit, for small number of DNA molecules, x_i’s correspond to expectation of the number of DNA molecules that have I bases annealed

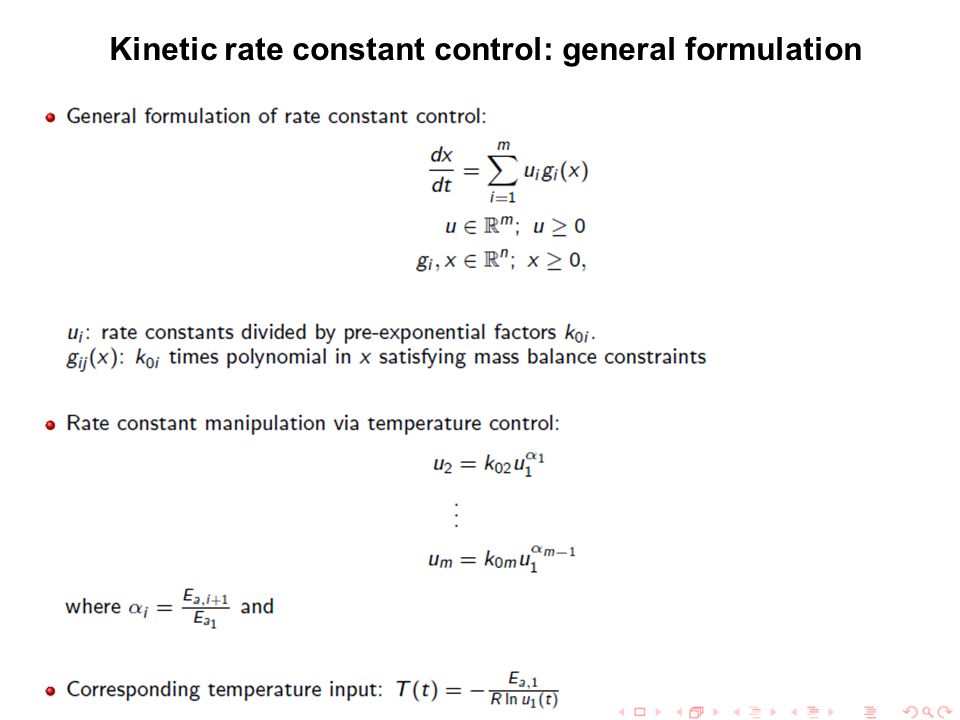

54. Kinetic rate constant control general formulation of rate constant control temperature control formulation Decide whether to explicitly show the form of the g_i(x)’s here; not essential 3. Use beamer for now? Finalize Kinetic rate constant control: general formulation
