CIS 185 CCNP ROUTE Ch. 4 Manipulating Routing Updates Rick Graziani Cabrillo College Last Updated: Fall 2011.

Similar presentations


Presentation on theme: "CIS 185 CCNP ROUTE Ch. 4 Manipulating Routing Updates Rick Graziani Cabrillo College Last Updated: Fall 2011."— Presentation transcript:

1 CIS 185 CCNP ROUTE Ch. 4 Manipulating Routing Updates Rick Graziani Cabrillo College graziani@cabrillo.edu Last Updated: Fall 2011

2 2 Materials Book:  Implementing Cisco IP Routing (ROUTE) Foundation Learning Guide: Foundation learning for the ROUTE 642-902 Exam  By Diane Teare  Book  ISBN-10: 1-58705-882-0  ISBN-13: 978-1-58705-882-0  eBook  ISBN-10: 0-13-255033-4  ISBN-13: 978-0-13-255033-8

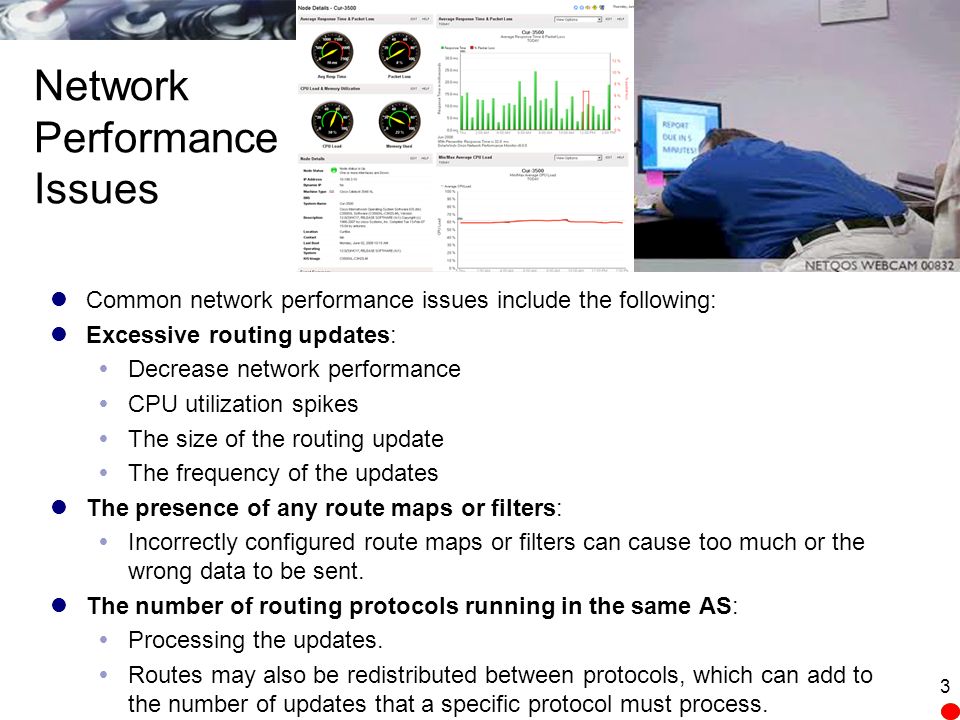

3 Network Performance Issues Common network performance issues include the following: Excessive routing updates:  Decrease network performance  CPU utilization spikes  The size of the routing update  The frequency of the updates The presence of any route maps or filters:  Incorrectly configured route maps or filters can cause too much or the wrong data to be sent. The number of routing protocols running in the same AS:  Processing the updates.  Routes may also be redistributed between protocols, which can add to the number of updates that a specific protocol must process. 3

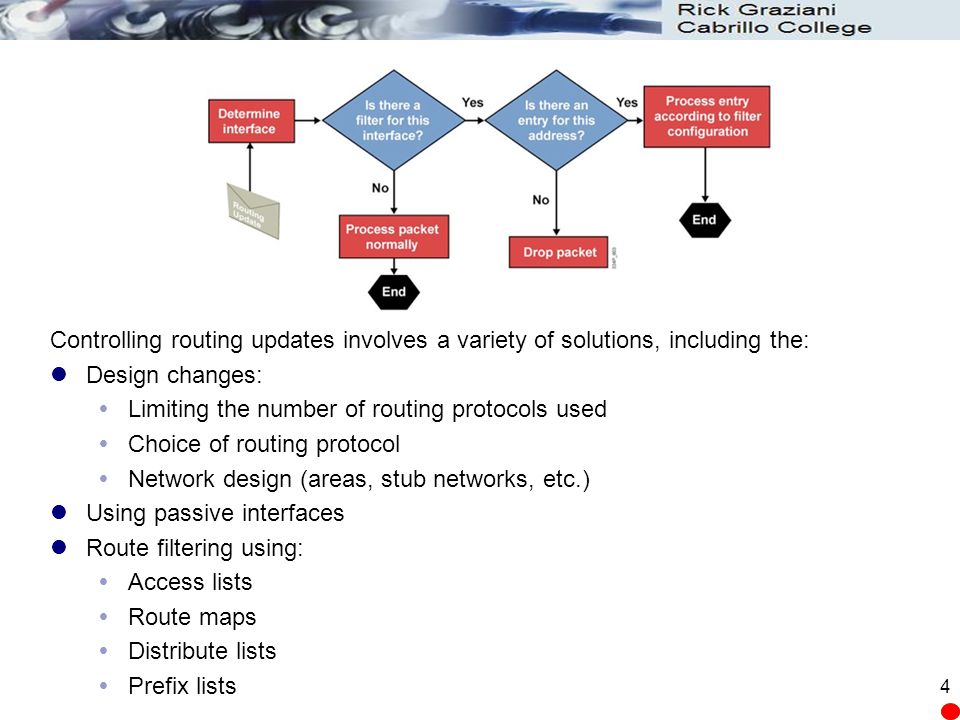

4 Controlling routing updates involves a variety of solutions, including the: Design changes:  Limiting the number of routing protocols used  Choice of routing protocol  Network design (areas, stub networks, etc.) Using passive interfaces Route filtering using:  Access lists  Route maps  Distribute lists  Prefix lists 4

5 Route Redistribution 5

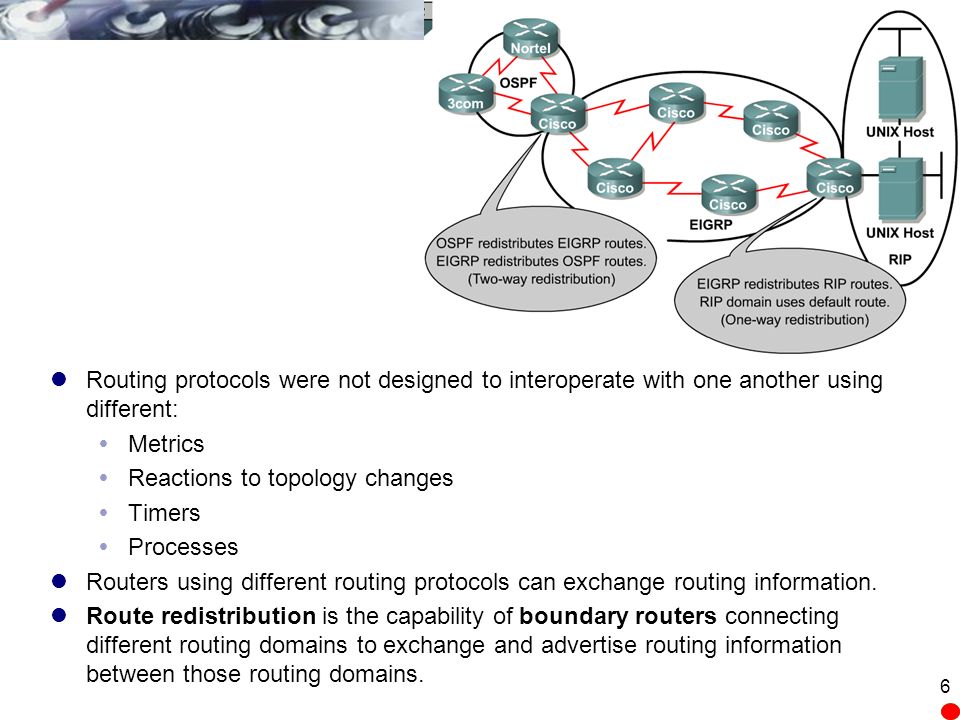

6 Routing protocols were not designed to interoperate with one another using different:  Metrics  Reactions to topology changes  Timers  Processes Routers using different routing protocols can exchange routing information. Route redistribution is the capability of boundary routers connecting different routing domains to exchange and advertise routing information between those routing domains. 6

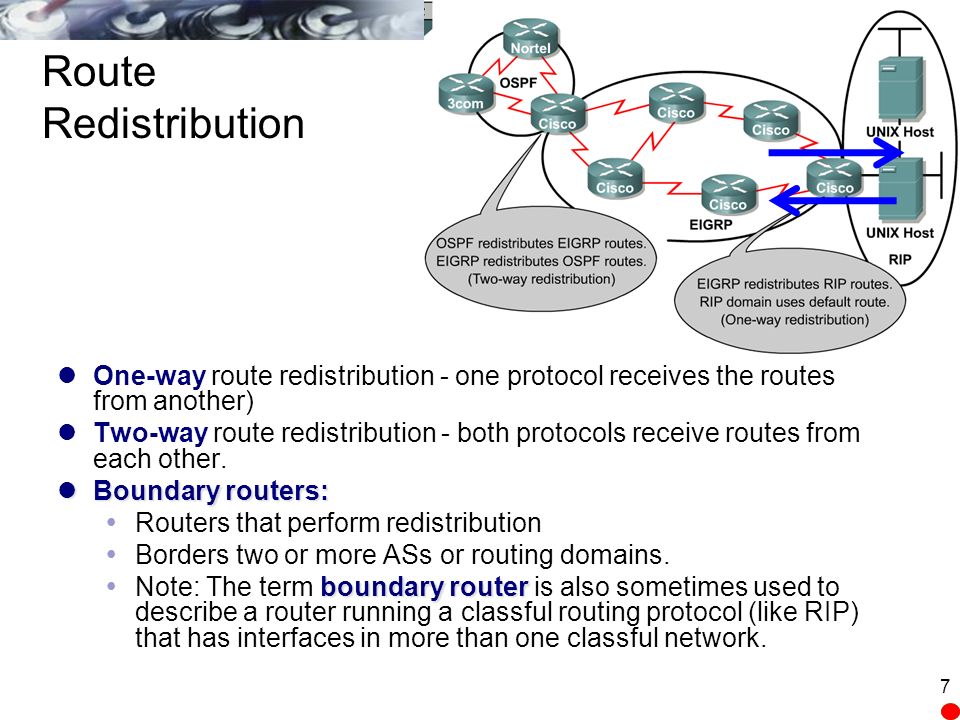

7 7 Route Redistribution One-way route redistribution - one protocol receives the routes from another) Two-way route redistribution - both protocols receive routes from each other. Boundary routers: Boundary routers:  Routers that perform redistribution  Borders two or more ASs or routing domains. boundary router  Note: The term boundary router is also sometimes used to describe a router running a classful routing protocol (like RIP) that has interfaces in more than one classful network.

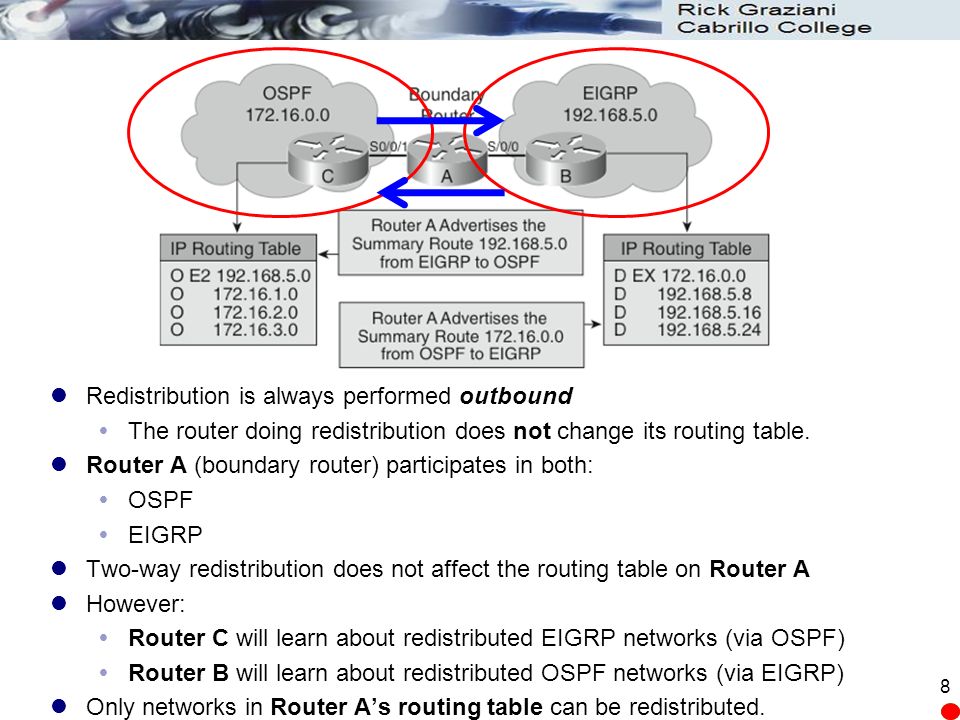

8 Redistribution is always performed outbound  The router doing redistribution does not change its routing table. Router A (boundary router) participates in both:  OSPF  EIGRP Two-way redistribution does not affect the routing table on Router A However:  Router C will learn about redistributed EIGRP networks (via OSPF)  Router B will learn about redistributed OSPF networks (via EIGRP) Only networks in Router A’s routing table can be redistributed. 8

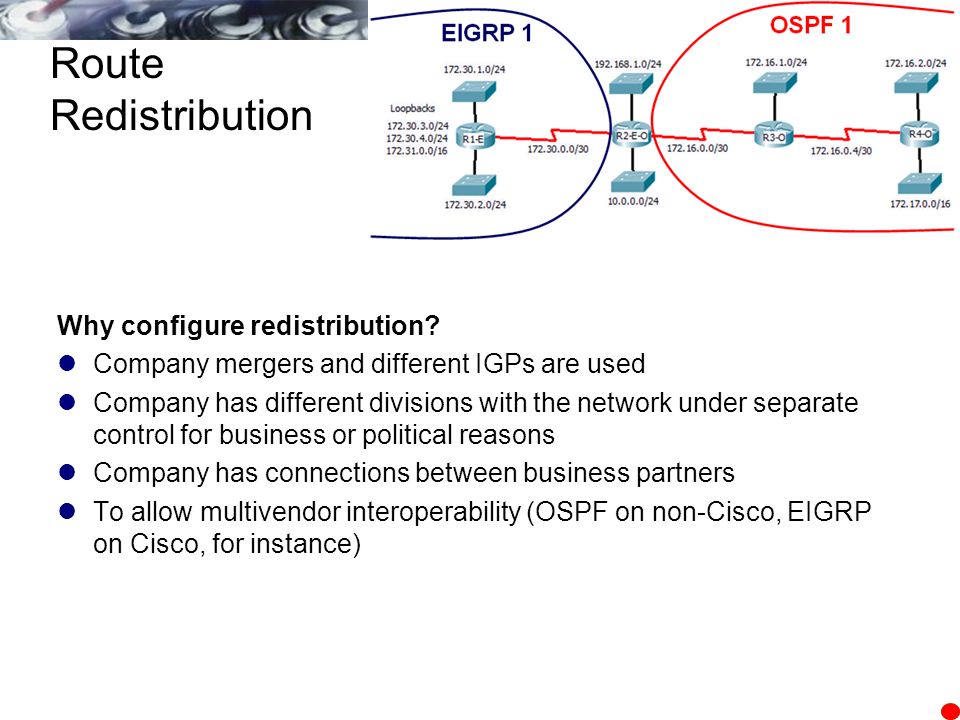

9 Why configure redistribution? Company mergers and different IGPs are used Company has different divisions with the network under separate control for business or political reasons Company has connections between business partners To allow multivendor interoperability (OSPF on non-Cisco, EIGRP on Cisco, for instance) Route Redistribution

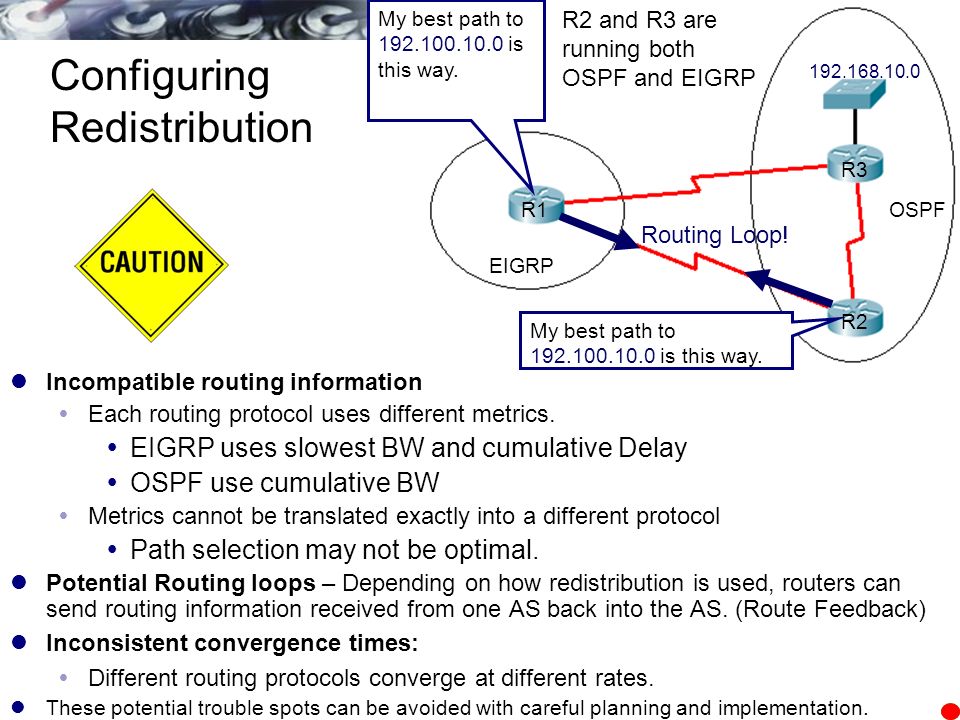

10 Incompatible routing information  Each routing protocol uses different metrics.  EIGRP uses slowest BW and cumulative Delay  OSPF use cumulative BW  Metrics cannot be translated exactly into a different protocol  Path selection may not be optimal. Potential Routing loops – Depending on how redistribution is used, routers can send routing information received from one AS back into the AS. (Route Feedback) Inconsistent convergence times:  Different routing protocols converge at different rates. These potential trouble spots can be avoided with careful planning and implementation. Configuring Redistribution My best path to 192.100.10.0 is this way. 192.168.10.0 EIGRP OSPF Routing Loop! R3 R2 R1 R2 and R3 are running both OSPF and EIGRP

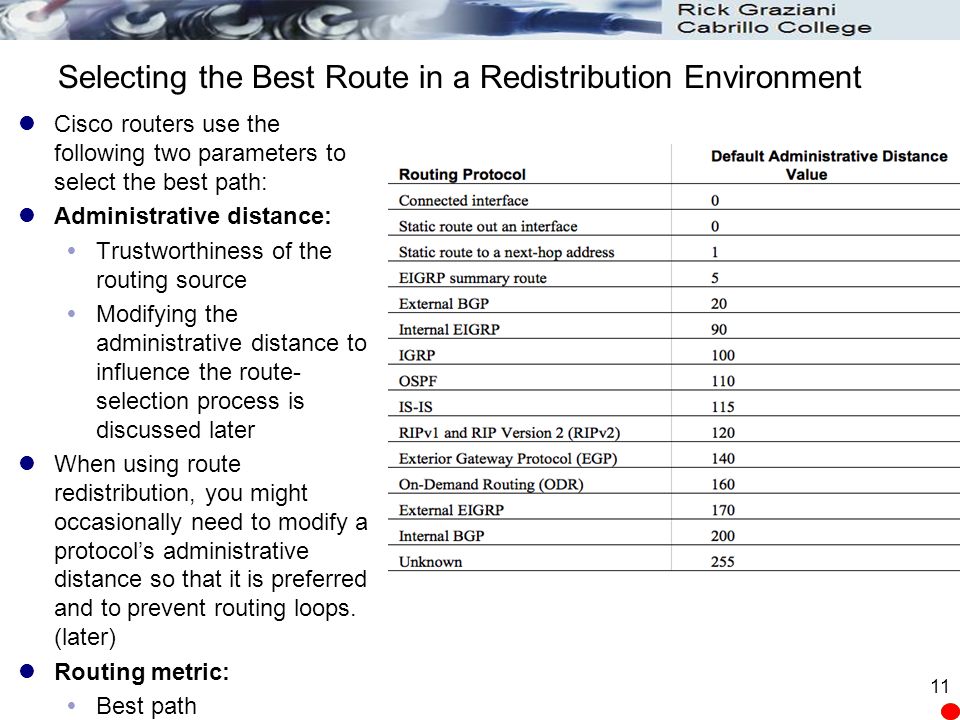

11 Selecting the Best Route in a Redistribution Environment Cisco routers use the following two parameters to select the best path: Administrative distance:  Trustworthiness of the routing source  Modifying the administrative distance to influence the route- selection process is discussed later When using route redistribution, you might occasionally need to modify a protocol’s administrative distance so that it is preferred and to prevent routing loops. (later) Routing metric:  Best path 11

12 Concepts of Redistribution

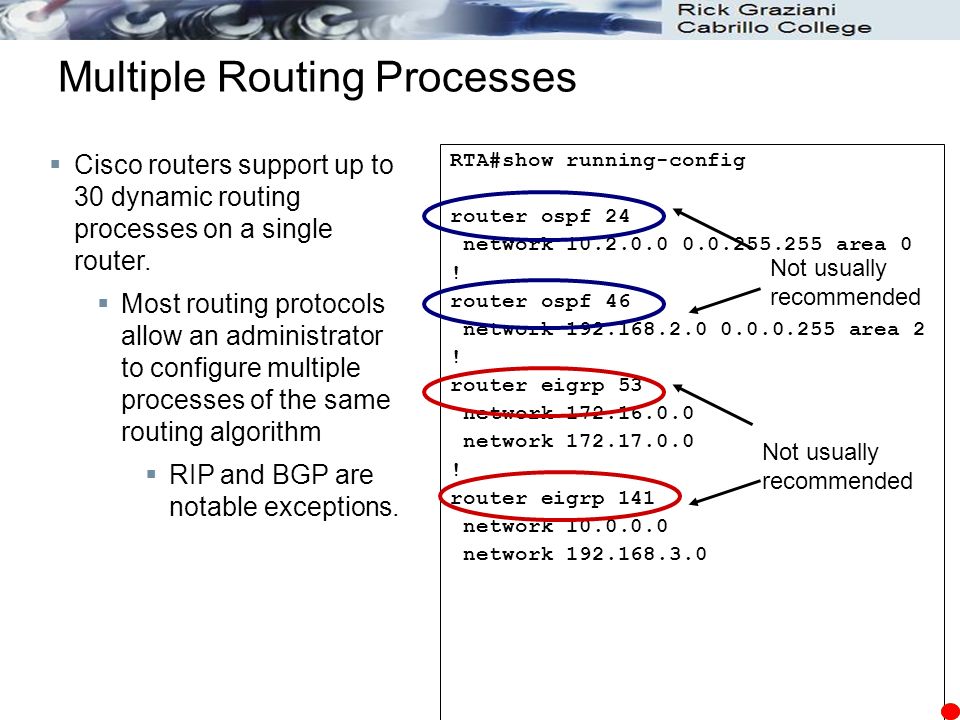

13 Multiple Routing Processes RTA#show running-config router ospf 24 network 10.2.0.0 0.0.255.255 area 0 ! router ospf 46 network 192.168.2.0 0.0.0.255 area 2 ! router eigrp 53 network 172.16.0.0 network 172.17.0.0 ! router eigrp 141 network 10.0.0.0 network 192.168.3.0 Not usually recommended  Cisco routers support up to 30 dynamic routing processes on a single router.  Most routing protocols allow an administrator to configure multiple processes of the same routing algorithm  RIP and BGP are notable exceptions.

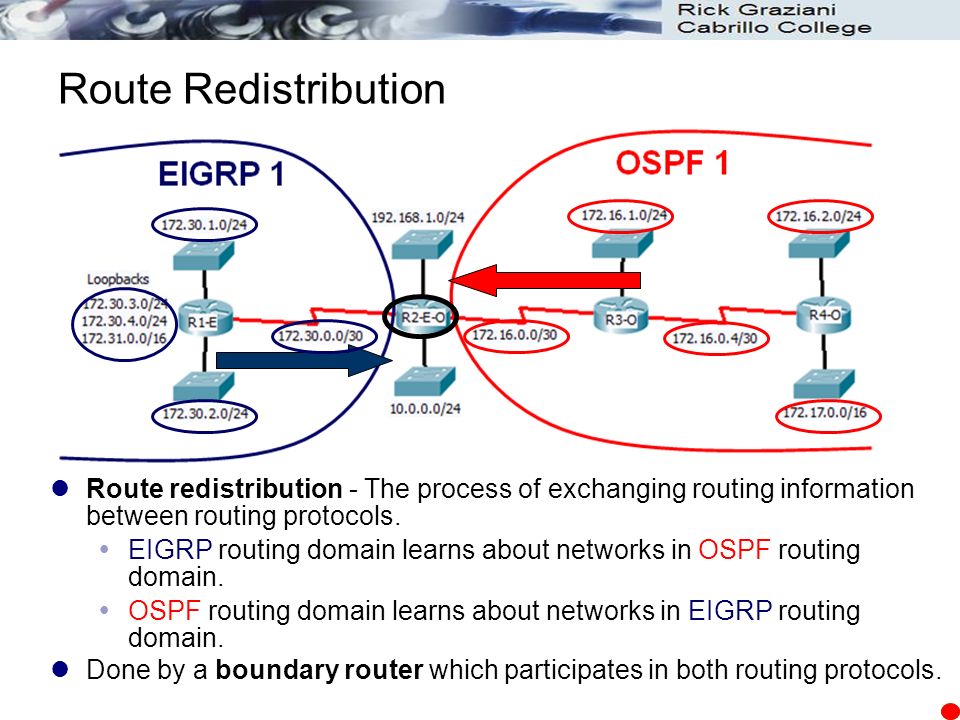

14 Route redistribution - The process of exchanging routing information between routing protocols.  EIGRP routing domain learns about networks in OSPF routing domain.  OSPF routing domain learns about networks in EIGRP routing domain. Done by a boundary router which participates in both routing protocols. Route Redistribution

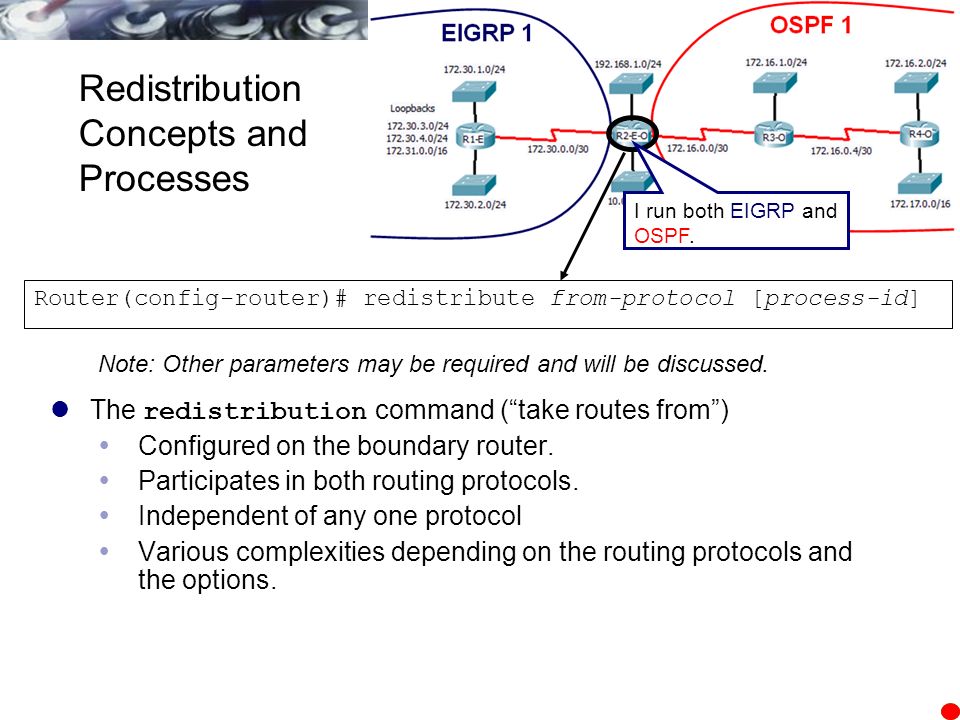

15 Redistribution Concepts and Processes The redistribution command (“take routes from”)  Configured on the boundary router.  Participates in both routing protocols.  Independent of any one protocol  Various complexities depending on the routing protocols and the options. Router(config-router)# redistribute from-protocol [process-id] Note: Other parameters may be required and will be discussed. I run both EIGRP and OSPF.

16 Redistributing from OSPF into EIGRP

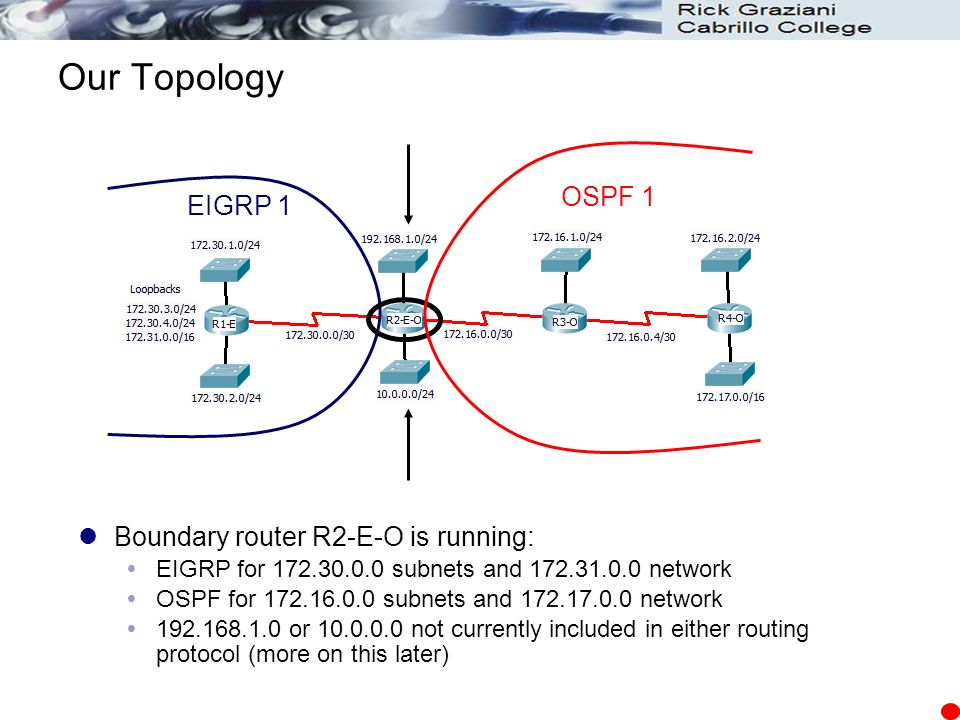

17 Our Topology Boundary router R2-E-O is running:  EIGRP for 172.30.0.0 subnets and 172.31.0.0 network  OSPF for 172.16.0.0 subnets and 172.17.0.0 network  192.168.1.0 or 10.0.0.0 not currently included in either routing protocol (more on this later) EIGRP 1 OSPF 1

18 Redistribution into EIGRP The syntax differs slightly depending on the routing protocol into which routes will be redistributed. redistribute protocol [process-id | as-number] [metric bw delay reliability load mtu ] [match {internal | nssa-external | external 1 | external 2}] [tag tag- value] [route-map name]

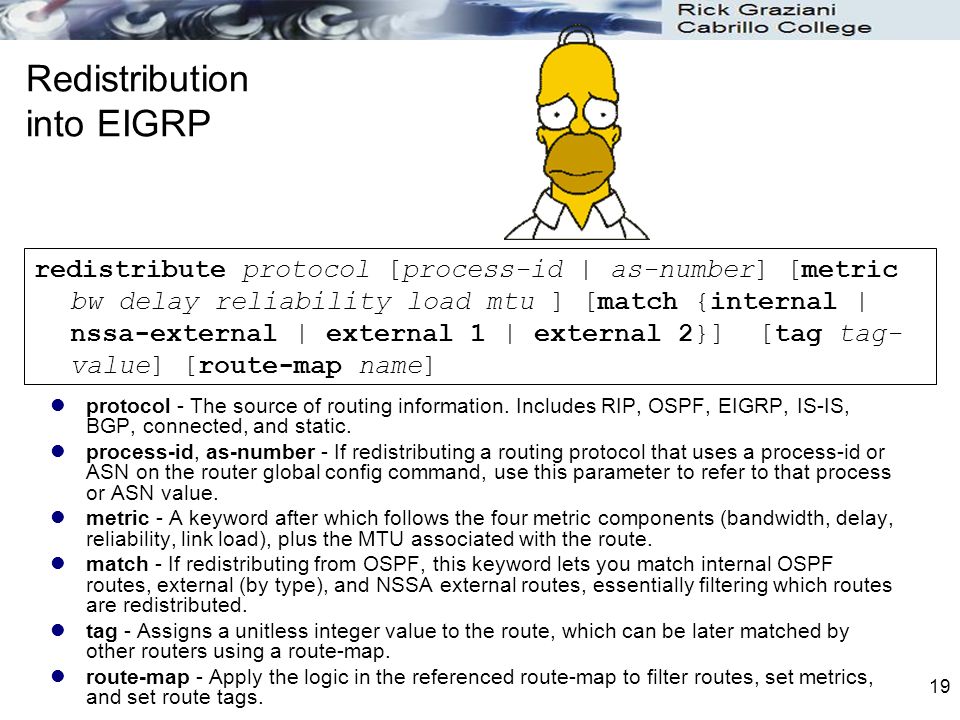

19 19 Redistribution into EIGRP protocol - The source of routing information. Includes RIP, OSPF, EIGRP, IS-IS, BGP, connected, and static. process-id, as-number - If redistributing a routing protocol that uses a process-id or ASN on the router global config command, use this parameter to refer to that process or ASN value. metric - A keyword after which follows the four metric components (bandwidth, delay, reliability, link load), plus the MTU associated with the route. match - If redistributing from OSPF, this keyword lets you match internal OSPF routes, external (by type), and NSSA external routes, essentially filtering which routes are redistributed. tag - Assigns a unitless integer value to the route, which can be later matched by other routers using a route-map. route-map - Apply the logic in the referenced route-map to filter routes, set metrics, and set route tags. redistribute protocol [process-id | as-number] [metric bw delay reliability load mtu ] [match {internal | nssa-external | external 1 | external 2}] [tag tag- value] [route-map name]

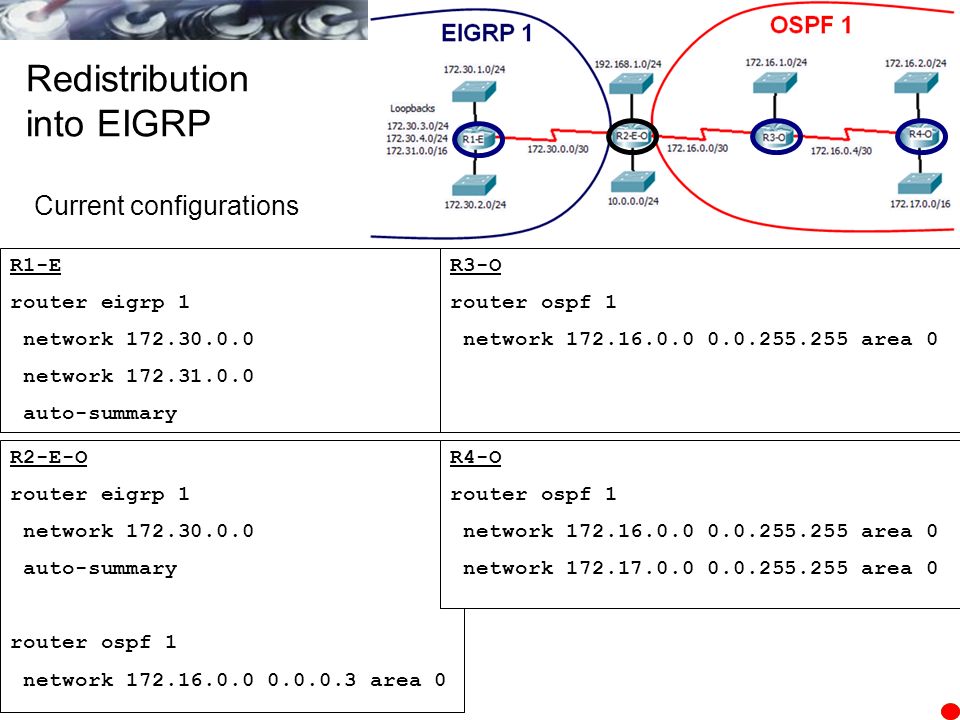

20 Redistribution into EIGRP Current configurations R1-E router eigrp 1 network 172.30.0.0 network 172.31.0.0 auto-summary R2-E-O router eigrp 1 network 172.30.0.0 auto-summary router ospf 1 network 172.16.0.0 0.0.0.3 area 0 R3-O router ospf 1 network 172.16.0.0 0.0.255.255 area 0 R4-O router ospf 1 network 172.16.0.0 0.0.255.255 area 0 network 172.17.0.0 0.0.255.255 area 0

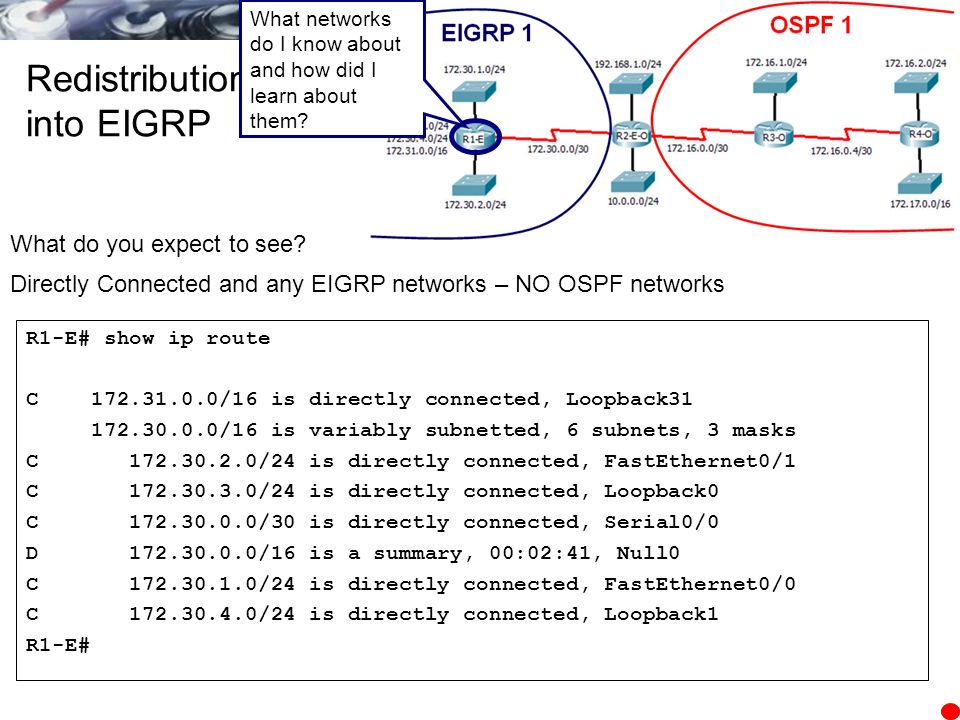

21 Redistribution into EIGRP R1-E# show ip route C 172.31.0.0/16 is directly connected, Loopback31 172.30.0.0/16 is variably subnetted, 6 subnets, 3 masks C 172.30.2.0/24 is directly connected, FastEthernet0/1 C 172.30.3.0/24 is directly connected, Loopback0 C 172.30.0.0/30 is directly connected, Serial0/0 D 172.30.0.0/16 is a summary, 00:02:41, Null0 C 172.30.1.0/24 is directly connected, FastEthernet0/0 C 172.30.4.0/24 is directly connected, Loopback1 R1-E# What do you expect to see? Directly Connected and any EIGRP networks – NO OSPF networks What networks do I know about and how did I learn about them?

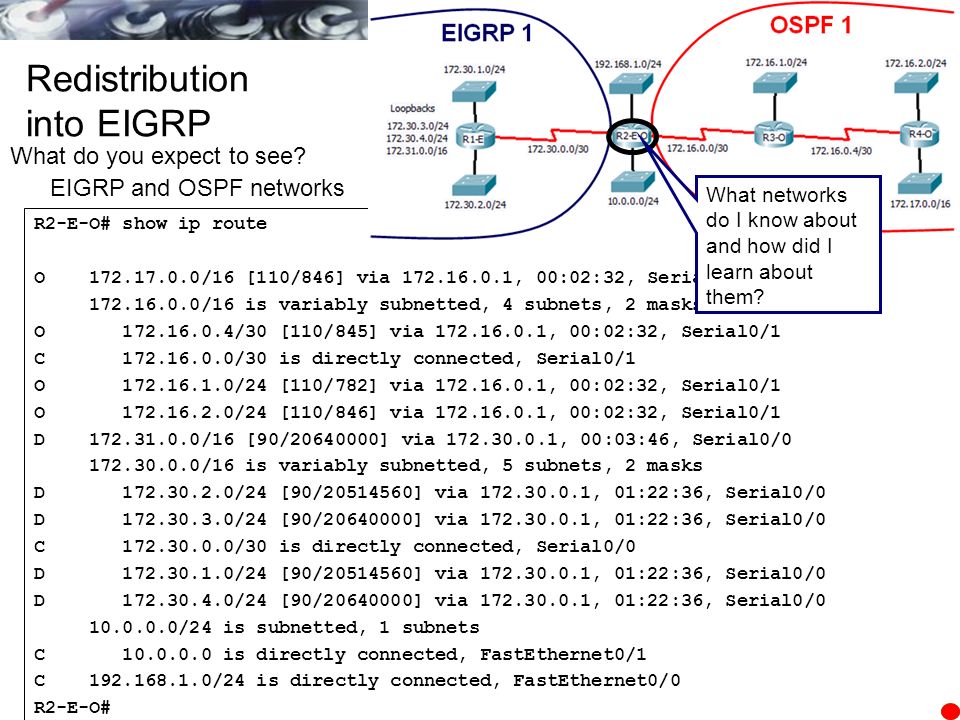

22 Redistribution into EIGRP R2-E-O# show ip route O 172.17.0.0/16 [110/846] via 172.16.0.1, 00:02:32, Serial0/1 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks O 172.16.0.4/30 [110/845] via 172.16.0.1, 00:02:32, Serial0/1 C 172.16.0.0/30 is directly connected, Serial0/1 O 172.16.1.0/24 [110/782] via 172.16.0.1, 00:02:32, Serial0/1 O 172.16.2.0/24 [110/846] via 172.16.0.1, 00:02:32, Serial0/1 D 172.31.0.0/16 [90/20640000] via 172.30.0.1, 00:03:46, Serial0/0 172.30.0.0/16 is variably subnetted, 5 subnets, 2 masks D 172.30.2.0/24 [90/20514560] via 172.30.0.1, 01:22:36, Serial0/0 D 172.30.3.0/24 [90/20640000] via 172.30.0.1, 01:22:36, Serial0/0 C 172.30.0.0/30 is directly connected, Serial0/0 D 172.30.1.0/24 [90/20514560] via 172.30.0.1, 01:22:36, Serial0/0 D 172.30.4.0/24 [90/20640000] via 172.30.0.1, 01:22:36, Serial0/0 10.0.0.0/24 is subnetted, 1 subnets C 10.0.0.0 is directly connected, FastEthernet0/1 C 192.168.1.0/24 is directly connected, FastEthernet0/0 R2-E-O# What do you expect to see? EIGRP and OSPF networks What networks do I know about and how did I learn about them?

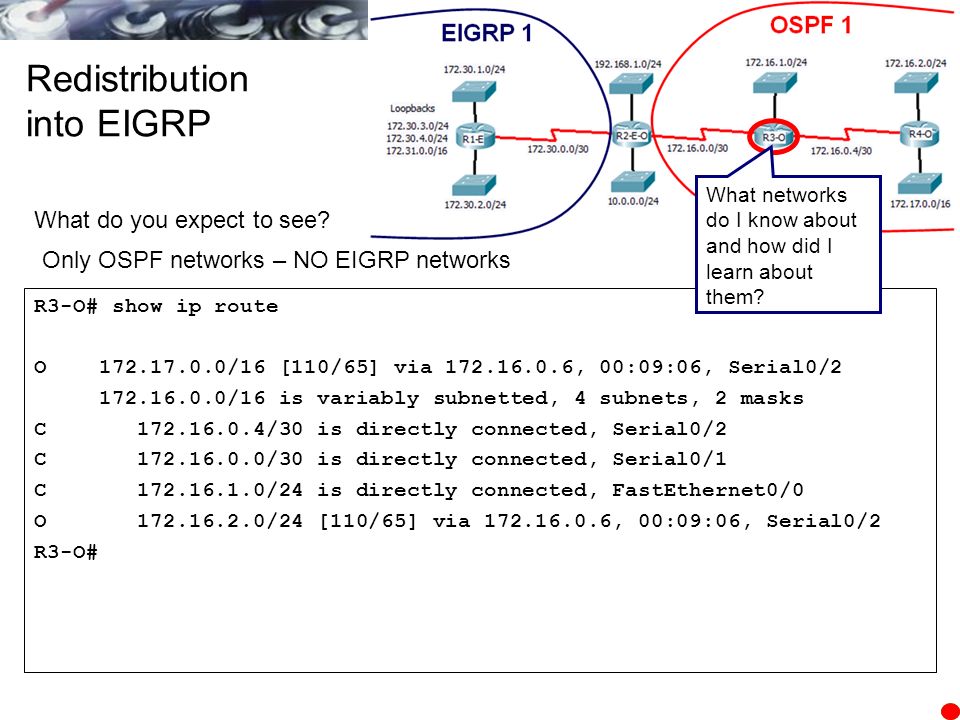

23 Redistribution into EIGRP R3-O# show ip route O 172.17.0.0/16 [110/65] via 172.16.0.6, 00:09:06, Serial0/2 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks C 172.16.0.4/30 is directly connected, Serial0/2 C 172.16.0.0/30 is directly connected, Serial0/1 C 172.16.1.0/24 is directly connected, FastEthernet0/0 O 172.16.2.0/24 [110/65] via 172.16.0.6, 00:09:06, Serial0/2 R3-O# What do you expect to see? Only OSPF networks – NO EIGRP networks What networks do I know about and how did I learn about them?

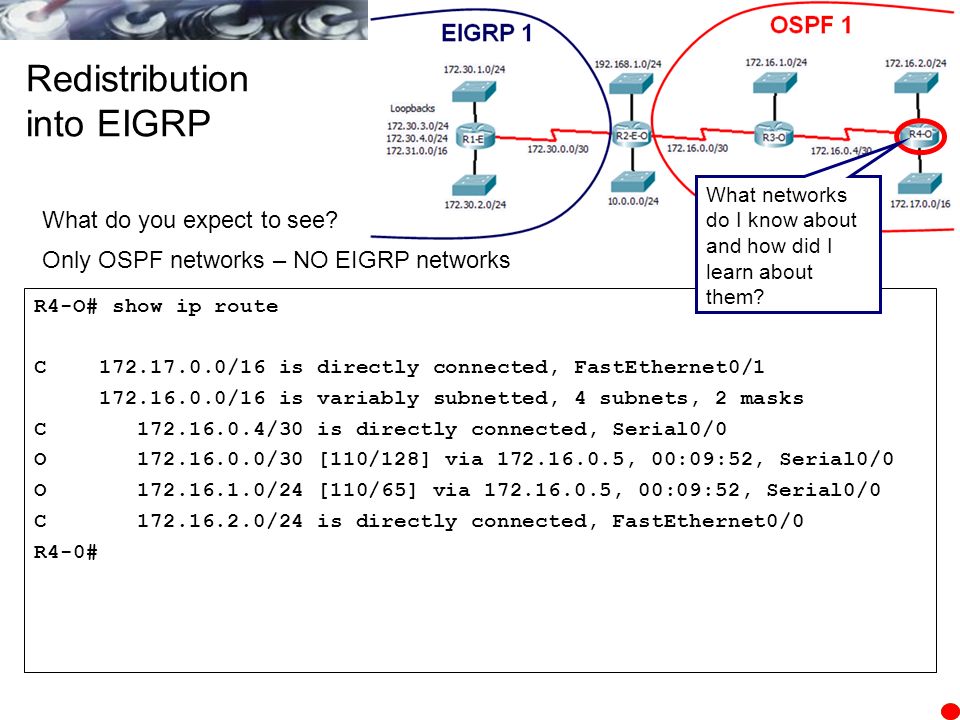

24 Redistribution into EIGRP R4-O# show ip route C 172.17.0.0/16 is directly connected, FastEthernet0/1 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks C 172.16.0.4/30 is directly connected, Serial0/0 O 172.16.0.0/30 [110/128] via 172.16.0.5, 00:09:52, Serial0/0 O 172.16.1.0/24 [110/65] via 172.16.0.5, 00:09:52, Serial0/0 C 172.16.2.0/24 is directly connected, FastEthernet0/0 R4-0# What do you expect to see? Only OSPF networks – NO EIGRP networks What networks do I know about and how did I learn about them?

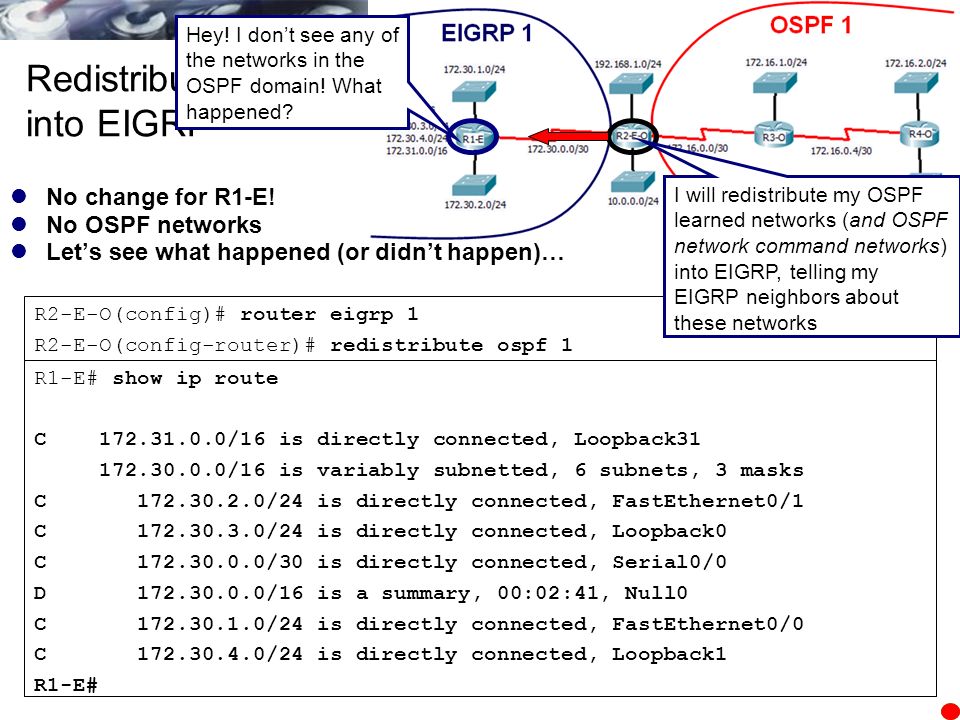

25 Redistribution into EIGRP No change for R1-E! No OSPF networks Let’s see what happened (or didn’t happen)… R2-E-O(config)# router eigrp 1 R2-E-O(config-router)# redistribute ospf 1 R1-E# show ip route C 172.31.0.0/16 is directly connected, Loopback31 172.30.0.0/16 is variably subnetted, 6 subnets, 3 masks C 172.30.2.0/24 is directly connected, FastEthernet0/1 C 172.30.3.0/24 is directly connected, Loopback0 C 172.30.0.0/30 is directly connected, Serial0/0 D 172.30.0.0/16 is a summary, 00:02:41, Null0 C 172.30.1.0/24 is directly connected, FastEthernet0/0 C 172.30.4.0/24 is directly connected, Loopback1 R1-E# I will redistribute my OSPF learned networks (and OSPF network command networks) into EIGRP, telling my EIGRP neighbors about these networks Hey! I don’t see any of the networks in the OSPF domain! What happened?

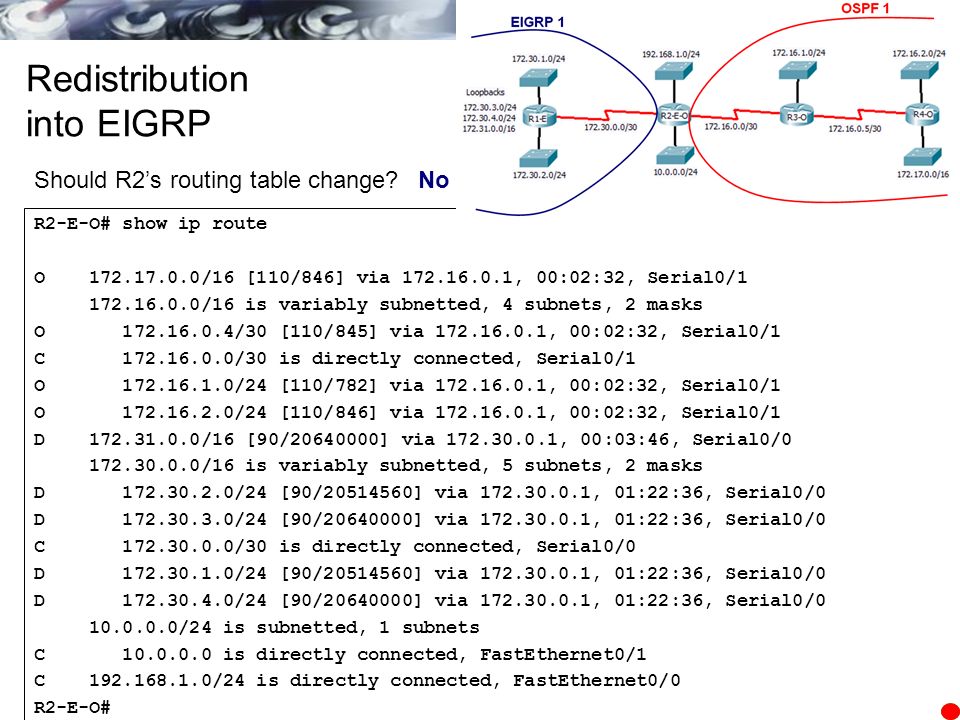

26 26 Redistribution into EIGRP R2-E-O# show ip route O 172.17.0.0/16 [110/846] via 172.16.0.1, 00:02:32, Serial0/1 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks O 172.16.0.4/30 [110/845] via 172.16.0.1, 00:02:32, Serial0/1 C 172.16.0.0/30 is directly connected, Serial0/1 O 172.16.1.0/24 [110/782] via 172.16.0.1, 00:02:32, Serial0/1 O 172.16.2.0/24 [110/846] via 172.16.0.1, 00:02:32, Serial0/1 D 172.31.0.0/16 [90/20640000] via 172.30.0.1, 00:03:46, Serial0/0 172.30.0.0/16 is variably subnetted, 5 subnets, 2 masks D 172.30.2.0/24 [90/20514560] via 172.30.0.1, 01:22:36, Serial0/0 D 172.30.3.0/24 [90/20640000] via 172.30.0.1, 01:22:36, Serial0/0 C 172.30.0.0/30 is directly connected, Serial0/0 D 172.30.1.0/24 [90/20514560] via 172.30.0.1, 01:22:36, Serial0/0 D 172.30.4.0/24 [90/20640000] via 172.30.0.1, 01:22:36, Serial0/0 10.0.0.0/24 is subnetted, 1 subnets C 10.0.0.0 is directly connected, FastEthernet0/1 C 192.168.1.0/24 is directly connected, FastEthernet0/0 R2-E-O# Should R2’s routing table change?No

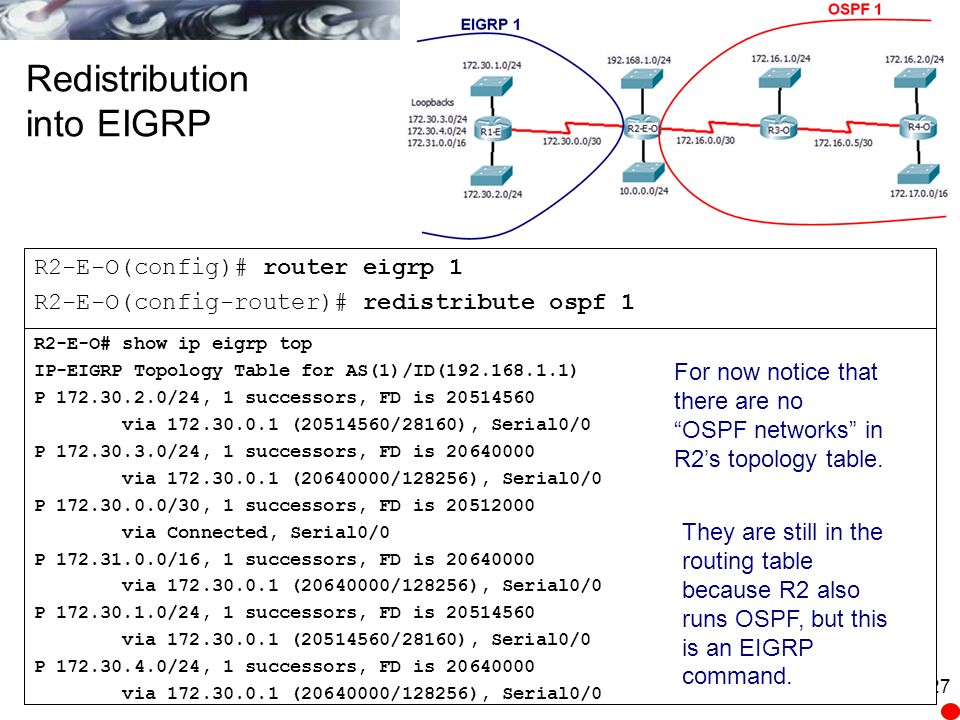

27 27 Redistribution into EIGRP R2-E-O(config)# router eigrp 1 R2-E-O(config-router)# redistribute ospf 1 R2-E-O# show ip eigrp top IP-EIGRP Topology Table for AS(1)/ID(192.168.1.1) P 172.30.2.0/24, 1 successors, FD is 20514560 via 172.30.0.1 (20514560/28160), Serial0/0 P 172.30.3.0/24, 1 successors, FD is 20640000 via 172.30.0.1 (20640000/128256), Serial0/0 P 172.30.0.0/30, 1 successors, FD is 20512000 via Connected, Serial0/0 P 172.31.0.0/16, 1 successors, FD is 20640000 via 172.30.0.1 (20640000/128256), Serial0/0 P 172.30.1.0/24, 1 successors, FD is 20514560 via 172.30.0.1 (20514560/28160), Serial0/0 P 172.30.4.0/24, 1 successors, FD is 20640000 via 172.30.0.1 (20640000/128256), Serial0/0 For now notice that there are no “OSPF networks” in R2’s topology table. They are still in the routing table because R2 also runs OSPF, but this is an EIGRP command.

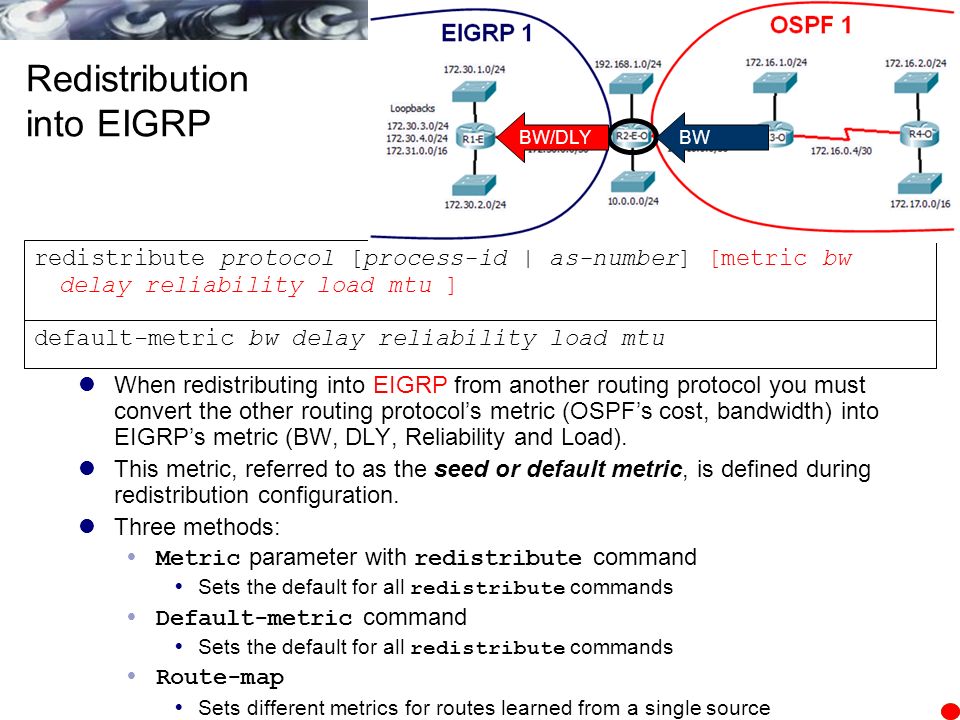

28 Redistribution into EIGRP When redistributing into EIGRP from another routing protocol you must convert the other routing protocol’s metric (OSPF’s cost, bandwidth) into EIGRP’s metric (BW, DLY, Reliability and Load). This metric, referred to as the seed or default metric, is defined during redistribution configuration. Three methods:  Metric parameter with redistribute command  Sets the default for all redistribute commands  Default-metric command  Sets the default for all redistribute commands  Route-map  Sets different metrics for routes learned from a single source redistribute protocol [process-id | as-number] [metric bw delay reliability load mtu ] default-metric bw delay reliability load mtu BW/DLYBW

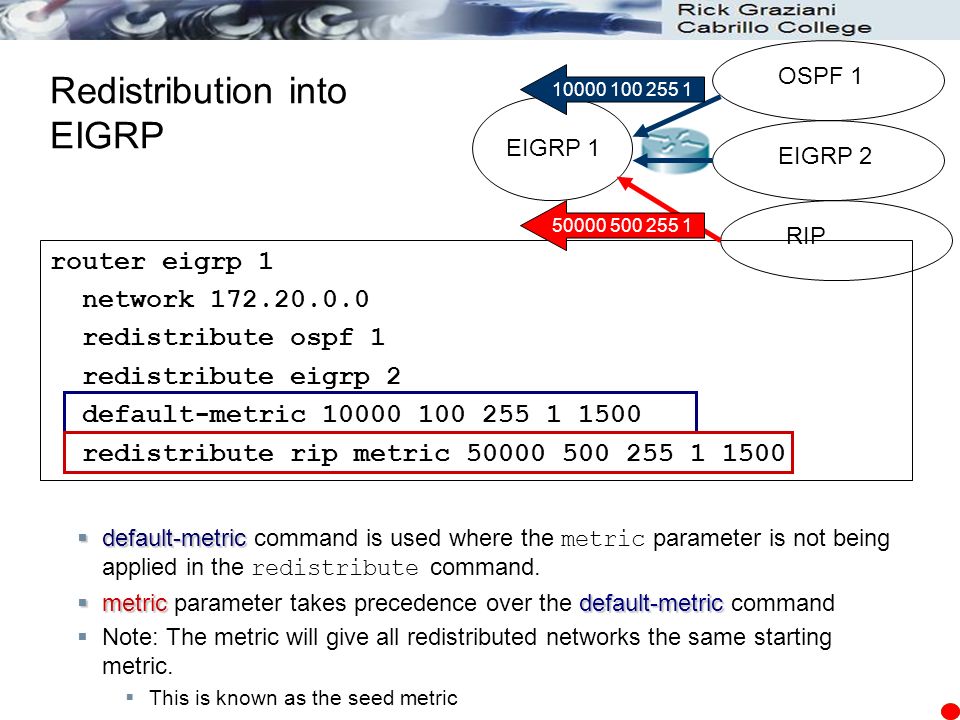

29 Redistribution into EIGRP router eigrp 1 network 172.20.0.0 redistribute ospf 1 redistribute eigrp 2 default-metric 10000 100 255 1 1500 redistribute rip metric 50000 500 255 1 1500 EIGRP 1 EIGRP 2 OSPF 1 RIP  default-metric  default-metric command is used where the metric parameter is not being applied in the redistribute command.  metricdefault-metric  metric parameter takes precedence over the default-metric command  Note: The metric will give all redistributed networks the same starting metric.  This is known as the seed metric 50000 500 255 1 10000 100 255 1

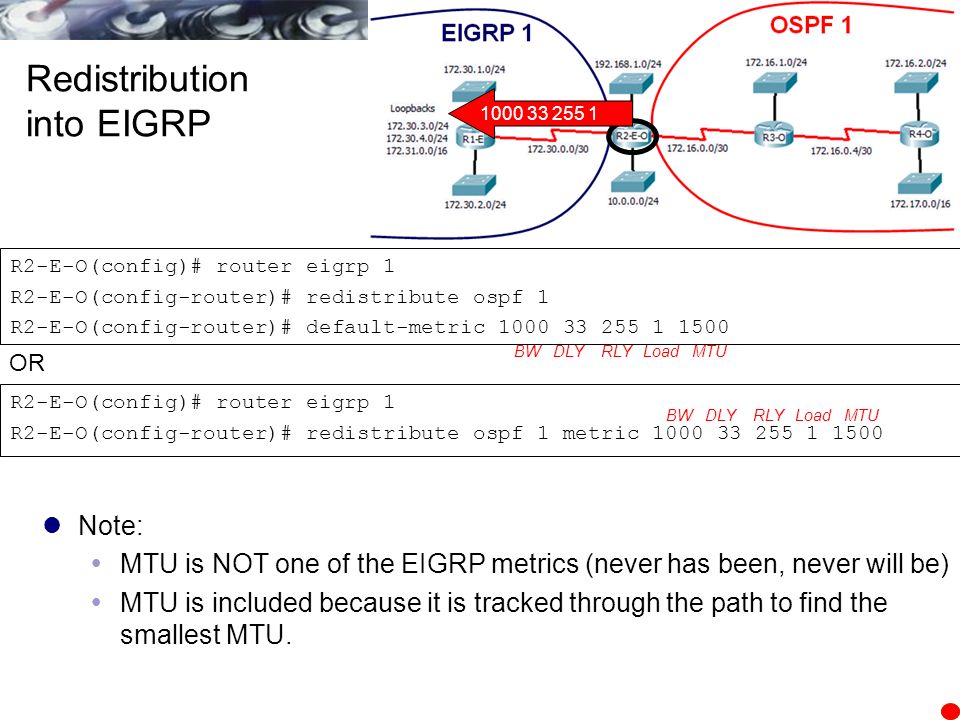

30 Redistribution into EIGRP Note:  MTU is NOT one of the EIGRP metrics (never has been, never will be)  MTU is included because it is tracked through the path to find the smallest MTU. R2-E-O(config)# router eigrp 1 R2-E-O(config-router)# redistribute ospf 1 R2-E-O(config-router)# default-metric 1000 33 255 1 1500 R2-E-O(config)# router eigrp 1 R2-E-O(config-router)# redistribute ospf 1 metric 1000 33 255 1 1500 OR BW DLY RLY Load MTU 1000 33 255 1

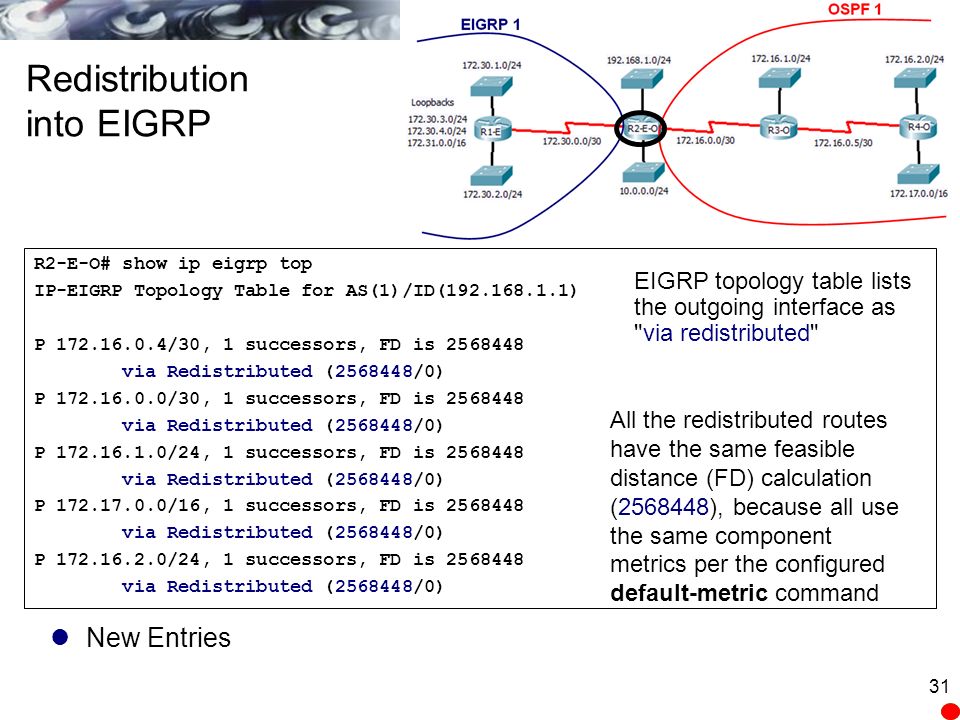

31 31 Redistribution into EIGRP New Entries R2-E-O# show ip eigrp top IP-EIGRP Topology Table for AS(1)/ID(192.168.1.1) P 172.16.0.4/30, 1 successors, FD is 2568448 via Redistributed (2568448/0) P 172.16.0.0/30, 1 successors, FD is 2568448 via Redistributed (2568448/0) P 172.16.1.0/24, 1 successors, FD is 2568448 via Redistributed (2568448/0) P 172.17.0.0/16, 1 successors, FD is 2568448 via Redistributed (2568448/0) P 172.16.2.0/24, 1 successors, FD is 2568448 via Redistributed (2568448/0) All the redistributed routes have the same feasible distance (FD) calculation (2568448), because all use the same component metrics per the configured default-metric command EIGRP topology table lists the outgoing interface as "via redistributed"

32 32 Redistribution into EIGRP R2-E-O# show ip eigrp top 172.16.0.0/30 IP-EIGRP (AS 1): Topology entry for 172.16.0.0/30 State is Passive, Query origin flag is 1, 1 Successor(s), FD is 2568448 Routing Descriptor Blocks: 0.0.0.0, from Redistributed, Send flag is 0x0 Composite metric is (2568448/0), Route is External Vector metric: Minimum bandwidth is 1000 Kbit Total delay is 330 microseconds Reliability is 255/255 Load is 1/255 Minimum MTU is 1500 Hop count is 0 External data: Originating router is 192.168.1.1 (this system) AS number of route is 1 External protocol is OSPF, external metric is 0 Administrator tag is 0 (0x00000000) From default-metric command "(this system)", meaning that the router on which the command was issued (R2 in this case) redistributed the route.

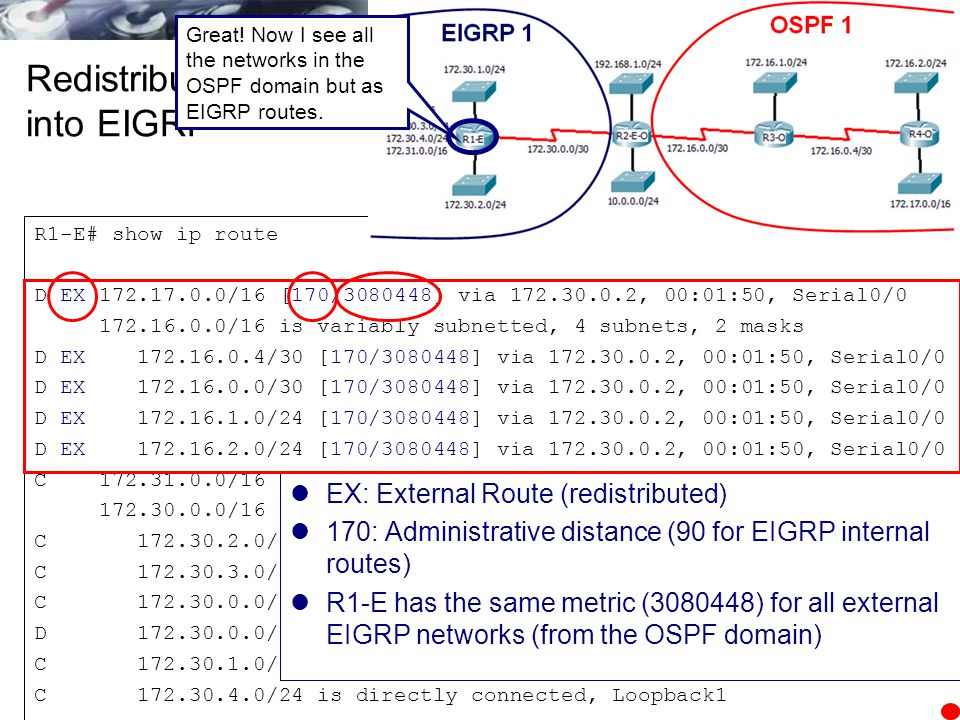

33 Redistribution into EIGRP R1-E# show ip route D EX 172.17.0.0/16 [170/3080448] via 172.30.0.2, 00:01:50, Serial0/0 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks D EX 172.16.0.4/30 [170/3080448] via 172.30.0.2, 00:01:50, Serial0/0 D EX 172.16.0.0/30 [170/3080448] via 172.30.0.2, 00:01:50, Serial0/0 D EX 172.16.1.0/24 [170/3080448] via 172.30.0.2, 00:01:50, Serial0/0 D EX 172.16.2.0/24 [170/3080448] via 172.30.0.2, 00:01:50, Serial0/0 C 172.31.0.0/16 is directly connected, Loopback31 172.30.0.0/16 is variably subnetted, 6 subnets, 3 masks C 172.30.2.0/24 is directly connected, FastEthernet0/1 C 172.30.3.0/24 is directly connected, Loopback0 C 172.30.0.0/30 is directly connected, Serial0/0 D 172.30.0.0/16 is a summary, 00:12:08, Null0 C 172.30.1.0/24 is directly connected, FastEthernet0/0 C 172.30.4.0/24 is directly connected, Loopback1 EX: External Route (redistributed) 170: Administrative distance (90 for EIGRP internal routes) R1-E has the same metric (3080448) for all external EIGRP networks (from the OSPF domain) Great! Now I see all the networks in the OSPF domain but as EIGRP routes.

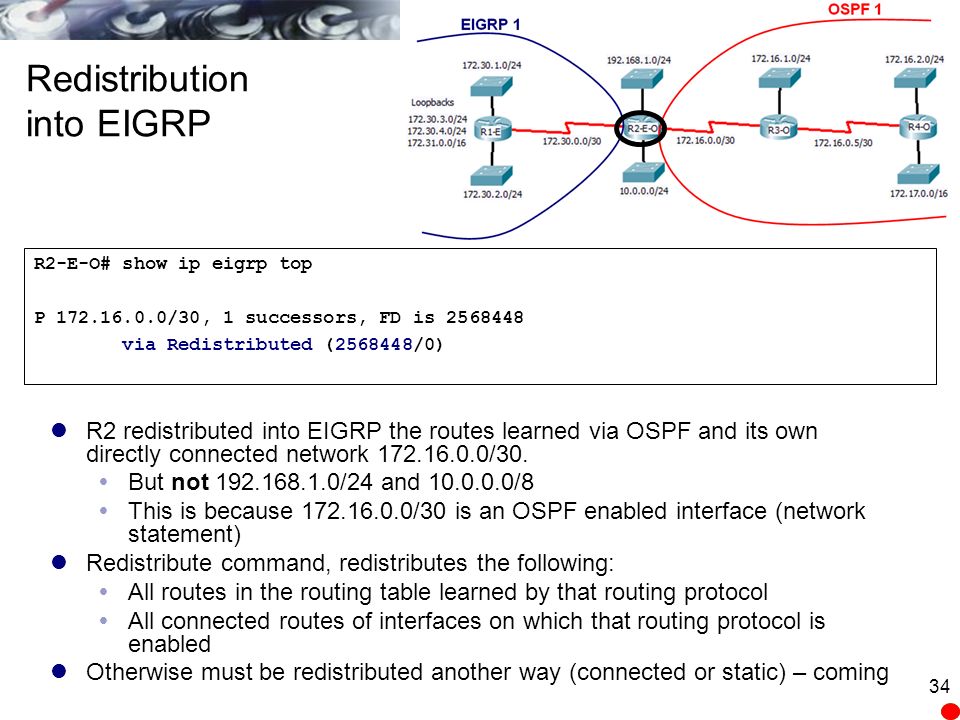

34 34 Redistribution into EIGRP R2 redistributed into EIGRP the routes learned via OSPF and its own directly connected network 172.16.0.0/30.  But not 192.168.1.0/24 and 10.0.0.0/8  This is because 172.16.0.0/30 is an OSPF enabled interface (network statement) Redistribute command, redistributes the following:  All routes in the routing table learned by that routing protocol  All connected routes of interfaces on which that routing protocol is enabled Otherwise must be redistributed another way (connected or static) – coming R2-E-O# show ip eigrp top P 172.16.0.0/30, 1 successors, FD is 2568448 via Redistributed (2568448/0)

35 Redistribution into EIGRP Two ways to redistribute 10.0.0.0/24 network.  Redistribute Connected  Add OSPF network command  Also propagates 10.0.0.0/24 throughout OSPF domain R2-E-O(config)# router ospf 1 R2-E-O(config-router)# network 10.0.0.0 0.0.0.255 area 0 R2-E-O# show ip route 10.0.0.0/24 is subnetted, 1 subnets C 10.0.0.0 is directly connected, FastEthernet0/1 No change to routing table What about the 10.0.0.0/24 network? How can I redistribute it into EIGRP?

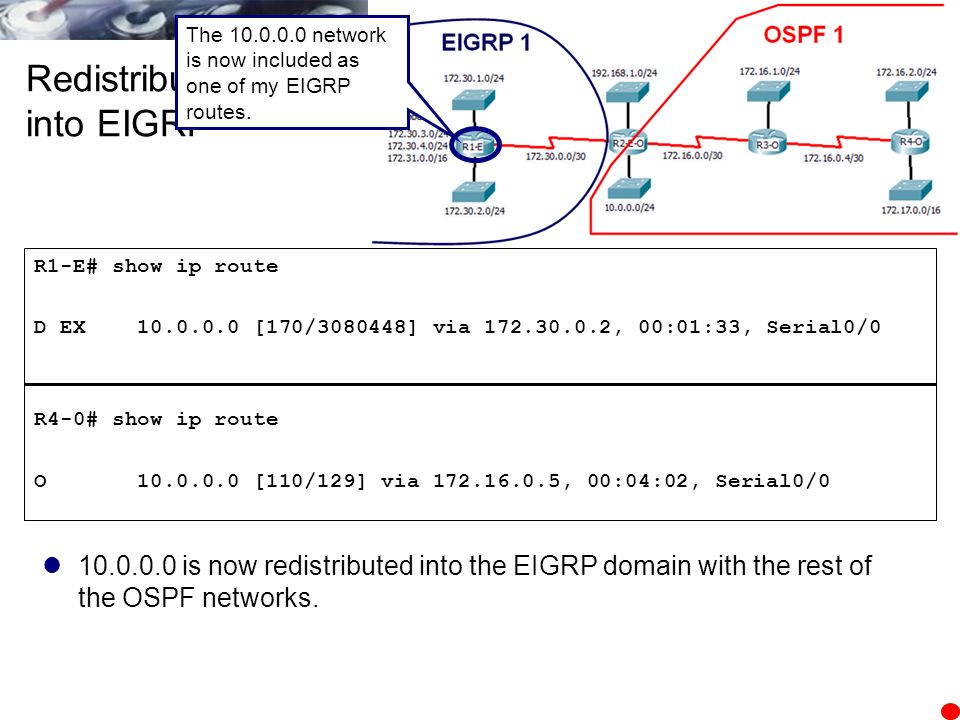

36 Redistribution into EIGRP 10.0.0.0 is now redistributed into the EIGRP domain with the rest of the OSPF networks. R1-E# show ip route D EX 10.0.0.0 [170/3080448] via 172.30.0.2, 00:01:33, Serial0/0 R4-0# show ip route O 10.0.0.0 [110/129] via 172.16.0.5, 00:04:02, Serial0/0 The 10.0.0.0 network is now included as one of my EIGRP routes.

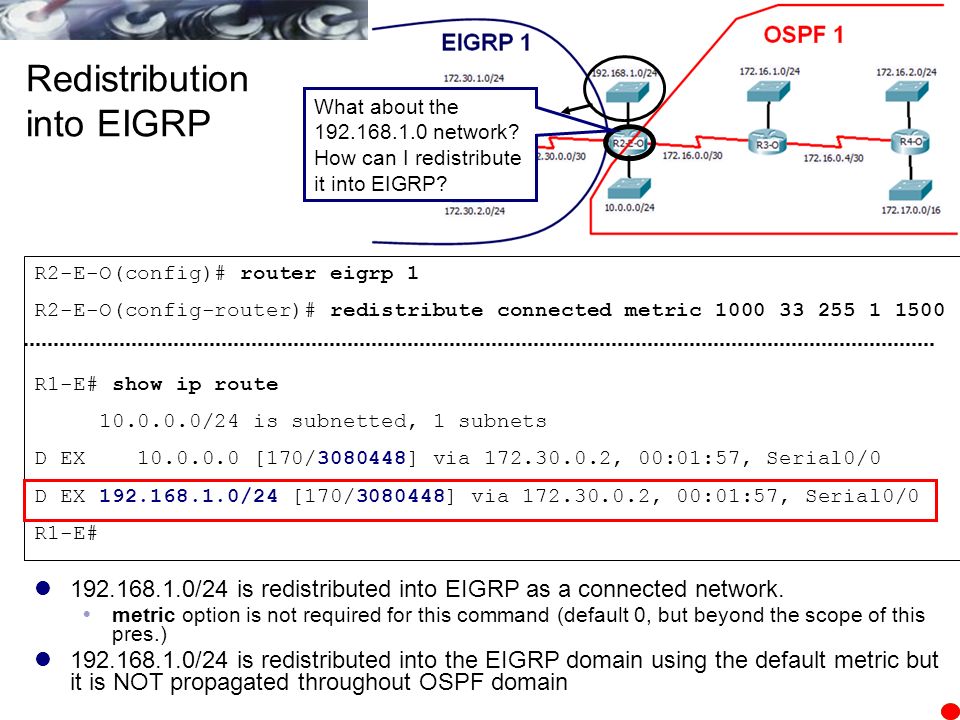

37 Redistribution into EIGRP 192.168.1.0/24 is redistributed into EIGRP as a connected network.  metric option is not required for this command (default 0, but beyond the scope of this pres.) 192.168.1.0/24 is redistributed into the EIGRP domain using the default metric but it is NOT propagated throughout OSPF domain R2-E-O(config)# router eigrp 1 R2-E-O(config-router)# redistribute connected metric 1000 33 255 1 1500 R1-E# show ip route 10.0.0.0/24 is subnetted, 1 subnets D EX 10.0.0.0 [170/3080448] via 172.30.0.2, 00:01:57, Serial0/0 D EX 192.168.1.0/24 [170/3080448] via 172.30.0.2, 00:01:57, Serial0/0 R1-E# What about the 192.168.1.0 network? How can I redistribute it into EIGRP?

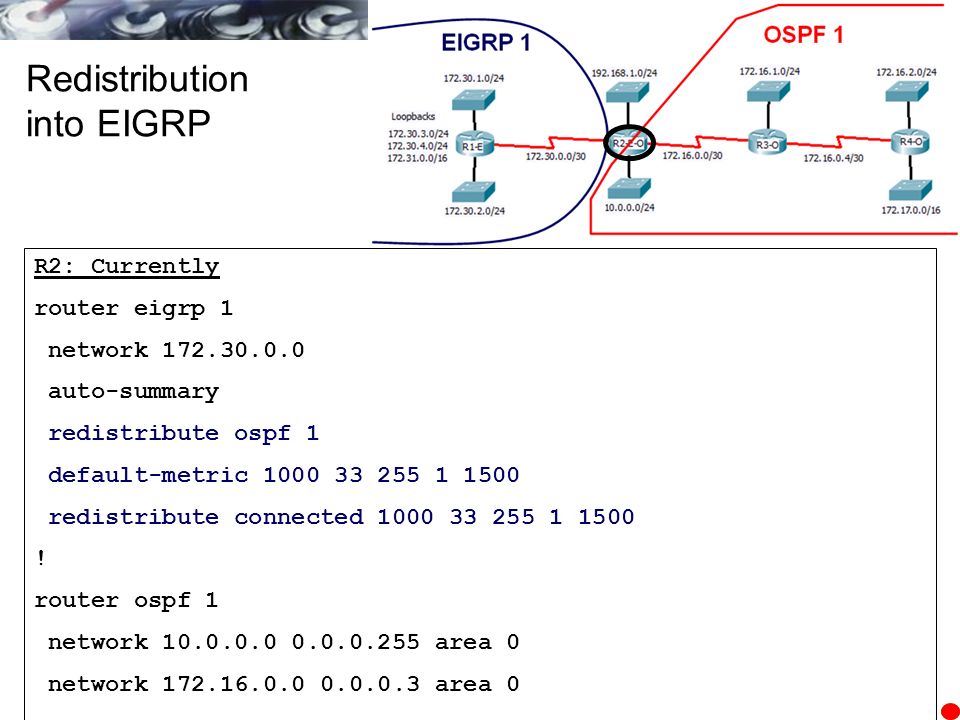

38 Redistribution into EIGRP Where we left off… R2: Currently router eigrp 1 network 172.30.0.0 auto-summary redistribute ospf 1 default-metric 1000 33 255 1 1500 redistribute connected 1000 33 255 1 1500 ! router ospf 1 network 10.0.0.0 0.0.0.255 area 0 network 172.16.0.0 0.0.0.3 area 0

39 Redistributing from EIGRP into OSPF

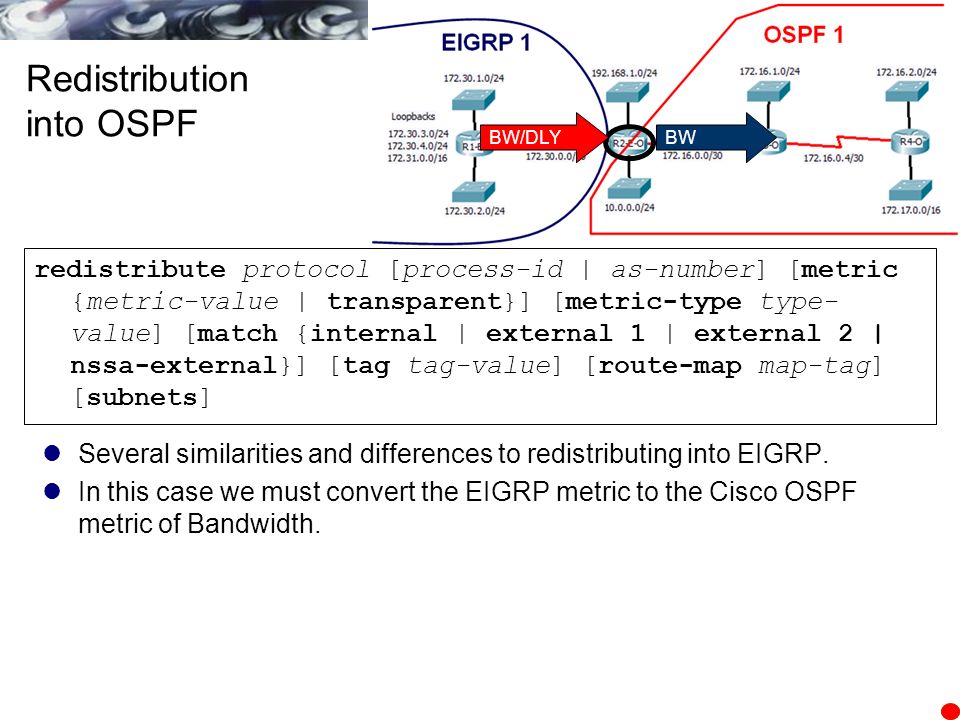

40 Redistribution into OSPF Several similarities and differences to redistributing into EIGRP. In this case we must convert the EIGRP metric to the Cisco OSPF metric of Bandwidth. BW/DLYBW redistribute protocol [process-id | as-number] [metric {metric-value | transparent}] [metric-type type- value] [match {internal | external 1 | external 2 | nssa-external}] [tag tag-value] [route-map map-tag] [subnets]

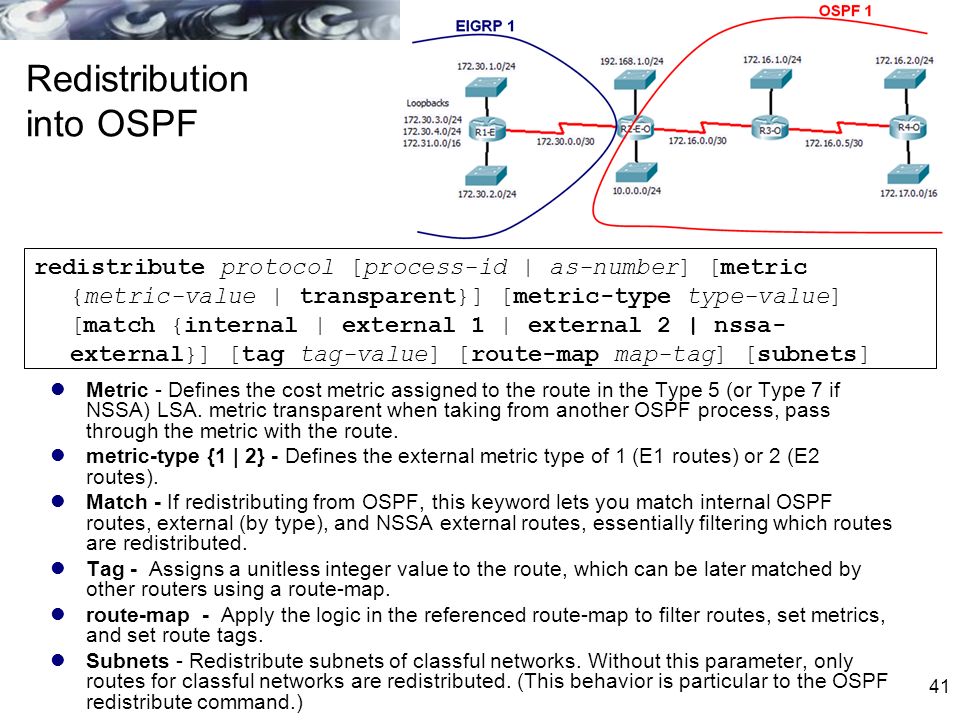

41 41 Redistribution into OSPF Metric - Defines the cost metric assigned to the route in the Type 5 (or Type 7 if NSSA) LSA. metric transparent when taking from another OSPF process, pass through the metric with the route. metric-type {1 | 2} - Defines the external metric type of 1 (E1 routes) or 2 (E2 routes). Match - If redistributing from OSPF, this keyword lets you match internal OSPF routes, external (by type), and NSSA external routes, essentially filtering which routes are redistributed. Tag - Assigns a unitless integer value to the route, which can be later matched by other routers using a route-map. route-map - Apply the logic in the referenced route-map to filter routes, set metrics, and set route tags. Subnets - Redistribute subnets of classful networks. Without this parameter, only routes for classful networks are redistributed. (This behavior is particular to the OSPF redistribute command.) redistribute protocol [process-id | as-number] [metric {metric-value | transparent}] [metric-type type-value] [match {internal | external 1 | external 2 | nssa- external}] [tag tag-value] [route-map map-tag] [subnets]

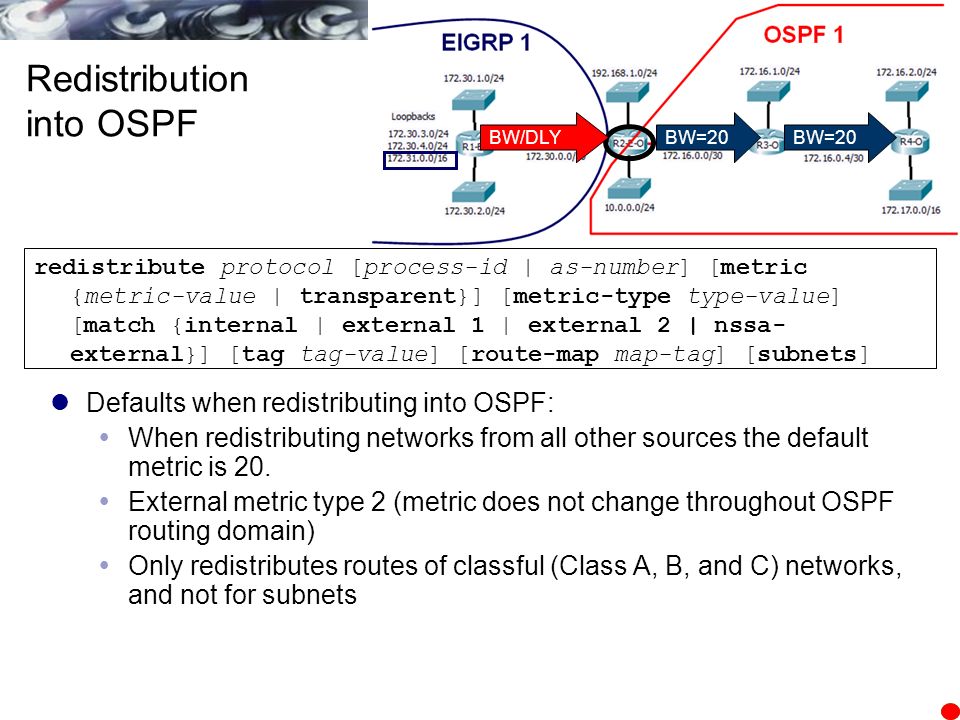

42 Redistribution into OSPF Defaults when redistributing into OSPF:  When redistributing networks from all other sources the default metric is 20.  External metric type 2 (metric does not change throughout OSPF routing domain)  Only redistributes routes of classful (Class A, B, and C) networks, and not for subnets BW/DLYBW=20 redistribute protocol [process-id | as-number] [metric {metric-value | transparent}] [metric-type type-value] [match {internal | external 1 | external 2 | nssa- external}] [tag tag-value] [route-map map-tag] [subnets]

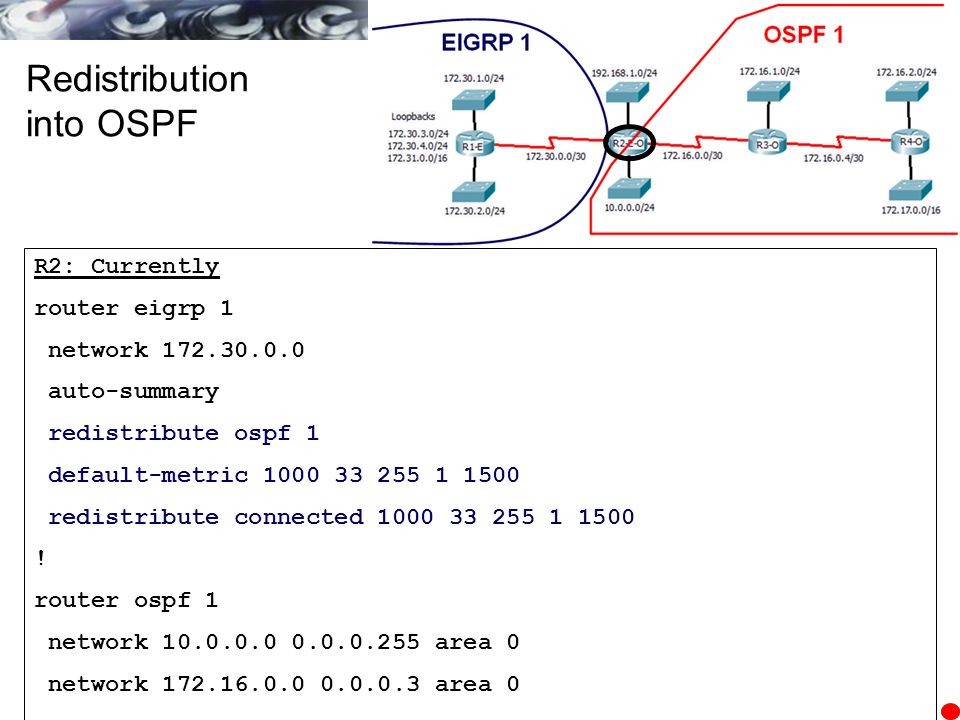

43 Redistribution into OSPF Where we left off… R2: Currently router eigrp 1 network 172.30.0.0 auto-summary redistribute ospf 1 default-metric 1000 33 255 1 1500 redistribute connected 1000 33 255 1 1500 ! router ospf 1 network 10.0.0.0 0.0.0.255 area 0 network 172.16.0.0 0.0.0.3 area 0

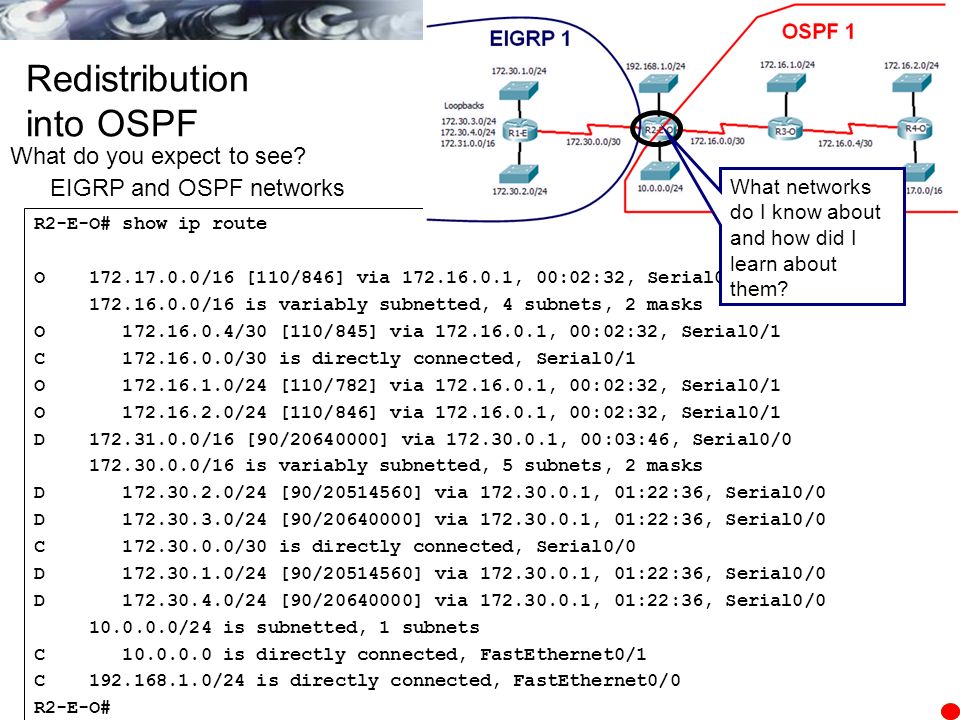

44 Redistribution into OSPF R2-E-O# show ip route O 172.17.0.0/16 [110/846] via 172.16.0.1, 00:02:32, Serial0/1 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks O 172.16.0.4/30 [110/845] via 172.16.0.1, 00:02:32, Serial0/1 C 172.16.0.0/30 is directly connected, Serial0/1 O 172.16.1.0/24 [110/782] via 172.16.0.1, 00:02:32, Serial0/1 O 172.16.2.0/24 [110/846] via 172.16.0.1, 00:02:32, Serial0/1 D 172.31.0.0/16 [90/20640000] via 172.30.0.1, 00:03:46, Serial0/0 172.30.0.0/16 is variably subnetted, 5 subnets, 2 masks D 172.30.2.0/24 [90/20514560] via 172.30.0.1, 01:22:36, Serial0/0 D 172.30.3.0/24 [90/20640000] via 172.30.0.1, 01:22:36, Serial0/0 C 172.30.0.0/30 is directly connected, Serial0/0 D 172.30.1.0/24 [90/20514560] via 172.30.0.1, 01:22:36, Serial0/0 D 172.30.4.0/24 [90/20640000] via 172.30.0.1, 01:22:36, Serial0/0 10.0.0.0/24 is subnetted, 1 subnets C 10.0.0.0 is directly connected, FastEthernet0/1 C 192.168.1.0/24 is directly connected, FastEthernet0/0 R2-E-O# What do you expect to see? EIGRP and OSPF networks What networks do I know about and how did I learn about them?

45 45 Redistribution into OSPF No External Type 5 LSAs No EIGRP networks being redistributed into OSPF R2-E-O# show ip ospf data OSPF Router with ID (192.168.1.1) (Process ID 1) Router Link States (Area 0) Link ID ADV Router Age Seq# Checksum Link count 172.16.1.1 172.16.1.1 85 0x80000005 0x006220 5 172.30.0.6 172.30.0.6 2000 0x80000006 0x006BB4 4 192.168.1.1 192.168.1.1 1117 0x80000003 0x009742 3 R2-E-O#

46 Redistribution into OSPF By default, only classful networks will be redistributed from EIGRP into OSPF.  Subnets will not be redistributed  Supernets will also be redistributed (such as 173.0.0.0/8) R2-E-O(config)# router ospf 1 R2-E-O(config-router)# redistribute eigrp 1 % Only classful networks will be redistributed R2-E-O(config-router)# R2-E-O# show ip ospf data Type-5 AS External Link States Link ID ADV Router Age Seq# Checksum Tag 172.31.0.0 192.168.1.1 9 0x80000001 0x0094D4 0 R2-E-O#

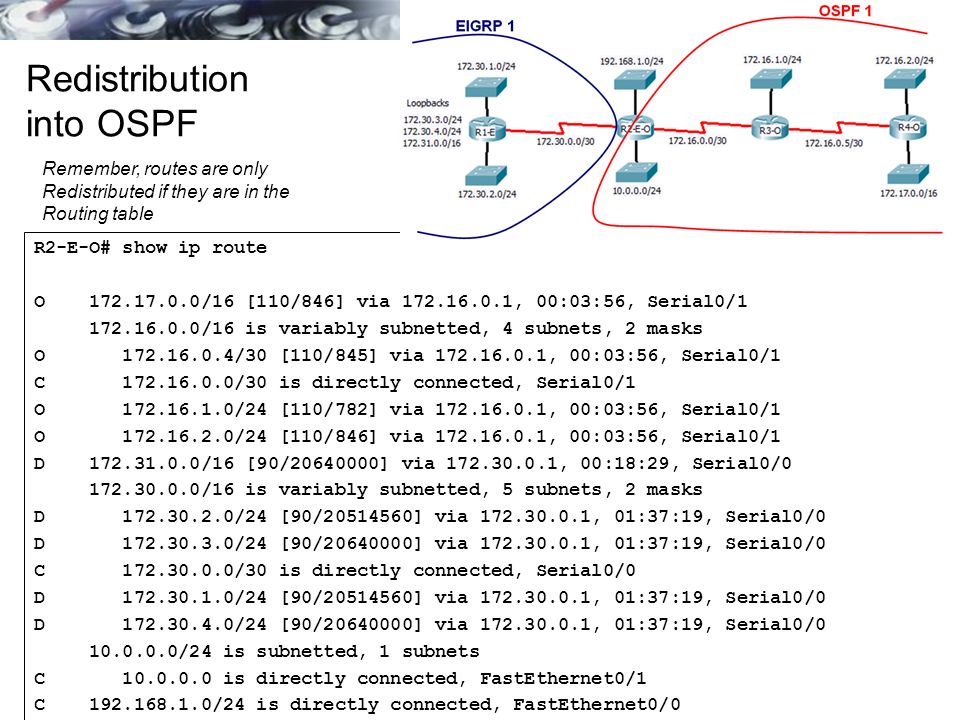

47 47 Redistribution into OSPF R2-E-O# show ip route O 172.17.0.0/16 [110/846] via 172.16.0.1, 00:03:56, Serial0/1 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks O 172.16.0.4/30 [110/845] via 172.16.0.1, 00:03:56, Serial0/1 C 172.16.0.0/30 is directly connected, Serial0/1 O 172.16.1.0/24 [110/782] via 172.16.0.1, 00:03:56, Serial0/1 O 172.16.2.0/24 [110/846] via 172.16.0.1, 00:03:56, Serial0/1 D 172.31.0.0/16 [90/20640000] via 172.30.0.1, 00:18:29, Serial0/0 172.30.0.0/16 is variably subnetted, 5 subnets, 2 masks D 172.30.2.0/24 [90/20514560] via 172.30.0.1, 01:37:19, Serial0/0 D 172.30.3.0/24 [90/20640000] via 172.30.0.1, 01:37:19, Serial0/0 C 172.30.0.0/30 is directly connected, Serial0/0 D 172.30.1.0/24 [90/20514560] via 172.30.0.1, 01:37:19, Serial0/0 D 172.30.4.0/24 [90/20640000] via 172.30.0.1, 01:37:19, Serial0/0 10.0.0.0/24 is subnetted, 1 subnets C 10.0.0.0 is directly connected, FastEthernet0/1 C 192.168.1.0/24 is directly connected, FastEthernet0/0 Remember, routes are only Redistributed if they are in the Routing table

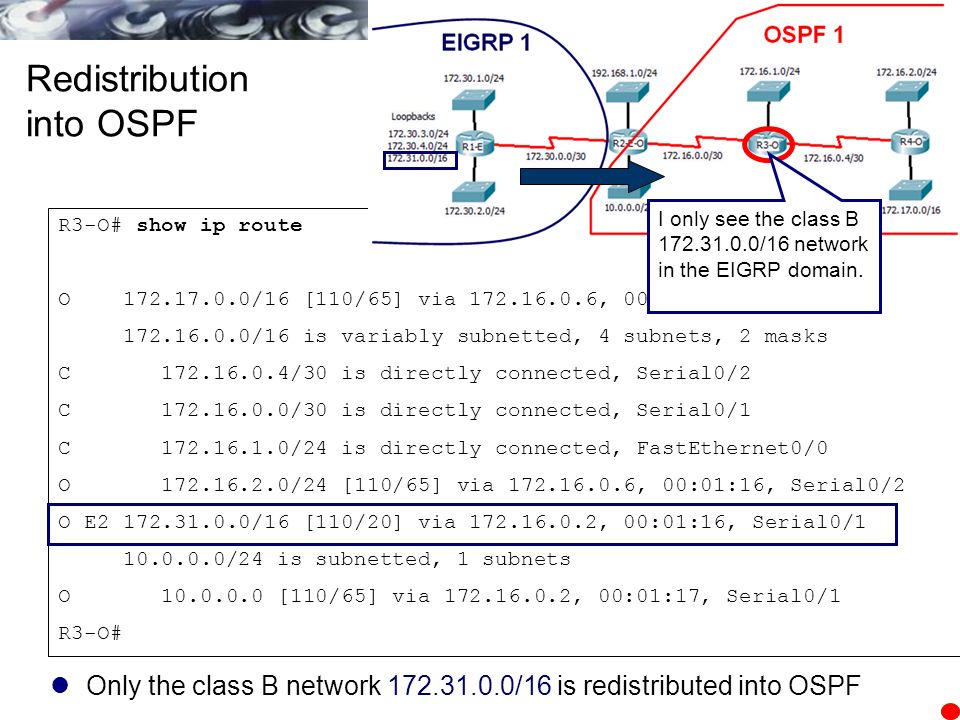

48 Redistribution into OSPF Only the class B network 172.31.0.0/16 is redistributed into OSPF R3-O# show ip route O 172.17.0.0/16 [110/65] via 172.16.0.6, 00:01:16, Serial0/2 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks C 172.16.0.4/30 is directly connected, Serial0/2 C 172.16.0.0/30 is directly connected, Serial0/1 C 172.16.1.0/24 is directly connected, FastEthernet0/0 O 172.16.2.0/24 [110/65] via 172.16.0.6, 00:01:16, Serial0/2 O E2 172.31.0.0/16 [110/20] via 172.16.0.2, 00:01:16, Serial0/1 10.0.0.0/24 is subnetted, 1 subnets O 10.0.0.0 [110/65] via 172.16.0.2, 00:01:17, Serial0/1 R3-O# I only see the class B 172.31.0.0/16 network in the EIGRP domain.

49 49 Redistribution into OSPF External Type 5 LSA R3-O# show ip ospf data Type-5 AS External Link States Link ID ADV Router Age Seq# Checksum Tag 172.31.0.0 192.168.1.1 88 0x80000001 0x0094D4 0 R3-O#

50 Redistribution into OSPF Subnets – Subnets are now included in the redistribution. R2-E-O(config)# router ospf 1 R2-E-O(config-router)# redistribute eigrp 1 subnets No warning message “Only classful networks will be redistributed” I will add the subnets option.

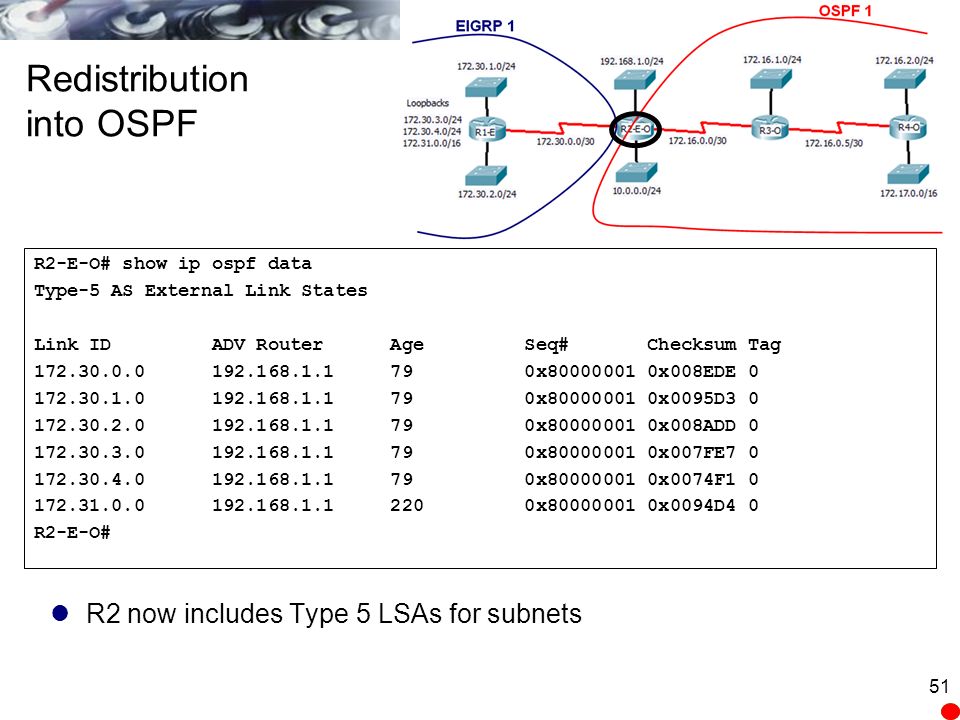

51 51 Redistribution into OSPF R2 now includes Type 5 LSAs for subnets R2-E-O# show ip ospf data Type-5 AS External Link States Link ID ADV Router Age Seq# Checksum Tag 172.30.0.0 192.168.1.1 79 0x80000001 0x008EDE 0 172.30.1.0 192.168.1.1 79 0x80000001 0x0095D3 0 172.30.2.0 192.168.1.1 79 0x80000001 0x008ADD 0 172.30.3.0 192.168.1.1 79 0x80000001 0x007FE7 0 172.30.4.0 192.168.1.1 79 0x80000001 0x0074F1 0 172.31.0.0 192.168.1.1 220 0x80000001 0x0094D4 0 R2-E-O#

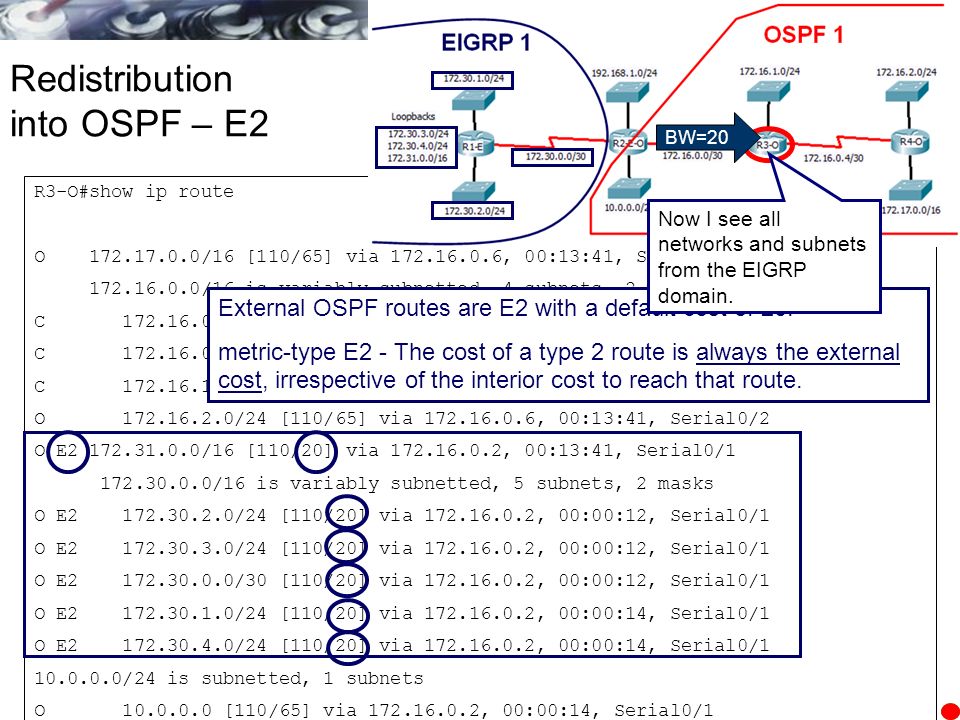

52 Redistribution into OSPF – E2 R3-O#show ip route O 172.17.0.0/16 [110/65] via 172.16.0.6, 00:13:41, Serial0/2 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks C 172.16.0.4/30 is directly connected, Serial0/2 C 172.16.0.0/30 is directly connected, Serial0/1 C 172.16.1.0/24 is directly connected, FastEthernet0/0 O 172.16.2.0/24 [110/65] via 172.16.0.6, 00:13:41, Serial0/2 O E2 172.31.0.0/16 [110/20] via 172.16.0.2, 00:13:41, Serial0/1 172.30.0.0/16 is variably subnetted, 5 subnets, 2 masks O E2 172.30.2.0/24 [110/20] via 172.16.0.2, 00:00:12, Serial0/1 O E2 172.30.3.0/24 [110/20] via 172.16.0.2, 00:00:12, Serial0/1 O E2 172.30.0.0/30 [110/20] via 172.16.0.2, 00:00:12, Serial0/1 O E2 172.30.1.0/24 [110/20] via 172.16.0.2, 00:00:14, Serial0/1 O E2 172.30.4.0/24 [110/20] via 172.16.0.2, 00:00:14, Serial0/1 10.0.0.0/24 is subnetted, 1 subnets O 10.0.0.0 [110/65] via 172.16.0.2, 00:00:14, Serial0/1 External OSPF routes are E2 with a default cost of 20. metric-type E2 - The cost of a type 2 route is always the external cost, irrespective of the interior cost to reach that route. BW=20 Now I see all networks and subnets from the EIGRP domain.

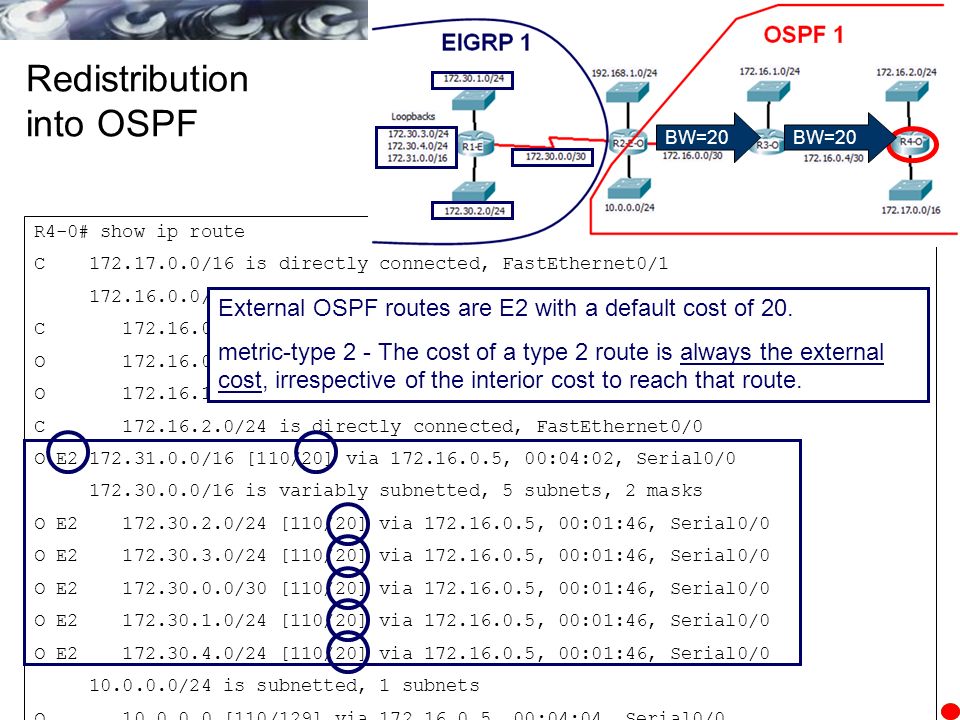

53 Redistribution into OSPF R4-0# show ip route C 172.17.0.0/16 is directly connected, FastEthernet0/1 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks C 172.16.0.4/30 is directly connected, Serial0/0 O 172.16.0.0/30 [110/128] via 172.16.0.5, 00:04:02, Serial0/0 O 172.16.1.0/24 [110/65] via 172.16.0.5, 00:04:02, Serial0/0 C 172.16.2.0/24 is directly connected, FastEthernet0/0 O E2 172.31.0.0/16 [110/20] via 172.16.0.5, 00:04:02, Serial0/0 172.30.0.0/16 is variably subnetted, 5 subnets, 2 masks O E2 172.30.2.0/24 [110/20] via 172.16.0.5, 00:01:46, Serial0/0 O E2 172.30.3.0/24 [110/20] via 172.16.0.5, 00:01:46, Serial0/0 O E2 172.30.0.0/30 [110/20] via 172.16.0.5, 00:01:46, Serial0/0 O E2 172.30.1.0/24 [110/20] via 172.16.0.5, 00:01:46, Serial0/0 O E2 172.30.4.0/24 [110/20] via 172.16.0.5, 00:01:46, Serial0/0 10.0.0.0/24 is subnetted, 1 subnets O 10.0.0.0 [110/129] via 172.16.0.5, 00:04:04, Serial0/0 External OSPF routes are E2 with a default cost of 20. metric-type 2 - The cost of a type 2 route is always the external cost, irrespective of the interior cost to reach that route. BW=20

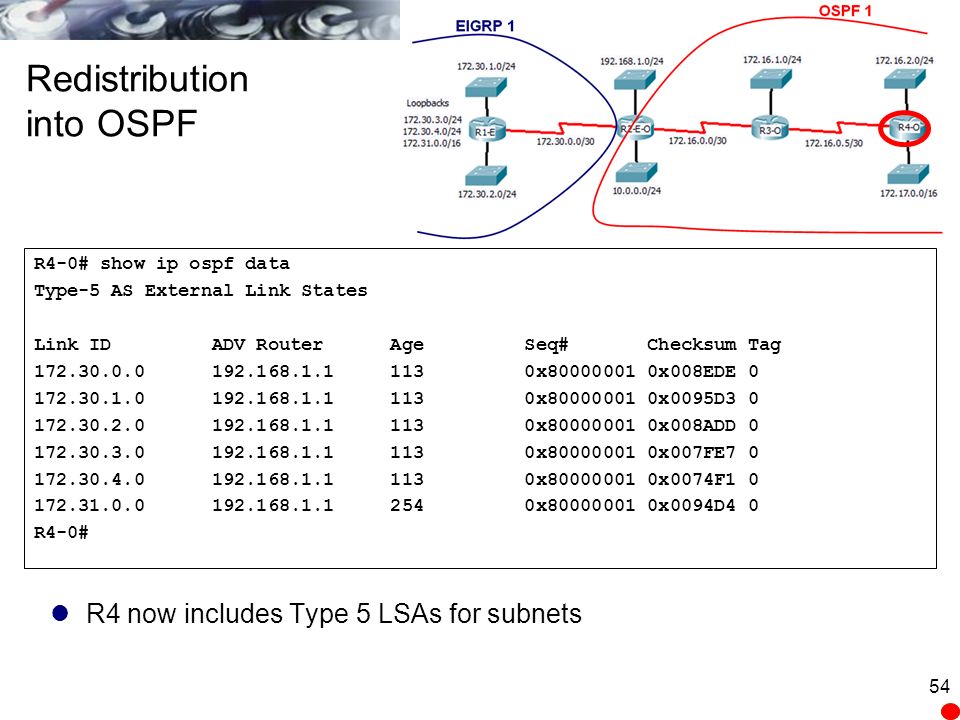

54 54 Redistribution into OSPF R4 now includes Type 5 LSAs for subnets R4-0# show ip ospf data Type-5 AS External Link States Link ID ADV Router Age Seq# Checksum Tag 172.30.0.0 192.168.1.1 113 0x80000001 0x008EDE 0 172.30.1.0 192.168.1.1 113 0x80000001 0x0095D3 0 172.30.2.0 192.168.1.1 113 0x80000001 0x008ADD 0 172.30.3.0 192.168.1.1 113 0x80000001 0x007FE7 0 172.30.4.0 192.168.1.1 113 0x80000001 0x0074F1 0 172.31.0.0 192.168.1.1 254 0x80000001 0x0094D4 0 R4-0#

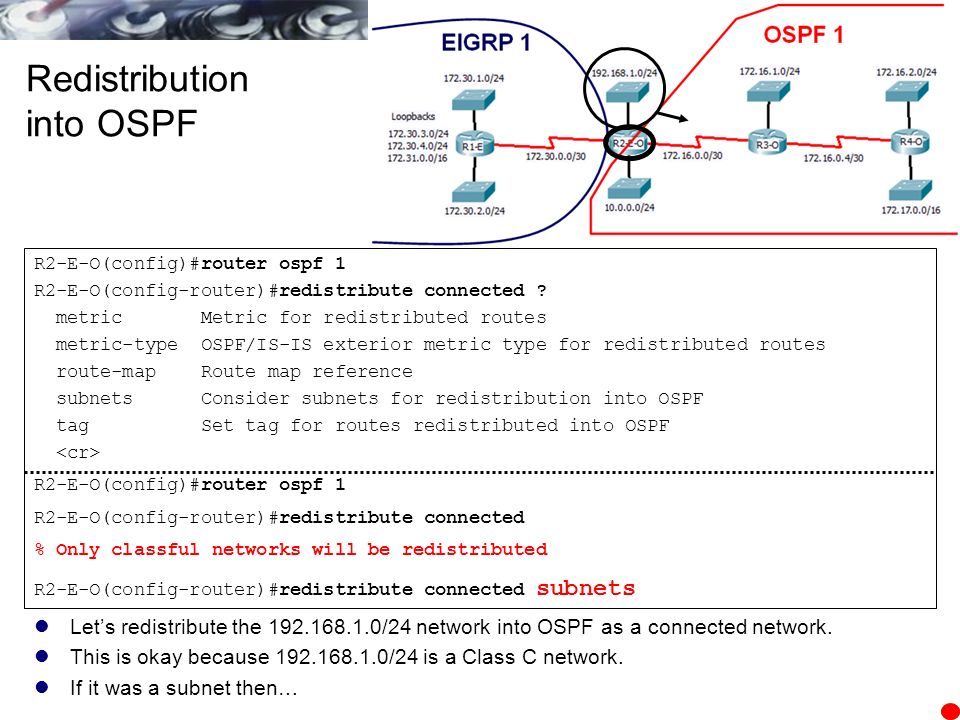

55 Redistribution into OSPF Let’s redistribute the 192.168.1.0/24 network into OSPF as a connected network. This is okay because 192.168.1.0/24 is a Class C network. If it was a subnet then… R2-E-O(config)#router ospf 1 R2-E-O(config-router)#redistribute connected ? metric Metric for redistributed routes metric-type OSPF/IS-IS exterior metric type for redistributed routes route-map Route map reference subnets Consider subnets for redistribution into OSPF tag Set tag for routes redistributed into OSPF R2-E-O(config)#router ospf 1 R2-E-O(config-router)#redistribute connected % Only classful networks will be redistributed R2-E-O(config-router)#redistribute connected subnets

56 Redistribution into OSPF R4-0# show ip route E2 192.168.1.0/24 [110/20] via 172.16.0.5, 00:03:08, Serial0/0 R4-0# show ip ospf data Type-5 AS External Link States Link ID ADV Router Age Seq# Checksum Tag 192.168.1.0 192.168.1.1 193 0x80000001 0x0012B8 0 R4-0#

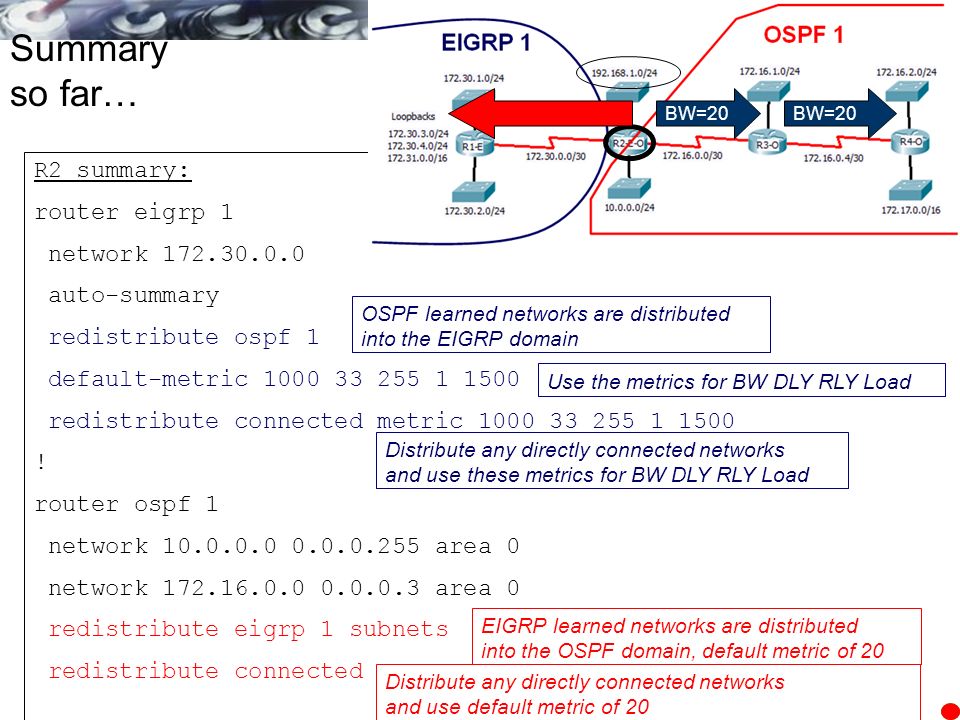

57 Summary so far… So far… R2 summary: router eigrp 1 network 172.30.0.0 auto-summary redistribute ospf 1 default-metric 1000 33 255 1 1500 redistribute connected metric 1000 33 255 1 1500 ! router ospf 1 network 10.0.0.0 0.0.0.255 area 0 network 172.16.0.0 0.0.0.3 area 0 redistribute eigrp 1 subnets redistribute connected 1000 33 255 1BW=20 OSPF learned networks are distributed into the EIGRP domain Use the metrics for BW DLY RLY Load Distribute any directly connected networks and use these metrics for BW DLY RLY Load EIGRP learned networks are distributed into the OSPF domain, default metric of 20 Distribute any directly connected networks and use default metric of 20

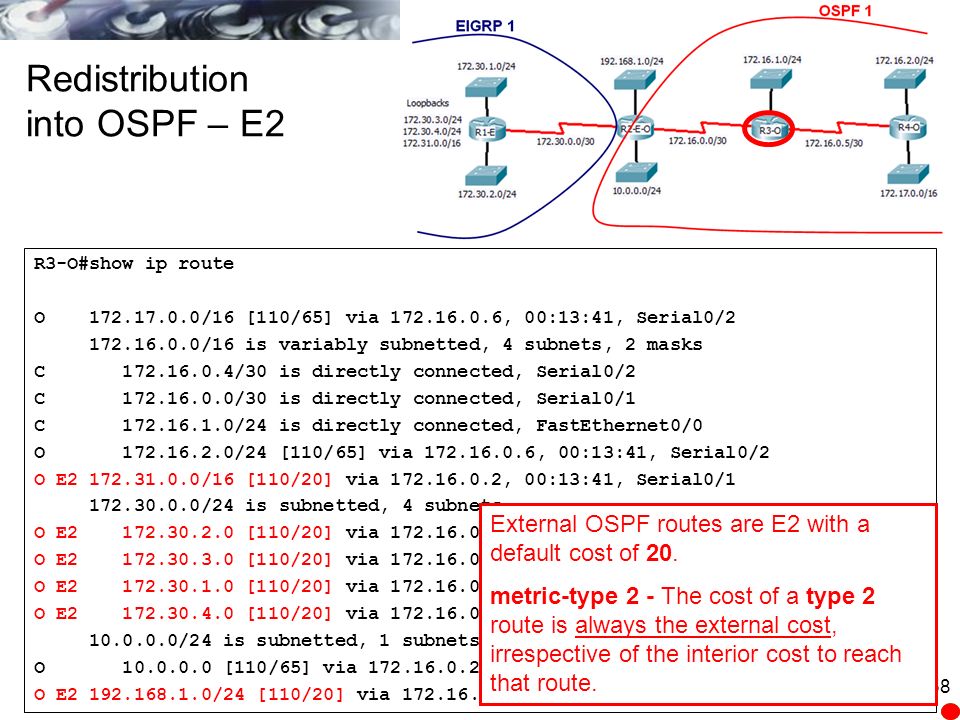

58 58 Redistribution into OSPF – E2 R3-O#show ip route O 172.17.0.0/16 [110/65] via 172.16.0.6, 00:13:41, Serial0/2 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks C 172.16.0.4/30 is directly connected, Serial0/2 C 172.16.0.0/30 is directly connected, Serial0/1 C 172.16.1.0/24 is directly connected, FastEthernet0/0 O 172.16.2.0/24 [110/65] via 172.16.0.6, 00:13:41, Serial0/2 O E2 172.31.0.0/16 [110/20] via 172.16.0.2, 00:13:41, Serial0/1 172.30.0.0/24 is subnetted, 4 subnets O E2 172.30.2.0 [110/20] via 172.16.0.2, 00:11:25, Serial0/1 O E2 172.30.3.0 [110/20] via 172.16.0.2, 00:11:25, Serial0/1 O E2 172.30.1.0 [110/20] via 172.16.0.2, 00:11:25, Serial0/1 O E2 172.30.4.0 [110/20] via 172.16.0.2, 00:11:25, Serial0/1 10.0.0.0/24 is subnetted, 1 subnets O 10.0.0.0 [110/65] via 172.16.0.2, 00:13:43, Serial0/1 O E2 192.168.1.0/24 [110/20] via 172.16.0.2, 00:07:30, Serial0/1 External OSPF routes are E2 with a default cost of 20. metric-type 2 - The cost of a type 2 route is always the external cost, irrespective of the interior cost to reach that route.

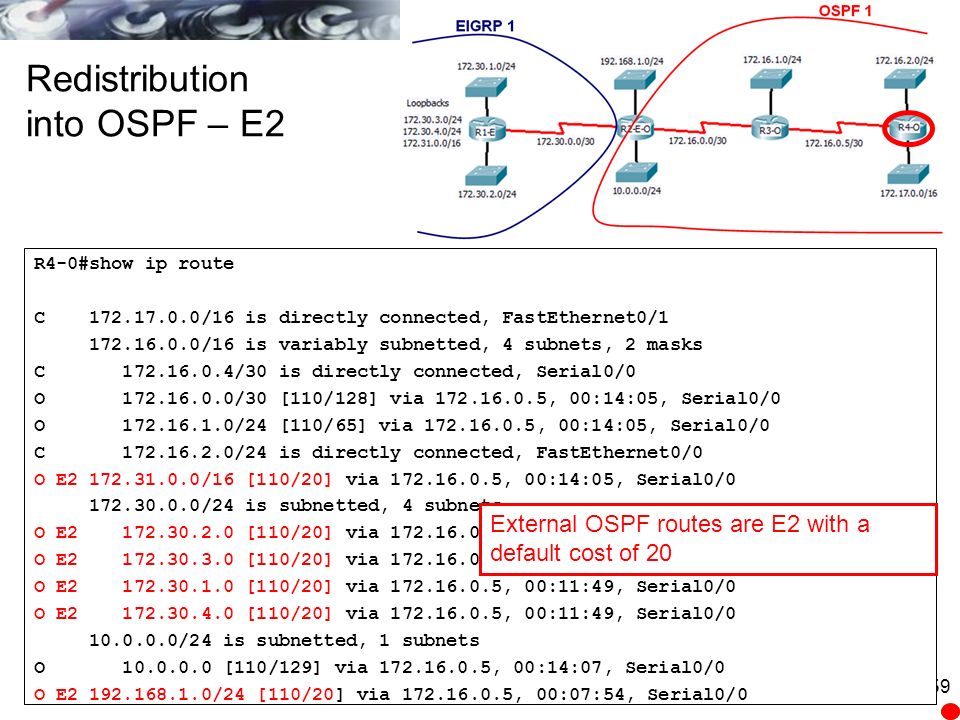

59 59 Redistribution into OSPF – E2 R4-0#show ip route C 172.17.0.0/16 is directly connected, FastEthernet0/1 172.16.0.0/16 is variably subnetted, 4 subnets, 2 masks C 172.16.0.4/30 is directly connected, Serial0/0 O 172.16.0.0/30 [110/128] via 172.16.0.5, 00:14:05, Serial0/0 O 172.16.1.0/24 [110/65] via 172.16.0.5, 00:14:05, Serial0/0 C 172.16.2.0/24 is directly connected, FastEthernet0/0 O E2 172.31.0.0/16 [110/20] via 172.16.0.5, 00:14:05, Serial0/0 172.30.0.0/24 is subnetted, 4 subnets O E2 172.30.2.0 [110/20] via 172.16.0.5, 00:11:49, Serial0/0 O E2 172.30.3.0 [110/20] via 172.16.0.5, 00:11:49, Serial0/0 O E2 172.30.1.0 [110/20] via 172.16.0.5, 00:11:49, Serial0/0 O E2 172.30.4.0 [110/20] via 172.16.0.5, 00:11:49, Serial0/0 10.0.0.0/24 is subnetted, 1 subnets O 10.0.0.0 [110/129] via 172.16.0.5, 00:14:07, Serial0/0 O E2 192.168.1.0/24 [110/20] via 172.16.0.5, 00:07:54, Serial0/0 External OSPF routes are E2 with a default cost of 20

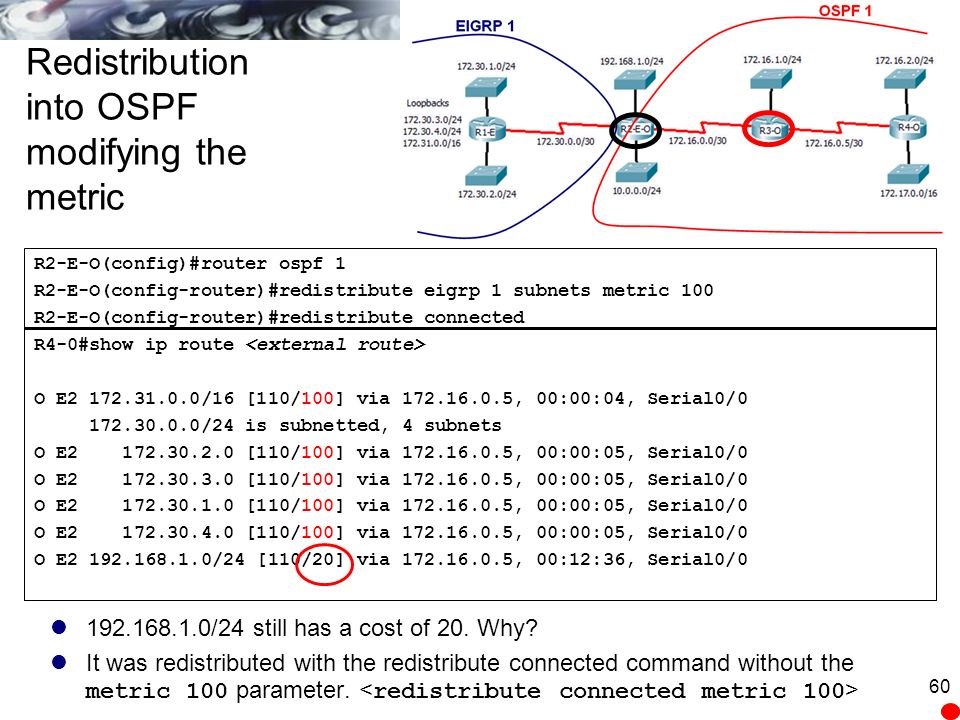

60 60 Redistribution into OSPF modifying the metric 192.168.1.0/24 still has a cost of 20. Why? It was redistributed with the redistribute connected command without the metric 100 parameter. R2-E-O(config)#router ospf 1 R2-E-O(config-router)#redistribute eigrp 1 subnets metric 100 R2-E-O(config-router)#redistribute connected R4-0#show ip route O E2 172.31.0.0/16 [110/100] via 172.16.0.5, 00:00:04, Serial0/0 172.30.0.0/24 is subnetted, 4 subnets O E2 172.30.2.0 [110/100] via 172.16.0.5, 00:00:05, Serial0/0 O E2 172.30.3.0 [110/100] via 172.16.0.5, 00:00:05, Serial0/0 O E2 172.30.1.0 [110/100] via 172.16.0.5, 00:00:05, Serial0/0 O E2 172.30.4.0 [110/100] via 172.16.0.5, 00:00:05, Serial0/0 O E2 192.168.1.0/24 [110/20] via 172.16.0.5, 00:12:36, Serial0/0

61 61 Redistribution into OSPF – E1 metric-type {1 | 2} - Defines the external metric type of 1 (E1 routes) or 2 (E2 routes). metric-type 1 - A type 1 cost is the addition of the external cost and the internal cost used to reach that route. metric-type 2 - The cost of a type 2 route is always the external cost, irrespective of the interior cost to reach that route. R2-E-O(config)# router ospf 1 R2-E-O(config-router)# redistribute eigrp 1 subnets metric-type 1 R2-E-O# show run router ospf 1 log-adjacency-changes redistribute connected redistribute eigrp 1 metric 100 metric-type 1 subnets network 10.0.0.0 0.0.0.255 area 0 network 172.16.0.0 0.0.0.3 area 0 Notice that the previous metric 100 parameter is still included!

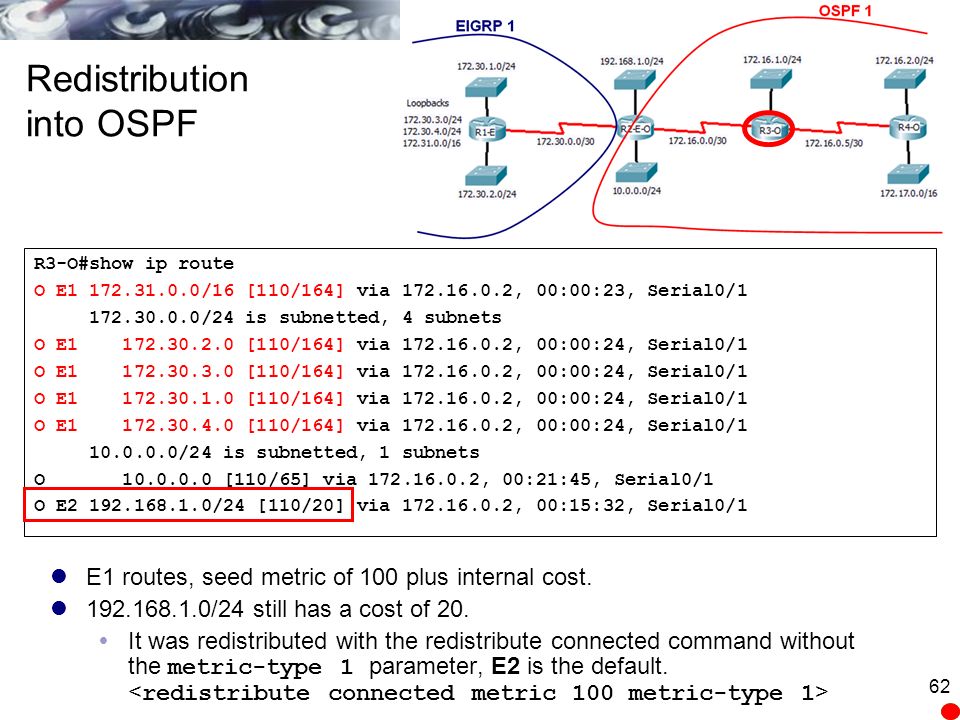

62 62 Redistribution into OSPF E1 routes, seed metric of 100 plus internal cost. 192.168.1.0/24 still has a cost of 20.  It was redistributed with the redistribute connected command without the metric-type 1 parameter, E2 is the default. R3-O#show ip route O E1 172.31.0.0/16 [110/164] via 172.16.0.2, 00:00:23, Serial0/1 172.30.0.0/24 is subnetted, 4 subnets O E1 172.30.2.0 [110/164] via 172.16.0.2, 00:00:24, Serial0/1 O E1 172.30.3.0 [110/164] via 172.16.0.2, 00:00:24, Serial0/1 O E1 172.30.1.0 [110/164] via 172.16.0.2, 00:00:24, Serial0/1 O E1 172.30.4.0 [110/164] via 172.16.0.2, 00:00:24, Serial0/1 10.0.0.0/24 is subnetted, 1 subnets O 10.0.0.0 [110/65] via 172.16.0.2, 00:21:45, Serial0/1 O E2 192.168.1.0/24 [110/20] via 172.16.0.2, 00:15:32, Serial0/1

63 More Redistribution Examples 63

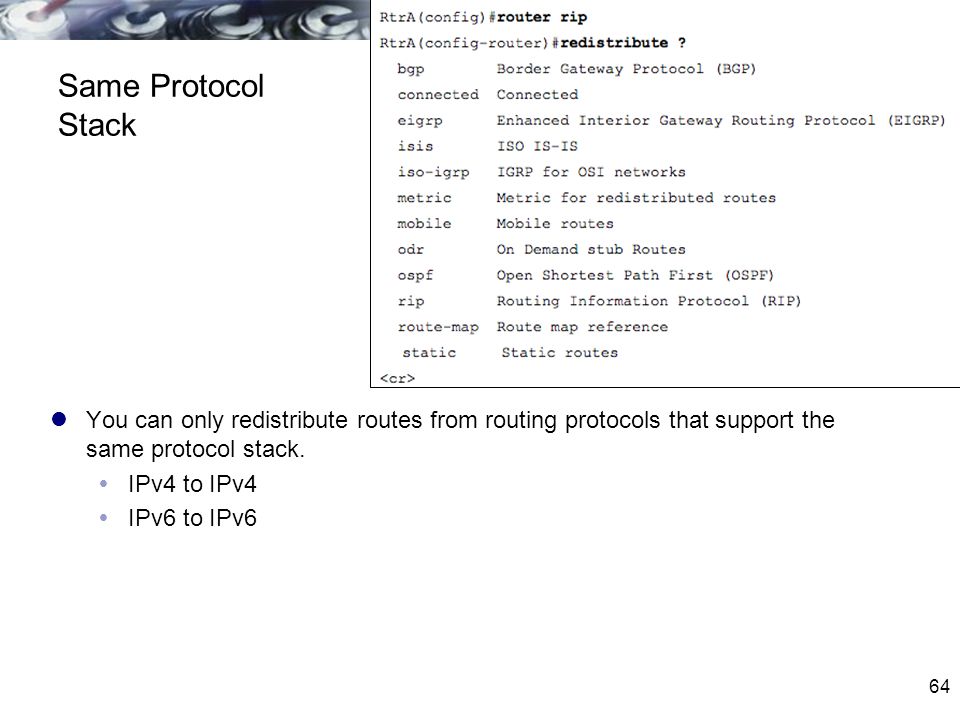

64 Same Protocol Stack You can only redistribute routes from routing protocols that support the same protocol stack.  IPv4 to IPv4  IPv6 to IPv6 64

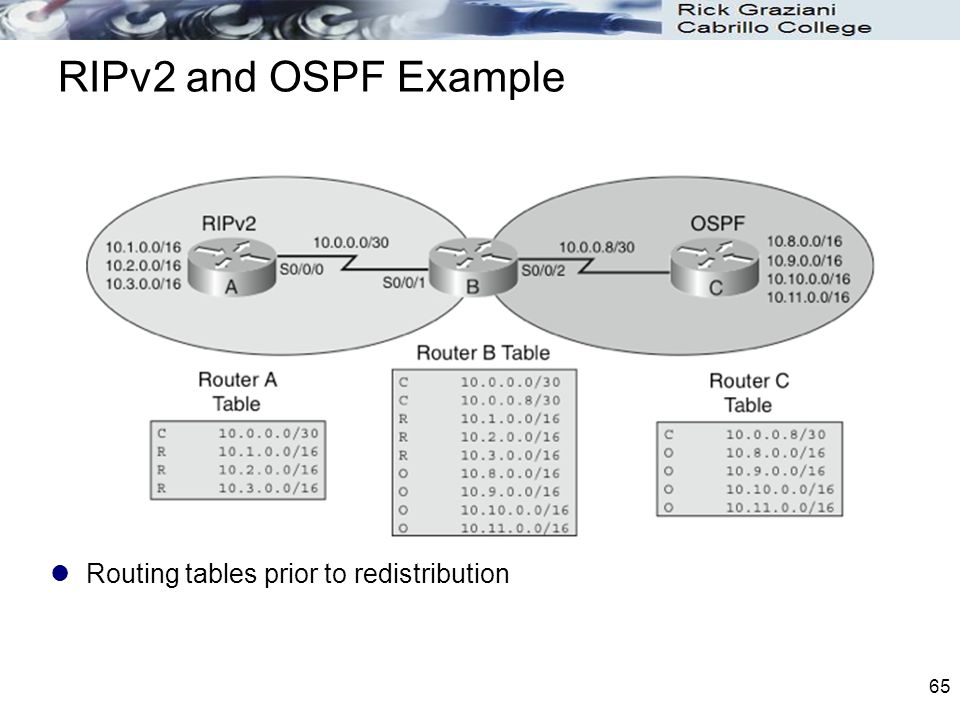

65 RIPv2 and OSPF Example Routing tables prior to redistribution 65

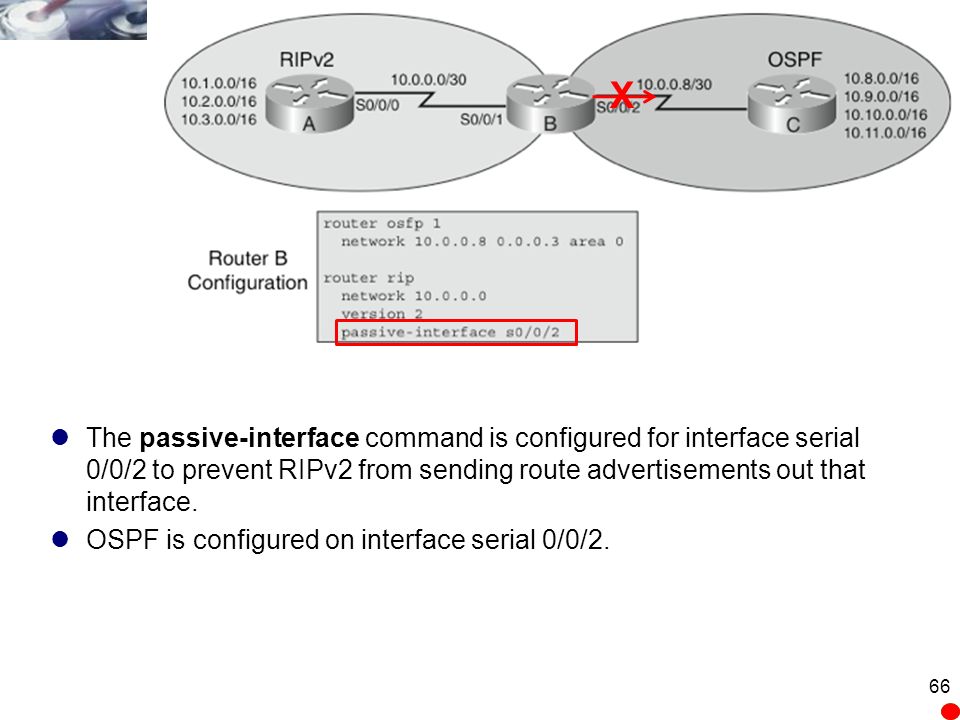

66 The passive-interface command is configured for interface serial 0/0/2 to prevent RIPv2 from sending route advertisements out that interface. OSPF is configured on interface serial 0/0/2. 66 X

67 The goal of redistribution in this network is for all routers to recognize all routes within the company. RIPv2 is redistributed into the OSPF process, and the metric is set using the redistribute command (help prevent routing loops - later).  A metric value of 300 is selected because it is a worse metric than any belonging to a native OSPF route. Routes from OSPF process 1 are redistributed into the RIPv2 process with a metric of 5.  A value of 5 is chosen because it is higher than any metric in the RIP network. 67

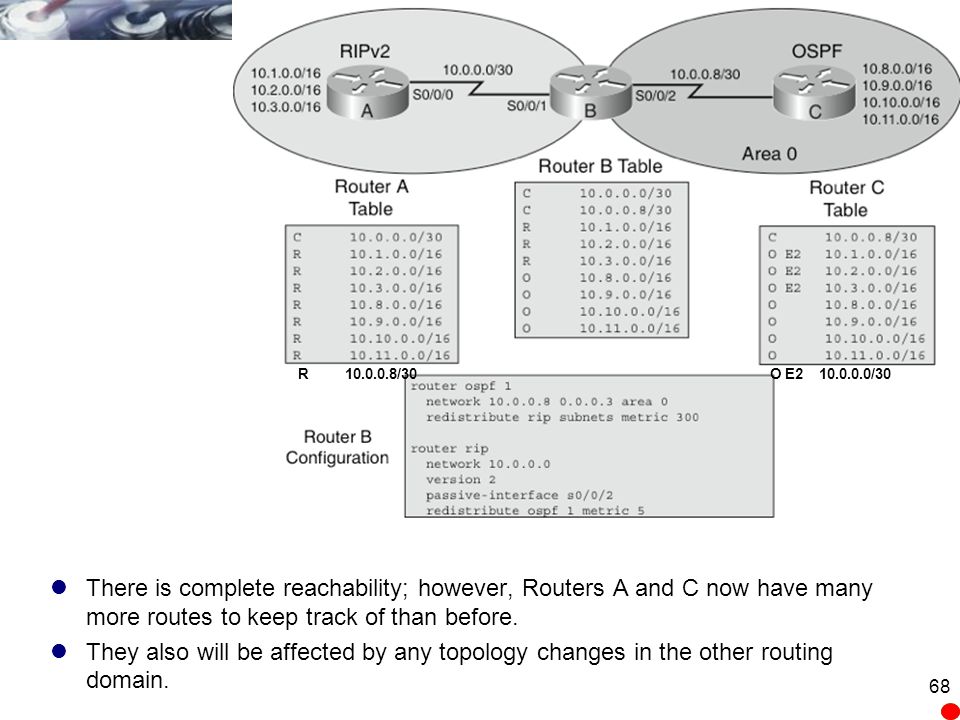

68 There is complete reachability; however, Routers A and C now have many more routes to keep track of than before. They also will be affected by any topology changes in the other routing domain. 68 R 10.0.0.8/30 O E2 10.0.0.0/30

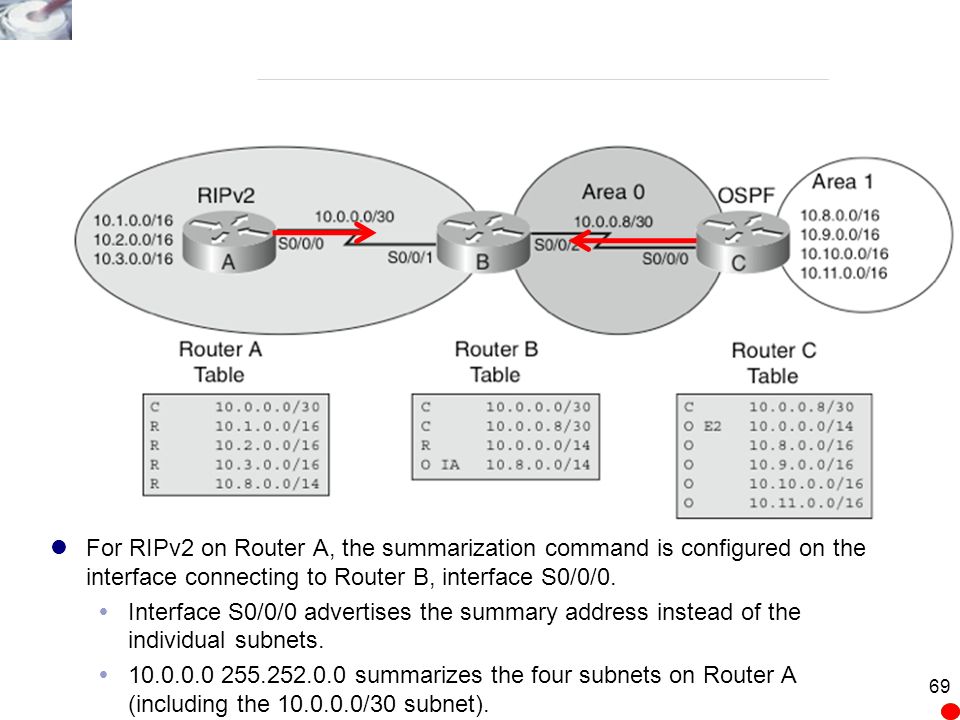

69 For RIPv2 on Router A, the summarization command is configured on the interface connecting to Router B, interface S0/0/0.  Interface S0/0/0 advertises the summary address instead of the individual subnets.  10.0.0.0 255.252.0.0 summarizes the four subnets on Router A (including the 10.0.0.0/30 subnet). 69

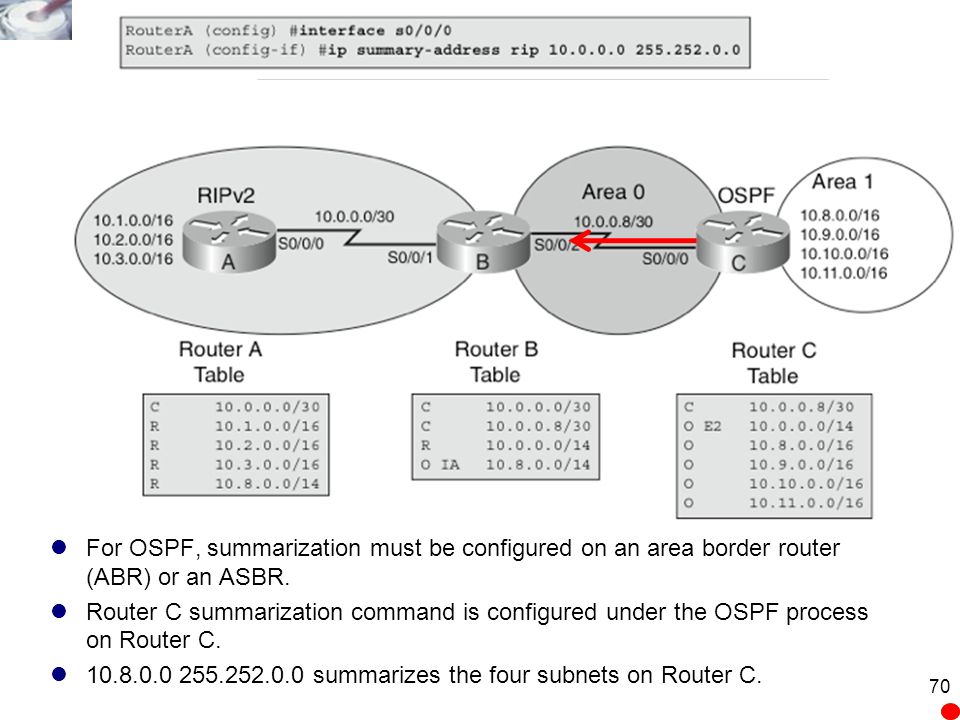

70 For OSPF, summarization must be configured on an area border router (ABR) or an ASBR. Router C summarization command is configured under the OSPF process on Router C. 10.8.0.0 255.252.0.0 summarizes the four subnets on Router C. 70

71 Redistribution Techniques and Issues 71

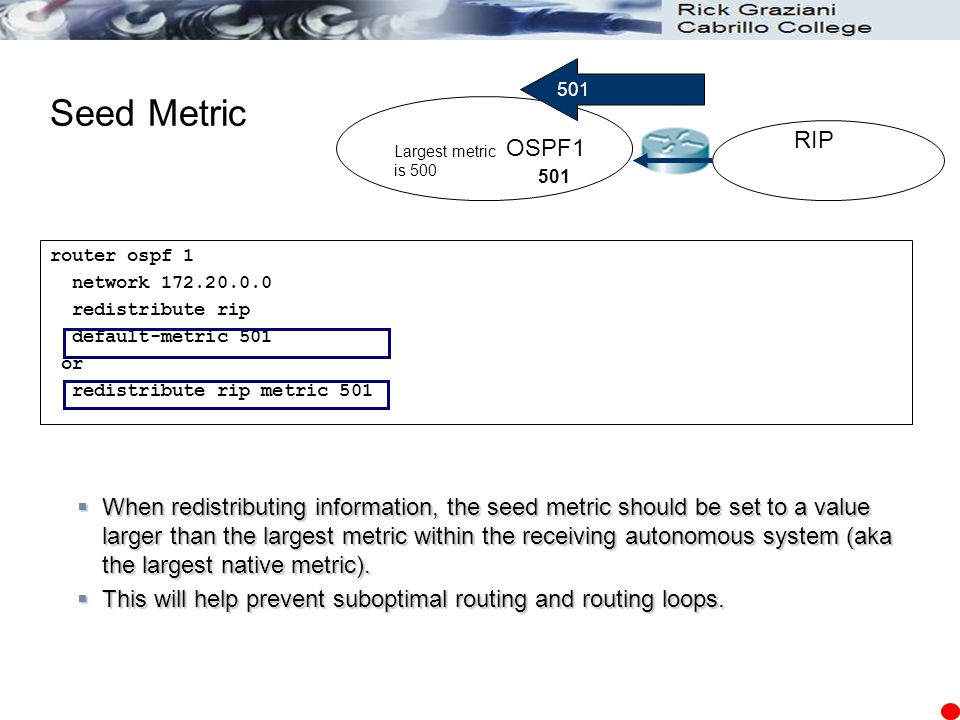

72 Seed Metric router ospf 1 network 172.20.0.0 redistribute rip default-metric 501 or redistribute rip metric 501 OSPF1 RIP  When redistributing information, the seed metric should be set to a value larger than the largest metric within the receiving autonomous system (aka the largest native metric).  This will help prevent suboptimal routing and routing loops. 501 Largest metric is 500

73 The default seed metric value for routes that are redistributed into each IP routing protocol. A metric of infinity tells the router that the route is unreachable and, therefore, should not be advertised.  When redistributing routes into RIP, IGRP, and EIGRP, you must specify a seed metric, or the redistributed routes will not be advertised. For OSPF, the redistributed routes have a default type 2 (E2) metric of 20, (except for redistributed BGP routes, which have a default type 2 metric of 1) 73

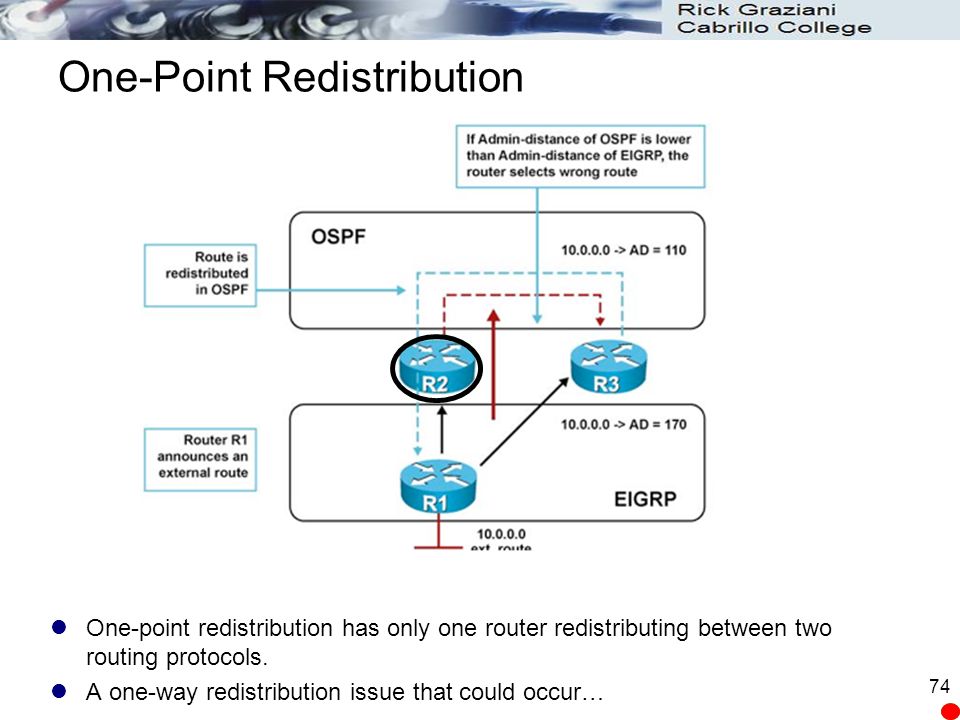

74 One-Point Redistribution One-point redistribution has only one router redistributing between two routing protocols. A one-way redistribution issue that could occur… 74

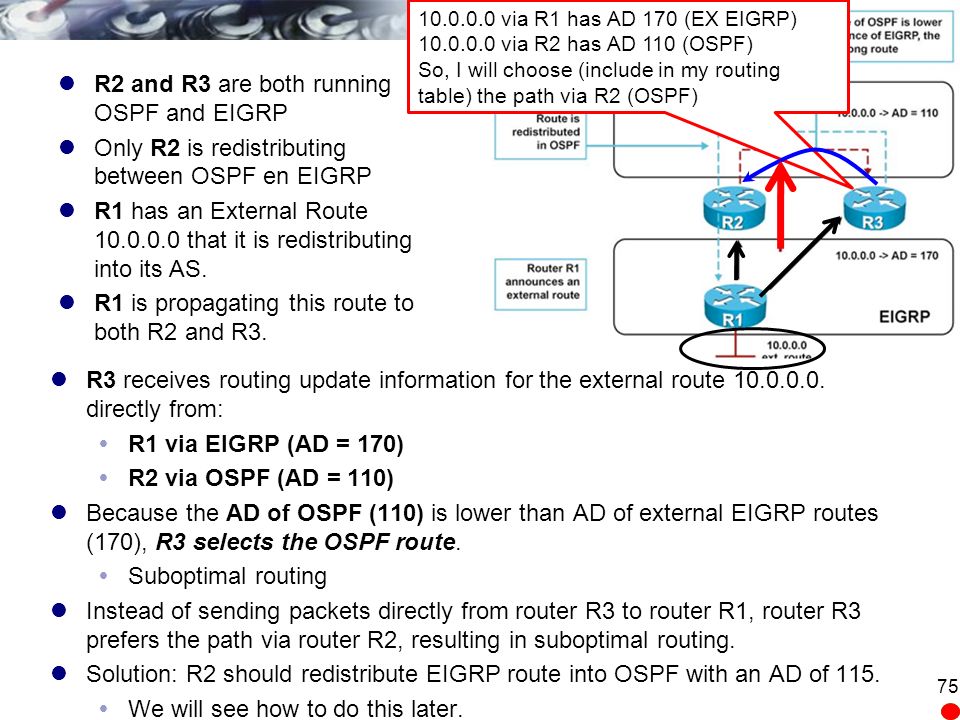

75 R3 receives routing update information for the external route 10.0.0.0. directly from:  R1 via EIGRP (AD = 170)  R2 via OSPF (AD = 110) Because the AD of OSPF (110) is lower than AD of external EIGRP routes (170), R3 selects the OSPF route.  Suboptimal routing Instead of sending packets directly from router R3 to router R1, router R3 prefers the path via router R2, resulting in suboptimal routing. Solution: R2 should redistribute EIGRP route into OSPF with an AD of 115.  We will see how to do this later. 75 R2 and R3 are both running OSPF and EIGRP Only R2 is redistributing between OSPF en EIGRP R1 has an External Route 10.0.0.0 that it is redistributing into its AS. R1 is propagating this route to both R2 and R3. 10.0.0.0 via R1 has AD 170 (EX EIGRP) 10.0.0.0 via R2 has AD 110 (OSPF) So, I will choose (include in my routing table) the path via R2 (OSPF)

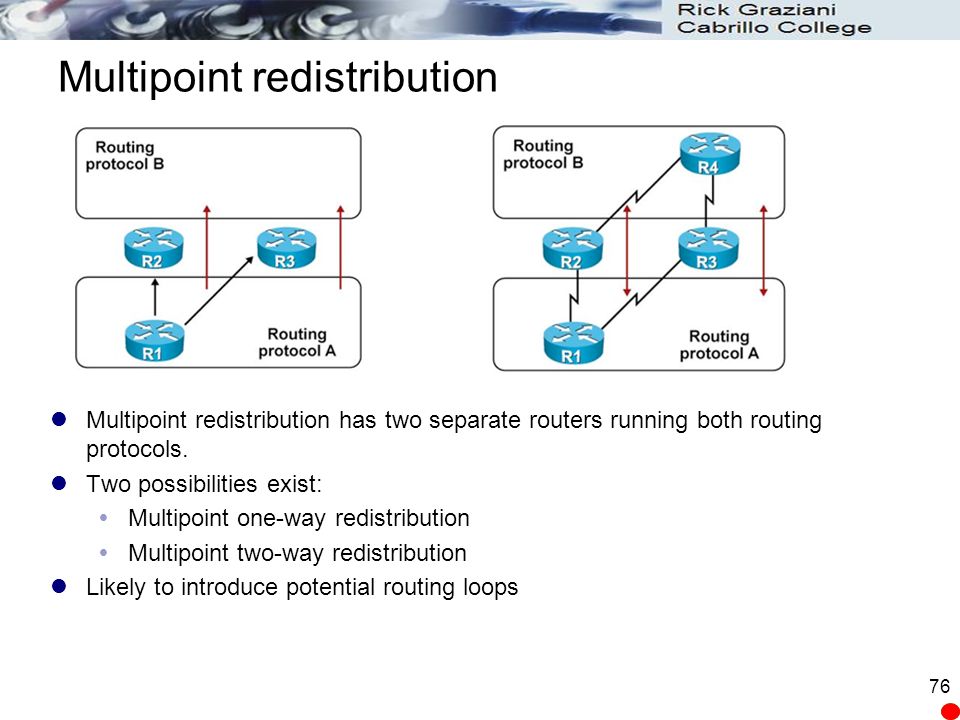

76 Multipoint redistribution Multipoint redistribution has two separate routers running both routing protocols. Two possibilities exist:  Multipoint one-way redistribution  Multipoint two-way redistribution Likely to introduce potential routing loops 76

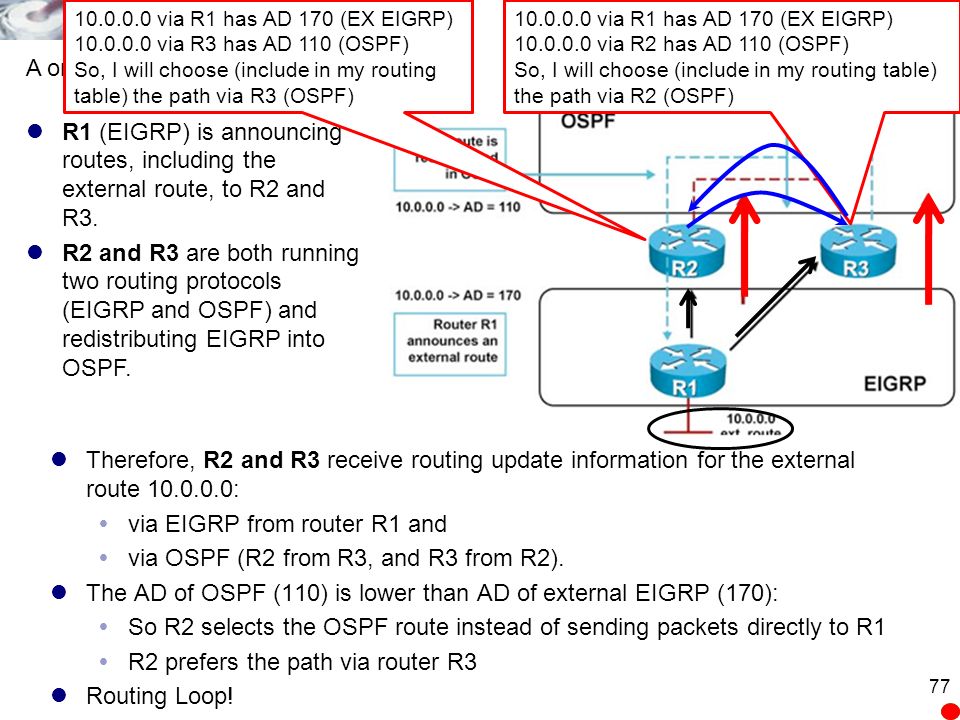

77 Therefore, R2 and R3 receive routing update information for the external route 10.0.0.0:  via EIGRP from router R1 and  via OSPF (R2 from R3, and R3 from R2). The AD of OSPF (110) is lower than AD of external EIGRP (170):  So R2 selects the OSPF route instead of sending packets directly to R1  R2 prefers the path via router R3 Routing Loop! 77 A one-way multipoint redistribution issue. R1 (EIGRP) is announcing routes, including the external route, to R2 and R3. R2 and R3 are both running two routing protocols (EIGRP and OSPF) and redistributing EIGRP into OSPF. 10.0.0.0 via R1 has AD 170 (EX EIGRP) 10.0.0.0 via R2 has AD 110 (OSPF) So, I will choose (include in my routing table) the path via R2 (OSPF) 10.0.0.0 via R1 has AD 170 (EX EIGRP) 10.0.0.0 via R3 has AD 110 (OSPF) So, I will choose (include in my routing table) the path via R3 (OSPF)

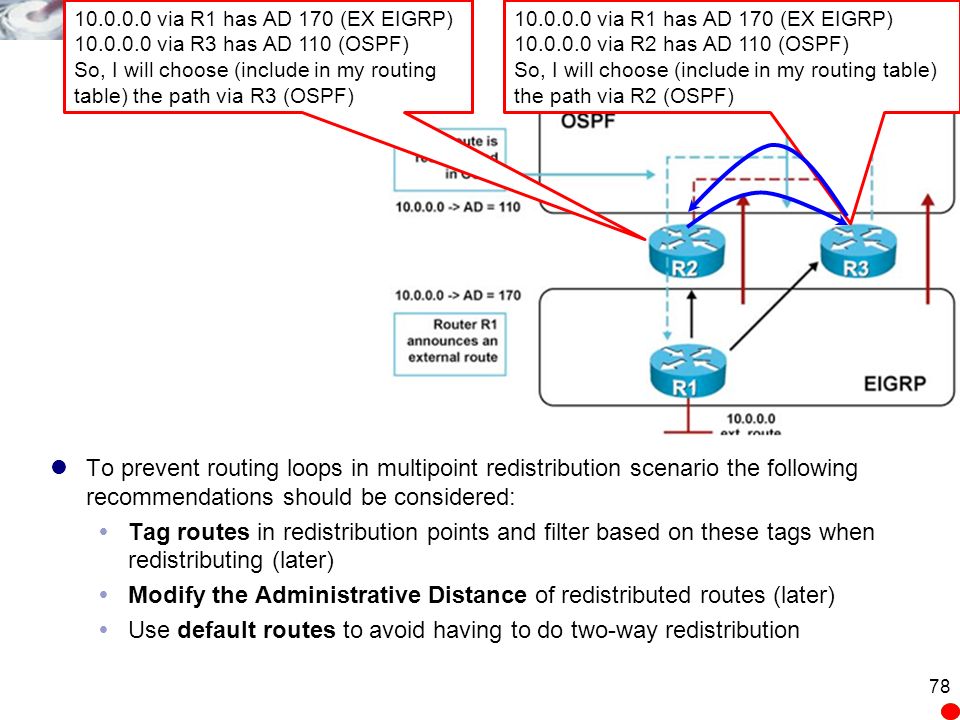

78 To prevent routing loops in multipoint redistribution scenario the following recommendations should be considered:  Tag routes in redistribution points and filter based on these tags when redistributing (later)  Modify the Administrative Distance of redistributed routes (later)  Use default routes to avoid having to do two-way redistribution 78 10.0.0.0 via R1 has AD 170 (EX EIGRP) 10.0.0.0 via R2 has AD 110 (OSPF) So, I will choose (include in my routing table) the path via R2 (OSPF) 10.0.0.0 via R1 has AD 170 (EX EIGRP) 10.0.0.0 via R3 has AD 110 (OSPF) So, I will choose (include in my routing table) the path via R3 (OSPF)

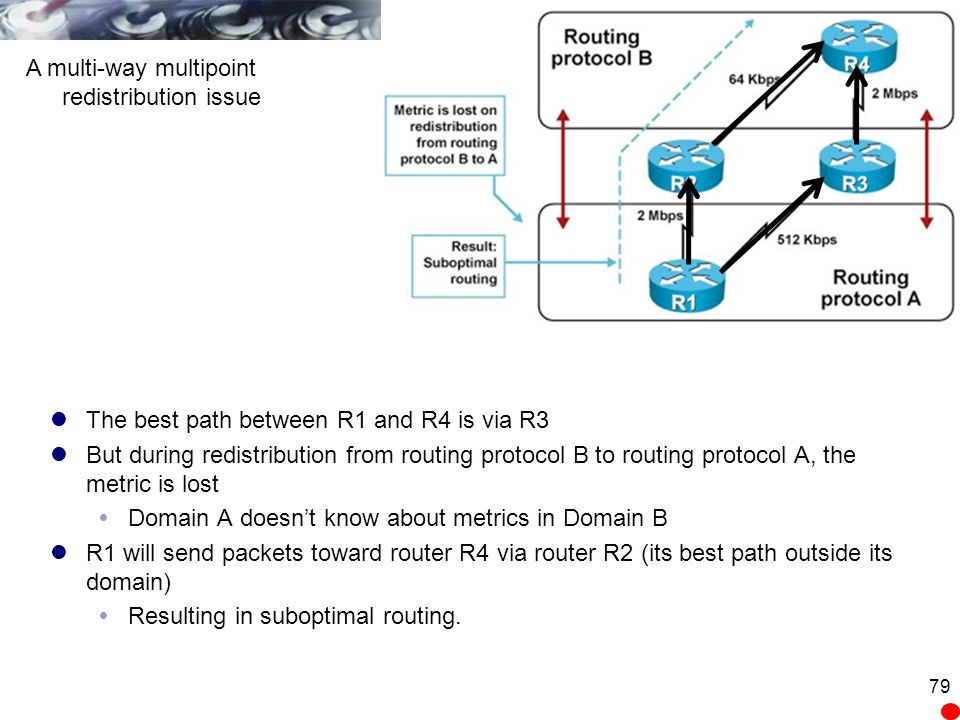

79 The best path between R1 and R4 is via R3 But during redistribution from routing protocol B to routing protocol A, the metric is lost  Domain A doesn’t know about metrics in Domain B R1 will send packets toward router R4 via router R2 (its best path outside its domain)  Resulting in suboptimal routing. 79 A multi-way multipoint redistribution issue

80 Modifying Administrative Distance 80

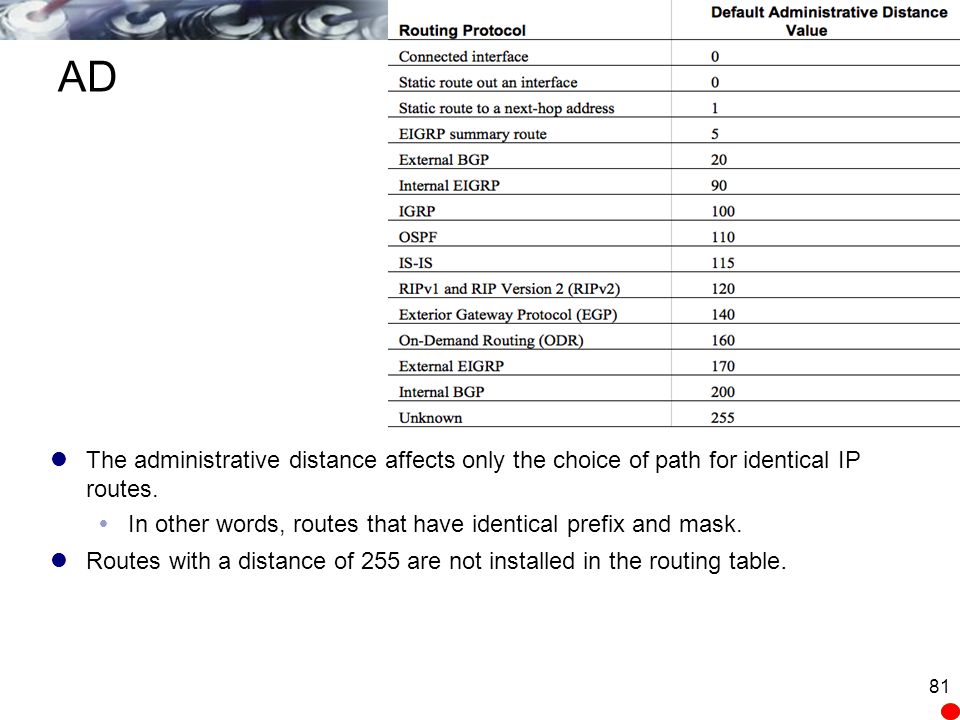

81 AD The administrative distance affects only the choice of path for identical IP routes.  In other words, routes that have identical prefix and mask. Routes with a distance of 255 are not installed in the routing table. 81

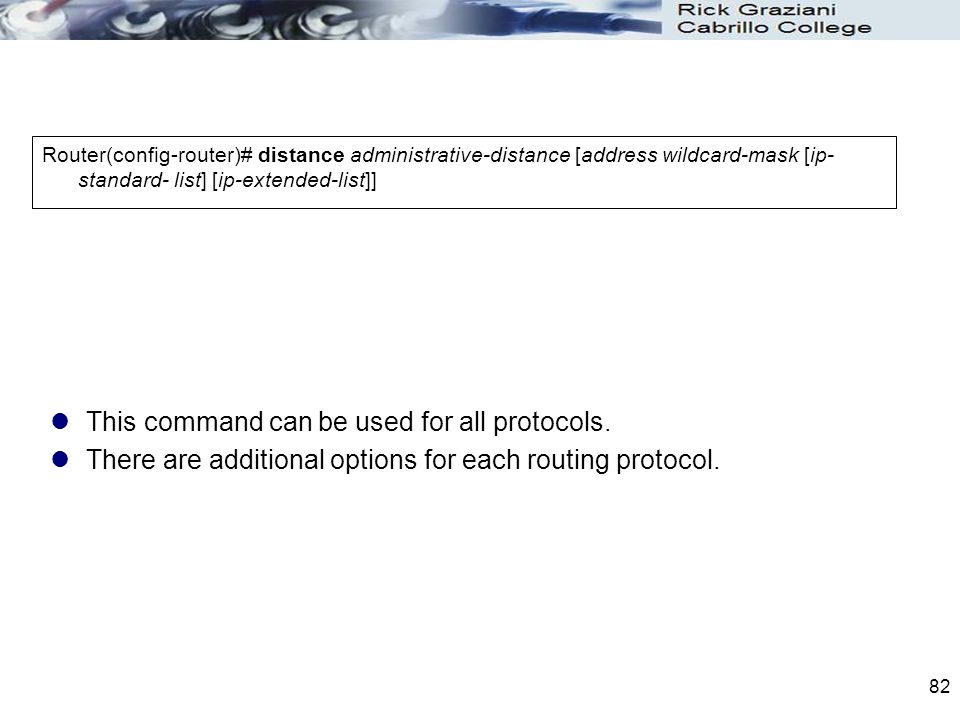

82 This command can be used for all protocols. There are additional options for each routing protocol. 82 Router(config-router)# distance administrative-distance [address wildcard-mask [ip- standard- list] [ip-extended-list]]

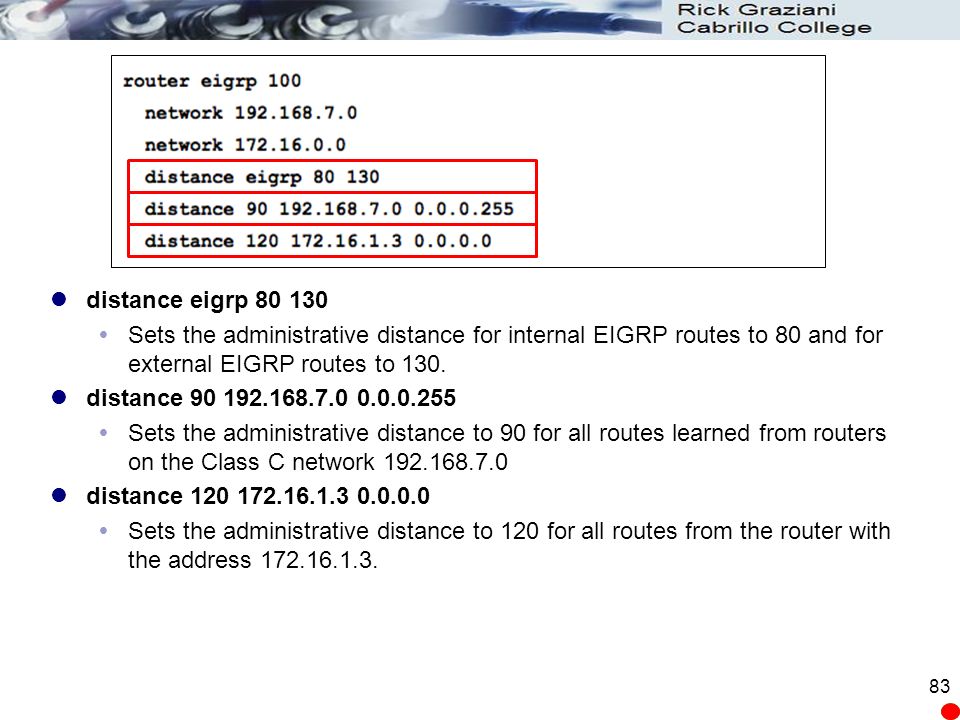

83 distance eigrp 80 130  Sets the administrative distance for internal EIGRP routes to 80 and for external EIGRP routes to 130. distance 90 192.168.7.0 0.0.0.255  Sets the administrative distance to 90 for all routes learned from routers on the Class C network 192.168.7.0 distance 120 172.16.1.3 0.0.0.0  Sets the administrative distance to 120 for all routes from the router with the address 172.16.1.3. 83

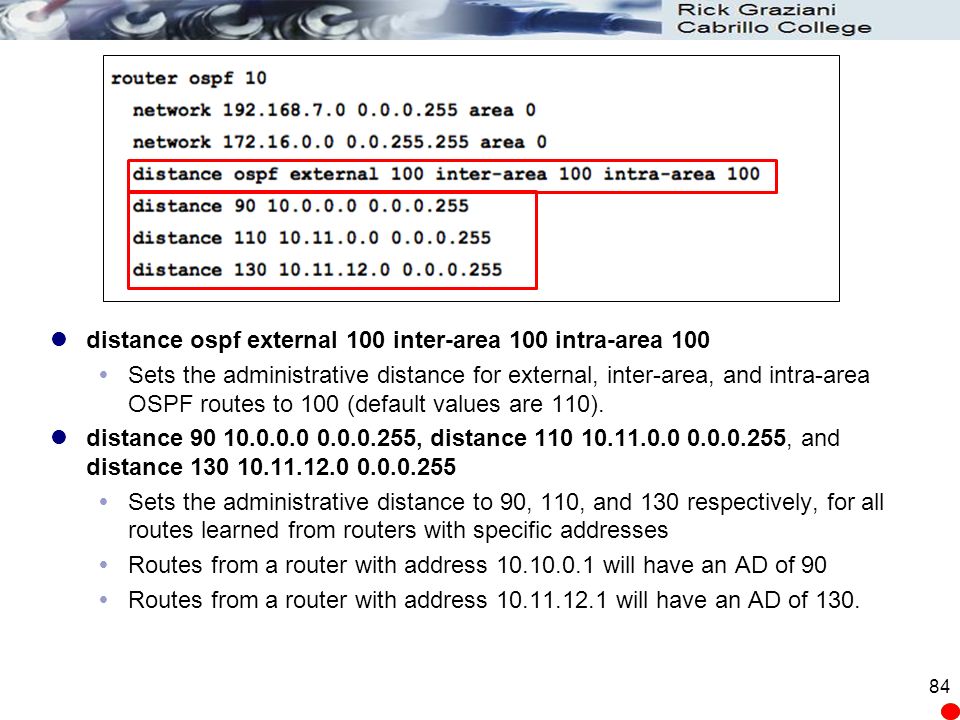

84 distance ospf external 100 inter-area 100 intra-area 100  Sets the administrative distance for external, inter-area, and intra-area OSPF routes to 100 (default values are 110). distance 90 10.0.0.0 0.0.0.255, distance 110 10.11.0.0 0.0.0.255, and distance 130 10.11.12.0 0.0.0.255  Sets the administrative distance to 90, 110, and 130 respectively, for all routes learned from routers with specific addresses  Routes from a router with address 10.10.0.1 will have an AD of 90  Routes from a router with address 10.11.12.1 will have an AD of 130. 84

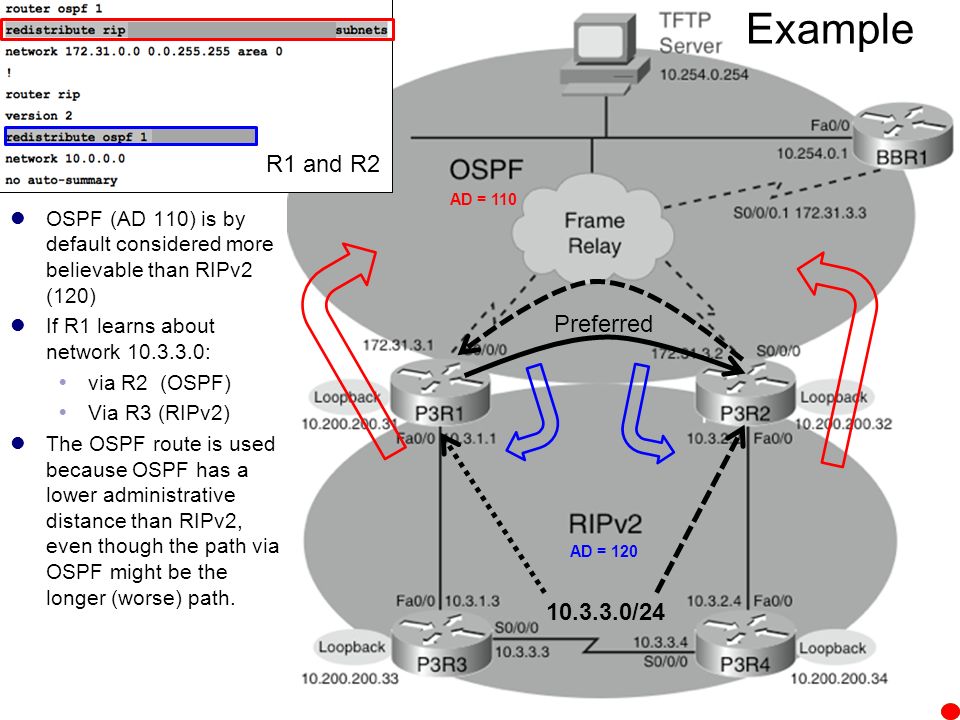

85 85 Example R1 and R2 AD = 120 AD = 110 OSPF (AD 110) is by default considered more believable than RIPv2 (120) If R1 learns about network 10.3.3.0:  via R2 (OSPF)  Via R3 (RIPv2) The OSPF route is used because OSPF has a lower administrative distance than RIPv2, even though the path via OSPF might be the longer (worse) path. 10.3.3.0/24 Preferred

86 86 Example R1 and R2 Metric = 10,000 Metric = 5 AD = 120 AD = 110 Note: RIPv2 routes redistributed into OSPF have an OSPF seed metric of 10,000 (higher than any other OSPF route). This does not prevent our previous problem Makes these routes less preferred than native OSPF routes Protects against route feedback. Prevents R1 from choosing R2 for OSPF routes it learns from internal OSPF routers. The redistribute command also sets the metric type to 1 (external type 1) so that the route metrics continue to accrue. The routers also redistribute subnet information. 10.3.3.0/24

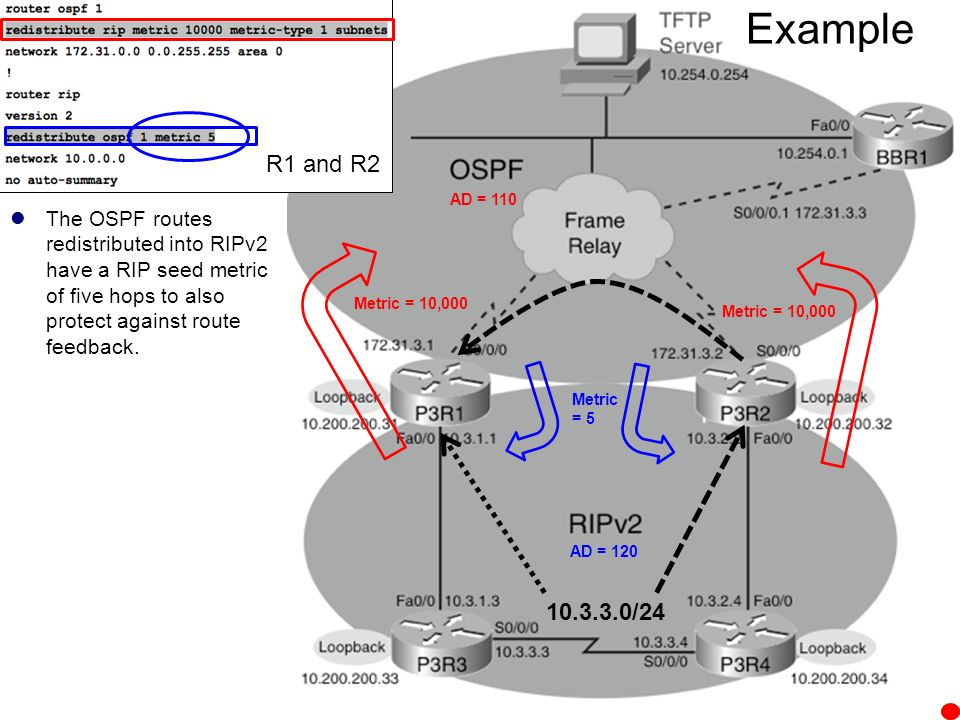

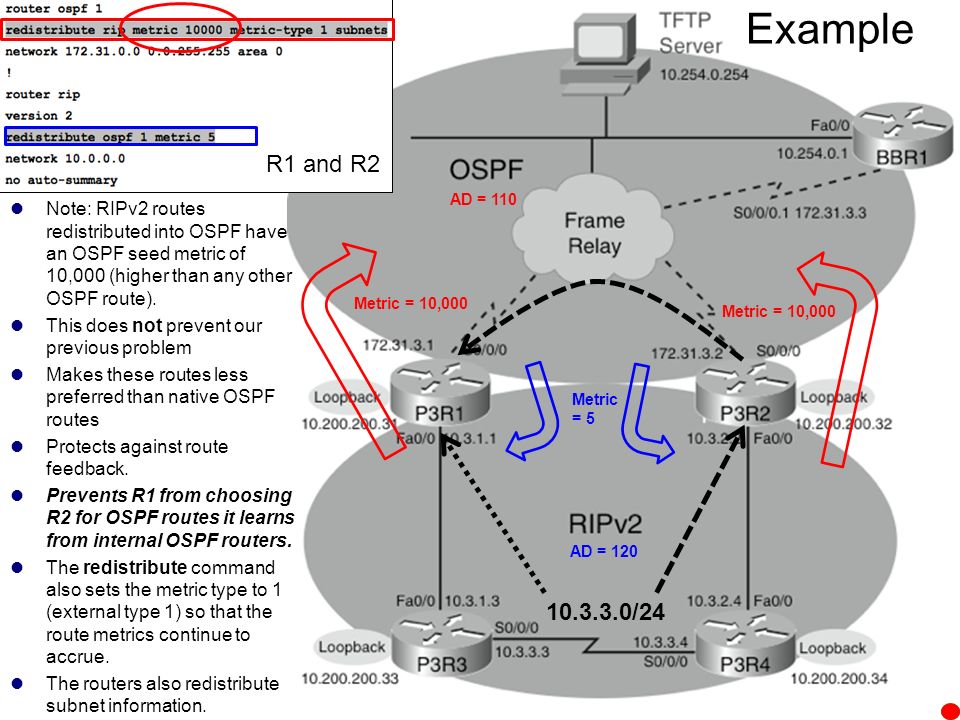

87 87 Example R1 and R2 Metric = 10,000 Metric = 5 AD = 120 AD = 110 The OSPF routes redistributed into RIPv2 have a RIP seed metric of five hops to also protect against route feedback. 10.3.3.0/24

88 R2, receives information about the RIPv2 domain routes (also called the native RIPv2 routes) from both OSPF and RIPv2. R2 prefers the OSPF routes because OSPF has a lower administrative distance Therefore, none of the RIPv2 routes appears in R2’s routing table. All routes are via OSPF or directly connected. 88 My best path to all RIP networks is via R1 because OSPF (110) is better than RIP (120).

89 Solution: Modifying the AD You can change the administrative distance of the redistributed RIPv2 routes to ensure that the boundary routers select the native RIPv2 routes. The distance command on R1 and R2 changes the administrative distance of the OSPF routes to the networks that match access list 64 to 125 (from 110). Access list 64 is used to match all the native RIPv2 routes. 89

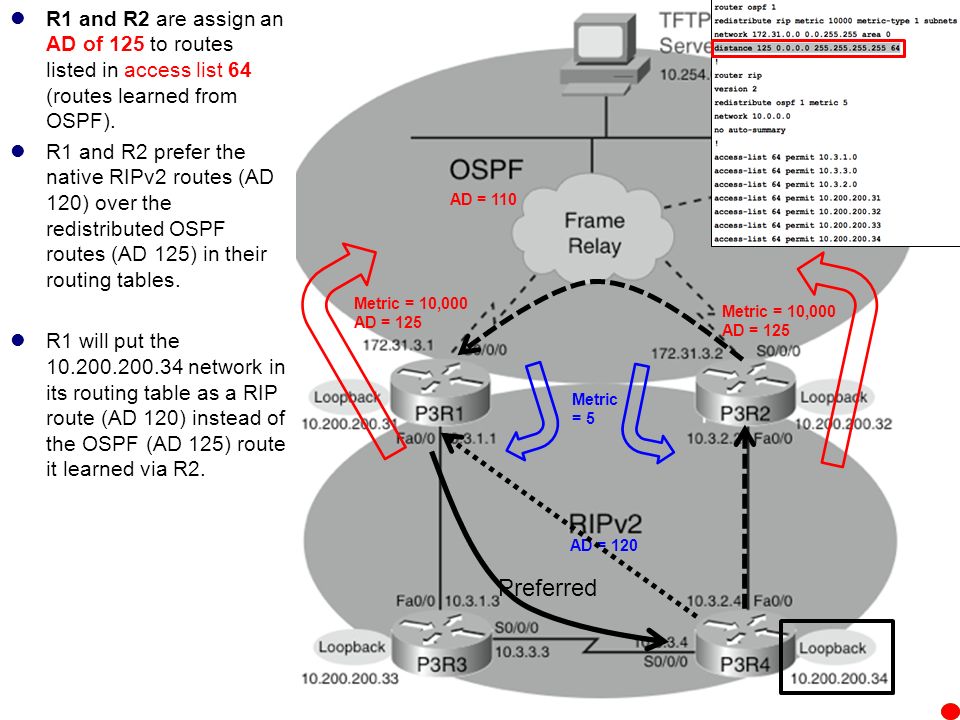

90 90 Metric = 10,000 AD = 125 Metric = 10,000 AD = 125 Metric = 5 AD = 120 AD = 110 R1 and R2 are assign an AD of 125 to routes listed in access list 64 (routes learned from OSPF). R1 and R2 prefer the native RIPv2 routes (AD 120) over the redistributed OSPF routes (AD 125) in their routing tables. R1 will put the 10.200.200.34 network in its routing table as a RIP route (AD 120) instead of the OSPF (AD 125) route it learned via R2. Preferred

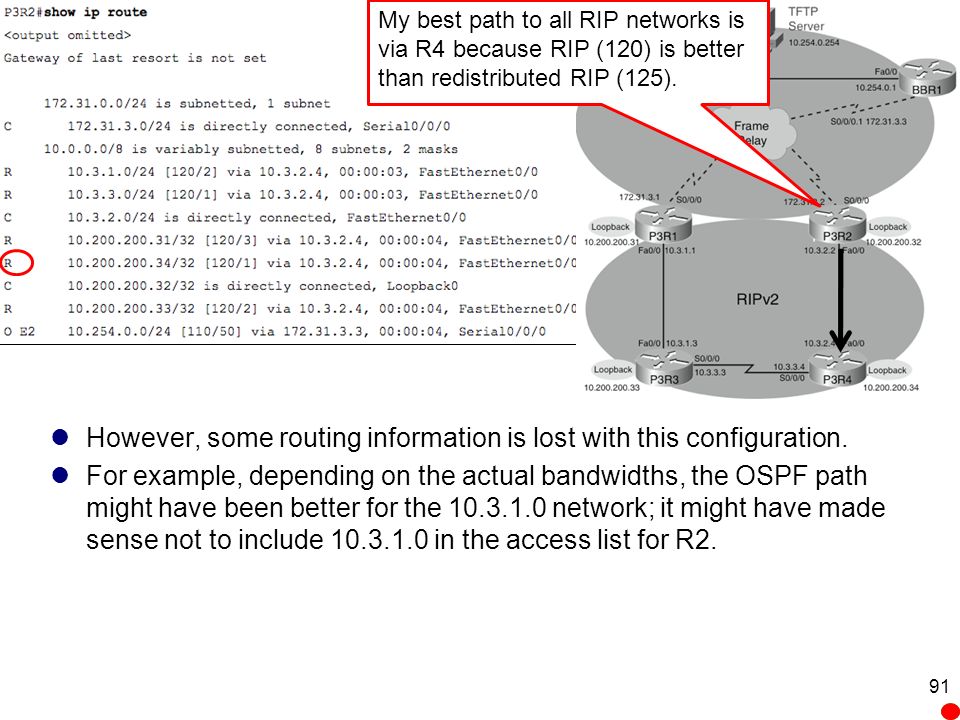

91 However, some routing information is lost with this configuration. For example, depending on the actual bandwidths, the OSPF path might have been better for the 10.3.1.0 network; it might have made sense not to include 10.3.1.0 in the access list for R2. 91 My best path to all RIP networks is via R4 because RIP (120) is better than redistributed RIP (125).

92 Verifying Redistribution The best way to verify redistribution operation is as follows:  Know your network topology, particularly where redundant routes exist.  Study the routing tables on a variety of routers in the internetwork using the show ip route  Perform a trace using the traceroute on some of the routes that go across the autonomous systems to verify that the shortest path is being used for routing. 92

93 More on OSPF and External Routes

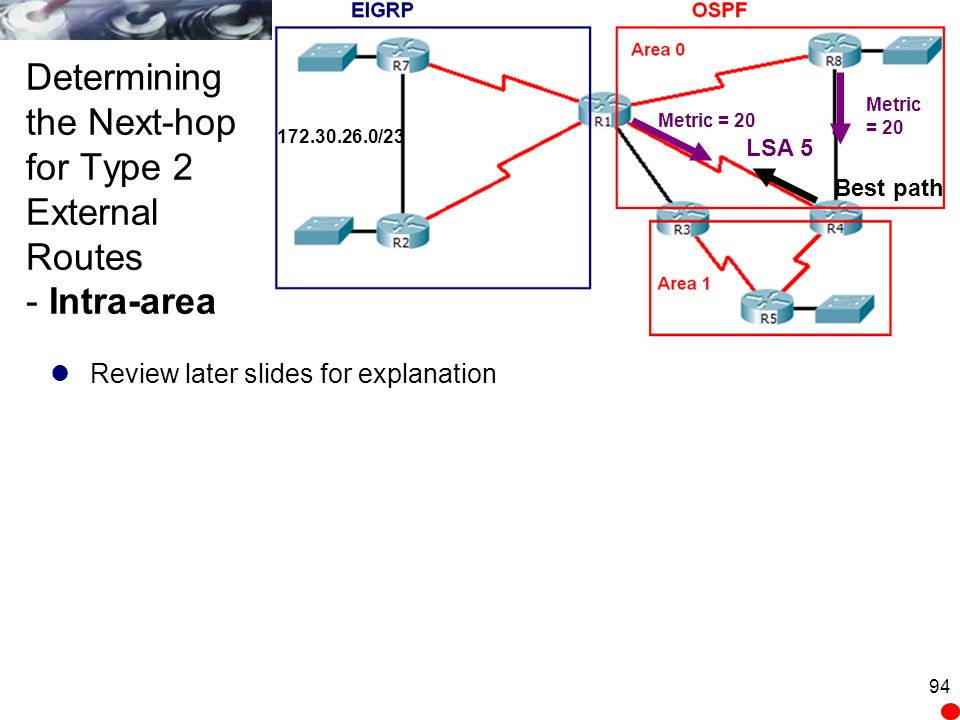

94 94 Determining the Next-hop for Type 2 External Routes - Intra-area Review later slides for explanation LSA 5 172.30.26.0/23 Metric = 20 Best path

95 95 Determining the Next-hop for Type 2 External Routes - Interarea 172.30.26.0/23 LSA 4: I am ABR R4, I can reach ASBR R1 and my cost to the ASBR is 64. LSA 4: I am ABR R3, I can reach ASBR R1 and my cost to the ASBR is 1. Best path R5# show ip route O E2 172.30.26.0/23 [110/20] via 172.16.35.3, 05:48:42, Serial0/0 Review later slides for explanation Metric = 20

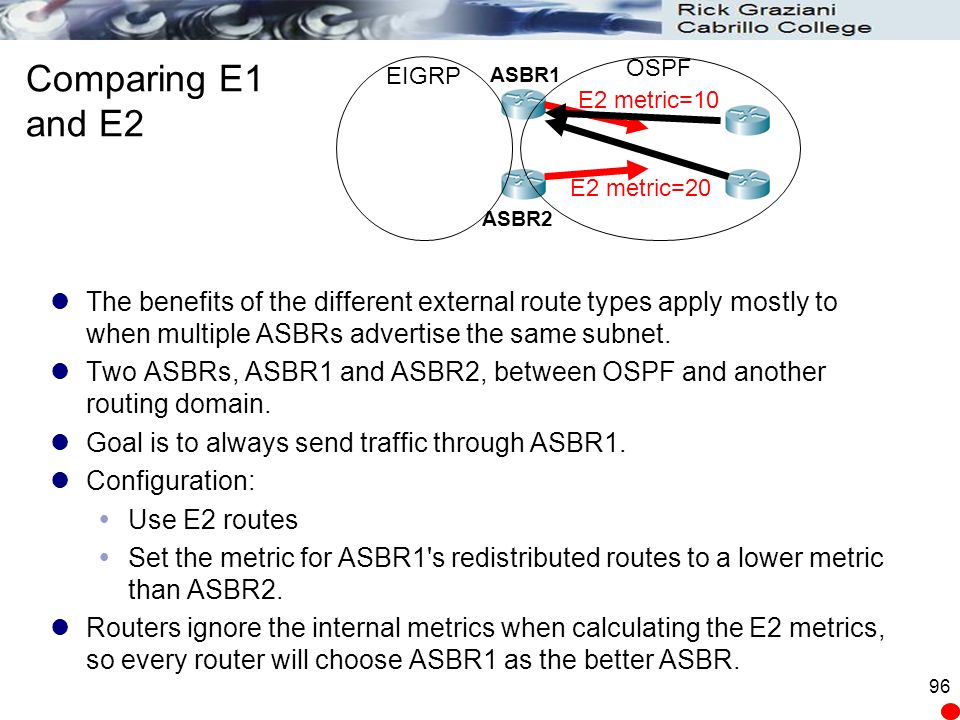

96 96 Comparing E1 and E2 The benefits of the different external route types apply mostly to when multiple ASBRs advertise the same subnet. Two ASBRs, ASBR1 and ASBR2, between OSPF and another routing domain. Goal is to always send traffic through ASBR1. Configuration:  Use E2 routes  Set the metric for ASBR1's redistributed routes to a lower metric than ASBR2. Routers ignore the internal metrics when calculating the E2 metrics, so every router will choose ASBR1 as the better ASBR. OSPF EIGRP ASBR1 ASBR2 E2 metric=10 E2 metric=20

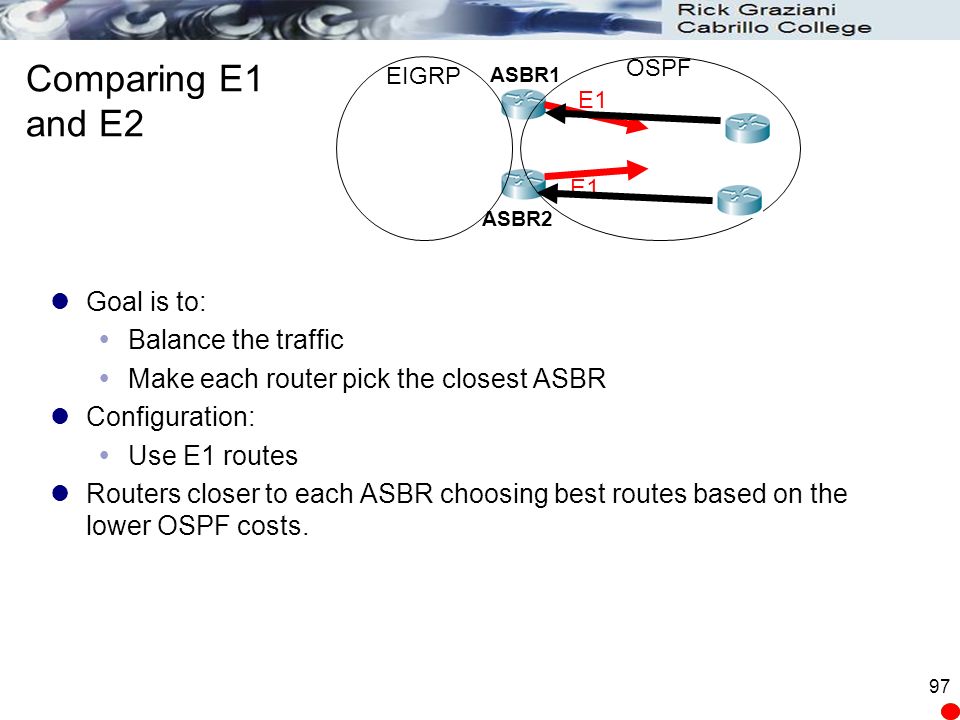

97 97 Comparing E1 and E2 Goal is to:  Balance the traffic  Make each router pick the closest ASBR Configuration:  Use E1 routes Routers closer to each ASBR choosing best routes based on the lower OSPF costs. OSPF EIGRP ASBR1 ASBR2 E1

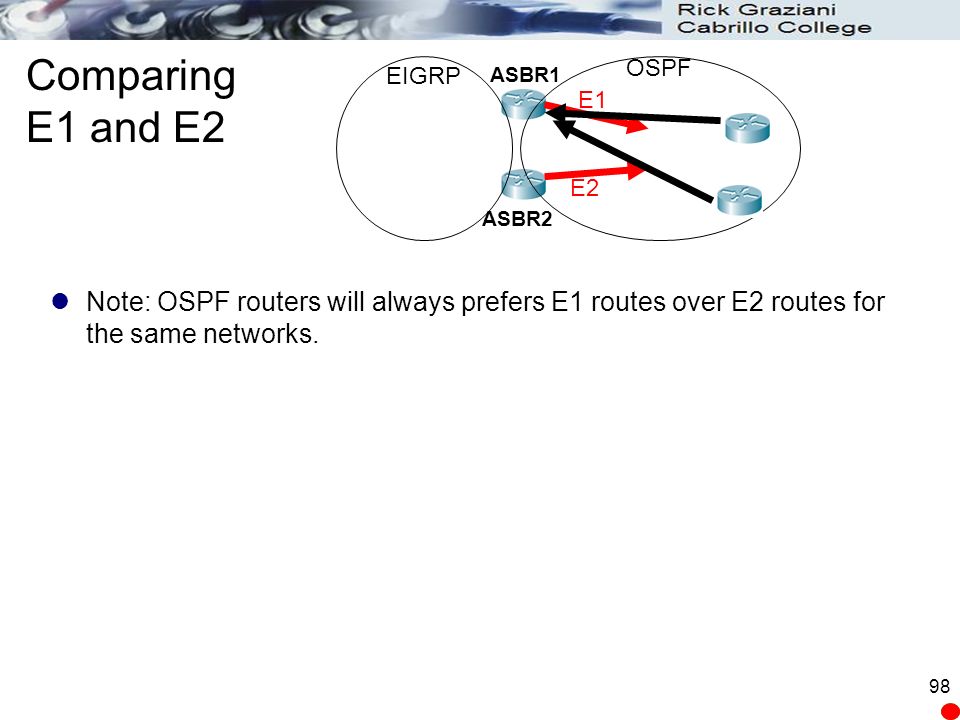

98 98 Comparing E1 and E2 Note: OSPF routers will always prefers E1 routes over E2 routes for the same networks. OSPF EIGRP ASBR1 ASBR2 E1 E2

99 FYI: More on OSPF and External Routes

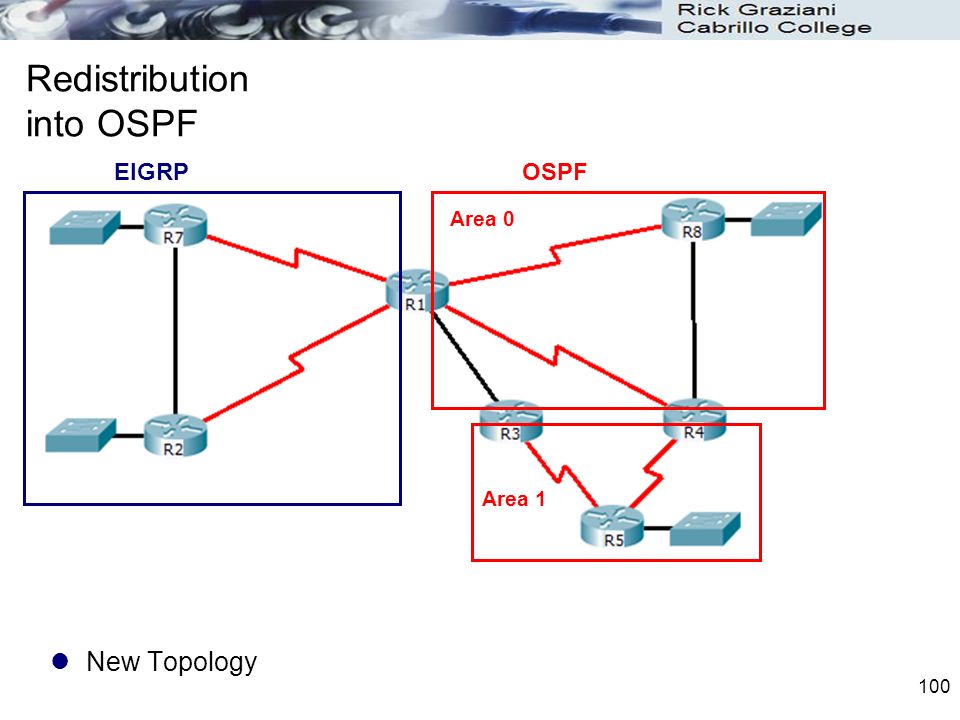

100 100 Redistribution into OSPF New Topology EIGRPOSPF Area 0 Area 1

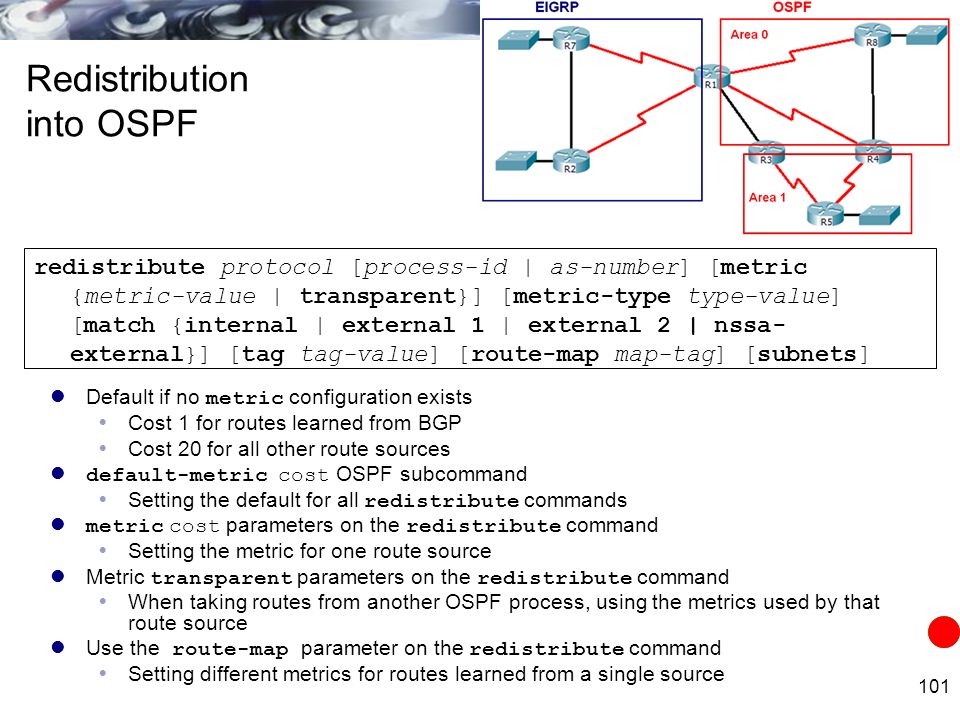

101 101 Redistribution into OSPF Default if no metric configuration exists  Cost 1 for routes learned from BGP  Cost 20 for all other route sources default-metric cost OSPF subcommand  Setting the default for all redistribute commands metric cost parameters on the redistribute command  Setting the metric for one route source Metric transparent parameters on the redistribute command  When taking routes from another OSPF process, using the metrics used by that route source Use the route-map parameter on the redistribute command  Setting different metrics for routes learned from a single source redistribute protocol [process-id | as-number] [metric {metric-value | transparent}] [metric-type type-value] [match {internal | external 1 | external 2 | nssa- external}] [tag tag-value] [route-map map-tag] [subnets]

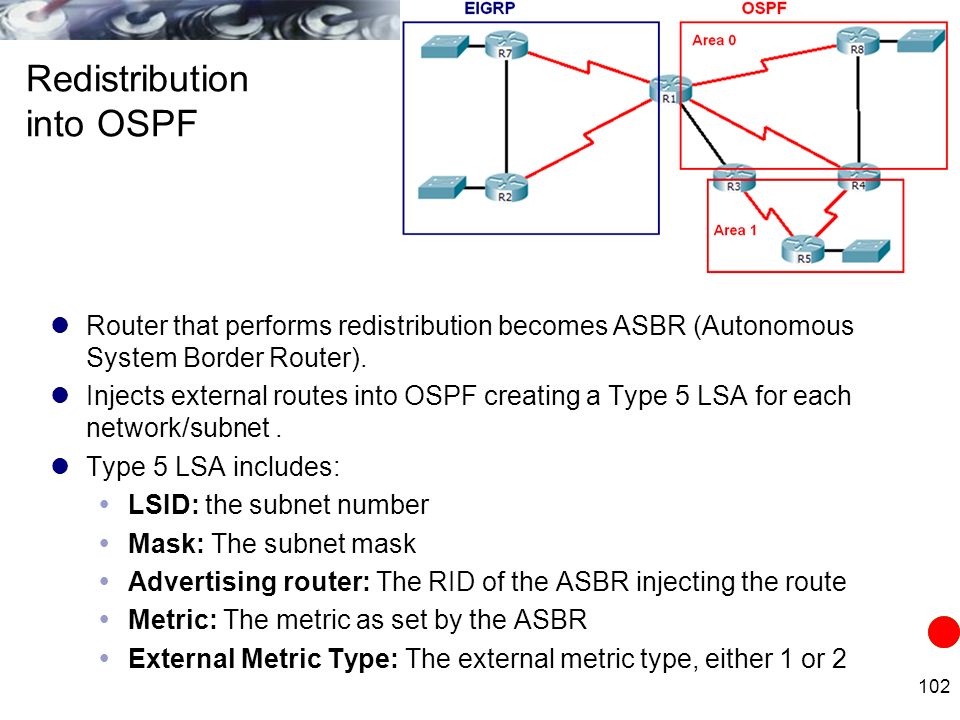

102 102 Redistribution into OSPF Router that performs redistribution becomes ASBR (Autonomous System Border Router). Injects external routes into OSPF creating a Type 5 LSA for each network/subnet. Type 5 LSA includes:  LSID: the subnet number  Mask: The subnet mask  Advertising router: The RID of the ASBR injecting the route  Metric: The metric as set by the ASBR  External Metric Type: The external metric type, either 1 or 2

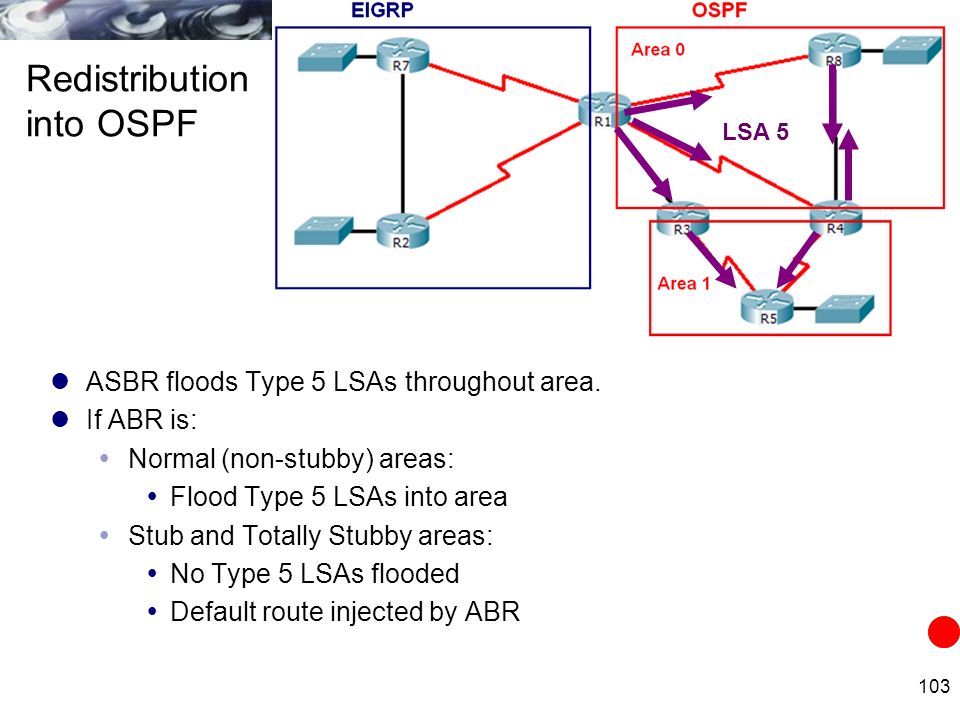

103 103 Redistribution into OSPF ASBR floods Type 5 LSAs throughout area. If ABR is:  Normal (non-stubby) areas:  Flood Type 5 LSAs into area  Stub and Totally Stubby areas:  No Type 5 LSAs flooded  Default route injected by ABR LSA 5

104 Redistributing External Type 2 Routes

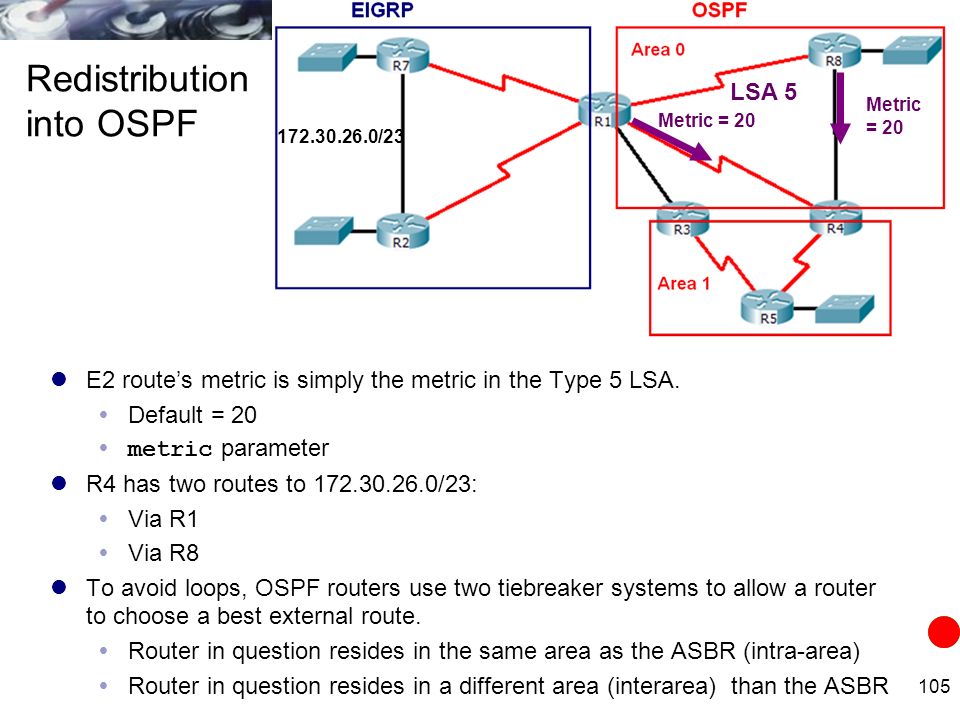

105 105 Redistribution into OSPF E2 route’s metric is simply the metric in the Type 5 LSA.  Default = 20  metric parameter R4 has two routes to 172.30.26.0/23:  Via R1  Via R8 To avoid loops, OSPF routers use two tiebreaker systems to allow a router to choose a best external route.  Router in question resides in the same area as the ASBR (intra-area)  Router in question resides in a different area (interarea) than the ASBR LSA 5 172.30.26.0/23 Metric = 20

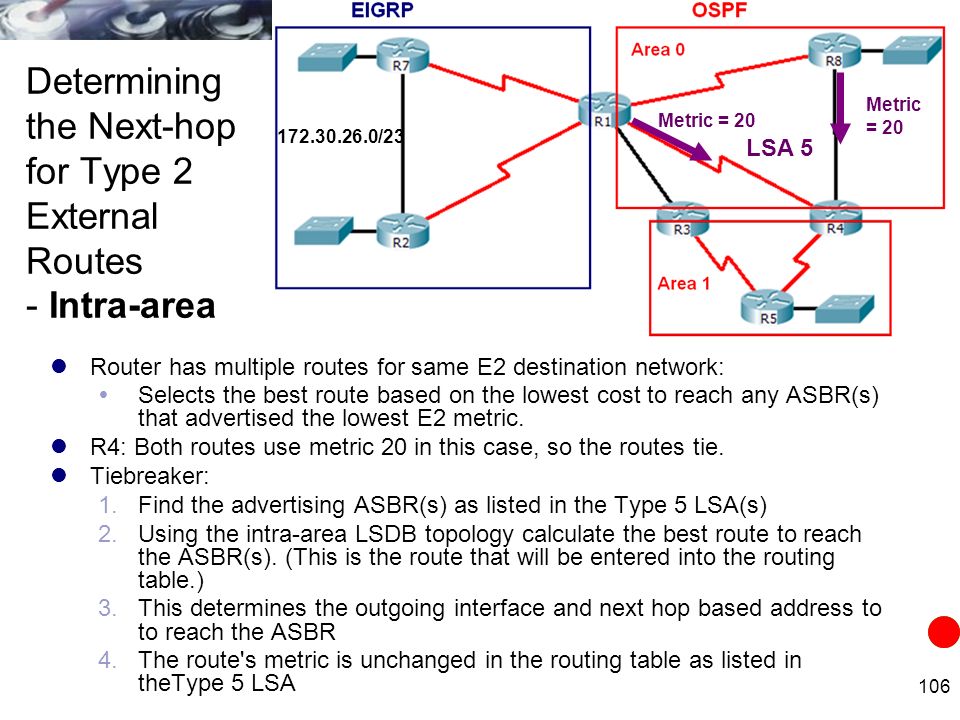

106 106 Determining the Next-hop for Type 2 External Routes - Intra-area Router has multiple routes for same E2 destination network:  Selects the best route based on the lowest cost to reach any ASBR(s) that advertised the lowest E2 metric. R4: Both routes use metric 20 in this case, so the routes tie. Tiebreaker: 1.Find the advertising ASBR(s) as listed in the Type 5 LSA(s) 2.Using the intra-area LSDB topology calculate the best route to reach the ASBR(s). (This is the route that will be entered into the routing table.) 3.This determines the outgoing interface and next hop based address to to reach the ASBR 4.The route's metric is unchanged in the routing table as listed in theType 5 LSA LSA 5 172.30.26.0/23 Metric = 20

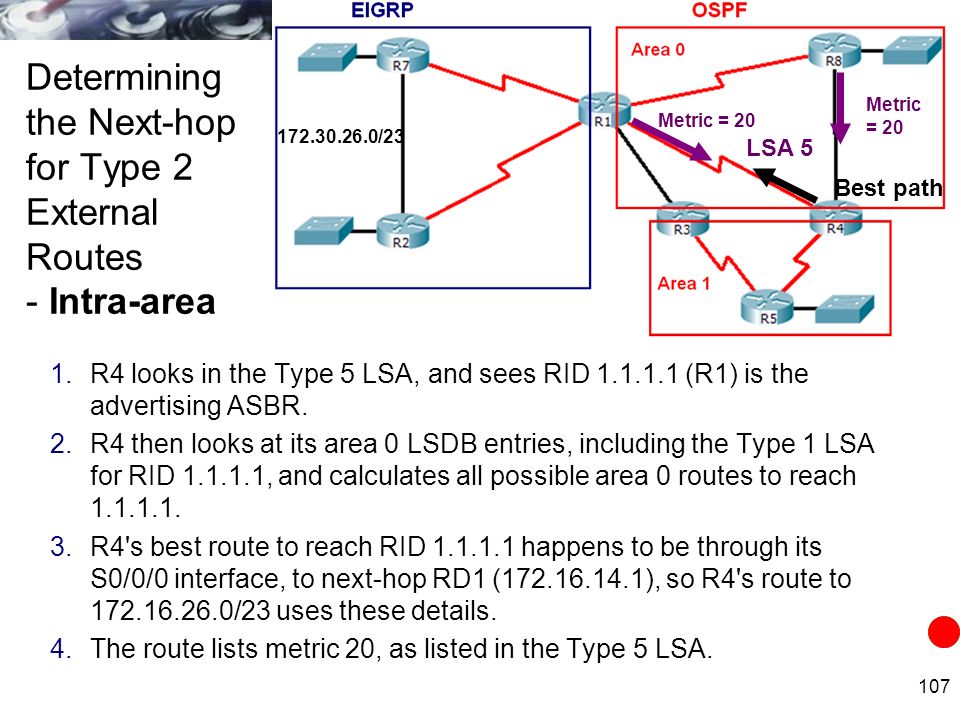

107 107 Determining the Next-hop for Type 2 External Routes - Intra-area 1.R4 looks in the Type 5 LSA, and sees RID 1.1.1.1 (R1) is the advertising ASBR. 2.R4 then looks at its area 0 LSDB entries, including the Type 1 LSA for RID 1.1.1.1, and calculates all possible area 0 routes to reach 1.1.1.1. 3.R4's best route to reach RID 1.1.1.1 happens to be through its S0/0/0 interface, to next-hop RD1 (172.16.14.1), so R4's route to 172.16.26.0/23 uses these details. 4.The route lists metric 20, as listed in the Type 5 LSA. LSA 5 172.30.26.0/23 Metric = 20 Best path

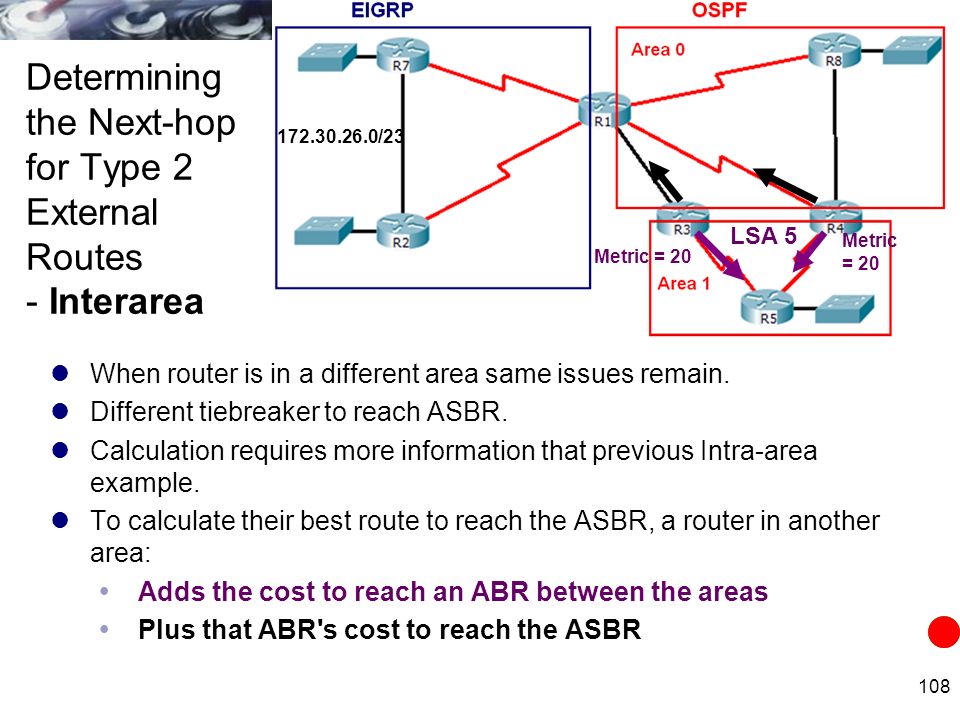

108 108 Determining the Next-hop for Type 2 External Routes - Interarea When router is in a different area same issues remain. Different tiebreaker to reach ASBR. Calculation requires more information that previous Intra-area example. To calculate their best route to reach the ASBR, a router in another area:  Adds the cost to reach an ABR between the areas  Plus that ABR's cost to reach the ASBR LSA 5 172.30.26.0/23 Metric = 20

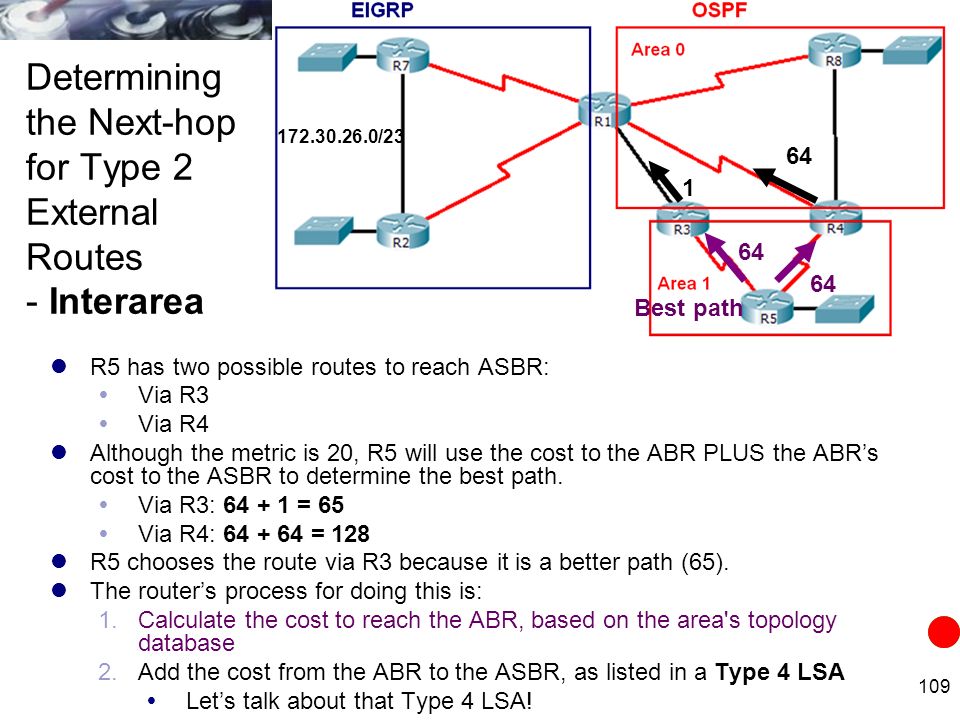

109 109 Determining the Next-hop for Type 2 External Routes - Interarea R5 has two possible routes to reach ASBR:  Via R3  Via R4 Although the metric is 20, R5 will use the cost to the ABR PLUS the ABR’s cost to the ASBR to determine the best path.  Via R3: 64 + 1 = 65  Via R4: 64 + 64 = 128 R5 chooses the route via R3 because it is a better path (65). The router’s process for doing this is: 1.Calculate the cost to reach the ABR, based on the area's topology database 2.Add the cost from the ABR to the ASBR, as listed in a Type 4 LSA  Let’s talk about that Type 4 LSA! 172.30.26.0/23 1 64 Best path

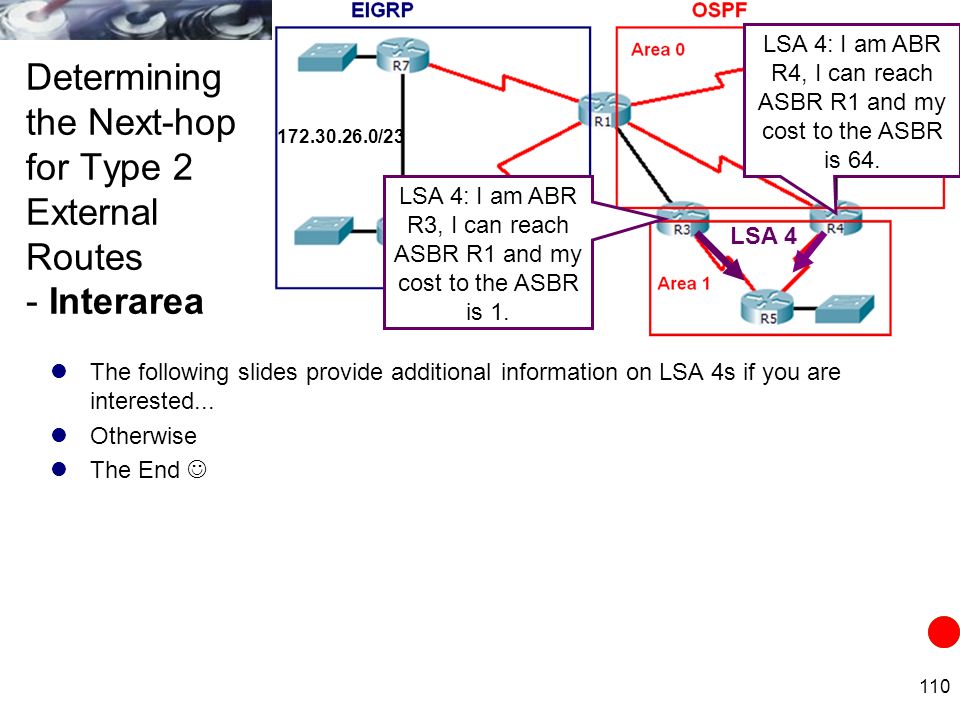

110 110 Determining the Next-hop for Type 2 External Routes - Interarea The following slides provide additional information on LSA 4s if you are interested... Otherwise The End LSA 4 172.30.26.0/23 LSA 4: I am ABR R4, I can reach ASBR R1 and my cost to the ASBR is 64. LSA 4: I am ABR R3, I can reach ASBR R1 and my cost to the ASBR is 1.

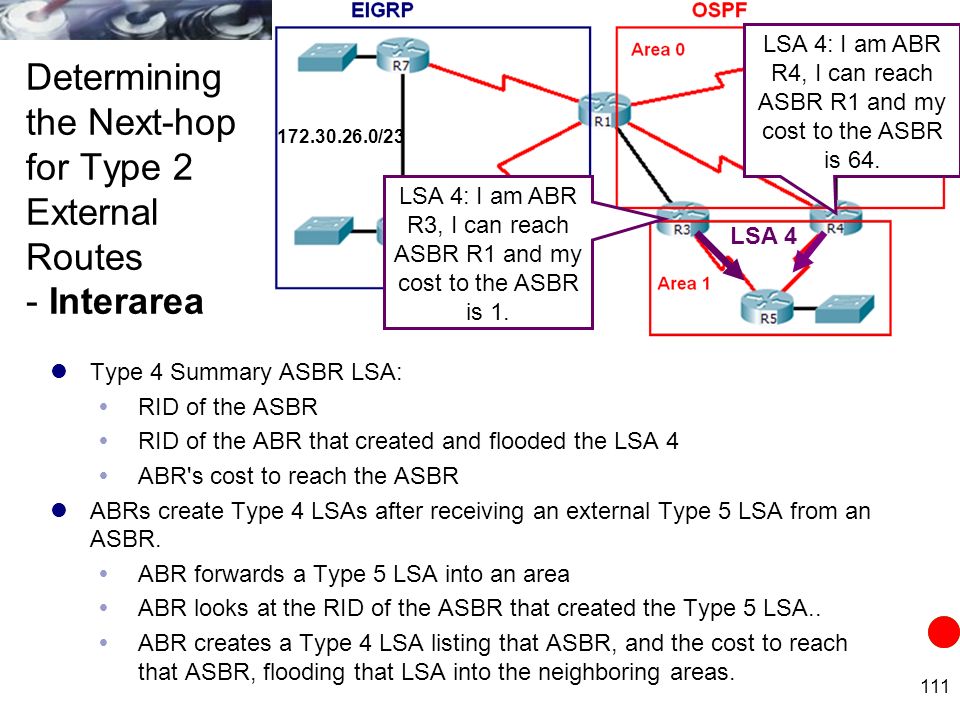

111 111 Determining the Next-hop for Type 2 External Routes - Interarea Type 4 Summary ASBR LSA:  RID of the ASBR  RID of the ABR that created and flooded the LSA 4  ABR's cost to reach the ASBR ABRs create Type 4 LSAs after receiving an external Type 5 LSA from an ASBR.  ABR forwards a Type 5 LSA into an area  ABR looks at the RID of the ASBR that created the Type 5 LSA..  ABR creates a Type 4 LSA listing that ASBR, and the cost to reach that ASBR, flooding that LSA into the neighboring areas. LSA 4 172.30.26.0/23 LSA 4: I am ABR R4, I can reach ASBR R1 and my cost to the ASBR is 64. LSA 4: I am ABR R3, I can reach ASBR R1 and my cost to the ASBR is 1.

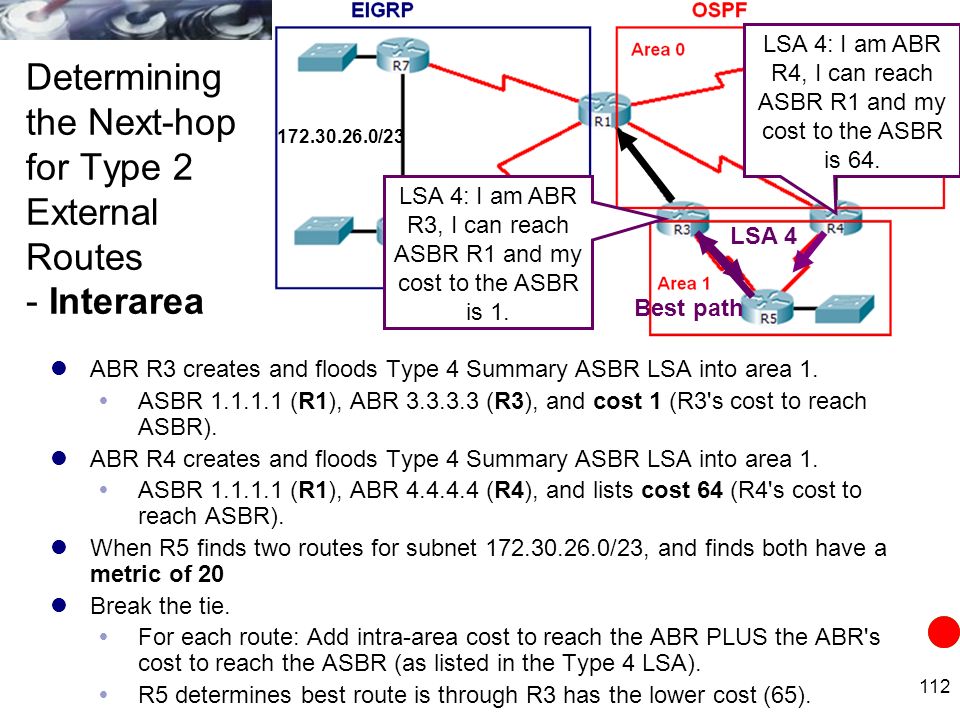

112 112 Determining the Next-hop for Type 2 External Routes - Interarea ABR R3 creates and floods Type 4 Summary ASBR LSA into area 1.  ASBR 1.1.1.1 (R1), ABR 3.3.3.3 (R3), and cost 1 (R3's cost to reach ASBR). ABR R4 creates and floods Type 4 Summary ASBR LSA into area 1.  ASBR 1.1.1.1 (R1), ABR 4.4.4.4 (R4), and lists cost 64 (R4's cost to reach ASBR). When R5 finds two routes for subnet 172.30.26.0/23, and finds both have a metric of 20 Break the tie.  For each route: Add intra-area cost to reach the ABR PLUS the ABR's cost to reach the ASBR (as listed in the Type 4 LSA).  R5 determines best route is through R3 has the lower cost (65). LSA 4 172.30.26.0/23 LSA 4: I am ABR R4, I can reach ASBR R1 and my cost to the ASBR is 64. LSA 4: I am ABR R3, I can reach ASBR R1 and my cost to the ASBR is 1. Best path

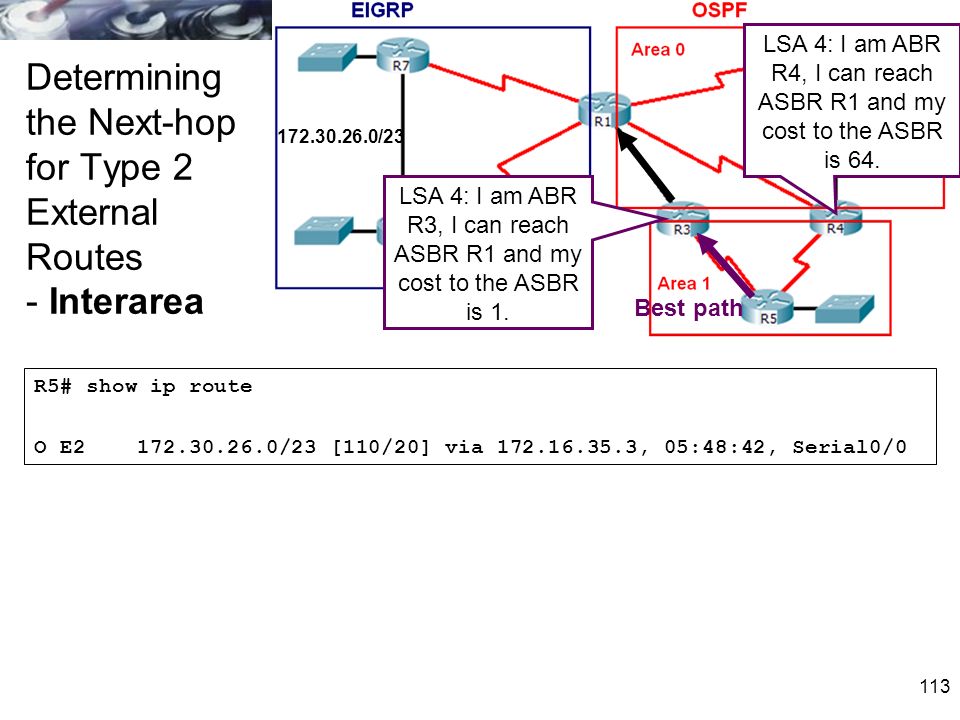

113 113 Determining the Next-hop for Type 2 External Routes - Interarea 172.30.26.0/23 LSA 4: I am ABR R4, I can reach ASBR R1 and my cost to the ASBR is 64. LSA 4: I am ABR R3, I can reach ASBR R1 and my cost to the ASBR is 1. Best path R5# show ip route O E2 172.30.26.0/23 [110/20] via 172.16.35.3, 05:48:42, Serial0/0

114 CIS 185 CCNP ROUTE Ch. 4 Manipulating Routing Updates Rick Graziani Cabrillo College graziani@cabrillo.edu
