1 Mutations

2 What Are Mutations?  Changes in the nucleotide sequence of DNA  May occur in somatic cells (aren’t passed to offspring)  May occur in gametes (eggs & sperm) and be passed to offspring

3 Are Mutations Helpful or Harmful?  Mutations happen regularly  Almost all mutations are neutral  Chemicals & UV radiation cause mutations  Many mutations are repaired by enzymes

4 Are Mutations Helpful or Harmful?  Some type of skin cancers and leukemia result from somatic mutations  Some mutations may improve an organism’s survival (beneficial)

5 Types of Mutations

6 Chromosome Mutations  May Involve:  Changing the structure of a chromosome  The loss or gain of part of a chromosome

7 Chromosome Mutations  Five types exist:  Deletion  Inversion  Translocation  Nondisjunction  Duplication

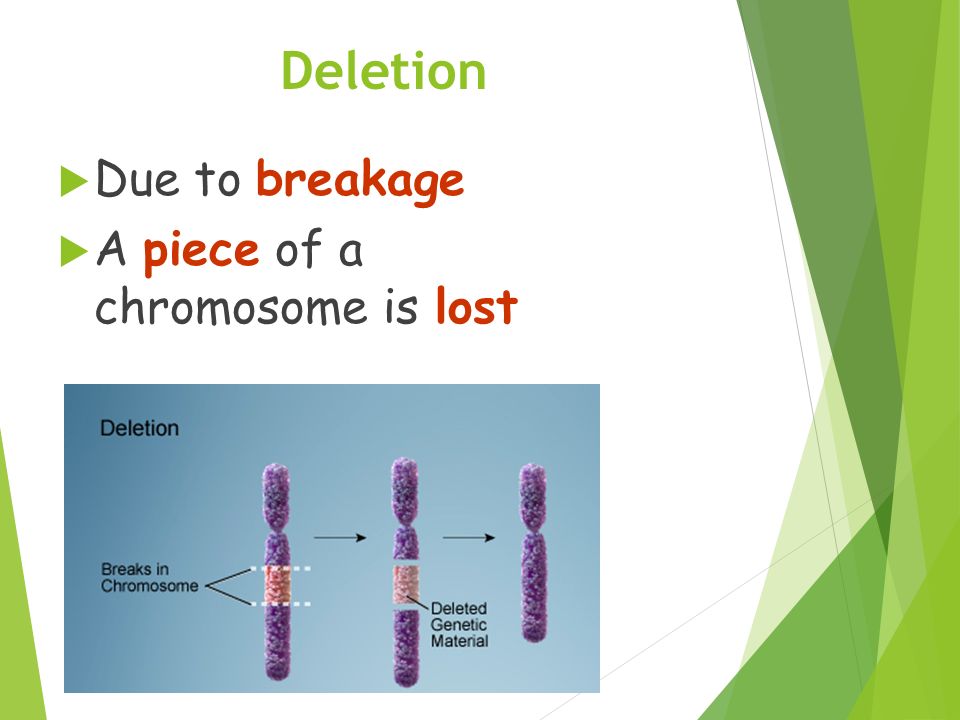

8 Deletion  Due to breakage  A piece of a chromosome is lost

9 Chromosomal Deletion One or more genes are removed Causes: Wolf-Hirschhorn syndrome (severe mental retardation) cri du chat syndrome (mewing sounds, mental retardation)

10 Inversion  Chromosome segment breaks off  Segment flips around backwards  Segment reattaches

11 Chromosomal Inversion a segment of genes flip end-to-end on the chromosome Causes: Four-Ring Syndrome (cleft pallate, club feet, testes don’t descend)

12 Duplication  Occurs when a gene sequence is repeated

13 Chromosomal Duplication A segment of genes is copied twice and added to the chromosome Causes: Charcot–Marie–Tooth disease (high arched foot, claw feet, confined to a wheelchair)

14 Translocation  Involves two chromosomes that aren’t homologous  Part of one chromosome is transferred to another chromosomes

15 Translocation

16 Chromosomal Translocation Material is swapped with another chromosome Causes: Burkitt’s Lymphoma (cancer of the lymph nodes, in children)

17 Nondisjunction  Failure of chromosomes to separate during meiosis  Causes gamete to have too many or too few chromosomes

18

19 Nondisjunction  Chromosomes FAIL TO SEPARATE during meiosis  Meiosis I Nondisjunction Meiosis I Nondisjunction  Meiosis II Nondisjunction Meiosis II Nondisjunction

20 Nondisjunction  Produces gametes (and therefore a baby) with one missing chromosome or one extra chromosome

21 Nondisjunction (in Meiosis II)

22 Fertilization

23 Down Syndrome  Cause: Nondisjunction of chromosome 21  Three copies of chromosome 21 = “TRISOMY 21”

24 Trisomy 21 - Down Syndrome

25 Sex Chromosome Abnormalities  Klinefelter’s Syndrome  XXY, XXYY, XXXY  Male  Sterility  Small testicles  Breast enlargement

26 Sex Chromosome Abnormalities  XYY Syndrome  Normal male traits  Often tall and thin  Associated with antisocial and behavioral problems

27 Sex Chromosome Mutations  Turner’s Syndrome  X  Female  sex organs don't mature at adolescence  sterility  short stature

28 Sex Chromosome Mutations  XXX  Trisomy X  Female  Little or no visible differences  tall stature  learning disabilities  limited fertility

29 Gene Mutations  Change in the nucleotide sequence of a gene  May only involve a single nucleotide  May be due to copying errors, chemicals, viruses, etc.

30 Types of Gene Mutations  Include:  Point Mutations  Substitutions  Insertions  Deletions  Frameshift

31 Point Mutation  Change of a single nucleotide  Includes the deletion, insertion, or substitution of ONE nucleotide in a gene

32 Point Mutation  Sickle Cell disease is the result of one nucleotide substitution  Occurs in the hemoglobin gene

33 Frameshift Mutation  Inserting or deleting one or more nucleotides  Changes the “reading frame” like changing a sentence  Proteins built incorrectly

34 Frameshift Mutation  Original:  The fat cat ate the wee rat.  Frame Shift (“a” added):  The fat caa tet hew eer at.

35 Amino Acid Sequence Changed
