1 IGNEOUS ROCKS

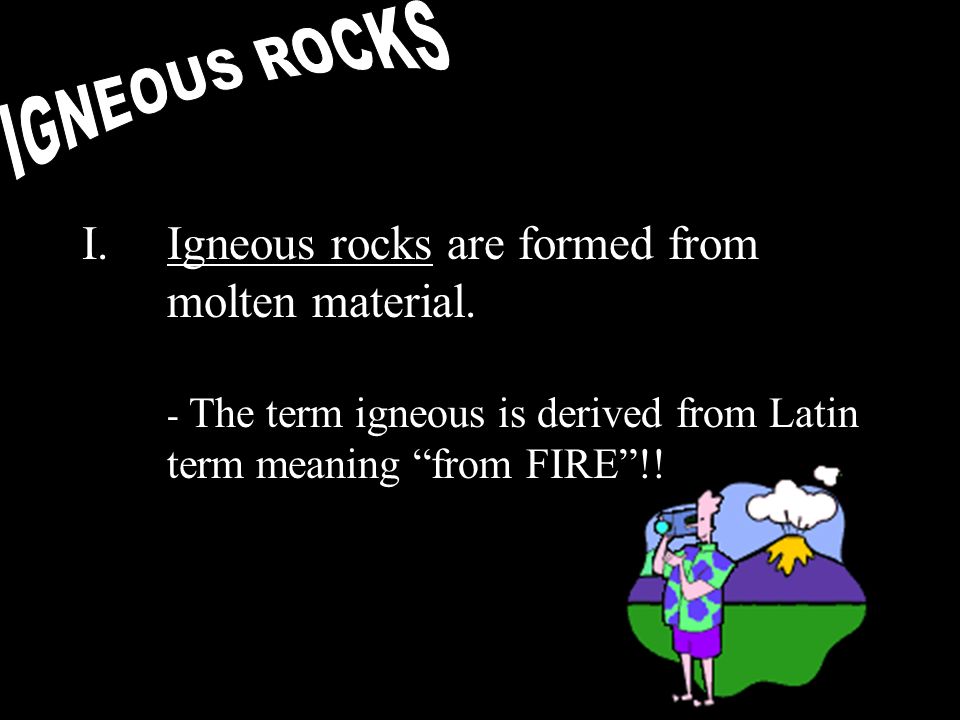

2 I.Igneous rocks are formed from molten material. - The term igneous is derived from Latin term meaning “from FIRE”!!

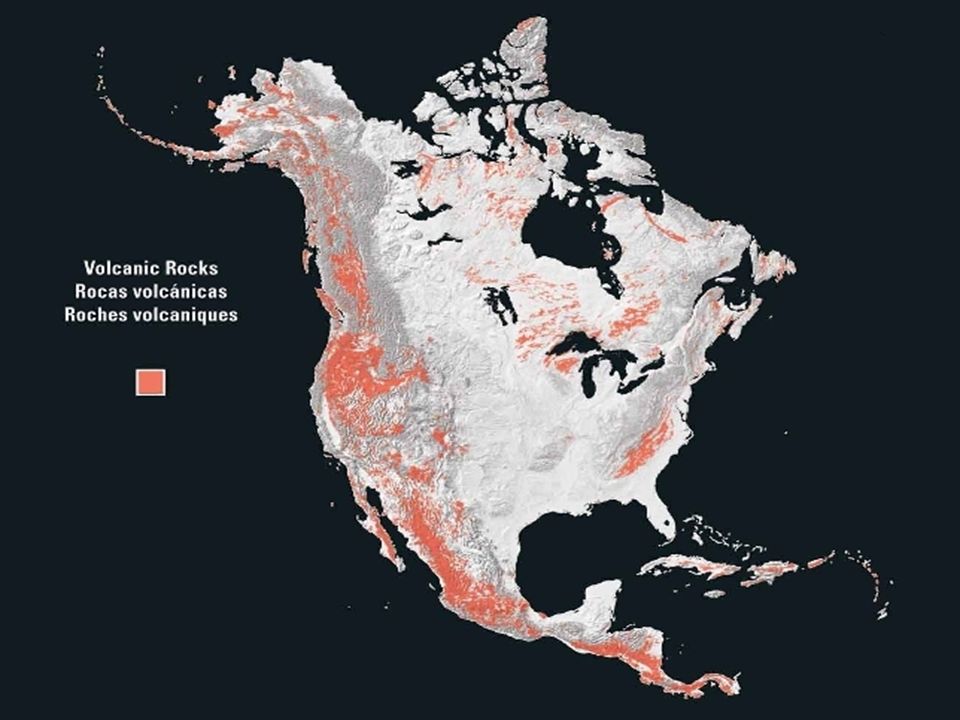

3

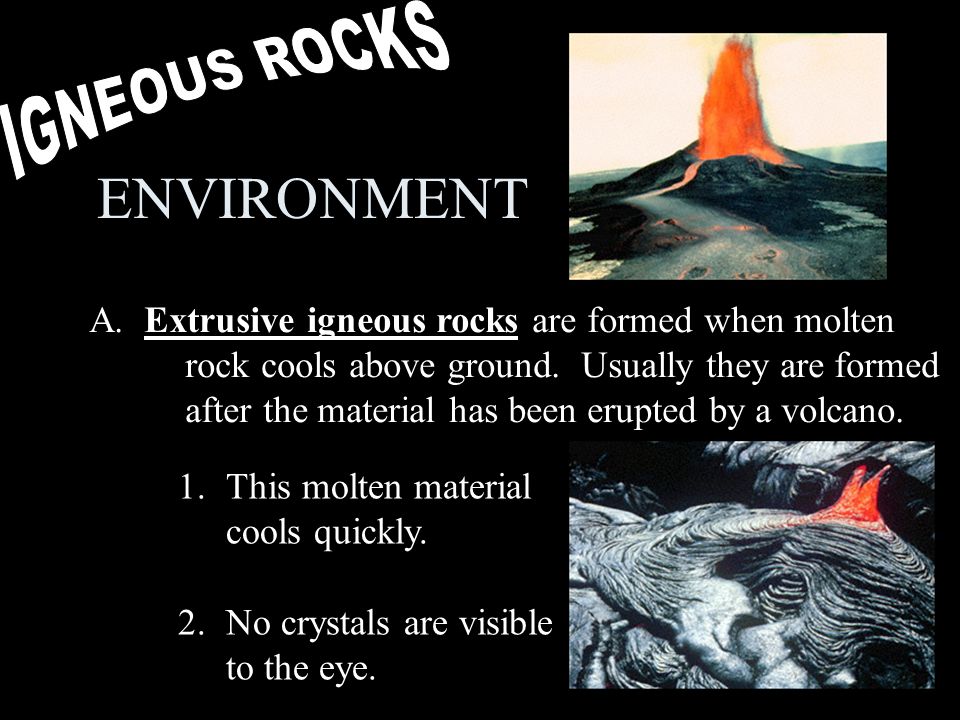

4 A. Extrusive igneous rocks are formed when molten rock cools above ground. Usually they are formed after the material has been erupted by a volcano. 1.This molten material cools quickly. 2.No crystals are visible to the eye. ENVIRONMENT

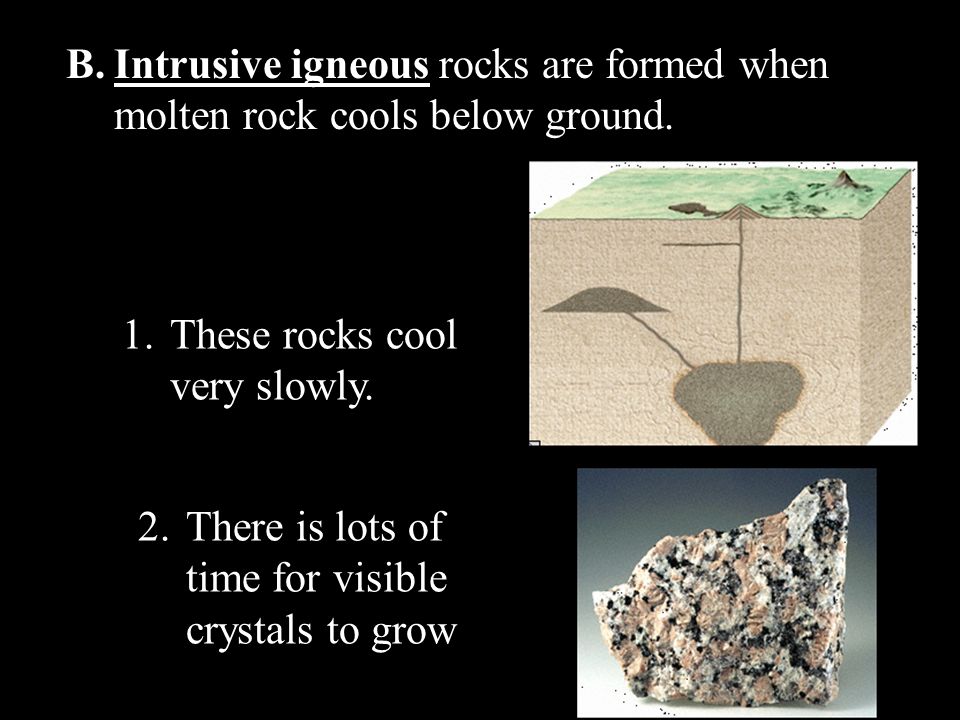

5 B.Intrusive igneous rocks are formed when molten rock cools below ground. 1.These rocks cool very slowly. 2.There is lots of time for visible crystals to grow

6 Cools quickly Cools slowly Cools above ground Cools below ground No visible crystals Visible crystals EXTRUSIVEINTRUSIVE

7 TEXTURE Coarse : –INTRUSIVE igneous rock composed of large mineral grains. GRANITE

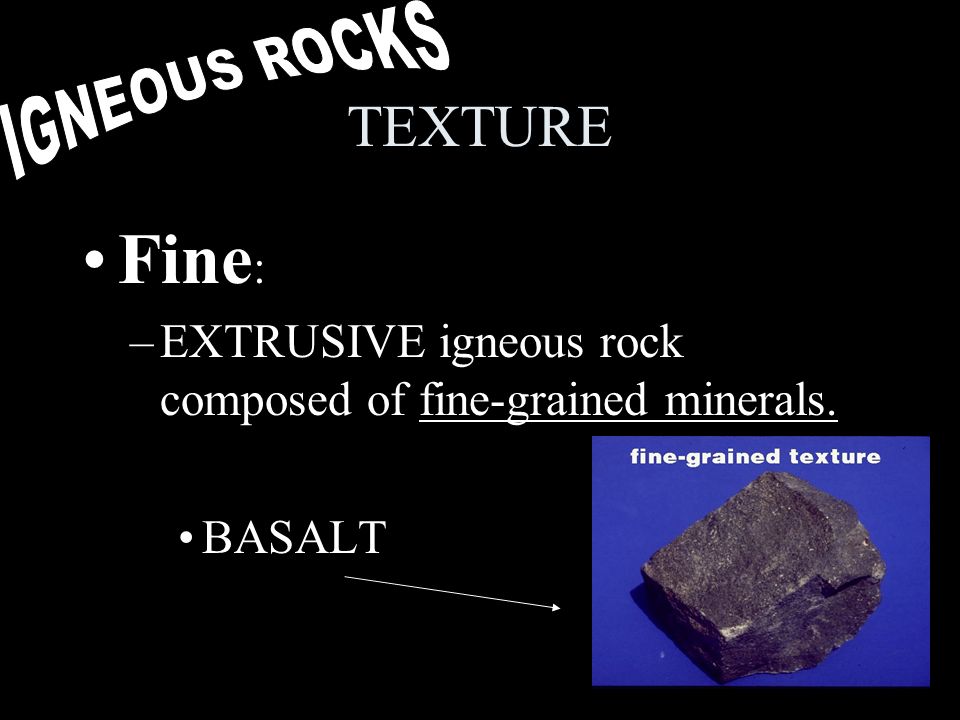

8 TEXTURE Fine : –EXTRUSIVE igneous rock composed of fine-grained minerals. BASALT

9 TEXTURE Glassy : –HIGHLY VISCOUS, silica-rich magma cools rapidly, no crystals. OBSIDIAN

10 TEXTURE Vesicular : –HIGHLY VISCOUS, large amount of dissolved gases, rock full of holes. PUMICE

11 COMPOSITION Mafic : –Low silica –Rich in Iron and Magnesium DARK COLOR. BASALT

12 COMPOSITION Felsic : –High silica LIGHT COLOR. RHYOLITE

13 Igneous Rock Structures Intrusions vs. Extrusions : - Form Underground - Form on the surface of the Earth

14

15 INTRUSIONS Batholiths : –At least 100 km 2 of surface exposure. Means “Deep Rock” Sierra Nevada Mountains

16 Exposed Batholiths

17

18 INTRUSIONS Laccoliths : –Flat-bottom intrusion that pushes over- lying rock layers into an arc. Means “Lake of Rock” Black Hills –South Dakota

19

20 INTRUSIONS Stocks : –Like a Batholith, but covers less than 100 km 2. Devils Tower –Wyoming

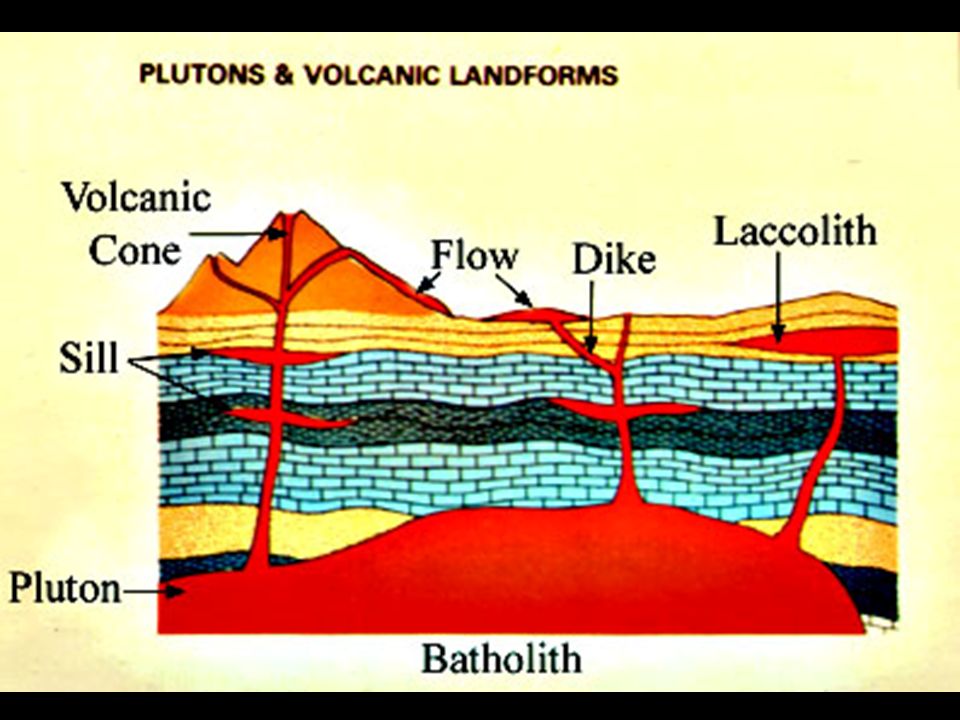

21

22 INTRUSIONS Dikes : –Igneous intrusion that cuts across rock layers. Black Canyon –Colorado

23

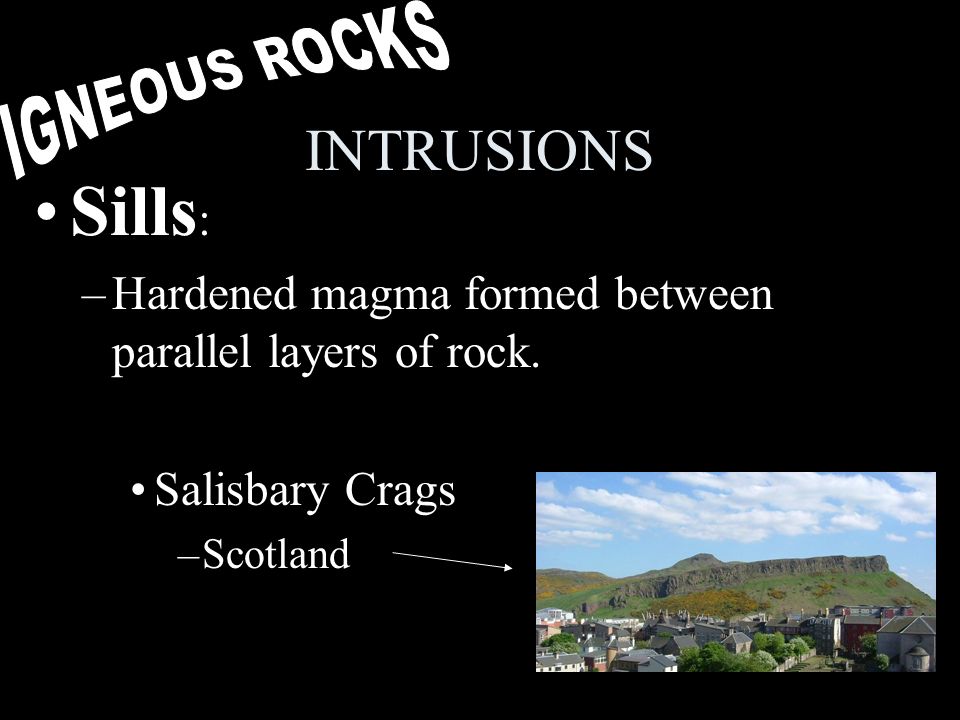

24 INTRUSIONS Sills : –Hardened magma formed between parallel layers of rock. Salisbary Crags –Scotland

25

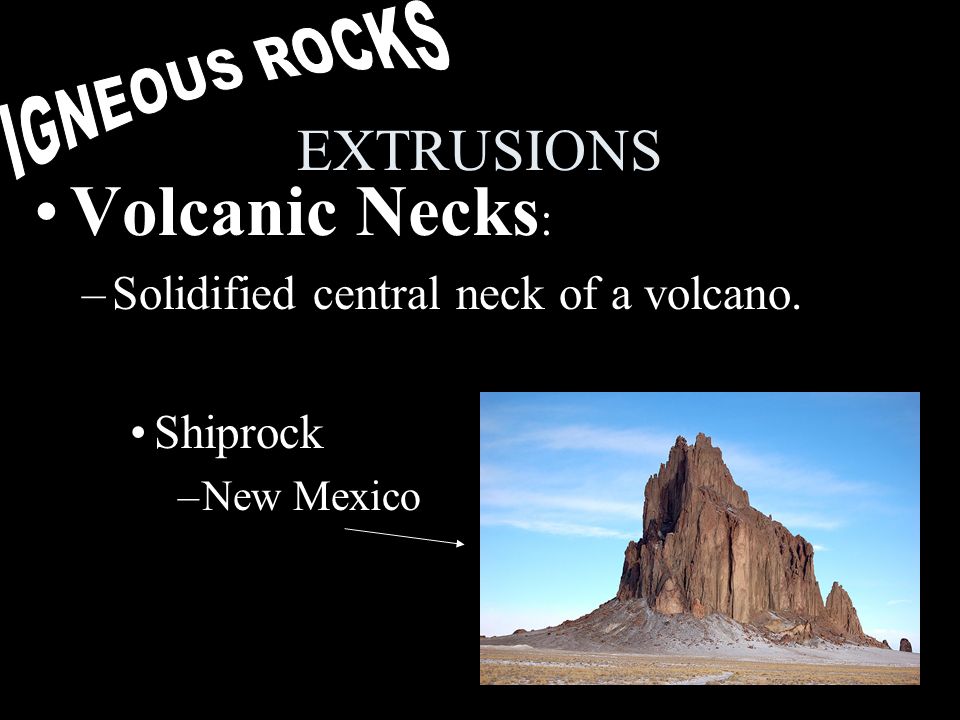

26 EXTRUSIONS Volcanic Necks : –Solidified central neck of a volcano. Shiprock –New Mexico
