1. Storage for Opteron Server JaeKeun.Yu@Sun.ComHyungbo.Sim@Sun.Com Sun Microsystems Inc.

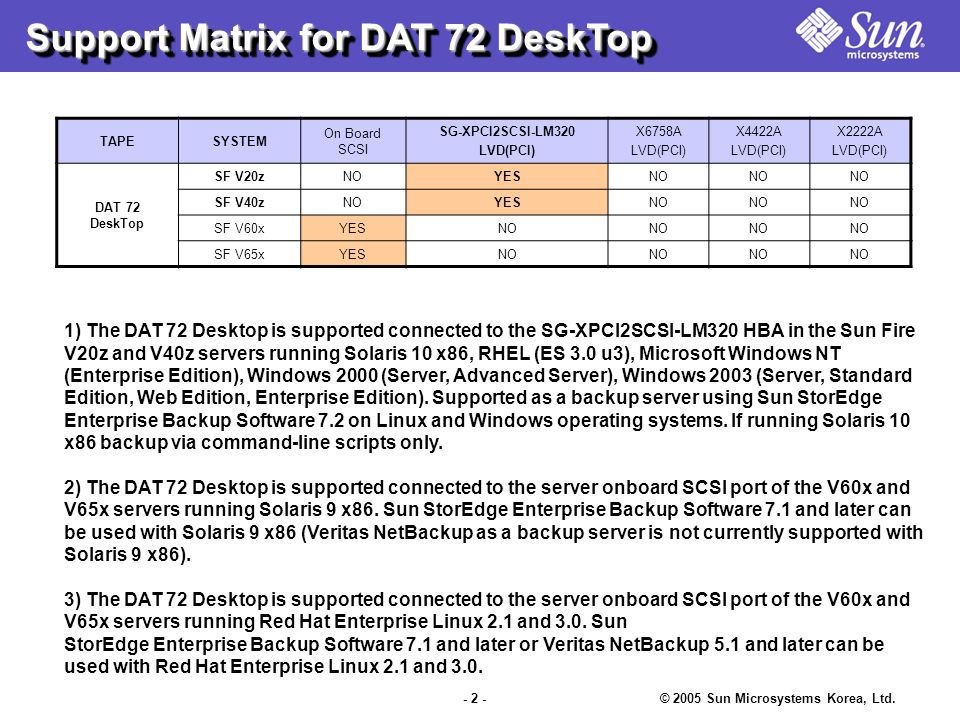

2. © 2005 Sun Microsystems Korea, Ltd. - 2 - Support Matrix for DAT 72 DeskTop TAPESYSTEM On Board SCSI SG-XPCI2SCSI-LM320 LVD(PCI) X6758A LVD(PCI) X4422A LVD(PCI) X2222A LVD(PCI) DAT 72 DeskTop SF V20zNOYESNO SF V40zNOYESNO SF V60xYESNO SF V65xYESNO 1) The DAT 72 Desktop is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows NT (Enterprise Edition), Windows 2000 (Server, Advanced Server), Windows 2003 (Server, Standard Edition, Web Edition, Enterprise Edition). Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only. 2) The DAT 72 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Solaris 9 x86. Sun StorEdge Enterprise Backup Software 7.1 and later can be used with Solaris 9 x86 (Veritas NetBackup as a backup server is not currently supported with Solaris 9 x86). 3) The DAT 72 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Red Hat Enterprise Linux 2.1 and 3.0. Sun StorEdge Enterprise Backup Software 7.1 and later or Veritas NetBackup 5.1 and later can be used with Red Hat Enterprise Linux 2.1 and 3.0.

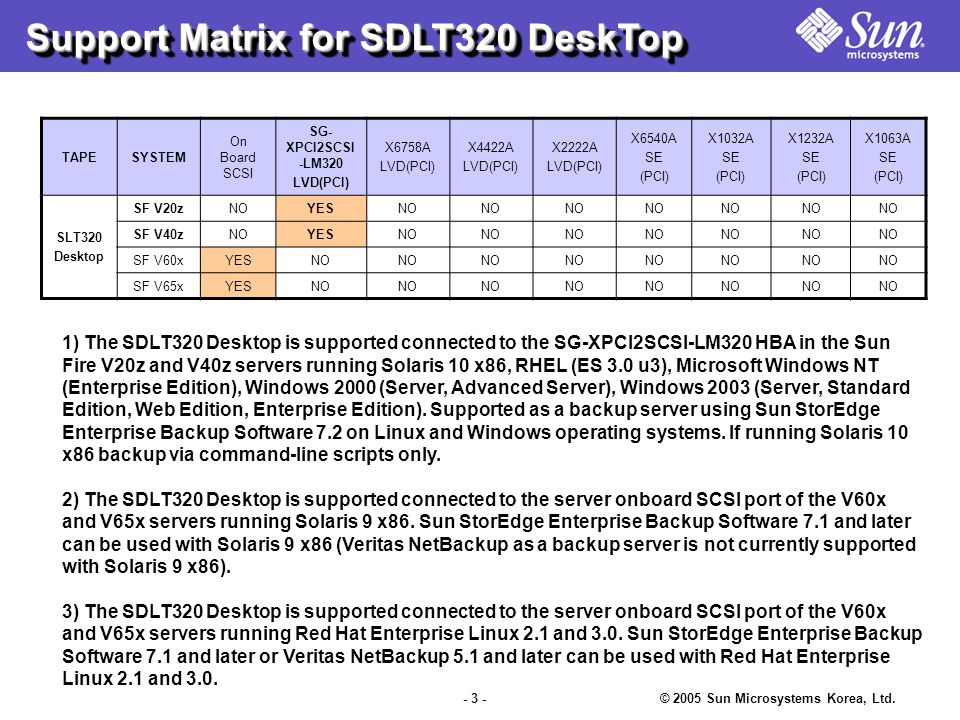

3. © 2005 Sun Microsystems Korea, Ltd. - 3 - Support Matrix for SDLT320 DeskTop TAPESYSTEM On Board SCSI SG- XPCI2SCSI -LM320 LVD(PCI) X6758A LVD(PCI) X4422A LVD(PCI) X2222A LVD(PCI) X6540A SE (PCI) X1032A SE (PCI) X1232A SE (PCI) X1063A SE (PCI) SLT320 Desktop SF V20zNOYESNO SF V40zNOYESNO SF V60xYESNO SF V65xYESNO 1) The SDLT320 Desktop is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows NT (Enterprise Edition), Windows 2000 (Server, Advanced Server), Windows 2003 (Server, Standard Edition, Web Edition, Enterprise Edition). Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only. 2) The SDLT320 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Solaris 9 x86. Sun StorEdge Enterprise Backup Software 7.1 and later can be used with Solaris 9 x86 (Veritas NetBackup as a backup server is not currently supported with Solaris 9 x86). 3) The SDLT320 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Red Hat Enterprise Linux 2.1 and 3.0. Sun StorEdge Enterprise Backup Software 7.1 and later or Veritas NetBackup 5.1 and later can be used with Red Hat Enterprise Linux 2.1 and 3.0.

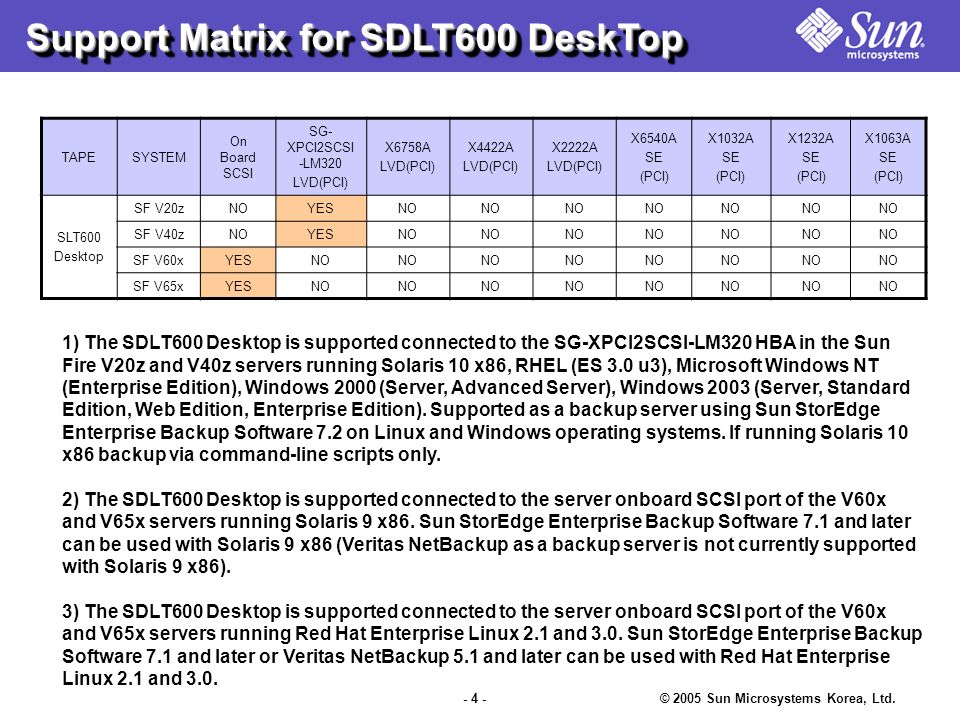

4. © 2005 Sun Microsystems Korea, Ltd. - 4 - Support Matrix for SDLT600 DeskTop TAPESYSTEM On Board SCSI SG- XPCI2SCSI -LM320 LVD(PCI) X6758A LVD(PCI) X4422A LVD(PCI) X2222A LVD(PCI) X6540A SE (PCI) X1032A SE (PCI) X1232A SE (PCI) X1063A SE (PCI) SLT600 Desktop SF V20zNOYESNO SF V40zNOYESNO SF V60xYESNO SF V65xYESNO 1) The SDLT600 Desktop is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows NT (Enterprise Edition), Windows 2000 (Server, Advanced Server), Windows 2003 (Server, Standard Edition, Web Edition, Enterprise Edition). Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only. 2) The SDLT600 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Solaris 9 x86. Sun StorEdge Enterprise Backup Software 7.1 and later can be used with Solaris 9 x86 (Veritas NetBackup as a backup server is not currently supported with Solaris 9 x86). 3) The SDLT600 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Red Hat Enterprise Linux 2.1 and 3.0. Sun StorEdge Enterprise Backup Software 7.1 and later or Veritas NetBackup 5.1 and later can be used with Red Hat Enterprise Linux 2.1 and 3.0.

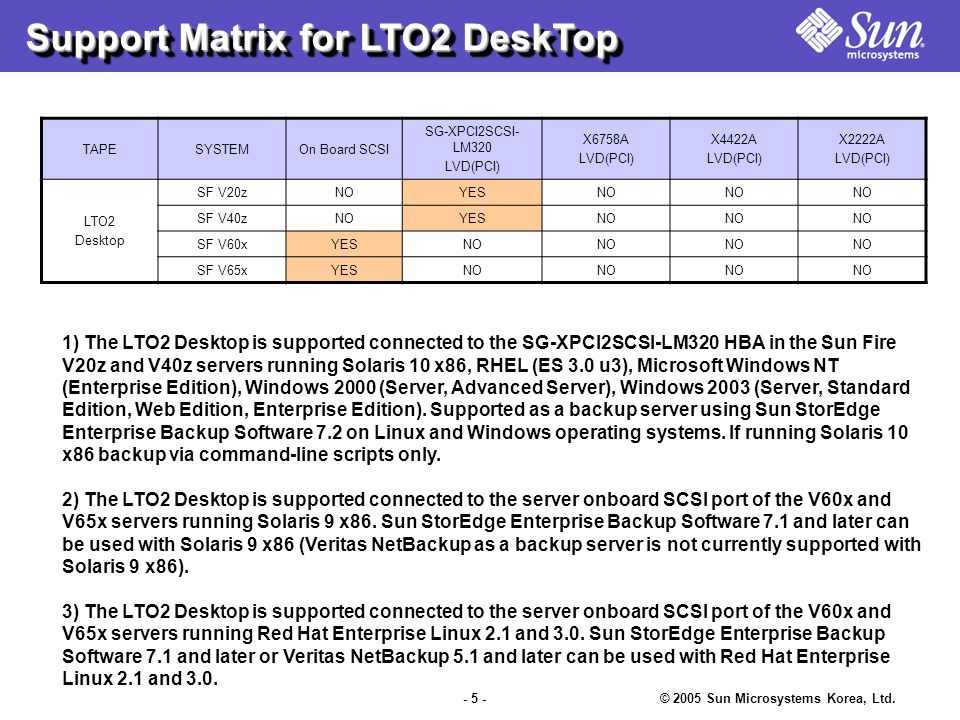

5. © 2005 Sun Microsystems Korea, Ltd. - 5 - Support Matrix for LTO2 DeskTop TAPESYSTEMOn Board SCSI SG-XPCI2SCSI- LM320 LVD(PCI) X6758A LVD(PCI) X4422A LVD(PCI) X2222A LVD(PCI) LTO2 Desktop SF V20zNOYESNO SF V40zNOYESNO SF V60xYESNO SF V65xYESNO 1) The LTO2 Desktop is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows NT (Enterprise Edition), Windows 2000 (Server, Advanced Server), Windows 2003 (Server, Standard Edition, Web Edition, Enterprise Edition). Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only. 2) The LTO2 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Solaris 9 x86. Sun StorEdge Enterprise Backup Software 7.1 and later can be used with Solaris 9 x86 (Veritas NetBackup as a backup server is not currently supported with Solaris 9 x86). 3) The LTO2 Desktop is supported connected to the server onboard SCSI port of the V60x and V65x servers running Red Hat Enterprise Linux 2.1 and 3.0. Sun StorEdge Enterprise Backup Software 7.1 and later or Veritas NetBackup 5.1 and later can be used with Red Hat Enterprise Linux 2.1 and 3.0.

6. © 2005 Sun Microsystems Korea, Ltd. - 6 - Support Matrix for L8 Autoloader TAPESYSTEMOn Board SCSI SG-XPCI2SCSI- LM320 LVD(PCI) X6758A LVD(PCI) X4422A LVD(PCI) X2222A LVD(PCI) L8 Autoloader SF V20zNOYESNO SF V40zNOYESNO SF V60xYESNO SF V65xYESNO 1) The L8 Autoloader is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows NT (Enterprise Edition), Windows 2000 (Server, Advanced Server), Windows 2003 (Server, Standard Edition, Web Edition, Enterprise Edition). Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only. 2) The L8 Autoloader is supported connected to the server onboard SCSI port of the V60x and V65x servers running Solaris 9 x86. Sun StorEdge Enterprise Backup Software 7.1 and later can be used with Solaris 9 x86 (Veritas NetBackup as a backup server is not currently supported with Solaris 9 x86). 3) The L8 Autoloader is supported connected to the server onboard SCSI port of the V60x and V65x servers running Red Hat Enterprise Linux 2.1 and 3.0. Sun StorEdge Enterprise Backup Software 7.1 and later or Veritas NetBackup 5.1 and later can be used with Red Hat Enterprise Linux 2.1 and 3.0.

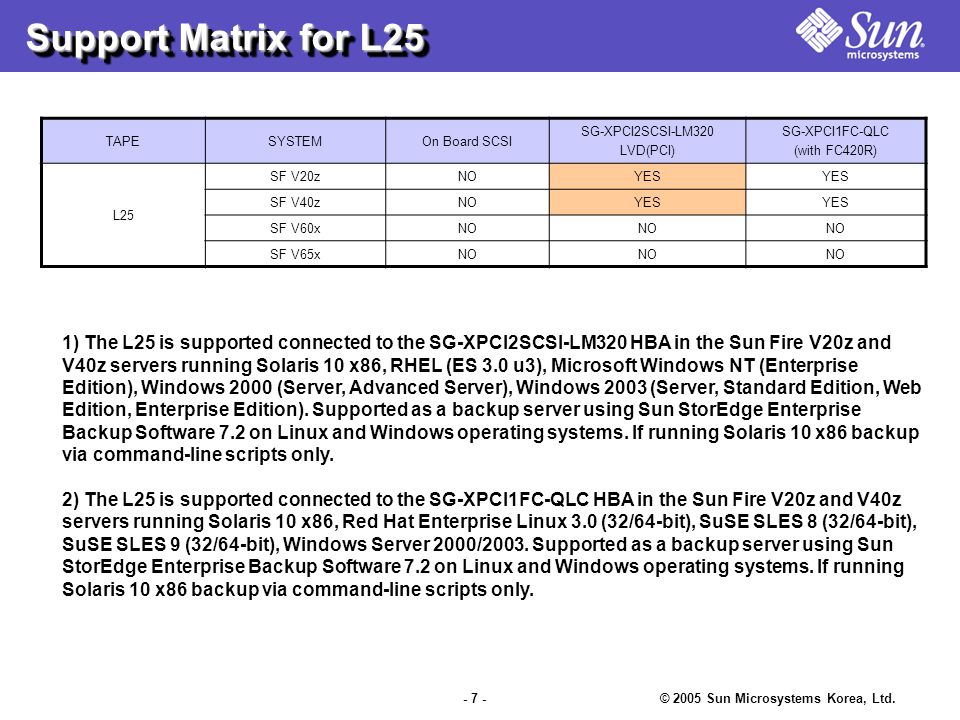

7. © 2005 Sun Microsystems Korea, Ltd. - 7 - Support Matrix for L25 TAPESYSTEMOn Board SCSI SG-XPCI2SCSI-LM320 LVD(PCI) SG-XPCI1FC-QLC (with FC420R) L25 SF V20zNOYES SF V40zNOYES SF V60xNO SF V65xNO 1) The L25 is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows NT (Enterprise Edition), Windows 2000 (Server, Advanced Server), Windows 2003 (Server, Standard Edition, Web Edition, Enterprise Edition). Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only. 2) The L25 is supported connected to the SG-XPCI1FC-QLC HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, Red Hat Enterprise Linux 3.0 (32/64-bit), SuSE SLES 8 (32/64-bit), SuSE SLES 9 (32/64-bit), Windows Server 2000/2003. Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only.

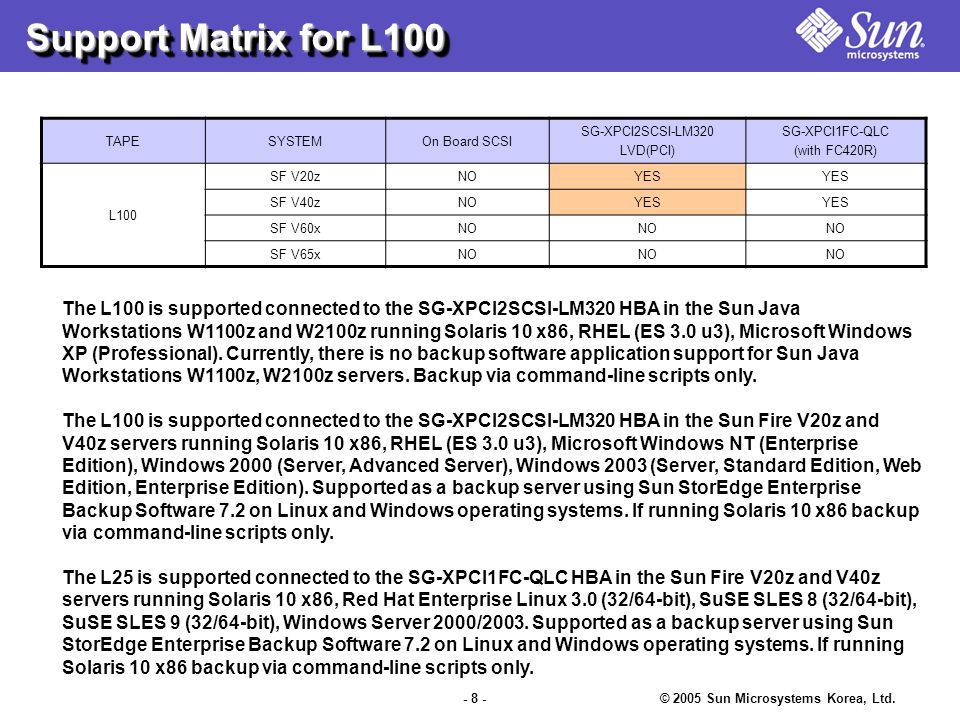

8. © 2005 Sun Microsystems Korea, Ltd. - 8 - Support Matrix for L100 TAPESYSTEMOn Board SCSI SG-XPCI2SCSI-LM320 LVD(PCI) SG-XPCI1FC-QLC (with FC420R) L100 SF V20zNOYES SF V40zNOYES SF V60xNO SF V65xNO The L100 is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Java Workstations W1100z and W2100z running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows XP (Professional). Currently, there is no backup software application support for Sun Java Workstations W1100z, W2100z servers. Backup via command-line scripts only. The L100 is supported connected to the SG-XPCI2SCSI-LM320 HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, RHEL (ES 3.0 u3), Microsoft Windows NT (Enterprise Edition), Windows 2000 (Server, Advanced Server), Windows 2003 (Server, Standard Edition, Web Edition, Enterprise Edition). Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only. The L25 is supported connected to the SG-XPCI1FC-QLC HBA in the Sun Fire V20z and V40z servers running Solaris 10 x86, Red Hat Enterprise Linux 3.0 (32/64-bit), SuSE SLES 8 (32/64-bit), SuSE SLES 9 (32/64-bit), Windows Server 2000/2003. Supported as a backup server using Sun StorEdge Enterprise Backup Software 7.2 on Linux and Windows operating systems. If running Solaris 10 x86 backup via command-line scripts only.

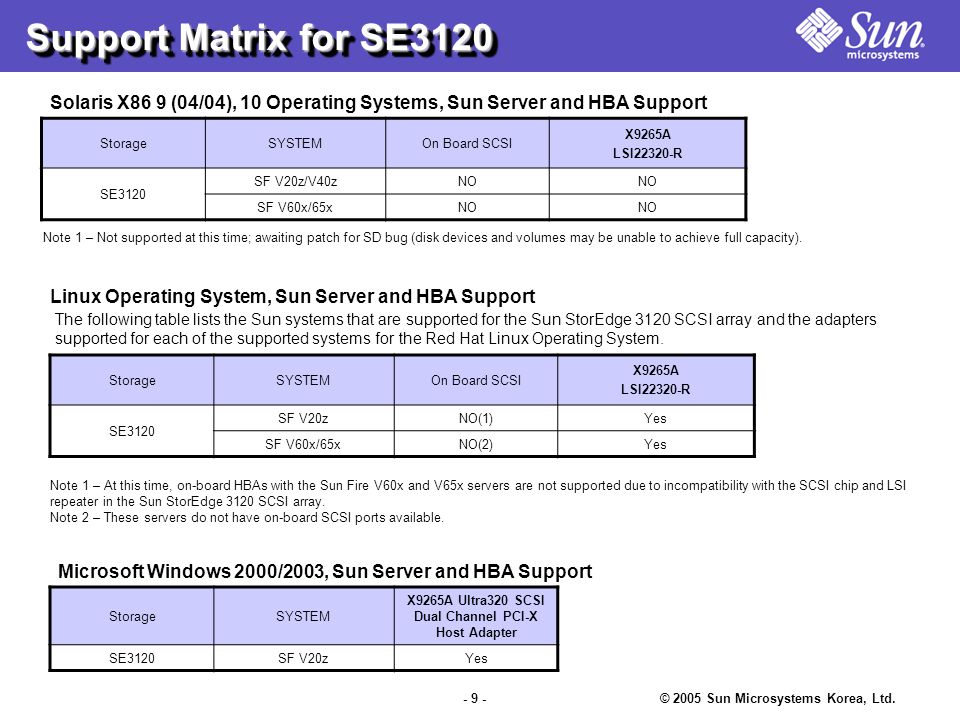

9. © 2005 Sun Microsystems Korea, Ltd. - 9 - Support Matrix for SE3120 StorageSYSTEMOn Board SCSI X9265A LSI22320-R SE3120 SF V20z/V40zNO SF V60x/65xNO Solaris X86 9 (04/04), 10 Operating Systems, Sun Server and HBA Support Note 1 – Not supported at this time; awaiting patch for SD bug (disk devices and volumes may be unable to achieve full capacity). StorageSYSTEMOn Board SCSI X9265A LSI22320-R SE3120 SF V20zNO(1)Yes SF V60x/65xNO(2)Yes Linux Operating System, Sun Server and HBA Support Note 1 – At this time, on-board HBAs with the Sun Fire V60x and V65x servers are not supported due to incompatibility with the SCSI chip and LSI repeater in the Sun StorEdge 3120 SCSI array. Note 2 – These servers do not have on-board SCSI ports available. The following table lists the Sun systems that are supported for the Sun StorEdge 3120 SCSI array and the adapters supported for each of the supported systems for the Red Hat Linux Operating System. StorageSYSTEM X9265A Ultra320 SCSI Dual Channel PCI-X Host Adapter SE3120SF V20zYes Microsoft Windows 2000/2003, Sun Server and HBA Support

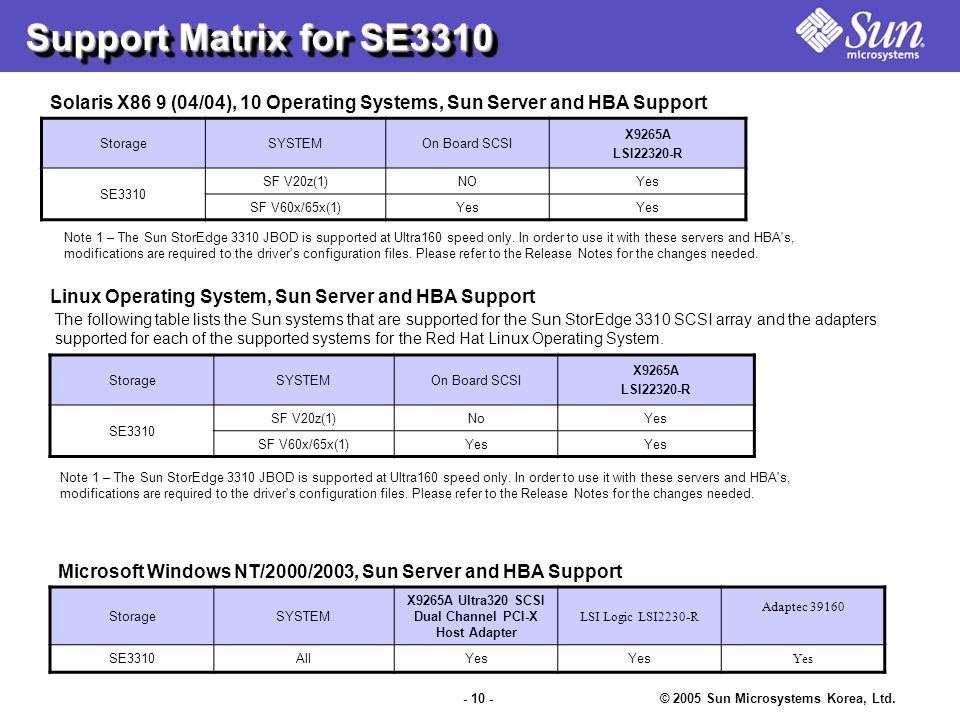

10. © 2005 Sun Microsystems Korea, Ltd. - 10 - Support Matrix for SE3310 StorageSYSTEMOn Board SCSI X9265A LSI22320-R SE3310 SF V20z(1)NOYes SF V60x/65x(1)Yes Solaris X86 9 (04/04), 10 Operating Systems, Sun Server and HBA Support StorageSYSTEMOn Board SCSI X9265A LSI22320-R SE3310 SF V20z(1)NoYes SF V60x/65x(1)Yes Linux Operating System, Sun Server and HBA Support The following table lists the Sun systems that are supported for the Sun StorEdge 3310 SCSI array and the adapters supported for each of the supported systems for the Red Hat Linux Operating System. StorageSYSTEM X9265A Ultra320 SCSI Dual Channel PCI-X Host Adapter LSI Logic LSI2230-R Adaptec 39160 SE3310AllYes Microsoft Windows NT/2000/2003, Sun Server and HBA Support Note 1 – The Sun StorEdge 3310 JBOD is supported at Ultra160 speed only. In order to use it with these servers and HBA's, modifications are required to the driver's configuration files. Please refer to the Release Notes for the changes needed. Note 1 – The Sun StorEdge 3310 JBOD is supported at Ultra160 speed only. In order to use it with these servers and HBA's, modifications are required to the driver's configuration files. Please refer to the Release Notes for the changes needed.

11. © 2005 Sun Microsystems Korea, Ltd. - 11 - Support Matrix for SE3510 StorageSYSTEM SG-XPCI1FC-QF2 (X6767A) 2Gb PCI Single Channel SG-XPCI2FC-QF2 (X6768A) 2Gb PCI Dual Channel SG-XPCI2FC-QLC 2Gb PCI Single Channel (X)5133A 1Gb PCI Single Channel (X)9279A 2Gb PCI Single Channel SE3510 SF V20z/V40zYes NoYes SF V60x/65xYes No Solaris X86 9 (04/04), 10 Operating Systems, Sun Server and HBA Support – Note – Requires using Qlogic's native driver. Sun StorEdge SAN Foundation is expected to be included in Solaris x86 10. Linux Operating System, Sun Server and HBA Support Note 1 - Support for this FC HBA adapter is provided for both Red Hat Enterprise Linux Advanced Server 2.1 and 3.0 using Qlogic's native driver. Note 2 - Support for this FC HBA adapter is provided only for Red Hat Enterprise Linux Advanced Server 3.0 using Qlogic's native driver. The following table lists the Sun systems that are supported for the Sun StorEdge 3510 Fibre Channel array and the adapters supported for each of the supported systems for the Red Hat Linux Operating System. StorageSYSTEM QLogic QLA2310F, QLA2340, QLA2342 Emulex LP952L, LP982, LP9002L, LP9802, L8000 F1-N1 Hewlett Packard A5158A, A6795A IBM 6227, 6228 SE3510AllYes No Microsoft Windows NT/2000/2003, Sun Server and HBA Support StorageSYSTEM SG-XPCI1FC-QF2 (X6767A) 2Gb PCI Single Channel SG-XPCI2FC-QF2 (X6768A) 2Gb PCI Dual Channel SG-XPCI2FC-QLC 2Gb PCI Single Channel (X)5133A 1Gb PCI Single Channel (X)9279A 2Gb PCI Single Channel SE3510 SF V20z/V40zYes(2) NoYes(2) SF V60x/65xYes(1) Yes No

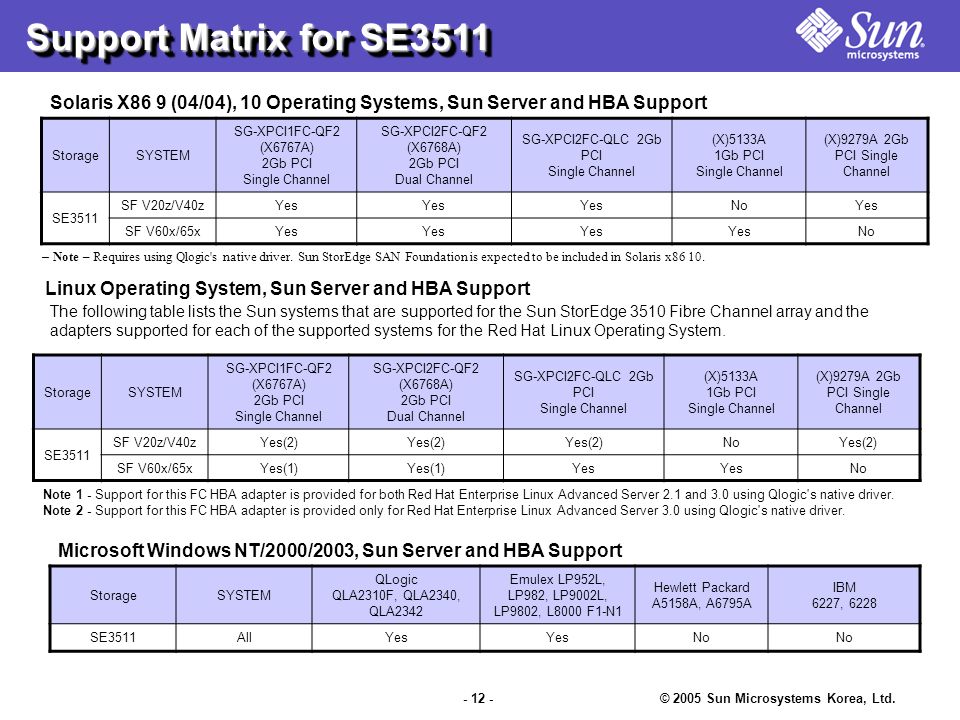

12. © 2005 Sun Microsystems Korea, Ltd. - 12 - Support Matrix for SE3511 Solaris X86 9 (04/04), 10 Operating Systems, Sun Server and HBA Support Linux Operating System, Sun Server and HBA Support Note 1 - Support for this FC HBA adapter is provided for both Red Hat Enterprise Linux Advanced Server 2.1 and 3.0 using Qlogic's native driver. Note 2 - Support for this FC HBA adapter is provided only for Red Hat Enterprise Linux Advanced Server 3.0 using Qlogic's native driver. The following table lists the Sun systems that are supported for the Sun StorEdge 3510 Fibre Channel array and the adapters supported for each of the supported systems for the Red Hat Linux Operating System. StorageSYSTEM QLogic QLA2310F, QLA2340, QLA2342 Emulex LP952L, LP982, LP9002L, LP9802, L8000 F1-N1 Hewlett Packard A5158A, A6795A IBM 6227, 6228 SE3511AllYes No Microsoft Windows NT/2000/2003, Sun Server and HBA Support – Note – Requires using Qlogic's native driver. Sun StorEdge SAN Foundation is expected to be included in Solaris x86 10. StorageSYSTEM SG-XPCI1FC-QF2 (X6767A) 2Gb PCI Single Channel SG-XPCI2FC-QF2 (X6768A) 2Gb PCI Dual Channel SG-XPCI2FC-QLC 2Gb PCI Single Channel (X)5133A 1Gb PCI Single Channel (X)9279A 2Gb PCI Single Channel SE3511 SF V20z/V40zYes NoYes SF V60x/65xYes No StorageSYSTEM SG-XPCI1FC-QF2 (X6767A) 2Gb PCI Single Channel SG-XPCI2FC-QF2 (X6768A) 2Gb PCI Dual Channel SG-XPCI2FC-QLC 2Gb PCI Single Channel (X)5133A 1Gb PCI Single Channel (X)9279A 2Gb PCI Single Channel SE3511 SF V20z/V40zYes(2) NoYes(2) SF V60x/65xYes(1) Yes No

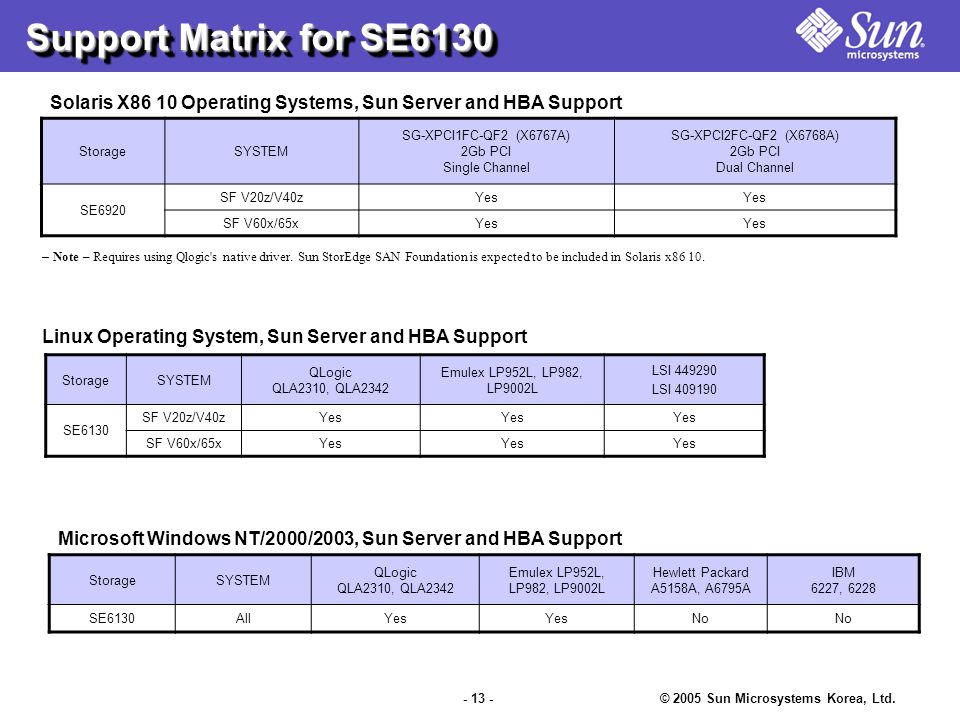

13. © 2005 Sun Microsystems Korea, Ltd. - 13 - Support Matrix for SE6130 Linux Operating System, Sun Server and HBA Support StorageSYSTEM QLogic QLA2310, QLA2342 Emulex LP952L, LP982, LP9002L Hewlett Packard A5158A, A6795A IBM 6227, 6228 SE6130AllYes No Microsoft Windows NT/2000/2003, Sun Server and HBA Support StorageSYSTEM QLogic QLA2310, QLA2342 Emulex LP952L, LP982, LP9002L LSI 449290 LSI 409190 SE6130 SF V20z/V40zYes SF V60x/65xYes Solaris X86 10 Operating Systems, Sun Server and HBA Support – Note – Requires using Qlogic's native driver. Sun StorEdge SAN Foundation is expected to be included in Solaris x86 10. StorageSYSTEM SG-XPCI1FC-QF2 (X6767A) 2Gb PCI Single Channel SG-XPCI2FC-QF2 (X6768A) 2Gb PCI Dual Channel SE6920 SF V20z/V40zYes SF V60x/65xYes

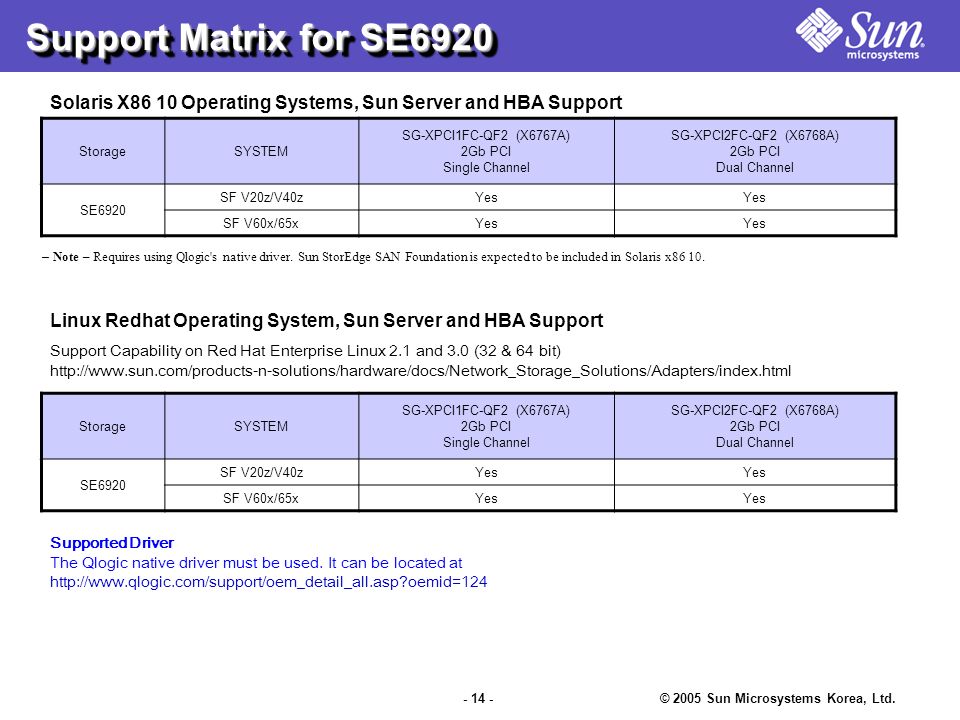

14. © 2005 Sun Microsystems Korea, Ltd. - 14 - Support Matrix for SE6920 Solaris X86 10 Operating Systems, Sun Server and HBA Support Linux Redhat Operating System, Sun Server and HBA Support – Note – Requires using Qlogic's native driver. Sun StorEdge SAN Foundation is expected to be included in Solaris x86 10. StorageSYSTEM SG-XPCI1FC-QF2 (X6767A) 2Gb PCI Single Channel SG-XPCI2FC-QF2 (X6768A) 2Gb PCI Dual Channel SE6920 SF V20z/V40zYes SF V60x/65xYes StorageSYSTEM SG-XPCI1FC-QF2 (X6767A) 2Gb PCI Single Channel SG-XPCI2FC-QF2 (X6768A) 2Gb PCI Dual Channel SE6920 SF V20z/V40zYes SF V60x/65xYes Supported Driver The Qlogic native driver must be used. It can be located at http://www.qlogic.com/support/oem_detail_all.asp?oemid=124 Support Capability on Red Hat Enterprise Linux 2.1 and 3.0 (32 & 64 bit) http://www.sun.com/products-n-solutions/hardware/docs/Network_Storage_Solutions/Adapters/index.html

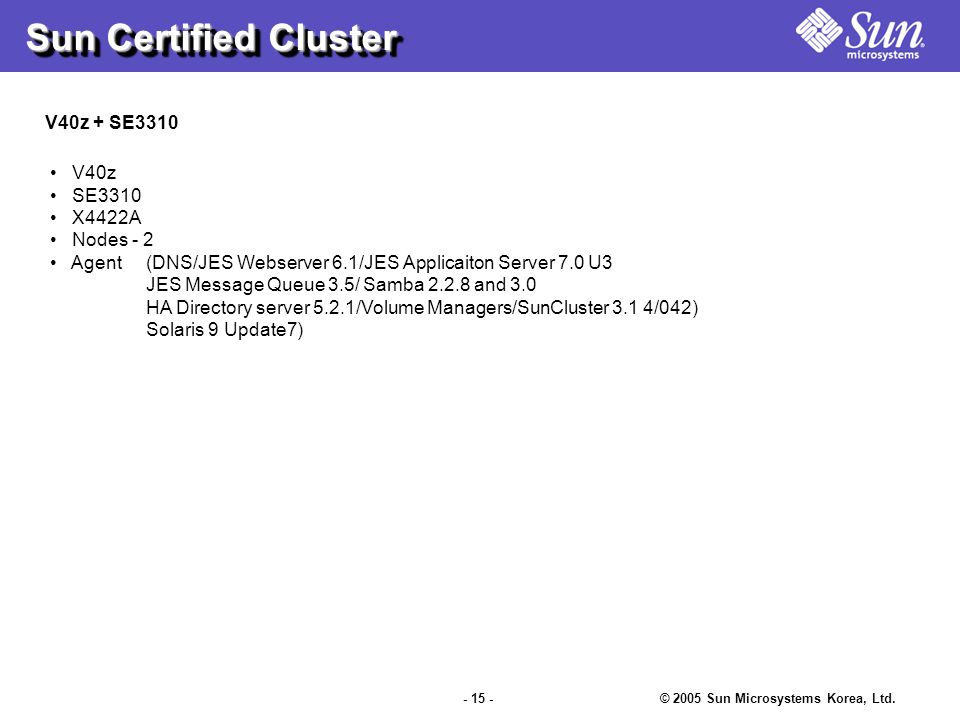

15. © 2005 Sun Microsystems Korea, Ltd. - 15 - Sun Certified Cluster V40z + SE3310 V40z SE3310 X4422A Nodes - 2 Agent(DNS/JES Webserver 6.1/JES Applicaiton Server 7.0 U3 JES Message Queue 3.5/ Samba 2.2.8 and 3.0 HA Directory server 5.2.1/Volume Managers/SunCluster 3.1 4/042) Solaris 9 Update7)
