1

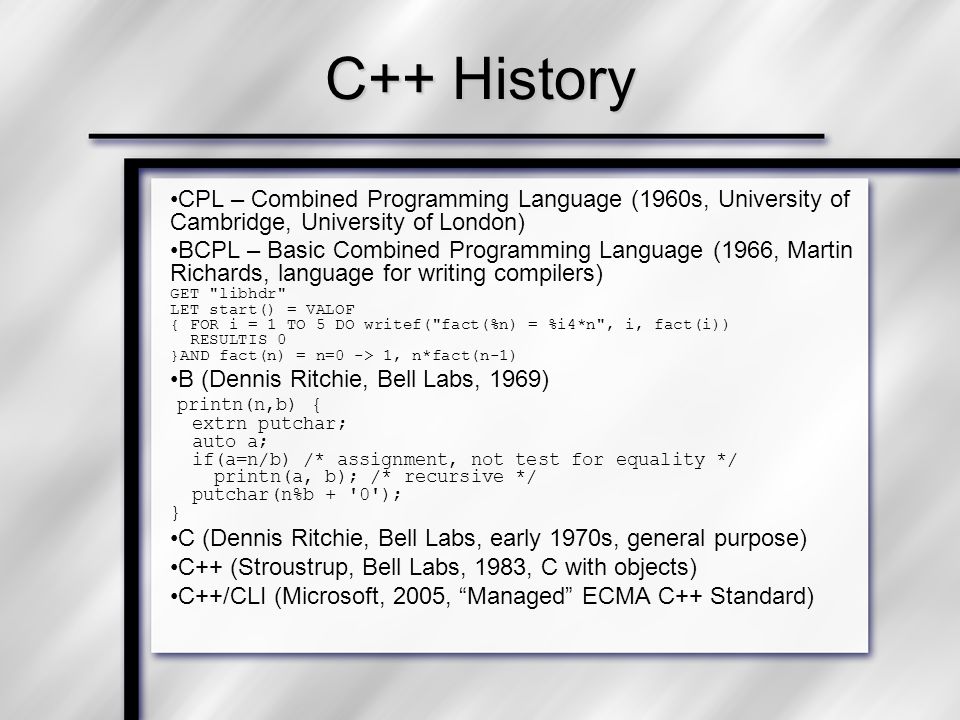

C++ History CPL – Combined Programming Language (1960s, University of Cambridge, University of London) BCPL – Basic Combined Programming Language (1966, Martin Richards, language for writing compilers) GET "libhdr" LET start() = VALOF { FOR i = 1 TO 5 DO writef("fact(%n) = %i4*n", i, fact(i)) RESULTIS 0 }AND fact(n) = n=0 -> 1, n*fact(n-1) B (Dennis Ritchie, Bell Labs, 1969) printn(n,b) { extrn putchar; auto a; if(a=n/b) /* assignment, not test for equality */ printn(a, b); /* recursive */ putchar(n%b + '0'); } C (Dennis Ritchie, Bell Labs, early 1970s, general purpose) C++ (Stroustrup, Bell Labs, 1983, C with objects) C++/CLI (Microsoft, 2005, “Managed” ECMA C++ Standard)
2

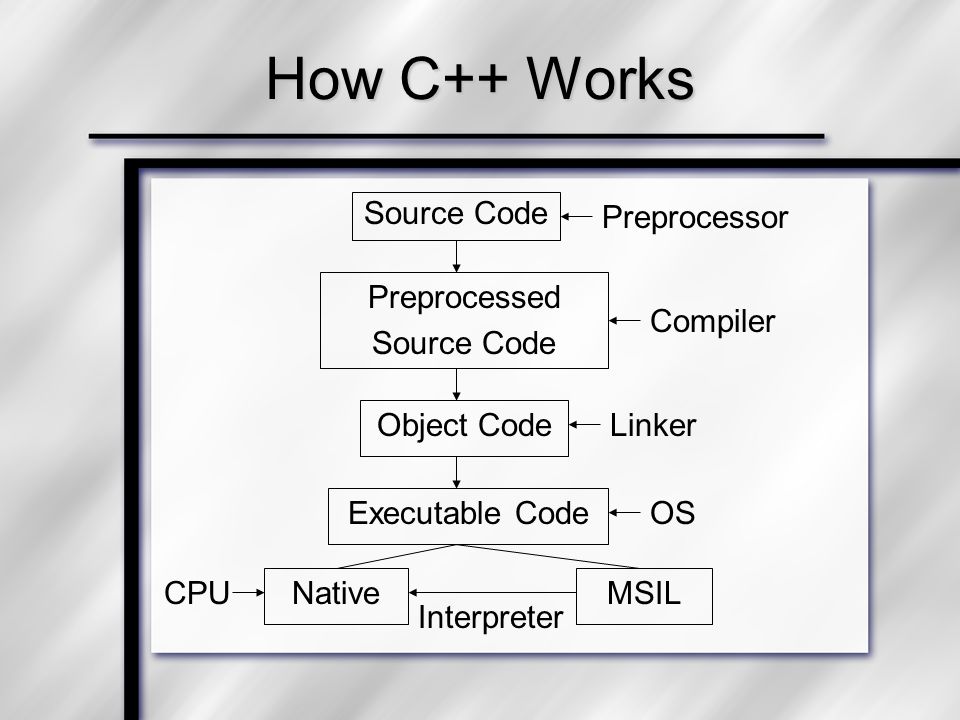

How C++ Works Source Code Preprocessed Source Code Object Code Executable Code Preprocessor Compiler Linker NativeMSIL Interpreter CPU OS
3

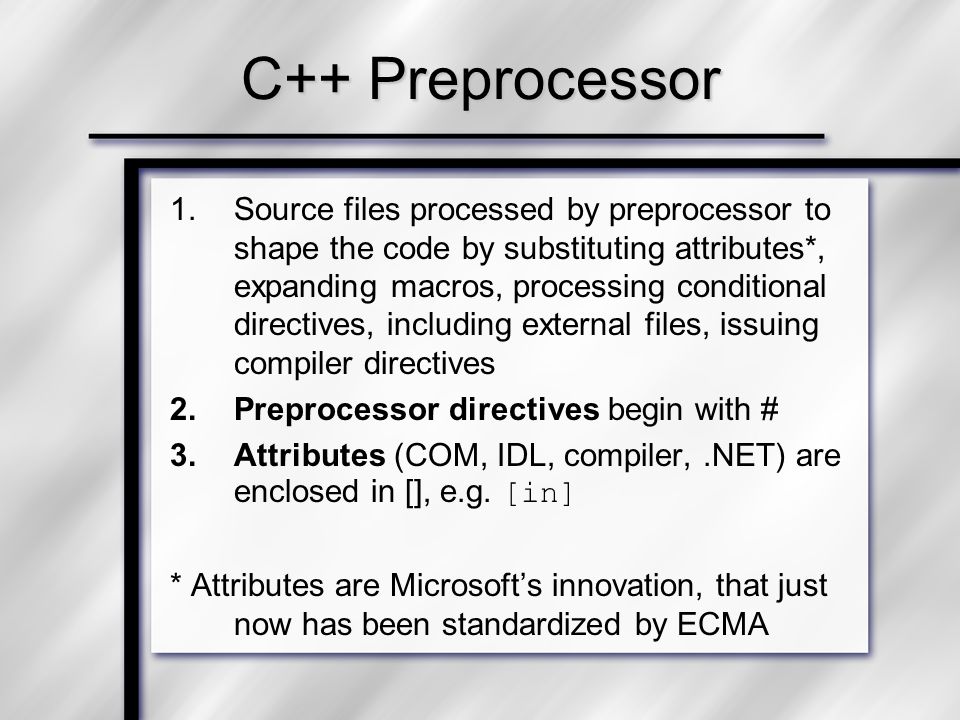

C++ Preprocessor 1.Source files processed by preprocessor to shape the code by substituting attributes*, expanding macros, processing conditional directives, including external files, issuing compiler directives 2.Preprocessor directives begin with # 3.Attributes (COM, IDL, compiler,.NET) are enclosed in [], e.g. [in] * Attributes are Microsoft’s innovation, that just now has been standardized by ECMA
4

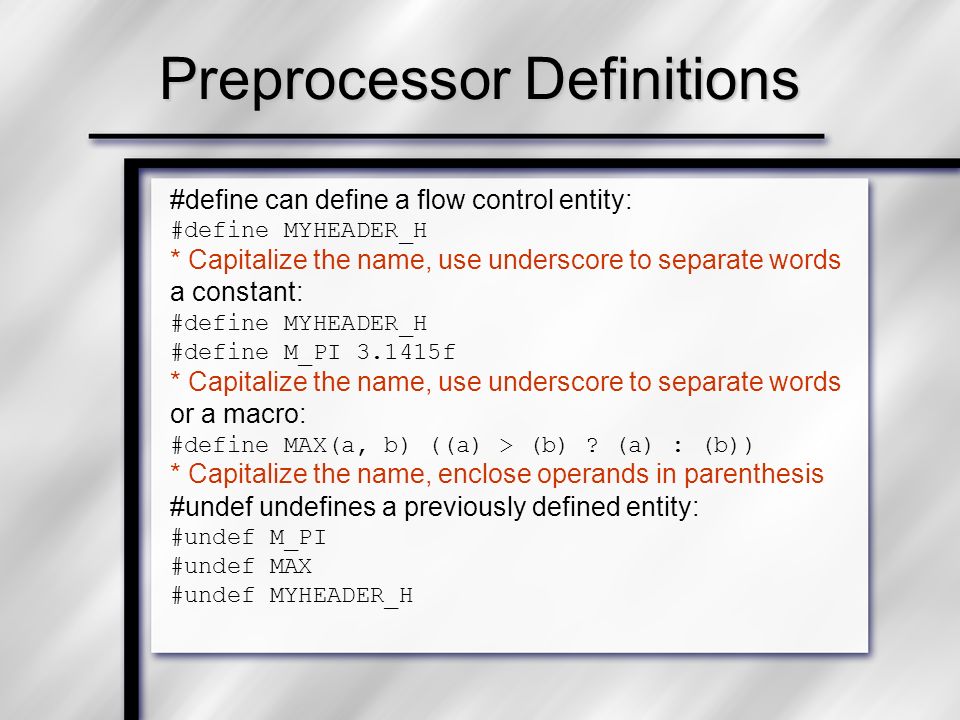

Preprocessor Definitions #define can define a flow control entity: #define MYHEADER_H * Capitalize the name, use underscore to separate words a constant: #define MYHEADER_H #define M_PI 3.1415f * Capitalize the name, use underscore to separate words or a macro: #define MAX(a, b) ((a) > (b) ? (a) : (b)) * Capitalize the name, enclose operands in parenthesis #undef undefines a previously defined entity: #undef M_PI #undef MAX #undef MYHEADER_H
5

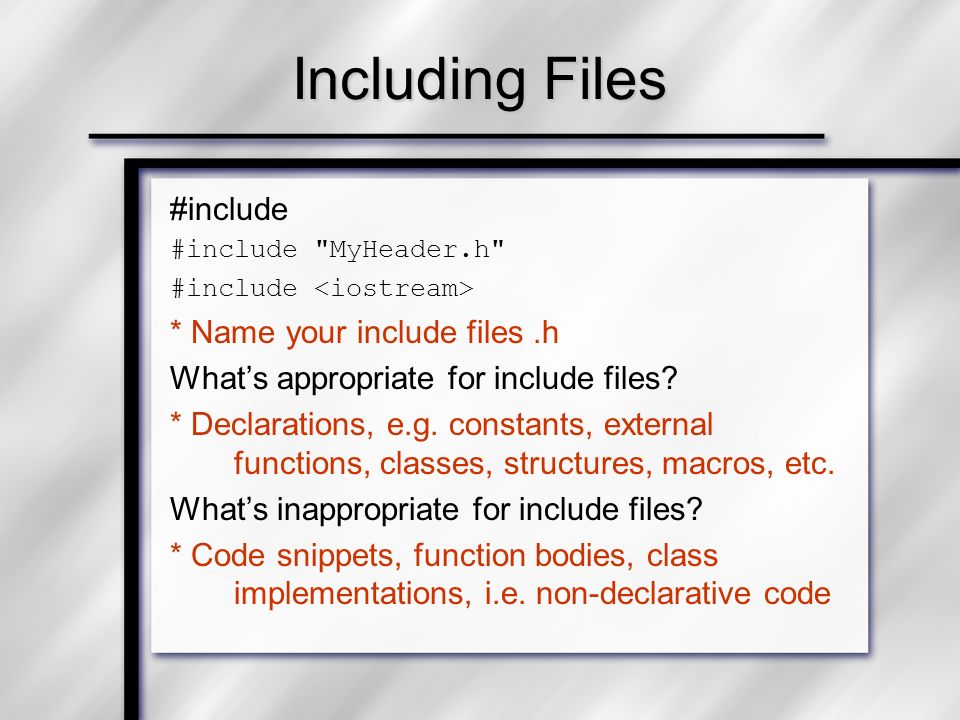

Including Files #include #include "MyHeader.h" #include * Name your include files.h What’s appropriate for include files? * Declarations, e.g. constants, external functions, classes, structures, macros, etc. What’s inappropriate for include files? * Code snippets, function bodies, class implementations, i.e. non-declarative code
6

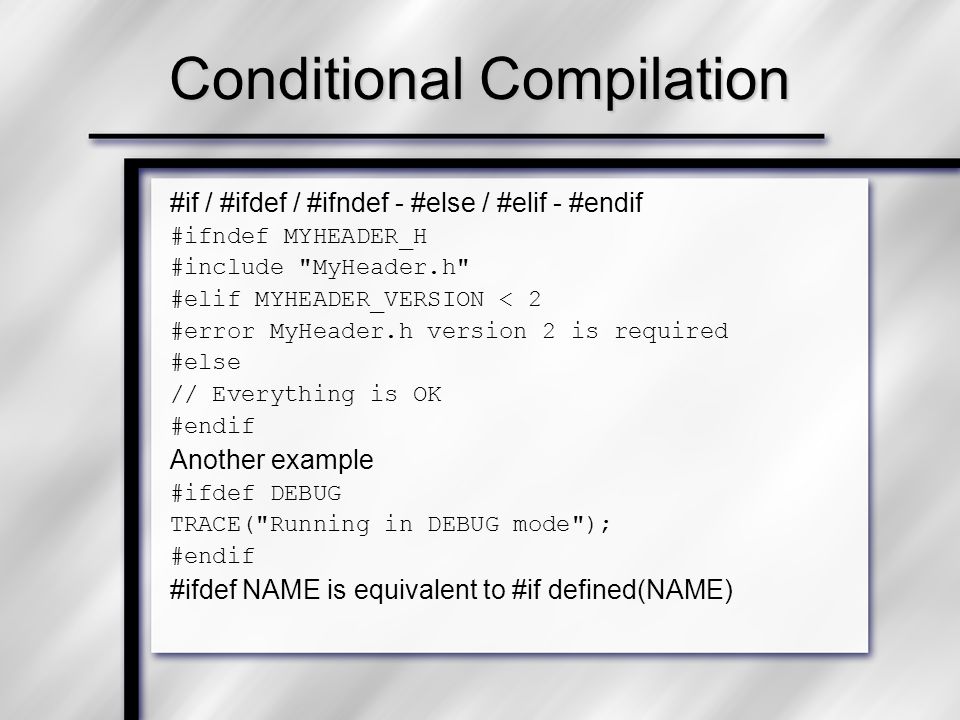

Conditional Compilation #if / #ifdef / #ifndef - #else / #elif - #endif #ifndef MYHEADER_H #include "MyHeader.h" #elif MYHEADER_VERSION < 2 #error MyHeader.h version 2 is required #else // Everything is OK #endif Another example #ifdef DEBUG TRACE("Running in DEBUG mode"); #endif #ifdef NAME is equivalent to #if defined(NAME)
7

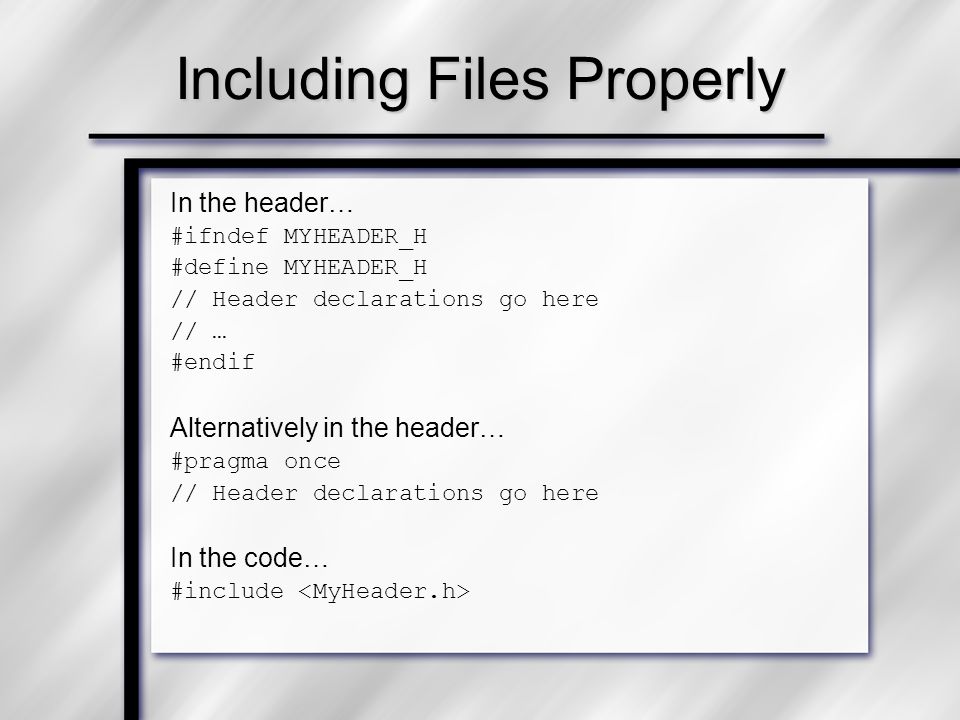

Including Files Properly In the header… #ifndef MYHEADER_H #define MYHEADER_H // Header declarations go here // … #endif Alternatively in the header… #pragma once // Header declarations go here In the code… #include
8

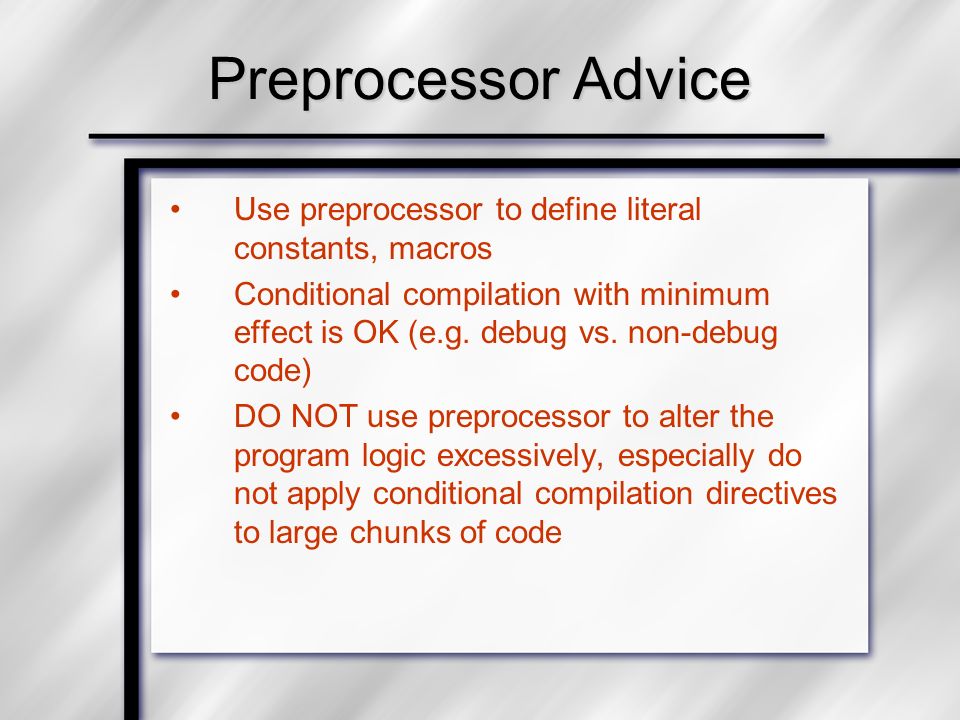

Preprocessor Advice Use preprocessor to define literal constants, macros Conditional compilation with minimum effect is OK (e.g. debug vs. non-debug code) DO NOT use preprocessor to alter the program logic excessively, especially do not apply conditional compilation directives to large chunks of code
9

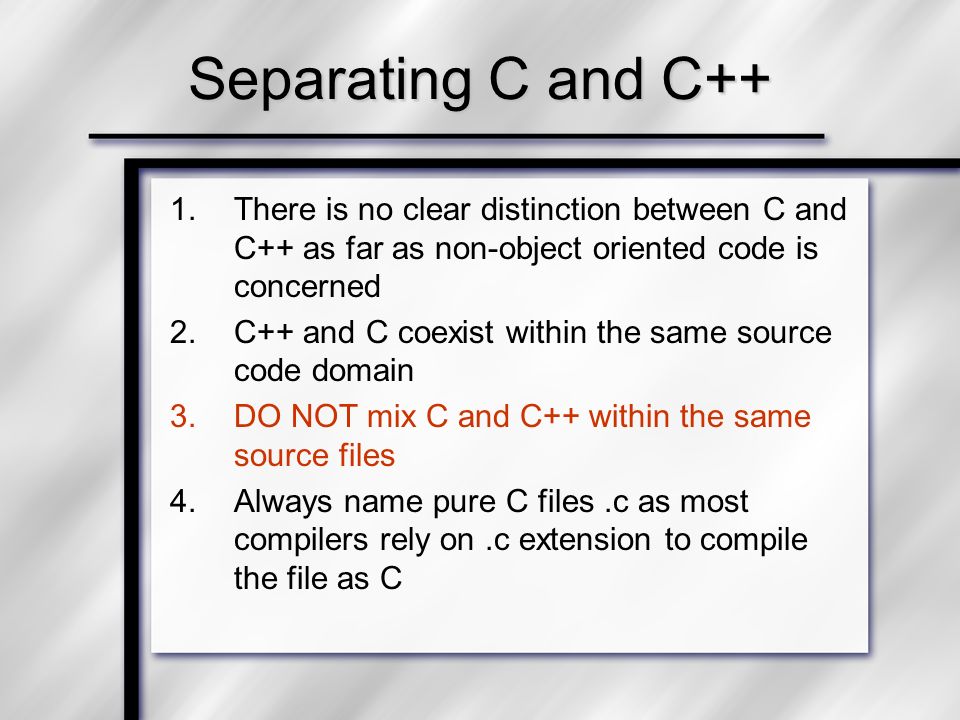

Separating C and C++ 1.There is no clear distinction between C and C++ as far as non-object oriented code is concerned 2.C++ and C coexist within the same source code domain 3.DO NOT mix C and C++ within the same source files 4.Always name pure C files.c as most compilers rely on.c extension to compile the file as C
10
C++ Source Files Header Files (Include Files):.h Source Files:.cpp No.c,.cxx, or.inl files Source code files that are not exclusively definitions should NEVER be included
11

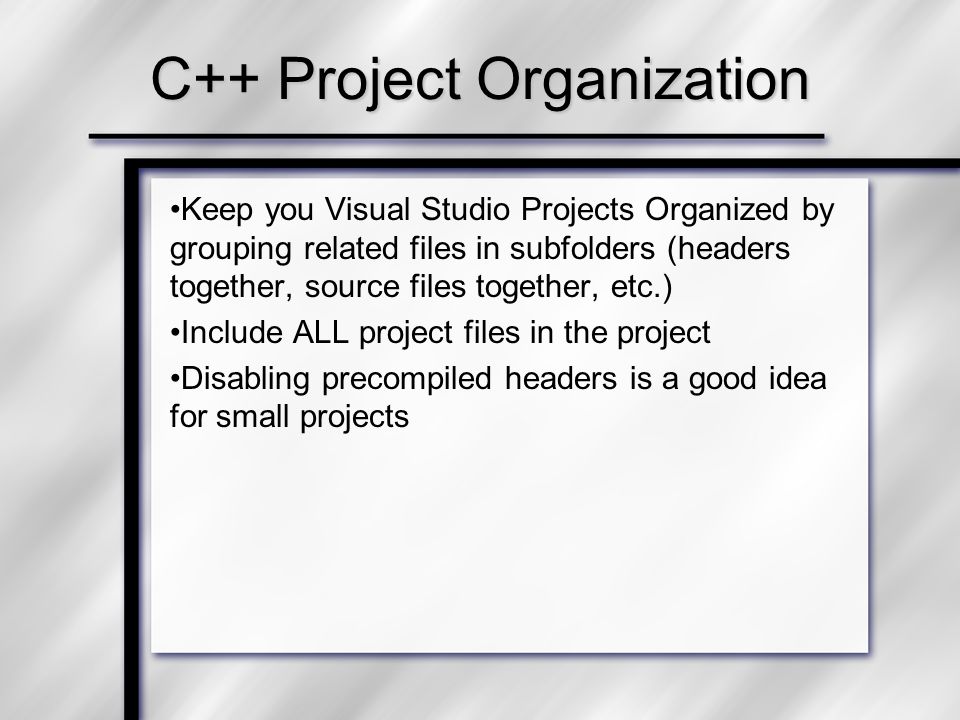

C++ Project Organization Keep you Visual Studio Projects Organized by grouping related files in subfolders (headers together, source files together, etc.) Include ALL project files in the project Disabling precompiled headers is a good idea for small projects
12

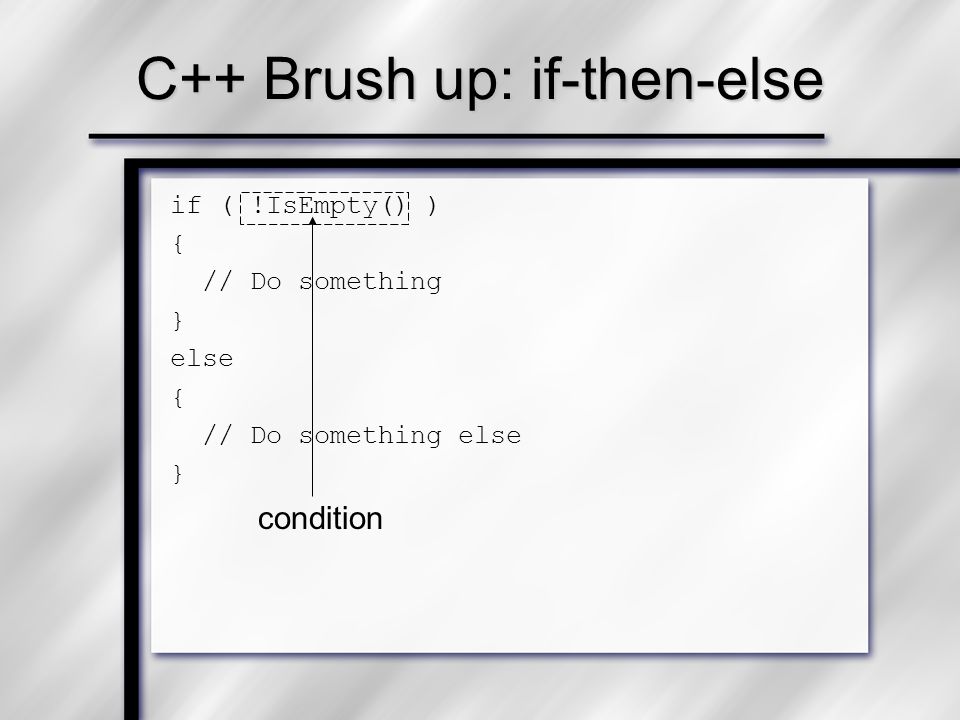

C++ Brush up: if-then-else if ( !IsEmpty() ) { // Do something } else { // Do something else } condition
13

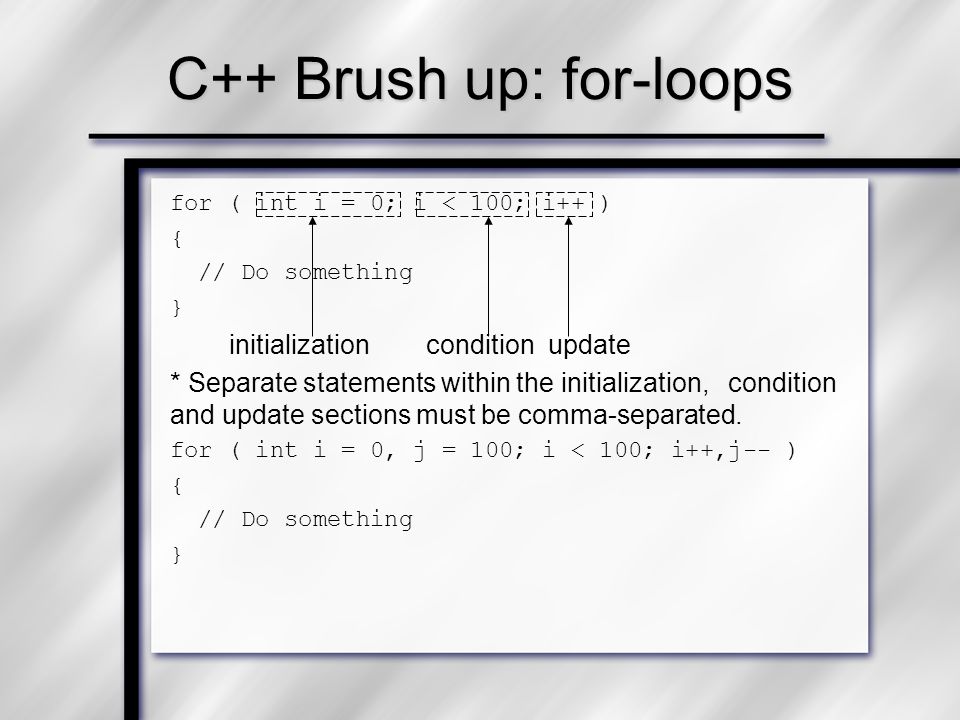

C++ Brush up: for-loops for ( int i = 0; i < 100; i++ ) { // Do something } initialization condition update * Separate statements within the initialization, condition and update sections must be comma-separated. for ( int i = 0, j = 100; i < 100; i++,j-- ) { // Do something }
14

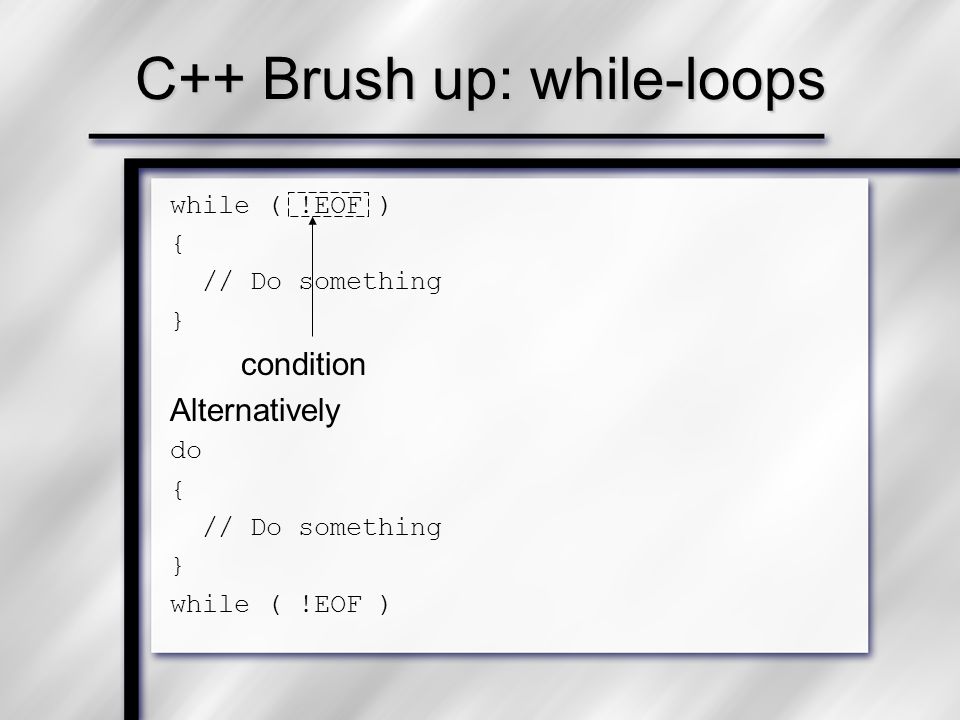

C++ Brush up: while-loops while ( !EOF ) { // Do something } condition Alternatively do { // Do something } while ( !EOF )
15

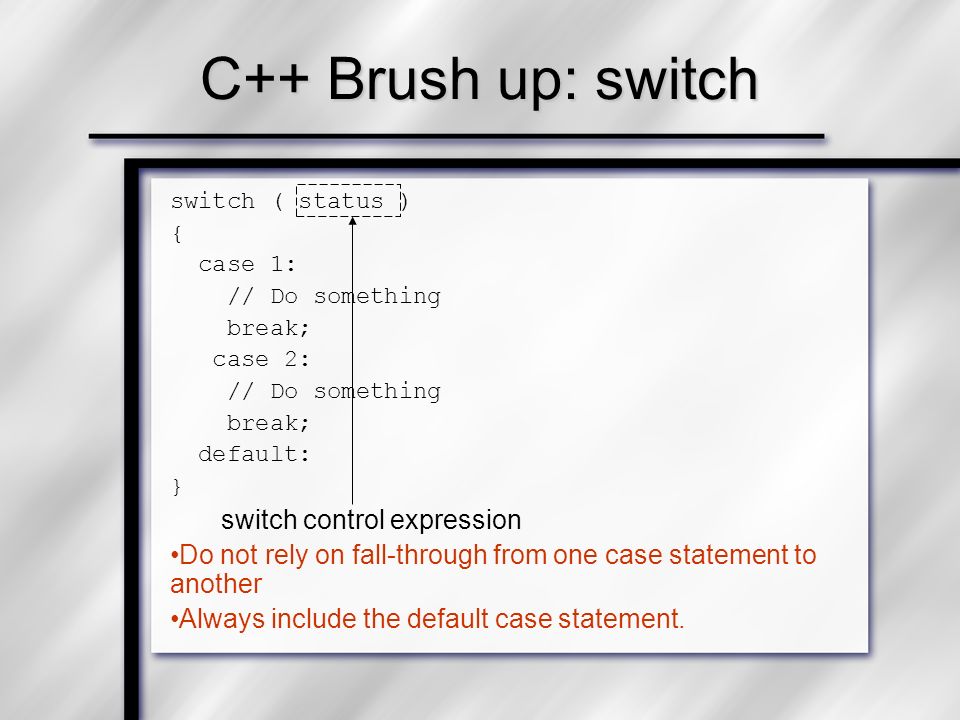

C++ Brush up: switch switch ( status ) { case 1: // Do something break; case 2: // Do something break; default: } switch control expression Do not rely on fall-through from one case statement to another Always include the default case statement.
16

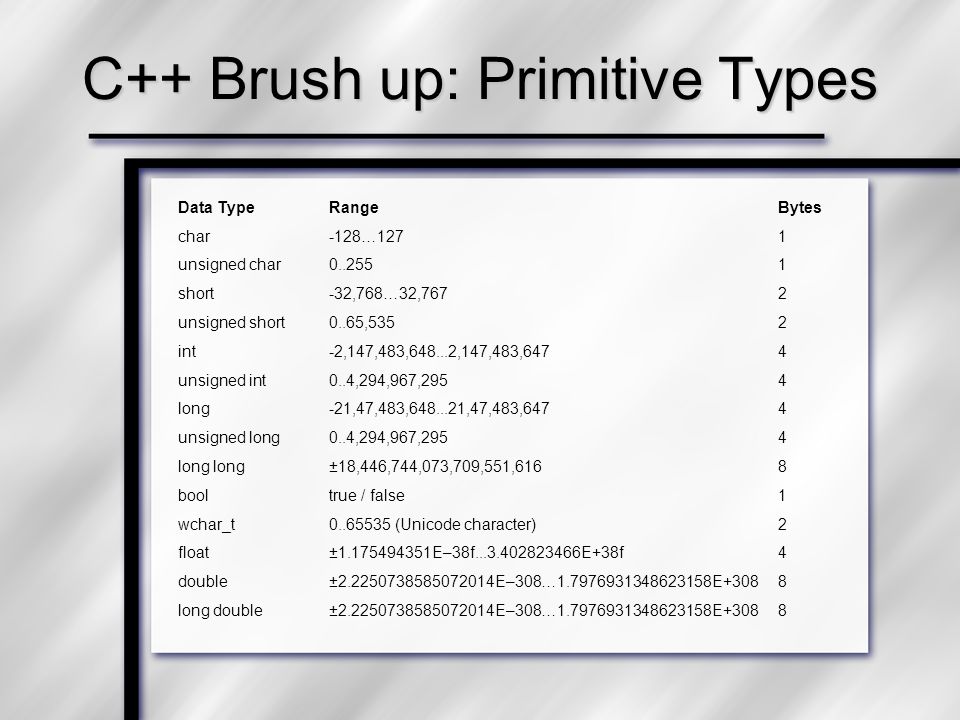

C++ Brush up: Primitive Types Data TypeRangeBytes char-128…1271 unsigned char0..2551 short-32,768…32,7672 unsigned short0..65,5352 int-2,147,483,648...2,147,483,6474 unsigned int0..4,294,967,2954 long-21,47,483,648...21,47,483,6474 unsigned long0..4,294,967,2954 long ±18,446,744,073,709,551,6168 booltrue / false1 wchar_t0..65535 (Unicode character)2 float±1.175494351E–38f...3.402823466E+38f4 double±2.2250738585072014E–308…1.7976931348623158E+3088 long double±2.2250738585072014E–308…1.7976931348623158E+3088
17

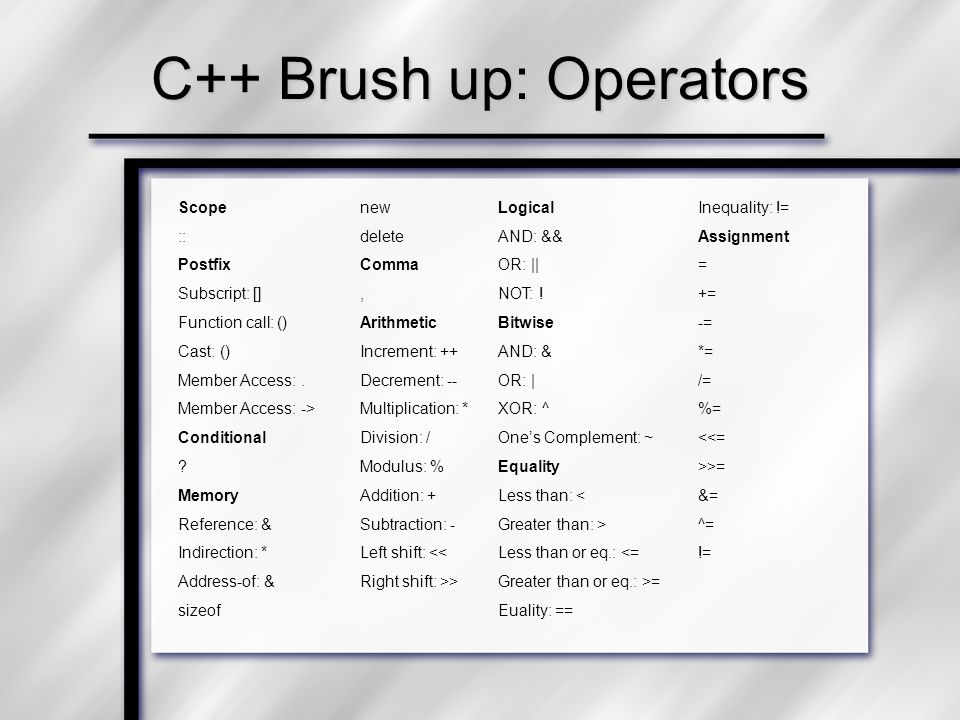

C++ Brush up: Operators ScopenewLogicalInequality: != ::deleteAND: &&Assignment PostfixCommaOR: ||= Subscript: [],NOT: !+= Function call: ()ArithmeticBitwise-= Cast: ()Increment: ++AND: &*= Member Access:.Decrement: --OR: |/= Member Access: ->Multiplication: *XOR: ^%= ConditionalDivision: /One’s Complement: ~<<= ?Modulus: %Equality>>= MemoryAddition: +Less than: <&= Reference: &Subtraction: -Greater than: >^= Indirection: *Left shift: <<Less than or eq.: <=!= Address-of: &Right shift: >>Greater than or eq.: >= sizeofEuality: ==
18
C++ Brush up: UDTs User-Defind Types aka Complex Types: struct Rectangle { int Width; int Height; }; Alternatively typedef struct { int Width; int Height; } Rectangle; typedef char* PCHAR; Or you can use #define for the latter: #define PCHAR char*; But #define does not define type while typedef does!
19

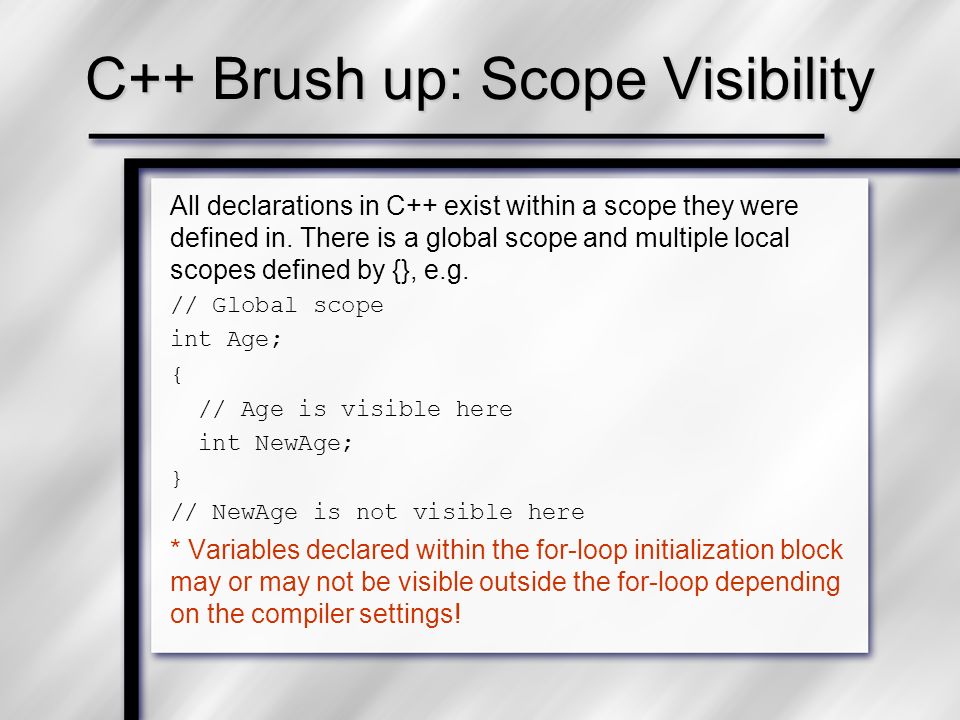

C++ Brush up: Scope Visibility All declarations in C++ exist within a scope they were defined in. There is a global scope and multiple local scopes defined by {}, e.g. // Global scope int Age; { // Age is visible here int NewAge; } // NewAge is not visible here * Variables declared within the for-loop initialization block may or may not be visible outside the for-loop depending on the compiler settings!
20

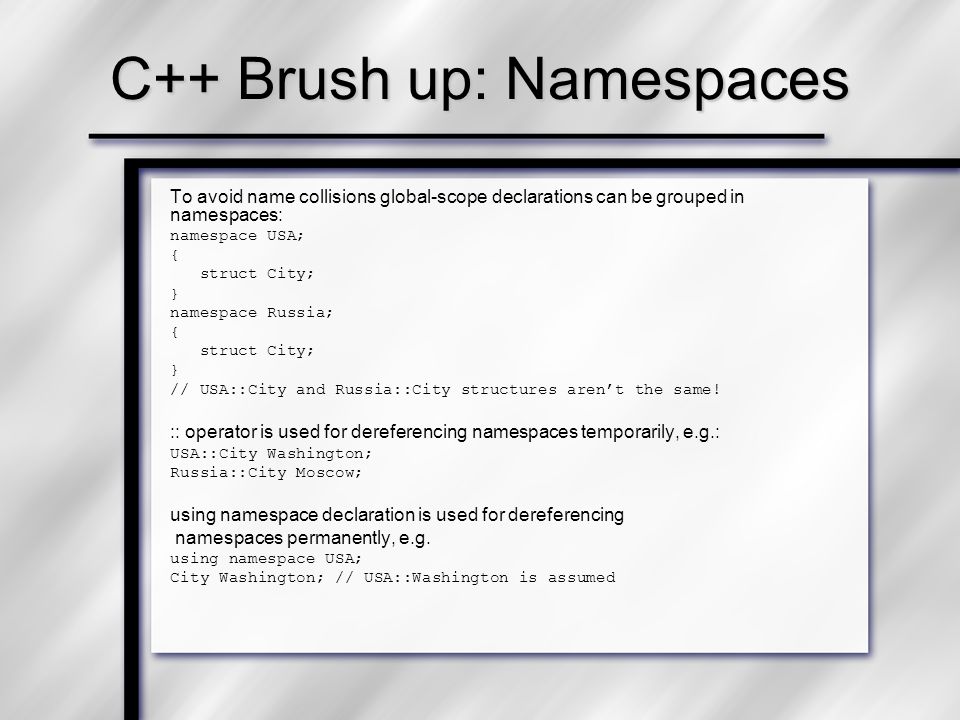

C++ Brush up: Namespaces To avoid name collisions global-scope declarations can be grouped in namespaces: namespace USA; { struct City; } namespace Russia; { struct City; } // USA::City and Russia::City structures aren’t the same! :: operator is used for dereferencing namespaces temporarily, e.g.: USA::City Washington; Russia::City Moscow; using namespace declaration is used for dereferencing namespaces permanently, e.g. using namespace USA; City Washington; // USA::Washington is assumed
21

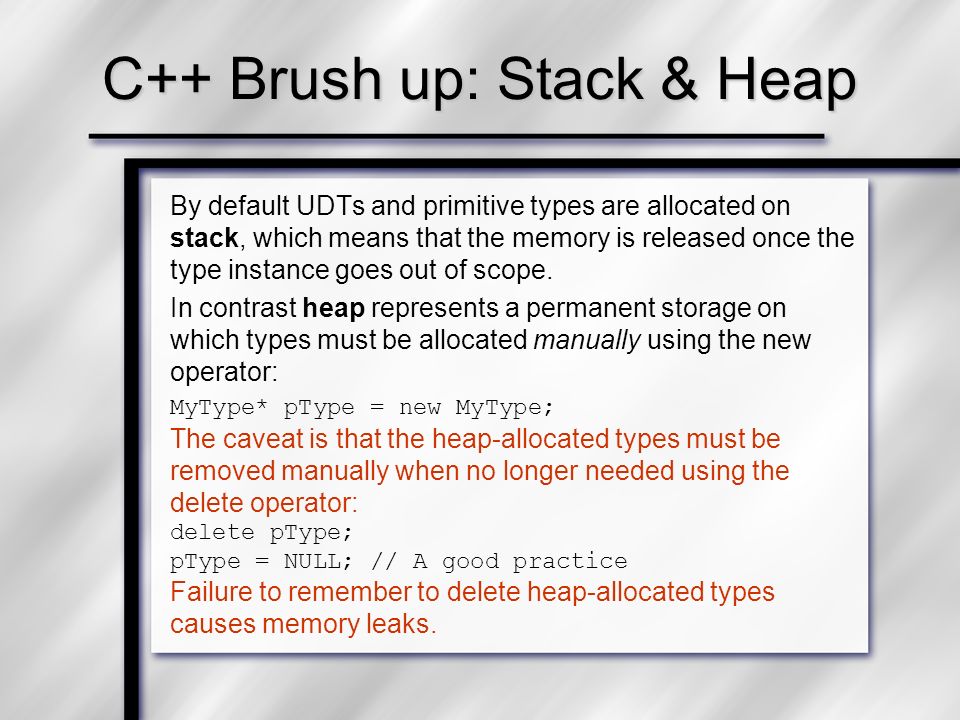

C++ Brush up: Stack & Heap By default UDTs and primitive types are allocated on stack, which means that the memory is released once the type instance goes out of scope. In contrast heap represents a permanent storage on which types must be allocated manually using the new operator: MyType* pType = new MyType; The caveat is that the heap-allocated types must be removed manually when no longer needed using the delete operator: delete pType; pType = NULL; // A good practice Failure to remember to delete heap-allocated types causes memory leaks.
22
C++ Brush up: Managed Heap In order to avoid memory leaks “new” languages such as Java, C# and C++/CLI rely on autonomous garbage collector process to automatically release heap memory when it is no longer referenced by any object (and thus no longer needed). Garbage collection offers convenience at the price of efficiency.
23

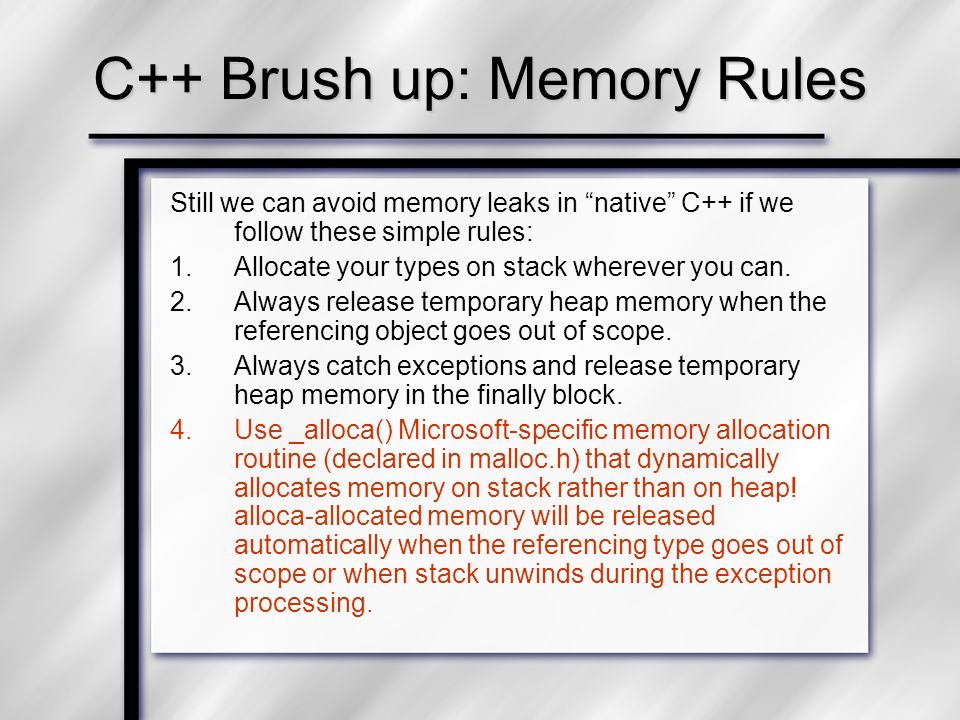

C++ Brush up: Memory Rules Still we can avoid memory leaks in “native” C++ if we follow these simple rules: 1.Allocate your types on stack wherever you can. 2.Always release temporary heap memory when the referencing object goes out of scope. 3.Always catch exceptions and release temporary heap memory in the finally block. 4.Use _alloca() Microsoft-specific memory allocation routine (declared in malloc.h) that dynamically allocates memory on stack rather than on heap! alloca-allocated memory will be released automatically when the referencing type goes out of scope or when stack unwinds during the exception processing.
24

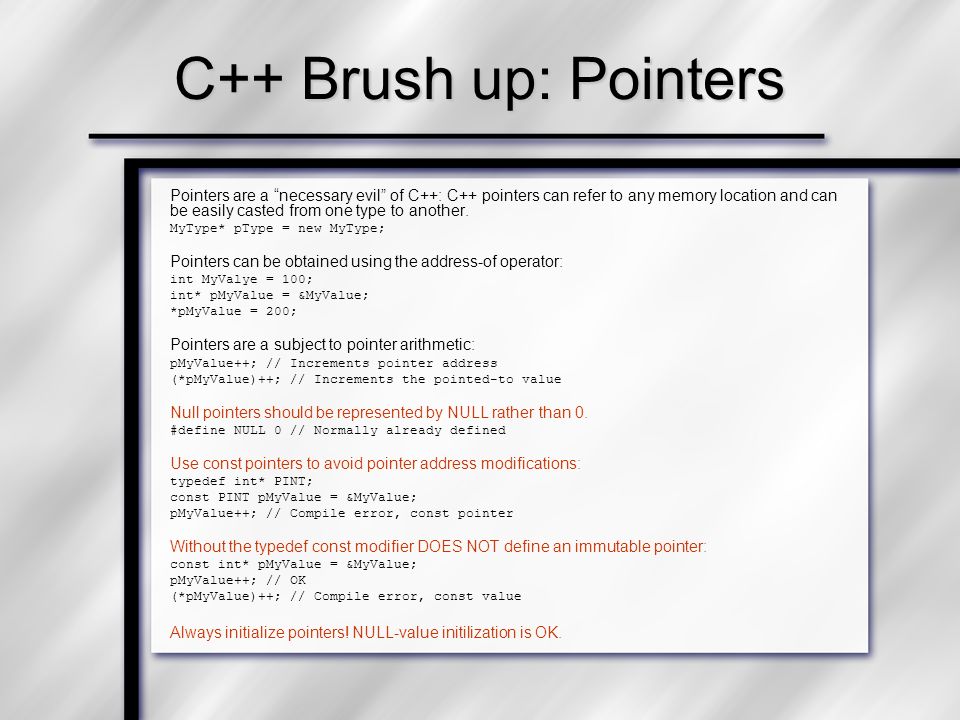

C++ Brush up: Pointers Pointers are a “necessary evil” of C++: C++ pointers can refer to any memory location and can be easily casted from one type to another. MyType* pType = new MyType; Pointers can be obtained using the address-of operator: int MyValye = 100; int* pMyValue = &MyValue; *pMyValue = 200; Pointers are a subject to pointer arithmetic: pMyValue++; // Increments pointer address (*pMyValue)++; // Increments the pointed-to value Null pointers should be represented by NULL rather than 0. #define NULL 0 // Normally already defined Use const pointers to avoid pointer address modifications: typedef int* PINT; const PINT pMyValue = &MyValue; pMyValue++; // Compile error, const pointer Without the typedef const modifier DOES NOT define an immutable pointer: const int* pMyValue = &MyValue; pMyValue++; // OK (*pMyValue)++; // Compile error, const value Always initialize pointers! NULL-value initilization is OK.
25

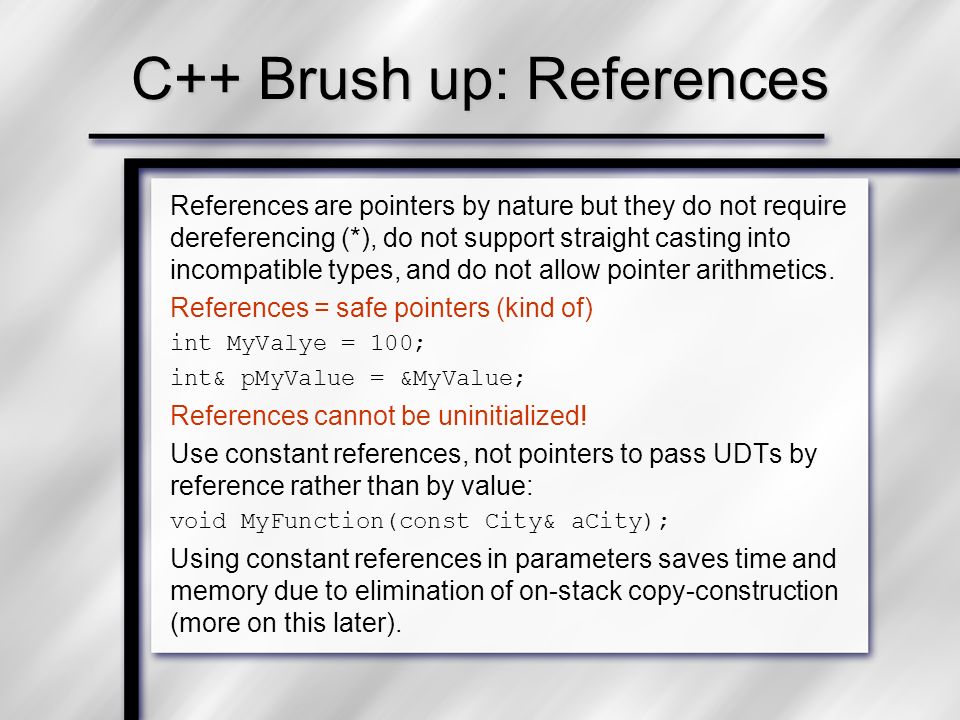

C++ Brush up: References References are pointers by nature but they do not require dereferencing (*), do not support straight casting into incompatible types, and do not allow pointer arithmetics. References = safe pointers (kind of) int MyValye = 100; int& pMyValue = &MyValue; References cannot be uninitialized! Use constant references, not pointers to pass UDTs by reference rather than by value: void MyFunction(const City& aCity); Using constant references in parameters saves time and memory due to elimination of on-stack copy-construction (more on this later).
26

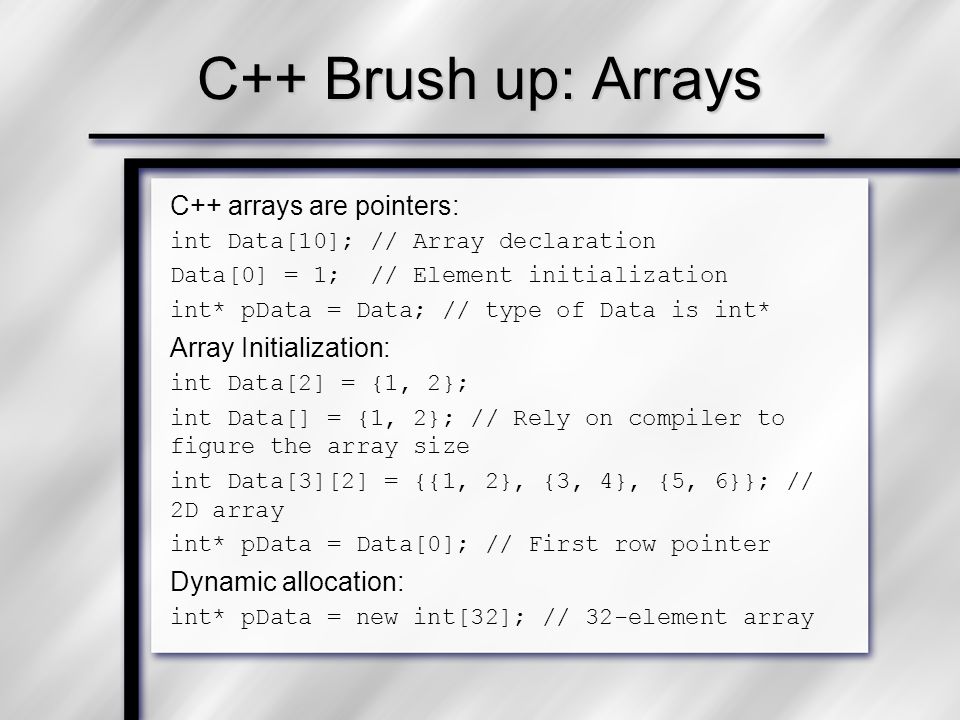

C++ Brush up: Arrays C++ arrays are pointers: int Data[10]; // Array declaration Data[0] = 1; // Element initialization int* pData = Data; // type of Data is int* Array Initialization: int Data[2] = {1, 2}; int Data[] = {1, 2}; // Rely on compiler to figure the array size int Data[3][2] = {{1, 2}, {3, 4}, {5, 6}}; // 2D array int* pData = Data[0]; // First row pointer Dynamic allocation: int* pData = new int[32]; // 32-element array
27

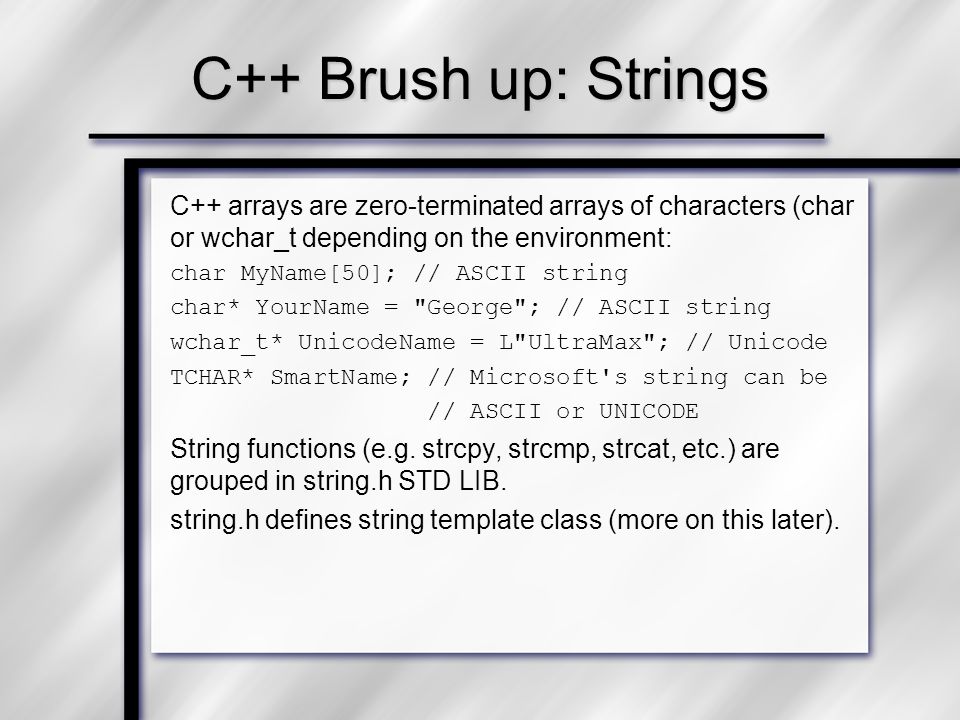

C++ Brush up: Strings C++ arrays are zero-terminated arrays of characters (char or wchar_t depending on the environment: char MyName[50]; // ASCII string char* YourName = "George"; // ASCII string wchar_t* UnicodeName = L"UltraMax"; // Unicode TCHAR* SmartName; // Microsoft's string can be // ASCII or UNICODE String functions (e.g. strcpy, strcmp, strcat, etc.) are grouped in string.h STD LIB. string.h defines string template class (more on this later).
28

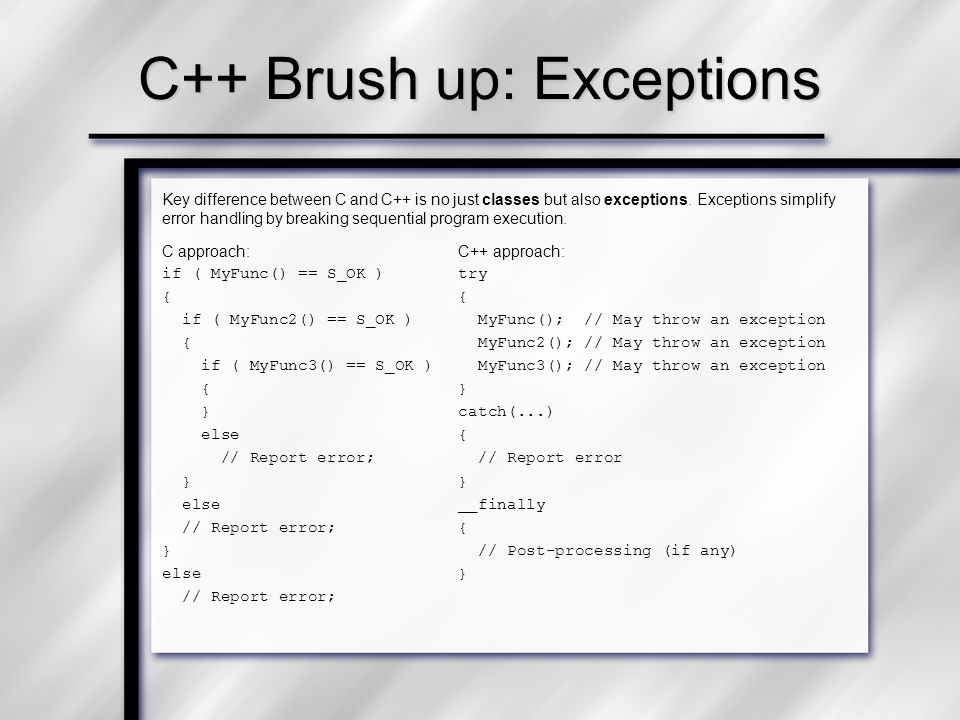

C++ Brush up: Exceptions Key difference between C and C++ is no just classes but also exceptions. Exceptions simplify error handling by breaking sequential program execution. C approach: if ( MyFunc() == S_OK ) { if ( MyFunc2() == S_OK ) { if ( MyFunc3() == S_OK ) { } else // Report error; } else // Report error; } else // Report error; C++ approach: try { MyFunc(); // May throw an exception MyFunc2(); // May throw an exception MyFunc3(); // May throw an exception } catch(...) { // Report error } __finally { // Post-processing (if any) }
29

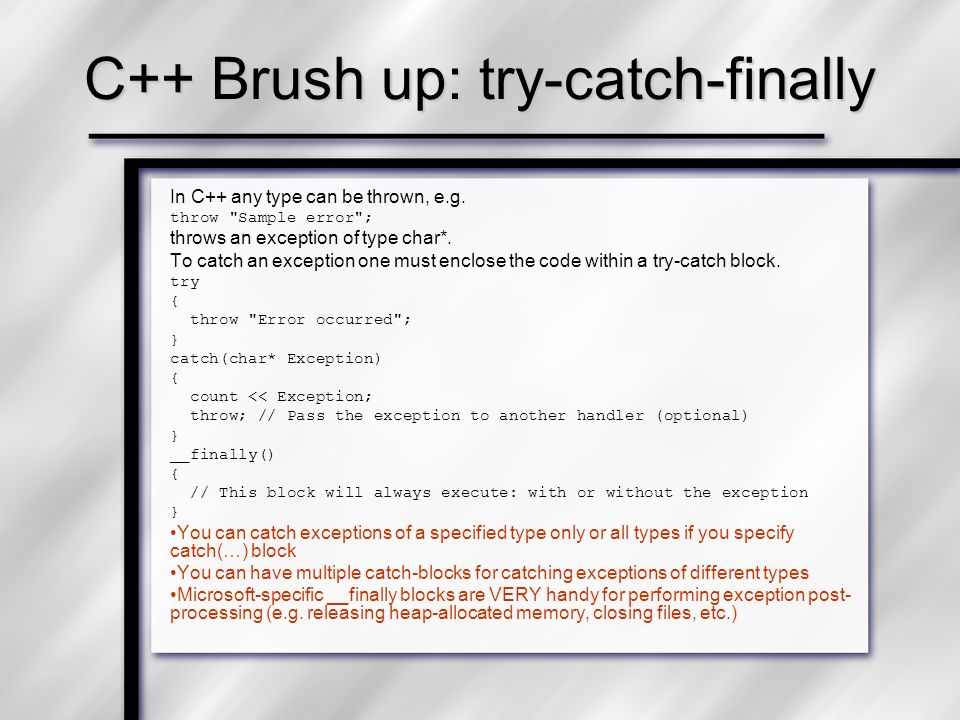

C++ Brush up: try-catch-finally In C++ any type can be thrown, e.g. throw "Sample error"; throws an exception of type char*. To catch an exception one must enclose the code within a try-catch block. try { throw "Error occurred"; } catch(char* Exception) { count << Exception; throw; // Pass the exception to another handler (optional) } __finally() { // This block will always execute: with or without the exception } You can catch exceptions of a specified type only or all types if you specify catch(…) block You can have multiple catch-blocks for catching exceptions of different types Microsoft-specific __finally blocks are VERY handy for performing exception post- processing (e.g. releasing heap-allocated memory, closing files, etc.)
30

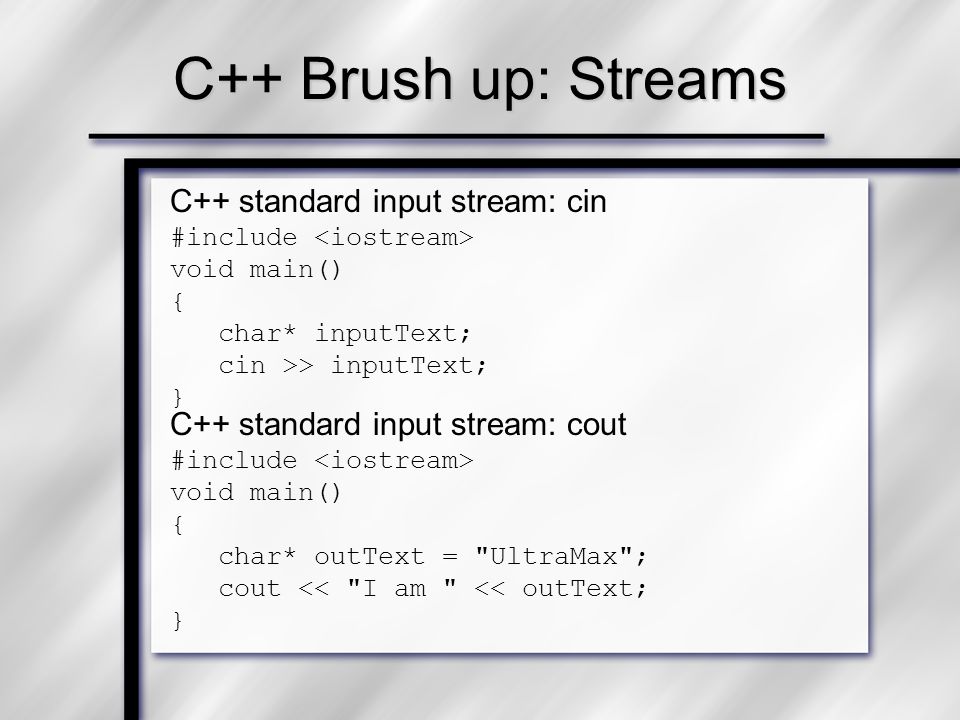

C++ Brush up: Streams C++ standard input stream: cin #include void main() { char* inputText; cin >> inputText; } C++ standard input stream: cout #include void main() { char* outText = "UltraMax"; cout << "I am " << outText; }
31
Assignment: Email Validation Task: Validate email address. How? Think about this problem and come up with a solution (i.e. an algorithm or process). Be as explicit and detailed as you possibly can. Write down your solution in English.
