1 PROPHASE METAPHASE ANAPHASE TELOPHASE

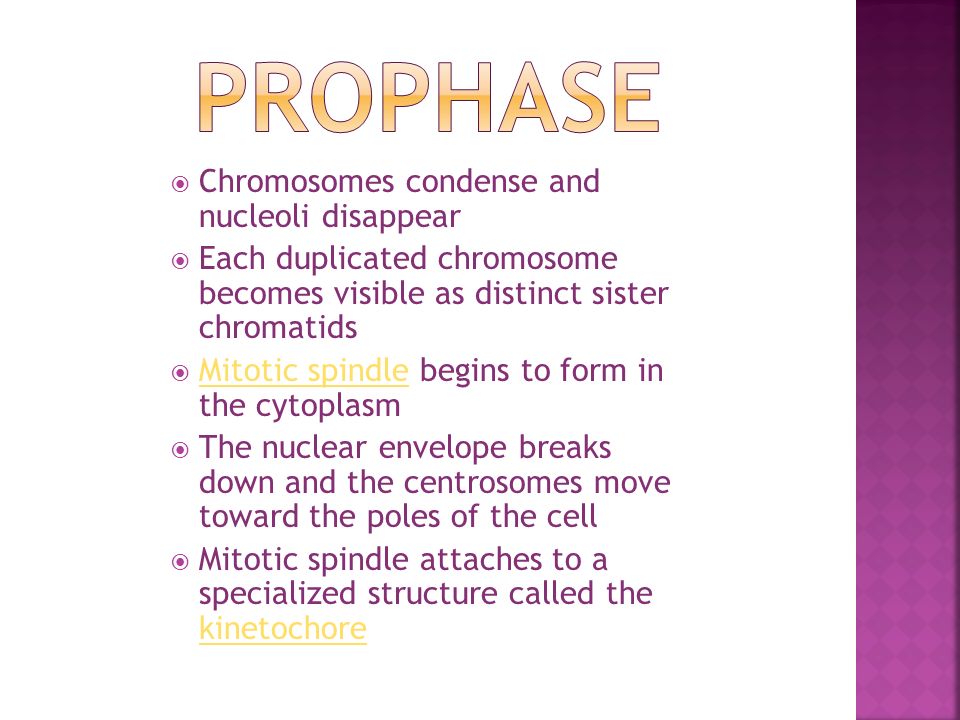

2  Chromosomes condense and nucleoli disappear  Each duplicated chromosome becomes visible as distinct sister chromatids  Mitotic spindle begins to form in the cytoplasm Mitotic spindle  The nuclear envelope breaks down and the centrosomes move toward the poles of the cell  Mitotic spindle attaches to a specialized structure called the kinetochore kinetochore

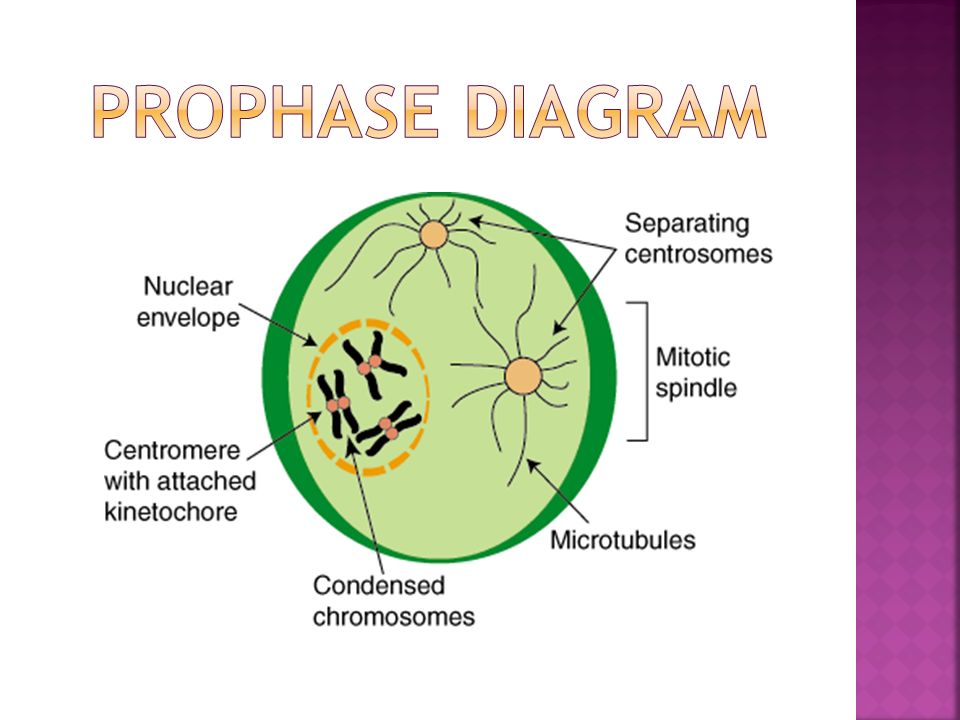

3

4

5

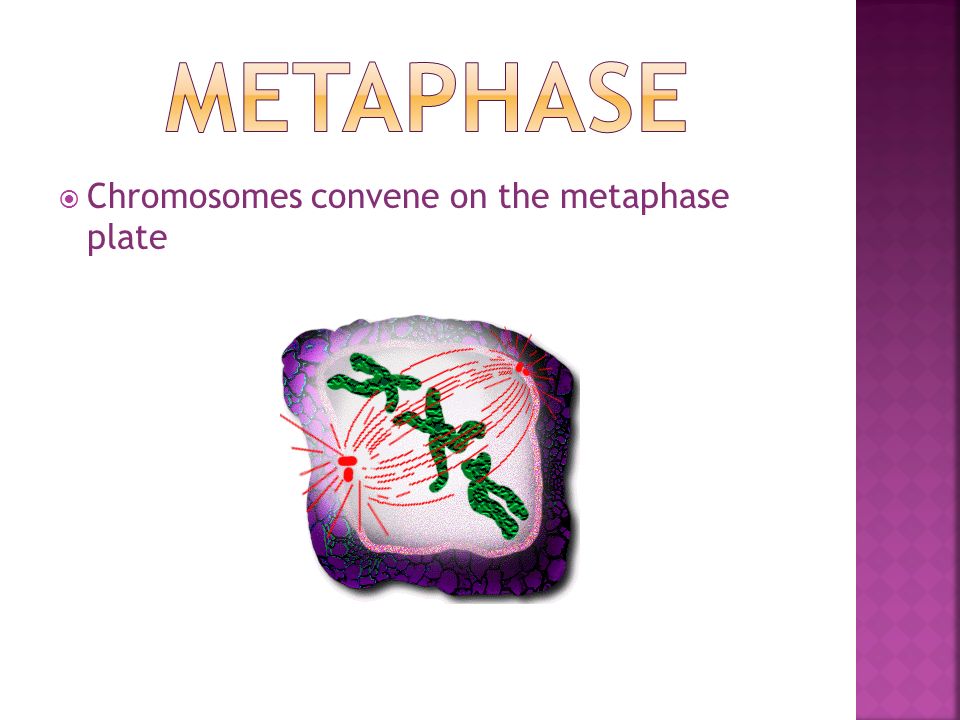

6  Chromosomes convene on the metaphase plate

7

8

9

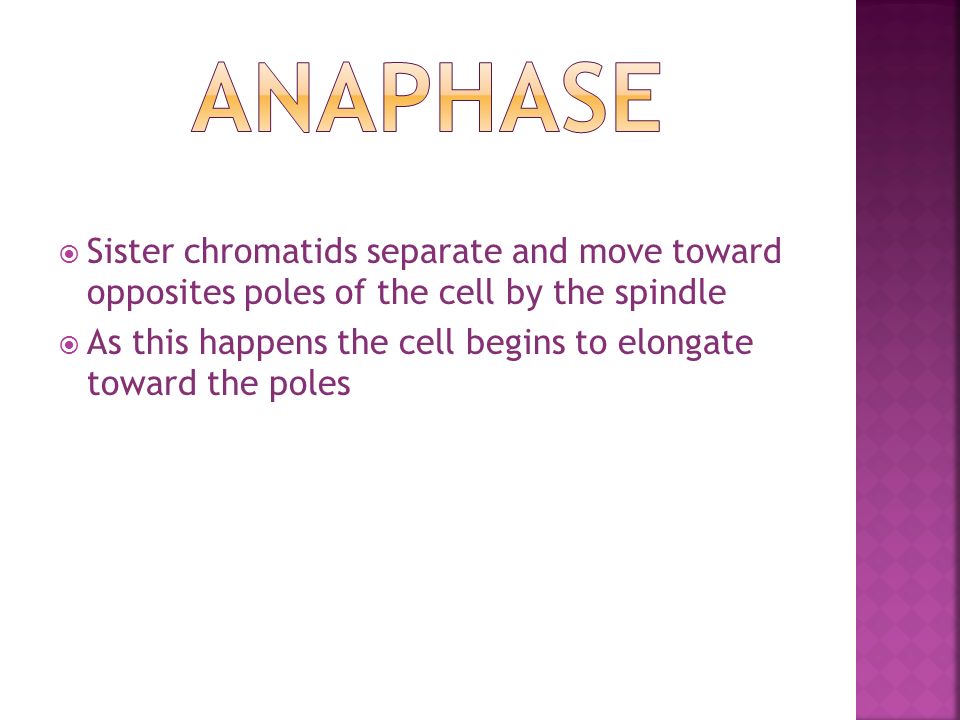

10  Sister chromatids separate and move toward opposites poles of the cell by the spindle  As this happens the cell begins to elongate toward the poles

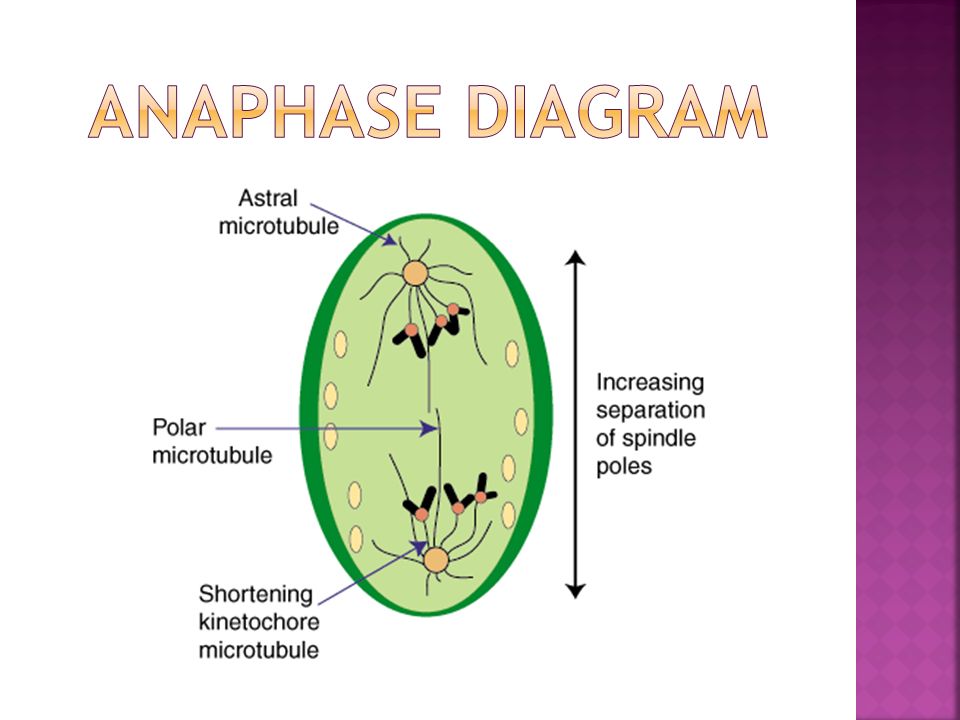

11

12

13

14  Cell continues to elongate throughout the phase  The mitotic spindle breaks down  Nuclear envelope forms at each end of the cell  Chromosomes inside begin to unfold into chromatin

15

16

17

18  http://img.sparknotes.com/figures/D/d756b 5b73abe2974f3521a828791899f/prophase.gif http://img.sparknotes.com/figures/D/d756b 5b73abe2974f3521a828791899f/prophase.gif  http://washington.uwc.edu/about/faculty/s chaefer_w/MitosisPage.htm http://washington.uwc.edu/about/faculty/s chaefer_w/MitosisPage.htm  http://www.brooklyn.cuny.edu/bc/ahp/LAD/ C9/graphics/C9_Metaphase.GIF http://www.brooklyn.cuny.edu/bc/ahp/LAD/ C9/graphics/C9_Metaphase.GIF  www.jcu.edu.au/cgc/DictCellBiol.html www.jcu.edu.au/cgc/DictCellBiol.html  www.mhhe.com/biosci/pae/glossaryk.html www.mhhe.com/biosci/pae/glossaryk.html

19  Mitotic Spindle- A network of microtubules formed during mitosis. These microtubules attach to the centromeres of the chromosomes and help draw the chromosomes.  Kinetochore- A disc of proteins located on the centromere, specialized to interact with the spindle fibers during mitosis.

20
