2. Chapter Nine: Simple Machines
9.1 Types of Simple Machines
9.2 Mechanical Advantage
9.3 Levers in the Human Body

3. 9.1 Using Machines
A machine is a device with moving parts that work together to accomplish a task.
A bicycle is a good example.

4. 9.1 Using Machines
The input includes everything you do to make the machine accomplish a task, like pushing on the bicycle pedals.
The output is what the machine does for you, like going fast or climbing a steep hill.

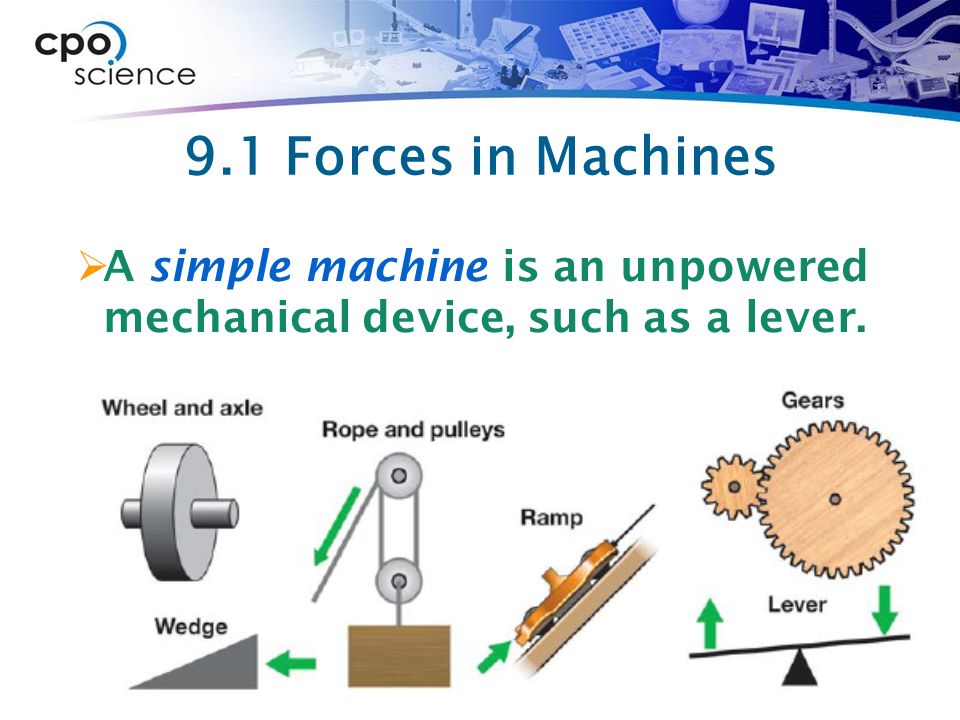

5. 9.1 Forces in Machines
A simple machine is an unpowered mechanical device, such as a lever.

6. 9.1 Review of work
Every process that is done by machines can be simplified in terms of work:
work input: the work or energy supplied to the process (or machine).
work output: the work or energy that comes out of the process (or machine).

7. 9.1 Review of energy
A rope and pulley machine illustrates a rule that is true for all processes that transform energy.
The total energy or work output can never be greater than the total energy or work input.

8. 9.2 Mechanical advantage
Mechanical advantage is the ratio of output force to input force.

9. 9.2 Mechanical advantage Machines multiply forces.
One person could lift an elephant—quite a heavy load—with a properly designed system of ropes and pulleys!

10. 9.1 Mechanical Advantage MA = Fo Fi Output force (N) mechanical
Input force (N)
