1. CGI Scripting and Vulnerabilities COEN 351: E-commerce Security  Thomas Schwarz, S.J. 2006

2. Setting up IIS and / or Apache COEN 351: E-commerce Security  Thomas Schwarz, S.J. 2006

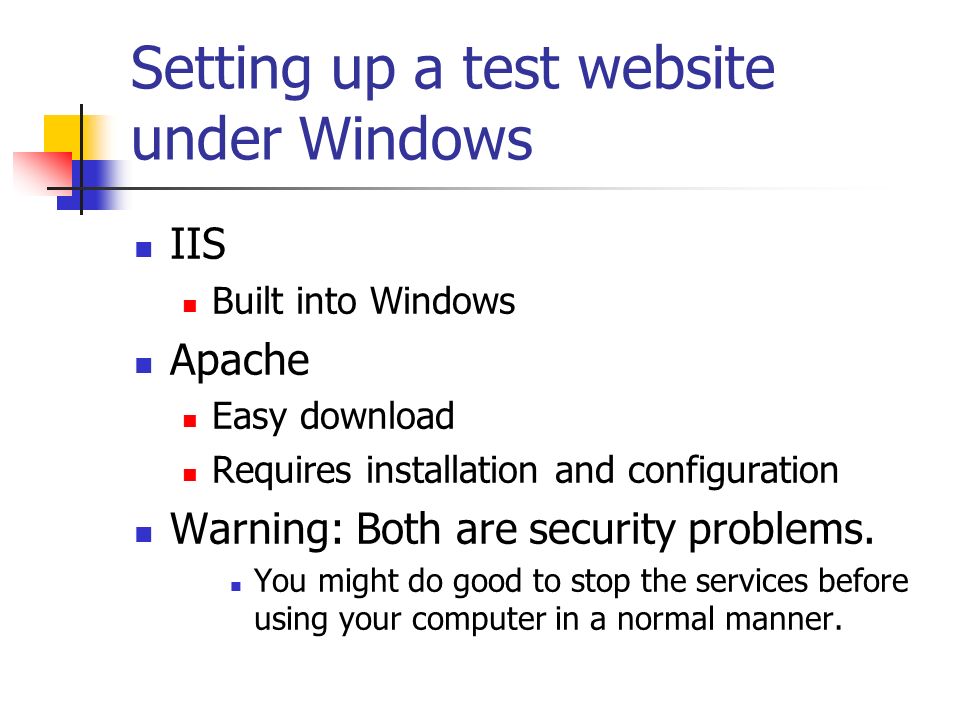

3. Setting up a test website under Windows IIS Built into Windows Apache Easy download Requires installation and configuration Warning: Both are security problems. You might do good to stop the services before using your computer in a normal manner.

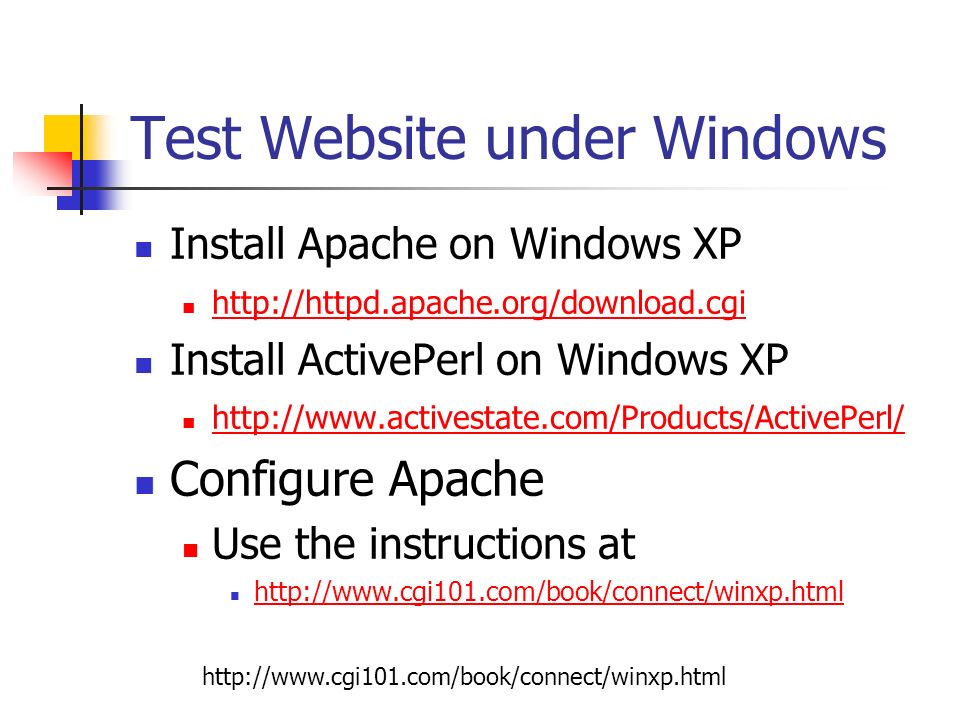

4. Test Website under Windows Install Apache on Windows XP http://httpd.apache.org/download.cgi Install ActivePerl on Windows XP http://www.activestate.com/Products/ActivePerl/ Configure Apache Use the instructions at http://www.cgi101.com/book/connect/winxp.html

5. Test Website under Windows Start the Apache web server for a quick test. You might need to disable IIS. Go to Control Panel  Administrative Tools  Services and find IIS and stop it. (You can always restart it.) Open up a command prompt and run the Apache.exe. After you are done, kill the process with Ctr+C. Then use your browser to go to localhost. If it works, you see a page. http://www.cgi101.com/book/connect/winxp.html

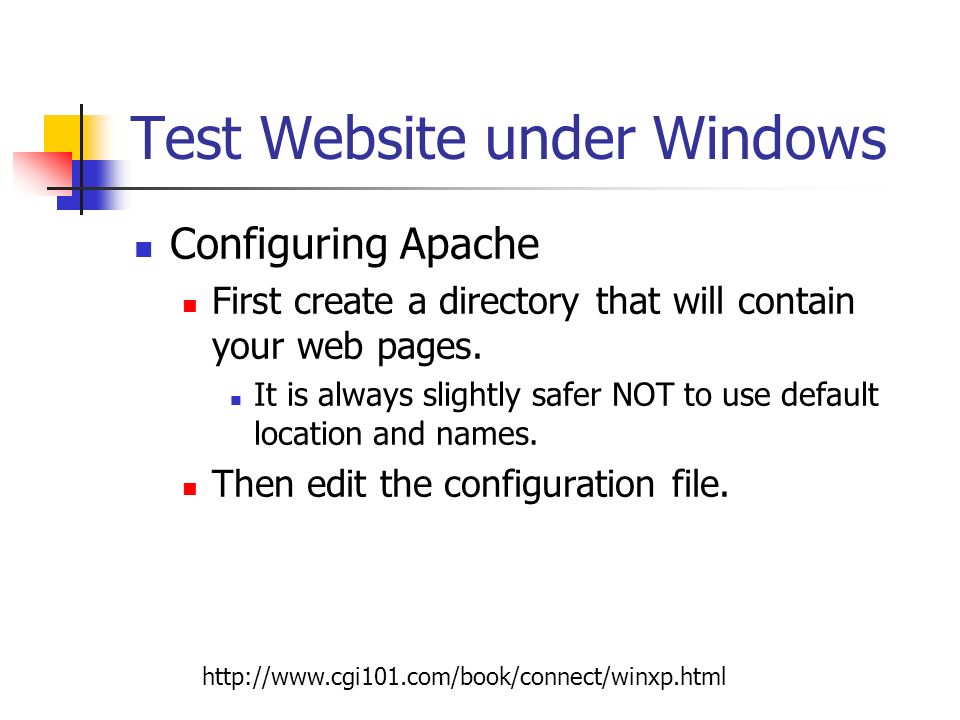

6. Test Website under Windows Configuring Apache First create a directory that will contain your web pages. It is always slightly safer NOT to use default location and names. Then edit the configuration file. http://www.cgi101.com/book/connect/winxp.html

7. Test Website under Windows Since we are creating unsafe websites, remember to stop the Apache web- server when you are connected to the internet. http://www.cgi101.com/book/connect/winxp.html

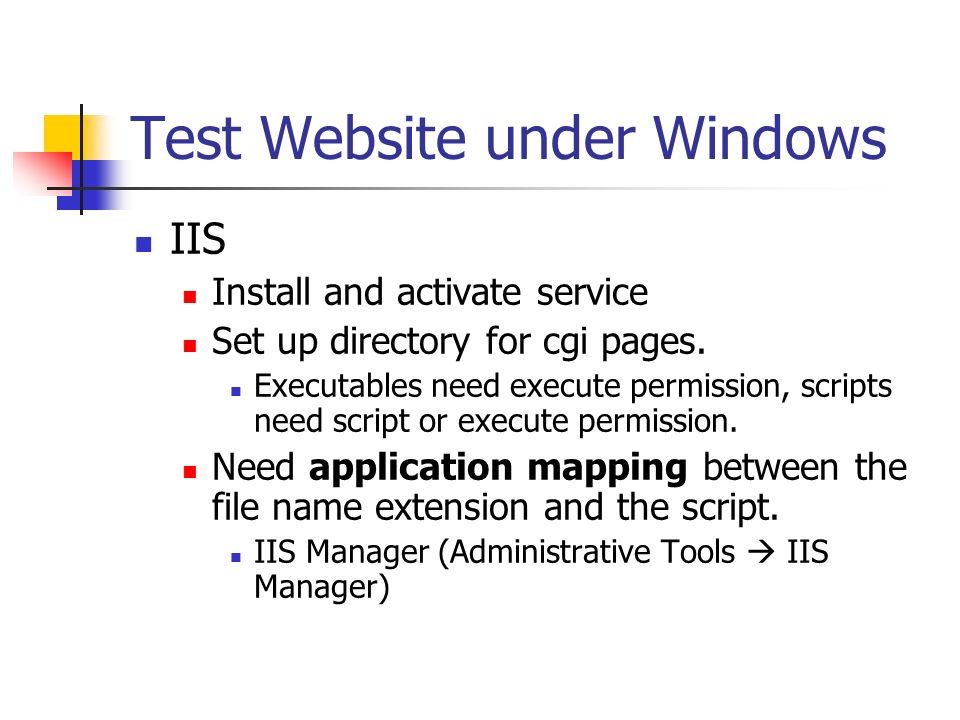

8. Test Website under Windows IIS Install and activate service Set up directory for cgi pages. Executables need execute permission, scripts need script or execute permission. Need application mapping between the file name extension and the script. IIS Manager (Administrative Tools  IIS Manager)

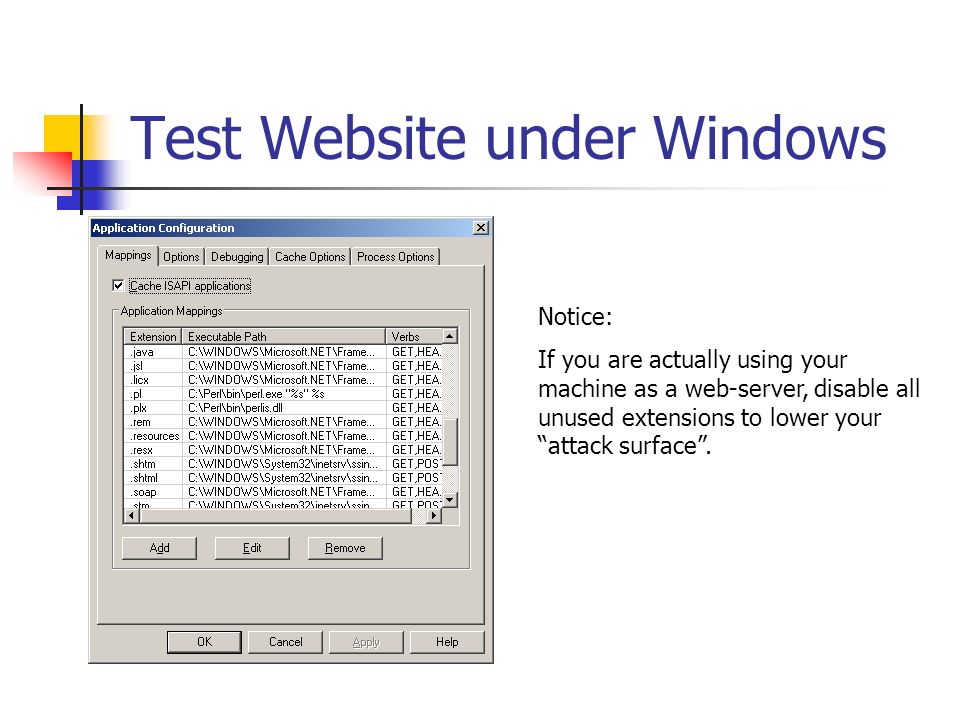

9. Test Website under Windows Notice: If you are actually using your machine as a web-server, disable all unused extensions to lower your “attack surface”.

10. Test Website under Windows Do not start Perl scripts with the shebang: #!perl/bin/perl Instead print "HTTP/1.0 200 OK\n"; print "Content-type: text/html\n\n"; If you run a web-site, you need to take a number of precautions: Use NTFS security attributes / user accounts to restrict access. Place web-site on a different partition. Do not use default sites. Remove examples. Patch automatically. …

11. CGI with Perl Fundamentals You are now ready to create a webpage in your home directory index.html Next step is to try a cgi script. #!/perl/bin/perl -wT print "Content-type: text/html\n\n"; print " Hi \n"; Path to the perl executable. Different from UNIX!

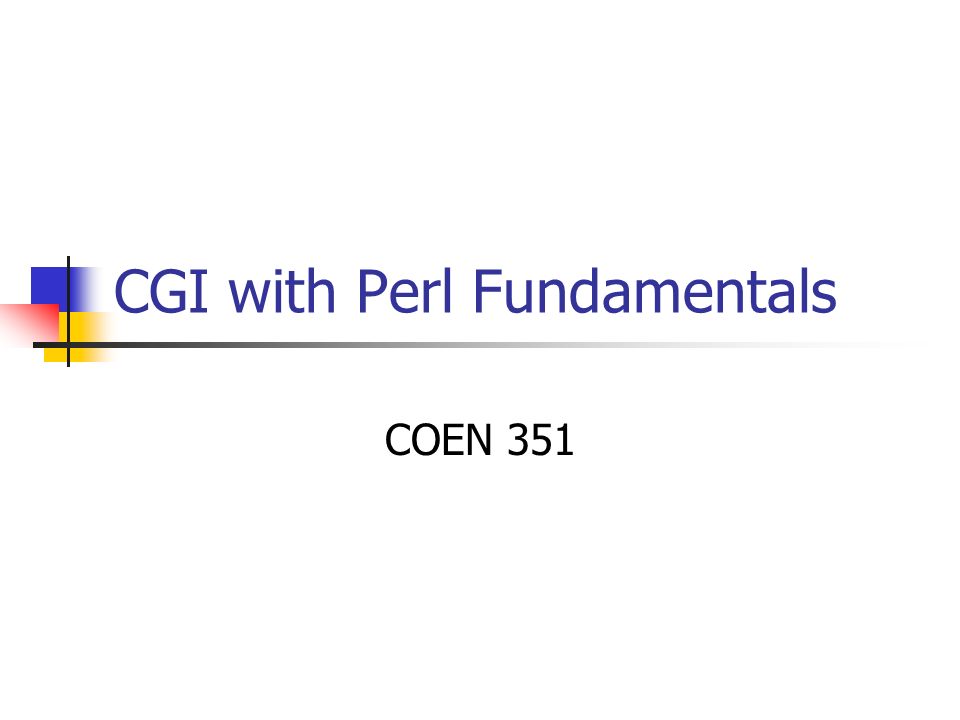

12. CGI with Perl Fundamentals COEN 351

13. CGI with Perl Fundamentals Webserver passes information to the CGI script via environmental variables. %ENV hash CGI scripts produce output by printing an HTTP message on STDOUT CGI scripts need to put out an HTTP header, but it does not have to be a full one.

14. CGI with Perl Fundamentals Perl has three standard file handles. STDIN Webservers passes request (with the header removed) to the cgi script. If there is post data, it will be available for reading from STDIN. There is no end-of-file marker, so read the content-length header to decide when you read the end-of-input, otherwise the script will hang. STDOUT Perl writes HTTP header and body through STDOUT. Different webservers have different buffering policies. STDERR Perl can send error messages to STDERR. However, webservers differ in how they treat the output. Apache puts STDERR output into the log. iPlanet puts STDERR into the HTTP, but probably out of order, because STDERR traffic is not buffered.

15. CGI with Perl Fundamentals You are now ready to create a webpage in your home directory index.html Next step is to try a cgi script. #!/perl/bin/perl -wT print "Content-type: text/html\n\n"; print " Hi \n"; Path to the perl executable. Different from UNIX!

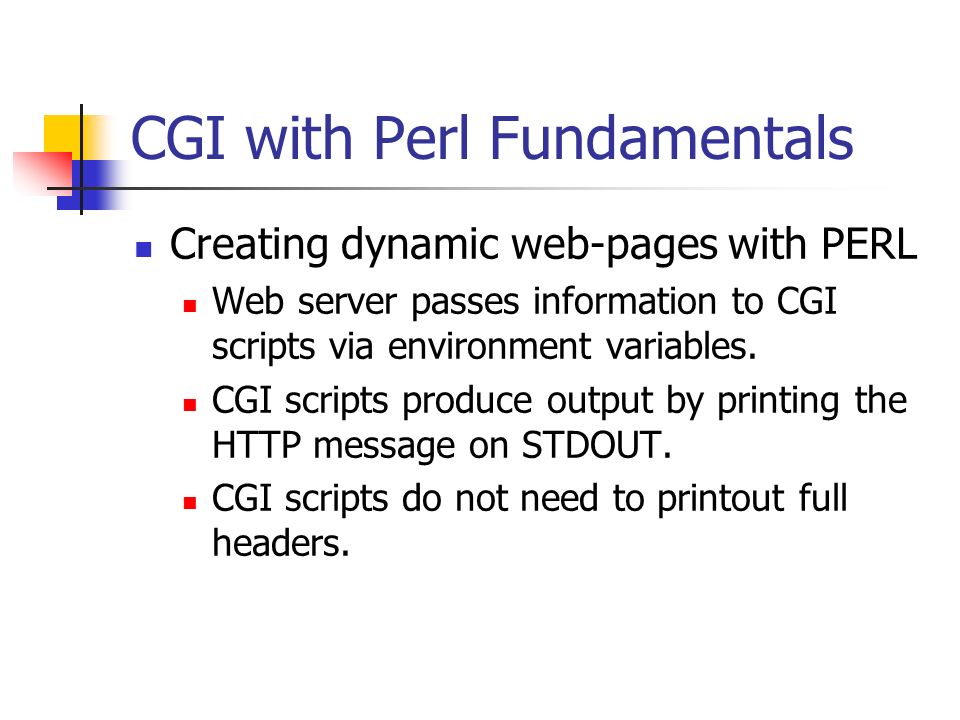

16. CGI with Perl Fundamentals Creating dynamic web-pages with PERL Web server passes information to CGI scripts via environment variables. CGI scripts produce output by printing the HTTP message on STDOUT. CGI scripts do not need to printout full headers.

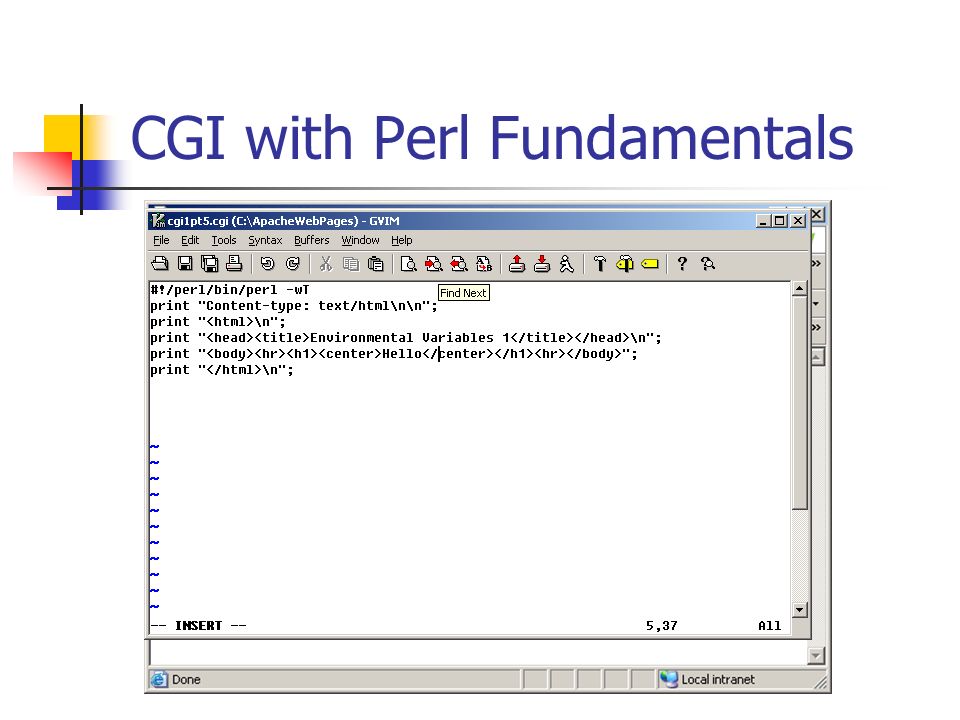

17. CGI with Perl Fundamentals

18. This script uses only a simple header. Notice the double lines in the first print statement. This generates a basic HTTP message. HTTP requests:

19. CGI with Perl Fundamentals The minimum requirement for a static website are: The “Content-Type” line. The document itself. Need to include the she-bang line. Use taint mode as a generic precaution. Use the CGI::Carp Perl module Perl has a handy short-cut to print out many lines of text.

20. CGI with Perl Fundamentals #! /perl/bin/perl -wT use CGI::Carp qw(warningsToBrowser fatalsToBrowser); print <<EHTML; Content-type: text/html Environmental Variables Hi Server $ENV{SERVER_NAME} Listening port $ENV{SERVER_PORT} Server software $ENV{SERVER_SOFTWARE} Server protocol $ENV{SERVER_PROTOCOL} CGI version $ENV{GATEWAY_INTERFACE} EHTML Shebang with path to Perl Sends diagnostic messages to the browser. Remove before posting it. This allows you to just type in code instead of using individual print statements. The closing EHTML (or whatever token you choose) needs to be in the first position in the line and followed by an empty line. Environmental variables

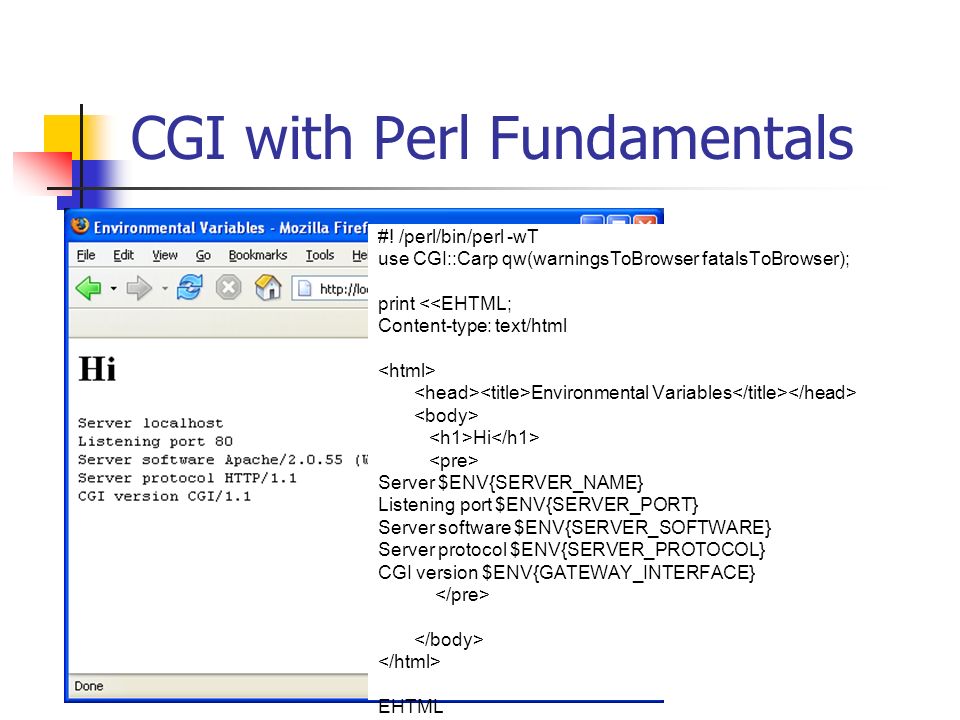

21. CGI with Perl Fundamentals #! /perl/bin/perl -wT use CGI::Carp qw(warningsToBrowser fatalsToBrowser); print <<EHTML; Content-type: text/html Environmental Variables Hi Server $ENV{SERVER_NAME} Listening port $ENV{SERVER_PORT} Server software $ENV{SERVER_SOFTWARE} Server protocol $ENV{SERVER_PROTOCOL} CGI version $ENV{GATEWAY_INTERFACE} EHTML

22. CGI with Perl Fundamentals Environmental Variables AUTH_TYPE CONTENT_LENGTH CONTENT_TYPE DOCUMENT_ROOT GATEWAY_INTERFACE PATH_INFO PATH_TRANSLATED

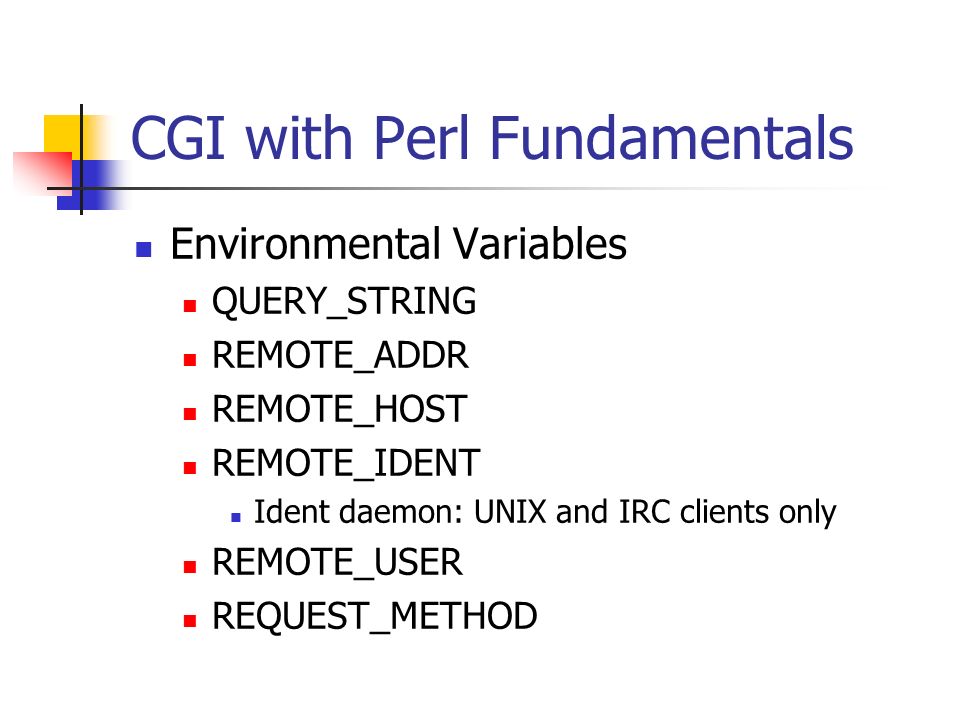

23. CGI with Perl Fundamentals Environmental Variables QUERY_STRING REMOTE_ADDR REMOTE_HOST REMOTE_IDENT Ident daemon: UNIX and IRC clients only REMOTE_USER REQUEST_METHOD

24. CGI with Perl Fundamentals Environmental Variables SCRIPT_NAME SERVER_NAME SERVER_PROTOCOL SERVER_SOFTWARE

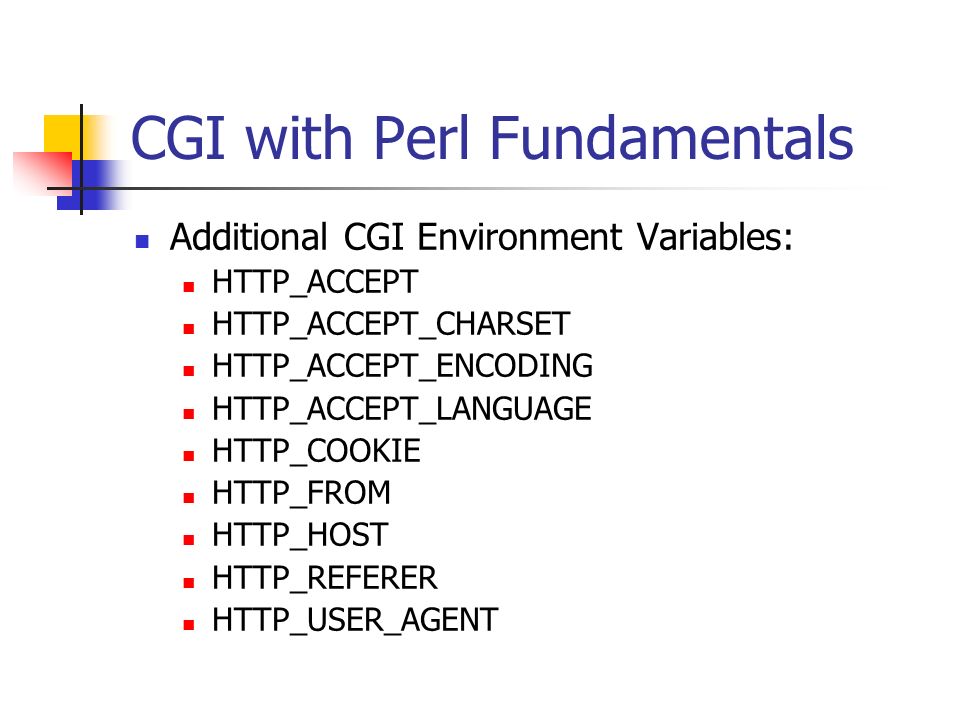

25. CGI with Perl Fundamentals Additional CGI Environment Variables: HTTP_ACCEPT HTTP_ACCEPT_CHARSET HTTP_ACCEPT_ENCODING HTTP_ACCEPT_LANGUAGE HTTP_COOKIE HTTP_FROM HTTP_HOST HTTP_REFERER HTTP_USER_AGENT

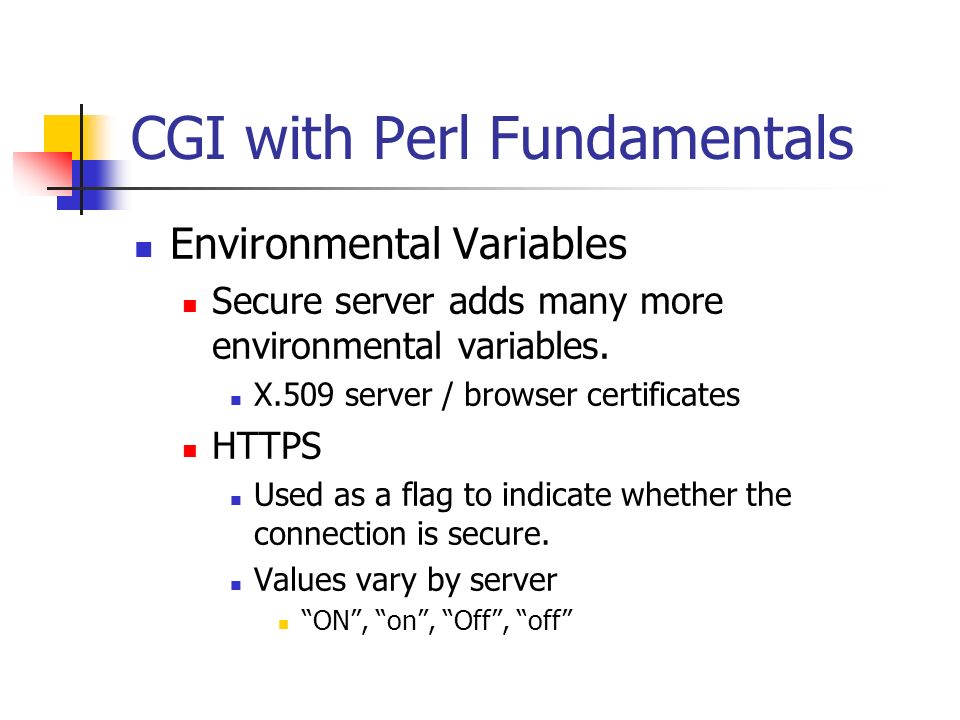

26. CGI with Perl Fundamentals Environmental Variables Secure server adds many more environmental variables. X.509 server / browser certificates HTTPS Used as a flag to indicate whether the connection is secure. Values vary by server “ON”, “on”, “Off”, “off”

27. CGI with Perl Fundamentals #!/perl/bin/perl -wT use CGI qw(:standard); use CGI::Carp qw(warningsToBrowser fatalsToBrowser); my $email = "tjschwarz\@scu.edu"; my $url = "http://www.cse.scu.edu"; print header; print start_html("Scalars"); print <<EndHTML; Hello My e-mail address is $email, and my web url is $url. EndHTML print end_html;

28. CGI with Perl Fundamentals

29. CGI can output full or partial headers. Partial headers: One of Content-type header Location header Specifies URL to redirect the client to. Status header E.g. “204 No response” Delimited by TWO new-lines

30. CGI with Perl Fundamentals

31. When using a code, remember that the HTTP status message is not displayed. Therefore, you might want to formulate your own error page.

32. CGI with Perl Fundamentals Complete Headers: Need status line. Need Content-type line Need Server header. The last two are given to you as environmental variables. Called nph (non-parsed header) scripts

33. CGI: Forms COEN 351

34. CGI: Getting Data from Client HTML provides forms as a means to gather information and send them to the server. Use either POST or GET method.

35. CGI: Getting Data from Client HTML form tags METHOD: Either GET or POST ACTION: URL of the script that should receive the HTTP request. Default is the same URL ENCTYPE: Specifies the media type used to encode the request. Default is usually adequate. onSubmit: Javascript handler.

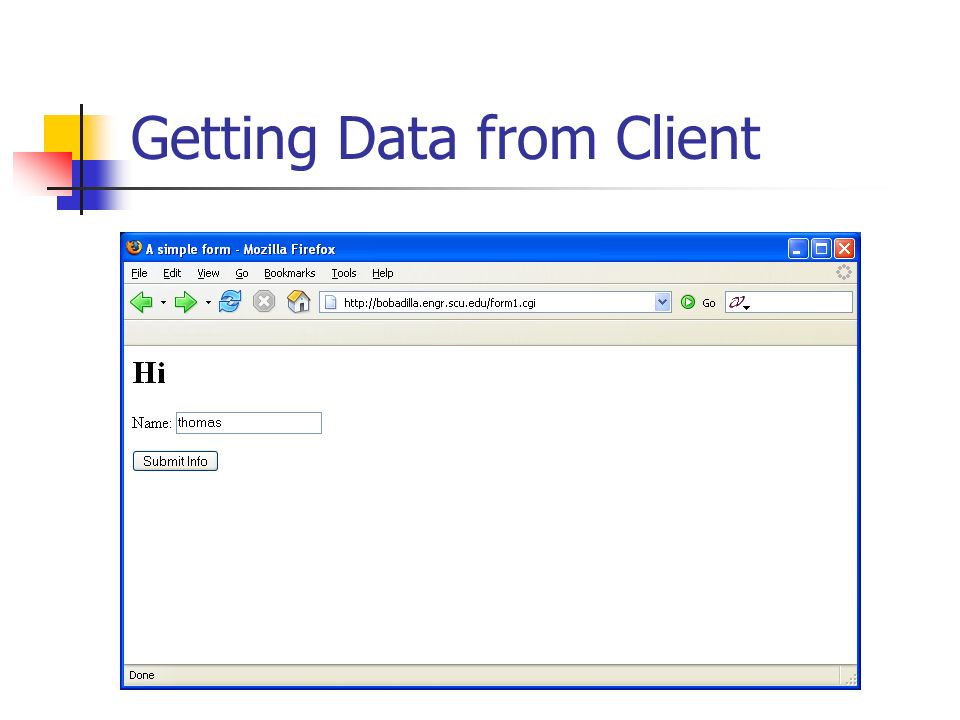

36. Getting Data from Client

38. Script register.cgi receives data. HTTP request looks like this: POST register.cgi HTTP/1.1 Host: bobadilla.engr.scu.edu Content-Length: 11 Content-Type: application/x-www-form-urlencode name=thomas

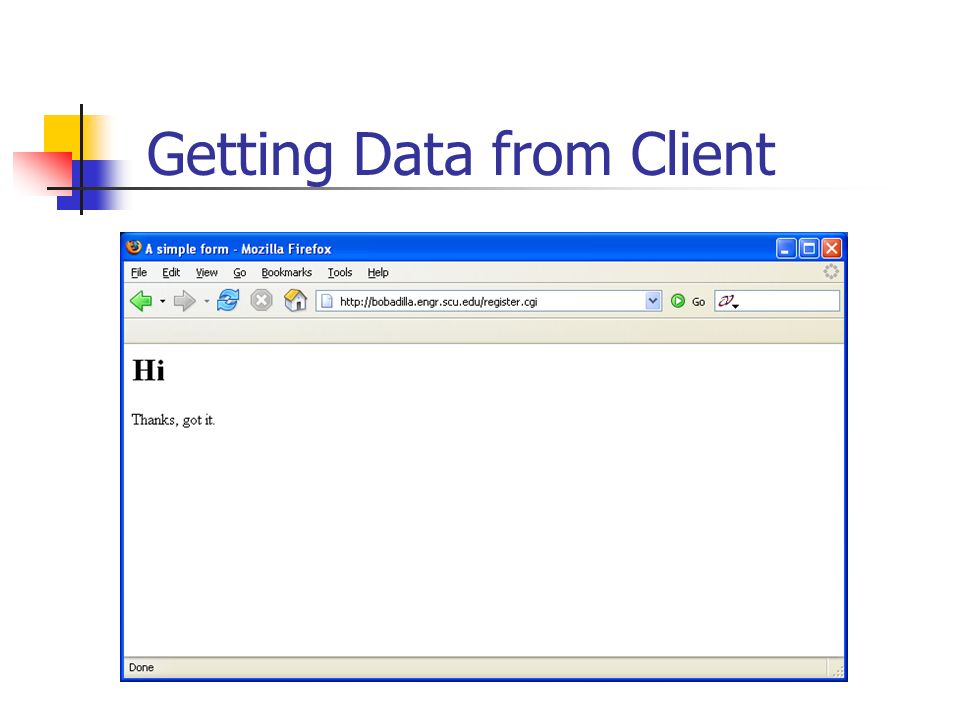

39. Getting Data from Client

41. To read the data: Read the data from the query string: $ENV{QUERY_STRING} Determine the method $ENV{REQUEST_METHOD} If the method is POST, determine the size of the request $ENV{CONTENT_LENGTH} Read that amount of data from STDIN Parse the data and process it. Getting Data from Client

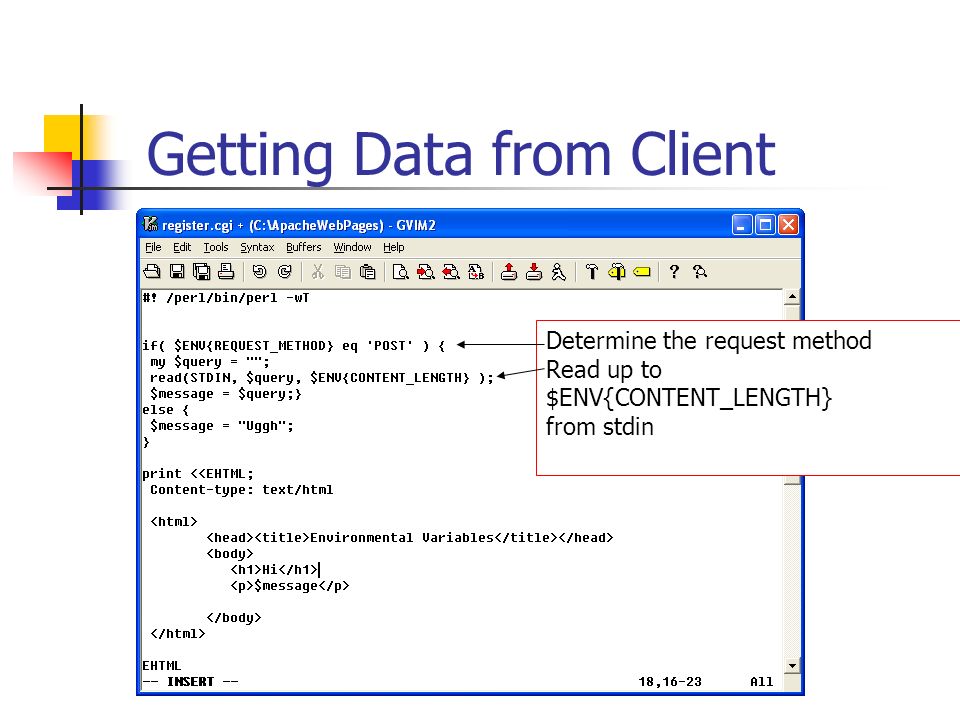

42. Determine the request method Read up to $ENV{CONTENT_LENGTH} from stdin

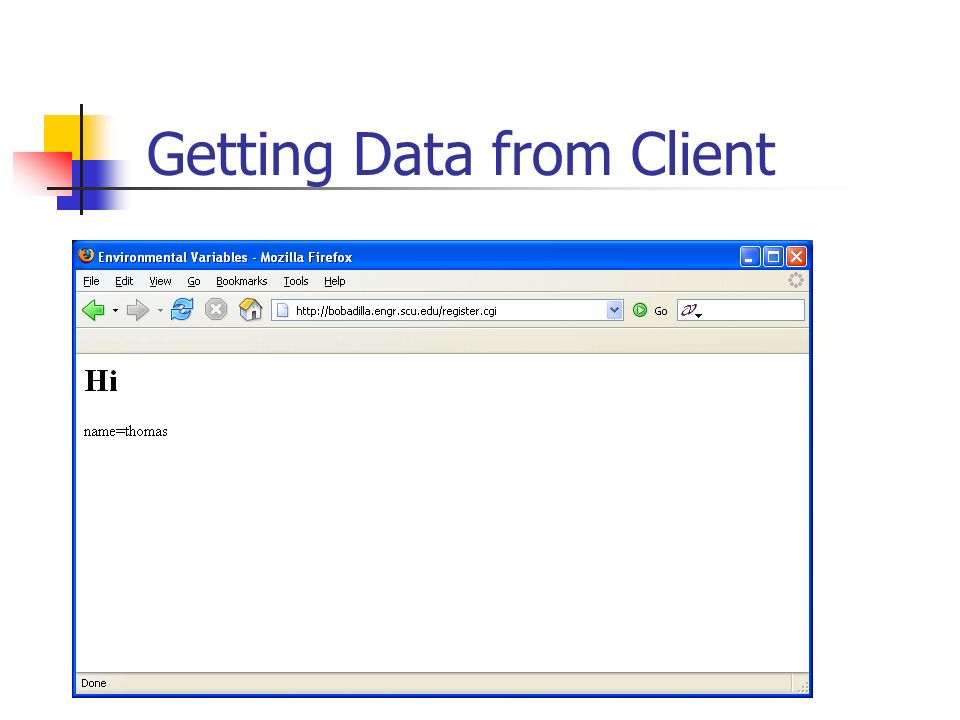

43. Getting Data from Client

45. In principle, you can write a perl parse function that will parse the input and give it to you in nice value-pair form. In reality, you want to use a perl module that prepares the input for you. See next week’s cgi lesson. Getting Data from Client

46. CGI: CGI.pm COEN 351

47. CGI.pm Perl Modules Pre-written code. Standard library modules. Other modules e.g. at Comprehensive Perl Archive Network. CGI.pm module Load with “use CGI qw(:standard);” Has various function names: header start_html end_html

48. CGI.pm CGI.pm handles Input Replaces environment variables with environment methods HTML output Easy handling of http headers start_html, end_html Error handling

49. CGI.pm Comes with two small vulnerabilities of the DOS type Can be fixed by setting values in CGI.pm Allows uploading arbitrarily large files. Set $DISABLE_UPLOADS = 1. Allows arbitrarily large post messages Set $POST_MAX = 102_400; #100KB max

50. CGI.pm CGI.pm module print start_html(“hello”) Prints out: hello end_html Prints out:

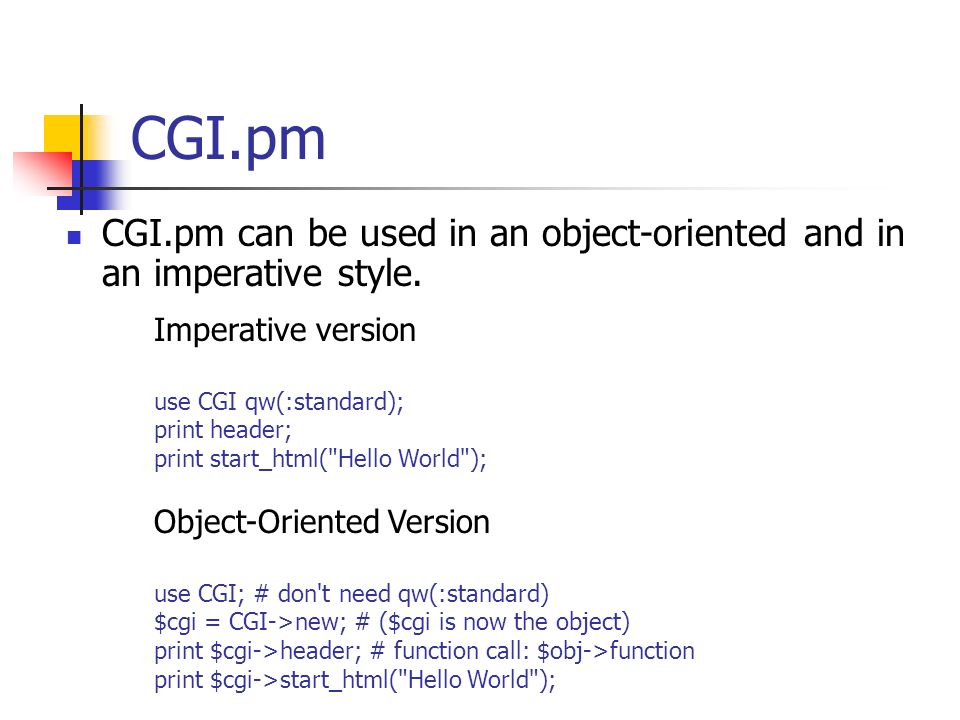

51. CGI.pm CGI.pm can be used in an object-oriented and in an imperative style. Imperative version use CGI qw(:standard); print header; print start_html("Hello World"); Object-Oriented Version use CGI; # don't need qw(:standard) $cgi = CGI->new; # ($cgi is now the object) print $cgi->header; # function call: $obj->function print $cgi->start_html("Hello World");

52. CGI.pm Input with CGI.pm Use Methods instead of Environmental Variables. content-typeCONTENT_TYPE query_stringQUERY_STRING remote_hostREMOTE_HOST server_softwareSERVER_SOFTWARE urlNot available CONTENT_LENGTH virtual_hostHTTP_HOST

53. CGI.pm Forms Allow browser to post data to server. Uses GET or POST message

54. CGI.pm Form using POST method

55. CGI.pm Form using GET method

56. CGI.pm HTTP request is POST f1.cgi HTTP/1.1 Host: localhost Content-Length: 40 Content-Type: application/x-www-form-urlencode name=Thomas+Schwarz&email=tschwarz%40scu.edu HTTP request with GET would be /f1.cgi?name=Thomas+Schwarz&email=tschwarz%40scu.edu

57. CGI.pm Using the CGI.pm module makes things much easier.

58. CGI.pm Accessing environmental variables http method Without argument: Name of the environmental variable currently available. With argument: The value of that environmental variable.

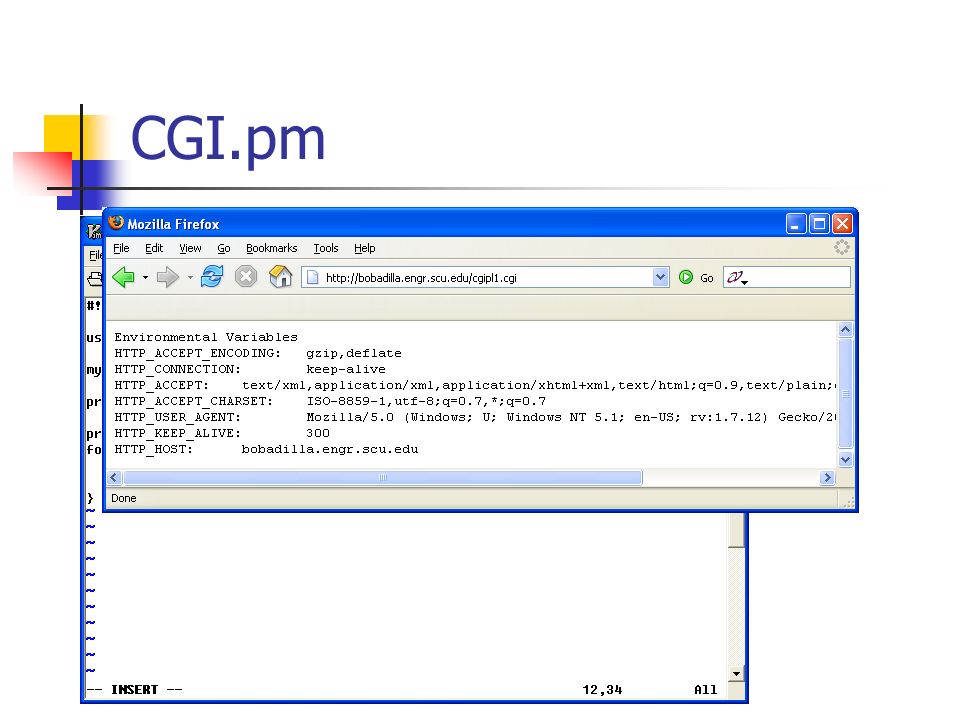

59. CGI.pm

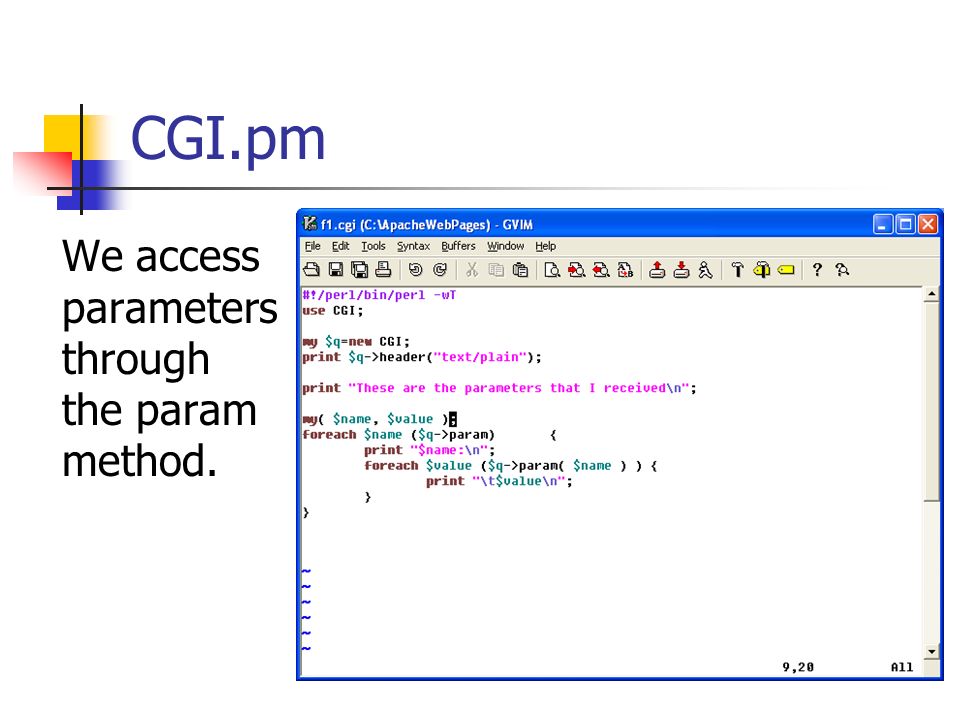

60. We access parameters through the param method.

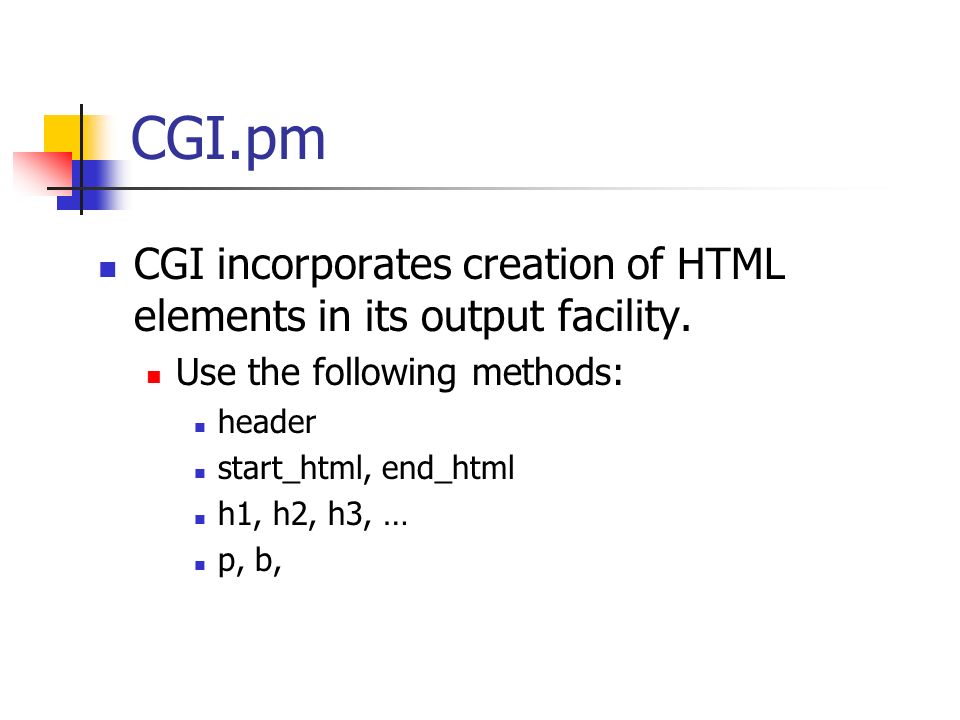

61. CGI.pm CGI incorporates creation of HTML elements in its output facility. Use the following methods: header start_html, end_html h1, h2, h3, … p, b,

62. CGI.pm my $q = new CGI; print $q->header(“text/html”); print $q->start_html( -title = “Example”); print $q->h1(“Example”); print $q->p(“An example paragraphe”); print $q->end_html;

63. CGI.pm Alternatives for output CGI methods Compact, but limited expressionability Lots of print statements Lots of typing, easy to control “here document” feature in Perl Straight html text from perl

64. CGI.pm Trapping Errors: Standard Perl construct “or die” sends output to stderr, which may or may not be sent to the client. Trapping die will work: eval { dangerous_stuff(); 1; } or do { error ($q, $@ || “Unknown Error” );

65. CGI.pm Trapping Errors Trapping die will generate difficult to read code. Use CGI::Carp Clean interface and code Quite powerful

66. CGI: Maintaining State COEN 351

67. CGI: Maintaining State HTTP is a stateless protocol. TCP connection might be closed after each request! In order to maintain state, we can use: Hidden Fields: Fat URLs Extra path information: Fat URLs Cookies

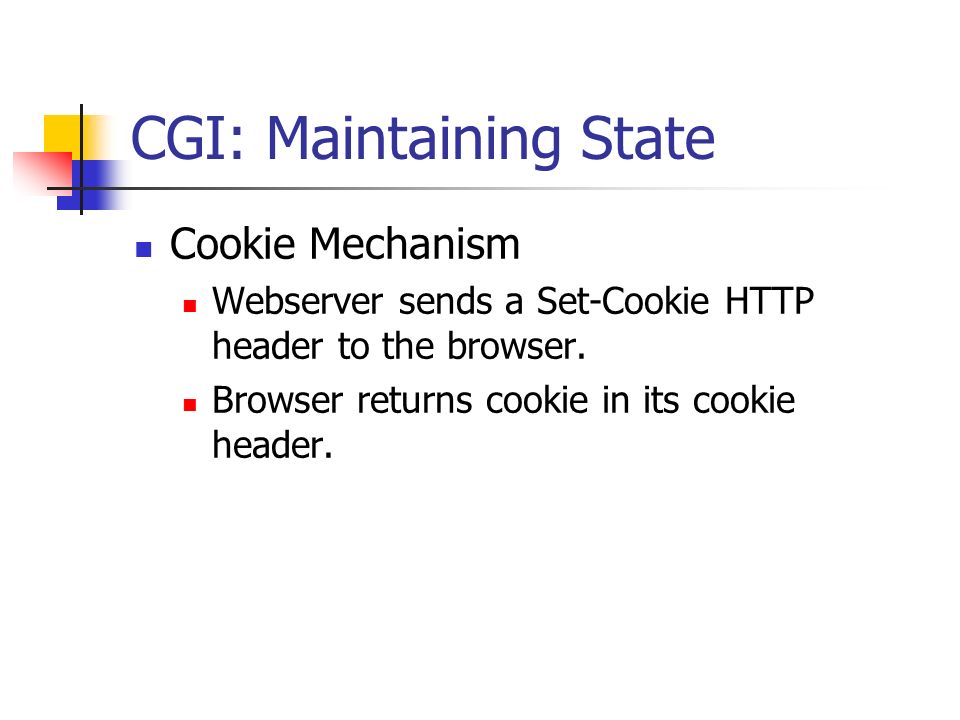

68. CGI: Maintaining State Cookie Mechanism Webserver sends a Set-Cookie HTTP header to the browser. Browser returns cookie in its cookie header.

69. CGI: Maintaining State Netscape Cookies Parameters: -name Name of cookie We can set several cookies -value -domain Browsers will only return the cookies for URLs within this domain. -expires -path -secure Browser will only return the cookie for secure URLs using https

70. CGI: Maintaining State Setting cookies: CGI.pl has a cookie constructor: CGI.pl allows you to construct headers easily: my $cookie = $q->cookie( -name => "student_id", -value => 11111, -domain => ".scu.edu", -expires => "+1y", ); print $q->header( -type => "text/html", -cookie => $cookie );

71. CGI: Maintaining State Getting cookies Available in the HTTP_COOKIE environment. Can get value directly from CGI.pl: my $cookie = $q->cookie( "student_id"); print $q->header( -type => "text/plain" ), $cookie;

72. CGI: Maintaining State
