1. Machine Learning Overview Tamara Berg Language and Vision

2. Reminders HW1 – due Feb 16 Discussion leaders for Feb 17/24 should schedule a meeting with me soon

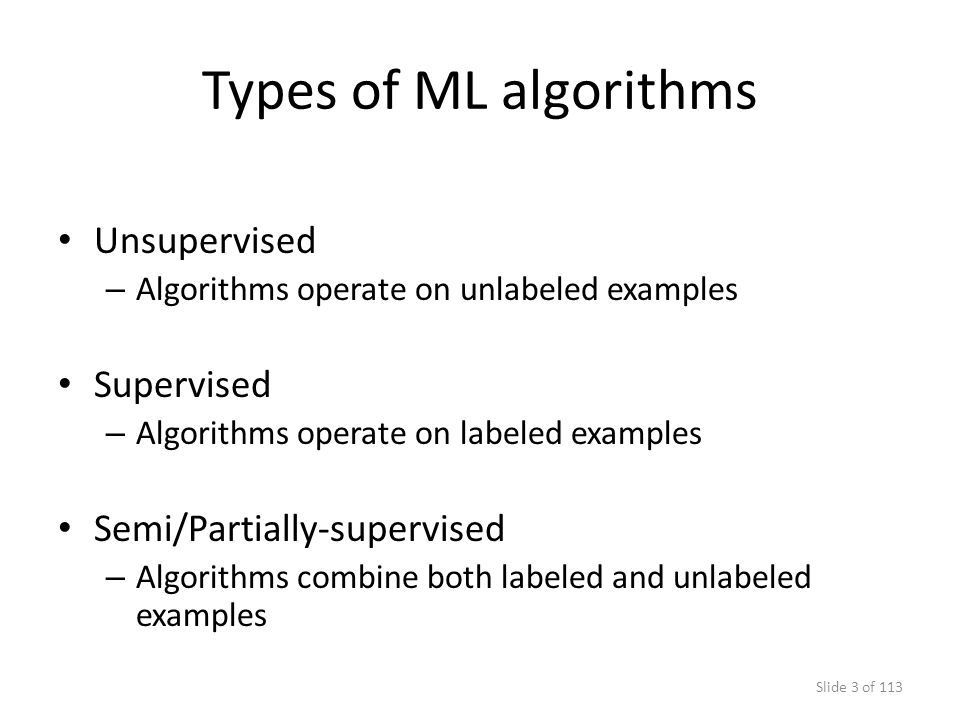

3. Types of ML algorithms Unsupervised – Algorithms operate on unlabeled examples Supervised – Algorithms operate on labeled examples Semi/Partially-supervised – Algorithms combine both labeled and unlabeled examples Slide 3 of 113

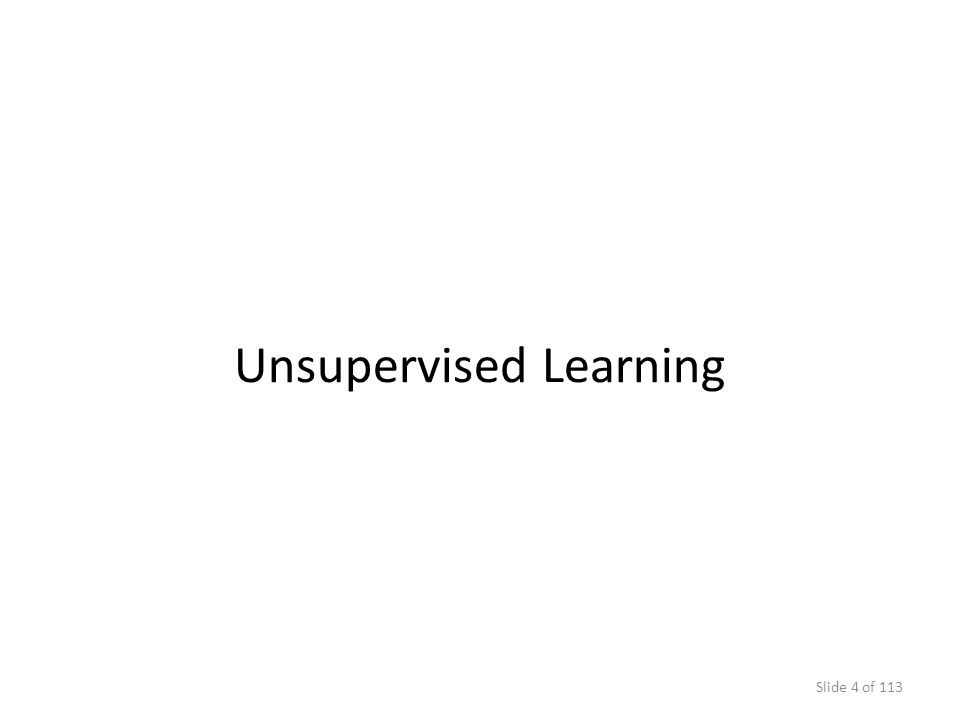

4. Unsupervised Learning Slide 4 of 113

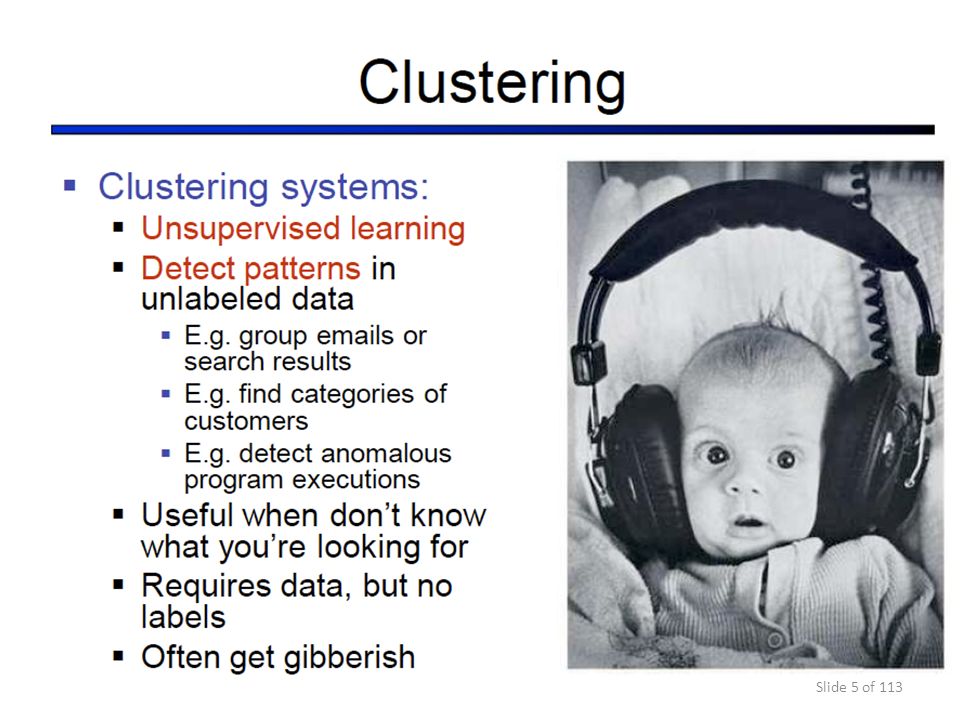

5. Slide 5 of 113

6. K-means clustering Want to minimize sum of squared Euclidean distances between points x i and their nearest cluster centers m k Algorithm: Randomly initialize K cluster centers Iterate until convergence: Assign each data point to the nearest center Recompute each cluster center as the mean of all points assigned to it source: Svetlana Lazebnik Slide 6 of 113

7. Supervised Learning Slide 7 of 113

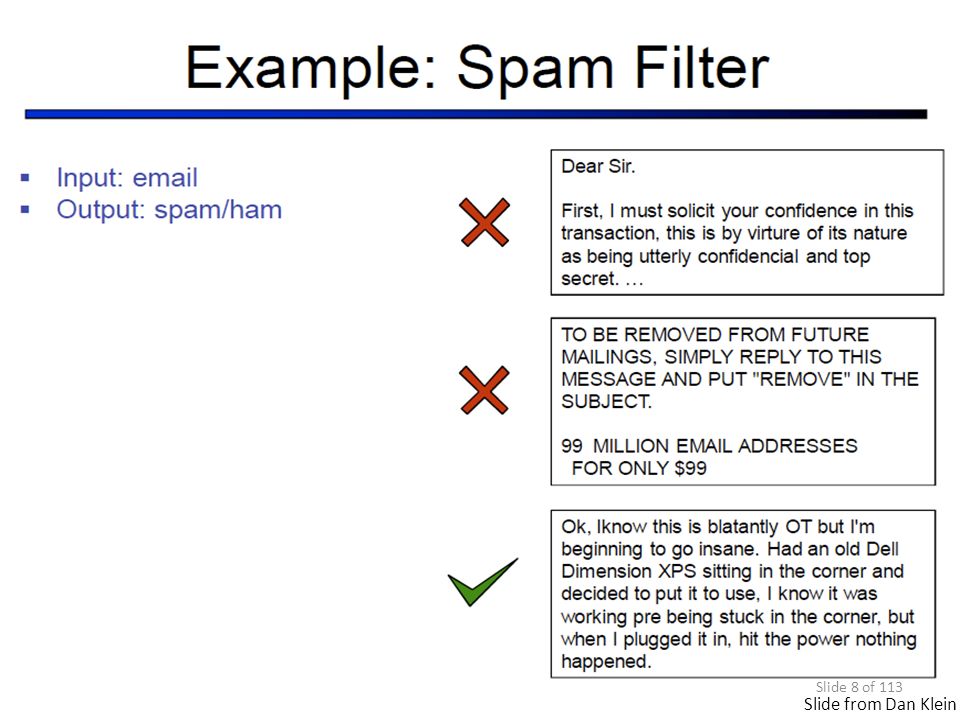

8. Slide from Dan Klein Slide 8 of 113

9. Slide from Dan Klein Slide 9 of 113

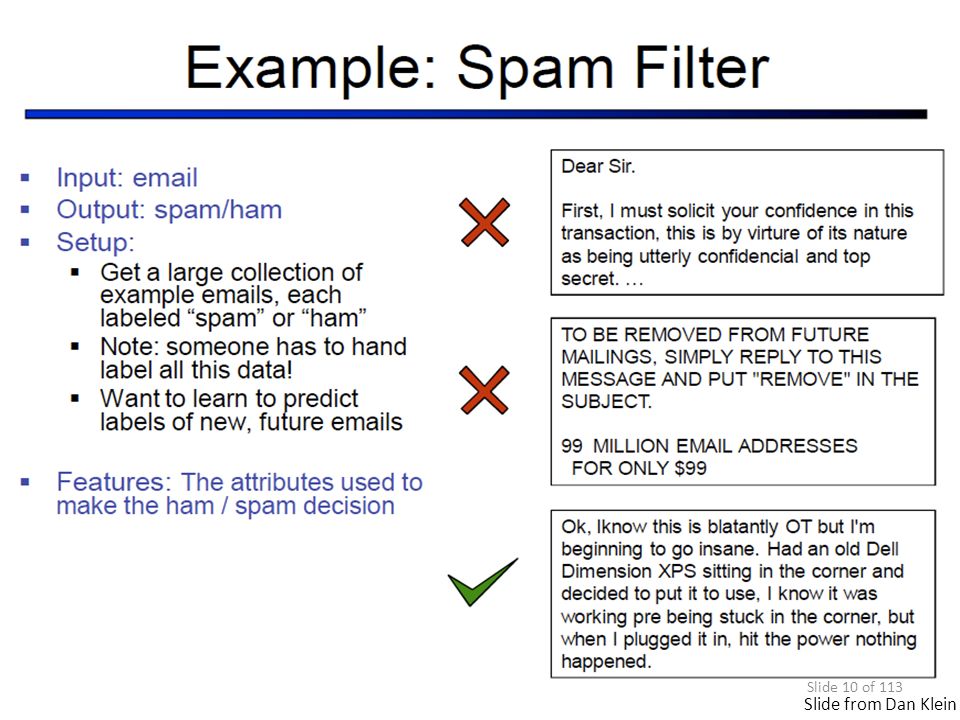

10. Slide from Dan Klein Slide 10 of 113

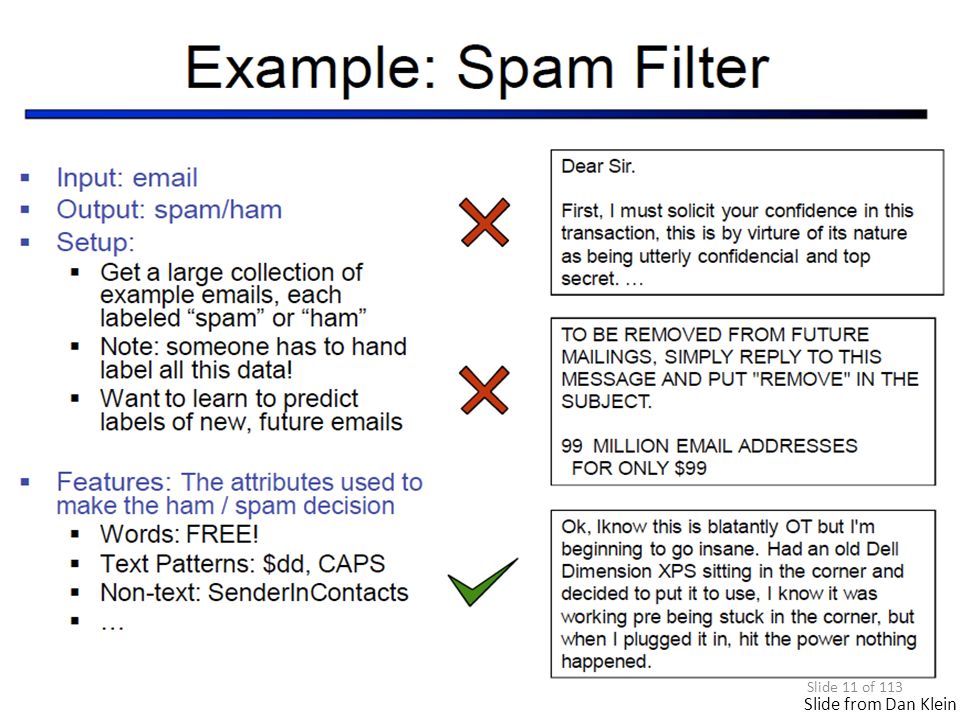

11. Slide from Dan Klein Slide 11 of 113

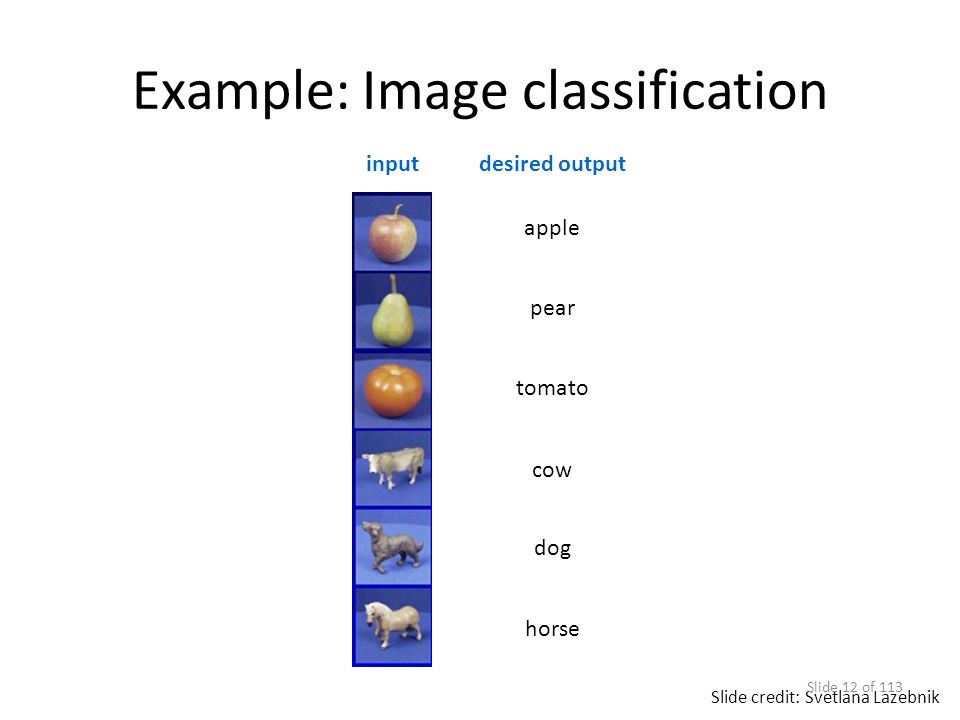

12. Example: Image classification apple pear tomato cow dog horse inputdesired output Slide credit: Svetlana Lazebnik Slide 12 of 113

13. Slide from Dan Klein http://yann.lecun.com/exdb/mnist/index.html Slide 13 of 113

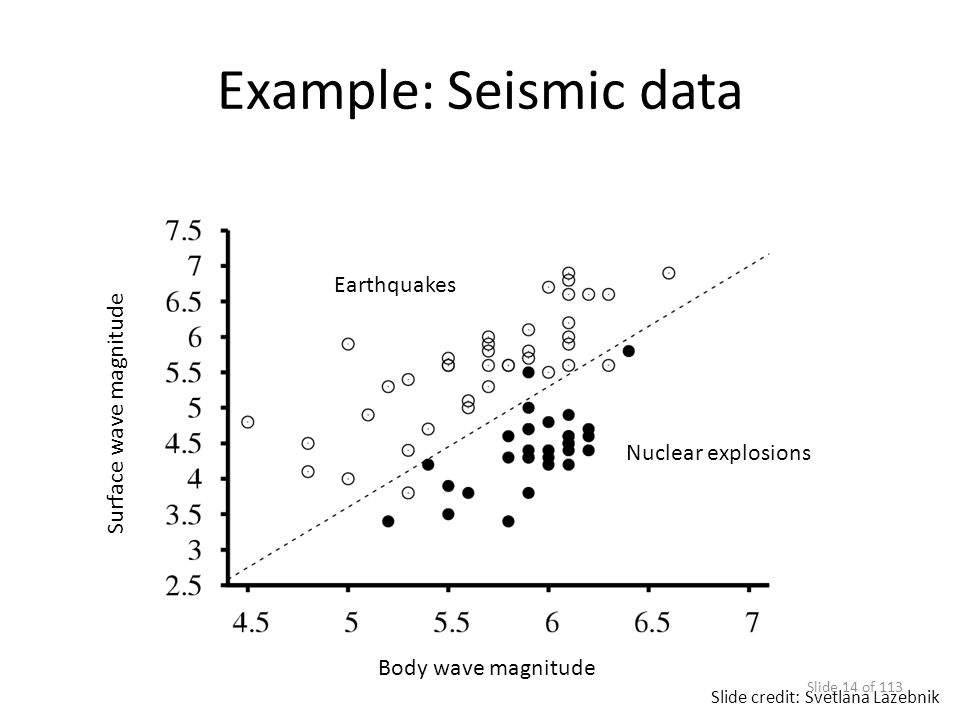

14. Example: Seismic data Body wave magnitude Surface wave magnitude Nuclear explosions Earthquakes Slide credit: Svetlana Lazebnik Slide 14 of 113

15. Slide from Dan Klein Slide 15 of 113

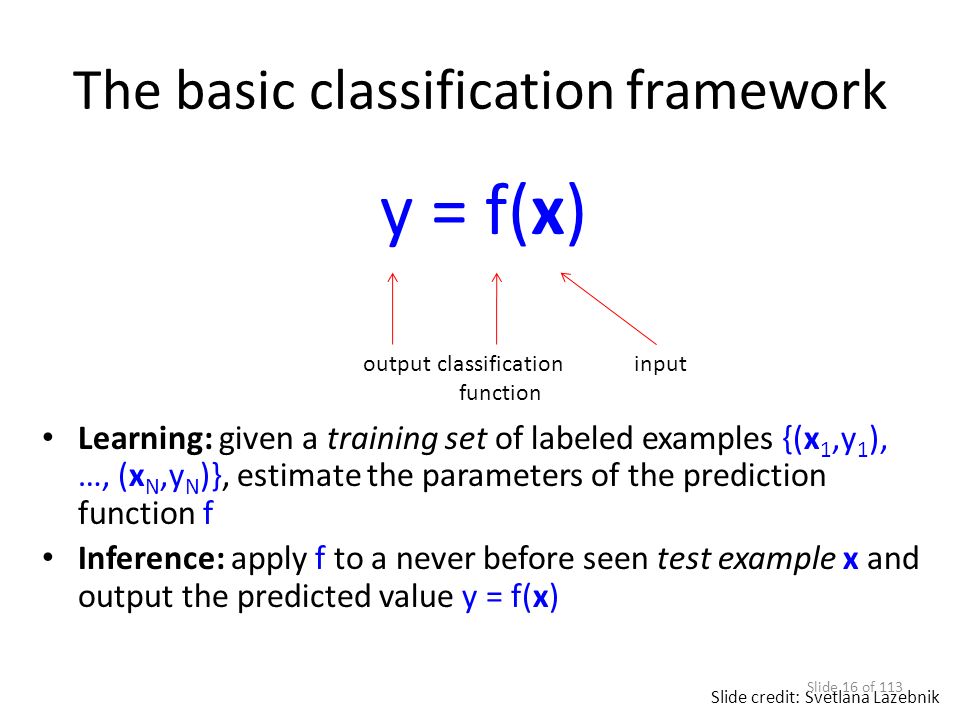

16. The basic classification framework y = f(x) Learning: given a training set of labeled examples {(x 1,y 1 ), …, (x N,y N )}, estimate the parameters of the prediction function f Inference: apply f to a never before seen test example x and output the predicted value y = f(x) outputclassification function input Slide credit: Svetlana Lazebnik Slide 16 of 113

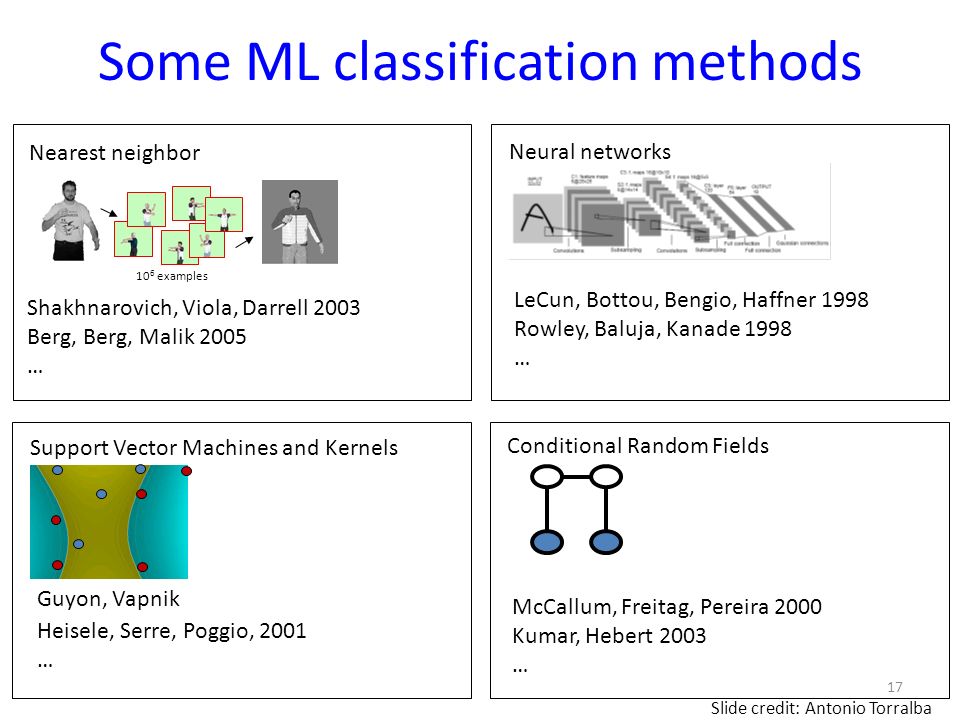

17. Some ML classification methods 10 6 examples Nearest neighbor Shakhnarovich, Viola, Darrell 2003 Berg, Berg, Malik 2005 … Neural networks LeCun, Bottou, Bengio, Haffner 1998 Rowley, Baluja, Kanade 1998 … Support Vector Machines and Kernels Conditional Random Fields McCallum, Freitag, Pereira 2000 Kumar, Hebert 2003 … Guyon, Vapnik Heisele, Serre, Poggio, 2001 … Slide credit: Antonio Torralba 17

18. Example: Training and testing Key challenge: generalization to unseen examples Training set (labels known)Test set (labels unknown) Slide credit: Svetlana Lazebnik Slide 18 of 113

19. Slide credit: Dan Klein Slide 19 of 113

20. Slide from Min-Yen Kan Classification by Nearest Neighbor Word vector document classification – here the vector space is illustrated as having 2 dimensions. How many dimensions would the data actually live in? Slide 20 of 113

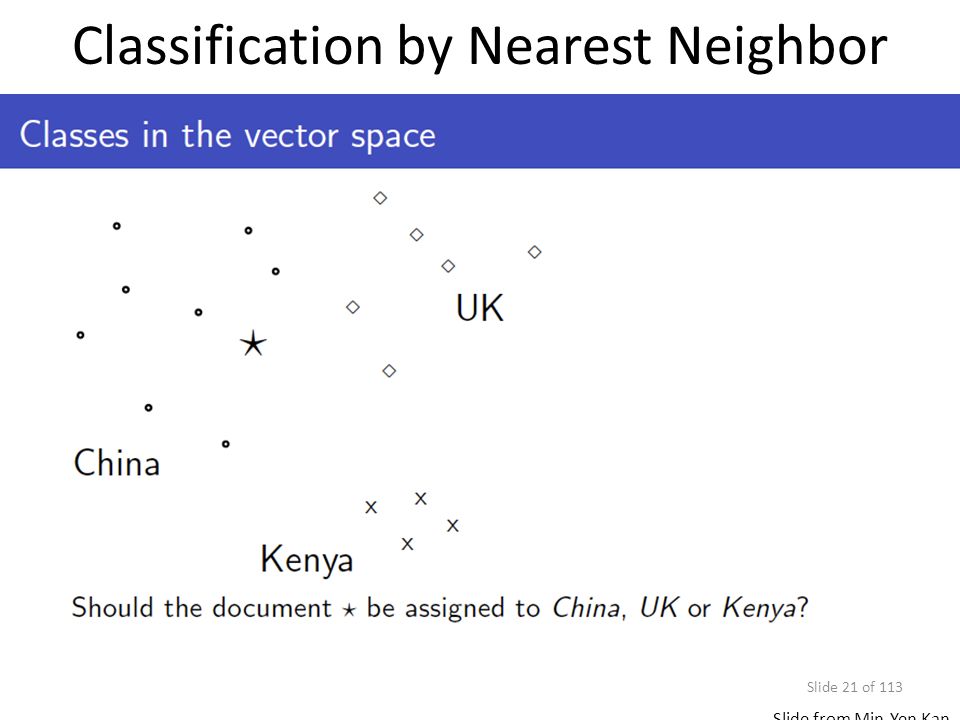

21. Slide from Min-Yen Kan Classification by Nearest Neighbor Slide 21 of 113

22. Classification by Nearest Neighbor Classify the test document as the class of the document “nearest” to the query document (use vector similarity to find most similar doc) Slide from Min-Yen Kan Slide 22 of 113

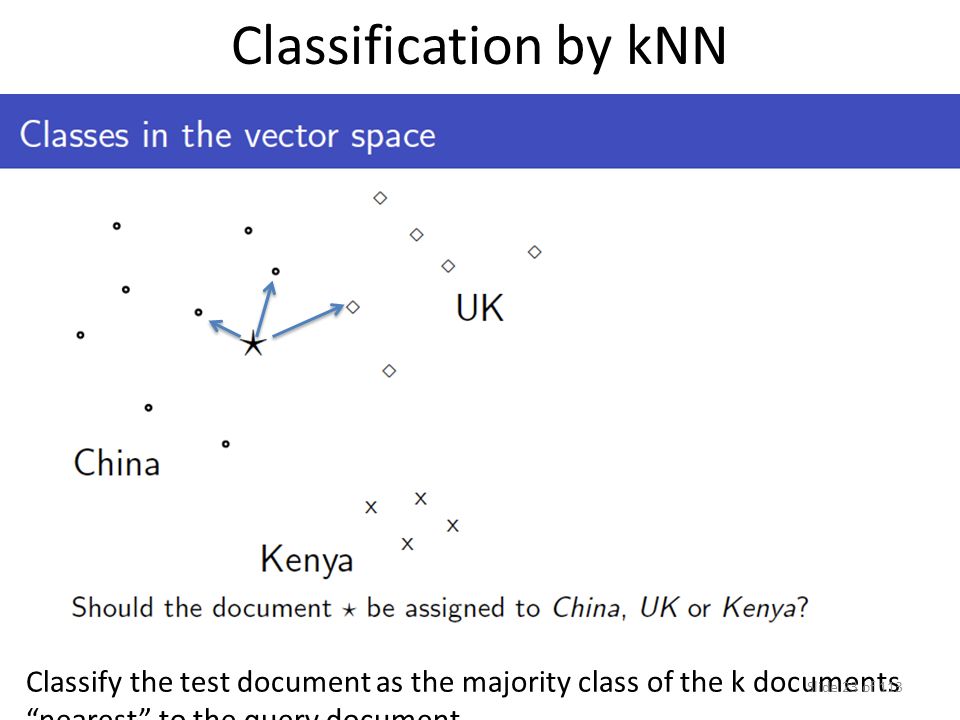

23. Classification by kNN Classify the test document as the majority class of the k documents “nearest” to the query document. Slide from Min-Yen Kan Slide 23 of 113

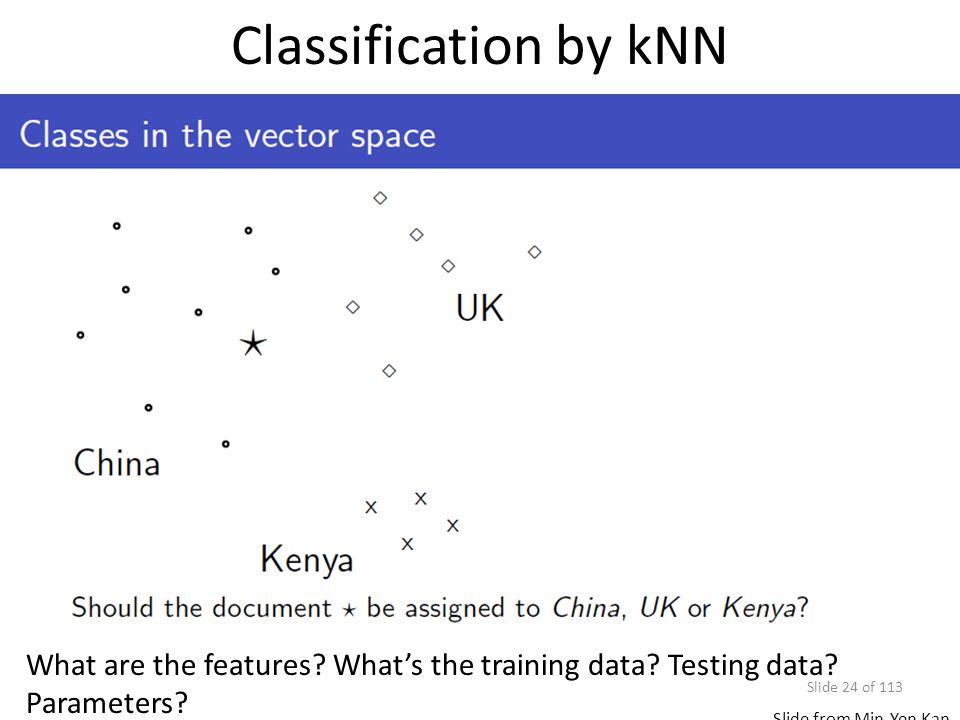

24. Slide from Min-Yen Kan What are the features? What’s the training data? Testing data? Parameters? Classification by kNN Slide 24 of 113

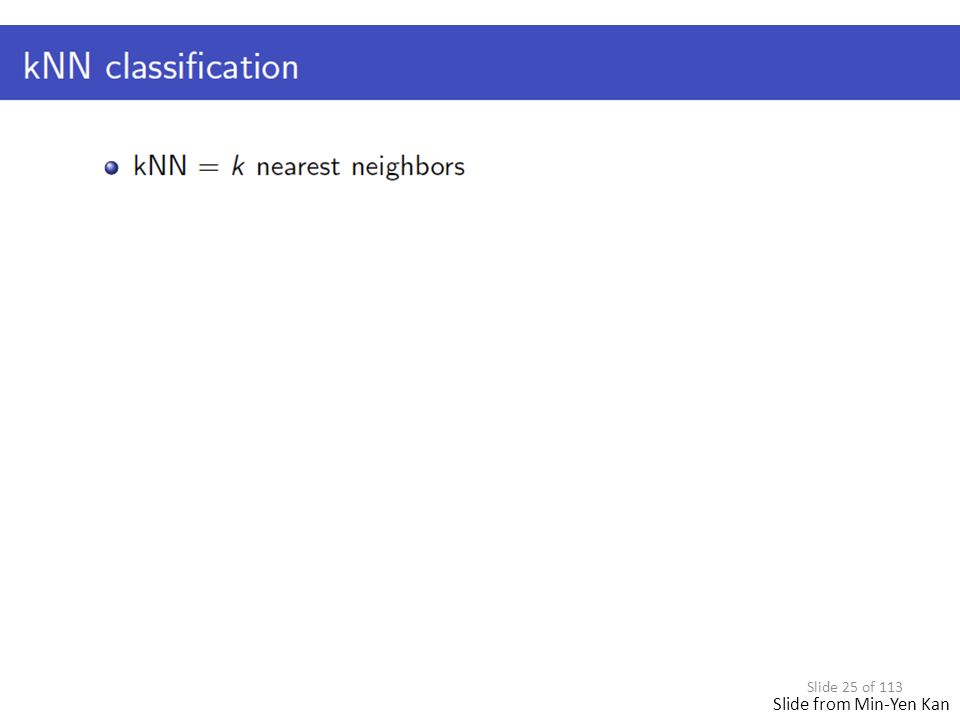

25. Slide from Min-Yen Kan Slide 25 of 113

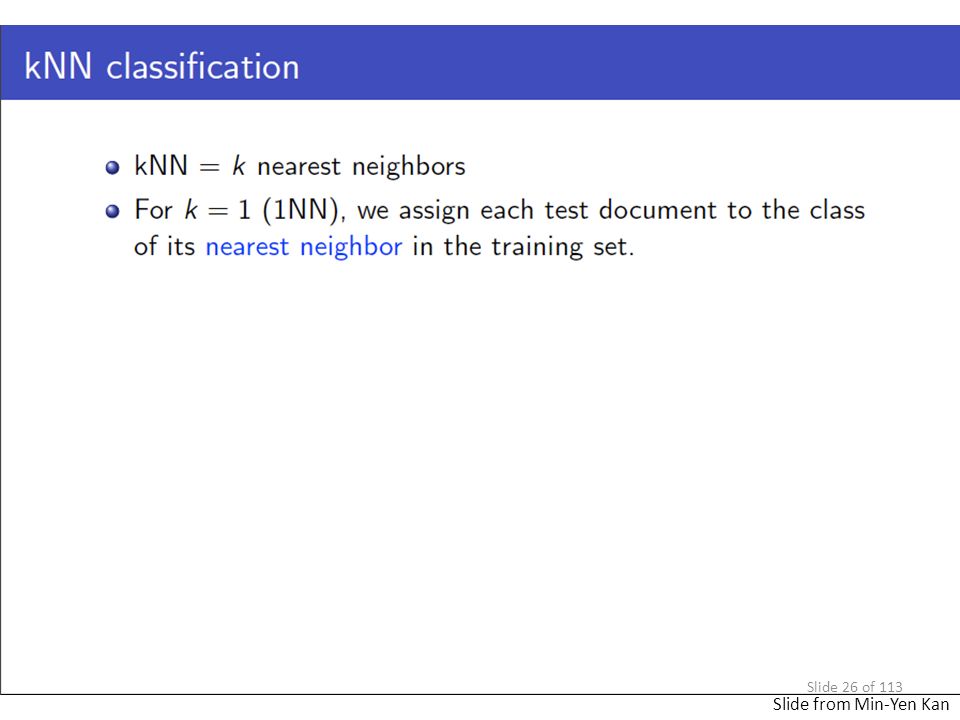

26. Slide from Min-Yen Kan Slide 26 of 113

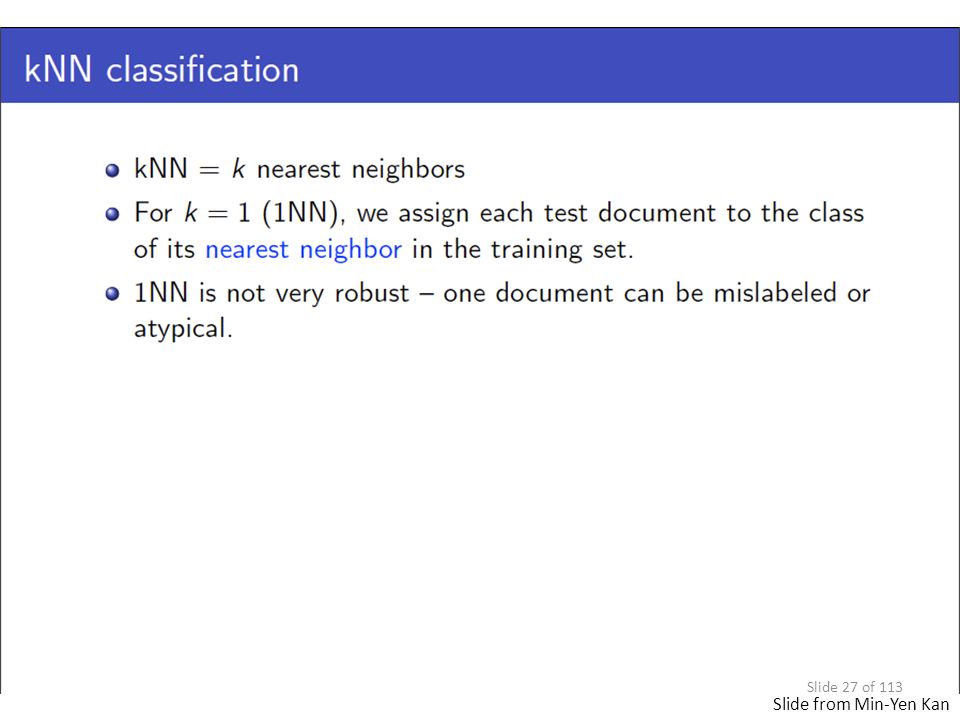

27. Slide from Min-Yen Kan Slide 27 of 113

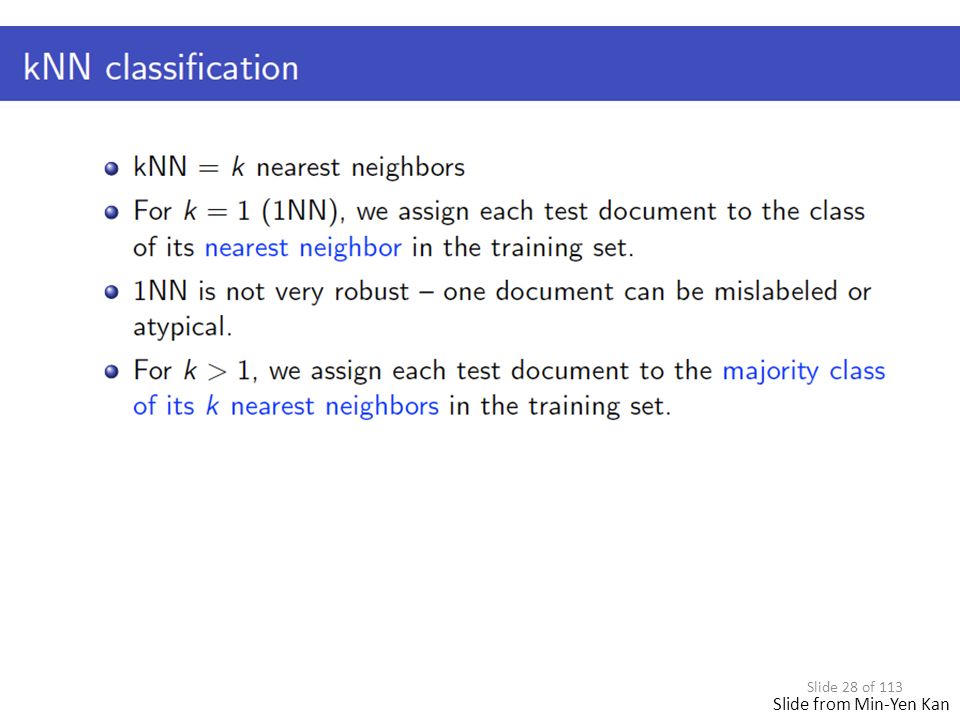

28. Slide from Min-Yen Kan Slide 28 of 113

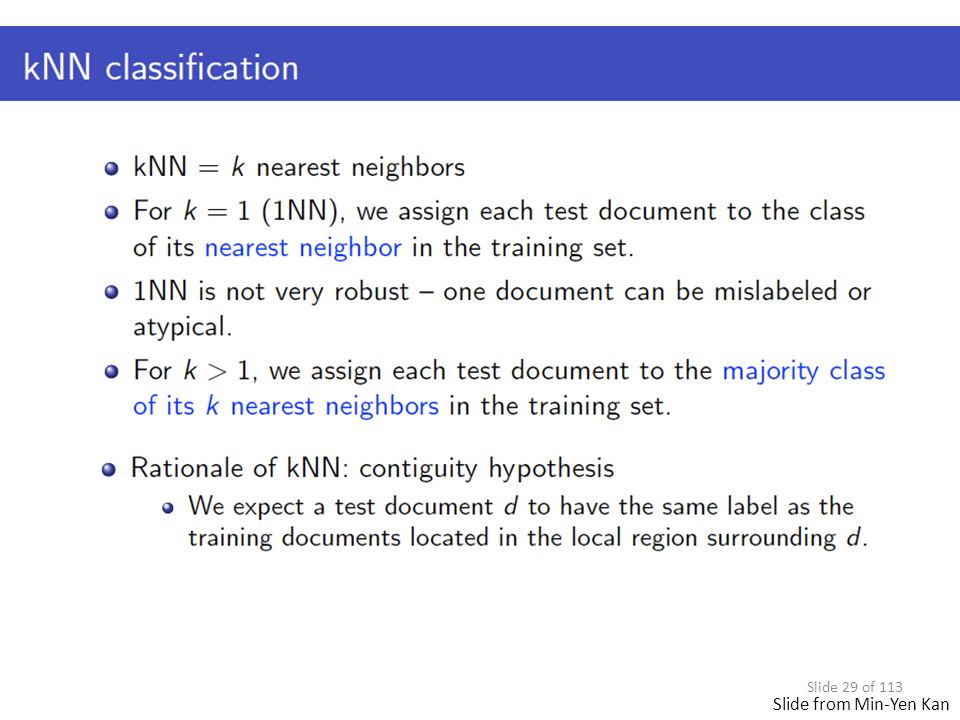

29. Slide from Min-Yen Kan Slide 29 of 113

30. Slide from Min-Yen Kan What are the features? What’s the training data? Testing data? Parameters? Classification by kNN Slide 30 of 113

31. NN for vision 31 Fast Pose Estimation with Parameter Sensitive Hashing Shakhnarovich, Viola, Darrell

32. J. Hays and A. Efros, IM2GPS: estimating geographic information from a single image, CVPR 2008 NN for vision

33. Decision tree classifier Example problem: decide whether to wait for a table at a restaurant, based on the following attributes: 1.Alternate: is there an alternative restaurant nearby? 2.Bar: is there a comfortable bar area to wait in? 3.Fri/Sat: is today Friday or Saturday? 4.Hungry: are we hungry? 5.Patrons: number of people in the restaurant (None, Some, Full) 6.Price: price range ($, $$, $$$) 7.Raining: is it raining outside? 8.Reservation: have we made a reservation? 9.Type: kind of restaurant (French, Italian, Thai, Burger) 10.WaitEstimate: estimated waiting time (0-10, 10-30, 30-60, >60) Slide credit: Svetlana Lazebnik Slide 33 of 113

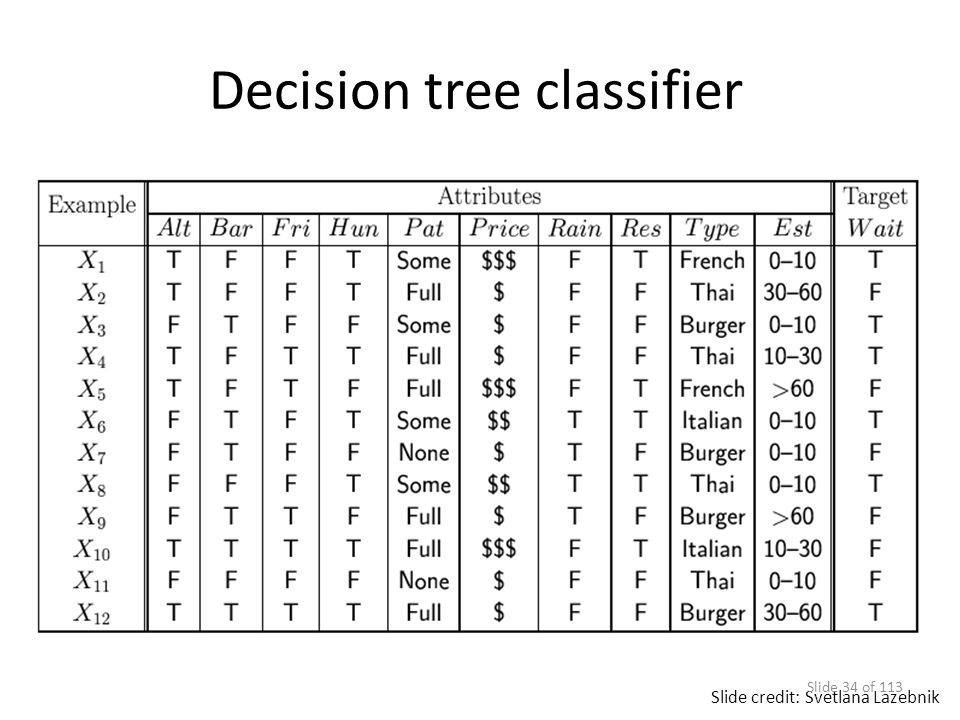

34. Decision tree classifier Slide credit: Svetlana Lazebnik Slide 34 of 113

35. Decision tree classifier Slide credit: Svetlana Lazebnik Slide 35 of 113

36. Linear classifier Find a linear function to separate the classes f(x) = sgn(w 1 x 1 + w 2 x 2 + … + w D x D ) = sgn(w  x) Slide credit: Svetlana Lazebnik Slide 36 of 113

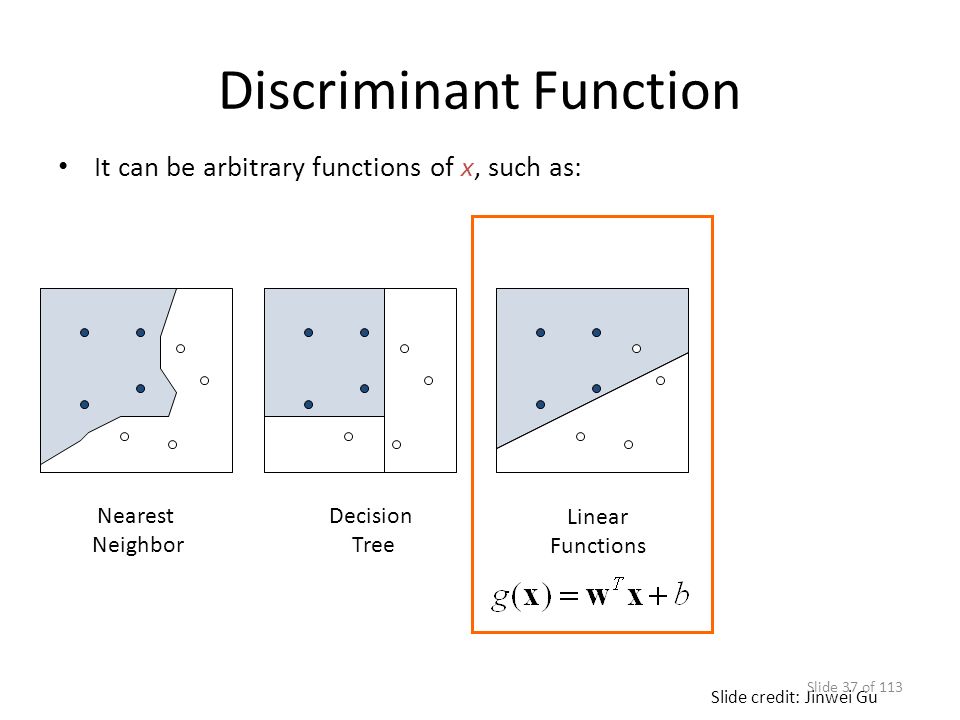

37. Discriminant Function It can be arbitrary functions of x, such as: Nearest Neighbor Decision Tree Linear Functions Slide credit: Jinwei Gu Slide 37 of 113

38. Linear Discriminant Function g(x) is a linear function: x1x1 x2x2 w T x + b = 0 w T x + b < 0 w T x + b > 0 A hyper-plane in the feature space Slide credit: Jinwei Gu denotes +1 denotes -1 x1x1 Slide 38 of 113

39. How would you classify these points using a linear discriminant function in order to minimize the error rate? Linear Discriminant Function denotes +1 denotes -1 x1x1 x2x2 Infinite number of answers! Slide credit: Jinwei Gu Slide 39 of 113

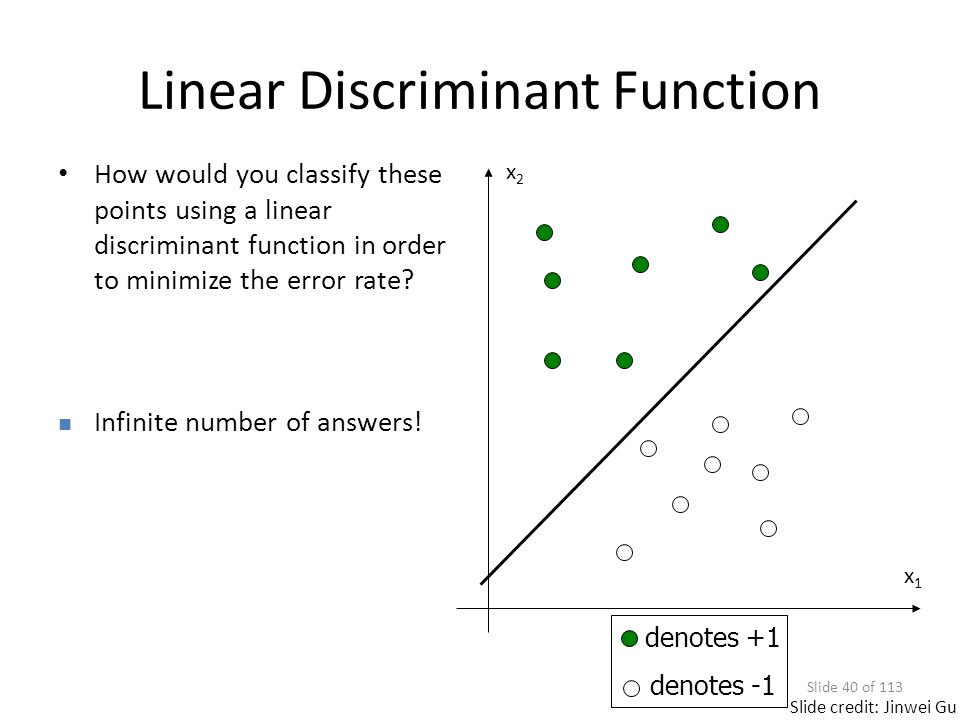

40. How would you classify these points using a linear discriminant function in order to minimize the error rate? Linear Discriminant Function x1x1 x2x2 Infinite number of answers! denotes +1 denotes -1 Slide credit: Jinwei Gu Slide 40 of 113

41. How would you classify these points using a linear discriminant function in order to minimize the error rate? Linear Discriminant Function x1x1 x2x2 Infinite number of answers! denotes +1 denotes -1 Slide credit: Jinwei Gu Slide 41 of 113

42. x1x1 x2x2 How would you classify these points using a linear discriminant function in order to minimize the error rate? Linear Discriminant Function Infinite number of answers! Which one is the best? denotes +1 denotes -1 Slide credit: Jinwei Gu Slide 42 of 113

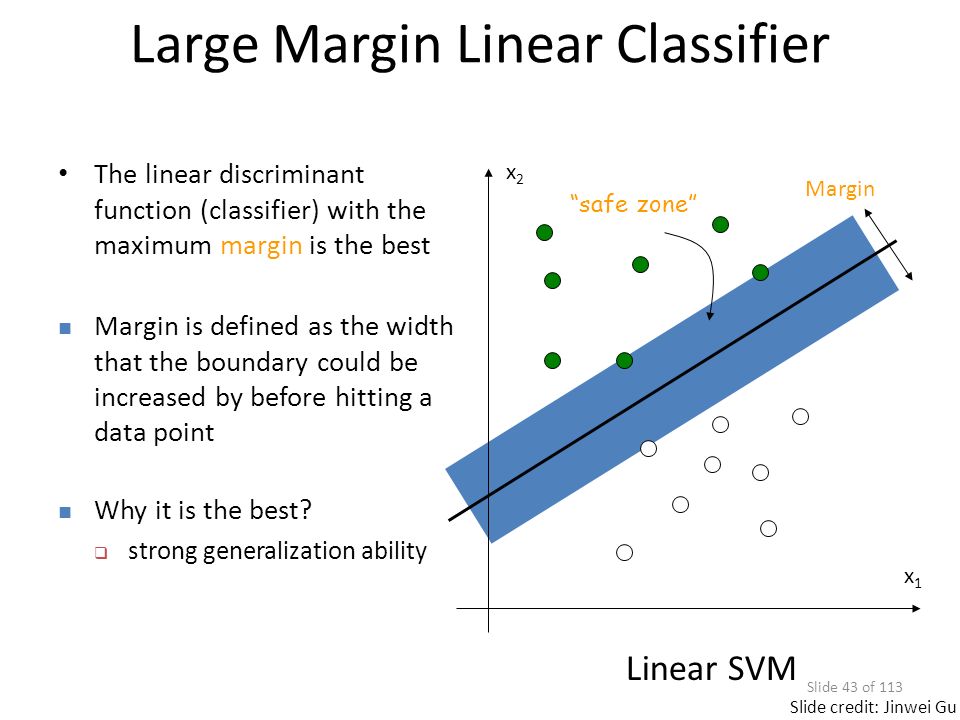

43. Large Margin Linear Classifier “safe zone” The linear discriminant function (classifier) with the maximum margin is the best Margin is defined as the width that the boundary could be increased by before hitting a data point Why it is the best?  strong generalization ability Margin x1x1 x2x2 Linear SVM Slide credit: Jinwei Gu Slide 43 of 113

44. Large Margin Linear Classifier x1x1 x2x2 Margin w T x + b = 0 w T x + b = -1 w T x + b = 1 x+x+ x+x+ x-x- Support Vectors Slide credit: Jinwei Gu Slide 44 of 113

45. A simple algorithm for learning robust classifiers – Freund & Shapire, 1995 – Friedman, Hastie, Tibshhirani, 1998 Provides efficient algorithm for sparse visual feature selection – Tieu & Viola, 2000 – Viola & Jones, 2003 Easy to implement, doesn’t require external optimization tools. Boosting Slide credit: Antonio Torralba Slide 45 of 113

46. Defines a classifier using an additive model: Boosting Strong classifier Weak classifier Weight Features vector Slide credit: Antonio Torralba Slide 46 of 113

47. Defines a classifier using an additive model: We need to define a family of weak classifiers Boosting Strong classifier Weak classifier Weight Features vector from a family of weak classifiers Slide credit: Antonio Torralba Slide 47 of 113

48. Adaboost Slide credit: Antonio Torralba Slide 48 of 113

49. Each data point has a class label: w t =1 and a weight: +1 ( ) -1 ( ) y t = Boosting It is a sequential procedure: x t=1 x t=2 xtxt Slide credit: Antonio Torralba Slide 49 of 113

50. Toy example Weak learners from the family of lines h => p(error) = 0.5 it is at chance Each data point has a class label: w t =1 and a weight: +1 ( ) -1 ( ) y t = Slide credit: Antonio Torralba Slide 50 of 113

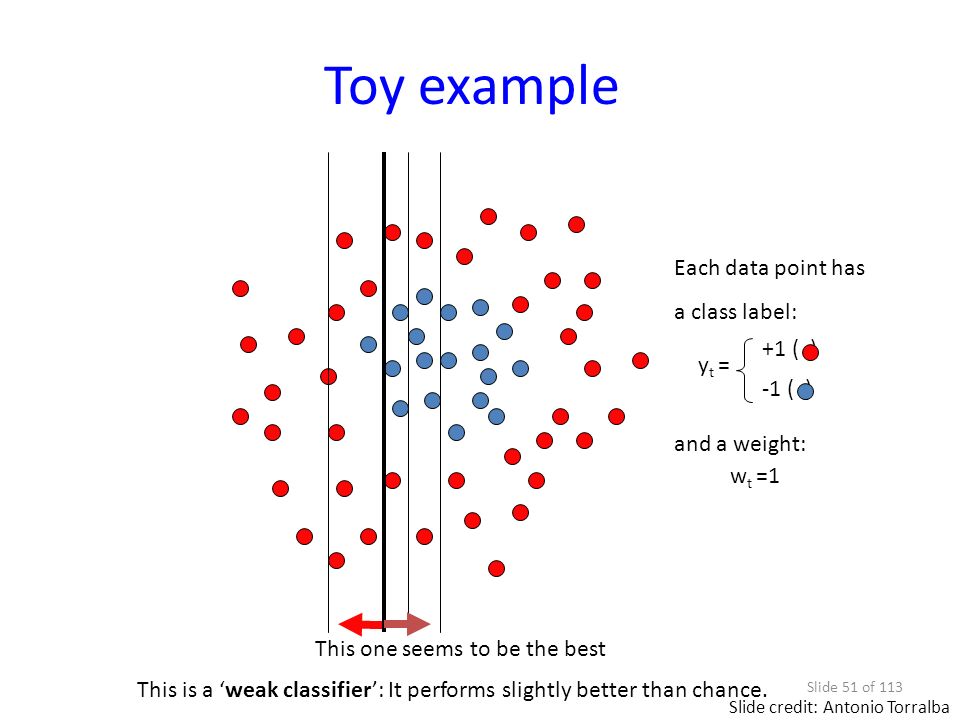

51. Toy example This one seems to be the best Each data point has a class label: w t =1 and a weight: +1 ( ) -1 ( ) y t = This is a ‘weak classifier’: It performs slightly better than chance. Slide credit: Antonio Torralba Slide 51 of 113

52. Toy example Each data point has a class label: w t w t exp{-y t H t } We update the weights: +1 ( ) -1 ( ) y t = Slide credit: Antonio Torralba Slide 52 of 113

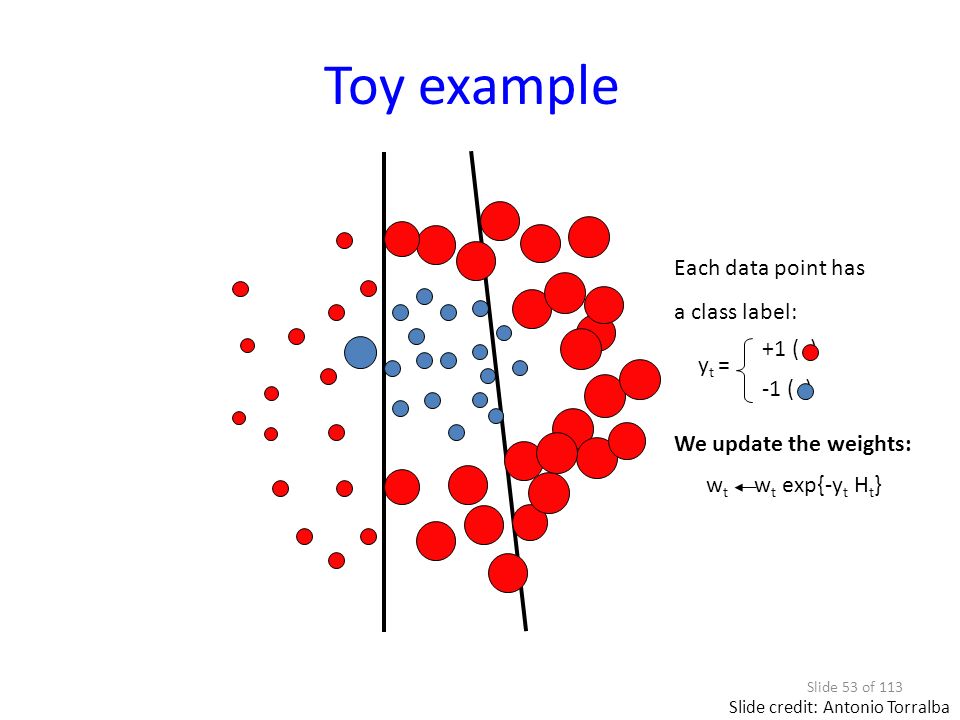

53. Toy example Each data point has a class label: w t w t exp{-y t H t } We update the weights: +1 ( ) -1 ( ) y t = Slide credit: Antonio Torralba Slide 53 of 113

54. Toy example Each data point has a class label: w t w t exp{-y t H t } We update the weights: +1 ( ) -1 ( ) y t = Slide credit: Antonio Torralba Slide 54 of 113

55. Toy example Each data point has a class label: w t w t exp{-y t H t } We update the weights: +1 ( ) -1 ( ) y t = Slide credit: Antonio Torralba Slide 55 of 113

56. Toy example The strong (non- linear) classifier is built as the combination of all the weak (linear) classifiers. f1f1 f2f2 f3f3 f4f4 Slide credit: Antonio Torralba Slide 56 of 113

57. Adaboost Slide credit: Antonio Torralba Slide 57 of 113

58. Semi-Supervised Learning Slide 58 of 113

59. Supervised learning has many successes recognize speech, steer a car, classify documents classify proteins recognizing faces, objects in images... Slide Credit: Avrim Blum Slide 59 of 113

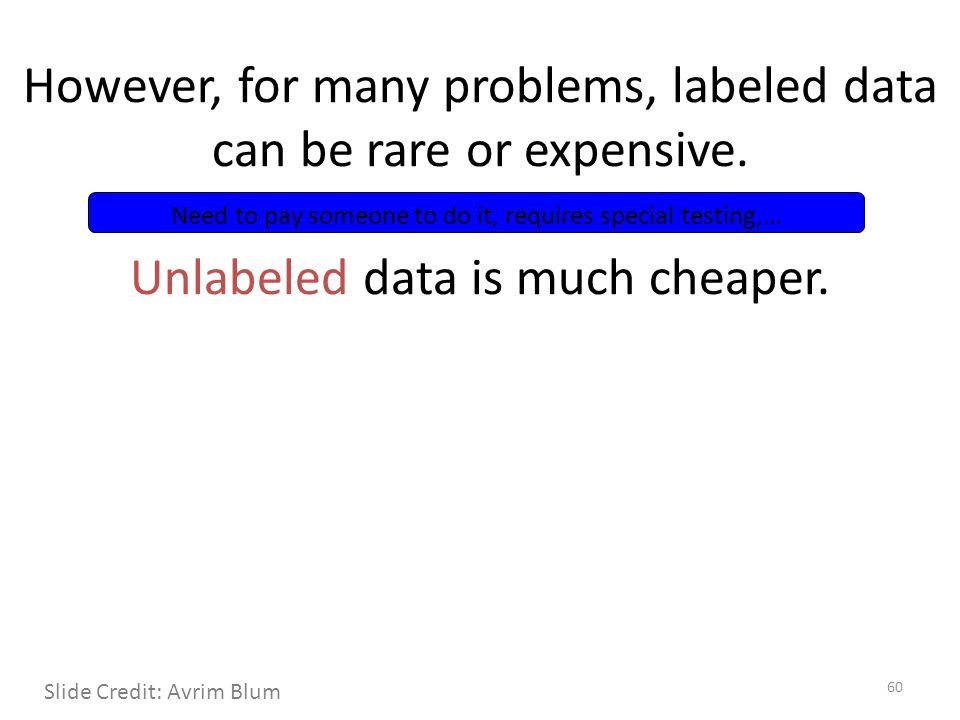

60. However, for many problems, labeled data can be rare or expensive. Unlabeled data is much cheaper. Need to pay someone to do it, requires special testing,… Slide Credit: Avrim Blum 60

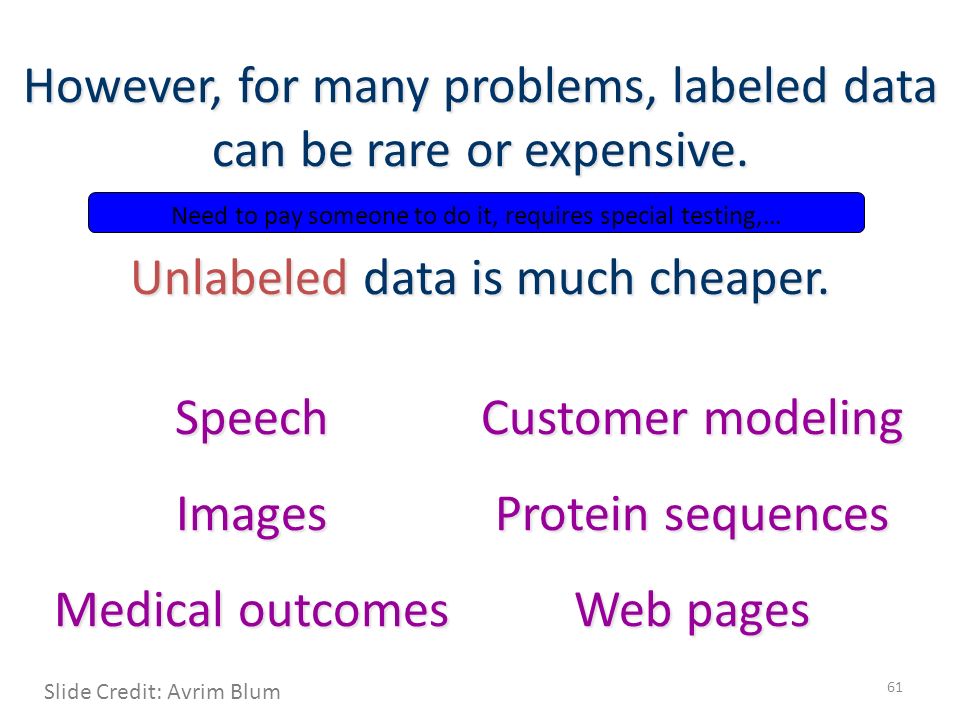

61. However, for many problems, labeled data can be rare or expensive. Unlabeled data is much cheaper. Speech Images Medical outcomes Customer modeling Protein sequences Web pages Need to pay someone to do it, requires special testing,… Slide Credit: Avrim Blum 61

62. However, for many problems, labeled data can be rare or expensive. Unlabeled data is much cheaper. [From Jerry Zhu] Need to pay someone to do it, requires special testing,… Slide Credit: Avrim Blum 62

63. Need to pay someone to do it, requires special testing,… However, for many problems, labeled data can be rare or expensive. Unlabeled data is much cheaper. Can we make use of cheap unlabeled data? Slide Credit: Avrim Blum 63

64. Semi-Supervised Learning Can we use unlabeled data to augment a small labeled sample to improve learning? But unlabeled data is missing the most important info!! But maybe still has useful regularities that we can use. But… Slide Credit: Avrim Blum Slide 64 of 113

65. Method 1: EM 65

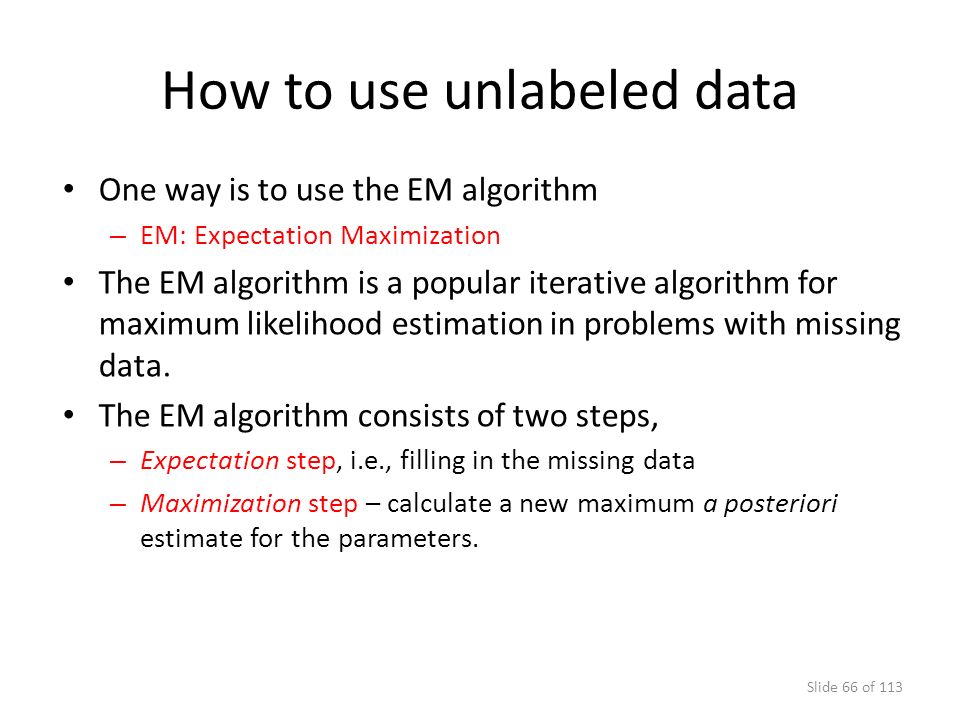

66. How to use unlabeled data One way is to use the EM algorithm – EM: Expectation Maximization The EM algorithm is a popular iterative algorithm for maximum likelihood estimation in problems with missing data. The EM algorithm consists of two steps, – Expectation step, i.e., filling in the missing data – Maximization step – calculate a new maximum a posteriori estimate for the parameters. Slide 66 of 113

67. Example Algorithm 1.Train a classifier with only the labeled documents. 2.Use it to probabilistically classify the unlabeled documents. 3.Use ALL the documents to train a new classifier. 4.Iterate steps 2 and 3 to convergence. Slide 67 of 113

68. Method 2: Co-Training 68

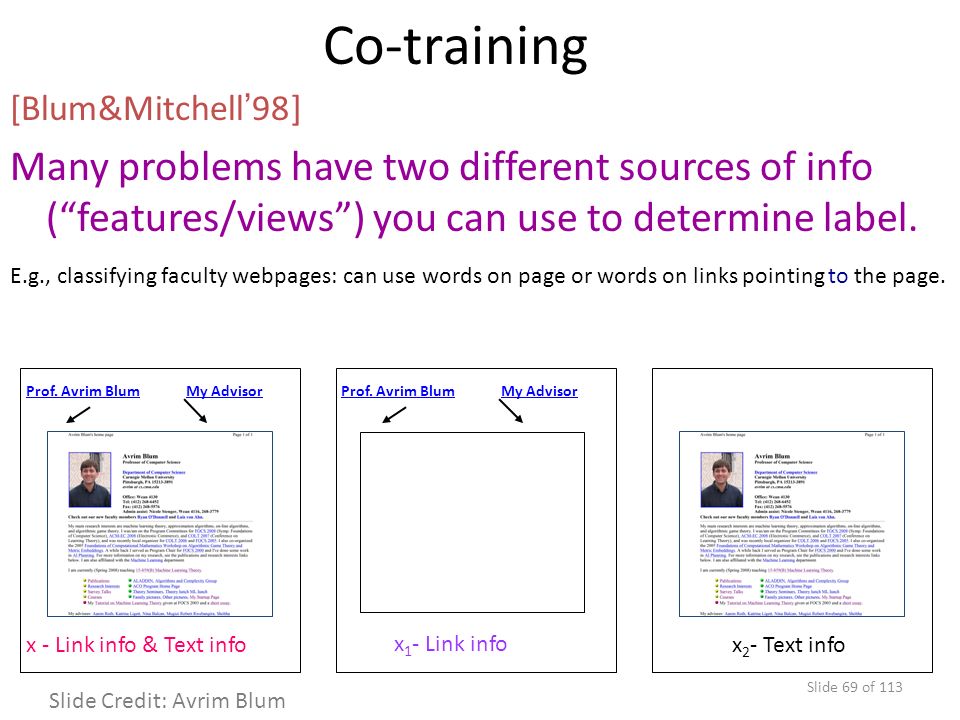

69. Co-training [Blum&Mitchell ’ 98] Many problems have two different sources of info (“features/views”) you can use to determine label. E.g., classifying faculty webpages: can use words on page or words on links pointing to the page. My AdvisorProf. Avrim BlumMy AdvisorProf. Avrim Blum x 2 - Text info x 1 - Link info x - Link info & Text info Slide Credit: Avrim Blum Slide 69 of 113

70. Co-training Idea: Use small labeled sample to learn initial rules. – E.g., “ my advisor ” pointing to a page is a good indicator it is a faculty home page. – E.g., “ I am teaching ” on a page is a good indicator it is a faculty home page. my advisor Slide Credit: Avrim Blum Slide 70 of 113

71. Co-training Idea: Use small labeled sample to learn initial rules. – E.g., “ my advisor ” pointing to a page is a good indicator it is a faculty home page. – E.g., “ I am teaching ” on a page is a good indicator it is a faculty home page. Then look for unlabeled examples where one view is confident and the other is not. Have it label the example for the other. Training 2 classifiers, one on each type of info. Using each to help train the other. h x 1,x 2 i Slide Credit: Avrim Blum Slide 71 of 113

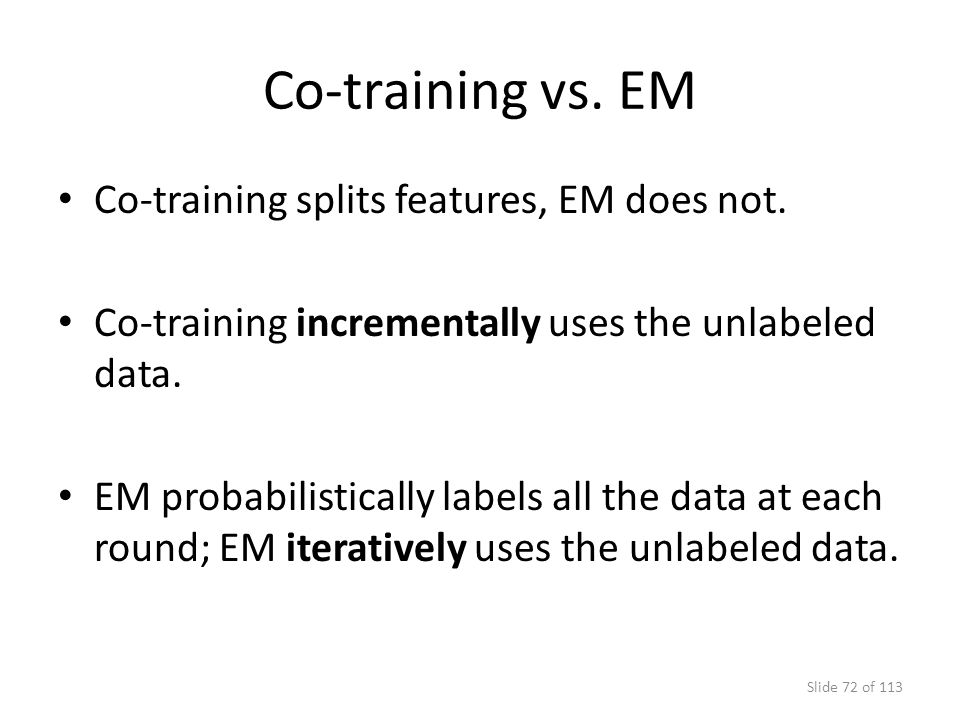

72. Co-training vs. EM Co-training splits features, EM does not. Co-training incrementally uses the unlabeled data. EM probabilistically labels all the data at each round; EM iteratively uses the unlabeled data. Slide 72 of 113

73. Generative vs Discriminative Discriminative version – build a classifier to discriminate between monkeys and non-monkeys. P(monkey|image)

74. Generative version - build a model of the joint distribution. P(image,monkey) Generative vs Discriminative

75. Can use Bayes rule to compute p(monkey|image) if we know p(image,monkey)

76. Generative vs Discriminative Can use Bayes rule to compute p(monkey|image) if we know p(image,monkey) Discriminative Generative
