1. 5-1 Data types: values, operations, and data representation. Abstract data type: values and operations only. Requirements, contract, implementation(s). (Design of abstract data types.) String abstract data types. Abstract data types in the Java class library. 5 Abstract Data Types © 2001, D.A. Watt and D.F. Brown

2. 5-2 Data types We classify all data into data types, such as:  Booleans  integers  objects of various classes. Each data type is characterized by:  a set of values  a data representation (which is common to all these values)  a set of operations (which can be applied uniformly to all these values).

3. 5-3 Java data types TypeValuesData representation Operations boolean false, true1 byte || && ! char Unicode characters2 bytes (as for int ) int negative, zero, positive whole numbers 32-bit twos- complement + - * / % == etc. float negative, zero, positive floating-point numbers IEEE 32-bit floating-point String sequences of charactersarray of characters + length charAt etc.

4. 5-4 Introducing new data type To introduce a new data type, we must define its values, data representation, and operations. In Java, use a class declaration:  The class’s instance variables determine the values and data representation.  The class’s constructors and methods are the operations. Each object of the class:  has those instance variables  is created by one of those constructors  may be inspected and/or updated by any of those methods.

5. 5-5 Example 1 (2) Possible application code: Person p1 = new Person("Curie", "Pierre", 1859); Person p2 = new Person("Sklodowska", "Marie", 1867); … p2.changeName(p1.surname);

6. 5-6 Example 2: Date data type (1) Class declaration: public class Date { // Each Date value is a past, present, or future date. // This date is represented by a year number y, a month number // m (1…12), and a day-in-month number d (1…31): public int y, m, d; public Date (int y, int m, int d) { // Construct a date with year y, month m, and day-in-month d. if (m < 1 || … ) throw … ; this.y = y; this.m = m; this.d = d; }

7. 5-7 Example 2 (2) Class declaration (continued): public void advance (int n) { // Advance this date by n days (where n ≥ 0). int y = this.y, m = this.m, d = this.d + n; for (;;) { int last = …; // no. of days in m, y if (d <= last) break; d -= last; if (m < 12) m++; else { m = 1; y++; } } this.y = y; this.m = m; this.d = d; } }

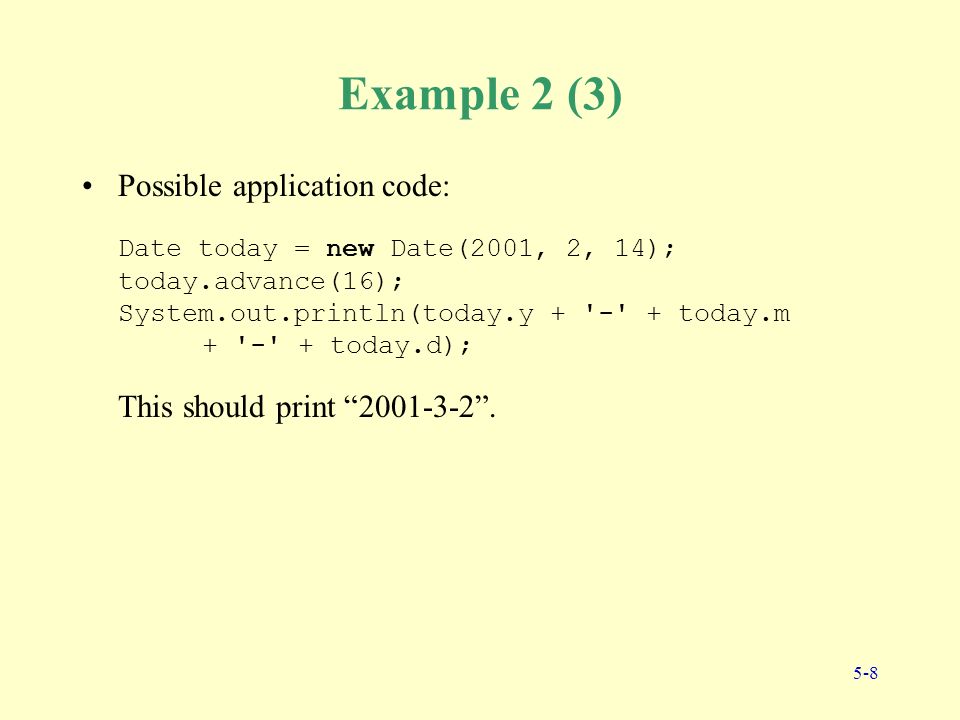

8. 5-8 Example 2 (3) Possible application code: Date today = new Date(2001, 2, 14); today.advance(16); System.out.println(today.y + '-' + today.m + '-' + today.d); This should print “2001-3-2”.

9. 5-9 Example 2 (4) Problem: This data representation admits improper values (e.g., m = 0; or m = 2 and d = 30). Constructors and methods can (should) be coded to avoid improper values. E.g.: Date today = new Date(2001, 2, 30); will throw an exception. But what if the data representation is accessed directly? Date today = new Date(2001, 2, 14); today.d += 16;

10. 5-10 Example 3: Date data type again (1) A different data representation is possible: public class Date { // Each Date value is a past, present, or future date. // This date is represented by a day-in-epoch number d // (where 0 represents 1 January 2000): public int d; public Date (int y, int m, int d) { … } public void advance (int n) { … } } This makes advance faster, but Date() slower.

11. 5-11 Example 3 (2) Recall existing application code: Date today = new Date(2001, 2, 14); today.advance(16); System.out.println(today.y + '-' + today.m + '-' + today.d); fails to compile yields wrong value fails to compile

12. 5-12 Public vs. private data representation If the data representation is public: –Application code might make improper values. –Existing application code might be invalidated by change of representation. If the data representation is private: +Application code cannot make improper values. +Existing application code cannot be invalidated by change of representation.

13. 5-13 Abstract data types An abstract data type (ADT) is characterized by:  a set of values  a set of operations. It is not characterized by its data representation. The data representation is private, so application code cannot access it. (Only the operations can.) The data representation is changeable, with no effect on application code. (Only the operations must be recoded.)

14. 5-14 ADT specification (1) Each ADT should have a contract that:  specifies the set of values of the ADT  specifies each operation of the ADT (i.e., the operation’s name, parameter type(s), result type, and observable behavior). The contract does not specify the data representation, nor the algorithms used to implement the operations. The observable behavior of an operation is its effect as ‘observed’ by the application code.  Example of observable behavior: search an array.  Examples of algorithms with that behavior: linear search, binary search.

15. 5-15 ADT specification (2) The ADT programmer undertakes to provide an implementation of the ADT that respects the contract. The application programmer undertakes to process values of the ADT using only the operations specified in the contract. Separation of concerns:  The ADT programmer is not concerned with what applications the ADT is used for.  The application programmer is not concerned with how the ADT is implemented. Separation of concerns is essential for designing and implementing large systems.

16. 5-16 Example 4: contract for Date ADT (1) Assumed application requirements: 1)*** The values must be all past, present, and future dates. 2)*** It must be possible to construct a date from year number y, month number m, and day-in-month number d. 3)It must be possible to compare dates. 4)It must be possible to render a date in ISO format “y-m-d”. 5)It must be possible to advance a date by n days.

17. 5-17 En Java - généralité Spécifier un contrat comme une interface  Méthodes exigées Déclarer une clase conforme à cette interface  Choix des structures de données et définition des attributs  Implantation de toutes les méthodes exigées Utilisation de la classe dans une application

18. 5-18 Spécifier un contrat en Java Interface:  Constante  Méthode abstraite Mécanisme idéal en Java pour définir un ADT (Un autre mécanisme possible est la classe abstraite) Note: les spécifications présentées ici sont modifiées par rapport au livre (class -> interface)

19. 5-19 Example 4 (2) Possible contract, expressed as an interface: public interface DateADT { // Each Date value is a past, present, or future date. public int compareTo (Date that); // Return –1 if this date is earlier than that, // or 0 if this date is equal to that, // or +1 if this date is later than that. public String toString (); // Return this date rendered in ISO format. public void advance (int n); // Advance this date by n days (where n ≥ 0). }

20. 5-20 Définir une classe conforme à une interface Utiliser ‘implements’ Exemple class implements { }

21. 5-21 Exemple 4 class Date implements DateADT { private …// les attributs de la classe public Date(int y, int m, int d) {... } //constructeur public int compareTo (Date that) {... } public String toString () {...} public void advance (int n) {...}... }

22. 5-22 Example 4 (4) Possible application code: Date today = … ; Date easter = new Date(2001, 4, 15); today.advance(16); if (today.compareTo(easter) < 0) System.out.println(today.toString()); Impossible application code: today.d += 16; System.out.println(today.y + '-' + today.m + '-' + today.d); fails to compile

23. 5-23 ADT implementation (in a class) An implementation of an ADT entails:  choosing a data representation  choosing an algorithm for each operation. The data representation must be private. The data representation must cover all possible values. The algorithms must be consistent with the data representation.

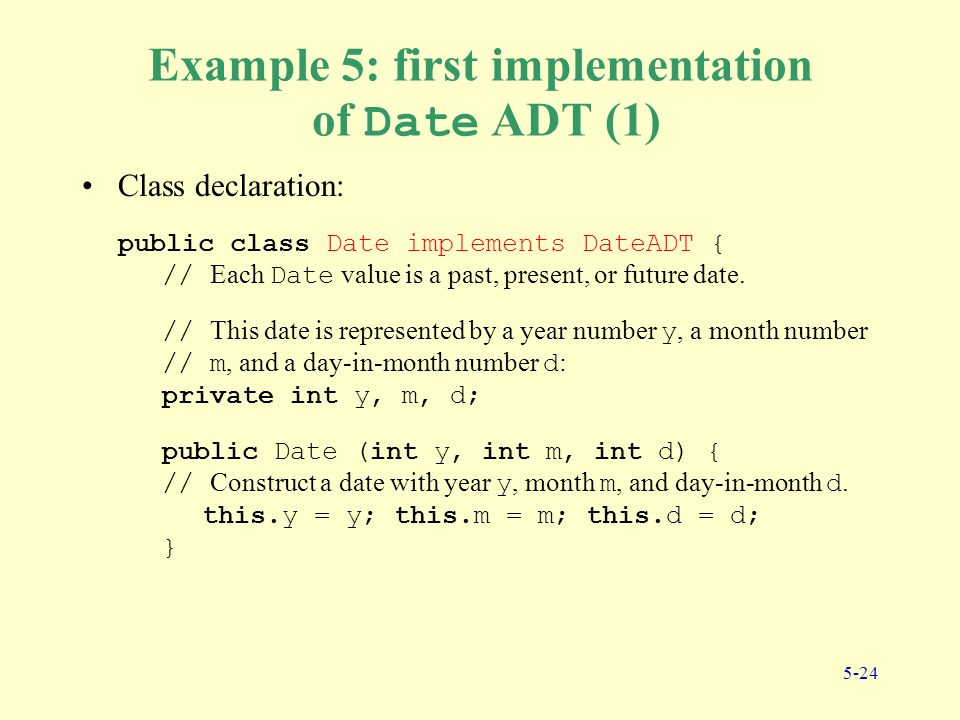

24. 5-24 Example 5: first implementation of Date ADT (1) Class declaration: public class Date implements DateADT { // Each Date value is a past, present, or future date. // This date is represented by a year number y, a month number // m, and a day-in-month number d : private int y, m, d; public Date (int y, int m, int d) { // Construct a date with year y, month m, and day-in-month d. this.y = y; this.m = m; this.d = d; }

25. 5-25 Example 5 (2) Class declaration (continued) – implementation of the required methods: public int compareTo (Date that) { // Return –1 if this date is earlier than that, // or 0 if this date is equal to that, // or +1 if this date is later than that. return (this.y that.y ? +1 : this.m that.m ? +1 : this.d that.d ? +1 : 0); }

26. 5-26 Example 5 (3) Class declaration (continued): public String toString () { // Return this date rendered in ISO format. return (this.y + '-' + this.m + '-' + this.d); } public void advance (int n) { // Advance this date by n days (where n ≥ 0). … } } complicated

27. 5-27 Example 6: second implementation of Date ADT (1) Class declaration: public class Date implements DateADT{ // Each Date value is a past, present, or future date. // This date is represented by a day-in-epoch number d // (where 0 represents 1 January 2000): private int d; public Date (int y, int m, int d) { // Construct a date with year y, month m, and day-in-month d. … ; this.d = … ; } complicated

28. 5-28 Example 6 (2) Class declaration (continued): public int compareTo (Date that) { // Return –1 if this date is earlier than that, // or 0 if this date is equal to that, // or +1 if this date is later than that. return (this.d that.d ? +1 : 0); }

29. 5-29 Example 6 (3) Class declaration (continued): public String toString () { // Return this date rendered in ISO format. int y, m, d; … ; return (y + '-' + m + '-' + d); } public void advance (int n) { // Advance this date by n days (where n ≥ 0). this.d += n; } } complicated

30. 5-30 ADT design (1) A constructor is an operation that creates a value of the ADT (dans une classe qui implante cet ADT) An accessor is an operation that uses a value of the ADT to compute a value of some other type. A transformer is an operation that computes a new value of the same ADT. A well-designed ADT provides at least one constructor, at least one accessor, and at least one transformer. The constructors and transformers together can generate all values of the ADT.

31. 5-31 ADT design II (2) A transformer is:  mutative if it overwrites the old value with the new value  applicative if it returns the new value, without overwriting the old value. The values of an ADT are:  mutable if the ADT provides at least one mutative transformer  immutable if the ADT provides no mutative transformer. Ces caractéristiques déterminent le choix d’une structure de données.

32. 5-32 Example 8: design of Date ADT (1) Recall the Date contract of Example 4: public interface DateADT { // private … ; // public Date (int y, int m, int d); public int compareTo (Date that); public String toString (); public void advance (int n); } constructor mutative transformer accessor

33. 5-33 Example 8 (2) Consider another possible Date contract: public inerface DateADT2 { // private … ; // public Date (int y, int m, int d); public int compareTo (Date that); public String toString (); public Date plus (int n); } constructor applicative transformer accessor

34. 5-34 Strings A string is a sequence of characters. The characters have consecutive indices. A substring of a string is a subsequence of its characters. The length of a (sub)string is its number of characters. The empty string has length zero.

35. 5-35 String ADTs Assumed application requirements: 1)The values are to be strings of any length. 2)It must be possible to determine the length of a string. 3)It must be possible to obtain the character at a given index. 4)It must be possible to obtain the substring at a given range of indices. 5)It must be possible to compare strings lexicographically. 6)It must be possible to concatenate strings.

36. 5-36 Immutable strings: contract (1) Possible contract expressed as an outline class declaration: public interface StringADT { // Each String value is an immutable string of characters, // of any length, with indices starting at 0. // private … ; /////////////// Constructor /////////////// // public String (char[] cs); // Construct a string consisting of all the chars in cs.

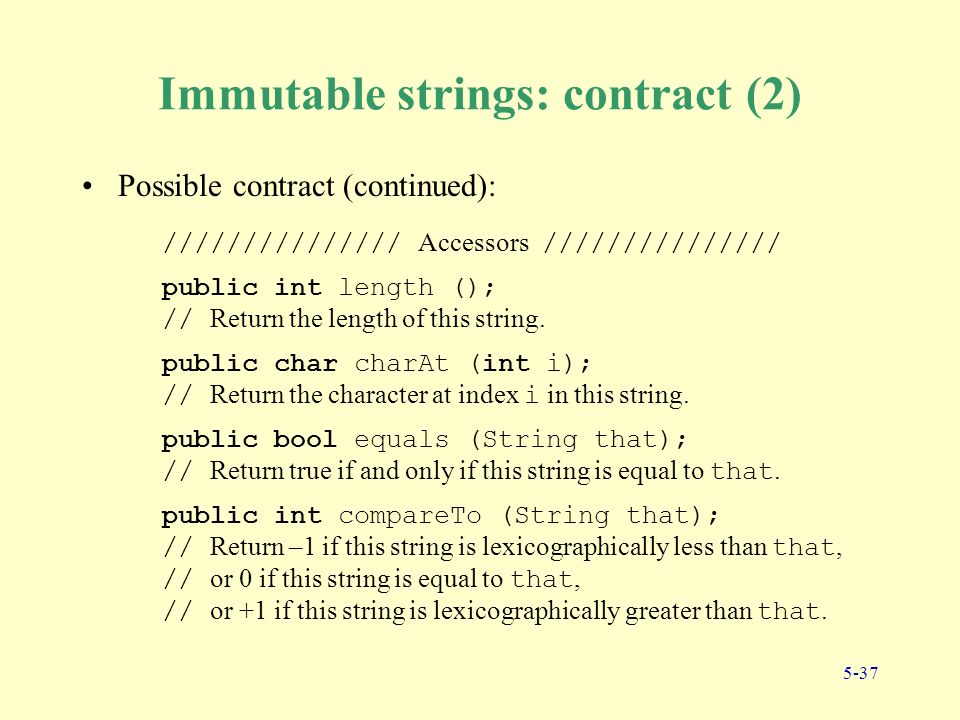

37. 5-37 Immutable strings: contract (2) Possible contract (continued): /////////////// Accessors /////////////// public int length (); // Return the length of this string. public char charAt (int i); // Return the character at index i in this string. public bool equals (String that); // Return true if and only if this string is equal to that. public int compareTo (String that); // Return –1 if this string is lexicographically less than that, // or 0 if this string is equal to that, // or +1 if this string is lexicographically greater than that.

38. 5-38 Immutable strings: contract (3) Possible contract (continued): /////////////// Transformers /////////////// public String substring (int i, int j); // Return the substring of this string consisting of the characters // whose indices are i, …, j –1. public String concat (String that); // Return the string obtained by concatenating this string and // that. } applicative transformers

39. 5-39 Immutable strings: implementations Represent a string by its length n together with an array of exactly n characters, e.g.: Or represent a string by its length n together with an SLL of characters, e.g.: The array representation is much better. Since these strings are immutable, we never insert or delete characters. 4‘J’‘a’‘v’‘a’ 3210length ‘J’‘a’‘v’‘a’4 length first

40. 5-40 Mutable strings: contract (1) Possible contract expressed as an intertface declaration: public interface MutableStringADT { // Each MutableString value is a mutable string, of any // length, with indices starting at 0. // private … ; /////////////// Constructor /////////////// // public MutableString (); // Construct an empty mutable string.

41. 5-41 Mutable strings: contract (2) Possible contract (continued): /////////////// Accessors /////////////// public int length (); // Return the length of this string. public char charAt (int i); // Return the character at index i in this string. public int compareTo (MutableString that); // Return –1 if this string is lexicographically less than that, // or 0 if this string is equal to that, // or +1 if this string is lexicographically greater than that. public String substring (int i, int j); // Return the substring of this string consisting of the characters // whose indices are i, …, j –1.

42. 5-42 Mutable strings: contract (3) Possible contract (continued): /////////////// Transformers /////////////// public void setCharAt (int i, char c); // Set the character at index i in this string to c. public void append (String s); // Insert the characters of s after the last character of this string. public void insert (int i, String s); // Insert the characters of s before the character at index i in // this string. public void delete (int i, int j); // Delete the characters of this string whose indices are i, …, // j –1. } Question: Tableau ou liste? mutative transformers

43. 5-43 ADTs in the Java class library Class java.lang.String is similar to String above. Class java.lang.StringBuffer is similar to MutableString above. Interface java.util.List supports lists. Interface java.util.Set supports sets. Interface java.util.Map supports maps (tables). Packages java.awt, java.io, java.util, etc., support many other ADTs.
