1. Ecology and Phylogeny of Amphibian Coccidia: A Review Matthew G. Bolek, and Chris Whipps Department of Zoology, Oklahoma State University, and Environmental and Forest Biology SUNY College of Environmental Science & Forestry

2. 6,433 Extent Species of Amphibia (Frost, 2009) Anura Caudata Gymnophiona

3. Amphibian Coccidia Coccidia of frogs and toads, salamanders and newts, and caecilians are the least known of all the tetrapod vertebrate classes.

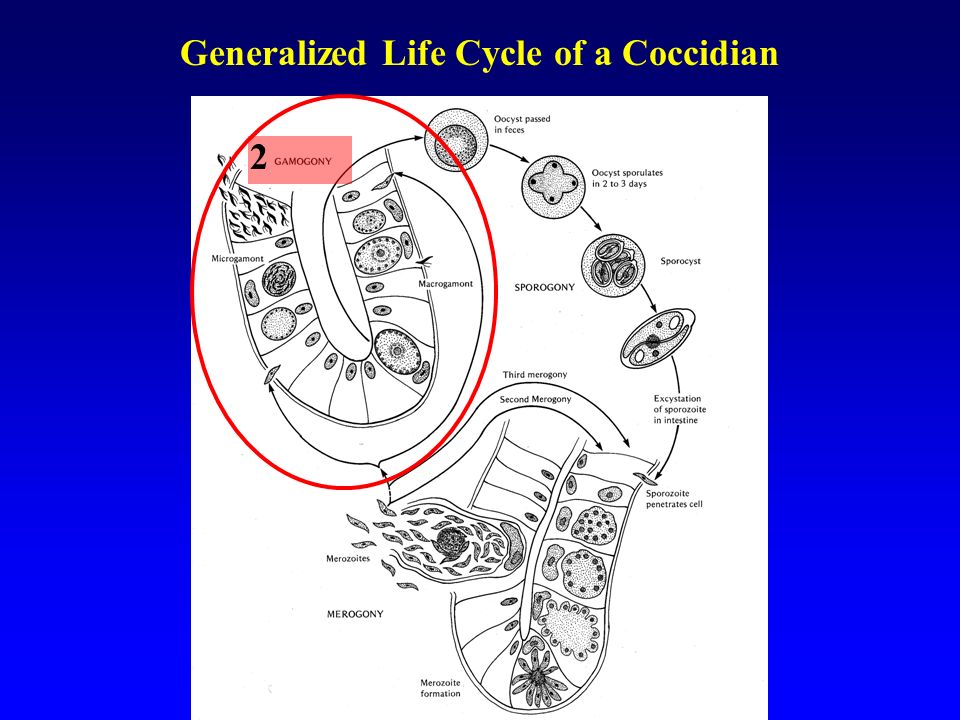

4. Generalized Life Cycle of a Coccidian 1 2 3

5. 1

6. 2

7. 3

8. The Frogs and Toads (Anurans)

9. Anurans 5,679 extant species of frogs and toads in 395 genera and 47 families.

11. Anurans Of the 5,679 anuran species, only 1.2% (67/5,679) of species in 7.6% (30/395) of the genera and 30% (14/47) of the families have ever been examined for coccidia.

12. 19 species of Eimeria, 3 species of Goussia, 1 species of Hyaloklossia and 9 species of Isospora have been described. Anurans 4 X 2 4 X 2 2 X 4 2 X 4

13. Anuran Coccidia World Distribution 88 4 7 3 *

14. Eimeria spp. of Anurans Ovoidal Irregular Spherical

15. Variation in Oocyst Morphology Stieda body Oocyst Residium Micropile Cap Micropile

16. Variation in Endogenous Development Bolek unpublished; Jirků and Modrý 2005 Extranuclear Intranuclear

17. Variation in Sporulation Bolek unpublished; Duszynski et al., 2007 Exogenous Endogenous

18. Caudatans 580 extant species of salamanders and newts in 64 genera and 9 families.

20. Caudatans Of the 580 caudatan species, only 7.7% (45/580) of species in 28% (18/64) of the genera and 67% (6/9) of the families have ever been examined for coccidia.

21. Caudatans 20 Eimeria and 2 Isospora species have been described from the 560 described caudatan species.

22. Caudatan Coccidia World Distribution 136 3

23. 20 Eimeria spp. of Caudata Elliptical Spherical Micropile Cap

24. Gymnophionans 121 extant species of caecilians in 14 genera and 3 families.

26. Only 1 Eimeria species has been described from caecilians. Gymnophionans

27. Eimeria dermophis Asmundsson, Campbell and Duszynski, 2000

28. Ecology of Amphibian Coccidia

29. Very little work has been done on the ecology of amphibian coccidia (Duszynski, Bolek and Upton 2007).

30. Ecology of Amphibian Coccidia Very little work has been done on the ecology of amphibian coccidia (Duszynski, Bolek and Upton 2007). Upton and McAllister, 1988; Upton et al., 1993, suggested that amphibian coccidia are rare, with low prevalence and few species of hosts infected.

31. Recent Ecology Studies of Amphibian Coccidia Bolek, et al., 2003; Jirků et al., 2009a, b on Eimeria spp., Isospora spp., and Goussia spp. in anurans and caudatans from Europe and North America.

32. Ecology of Anuran Coccidia

35. How do amphibians become infected with these coccidia species?

39. Examination of field collected tadpoles of western chorus frogs indicated that they shed oocysts of Eimeria streckeri, Isospora cogginsi and Isospora delicatus.

40. Prevalence of Isospora cogginsi, Eimeria streckeri and Isospora delicatus in Adults, Tadpoles, and Metamorphosed Western Chorus Frogs N = 102 N = 44 N = 47 N = 45

41. We collected western chorus frog eggs, brought them into the laboratory, and reared tadpoles.

42. Experimental Infections We exposed these tadpoles to coccidia oocysts.

43. 90% (18/20) of experimentally exposed tadpoles of western chorus frogs shed oocysts of Isospora delicatus.

44. Tadpoles shed oocysts 9-10 days post exposure, and continued shedding oocysts for 7 days, and did not retain the infection before metamorphosis. Sporulation: Exogenous.

45. Tadpole and metamorphosed frog digestive system.

46. European Eimeria ranae Jirků et al, 2009

47. 499 Frogs and Toads of 7 Species from 7 locations in the Czech Republic.

48. 3,703 Tadpoles of 7 Species from 7 locations in the Czech Republic.

49. Only adults and tadpoles of the Common Frog and Agile Frog were infected with Eimeria ranae.

50. Prevalence of Eimeria ranae in adults and tadpoles of the Common and Agile Frog from the Czech Republic

51. Exposed 6 species of Frogs and Toads to Eimeria ranae.

52. Only adult and tadpoles of the Common and Agile Frogs became infected with Eimeria ranae.

53. Cross infected adults and tadpoles of the Common Frog and the Agile Frog with Eimeria ranae.

54. Other Anuran Coccidia Hyaloklossia liberkuehni infects tadpole and metamorphosed anuran kidneys and survives metamorphosis (Modrý et al., 2001).

55. Other Anuran Coccidia Goussia spp. only infect tadpoles and are lost during metamorphosis, but sporulated oocysts are found in the liver sinuses of metamorphosed anurans (Jirků et al, 2009).

56. Ecology of Caudatan Coccidia

58. Salamander larvae feed on live prey in the open water column and therefore few should be infected with coccidia

61. N = 20 N = 19 N = 20 N = 14

68. 100% (9/9) of metamorphosed tiger salamanders shed oocysts of Eimeria ambystomae.

70. How Persistent are Amphibian Coccidia Populations in Anuran and Caudatan Hosts?

71. Eimeria fitchi

72. Prevalence of Eimeria fitchi in Adult Wood frogs from Wisconsin 2003 2005 2006 Year N = 15 N = 15 N = 17

74. Prevalence of Eimeria ambystomae, and E. urodela in larval Tiger Salamanders from Nebraska 2004 2006 2009 Year N = 39 N = 25 N = 20

75. Phylogeny What is the relationship of amphibian coccidia to coccidians of other animal groups?

76. Amphibian Coccidia Phylogeny Jirků et al, 2009 recently sequenced the partial SSU rDNA of Eimeria ranae, Goussia noelleri, Goussia neglecta, and Goussia sp. from European tadpoles and frogs.

77. Jirků et al, 2009 Bayesian Phylogenetic tree as inferred from partial SSU rDNA sequences

81. North American Anuran Coccidia Eimeria strecheri Isospora cogginsi Isospora delicatus

82. Sarcocystidae Eimeridae

83. Sarcocystidae Eimeridae

84. Sarcocystidae Eimeridae

85. Conclusion Most species of amphibians have not been examined for their coccidia species; their ecology is poorly known.

86. Conclusion Most species of amphibians have not been examined for their coccidia species; their ecology is poorly known. Goussia spp. exhibit stadial host specificity in tadpoles, whereas Eimeria, Hyaloklossia and Isospora species can infect larval and adult amphibians.

87. Conclusion Most species of amphibians have not been examined for their coccidia species; their ecology is poorly known. Goussia spp. exhibit stadial host specificity in tadpoles, whereas Eimeria, Hyaloklossia and Isospora species can infect larval and adult amphibians. Amphibian Goussia spp. and Eimeria spp. with a stiedia body are basal among the Eimeridae; whereas amphibian non stiedia body Isospora spp. are more closely related to Hyaloklossia, than stiedia body Isospora spp.

88. Acknowledgments R. S. Seville UW Miloslav Jirků (University of Vet & Pharm Scie, Czech Republic) Dr. Armando Irizarry-Rovira (Eli Lilly and Co.) Cedar Point Biological Station UNL, UNK, NIH BRIN, and Department of Zoology OSU

90. Questions
