1. Introduction to New Final Device Test System DSA 6000
Johnny Hansen
January - August 2009

2. Different FDTS scenarios
New FDTS – backwards compatible with C3 models
Direct replacement of AUDIOmaster system
Pro - Works for both C3 and C4 devices + wireless
Con- Not all C3 devices migrated at introduction
New FDTS – not backwards compatible
Works only for C4 and going forward
AUDIOmaster still needed for C3 devices
Pro – Only one TPI pr. device model
Con - Difficult to balance in production
Mixed solution – AM TPI’s for C4 (wireless) + New FDTS
AM update for Windows XP (due to Ratatosk)
AM development of hardware upgrade for wireless
Development of Test programs for New FDTS
Pro - Implementation not tied to MARS introduction
Pro – Expenses not tied to MARS
Con - Extra (not double) work for EA groups.
Con - Slow implementation of new FDTS

3. Number of known DSA5000 pr. January 2009
Subsidiaries
Xiamen 49
USA, BLM 43
USA, Chicago 23
France 11
Germany 9
UK 8
Holland 7
Canada 6
Japan 6
Spain 6
Austria 5
China 5
Brazil 3
Sweden 3
Switzerland 2
Australia 2
Italy 2
New Zealand 2
Århus DK 2
India 1
Norway 1
Belgium 1
Korea 1
GTO 1
GTO loaners 2
GTO new stock 7
TOTAL 208
Distributors
Israel (Audiophone & Arye) 3
Japan (NJH) 3
Greece (Evikoon/Cyprus) 3
S. Africa (Danavox & Hearing Inv.) 2
Turkey Meders & GEARS 2
Mexico (VT / Audifonos) 2
Romania (Audionova9 1
Poland (Gabinety) 1
Russia (Istok) 1
Saudi (Algosaibi) 1
Hungary (Danavox) 1
Egypt (Alarkan) 1
Iran (Pishraft) 1
Poland (Marke-Med) 1
Hungary (Microsonic) 1
Egypt (Nozha) 1
Finland (Danalink) 1
Argentina (Auditron) 1
Brasil (Audibel) 1
Chile (Audiomedical) 1
Venezuela (Equifoc) 1
Curacao 1
TOTAL 31
Div. R&D (assumed) 35

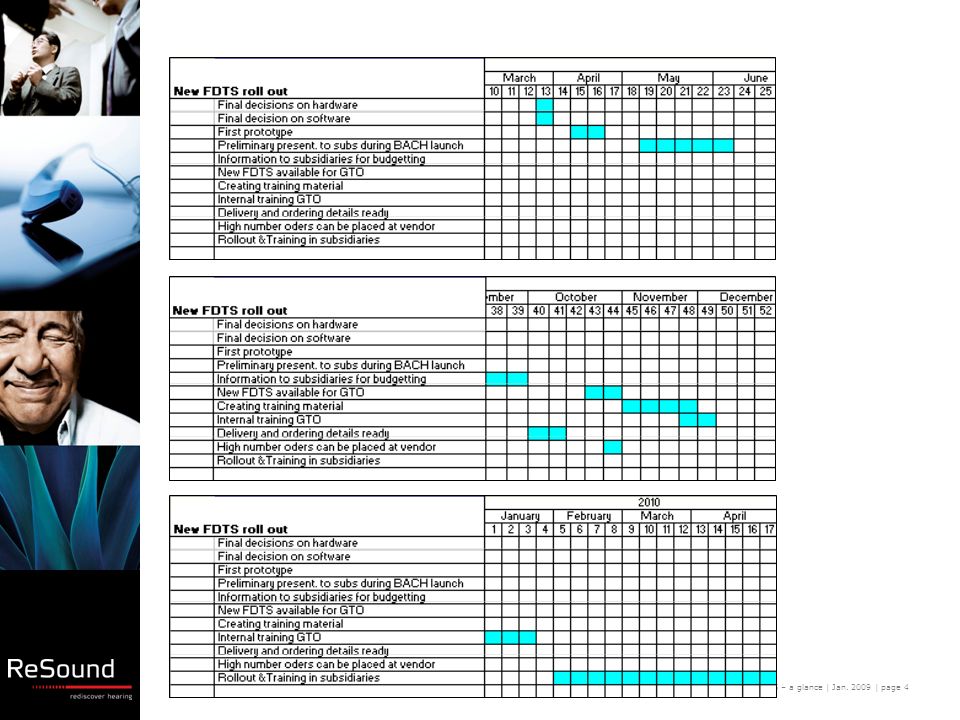

5. Hardware

6. Design goals for new FDTS
Standard – of the shelf system.
State of the art supplier.
One supplier for all parts.
System easy maintainable for SW and HW.
PC controlled with embedded PC (not build-in).
Automated test function.

7. Hardware platform

8. National Instruments – PXI system solution

9. Prototype DSA 6000 unit Periferials: Optical mouse English keyboard
Monitor
Prototype
Use exsisting:
Test chambers
Test microphones (TM12)
Test fixtures
Battery pills
Programming cabels
Expected price DKK ~ Euro

10. DSA 6000 DSA 6000 unit GN Hearing A/S PSU PXI 4110
Power Supply Unit
SpeedLink & Mic. PSU
Special GN module
PAU - PXI ??
Power Amplifier unit
DSA - PXI-4461 Audio Analyzer
Digital Signal Analyzer
PC - PXI 8104
Celeron 575, 2 GHz, Windows XP
2 GB DDR2 RAM
Chassis – PXI 1036
6 slot chassis

11. Front plate - Design diskussions

12. Front plate - Design diskussions

13. PC - PXI 8104 Celeron 575, 2 GHz, Windows XP 2 GB DDR2 RAM

14. Workstation
All DSA6000 must be ordered at GTO

15. Software

16. Three technologies introduced in .Net 3.0
Software configuration
PC operative system : Windows XP
Test software core is NI TestStand & AUDIOmaster
Test stand sequences is a standard NI product
Test library is AUDIOmaster from MicroLEX
NI acquired Microlex in 2008
One supplier for all purchased SW
GN still develop test programs
Three technologies introduced in .Net 3.0
WPF – Windows Presentation Foundation
WF – Windows Workflow Foundation
WCF – Windows Communication Foundation 16

17. Current execution components

18. Workflow execution components (WF)

19. Remote configuration (WCF+WF)

20. Publish based TPI deployment (WCF+WF)

21. Top 3 benefits from new hardware.
Standard components from a high quality supplier
All modules very easy to replace during repair.
Industrial PC designed to run
System can test both Coyote 4 and Coyote 3 products
Top 3 benefits from new software.
Easier updating of new TPI’s
Automated loading of TPI’s possible
Batch loading of TPI’s (whole family at one time)
Easier development and maintenance for R&D groups.
