1. Charles’ Law

2.  discovered by French physicist, Jacques Charles in 1787  first person to fill balloon with hydrogen gas and make solo balloon flight Charles’ Law

3. Temperature vs. Volume  If P is constant, gases expand when heated.  When T increases, gas molecules move faster and collide with the walls more often and with greater force.  To keep the P constant, the V must increase.

4.  Charles’ Law states that the volume of a fixed mass of gas varies directly with temperature at a constant pressure.  V = kT or k = V/T  k is a constant for a certain sample of gas that depends on the mass of gas and its pressure.  What kind of graph is V vs. T? Charles’ Law: T and V

5. Charles’ Law

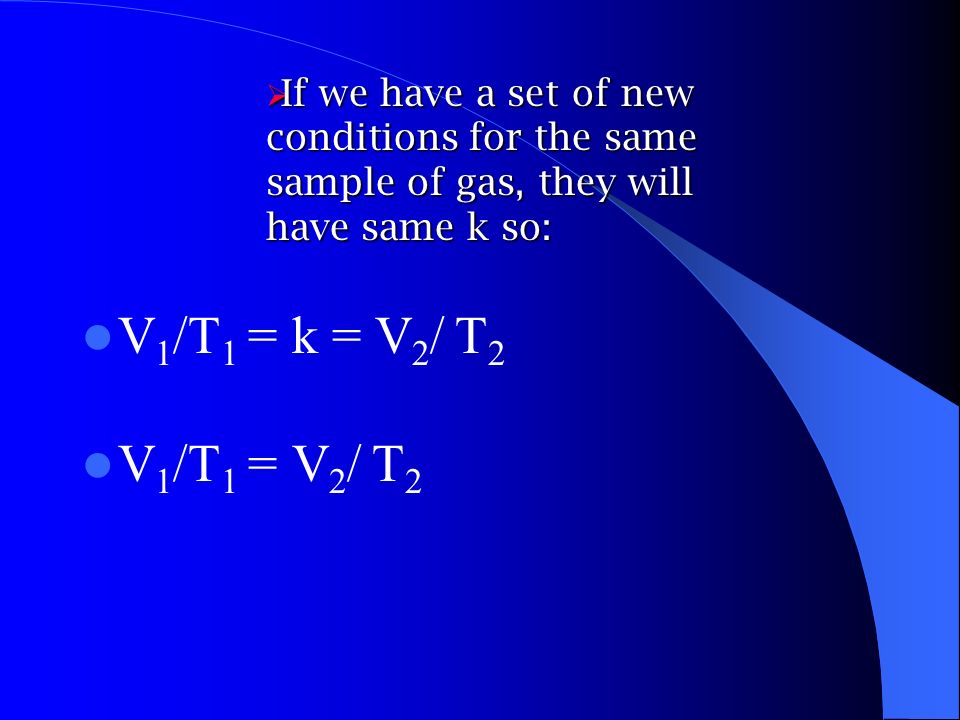

6.  If we have a set of new conditions for the same sample of gas, they will have same k so: V 1 /T 1 = k = V 2 / T 2 V 1 /T 1 = V 2 / T 2

7.  If we use the Celsius temperature system, we could end up with negative values when using Charles’ gas law. PROBLEM…

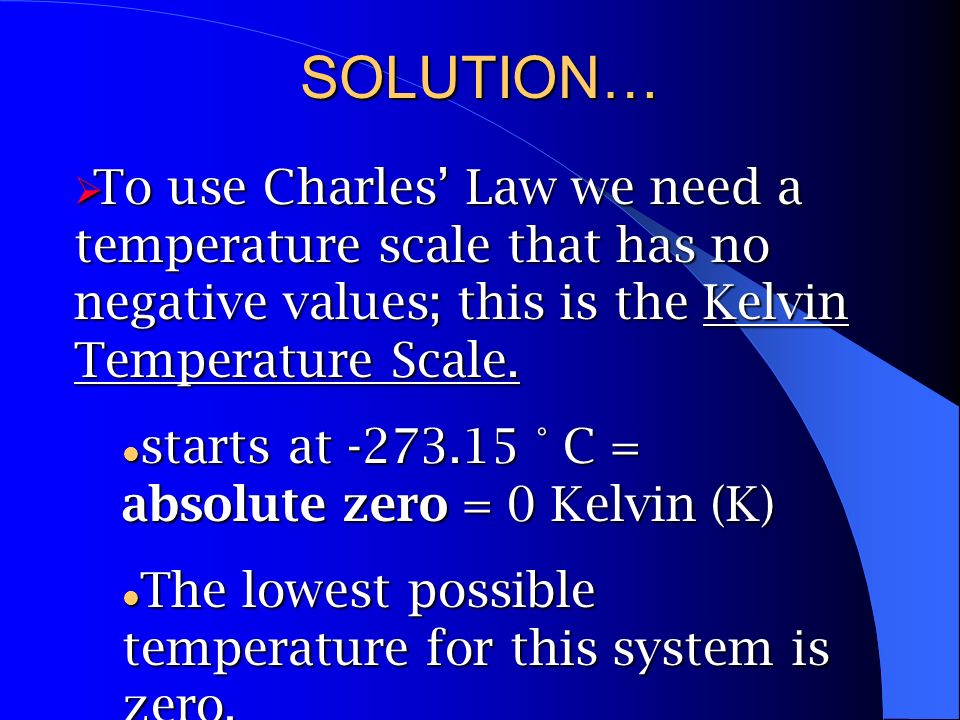

8.  To use Charles’ Law we need a temperature scale that has no negative values; this is the Kelvin Temperature Scale. starts at -273.15 ° C = absolute zero = 0 Kelvin (K) starts at -273.15 ° C = absolute zero = 0 Kelvin (K) The lowest possible temperature for this system is zero. The lowest possible temperature for this system is zero. SOLUTION…

9. Example: Charles’ Law  A gas with a volume of 600 mL has a temperature of 30 0 C. At constant pressure the gas is heated until the gas expands to 1,200 mL. What is the new temperature of the gas if the pressure remains constant?

10. SOLUTION 1. The first step is to convert the temperature from Celsius to Kelvin: 273 + 30 = 303 K 2. Rearrange Charles’ law to solve for the new temperature: T 2 = V 2 T 1 / V 1 3. T 2 = 1200mL X 303 K = 2 X 303K = 600mL 4. T 2 = 606K
