1 1 An Introduction to IDL (The Interactive Data Language) and IDL in Astronomy Astronomy Seminar Series 11/12/2005 1. IDL Features 2. Basics of IDL 3. 1D & 2D Display 4. FITS I/O in IDL 5. Image Processing cqras@126.com

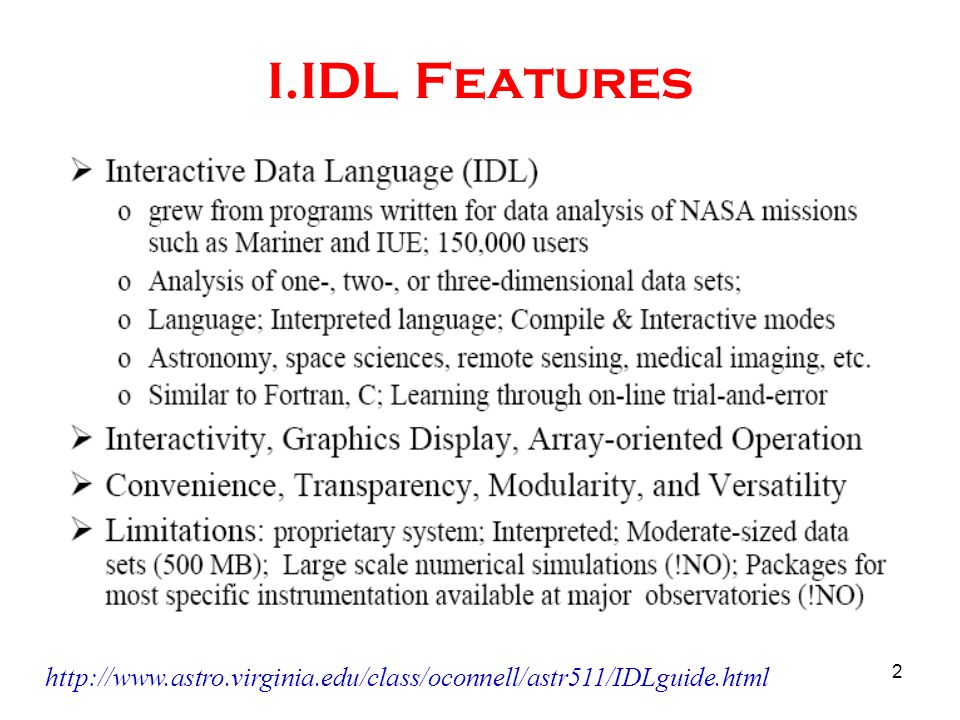

2 2 I.IDL Features http://www.astro.virginia.edu/class/oconnell/astr511/IDLguide.html

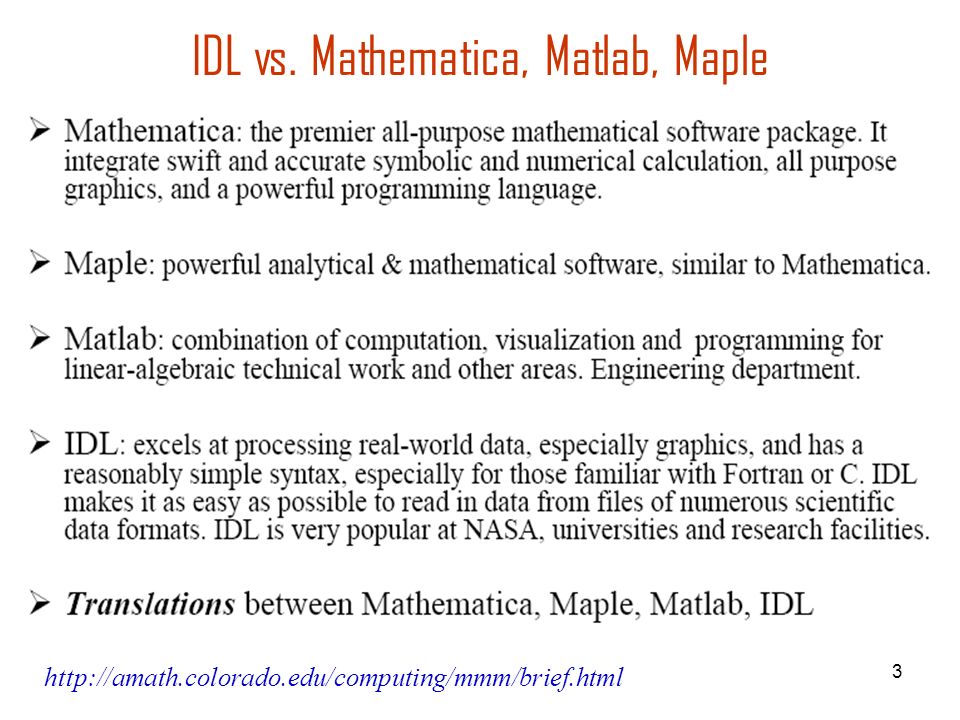

3 3 IDL vs. Mathematica, Matlab, Maple http://amath.colorado.edu/computing/mmm/brief.html

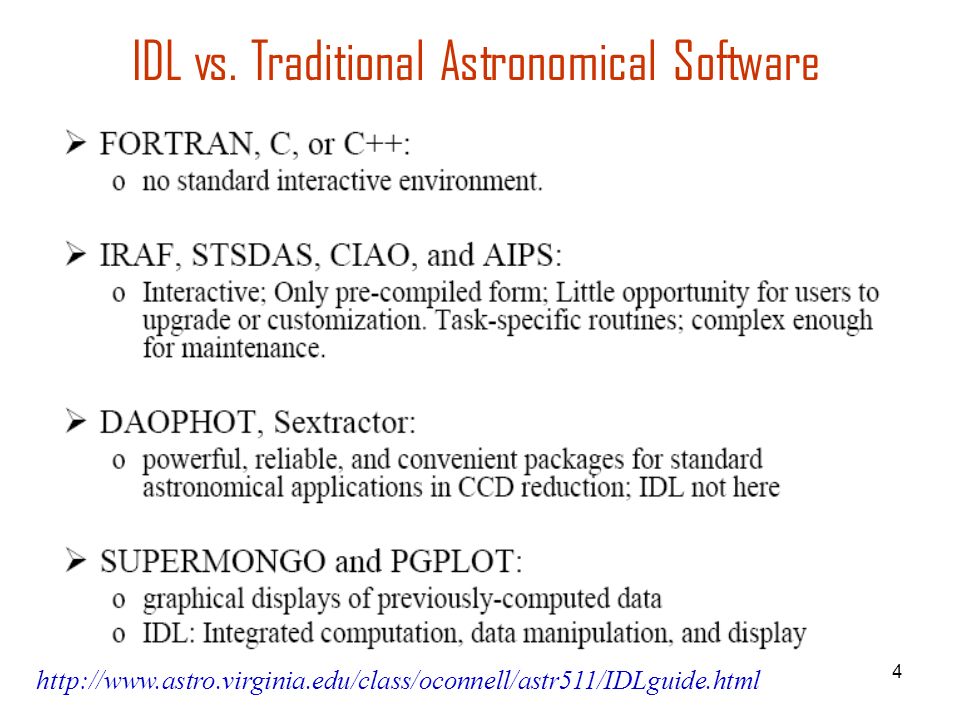

4 4 IDL vs. Traditional Astronomical Software http://www.astro.virginia.edu/class/oconnell/astr511/IDLguide.html

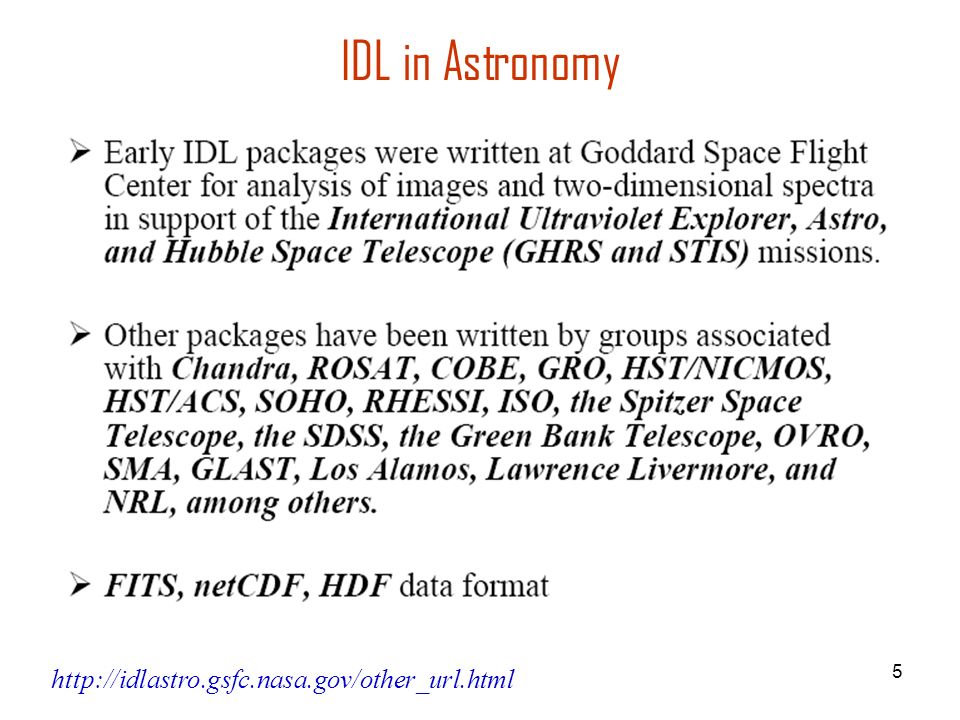

5 5 IDL in Astronomy http://idlastro.gsfc.nasa.gov/other_url.html

6 6 Very Good Places and Packages IDL Astronomy User's Library http://idlastro.gsfc.nasa.gov/homepage.html http://idlastro.gsfc.nasa.gov/ftp/astron.tar.gz FITS http://idlastro.gsfc.nasa.gov/fitsio.html Solar Software http://lmsal.com/solarsoft/sswdoc/index_menu.html ftp://sohoftp.nascom.nasa.gov/solarsoft/offline/swmaint/tar/ ssw_ssw_gen.tar.Z Coyote’s Guide to IDL Programming http://www.dfanning.com ftp://ftp.dfanning.com/pub/dfanning/outgoing/coyote2nd/ IDL Newsgroup (comp.lang.idl-pvwave) http://groups.google.com/group/comp.lang.idl-pvwave Markwardt IDL Library (Fitting) http://cow.physics.wisc.edu/~craigm/idl/idl.html JHUAPL IDL Library http://fermi.jhuapl.edu/s1r/idl/s1rlib/local_idl.html IDL + EMACS http://www.idlwave.org/ http://idlwave.org/download/idlwave-help.tar.bz2 Important: Practice, Take notes, Google idl + keywords IDL Astro Package astron.dir.tar.gz Coyote Program Library coyote2ndfiles.zip SSW General Package ssw_ssw_gen.tar.Z tar xvfz ssw_ssw_gen.tar.Z mv gen /usr/local/rsi/idl/lib/sswgen Others in a similar way; or see Page 8

7 7 Working with IDL Menu Toolbars Edit Window Output Log Variable Watch Command Input Status Bar compilerun My favorite Linux/Unix Console Demo

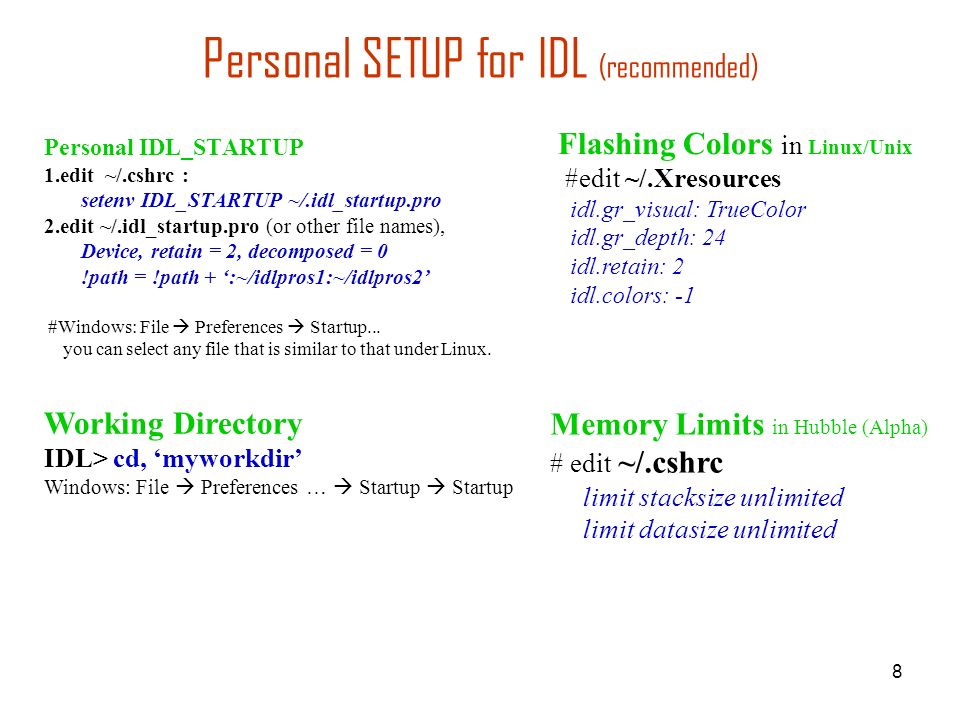

8 8 Personal SETUP for IDL (recommended) Personal IDL_STARTUP 1.edit ~/.cshrc : setenv IDL_STARTUP ~/.idl_startup.pro 2.edit ~/.idl_startup.pro (or other file names), Device, retain = 2, decomposed = 0 !path = !path + ‘:~/idlpros1:~/idlpros2’ #Windows: File  Preferences  Startup... you can select any file that is similar to that under Linux. Flashing Colors in Linux/Unix #edit ~/.Xresources idl.gr_visual: TrueColor idl.gr_depth: 24 idl.retain: 2 idl.colors: -1 Memory Limits in Hubble (Alpha) # edit ~/.cshrc limit stacksize unlimited limit datasize unlimited Working Directory IDL> cd, ‘myworkdir’ Windows: File  Preferences …  Startup  Startup

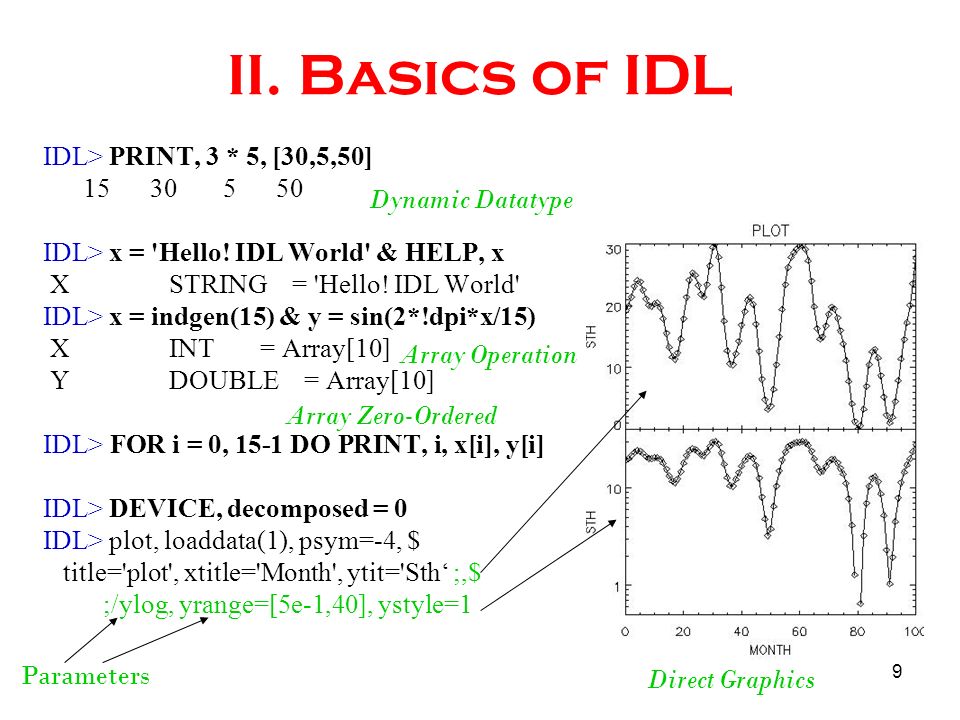

9 9 II. Basics of IDL IDL> PRINT, 3 * 5, [30,5,50] 15 30 5 50 IDL> x = 'Hello! IDL World' & HELP, x X STRING = 'Hello! IDL World' IDL> x = indgen(15) & y = sin(2*!dpi*x/15) X INT = Array[10] Y DOUBLE = Array[10] IDL> FOR i = 0, 15-1 DO PRINT, i, x[i], y[i] IDL> DEVICE, decomposed = 0 IDL> plot, loaddata(1), psym=-4, $ title='plot', xtitle='Month', ytit='Sth‘ ;,$ ;/ylog, yrange=[5e-1,40], ystyle=1 Dynamic Datatype Array Zero-Ordered Array Operation Direct Graphics Parameters

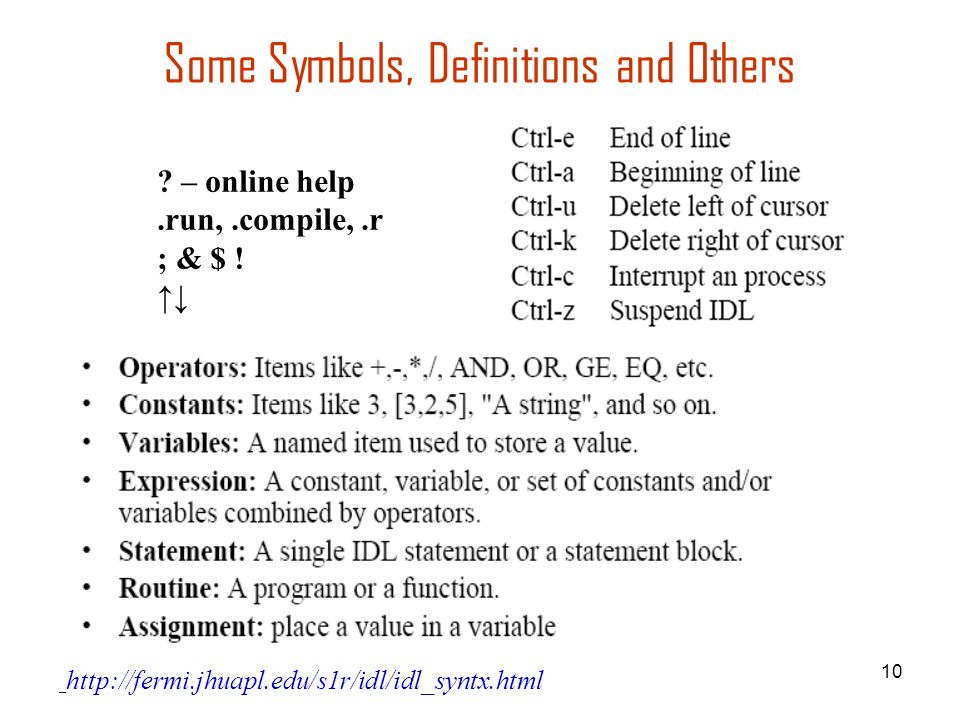

10 10 Some Symbols, Definitions and Others ? – online help.run,.compile,.r ; & $ ! ↑↓ http://fermi.jhuapl.edu/s1r/idl/idl_syntx.html

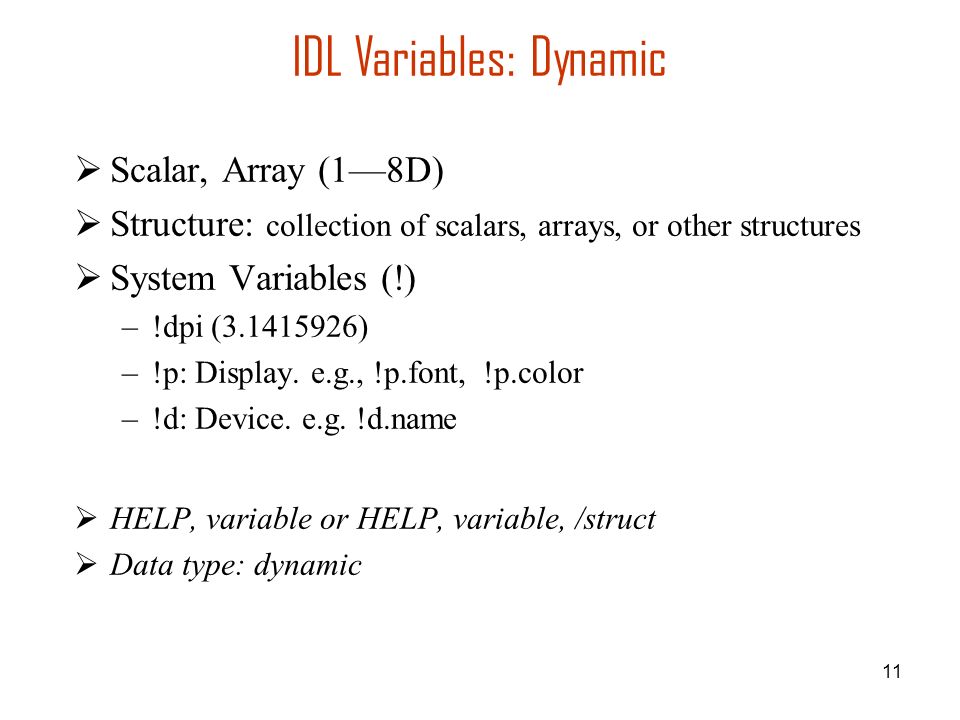

11 11 IDL Variables: Dynamic  Scalar, Array (1—8D)  Structure: collection of scalars, arrays, or other structures  System Variables (!) –!dpi (3.1415926) –!p: Display. e.g., !p.font, !p.color –!d: Device. e.g. !d.name  HELP, variable or HELP, variable, /struct  Data type: dynamic

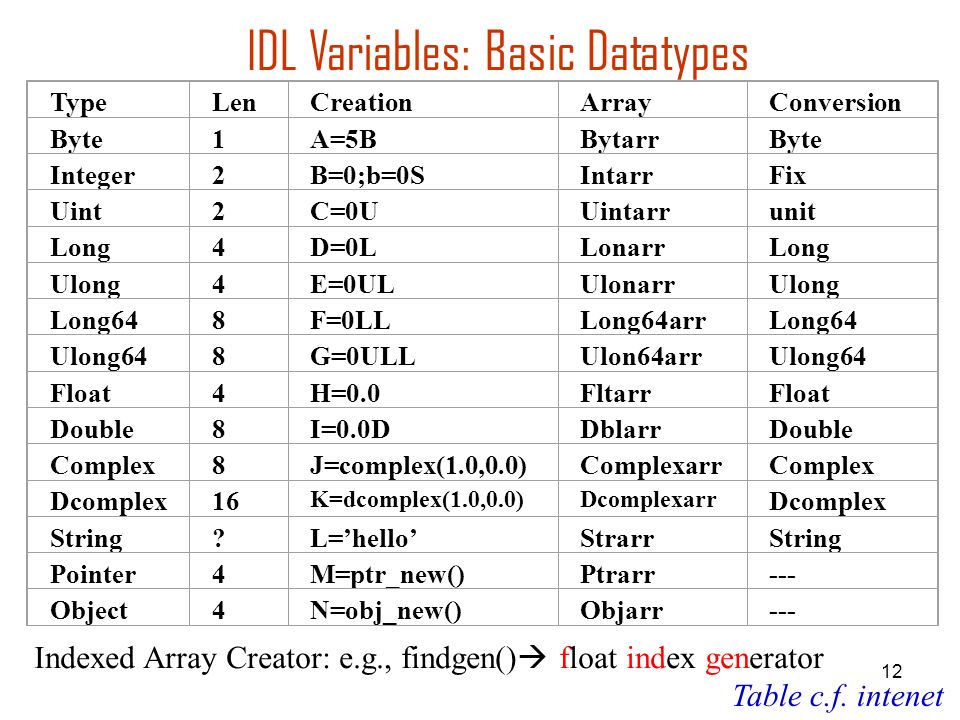

12 12 TypeLenCreationArrayConversion Byte1A=5BBytarrByte Integer2B=0;b=0SIntarrFix Uint2C=0UUintarrunit Long4D=0LLonarrLong Ulong4E=0ULUlonarrUlong Long648F=0LLLong64arrLong64 Ulong648G=0ULLUlon64arrUlong64 Float4H=0.0FltarrFloat Double8I=0.0DDblarrDouble Complex8J=complex(1.0,0.0)ComplexarrComplex Dcomplex16 K=dcomplex(1.0,0.0)Dcomplexarr Dcomplex String?L=’hello’StrarrString Pointer4M=ptr_new()Ptrarr--- Object4N=obj_new()Objarr--- IDL Variables: Basic Datatypes Indexed Array Creator: e.g., findgen()  float index generator Table c.f. intenet

13 13 Control Statements  IF: conditional if exp then statem if exp then statem1 else statem2  For Loops: for i = init, limit, step do statem  While Loops: while exp do statem  Repeat Loops: repeat statem until exp  Case:  GOTO: goto, label  Blocks: Begin statem1 …… statemx Endxxx if x lt 0 then begin print,x & a=2 & endif e.g. http://fermi.jhuapl.edu/s1r/idl/idl_syntx.html if x lt 0 then begin print,x a=2 endif for i=0, 10 do begin readf, lun, txt print,txt endfor

14 14 Programs: Procedures & Functions  Batch files: one or more IDL statements or commands. $ @batchfile: interpreted one by one, exactly as if it was from the keyboard.  Main-level Programs: a series of program statements that are compiled and executed once an END statement is encountered.  Programs: pro name, param1, param2,... paramx ended with END  Functions: function name, param1, param2,... Paramx ended with END  Variable Access: Batch and Main (globe), Program & function (local) IDL: an interactive tool, also a powerful programming language.

15 15 Parameters Passing  Actual (caller) and Formal (called) Parameters Correspondence by position or keyword Keyword Inheritance (_Extra)  Passing Mechanism Expressions, constants, system variables, and subscripted variable references are passed by value. Variables are passed by reference.  Parameters and Keywords Checking n_params() : number of parameters in calling an procedure/ function n_elements() : returns zero for undefined variable. keyword_set() : check a Boolean keyword parameter. arg_present() : defined and reference passing?

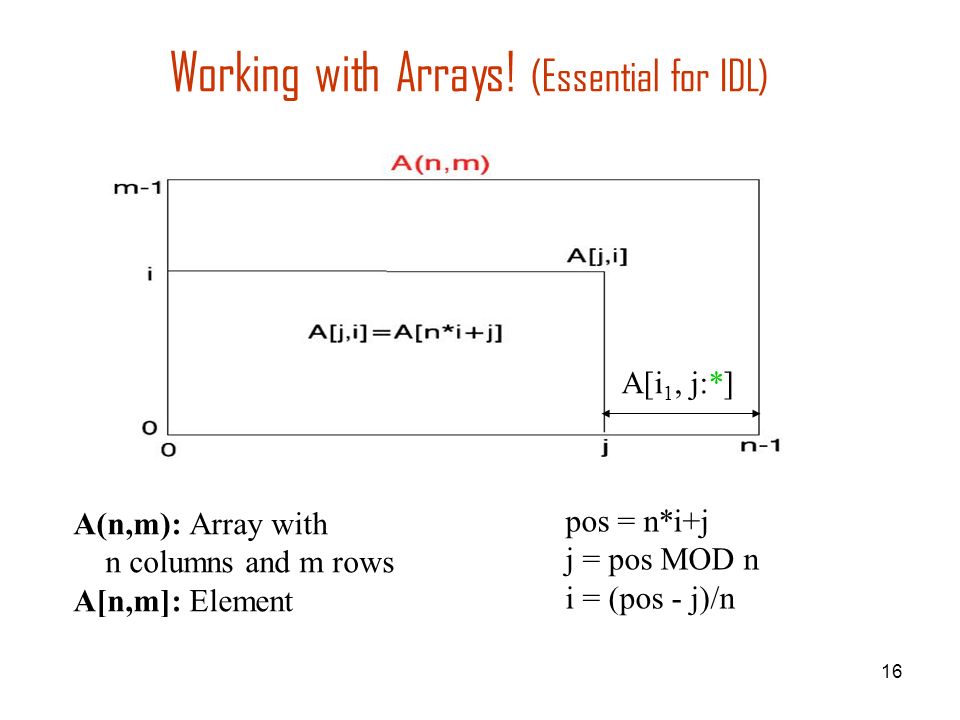

16 16 Working with Arrays! (Essential for IDL) A(n,m): Array with n columns and m rows A[n,m]: Element pos = n*i+j j = pos MOD n i = (pos - j)/n A[i 1, j:*]

17 17 Array-Oriented Operation  Arrays work the same as Scalars. e.g. 2*A, A + B, A-B, A/B, SQURT(A), …… Try to avoid use of loops (slow!)  Array Creation: xxxArr, xIndGen, Replicate, …  Array Manipulation: [], ARRAY_INDICES, CONGRID, HISTOGRAM, INVERT, MAX, MIN, MEDIAN, N_ELEMENTS, REBIN, REFORM, REVERSE, ROT, ROTATE, SHIFT, SIZE, SORT, TOTAL, MEAN, TRANSPOSE, UNIQ, WHERE, etc.

18 18 WHERE much faster than IF Set all values between 5 to 8 equal = 15. Loop Way: For j=0,2 Do Begin For k=0,3 Do Begin IF (array(j,k) GE 5) AND (array(j,k) LE 8) THEN array(j,k) = 15 EndFor IDL Way: index = Where((array GE 5) AND (array LE 8), count) IF count GT 0 THEN array[index] = 15 http://www.dfanning.com/powerpoint/index.html

19 19 Where(): where are they? file= FILEPATH('galaxy.dat', subdir = ['examples', 'data']) imagesize = [256, 256] image = READ_BINARY(file, data_dims =imagesize) DEVICE, decomposed = 0 & LOADCT, 4 WINDOW, 0, xsize = imagesize[0], ys= 2 * imagesize[1] indices = Where((image GE 200) AND $ (image LE 230), count) IF count GT 0 THEN BEGIN result = Array_Indices(image, indices) col = Reform(result [0,*]) row = Reform(result [1,*]) TV, image, 0 & TV, image, 1 PlotS, col, row, /Device, $ Color=FSC_Color(‘white'), psym=1 ENDIF

20 20 Mask using Where() file = FILEPATH('worldelv.dat', $ subdir = ['examples', 'data']) file = FILEPATH('worldtmp.png', $ subdir = ['examples', 'demo', 'demodata']) TV, elvImage, 0 & TV, tmpImage, 1 ocean = WHERE(elvImage LT 125) image = tmpImage image[ocean] = elvImage[ocean] TV, image, 2 land = WHERE(elvImage GE 125) image = tmpImage image[land] = elvImage[land] TV, image, 3 Temperature Distribution in Land and Ocean

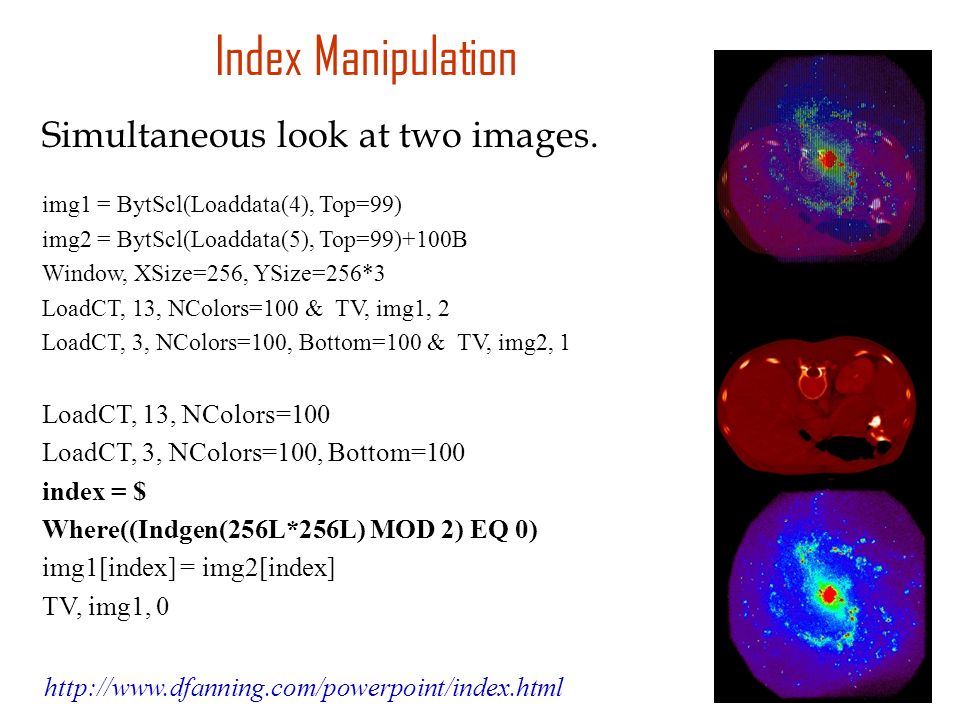

21 21 img1 = BytScl(Loaddata(4), Top=99) img2 = BytScl(Loaddata(5), Top=99)+100B Window, XSize=256, YSize=256*3 LoadCT, 13, NColors=100 & TV, img1, 2 LoadCT, 3, NColors=100, Bottom=100 & TV, img2, 1 LoadCT, 13, NColors=100 LoadCT, 3, NColors=100, Bottom=100 index = $ Where((Indgen(256L*256L) MOD 2) EQ 0) img1[index] = img2[index] TV, img1, 0 Simultaneous look at two images. Index Manipulation http://www.dfanning.com/powerpoint/index.html

22 22 Examples: the IDL Way n = 5 i = REBIN(LINDGEN(n), n, n) j = REBIN(TRANSPOSE(LINDGEN(n)), n, n) Print, i Print, j 0 1 2 3 4 0 0 0 0 0 0 1 2 3 4 1 1 1 1 1 0 1 2 3 4 2 2 2 2 2 0 1 2 3 4 3 3 3 3 3 0 1 2 3 4 4 4 4 4 4 mask = (i GE j) Print, mask 1 1 1 1 1 0 1 1 1 1 0 0 1 1 1 0 0 0 1 1 0 0 0 0 1 e.g., Upper Triangular Matrix http://www.dfanning.com/idl_way/

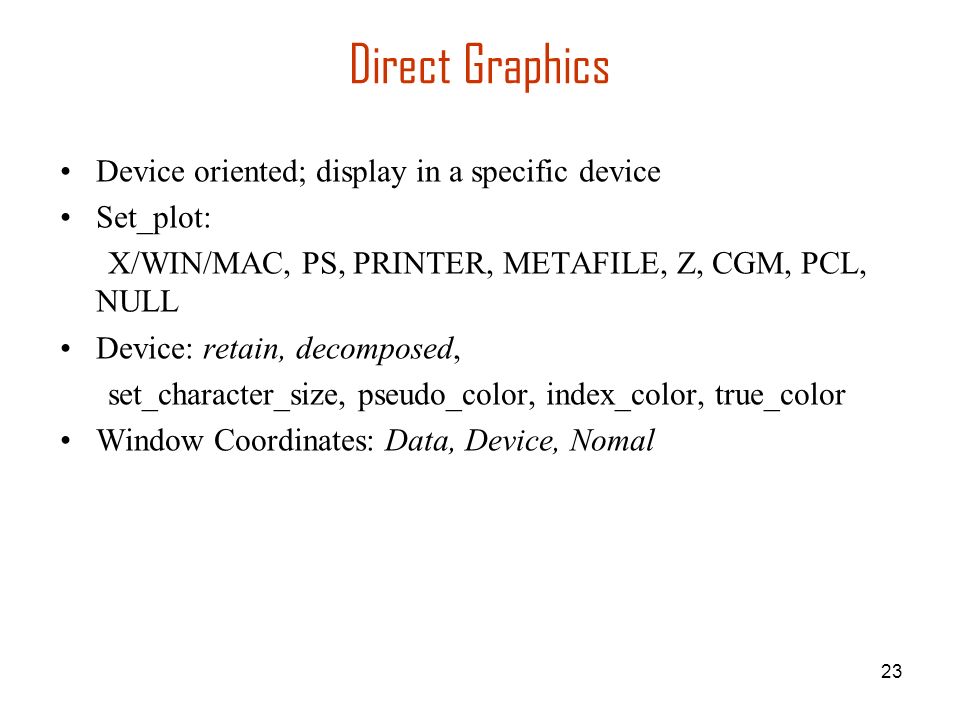

23 23 Direct Graphics Device oriented; display in a specific device Set_plot: X/WIN/MAC, PS, PRINTER, METAFILE, Z, CGM, PCL, NULL Device: retain, decomposed, set_character_size, pseudo_color, index_color, true_color Window Coordinates: Data, Device, Nomal

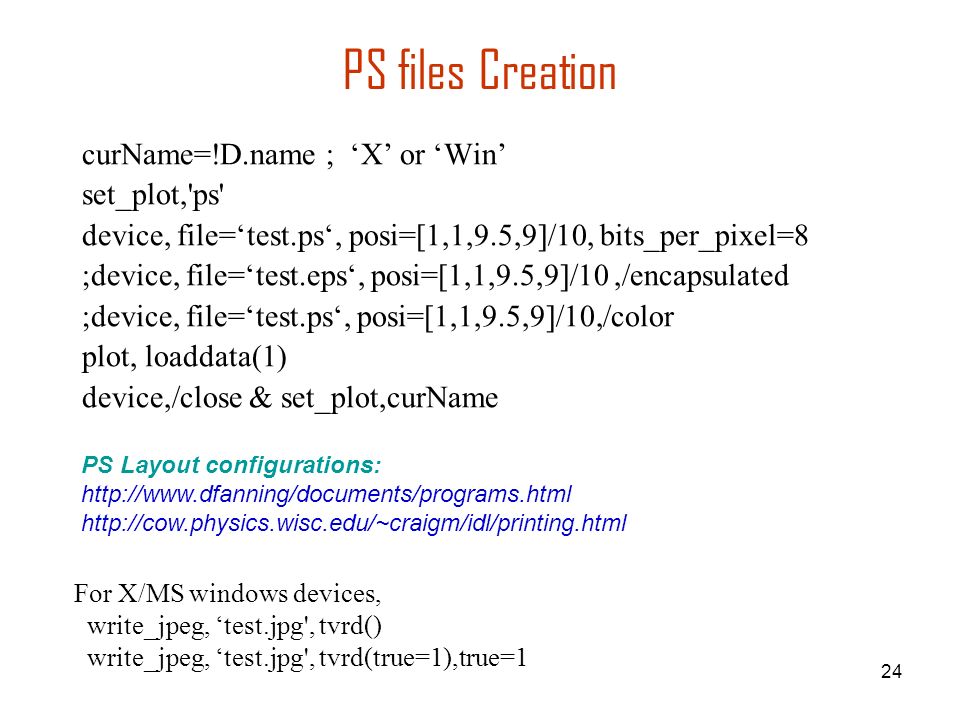

24 24 PS files Creation curName=!D.name ; ‘X’ or ‘Win’ set_plot,'ps' device, file=‘test.ps‘, posi=[1,1,9.5,9]/10, bits_per_pixel=8 ;device, file=‘test.eps‘, posi=[1,1,9.5,9]/10,/encapsulated ;device, file=‘test.ps‘, posi=[1,1,9.5,9]/10,/color plot, loaddata(1) device,/close & set_plot,curName For X/MS windows devices, write_jpeg, ‘test.jpg', tvrd() write_jpeg, ‘test.jpg', tvrd(true=1),true=1 PS Layout configurations: http://www.dfanning/documents/programs.html http://cow.physics.wisc.edu/~craigm/idl/printing.html

25 25 Working with Colors  (R,G,B) triple: any Color decomposed to Red, Green, and Blue components, each with value 0~255  Indexed Color Model and RGB Color Model Indexed Color Model (also 8 bit color): Color Lookup Table  Color Palette 2^8 = 256 colors Device, decomposed = 0 RGB Color Model (also 24 bit color) : specify color values explicitly, using an RGB triple 2^8 * 2^8 * 2^8 = 16777216 colors Device, decomposed = 1 Indexed?  Dynamic HELP, /DEVICE LOADCT, TVLCT, XLOADCT, XPALETTE About COLORBAR, FSC_COLOR, etc. http://www.dfanning/documents/programs.html

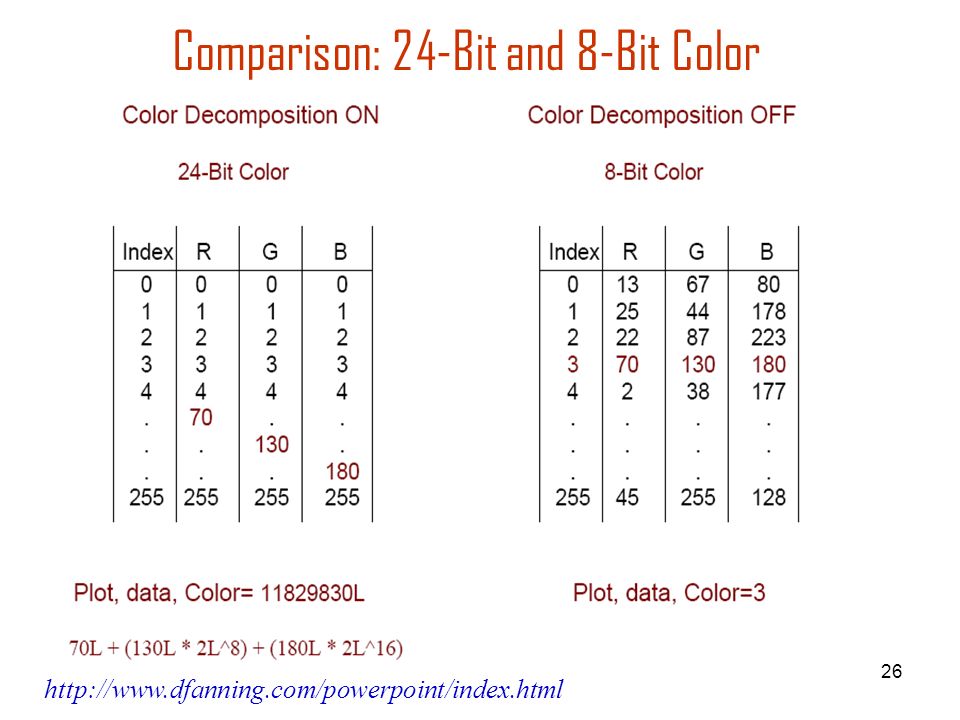

26 26 http://www.dfanning.com/powerpoint/index.html Comparison: 24-Bit and 8-Bit Color

27 27 Color Decomposition Data=loaddata(1) Plot, data, Color=255, posi=[0,0,1,1] Help, /Device Device, Decomposed=1 ; ON Plot, data, Color=11829830L,$ Background='00ff00'xL, posi=[0,0,1,1] TVLCT, 70, 130, 180, 240 Device, Decomposed=0; OFF Plot, data, Color=240,$ Background=255,posi=[0,0,1,1]

28 28 RGB Image: Ant Nebula read_jpeg,'Ant.jpg',ant r=reform(ant[0,*,*]) g=reform(ant[1,*,*]) b=reform(ant[2,*,*]) Help, ant window, 0, xsize=2*info[2], ysize=2*info[3] tv, ant, true=1,0 tvscl,r,channel=1 & tvscl,g,channel=2 & tvscl,b,channel=3 tvscl,r,channel=1,1 & tvscl,g,channel=2,2 & tvscl,b,channel=3,3 Google Images: Ant Nebula device,decom=1

29 29 Image Types Byte: 0~255; otherwise, BYTSCL() Binary Image: values only with 0 or 1 Gray-scale Image: B-W LUT Indexed Images: 0~255, LUT RGB Images: (R,G,B), each 0~255 COLOR_QUAN() : RGB  Indexed Image FILEPATH, QUERY_IMAGE, READ_BINARY, READ_IMAGE READ_JPEG/WRITE_JPEG, WRITE_IMAGE,……

30 30 III. 1D and 2D Data Display  plot/oplot, plots, axis, xyouts, ploterr/oploterr/errplot/, ploterror(!!!), vel/velovect/plot_field/flow3  BTLSCL, REBIN, REFORM  tv/tvscl/bytscl, imdisp(!!!), plot_image, tvimage, contour, image_cont, surface, surf_shade, show3, median, smooth/convol, reberts/sobel, defroi, profiles, etc.  Histogram, plot_hist  box_cursor, plot_box, rdpix, curval  live_tools(live_plot,...), itools(iplot,icontour,...)  iTools (iplot, ……)  !p.multi, position, xrange, xstyle, psym, ……

31 31 User PSYM device, decomposed=0 !p.multi=[0,1,2] data=loaddata(1) Plot, data, PSym=-2 ;filled circle phi = Findgen(32) * (!PI * 2 / 32.) phi = [ phi, phi[0] ] UserSym, Cos(phi), Sin(phi), /Fill Plot, data, /NoData ;tvlct, 178,34,34,10 & OPlot, data, Color=10 OPlot, data, Color=FSC_Color('firebrick') Oplot, data, color=FSC_Color('forest green'), $ PSym=8, Symsize=1.5

32 32 Plotting Error Bars xtime = indgen(101) & data = loaddata(1) xerr = randomN(seed,101)*2 yerr = randomN(seed,101)*4 device,decomposed=0 & loadct, 0 tvlct, r, g, b, /get & tvlct, 255-[[r],[g],[b]] & tvlct, 0,255,0,100 ploterror, xtime, data, xerr, yerr, psym = -2, xstyle=1, $ xtitle='!7b(!6cm!U-2!N !6s!D-1!N)', ytitle='!6H!7a' oplot,xtime,data,color=100,thick=2 ERRPLOT, X, Y-yerr1, Y+yerr2

33 33 TV and TVSCL file = FILEPATH('hurric.dat', subdir = ['examples', 'data']) hurric = READ_BINARY(file, DATA_DIMS = [440, 340])

34 34 Pseudo-Color Images in PS file = FILEPATH('worldelv.dat', subdir = ['examples', 'data']) image = READ_BINARY(file, DATA_DIMS = [360, 360]) IMDISP better than TV/TVSCL Also try PLOT_IMAGE curName=!d.name & set_plot,'PS' device,/color,file='elev.eps',bits_per_pixel=8,/encap loadct,13 & imdisp, image ; plot_image,image device,/close & set_plot,curName

35 35 True-Color Images in PS file=filepath('rose.jpg',subdir='examples/data') read_jpeg,file,rose & tvlct,r,g,b,/get curName=!d.name & set_plot,'PS‘ device,/color,file='rose.eps',bits_per=8,/encap loadct,0 & imdisp,rose device,/close & set_plot,curName tvlct,r,g,b Color table always active in 24 bits mode, ps device Google Images: Rosette Nebula

36 36 VI. FITS I / O in IDL  FITS (Flexible Image Transport System) is a standardized data format which is widely used in astronomy.  Briefly, a FITS file consists of a sequence of one or more Header and Data Units (HDUs). A header is composed of ASCII card images that in IDL is usually read into a string array variable. The header describes the content of the associated data unit, which might be a spectrum (IDL vector), an image (IDL array), or tabular data in ASCII or binary format (often read as an IDL structure). Image and vector data can be present in any HDU, but tabular data cannot appear in the first HDU. The HDUs following the first (or primary) HDU are also known as extensions, and thus a FITS file containing tabular data must contain at least one extension. The FITS Support Office/NASA http://fits.gsfc.nasa.gov/ Four Classes of Procedures: MRDFITS()/MWRFITS: READFITS()/WRITEFITS FX* Procedures FITS_* and FTAB_* Procedures FITS I/O in IDLAstro http://idlastro.gsfc.nasa.gov/fitsio.html

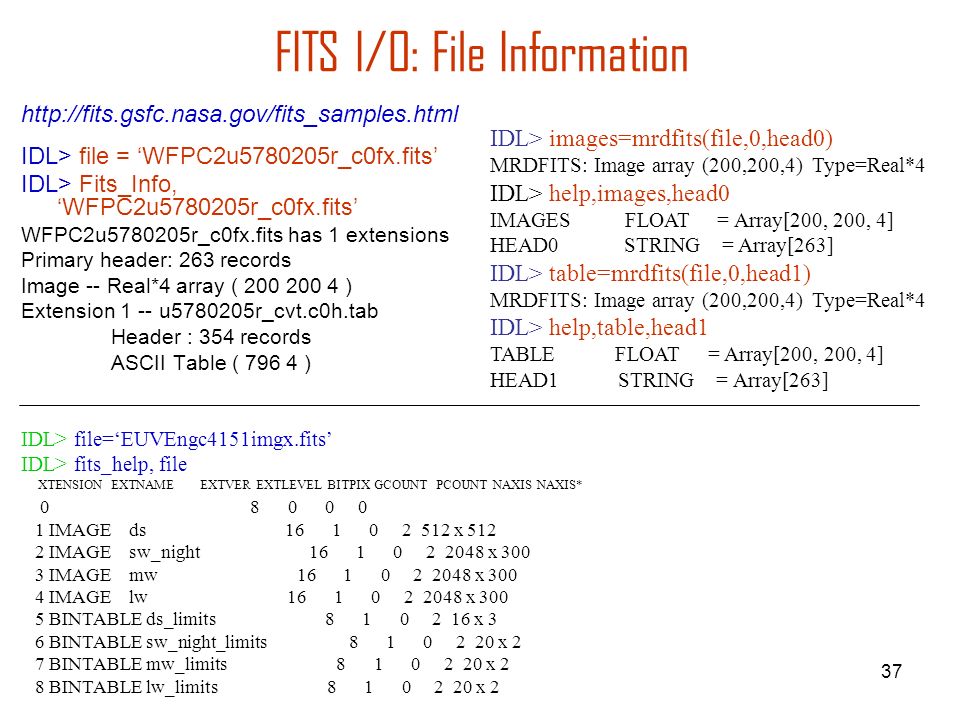

37 37 FITS I/O: File Information IDL> file = ‘WFPC2u5780205r_c0fx.fits’ IDL> Fits_Info, ‘WFPC2u5780205r_c0fx.fits’ WFPC2u5780205r_c0fx.fits has 1 extensions Primary header: 263 records Image -- Real*4 array ( 200 200 4 ) Extension 1 -- u5780205r_cvt.c0h.tab Header : 354 records ASCII Table ( 796 4 ) IDL> file=‘EUVEngc4151imgx.fits’ IDL> fits_help, file XTENSION EXTNAME EXTVER EXTLEVEL BITPIX GCOUNT PCOUNT NAXIS NAXIS* 0 8 0 0 0 1 IMAGE ds 16 1 0 2 512 x 512 2 IMAGE sw_night 16 1 0 2 2048 x 300 3 IMAGE mw 16 1 0 2 2048 x 300 4 IMAGE lw 16 1 0 2 2048 x 300 5 BINTABLE ds_limits 8 1 0 2 16 x 3 6 BINTABLE sw_night_limits 8 1 0 2 20 x 2 7 BINTABLE mw_limits 8 1 0 2 20 x 2 8 BINTABLE lw_limits 8 1 0 2 20 x 2 IDL> images=mrdfits(file,0,head0) MRDFITS: Image array (200,200,4) Type=Real*4 IDL> help,images,head0 IMAGES FLOAT = Array[200, 200, 4] HEAD0 STRING = Array[263] IDL> table=mrdfits(file,0,head1) MRDFITS: Image array (200,200,4) Type=Real*4 IDL> help,table,head1 TABLE FLOAT = Array[200, 200, 4] HEAD1 STRING = Array[263] http://fits.gsfc.nasa.gov/fits_samples.html

38 38 Fits Example: Orion Nebula data=readfits('masterf673.fits.gz',head) loadct,10 & tvlct,r,g,b,/get r[0]=34 & g[0]=139 & b[0]=34 & tvlct,r,g,b plot_image,alog10(data>5e-1) loadct,10 plot_image,alog10(data[1000:2000,1200:2200]>0.5) http://casa.colorado.edu/~bally/ HST/HST/master/

39 39 Solar Map Software An IDL map is a structure that contains two-dimensional (2-d) image data with accompanying pixel coordinate and spatial scale information. The latter parameters are defined as properties of the map and are unique for each image source. Defined in this manner, an arbitrary image can be manipulated or transformed in a manner that is independent of the image source. http://hesperia.gsfc.nasa.gov/~ptg/trace-align/ http://orpheus.nascom.nasa.gov/~zarro/idl/maps.html

40 40 V. Image Processing A Short Introduction to Digital Image Processing http://web.uct.ac.za/depts/physics/laser/hanbury/intro_ip.html

41 41 BYTSCL (Byte Scale) READ_DICOM(FILEPATH('mr_brain.dcm', subdir = ['examples', 'data'])) BYTSCLmr_brain

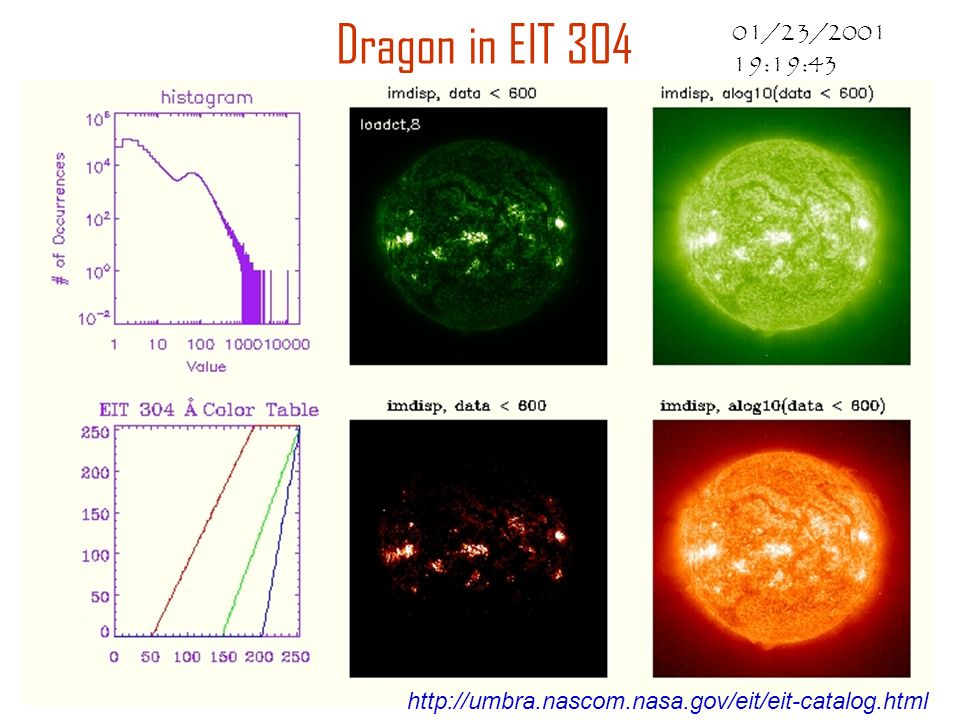

42 42 Dragon in EIT 304 01/23/2001 19:19:43 http://umbra.nascom.nasa.gov/eit/eit-catalog.html

43 43 Color Table  Highlights, Contrast file = FILEPATH('mineral.png', subdir = ['examples', 'data']) image = READ_PNG(file, r, g, b) colorLevel = [[0, 0, 0], [255, 0, 0], [255, 255, 0], [0, 255, 0], $ [0, 255, 255], [0, 0, 255], [255, 0, 255], [255, 255, 255]] numberLevel = CEIL(!D.TABLE_SIZE/8.) level = INDGEN(!D.TABLE_SIZE)/numberLevel newR = colorLevel(0, level) & newR[!D.TABLE_SIZE - 1] = 255 newG = colorLevel(1, level) & newG[!D.TABLE_SIZE - 1] = 255 newB = colorLevel(2, level) & newB[!D.TABLE_SIZE - 1] = 255 TVLCT, newR, newG, newBTVLCT, 13 TVLCT, r,g,b

44 44 Histogram Equalization Left: BYTSCL(HISTOGRAM(image)) Right: Mineral also, H_EQ_CT, H_EQ_INT Left: BYTSCL(HISTOGRAM(hq_image)) Right: hq_image = HIST_EQUAL(image) ADAPT_HIST_EQUAL Left: HISTOGRAM(equalizedImage) Right: ADAPT_HIST_EQUAL(image)

45 45 Adjust Histogram http://web.uct.ac.za/depts/physics/laser/hanbury/intro_ip.html

46 46 Fast Fourier Transform de-noise file= FILEPATH('abnorm.dat', subdir = ['examples', 'data']) powerSpec = ALOG10(SHIFT(FFT(image), zz[0]/2, zz[0]/2)) CONGRID(powerSpec, zz2[0], zz2[1]) mask = FLOAT(scaledSpec) GT 2.6 maskedSpec = scaledSpec * mask + MIN(powerSpec) inverseTran = ABS(FFT(SHIFT(10.^(maskedSpec), $ zz[0]/2,zz[1]/2), /inverse)) scaledSpec = powerSpec - Min(powerSpec)

47 47 FFT: removing corrugated effect http://web.uct.ac.za/depts/physics/laser/hanbury/intro_ip.html

48 48 Inverse Laplace Trans mask = HANNING(imagesize[0], imagesize[1]) maskedSpec = (scaledSpec * mask) + MIN(powerSpec) inverseTrans = ABS(FFT(SHIFT(10.^(maskedSpec), $ imagesize[0]/2, imagesize[1]/2), /inverse)) maskedSpecinverseTrans

49 49 Median Smoothing file= FILEPATH('rbcells.jpg', subdir = ['examples', 'data']) MEDIAN(rbcells, 5) rbcells

50 50 Rim Enhancing croppedSize = [96, 96] file= FILEPATH('nyny.dat', subdir = ['examples', 'data']) croppedImage = image[200 : croppedSize[0] - 1 + 200, 180 : croppedSize[0] - 1 + 180] ROBERTS SOBEL croppedImage
