1
Uniform Circular Motion

2

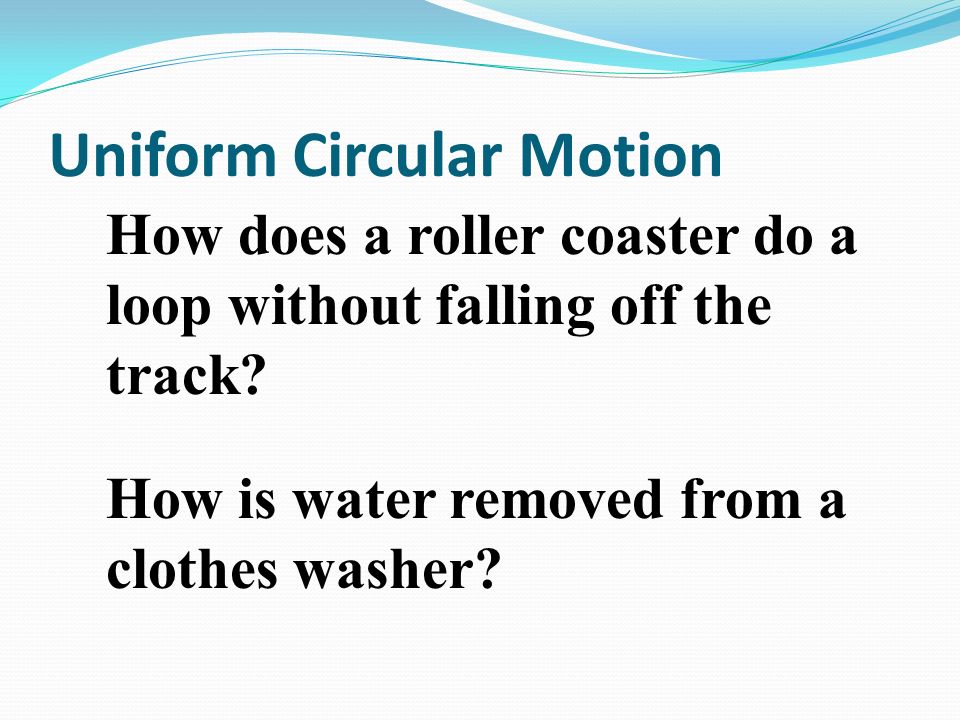

How does a roller coaster do a loop without falling off the track? How is water removed from a clothes washer?

3

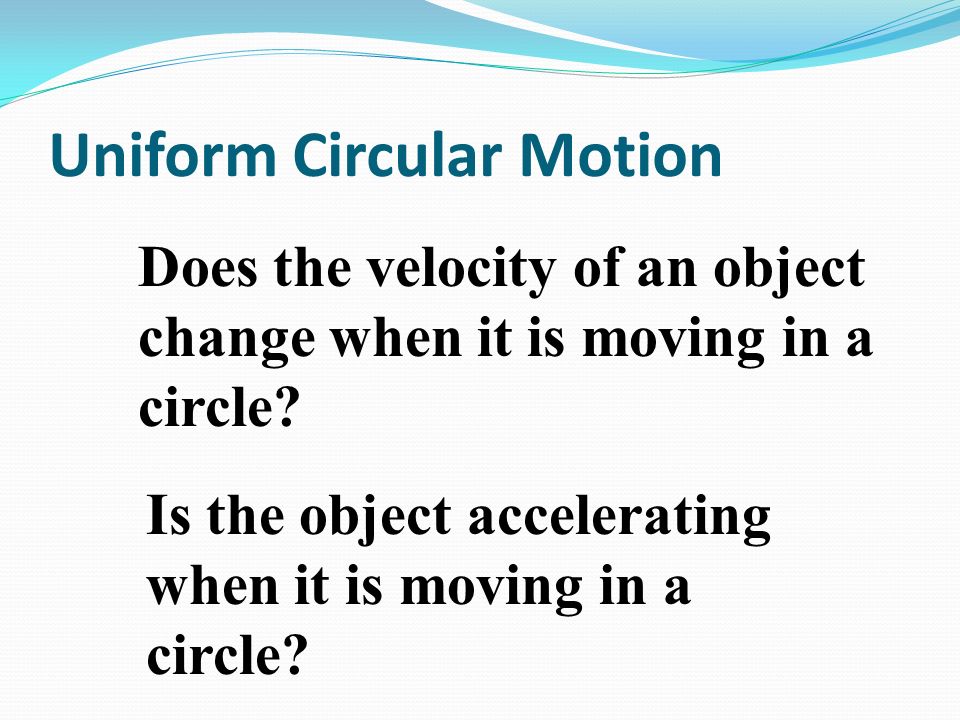

Uniform Circular Motion Does the velocity of an object change when it is moving in a circle? Is the object accelerating when it is moving in a circle?

4
Uniform Circular Motion V- tangential velocity A- acceleration What is the direction?

5

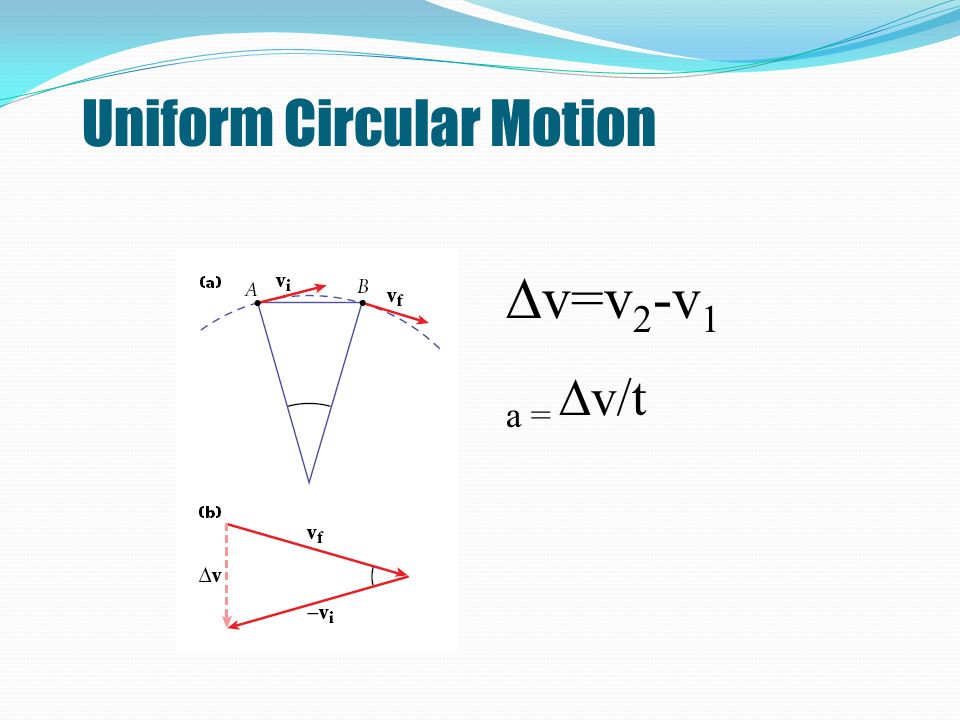

Uniform Circular Motion v=v 2 -v 1 a = v/t

6
Uniform Circular Motion Centripetal acceleration (a c ) “Center- seeking” acceleration

7

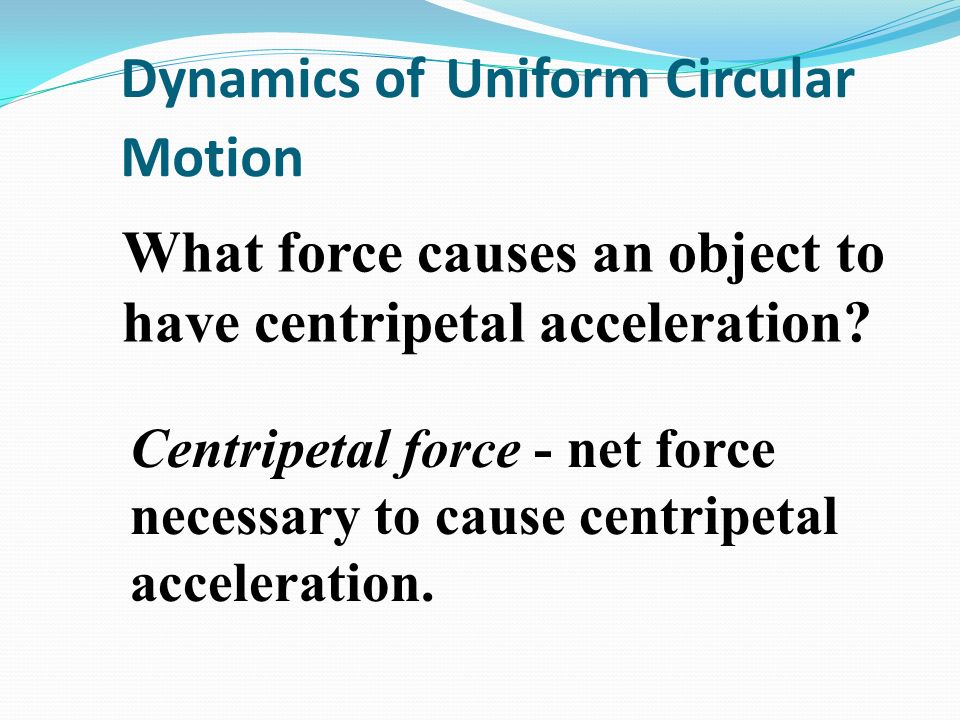

Dynamics of Uniform Circular Motion What force causes an object to have centripetal acceleration? Centripetal force - net force necessary to cause centripetal acceleration.

8
Dynamics of Uniform Circular Motion Centripetal force is directed toward the center of the circle.

9

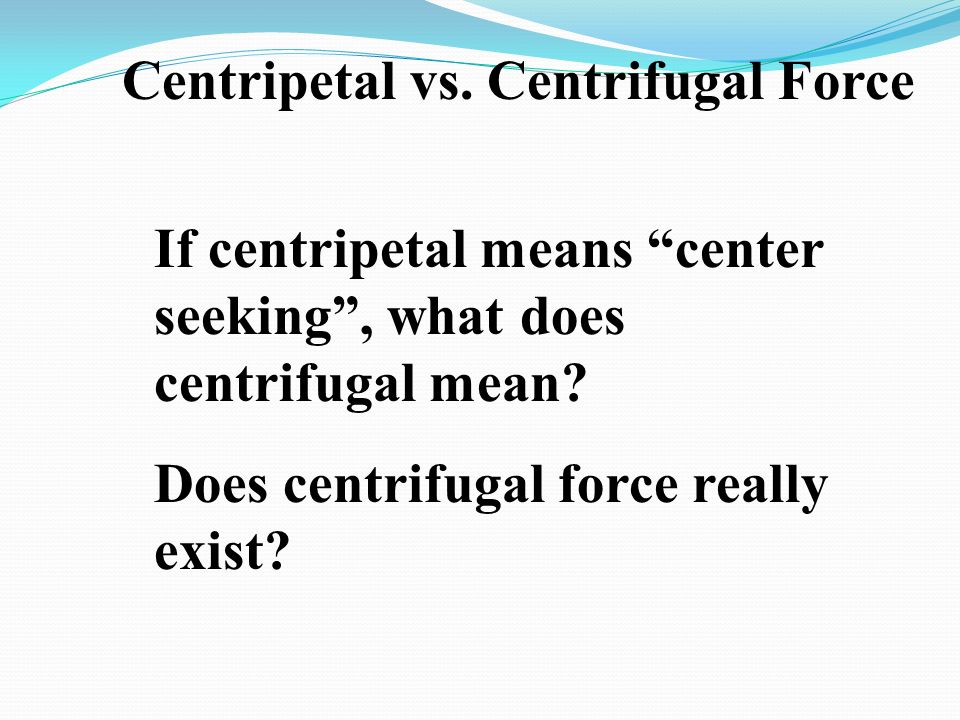

Centripetal vs. Centrifugal Force If centripetal means “center seeking”, what does centrifugal mean? Does centrifugal force really exist?

10
Centripetal vs. Centrifugal Force If there was a centrifugal force, what direction would the ball travel when the string broke?

11
If there was a centrifugal force, the ball would fly outward

12

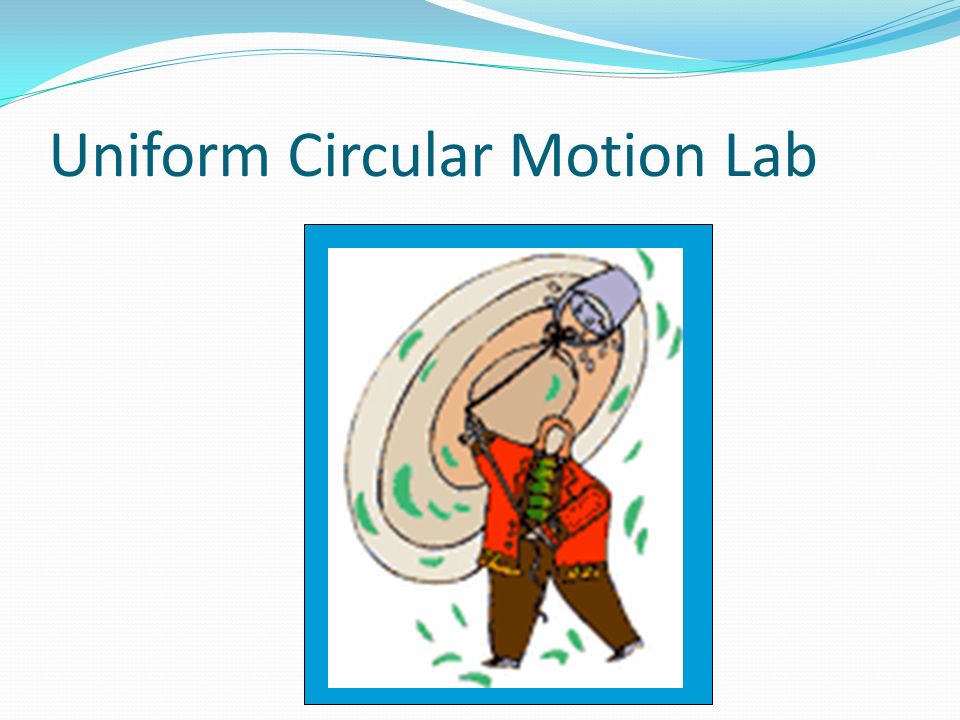

Uniform Circular Motion Lab

13

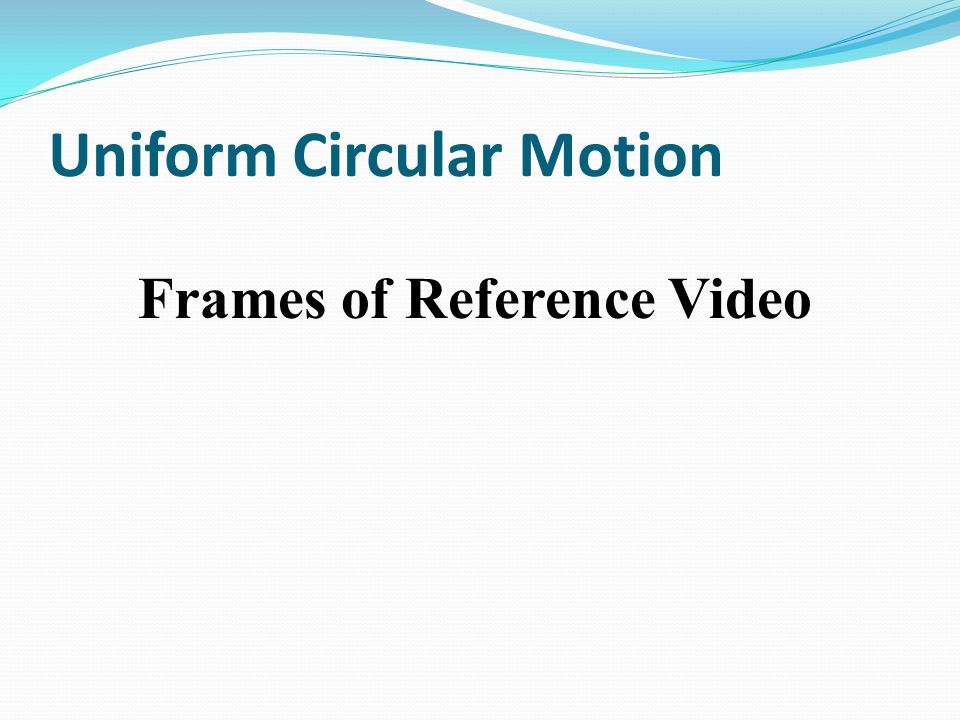

Uniform Circular Motion Frames of Reference Video

14

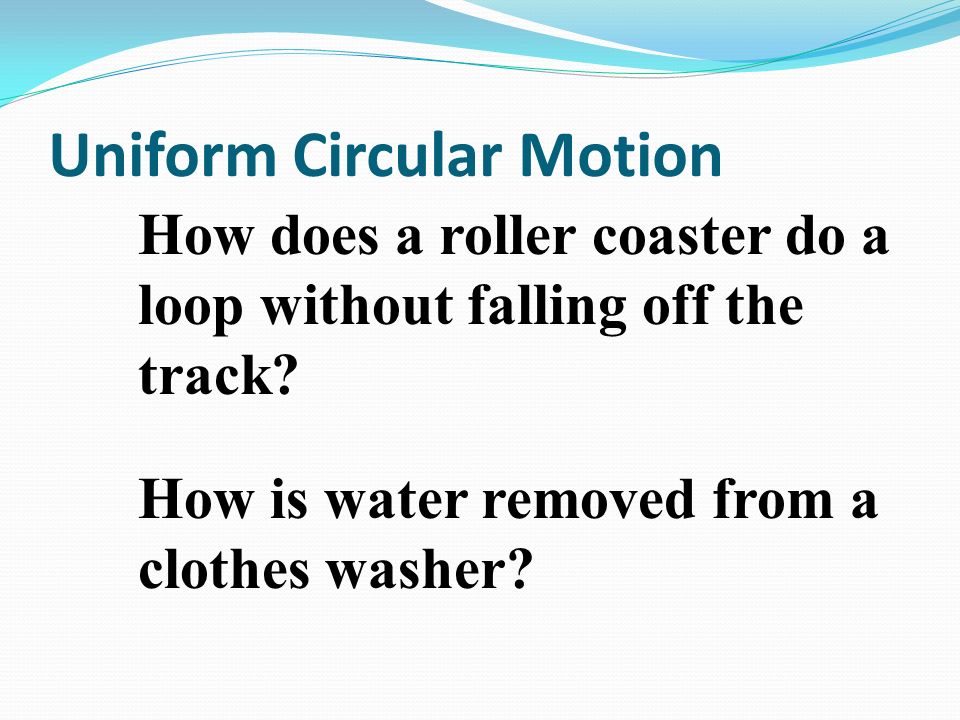

Uniform Circular Motion How does a roller coaster do a loop without falling off the track? How is water removed from a clothes washer?

15

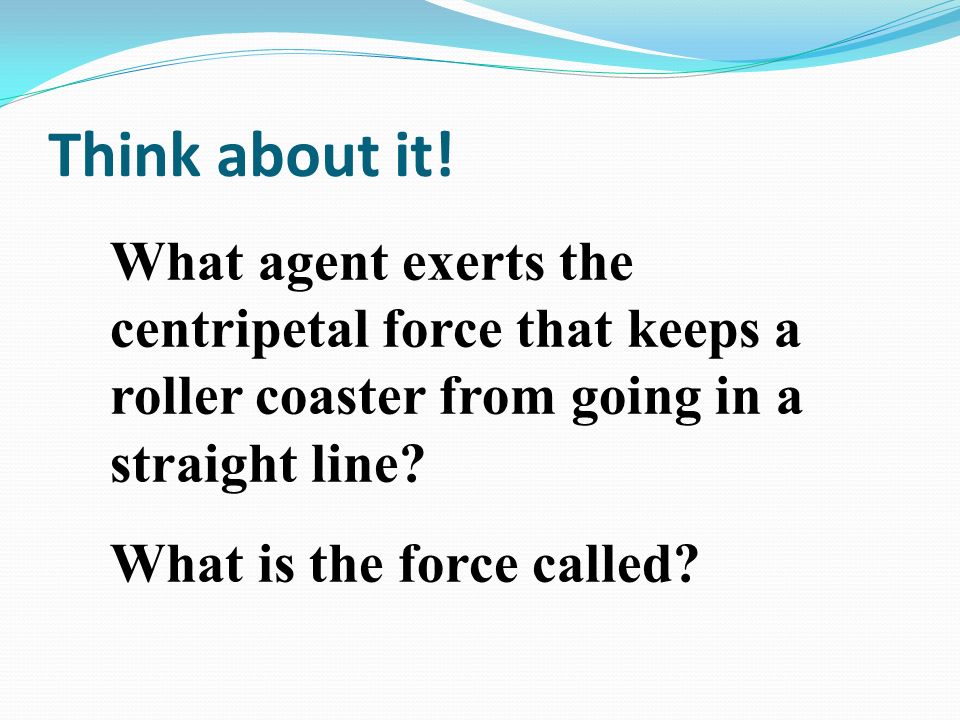

What agent exerts the centripetal force that keeps a roller coaster from going in a straight line? What is the force called? Think about it!

16
What agent exerts the centripetal force that keeps a the clothes from going outside the washer bucket? What is the force called? Think about it!

17

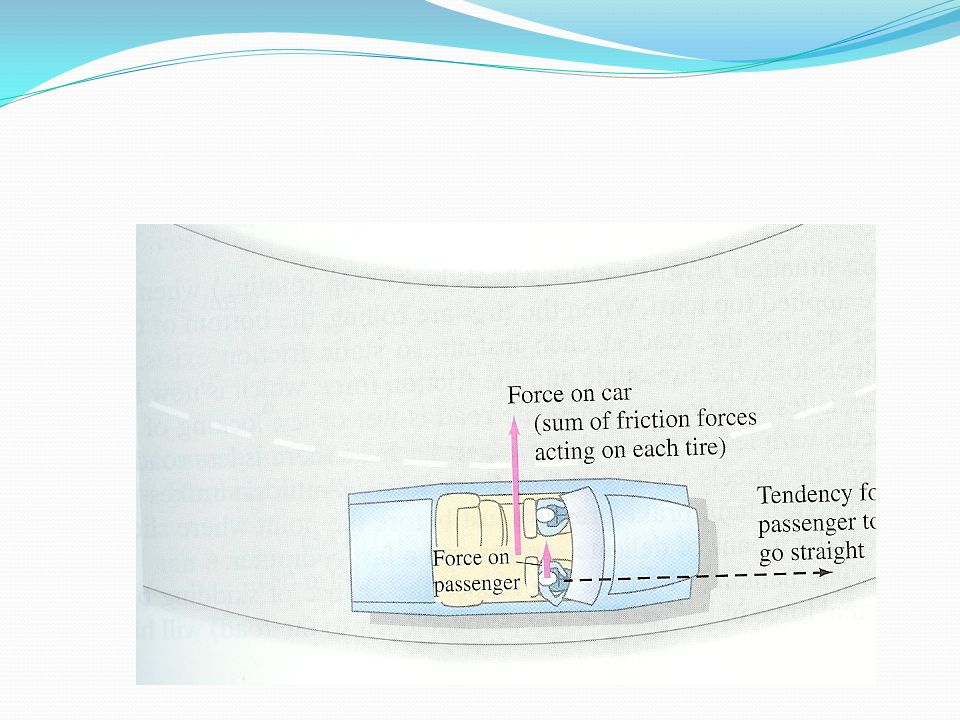

What agent exerts the centripetal force that keeps a car going around a bend in the road? What is the force called?

19
Free body diagram of a car going around a curve

20
What agent exerts the centripetal force on the moon? What is the force called? Think about it! Does the earth do work on the moon? Explain.

21
Uniform Circular Motion Centripetal acceleration

22
Practice Problems 1-3

23
Practice Problems 3-5 Circumference = 2 π r

24

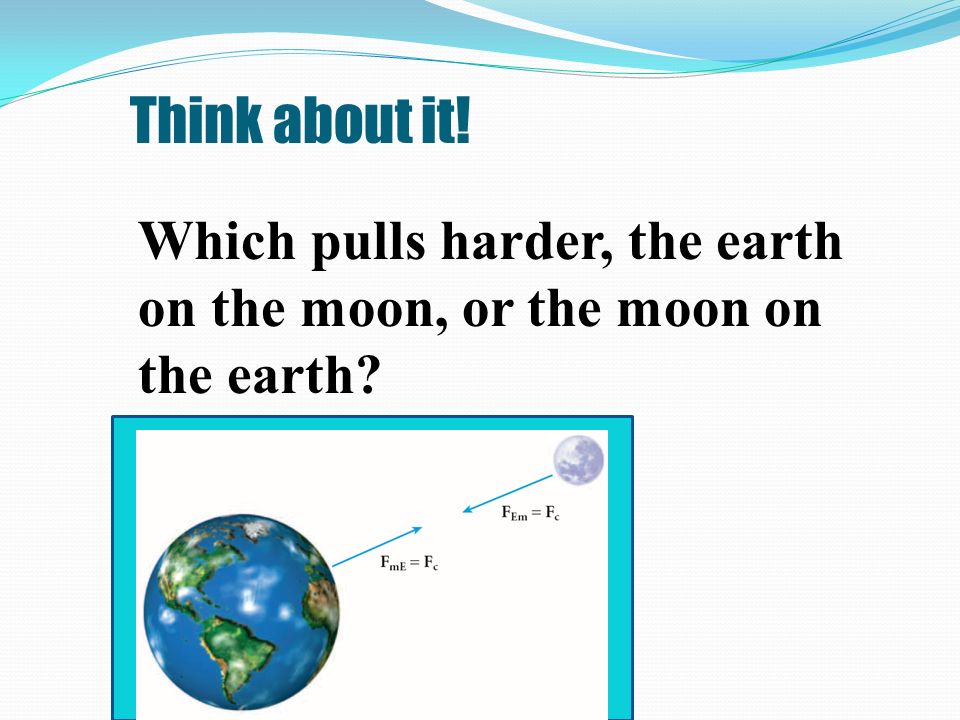

Which pulls harder, the earth on the moon, or the moon on the earth? Think about it!

25
Newton wondered “Why does an apple fall and the moon doesn’t?” Newton’s Law of Universal Gravitation

26

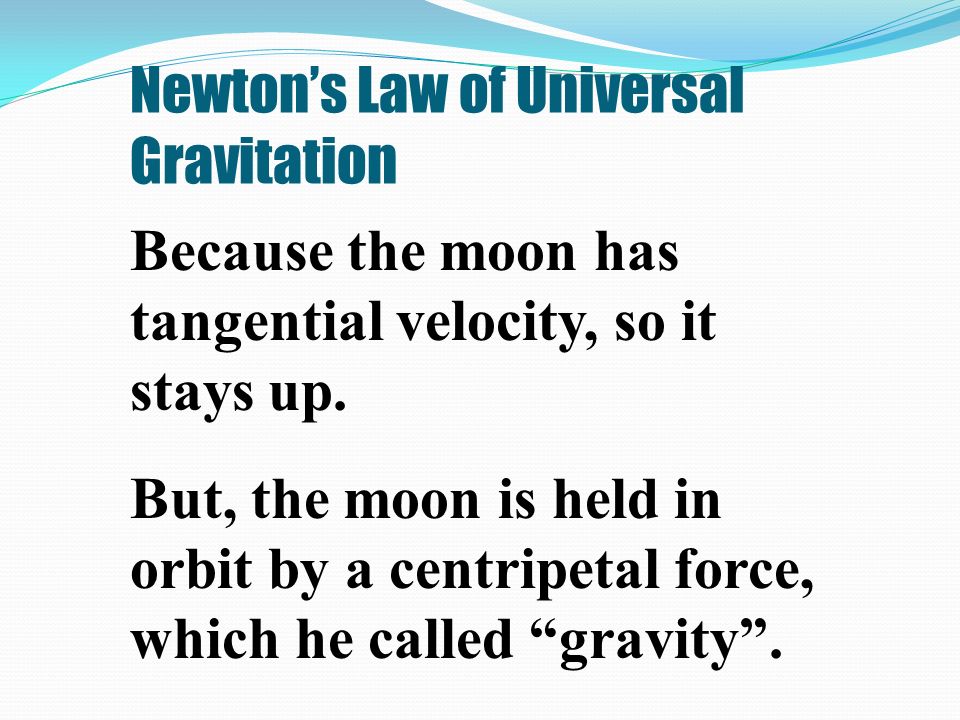

Because the moon has tangential velocity, so it stays up. Newton’s Law of Universal Gravitation But, the moon is held in orbit by a centripetal force, which he called “gravity”.

27

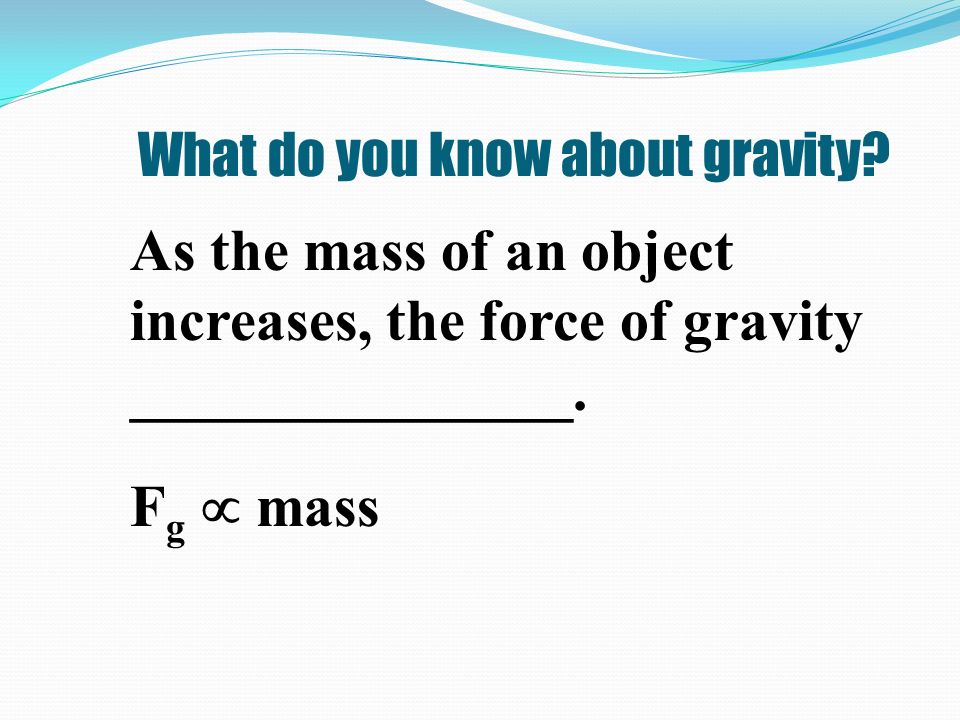

As the mass of an object increases, the force of gravity _______________. F g mass What do you know about gravity?

28
As the distance from the earth decreases, the force of gravity (F g ) _______________. F g 1/d

29
Newton’s Law of Universal Gravitation If F g decreases as you increase distance from the earth’s center, how does g change?

30
Newton was able to calculate the acceleration of the moon toward the earth. How? He knew the orbital period (T) of the moon Newton’s Law of Universal Gravitation

31
Newton calculated that the centripetal acceleration of the moon toward the earth was 1/3600 the acceleration of an object at the earth’s surface. g/3600 = a c of the moon Newton’s Law of Universal Gravitation

32
Newton knew the moon was 60 earth radii away from the center of the earth. Since 60 2 = 3600… Fc 1/distance 2 Inverse square law Newton’s Law of Universal Gravitation

33

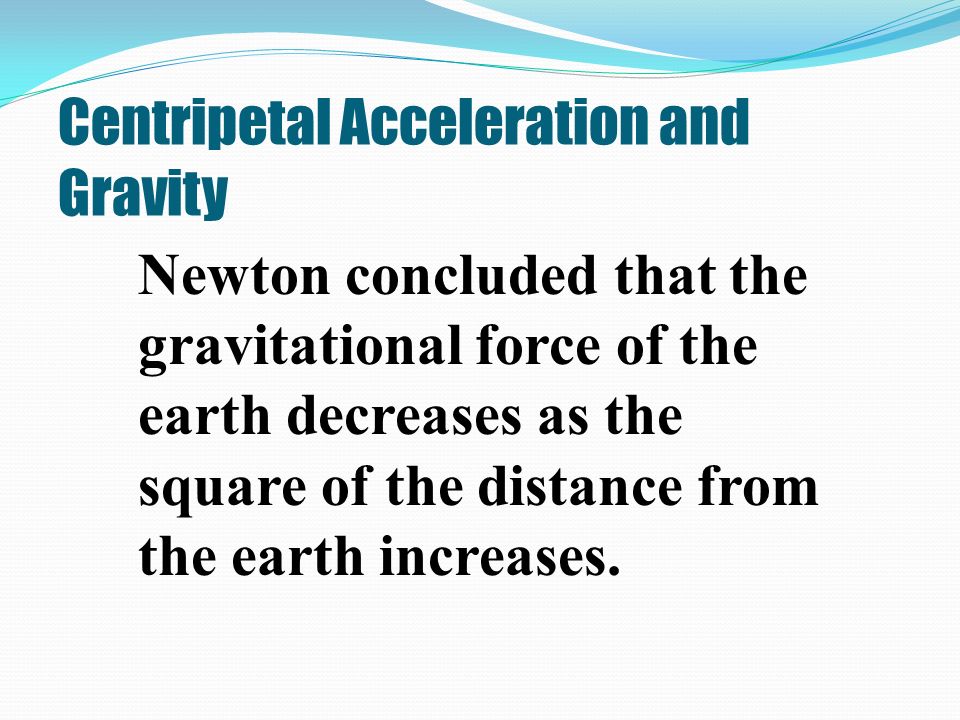

Newton concluded that the gravitational force of the earth decreases as the square of the distance from the earth increases. Centripetal Acceleration and Gravity

34
Newton’s Law of Universal Gravitation G = 6.67x10 -11 N-M 2 /kg 2

35

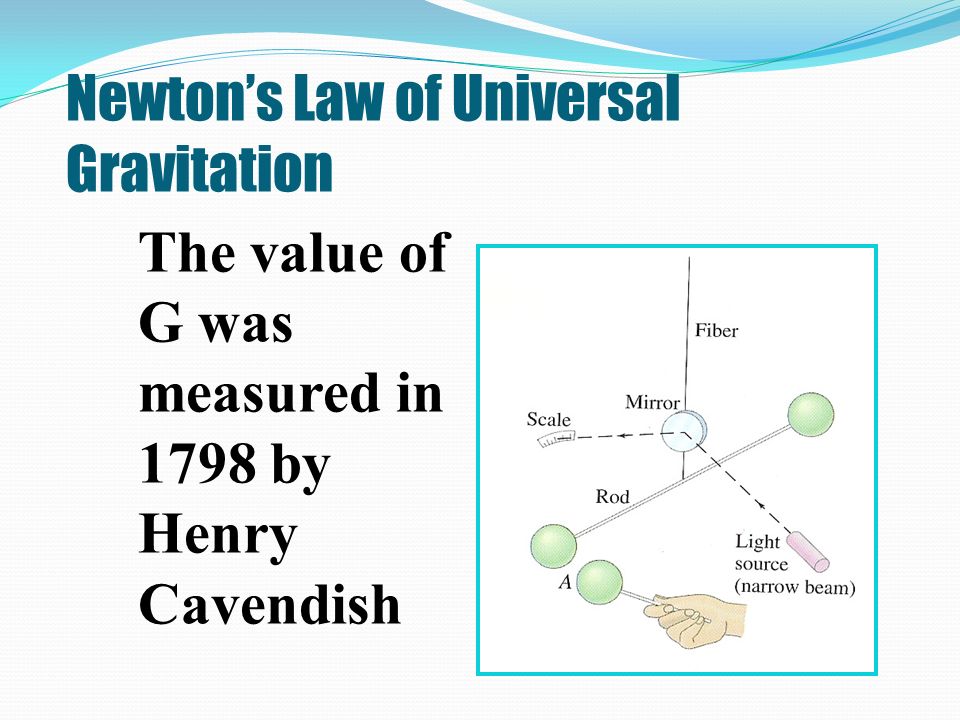

Newton’s Law of Universal Gravitation The value of G was measured in 1798 by Henry Cavendish

36
Problems 6 and 7

37
Calculate the mass of the earth Problem 8

38

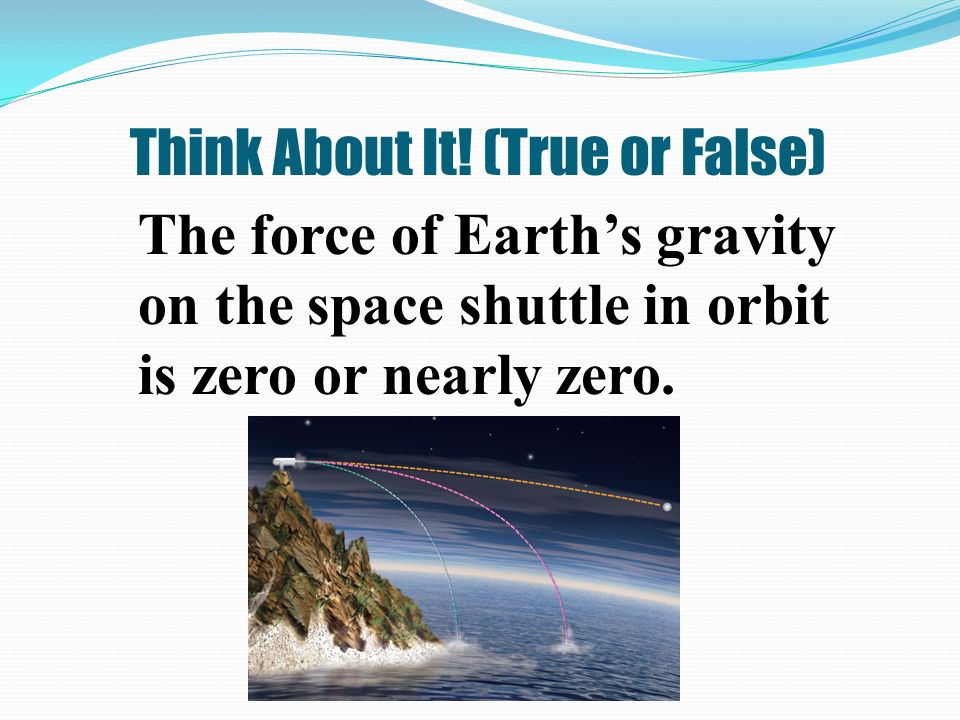

The force of Earth’s gravity on the space shuttle in orbit is zero or nearly zero. Think About It! (True or False)

39
“ “Weightlessness” In free fall, an object undergoes apparent weightlessness.

41
Measuring g How could we measure the acceleration due to gravity? Pendulums are used to keep time, measure g, and to show that the earth spins on its axis.

43
Geophysical Applications The value of g can vary on the earth’s surface because of (a)variations in elevation (b) rock density.

45

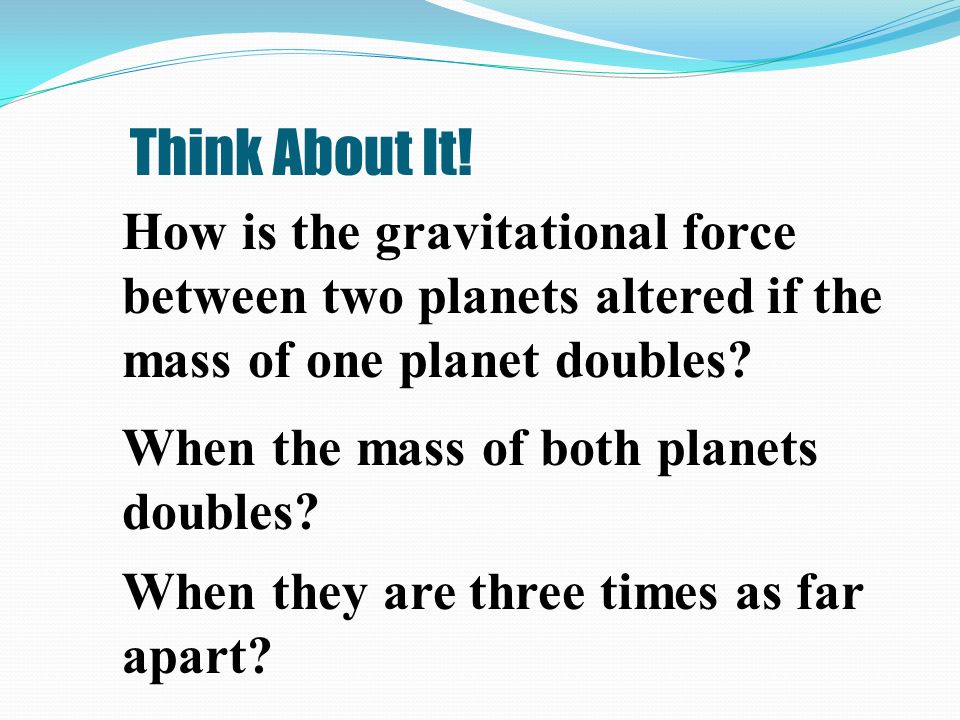

How is the gravitational force between two planets altered if the mass of one planet doubles? Think About It! When the mass of both planets doubles? When they are three times as far apart?

46
Planetary Motion Copernicus – 1543 Proposed that the earth and other planets orbit the sun in perfect circles.

47
Planetary Motion Brahe – 1570 Precise measurements of planetary and stellar motion. Copernican model did not explain the data

48
Planetary Motion Kepler – 1595 Circular orbits don’t work but elliptical orbits do!

49
Kepler’s Laws of Planetary Motion 1. The paths of all planets are ellipses with the sun at one focus.

50
Kepler’s Laws of Planetary Motion

51

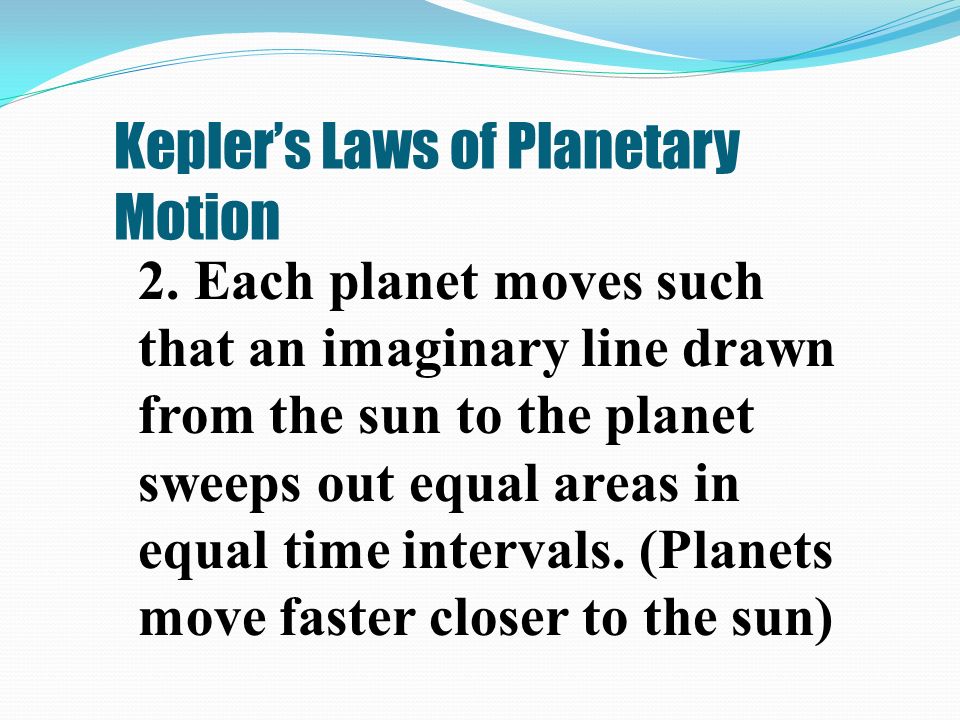

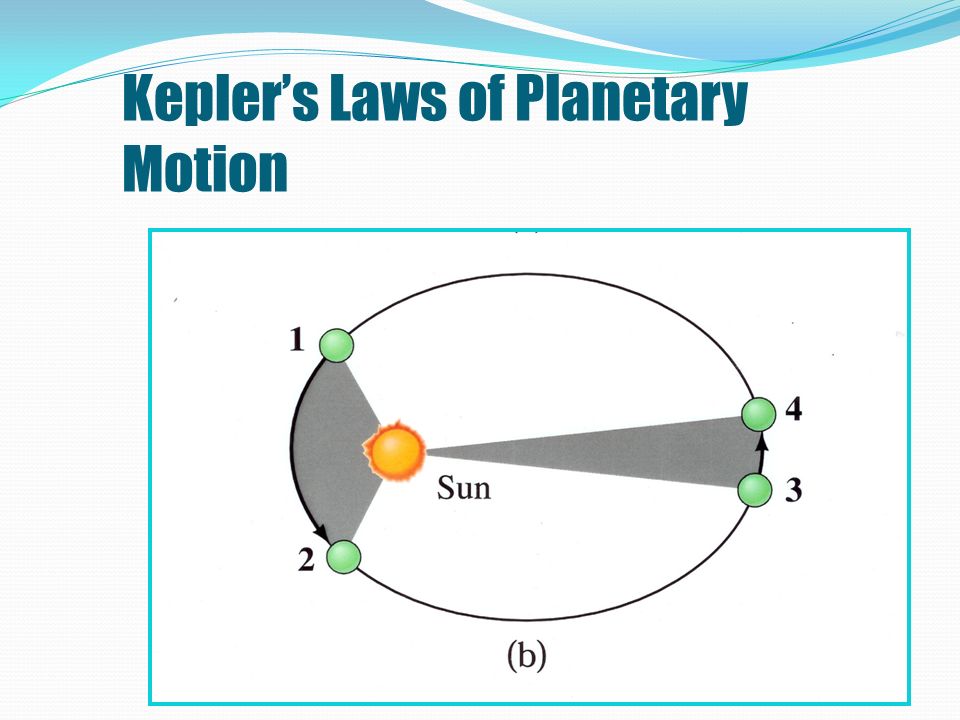

2. Each planet moves such that an imaginary line drawn from the sun to the planet sweeps out equal areas in equal time intervals. (Planets move faster closer to the sun)

52
Kepler’s Laws of Planetary Motion

53
3. The square of a planet’s orbital period (T 2 ) proportional to the cube of the average distance between the planet and the sun (r 3 ), or T 2 r 3

54
Kepler’s Laws of Planetary Motion Kepler’s third law can be used to find orbital period and orbital speed.

55
Rotational Motion Center of mass – the point at which all mass of the body can be considered to be concentrated.

56
Rotational Motion It’s the point at which an object will rotate if only gravity is acting on it.

57

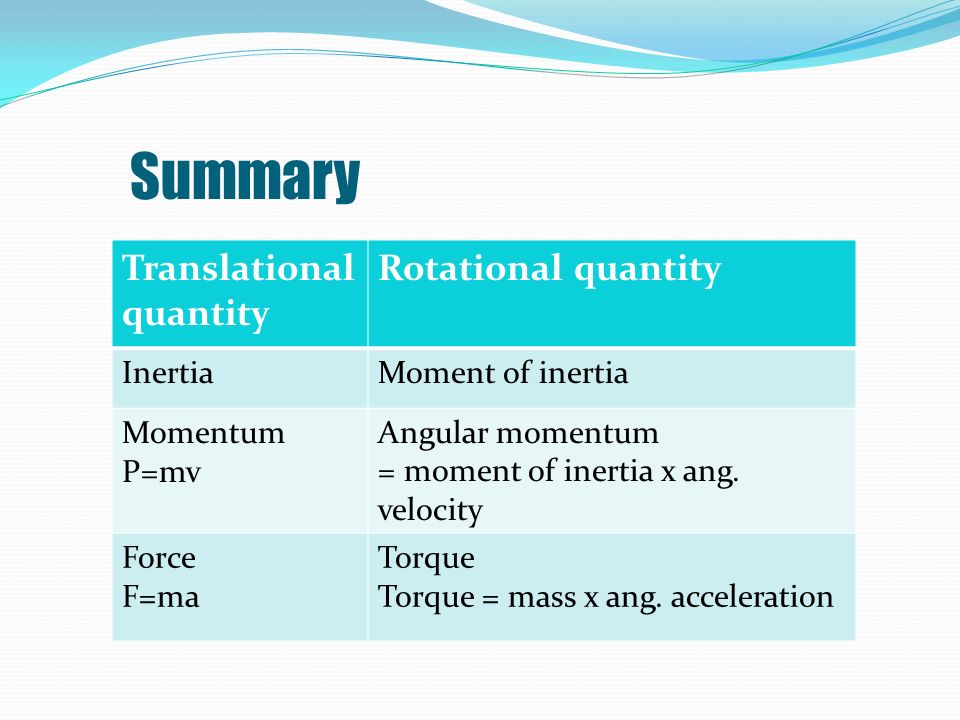

Summary Translational quantity Rotational quantity InertiaMoment of inertia Momentum P=mv Angular momentum = moment of inertia x ang. velocity Force F=ma Torque Torque = mass x ang. acceleration

58
Summary Translational quantity Rotational quantity InertiaMoment of inertia Momentum P=mv Angular momentum = moment of inertia x ang. velocity Force F=ma Torque Torque = mass x ang. acceleration

59

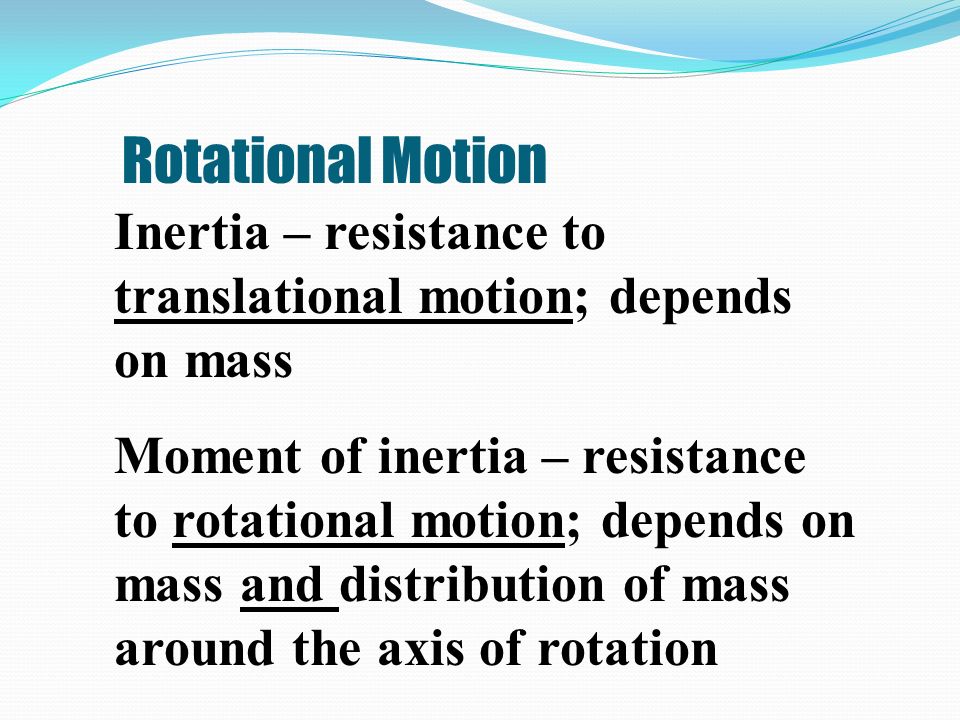

Rotational Motion Inertia – resistance to translational motion; depends on mass Moment of inertia – resistance to rotational motion; depends on mass and distribution of mass around the axis of rotation

60

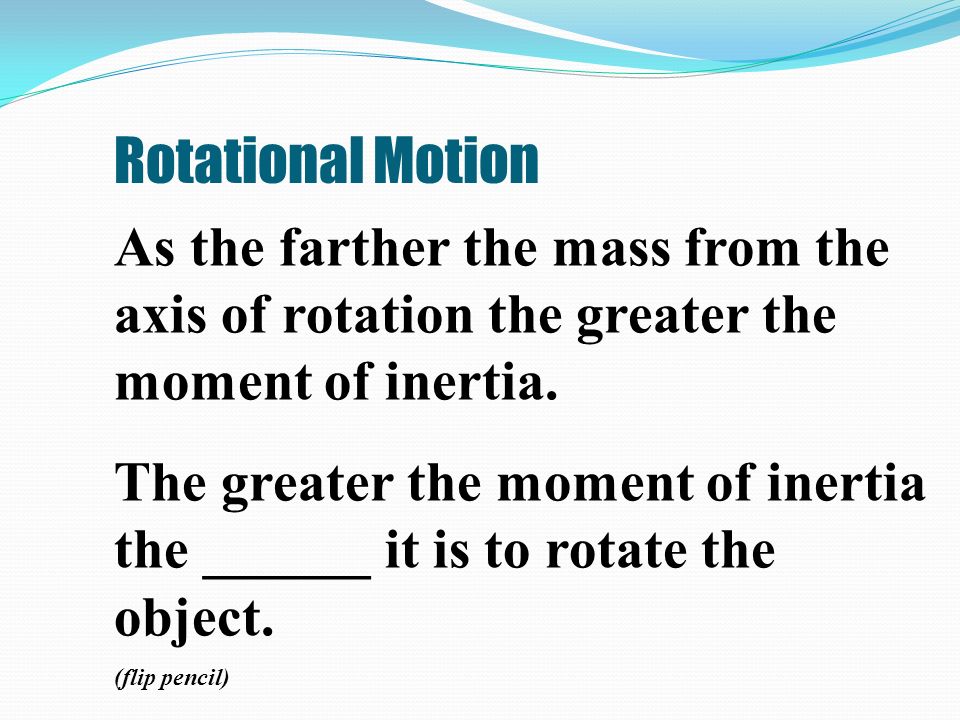

Rotational Motion As the farther the mass from the axis of rotation the greater the moment of inertia. The greater the moment of inertia the ______ it is to rotate the object. (flip pencil)

61

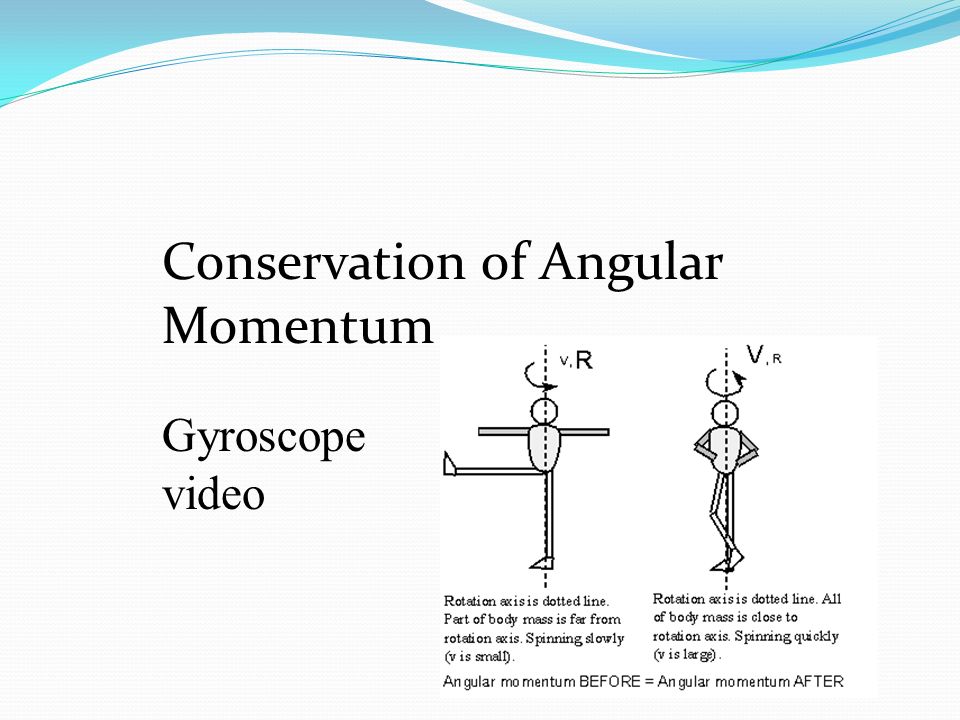

Conservation of Angular Momentum Gyroscope video

62
Summary Translational quantity Rotational quantity InertiaMoment of inertia Momentum P=mv Angular momentum = moment of inertia x ang. velocity Force F=ma Torque Torque = mass x ang. acceleration

63

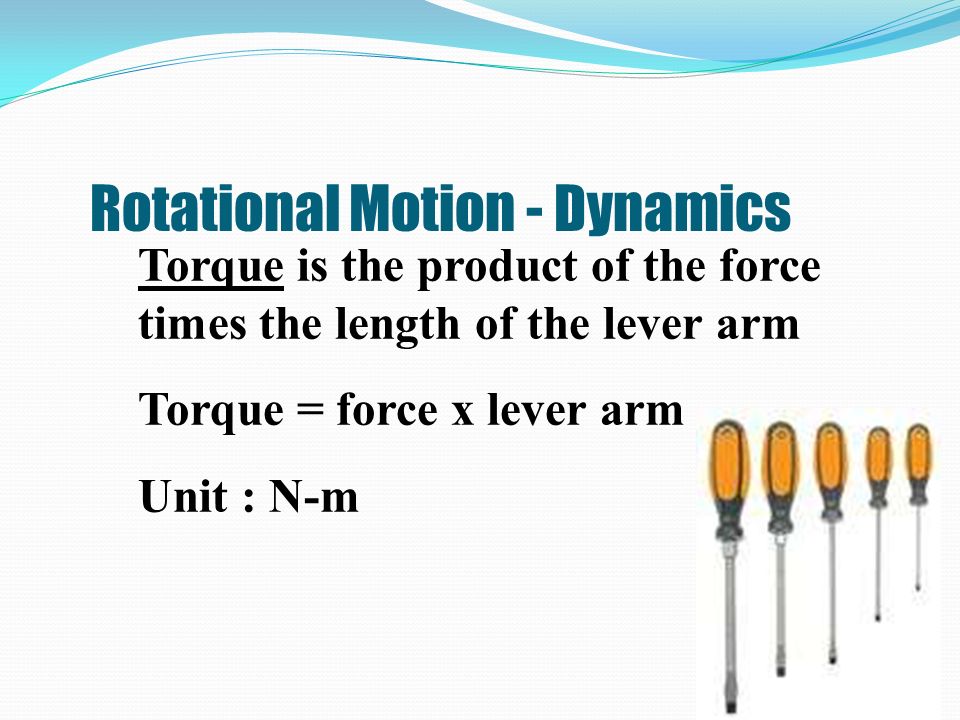

Rotational Motion - Dynamics Torque is the product of the force times the length of the lever arm Torque = force x lever arm Unit : N-m

64
Rotational Motion - Dynamics The greater the lever arm, the ______ the torque for the same amount of force. The greater the torque the ____ the angular acceleration.

65

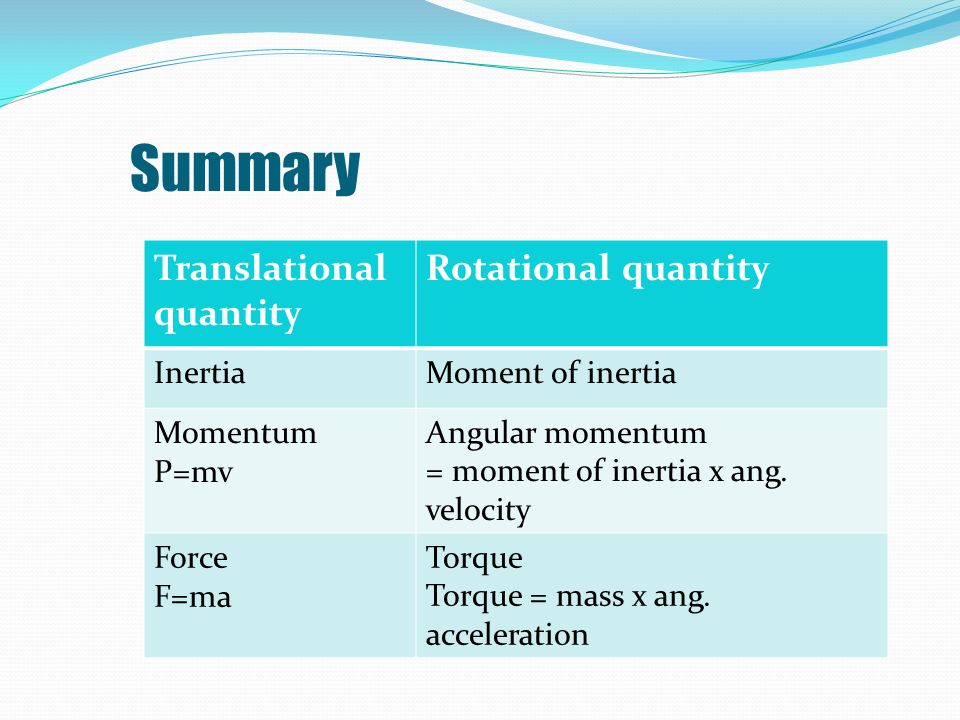

Summary Translational quantity Rotational quantity InertiaMoment of inertia Momentum P=mv Angular momentum = moment of inertia x ang. velocity Force F=ma Torque Torque = mass x ang. acceleration

67
Rotational Motion - Dynamics Where can you apply the least amount of force to open or close a door? Where can you hold a baseball bat to get the greatest acceleration of the ball?

68
There is a gravitational force of 1.02 x 10 -8 N between a 75.0 kg student and a 85.0 kg student. How far apart are they? Numbered Heads Review

69
Calculate the acceleration due to gravity 15.6 km above the surface of the earth. Numbered Heads Review

70

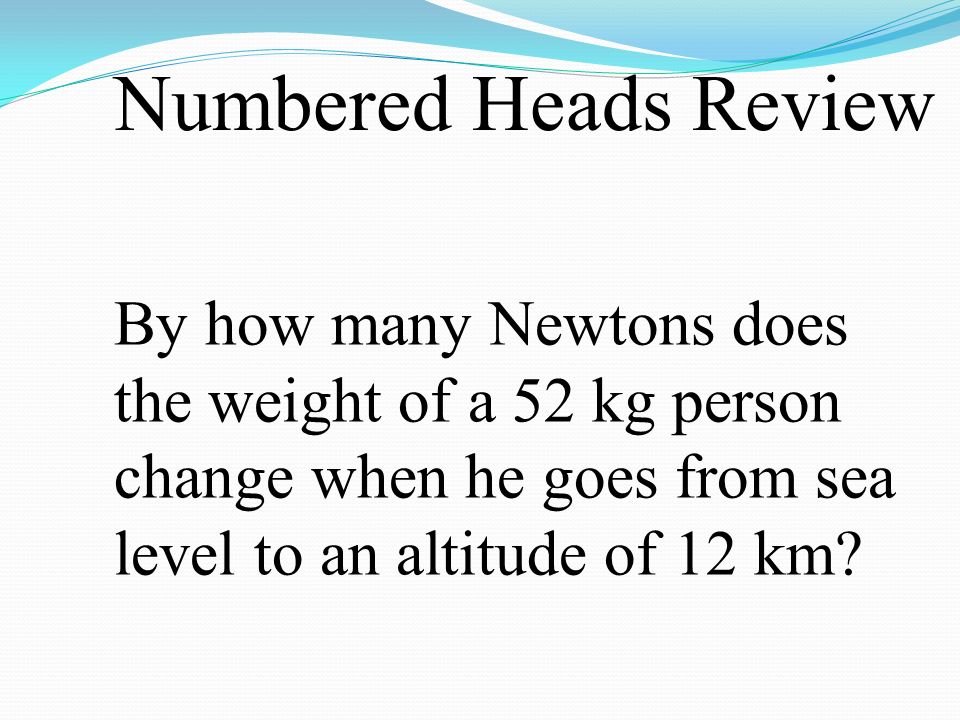

By how many Newtons does the weight of a 52 kg person change when he goes from sea level to an altitude of 12 km? Numbered Heads Review

71

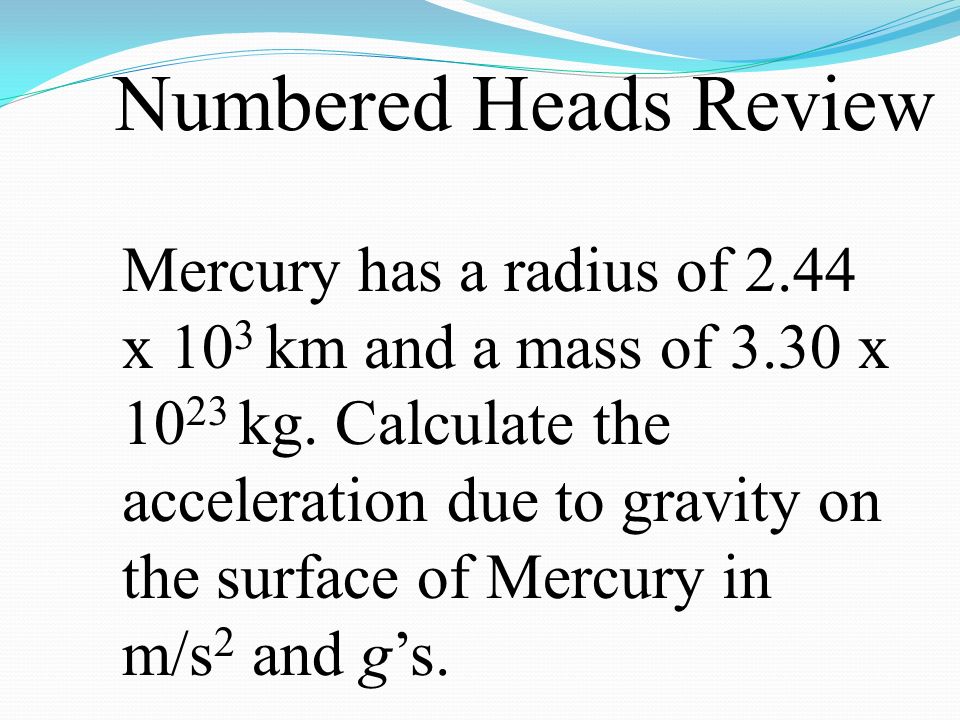

Mercury has a radius of 2.44 x 10 3 km and a mass of 3.30 x 10 23 kg. Calculate the acceleration due to gravity on the surface of Mercury in m/s 2 and g’s. Numbered Heads Review

72

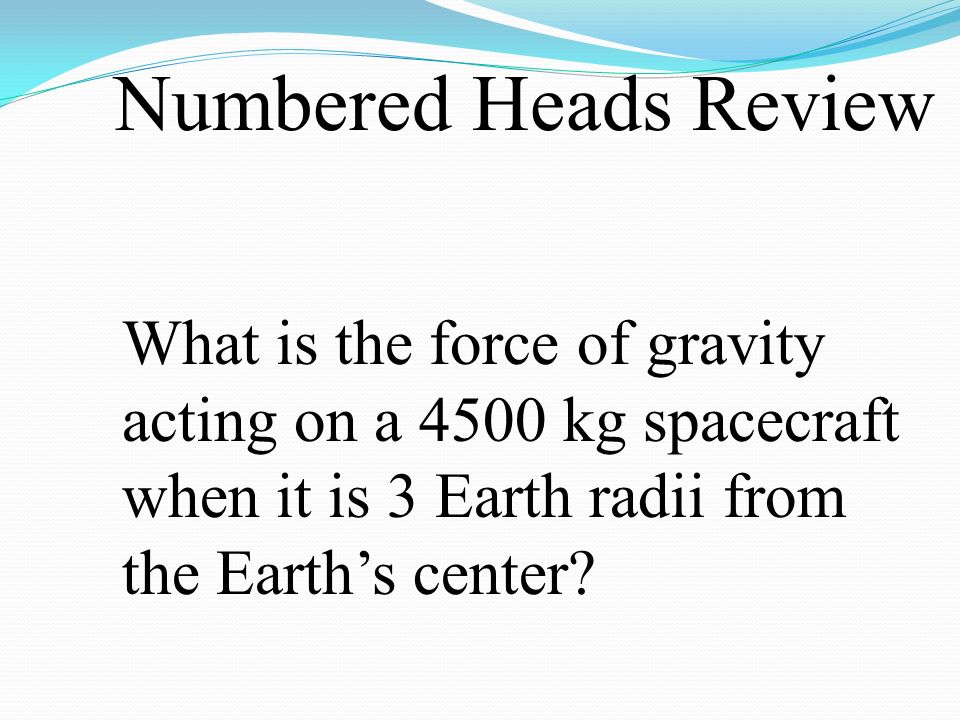

What is the force of gravity acting on a 4500 kg spacecraft when it is 3 Earth radii from the Earth’s center? Numbered Heads Review

73
A ball is whirled around on a string that has a 0.55 m radius. The ball takes 0.32 seconds to make one revolution. What is the centripetal acceleration of the ball? Numbered Heads Review
