1. How Protected Are You Against The Sun? Joey Dekoski Revised By: Phoebe Stinson

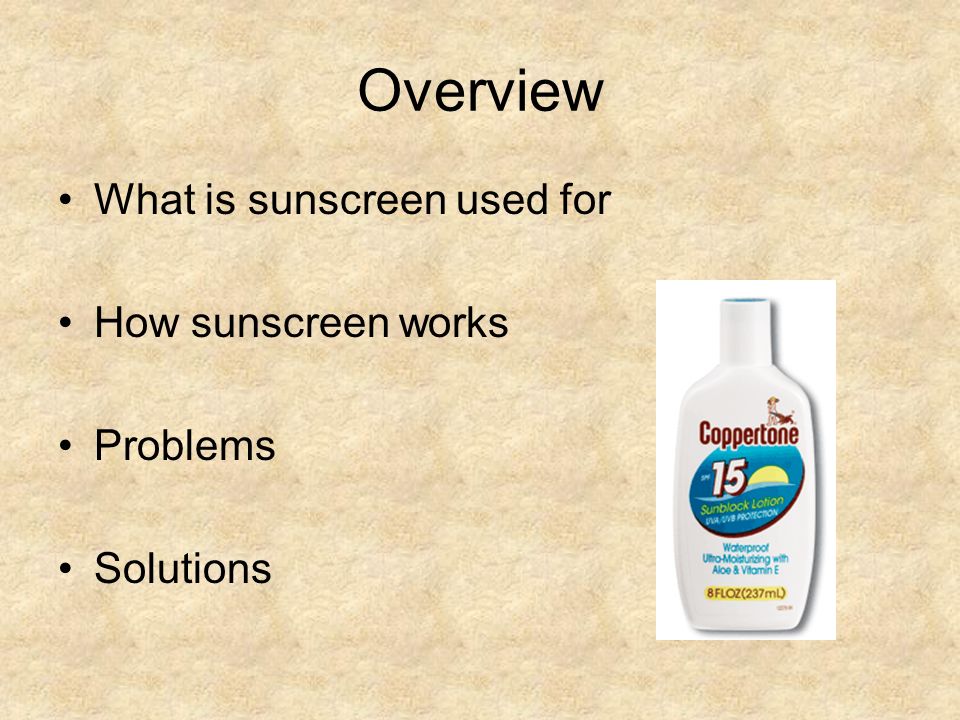

2. Overview What is sunscreen used for How sunscreen works Problems Solutions

3. Why is it used? –To protect the skin of the human body from UV radiation. Effects of UV light –Short term Sunburn –Long term Thickening Wrinkling Cancer Cataracts

4. UV light 3 types given off by the sun 1.UVC –100 – 290 nm –Absorbed by the ozone and doesn’t affect the skin 2.UVB –290 – 320 nm –Affects the outer layer of the skin and is the primary cause of sunburn. –Most intense between 10-2 and during the summer months. 3.UVA –320 – 400 nm –Penetrates deeper into the skin and the intensity is more constant than UVB without variations through the day and year.

5. UV Index Model that relates ozone levels to UV radiation on the ground, forecasted cloud amounts, and the elevation of the forecast cities Factors Affecting: 1.Measurements of current total ozone amounts for the entire globe 2.Amount of UV radiation reaching the ground 3.How human skin responds to UV wavelengths. 4.Actual incoming radiation level 5. Elevation and Clouds

6. UV Index Exposure Category Index NumberSun Protection Messages LOW<2 Wear sunglasses on bright days. In winter, reflection off snow can nearly double UV strength. If you burn easily, cover up and use sunscreen. MODERATE3-5 Take precautions, such as covering up and using sunscreen, if you will be outside. Stay in shade near midday when the sun is strongest. HIGH6-7 Protection against sunburn is needed. Reduce time in the sun between 11 a.m. and 4 p.m. Cover up, wear a hat and sunglasses, and use sunscreen. VERY HIGH 8-10 Take extra precautions. Unprotected skin will be damaged and can burn quickly. Try to avoid the sun between 11 a.m. and 4 p.m. Otherwise, seek shade, cover up, wear a hat and sunglasses, and use sunscreen. EXTREME11+ Take all precautions. Unprotected skin can burn in minutes. Beachgoers should know that white sand and other bright surfaces reflect UV and will increase UV exposure. Avoid the sun between 11 a.m. and 4 p.m. Seek shade, cover up, wear a hat and sunglasses, and use sunscreen.

7. Skin Cancer 3 main types 1.Melanoma –Least common –Most serious 2.Basal cell –Most common 3.Squamous cell –2 nd most common Basal and Squamous cell are often referred to as non-melanoma skin cancer

8. Damaging Effects Collagen Breakdown –UV radiation increases breakdown and causes abnormal elastin accumulation. –Accumulation creates solar scars and wrinkles develop. Free Radicals –Creates free radicals which damages cell function and alters genetic material. Immune System –Certain chemicals are released which suppresses the system.

9. How Does Sunscreen Work? Combination of Organic and Inorganic Ingredients –Organic: reflects or scatters UV radiation eg ZnO 2 and TiO 2 –Inorganic: absorb UV radiation and dissipate as heat eg OMC, oxybenzone octyl methoxycinnamate Oxybenzone

10. SPF Rating Sun Protection Factor –Determined by the amount of light that induces redness in sunscreen protected skin divided by the amount of light that induces redness in unprotected skin. –Ratings vary from SPF 1 to 45 or even higher. Example- SPF 15 would delay the onset of sunburn from 10 minutes to 150 minutes.

11. SPF Rating –Ratings for various clothing items 1.Nylon Stockings - SPF 2 2.Hats - SPF 3-6 3.Summer-weight clothing - SPF 6.5 4.Sun-protective clothing - up to SPF 30

12. Sunscreen Concerns Sunscreens offer full protection against UVB, but not UVA. Very few sunscreen ingredients protect against UVA Sunscreen May Actually CAUSE Cancer –False sense of protection leads to more time in the sun –Chemicals do not enter the actual cells Sunscreen reduces production of Vitamin D –True- takes 10-15 min of unprotected sun exposure/week –Darker complexions require more time

13. UVB Filters Nine of the sixteen approved sunscreens protect against UVB. Five of the nine are extensively used. –Aminobenzoic Acid stains clothing and can cause adverse reactions.

14. UVA Radiation Suppresses immune system and allows cancer cells to flourish. Some sunscreens can block UVA, but not effectively. –Avobenzone quickly loses potency when applied to the skin. –Titanium dioxide and zinc oxide are difficult to incorporate into formulations. –Sulisobenzone and dioxybenzone are difficult to solubilize and are rarely used.

15. FDA Delays Europe has 28 approved sunscreens –Approval process is swifter and less costly. –Treated like cosmetics. FDA approves sunscreens in United States –Strenuous and expensive testing required. –Treated like drugs.

16. FDA Regulations FDA causes delay for approval of ingredients. –4-methylbenzylidene camphor (4-MBC) has been used in Europe for 25 years.

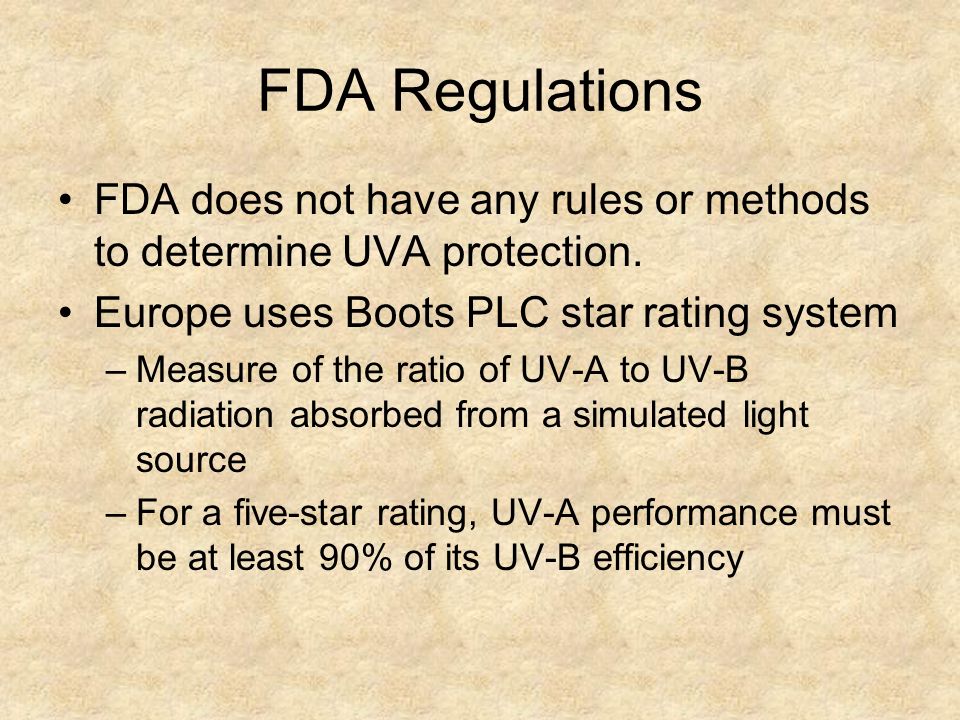

17. FDA Regulations FDA does not have any rules or methods to determine UVA protection. Europe uses Boots PLC star rating system –Measure of the ratio of UV-A to UV-B radiation absorbed from a simulated light source –For a five-star rating, UV-A performance must be at least 90% of its UV-B efficiency

18. FDA Regulations-Examples 3 new sunscreens waiting for approval Bis-ethylhexyloxyphenol methoxyphenol triazine, Tinosorb S –Oil-phase sun care formulations –Developed using chemistry from light stabilizers used in plastics Methylene bis-benzotriazolyltetramethylbutylphenol, Tinosorb M –Organic molecule with performance characteristics typical of titanium dioxide and zinc oxide –Easier to formulate with and has higher transparency –Use in aqueous dispersions –Not only acts as a water-dispersible UV absorber, but its particles can also scatter and reflect light

19. FDA Regulations Mexoryl Broader range of UVA protection Patented by L’Oreal 2 versions 1.Mexoryl SX soluble, photostable, absorbent, odorless, non-staining Approved in 1992 in Europe and 1999 in Japan 2.Mexoryl XL reinforces and extends the protection offered by SX Approved in 1999 in Europe and 2002 in Japan All of these have significantly better UVA filtering All are Photostable

20. Photostability of Sunscreens Ultraviolet rays break chemical bonds in photoactive coatings, causing breakdowns of: –Polymers –Pigments This leads to a loss in protective properties –Absorbed radiation attacks absorbing molecules, exciting them –Free radicals form, and uncontrolled reactions, therefore degradation occurs

21. Solutions/Alternatives Sunscreen suppliers currently modify approved sunscreens –Ultrafine titanium dioxide sunscreen doped with 0.7% manganese Manganese changes the rutile pigment's electronic structure, eliminating its potential to generate free radicals Manganese also makes the pigment a better UV-A filter than undoped titanium dioxide

22. Solutions/Alternatives –Diethyl hexyl syringylidene malonate, stabilizer Singlet oxygen quencher that will effectively boost the sunscreen's photostability Increase effectiveness of the UV-A sunscreen avobenzone –SPF Boosters Styrene acrylate copolymer –Hollow spheres refract light and thereby increase the chance that light will contact UV filters –Boost SPF by 50 to 70%

23. Solutions/Alternatives Emulsifying wax –Blend of phosphate esters and fatty alcohol –Boost SPF values by 15 to 20% ‘Green’ Sunscreen –Sunscreen active ingredient can be synthesized from ferulic acid and triglycerides (natural plant derivatives) –Transesterification of these chemicals makes feruloylated monoacyl and diacylglycerols when catalyzed with immobilized lipase

24. Green Sunscreen Process
