1. The Role of BPA-PET in Prediction of H&N Cancer Treatment failure after BNCT
Yu-Ming Liu, Yi-Wei Chen, Pin-Lun Li, Ko-Han Lin, Yu-Wen Hu, Ling-Wei Wang
Div. of Radiation Oncology, Dept.of Oncology
Taipei Veterans General Hospital
Taiwan

2. Cancer of the Lip and Oral Cavity (C00-C08), World Age-Standardised Incidence Rates, World Regions, 2008 Estimates, Cancer Research UK

3. Mortality of Cancer in Taiwan (2010)
Liver
Lung
Colorectal
Oral, pharynx
Esophagus
Stomach
Prostate
Pancreas
non hodgkin lymphoma
Leukemia
Total

4. Treatment of head & neck cancer
Surgery and radiation therapy with or without chemotherapy, but despite therapy, many cancers recur.
Further treatment for recurrent H & N cancer after multi-disciplined treatment is not uncommon
Photon beams re-irradiation is not recommended because of high complication and low successful rate.

5. 115 previously irradiated patients without overt metastases
LONG-TERM OUTCOME OF CONCURRENT CHEMOTHERAPY AND REIRRADIATION FOR RECURRENT AND SECOND PRIMARY HEAD-AND-NECK SQUAMOUS CELL CARCINOMA
115 previously irradiated patients without overt metastases
Surgical resection, concurrent chemotherapy and re-irradiation
The median lifetime radiation dose was 131 Gy.
The median F/U for survival patients was 67.4 months (18.5–158.7).
The median OS and PFS was 11 and 7 months (range, 0.2–158.7)
The 3-year OS = 22 %
PFS = 33 %
Locoregional control = 51 %
Freedom from distant metastasis = 61 %
For recurrent and second primary head-and-neck cancer, trimodality therapy with OP, C/T and re-RT for a full second dose offers potential for long-term survival.
Owing to the substantial toxicity and lack of an optimal regimen, re-irradiation of recurrent head-and-neck cancer should be limited to clinical trials.
Salama et al., Int. J. Radiation Oncology Biol. Phys., Vol. 64, No. 2, pp. 382–391, 2006

6. In theory, BNCT provides a means to selectively eradicate malignant cells and spare normal cells.
To ensure success, a sufficient amount of 10B should be selectively delivered to the tumor and an adequate number of thermal neutrons should be absorbed in order to sustain a lethal 10B(n,α) 7Li capture reaction
[Ono et al., IJROBP 34: , 1996].
For BPA-based BNCT, it is necessary to analyze the actual distribution of BPA in vivo before determining factors for its indication, as well as before planning treatment and predicting outcome. For these purposes, numerous authors have used 18F-BPA-PET prior to employing BPA-based BNCT.

7. Trial in Taiwan
A phase I/II trial of boron neutron capture therapy (BNCT) for recurrent head and neck cancer at Tsing Hua Open-Pool Reactor (THOR) ” was drafted at Taipei Veterans General Hospital (TVGH) in 2008 and was approved by Institution Review Board of TVGH and our Department of Health in 2009.
The primary end points: treatment toxicities and tumor response rate.
The secondary end points: time to tumor progression, progression-free survival, overall survival, and change of quality of life.
Web site: www. clinicaltr ials .gov; ID: N CT
August 2010 – Jan. 2014

8. Schema Pt (D-14±3) (D-7) 1st BNCT (D-1) 2nd (D22±3) 2nd BNCT (D29±3)
registration
(D-14±3)
1st
CT Sim
(D-7)
1st
BNCT
(D-1)
2nd
CT Sim
(D22±3)
2nd
BNCT
(D29±3)
FDG-PET/CT
or MRI
Evaluation
(D84±3)
1st
18F-BPA PET
T/N
(D-12)
1st
THOR
(D-3)
2nd
18F-BPA PET
T/N
(D21)
2nd
THOR
(D26±3)
The BPA-uptake in ‘ ‘normal’’ tissue was measured in the subcutaneous connective tissue several cm away from the tumors.
20– 25 Gy(Eq) to 80% of GTV/Fx for 2 Fx at interval of 30 days.
BPA injection
- 1 st phase: 180 mg/kg/h for 2 h before neutron irradiation
- 2nd phase: 1.5 mg/kg/min concurrent with irradiation and stopped when beam was off.
Response Evaluation Criteria in Solid Tumors (version 1.1).
MRIs before and after BNCT were performed for tumor size evaluation

9. High response rate with acceptable toxicity was obtained for this clinical
trial with BNCT at THOR.
The decreased T/N ratios after first fraction of BNCT may indicate that
the second fraction is less efficient than the previous one.

10. Hypothesis & Aim
The success of BNCT ultimately depends upon the selective delivery of 10B-atoms to tumor cells.
Boron concentrations in surrounding normal structures as well as in the tumor itself, for which 18F-BPA PET was utilized.
To the best of our knowledge, treatment failure of local recurrence and features of 10B uptake in tumors according to 18F-BPA-PET images have yet to be adequately assessed.
The present study therefore aimed to qualitatively and quantitatively elucidate the features of 18F-BPA-PET imaging in the outcome of BNCT therapy of recurrent head and neck cancer patients.

11. T/N ratio by pre-treatment BPA-PET
After IV. 60 min, Tumor mean value =7.0; Normal tissue mean value =1.6 T/N=4.37

12. Methods and Materials
12 advanced recurrent head & neck tumor patients who had received BNCT from 2010/8 to 2013/12 in Taiwan without distant failure
In-field failure vs. complete response.
The relationship between patient characters, disease status, pre-BNCT RT, 1st T/N ratio, treatment dosage, BPA-PET data, and clinical response were analyzed.

13. BPA-PET scan for 10B uptake

14. BNCT Treatment GTV according to pretreatment MR and 18F-PET/CT scan

15. Response Evaluation by 18F-PET/CT

16. Maxillary sinus carcinoma rT3, CR

17. Patient and tumor characters
Pt No.
Age/Sex
Primary Site
Pathology
Prior OP
Prior RT Dose (Gy/course)
Recurrent Stage
Tumor diameter (cm) 1
68/M
Hypopharynx
Squamous Y
134.6/2
T1N2a
4.00 2
71/M
Gingiva 66 T4
7.50 3
49/F
Nasal Cavity
Sinonasal Ca
120/2
5.00 4
57/M
Tongue 70 T3
4.50 5
52/M
Tongue base
T4a
5.30 6
46/M
NPC
Undiff Ca
136/2
3.90 7
54/M
Maxillary sinus N
8.90 8
48/M
Spindle cell sarcoma
107/2
T4b
6.00 9
58/F
Non-keratinizing Ca
122/2
2.50 10
59/M T1 11
56/M
Oral
129.5/2
0.88 12
62/M
Buccal
128/2
6.60

18. Prescription Dose, T/N ratio, tumor response and survival status
Pt No.
Interval (month)
1st T/N
1st Fx D80 (Gy-eq)
2nd T/N
2nd Fx D80 (Gy-eq)
Total Dose (Gy-eq)
Tumor Response
Survival Status
Surv (months) 1
9.97
3.00
19.1
2.60
12.50
31.60 PD
DOC
12.2 2
26.77
3.80
25.1
1.75
12.70
37.80
6.3 3
13.93
4.46
31.1
2.78
17.30
48.40 CR
32.5 4
6.37
3.73
19.6
2.00
13.50
33.10
Response
13.3 5
6.50
3.33
13.7
2.09
9.30
23.00
DOI
8.5 6
7.73
6.16
36.9
2.57
21.10
58.00
alive
38.6 7
17.07
5.69
35.0
2.50
18.10
53.10
35.2 8
28.17
20.0
19.40
39.40
26.0 9
33.70
1.05
1.79
9.90
29.00
37.3 10
42.37
19.2
2.71
18.30
37.50
6.8 11
5.13
3.30
20.01
8.8 12
9.57
3.92
26.5
2.27
16.80
43.30
6.4
DOC: death of cancer; DOI: death of incurrent cause
PD: progression disease; CR: complete response; Response: partial response & stable disease

19. Measurement of BPA-PET

20. Parameter definition Only 1st BPA-PET data were analysis
BPA_max
Only 1st BPA-PET data were analysis
BPA-M: BPA uptake value inside GTV volume
Min BPA_M: min BPA uptake value inside GTV
Max BPA_M: max BPA uptake value inside GTV
BPA_H: BPA uptake value ≧ 30% of BPA_M
(min. BPA-M + 30% of max BPA-M)
BPA_L: BPA uptake < 30% of BPA_M
Vol_L/H (cm3): Volume ratio between BPA_L and BPA_H according to BPA-PET
BPA_L/H: BPA uptake value ratio between BPA_L and BPA_H according to BPA-PET

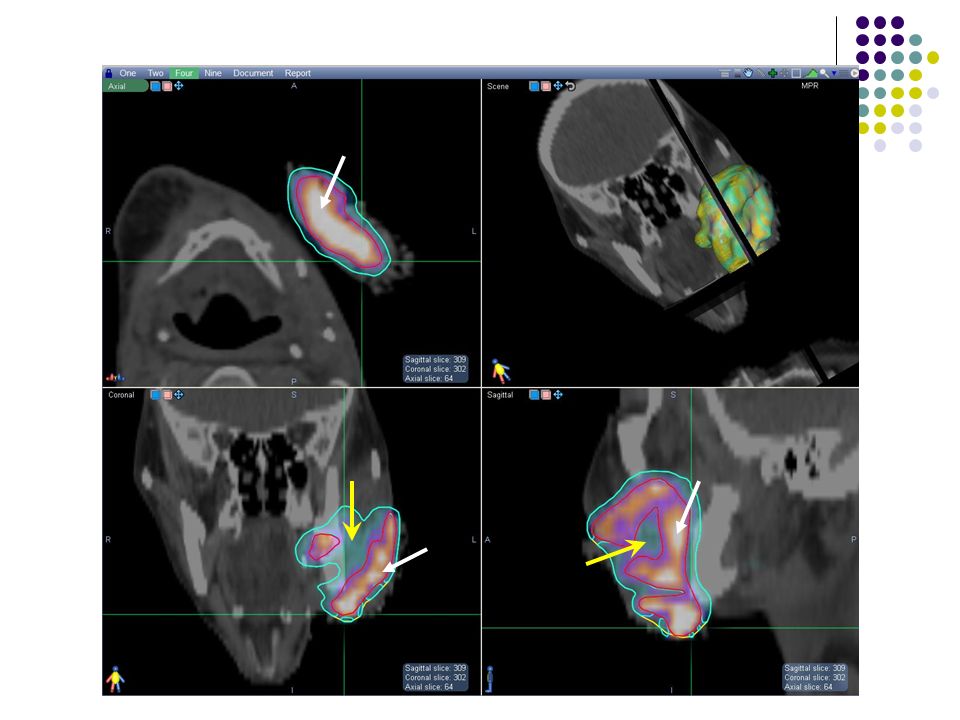

BPA_H
BPA_L
BPA_min

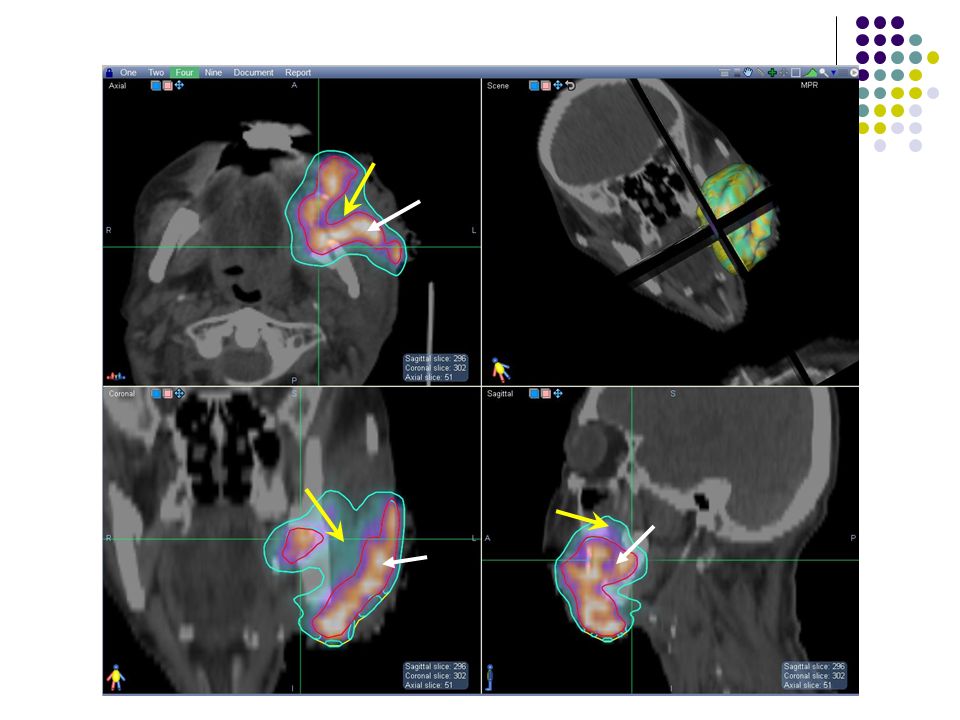

21. BPA_H
BPA_L

24. Results CR(-) CR(+) p Age 61±7 52±5 0.093 M/F 5/1 Pathology SqCC 5/6
2/6
0.099
Pre RT Dose (Gy)
92.5±33
108.3±28
0.284
Interval s/p EBRT (months)
15.5±12
19.1±14
0.605
Recurrent T stage
0.639 T1 1 2 T3 T4 3
Tumor (cm)
5.1±1.8
4.8±2.7
0.801
1st T/N
3.1±1.1
4.2±1.5
0.211
Total Dose-eq (Gy)
33±7
42.7±13.6
0.16
Volume L/H
1.5±0.8
0.7±0.2
0.134
BPA L/H
0.6±0.1
0.396

25. Tumors were easily identified as high uptake areas in all cases
Tumors were easily identified as high uptake areas in all cases. Areas of the dorsum tongue to middle pharynx were expressed as high uptake areas in all of the cases.
18F-BPA-PET is useful in demonstrating the presence of a tumor. Thus, it is crucial high uptake area corresponding to the dorsum area of the tongue when diagnosing a tumor using this technique.

26. 18F-BPA-PET Right maxilla Mucoepidermoid carcinoma
Brain parenchyma (a)
Parotid gland (b).
The high uptake area:
- Tumor (arrows);
- Dorsum surface of the tongue (arrowheads).
Differentiation between the two structures was difficult on the 18F-BPA-PET

27. 18F-BPA-PET Aanterior maxilla adenocarcinoma High uptake area:
- Tumor (arrow).
- Surface of the oral tongue and tongue base (arrowhead)
Left maxilla squamous cell carcinoma
High uptake area
- Jaw bone (arrows).
- Tumor (arrowheads).

28. Tumor to brain (T/B) ratio = radioactivity of tumor/brain.
Normal tissue to brain (N/B) ratio = radioactivity of normal tissue/brain.

31. 1st head and neck cancer patient treated with up-front BNCT and conventional radiotherapy.
BNCT followed by chemoradiation as first-line therapy of a patient diagnosed with large, inoperable head and neck carcinoma

32. Case Report 53 y/o woman CC:: obstructed nose and headache.
Dx: Intranasal poorly differentiated carcinoma,
A 7.4 × 6 .7 × 4 .4 cm tumour causing exophthalmos and diplopia
BNCT, 400 mg/kg of L- BPA -fructose ivf.
GTV dose = 31 Gy (W), PTV dose = 28 Gy (W), Optic chiasm = 4 Gy (W )
IMRT was given 6 weeks later with 44 Gy/17 Fx, followed by SBRT booster dose of 6 Gy.
Iv with cetuximab (250 mg/m 2) + cisplatin (40 mg/m 2), weekly during IMRT.
A radiological complete response was achieved one month after RT.

33. Summary
Histology of squamous cell carcnoma, Total Dose-eq (Gy), Volume BPA uptake heterogeneity data might be a prognostic factor for clinic response though no statistic significance.
The volume BPA uptake heterogeneity data were 0.7±0.2 ( ) in CR group and 1.5±0.8 ( ) in non-CR group, respectively
There is only 12 patients in this study.
F/U of 20 months (6.4 – 38.6 months).
The CR is depended on the FDG-PET 3 months after BNCT.
However, its predictive and prognostic value remains to be clarified.

34. Conclusion
BNCT is an effective treatment for advanced local recurrent head and neck tumor with high percentage image CR rate in 20 months follow-up (6.4 – 38.6 months).
Though no statistic significance noted, volume of BPA uptake heterogeneity might be a prognostic factor for clinic response.
The low BPA uptake volume might need further RT boost for local control.

35. Thank you for your attention
