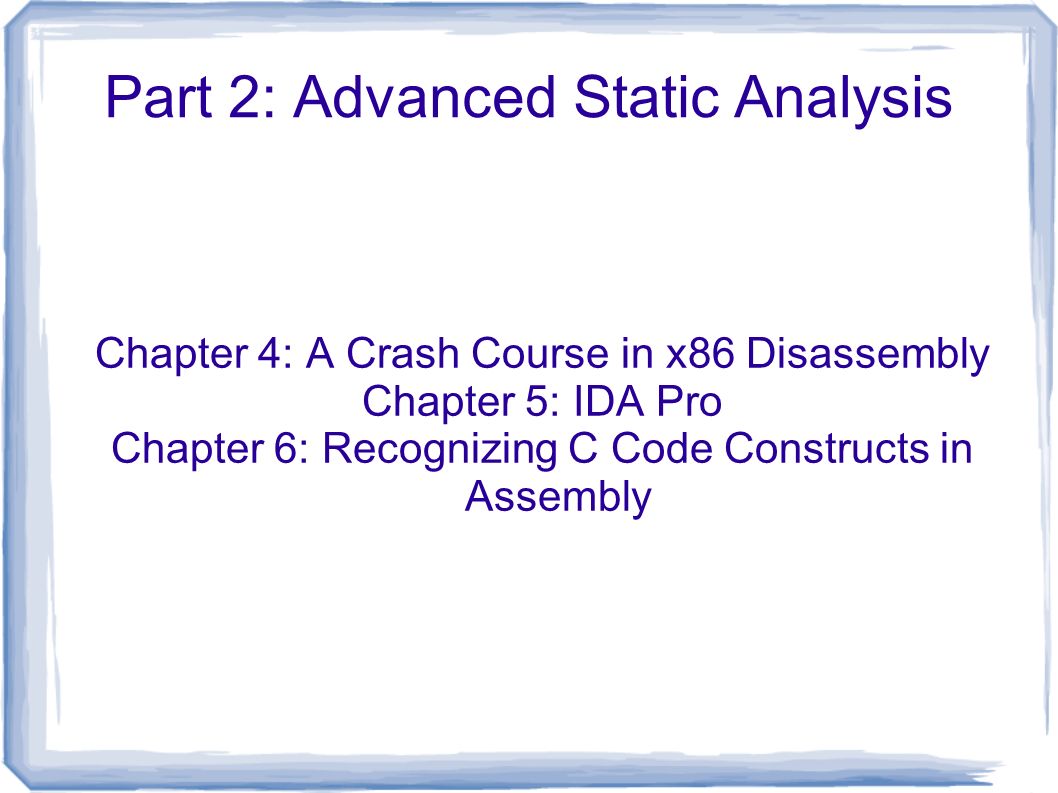

1. Part 2: Advanced Static Analysis Chapter 4: A Crash Course in x86 Disassembly Chapter 5: IDA Pro Chapter 6: Recognizing C Code Constructs in Assembly

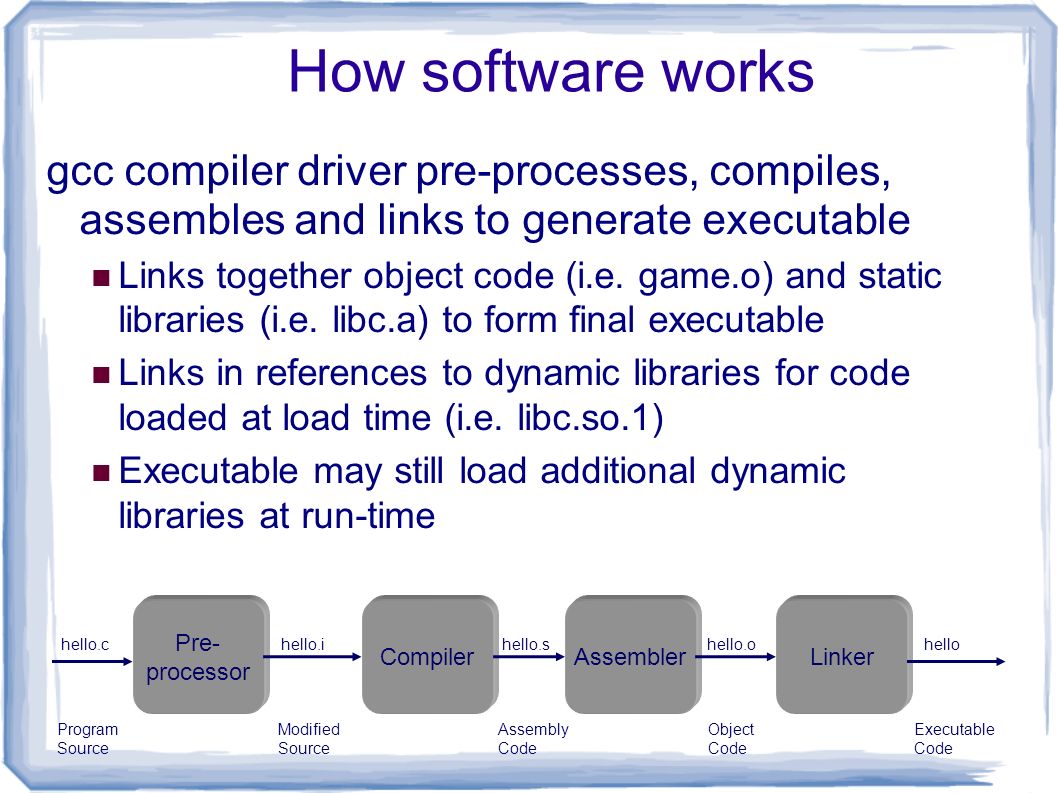

2. How software works gcc compiler driver pre-processes, compiles, assembles and links to generate executable Links together object code (i.e. game.o) and static libraries (i.e. libc.a) to form final executable Links in references to dynamic libraries for code loaded at load time (i.e. libc.so.1)‏ Executable may still load additional dynamic libraries at run-time Pre- processor CompilerLinkerAssembler Program Source Modified Source Assembly Code Object Code Executable Code hello.chello.ihello.shello.ohello

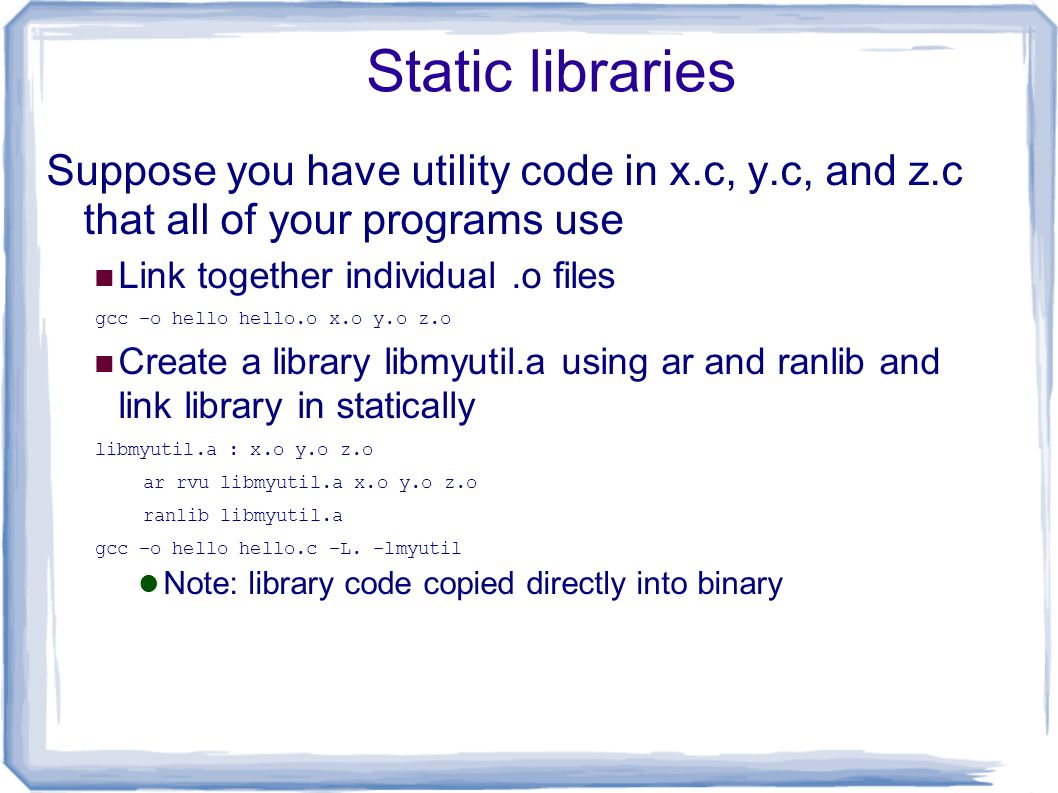

3. Static libraries Suppose you have utility code in x.c, y.c, and z.c that all of your programs use Link together individual.o files gcc –o hello hello.o x.o y.o z.o Create a library libmyutil.a using ar and ranlib and link library in statically libmyutil.a : x.o y.o z.o ar rvu libmyutil.a x.o y.o z.o ranlib libmyutil.a gcc –o hello hello.c –L. –lmyutil Note: library code copied directly into binary

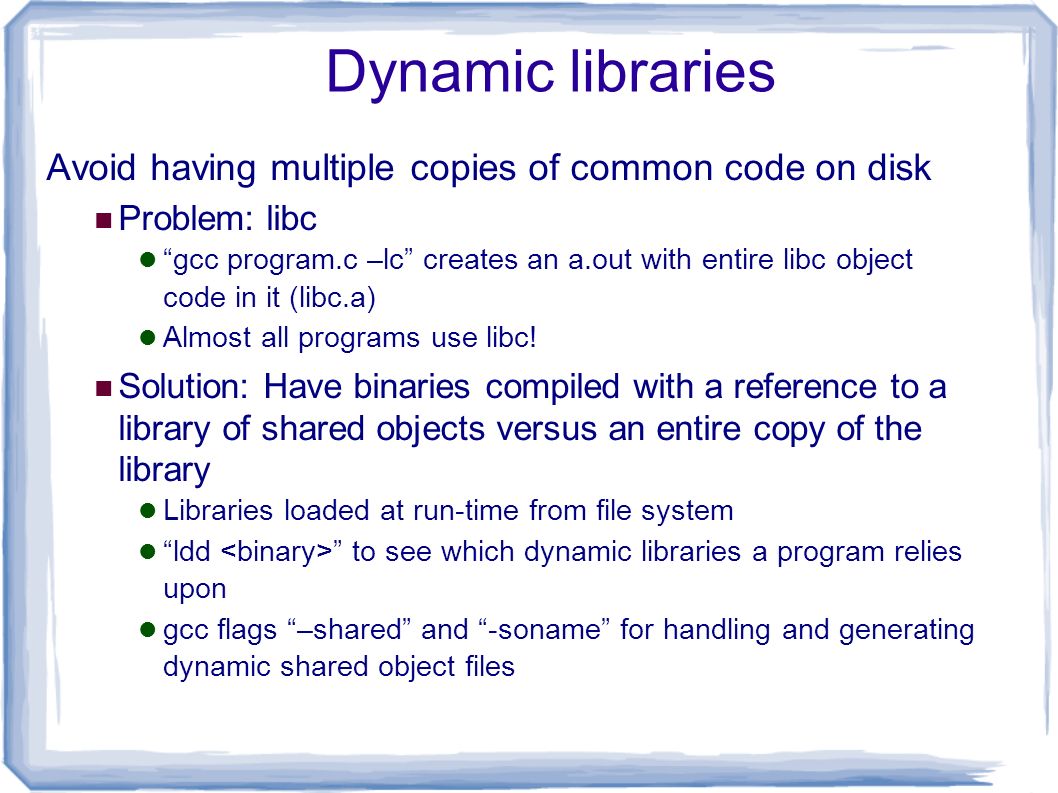

4. Dynamic libraries Avoid having multiple copies of common code on disk Problem: libc “gcc program.c –lc” creates an a.out with entire libc object code in it (libc.a)‏ Almost all programs use libc! Solution: Have binaries compiled with a reference to a library of shared objects versus an entire copy of the library Libraries loaded at run-time from file system “ldd ” to see which dynamic libraries a program relies upon gcc flags “–shared” and “-soname” for handling and generating dynamic shared object files

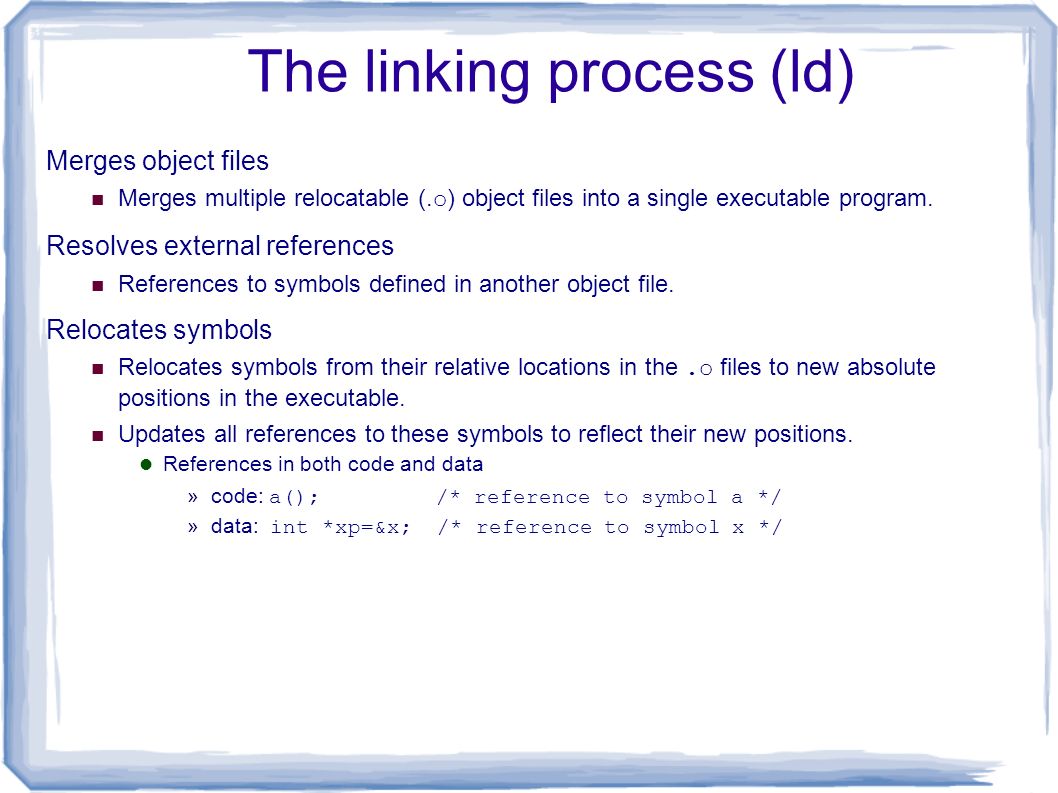

5. The linking process (ld)‏ Merges object files Merges multiple relocatable (. o ) object files into a single executable program. Resolves external references References to symbols defined in another object file. Relocates symbols Relocates symbols from their relative locations in the.o files to new absolute positions in the executable. Updates all references to these symbols to reflect their new positions. References in both code and data »code: a(); /* reference to symbol a */ »data: int *xp=&x; /* reference to symbol x */

6. Executables Various file formats Linux = Executable and Linkable Format (ELF)‏ Windows = Portable Executable (PE)

7. ELF Standard binary format for object files in Linux One unified format for Relocatable object files (.o), Shared object files (.so)‏ Executable object files Better support for shared libraries than old a.out formats. More complete information for debuggers.

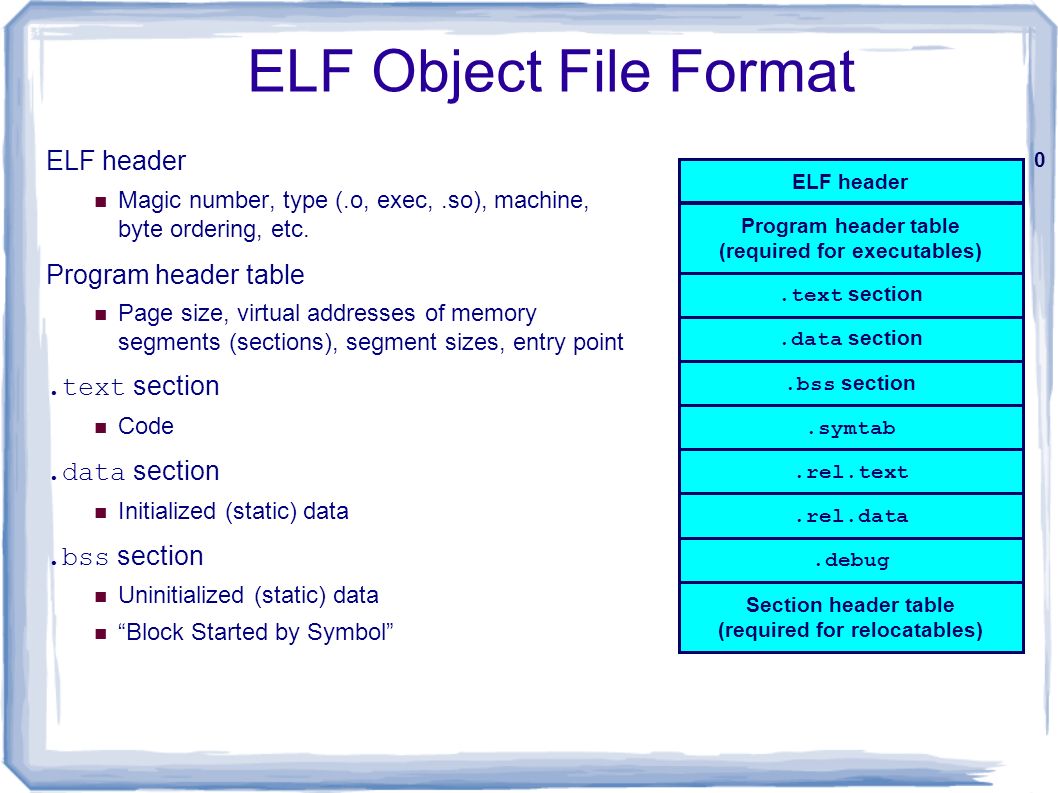

8. ELF Object File Format ELF header Magic number, type (.o, exec,.so), machine, byte ordering, etc. Program header table Page size, virtual addresses of memory segments (sections), segment sizes, entry point.text section Code.data section Initialized (static) data.bss section Uninitialized (static) data “Block Started by Symbol” ELF header Program header table (required for executables)‏.text section.data section.bss section.symtab.rel.text.rel.data.debug Section header table (required for relocatables)‏ 0

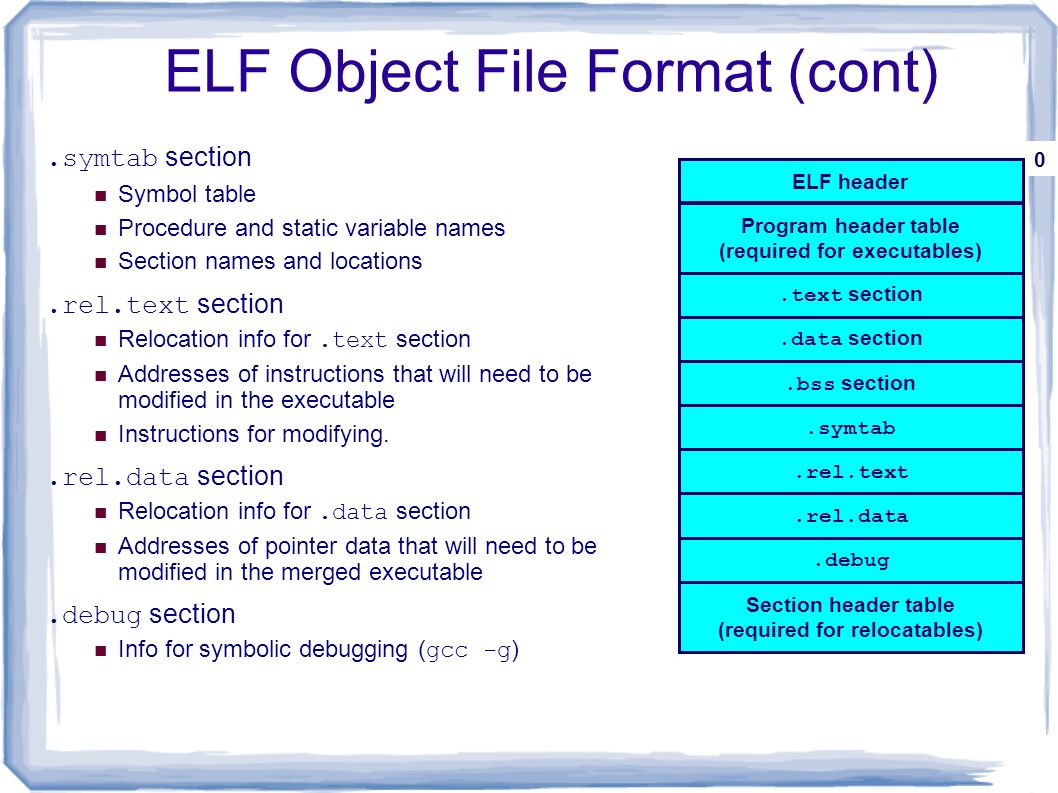

9. ELF Object File Format (cont)‏.symtab section Symbol table Procedure and static variable names Section names and locations.rel.text section Relocation info for.text section Addresses of instructions that will need to be modified in the executable Instructions for modifying..rel.data section Relocation info for.data section Addresses of pointer data that will need to be modified in the merged executable.debug section Info for symbolic debugging ( gcc -g )‏ ELF header Program header table (required for executables)‏.text section.data section.bss section.symtab.rel.text.rel.data.debug Section header table (required for relocatables)‏ 0

10. PE (Portable Executable) file format Windows file format for executables Based on COFF Format Magic Numbers, Headers, Tables, Directories, Sections Disassemblers Overlay Data with C Structures Load File as OS Loader Would Identify Entry Points (Default & Exported)‏

11. Example C Program int e=7; int main() { int r = a(); exit(0); } m.ca.c extern int e; int *ep=&e; int x=15; int y; int a() { return *ep+x+y; }

12. Merging Relocatable Object Files into an Executable Object File main()‏ m.o int *ep = &e a()‏ a.o int e = 7 headers main()‏ a()‏ 0 system code int *ep = &e int e = 7 system data more system code int x = 15 int y system data int x = 15 Relocatable Object Files Executable Object File.text.data.text.data.text.data.bss.symtab.debug.data uninitialized data.bss system code

13. Program execution Operating system provides Protection and resource allocation Abstract view of resources (files, system calls)‏ Virtual memory Uniform memory space abstraction for each process Gives the illusion that each process has entire memory space

14. How does a program get loaded? The operating system creates a new process. Including among other things, a virtual memory space Important: any hardware-based debugger must know OS state in page tables to map accesses to virtual addresses System loader reads the executable file from the file system into the memory space. Reads executable from file system into memory space Executable contains code and statically link libraries Done via DMA (direct memory access)‏ Executable in file system remains and can be executed again Loads dynamic shared objects/libraries into memory Resolves addresses in code given where code/data is loaded Then it starts the thread of execution running

15. Loading Executable Binaries ELF header Program header table (required for executables)‏.text section.data section.bss section.symtab.rel.text.rel.data.debug Section header table (required for relocatables)‏ 0.text segment (r/o)‏.data segment (initialized r/w)‏.bss segment (uninitialized r/w)‏ Executable object file for example program p Process image 0x08048494 init and shared lib segments 0x080483e0 Virtual addr 0x0804a010 0x0804a3b0

16. More on relocation Assembly code with relative and absolute addresses With VM abstraction, old linkers decide layout and can supply definitive addresses Windows “.com” format Linker can statically bind the program to virtual addresses Now, they provide hints as to where they would like to be placed But….this could also be done at load time (address space layout randomization)‏ Windows “.exe” format Loader rewrites addresses to proper offsets System needs to force position-independent code »Force compiler to make all jumps and branches relative to current location or relative to a base register set at run-time ELF uses Global Offset Table »Symbol addresses obtained from GOT before access »Can be targetted for hooks! »Implementation determines exploit

17. Program execution Programmer-Visible State EIP - Instruction Pointer a. k. a. Program Counter Address of next instruction Register File Heavily used program data Condition Codes Store status information about most recent arithmetic operation Used for conditional branching EIPEIP Registers CPU Memory Object Code Program Data OS Data Addresses Data Instructions Stack Condition Codes Memory Byte addressable array Code, user data, OS data Includes stack used to support procedures

18. Run-time data structures kernel virtual memory (code, data, heap, stack)‏ memory mapped region for shared libraries run-time heap (managed by malloc)‏ user stack (created at runtime)‏ unused 0 %esp (stack pointer)‏ memory invisible to user code brk 0xc0000000 0x08048000 0x40000000 read/write segment (.data,.bss)‏ read-only segment (.init,.text,.rodata)‏ loaded from the executable file 0xffffffff

19. Registers The processor operates on data in registers (usually)‏ movl (%eax), %ecx Fetch data at address contained in %eax Store in register %ecx movl $array, %ecx Move address of variable array into %ecx Typically, data is loaded into registers, manipulated or used, and then written back to memory The IA32 architecture is “register poor” Few general purpose registers Source or destination operand is often memory locations Makes context-switching amongst processes easy (less register-state to store)‏

20. IA32 General Registers 0157831 %ah%al %ch%cl %dh%dl %bh%bl %eax %ecx %edx %ebx %esi %edi %esp %ebp %ax %cx %dx %bx %si %di %sp %bp Stack pointer Frame pointer Special purpose registers General purpose registers (mostly)‏

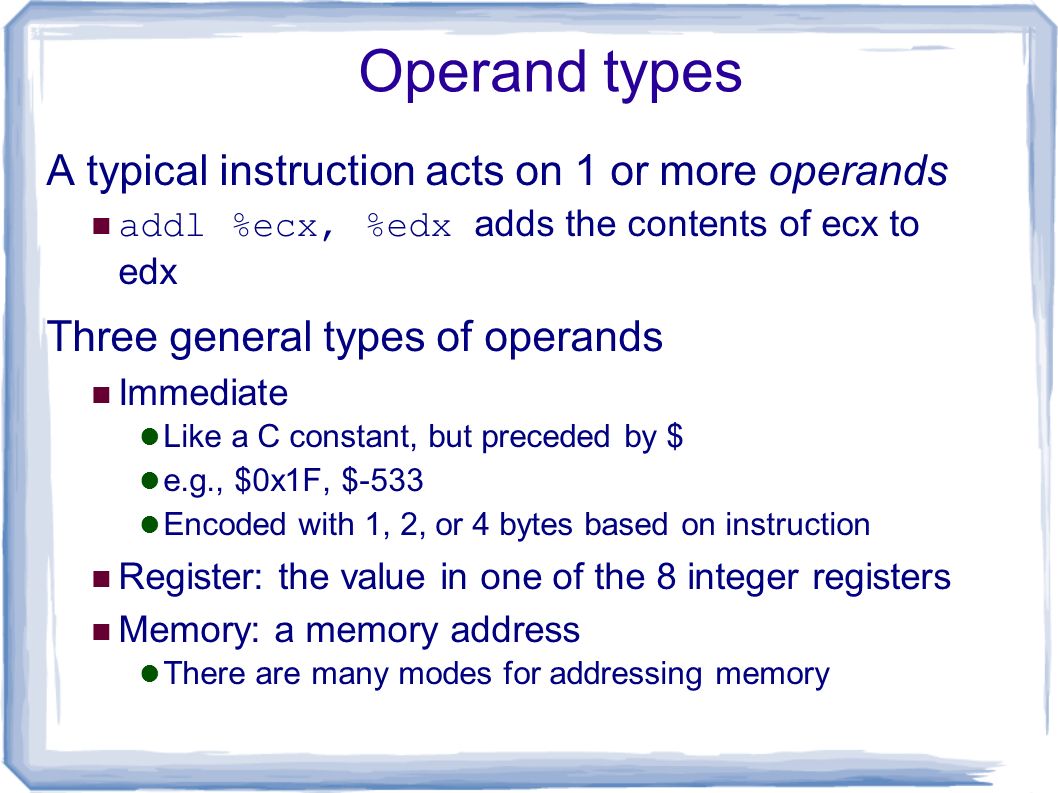

21. Operand types A typical instruction acts on 1 or more operands addl %ecx, %edx adds the contents of ecx to edx Three general types of operands Immediate Like a C constant, but preceded by $ e.g., $0x1F, $-533 Encoded with 1, 2, or 4 bytes based on instruction Register: the value in one of the 8 integer registers Memory: a memory address There are many modes for addressing memory

22. Operand examples using mov Memory-memory transfers cannot be done with single instruction movl Imm Reg Mem Reg Mem Reg Mem Reg SourceDestination movl $0x4,%eax movl $-147,(%eax)‏ movl %eax,%edx movl %eax,(%edx)‏ movl (%eax),%edx C Analog temp = 0x4; *p = -147; temp2 = temp1; *p = temp; temp = *p;

23. Addressing Modes Immediate and registers have only one mode Memory on the other hand … Absolute specify the address of the data Indirect use register to calculate address Base + displacement use register plus absolute address to calculate address Indexed »Add contents of an index register Scaled index »Add contents of an index register scaled by a constant

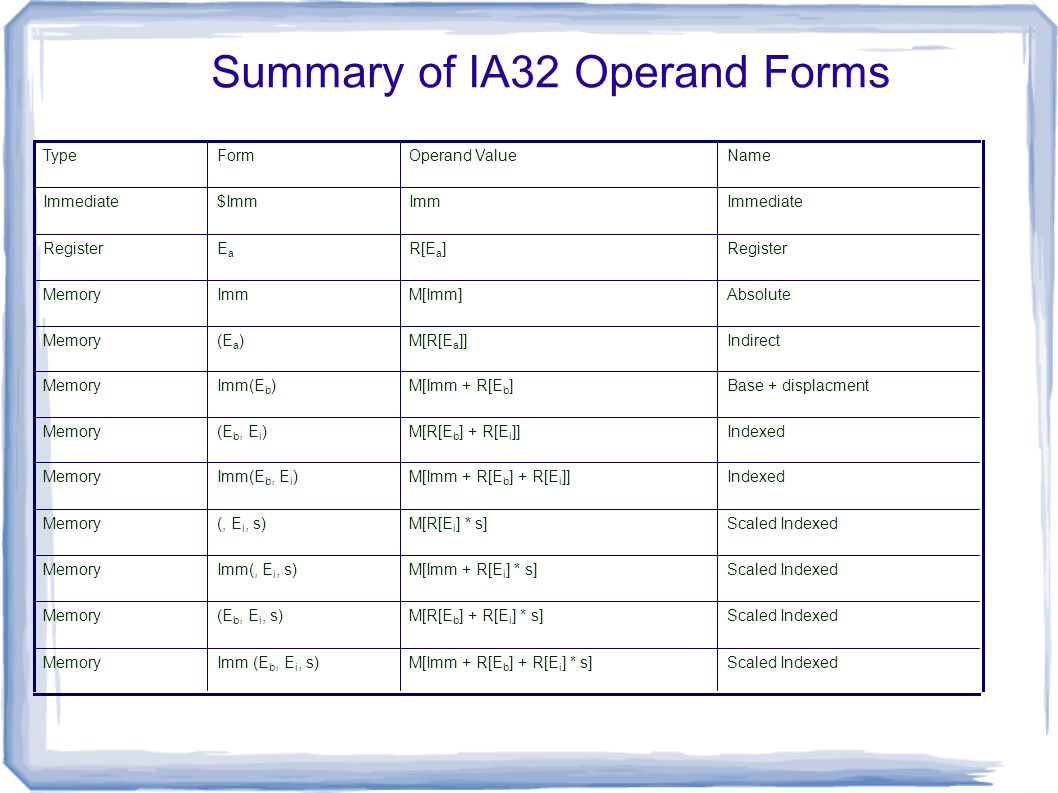

24. Summary of IA32 Operand Forms Scaled IndexedM[Imm + R[E b ] + R[E i ] * s]Imm (E b, E i, s)‏Memory Scaled IndexedM[R[E b ] + R[E i ] * s](E b, E i, s)‏Memory Scaled IndexedM[Imm + R[E i ] * s]Imm(, E i, s)‏Memory Scaled IndexedM[R[E i ] * s](, E i, s)‏Memory IndexedM[Imm + R[E b ] + R[E i ]]Imm(E b, E i )‏Memory IndexedM[R[E b ] + R[E i ]](E b, E i )‏Memory Base + displacmentM[Imm + R[E b ]Imm(E b )‏Memory IndirectM[R[E a ]](E a )‏Memory AbsoluteM[Imm]ImmMemory RegisterR[E a ]EaEa Register ImmediateImm$ImmImmediate NameOperand ValueFormType

25. x86 instructions Rules Source operand can be memory, register or constant Destination can be memory or register Only one of source and destination can be memory Source and destination must be same size Flags set on each instruction EFLAGS Conditional branches handled via EFLAGS

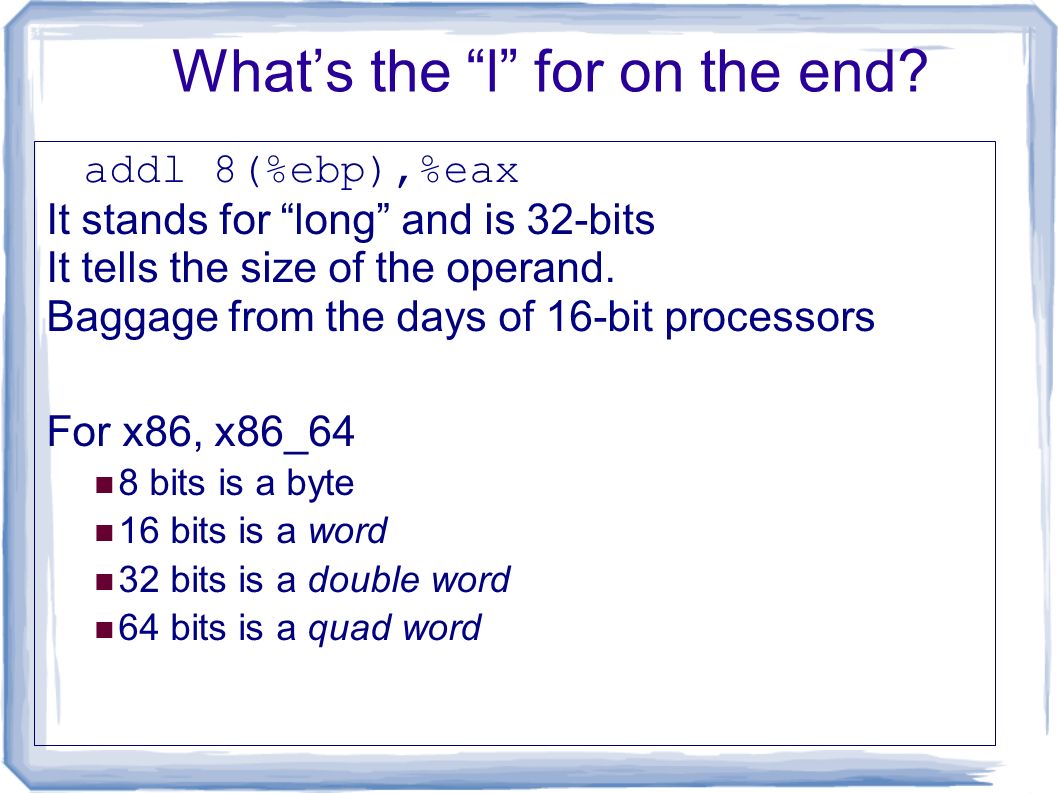

26. What’s the “l” for on the end? addl 8(%ebp),%eax It stands for “long” and is 32-bits It tells the size of the operand. Baggage from the days of 16-bit processors For x86, x86_64 8 bits is a byte 16 bits is a word 32 bits is a double word 64 bits is a quad word

27. IA32 Standard Data Types 10/12tExtended precisionlong double 8lDouble precisiondouble 4sSingle precisionfloat 4lDouble wordchar * 4lDouble wordunsigned long 4lDouble wordlong int 4lDouble wordunsigned 4lDouble wordint 2wWordshort 1bBytechar Size in bytesGAS SuffixIntel Data TypeC Declaration

28. Global vs. Local variables Global variables stored in either.data or.bss section of process Local variables stored on stack

29. Global vs local example int x = 1; int y = 2; void a() { x = x+y; printf("Total = %d\n",x); } int main(){a();} void a() { int x = 1; int y = 2; x = x+y; printf("Total = %d\n",x); } int main() {a();}

30. Global vs local example int x = 1; int y = 2; void a() { x = x+y; printf("Total = %d\n",x); } int main(){a();} 080483c4 : 80483c4: push %ebp 80483c5: mov %esp,%ebp 80483c7: sub $0x18,%esp 80483ca: movl $0x1,-0x8(%ebp) 80483d1: movl $0x2,-0x4(%ebp) 80483d8: mov -0x4(%ebp),%eax 80483db: add %eax,-0x8(%ebp) 80483de: mov -0x8(%ebp),%eax 80483e1: mov %eax,0x4(%esp) 80483e5: movl $0x80484f0,(%esp) 80483ec: call 80482dc 80483f1: leave 80483f2: ret void a() { int x = 1; int y = 2; x = x+y; printf("Total = %d\n",x); } int main() {a();} 080483c4 : 80483c4: push %ebp 80483c5: mov %esp,%ebp 80483c7: sub $0x8,%esp 80483ca: mov 0x804966c,%edx 80483d0: mov 0x8049670,%eax 80483d5: lea (%edx,%eax,1),%eax 80483d8: mov %eax,0x804966c 80483dd: mov 0x804966c,%eax 80483e2: mov %eax,0x4(%esp) 80483e6: movl $0x80484f0,(%esp) 80483ed: call 80482dc 80483f2: leave 80483f3: ret

31. Arithmetic operations void f(){ int a = 0; int b = 1; a = a+11; a = a-b; a--; b++; } int main() { f();} 08048394 : 8048394: push %ebp 8048395: mov %esp,%ebp 8048397: sub $0x10,%esp 804839a: movl $0x0,-0x8(%ebp) 80483a1: movl $0x1,-0x4(%ebp) 80483a8: addl $0xb,-0x8(%ebp) 80483ac: mov -0x4(%ebp),%eax 80483af: sub %eax,-0x8(%ebp) 80483b2: subl $0x1,-0x8(%ebp) 80483b6: addl $0x1,-0x4(%ebp) 80483ba: leave 80483bb: ret

32. Machine Instruction Example C Code Add two signed integers Assembly Add 2 4-byte integers “Long” words in GCC parlance Same instruction whether signed or unsigned Operands: x :Register %eax y :MemoryM[ %ebp+8] t :Register %eax »Return function value in %eax Object Code 3-byte instruction Stored at address 0x401046 0x401046:03 45 08 int sum(int x, int y)‏ { int t = x+y; return t; } _sum: pushl %ebp movl %esp,%ebp movl 12(%ebp),%eax addl 8(%ebp),%eax movl %ebp,%esp popl %ebp ret

33. Condition codes The IA32 processor has a register called eflags (extended flags) Each bit is a flag, or condition code CF Carry Flag SF Sign Flag ZF Zero FlagO F Overflow Flag As programmers, we don’t write to this register and seldom read it directly Flags are set or cleared by hardware depending on the result of an instruction

34. Condition Codes (cont.) Setting condition codes via compare instruction cmpl b,a Computes a-b without setting destination CF set if carry out from most significant bit Used for unsigned comparisons ZF set if a == b SF set if (a-b) < 0 OF set if two’s complement overflow (a>0 && b 0 && (a-b)>0) Byte and word versions cmpb, cmpw

35. Condition Codes (cont.) Setting condition codes via test instruction testl b,a Computes a&b without setting destination Sets condition codes based on result Useful to have one of the operands be a mask Often used to test zero, positive testl %eax, %eax ZF set when a&b == 0 SF set when a&b < 0 Byte and word versions testb, testw

36. if statements void f(){ int x = 1; int y = 2; if (x==y) { printf("x equals y.\n"); } else { printf("x is not equal to y.\n"); } int main() { f();} 080483c4 : 80483c4: push %ebp 80483c5: mov %esp,%ebp 80483c7: sub $0x18,%esp 80483ca: movl $0x1,-0x8(%ebp) 80483d1: movl $0x2,-0x4(%ebp) 80483d8: mov -0x8(%ebp),%eax 80483db: cmp -0x4(%ebp),%eax 80483de: jne 80483ee 80483e0: movl $0x80484f0,(%esp) 80483e7: call 80482d8 80483ec: jmp 80483fa 80483ee: movl $0x80484fc,(%esp) 80483f5: call 80482d8 80483fa: leave 80483fb: ret

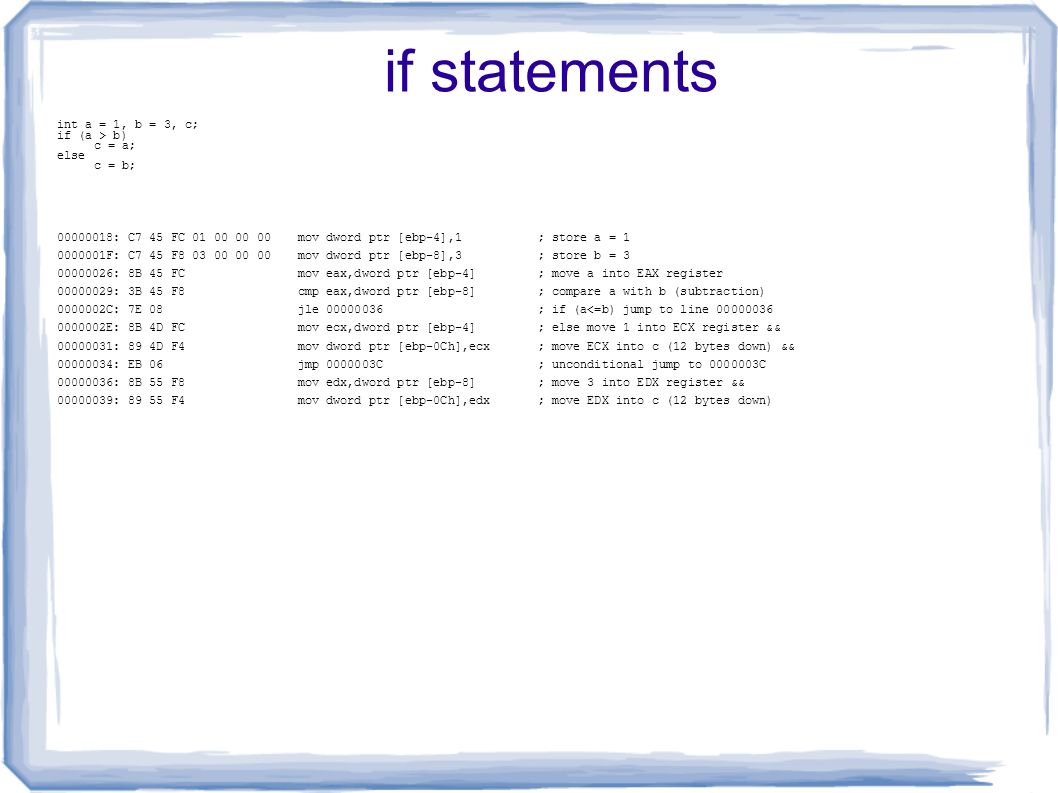

37. if statements int a = 1, b = 3, c; if (a > b) c = a; else c = b; 00000018: C7 45 FC 01 00 00 00 mov dword ptr [ebp-4],1 ; store a = 1 0000001F: C7 45 F8 03 00 00 00 mov dword ptr [ebp-8],3 ; store b = 3 00000026: 8B 45 FC mov eax,dword ptr [ebp-4] ; move a into EAX register 00000029: 3B 45 F8 cmp eax,dword ptr [ebp-8] ; compare a with b (subtraction) 0000002C: 7E 08 jle 00000036 ; if (a<=b) jump to line 00000036 0000002E: 8B 4D FC mov ecx,dword ptr [ebp-4] ; else move 1 into ECX register && 00000031: 89 4D F4 mov dword ptr [ebp-0Ch],ecx ; move ECX into c (12 bytes down) && 00000034: EB 06 jmp 0000003C ; unconditional jump to 0000003C 00000036: 8B 55 F8 mov edx,dword ptr [ebp-8] ; move 3 into EDX register && 00000039: 89 55 F4 mov dword ptr [ebp-0Ch],edx ; move EDX into c (12 bytes down)

38. int factorial_do(int x) { int result = 1; do { result *= x; x = x-1; } while (x > 1); return result; } Loops factorial_do: pushl %ebp movl %esp, %ebp movl 8(%ebp), %edx movl $1, %eax.L2: imull %edx, %eax decl %edx cmpl $1, %edx jg.L2 leave ret

39. C switch statements Implementation options Series of conditionals testl followed by je Good if few cases Slow if many cases Jump table (example below) Lookup branch target from a table Possible with a small range of integer constants GCC picks implementation based on structure Example: switch (x) { case 1: case 5: code at L0 case 2: case 3: code at L1 default: code at L2 }.L2.L0.L1.L2.L0.L3 1. init jump table at.L3 2. get address at.L3+4*x 3. jump to that address

40. Example int switch_eg(int x) { int result = x; switch (x) { case 100: result *= 13; break; case 102: result += 10; /* Fall through */ case 103: result += 11; break; case 104: case 106: result *= result; break; default: result = 0; } return result; }

41. 41 leal -100(%edx),%eax cmpl $6,%eax ja.L9 jmp *.L10(,%eax,4).p2align 4,,7.section.rodata.align 4.L10:.long.L4.long.L9.long.L5.long.L6.long.L8.long.L9.long.L8.text.p2align 4,,7.L4: leal (%edx,%edx,2),%eax leal (%edx,%eax,4),%edx jmp.L3.p2align 4,,7.L5: addl $10,%edx.L6: addl $11,%edx jmp.L3.p2align 4,,7.L8: imull %edx,%edx jmp.L3.p2align 4,,7.L9: xorl %edx,%edx.L3: movl %edx,%eax Key is jump table at L10 Array of pointers to jump locations int switch_eg(int x) { int result = x; switch (x) { case 100: result *= 13; break; case 102: result += 10; /* Fall through */ case 103: result += 11; break; case 104: case 106: result *= result; break; default: result = 0; } return result; }

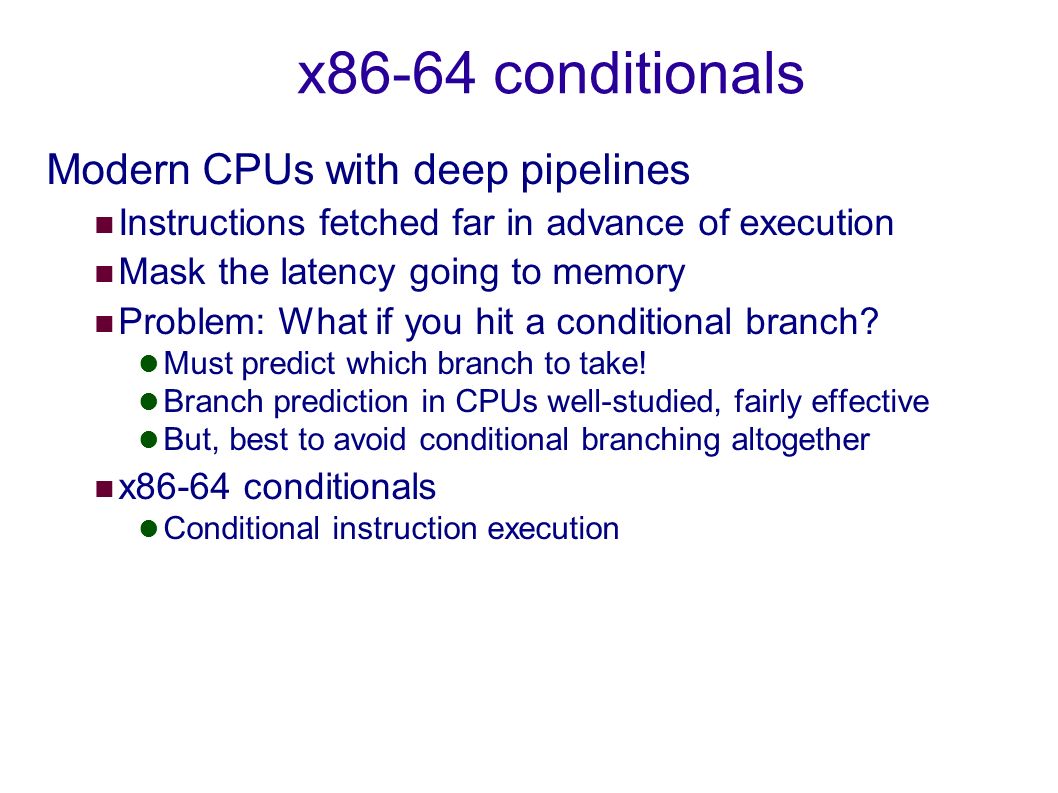

42. x86-64 conditionals Modern CPUs with deep pipelines Instructions fetched far in advance of execution Mask the latency going to memory Problem: What if you hit a conditional branch? Must predict which branch to take! Branch prediction in CPUs well-studied, fairly effective But, best to avoid conditional branching altogether x86-64 conditionals Conditional instruction execution

43. Conditional Move Conditional move instruction cmovXX src, dest Move value from src to dest if condition XX holds No branching Handled as operation within Execution Unit Added with P6 microarchitecture (PentiumPro onward) Example Current version of GCC won’t use this instruction Thinks it’s compiling for a 386 Performance 14 cycles on all data More efficient than conditional branching (simple control flow) But overhead: both branches are evaluated movl 8(%ebp),%edx# Get x movl 12(%ebp),%eax# rval=y cmpl %edx, %eax# rval:x cmovll %edx,%eax# If <, rval=x

44. x86-64 conditional example absdiff: # x in %edi, y in %esi movl %edi, %eax # eax = x movl %esi, %edx # edx = y subl %esi, %eax # eax = x-y subl %edi, %edx # edx = y-x cmpl %esi, %edi # x:y cmovle %edx, %eax # eax=edx if <= ret int absdiff( int x, int y) { int result; if (x > y) { result = x-y; } else { result = y-x; } return result; }

45. IA32 Stack Region of memory managed with stack discipline Grows toward lower addresses Register %esp indicates lowest stack address address of top element Stack Pointer %esp Stack Grows Down Increasing Addresses Stack “Top” Stack “Bottom”

46. IA32 Stack Pushing Pushing pushl Src Decrement %esp by 4 Fetch operand at Src Write operand at address given by %esp e.g. pushl %eax subl $4, %esp movl %eax,(%esp)‏ Stack Grows Down Increasing Addresses Stack “Top” Stack “Bottom” Stack Pointer %esp -4

47. IA32 Stack Popping Popping popl Dest Read operand at address given by %esp Write to Dest Increment %esp by 4 e.g. popl %eax movl (%esp),%eax addl $4,%esp Stack Pointer %esp Stack Grows Down Increasing Addresses Stack “Top” Stack “Bottom” +4

48. %esp %eax %edx %esp %eax %edx %esp %eax %edx 0x104 555 0x108 0x10c 0x110 0x104 213 123 Stack Operation Examples 0x108 0x10c 0x110 213 123 0x1080x104 pushl %eax 0x108 0x10c 0x110 213 123 0x104 213 popl %edx 0x108 213 Initially Top

49. Procedure Control Flow Procedure call: call label Push address of next instruction (after the call) on stack Jump to label Procedure return: ret Pop address from stack into eip register

50. %esp %eip %esp %eip 0x804854e 0x108 0x10c 0x110 0x104 0x804854e 0x8048553 123 Procedure Call Example 0x108 0x10c 0x110 123 0x108 call 8048b90 804854e:e8 3d 06 00 00 call 8048b90 8048553:50 next instruction 0x8048b90 0x104 %eip is program counter

51. 0x8048e910x8048553 %esp %eip 0x104 %esp %eip 0x8048e90 0x104 0x108 0x10c 0x110 0x8048553 123 Procedure Return Example 0x108 0x10c 0x110 123 ret 8048e90:c3 ret 0x108 %eip is program counter 0x8048553

52. Procedure Control Flow When procedure foo calls who : foo is the caller, who is the callee Control is transferred to the ‘callee’ When procedure returns Control is transferred back to the ‘caller’ Last-called, first-return (LIFO) order Naturally implemented via the stack foo(…)‏ { who(); } who(…)‏ { amI(); amI(); } amI(…)‏ { } call ret

53. Procedure calls and stack frames How does the ‘callee’ know where to return later? Return address placed in a well-known location on stack within a “stack frame” How are arguments passed to the ‘callee’? Arguments placed in a well-known location on stack within a “stack frame” Upon procedure invocation Stack frame created for the procedure Stack frame is pushed onto program stack Upon procedure return Its frame is popped off of stack Caller’s stack frame is recovered foo’s stack frame who’s stack frame Stack bottom increasing addresses amI’s stack frame stack growth Call chain: foo => who => amI

54. Keeping track of stack frames The stack pointer ( %esp ) moves around Can be changed within procedure Problem How can we consistently find our parameters? The base pointer ( %ebp )‏ Points to the base of our current stack frame Also called the frame pointer Within each function, %ebp stays constant Most information on the stack is referenced relative to the base pointer Base pointer setup is the programmer’s job Actually usually the compiler’s job

55. IA32/Linux Stack Frame Current Stack Frame (Yellow) (From Top to Bottom)‏ Parameters for function about to be called “Argument build” of caller Local variables If can’t keep in registers Saved register context Old frame pointer Caller Stack Frame (Pink)‏ Return address Pushed by call instruction Arguments for this call “Argument build” of callee etc… Stack Pointer ( %esp )‏ Frame Pointer ( %ebp )‏ Return Addr Saved Registers + Local Variables Argument Build Old %ebp Arguments Caller Frame

56. swap void swap(int *xp, int *yp) { int t0 = *xp; int t1 = *yp; *xp = t1; *yp = t0; } int zip1 = 15213; int zip2 = 91125; void call_swap()‏ { swap(&zip1, &zip2); } call_swap: pushl $zip2# Global Var pushl $zip1# Global Var call swap &zip2 &zip1 Rtn adr %esp Resulting Stack Calling swap from call_swap

57. swap void swap(int *xp, int *yp) { int t0 = *xp; int t1 = *yp; *xp = t1; *yp = t0; } swap: pushl %ebp movl %esp,%ebp pushl %ebx movl 12(%ebp),%ecx movl 8(%ebp),%edx movl (%ecx),%eax movl (%edx),%ebx movl %eax,(%edx)‏ movl %ebx,(%ecx)‏ movl -4(%ebp),%ebx movl %ebp,%esp popl %ebp ret Body Setup Finish

58. swap Setup #1 swap: pushl %ebp movl %esp,%ebp pushl %ebx Resulting stack &zip2 &zip1 Rtn adr %esp Entering Stack %ebp yp xp Rtn adr Old %ebp %ebp %esp

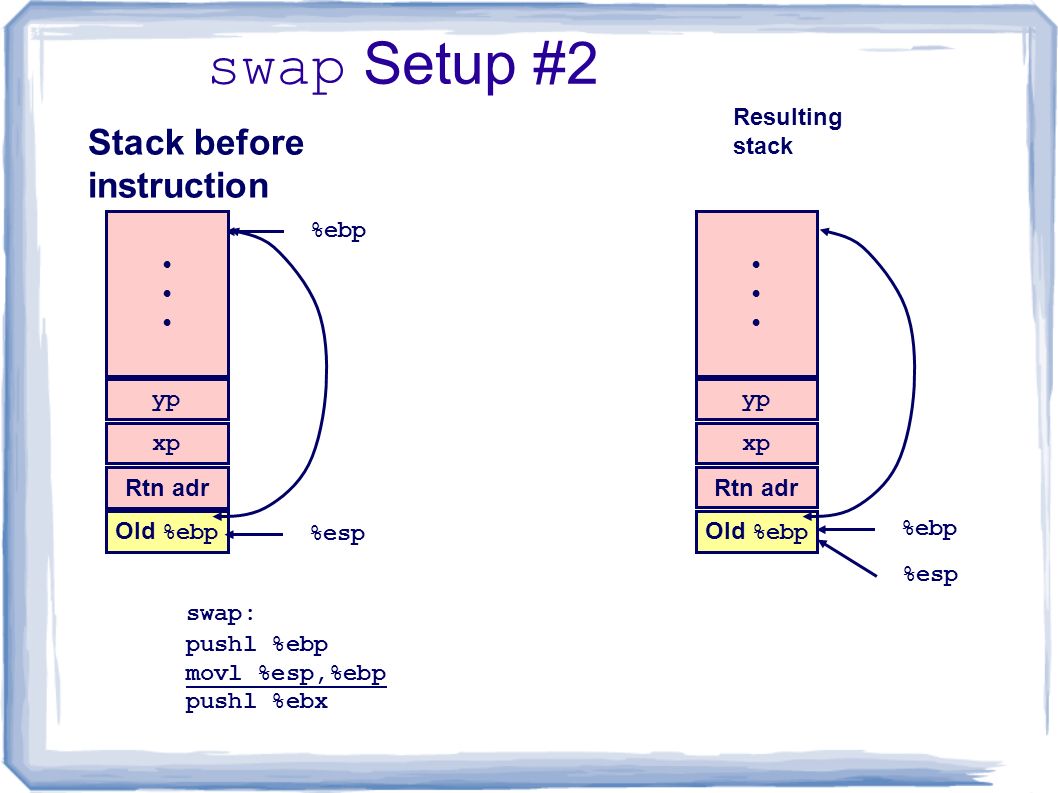

59. swap Setup #2 swap: pushl %ebp movl %esp,%ebp pushl %ebx Stack before instruction yp xp Rtn adr Old %ebp %ebp Resulting stack %esp yp xp Rtn adr Old %ebp %ebp %esp

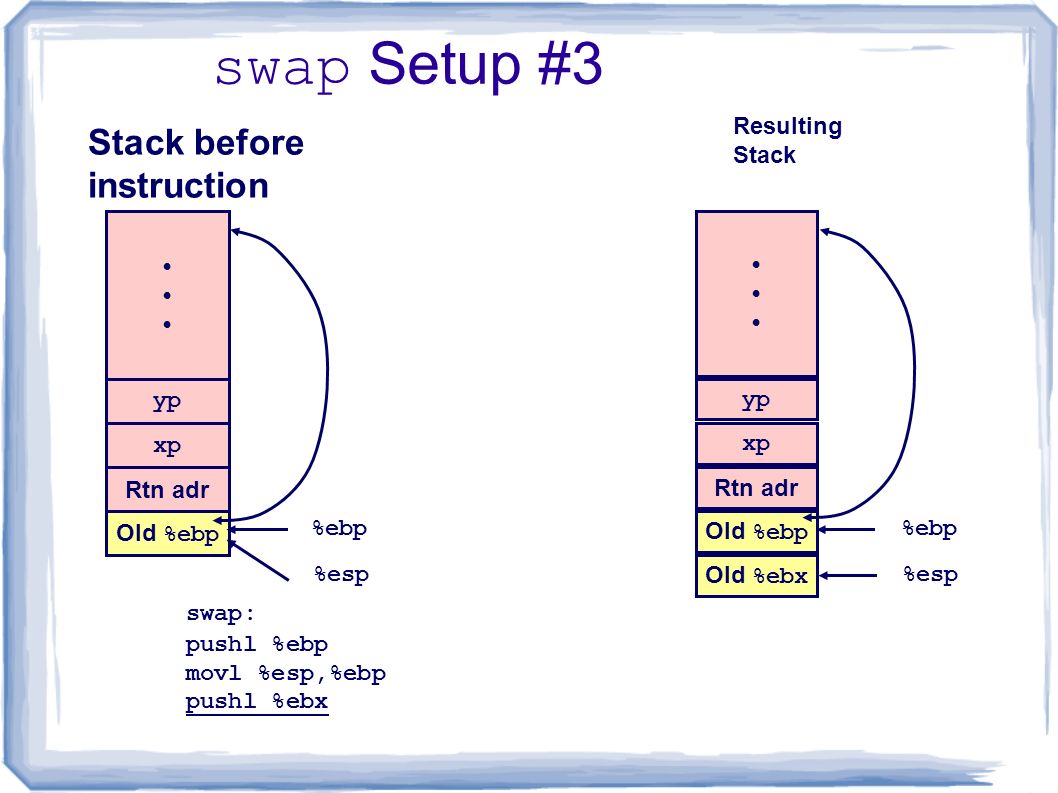

60. swap Setup #3 swap: pushl %ebp movl %esp,%ebp pushl %ebx Stack before instruction yp xp Rtn adr Old %ebp %ebp Resulting Stack Old %ebx %esp yp xp Rtn adr Old %ebp %ebp %esp

61. Effect of swap Setup yp xp Rtn adr Old %ebp %ebp 0 4 8 12 Offset (relative to %ebp )‏ &zip2 &zip1 Rtn adr %esp Entering Stack %ebp Old %ebx %esp movl 12(%ebp),%ecx # get yp movl 8(%ebp),%edx # get xp... Body Resulting Stack

62. swap Finish #1 movl -4(%ebp),%ebx movl %ebp,%esp popl %ebp ret yp xp Rtn adr Old %ebp %ebp 0 4 8 12 Offset swap ’s Stack Old %ebx %esp-4 Observation Saved & restored register %ebx yp xp Rtn adr Old %ebp %ebp 0 4 8 12 Offset Old %ebx %esp-4

63. swap Finish #2 movl -4(%ebp),%ebx movl %ebp,%esp popl %ebp ret yp xp Rtn adr Old %ebp %ebp 0 4 8 12 Offset swap ’s Stack Old %ebx %esp-4 yp xp Rtn adr Old %ebp %ebp 0 4 8 12 Offset swap ’s Stack %esp

64. swap Finish #3 movl -4(%ebp),%ebx movl %ebp,%esp popl %ebp ret yp xp Rtn adr %ebp 4 8 12 Offset swap ’s Stack yp xp Rtn adr Old %ebp %ebp 0 4 8 12 Offset swap ’s Stack %esp

65. swap Finish #4 movl -4(%ebp),%ebx movl %ebp,%esp popl %ebp ret &zip2 &zip1 %esp Exiting Stack %ebp Observation Saved & restored register %ebx Didn’t do so for %eax, %ecx, or %edx yp xp Rtn adr %ebp 4 8 12 Offset swap ’s Stack %esp

66. swap void swap(int *xp, int *yp) { int t0 = *xp; int t1 = *yp; *xp = t1; *yp = t0; } swap: pushl %ebp movl %esp,%ebp pushl %ebx movl 12(%ebp),%ecx movl 8(%ebp),%edx movl (%ecx),%eax movl (%edx),%ebx movl %eax,(%edx)‏ movl %ebx,(%ecx)‏ movl -4(%ebp),%ebx movl %ebp,%esp popl %ebp ret Body Setup Finish Save old %ebp of caller frame Set new %ebp for callee (current) frame Save state of %ebx register from caller Retrieve parameter yp from caller frame Retrieve parameter xp from caller frame Perform swap Restore the state of caller’s %ebx register Set stack pointer to bottom of callee frame (%ebp)‏ Restore %ebp to original state Pop return address from stack to %eip Equivalent to single leave instruction

67. Local variables Where are they in relation to ebp? Stored “above” %ebp (at lower addresses)‏ How are they preserved if the current function calls another function? Compiler updates %esp beyond local variables before issuing “ call ” What happens to them when the current function returns? Are lost (i.e. no longer valid)‏

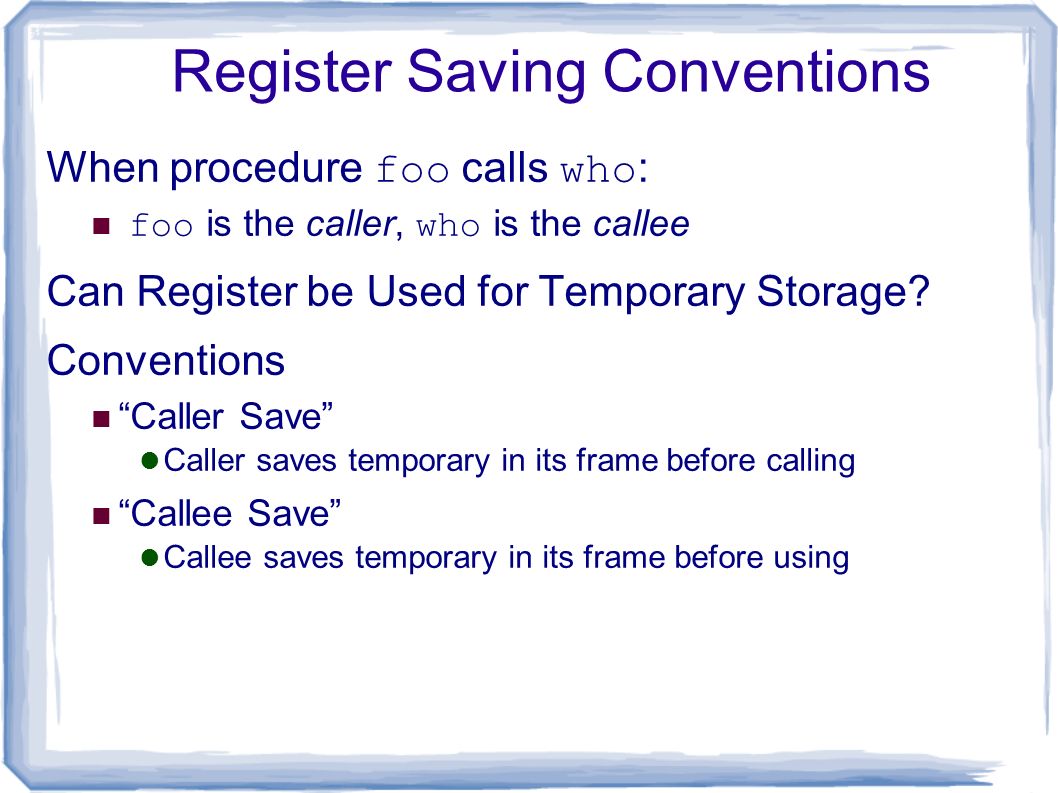

68. Register Saving Conventions When procedure foo calls who : foo is the caller, who is the callee Can Register be Used for Temporary Storage? Conventions “Caller Save” Caller saves temporary in its frame before calling “Callee Save” Callee saves temporary in its frame before using

69. IA32 Register Usage Integer Registers Two have special uses %ebp, %esp Three managed as callee-save %ebx, %esi, %edi Old values saved on stack prior to using Three managed as caller-save %eax, %edx, %ecx Do what you please, but expect any callee to do so, as well Return value in %eax %eax %edx %ecx %ebx %esi %edi %esp %ebp Caller-Save Temporaries Callee-Save Temporaries Special

70. simple.c _simple: pushl %ebpSetup stack frame pointer movl %esp, %ebp movl 8(%ebp), %edxget xp movl 12(%ebp), %ecxget y movl (%edx), %eaxmove *xp to t addl %ecx, %eaxadd y to t movl %eax, (%edx)store t at *xp popl %ebprestore frame pointer retreturn to caller int simple(int *xp, int y)‏ { int t = *xp + y; *xp = t; return t; } gcc –O2 –c simple.c

71. Function pointers Pointers in C can also point to code locations Function pointers Store and pass references to code Some uses Dynamic “late-binding” of functions Dynamically “set” a random number generator Replace large switch statements for implementing dynamic event handlers »Example: dynamically setting behavior of GUI buttons Emulating “virtual functions” and polymorphism from OOP qsort() with user-supplied callback function for comparison »man qsort Operating on lists of elements »multiplicaiton, addition, min/max, etc. Malware leverages this to execute its own code

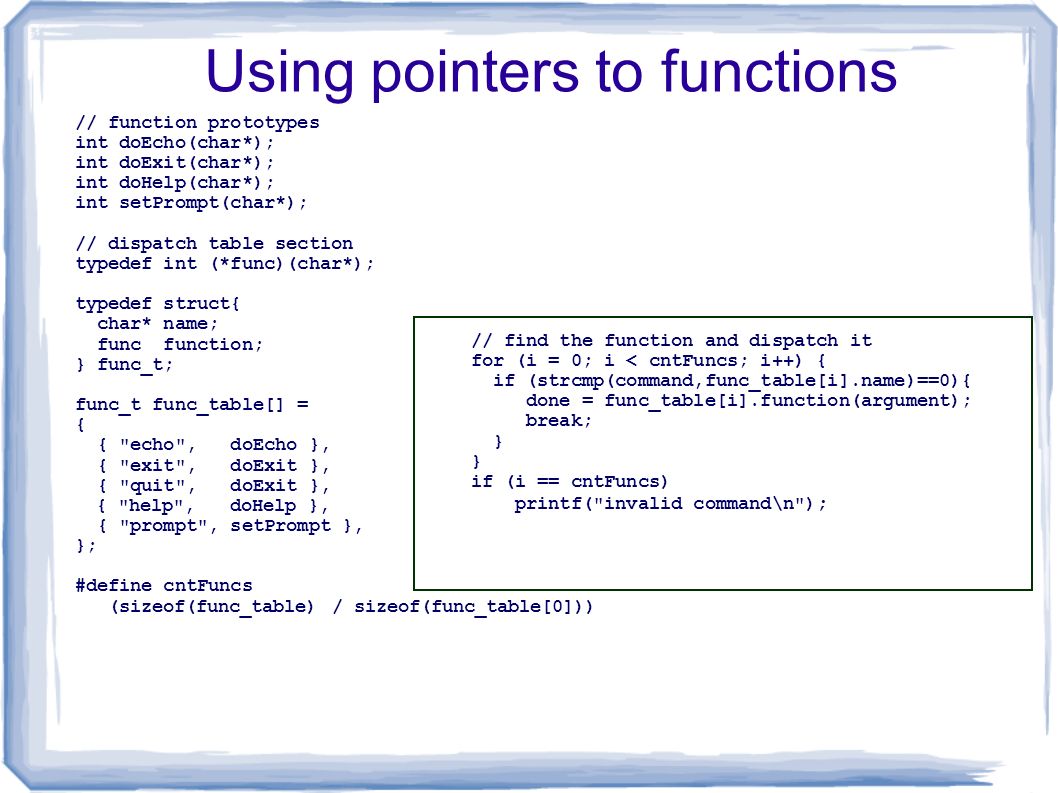

72. Using pointers to functions // function prototypes int doEcho(char*); int doExit(char*); int doHelp(char*); int setPrompt(char*); // dispatch table section typedef int (*func)(char*); typedef struct{ char* name; func function; } func_t; func_t func_table[] = { { "echo", doEcho }, { "exit", doExit }, { "quit", doExit }, { "help", doHelp }, { "prompt", setPrompt }, }; #define cntFuncs (sizeof(func_table) / sizeof(func_table[0]))‏ // find the function and dispatch it for (i = 0; i < cntFuncs; i++) { if (strcmp(command,func_table[i].name)==0){ done = func_table[i].function(argument); break; } if (i == cntFuncs) printf("invalid command\n") ;

73. Function pointers example #include void fp1(int i){ printf("Even\n“,i);} void fp2(int i) { printf("Odd\n”,i); } main(int argc, char **argv) { void (*fp)(int); int i = argc; if (argc%2) fp=fp2; else fp=fp1; fp(i); } mashimaro %./funcp a Even 2 mashimaro %./funcp a b Odd 3 mashimaro % main: leal 4(%esp), %ecx andl $-16, %esp pushl -4(%ecx) pushl %ebp movl %esp, %ebp pushl %ecx subl $4, %esp movl (%ecx), %eax movl $fp2, %edx testb $1, %al jne.L4 movl $fp1, %edx.L4: movl %eax, (%esp) call *%edx addl $4, %esp popl %ecx popl %ebp leal -4(%ecx), %esp ret

74. Uses in operating system Interrupt descriptor table Pointers to interrupt handler functions IDTR points to IDT System services descriptor table Pointers to system call functions Import address table Pointers to imported library calls Malware attacks all of these

75. More disassembly Code patterns in assembly Calling conventions (fast vs. standard vs. cdecl)‏ ebp omission ecx use as C++ this pointer C++ vtables (virtual function table)‏ WinXP SP2 prologue with patching support For detours Exception handlers (FS register)‏ Linked list of functions stored in exception frames on stack

76. Advanced disassembly Windows examples Largely the same with small modifications Size of operands (i.e. dword) specified (not in operator suffix)‏ Reverse ordering of operands

77. Disassembly example 0000 mov ecx, 5 0003 push aHello 0009 call printf 000E loop 00000003h 0014... for(int i=0;i<5;i++)‏ { printf(“Hello”); } 0000 cmp ecx, 100h 0003 jnz 001Bh 0009 push aYes 000F call printf 0015 jmp 0027h 001B push aNo 0021 call printf 0027... if(x == 256)‏ { printf(“Yes”); } else { printf(“No”); }

78. Disassembly example int main(int argc, char **argv) { WSADATA wsa; SOCKET s; struct sockaddr_in name; unsigned char buf[256]; // Initialize Winsock if(WSAStartup(MAKEWORD(1,1),&wsa))‏ return 1; // Create Socket s = socket(AF_INET,SOCK_STREAM,0); if(INVALID_SOCKET == s) goto Error_Cleanup; name.sin_family = AF_INET; name.sin_port = htons(PORT_NUMBER); name.sin_addr.S_un.S_addr = htonl(INADDR_ANY); // Bind Socket To Local Port if(SOCKET_ERROR == bind(s,(struct sockaddr*)&name,sizeof(name)))‏ goto Error_Cleanup; // Set Backlog parameters if(SOCKET_ERROR == listen(s,1))‏ goto Error_Cleanup; push ebp mov ebp, esp sub esp, 2A8h lea eax, [ebp+0FFFFFE70h] push eax push 101h call 4012BEh test eax, eax jz 401028h mov eax, 1 jmp 40116Fh push 0 push 1 push 2 call 4012B8h mov dword ptr [ebp+0FFFFFE6Ch], eax cmp dword ptr [ebp+0FFFFFE6Ch], byte 0FFh jnz 401047h jmp 401165h mov word ptr [ebp+0FFFFFE5Ch], 2 push 800h call 4012B2h mov word ptr [ebp+0FFFFFE5Eh], ax push 0 call 4012ACh mov dword ptr [ebp+0FFFFFE60h], eax push 10h lea ecx, [ebp+0FFFFFE5Ch] push ecx mov edx, [ebp+0FFFFFE6Ch] push edx call 4012A6h cmp eax, byte 0FFh jnz 40108Dh jmp 401165h push 1 mov eax, [ebp+0FFFFFE6Ch] push eax call 4012A0h cmp eax, byte 0FFh jnz 4010A5h jmp 401165h

79. Tools for disassembling IDA Pro, IDA Pro Free – Disassembler – Execution graph – Cross-referencing – Searching – Function analysis – Function and variable labeling

80. Tools for disassembling objdump objdump -d Analyzes bit pattern of series of instructions Produces approximate rendition of assembly code Can be run on either executable or relocatable (.o ) file gdb Debugger gdb p disassemble sum Disassemble procedure x/13b sum Examine the 13 bytes starting at sum

81. In-class exercise Lab 5-1 (Steps 1-17) – Use IDA Pro to bring up the code of DllMain – Bring up Figures 5-1L, the equivalent of 5-2L, and 5-3L – Find the remote shell routine in which memcmp is used to compare command strings received over the network – Show the code for the function called if the command robotwork is invoked – Show IDA Pro graphs of DLLMain and sub_10004E79 – Explain what the assembly code on p. 499 does – Find the socket call referred to in Table 5-1L and change its integer constants to symbolic ones – Show the assembly on p. 500. Find the routine that calls this assembly which shows that it is an anti-VM check.

82. In-class exercise Lab 6-1 – Show the imported network functions in any tool – Show the output of executing the binary – Load binary in IDA Pro to generate Figure 6-1L Lab 6-2 – Generate Listing 6-1L and 6-2L using a tool of your choice. What calls hint at this code's function? – Using either Wireshark or netcat with Apate DNS, execute the malware to generate Listing 6-3L – In IDA Pro, show the functions called by main. What does each one do? – In IDA Pro, show the order that the WinINet calls are used and explain what each one does. – Generate Listing 6-5L and explain what each cmp does.

83. Windows Chapter 7: Analyzing Malicious Windows Programs

84. Types Hungarian notation word (w) = 16 bit value double word (dw) = dword = 32 bit value dwSize = A type that is a 32-bit value Handles (H) HWND = A handle to a window Long Pointer (LP) Callback

85. File system functions Malware often hits file system CreateFile, ReadFile, WriteFile Memory mapping calls: CreateFileMapping, MapViewOfFile Trickiness Alternate Data Streams (special file data) \Device\PhysicalMemory (accesses memory) \\.\ (accesses device)

86. Registry functions Malware often hits registry Registry stores OS and program configuration information HKEY_LOCAL_MACHINE (HKLM) – Settings global to the machine HKEY_CURRENT_USER (HKCU) – Settings for current user Regedit tool for examining values Functions: RegOpenKeyEx, RegSetValueEx, RegGetValue (Listing 7-1)

87. Networking APIs Berkeley sockets API socket, bind, listen, accept, connect, recv, send Listing 7-3 ‏WinINet API InternetOpen, InternetOpenURL, InternetReadFile

88. DLLs Dynamic link libraries Store code that is re-used amongst applications including malware Can be used to store malicious code for injection into a process Malware uses standard Windows DLLs to interact with OS Malware uses third-party DLLs (e.g. Firefox DLL) to avoid re-implementing functions

89. Processes Execute code outside of current process CreateProcess Listing 7-4 Hijack execution of current process Injecting code via debugger or DLLs Companion execution Store executable in resource section of PE Program extracts executable and writes it to disk upon execution

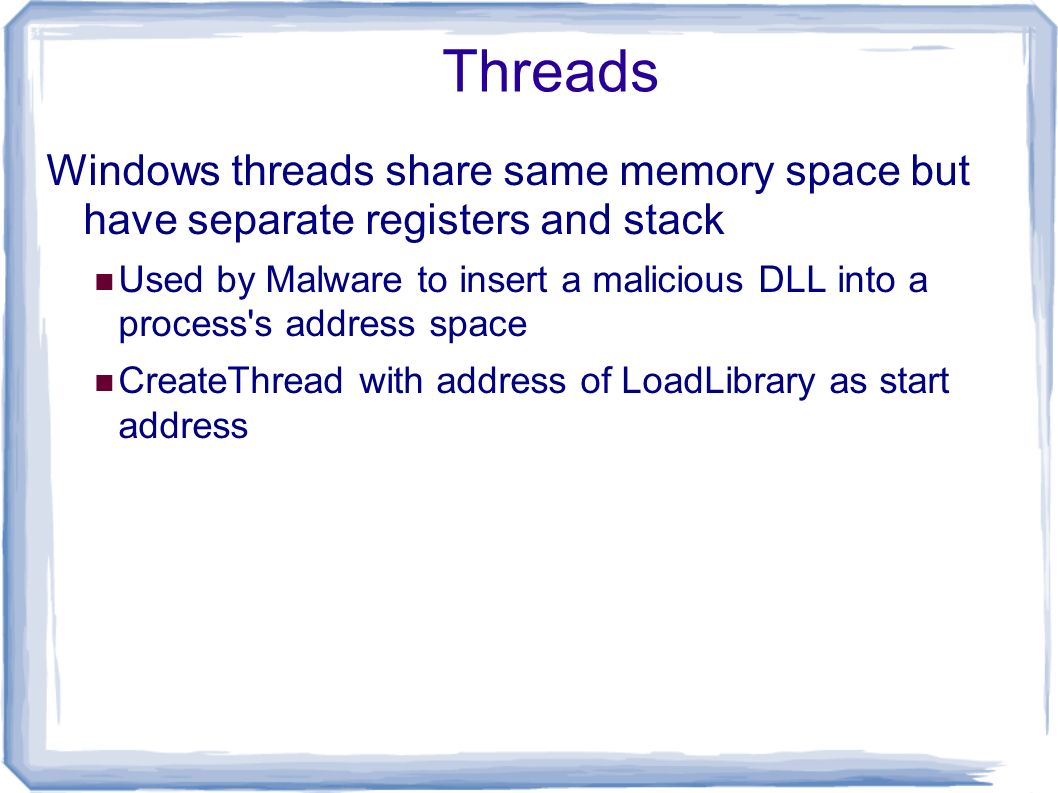

90. Threads Windows threads share same memory space but have separate registers and stack Used by Malware to insert a malicious DLL into a process's address space CreateThread with address of LoadLibrary as start address

91. Services Processes run in the background Scheduled and run by Windows service manager without user input OpenSCManager, CreateService, StartService Allows malware to maintain persistence on a machine Types WIN32_SHARE_PROCESS = allows multiple processes to contact service (e.g. svchost.exe) WIN32_OWN_PROCESS = independent process KERNEL_DRIVER = loads code into kernel

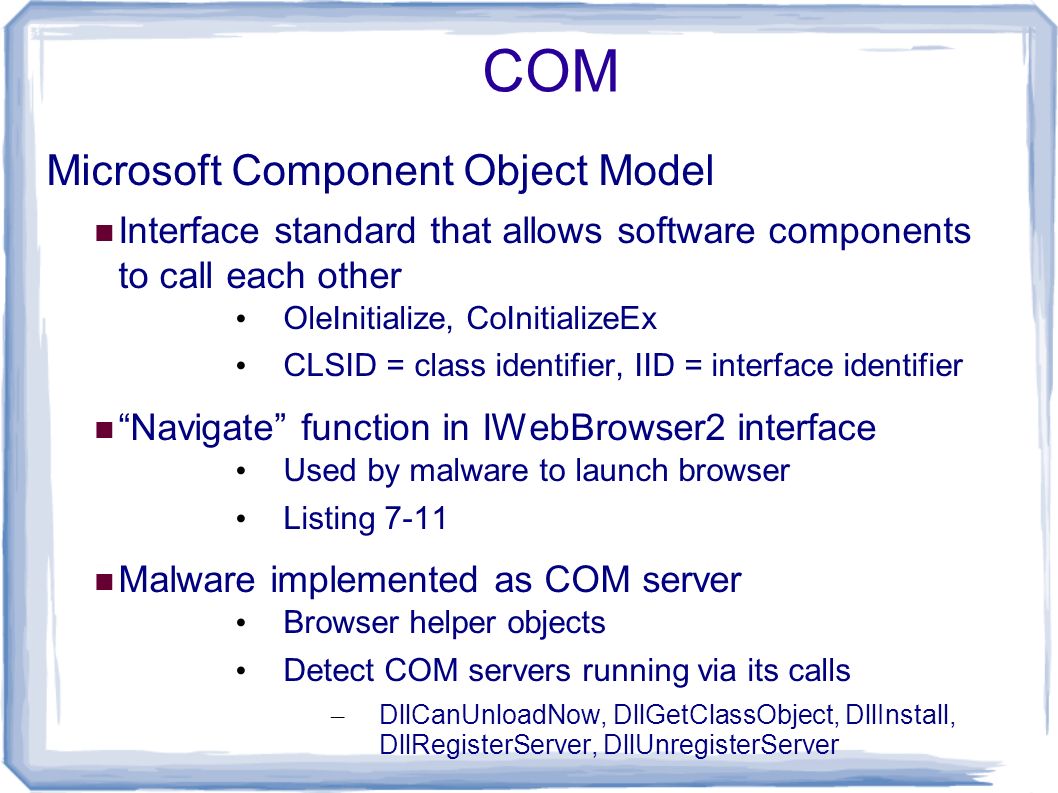

92. COM Microsoft Component Object Model Interface standard that allows software components to call each other OleInitialize, CoInitializeEx CLSID = class identifier, IID = interface identifier “Navigate” function in IWebBrowser2 interface Used by malware to launch browser Listing 7-11 Malware implemented as COM server Browser helper objects Detect COM servers running via its calls – DllCanUnloadNow, DllGetClassObject, DllInstall, DllRegisterServer, DllUnregisterServer

93. Exceptions Allow program to handle exceptional conditions during program execution Windows Structured Exception Handling Exception handling information stored on stack Listing 7-13 Not all handlers respond to all exceptions Thrown to caller's frame if not handled Used by malware to hijack execution Handler address replaced by address to injected malicious code Adversary then triggers exception

94. Kernel-mode malware Windows API calls (Kernel32.dll) Typically call into underlying Native API (Ntdll.dll) Code in Ntdll then transfers to kernel (Ntoskrnl.exe) via INT 0x2E, SYSENTER, SYSCALL Figure 7-3 Malware often calls Ntdll directly to avoid detection via interposition of security programs between Kernel32.dll and Ntdll.dll Example: Windows API (ReadFile, WriteFile) versus Native API (NtReadFile, NtWriteFile) Figure 7-4

95. Kernel-mode malware Other Native API calls NtQuerySystemInformation, NtQueryInformationProcess, NtQueryInformationThread, NtQueryInformationFile, NtQueryInformationKey Can also carry “Zw” prefix NtContinue Used to return from an exception Location to return is specified in exception context, but can be modified to transfer execution in nefarious ways

96. Kernel-mode malware Legitimate programs typically do not use NativeAPI exclusively Programs that are native applications (as specified in subsytem part of PE header) are likely malicious

97. In-class exercise Lab 7-2 Using strings, identify the network resource being used by the malware What imports give away the mechanism this malware uses to launch the browser? Go to the code snippet shown on p. 518. Follow the references to show the values of rclsid and riid in memory. Debug the program and break at the call shown on p. 519. Run the call to show the browser being launched with the embedded URL

98. Extra

99. Run-time data structures

100. More code snippets Registry modifications for disabling task manager and changing browser default page HKEY_CURRENT_USER\Software\Policies\Microsoft\Internet Explorer\Control Panel,Homepage HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Policies\SystemDisableRegistryTools HKEY_CURRENT_USER\Software\Microsoft\Internet Explorer\MainStart Page HKEY_CURRENT_USER\Software\Yahoo\pager\View\YMSGR_buzz content url HKEY_CURRENT_USER\Software\Yahoo\pager\View\YMSGR_Launchcast DisableTaskMgr

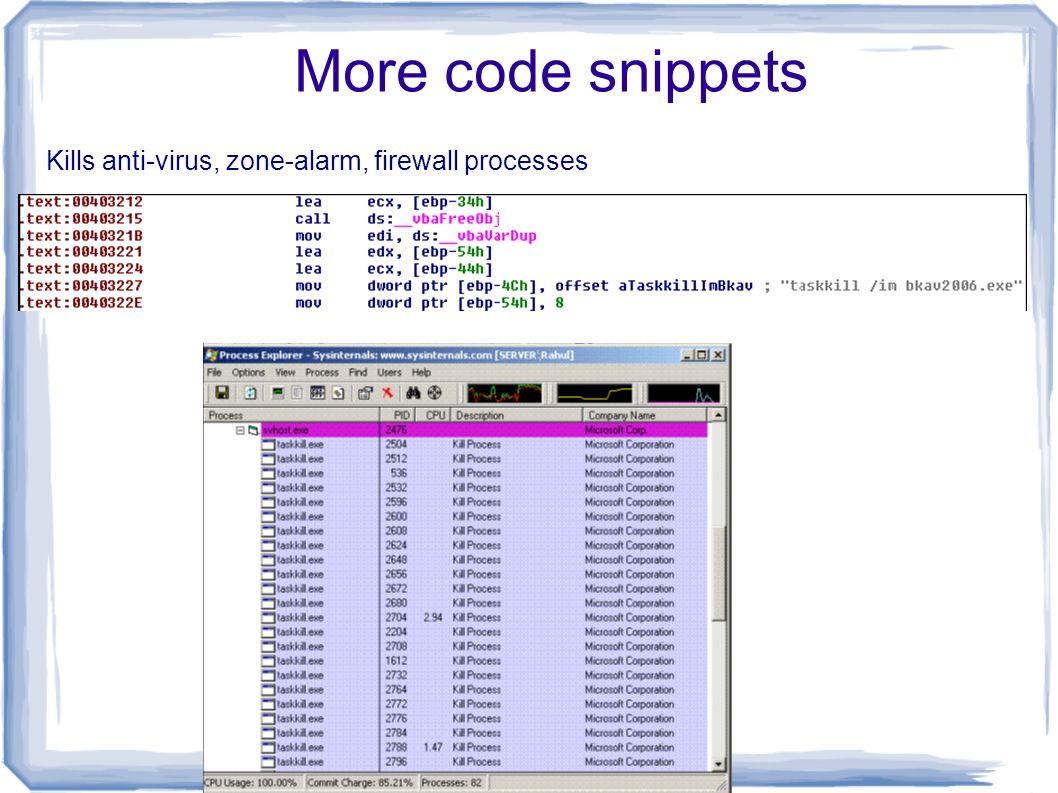

101. More code snippets Kills anti-virus, zone-alarm, firewall processes

102. More code snippets New variants Download worm update files and register them as services regsvr32 MSINET.OCX Internet Transfer ActiveX Control Check for updates
