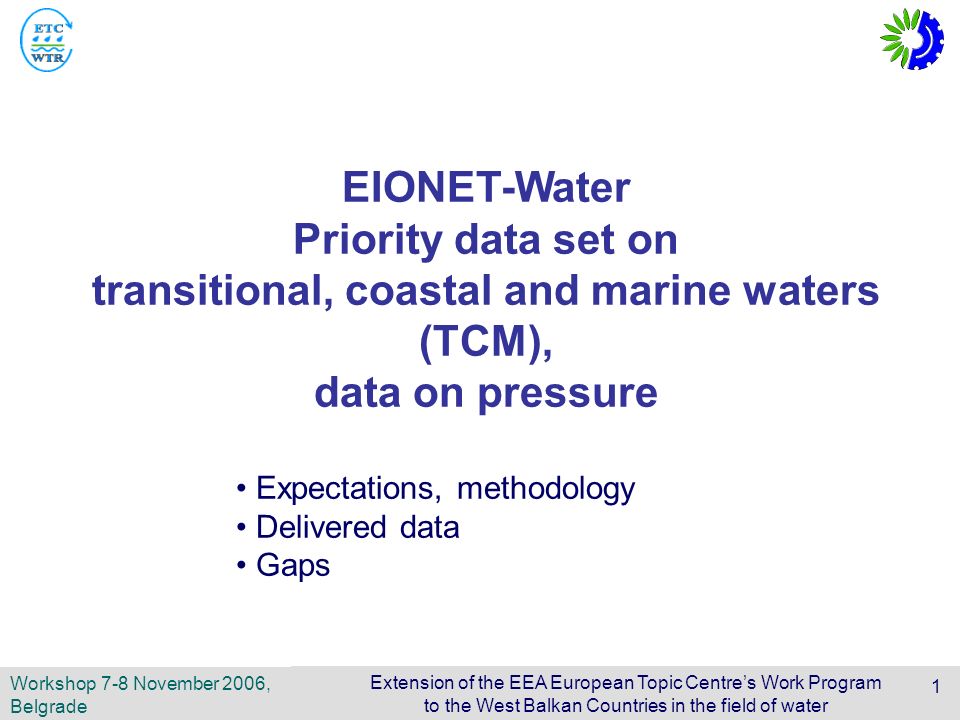

1. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 1 Workshop 7-8 November 2006, Belgrade EIONET-Water Priority data set on transitional, coastal and marine waters (TCM), data on pressure Expectations, methodology Delivered data Gaps

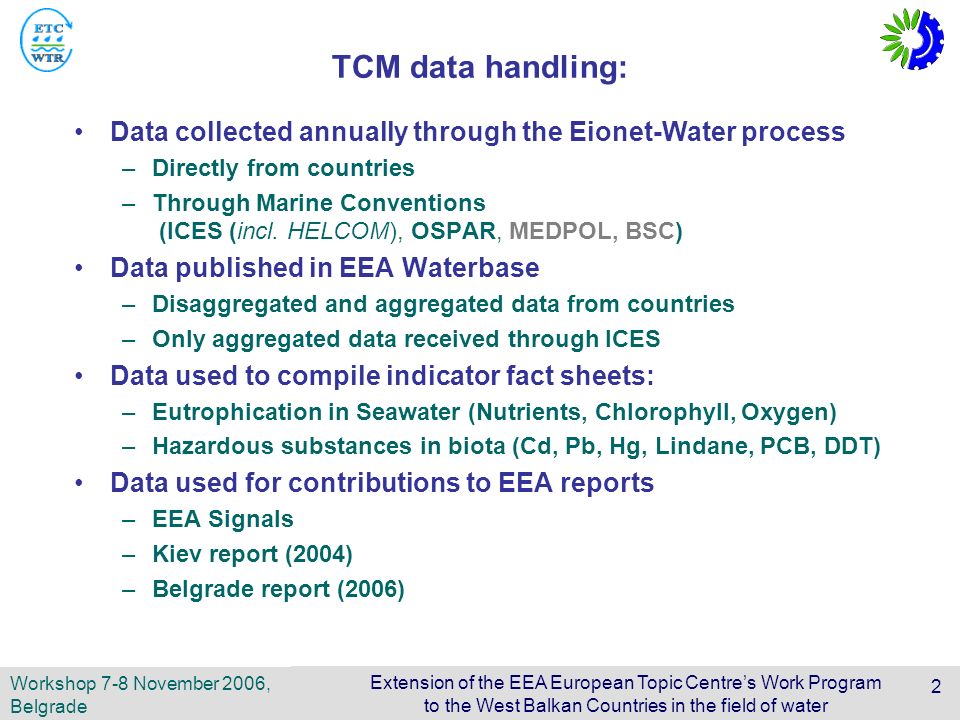

2. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 2 Workshop 7-8 November 2006, Belgrade TCM data handling: Data collected annually through the Eionet-Water process –Directly from countries –Through Marine Conventions (ICES (incl. HELCOM), OSPAR, MEDPOL, BSC) Data published in EEA Waterbase –Disaggregated and aggregated data from countries –Only aggregated data received through ICES Data used to compile indicator fact sheets: –Eutrophication in Seawater (Nutrients, Chlorophyll, Oxygen) –Hazardous substances in biota (Cd, Pb, Hg, Lindane, PCB, DDT) Data used for contributions to EEA reports –EEA Signals –Kiev report (2004) –Belgrade report (2006)

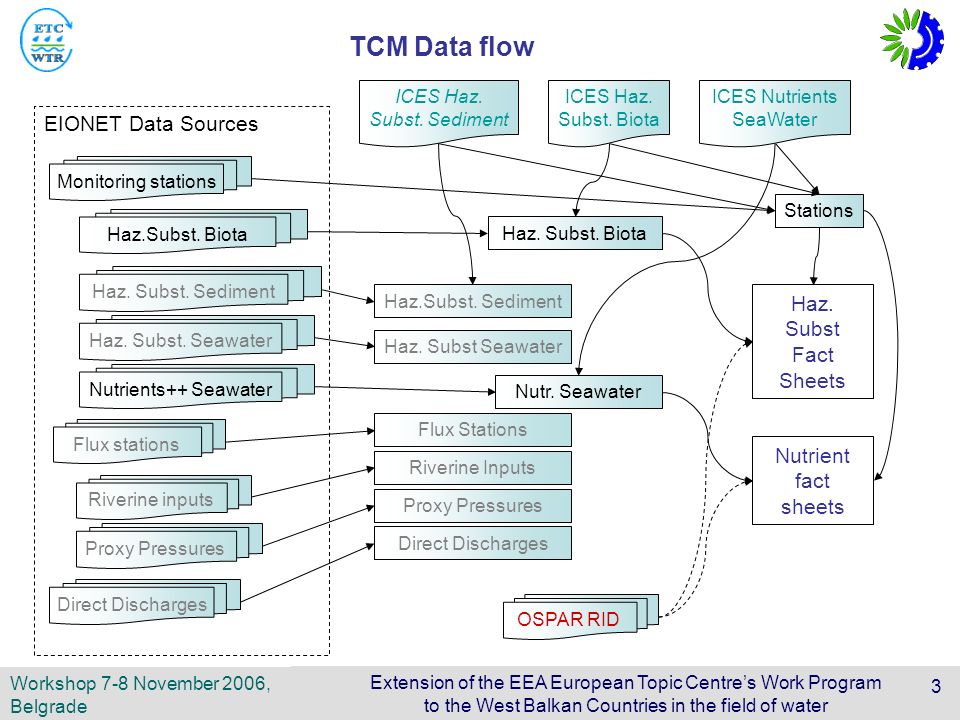

3. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 3 Workshop 7-8 November 2006, Belgrade TCM Data flow Haz.Subst. Biota Haz. Subst. Sediment Haz. Subst. Seawater Monitoring stations Proxy Pressures Direct Discharges Riverine inputs Nutrients++ Seawater Flux stations ICES Haz. Subst. Biota EIONET Data Sources ICES Nutrients SeaWater Haz. Subst. Biota Haz.Subst. Sediment Haz. Subst Seawater Direct Discharges Stations Nutr. Seawater Flux Stations Proxy Pressures Riverine Inputs Haz. Subst Fact Sheets Nutrient fact sheets OSPAR RID ICES Haz. Subst. Sediment

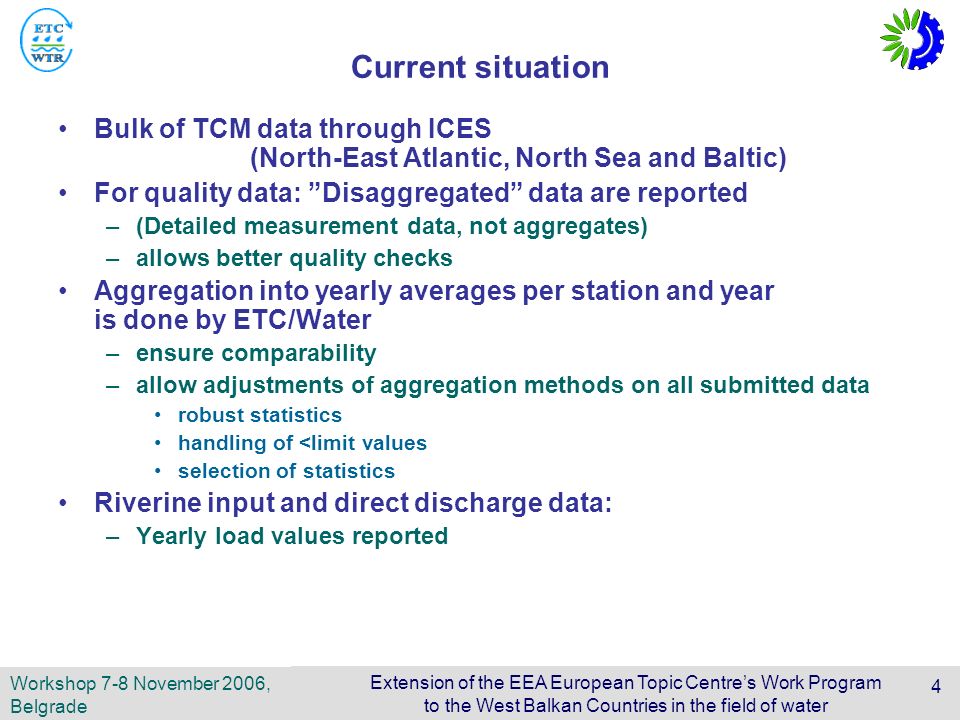

4. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 4 Workshop 7-8 November 2006, Belgrade Current situation Bulk of TCM data through ICES (North-East Atlantic, North Sea and Baltic) For quality data: ”Disaggregated” data are reported –(Detailed measurement data, not aggregates) –allows better quality checks Aggregation into yearly averages per station and year is done by ETC/Water –ensure comparability –allow adjustments of aggregation methods on all submitted data robust statistics handling of <limit values selection of statistics Riverine input and direct discharge data: –Yearly load values reported

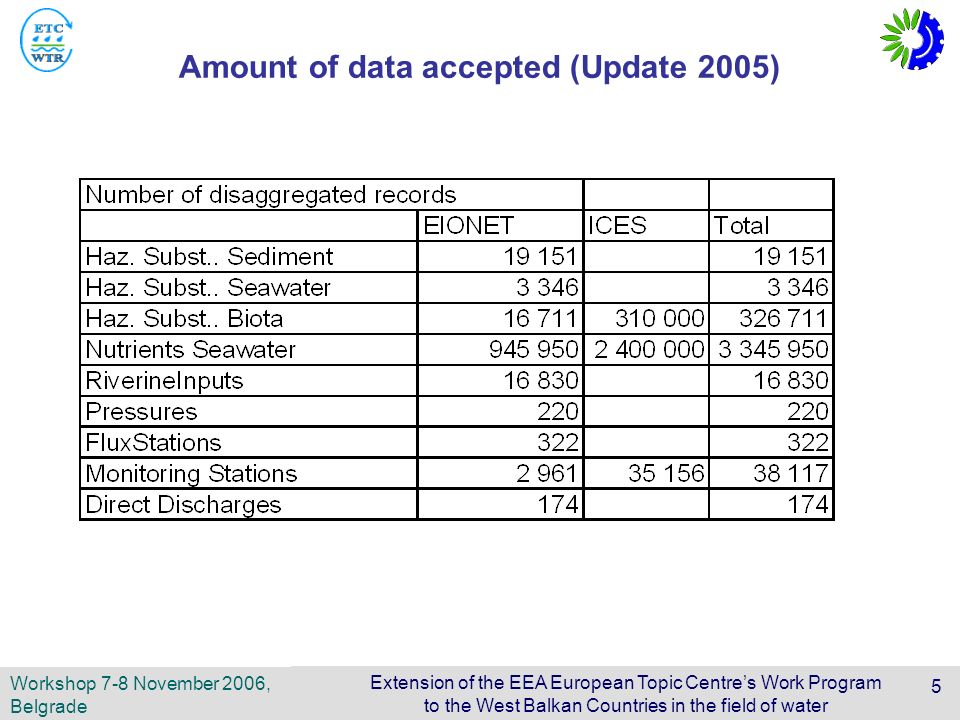

5. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 5 Workshop 7-8 November 2006, Belgrade Amount of data accepted (Update 2005)

6. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 6 Workshop 7-8 November 2006, Belgrade Preparatory processing of data Layout changes for some data (stacking of matrix columns) Ad-hoc processing of some special data formats and file structures Filling in missing information manually or through update database queries Standardise units and determinand names Stations: –Identification by coordinates (ICES data) –Assigning to class Coastal / Open Water –Assigning to sea regions

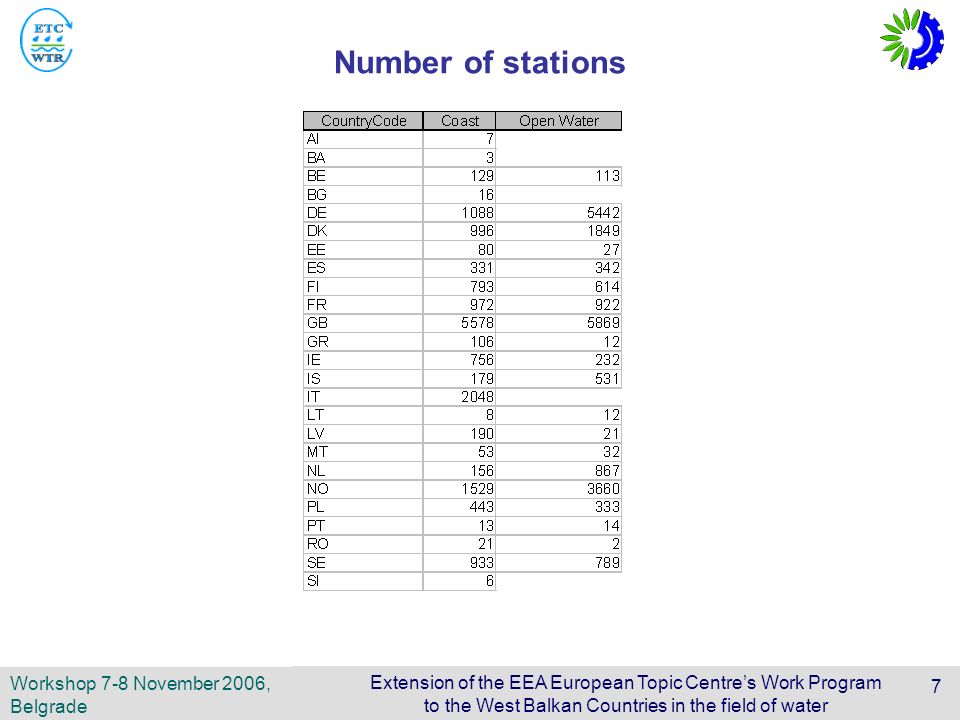

7. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 7 Workshop 7-8 November 2006, Belgrade Number of stations

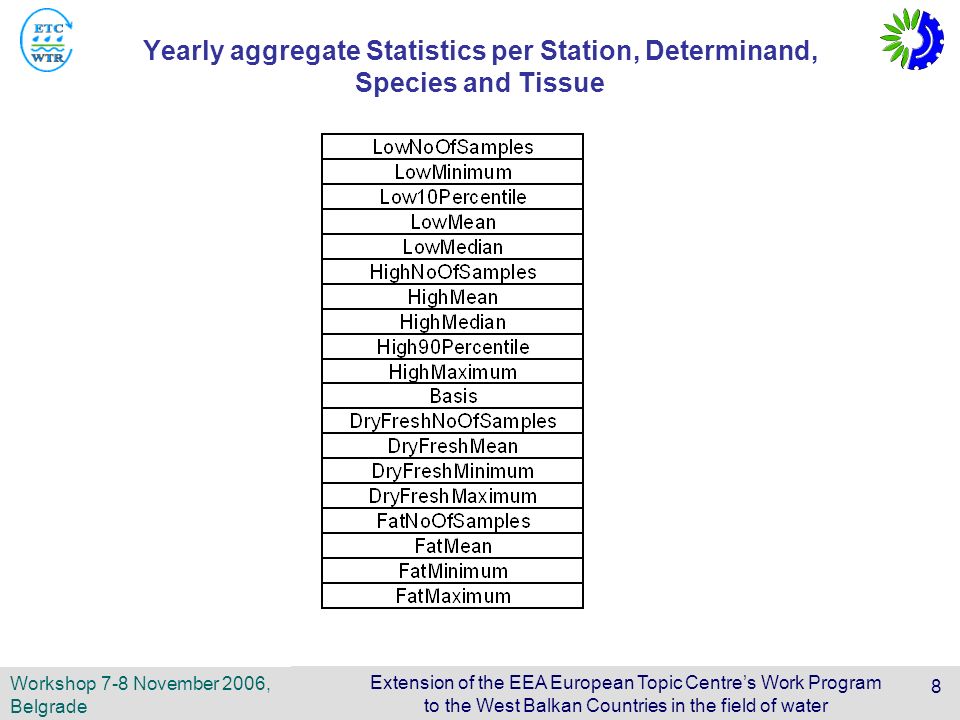

8. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 8 Workshop 7-8 November 2006, Belgrade Yearly aggregate Statistics per Station, Determinand, Species and Tissue

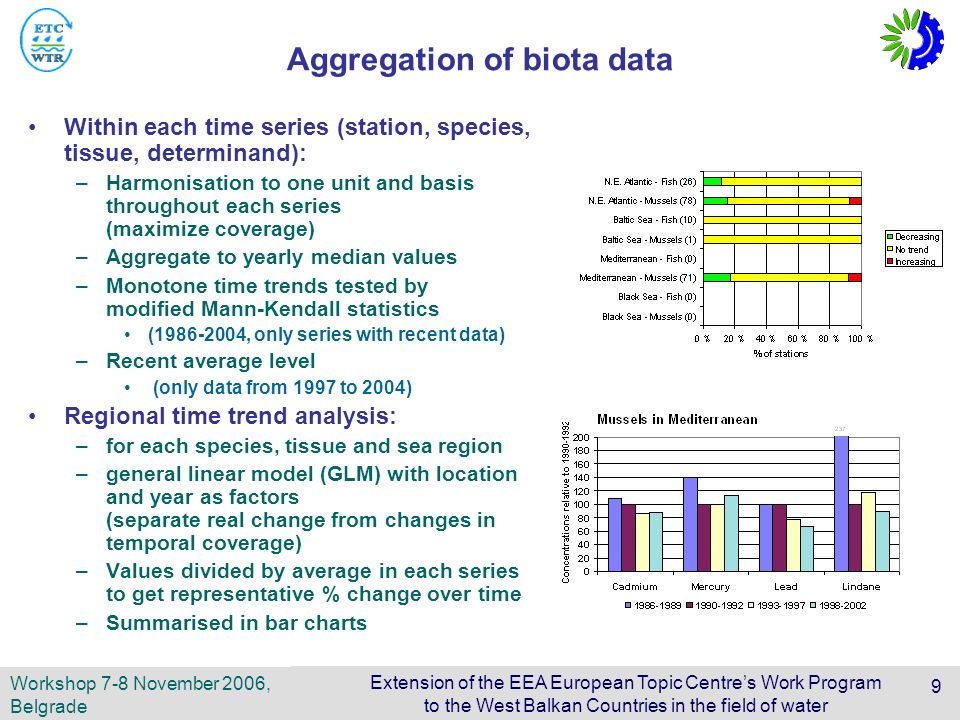

9. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 9 Workshop 7-8 November 2006, Belgrade Aggregation of biota data Within each time series (station, species, tissue, determinand): –Harmonisation to one unit and basis throughout each series (maximize coverage) –Aggregate to yearly median values –Monotone time trends tested by modified Mann-Kendall statistics (1986-2004, only series with recent data) –Recent average level (only data from 1997 to 2004) Regional time trend analysis: –for each species, tissue and sea region –general linear model (GLM) with location and year as factors (separate real change from changes in temporal coverage) –Values divided by average in each series to get representative % change over time –Summarised in bar charts

10. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 10 Workshop 7-8 November 2006, Belgrade

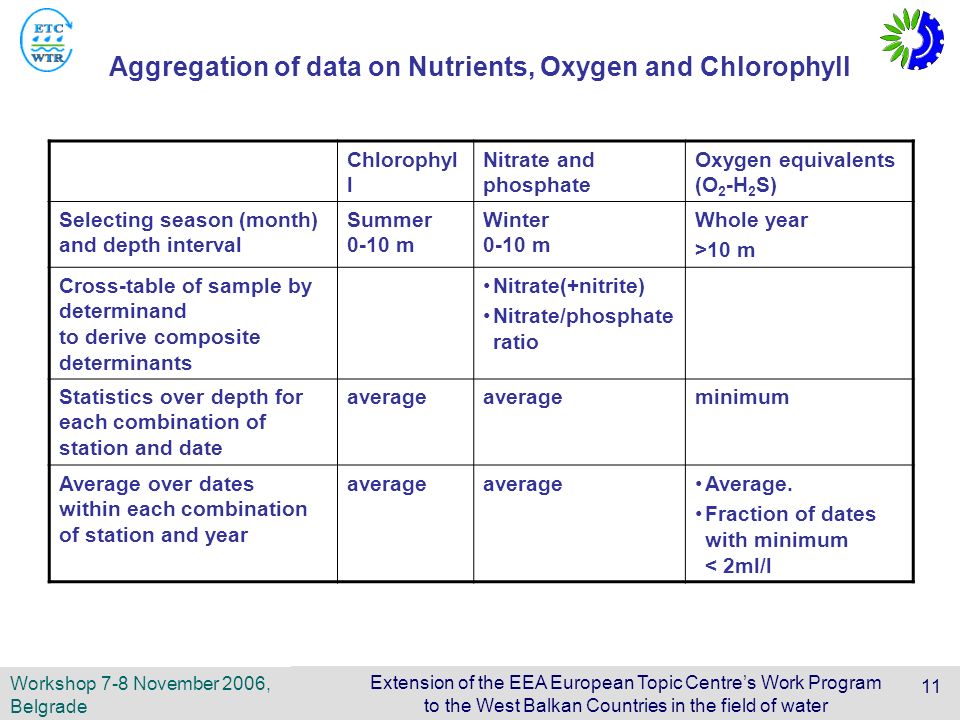

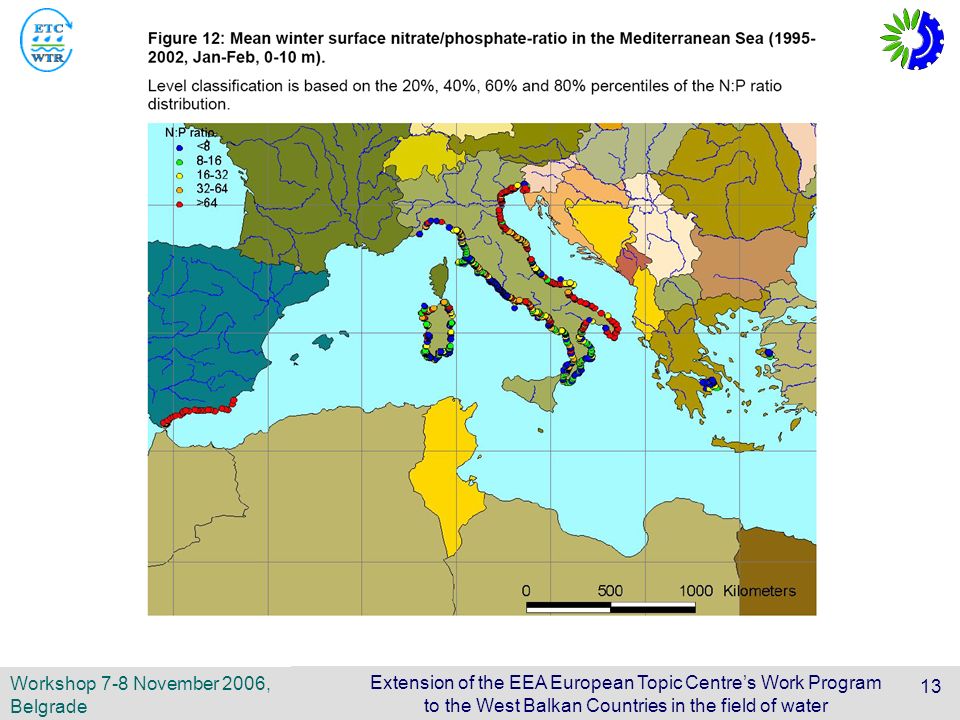

11. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 11 Workshop 7-8 November 2006, Belgrade Aggregation of data on Nutrients, Oxygen and Chlorophyll Chlorophyl l Nitrate and phosphate Oxygen equivalents (O 2 -H 2 S) Selecting season (month) and depth interval Summer 0-10 m Winter 0-10 m Whole year >10 m Cross-table of sample by determinand to derive composite determinants Nitrate(+nitrite) Nitrate/phosphate ratio Statistics over depth for each combination of station and date average minimum Average over dates within each combination of station and year average Average. Fraction of dates with minimum < 2ml/l

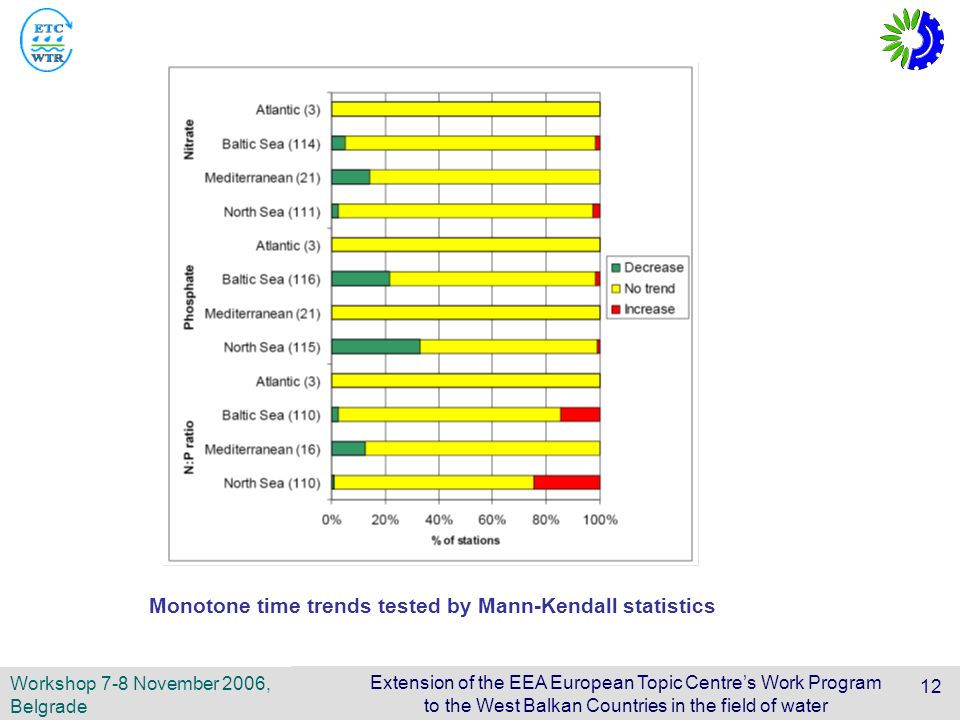

12. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 12 Workshop 7-8 November 2006, Belgrade Monotone time trends tested by Mann-Kendall statistics

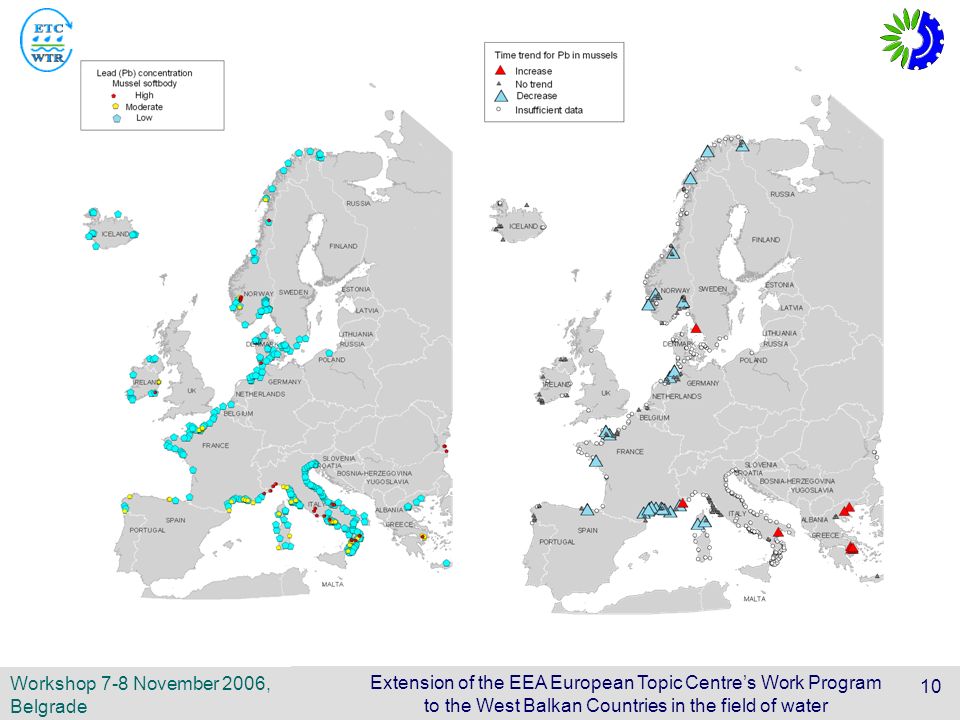

13. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 13 Workshop 7-8 November 2006, Belgrade

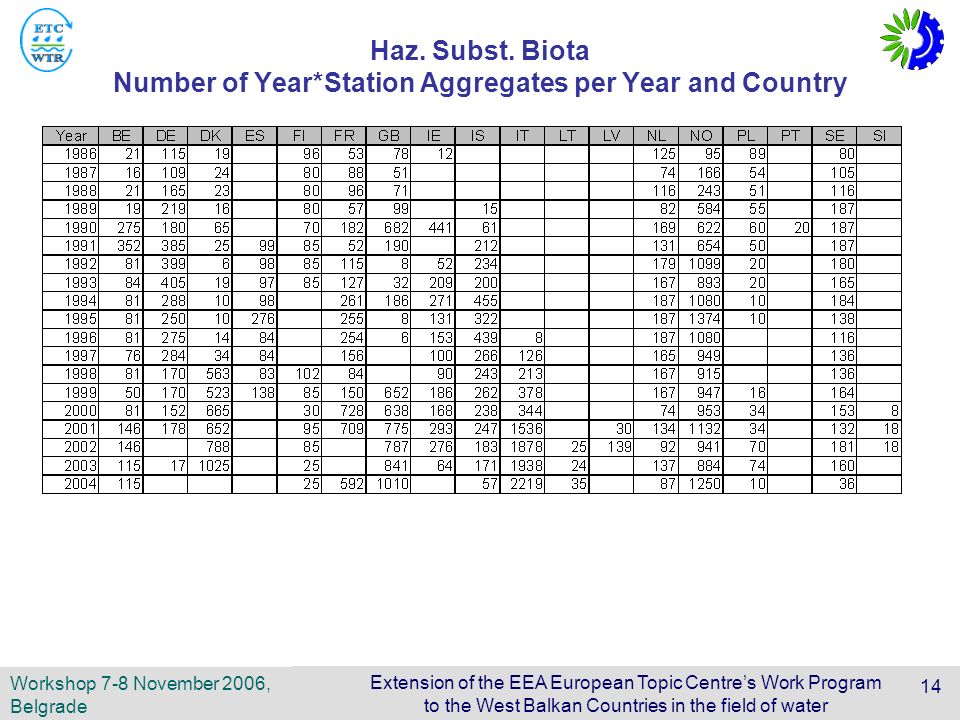

14. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 14 Workshop 7-8 November 2006, Belgrade Haz. Subst. Biota Number of Year*Station Aggregates per Year and Country

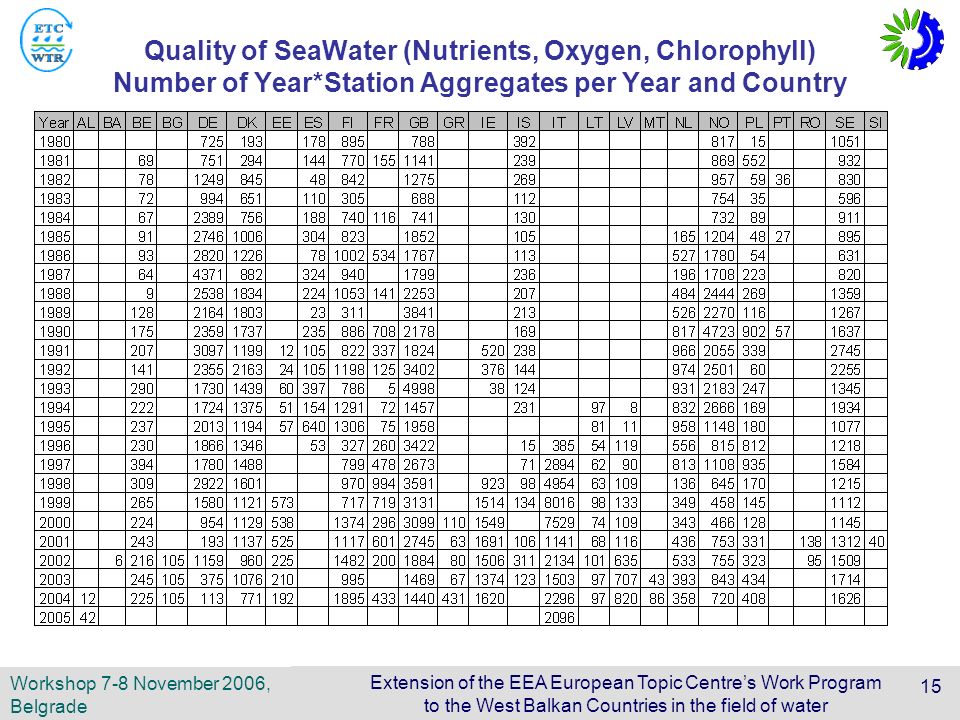

15. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 15 Workshop 7-8 November 2006, Belgrade Quality of SeaWater (Nutrients, Oxygen, Chlorophyll) Number of Year*Station Aggregates per Year and Country

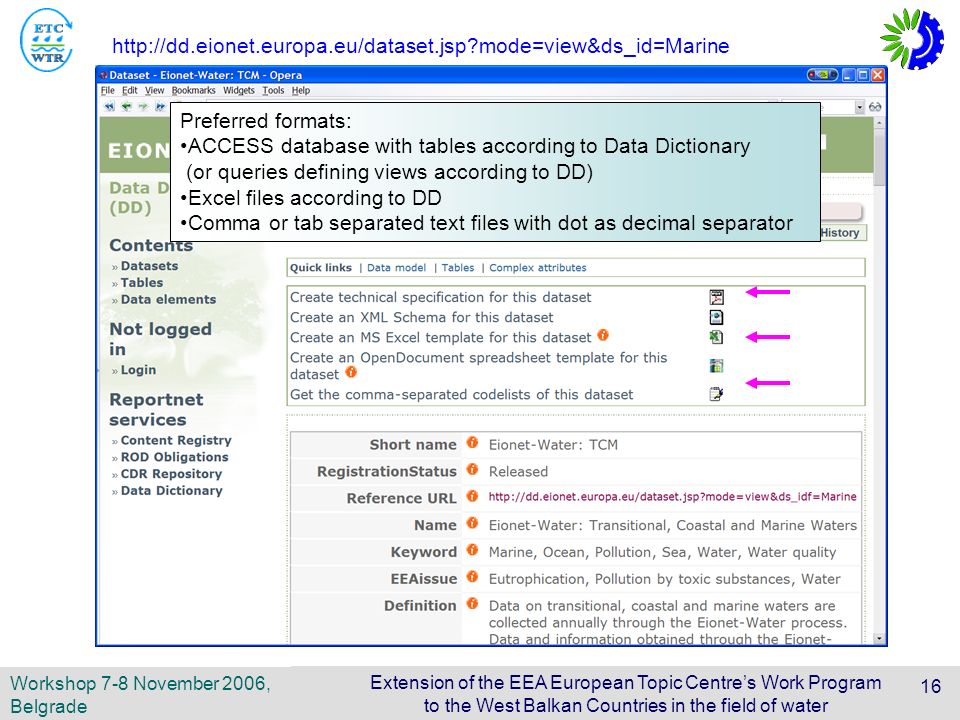

16. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 16 Workshop 7-8 November 2006, Belgrade Preferred formats: ACCESS database with tables according to Data Dictionary (or queries defining views according to DD) Excel files according to DD Comma or tab separated text files with dot as decimal separator http://dd.eionet.europa.eu/dataset.jsp?mode=view&ds_id=Marine

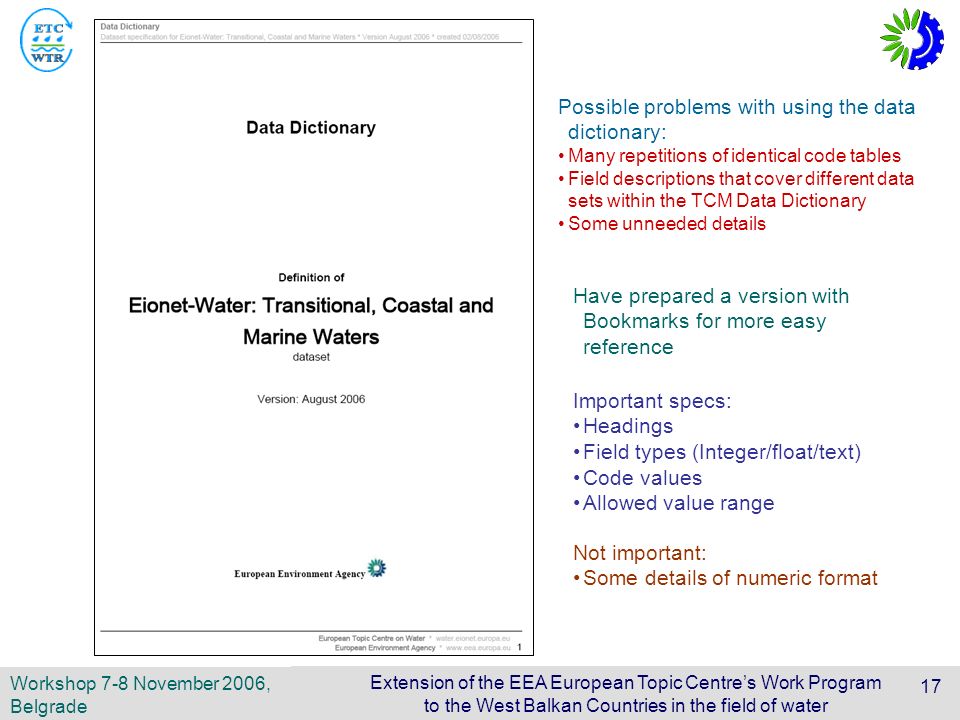

17. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 17 Workshop 7-8 November 2006, Belgrade Possible problems with using the data dictionary: Many repetitions of identical code tables Field descriptions that cover different data sets within the TCM Data Dictionary Some unneeded details Have prepared a version with Bookmarks for more easy reference Important specs: Headings Field types (Integer/float/text) Code values Allowed value range Not important: Some details of numeric format

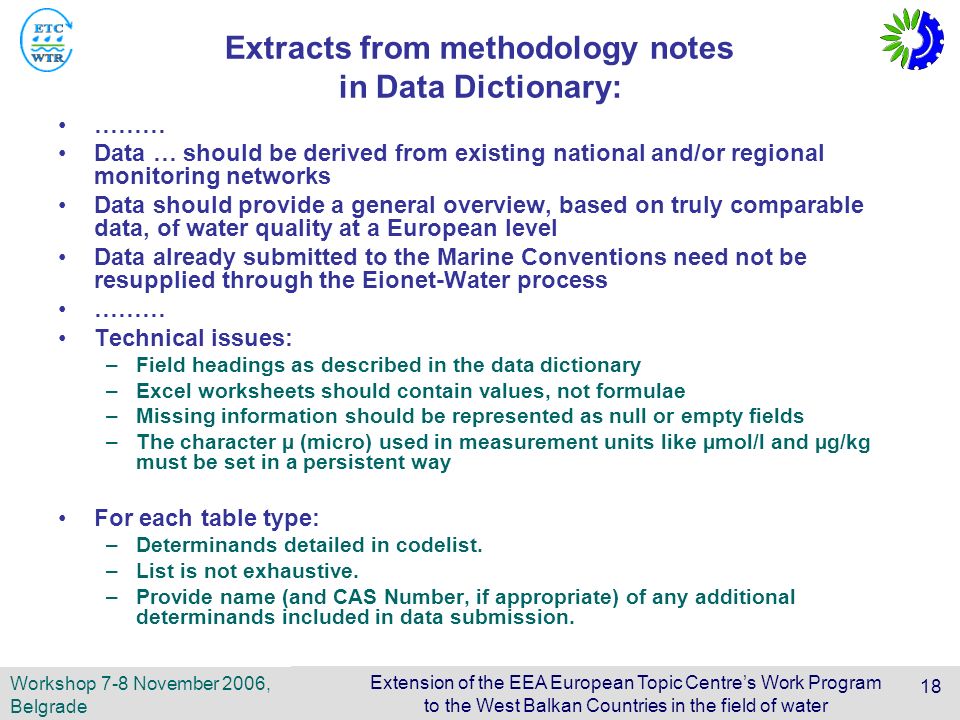

18. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 18 Workshop 7-8 November 2006, Belgrade Extracts from methodology notes in Data Dictionary: ……… Data … should be derived from existing national and/or regional monitoring networks Data should provide a general overview, based on truly comparable data, of water quality at a European level Data already submitted to the Marine Conventions need not be resupplied through the Eionet-Water process ……… Technical issues: –Field headings as described in the data dictionary –Excel worksheets should contain values, not formulae –Missing information should be represented as null or empty fields –The character µ (micro) used in measurement units like µmol/l and µg/kg must be set in a persistent way For each table type: –Determinands detailed in codelist. –List is not exhaustive. –Provide name (and CAS Number, if appropriate) of any additional determinands included in data submission.

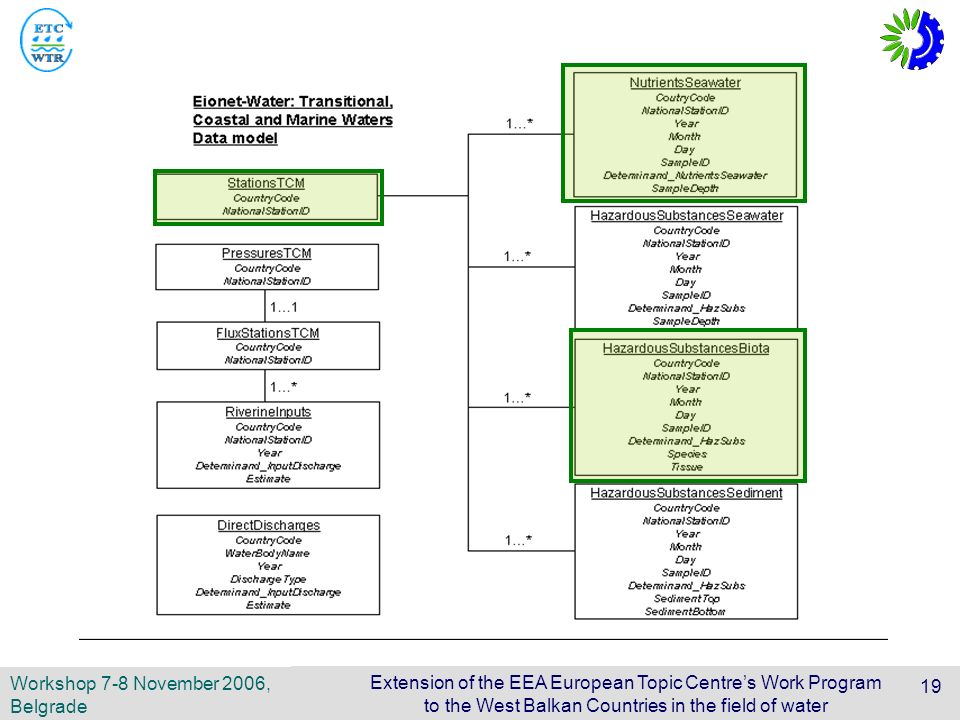

19. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 19 Workshop 7-8 November 2006, Belgrade

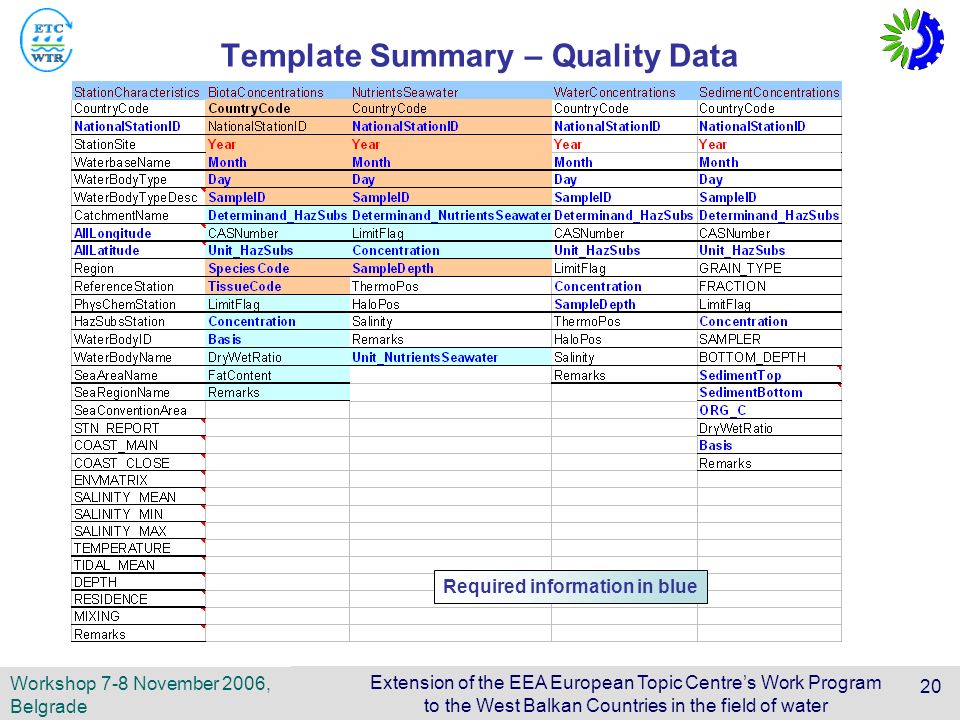

20. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 20 Workshop 7-8 November 2006, Belgrade Template Summary – Quality Data Required information in blue

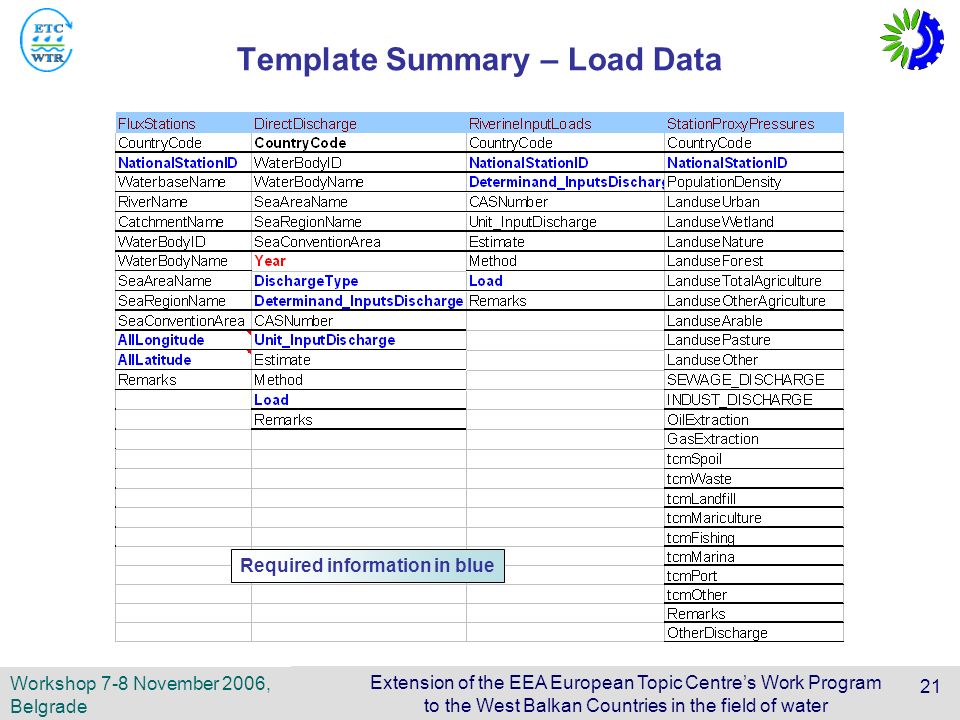

21. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 21 Workshop 7-8 November 2006, Belgrade Template Summary – Load Data Required information in blue

22. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 22 Workshop 7-8 November 2006, Belgrade Input and pressure data Current EEA design is modelled on OSPAR RID data, which are received, but not currently used. Flux stations (Riverine input and pressure data): –River stations near the mouth, Could be part of river data set. –Not always individual rivers, can be summary for coastline Direct discharges: –Related to Waterbodies in current model –Can be referring to two topological types: Point Sources Diffuse direct runoff (length of coastline) –Not meaningful as long as Waterbodies are not well-defined (or even mandatory) anywhere in the data model

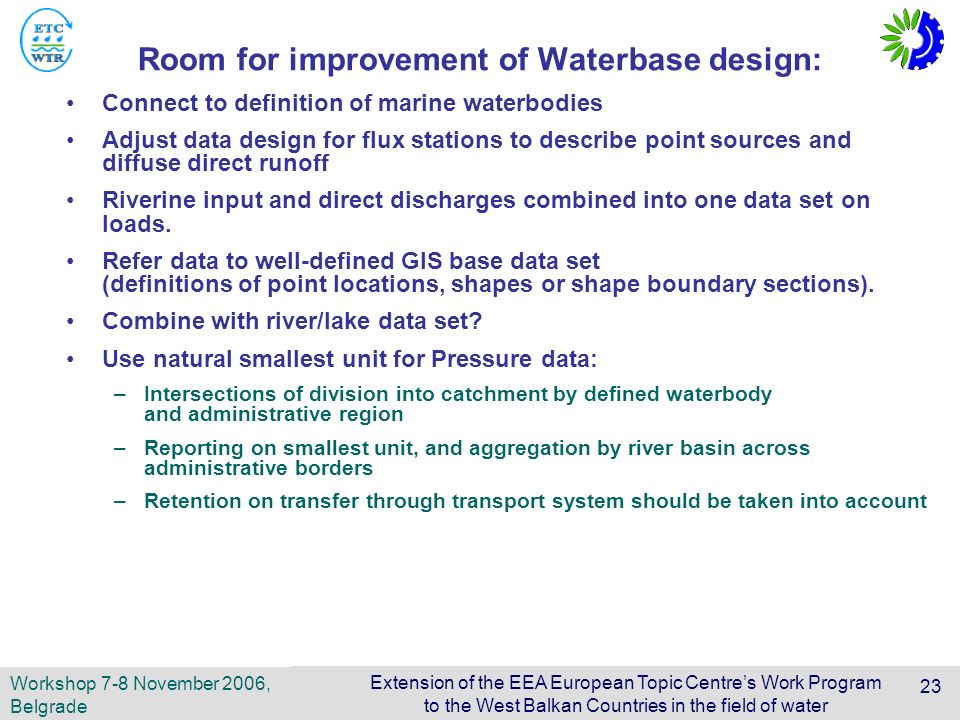

23. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 23 Workshop 7-8 November 2006, Belgrade Room for improvement of Waterbase design: Connect to definition of marine waterbodies Adjust data design for flux stations to describe point sources and diffuse direct runoff Riverine input and direct discharges combined into one data set on loads. Refer data to well-defined GIS base data set (definitions of point locations, shapes or shape boundary sections). Combine with river/lake data set? Use natural smallest unit for Pressure data: –Intersections of division into catchment by defined waterbody and administrative region –Reporting on smallest unit, and aggregation by river basin across administrative borders –Retention on transfer through transport system should be taken into account

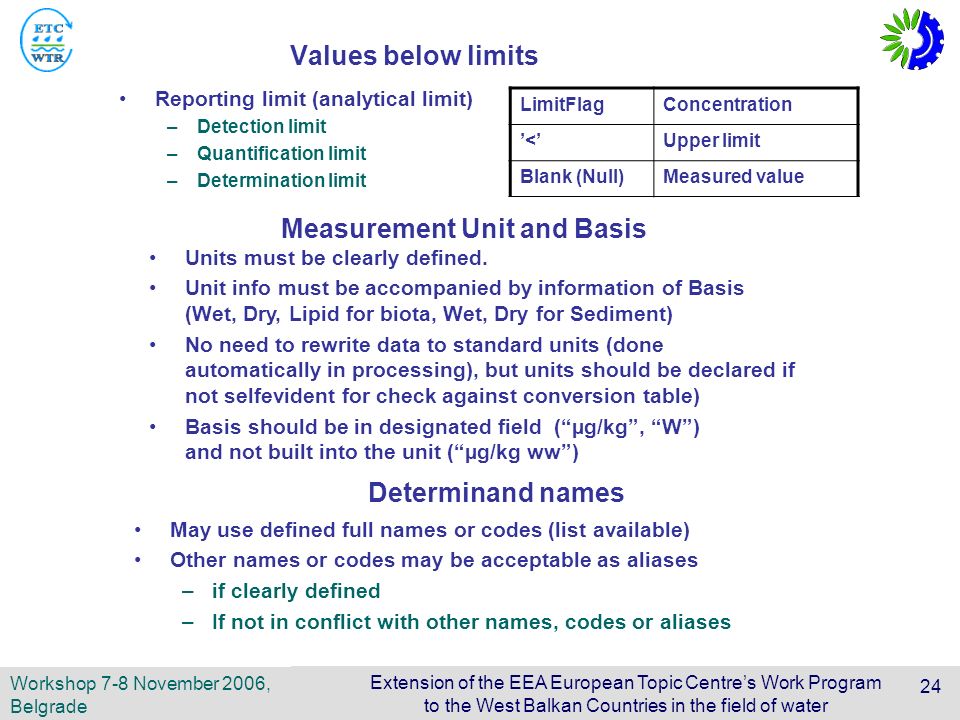

24. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 24 Workshop 7-8 November 2006, Belgrade Values below limits Reporting limit (analytical limit) –Detection limit –Quantification limit –Determination limit LimitFlagConcentration ’<’Upper limit Blank (Null)Measured value Measurement Unit and Basis Units must be clearly defined. Unit info must be accompanied by information of Basis (Wet, Dry, Lipid for biota, Wet, Dry for Sediment) No need to rewrite data to standard units (done automatically in processing), but units should be declared if not selfevident for check against conversion table) Basis should be in designated field (“µg/kg”, “W”) and not built into the unit (“µg/kg ww”) Determinand names May use defined full names or codes (list available) Other names or codes may be acceptable as aliases –if clearly defined –If not in conflict with other names, codes or aliases

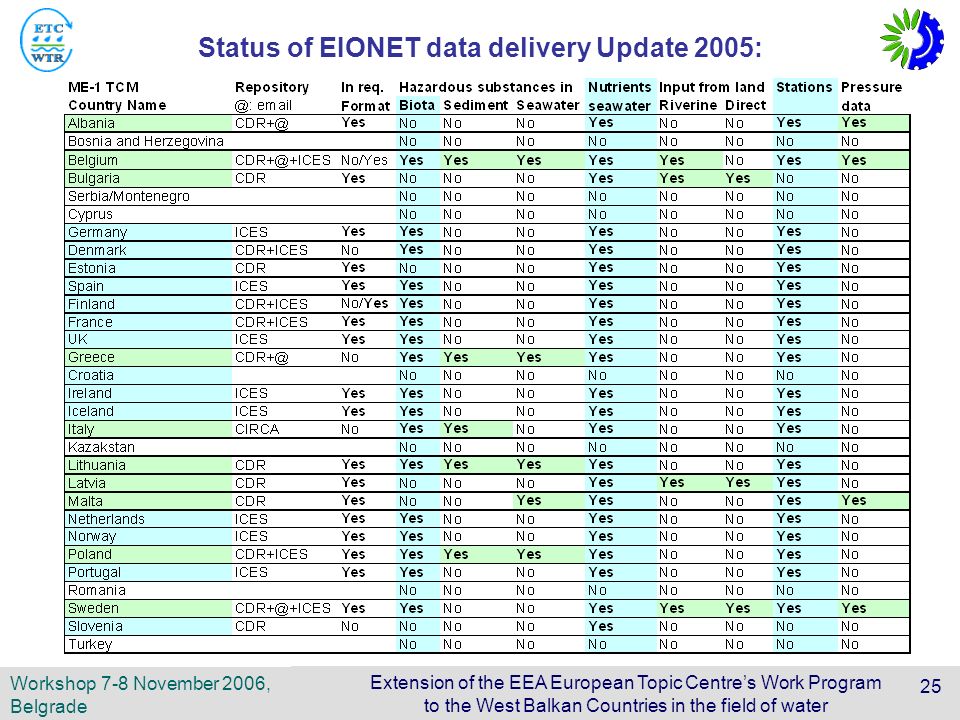

25. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 25 Workshop 7-8 November 2006, Belgrade Status of EIONET data delivery Update 2005:

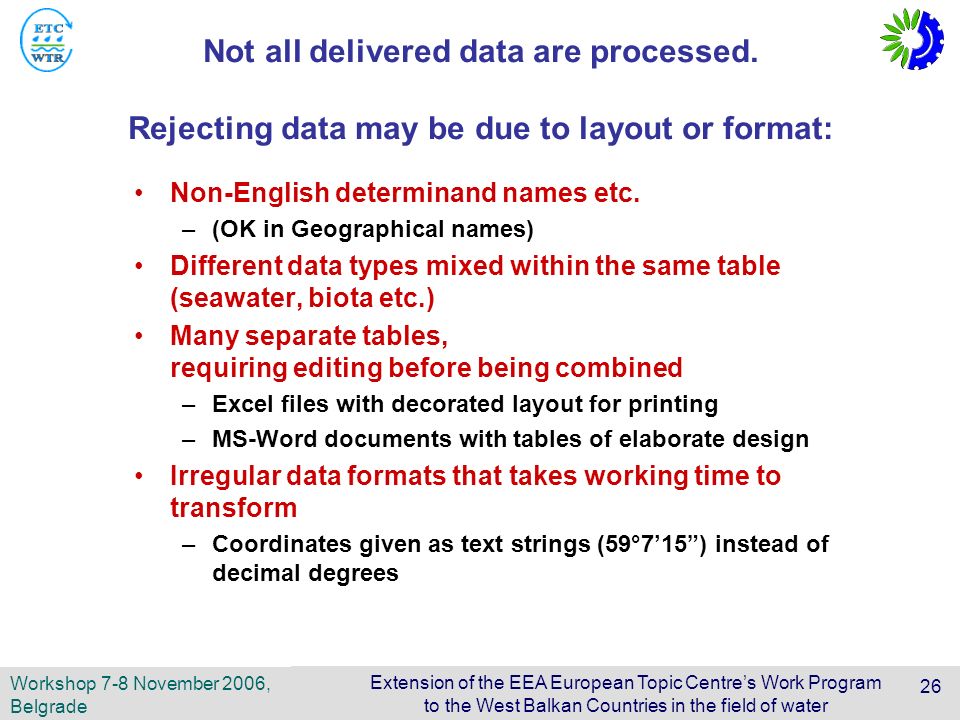

26. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 26 Workshop 7-8 November 2006, Belgrade Not all delivered data are processed. Rejecting data may be due to layout or format: Non-English determinand names etc. –(OK in Geographical names) Different data types mixed within the same table (seawater, biota etc.) Many separate tables, requiring editing before being combined –Excel files with decorated layout for printing –MS-Word documents with tables of elaborate design Irregular data formats that takes working time to transform –Coordinates given as text strings (59°7’15”) instead of decimal degrees

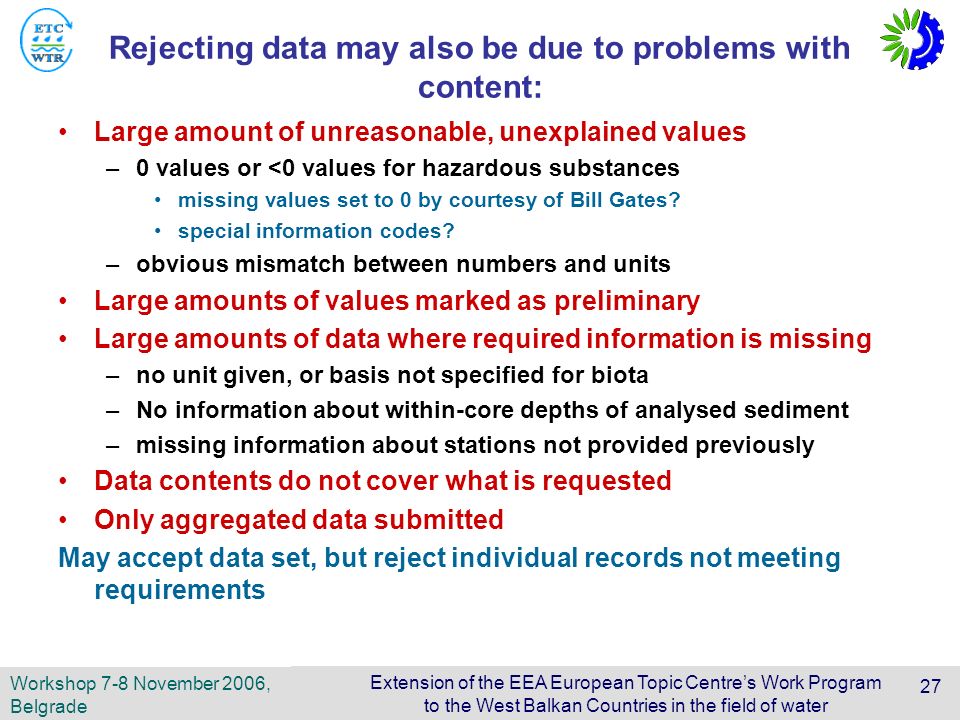

27. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 27 Workshop 7-8 November 2006, Belgrade Rejecting data may also be due to problems with content: Large amount of unreasonable, unexplained values –0 values or <0 values for hazardous substances missing values set to 0 by courtesy of Bill Gates? special information codes? –obvious mismatch between numbers and units Large amounts of values marked as preliminary Large amounts of data where required information is missing –no unit given, or basis not specified for biota –No information about within-core depths of analysed sediment –missing information about stations not provided previously Data contents do not cover what is requested Only aggregated data submitted May accept data set, but reject individual records not meeting requirements

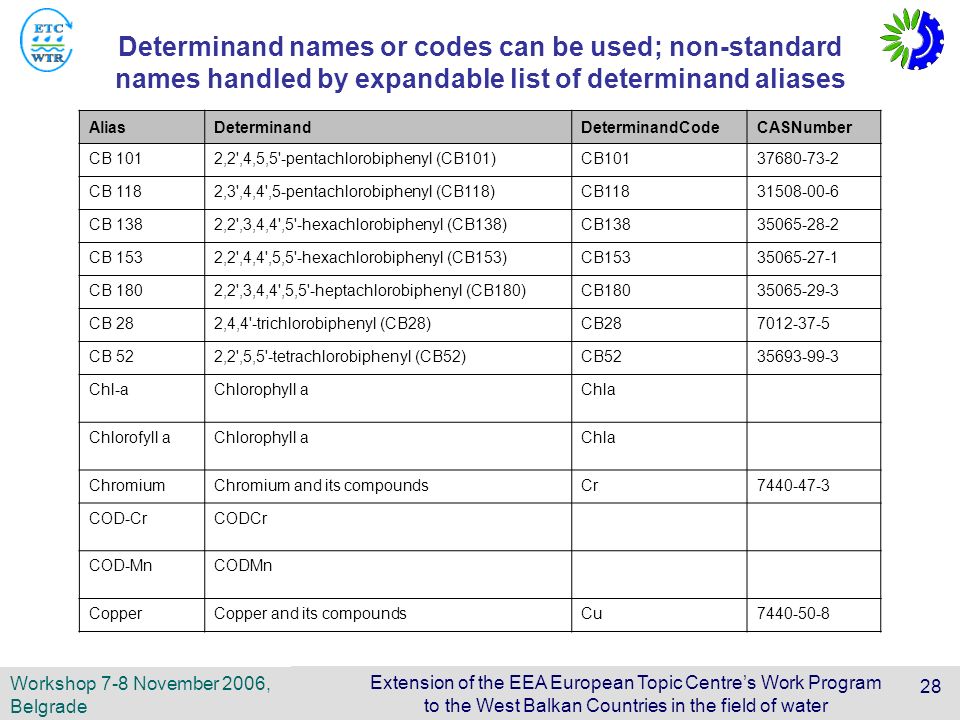

28. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 28 Workshop 7-8 November 2006, Belgrade Determinand names or codes can be used; non-standard names handled by expandable list of determinand aliases AliasDeterminandDeterminandCodeCASNumber CB 1012,2',4,5,5'-pentachlorobiphenyl (CB101)CB10137680-73-2 CB 1182,3',4,4',5-pentachlorobiphenyl (CB118)CB11831508-00-6 CB 1382,2',3,4,4',5'-hexachlorobiphenyl (CB138)CB13835065-28-2 CB 1532,2',4,4',5,5'-hexachlorobiphenyl (CB153)CB15335065-27-1 CB 1802,2',3,4,4',5,5'-heptachlorobiphenyl (CB180)CB18035065-29-3 CB 282,4,4'-trichlorobiphenyl (CB28)CB287012-37-5 CB 522,2',5,5'-tetrachlorobiphenyl (CB52)CB5235693-99-3 Chl-aChlorophyll aChla Chlorofyll aChlorophyll aChla ChromiumChromium and its compoundsCr7440-47-3 COD-CrCODCr COD-MnCODMn CopperCopper and its compoundsCu7440-50-8

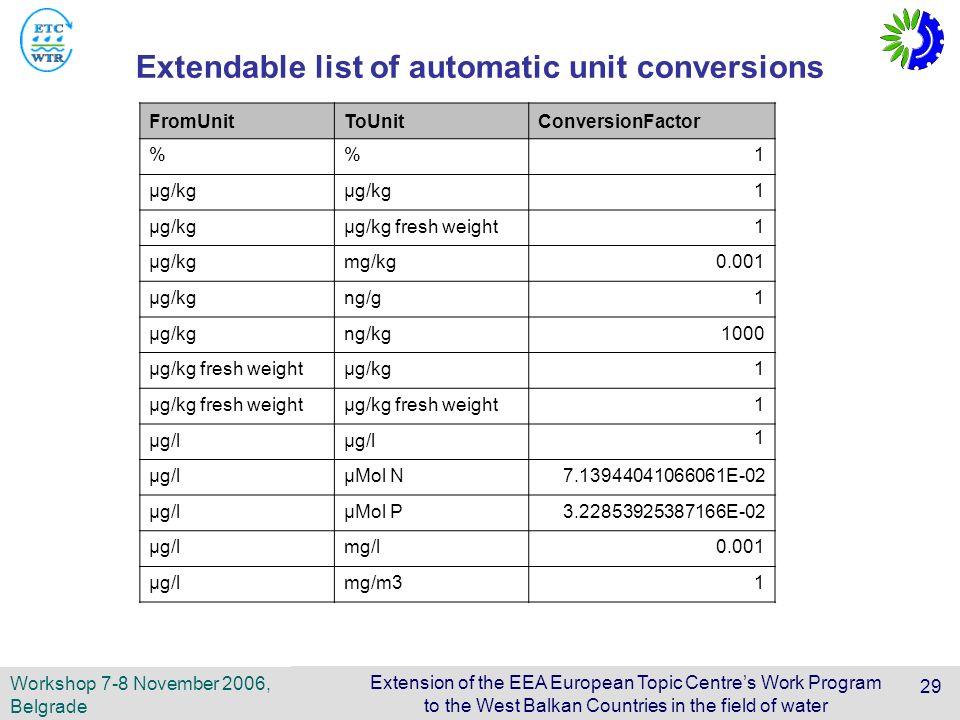

29. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 29 Workshop 7-8 November 2006, Belgrade Extendable list of automatic unit conversions t_Alias_Determinand FromUnitToUnitConversionFactor %1 µg/kg 1 µg/kg fresh weight1 µg/kgmg/kg0.001 µg/kgng/g1 µg/kgng/kg1000 µg/kg fresh weightµg/kg1 µg/kg fresh weight 1 µg/l 1 µMol N7.13944041066061E-02 µg/lµMol P3.22853925387166E-02 µg/lmg/l0.001 µg/lmg/m31

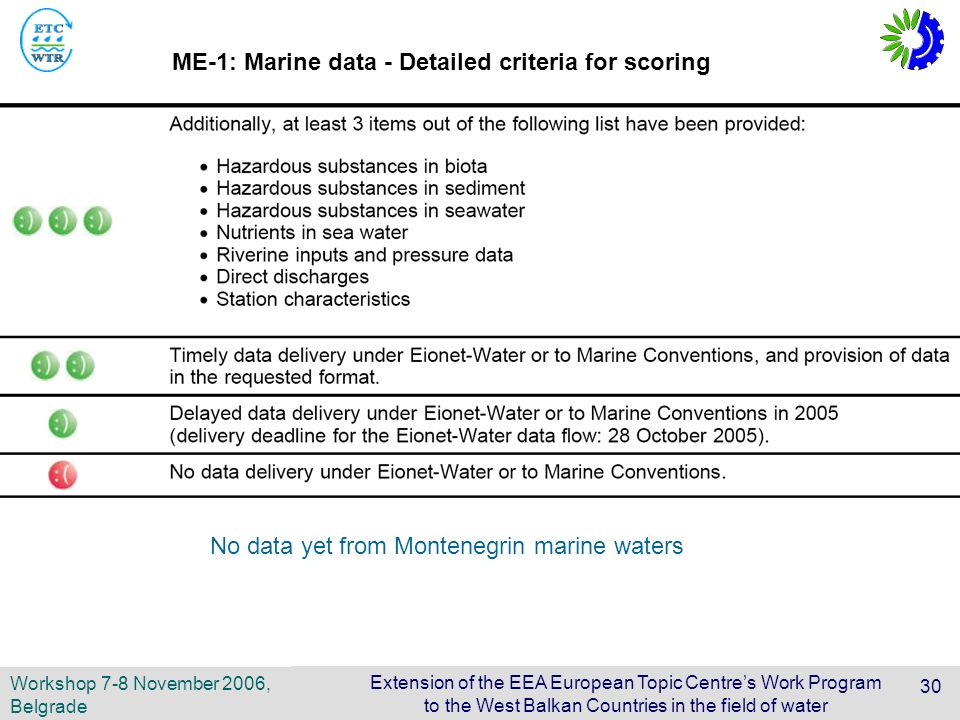

30. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 30 Workshop 7-8 November 2006, Belgrade ME-1: Marine data - Detailed criteria for scoring No data yet from Montenegrin marine waters

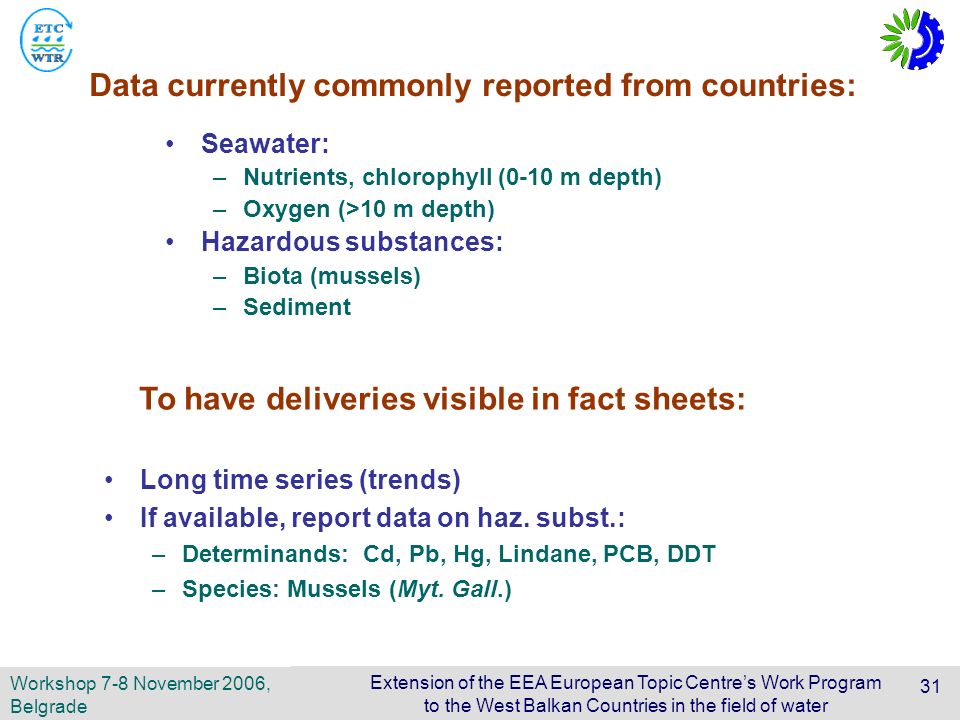

31. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 31 Workshop 7-8 November 2006, Belgrade Data currently commonly reported from countries: Seawater: –Nutrients, chlorophyll (0-10 m depth) –Oxygen (>10 m depth) Hazardous substances: –Biota (mussels) –Sediment To have deliveries visible in fact sheets: Long time series (trends) If available, report data on haz. subst.: –Determinands: Cd, Pb, Hg, Lindane, PCB, DDT –Species: Mussels (Myt. Gall.)

32. Extension of the EEA European Topic Centre’s Work Program to the West Balkan Countries in the field of water 32 Workshop 7-8 November 2006, Belgrade How to ensure that data are processed: Collect data of each type into a single table –Or more than one identically formatted tables strictly according to template Make sure all mandatory information is included – and in proper format. Make sure stations are defined with coordinates –Degrees with fraction as decimals Use standard determinand names or codes –(Or include a lookup list) Edit tables into ”clean” database-type layout (one heading row + data rows) Excel macro is available Please use the template, but check with Data Dictionary –Important: Use defined codes. –Not important: Detailed spec. of length and numerical precision of ordinary floating-point values
