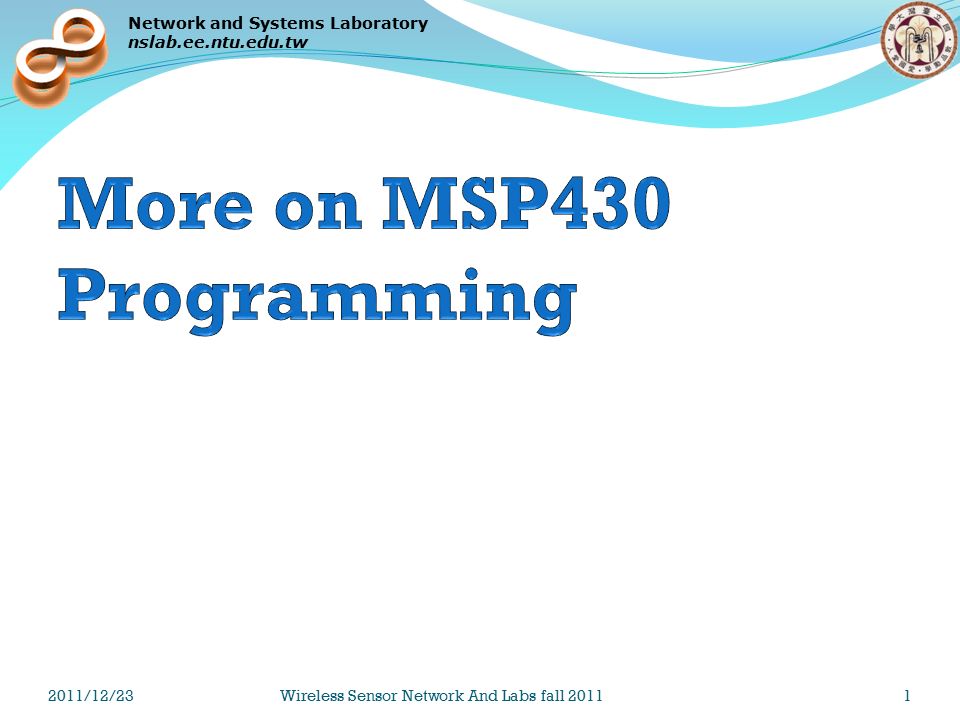

1 Network and Systems Laboratory nslab.ee.ntu.edu.tw 2011/12/23Wireless Sensor Network And Labs fall 20111

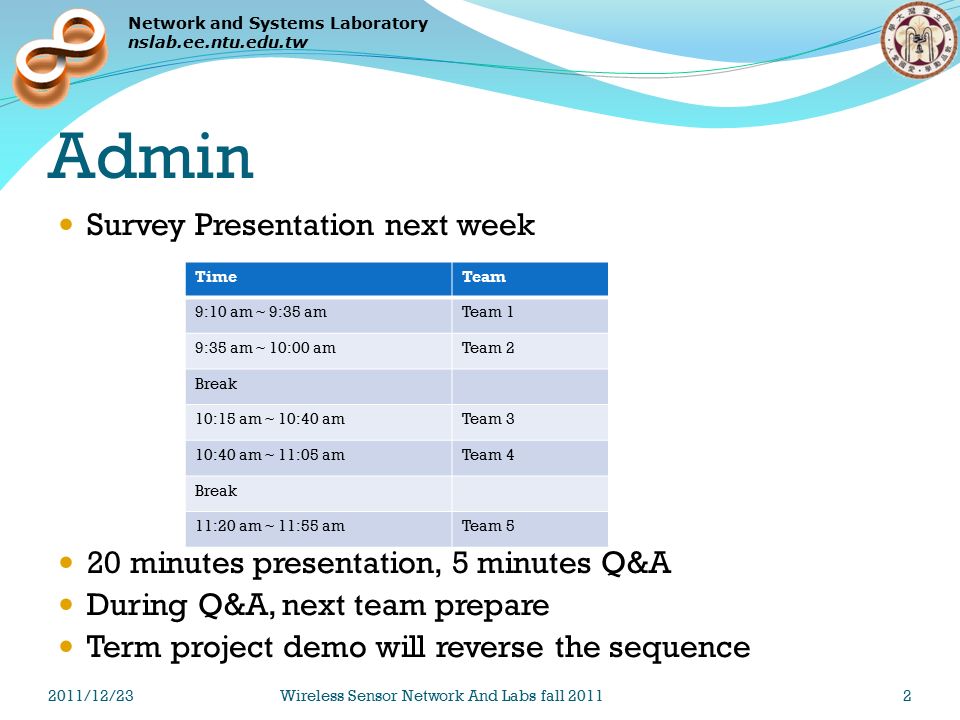

2 Network and Systems Laboratory nslab.ee.ntu.edu.tw Admin Survey Presentation next week 20 minutes presentation, 5 minutes Q&A During Q&A, next team prepare Term project demo will reverse the sequence 2011/12/23Wireless Sensor Network And Labs fall 20112 TimeTeam 9:10 am ~ 9:35 amTeam 1 9:35 am ~ 10:00 amTeam 2 Break 10:15 am ~ 10:40 amTeam 3 10:40 am ~ 11:05 amTeam 4 Break 11:20 am ~ 11:55 amTeam 5

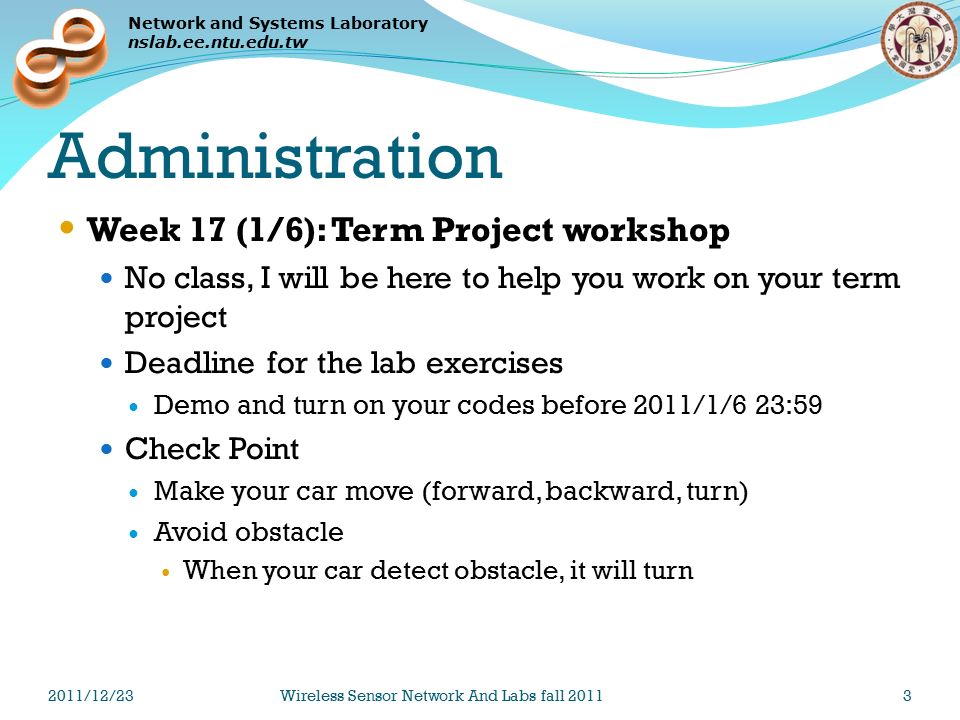

3 Network and Systems Laboratory nslab.ee.ntu.edu.tw Administration Week 17 (1/6): Term Project workshop No class, I will be here to help you work on your term project Deadline for the lab exercises Demo and turn on your codes before 2011/1/6 23:59 Check Point Make your car move (forward, backward, turn) Avoid obstacle When your car detect obstacle, it will turn 2011/12/23Wireless Sensor Network And Labs fall 20113

4 Network and Systems Laboratory nslab.ee.ntu.edu.tw Outline More peripherals Watchdog Timer Supply Voltage Supervisor (SVS) Direct Memory Access (DMA) Flash Memory Controller External 8Mbit Flash Memory: M25P80 Temperature/humidity sensor: SHT11 Low Power Modes MSP430 Software Coding Techniques 2011/12/23Wireless Sensor Network And Labs fall 20114

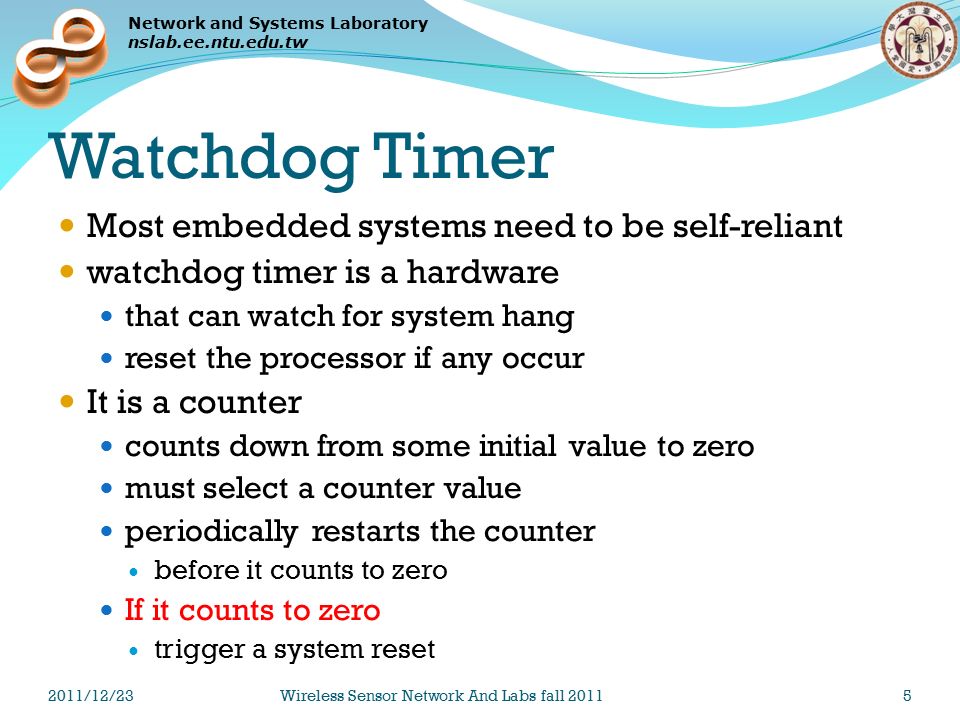

5 Network and Systems Laboratory nslab.ee.ntu.edu.tw Watchdog Timer Most embedded systems need to be self-reliant watchdog timer is a hardware that can watch for system hang reset the processor if any occur It is a counter counts down from some initial value to zero must select a counter value periodically restarts the counter before it counts to zero If it counts to zero trigger a system reset 2011/12/23Wireless Sensor Network And Labs fall 20115

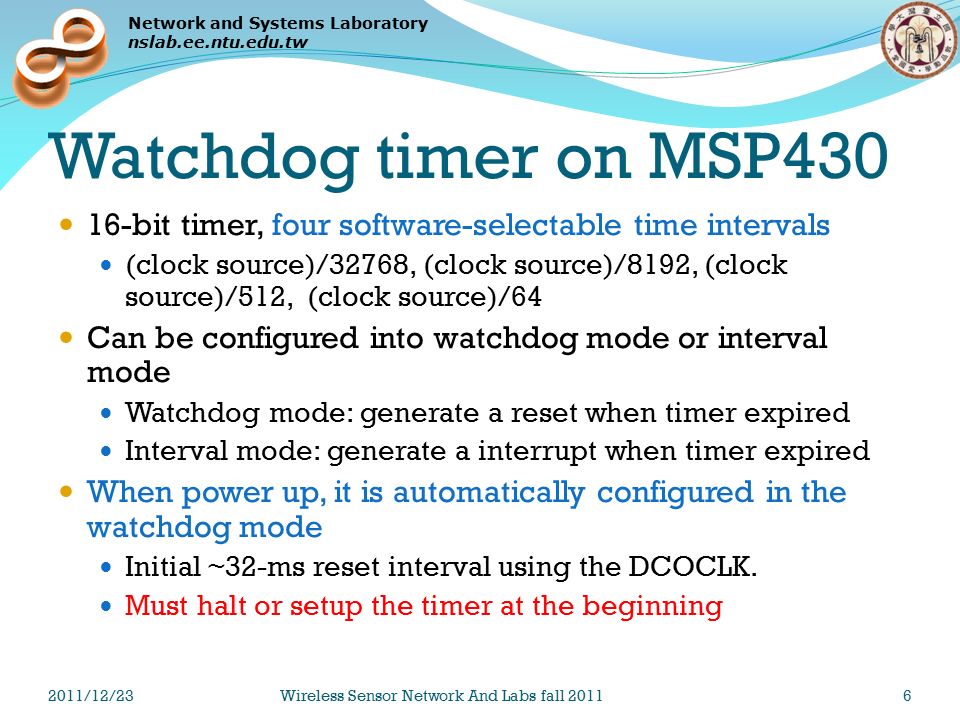

6 Network and Systems Laboratory nslab.ee.ntu.edu.tw Watchdog timer on MSP430 16-bit timer, four software-selectable time intervals (clock source)/32768, (clock source)/8192, (clock source)/512, (clock source)/64 Can be configured into watchdog mode or interval mode Watchdog mode: generate a reset when timer expired Interval mode: generate a interrupt when timer expired When power up, it is automatically configured in the watchdog mode Initial ~32-ms reset interval using the DCOCLK. Must halt or setup the timer at the beginning 2011/12/23Wireless Sensor Network And Labs fall 20116

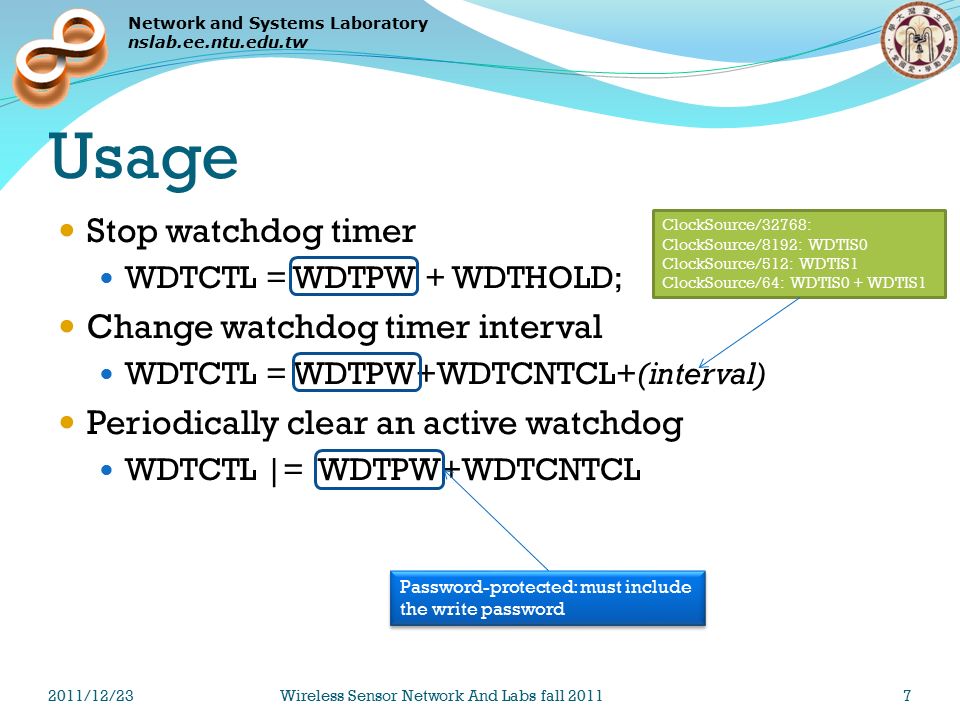

7 Network and Systems Laboratory nslab.ee.ntu.edu.tw Usage Stop watchdog timer WDTCTL = WDTPW + WDTHOLD; Change watchdog timer interval WDTCTL = WDTPW+WDTCNTCL+(interval) Periodically clear an active watchdog WDTCTL |= WDTPW+WDTCNTCL ClockSource/32768: ClockSource/8192: WDTIS0 ClockSource/512: WDTIS1 ClockSource/64: WDTIS0 + WDTIS1 Password-protected: must include the write password 2011/12/23Wireless Sensor Network And Labs fall 20117

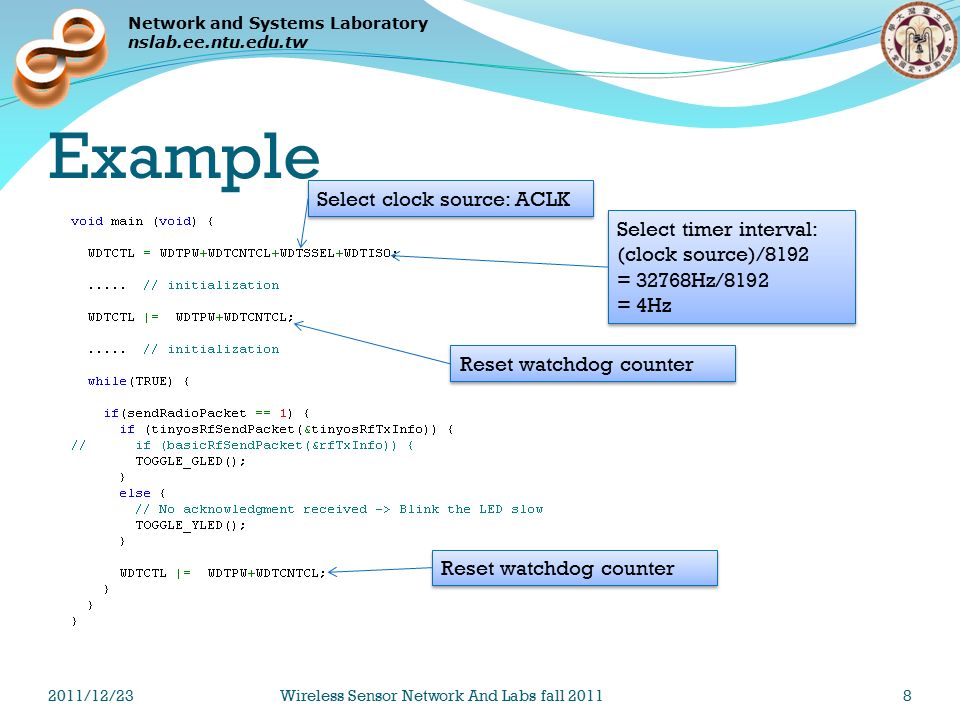

8 Network and Systems Laboratory nslab.ee.ntu.edu.tw Example Select clock source: ACLK Select timer interval: (clock source)/8192 = 32768Hz/8192 = 4Hz Select timer interval: (clock source)/8192 = 32768Hz/8192 = 4Hz Reset watchdog counter 2011/12/23Wireless Sensor Network And Labs fall 20118

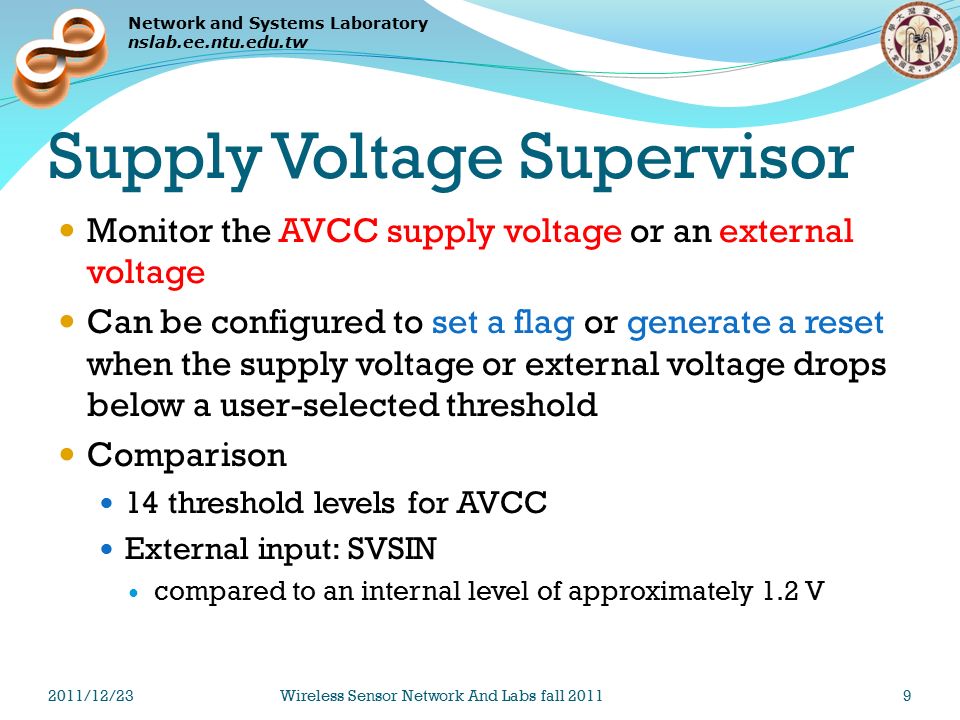

9 Network and Systems Laboratory nslab.ee.ntu.edu.tw Supply Voltage Supervisor Monitor the AVCC supply voltage or an external voltage Can be configured to set a flag or generate a reset when the supply voltage or external voltage drops below a user-selected threshold Comparison 14 threshold levels for AVCC External input: SVSIN compared to an internal level of approximately 1.2 V 2011/12/23Wireless Sensor Network And Labs fall 20119

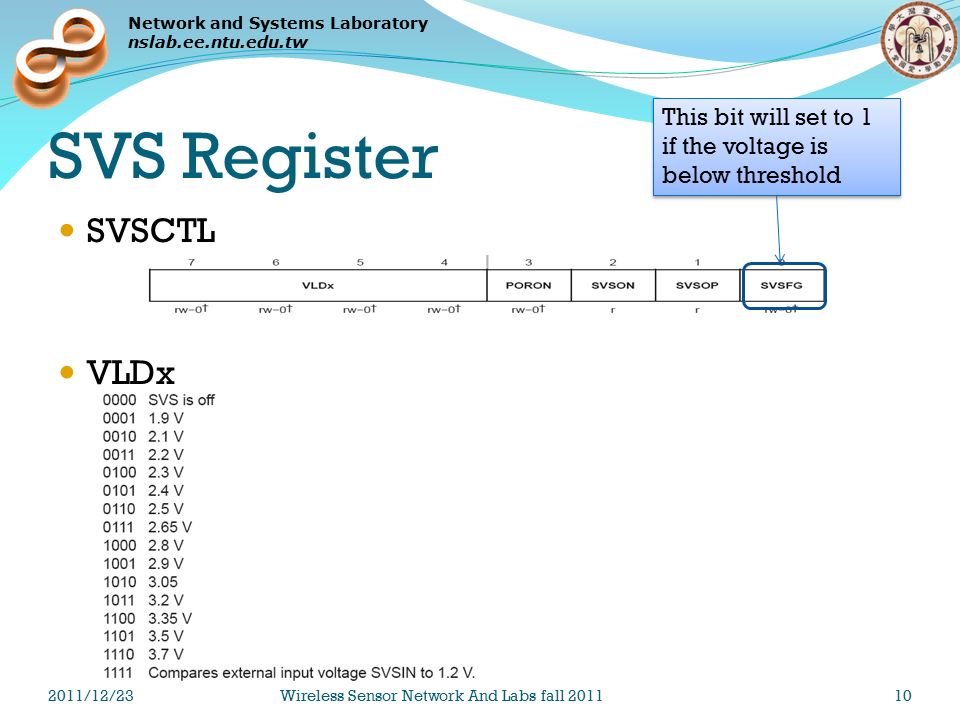

10 Network and Systems Laboratory nslab.ee.ntu.edu.tw SVS Register SVSCTL VLDx This bit will set to 1 if the voltage is below threshold 2011/12/23Wireless Sensor Network And Labs fall 201110

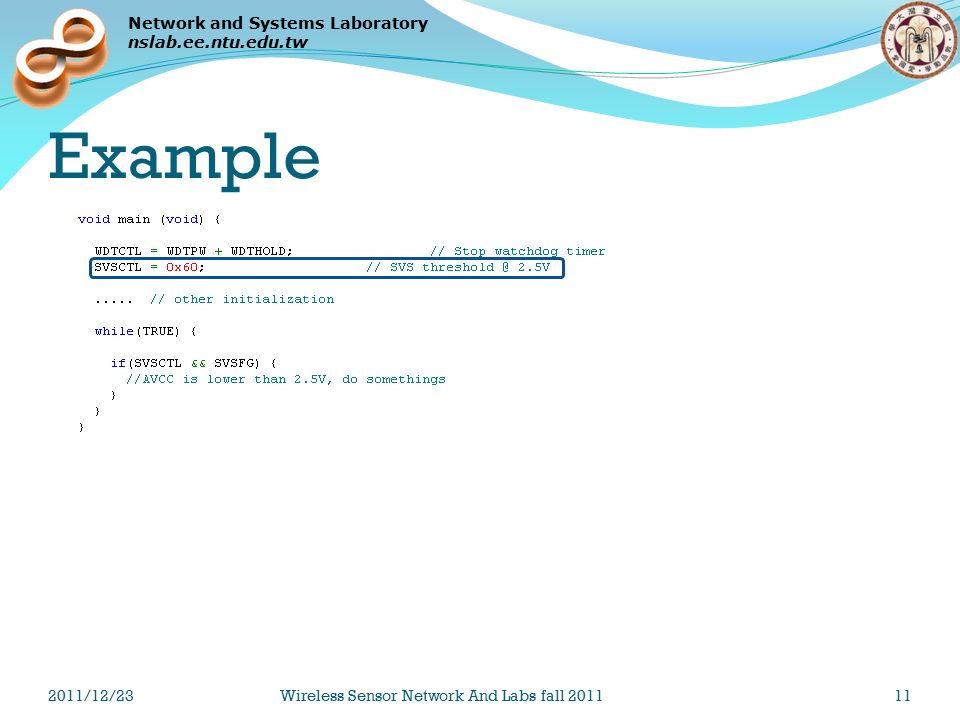

11 Network and Systems Laboratory nslab.ee.ntu.edu.tw Example 2011/12/23Wireless Sensor Network And Labs fall 201111

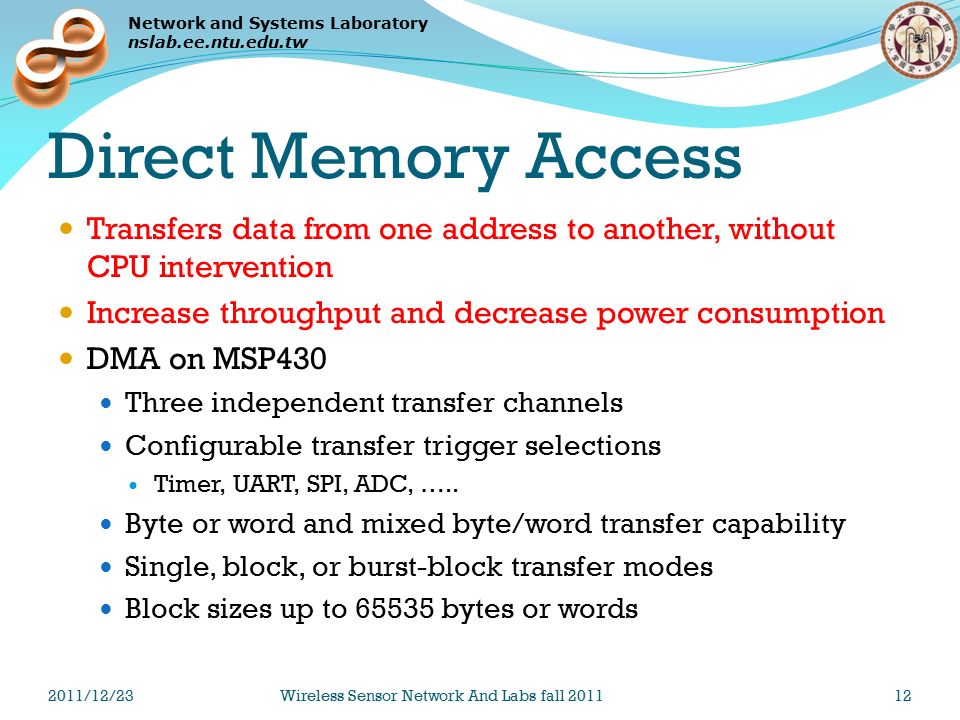

12 Network and Systems Laboratory nslab.ee.ntu.edu.tw Direct Memory Access Transfers data from one address to another, without CPU intervention Increase throughput and decrease power consumption DMA on MSP430 Three independent transfer channels Configurable transfer trigger selections Timer, UART, SPI, ADC, ….. Byte or word and mixed byte/word transfer capability Single, block, or burst-block transfer modes Block sizes up to 65535 bytes or words 2011/12/23Wireless Sensor Network And Labs fall 201112

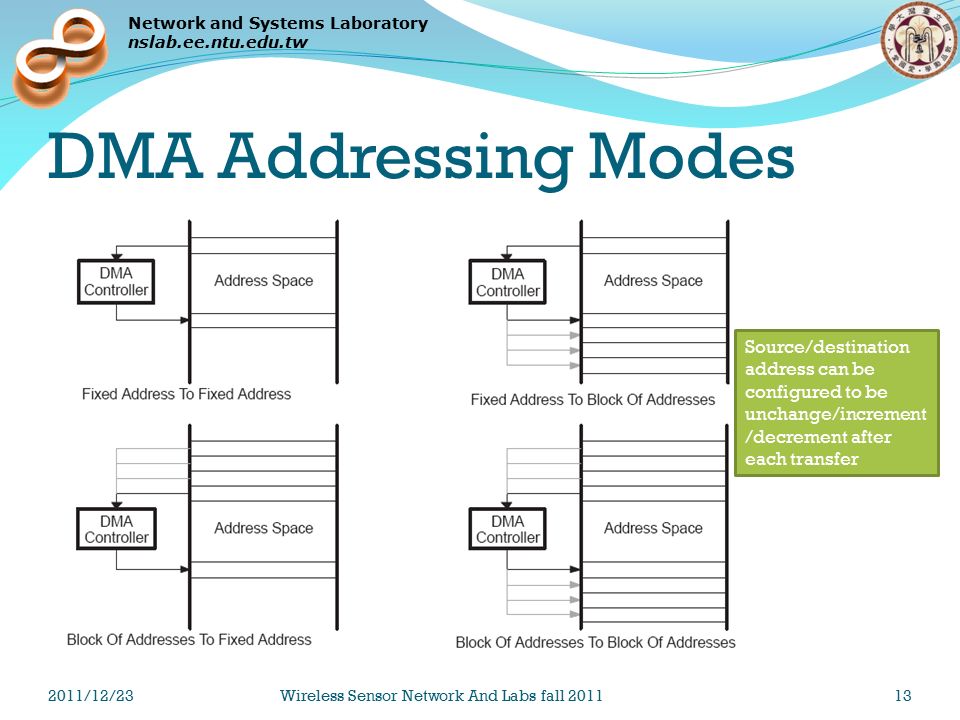

13 Network and Systems Laboratory nslab.ee.ntu.edu.tw DMA Addressing Modes Source/destination address can be configured to be unchange/increment /decrement after each transfer 2011/12/23Wireless Sensor Network And Labs fall 201113

14 Network and Systems Laboratory nslab.ee.ntu.edu.tw DMA Transfer Modes Six transfer modes Single transfer, block transfer, burst-block transfer, repeated single transfer, repeated block transfer, repeated burst-block transfer Single transfer Each transfer requires a separate trigger, DMA is disable after transfer Must re-enable DMA before receive another trigger Repeated single transfer: DMA remains enable Another trigger start another transfer Block transfer Transfer of a complete block after one trigger, DMA is disable after transfer Repeated block transfer: DMA remains enable, Another trigger start another transfer Burst-block transfer Block transfers with CPU activity interleaved, Repeated burst-block transfer: DMA remains enable Keep transferring CPU executes at 20% capacity 2011/12/23Wireless Sensor Network And Labs fall 201114

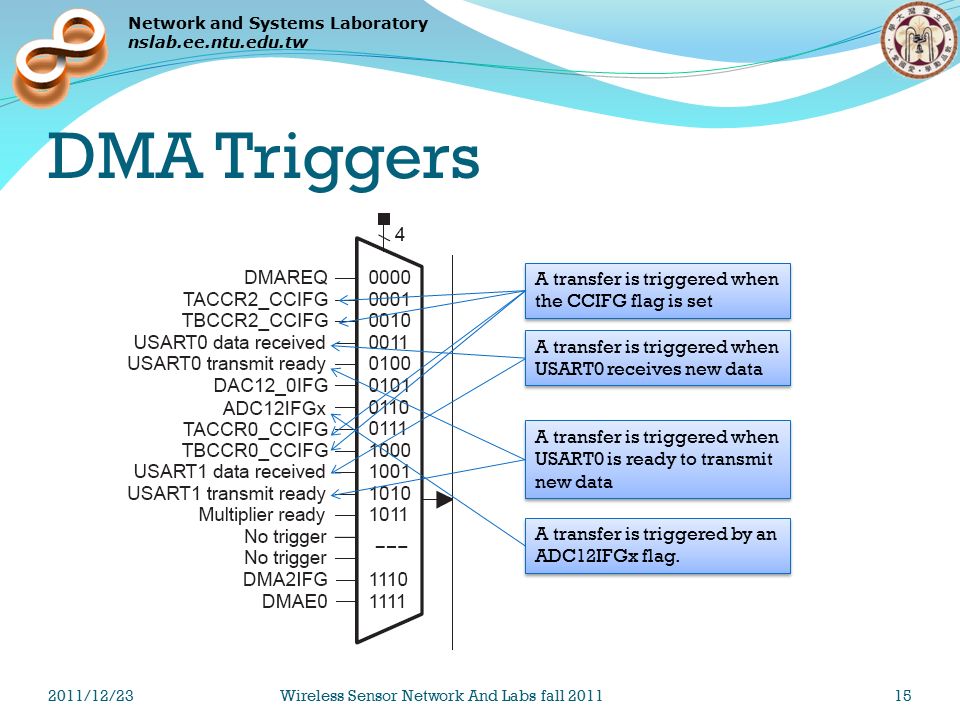

15 Network and Systems Laboratory nslab.ee.ntu.edu.tw DMA Triggers A transfer is triggered when the CCIFG flag is set A transfer is triggered when USART0 receives new data A transfer is triggered when USART0 is ready to transmit new data A transfer is triggered by an ADC12IFGx flag. 2011/12/23Wireless Sensor Network And Labs fall 201115

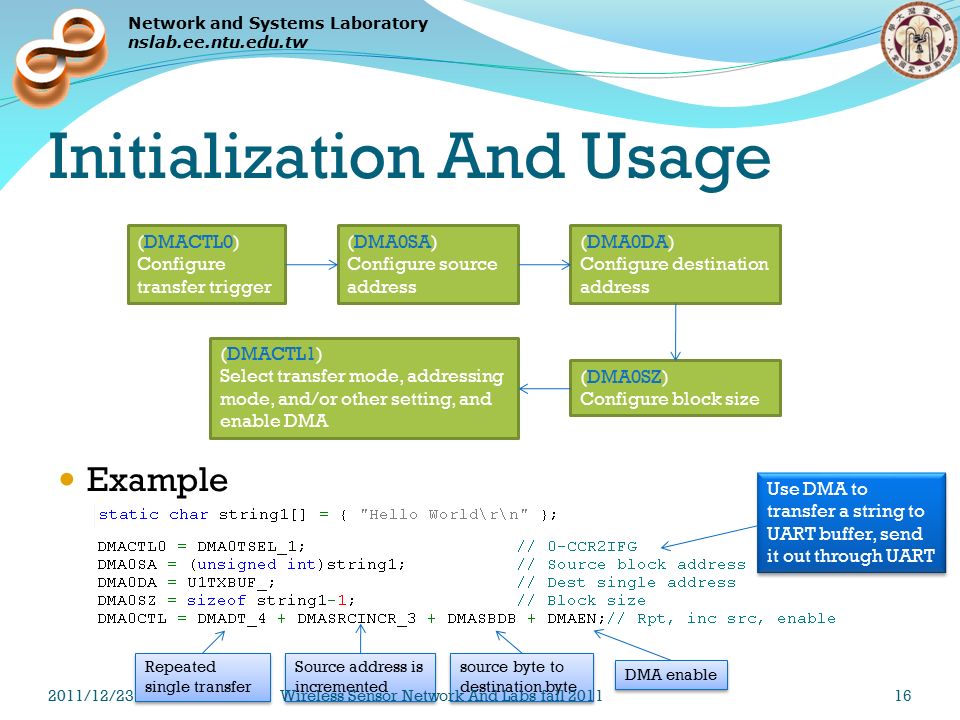

16 Network and Systems Laboratory nslab.ee.ntu.edu.tw Initialization And Usage Example (DMACTL0) Configure transfer trigger (DMACTL1) Select transfer mode, addressing mode, and/or other setting, and enable DMA (DMA0SA) Configure source address (DMA0DA) Configure destination address (DMA0SZ) Configure block size Use DMA to transfer a string to UART buffer, send it out through UART Repeated single transfer Source address is incremented source byte to destination byte DMA enable 2011/12/23Wireless Sensor Network And Labs fall 201116

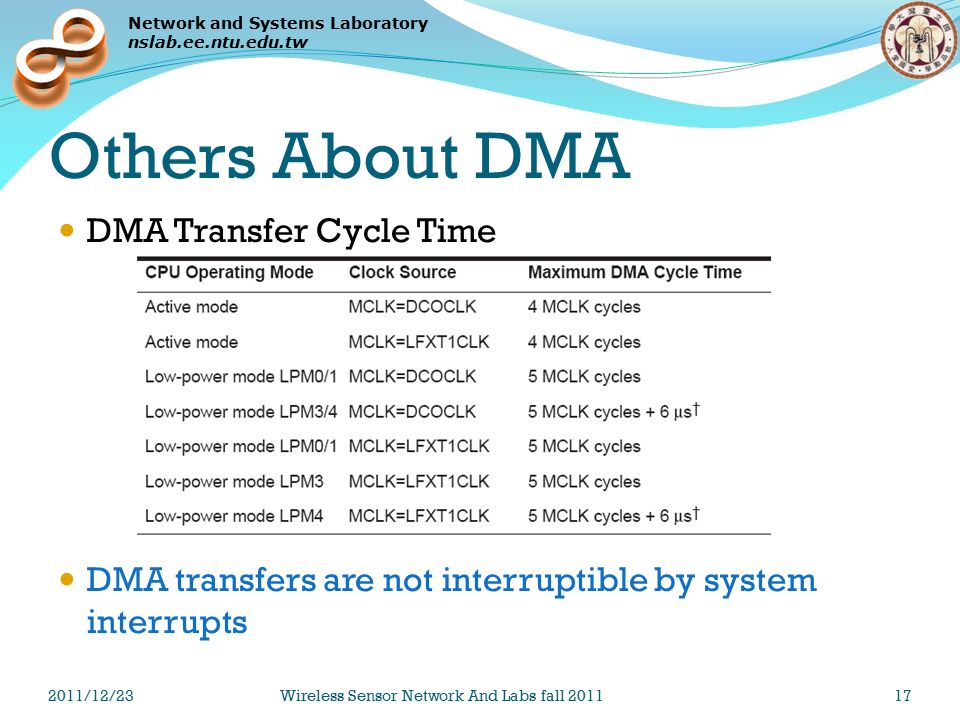

17 Network and Systems Laboratory nslab.ee.ntu.edu.tw Others About DMA DMA Transfer Cycle Time DMA transfers are not interruptible by system interrupts 2011/12/23Wireless Sensor Network And Labs fall 201117

18 Network and Systems Laboratory nslab.ee.ntu.edu.tw Flash Memory Controller MSP430 flash memory is bit-, byte-, and word- addressable and programmable Segment erase and mass erase Minimum VCC voltage during a flash write or erase operation is 2.7 V Program code are stored in the flash Unused flash memory can be use to store other data 2011/12/23Wireless Sensor Network And Labs fall 201118

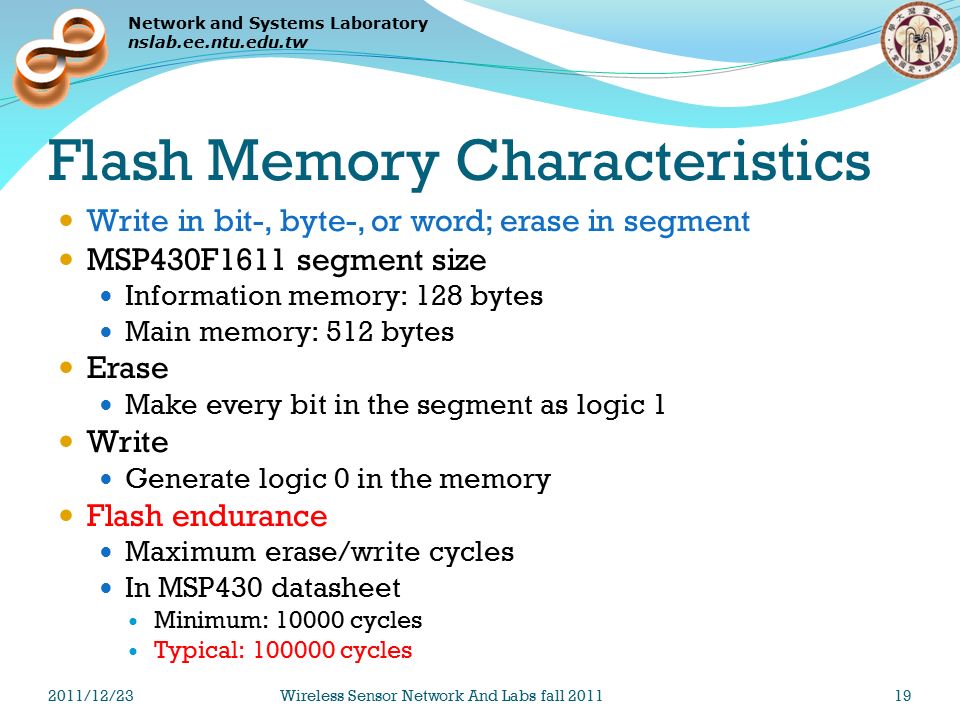

19 Network and Systems Laboratory nslab.ee.ntu.edu.tw Flash Memory Characteristics Write in bit-, byte-, or word; erase in segment MSP430F1611 segment size Information memory: 128 bytes Main memory: 512 bytes Erase Make every bit in the segment as logic 1 Write Generate logic 0 in the memory Flash endurance Maximum erase/write cycles In MSP430 datasheet Minimum: 10000 cycles Typical: 100000 cycles 2011/12/23Wireless Sensor Network And Labs fall 201119

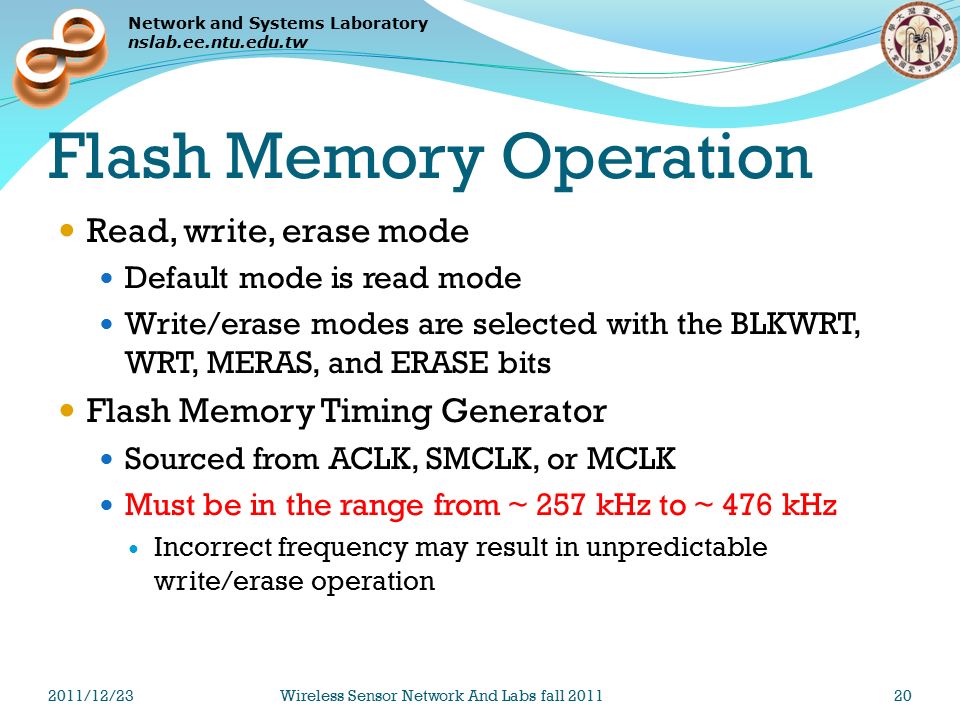

20 Network and Systems Laboratory nslab.ee.ntu.edu.tw Flash Memory Operation Read, write, erase mode Default mode is read mode Write/erase modes are selected with the BLKWRT, WRT, MERAS, and ERASE bits Flash Memory Timing Generator Sourced from ACLK, SMCLK, or MCLK Must be in the range from ~ 257 kHz to ~ 476 kHz Incorrect frequency may result in unpredictable write/erase operation 2011/12/23Wireless Sensor Network And Labs fall 201120

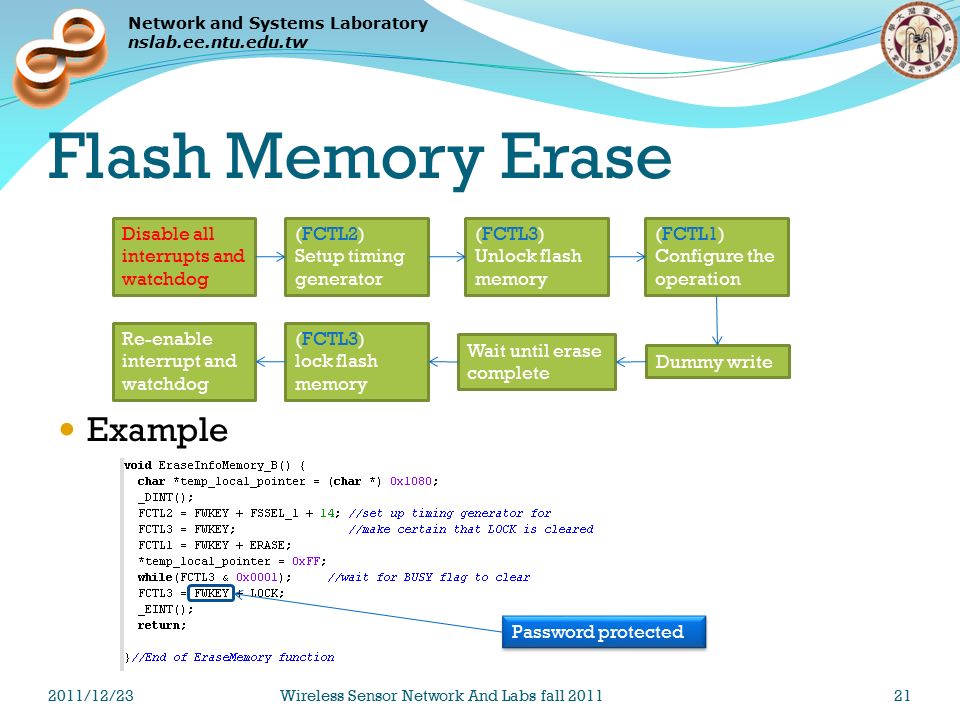

21 Network and Systems Laboratory nslab.ee.ntu.edu.tw Flash Memory Erase Example (FCTL2) Setup timing generator (FCTL3) Unlock flash memory (FCTL1) Configure the operation Disable all interrupts and watchdog Dummy write (FCTL3) lock flash memory Re-enable interrupt and watchdog Wait until erase complete Password protected 2011/12/23Wireless Sensor Network And Labs fall 201121

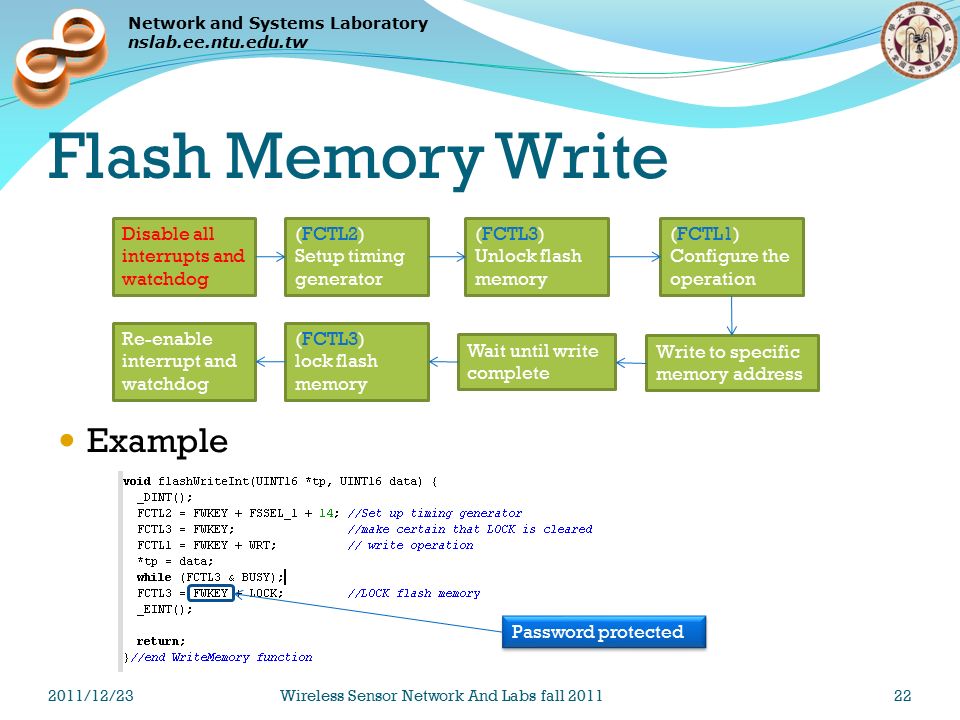

22 Network and Systems Laboratory nslab.ee.ntu.edu.tw Example Flash Memory Write (FCTL2) Setup timing generator (FCTL3) Unlock flash memory (FCTL1) Configure the operation Disable all interrupts and watchdog Write to specific memory address (FCTL3) lock flash memory Re-enable interrupt and watchdog Wait until write complete Password protected 2011/12/23Wireless Sensor Network And Labs fall 201122

23 Network and Systems Laboratory nslab.ee.ntu.edu.tw Outline More peripherals Watchdog Timer Supply Voltage Supervisor (SVS) Direct Memory Access (DMA) Flash Memory Controller External 8Mbit Flash Memory: M25P80 Temperature/humidity sensor: SHT11 Low Power Modes MSP430 Software Coding Techniques 2011/12/23Wireless Sensor Network And Labs fall 201123

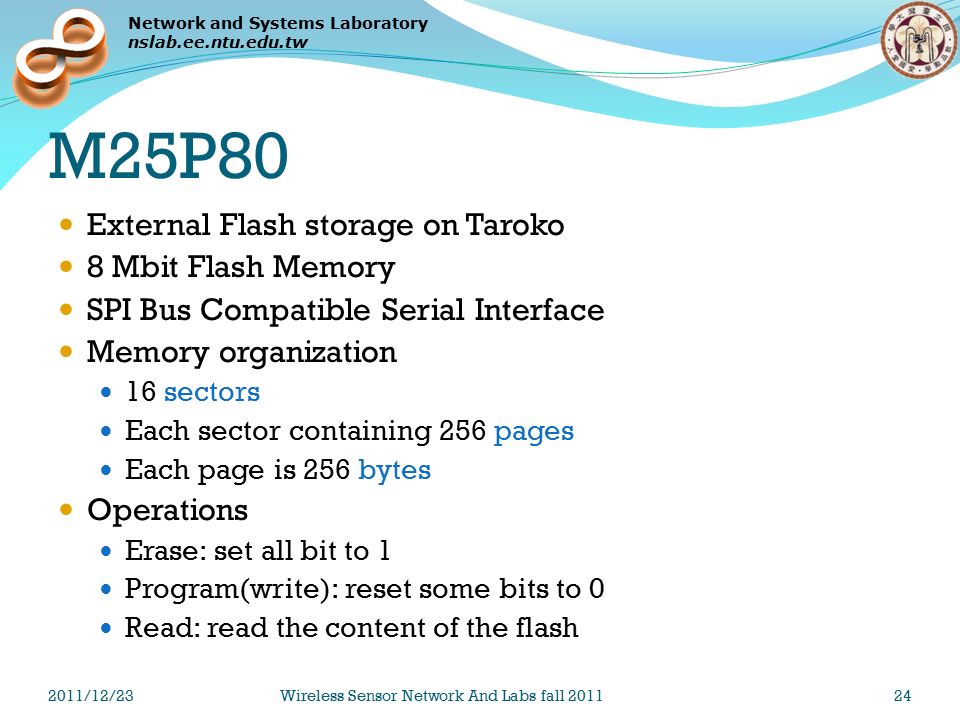

24 Network and Systems Laboratory nslab.ee.ntu.edu.tw M25P80 External Flash storage on Taroko 8 Mbit Flash Memory SPI Bus Compatible Serial Interface Memory organization 16 sectors Each sector containing 256 pages Each page is 256 bytes Operations Erase: set all bit to 1 Program(write): reset some bits to 0 Read: read the content of the flash 2011/12/23Wireless Sensor Network And Labs fall 201124

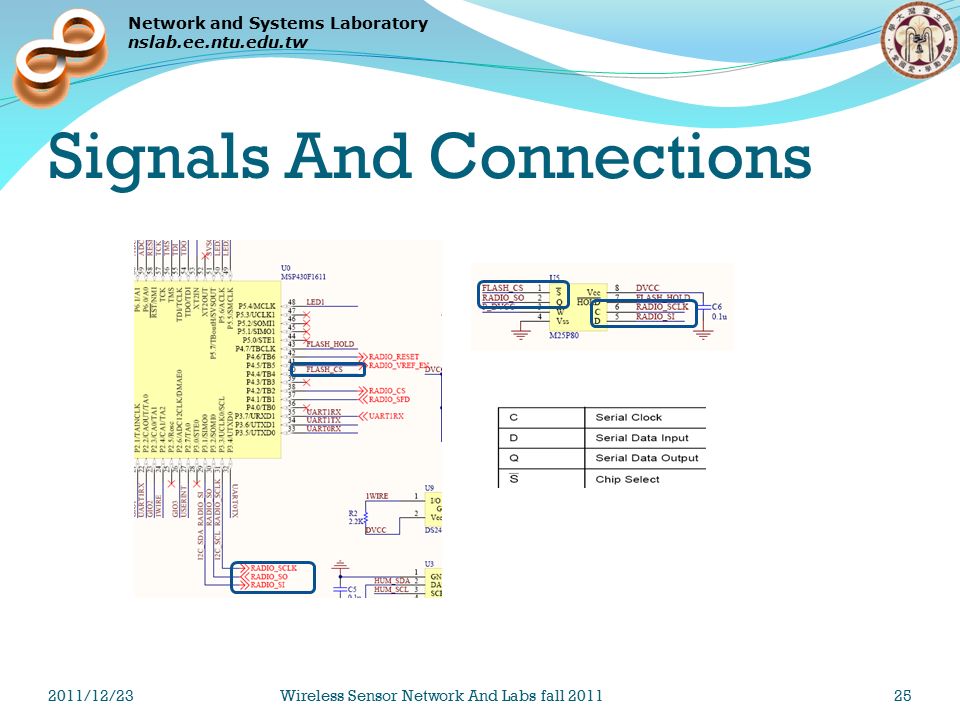

25 Network and Systems Laboratory nslab.ee.ntu.edu.tw Signals And Connections 2011/12/23Wireless Sensor Network And Labs fall 201125

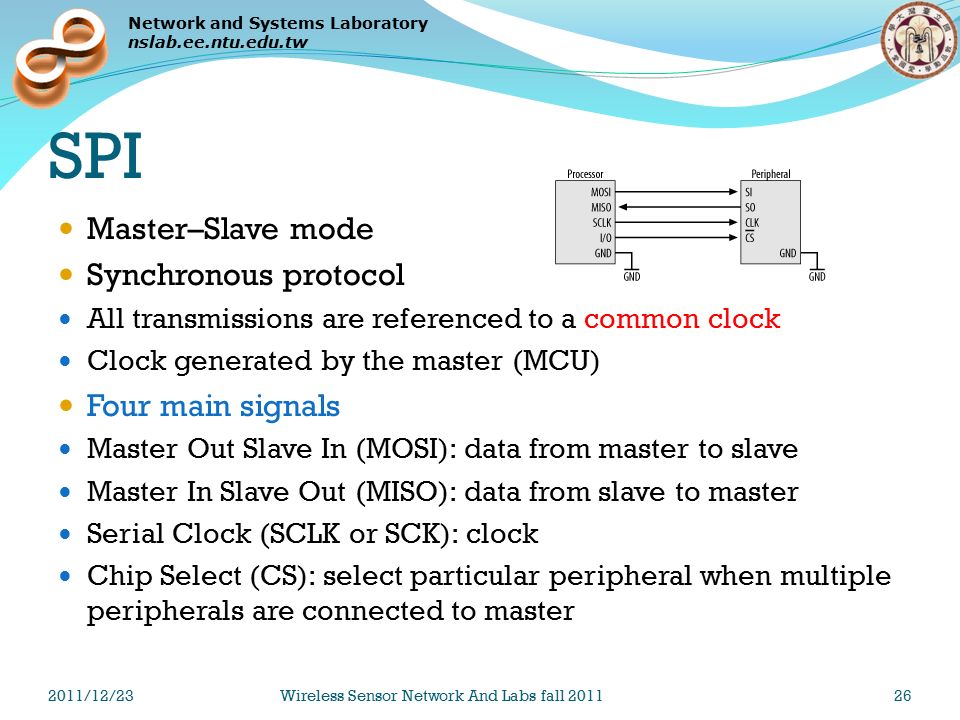

26 Network and Systems Laboratory nslab.ee.ntu.edu.tw SPI Master–Slave mode Synchronous protocol All transmissions are referenced to a common clock Clock generated by the master (MCU) Four main signals Master Out Slave In (MOSI): data from master to slave Master In Slave Out (MISO): data from slave to master Serial Clock (SCLK or SCK): clock Chip Select (CS): select particular peripheral when multiple peripherals are connected to master 2011/12/23Wireless Sensor Network And Labs fall 201126

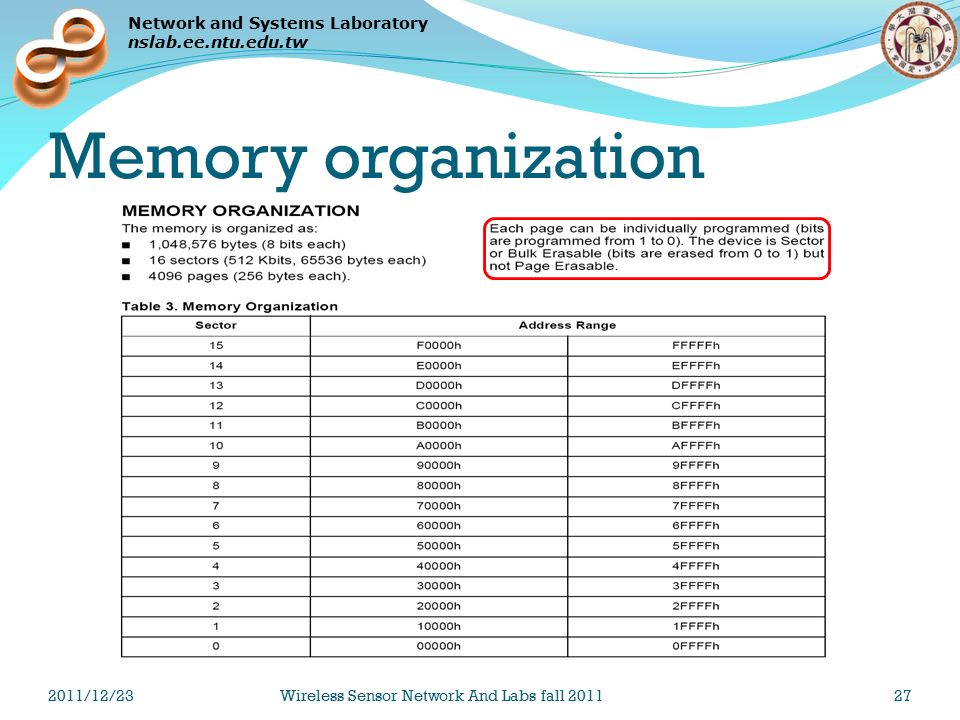

27 Network and Systems Laboratory nslab.ee.ntu.edu.tw Memory organization 2011/12/23Wireless Sensor Network And Labs fall 201127

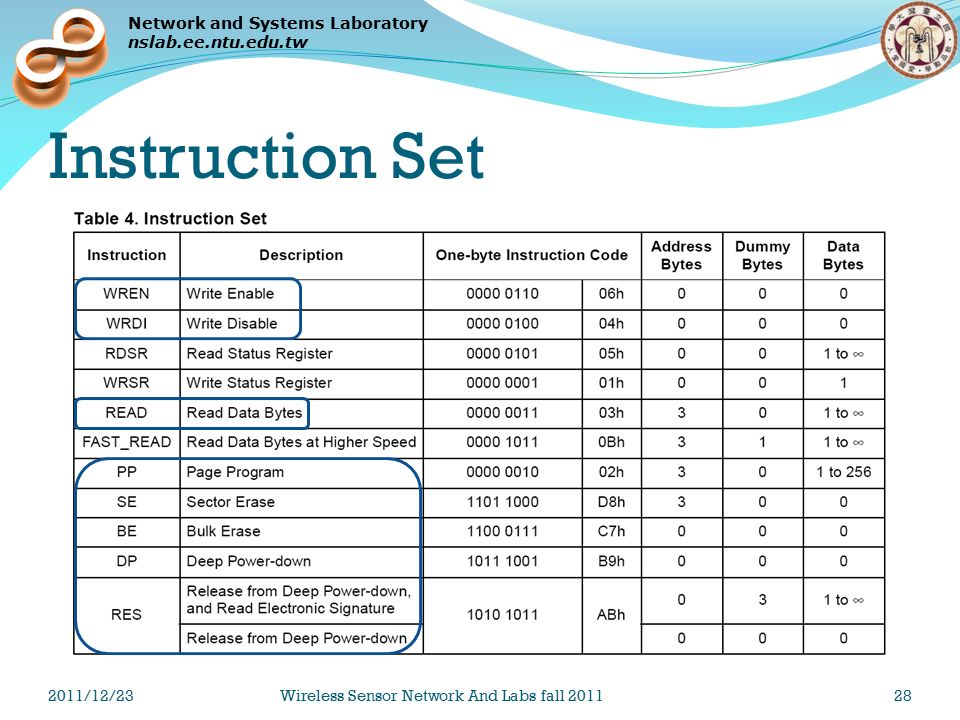

28 Network and Systems Laboratory nslab.ee.ntu.edu.tw Instruction Set 2011/12/23Wireless Sensor Network And Labs fall 201128

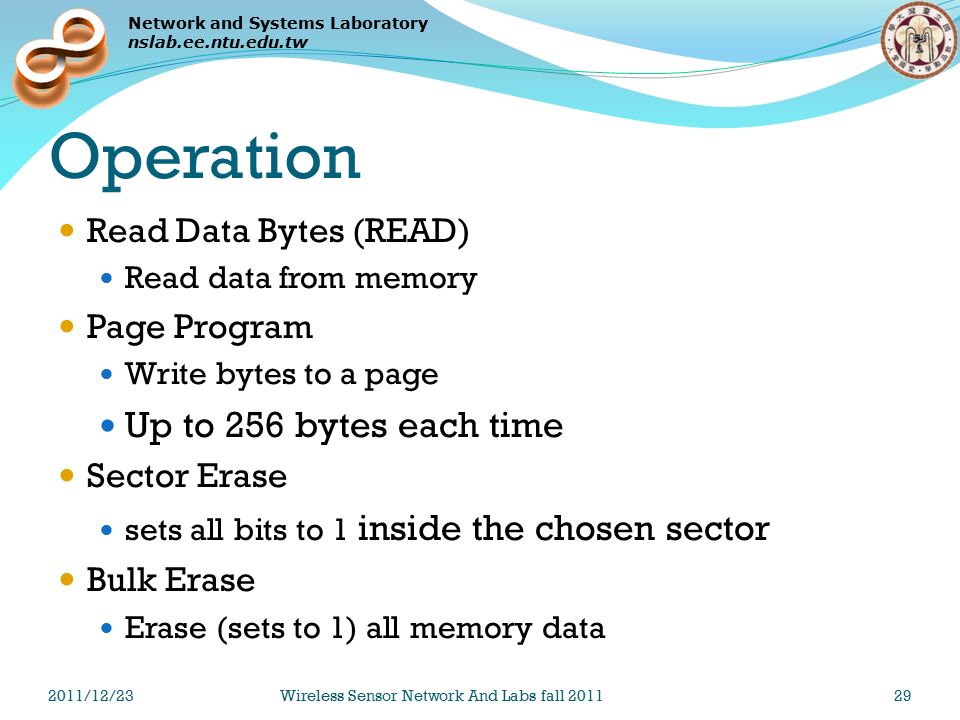

29 Network and Systems Laboratory nslab.ee.ntu.edu.tw Operation Read Data Bytes (READ) Read data from memory Page Program Write bytes to a page Up to 256 bytes each time Sector Erase sets all bits to 1 inside the chosen sector Bulk Erase Erase (sets to 1) all memory data 2011/12/23Wireless Sensor Network And Labs fall 201129

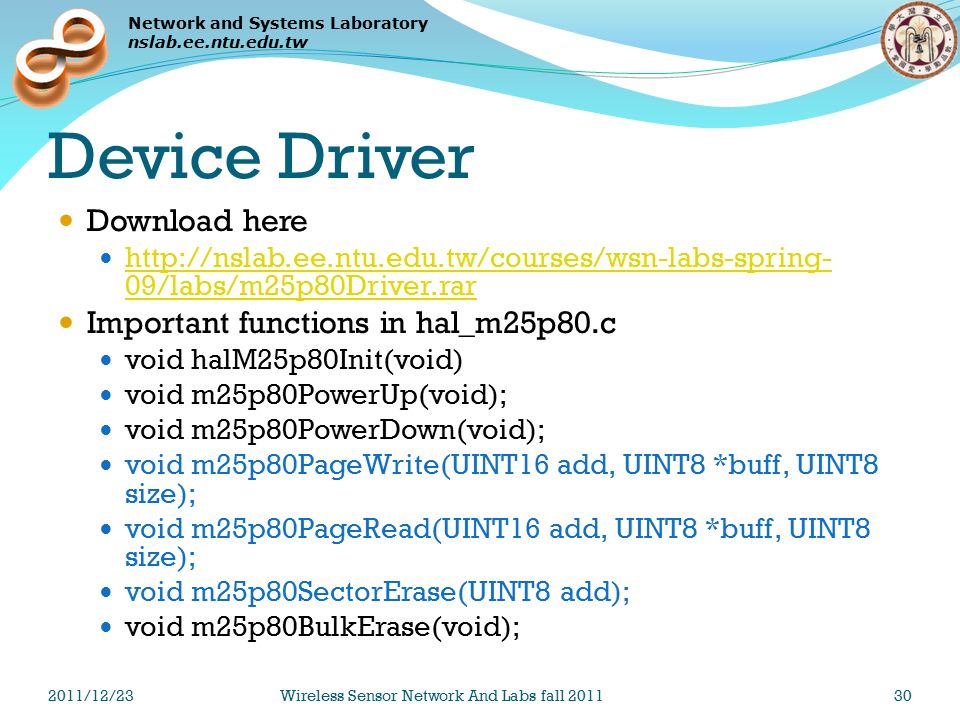

30 Network and Systems Laboratory nslab.ee.ntu.edu.tw Device Driver Download here http://nslab.ee.ntu.edu.tw/courses/wsn-labs-spring- 09/labs/m25p80Driver.rar http://nslab.ee.ntu.edu.tw/courses/wsn-labs-spring- 09/labs/m25p80Driver.rar Important functions in hal_m25p80.c void halM25p80Init(void) void m25p80PowerUp(void); void m25p80PowerDown(void); void m25p80PageWrite(UINT16 add, UINT8 *buff, UINT8 size); void m25p80PageRead(UINT16 add, UINT8 *buff, UINT8 size); void m25p80SectorErase(UINT8 add); void m25p80BulkErase(void); 2011/12/23Wireless Sensor Network And Labs fall 201130

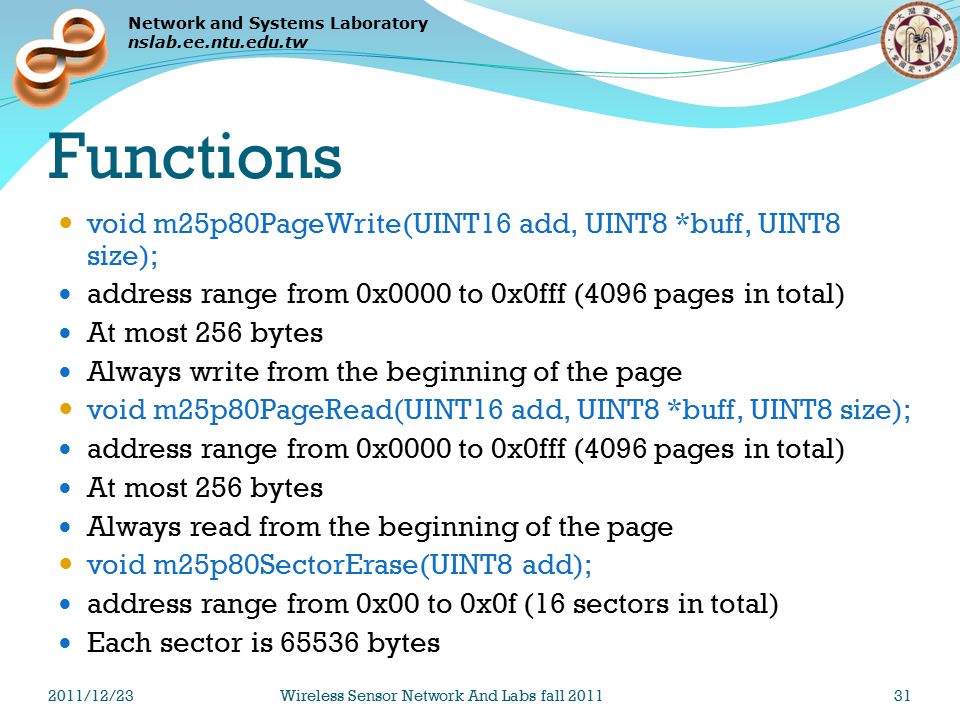

31 Network and Systems Laboratory nslab.ee.ntu.edu.tw Functions void m25p80PageWrite(UINT16 add, UINT8 *buff, UINT8 size); address range from 0x0000 to 0x0fff (4096 pages in total) At most 256 bytes Always write from the beginning of the page void m25p80PageRead(UINT16 add, UINT8 *buff, UINT8 size); address range from 0x0000 to 0x0fff (4096 pages in total) At most 256 bytes Always read from the beginning of the page void m25p80SectorErase(UINT8 add); address range from 0x00 to 0x0f (16 sectors in total) Each sector is 65536 bytes 2011/12/23Wireless Sensor Network And Labs fall 201131

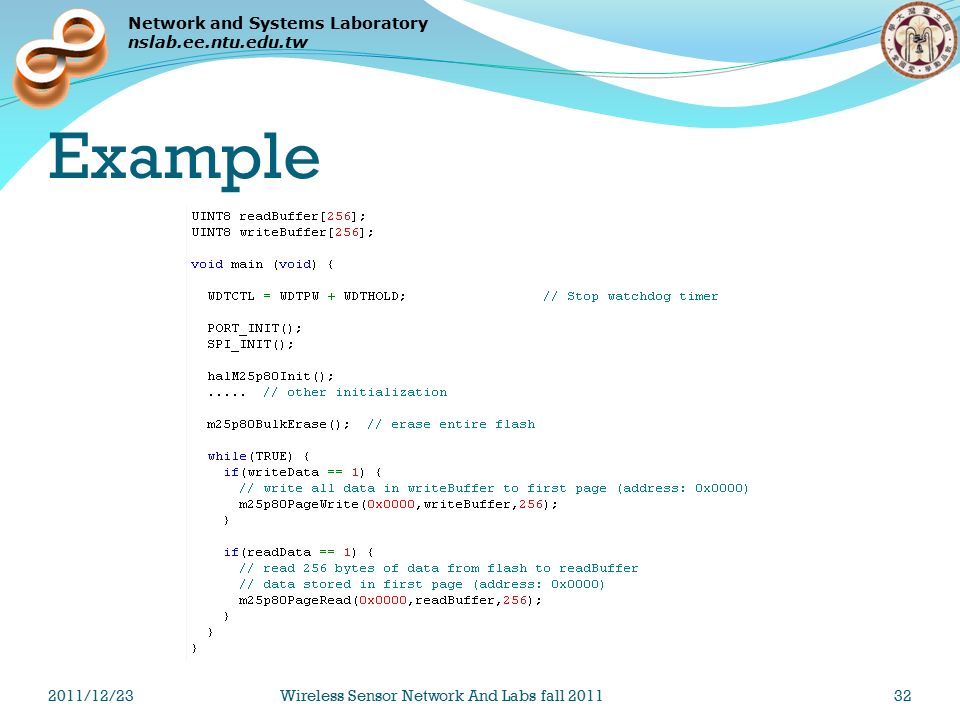

32 Network and Systems Laboratory nslab.ee.ntu.edu.tw Example 2011/12/23Wireless Sensor Network And Labs fall 201132

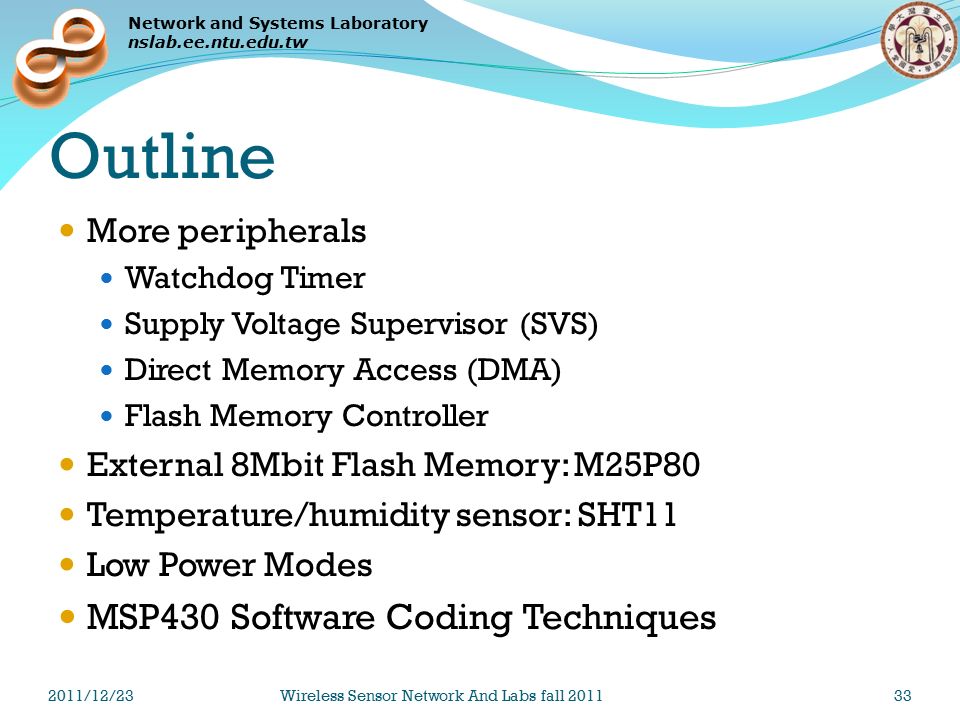

33 Network and Systems Laboratory nslab.ee.ntu.edu.tw Outline More peripherals Watchdog Timer Supply Voltage Supervisor (SVS) Direct Memory Access (DMA) Flash Memory Controller External 8Mbit Flash Memory: M25P80 Temperature/humidity sensor: SHT11 Low Power Modes MSP430 Software Coding Techniques 2011/12/23Wireless Sensor Network And Labs fall 201133

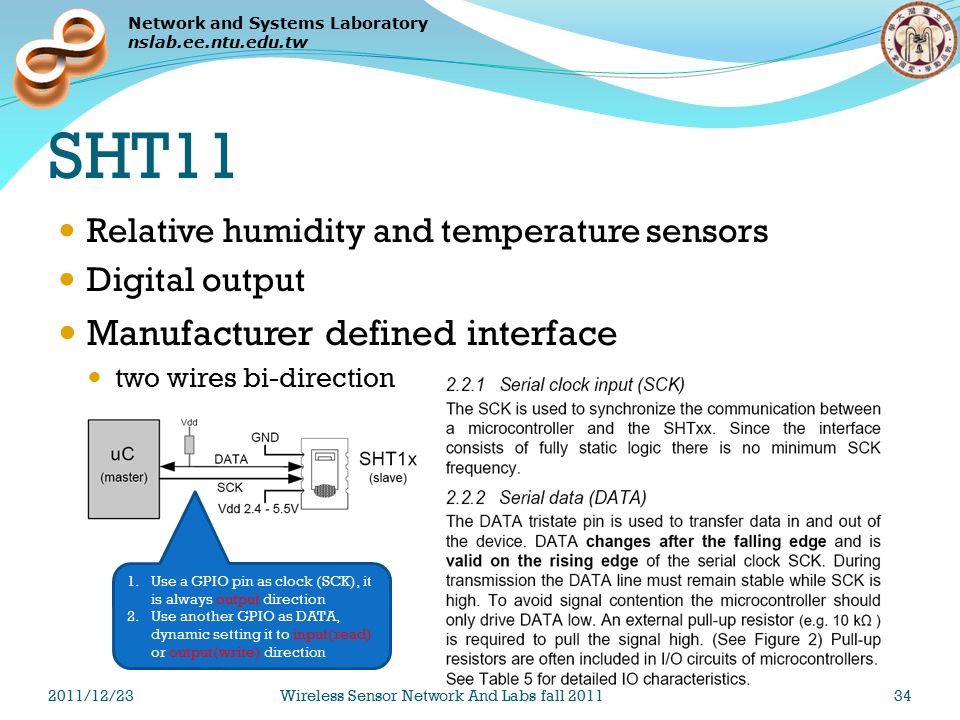

34 Network and Systems Laboratory nslab.ee.ntu.edu.tw SHT11 Relative humidity and temperature sensors Digital output Manufacturer defined interface two wires bi-direction 1.Use a GPIO pin as clock (SCK), it is always output direction 2.Use another GPIO as DATA, dynamic setting it to input(read) or output(write) direction 2011/12/23Wireless Sensor Network And Labs fall 201134

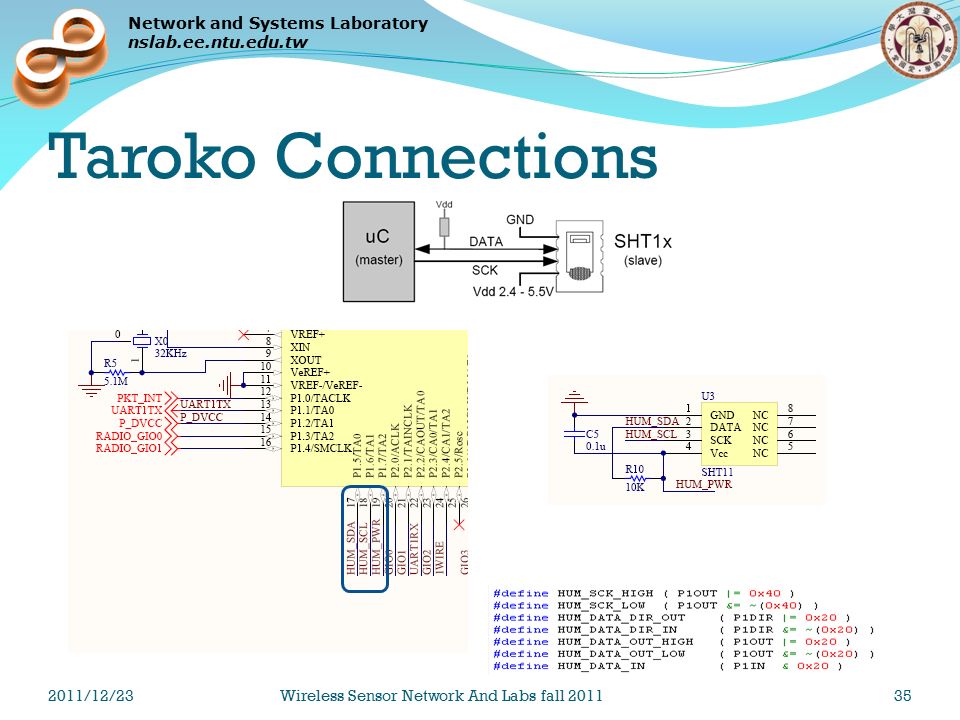

35 Network and Systems Laboratory nslab.ee.ntu.edu.tw Taroko Connections 2011/12/23Wireless Sensor Network And Labs fall 201135

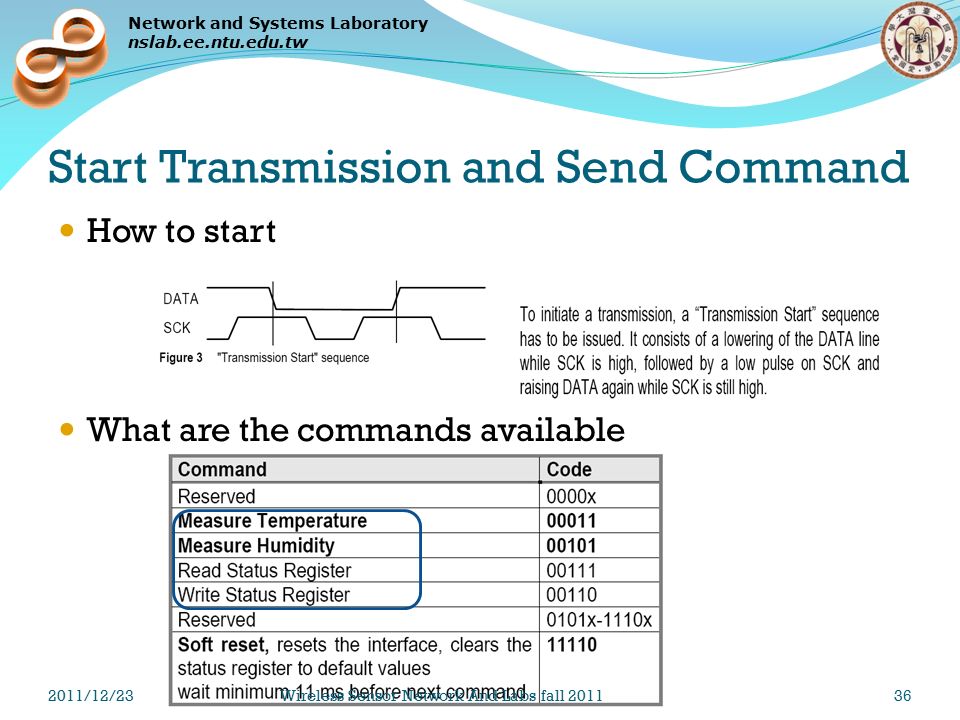

36 Network and Systems Laboratory nslab.ee.ntu.edu.tw Start Transmission and Send Command How to start What are the commands available 2011/12/23Wireless Sensor Network And Labs fall 201136

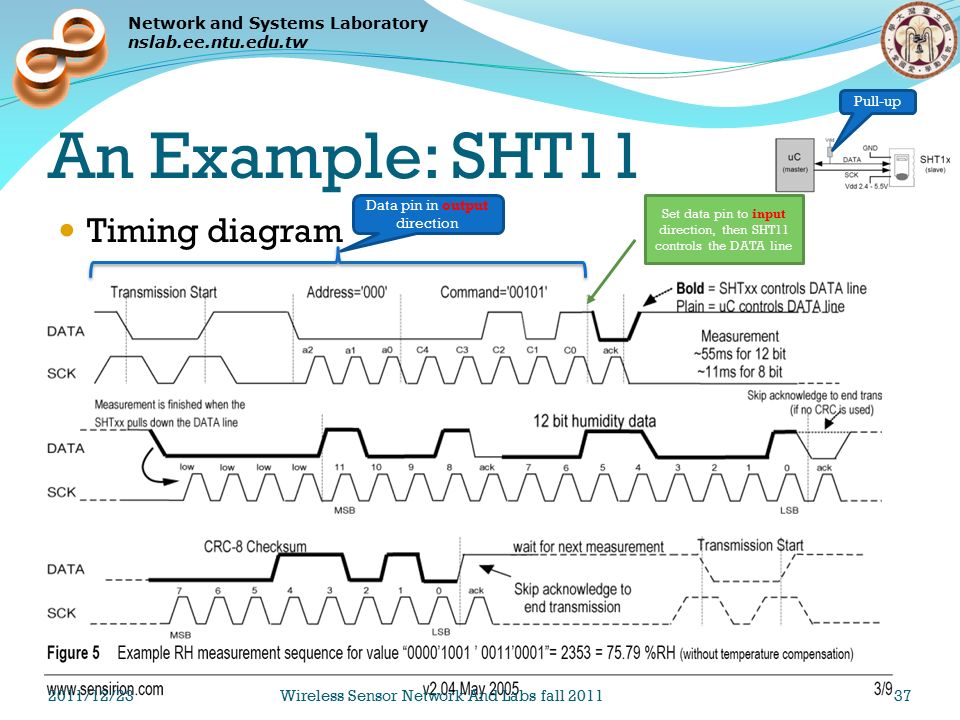

37 Network and Systems Laboratory nslab.ee.ntu.edu.tw An Example: SHT11 Timing diagram Pull-up Data pin in output direction Set data pin to input direction, then SHT11 controls the DATA line 2011/12/23Wireless Sensor Network And Labs fall 201137

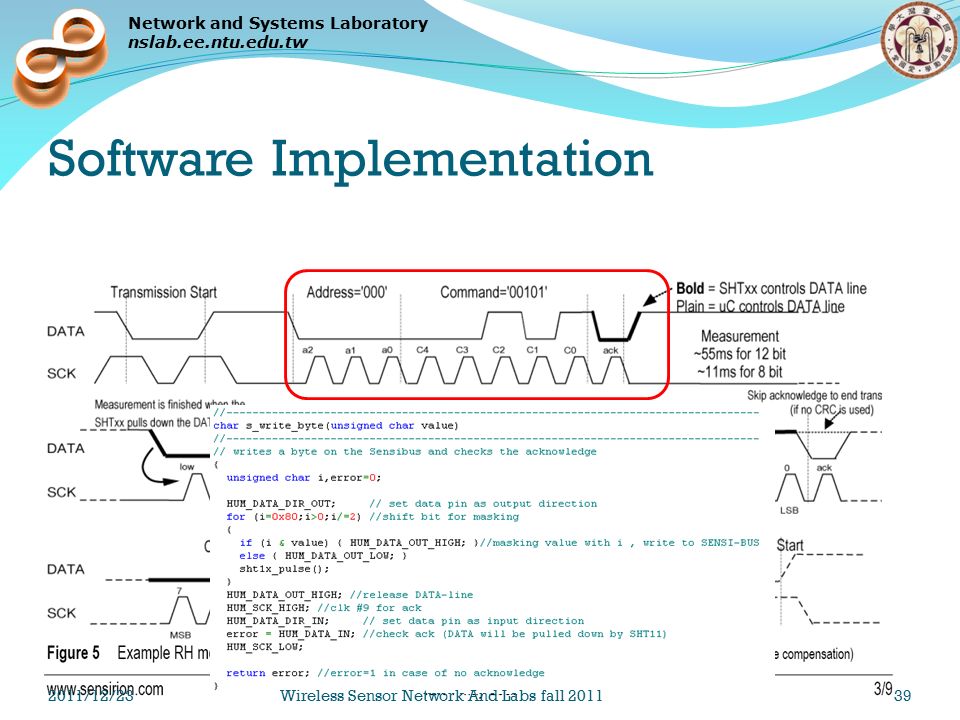

38 Network and Systems Laboratory nslab.ee.ntu.edu.tw Software Implementation 2011/12/23Wireless Sensor Network And Labs fall 201138

39 Network and Systems Laboratory nslab.ee.ntu.edu.tw Software Implementation 2011/12/23Wireless Sensor Network And Labs fall 201139

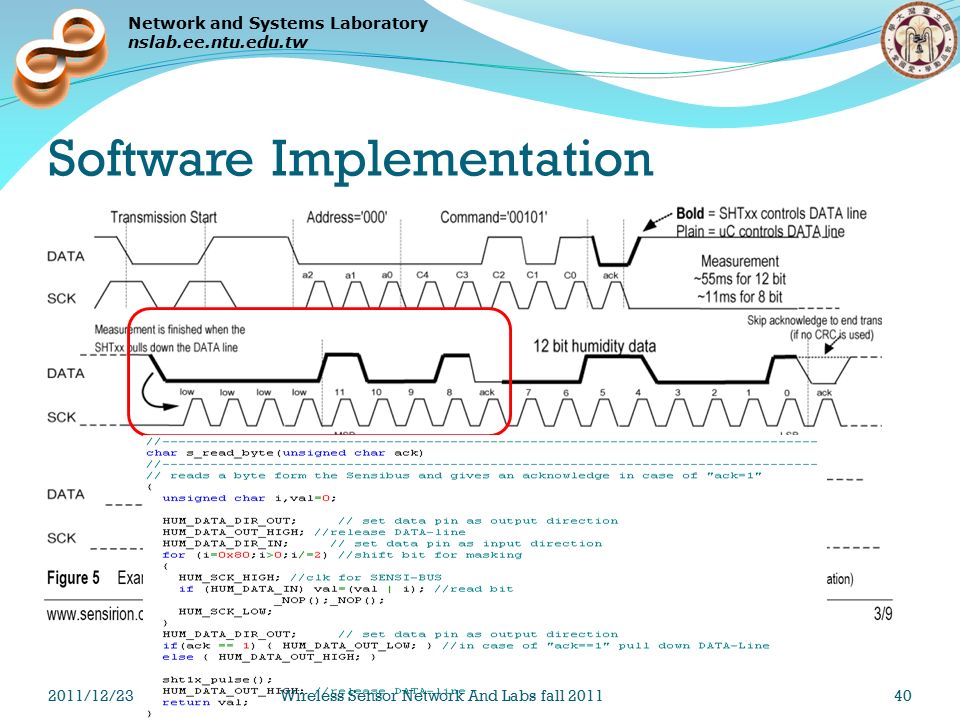

40 Network and Systems Laboratory nslab.ee.ntu.edu.tw Software Implementation 2011/12/23Wireless Sensor Network And Labs fall 201140

41 Network and Systems Laboratory nslab.ee.ntu.edu.tw Convert to Physical Values 12-bit humidity, 14-bit temperature Temperature Humidity 2011/12/23Wireless Sensor Network And Labs fall 201141

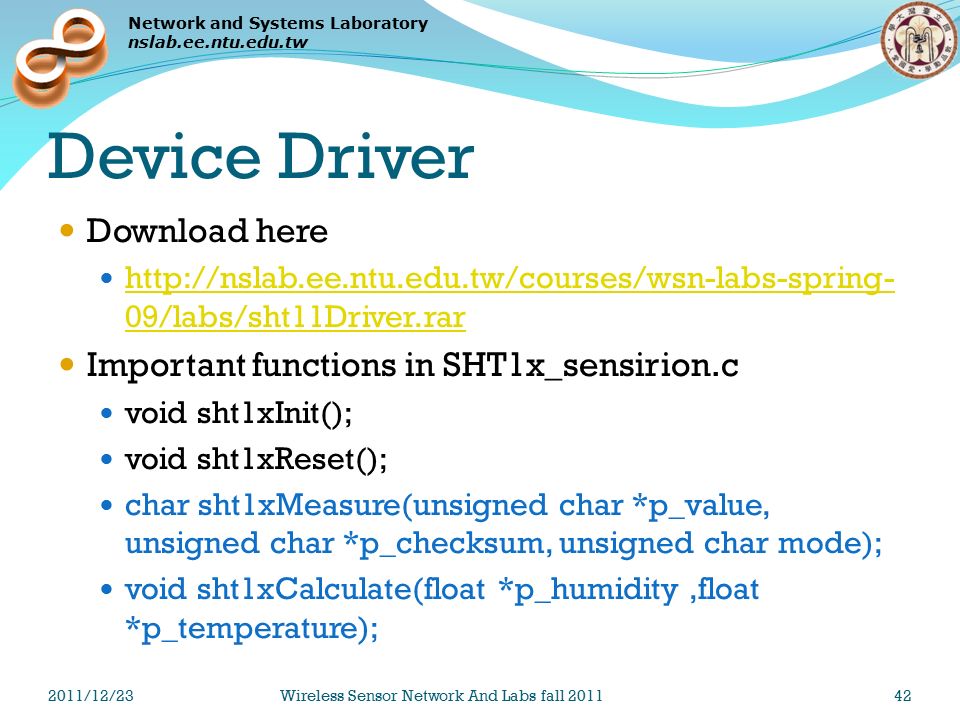

42 Network and Systems Laboratory nslab.ee.ntu.edu.tw Device Driver Download here http://nslab.ee.ntu.edu.tw/courses/wsn-labs-spring- 09/labs/sht11Driver.rar http://nslab.ee.ntu.edu.tw/courses/wsn-labs-spring- 09/labs/sht11Driver.rar Important functions in SHT1x_sensirion.c void sht1xInit(); void sht1xReset(); char sht1xMeasure(unsigned char *p_value, unsigned char *p_checksum, unsigned char mode); void sht1xCalculate(float *p_humidity,float *p_temperature); 2011/12/23Wireless Sensor Network And Labs fall 201142

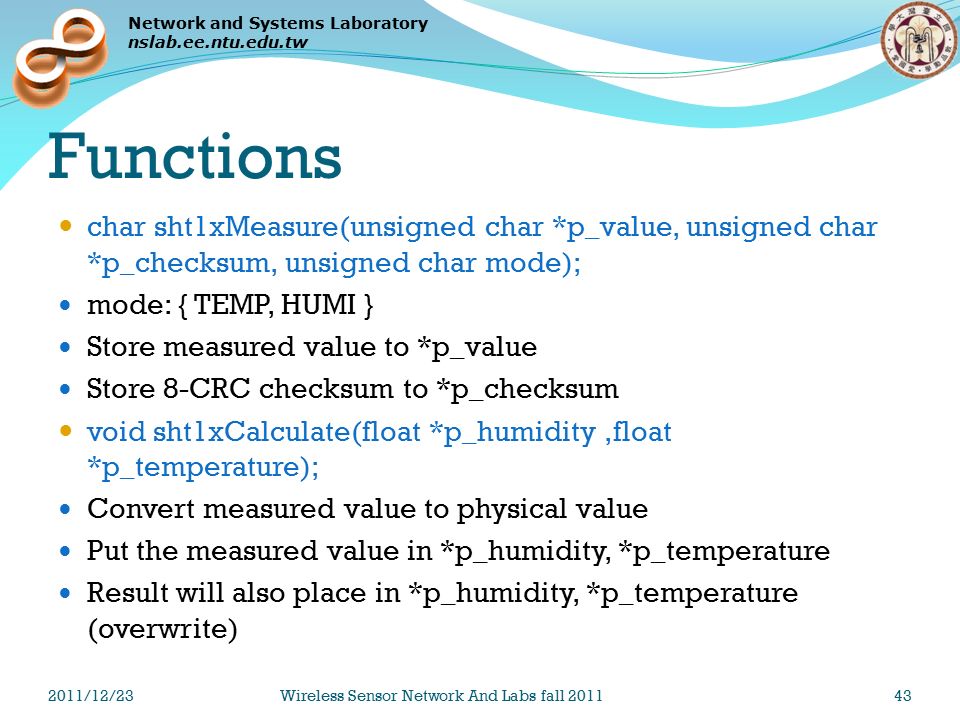

43 Network and Systems Laboratory nslab.ee.ntu.edu.tw Functions char sht1xMeasure(unsigned char *p_value, unsigned char *p_checksum, unsigned char mode); mode: { TEMP, HUMI } Store measured value to *p_value Store 8-CRC checksum to *p_checksum void sht1xCalculate(float *p_humidity,float *p_temperature); Convert measured value to physical value Put the measured value in *p_humidity, *p_temperature Result will also place in *p_humidity, *p_temperature (overwrite) 2011/12/23Wireless Sensor Network And Labs fall 201143

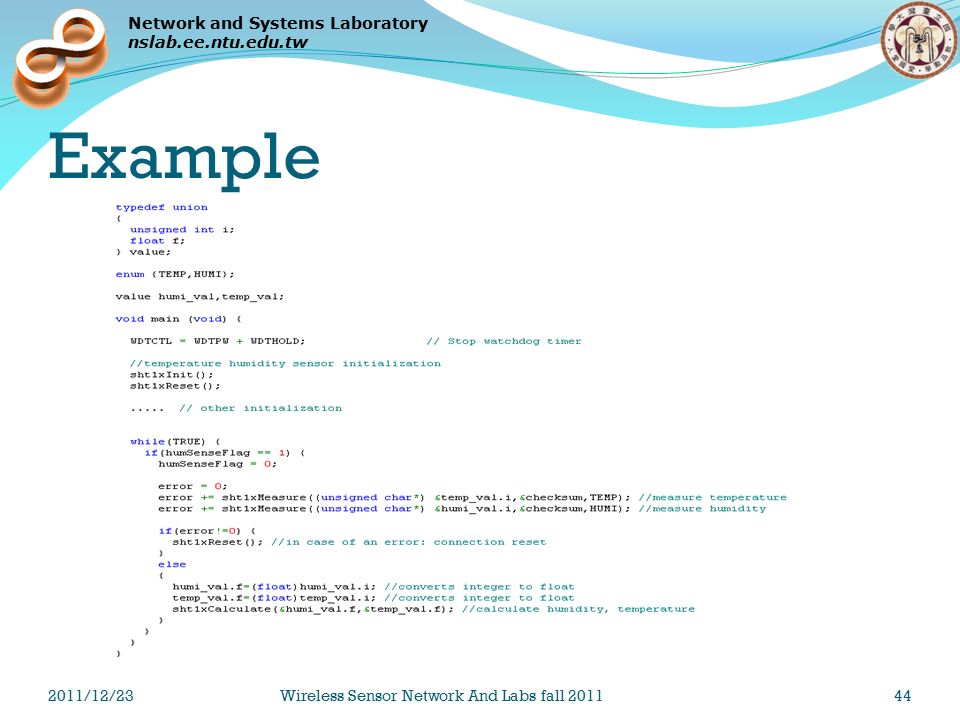

44 Network and Systems Laboratory nslab.ee.ntu.edu.tw Example 2011/12/23Wireless Sensor Network And Labs fall 201144

45 Network and Systems Laboratory nslab.ee.ntu.edu.tw Outline More peripherals Watchdog Timer Supply Voltage Supervisor (SVS) Direct Memory Access (DMA) Flash Memory Controller External 8Mbit Flash Memory: M25P80 Temperature/humidity sensor: SHT11 Low Power Modes MSP430 Software Coding Techniques 2011/12/23Wireless Sensor Network And Labs fall 201145

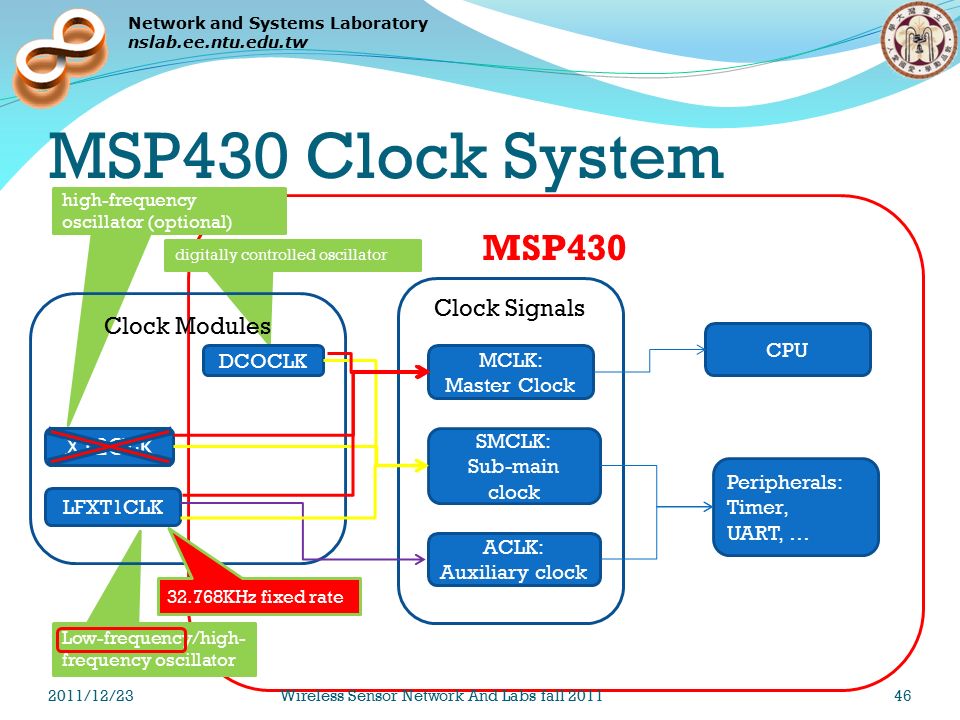

46 Network and Systems Laboratory nslab.ee.ntu.edu.tw MSP430 digitally controlled oscillator Low-frequency/high- frequency oscillator high-frequency oscillator (optional) MSP430 Clock System LFXT1CLK XT2CLK DCOCLK Clock Modules MCLK: Master Clock SMCLK: Sub-main clock ACLK: Auxiliary clock Clock Signals CPU Peripherals: Timer, UART, … 32.768KHz fixed rate 2011/12/23Wireless Sensor Network And Labs fall 201146

47 Network and Systems Laboratory nslab.ee.ntu.edu.tw MSP430 Power Consumption Characteristics Current increase with clock frequency Current increase with supply voltage Supply voltage vs frequency More active peripherals means more current consumption 2011/12/23Wireless Sensor Network And Labs fall 201147

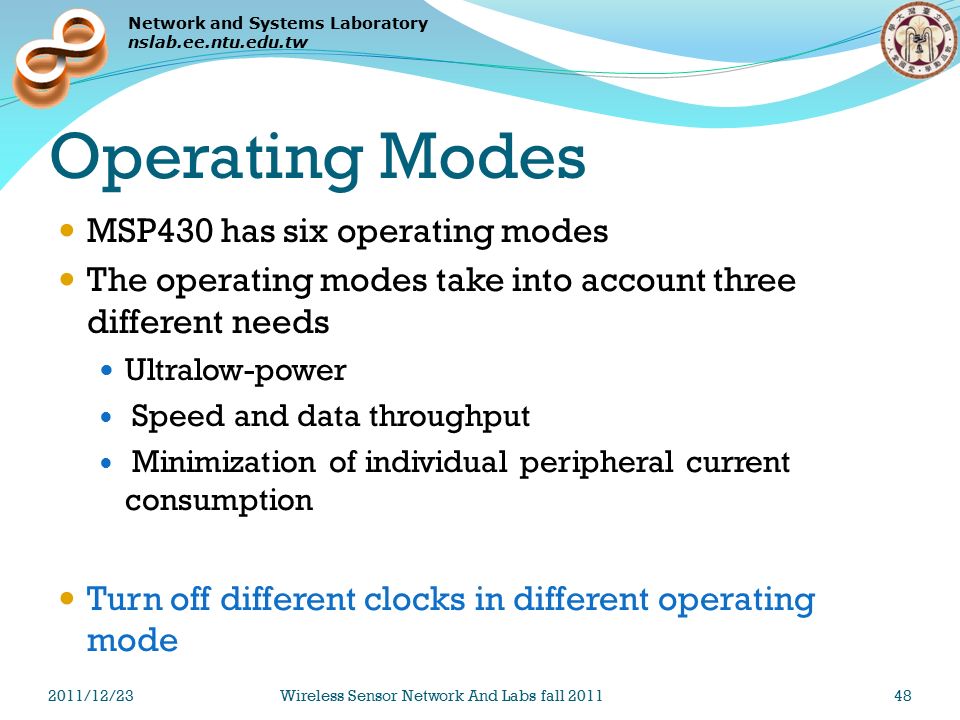

48 Network and Systems Laboratory nslab.ee.ntu.edu.tw Operating Modes MSP430 has six operating modes The operating modes take into account three different needs Ultralow-power Speed and data throughput Minimization of individual peripheral current consumption Turn off different clocks in different operating mode 2011/12/23Wireless Sensor Network And Labs fall 201148

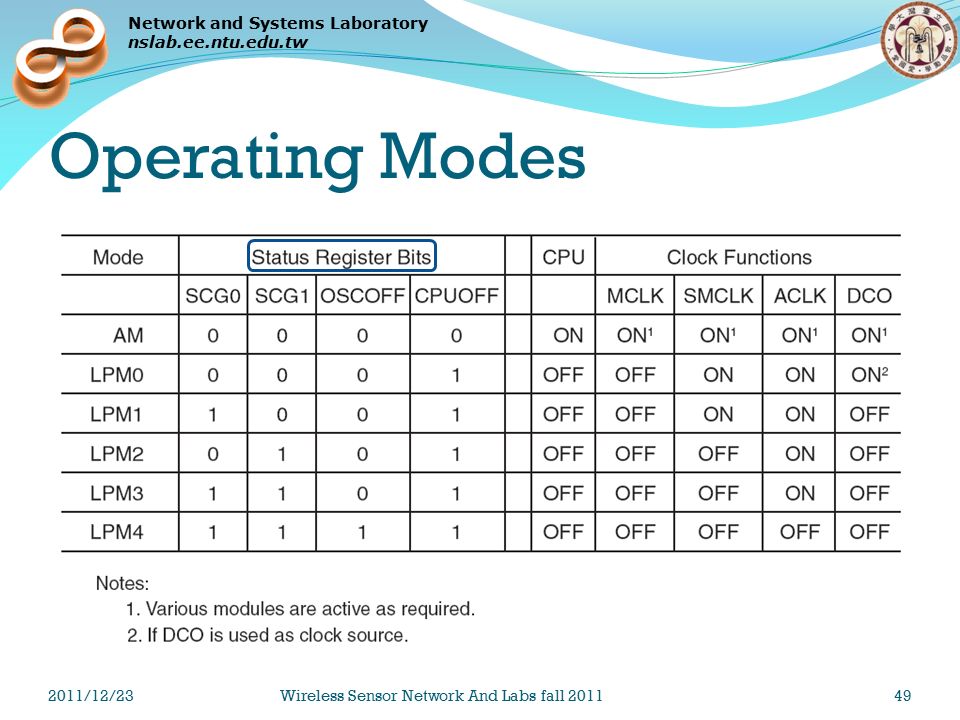

49 Network and Systems Laboratory nslab.ee.ntu.edu.tw Operating Modes 2011/12/23Wireless Sensor Network And Labs fall 201149

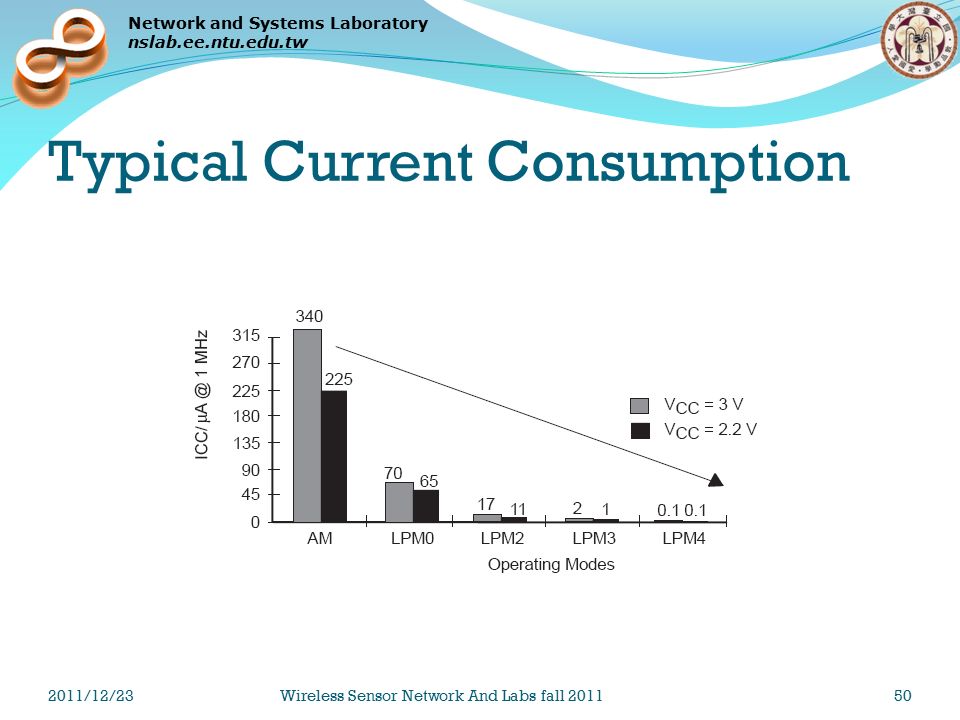

50 Network and Systems Laboratory nslab.ee.ntu.edu.tw Typical Current Consumption 2011/12/23Wireless Sensor Network And Labs fall 201150

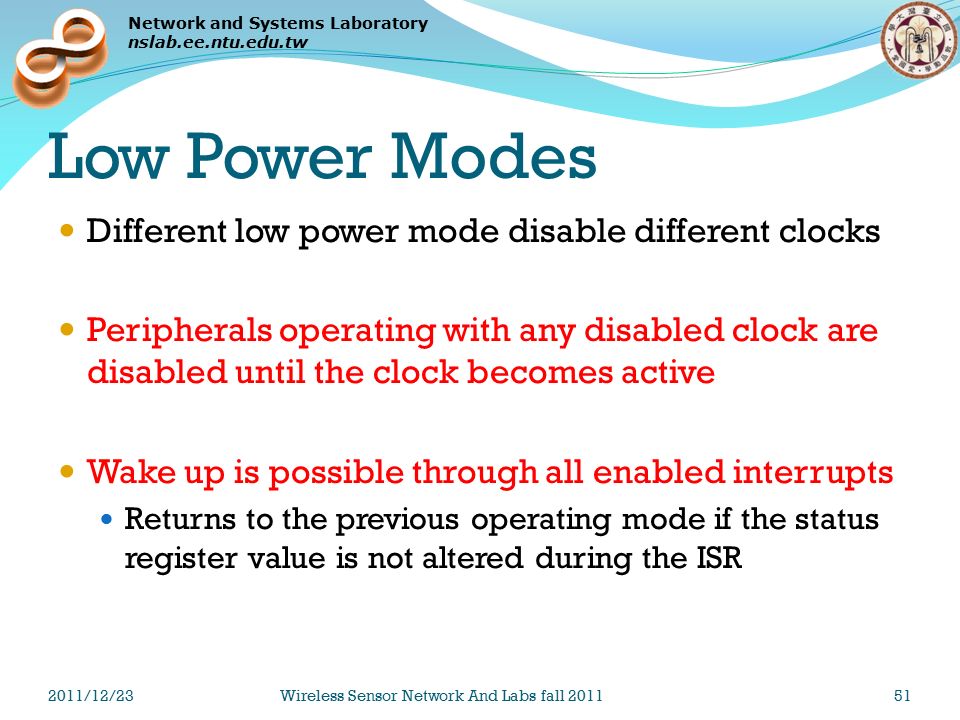

51 Network and Systems Laboratory nslab.ee.ntu.edu.tw Low Power Modes Different low power mode disable different clocks Peripherals operating with any disabled clock are disabled until the clock becomes active Wake up is possible through all enabled interrupts Returns to the previous operating mode if the status register value is not altered during the ISR 2011/12/23Wireless Sensor Network And Labs fall 201151

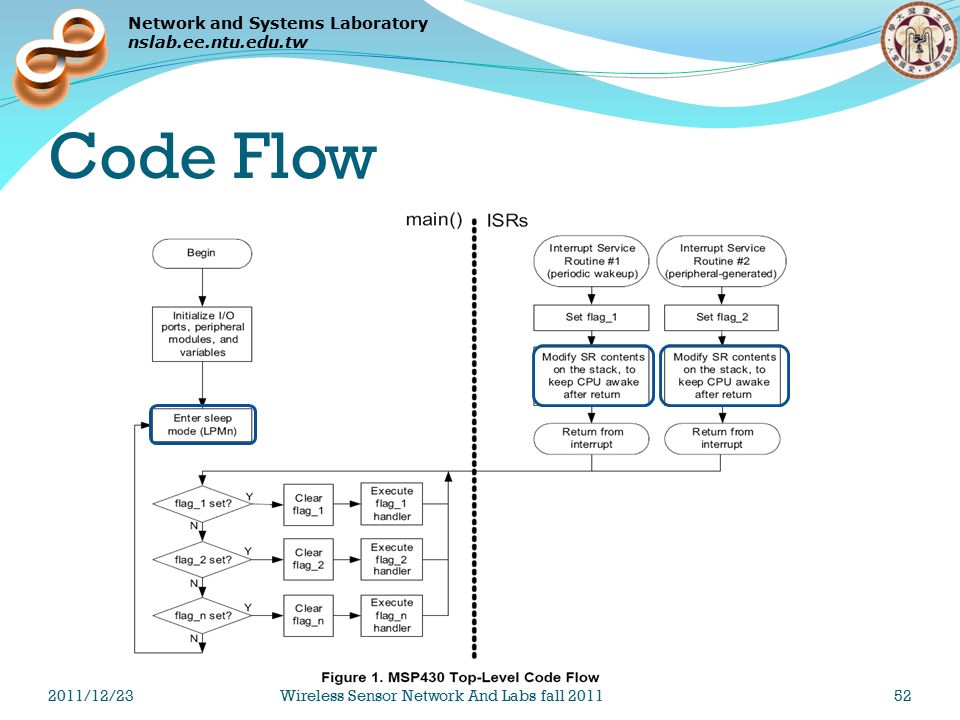

52 Network and Systems Laboratory nslab.ee.ntu.edu.tw Code Flow 2011/12/23Wireless Sensor Network And Labs fall 201152

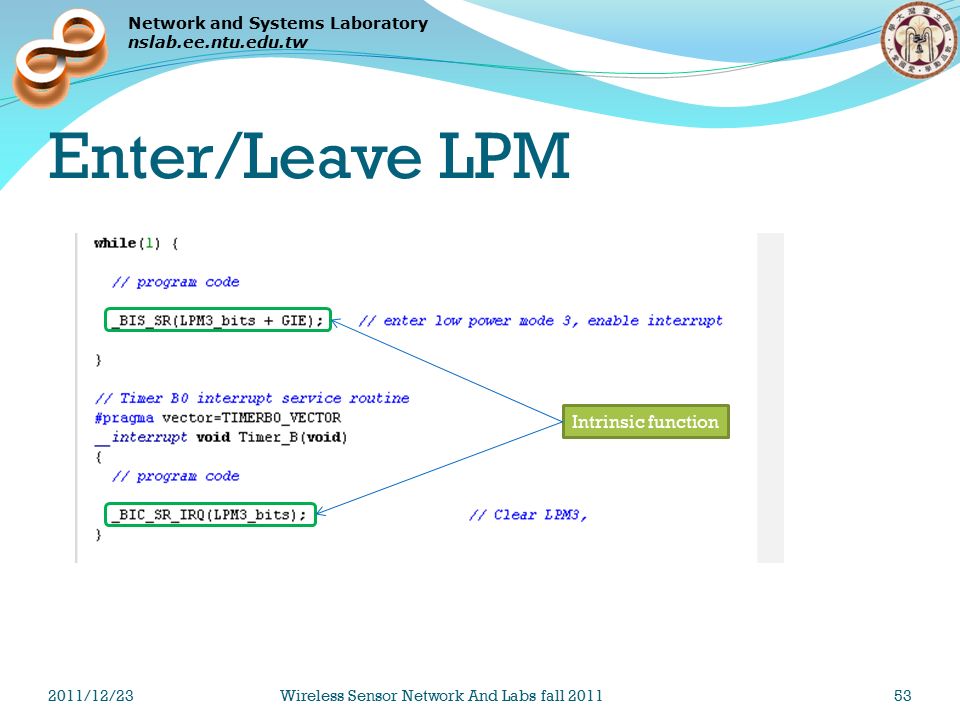

53 Network and Systems Laboratory nslab.ee.ntu.edu.tw Enter/Leave LPM Intrinsic function 2011/12/23Wireless Sensor Network And Labs fall 201153

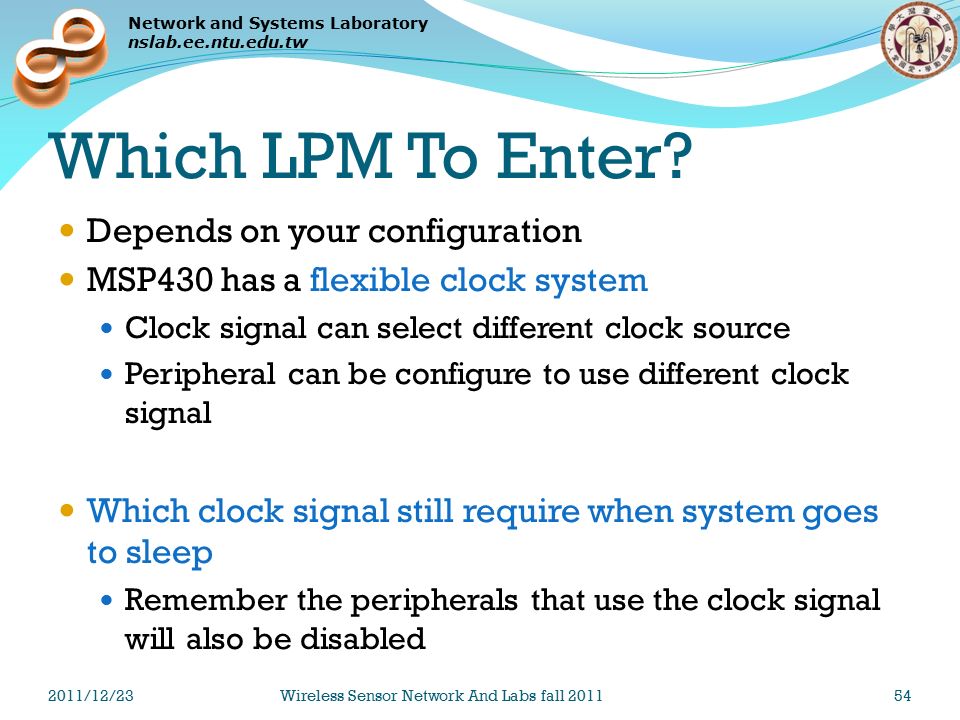

54 Network and Systems Laboratory nslab.ee.ntu.edu.tw Which LPM To Enter? Depends on your configuration MSP430 has a flexible clock system Clock signal can select different clock source Peripheral can be configure to use different clock signal Which clock signal still require when system goes to sleep Remember the peripherals that use the clock signal will also be disabled 2011/12/23Wireless Sensor Network And Labs fall 201154

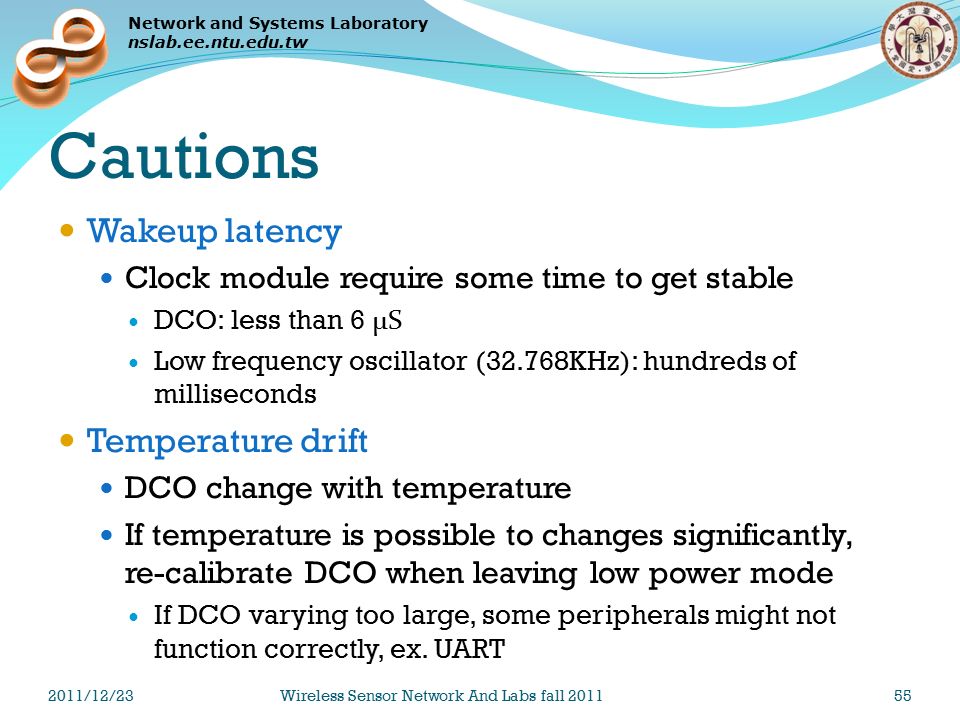

55 Network and Systems Laboratory nslab.ee.ntu.edu.tw Cautions Wakeup latency Clock module require some time to get stable DCO: less than 6 μS Low frequency oscillator (32.768KHz): hundreds of milliseconds Temperature drift DCO change with temperature If temperature is possible to changes significantly, re-calibrate DCO when leaving low power mode If DCO varying too large, some peripherals might not function correctly, ex. UART 2011/12/23Wireless Sensor Network And Labs fall 201155

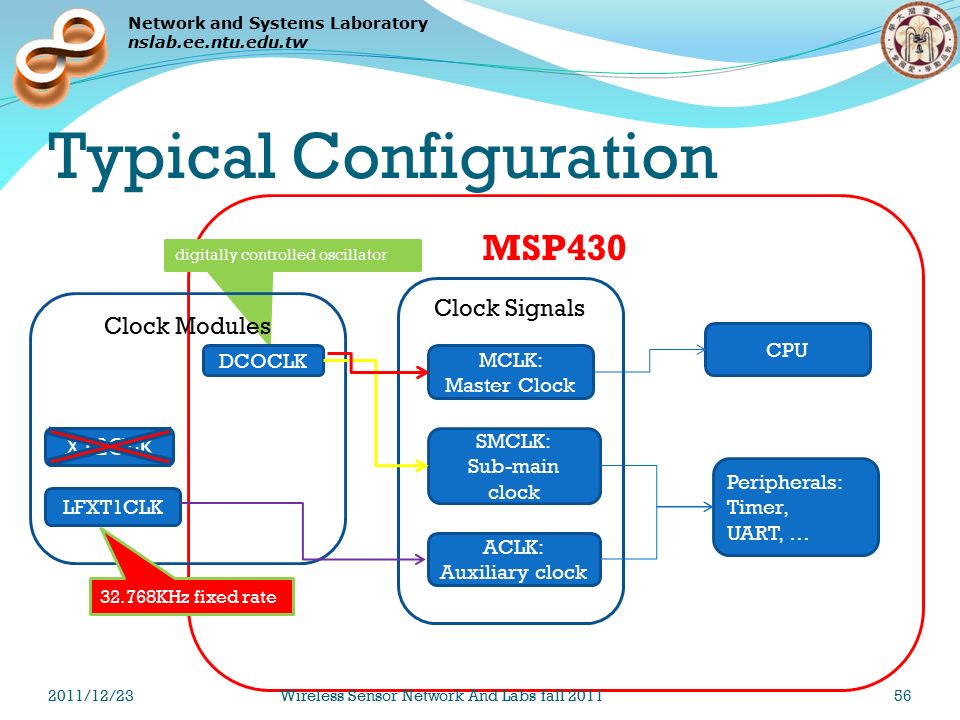

56 Network and Systems Laboratory nslab.ee.ntu.edu.tw MSP430 digitally controlled oscillator Typical Configuration LFXT1CLK XT2CLK DCOCLK Clock Modules MCLK: Master Clock SMCLK: Sub-main clock ACLK: Auxiliary clock Clock Signals CPU Peripherals: Timer, UART, … 32.768KHz fixed rate 2011/12/23Wireless Sensor Network And Labs fall 201156

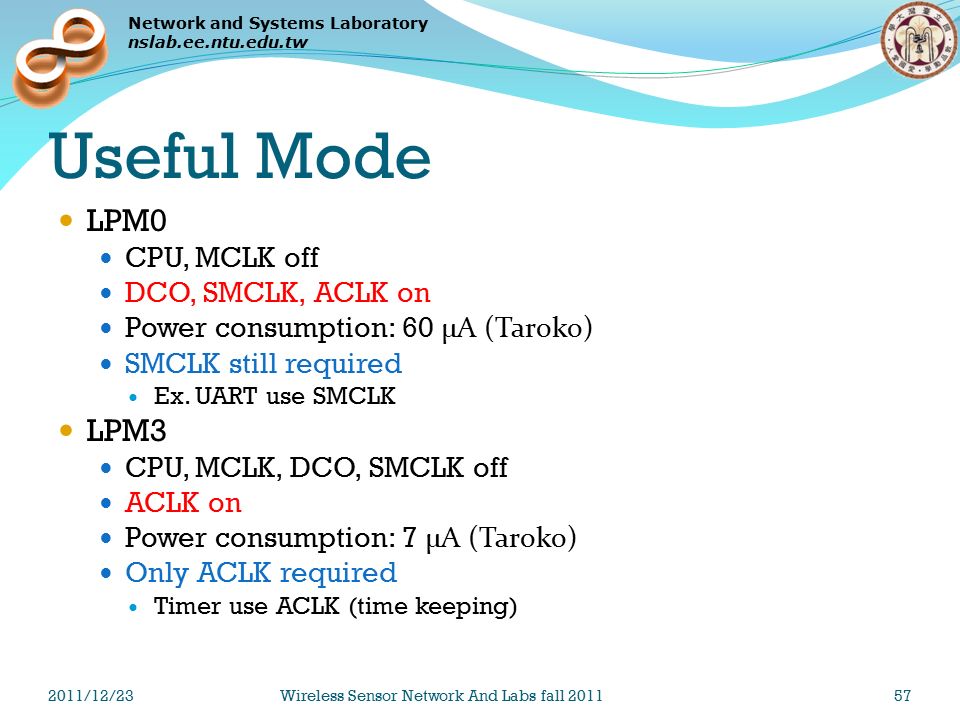

57 Network and Systems Laboratory nslab.ee.ntu.edu.tw Useful Mode LPM0 CPU, MCLK off DCO, SMCLK, ACLK on Power consumption: 60 μA (Taroko) SMCLK still required Ex. UART use SMCLK LPM3 CPU, MCLK, DCO, SMCLK off ACLK on Power consumption: 7 μA (Taroko) Only ACLK required Timer use ACLK (time keeping) 2011/12/23Wireless Sensor Network And Labs fall 201157

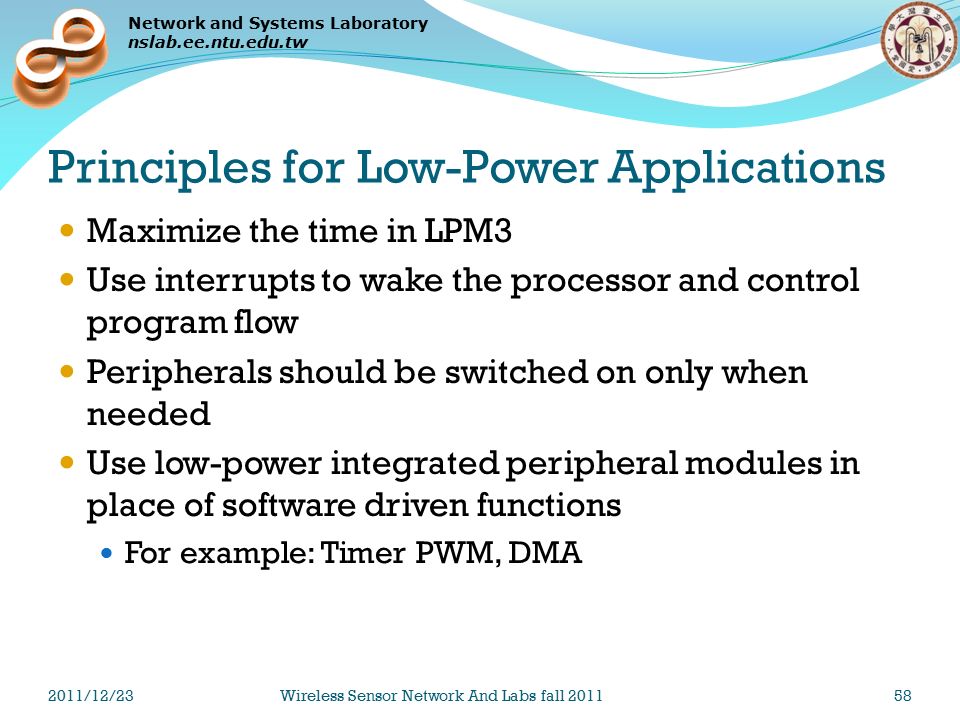

58 Network and Systems Laboratory nslab.ee.ntu.edu.tw Principles for Low-Power Applications Maximize the time in LPM3 Use interrupts to wake the processor and control program flow Peripherals should be switched on only when needed Use low-power integrated peripheral modules in place of software driven functions For example: Timer PWM, DMA 2011/12/23Wireless Sensor Network And Labs fall 201158

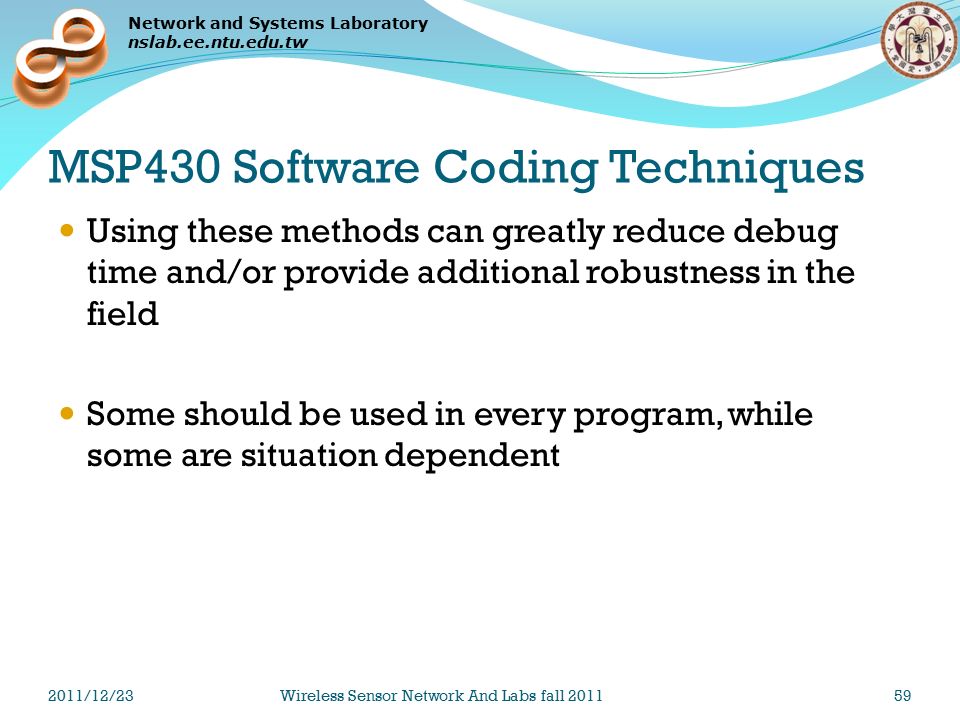

59 Network and Systems Laboratory nslab.ee.ntu.edu.tw MSP430 Software Coding Techniques Using these methods can greatly reduce debug time and/or provide additional robustness in the field Some should be used in every program, while some are situation dependent 2011/12/23Wireless Sensor Network And Labs fall 201159

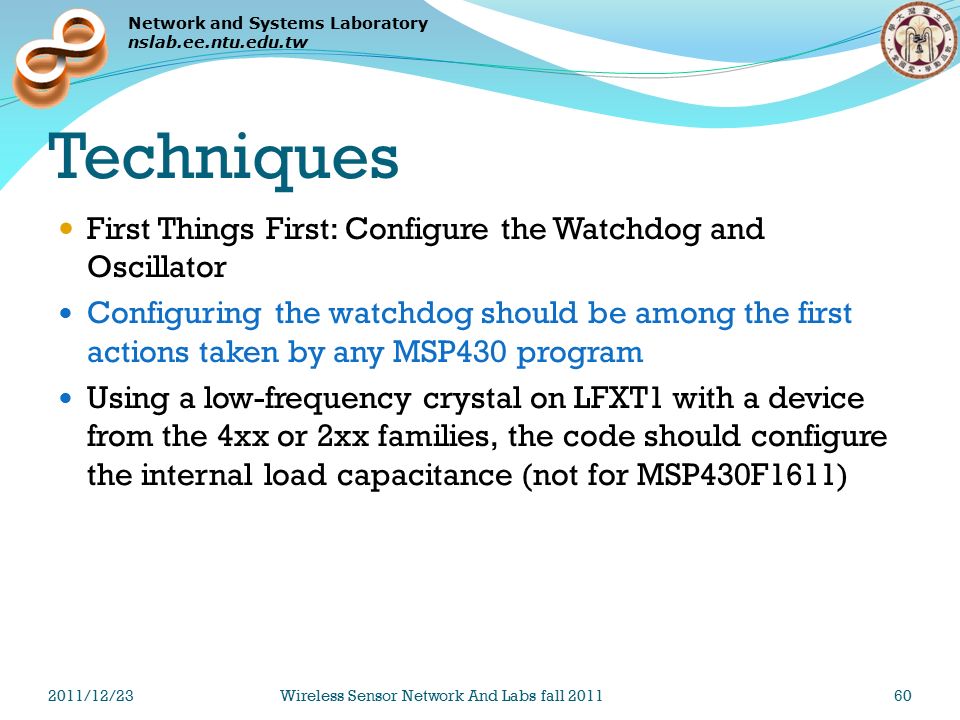

60 Network and Systems Laboratory nslab.ee.ntu.edu.tw Techniques First Things First: Configure the Watchdog and Oscillator Configuring the watchdog should be among the first actions taken by any MSP430 program Using a low-frequency crystal on LFXT1 with a device from the 4xx or 2xx families, the code should configure the internal load capacitance (not for MSP430F1611) 2011/12/23Wireless Sensor Network And Labs fall 201160

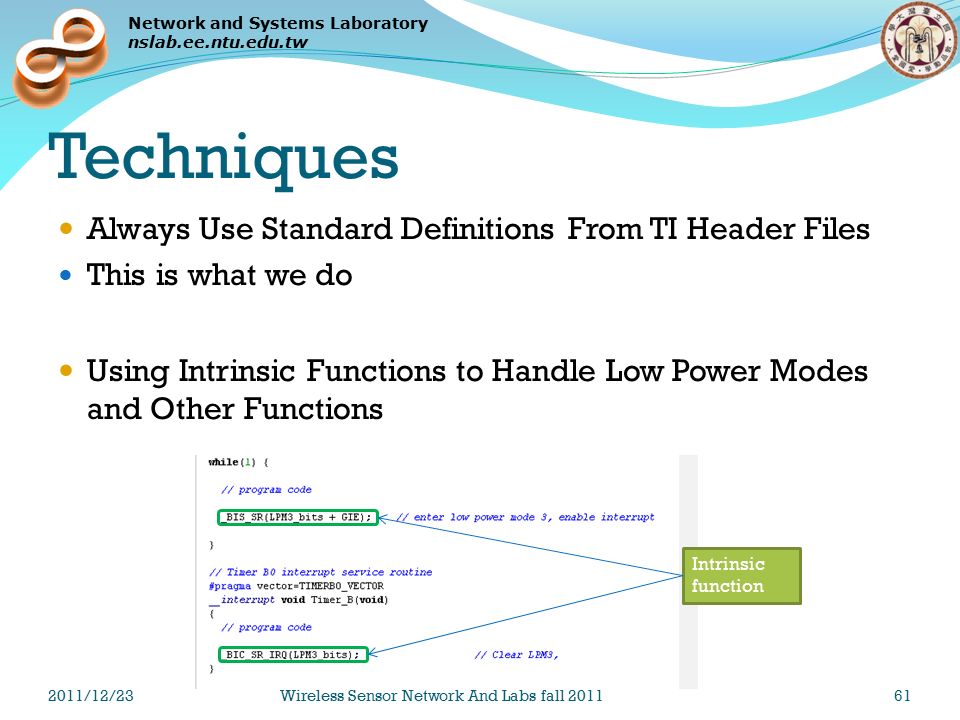

61 Network and Systems Laboratory nslab.ee.ntu.edu.tw Techniques Always Use Standard Definitions From TI Header Files This is what we do Using Intrinsic Functions to Handle Low Power Modes and Other Functions Intrinsic function 2011/12/23Wireless Sensor Network And Labs fall 201161

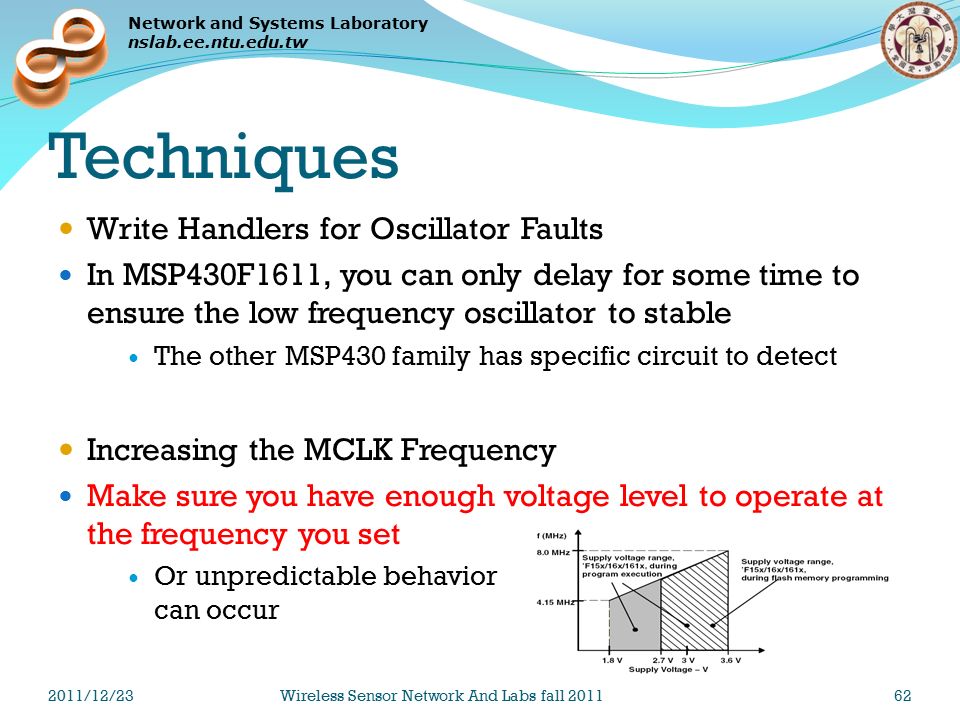

62 Network and Systems Laboratory nslab.ee.ntu.edu.tw Techniques Write Handlers for Oscillator Faults In MSP430F1611, you can only delay for some time to ensure the low frequency oscillator to stable The other MSP430 family has specific circuit to detect Increasing the MCLK Frequency Make sure you have enough voltage level to operate at the frequency you set Or unpredictable behavior can occur 2011/12/23Wireless Sensor Network And Labs fall 201162

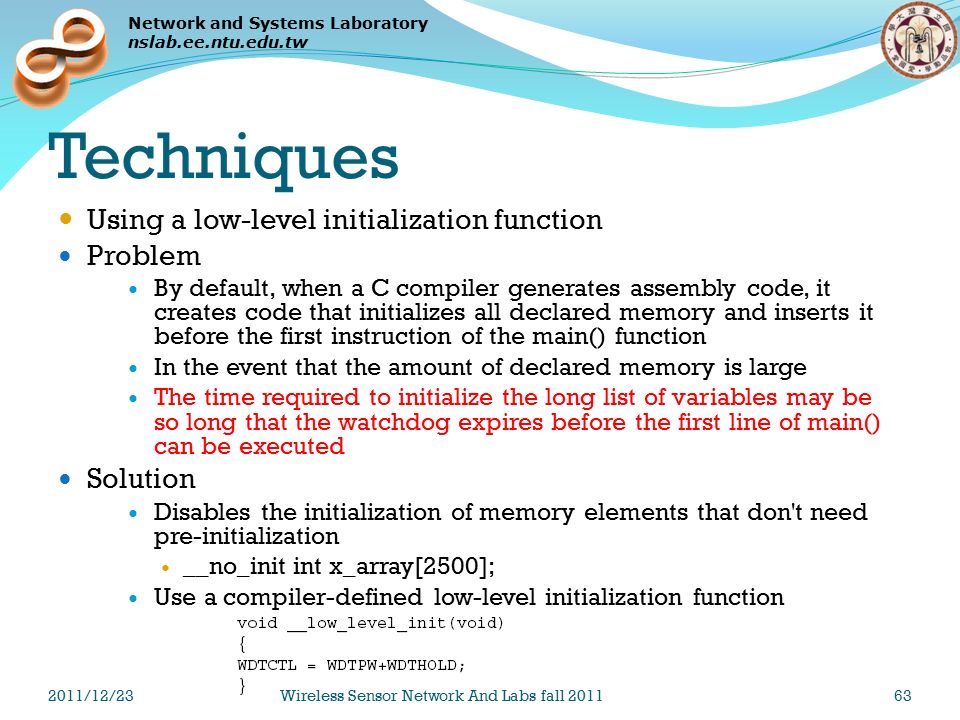

63 Network and Systems Laboratory nslab.ee.ntu.edu.tw Techniques Using a low-level initialization function Problem By default, when a C compiler generates assembly code, it creates code that initializes all declared memory and inserts it before the first instruction of the main() function In the event that the amount of declared memory is large The time required to initialize the long list of variables may be so long that the watchdog expires before the first line of main() can be executed Solution Disables the initialization of memory elements that don't need pre-initialization __no_init int x_array[2500]; Use a compiler-defined low-level initialization function 2011/12/23Wireless Sensor Network And Labs fall 201163

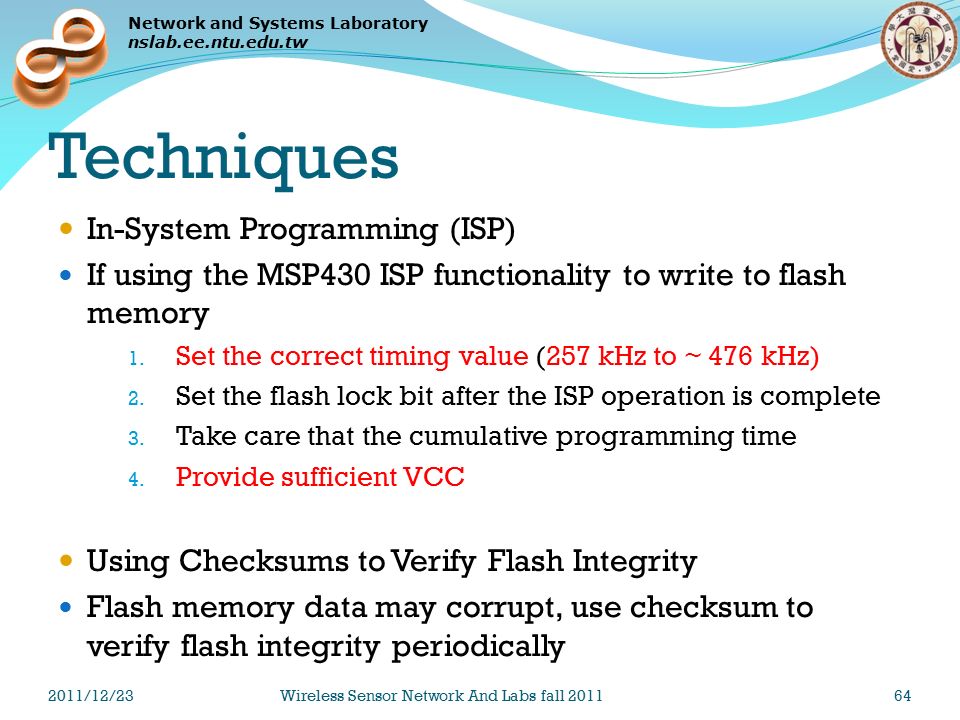

64 Network and Systems Laboratory nslab.ee.ntu.edu.tw Techniques In-System Programming (ISP) If using the MSP430 ISP functionality to write to flash memory 1. Set the correct timing value (257 kHz to ~ 476 kHz) 2. Set the flash lock bit after the ISP operation is complete 3. Take care that the cumulative programming time 4. Provide sufficient VCC Using Checksums to Verify Flash Integrity Flash memory data may corrupt, use checksum to verify flash integrity periodically 2011/12/23Wireless Sensor Network And Labs fall 201164

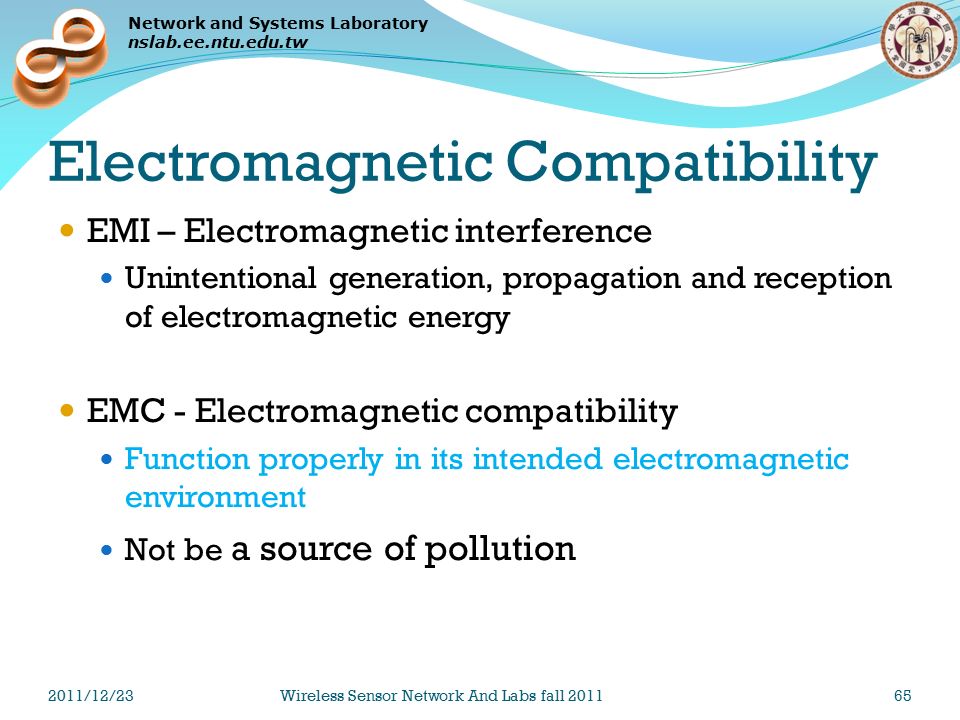

65 Network and Systems Laboratory nslab.ee.ntu.edu.tw Electromagnetic Compatibility EMI – Electromagnetic interference Unintentional generation, propagation and reception of electromagnetic energy EMC - Electromagnetic compatibility Function properly in its intended electromagnetic environment Not be a source of pollution 2011/12/23Wireless Sensor Network And Labs fall 201165

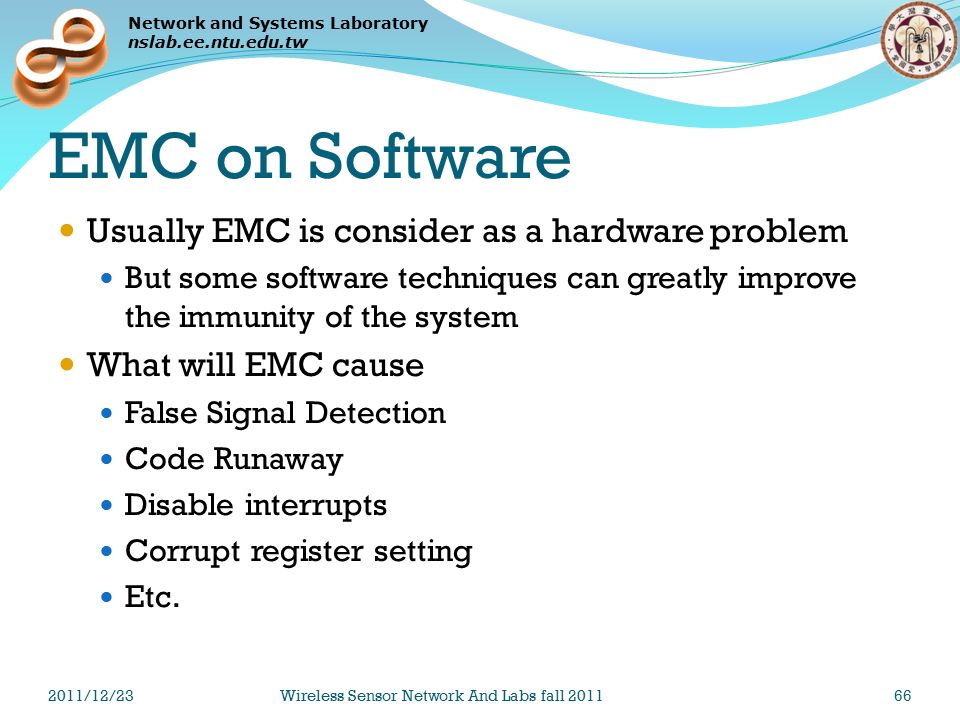

66 Network and Systems Laboratory nslab.ee.ntu.edu.tw EMC on Software Usually EMC is consider as a hardware problem But some software techniques can greatly improve the immunity of the system What will EMC cause False Signal Detection Code Runaway Disable interrupts Corrupt register setting Etc. 2011/12/23Wireless Sensor Network And Labs fall 201166

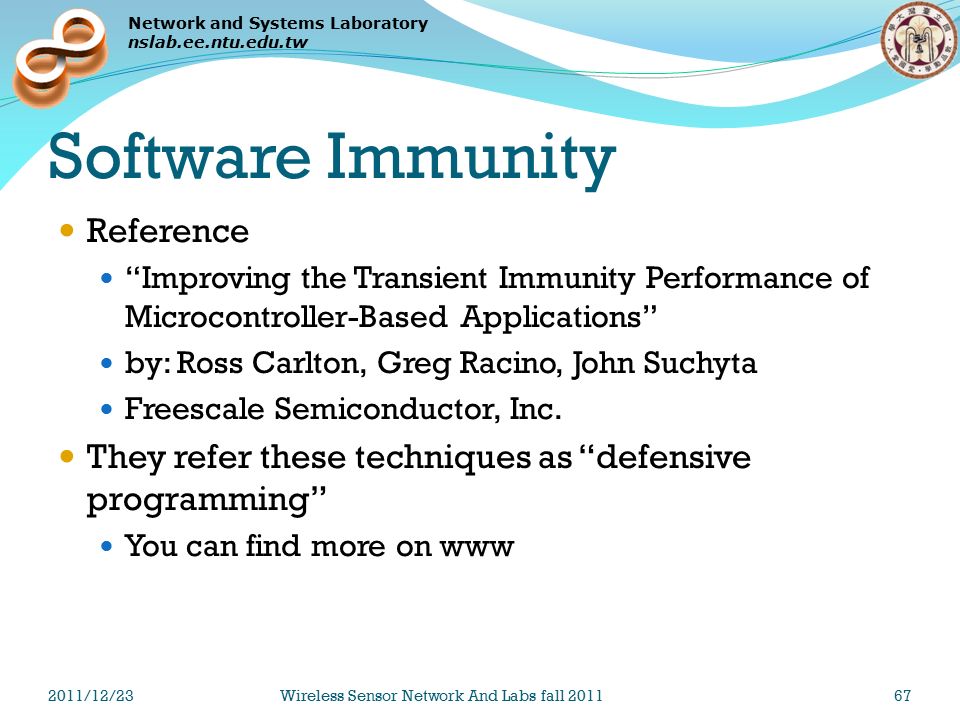

67 Network and Systems Laboratory nslab.ee.ntu.edu.tw Software Immunity Reference “Improving the Transient Immunity Performance of Microcontroller-Based Applications” by: Ross Carlton, Greg Racino, John Suchyta Freescale Semiconductor, Inc. They refer these techniques as “defensive programming” You can find more on www 2011/12/23Wireless Sensor Network And Labs fall 201167

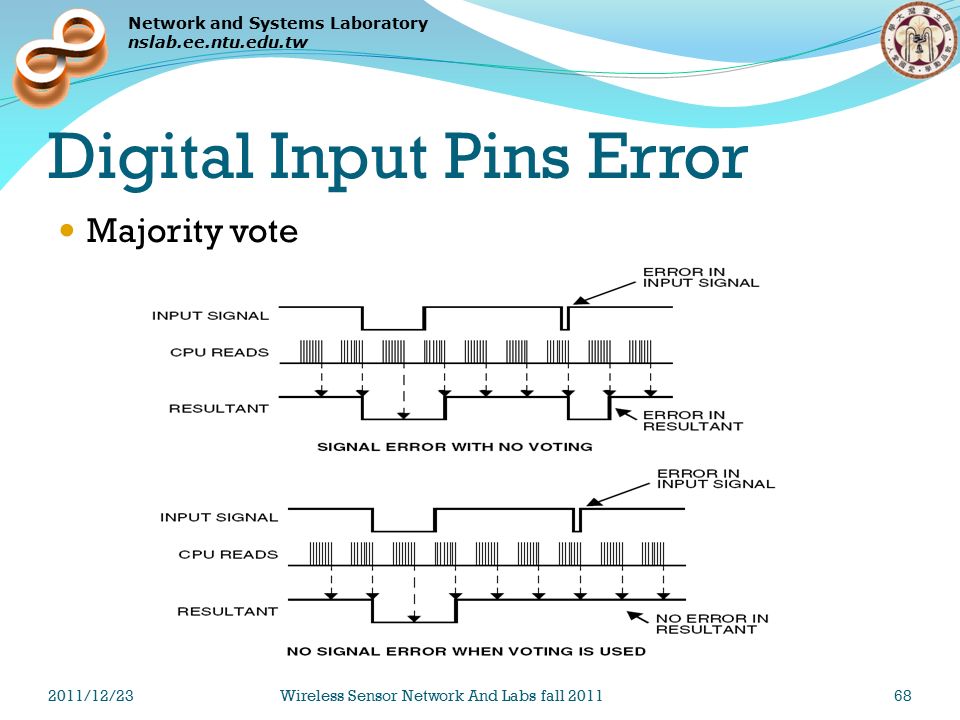

68 Network and Systems Laboratory nslab.ee.ntu.edu.tw Digital Input Pins Error Majority vote 2011/12/23Wireless Sensor Network And Labs fall 201168

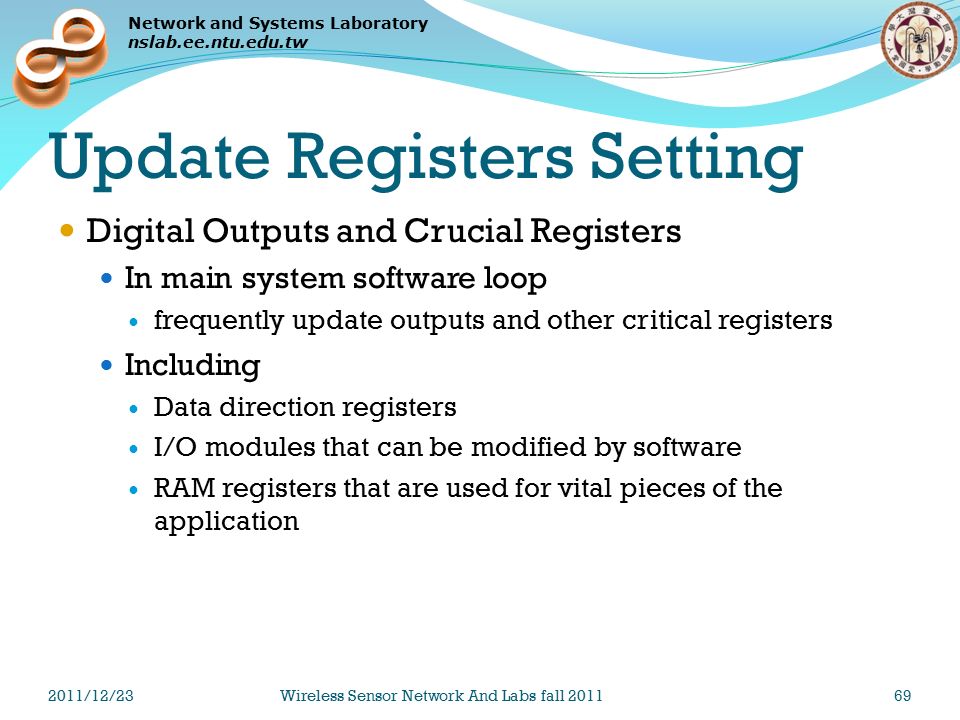

69 Network and Systems Laboratory nslab.ee.ntu.edu.tw Update Registers Setting Digital Outputs and Crucial Registers In main system software loop frequently update outputs and other critical registers Including Data direction registers I/O modules that can be modified by software RAM registers that are used for vital pieces of the application 2011/12/23Wireless Sensor Network And Labs fall 201169

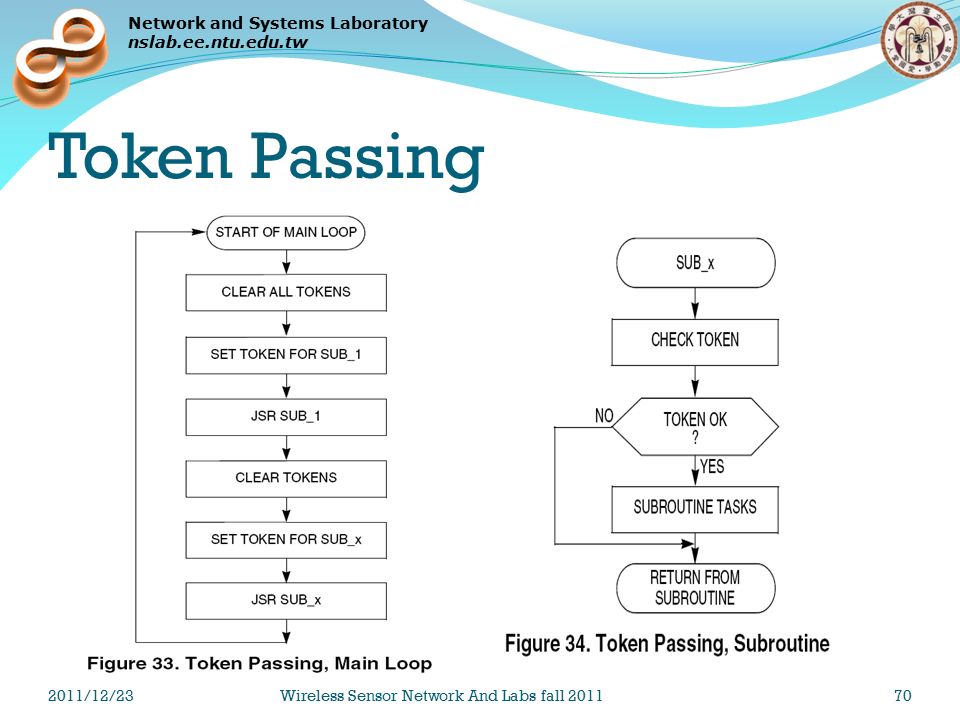

70 Network and Systems Laboratory nslab.ee.ntu.edu.tw Token Passing 2011/12/23Wireless Sensor Network And Labs fall 201170

71 Network and Systems Laboratory nslab.ee.ntu.edu.tw Filling Unused Memory Fill unused memory with a single byte instruction SWI (software interrupt) NOP (no operation) 2011/12/23Wireless Sensor Network And Labs fall 201171

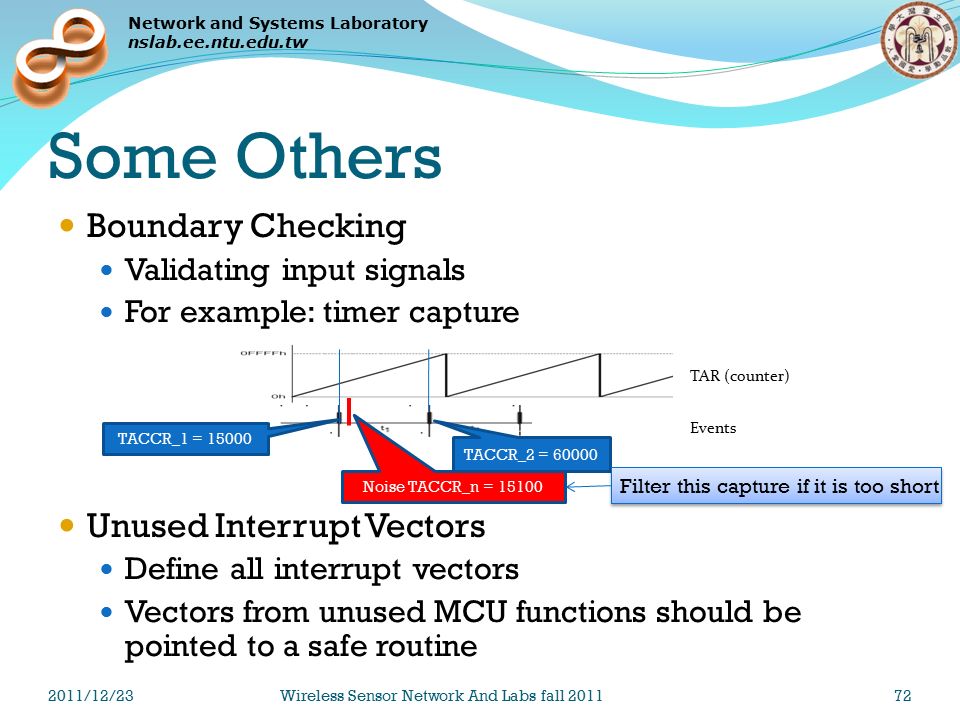

72 Network and Systems Laboratory nslab.ee.ntu.edu.tw Some Others Boundary Checking Validating input signals For example: timer capture Unused Interrupt Vectors Define all interrupt vectors Vectors from unused MCU functions should be pointed to a safe routine 2011/12/23Wireless Sensor Network And Labs fall 201172 TAR (counter) Events TACCR_1 = 15000 TACCR_2 = 60000 Noise TACCR_n = 15100 Filter this capture if it is too short

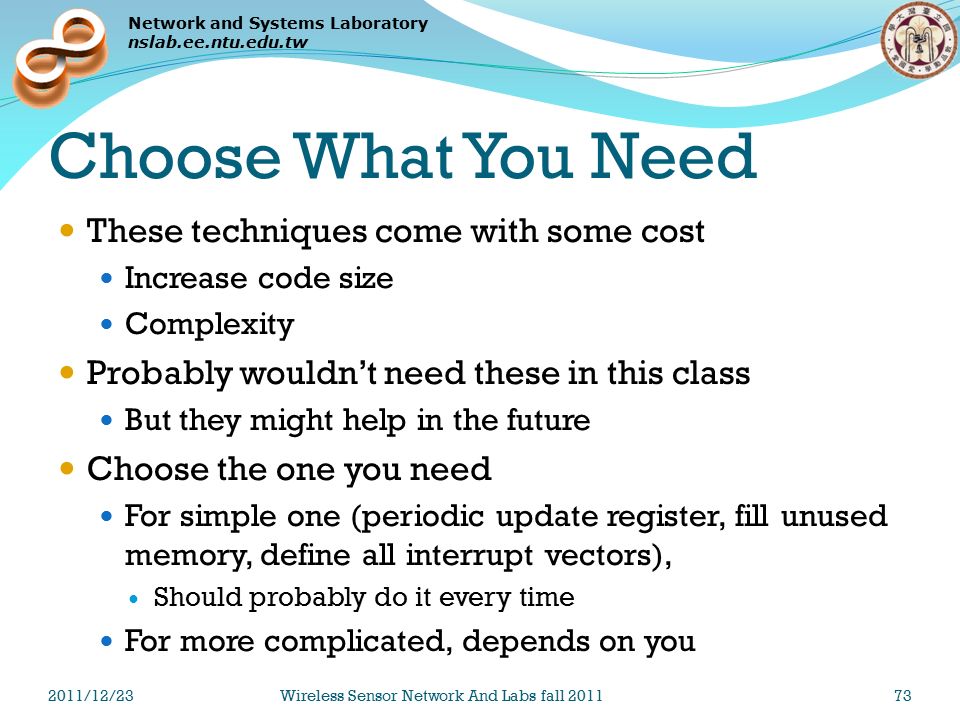

73 Network and Systems Laboratory nslab.ee.ntu.edu.tw Choose What You Need These techniques come with some cost Increase code size Complexity Probably wouldn’t need these in this class But they might help in the future Choose the one you need For simple one (periodic update register, fill unused memory, define all interrupt vectors), Should probably do it every time For more complicated, depends on you 2011/12/23Wireless Sensor Network And Labs fall 201173

74 Network and Systems Laboratory nslab.ee.ntu.edu.tw Thank You 2011/12/23Wireless Sensor Network And Labs fall 201174
