1. George Vaughan Franklin University
ITEC 400 Shell (Part 1)
George Vaughan
Franklin University

2. Topics Course Introduction Getting Started Origins of Unix
Origins of Linux
Scripting Languages
The Shell
Shell Philosophy
Shell Types
Programming with the Shell

3. Course Introduction
Learning to manage a Unix Operating System (with emphasis on SUN Solaris and Linux).
Writing Shell and Perl scripts to automate OS management
We will also see a little AWK.
Learn to configure and work with the Apache Web Server.
Finally, we also want to cover some Computer History and discuss some of the hot topics in Computer Science today.

4. Getting Started Man Pages Web Books
Use the man page for commands you are unfamiliar with
Example: man date
Web
Google (
Books
The texts for this course
Each lecture will contain a set of additional references.

5. Some Quick Tips
If your back space key doesn't work with putty, try the following:
At Unix prompt, type: stty erase '^?'
It is handy to add to your .profile
Making your own commands/scripts/tools
Create a bin directory in your home directory
Set your PATH variable to include your bin directory
export PATH=$PATH:~/bin (add to your .profile)
Make sure your scripts are executable
chmod +x your_script

6. Some Quick Tips
Unfortunately, text (ascii) files created on a PC are not quite compatible with Unix/Linux:
In Unix and Linux, a new line is represented by a single character, the carriage return character (you can’t see it)
In many windows applications like Notepad, each line ends with 2 characters, a carriage return character followed by a line feed character (you can’t see them).
If you create a shell or perl script in Notepad and then attempt to execute it on a Unix machine, the script will fail
There is a Unix command to strip out the line feed characters, it is named: dos2unix (see man page).

7. Origins of Unix
In the early 1960's, MIT experimented with Time sharing systems: CTSS and MAC.
This developed into the Multics project.
Funded by ARPA (ARPA also funded the creation of the Internet, originally known as ARPANET).
Project included MIT, GE and Bell Labs (Included Dennis Ritchie and Ken Thompson from Bell Labs).
Bell Labs withdrew in 1969.

8. Origins of Unix
Ken Thompson wrote a game called 'Space Travel' but it was expensive to run on a Mainframe.
Thompson found an old PDP-7 with inadequate OS.
Thompson and Ritchie wrote the precursor to UNIX in assembly language.

9. Origins of Unix
Thompson and Ritchie wanted a portable OS for programmers.
Ritchie developed the language C as mid-level language to implement UNIX. This was very important because:
It allowed UNIX to be portable.
It made it much easier to maintain/modify UNIX
Portability allowed UNIX to spread to other platforms very quickly.

10. Origins of Unix
Bell Labs was part of AT&T. AT&T was a legal telecommunications monopoly and was not allowed to sell computers or software.
AT&T licensed UNIX source to Universities which made their own modifications and variations (specifically Berkley).
After divestiture of AT&T in 1984, AT&T commercializes UNIX.
Many commercial variants exist, including SUN Solaris, HP-UX, IBM AIX, Compaq TRUE64, etc. Source NOT available.

11. Where did GNU and Linux Come From?
In the mid 80's, Richard Stallman, a researcher at MIT, felt it was morally wrong that companies would not share source code.
Stallman created the Free Software Foundation (FSF) with the goal a creating a free OS, called GNU (GNU stands for 'GNU is Not Unix').
see:
In the late 1980's, Stallman wins the McArthur Genious Award ($300K) and uses the money to support the GNU effort.

12. Where did GNU and Linux Come From?
GNU project decided to work on OS tools first (gcc, gdb, gnu make, gzip, etc) and the Kernel last.
In the early 1990's, Linus Torvalds wants source to Minix and is turned away. Torvalds creates a UNIX compliant Kernel and encourages other over the internet to help him.
In the mid 1990s complete, free, UNIX compliant OS's were created by merging GNU tools with Linux. This is what Redhat, Fedora, Knoppix, Debian, Mandrake, Suse, Knoppix, etc. have done.
GNU still working on its own Kernel (GNU HURD)

13. Where did GNU and Linux Come From?
In a strict sense, Linux refers to the kernel.
The kernel is a single executable file.
In Redhat 9.0, the kernel is:
located at /boot/vmlinuz
based on version 2.4
approximately 1.1 Mbytes in size (small)

14. Scripting Languages
Roughly Speaking, there are two types of programming languages:
Highly structured, strongly typed languages (e.g. C, C++, Java, Fortran, Cobol, etc.)
High Performance
Robust
Commonly used for commercial products
Scripting languages (e.g. Shell, AWK, Perl, Python)
Used for quick and dirty coding
Easily Modifiable
Good for prototyping
Can be used for commercial products.

15. Shell
From the O.S. perspective, the Shell is just another application.
From the user’s perspective, it is a command line interface (CLI).
The Shell is a layer of code between the user (or scripts) and the kernel.
When you execute a command like 'ls' or 'date’ or your own script, the shell spawns a new process for each command executed.
This means that the command is a different process than the shell itself.
Exception: some commands like ‘cd’ and ‘kill’ are built into the shell itself and run within the shell process.
A Shell is an application just like a program you might write.
The Shell sits between the kernel and user (or script).
When you execute a command like 'ls' or 'date', the shell spawns a new process from which the command is executed.
This means that the command is a different process than the shell itself. If the command terminates successfully or crashes, the command process terminates (or dies) and control returns to the shell process.

16. Shell
If the command terminates successfully or crashes, the command process terminates (or dies) and standard I/O control returns to the shell process.

17. Unix Shell Philosophy The shell approach keeps the kernel small.
The shell manages user commands at the process level.
Some OS's build the command processing and some if not all commands in the kernel itself, resulting in a large, monolithic kernel.
A piece of code should be written to do one thing, but do it well.
The Shell provides the glue (pipes, tee, redirection, etc.) to create more complex solutions (we will see examples of this later).
One objective of the shell is to keep the kernel small. The kernel is focused on managing recourses and communicating with the hardware.
The shell manages user commands at the process level. From the kernel's perspective, the shell, user commands and user applications are all just a bunch of processes.
Some OS's build the command processing and some if not all commands in the kernel itself, resulting in a large, monolithic kernel.
A piece of code should be written to do one thing, but do it well. The Shell provides the glue (pipes, tee, redirection, etc.)

18. Unix Shell Types
Today, Unix supports many types of shells, the usage of any single one being user a preference.
An incomplete list is shown below:
Bourne Shell (sh) – The original Unix shell, written by Stephen Bourne, Bell Labs.
Korn Shell (ksh) – Written by David Korn at Bell Labs. Default shell on Einstein.
C Shell (csh) –Provides a 'C' like programming interface. Written by Bill Joy. Bill Joy is cofounder of SUN Microsystems.
Bourne Again Shell (bash) – Comes from the Free Software Foundation. Common in Linux and Unix Distributions. Available on einstein.
Today, Unix supports many types of shells, the usage of any single one being user preference.
An incomplete list is shown below:
Bourne Shell (sh) – The original Unix shell. Written by Steve Bourne at Bell Labs. Rather limited in user features (no command line history). Probably the most commonly used (for historical reasons?)
Korn Shell (ksh) – Written by David Korn at Bell Labs. One of the most useful shells, combines features of other shells. Standard on commercial Unix distributions such as Solaris (SUN) and HP-UX (HP). Default shell on Einstein.
C Shell (csh) – Comes from University of California, Berkley. Provides a 'C' like programming interface.
Bourne Again Shell (bash) – Comes from the Free Software Foundation. Combines features of other shells. Program compatible with Bourne Shell. Common in Linux Distributions.

19. Unix Shell Types
Many Unix systems support multiple shell types (including Linux).
A default shell can be defined for each user in the password file (/etc/passwd).
Einstein supports: sh, ksh, bash, csh
Redhat Linux supports: sh, ksh, bash, csh, tcsh, zsh, ash and others.
The set of legal user shells is usually defined in /etc/shells (true in RH, not true on einstein)

20. Unix Shell Types What shell am I using?
We can find out by typing: echo $SHELL
In my case, I am using Korn shell (also know as ‘K’ shell):
>echo $SHELL
/bin/ksh
The name of the Korn shell executable is ‘ksh’ and in is located in ‘/bin’

21. Unix Shell Types Can I change the shell type I am using?
Yes. For example, If I am currently using Korn shell and I want to use bash, I can do so simply by typing ‘bash’.
Can I return to my previous shell?
Yes, just type: exit
Later in the course, we will see how to change a user’s default shell.

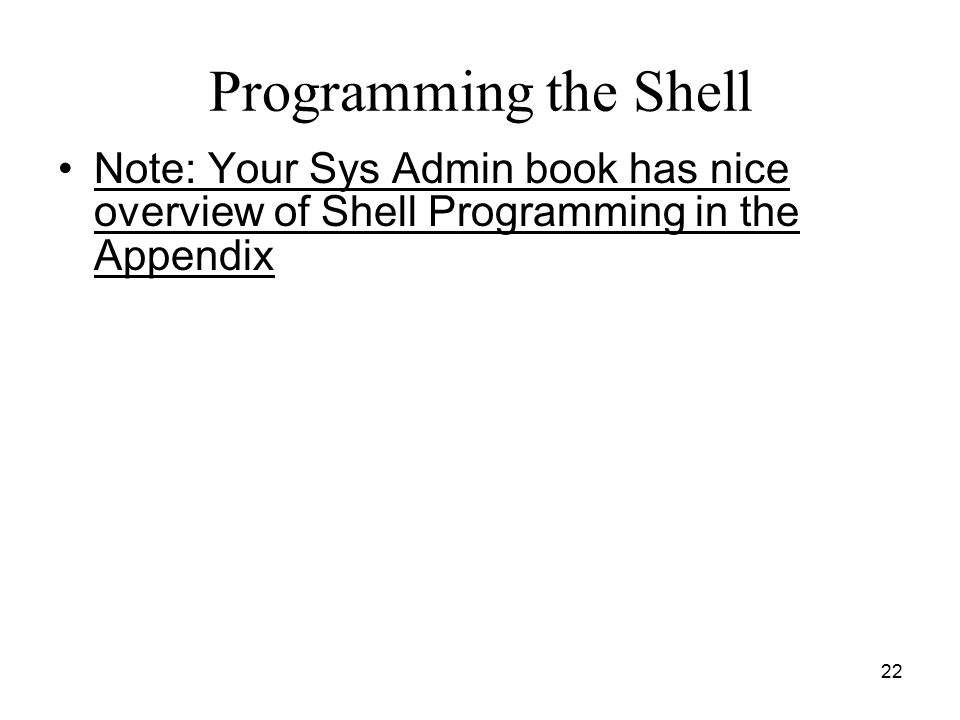

22. Programming the Shell
Note: Your Sys Admin book has nice overview of Shell Programming in the Appendix

23. Programming the Shell Creating a script Comments Shell Variables
Using Single, Double and Backwards quotes
Special Characters: |,&,>,>>,<<,;,() (next class)
Flow Control (next class)
Using 'set -x' (next class)

24. Creating a Shell Script
A shell script can be created in a simple ASCII file (text file).
‘vi’and ‘emacs’ can be used to create and/or edit scripts
For example, the 'who' command shows the number of login entries currently on the computer:
>who
root console Dec 13 08:16
shih pts/ Jan 4 14:25 (faraday.franklin.edu)
vaughang pts/ Jan 4 14:43 (dhcp columbus.rr.com)
vaughang pts/ Jan 4 14:44 (dhcp columbus.rr.com)

25. Creating a Shell Script
How can we easily determine the number of login sessions?
Type: who | wc -l
This is useful, how can I create a shell script to do this?

26. A Note on Examples
Source for all examples in this and future lectures are on codd (einstein) at:
/export/home/vaughang/public_html/comp400/examples
and on the web at:
All shell examples are written in Korn Shell (ksh) although they should be quite compatible with Bash.
In all examples, the ‘greater-than’ symbol, ‘>’ will be used to indicate the shell prompt. So, if we execute the date command,
>date
Thu Sep 2 20:43:58 EDT 2004
we only type ‘date’ and not ‘>date’.
All scripts should be able to execute on codd (einstein) which is a Solaris machine, or any Linux distribution that supports Korn shell, located at /bin/ksh.

27. Example ex0010 0001 #!/bin/ksh 0002 0003 ###########
0004 # File: ex0010
0005 #
0006 # This script will calculate the number
0007 # current login sessions on the system
0008 ##########
0009 who | wc -l
Line 1: informs the current shell which shell we want the script to execute in. It must be the first line in the script file. In this case, we want to use Korn shell
Lines 3-8: Script banner. All comments begin with a '#‘
Line 9: This is the only line in this script that does any real work.

28. How to Execute the Script
The script is contained in an ASCII (text) file named ‘ex0010’.
We could execute it using dot command ‘.’ (Note that there is a space between the dot and the file name):
. ex0010
The dot command can have unintended side effects, because it causes the script to execute in your current shell.

29. How to Execute the Script
Another method is to make the script executable using 'chmod':
>chmod +x ex0010
Now we can execute the script merely by typing its name at the shell prompt:
>ex0010 6
Our script is informing us that there are currently 6 active login sessions.

30. Shell Variables
Shell variables have are not typed and are not declared.
There are 3 types of shell variables:
Programmer Defined
Command Line Arguments
Special Shell Variables

31. Programmer Defined Shell Variables
These serve as general purpose script variables.
Programmer defined variables start with a dollar sign and can contain one or more letters, numbers or underscore characters.
Traditionally, letters are upper case.
Examples: $VAR1, $NUMBER_OF_FILES, $COUNTER

32. Example ex0020 Lines 11-13: Three shell variables are defined.
Note that when variables are defined, their names do not begin with '$'.
Lines 14 and 15 make use of the shell variables.
Note that when shell variables are used, their names do begin with '$'.
'echo' sends text to standard out.
OUTPUT:
Name = Vaughan, George
School = Franklin University
0001 #!/bin/ksh
0002
0003 ###########
0004 # File: ex0020
0005 #
0006 # This script will print out a name
0007 # and school which are hard-coded in
0008 # shell variables.
0009 ##########
0010
0011 FIRST_NAME=George
0012 LAST_NAME=Vaughan
0013 SCHOOL="Franklin University"
0014 echo Name = $LAST_NAME, $FIRST_NAME
0015 echo School = $SCHOOL

33. Command Line Argument Shell Variables
Command line arguments to a script are stored in variables whose names are composed of a dollar sign followed by an integer.
The integer value represents the position of the argument in the command line. Examples: $1, $5.

34. Example ex0030
Lines 11-13: Programmer defined shell variables are being initialized with command line argument shell variables.
This implies that the script expects the command line to contain: first name, last name and school name, in that order.
Example:
>ex0030 George Vaughan "Franklin University"
Name = Vaughan, George
School = Franklin University
Notice that on the command line, Franklin University is in double quotes. This was done to force the shell to treat this as one argument instead of two.
0001 #!/bin/ksh
0002
0003 ###########
0004 # File: ex0030
0005 #
0006 # This script will print out a name
0007 # and school which are hard-coded in
0008 # shell variables.
0009 ##########
0010
0011 FIRST_NAME=$1
0012 LAST_NAME=$2
0013 SCHOOL=$3
0014 echo Name = $LAST_NAME, $FIRST_NAME
0015 echo School = $SCHOOL

35. Special Shell Variables
These variables each have distinct meaning and are typically named using a dollar sign followed by some type of punctuation character:
$? (return code of the last executed command)
$0 (name of script)
$$ (Process ID)
$# (Number of command line arguments)
$LOGNAME (login name that script is executing under)
$PWD (current working directory)
NOTE: This is not a complete list!

36. Example ex0040
Line 11 prints return value of 'date' command on line 10
Example:
Thu Sep 2 21:07:50 EDT 2004
return val = 0
script name = ex0040
process id = 8067
num of args = 0
login id = vaughang
dir = /export/home/vaughang/public_html/comp400/examples
0001 #!/bin/ksh
0002
0003 ###########
0004 # File: ex0040
0005 #
0006 # This script is a demonstration
0007 # of special shell variables.
0008 ##########
0009
0010 date
0011 echo return val = $?
0012 echo script name = $0
0013 echo process id = $$
0014 echo num of args = $#
0015 echo login id = $LOGNAME
0016 echo dir = $PWD

37. The Role of Quotes in Shell
There are three types of quotes:
Single Quotes: used to treat text literally
Double Quotes: used to treat text as a single entity (e.g. Multi-word argument). Shell variables are expanded and backwards quotes are executed.
Backwards Quotes: executes contents within backwards quotes.

38. Example ex0050
0001 #!/bin/ksh
0002
0003 ###########
0004 # File: ex0050
0005 #
0006 # This script is a demonstration
0007 # of the use of single, double
0008 # and backwards quotes.
0009 ##########
0010
0011 VAR0=`date`
0012 VAR1="The date is $VAR0"
0013 VAR2='The date is $VAR0'
0014
0015 echo $VAR0
0016 echo $VAR1
0017 echo $VAR2
Line 11 uses the backwards quote to store the result of the date command in $VAR0
Line 12 uses double quotes to store a string in VAR1 after VAR0 is expanded
Line 13 uses single quotes to store a string with no variable expansion in VAR2
Example:
>ex0050
Thu Sep 2 21:11:52 EDT 2004
The date is Thu Sep 2 21:11:52 EDT 2004
The date is $VAR0

39. Computations In Shell Scripts
Computations can be performed using the following syntax:
$((integer_expression))
Example:
>echo $((2+3)) 5
>echo $((7*8)) 56

40. Example ex0205
0001 #!/bin/ksh
0002
0003 ###########
0004 # File: ex0205
0005 #
0006 # Add 2 numbers entered
0007 # at command line
0008 ###########
0009
0010 SUM=$(($1+$2))
0011 echo "SUM=$SUM"
The script will accept 2 integers as command line arguments and print their sum
line 10: sum first 2 arguments and save in variable ‘SUM’
line 11: print $SUM
Output:
>ex
SUM=5

41. Flow Control in Shell Scripts
We will explore the following flow control constructs:
conditional expressions
if-then
if-then-else
elif-then

42. Flow Control in Shell Scripts
Conditional expressions are contained in square brackets: “[ expression ]”
example: [ “$LOGNAME” = “vaughang” ]
notice that the variable is in double quotes.
notice space in back of “[“ and in front of “]” – these spaces are important!
When comparing strings, it is good to place both operands in double quotes, in case either operand contains spaces.

43. Flow Control in Shell Scripts
Conditional String operators:
“=“ tests if strings are equal.
“!=“ tests if strings are not equal.
“-n” unary to test if string is not null
“-z” unary to test if string is null

44. Flow Control in Shell Scripts
Conditional Integer operators:
“-eq” tests if integers are equal
“-ne” tests if integers are not equal
“-ge” tests if int 1 >= int 2
“-gt” tests if int 1 > int 2
“-le” tests if int 1 <= int 2
“-lt” tests if int 1 < int 2

45. Flow Control in Shell Scripts
Conditional Unary File operators
“-d” tests if operand is a directory
“-f” tests if operand is an ordinary file
“-r” tests if operand is readable by current process
“-s” tests if operand is a zero length file
“-w” tests if operand is writable by current process
“-x” tests if operand is executable by current process

46. Flow Control in Shell Scripts
“if-then” Flow Construct
Format:
if [ expression ]
then
statement-body fi
If the expression is true, then the statement-body will be executed.

47. Example ex210 0001 #!/bin/ksh 0002 0003 ###########
0004 # File: ex0210
0005 ###########
0006 if [ "$LOGNAME" = "vaughang" ]
0007 then
echo User = George Vaughan
0009 fi
0010 if [ "`ls | wc -l`" -ne 0 ]
0011 then
echo Directory has entries...
0013 fi
0014 if [ -w $PWD ]
0015 then
echo Directory is writable by me
0017 fi
Line 6: String Comparison
Line 10: Integer Comparison
Line 14: File test
OUTPUT:
User = George Vaughan
Directory has entries...
Directory is writable by me

48. Flow Control in Shell Scripts
“if-then-else” Flow Construct
Format:
if [ expression ]
then
statement-body-1
else
statement-body-2 fi
If the expression is true then statement-body-1 will be executed else statement-body-2 will be executed.

49. Example ex0220 0001 #!/bin/ksh 0002 0003 ###########
0004 # File: ex0220
0005 #
0006 # Show all processes owned by LOGNAME
0007 # Checks that number of args = 1
0008 ###########
0009 if [ $# -ne 1 ]
0010 then
echo usage: ex0220 LOGNAME
exit 1
0013 else
ps -ef | grep $1
0015 fi
Line 9: test the number of arguments. If test fails, exit with return code of 1.
Line 11: Show correct usage
Line 12: exit
Line 13: Show processes
OUTPUT 1:
>ex0220 vaughang
vaughang 0 19:57:08 pts/2 0:00 -ksh
vaughang 0 19:58:50 pts/4 0:00 -ksh
vaughang 0 21:34:35 pts/4 0:00 vi ex0220
vaughang 0 21:43:15 pts/2 0:00 grep vaughang
vaughang 0 21:43:15 pts/2 0:00 /bin/ksh ex0220 vaughang
OUPUT 2:
>ex0220
usage: ex0220 uid

50. Flow Control in Shell Scripts
“elif-then” Flow Construct
Format:
if [ expression-1 ]
then
statement-body-1
elif [ expression-2 ]
statement-body-2
else
statement-body-3 fi
If expression-1 is true, execute statement-body-1, else if expression-2 is true, execute statement-body-2 else execute statement-body-3.

51. Example ex0230 Line 8: test if file Line 11: test if dir
0001 #!/bin/ksh
0002
0003 ###########
0004 # File: ex0230
0005 #
0006 # Test if arg is file or dir
0007 ###########
0008 if [ -f "$1" ]
0009 then
echo arg is file
0011 elif [ -d "$1" ]
0012 then
echo arg is dir
0014 else
echo arg not found
0016 fi
Line 8: test if file
Line 11: test if dir
Line 15: can’t find arg
OUTPUT 1:
>ex0230 ex0230
arg is file
OUTPUT 2:
>ex0230 .
arg is dir
OUTPUT 3:
>ex0230 something
arg not found

52. References “Essential System Administration”, by Aeleen Frisch, 2002
“The Unix Programming Environment”, by Brian Kernighan and Robert Pike, 1984
“Unix Shell Programming”, by S. Kochran and P. Wood, 1990
“Learning the bash Shell”, by Cameron Newham and Bill Rosenblatt, 1998
