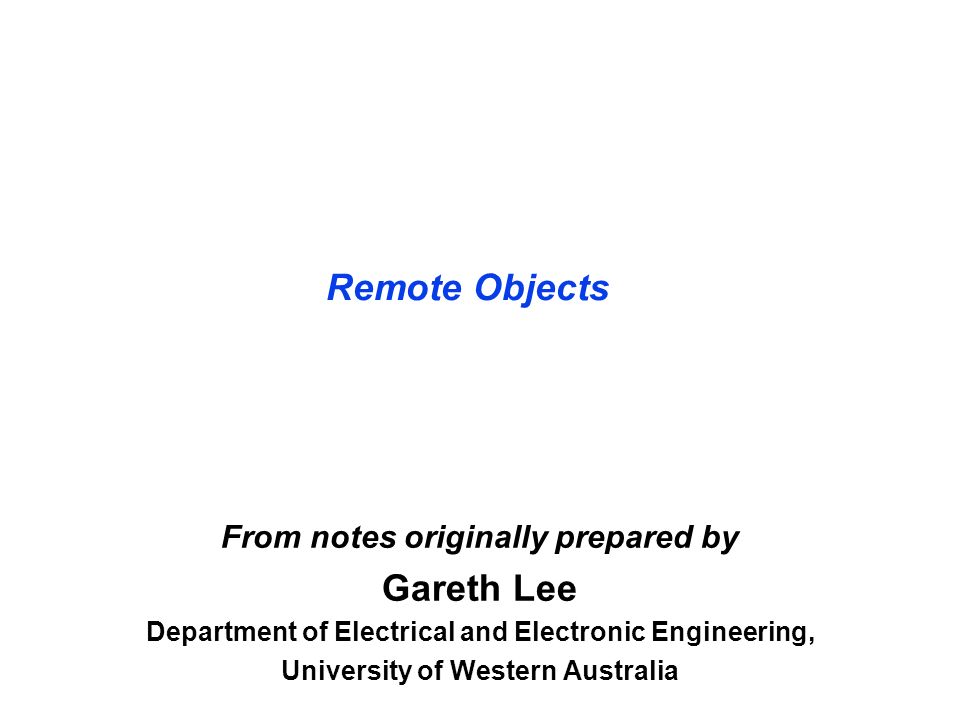

1. Remote Objects From notes originally prepared by Gareth Lee Department of Electrical and Electronic Engineering, University of Western Australia

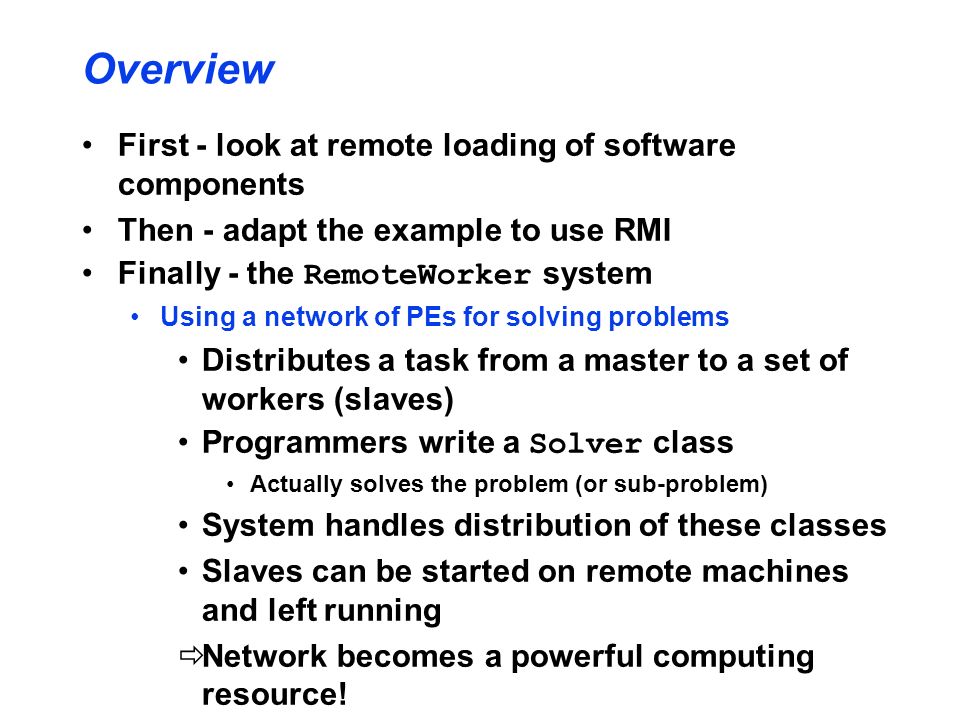

2. Overview First - look at remote loading of software components Then - adapt the example to use RMI Finally - the RemoteWorker system Using a network of PEs for solving problems Distributes a task from a master to a set of workers (slaves) Programmers write a Solver class Actually solves the problem (or sub-problem) System handles distribution of these classes Slaves can be started on remote machines and left running  Network becomes a powerful computing resource!

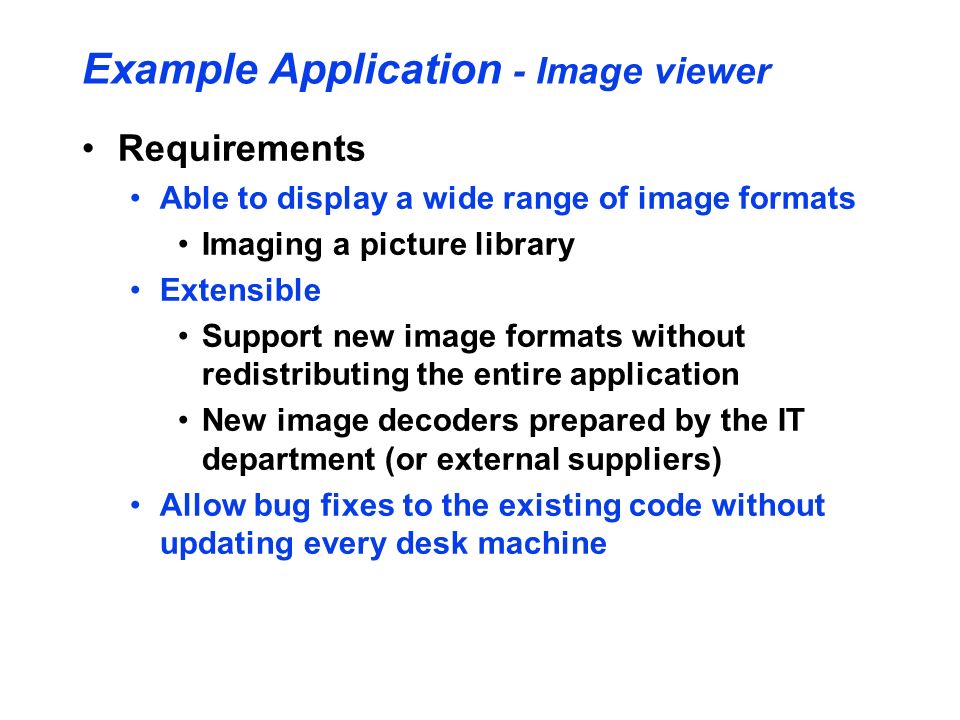

3. Example Application - Image viewer Requirements Able to display a wide range of image formats Imaging a picture library Extensible Support new image formats without redistributing the entire application New image decoders prepared by the IT department (or external suppliers) Allow bug fixes to the existing code without updating every desk machine

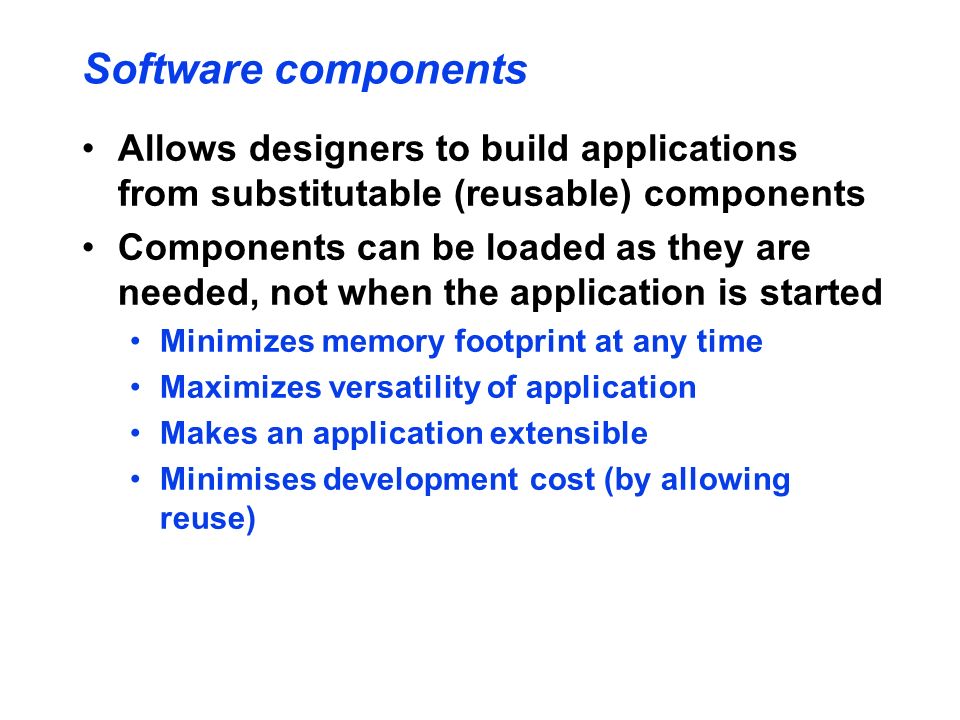

4. Software components Allows designers to build applications from substitutable (reusable) components Components can be loaded as they are needed, not when the application is started Minimizes memory footprint at any time Maximizes versatility of application Makes an application extensible Minimises development cost (by allowing reuse)

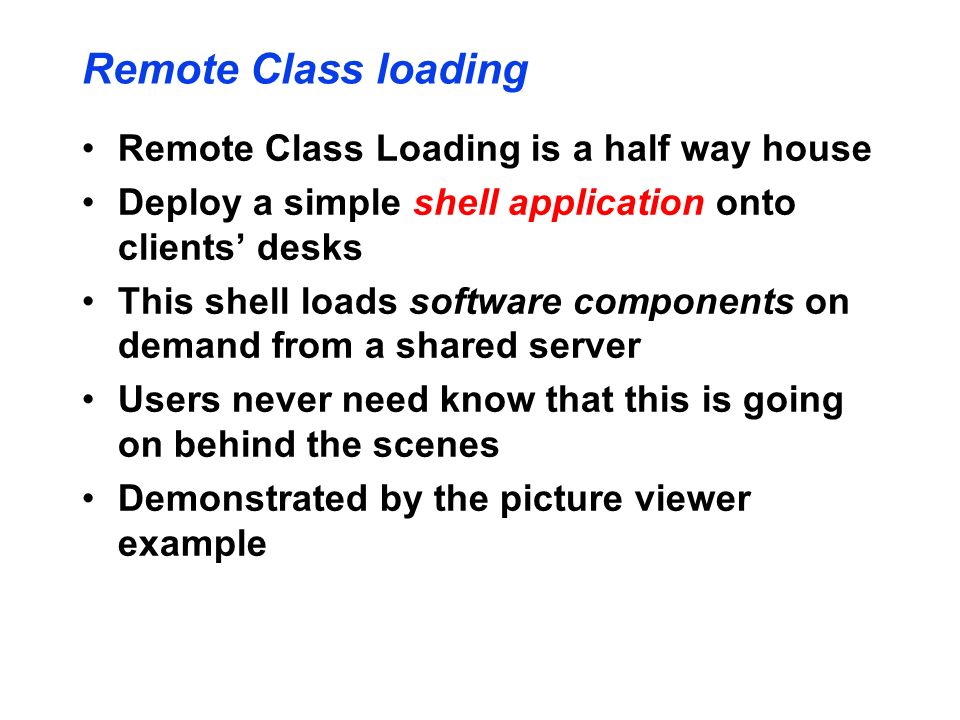

5. Remote Class loading Remote Class Loading is a half way house Deploy a simple shell application onto clients’ desks This shell loads software components on demand from a shared server Users never need know that this is going on behind the scenes Demonstrated by the picture viewer example

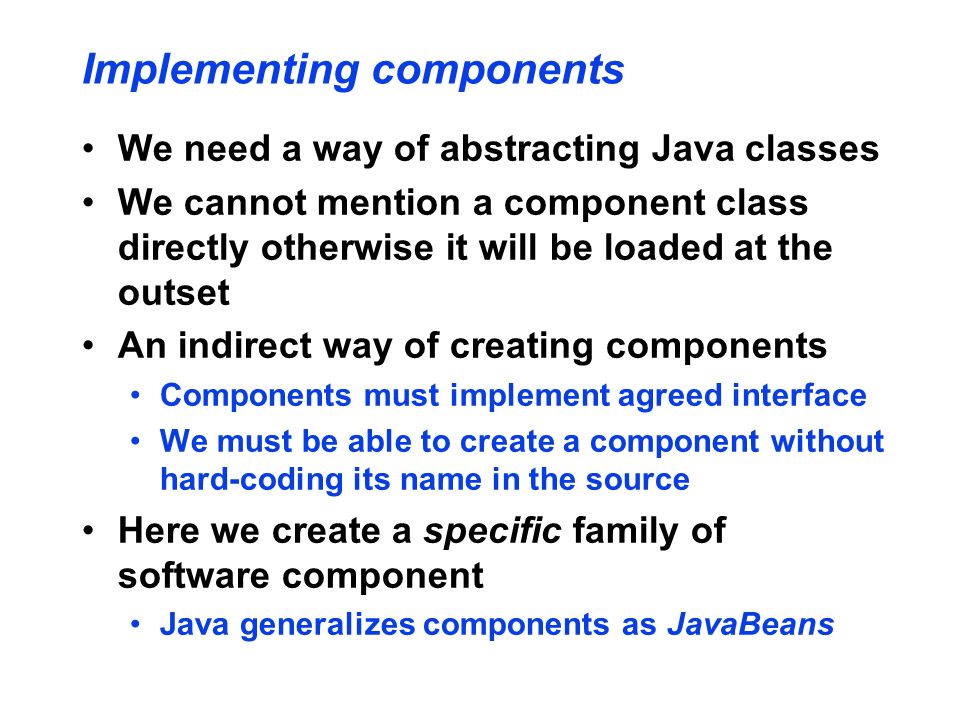

6. Implementing components We need a way of abstracting Java classes We cannot mention a component class directly otherwise it will be loaded at the outset An indirect way of creating components Components must implement agreed interface We must be able to create a component without hard-coding its name in the source Here we create a specific family of software component Java generalizes components as JavaBeans

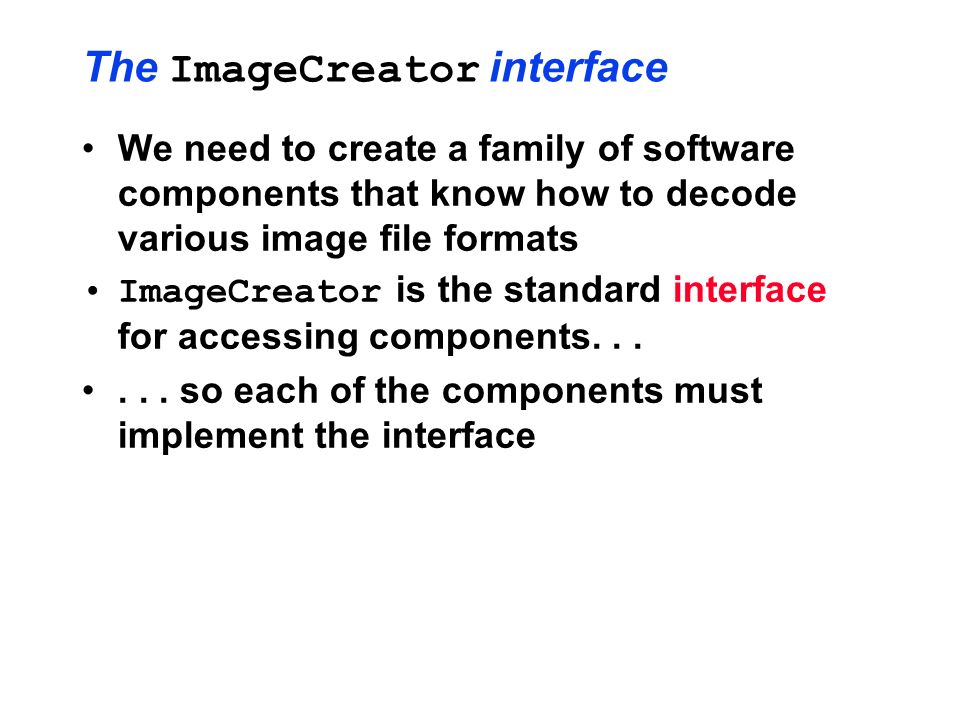

7. The ImageCreator interface We need to create a family of software components that know how to decode various image file formats ImageCreator is the standard interface for accessing components...... so each of the components must implement the interface

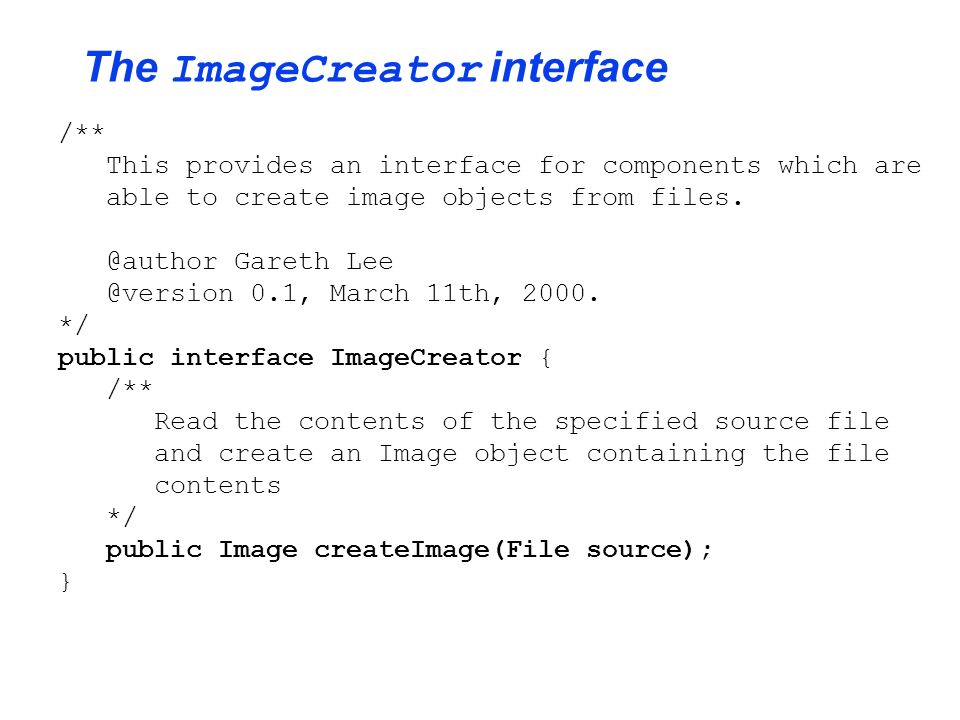

8. The ImageCreator interface /** This provides an interface for components which are able to create image objects from files. @author Gareth Lee @version 0.1, March 11th, 2000. */ public interface ImageCreator { /** Read the contents of the specified source file and create an Image object containing the file contents */ public Image createImage(File source); }

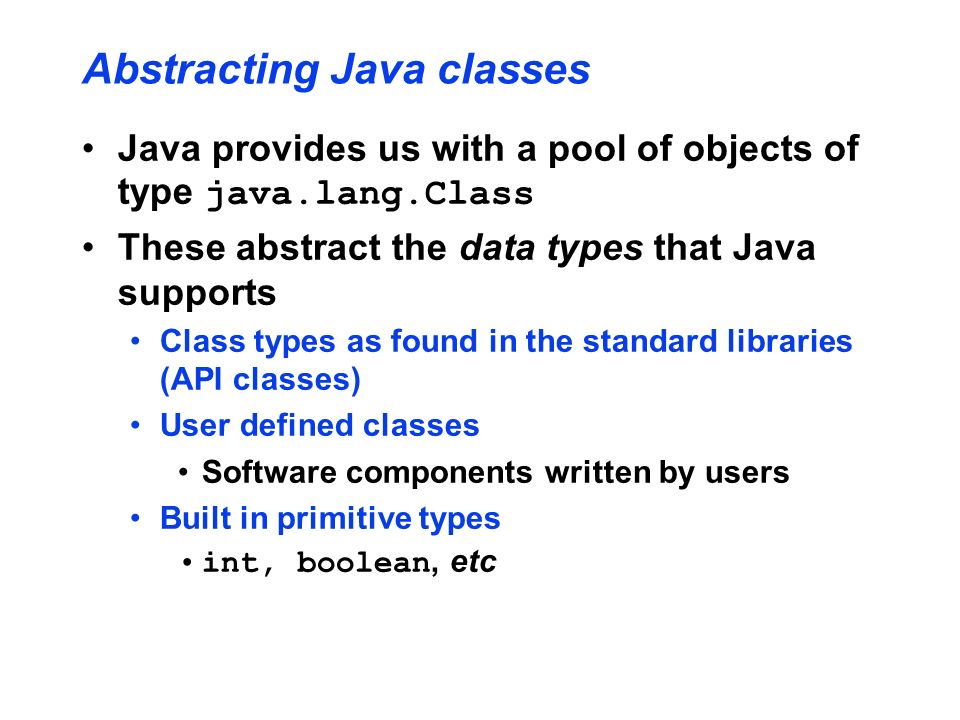

9. Abstracting Java classes Java provides us with a pool of objects of type java.lang.Class These abstract the data types that Java supports Class types as found in the standard libraries (API classes) User defined classes Software components written by users Built in primitive types int, boolean, etc

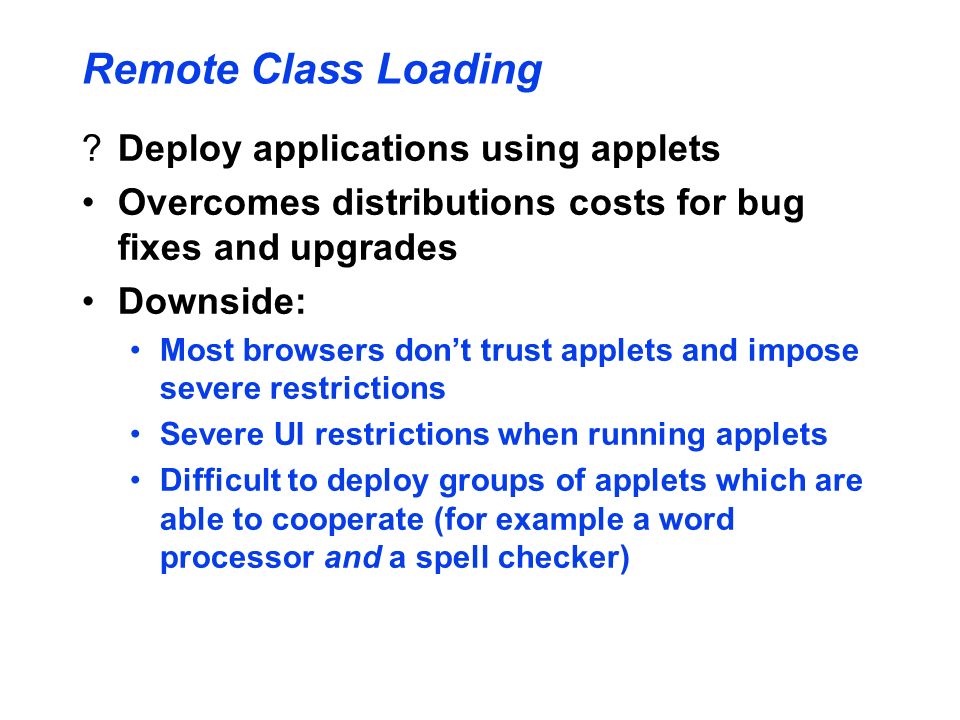

10. Remote Class Loading ?Deploy applications using applets Overcomes distributions costs for bug fixes and upgrades Downside: Most browsers don’t trust applets and impose severe restrictions Severe UI restrictions when running applets Difficult to deploy groups of applets which are able to cooperate (for example a word processor and a spell checker)

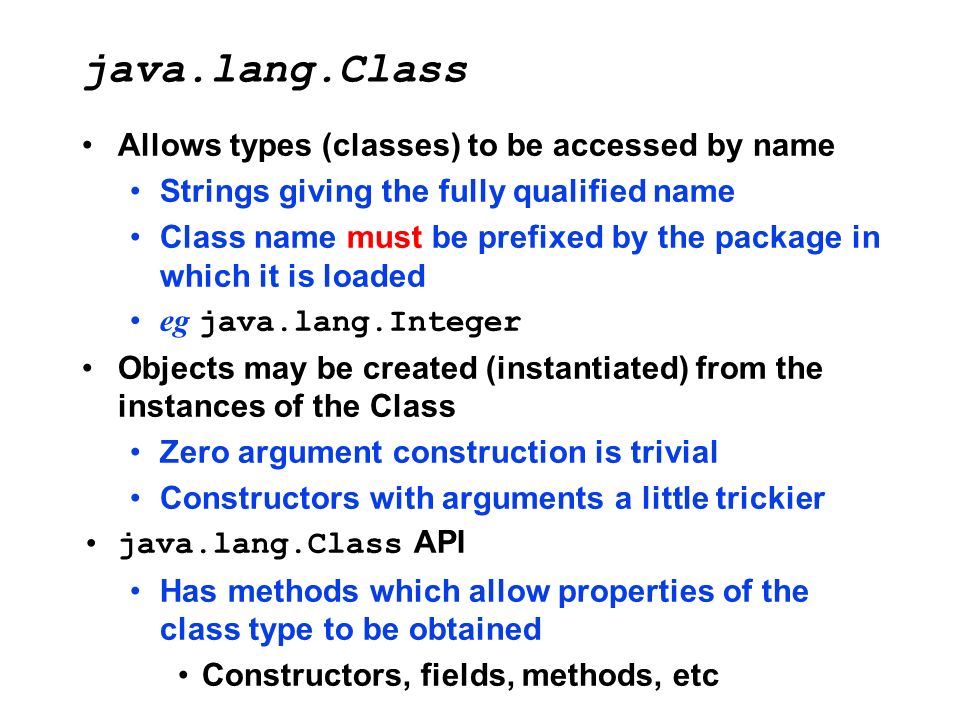

11. java.lang.Class Allows types (classes) to be accessed by name Strings giving the fully qualified name Class name must be prefixed by the package in which it is loaded eg java.lang.Integer Objects may be created (instantiated) from the instances of the Class Zero argument construction is trivial Constructors with arguments a little trickier java.lang.Class API Has methods which allow properties of the class type to be obtained Constructors, fields, methods, etc

12. java.lang.Class Constructing (loading) a class Class forName(String qualifiedName) eg Class c = Class.forName( “RemoteWorker” ); Reflection API methods Object newInstance() // construct obj Constructor[] getConstructors() Method[] getMethods() Field[] getFields() Class[] getInterfaces()

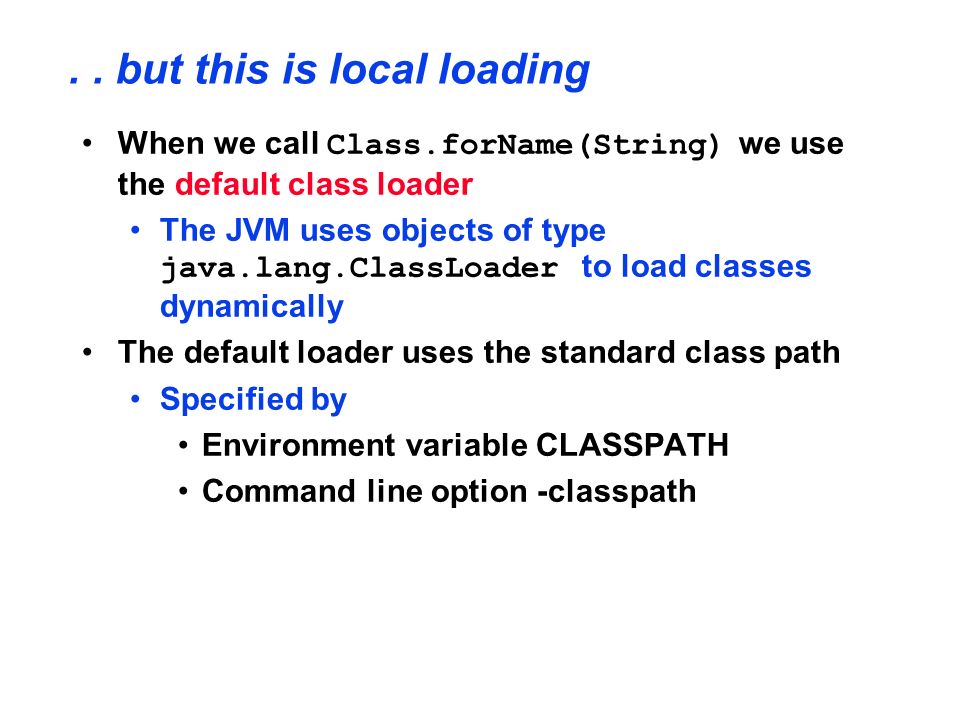

13. .. but this is local loading When we call Class.forName(String) we use the default class loader The JVM uses objects of type java.lang.ClassLoader to load classes dynamically The default loader uses the standard class path Specified by Environment variable CLASSPATH Command line option -classpath

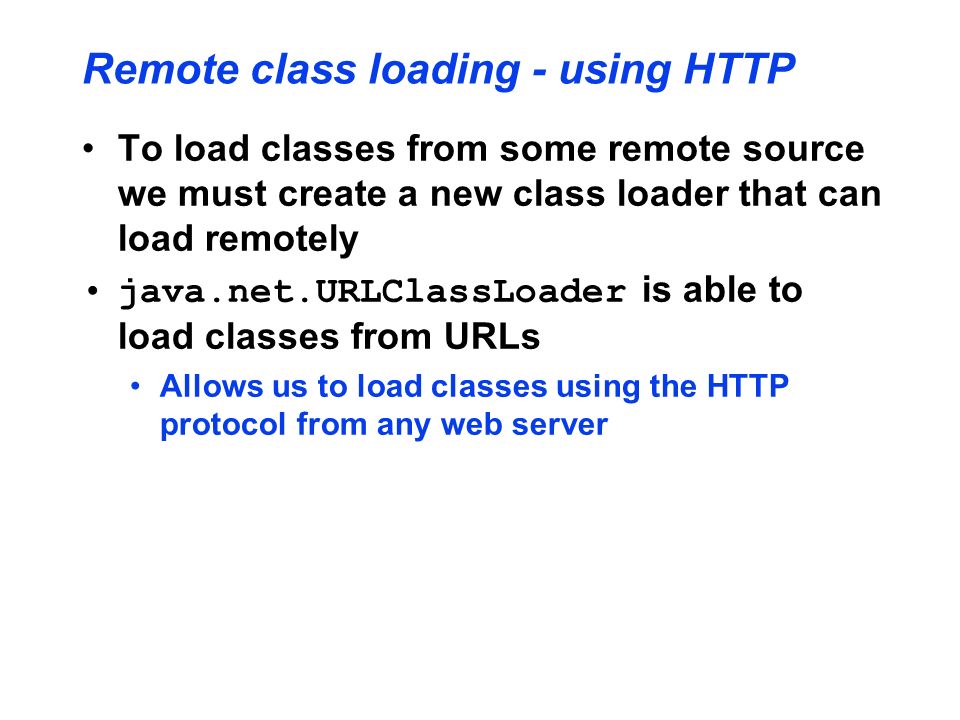

14. Remote class loading - using HTTP To load classes from some remote source we must create a new class loader that can load remotely java.net.URLClassLoader is able to load classes from URLs Allows us to load classes using the HTTP protocol from any web server

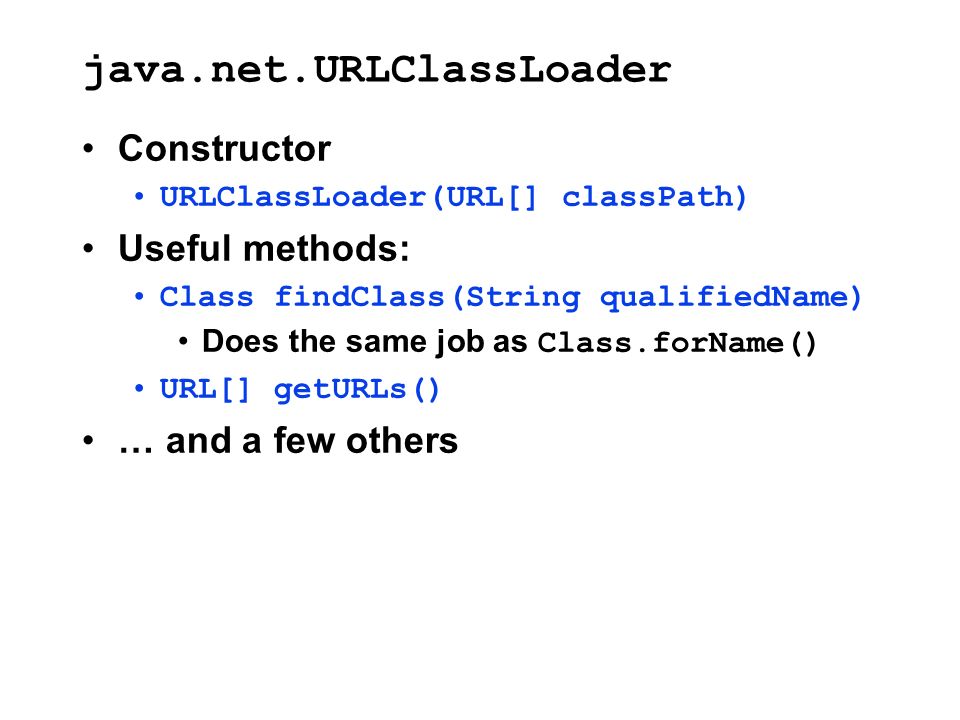

15. java.net.URLClassLoader Constructor URLClassLoader(URL[] classPath) Useful methods: Class findClass(String qualifiedName) Does the same job as Class.forName() URL[] getURLs() … and a few others

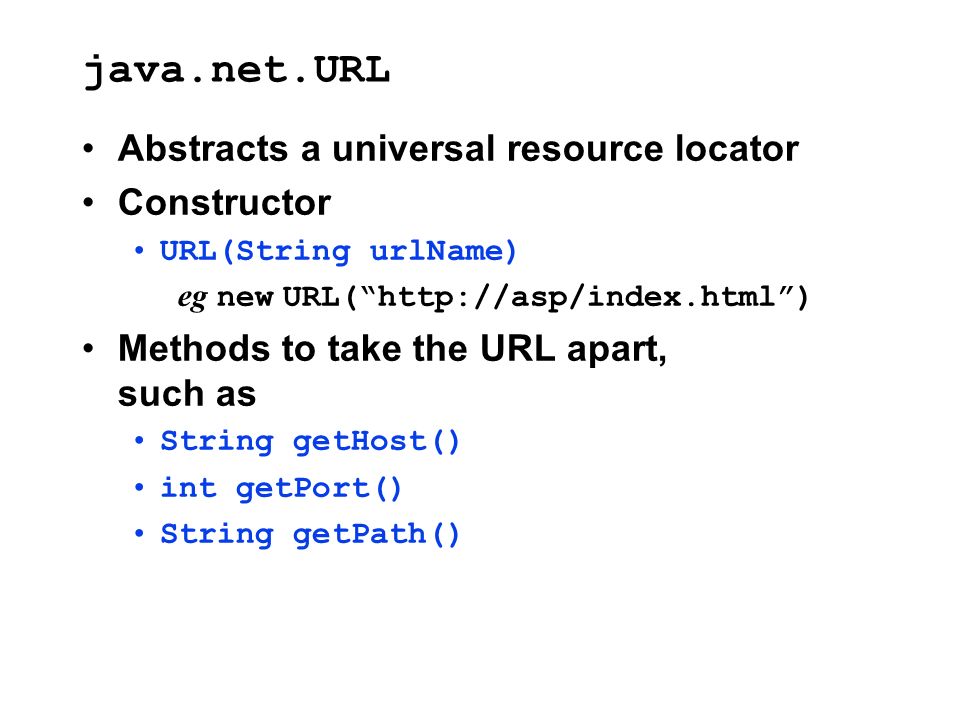

16. java.net.URL Abstracts a universal resource locator Constructor URL(String urlName) eg new URL(“http://asp/index.html”) Methods to take the URL apart, such as String getHost() int getPort() String getPath()

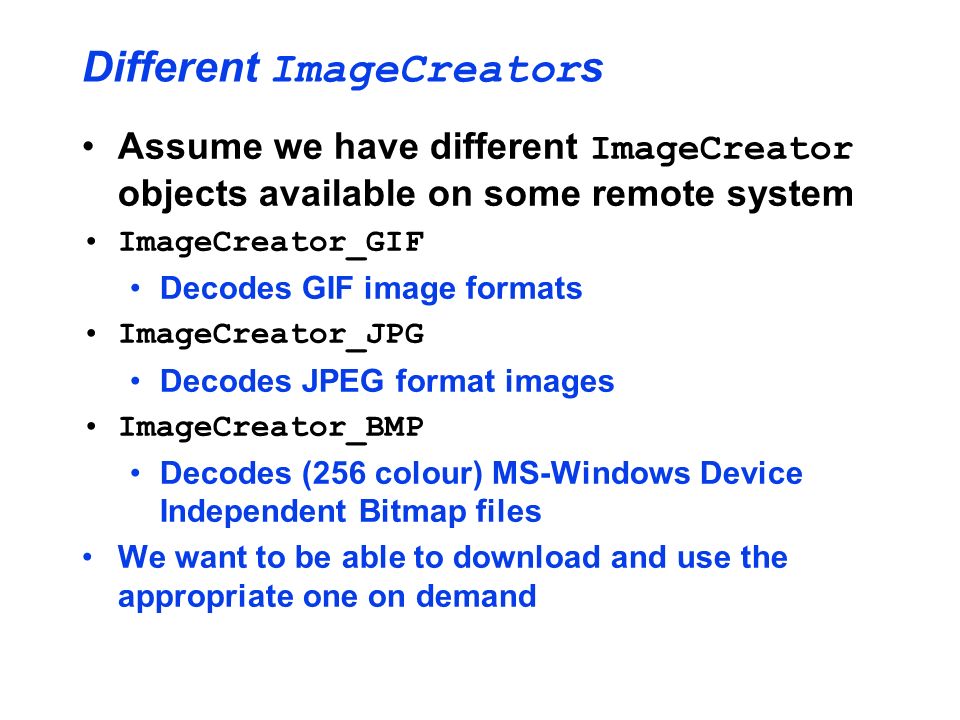

17. Different ImageCreator s Assume we have different ImageCreator objects available on some remote system ImageCreator_GIF Decodes GIF image formats ImageCreator_JPG Decodes JPEG format images ImageCreator_BMP Decodes (256 colour) MS-Windows Device Independent Bitmap files We want to be able to download and use the appropriate one on demand

18. Loading Viewer classes public ImageCreator loadImageCreator(String type) { try { // Get a URL as a text string from... String urlTextString = sourceURLText.getText(); // Form an array of URLs URL[] sourceURLs = new URL[] { new URL(urlTextString) }; // Construct the class loader URLClassLoader loader = new URLClassLoader(sourceURLs); // Load the class Class componentType = loader.loadClass( "ImageCreator_" + type); // Make an object of the class return (ImageCreator) componentType.newInstance(); } catch (Exception e) { e.printStackTrace(); }

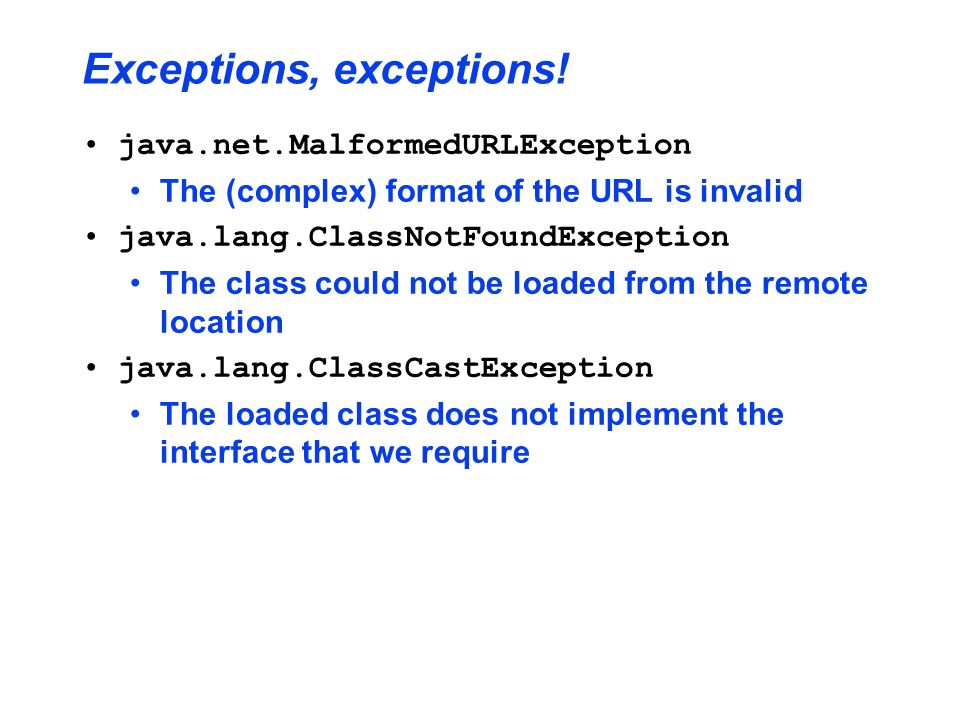

19. Exceptions, exceptions! java.net.MalformedURLException The (complex) format of the URL is invalid java.lang.ClassNotFoundException The class could not be loaded from the remote location java.lang.ClassCastException The loaded class does not implement the interface that we require

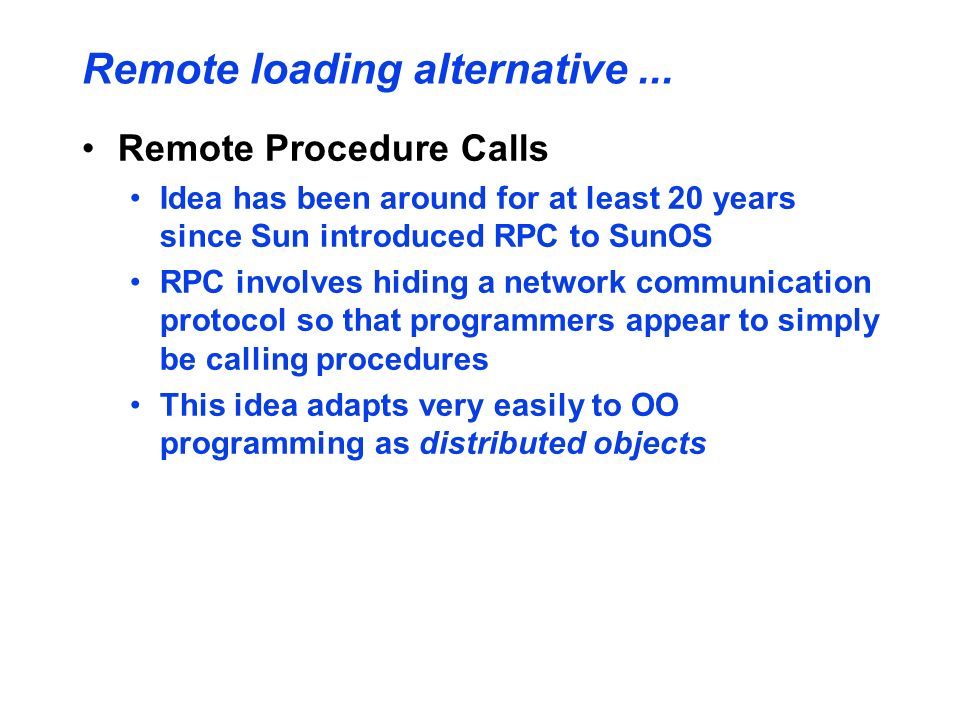

20. Remote loading alternative... Remote Procedure Calls Idea has been around for at least 20 years since Sun introduced RPC to SunOS RPC involves hiding a network communication protocol so that programmers appear to simply be calling procedures This idea adapts very easily to OO programming as distributed objects

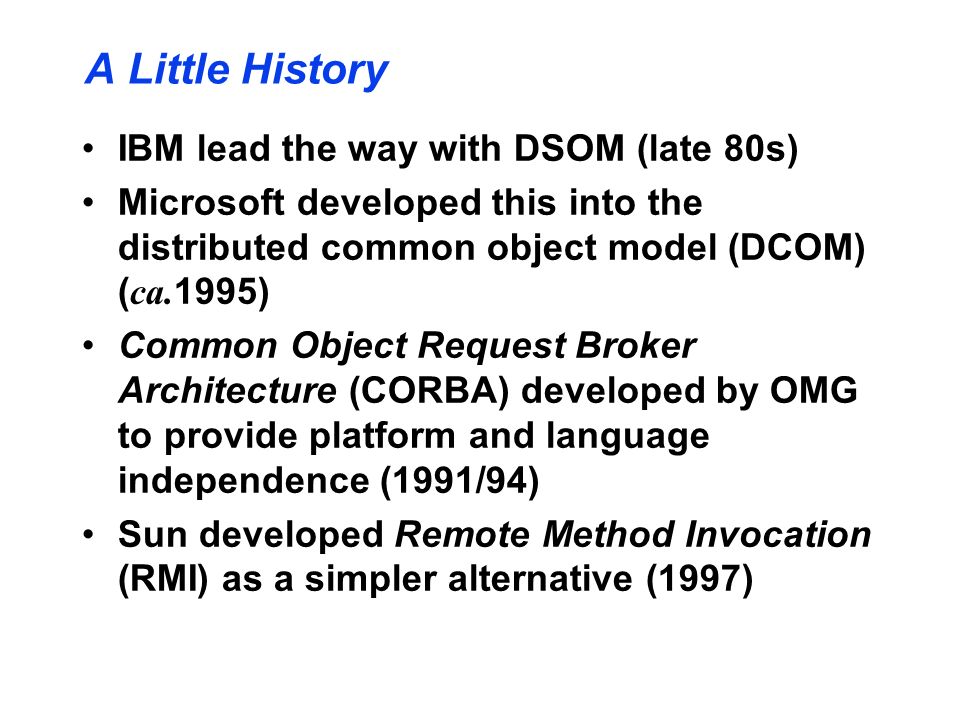

21. A Little History IBM lead the way with DSOM (late 80s) Microsoft developed this into the distributed common object model (DCOM) ( ca. 1995) Common Object Request Broker Architecture (CORBA) developed by OMG to provide platform and language independence (1991/94) Sun developed Remote Method Invocation (RMI) as a simpler alternative (1997)

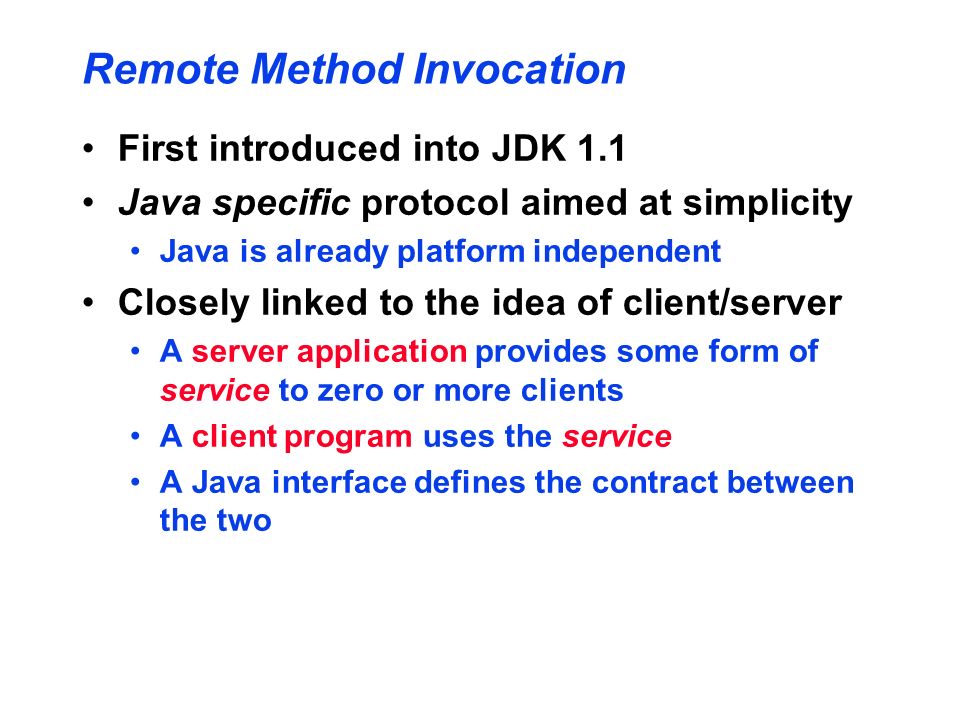

22. Remote Method Invocation First introduced into JDK 1.1 Java specific protocol aimed at simplicity Java is already platform independent Closely linked to the idea of client/server A server application provides some form of service to zero or more clients A client program uses the service A Java interface defines the contract between the two

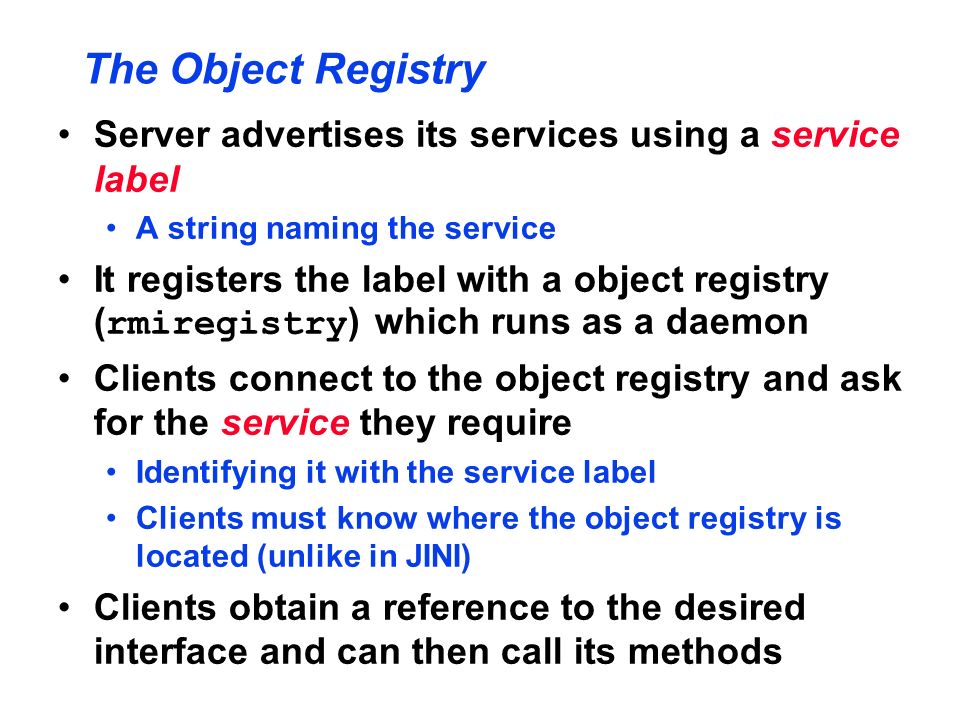

23. The Object Registry Server advertises its services using a service label A string naming the service It registers the label with a object registry ( rmiregistry ) which runs as a daemon Clients connect to the object registry and ask for the service they require Identifying it with the service label Clients must know where the object registry is located (unlike in JINI) Clients obtain a reference to the desired interface and can then call its methods

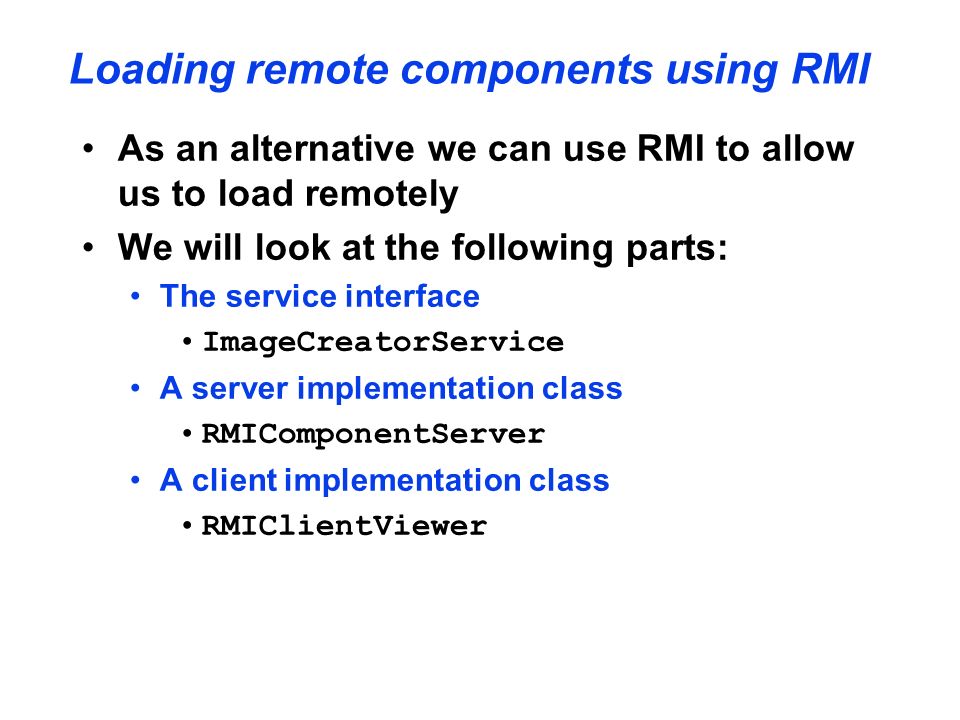

24. Loading remote components using RMI As an alternative we can use RMI to allow us to load remotely We will look at the following parts: The service interface ImageCreatorService A server implementation class RMIComponentServer A client implementation class RMIClientViewer

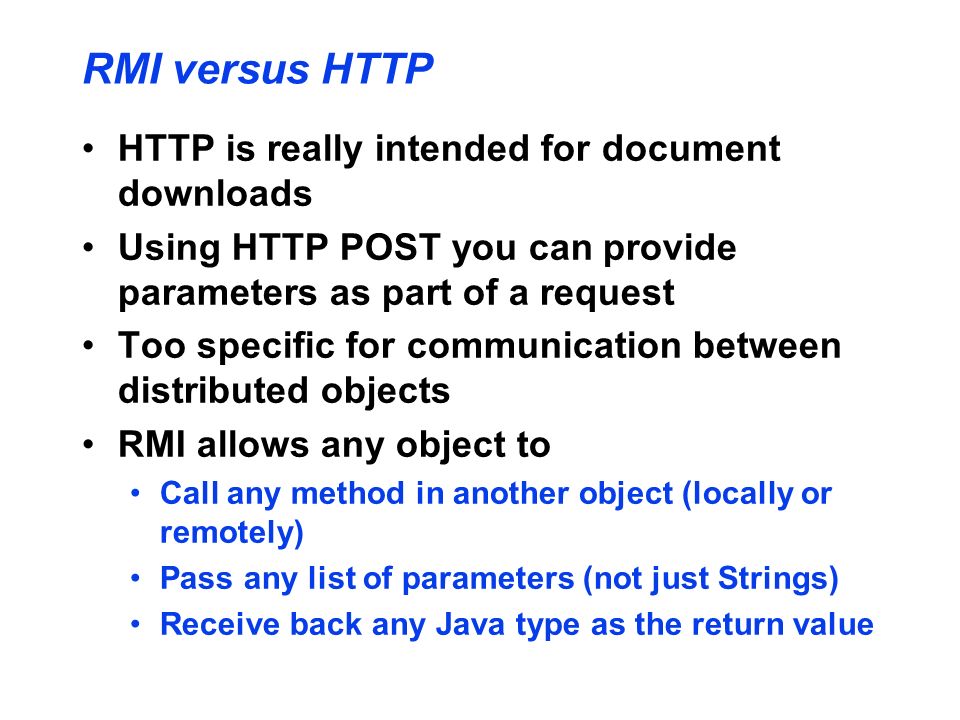

25. RMI versus HTTP HTTP is really intended for document downloads Using HTTP POST you can provide parameters as part of a request Too specific for communication between distributed objects RMI allows any object to Call any method in another object (locally or remotely) Pass any list of parameters (not just Strings) Receive back any Java type as the return value

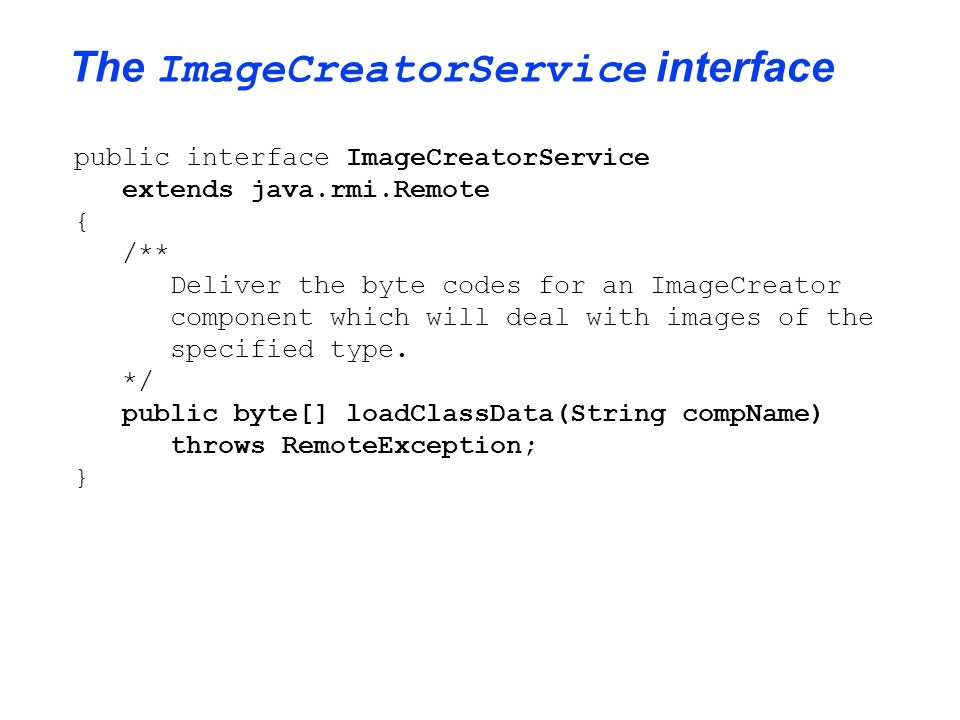

26. The ImageCreatorService interface public interface ImageCreatorService extends java.rmi.Remote { /** Deliver the byte codes for an ImageCreator component which will deal with images of the specified type. */ public byte[] loadClassData(String compName) throws RemoteException; }

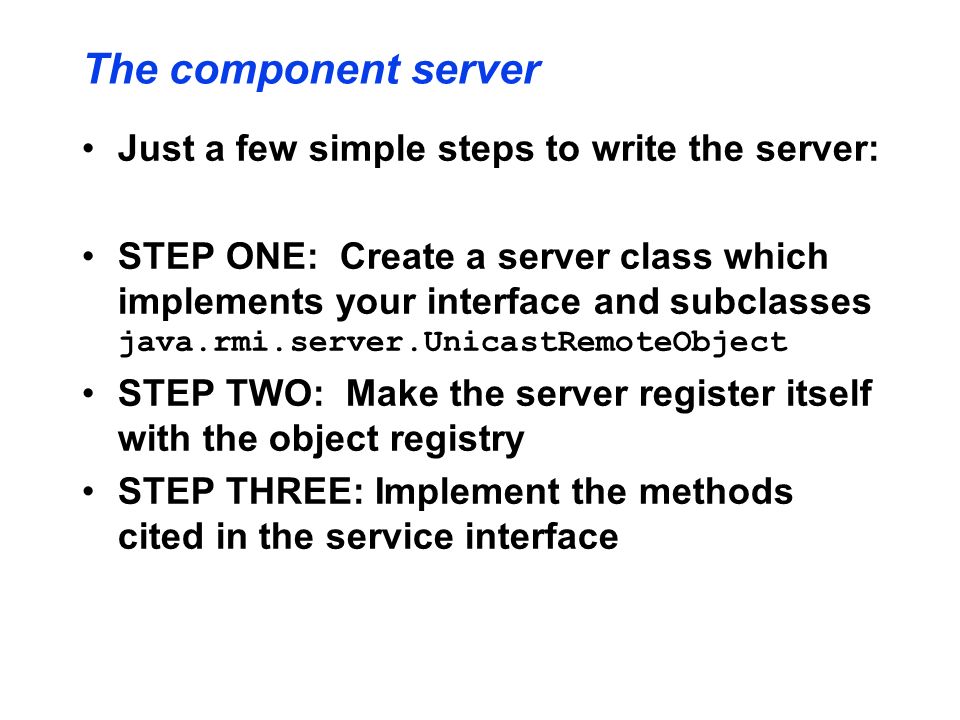

27. The component server Just a few simple steps to write the server: STEP ONE: Create a server class which implements your interface and subclasses java.rmi.server.UnicastRemoteObject STEP TWO: Make the server register itself with the object registry STEP THREE: Implement the methods cited in the service interface

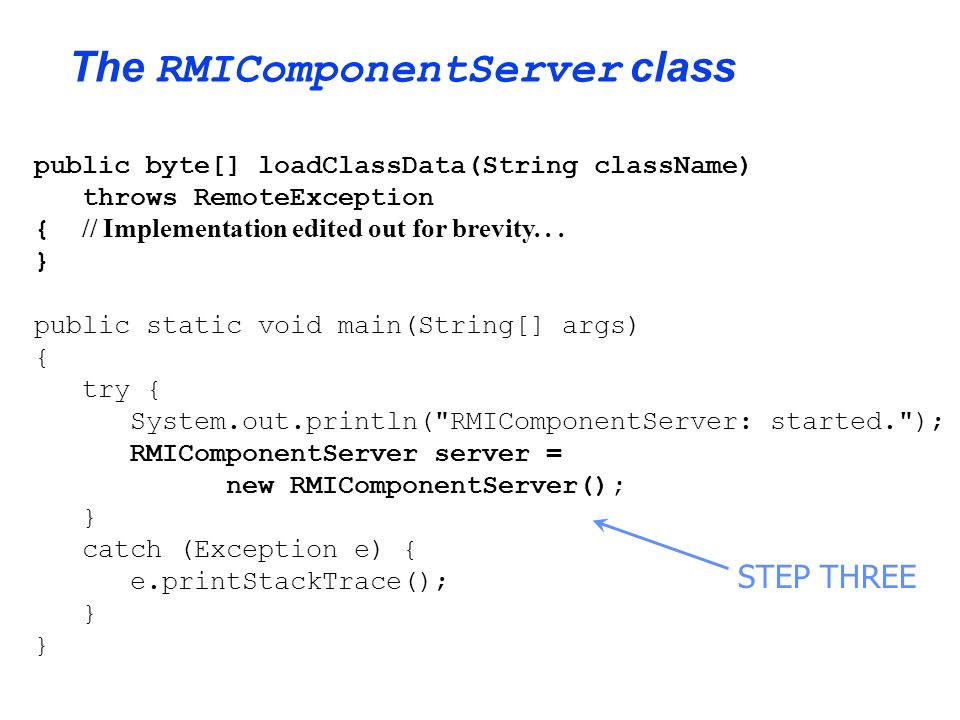

28. The RMIComponentServer class public class RMIComponentServer extends java.rmi.server.UnicastRemoteObject implements ImageCreatorService { public RMIComponentServer() throws RemoteException { try { java.rmi.Naming.rebind( "rmi://localhost/ImageCreatorService", this); } catch (MalformedURLException mue) { mue.printStackTrace(); }.. STEP ONE STEP TWO Service label

29. The RMIComponentServer class public byte[] loadClassData(String className) throws RemoteException { // Implementation edited out for brevity... } public static void main(String[] args) { try { System.out.println("RMIComponentServer: started."); RMIComponentServer server = new RMIComponentServer(); } catch (Exception e) { e.printStackTrace(); } STEP THREE

30. The client viewer implementation This is in the form of RMIClientViewer but the interesting part is the inner class called RMIClassLoader This subclasses java.lang.ClassLoader The parent of all classes capable loading byte codes RMIClassLoader loads byte codes with RMI Rather than HTTP (as in the previous example) Distributed memory space (all parameters are passed by value, rather than by reference) RMI requires a different design discipline

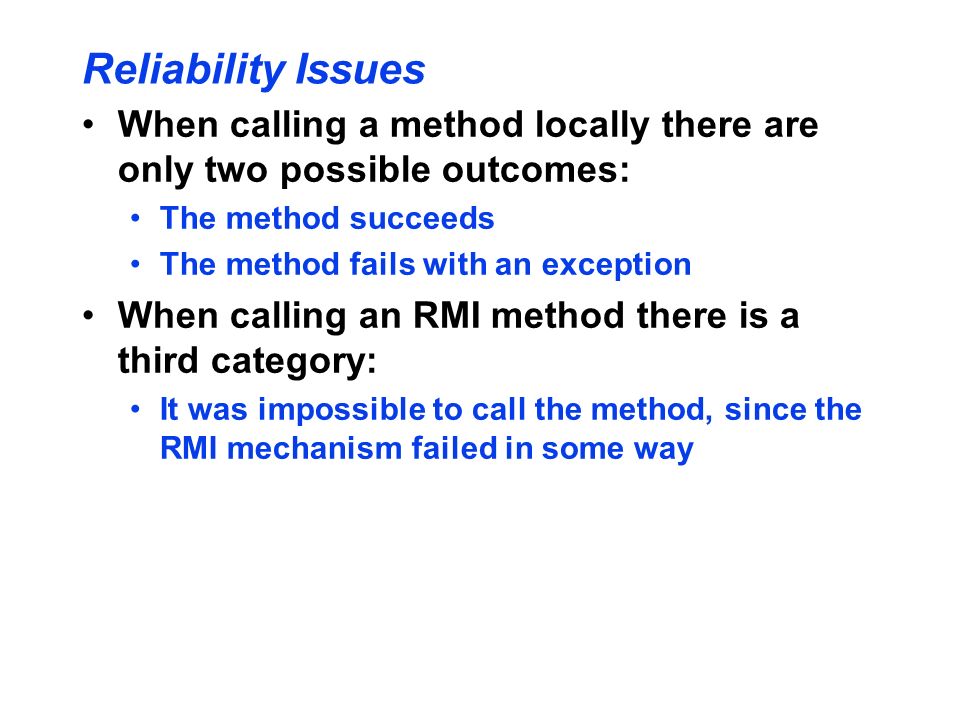

31. Reliability Issues When calling a method locally there are only two possible outcomes: The method succeeds The method fails with an exception When calling an RMI method there is a third category: It was impossible to call the method, since the RMI mechanism failed in some way

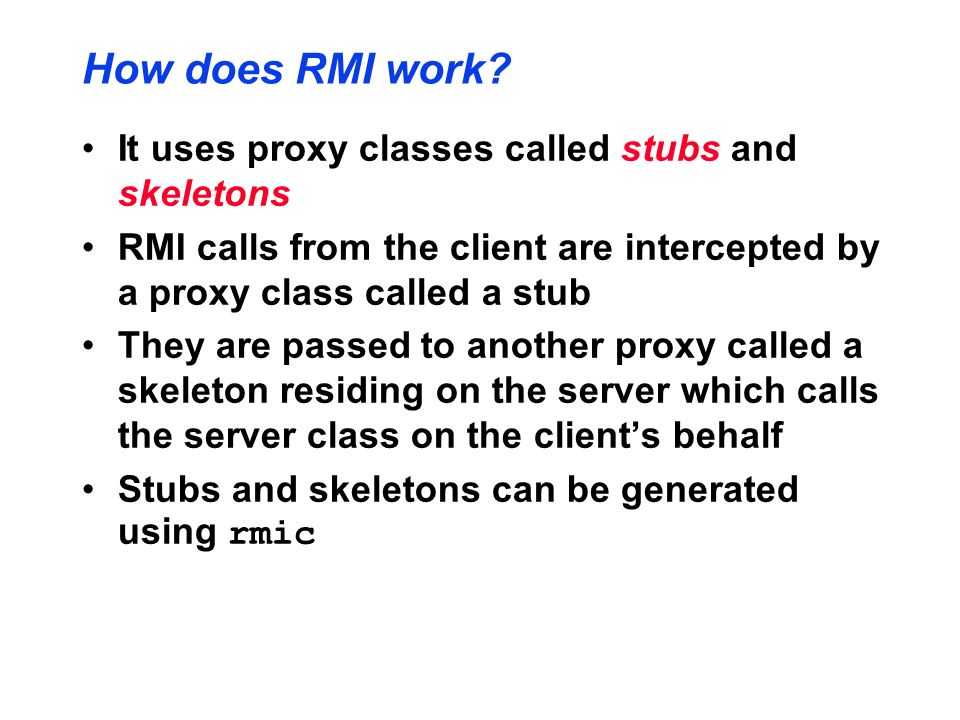

32. How does RMI work? It uses proxy classes called stubs and skeletons RMI calls from the client are intercepted by a proxy class called a stub They are passed to another proxy called a skeleton residing on the server which calls the server class on the client’s behalf Stubs and skeletons can be generated using rmic

33. Proxy stubs Implements the chosen service interface so it looks like the remote server as far as the client is concerned Packages up (marshals) arguments for dispatch across the network Sends them using the Java Remote Method Protocol (JRMP) Waits for and unpacks the return value

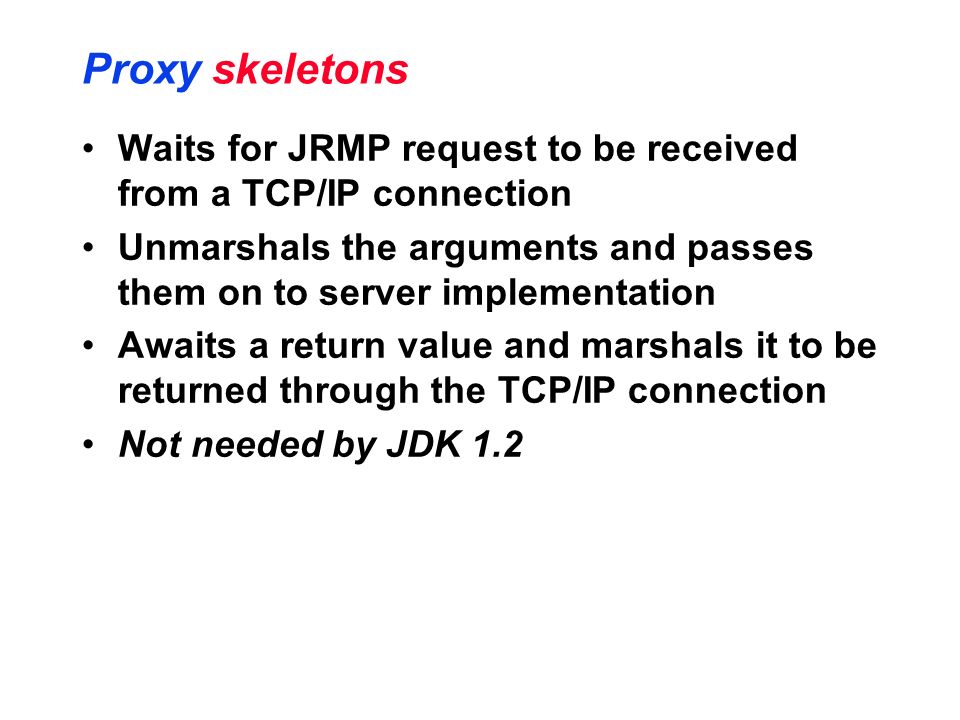

34. Proxy skeletons Waits for JRMP request to be received from a TCP/IP connection Unmarshals the arguments and passes them on to server implementation Awaits a return value and marshals it to be returned through the TCP/IP connection Not needed by JDK 1.2

35. How it all fits together Client VMServer VM Client Obj x=if.m() Skeleton Server Impl. TCP/IP link Service Interface Call Retn int m() {.... } Stub

36. rmic Remote interface compiler Specify your server implementation class as a command line argument eg rmic -classpath. RMIComponentServer Ascertains the service interfaces Creates a stub and a skeleton class for each interface eg RMIComponentServer_Stub.class RMIComponentServer_Skel.class Recreate stubs and skeletons when you modify the interfaces for your server

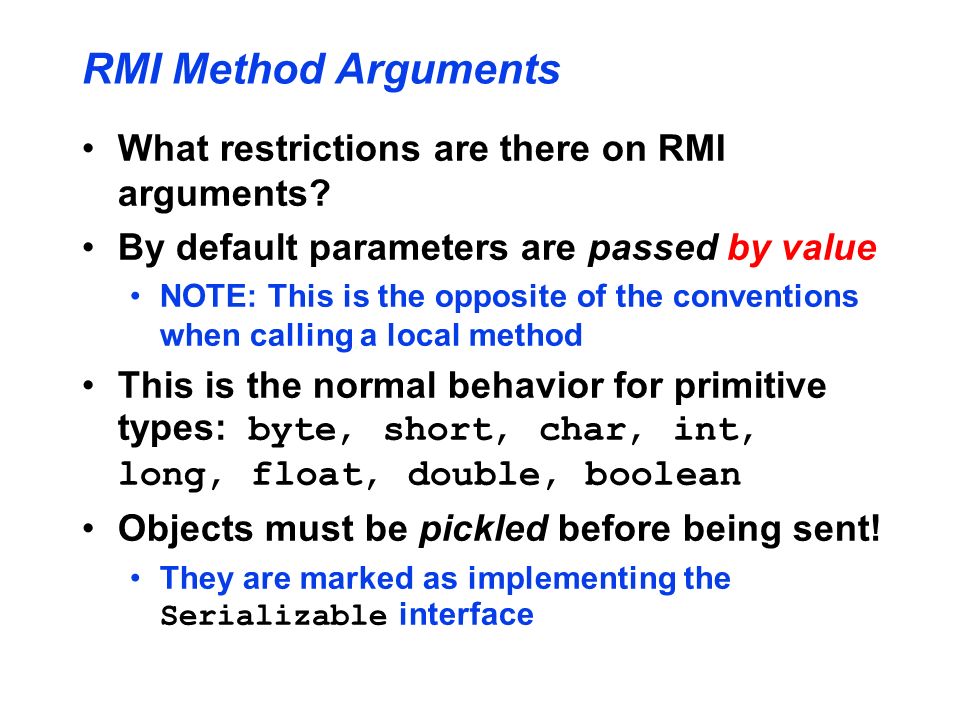

37. RMI Method Arguments What restrictions are there on RMI arguments? By default parameters are passed by value NOTE: This is the opposite of the conventions when calling a local method This is the normal behavior for primitive types: byte, short, char, int, long, float, double, boolean Objects must be pickled before being sent! They are marked as implementing the Serializable interface

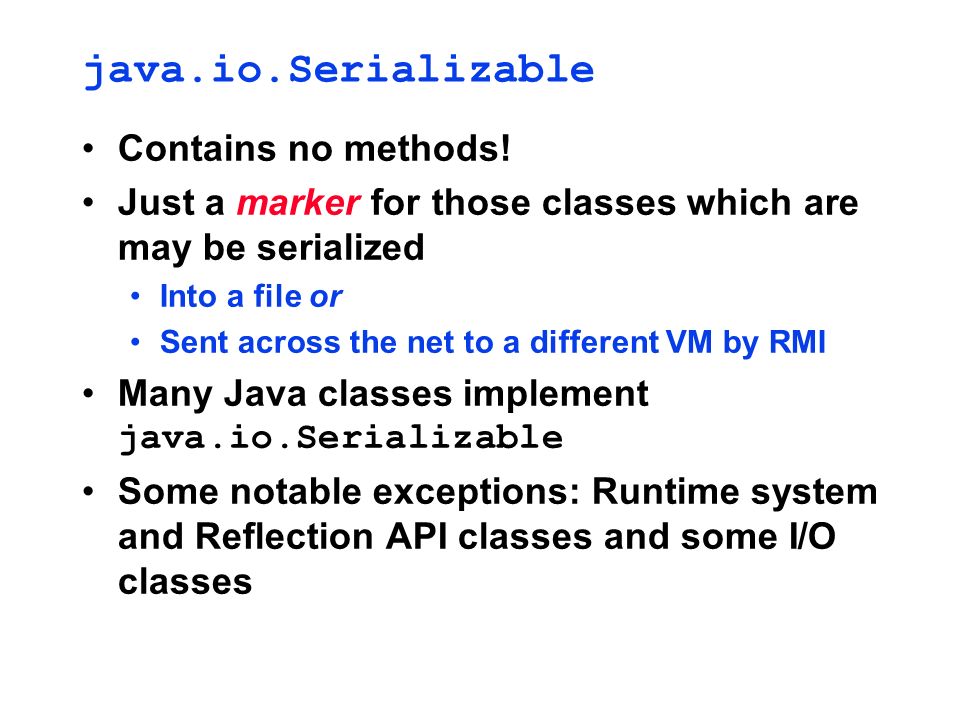

38. java.io.Serializable Contains no methods! Just a marker for those classes which are may be serialized Into a file or Sent across the net to a different VM by RMI Many Java classes implement java.io.Serializable Some notable exceptions: Runtime system and Reflection API classes and some I/O classes

39. Passing objects by reference It is possible to pass objects be reference, but only if you design them specifically for RMI STEP ONE: Make the object implement the java.rmi.Remote interface STEP TWO: Export the object by registering it using methods in java.rmi.Naming In other words you are turning the object into another RMI server in its own right

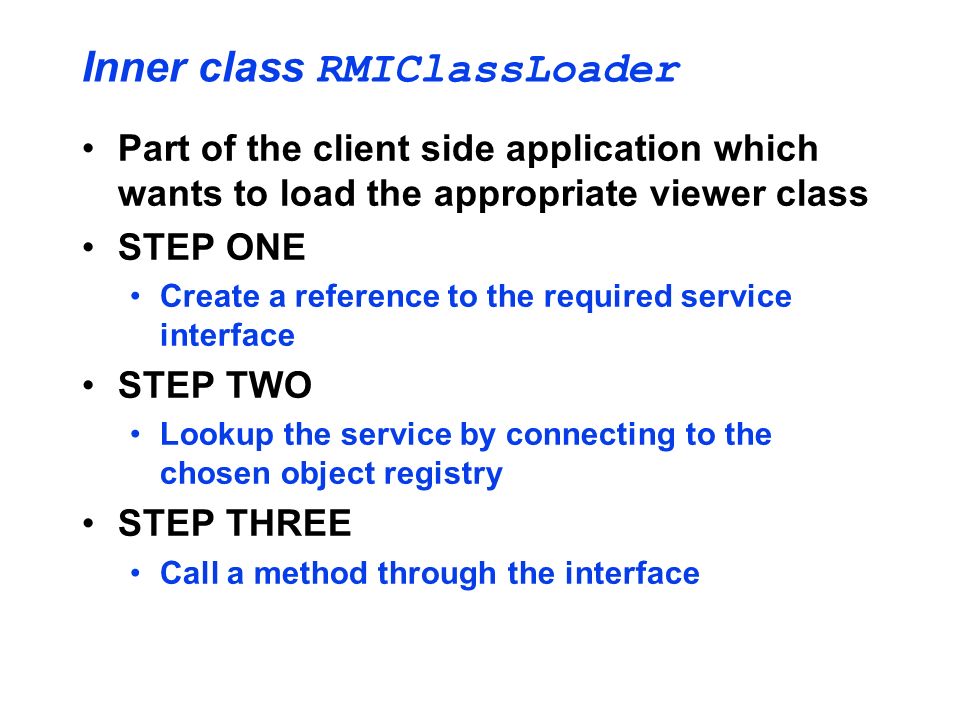

40. Inner class RMIClassLoader Part of the client side application which wants to load the appropriate viewer class STEP ONE Create a reference to the required service interface STEP TWO Lookup the service by connecting to the chosen object registry STEP THREE Call a method through the interface

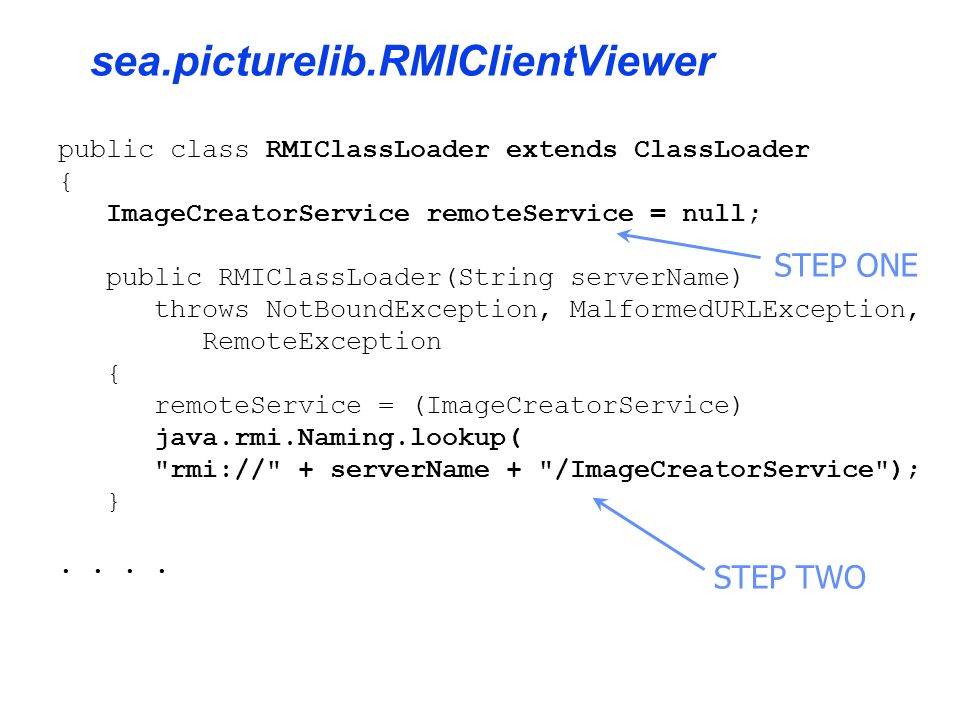

41. sea.picturelib.RMIClientViewer public class RMIClassLoader extends ClassLoader { ImageCreatorService remoteService = null; public RMIClassLoader(String serverName) throws NotBoundException, MalformedURLException, RemoteException { remoteService = (ImageCreatorService) java.rmi.Naming.lookup( "rmi://" + serverName + "/ImageCreatorService"); }.. STEP ONE STEP TWO

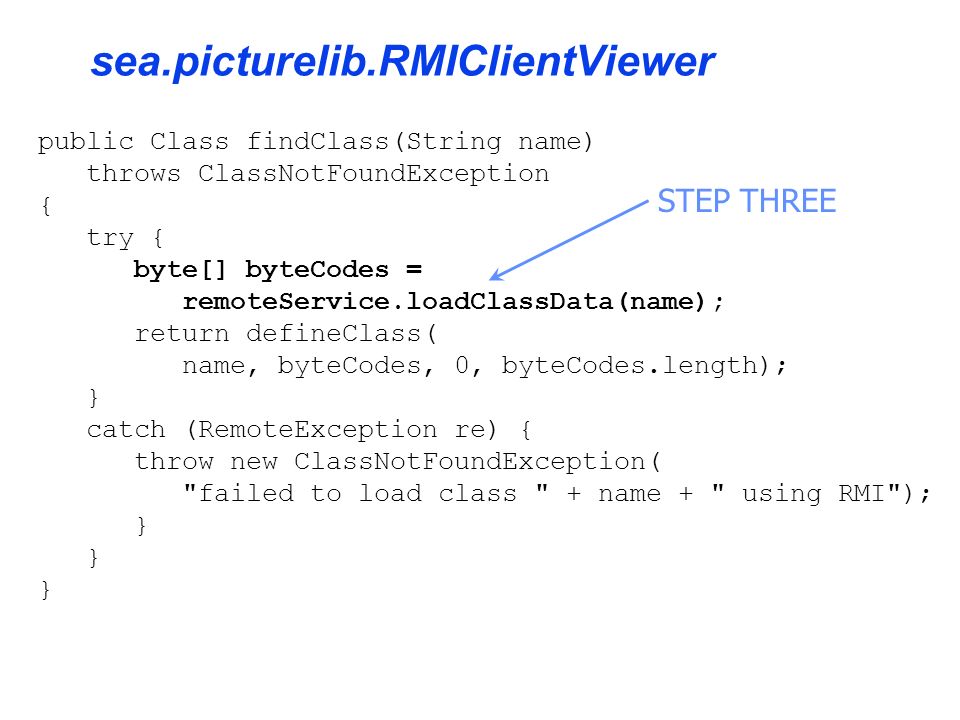

42. sea.picturelib.RMIClientViewer public Class findClass(String name) throws ClassNotFoundException { try { byte[] byteCodes = remoteService.loadClassData(name); return defineClass( name, byteCodes, 0, byteCodes.length); } catch (RemoteException re) { throw new ClassNotFoundException( "failed to load class " + name + " using RMI"); } STEP THREE

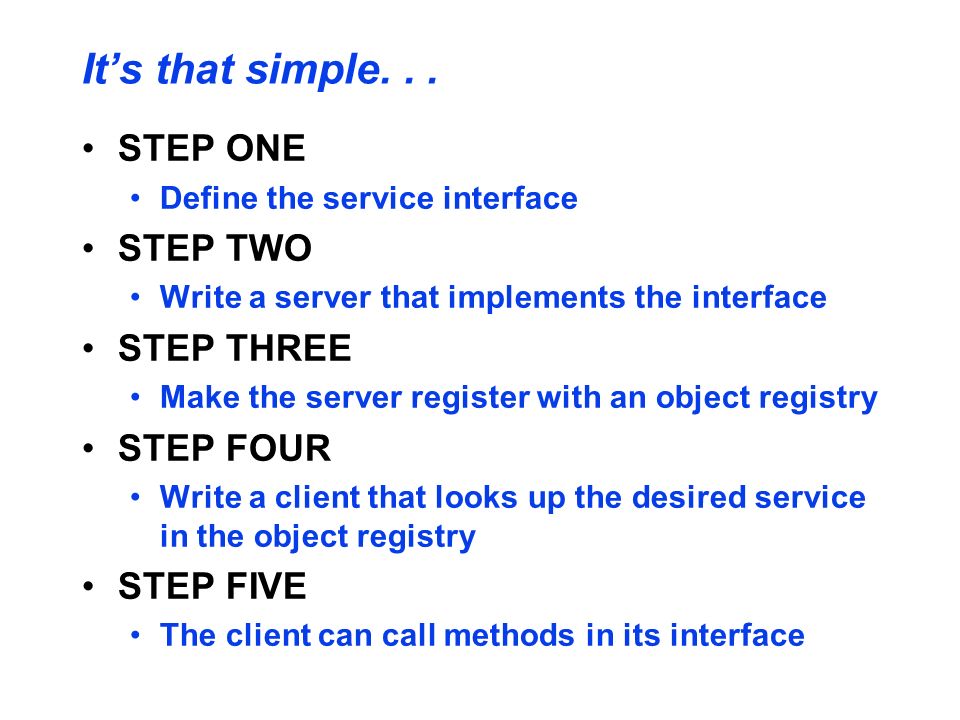

43. It’s that simple... STEP ONE Define the service interface STEP TWO Write a server that implements the interface STEP THREE Make the server register with an object registry STEP FOUR Write a client that looks up the desired service in the object registry STEP FIVE The client can call methods in its interface

44. ... not quite! Some general RMI issues … RPC (RMI) can lull the designer into a false sense of security! Beware! They may look like method calls but they’re really network communications You will need a design that take into account Reliability issues Latency issues

45. Reliability Issues When a remote method cannot be called it throws an exception in the java.rmi.RemoteException hierarchy java.rmi.ConnectionException when the network connection could not be established java.rmi.ConnectionIOException when the network connection failed... and there are plenty of things that can go wrong (17 other exception types)

46. Latency Issues Calling methods locally 100% reliable and only requires a few nanoseconds Not true for RMI Network might be congested (or down) Remote server may be busy (or down) RMI calls take a long time: About 1 ms in the best scenario (one million times as long as a local method call!) Up to a 3 minute time-out DNS lookup fails

47. Latency Issues It is unwise to make RMI method calls from any time-sensitive code User interface callback handlers Process/hardware controllers Control the network environment Make RMI calls in a separate thread Design an interface with coarse-grained methods to minimize round trip delays

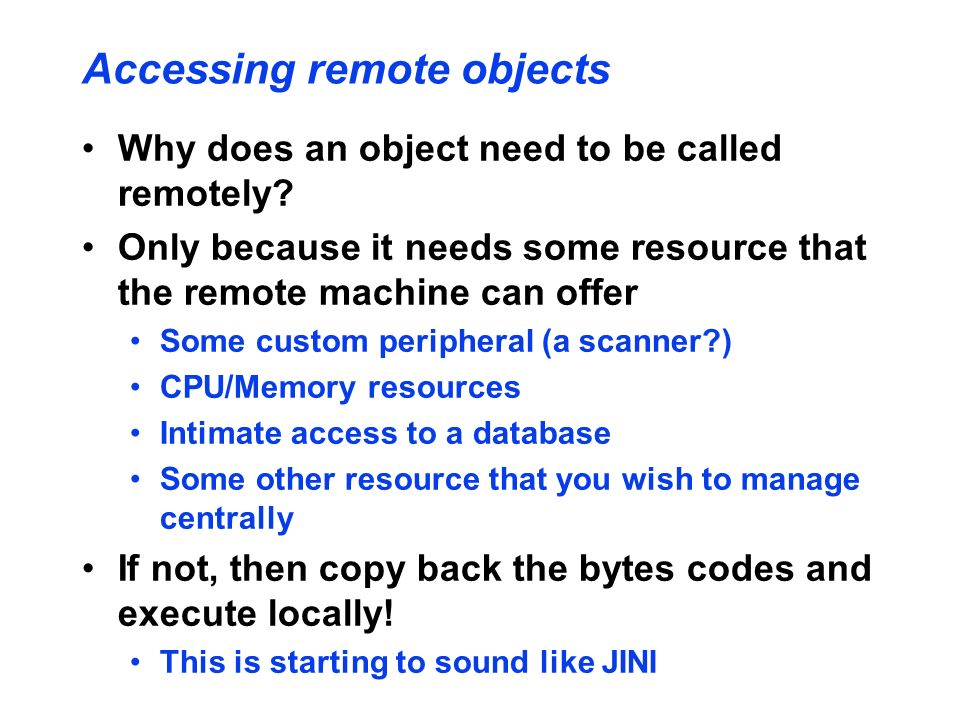

48. Accessing remote objects Why does an object need to be called remotely? Only because it needs some resource that the remote machine can offer Some custom peripheral (a scanner?) CPU/Memory resources Intimate access to a database Some other resource that you wish to manage centrally If not, then copy back the bytes codes and execute locally! This is starting to sound like JINI

49. Design Issues Work out where objects need to be within the system architecture Why not get the RMI server to support the ImageCreator interface directly? We could have passed the File object across to the server but not the file! File implements Serializable We could need to create a remotely accessible stream object Must then pass the image object back to the client It is expensive to transfer large arrays of bytes

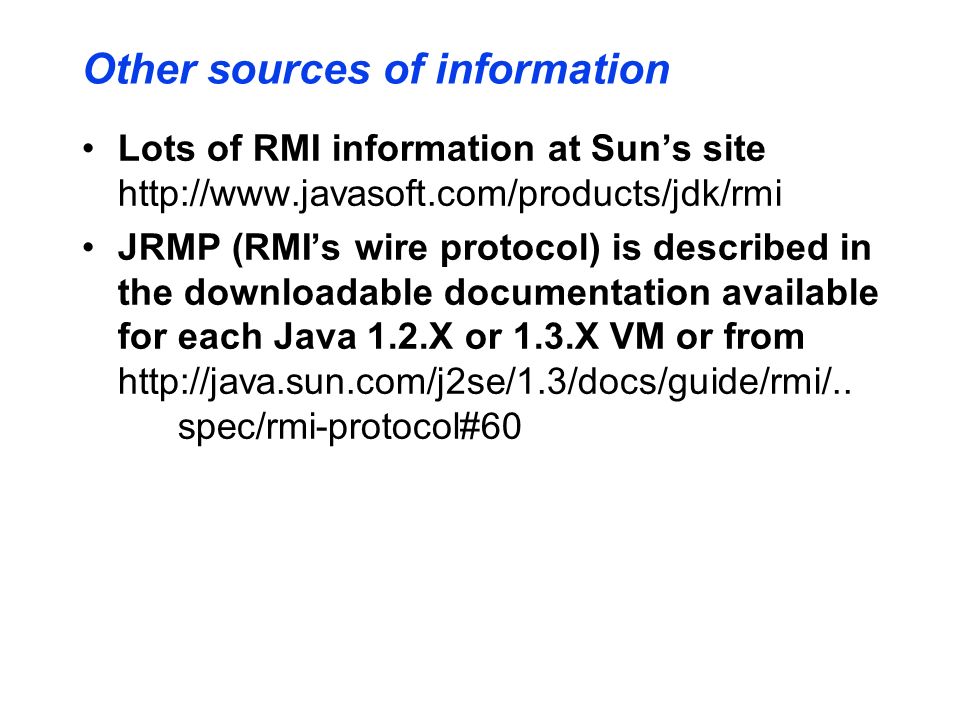

50. Other sources of information Lots of RMI information at Sun’s site http://www.javasoft.com/products/jdk/rmi JRMP (RMI’s wire protocol) is described in the downloadable documentation available for each Java 1.2.X or 1.3.X VM or from http://java.sun.com/j2se/1.3/docs/guide/rmi/.. spec/rmi-protocol#60

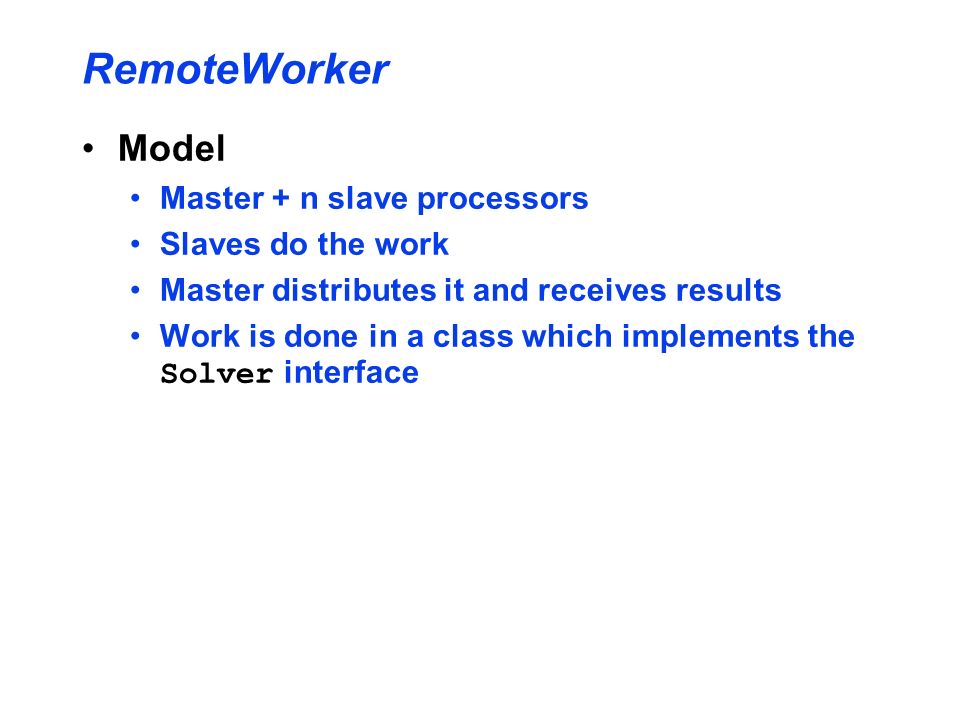

51. RemoteWorker Model Master + n slave processors Slaves do the work Master distributes it and receives results Work is done in a class which implements the Solver interface

52. RemoteWorker Solver methods public void init( TaskDescriptor init_parms ) Set up initial parameters (if any) public Result executeTask( TaskDescriptor td ) Solve the problem TaskDescriptor Marker interface Wrapper for arguments for init and executeTask Result Marker interface Wrapper for return value(s) from executeTask

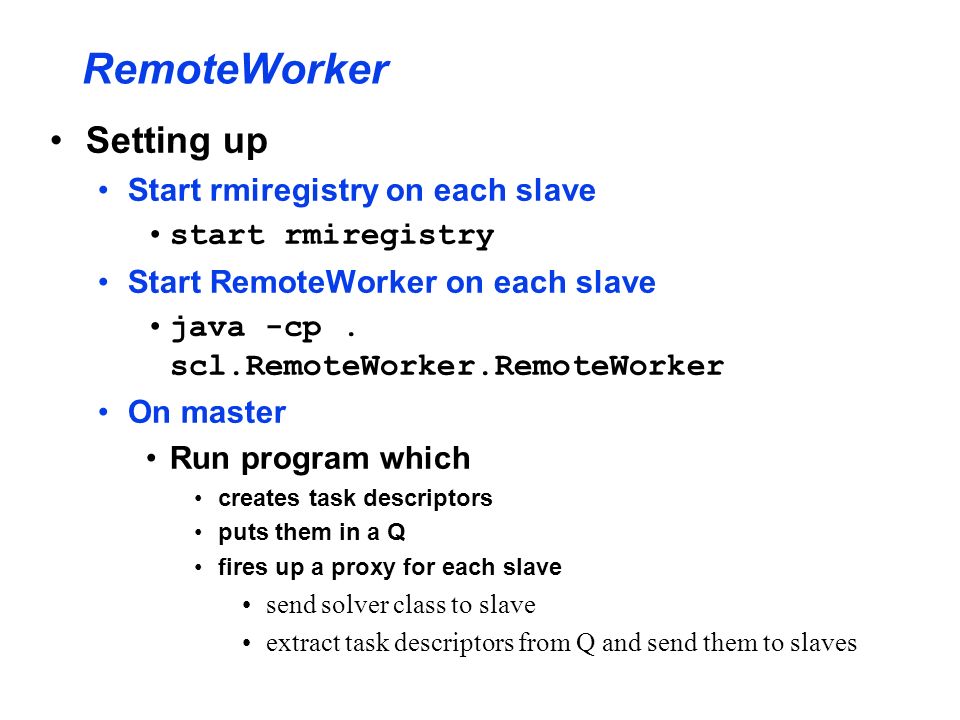

53. RemoteWorker Setting up Start rmiregistry on each slave start rmiregistry Start RemoteWorker on each slave java -cp. scl.RemoteWorker.RemoteWorker On master Run program which creates task descriptors puts them in a Q fires up a proxy for each slave send solver class to slave extract task descriptors from Q and send them to slaves

54. Creating a Class object public ImageCreator loadCreator(String className) throws ClassNotFoundException { Class type = Class.forName(className); Class imageCreatorType = ImageCreator.class; ImageCreator component = null; Class[] interfaces = type.getInterfaces(); for (int i = 0; i < interfaces.length; i++) { if (interfaces[i].equals(imageCreatorType)) { return (ImageCreator) type.newInstance(); } return null; }

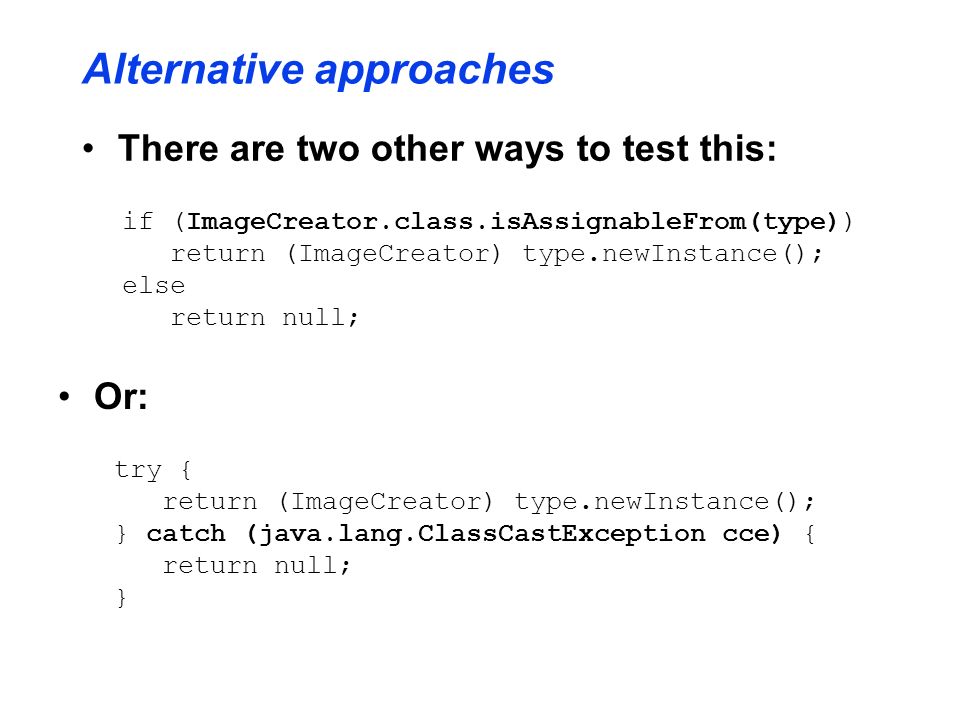

55. Alternative approaches There are two other ways to test this: Or: if (ImageCreator.class.isAssignableFrom(type)) return (ImageCreator) type.newInstance(); else return null; try { return (ImageCreator) type.newInstance(); } catch (java.lang.ClassCastException cce) { return null; }

56. The price of deferred loading Compiler errors become exceptions! java.lang.ClassNotFoundException no (byte code) definition for the specified class can be found java.lang.IllegalAccessException the constructor/method is private java.lang.InstantiationException the class does not have a valid constructor or an attempt was made to instantiate a primitive: int i = new int(); // this is an error!
