1. Processor Structure & Operations of an Accumulator Machine
Andres Ochoa
CSCI 6303
Principles of Information Technology

2. Outline CPU Control Unit ALU Registers Bus Fetch-Execute Cycle
Pipelining
Accumulator

3. CPU CPU Requires memory within CPU itself
Control Unit
ALU
Requires memory within CPU itself
Registers
Data transfer within CPU, and external devices
Buses

4. Control Unit Coordinates all activities within the CPU
Controls CPU Operations
ALU Operations
Movement of Data within CPU
Exchange of Data and Control Signals across external interfaces (ex. Main Memory)
Functional requirements
Operations, Addressing, Registers, I/O, Memory Interface, Interrupt Processing

5. Arithmetic / Logic Unit (ALU)
Calculator within the CPU
Data Processing
Performs…
Arithmetic operations
Addition, Subtraction, Multiplication, Division
Example: AX = , BX =
ADD destination, source
ADD ax, bx
AX =
Logic operations
AND, OR, NOT, XOR
Example: AX = , BX =
AND destination, source
AND ax, bx
AX =

6. Register Register CPU memory
Divided into different registers for general and specific use

7. Registers High-Speed Memory within the CPU General-Purpose Data
Address, Operand,
Data
Hold Data
Address
Pointers, Index registers
Status
Flags (Ex. zero, carry, overflow…)

8. Four Essential Registers
Control Registers
Program Counter
Address (location) of next instruction
Instruction Register
Actual instruction being executed
Memory Address Register (MAR)
Address of location in memory
Memory Buffer Register (MBR)
Contains word of data to be written to memory
Holds word of data read from memory

9. Bus Connections within CPU, and between the CPU and external devices
Composed of multiple wires or traces
Three main buses external to CPU
Control Bus
Address Bus
Data Bus

10. Bus Functions Control Bus Address Bus Data Bus
Carries the control unit’s signal to external devices (read, write, start, stop, etc)
Address Bus
Carries the address of location in memory
MAR – memory address register
Data Bus
Carries data from memory to CPU, or from CPU to memory
MBR – memory buffer register

11. Bus Operations

12. Bus Operations (Data Bus)
The Data Bus transfers a word from the CPU to memory, and from memory to the CPU.
In order for a word to go in and out of a CPU, it has to be loaded into the MBR.
A word is brought in from the Data Bus into the MBR, which can be transferred to other registers in the CPU.
Also, a word needs to be loaded into the MBR before it goes out of the CPU and through the Data Bus.

13. Bus Operations (Address Bus)
The Address Bus allows the CPU to locate a word in memory.
The address is loaded into the MAR and is sent through the Address Bus.
The address sent through the bus will point at a specific location in memory.

14. Bus Operations (Control Bus)
The Control Bus allows the CPU to tell memory or any other external components what to do.
For example, if a word needs to be read from memory or written to memory, the Control Unit will send a signal through the Control Bus which tells the memory whether it is a read or write command.

15. Example (Fetch Instruction)
The Program Counter contains the address of the next instruction.
The address is loaded into the Memory Address Buffer (MAR).

16. Example (Fetch Instruction)
The MAR sends the address through the Address Bus to locate the next instruction in memory.

17. Example (Fetch Instruction)
The Control Unit sends a command through the Control Bus to memory.
The command tells the memory that the CPU will read a word from memory.

18. Example (Fetch Instruction)
The word is read from memory and sent through the Data Bus into the Memory Buffer Register (MBR).
This word of data is the next instruction.

19. Example (Fetch Instruction)
The instruction is then transferred from the MBR to the Instruction Register (IR).

20. Bus Problems Bus Bottleneck All devices need to communicate
Only one word of data can be passed through the bus at a time
All devices need to communicate
If multiple buses were used, the number of wires needed would be too many
Too complex and unmanageable
Single interconnecting bus is used
All components communicate using the same bus

21. Fetch-Execute Cycle Fetch Instruction Decode Instruction
Calculate Operands
Fetch Operands
Execute Instruction
Write Data

22. Fetch-Execute Cycle Fetch Instruction Decode Instruction
Address from Program Counter is loaded into the MAR
Processor reads instruction from memory
Instruction is fetched and stored into the MBR
Instruction moved from MBR to IR
Decode Instruction
Instruction is decoded to determine opcode and operand specifiers
Determine what action is required

23. Fetch-Execute Cycle Calculate Operands Fetch Operands
Calculates address (location) of each operand, whether it’s from main memory or already in a register.
Fetch Operands
Memory
Needs to be fetched from memory.
Slower to retrieve
Registers
Operands in registers don’t have to be fetched
Already in the CPU registers and faster to access

24. Fetch-Execute Cycle Execute Instruction Write Data
Perform specified operation and store in destination operand location
ALU – performs arithmetic operations
Write Data
Result is written to memory
Program Counter is incremented to locate the next instruction

25. Fetch-Execute Cycle
Start

26. Pipelining
Concept
Assembly Line
Since instructions are processed in different stages, pipelining is used
Increase speed of CPU significantly
Instruction process can be broken up into multiple stages
Six stages are mentioned
Fetch Instruction, Decode Instruction, Calculate Operands, Fetch Operands, Execute Instruction, Write Data

27. Fetch-Execute Cycle (without Pipelining)
Assumptions for this example:
All stages last the same amount of time
One instruction at a time

28. Fetch-Execute Cycle (without Pipelining)
Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

29. Fetch-Execute Cycle (without Pipelining)
Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

30. Fetch-Execute Cycle (without Pipelining)
Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

31. Fetch-Execute Cycle (without Pipelining)
Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

32. Fetch-Execute Cycle (without Pipelining)
Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

33. Fetch-Execute Cycle (without Pipelining)
Time is wasted going through the entire cycle on a single instruction

34. Pipeline Concept Assumptions for this example:
All stages last the same amount of time
All instructions are the same

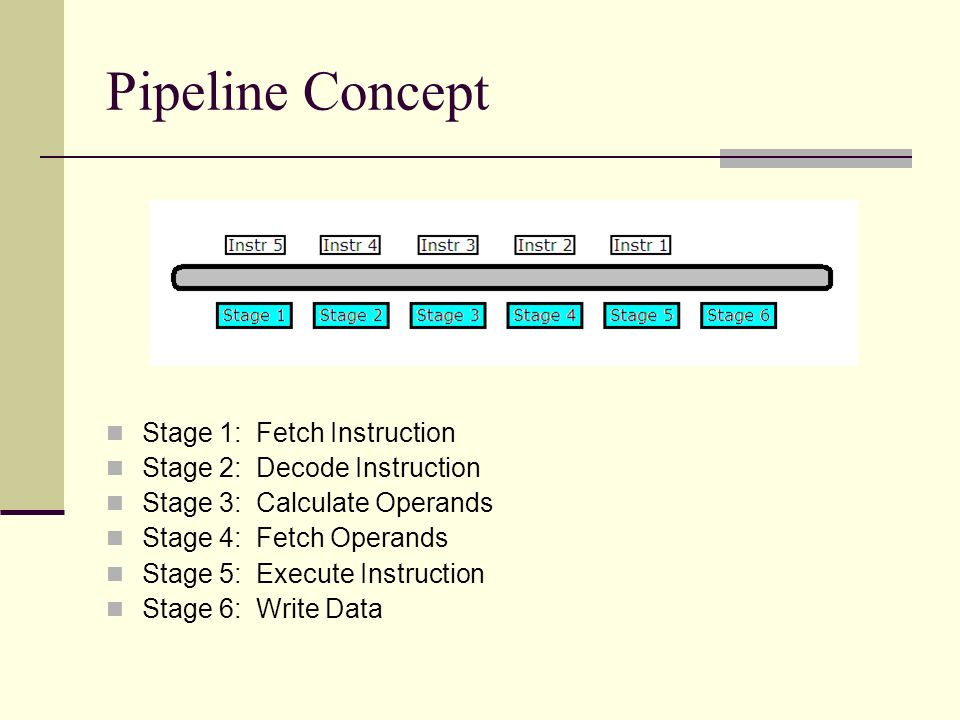

35. Pipeline Concept Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

36. Pipeline Concept Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

37. Pipeline Concept Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

38. Pipeline Concept Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

39. Pipeline Concept Stage 1: Fetch Instruction
Stage 2: Decode Instruction
Stage 3: Calculate Operands
Stage 4: Fetch Operands
Stage 5: Execute Instruction
Stage 6: Write Data

40. Pipeline Concept Faster CPU speed
Time is used efficiently
In real CPU, not all stages are the same
Instructions can be simple or complex
Certain stages can be faster or slower than others

41. Pipelining
The concept of pipelining is to split each process of the Fetch-Execute cycle into independent stages handling different instructions.
As the previous example shows, each stage is handling the process of a different instruction.
This means that instructions are completed one after another, instead of going through the entire cycle for one single instruction.
However, some stages might be faster than others.
Stages involving the fetching of instructions or operands and storing into memory will take more time, so one stage might be waiting on another stage in front of it to finish.

42. Accumulator Machine
Almost all early computers were accumulator machines.
An Accumulator Machine is a CPU that stores most of the results from the ALU calculations into an Accumulator Register.
Examples of Accumulator Machines
PIC microcontroller
Modern CPUs are typically 2-operand or 3-operand machines
The operands also specify the source and destination AX
General-Purpose Register
Arithmetic, logic, data transfer
Not considered accumulator machines

43. Accumulator Accumulator Type of Register Stores the result of ALU
Without the accumulator, the result would be stored in memory and read again for other operations.
Accumulator allows the ALU result to be stored in a register so it can be quickly accessed again.

44. Accumulator Accumulator Register
Implicit operand for arithmetic instructions
Example: ADD memaddress
Value added with accumulator value
Implicit destination of the operand
Result is stored in accumulator
Note: In modern processors, not all arithmetic instructions automatically use the accumulator register.

45. Instructions using Accumulators in Modern Processors
Multiplication
AX multiplied by source operand, and then stored into AX.
Example:
AX =
BX =
MUL BX
Answer  AX =
Division
AX divided by source operand, and then stored into AX
AX =
DIV BX
Answer  AX =

46. Works Cited
Accumulator (computing). 24 Sept <
Englander, Irv. The Architecture of Computer Hardware and System Software : An Information Technology Approach. New York: Wiley,
Stallings, William. Computer Organization and Architecture : Designing for Performance. Upper Saddle River: Prentice Hall,
Williams, Robert. Computer Systems Architecture : A Networking Approach. New York, NY: Addison-Wesley Longman, Limited,

47. Processor Structure & Operations of an Accumulator Machine
End of Presentation
