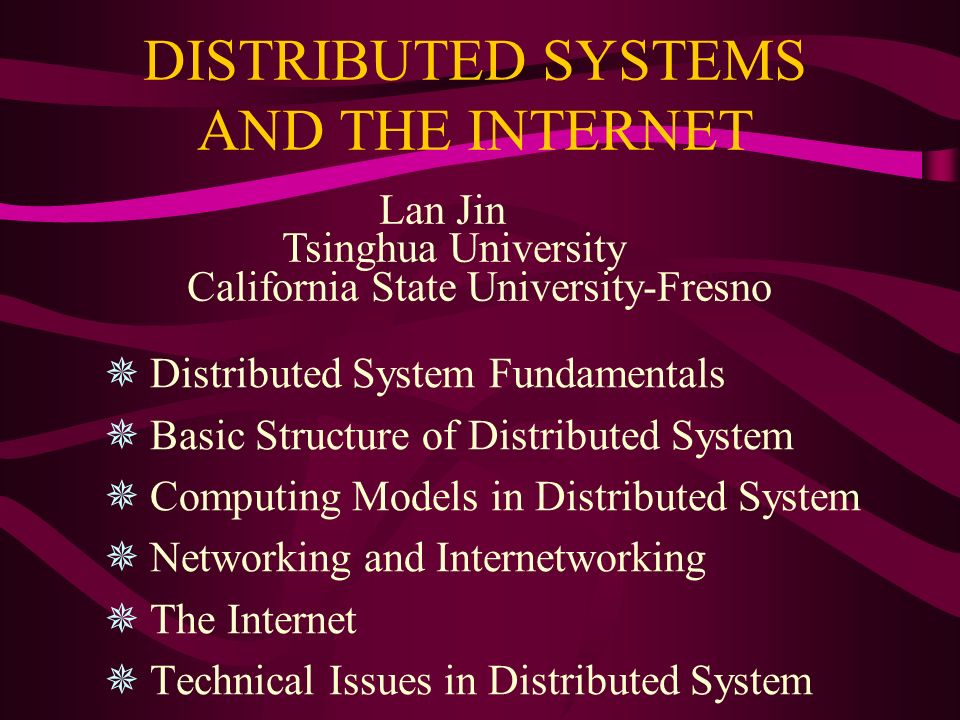

2. DISTRIBUTED SYSTEMS AND THE INTERNET  Distributed System Fundamentals  Basic Structure of Distributed System  Computing Models in Distributed System  Networking and Internetworking  The Internet  Technical Issues in Distributed System Lan Jin Tsinghua University California State University-Fresno

3. DISTRIBUTED SYSTEM FUNDAMENTALS  Multiple computers + communication network + message passing + single system image  Lack of central memory and a global clock  Distributed hardware - multicomputer & network  Distributed software and information  Distributed control not relying on global state, but on consensus and agreement protocol  Major goal: Transparency with no knowledge of what, where, and how. General Characteristics of DS

4. DISTRIBUTED SYSTEM FUNDAMENTALS  Transparency: access, location, mobility, replication, concurrency, parallelism, scaling, failure, network  Heterogeneity: network, computer h/w, OS, prog. languages, vendors  Openness or Flexibility: microkernel & open services  Scalability & Reconfigurability  Reliability & Availability: redundancy, fault tolerance  Security: firewall, encryption  Concurrency & Performance Challenges of Distributed Systems

5. DISTRIBUTED SYSTEM FUNDAMENTALS  Economics: A decisive price/performance advantage over traditional time-sharing systems  Improved reliability & availability thru replication  Modular scalability  Many applications are inherently distributed, with a great demand for communication, information sharing, and resource sharing among computers.  The Internet is the greatest worldwide distr. system. Why Distributed Systems ?

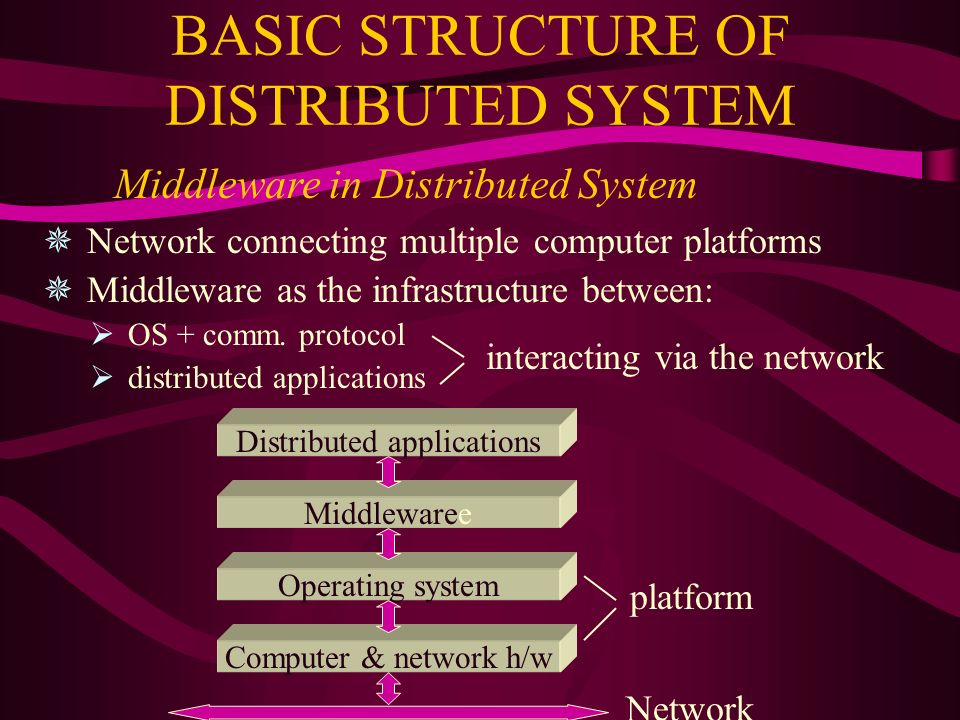

6. BASIC STRUCTURE OF DISTRIBUTED SYSTEM  Network connecting multiple computer platforms  Middleware as the infrastructure between:  OS + comm. protocol  distributed applications interacting via the network Distributed applications Middlewaree Operating system Computer & network h/w platform Network Middleware in Distributed System

7. BASIC STRUCTURE OF DISTRIBUTED SYSTEM  masks the heterogeneity of computer architectures  hides the underlying networked environment’s complexity  facilitates the interaction among distributed software modules  QoS management, information security, RPC, RMI, remote DB access, … Basic Functions of Middleware

8. BASIC STRUCTURE OF DISTRIBUTED SYSTEM  RPC, RMI, ROI middleware  OMG Corba, DCOM middleware  Integrating QoS management into middleware  Middleware supporting mobile computing  Middleware supporting ubiquitous computing  Mobile code and mobile agent  Jini, JavaSpaces, JavaBeans,…middleware Middleware Environments

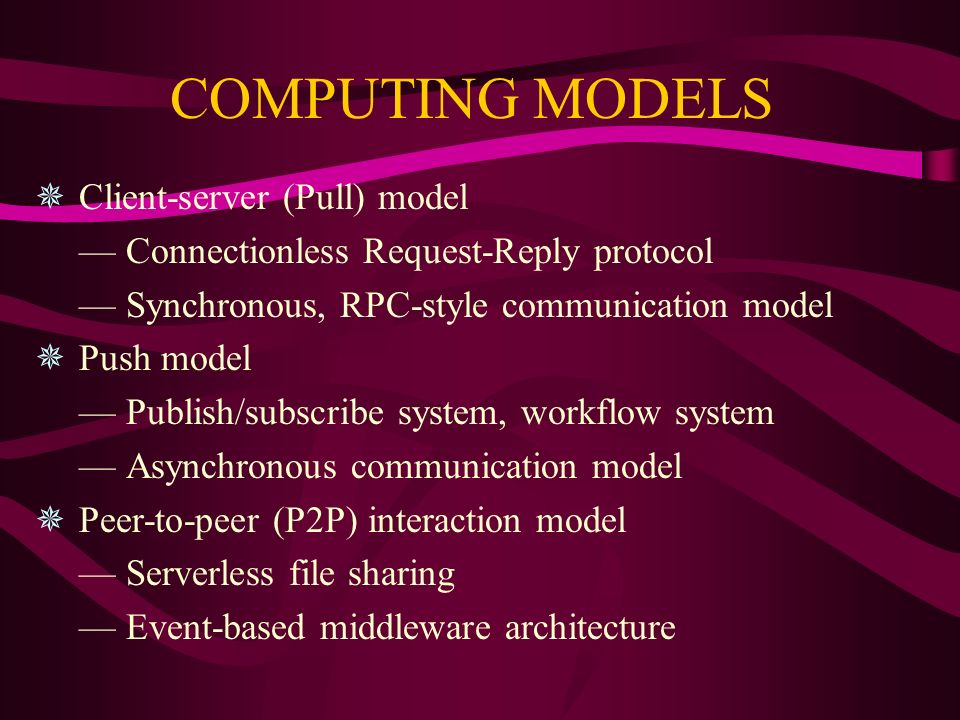

9. COMPUTING MODELS  Client-server (Pull) model  — Connectionless Request-Reply protocol  — Synchronous, RPC-style communication model  Push model  — Publish/subscribe system, workflow system  — Asynchronous communication model  Peer-to-peer (P2P) interaction model  — Serverless file sharing  — Event-based middleware architecture

10. COMPUTING MODELS Variations on the Computing Models  Partitioned or replicated servers  Servers may in turn be clients of other servers

11. COMPUTING MODELS  Mobile agent  Network computer  Thin client Variations on the Computing Models (continued)  Proxy servers and caches  Mobile code

12. NETWORKING & INTERNETWORKING Type Range Data rate(Mbps) Latency(ms) Examples LAN 1-2 Km 10-1000 1-10 Ethernet,Token ring WPAN >10m 1-2 Bluetooth WLAN 0.15-1.5 Km 2-11 5-20 WaveLAN MAN 2-50 Km 1-600 1-10 DSL, ATM WAN worldwide 0.010-600 100-500 ISDN,BISDN,ATM WWAN worldwide 0.010-2 100-500 the Internet (wireless) Types of Networks  Personal Area Network (PAN), WPAN (wireless)  Local Area Network (LAN), WLAN (wireless)  Metropolitan Area Network (MAN)  Wide Area Network (WAN)  Internetworks, the Internet

13. NETWORKING & INTERNETWORKING  2G: ≤ 14.4 Kbps; 3G: 2 Mbps; 4G: > 50 Mbps. Optical Networks  WDM/DWDM handle 160-320 wavelengths/fiber.  Optical Ethernet and MAN: 10 - 40 Gbps over 70 Km.  TDM reduces the cost: 2000 Gb/s on a single fiber.  Advanced optical fiber eliminates cross-talk problem.  The last-mile problem: LEC on DSL or wireless links. Wireless Networks  band system bit-rate users radius spatial capacity SRW 802.11b 11 Mbps 3 100m 1 Kpbs/m 2 SRW Bluetooth 1 Mbps 10 10m 30 Kbps/m 2 SRW 802.11a 54 Mbps 12 50m 83 Kbps/m 2 UWB 50 Mbps 6 10m 1000 Kbps/m 2

14. THE INTERNET IP datagrams Network-specific frames Internet Protocols — TCP/IP Protocol Suite  TCP directly supports applications (e.g., HTTP).  TCP — reliable connection-oriented communication  UDP — unreliable connectionless communication  IP datagrams — basic Internet transmission mechanism  IP supports WAN applications, e.g., file transfer, email.  Internet application protocols: HTTP, SMTP, FTP, telnet, NNTP by TCP; DNS by UDP Messages (UDP) or streams (TCP) UDP or TCP packets

15. THE INTERNET  UDP: unnecessary to establish and release a connection. TCP: needs to establish a connection - a connect request is followed by an accept from the server.  UDP transmits datagrams w/o acknowledgement or retries. TCP retransmits if not acknowledged within a timeout.  UDP: inadequate for using the limited length of datagrams. TCP: avoids implementing multi-packet protocols.  UDP: difficult to decide on the server buffer size. TCP: Message size is decided before transmitting it.  UDP: no flow control TCP: Flow control matches the speeds of writing to and reading from a stream by a producer/consumer paradigm. UDP vs. TCP in Client-Server Computing

16. THE INTERNET (To be continued) History of the Internet 1957 Forming of ARPA 1967 1st paper on the ARPAnet - the 1st WAN 1972 1st email program and Telnet standard 1973 1st international connection to ARPAnet 1973 FTP developed 1981 BITnet, CSnet using ARPAnet tech. 1982 TCP/IP est’d as an Internet standard 1982 The name Internet is assigned 1984 DNS introduced 1st 4 hosts on the ARPAnet 1969 (UCLA,UCSB,UofUtah,Stanford)

17. THE INTERNET History of the Internet (continued) 1989 130,000 computers connected to the Internet 1990 First commercially available dial-up Internet access 1991 1st code for the World Wide Web 1993 Mosaic, the 1st graphics-based browser 1993 1,776,000 computers, 130 Web servers 1995 Java released by Sun microSystems 1995 6,642,000 comp, 23,500 Web servers 1997 19,540,000 comp, 1,203,096 Web sv. 1999 56,218,000 comp, 6,598,697 Web sv. Gopher created as a nongraphics-based browser 1991

18. THE INTERNET  WAP offers a small, extensible protocol stack to handle mobile communications more efficiently.  XML — a powerful extensible alternative to HTML  WML — a small set of XML for wireless network  HDML — compact HTML for handheld devices Wireless Internet  WAP (Wireless Application Protocol) WAP microbrowser running on WAP-enabled devices WAP protocol stack WAP gateway TCP/IP stack Web server HDML /WML HTML /XML Wireless network

19. THE INTERNET Bringing the Internet to Next Generation  Limitations of current WAN: ◊ do not deal with congestion effectively ◊ poor support for QoS ◊ low reliability ◊ no clear definition of the semantics of shared state  Internet2 Project ◊ High-speed gigapops at > 155 Mbps ◊ vBNS at 622 Mbps - 2.4 Gbps ◊ IP Multicast protocol and IPv6 ◊ Digital audio and video frameworks ◊ QoS ◊ Distributed storage management  NGI - a US government program along with vBNS

20. THE INTERNET Extending Internet Markup Languages  Limitations of HTML: ◊ Presentations rather than content orientation ◊ No extensibility ◊ No data validation capabilities  Enter XML ◊ Let information publishers invent their own tags. ◊ addresses only content. ◊ supports validation by using OTS XML parsers.  XML Benefits ◊ extensibility ◊ presentation/content ◊ support for multiple views of the same content ◊ support for document and validation of structured data ◊ selective (field-sensitive) queries over the Internet

21. TECHNICAL ISSUES IN DISTRIBUTED SYSTEM  Primitive operations of communication and synchronization  Message-Passing mechanism: synchronous or blocking vs. asynchronous or non-blocking  Network communication mechanism  Multicast communication between groups of processes  Client-server communication ◊ Blocking vs. non-blocking primitives ◊ Buffered vs. unbuffered primitives ◊ Reliable vs. unreliable primitives  Client-server exchange protocols Interprocess Communication

22. TECHNICAL ISSUES IN DISTRIBUTED SYSTEM  Programmable models for distributed applications ◊ Remote procedure call (RPC)/Remote method invocation (RMI) ◊ Event notification — event-based prog. model  Middleware layer — RPC, RMI, and events built on request-reply protocol and external data representation  RMI by Java ◊ Request invocation - Response ◊ Interface compiler generates client stub & server skeleton by IDL. ◊ Stub & skeleton perform marshaling and unmarshaling. ◊ RMI passes full objects as operation parameters & return values. Remote Procedure Call (RPC) / Remote Method Invocation (RMI)

23. TECHNICAL ISSUES IN DISTRIBUTED SYSTEM  Unavailability of global memory and global clock  Unpredictable message delays  To implement distributed system-wide control: ◊ Algorithms based on arriving at a consensus ◊ Clock synchronization for temporal ordering of events  Logical clock: Lamport’s virtual time or vector time  Message ordering in group communication  Defining a coherent (consistent) global state Unavailability of Up-to-Date Global State

24. TECHNICAL ISSUES IN DISTRIBUTED SYSTEM  Distributed mutual exclusion  Distributed deadlock detection  Distributed election algorithms  Processor (workload) allocation  Distributed (process, thread) scheduling  Fault tolerance in DS  Distributed agreement Distributed Control Algorithms

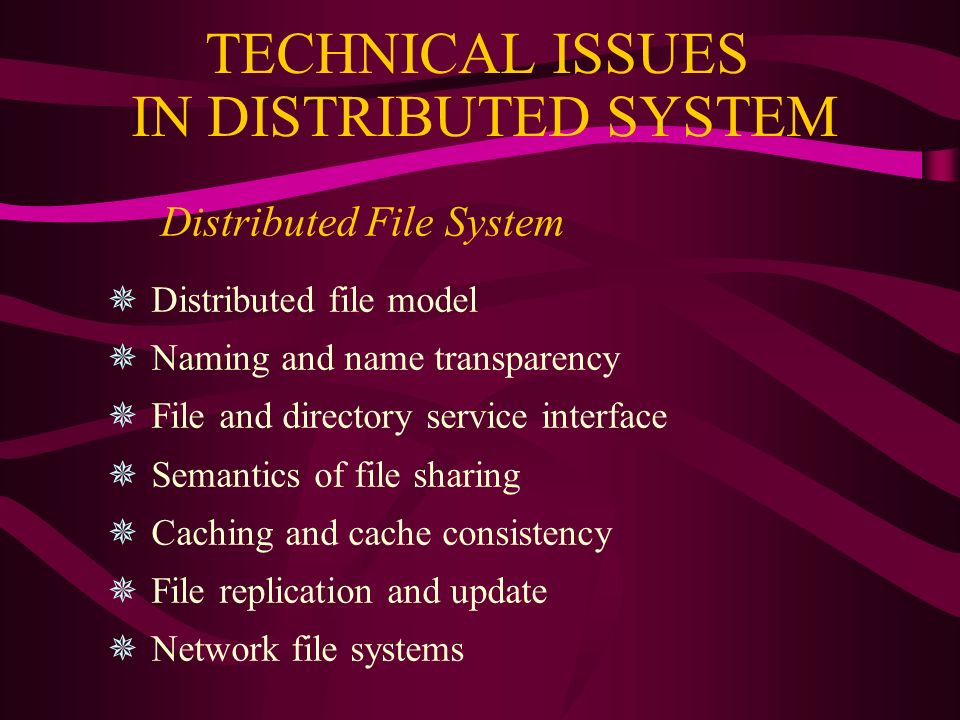

25. TECHNICAL ISSUES IN DISTRIBUTED SYSTEM  Distributed file model  Naming and name transparency  File and directory service interface  Semantics of file sharing  Caching and cache consistency  File replication and update  Network file systems Distributed File System

26. TECHNICAL ISSUES IN DISTRIBUTED SYSTEM  Transaction Model  ACID Properties of transactions  Implementation of transactions: ◊ Private workspace ◊ Writeahead log  Two-phase commit protocol  Concurrency control ◊ Compatible locks and deadlock prevention ◊ Optimistic concurrency control ◊ Timestamp ordering Atomic Transactions
