1. INPUT/OUTPUT Operating system controls all I/O devices
Two aspects of I/O devices are important for operating system:
I/O hardware
I/O software

2. Principles of I/O Hardware
I/O devices
Block Devices: stores information in fixed-size blocks: Disk (seek operation)
Character Devices: Delivers or accept a stream of characters, without regards to any block structure: Printer, network interfaces,…
Data rates of some common devices are presented in the next slide

4. Device controllers
I/O units consist of mechanical and electronic component (electronic component called device controller or adapter)
O.S initialize the controller with few parameters and controller take care of the rest. For example if a disk formatted with 256 sectors of 512 bytes a serial bit stream of 4096 bits with all necessary information is come off the drive. Controller assembles the bits and changes the bits into the bytes and send them to main memory

5. Device controllers

6. Device controllers

7. Memory-Mapped I/O
Each controller has few register and maybe a data buffer (e.g. video RAM) to be able to communicate with CPU

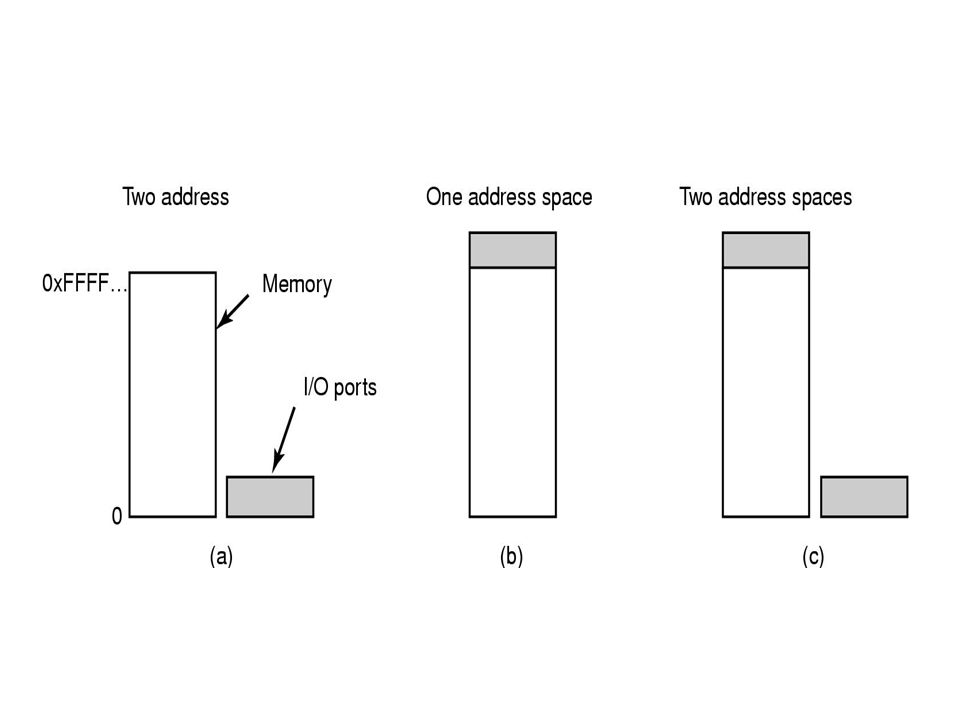

CPU communicates with the control registers and data buffer in three ways:
1- With assigned I/O port of that device:
IN R0,4 reads the contents of port 4
MOV R0,4 reads the contents of memory word 4 and put it in R0.

9. Memory-Mapped I/O 2- Memory-mapped I/O: means the
registers are part of the memory address (b in the previous slide)
3- Hybrid scheme: It has memory-mapped I/O data buffers and separate I/O ports for control registers
In all of these cases the communication with CPU is through the buses

10. Memory-Mapped I/O Disadvantage of Separate I/O and memory space:
In C/C++ we don’t have IN or OUT commands to read the ports
Some of the advantages of Memory-mapped I/O:
The device driver can be written entirely in C/C++
Every instructions that can reference memory can also reference control registers

11. Communication with I/O Devices
If there is only one address bus all the I/O devices and memory modules can check memory references by examining this bus (see a in the next slide)
But most of the systems has a dedicated high-speed memory bus for optimizing memory performance (see b in the next slide). The problem with this design for memory-mapped I/O is: I/O devices have no way of seeing memory addresses because they go by on the memory bus.

12. Communication with I/O Devices

13. Communication with I/O Devices
One possible solution for the system with multiple buses is to first sending all memory references to the memory. If the memory fails to respond , then CPU tries other buses.
Pentium solves this problem by filtering addresses in the PCI bridge chip. This chip checks the range of memory address references, if it finds non-memory references, it forwards them onto PCI (Peripheral Component Interconnect) bus instead of memory bus (see next slide)

15. Direct Memory Access (DMA)
Instead of using CPU for exchanging data with different controllers DMA is often used.
DMA has access to the system bus independent of CPU and it can be programmed by the CPU to exchange data (next slide shows how DMA works).

17. Principles of I/O Software
Goals of the I/O software
1- Device independence: It should be possible to write programs that can access any I/O device without having to specify the device in advanced. For example
sort<input>output should work for floppy disk , IDE or SCSI disk

18. Principles of I/O Software
2- Uniform naming: The name of the device should be simply an string or a integer that is not depending on the device. For example by mounting, each device can be addressed by file path name
3- Error handling: Error should be handled close to the hardware

19. Principles of I/O Software
4-Syncrhronous(blocking) vs. asynchronous (interrupt-driven) transfer. Most physical I/O are asynchronous but users program can be written much easier if they write with blocking I/O operations
5- Buffering, shareable and dedicated devices.

20. Principles of I/O Software
Goals of the I/O software can be achieved by structuring the software in following layers:

21. Interrupt Handler
The device driver blocks when it performs I/O operation.
When I/O completes, the controller issues interrupt and interrupt handler runs interrupt service procedure
Finally interrupt handler unblocks the driver, therefore its role is hiding the I/O controller interrupts.

22. Device Drivers
The device drivers command the controllers by setting controller registers
The device driver for each controller is created by device’s manufacturer and should be put into the kernel
O.S. should have an architecture to allow the installation of different device drivers. Device drivers usually positioned below the rest of O.S. (see the next slide)

24. Device Drivers
The most important function of device driver is changing abstract read/write request issued by device-independent software above it to concrete form.
For example a disk driver converts a linear block number into head, track, sector and cylinder of the related disk.
Device driver can queue the requests and report the errors to their callers.

25. Device-Independent I/O Software
Driver contains device dependent codes. Some other functions that are common to all devices and can be used as the interface to the user-level software are in the device-independent software
The basic functions of the device-independent I/O software are presented in the next slide

26. Device-Independent I/O Software

27. Uniform Interfacing for Device Drivers
It means O.S. should have common functions such as naming and protection for different drivers.
For example in Unix the name of /dev/disk0 can be mapped to locate any driver. It contains the i-node that contained the address of that device.
Also both Unix and Windows have the protection method that can be used for all devices uniformly.

28. Without standard driver interface
With standard driver interface

29. Device-Independent I/O Software
Buffering can be used both in the user space and kernel space. With buffering O.S. stores the data from devices that have different speed (see next slide)
Error Reporting: The general errors (not device dependent errors) is handled by O.S. For example reading or writing the wrong device

30. Buffering

31. Device-Independent I/O Software
Allocating and Releasing dedicated devices is done by O.S. For example O.S. does not allow acquiring a device that is not available. Also O.S. keeps a queue of the processes that are requested the same device
Device-independent software provide a unique block size (from different disks with different sector sizes) to the higher layer.

32. User-Space I/O software
The collection of library procedures such as
count = write( fd, buffer, nbytes)
scanf, printf commands
Spooling. For example spool printer. Process first put the file in spool directory and daemon (the only process having permission to the printer) print the file in the directory.

33. Summary of I/O System

34. Disks
A groups of magnetic disks organized into cylinders is the example of I/O devices
The IDE (Integrated Drive Electronics) disks have sophisticated drives contains microcontrollers for doing some of the work of the real disk controller
Disk controllers may do multiple seeks (i.e., overlapped seeks) on drives
Next slide compares an early floppy disk with a modern hard disk

36. Disks
On older disks the number of sector per track was the same for all cylinders
Modern disks are divided into zones with more sectors on the outer zones than inner zones (see the next slide)
To hide the details of how many sectors each track has, most modern disks presents a virtual geometry to the O.S. (see next slide)

37. Virtual geometry
Disk with two zones

38. Disks
The software acts as there are x cylinders, y heads and z sectors per track.
Controller remaps a request for (x,y,z) onto real cylinder, head and sector
The max value for Pentium is (65535, 16 and 63) means max capacity of disk with 512 bytes per sector is 31.5 GB
To get around this limit logical block addressing, in which disk sectors are just numbered consecutively starting at 0, is used

39. Disk Formatting
Before the disk can be used, each plotter must receive a low-level format done by software. It means tracks contain some number of sectors with following format
The start of each sector is recognized by hardware by a certain bit pattern (named preamble) and ECC contains information that can be used for recovery

40. Disk Formatting
After low level format each sector in the track is identified by a number.
Cylinder skew means offsetting the position 0 of each track from the previous track to improve the performance (see next slide). It is done to allow the disk to read multiple tracks in one continuous operation without loosing data

42. Disk Formatting
Reading the sectors continuously requires a large buffer in the controller
But if controller has a buffer just for one sector and wants to read to consecutive sectors, after reading the first one, its data must transfer to memory. While controller transfers the first sector, the next sector will be passing under the disk head and controller can not buffer its arriving bits.
This problem can be solved by numbering the sectors in an interleaved fashion when formatting the disk. See next slide

43. No interleaving Single interleaving Double interleaving

44. Disk Formatting After low-level format the disk is partitioned
On Pentium sector 0 contains the partition table
Finally high-level format prepare a disk for use by formatting each partition separately. It means storage administration (free list or bit map), root directory, empty file system and etc. are created for each partition

45. Disk Arm Scheduling Algorithm
For most disks, the seek time delay dominates the other two delays (rotational and data transfer delay) so the lower layers of O.S. ( for example device driver or even controller if it accepts multiple requests) try to reduce the disk seek time
Many disk drivers maintain a table, indexed by cylinder number, with all the pending requests for each cylinder
By using this structure following algorithms can be used for serving the requests

46. FCFS
If disk driver accepts request as First Come First Served (FCFS) little can be done to optimize disk seek time
For example suppose while seek to cylinder 11 is in progress, new requests come for 1,36,16,34, 9 and 12. FCFS requires total arm motion of 111 cylinders

47. Shortest Seek First (SSF)
Always handles the closet request next, to minimize the disk seek time
Its performance is better than FCFS but the problem is the requests far from the middle may get poor service (not a fair algorithm)
As previous example current request is for cylinder 11 and requests come for 1,36,16,34, 9 and 12. SSF requires total arm motion of 61 cylinders

48. Elevator Algorithm
Head keeps moving in the same direction (same as elevators) until there are no more outstanding requests in that direction, then head switches the direction (it is also called SCAN algorithm)
Same Example: Current request is for cylinder 11 and requests come for 1,36,16,34, 9 and 12. Elevator algorithm requires total arm motion of 60 cylinders

49. Elevator Algorithm
Software should maintain 1 bit to know the direction. Elevator also should know whether it is going UP or DOWN
Elevator algorithm is usually worse than SSF but for previous example it is slightly better

50. Deadlock
In the Multiprogramming environment processes compete for the resources
Resources can be preemptable resource that means it can be taken away from the process owning it with no ill effects (such as memory)
A nonpreemptable resource is the one that cannot be taken away from its current owner without causing the computation to fail

51. Deadlock Deadlock can be defined as follows:
A set of processes is deadlocked if each process in the set is waiting for an event that only another process in the set can cause
Resource graph can be used to show a deadlock (see the next slide)

52. Deadlock
Holding a resource
Requesting a resource
Deadlock

53. Conditions for Deadlock
1- Mutual Exclusion: At least one resource must be non-sharable. Only one process at a time can use the resource. All other requesting processes must be delayed until resource is released
2-Hold and wait: There must exist a process that is holding one resource and waiting to acquire additional resources held by other processes

54. Conditions for Deadlock
3-No preemption condition: Resource can not be preempted. It means a resource can only be released voluntarily by the process holding it
4-Circular wait: There must be a circular chain of two or more processes, each of which is waiting for a resource held by the next member of the chain

55. Deadlock Modeling
Resource allocation graph facilitates viewing of system states and detecting deadlocks (see next slide). Two simple ways to avoid deadlock are presented here. A detailed discussion will come later.
If Operating System decides to run all of the processes sequentially, this ordering (i.e., sequential) does not lead to any deadlocks but there is no parallelism at all
If granting a particular request might lead to deadlock O.S. can simply suspend the process (not scheduling the process). See next slides

58. Methods for Handling Deadlock
Ignoring deadlocks (Unix) (Window)
Deadlock detection and recovery
Deadlock prevention, deadlock avoidance by negation one of the four required conditions
Dynamic avoidance by careful resource allocation

59. Deadlock Detection and Recovery
Every time a resource is requested or released, the resource graph is updated and a check is made to see if any cycle exist. If a cycle exists, one of the processes in the cycle is killed. If it does not break the deadlock, another process is killed, and so on until the cycle is broken
Another way is periodically check to see if there are any process that has been blocked for a long time. Such processes are then killed

60. Deadlock Prevention
Attempt to prevent deadlock by ensuring that one of the 4 necessary conditions does not hold
Mutual Exclusion: If no resource were ever assigned exclusively to a single process, we would never have deadlocks. For example : By spooling printer, since Daemon never requested any other resources, we can eliminate deadlock for the printer. In general this method is difficult because not all devices can be spooled. Also by spooling printer we can not eliminate the competition for the disk space that is required for spooling. This competition can lead to deadlock

61. Deadlock Prevention
Hold and Wait: How do we ensure this condition never occurs?
Each process requests and receives all necessary resources before beginning execution. Problem: they don’t know how many resources they will need until they have started running
Require a process requesting a resource to first temporarily release all the resources it currently holds

62. Deadlock Prevention
No Preemption: It means if we attack the no preemption condition we should allow a resource such as a printer taken away from a process that using it and is waiting for a non available plotter. It means this process now waits for printer and plotter.

63. Deadlock Prevention
Circular wait: There are some methods to avoid circular wait:
To have a rule and say that a process is entitled only to a single resource at any moment. If it needs a second one, it must release the first one.
To provide a global numbering of all the resources. So processes can request resources whenever they want to, but all requests must be made in numerical order. See the next slide

64. Deadlock Prevention
Numerically ordered
A resource graph

65. Summary of Approaches to Deadlock Prevention

66. Deadlock Avoidance
Suppose that we do not want to be restricted as to forbid existence of any one of the necessary deadlock conditions but still want to avoid deadlock. One of the way is imposing arbitrary rules on processes such as the previous example, in which by not scheduling process B the deadlock was avoided (see slide_no: 57)

67. Deadlock Avoidance
The system must be able to decide whether granting a resource is safe or not and only make the allocation when it is safe. For example next slide shows how we can use process resources trajectories to identify safe and not safe regions. In the next slide at t B is requesting a resource. If system decide to grant it to B system will enter an unsafe region and eventually deadlock (intersection of I2 and I6). The shaded areas indicate that because of mutual exclusion system can not enter these arias. Note that printer or plotter can be used by only one process. To avoid deadlock, B should be suspended until A has requested and released the plotter.

68. Two Process Resource Trajectories

69. The Banker’s Algorithm for a Single Resource
Unsafe
Safe
Safe

70. The Banker’s Algorithm for Multiple Resources
