1. The ATLAS Production System

2. The Architecture ATLAS Production Database Eowyn Lexor Lexor-CondorG Oracle SQL queries Dulcinea NorduGrid Panda OSGLCG The 3 executors behave like plugins for Eowyn (the supervisor)

3. The Production Database Jobs are grouped in “datasets” and “tasks”: basically, they both represent the complete collection of jobs of the same kind. Tasks have been introduces only to distinguish logically datasets into the prodDB and the Production System. It’s an Oracle database, located at CERN, in which jobs for ATLAS are defined Tasks Thus, from the supervisor point of view, only the task distinction is relevant Oracle DB (ProdDB for friends)

4. ProdDB schema The Supervisor only uses 3 tables of the ProdDB Other tables are used to collect more informations on tasks and jobs ETASK EJOBEXE EJOBDEF

5. ProdDB schema: ETASK This table contains all the tasks: each task groups several jobs (from 10 up to ~5000 jobs per each task, depending on the particular nature of the task) ETASK The primary key of the table is TASKID: it uniqely identifies a task Other important fields are: ACTUALPARS: parameters for the ATLAS software which are common to all the jobs of the same task (e.g., needed CPU time, minimum RAM required, …) STATUS: only jobs of tasks in a RUNNING status will be selected TRANSUSES: defines the ATLAS software version needed by all the jobs of the same task GRID: a string used by the supervisor to select jobs. When configuring a supervisor, you have to specify the value that will match this field, so that only jobs of tasks with GRID= will be picked up TIER: indicates the region (cloud) in which jobs will be run (all the jobs of a same task will run in the same cloud)

6. ProdDB schema: EJOBDEF This table contains all the jobs EJOBDEF The primary key of the table is JOBDEFID: it uniqely identifies a job Other important fields are: TASKFK: jobs with the same TASKFK are part of the same task (identified by TASKID=TASKFK in the ETASK table, see the preceding slide) CURRENTSTATUS: only jobs in a TOBEDONE currentstatus will be selected. Jobs can be considered successful only once the supervisor has put them in DONE currentstatus MAXATTEMPT: jobs that fail are resubmitted by the supervisor as many times as its MAXATTEMPT LASTATTEMPT: tells the number of attempt of the last (re)submission. It increases of 1 at each submission of the job. Only jobs with LASTATTEMPT<MAXATTEMPT will be picked up JOBPARS: lists specific parameters of a job (e.g., input files, random numbers, …) that, together with ETASK.PARS, will be used by the ATLAS software

7. ProdDB schema: EJOBEXE (1) This table contains all the attempts in running a job EJOBEXE The primary key of the table is JOBEXEID: it uniqely identifies an attempt Other important fields are: JOBDEFFK: entries with the same JOBDEFFK represent resubmissions of the same job, identified by JOBDEFID=JOBDEFFK in the EJOBDEF table TASKFK: entries with the same TASKFK are resubmissions of jobs of the same task, identified by TASKID=TASKFK in the ETASK table JOBSTATUS: shows the status of the job in the executor (submitted, shceduled, running,…). Successful jobs are marked as ‘finished’ ATTEMPTNR: tells the number of the attempt of resubmission the entry refers to (a job that has been submitted 3 times will have 3 correspondig records in EJOBEXE with 3 different JOBEXEID and 3 different ATTEMPTNR: 1, 2, 3)

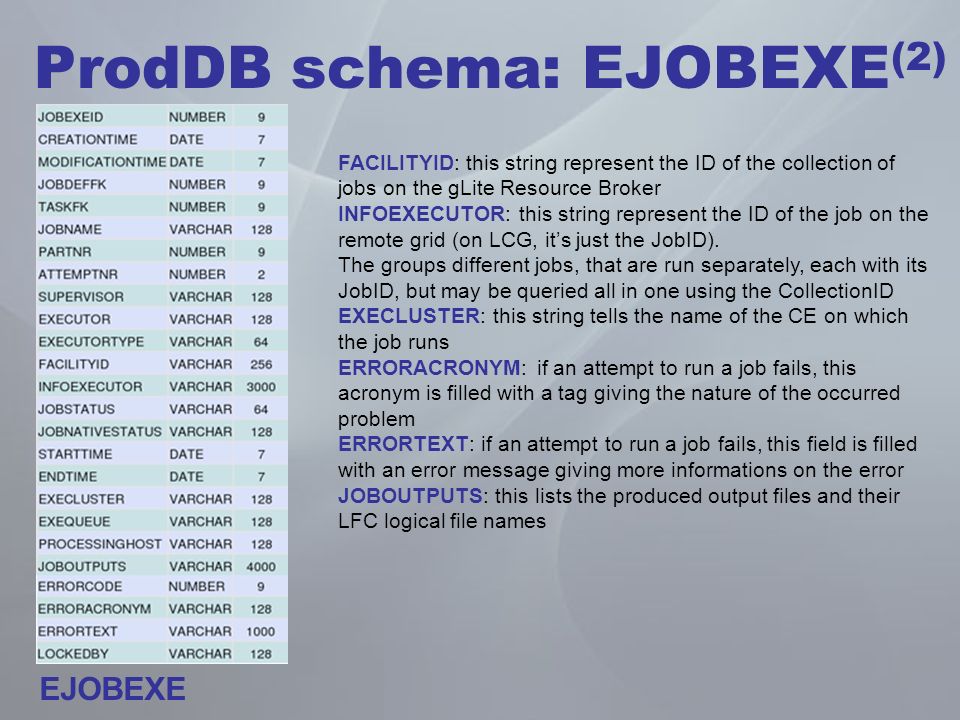

8. FACILITYID: this string represent the ID of the collection of jobs on the gLite Resource Broker INFOEXECUTOR: this string represent the ID of the job on the remote grid (on LCG, it’s just the JobID). The groups different jobs, that are run separately, each with its JobID, but may be queried all in one using the CollectionID EXECLUSTER: this string tells the name of the CE on which the job runs ERRORACRONYM: if an attempt to run a job fails, this acronym is filled with a tag giving the nature of the occurred problem ERRORTEXT: if an attempt to run a job fails, this field is filled with an error message giving more informations on the error JOBOUTPUTS: this lists the produced output files and their LFC logical file names ProdDB schema: EJOBEXE (2) EJOBEXE

9. ProdDB schema An example: task identified by taskid 1000 in the ETASK table consists of 2 jobs, identified by jobdefid 10000 and 10001 in the EJOBDEF table. Job 10001 runs successfully at the very first attempt (one only entry in the EJOBEXE table), while job 10000 fails twice, then it’s resubmitted a third time and it succeeds (three entries in the EJOBEXE table) ETASK TASKID=1000 EJOBDEF JOBDEFID=10000 TASKFK=1000 JOBDEFID=10001 TASKFK=1000 EJOBEXE JOBEXEID=200 JOBDEFFK=10000 TASKFK=1000 status=finished JOBEXEID=201 JOBDEFFK=10001 TASKFK=1000 status=failed JOBEXEID=202 JOBDEFFK=10001 TASKFK=1000 status=failed JOBEXEID=203 JOBDEFFK=10001 TASKFK=1000 status=finished

10. The supervisor: Eowyn Eowyn is the brain of the production system. It is the main running process and the only one which directly interacts with the ProdDB (executors do not perform queries to the DB). Eowyn activity can be sketched out as: select free jobs from the ProdDB; pass the jobs to an executor: the executor will take care of the submission of the jobs; ask the executor about the status of the jobs; validate finished jobs: if the produced output files are ok, jobs will be considered successful, otherwise they’ll be released and made ready for further resubmission; update the entries of such jobs in the database.

11. The executors Executors are Python modules that behave just like plugins for Eowyn. When configuring Eowyn, you choose which executor it has to use. Eowyn loads the corresponding module and, from now on, it becomes insensible to the grid flavour you’re using. The executors submit the job on the grids, they ask for their status to the underlying middleware and they retrieve the output log files. The main activities of the executors may be outlined as: tell Eowyn how many jobs can be submitted on the corresponding grid (the number is estimated on a count of free CPUs published by the sites); receive the jobs from Eowyn and prepare them (parsing of the job parameters and construction of the corresponding JDL); submit of the jobs on the corresponding grid; ask for the status of the jobs (to be reported to Eowyn); retrieve the output logs of finished jobs.

12. Job workflow Job worflow consists of three main steps: Definition - jobs entries are created in the ProdDB Selection - Eowyn picks up jobs from the ProdDB Submission - Eowyn passes the jobs to an executor and it submits them to the grid

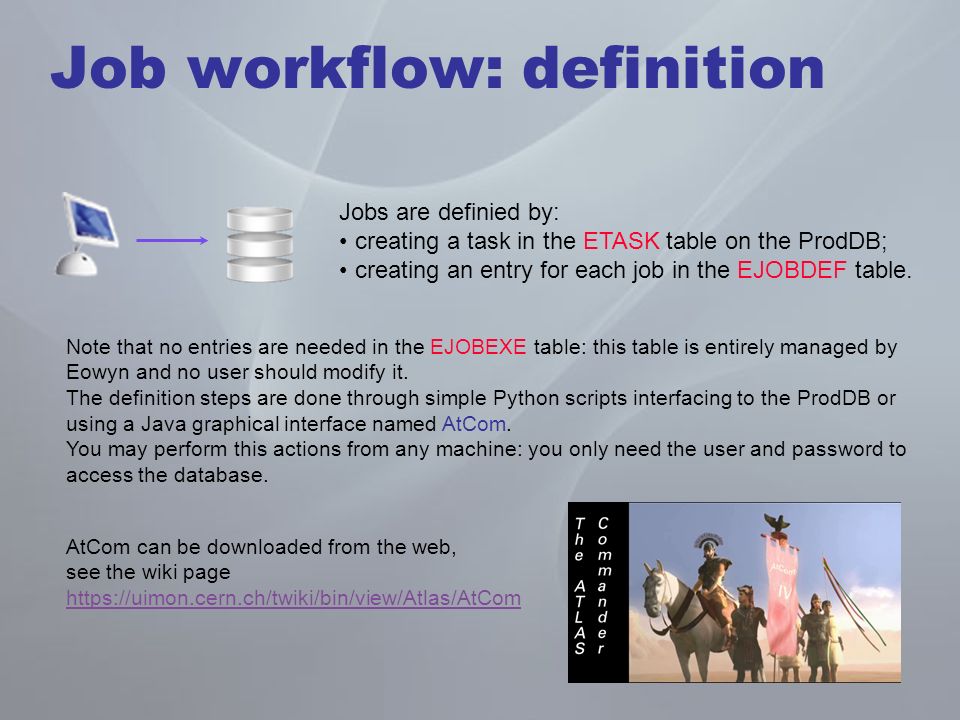

13. Job workflow: definition Jobs are definied by: creating a task in the ETASK table on the ProdDB; creating an entry for each job in the EJOBDEF table. Note that no entries are needed in the EJOBEXE table: this table is entirely managed by Eowyn and no user should modify it. The definition steps are done through simple Python scripts interfacing to the ProdDB or using a Java graphical interface named AtCom. You may perform this actions from any machine: you only need the user and password to access the database. AtCom can be downloaded from the web, see the wiki page https://uimon.cern.ch/twiki/bin/view/Atlas/AtCom

14. Job workflow: selection Eowyn picks up jobs from the ProdDB with simple SQL queries. The SELECT statement asks for: For the curious ones (and a bit pervert!), the select statement is constructed by the Python function getFreeJobs in /Eowyn/ProdDBProxyOracle.py ETASK.STATUS = ‘RUNNING’ ETASK.GRID = (configured at installation) ETASK.TASKID = EJOBDEF.TASKFK EJOBDEF.CURRENTSTATUS = ’TOBEDONE’ EJOBDEF.LOCKEDBY = NULL EJOBDEF.LASTATTEMPT < EJOBDEF.MAXATTEMPT ETASK.TASKID = (if configured at installation) ETASK.TIER = (if configured at installation)

15. Job workflow: submission Eowyn passes the selected jobs to the executor, which parses the job parameters (they’re in XML format) and submits them to the underlying grid. Lexor (the LCG executor) stores a copy of the scripts of the jobs in a local directory (by default, under /tmp/ /JOBDIR). From now on, the job is in the hands of the executor. From time to time (configurable at installation) Eowyn asks the executor for the status of the jobs. The executor asks for it to the grid middleware (the L&B on LCG) and returns the answer to Eowyn, who in turn updates the corresponding entry in the ProdDB. Note that the grid JobID of a job is also passed from the executor to Eowyn and it’s stored in the job entry in the EJOBEXE table (and it’s logged in the log file of Eowyn in your run directory). All submission parameters (how many jobs per “bunch of submission”, time interval between two subsequent submission, grid to be used, RB to be used, …) are set in the two config files Mystart.py and Executor.conf in the run directory

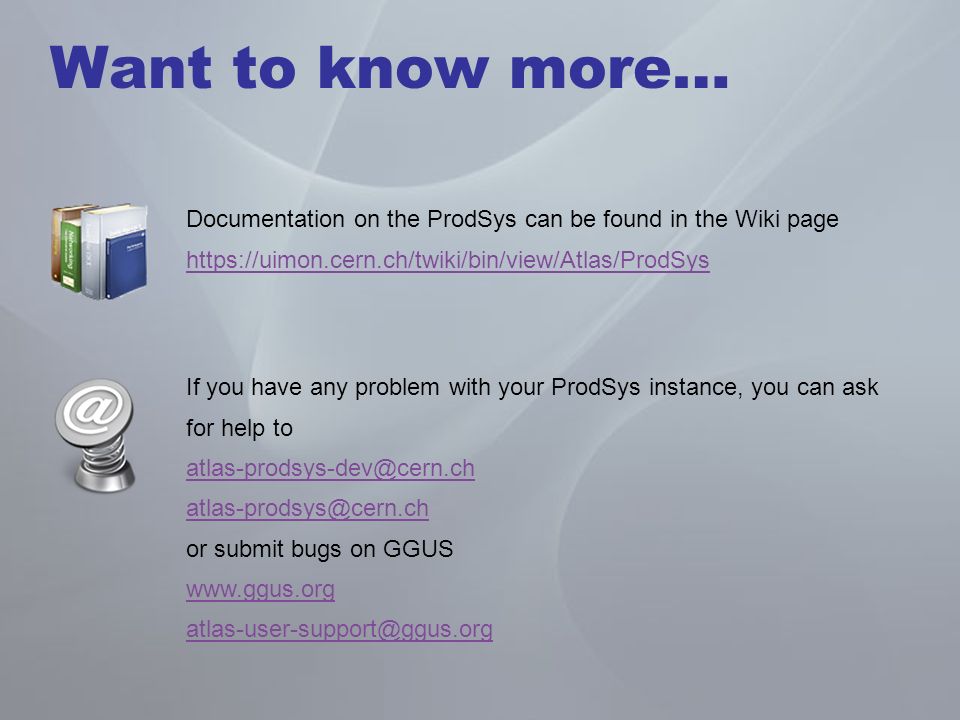

16. Want to know more… Documentation on the ProdSys can be found in the Wiki page https://uimon.cern.ch/twiki/bin/view/Atlas/ProdSys If you have any problem with your ProdSys instance, you can ask for help to atlas-prodsys-dev@cern.ch atlas-prodsys@cern.ch or submit bugs on GGUS www.ggus.org atlas-user-support@ggus.org
