1. CS 201 Data Structures and Algorithms Chapter 2: Algorithm Analysis - II Text: Read Weiss, §2.4.3 – 2.4.6 1Izmir University of Economics

2. Solutions for the Maximum Subsequence Sum Problem: Algorithm 1 exhaustively tries all possibilities: for all combinations of all the values for starting and ending points (i and j respectively), the partial sum (ThisSum) is calculated and compared with the maximum sum value (MaxSum) computed so far. The running time is O(N 3 ) and is entirely due to lines 5 and 6. A more precise analysis; 2 int MaxSubSum1( const int A[ ], int N ) { int ThisSum, MaxSum, i, j, k; /* 1*/MaxSum = 0; /* 2*/for( i = 0; i < N; i++ ) /* 3*/for( j = i; j < N; j++ ) { /* 4*/ThisSum = 0; /* 5*/for( k = i; k <= j; k++ ) /* 6*/ThisSum += A[ k ]; /* 7*/ if( ThisSum > MaxSum ) /* 8*/MaxSum = ThisSum; } /* 9*/return MaxSum; }

3. 3 Solutions for the Maximum Subsequence Sum Problem: Algorithm 2 We can improve upon Algorithm 1 to avoid the cubic running time by removing a for loop. Obviously, this is not always possible, but in this case there are an awful lot of unnecessary computations present in Algorithm 1. Notice that so the computation at lines 5 and 6 in Algorithm 1 is unduly expensive. Algorithm 2 is clearly O(N 2 ); the analysis is even simpler than before. int MaxSubSum2( const int A[ ], int N ) { int ThisSum, MaxSum, i, j; /* 1*/MaxSum = 0; /* 2*/for( i = 0; i < N; i++ ) { /* 3*/ThisSum = 0; /* 4*/ for( j = i; j < N; j++ ) { /* 5*/ ThisSum += A[ j ]; /* 6*/ if( ThisSum > MaxSum ) /* 7*/MaxSum = ThisSum; } /* 8*/return MaxSum; } Izmir University of Economics

4. 4 Solutions for the Maximum Subsequence Sum Problem: Algorithm 3 It is a recursive O(N log N) algorithm using a divide-and-conquer strategy. Divide part: Split the problem into two roughly equal subproblems, each half the size of the original. The subproblems are then solved recursively. Conquer part: Patch together the two solutions of the subproblems possibly doing a small amount of additional work, to arrive at a solution for the whole problem. The maximum subsequence sum can (1) either occur entirely in the left half of the input, or (2) entirely in the right half, or (3) it crosses the middle and is in both halves. Solve (1) and (2) recursively. For (3), Add the largest sum in the first half including the last element in the first half and the largest sum in the second half including the first element in the second half. Example: (1) first half: 6 (A 0 - A 2 ), (2) second half: 8 (A 5 - A 6 ). (3) max sum (first half) covering the last item: 4 (A 0 - A 3 ), max sum (second half) spanning the first element: 7 (A 4 - A 6 ). Thus, the max sum crossing the middle is 4+7=11 (A 0 - A 6 ). Answer! First HalfSecond Half 4,-3,5,-2-1,2,6,-2 Izmir University of Economics

5. Solutions for the Maximum Subsequence Sum Problem: a) Algorithm 3 – Implementation /* Implementation */ static int MaxSubSum(const int A[ ], int Left, int Right) { int MaxLeftSum, MaxRightSum; int MaxLeftBorderSum, MaxRightBorderSum; int LeftBorderSum, RightBorderSum; int Center, i; /* 1*/ if( Left == Right ) /* Base case */ /* 2*/ if( A[ Left ] > 0 ) /* 3*/ return A[ Left ]; else /* 4*/ return 0; /* Initial Call */ int MaxSubSum3( const int A[ ], int N ) { return MaxSubSum( A, 0, N - 1 ); } /* Utility Function */ static int Max3( int A, int B, int C ) { return A > B ? A > C ? A : C : B > C ? B : C; } 5

6. Solutions for the Maximum Subsequence Sum Problem: b) Algorithm 3 – Implementation /* Implementation */ /* Calculate the center */ /* 5*/ Center = ( Left + Right ) / 2; /* Make recursive calls */ /* 6*/ MaxLeftSum = MaxSubSum( A, Left, Center ); /* 7*/ MaxRightSum = MaxSubSum( A, Center + 1, Right ); /* Find the max subsequence sum in the left half where the */ /* subsequence spans the last element of the left half */ /* 8*/ MaxLeftBorderSum = 0; LeftBorderSum = 0; /* 9*/ for( i = Center; i >= Left; i-- ) { /*10*/ LeftBorderSum += A[ i ]; /*11*/ if( LeftBorderSum > MaxLeftBorderSum ) /*12*/ MaxLeftBorderSum = LeftBorderSum; } 6Izmir University of Economics

7. /* Implementation */ /*13*/ MaxRightBorderSum = 0; RightBorderSum = 0; /*14*/ for( i = Center + 1; i <= Right; i++ ) { /*15*/ RightBorderSum += A[ i ]; /*16*/ if( RightBorderSum > MaxRightBorderSum ) /*17*/ MaxRightBorderSum = RightBorderSum; } /* The function Max3 returns the largest of */ /* its three arguments */ /*18*/ return Max3( MaxLeftSum, MaxRightSum, /*19*/ MaxLeftBorderSum + MaxRightBorderSum ); } Solutions for the Maximum Subsequence Sum Problem: c) Algorithm 3 – Implementation 7Izmir University of Economics

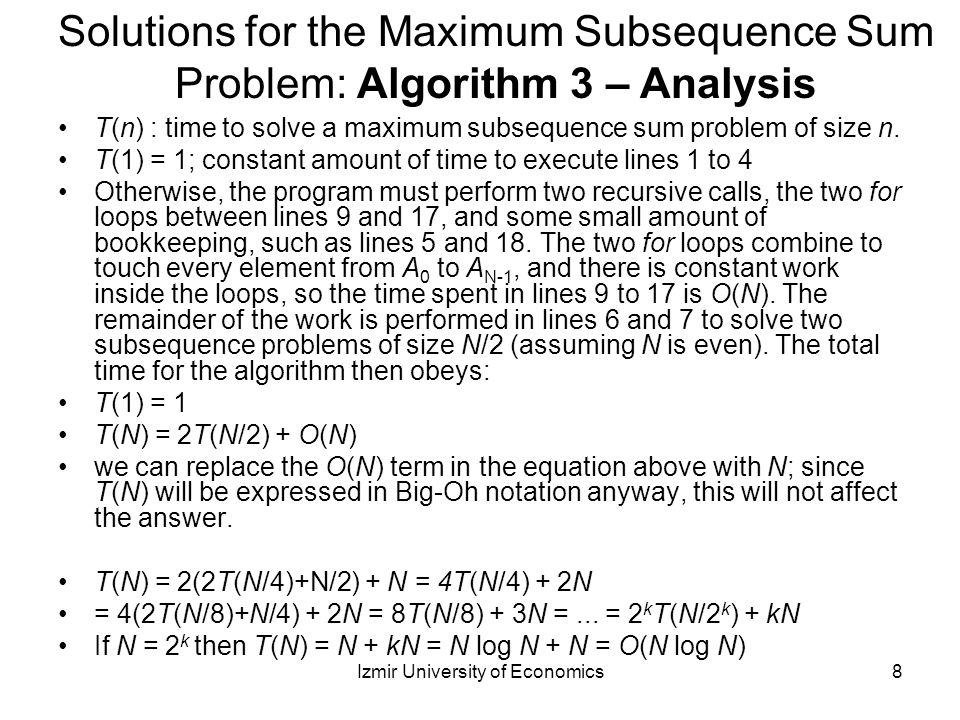

8. T(n) : time to solve a maximum subsequence sum problem of size n. T(1) = 1; constant amount of time to execute lines 1 to 4 Otherwise, the program must perform two recursive calls, the two for loops between lines 9 and 17, and some small amount of bookkeeping, such as lines 5 and 18. The two for loops combine to touch every element from A 0 to A N-1, and there is constant work inside the loops, so the time spent in lines 9 to 17 is O(N). The remainder of the work is performed in lines 6 and 7 to solve two subsequence problems of size N/2 (assuming N is even). The total time for the algorithm then obeys: T(1) = 1 T(N) = 2T(N/2) + O(N) we can replace the O(N) term in the equation above with N; since T(N) will be expressed in Big-Oh notation anyway, this will not affect the answer. T(N) = 2(2T(N/4)+N/2) + N = 4T(N/4) + 2N = 4(2T(N/8)+N/4) + 2N = 8T(N/8) + 3N =... = 2 k T(N/2 k ) + kN If N = 2 k then T(N) = N + kN = N log N + N = O(N log N) Solutions for the Maximum Subsequence Sum Problem: Algorithm 3 – Analysis 8Izmir University of Economics

9. 9 Solutions for the Maximum Subsequence Sum Problem: Algorithm 4 Algorithm 4 is O(N). Why does the algorithm actually work? It’s an improvement over Algorithm 2 given the following: Observation 1: If A[i] < 0 then it can not start an optimal subsequence. Hence, no negative subsequence can be a prefix in the optimal. Observation 2: If i can advance to j+1. Proof: Let. Any subsequence starting at p int MaxSubSum4(int A[],int n){ int ThisSum, MaxSum, j; /* 1*/ ThisSum = MaxSum = 0; /* 2*/ for( j = 0; j < N; j++ ) { /* 3*/ ThisSum += A[ j ]; /* 4*/ if( ThisSum > MaxSum ) /* 5*/ MaxSum = ThisSum; /* 6*/ else if( ThisSum < 0 ) /* 7*/ ThisSum = 0; } /* 8*/ return MaxSum; } is not larger than the corresponding sequence starting at i, since j is the first index causing sum<0).

10. Logarithms in the Running Time The most frequent appearance of logarithms centers around the following general rule: An algorithm is O(log n) if it takes constant (O(1)) time to cut the problem size by a fraction (which is usually 1/2). On the other hand, if constant time is required to merely reduce the problem by a constant amount (such as to make the problem smaller by 1), then the algorithm is O(n). We usually presume that the input is preread (Otherwise Ω(n)). Izmir University of Economics10

11. Binary Search - I Definition: Given an integer x and integers A 0, A 1,..., A N-1, which are presorted and already in memory, find i such that A i = x, or return i = -1 if x is not in the input. The loop is O(1) per iteration. It starts with High-Low=N - 1 and ends with High-Low ≤-1. Every time through the loop the value High-Low must be at least halved from its previous value; thus, the loop is repeated at most = O(log N). Izmir University of Economics11 typedef int ElementType; #define NotFound (-1) int BinarySearch(const ElementType A[], ElementType X, int N){ int Low, Mid, High; /* 1*/ Low = 0; High = N - 1; /* 2*/ while( Low <= High ){ /* 3*/ Mid = ( Low + High ) / 2; /* 4*/ if( A[ Mid ] < X ) /* 5*/ Low = Mid + 1; /* 6*/ else if( A[ Mid ] > X ) /* 7*/ High = Mid - 1; else /* 8*/ return Mid;/* Found */ } /* 9*/ return NotFound; }

12. Binary Search - II Initially, High – Low = N – 1 = d Assume 2 k ≤ d < 2 k+1 After each new iteration, new value for d may be one of High – Mid – 1 or Mid – 1 – Low which are both bounded from above as shown below: Izmir University of Economics12 Hence, after k iterations, d becomes 1. Loop iterates 2 more times where d takes on the values 0 and -1 in this order. Thus, it is repeated k+2 times. ≤

13. Euclid’s Algorithm Izmir University of Economics13 It computes the greatest common divisor. The greatest common divisor (gcd) of two integers is the largest integer that divides both. Thus, gcd (50, 15) = 5. It computes gcd(M, N), assuming M≥ N (If N > M, the first iteration of the loop swaps them). Fact: If M>N, then M mod N < M/2 Proof: There are two cases: If N≤M/2, then since the remainder is always smaller than N, the theorem is true for this case. If N>M/2,But then N goes into M once with a remainder M-N<M/2, proving the theorem. unsigned int gcd(unsigned int M, unsigned int N) { unsigned int Rem; /* 1*/ while( N > 0 ) { /* 2*/ Rem = M % N; /* 3*/ M = N; /* 4*/ N = Rem; } /* 5*/ return M; } iterationMN After 1 st Nrem 1 =M mod N < M/2 rem 1 < N After 2 nd rem 1 <M/2rem 2 =N mod rem 1 < N/2 Thus, the Algorithm takes O(log N)

14. Exponentiation - I Algorithm pow(X, N) raises an integer to an integer power. Count the number of multiplications as the measurement of running time. X N : N -1 multiplications. Lines 1 to 4 handle the base case of the recursion. X N =X N/2 *X N/2 if N is even X N =X (N-1)/2 *X (N-1)/2 *X if N is odd # of multiplications required is clearly at most 2 log N, because at most two multiplications are required to halve the problem. Izmir University of Economics14 #define IsEven( N ) (( N )%2==0) long int pow( long int X, unsigned int N ) { /* 1*/ if( N == 0 ) /* 2*/ return 1; /* 3*/ if( N == 1 ) /* 4*/ return X; /* 5*/ if( IsEven( N ) ) /* 6*/ return pow(X*X, N/2); else /* 7*/ return pow(X*X, N/2)*X; }

15. Izmir University of Economics15 It is interesting to note how much the code can be tweaked. Lines 3 and 4 are unnecessary (Line 7 does the right thing). Line 7 /* 7*/ return pow(X*X, N/2)*X; can be rewritten as /* 7*/ return pow(X, N-1)*X; Line 6, on the other hand, /* 6*/ return pow(X*X, N/2); cannot substituted by any of the following: /*6a*/ return( pow( pow( X, 2 ), N/2 ) ); /*6b*/ return( pow( pow( X, N/2 ), 2 ) ); /*6c*/ return( pow( X, N/2 ) * pow( X, N/2 ) ); Both lines 6a and 6b are incorrect because pow(X, 2) can not make any progress and an infinite loop results. Using line 6c affects the efficiency, because there are now two recursive calls of size N/2 instead of only one. An analysis will show that the running time is no longer O(log N). Exponentiation - II

16. Checking Your Analysis - I Once an analysis has been performed, it is desirable to see if the answer is correct and as good as possible. One way to do this is to code up the program and see if the empirically observed running time matches the running time predicted by the analysis. When n doubles, the running time goes up by a factor of 2 for linear programs, 4 for quadratic programs, and 8 for cubic programs. Programs that run in logarithmic time take only an additive constant longer when n doubles, and programs that run in O(n log n) take slightly more than twice as long to run under the same circumstances. Another commonly used trick to verify that some program is O(f(n)) is to compute the values T(n)/ f(n) for a range of n where T(n) is the empirically observed running time. If f(n) is a tight answer for the running time, then the computed values converge to a positive constant. If f(n) is an over-estimate, the values converge to zero. If f(n) is an under- estimate and hence wrong, the values diverge. Izmir University of Economics16

17. Izmir University of Economics17 Checking Your Analysis - II This program segment computes the probability that two distinct positive integers, less than or equal to N and chosen randomly, are relatively prime (as N gets large, the answer approaches 6/π 2 ). What is the running time complexity? O(N 2 log N) Are you sure?

18. As the table dictates, last column is most likely to be the correct one. Izmir University of Economics18 Checking Your Analysis - III
