2. MEDICAL RECORD Prof. Sulaiman Al-Shammari

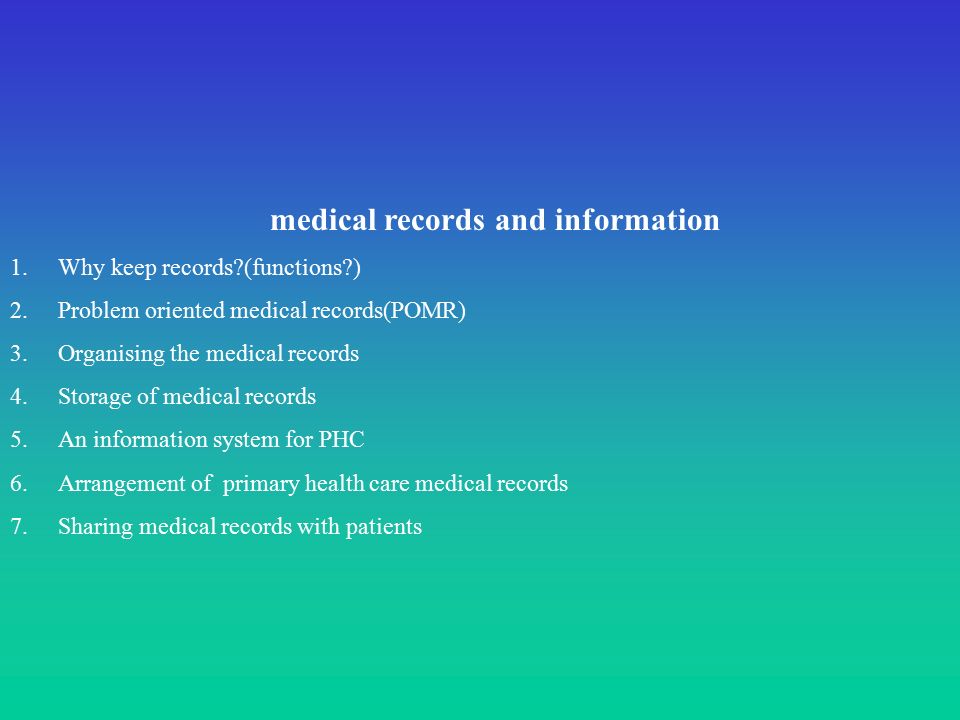

3. medical records and information 1.Why keep records?(functions?) 2.Problem oriented medical records(POMR) 3.Organising the medical records 4.Storage of medical records 5.An information system for PHC 6.Arrangement of primary health care medical records 7.Sharing medical records with patients

4. Why keep records ?(functions)

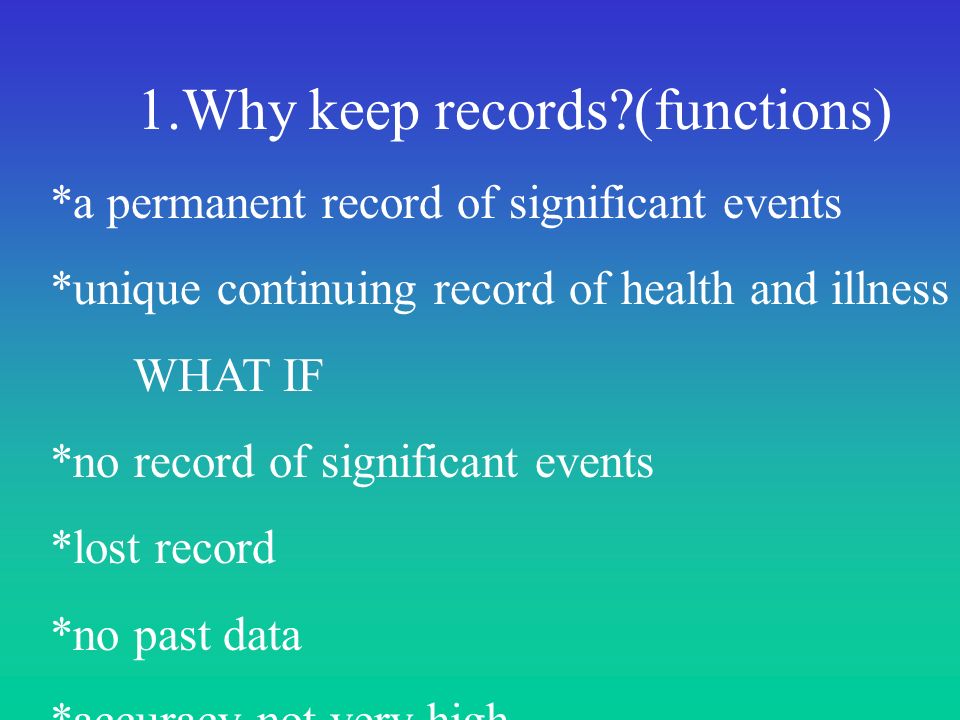

5. 1.Why keep records?(functions) *a permanent record of significant events *unique continuing record of health and illness WHAT IF *no record of significant events *lost record *no past data *accuracy not very high

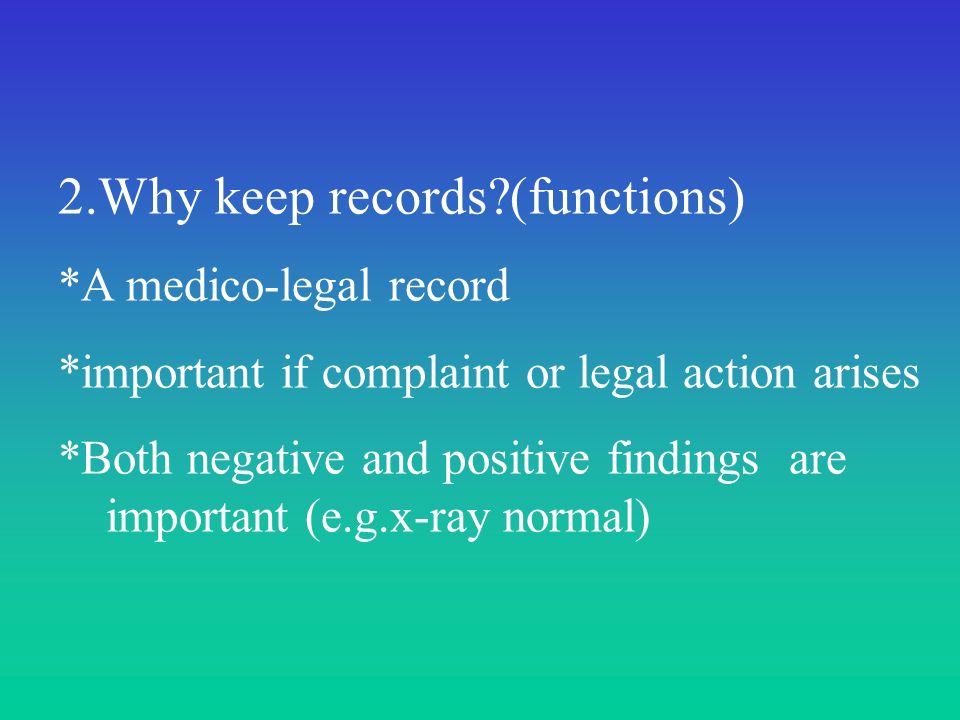

6. 2.Why keep records?(functions) *A medico-legal record *important if complaint or legal action arises *Both negative and positive findings are important (e.g.x-ray normal)

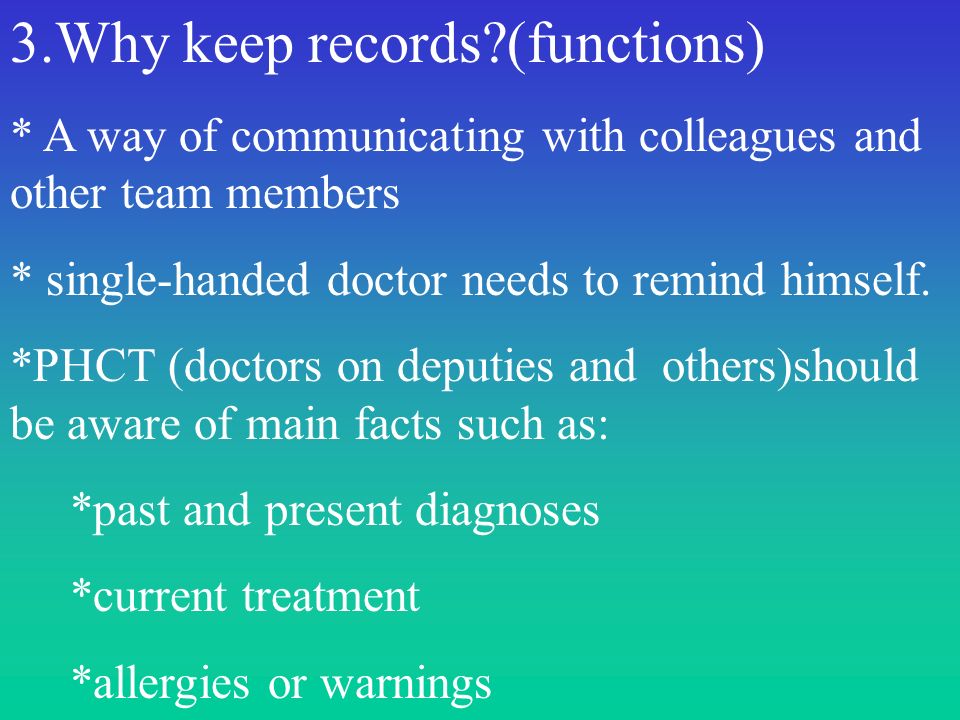

7. 3.Why keep records?(functions) * A way of communicating with colleagues and other team members * single-handed doctor needs to remind himself. *PHCT (doctors on deputies and others)should be aware of main facts such as: *past and present diagnoses *current treatment *allergies or warnings

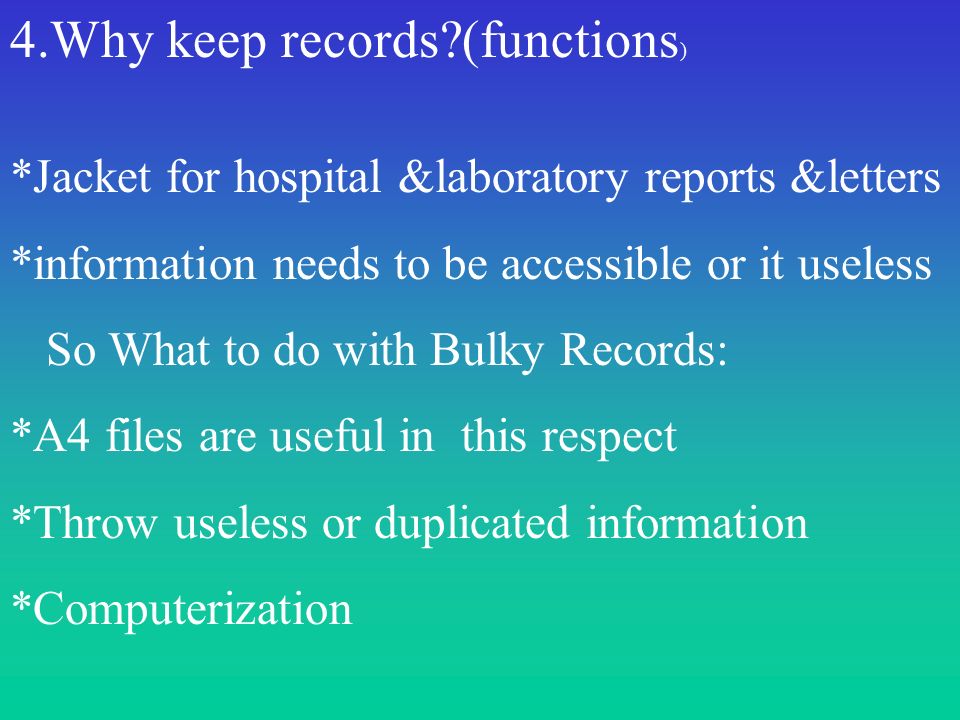

8. 4.Why keep records?(functions ) *Jacket for hospital &laboratory reports &letters *information needs to be accessible or it useless So What to do with Bulky Records: *A4 files are useful in this respect *Throw useless or duplicated information *Computerization

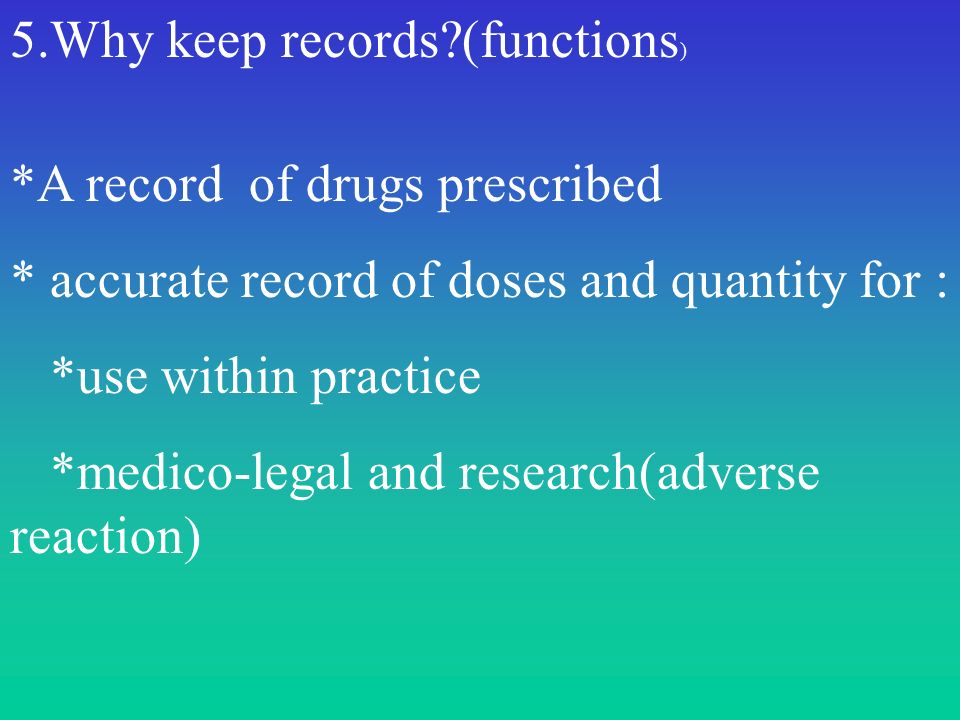

9. 5.Why keep records?(functions ) *A record of drugs prescribed * accurate record of doses and quantity for : *use within practice *medico-legal and research(adverse reaction)

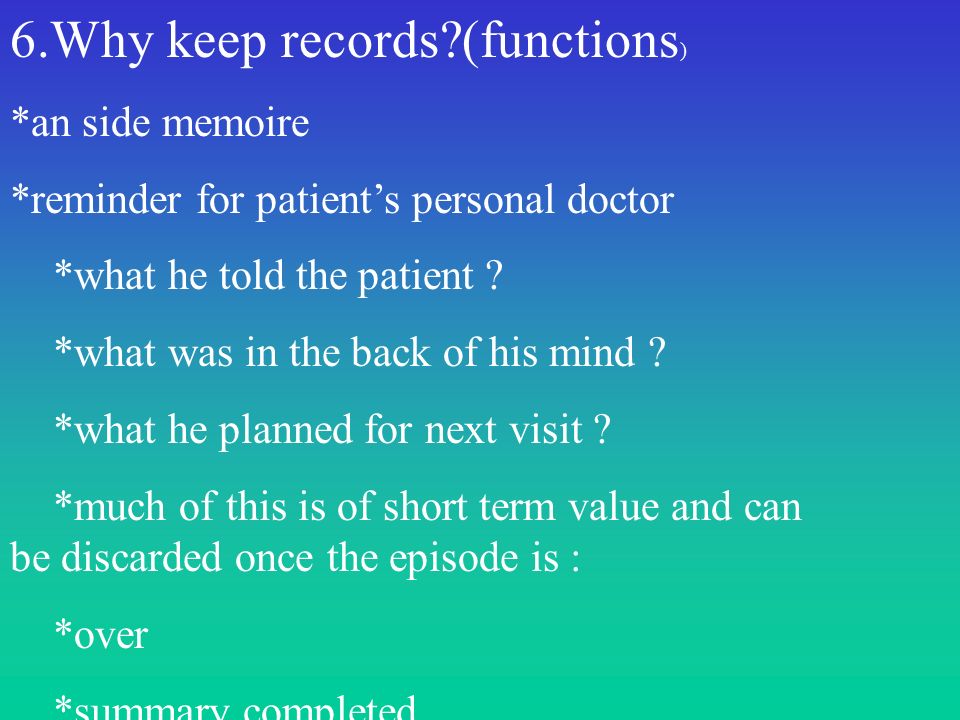

10. 6.Why keep records?(functions ) *an side memoire *reminder for patient’s personal doctor *what he told the patient ? *what was in the back of his mind ? *what he planned for next visit ? *much of this is of short term value and can be discarded once the episode is : *over *summary completed

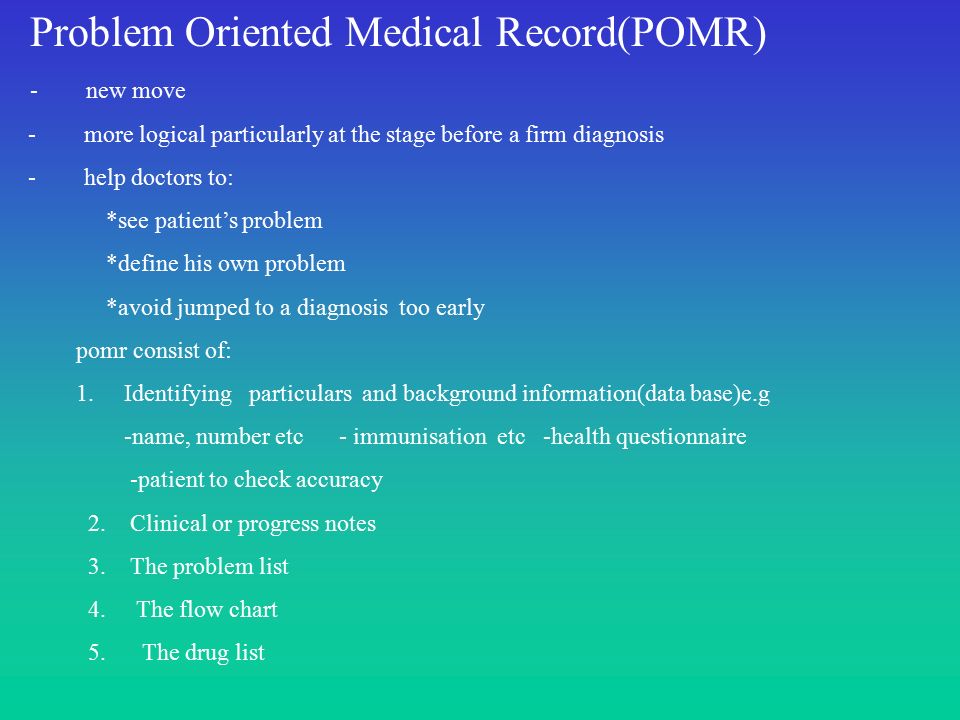

11. Problem Oriented Medical Record(POMR) - new move - more logical particularly at the stage before a firm diagnosis - help doctors to: *see patient’s problem *define his own problem *avoid jumped to a diagnosis too early pomr consist of: 1. Identifying particulars and background information(data base)e.g -name, number etc - immunisation etc -health questionnaire -patient to check accuracy 2. Clinical or progress notes 3. The problem list 4. The flow chart 5. The drug list

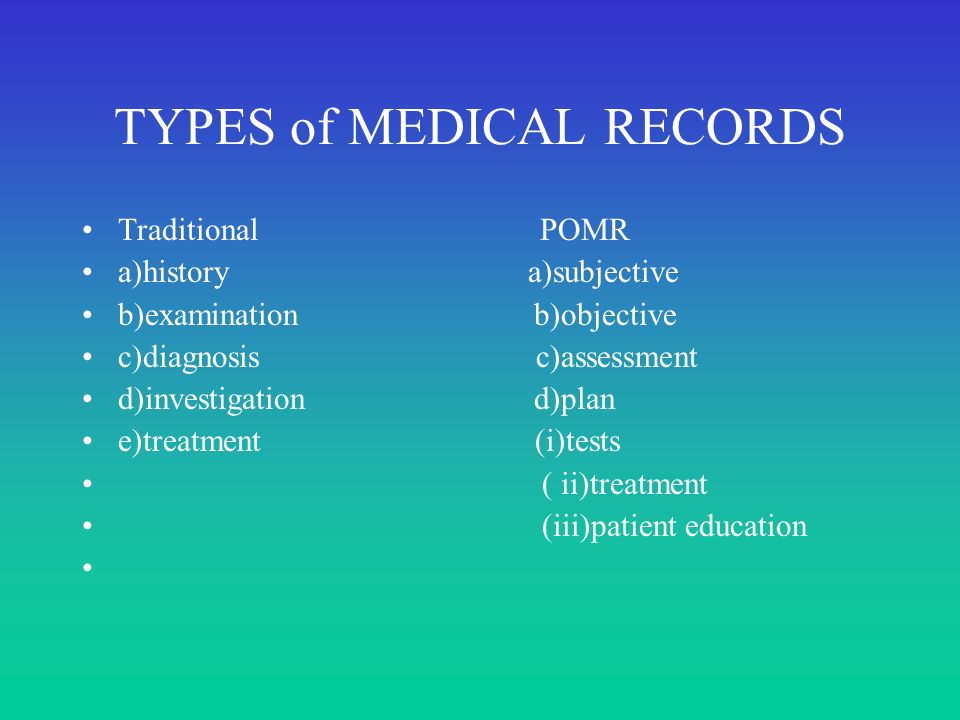

12. TYPES of MEDICAL RECORDS Traditional POMR a)history a)subjective b)examination b)objective c)diagnosis c)assessment d)investigation d)plan e)treatment (i)tests ( ii)treatment (iii)patient education

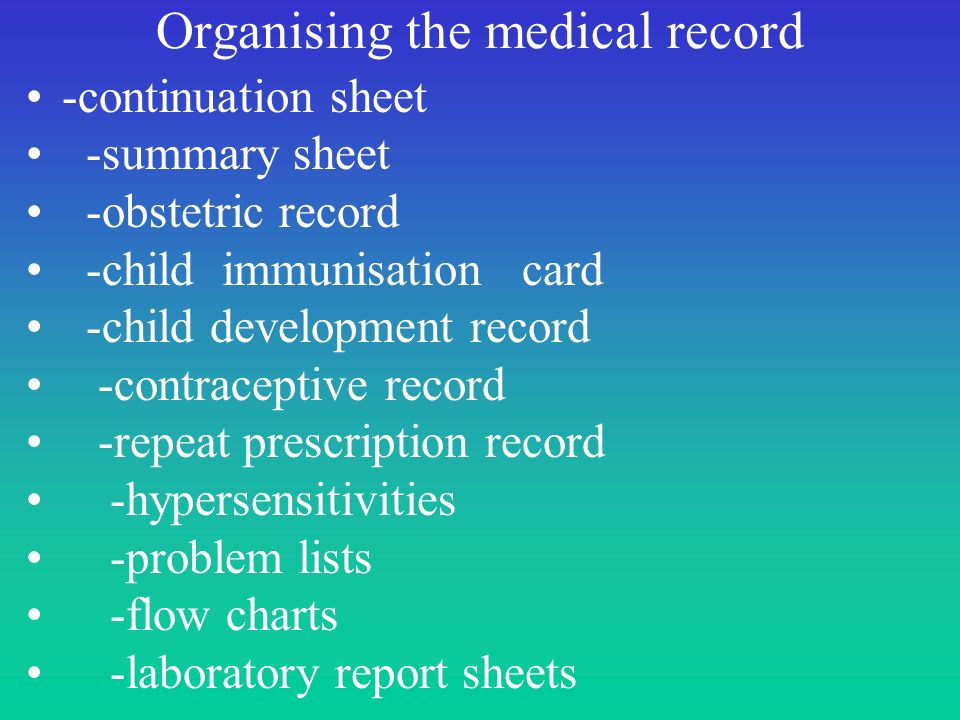

13. Organising the medical record -continuation sheet -summary sheet -obstetric record -child immunisation card -child development record -contraceptive record -repeat prescription record -hypersensitivities -problem lists -flow charts -laboratory report sheets

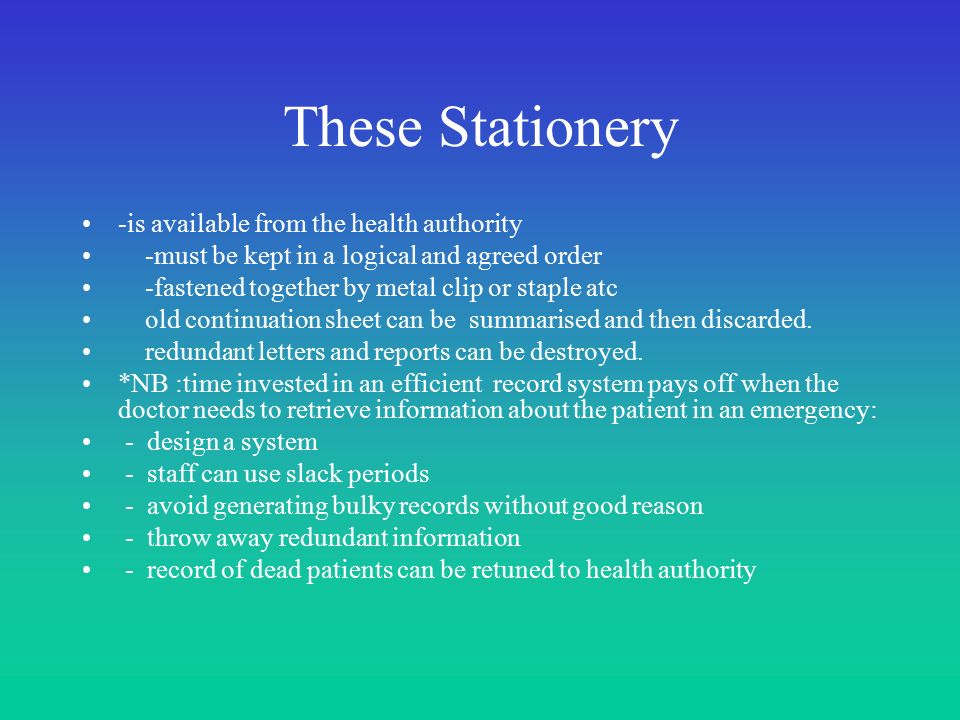

14. These Stationery -is available from the health authority -must be kept in a logical and agreed order -fastened together by metal clip or staple atc old continuation sheet can be summarised and then discarded. redundant letters and reports can be destroyed. *NB :time invested in an efficient record system pays off when the doctor needs to retrieve information about the patient in an emergency: - design a system - staff can use slack periods - avoid generating bulky records without good reason - throw away redundant information - record of dead patients can be retuned to health authority

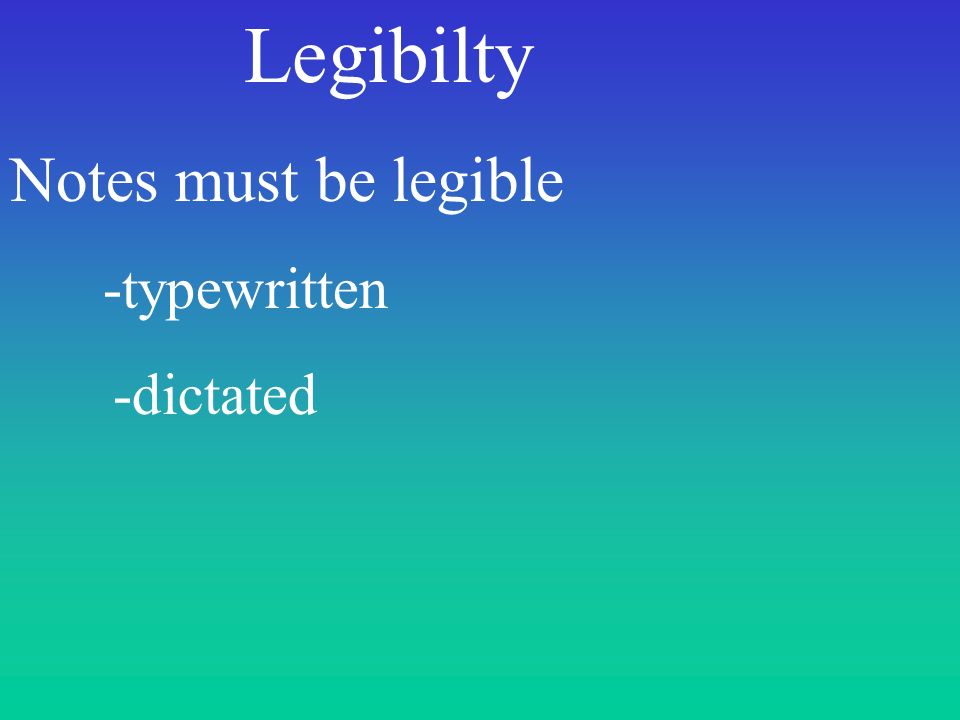

15. Legibilty Notes must be legible -typewritten -dictated

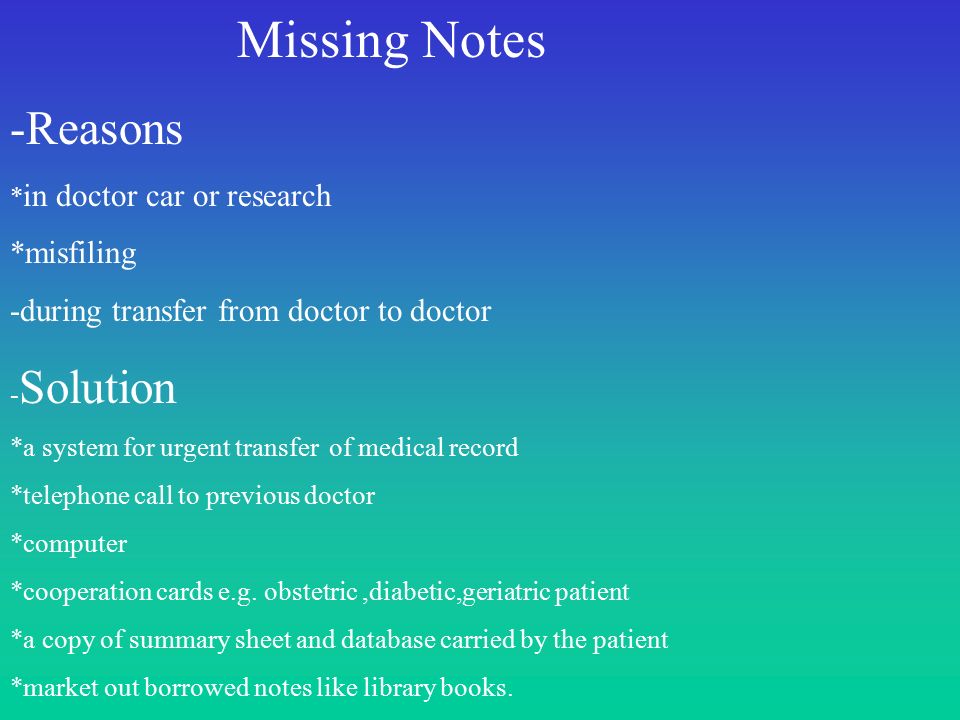

16. Missing Notes -Reasons * in doctor car or research *misfiling -during transfer from doctor to doctor - Solution *a system for urgent transfer of medical record *telephone call to previous doctor *computer *cooperation cards e.g. obstetric,diabetic,geriatric patient *a copy of summary sheet and database carried by the patient *market out borrowed notes like library books.

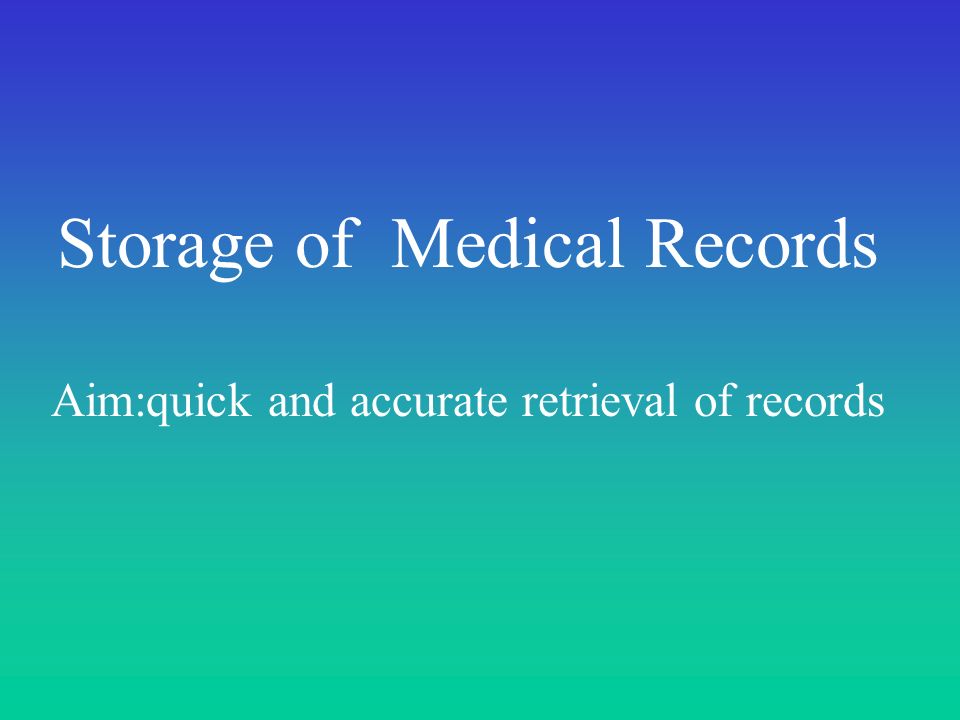

17. Storage of Medical Records Aim:quick and accurate retrieval of records

18. 1.Main methods of Storage of MR *lateral or shelf filing -more space -easy access -misfiling can be reduced by colour coding or diagonal strip

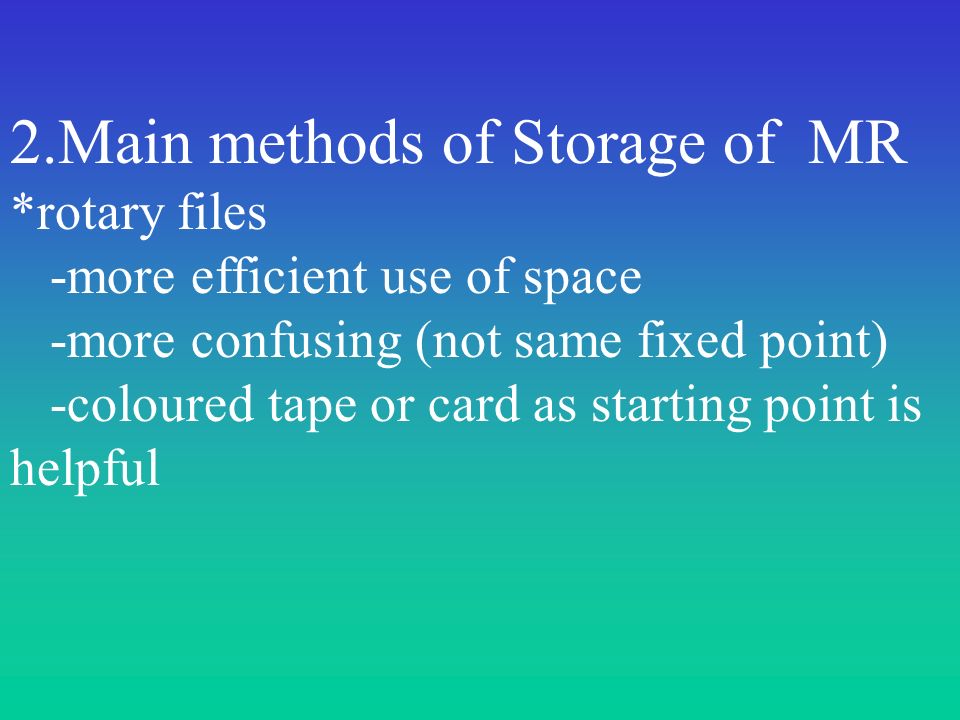

19. 2.Main methods of Storage of MR *rotary files -more efficient use of space -more confusing (not same fixed point) -coloured tape or card as starting point is helpful

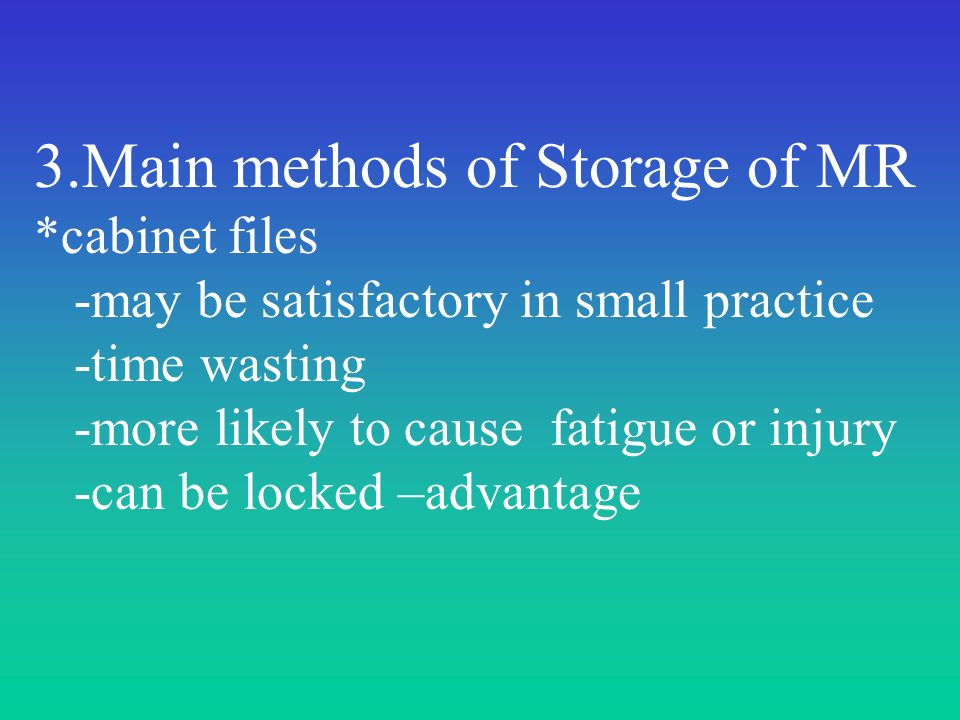

20. 3.Main methods of Storage of MR *cabinet files -may be satisfactory in small practice -time wasting -more likely to cause fatigue or injury -can be locked –advantage

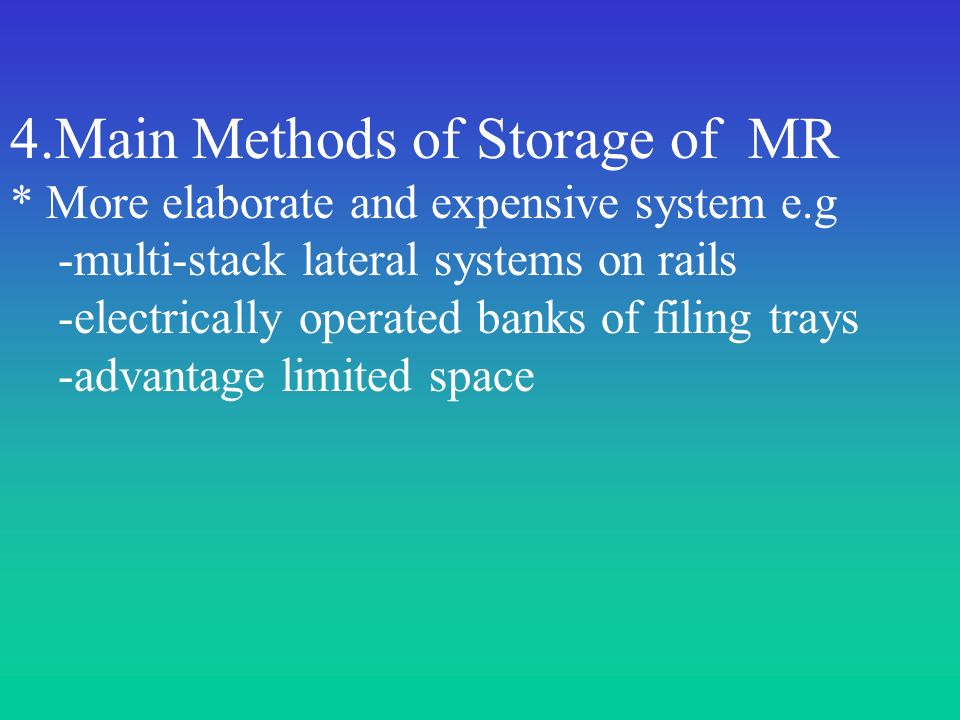

21. 4.Main Methods of Storage of MR * More elaborate and expensive system e.g -multi-stack lateral systems on rails -electrically operated banks of filing trays -advantage limited space

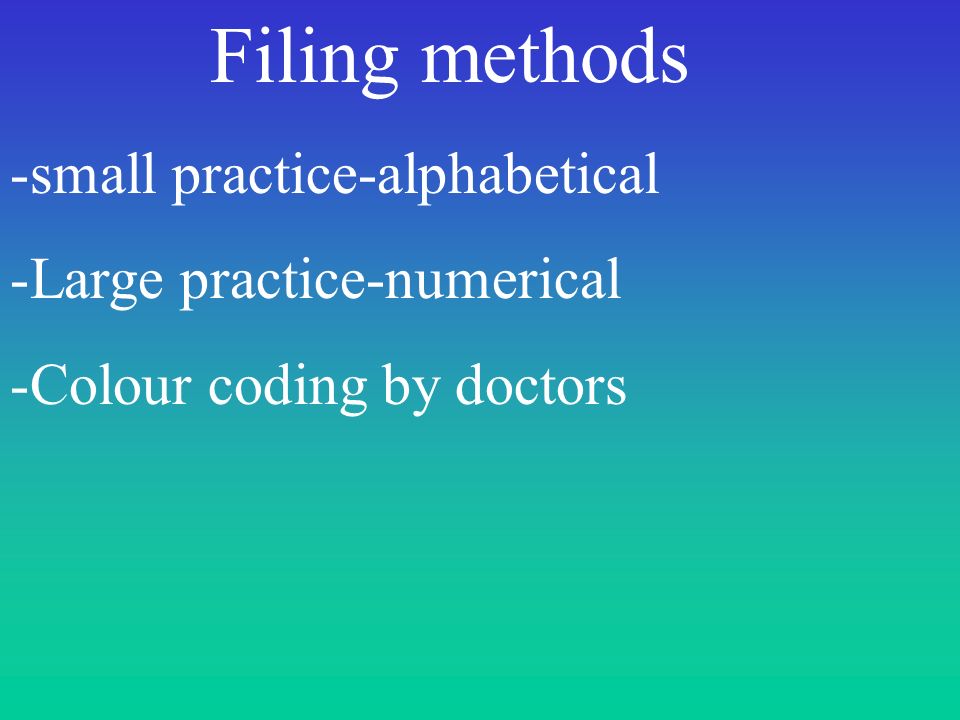

22. Filing methods -small practice-alphabetical -Large practice-numerical -Colour coding by doctors

23. Family records -common family folder -Family book or card -Family chart

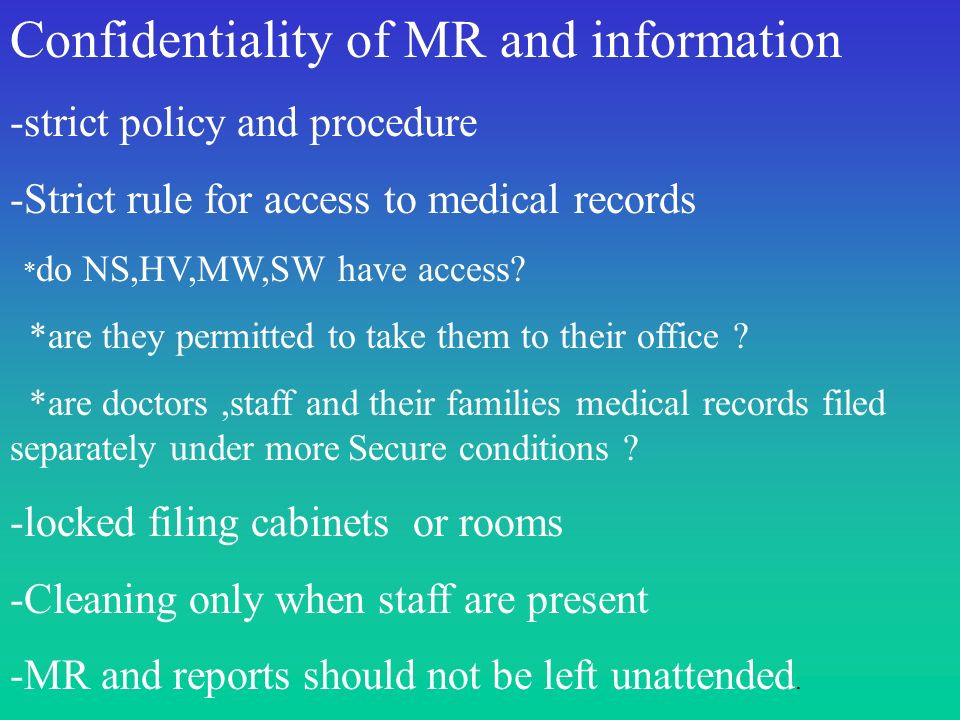

24. Confidentiality of MR and information -strict policy and procedure -Strict rule for access to medical records * do NS,HV,MW,SW have access? *are they permitted to take them to their office ? *are doctors,staff and their families medical records filed separately under more Secure conditions ? -locked filing cabinets or rooms -Cleaning only when staff are present -MR and reports should not be left unattended.

25. Patients views on records -trust doctor or other staff -Access to notes -Access of police and others to notes -Computerised records and confidentiality

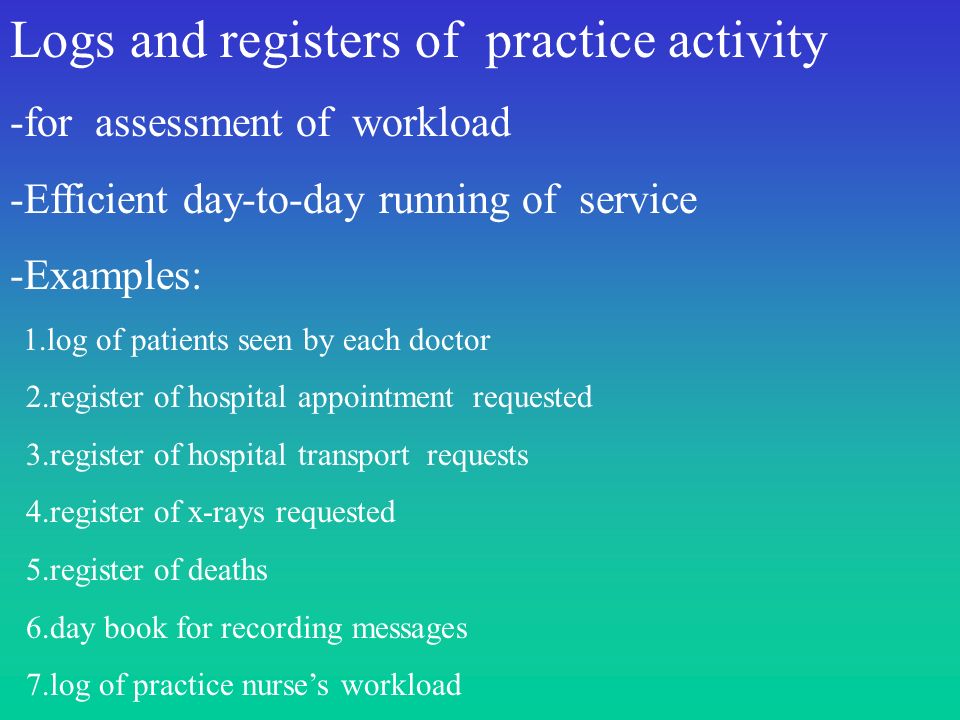

26. Logs and registers of practice activity -for assessment of workload -Efficient day-to-day running of service -Examples: 1.log of patients seen by each doctor 2.register of hospital appointment requested 3.register of hospital transport requests 4.register of x-rays requested 5.register of deaths 6.day book for recording messages 7.log of practice nurse’s workload

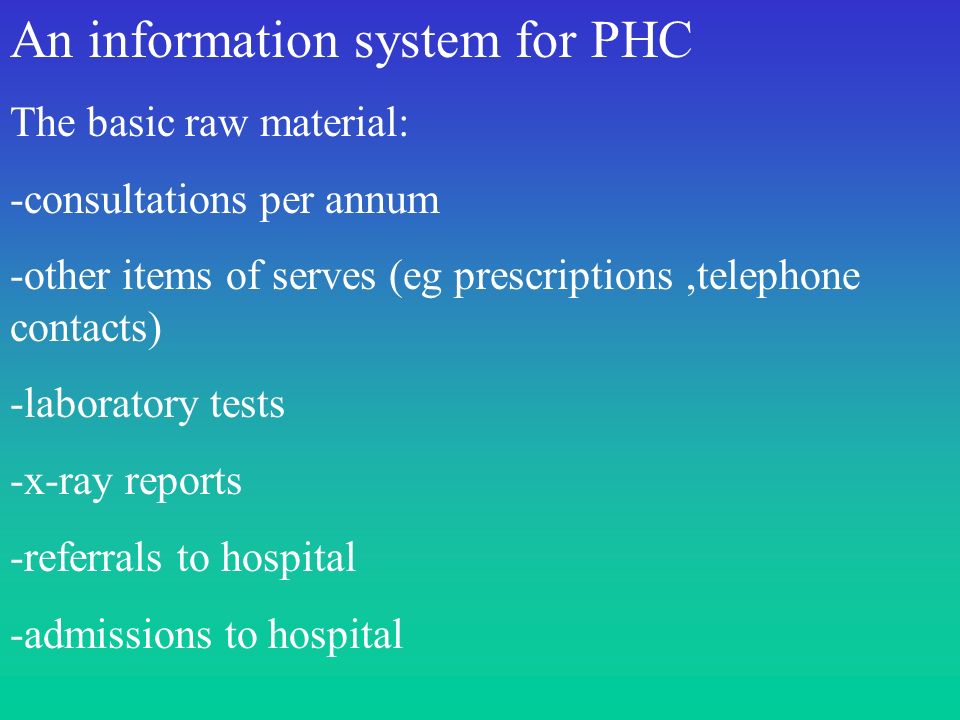

27. An information system for PHC The basic raw material: -consultations per annum -other items of serves (eg prescriptions,telephone contacts) -laboratory tests -x-ray reports -referrals to hospital -admissions to hospital

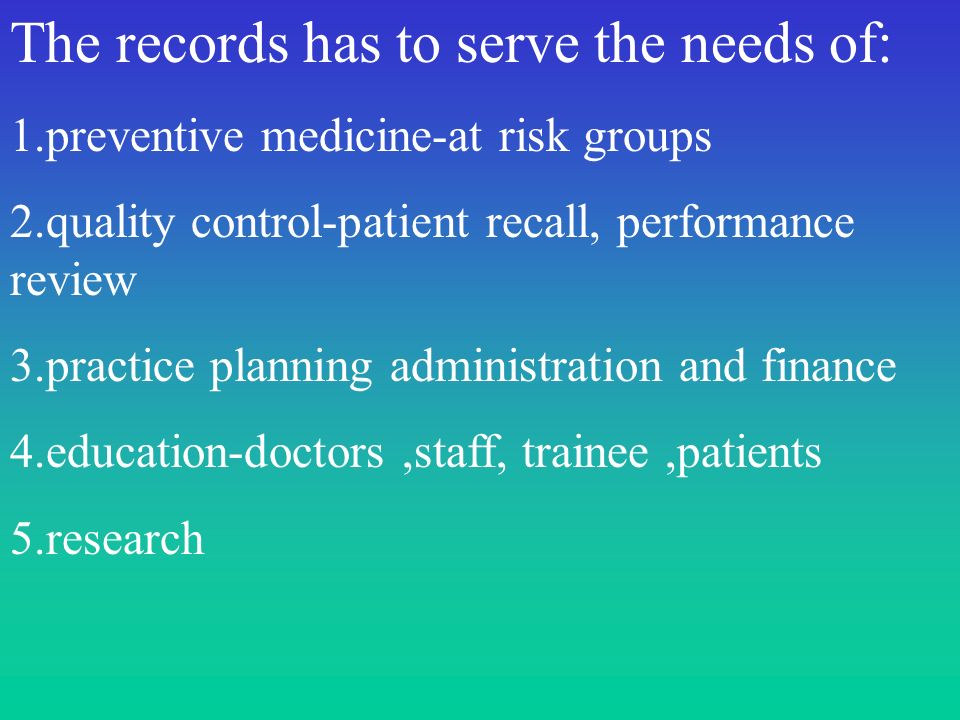

28. The records has to serve the needs of: 1.preventive medicine-at risk groups 2.quality control-patient recall, performance review 3.practice planning administration and finance 4.education-doctors,staff, trainee,patients 5.research

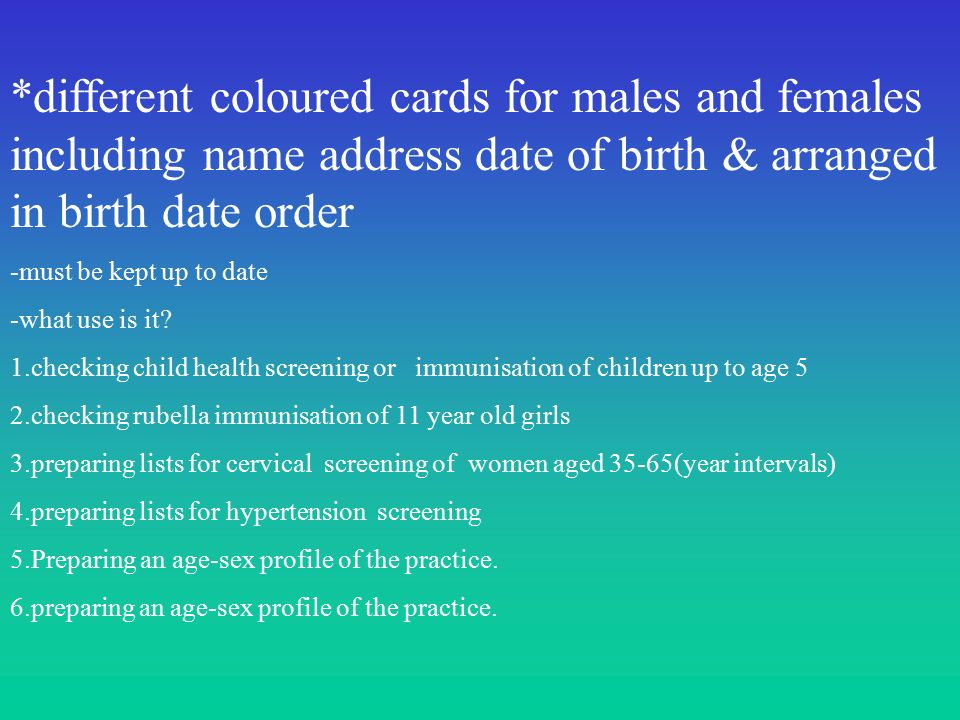

29. *different coloured cards for males and females including name address date of birth & arranged in birth date order -must be kept up to date -what use is it? 1.checking child health screening or immunisation of children up to age 5 2.checking rubella immunisation of 11 year old girls 3.preparing lists for cervical screening of women aged 35-65(year intervals) 4.preparing lists for hypertension screening 5.Preparing an age-sex profile of the practice. 6.preparing an age-sex profile of the practice.

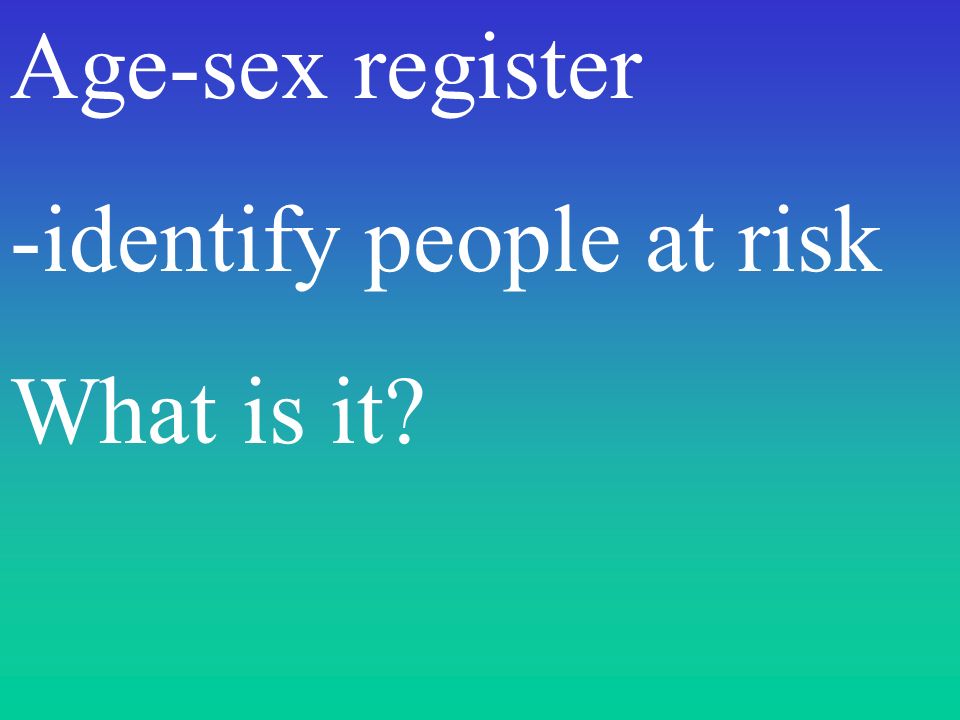

30. Age-sex register -identify people at risk What is it?

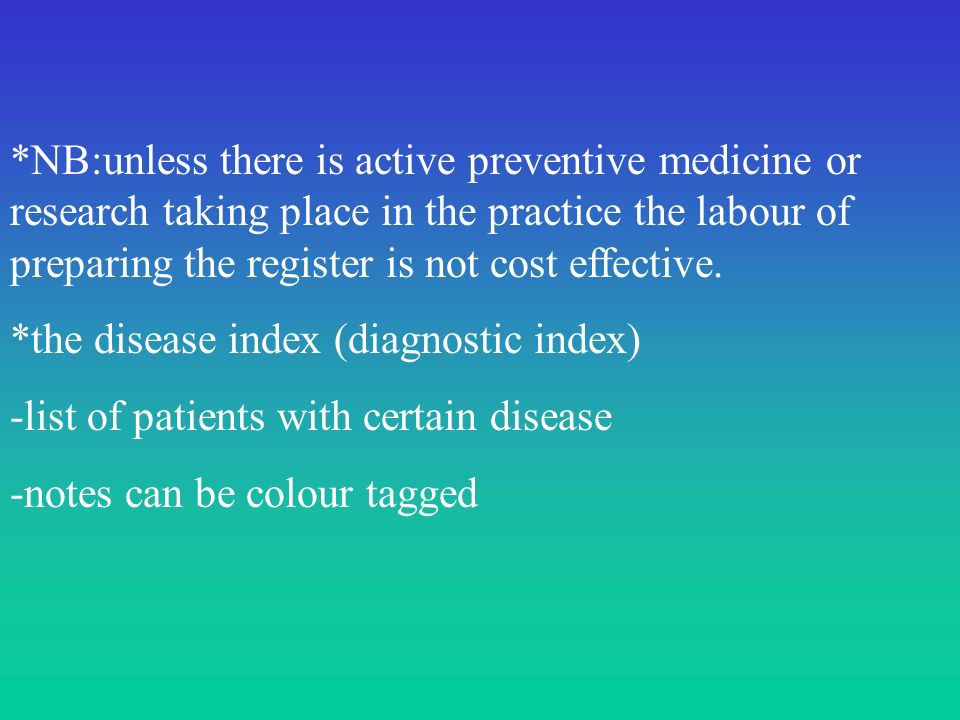

31. *NB:unless there is active preventive medicine or research taking place in the practice the labour of preparing the register is not cost effective. *the disease index (diagnostic index) -list of patients with certain disease -notes can be colour tagged

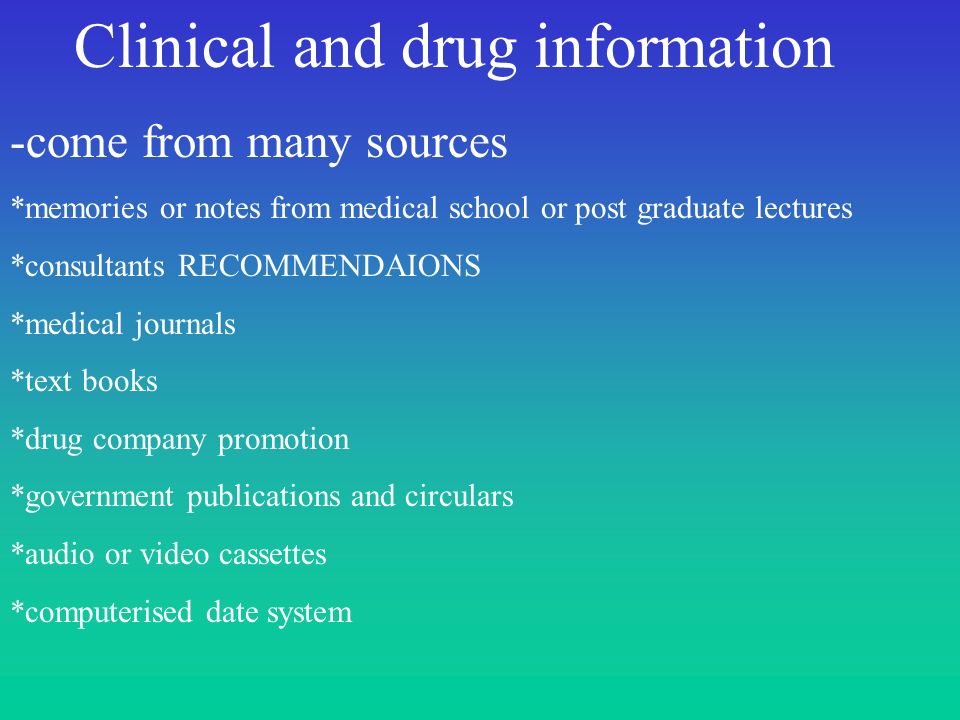

32. Clinical and drug information -come from many sources *memories or notes from medical school or post graduate lectures *consultants RECOMMENDAIONS *medical journals *text books *drug company promotion *government publications and circulars *audio or video cassettes *computerised date system

33. References 1.management in general practice by peter pritchard et al 2.oxford general practice

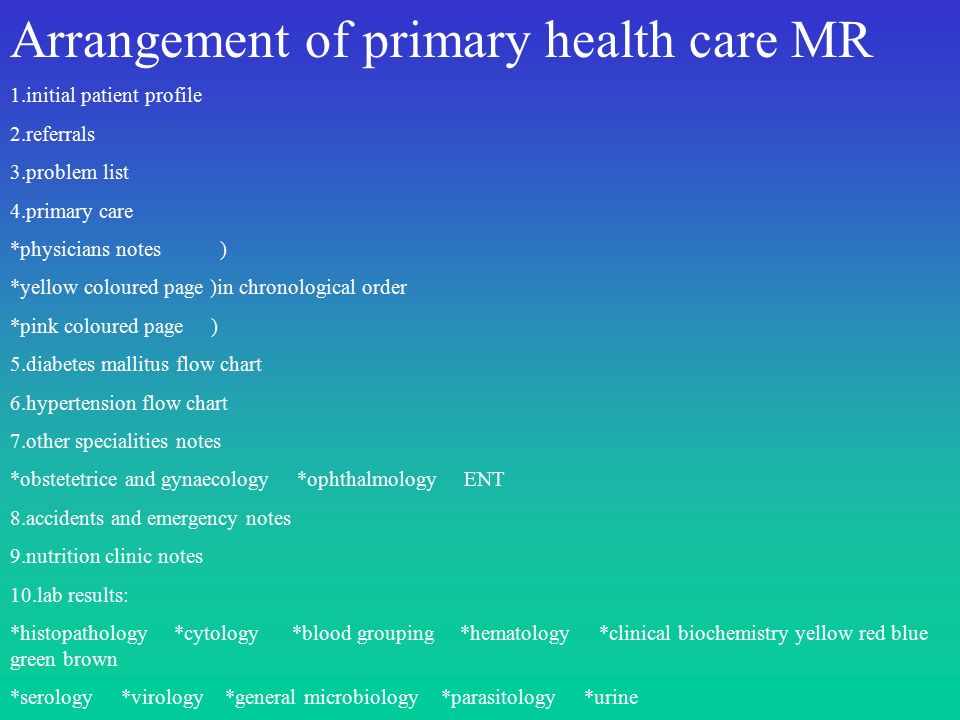

34. Arrangement of primary health care MR 1.initial patient profile 2.referrals 3.problem list 4.primary care *physicians notes ) *yellow coloured page )in chronological order *pink coloured page ) 5.diabetes mallitus flow chart 6.hypertension flow chart 7.other specialities notes *obstetetrice and gynaecology *ophthalmology ENT 8.accidents and emergency notes 9.nutrition clinic notes 10.lab results: *histopathology *cytology *blood grouping *hematology *clinical biochemistry yellow red blue green brown *serology *virology *general microbiology *parasitology *urine

35. 11.reports *endoscopy *xray *u/s *ECG

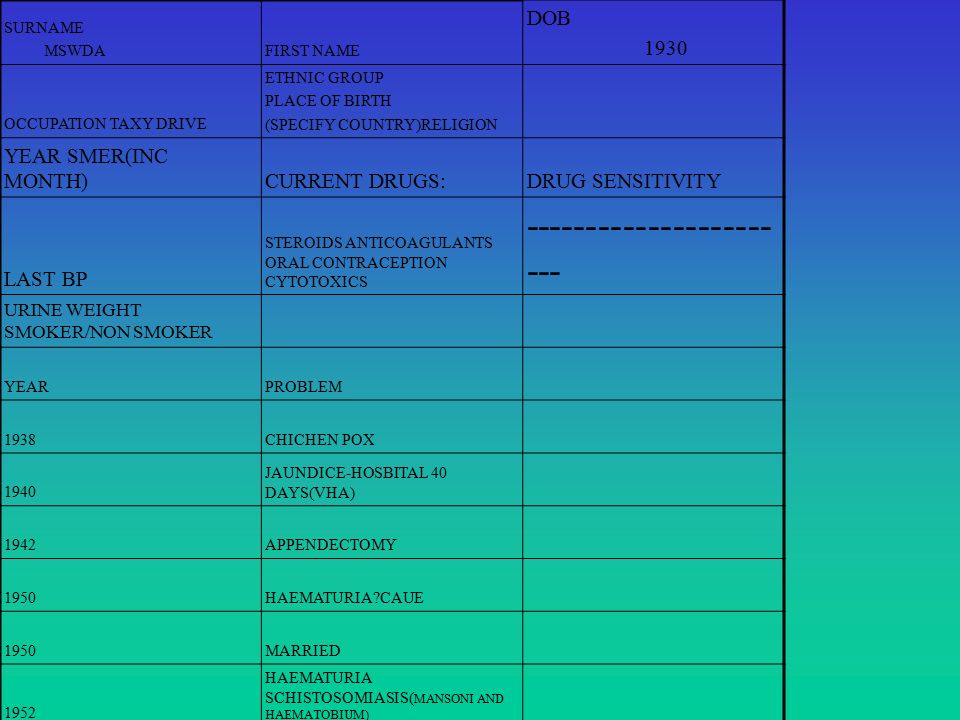

36. SURNAME MSWDAFIRST NAME DOB 1930 OCCUPATION TAXY DRIVE ETHNIC GROUP PLACE OF BIRTH (SPECIFY COUNTRY)RELIGION YEAR SMER(INC MONTH)CURRENT DRUGS:DRUG SENSITIVITY LAST BP STEROIDS ANTICOAGULANTS ORAL CONTRACEPTION CYTOTOXICS -------------------- --- URINE WEIGHT SMOKER/NON SMOKER YEARPROBLEM 1938CHICHEN POX 1940 JAUNDICE-HOSBITAL 40 DAYS(VHA) 1942APPENDECTOMY 1950HAEMATURIA?CAUE 1950MARRIED 1952 HAEMATURIA SCHISTOSOMIASIS( MANSONI AND HAEMATOBIUM) 1955 3 RD DAUGHTER MENTALLY RETARDED(MICROCEPHALY) 1966 ELDEST SON DIED AGED16 YEARS RTA 1967 MULTIPLE COMPLAINTS?ASSOCIED WITH ABOVE 1980HAEMATEMESIS CIRRHOSIS 1986COMPENSATED LIVE FAILURE

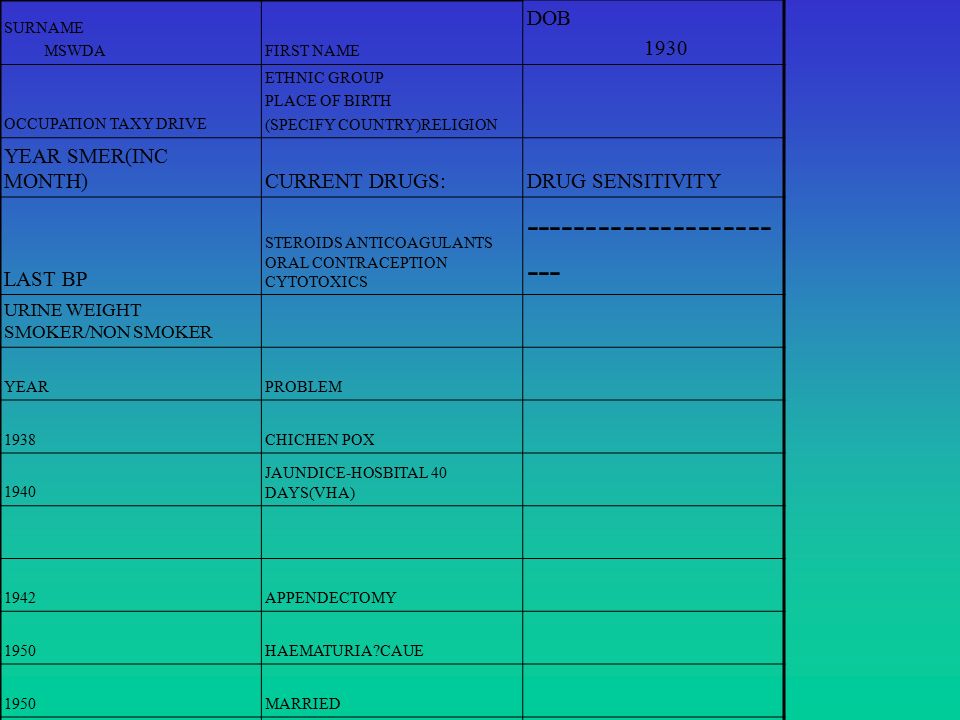

37. SURNAME MSWDAFIRST NAME DOB 1930 OCCUPATION TAXY DRIVE ETHNIC GROUP PLACE OF BIRTH (SPECIFY COUNTRY)RELIGION YEAR SMER(INC MONTH)CURRENT DRUGS:DRUG SENSITIVITY LAST BP STEROIDS ANTICOAGULANTS ORAL CONTRACEPTION CYTOTOXICS -------------------- --- URINE WEIGHT SMOKER/NON SMOKER YEARPROBLEM 1938CHICHEN POX 1940 JAUNDICE-HOSBITAL 40 DAYS(VHA) 1942APPENDECTOMY 1950HAEMATURIA?CAUE 1950MARRIED 1952 HAEMATURIA SCHISTOSOMIASIS( MANSONI AND HAEMATOBIUM) 1955 3 RD DAUGHTER MENTALLY RETARDED(MICROCEPHALY) 1966 ELDEST SON DIED AGED16 YEARS RTA 1967 MULTIPLE COMPLAINTS?ASSOCIED WITH ABOVE 1980HAEMATEMESIS CIRRHOSIS 1986COMPENSATED LIVE FAILURE

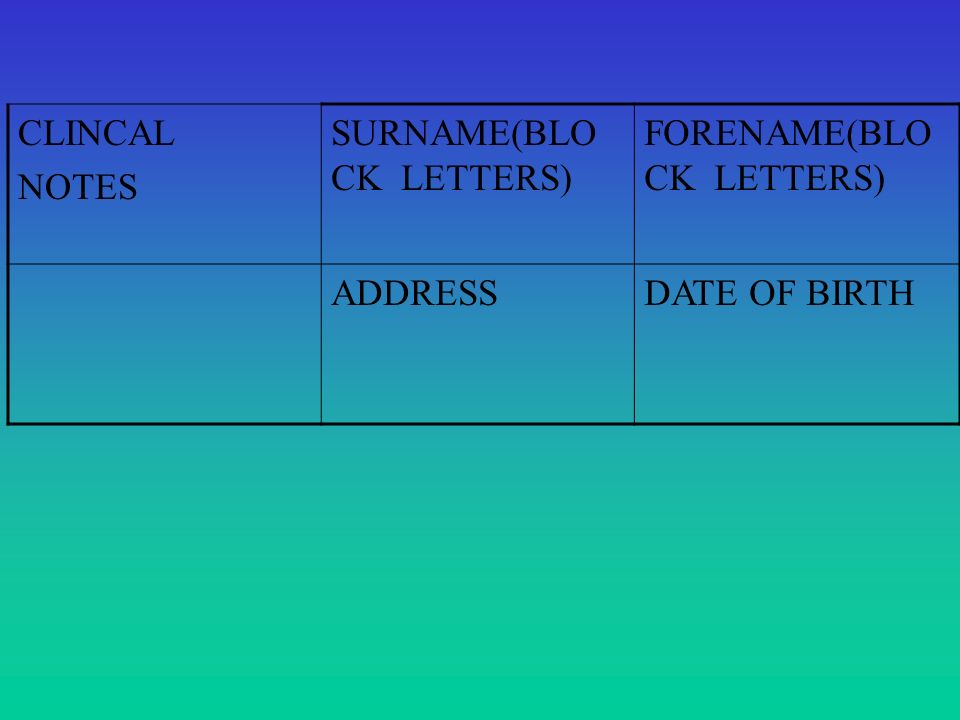

38. CLINCAL NOTES SURNAME(BLO CK LETTERS) FORENAME(BLO CK LETTERS) ADDRESSDATE OF BIRTH

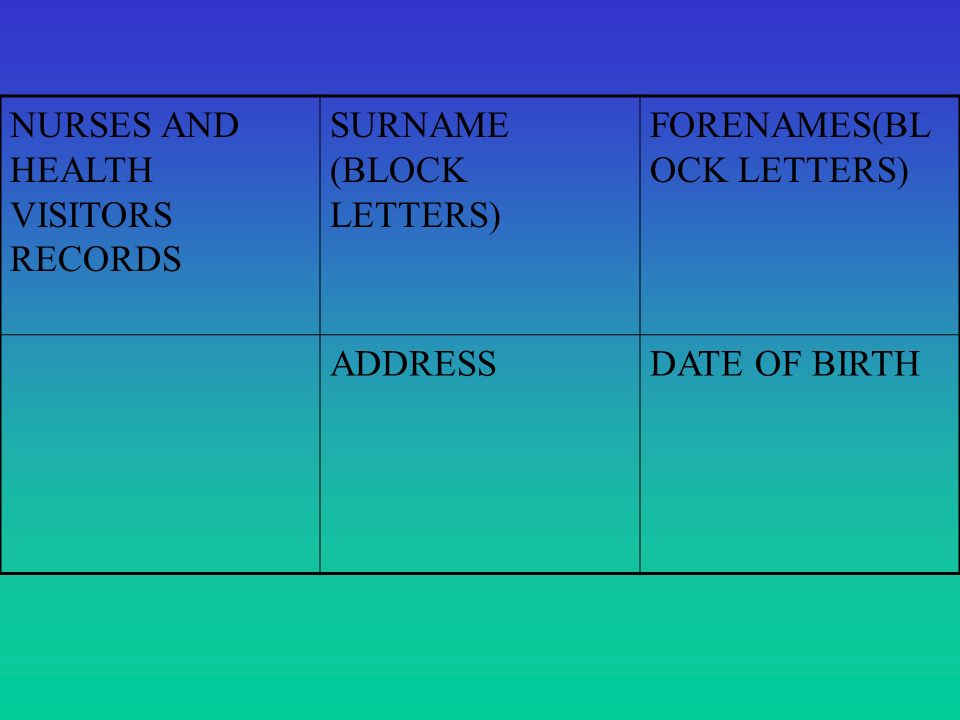

39. NURSES AND HEALTH VISITORS RECORDS SURNAME (BLOCK LETTERS) FORENAMES(BL OCK LETTERS) ADDRESSDATE OF BIRTH

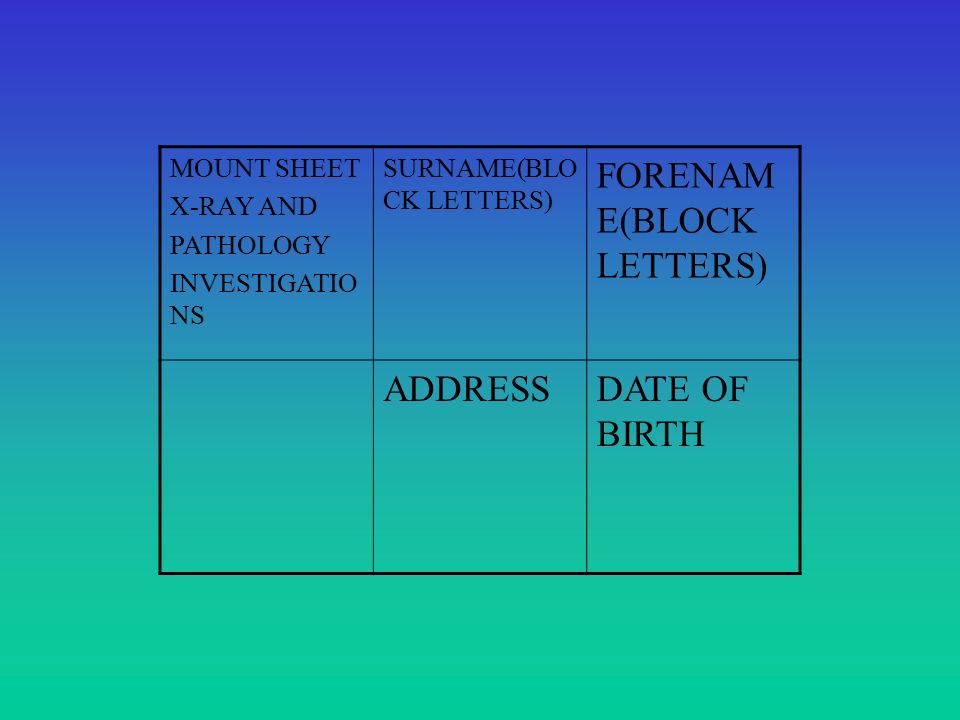

40. MOUNT SHEET X-RAY AND PATHOLOGY INVESTIGATIO NS SURNAME(BLO CK LETTERS) FORENAM E(BLOCK LETTERS) ADDRESSDATE OF BIRTH

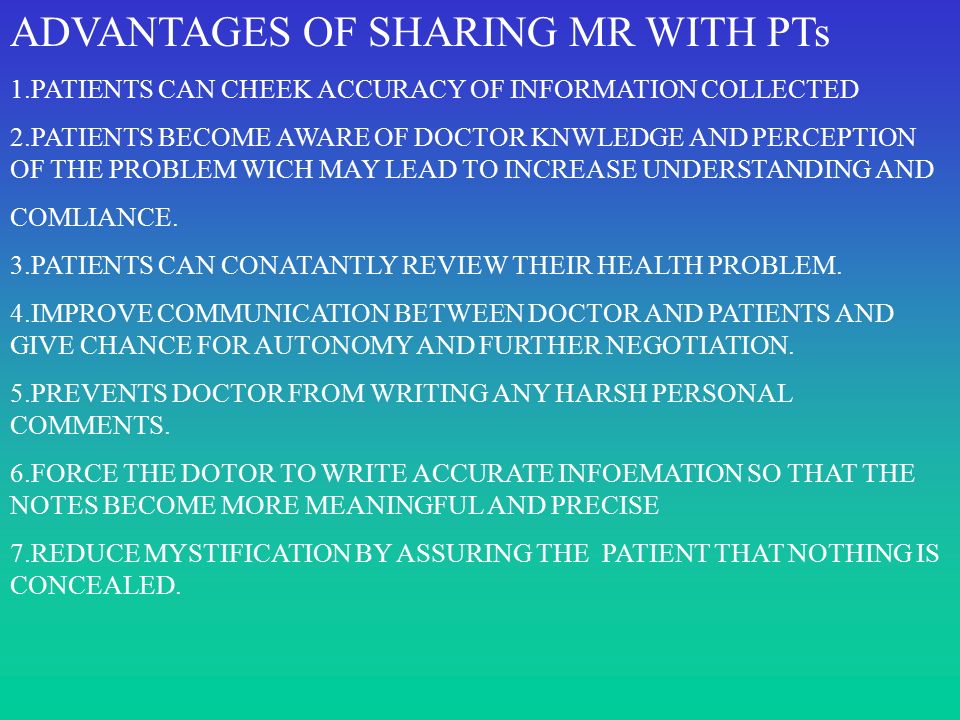

41. ADVANTAGES OF SHARING MR WITH PTs 1.PATIENTS CAN CHEEK ACCURACY OF INFORMATION COLLECTED 2.PATIENTS BECOME AWARE OF DOCTOR KNWLEDGE AND PERCEPTION OF THE PROBLEM WICH MAY LEAD TO INCREASE UNDERSTANDING AND COMLIANCE. 3.PATIENTS CAN CONATANTLY REVIEW THEIR HEALTH PROBLEM. 4.IMPROVE COMMUNICATION BETWEEN DOCTOR AND PATIENTS AND GIVE CHANCE FOR AUTONOMY AND FURTHER NEGOTIATION. 5.PREVENTS DOCTOR FROM WRITING ANY HARSH PERSONAL COMMENTS. 6.FORCE THE DOTOR TO WRITE ACCURATE INFOEMATION SO THAT THE NOTES BECOME MORE MEANINGFUL AND PRECISE 7.REDUCE MYSTIFICATION BY ASSURING THE PATIENT THAT NOTHING IS CONCEALED.

42. DISADVANTAGES OF SHARING MR WITH PTs 1.INACCURATE NOTES IN THE MEDICAL RECORDS MAY DIMINISH PATIANTS CONFIDENT IN HIS DOCTOR. 2.PATIENTS WITH SERIOUS DISEASES MAY NOT PREFER KNOW ABOUT PROGNOSIS OF THEIR ILLNESS. 3.KNOWING THE DIAGNOSIS MAY CAUSE ANXIETY 4.DISCLOSURE OF INFORMATION ABOUT RELATIVES MAY BREACH CONFIDENTIALITY 5.IT MAY STOP DOCTORS WRITING HIS OWN COMMENTS ABOUT THE PATIENTS PERSONALITY CHARACTER OR BEHAVIOUR(eg IMMATURE OR INADEQUATE PRESONALITY,PSYCHOPATH)WHICH MAY BE VITAL INFORMATION TO RECORD. 6.DIAGNOSIS MAY LEAD TO FALSE LABELLING AND(eg ALCOHOLIC NEUROTIC) 7.INFORMATION MAY BE MISINTERPRETED OR OFFEND AND FRIGHTEN PATIENTS LUMP IN BREST VERSUS CARCINOMA. 8.IT MAY INCREASE MEDICO LEGAL ACTIVITIES

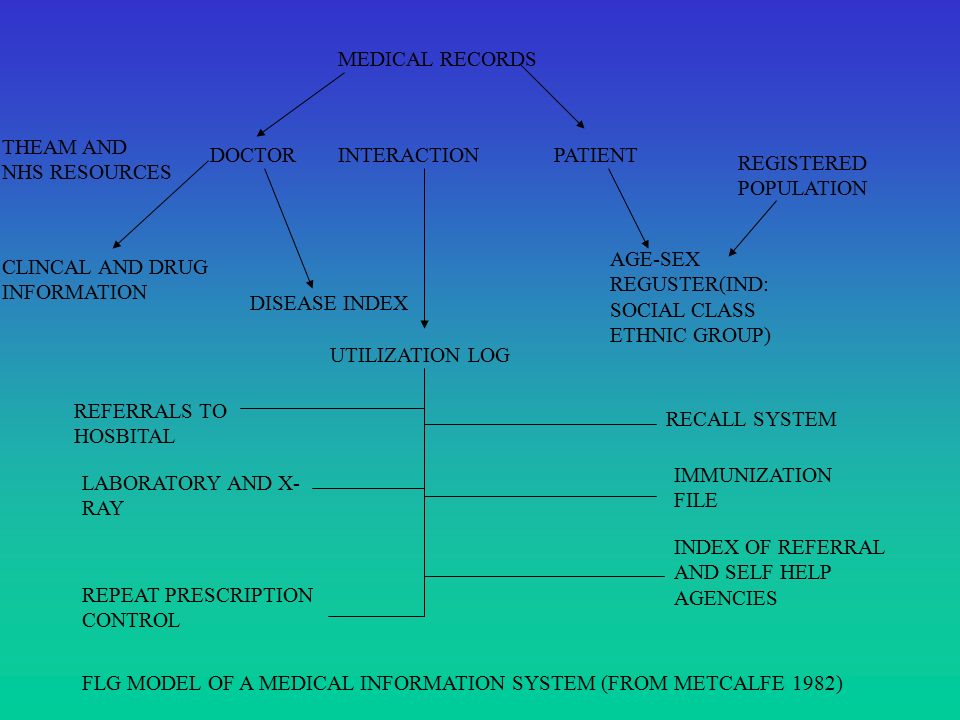

43. MEDICAL RECORDS PATIENT REGISTERED POPULATION AGE-SEX REGUSTER(IND: SOCIAL CLASS ETHNIC GROUP) INTERACTIONDOCTOR THEAM AND NHS RESOURCES CLINCAL AND DRUG INFORMATION DISEASE INDEX UTILIZATION LOG RECALL SYSTEM IMMUNIZATION FILE INDEX OF REFERRAL AND SELF HELP AGENCIES REFERRALS TO HOSBITAL LABORATORY AND X- RAY REPEAT PRESCRIPTION CONTROL FLG MODEL OF A MEDICAL INFORMATION SYSTEM (FROM METCALFE 1982)

44. THANK YOU

45. organising the medical record -continuation sheet -summary sheet -obstetric record -child immunisation card -child development record -contraceptive record -repeat prescription record -hypersensitivities -problem lists -flow charts -laboratory report sheets these stationery: -is available from the health authority -must be kept in a logical and agreed order -fastened together by metal clip or staple atc old continuation sheet can be summarised and then discarded. redundant letters and reports can be destroyed. *nb :time invested in an efficient record system pays off when the doctor needs to retrieve information about the patient in an emergency: - design a system - staff can use slack periods - avoid generating bulky records without good reason - throw away redundant information - record of dead patients can be retuned to health authority

46. Storage of medical records Aim:quick and accurate retrieval of records Main methods 1.lateral or shelf filing -more space -easy access -misfiling can be reduced by colour coding or diagonal stripe 2.rotary files -more efficient use of space -more confusing (not same fixed point) -coloured tape or card as starting point is helpful 3.cabinet files -may be satisfactory in small practice -time wasting -more likely to cause fatigue or injury -can be locked –advantage 4. More elaborate and expensive system e.g -multi-stack lateral systems on rails -electrically operated banks of filing trays -advantage limited space

48. Hypertension and Referral System Prof. Sulaiman Al-Shammari Department of Family & Community Medicine, College of Medicine King Saud University, Riyadh, Saudi Arabia

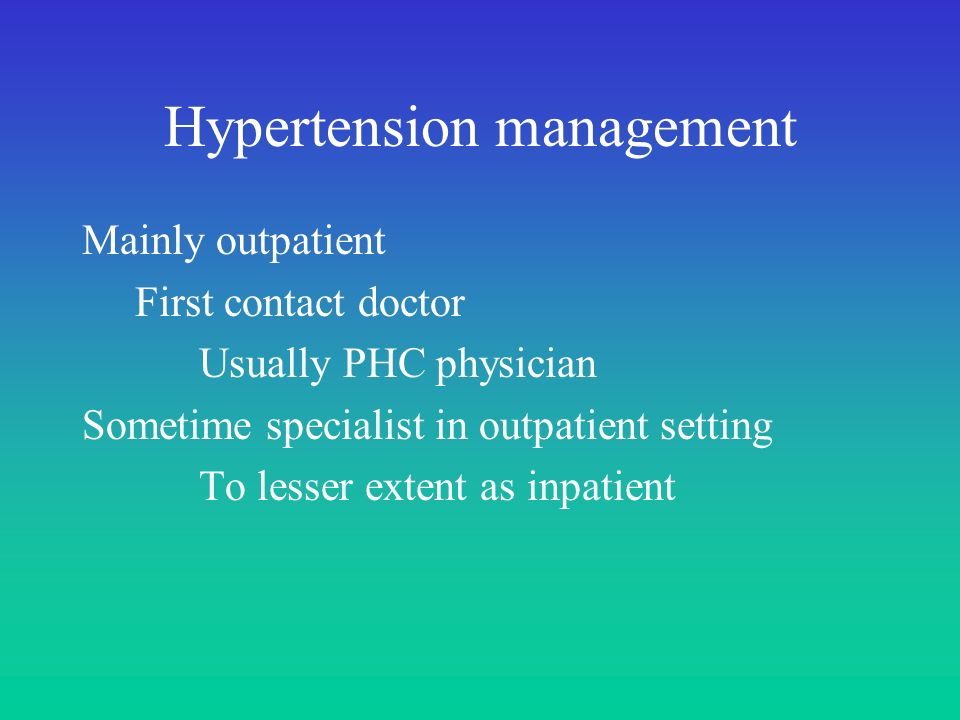

50. Hypertension management Mainly outpatient First contact doctor Usually PHC physician Sometime specialist in outpatient setting To lesser extent as inpatient

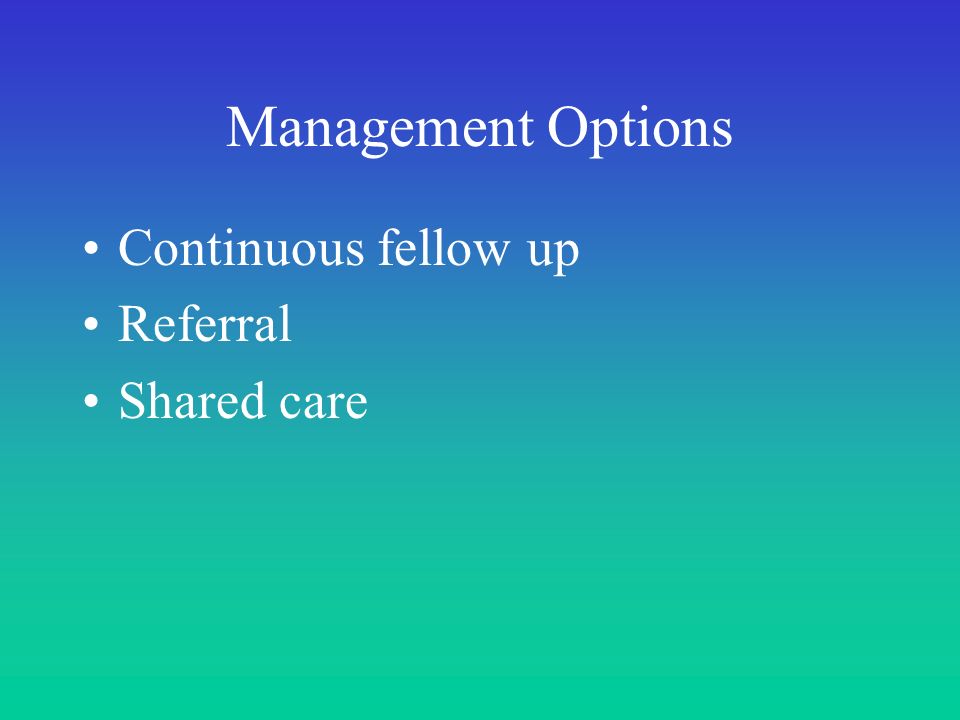

51. Management Options Continuous fellow up Referral Shared care

52. Definition of Referral

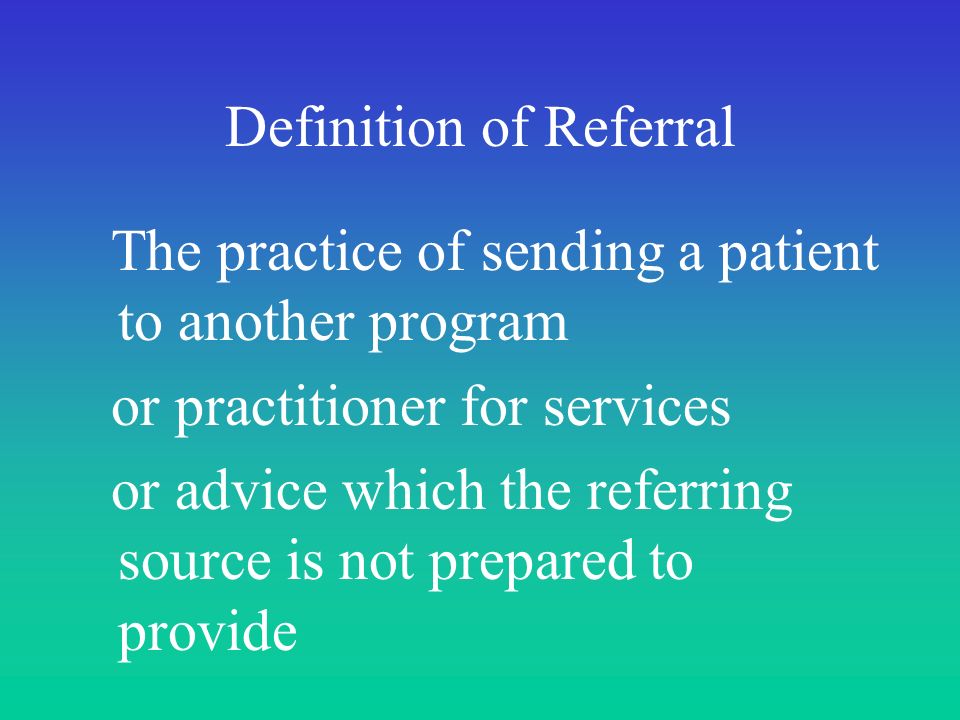

53. The practice of sending a patient to another program or practitioner for services or advice which the referring source is not prepared to provide

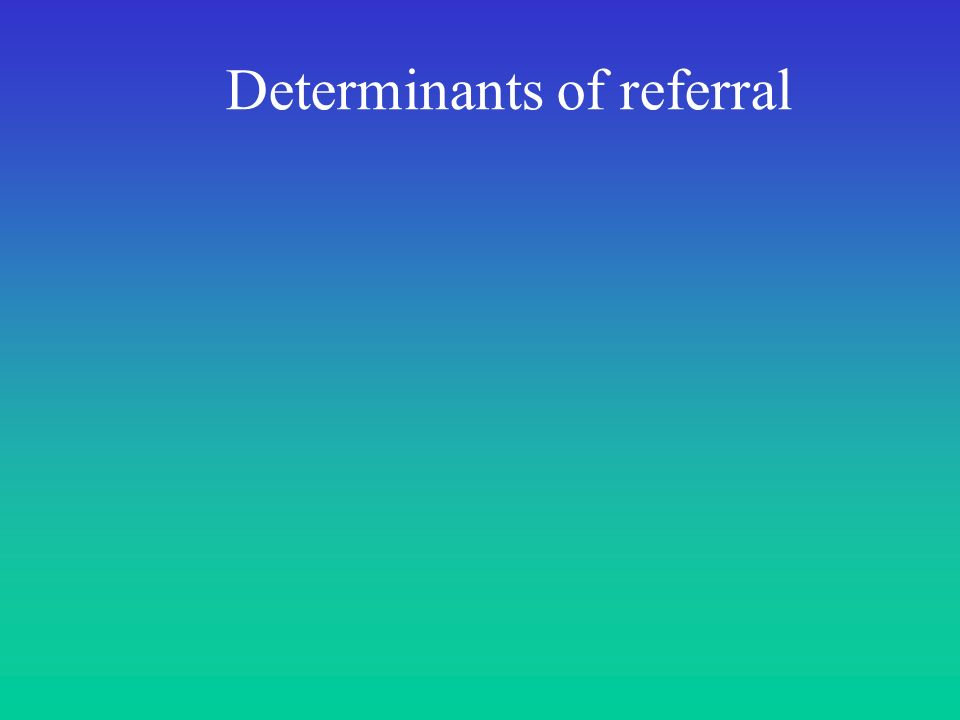

54. Determinants of referral

55. KAP of referring physician Health system set up Availability & accessibility of facilities Investigations Treatment Procedures CME purposes Patient satisfaction

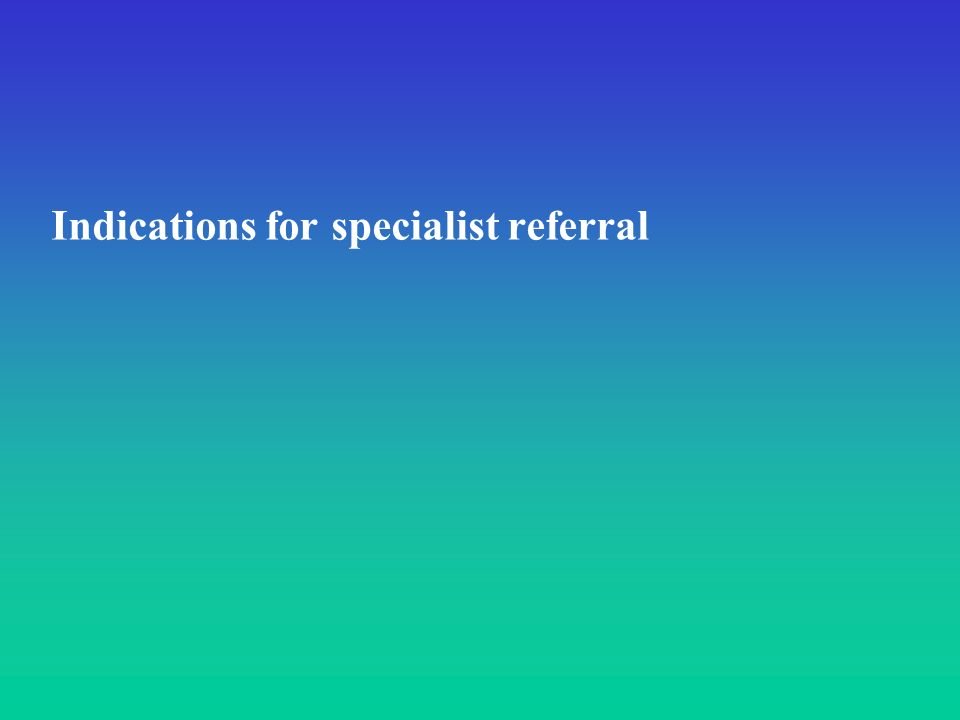

56. Indications for specialist referral

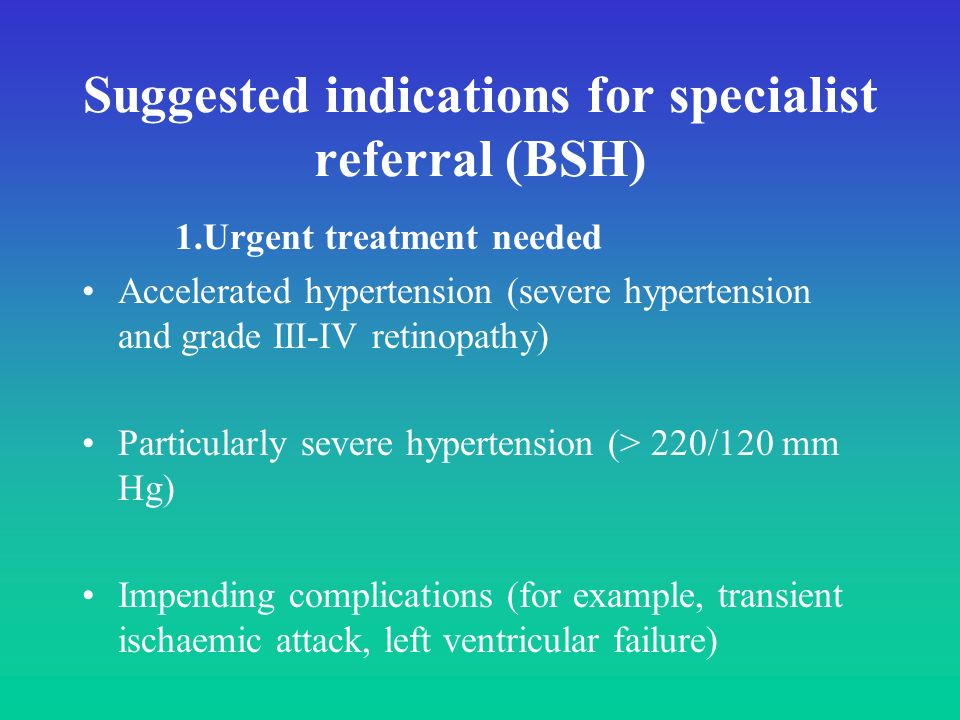

57. Suggested indications for specialist referral (BSH) 1.Urgent treatment needed Accelerated hypertension (severe hypertension and grade III-IV retinopathy) Particularly severe hypertension (> 220/120 mm Hg) Impending complications (for example, transient ischaemic attack, left ventricular failure)

58. Suggested indications for specialist referral (BHS) 2.Possible underlying cause Any clue in history or examination of a secondary cause, such as hypokalaemia with increased or high normal plasma sodium (Conn's syndrome) Elevated serum creatinine Proteinuria or haematuria Sudden onset or worsening of hypertension Resistant to multidrug regimen ( 3 drugs) Young age (any hypertension < 20 years; needing treatment < 30 years)

59. Causes of Hypertension (SHMS) Sleep Apnea. Drug Induced. Chronic Renal Disease. Primary Aldosteronism. Renovascular Disease. Chronic Steroid Therapy and Cushing’s syndrome. Pheochromocytoma. Coarctation of Aorta. Thyroid or Parathyroid Disease.

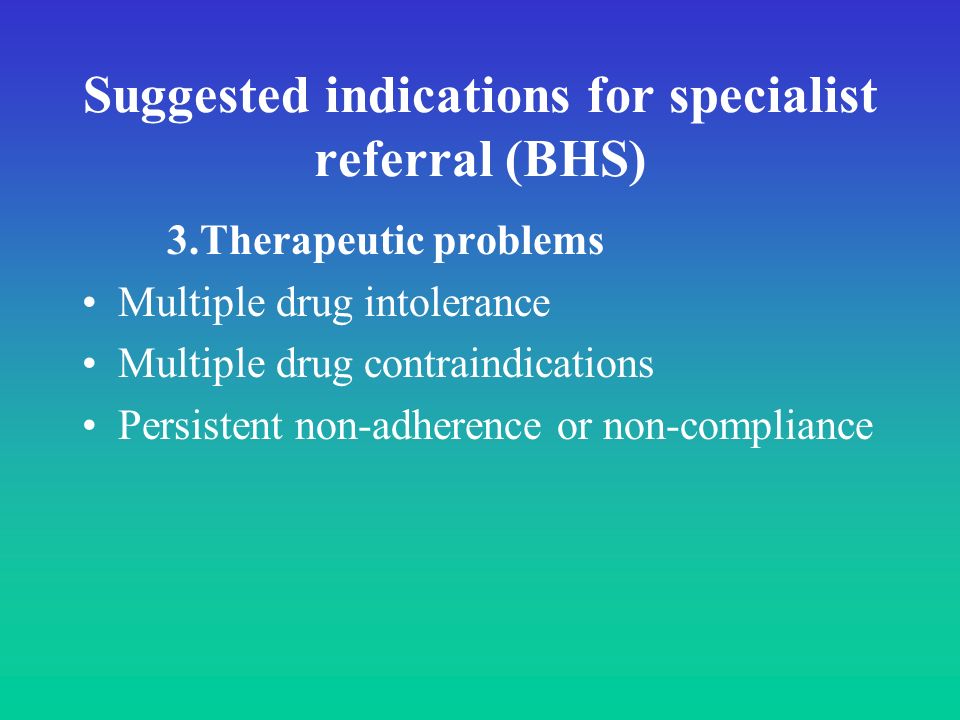

60. Suggested indications for specialist referral (BHS) 3.Therapeutic problems Multiple drug intolerance Multiple drug contraindications Persistent non-adherence or non-compliance

61. Suggested indications for specialist referral (BHS) 4.Special situations Unusual blood pressure variability Possible white coat hypertension Hypertension in pregnancy

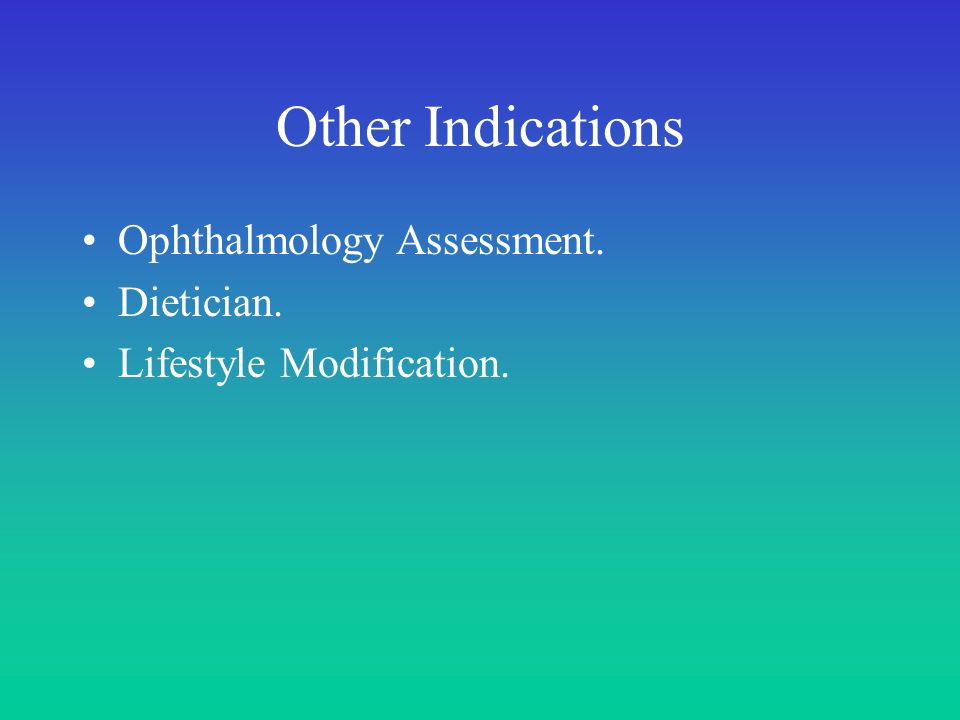

62. Other Indications Ophthalmology Assessment. Dietician. Lifestyle Modification.

63. Referral to group therapy Health center guidance Learn together Support each other Toward healthy life style

64. Questionable Indications Lab Imaging ECG.

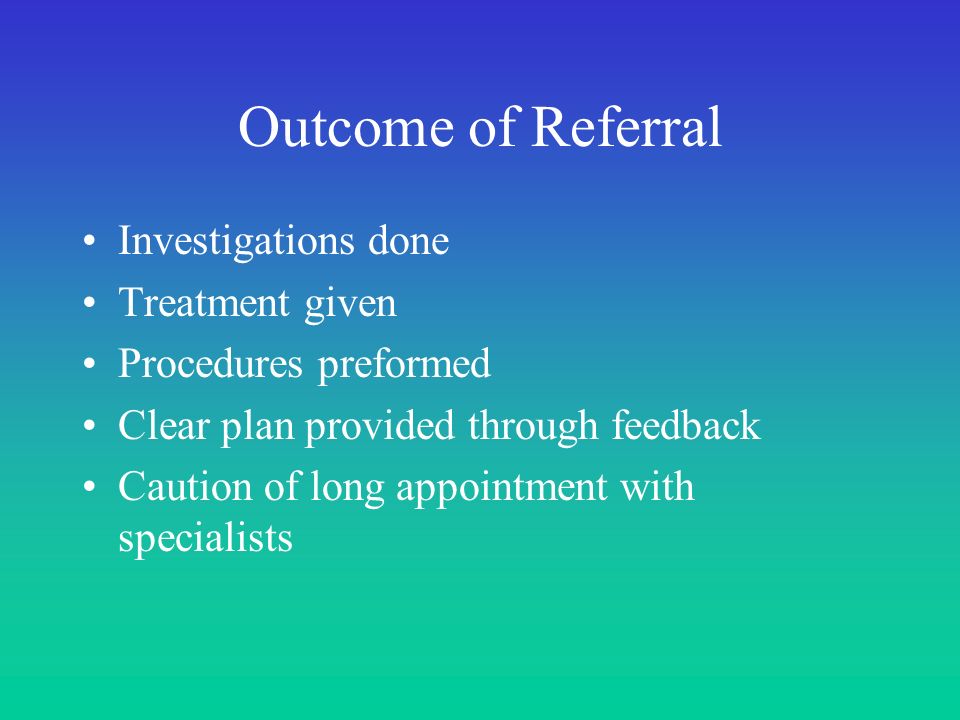

65. Outcome of Referral Investigations done Treatment given Procedures preformed Clear plan provided through feedback Caution of long appointment with specialists

66. Cost-effectiveness

67. Overcrowding of specialist clinic Increasing cost May lead to low interest May lead to Loss of skills

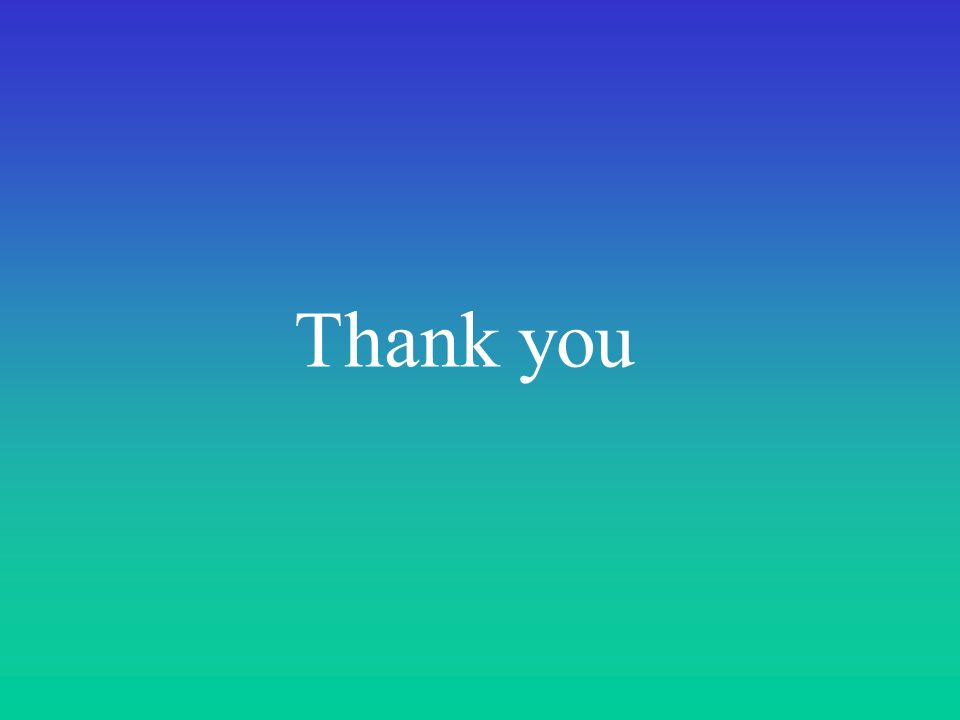

68. Thank you
