1. RDF (Resource Description Framework) Why?

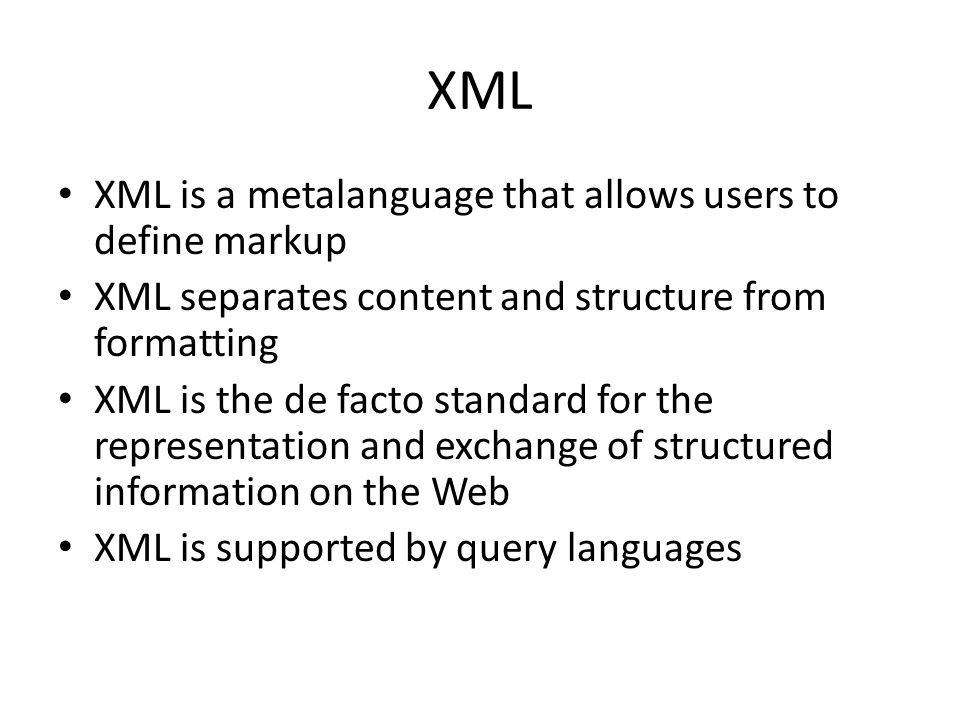

2. XML XML is a metalanguage that allows users to define markup XML separates content and structure from formatting XML is the de facto standard for the representation and exchange of structured information on the Web XML is supported by query languages

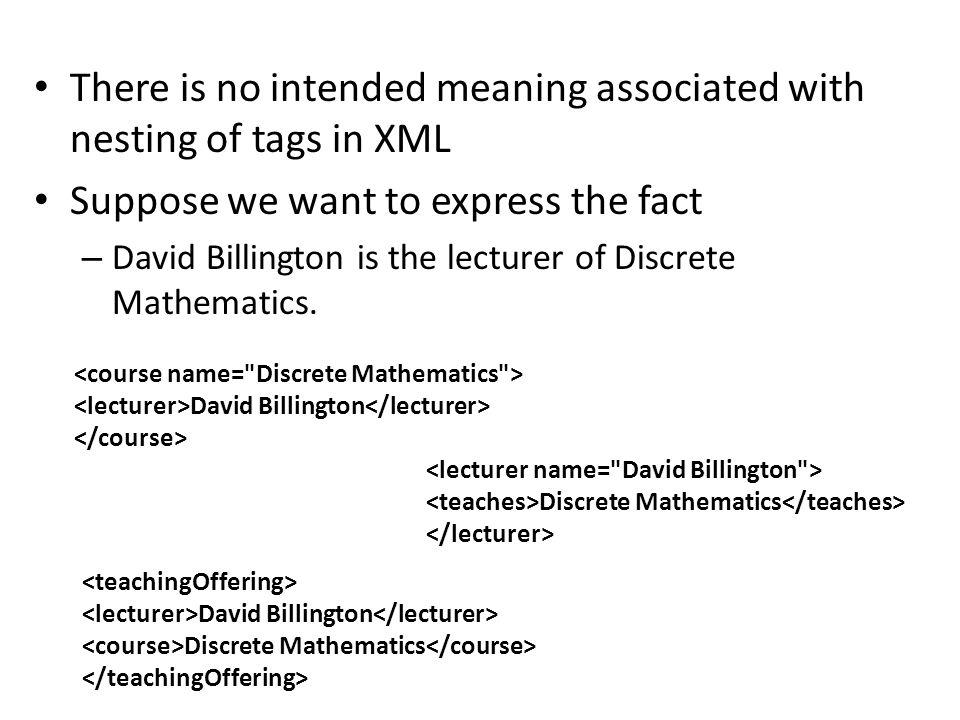

3. There is no intended meaning associated with nesting of tags in XML Suppose we want to express the fact – David Billington is the lecturer of Discrete Mathematics. David Billington Discrete Mathematics David Billington Discrete Mathematics

4. XML? The first two formalizations include essentially an opposite nesting although they represent the same information

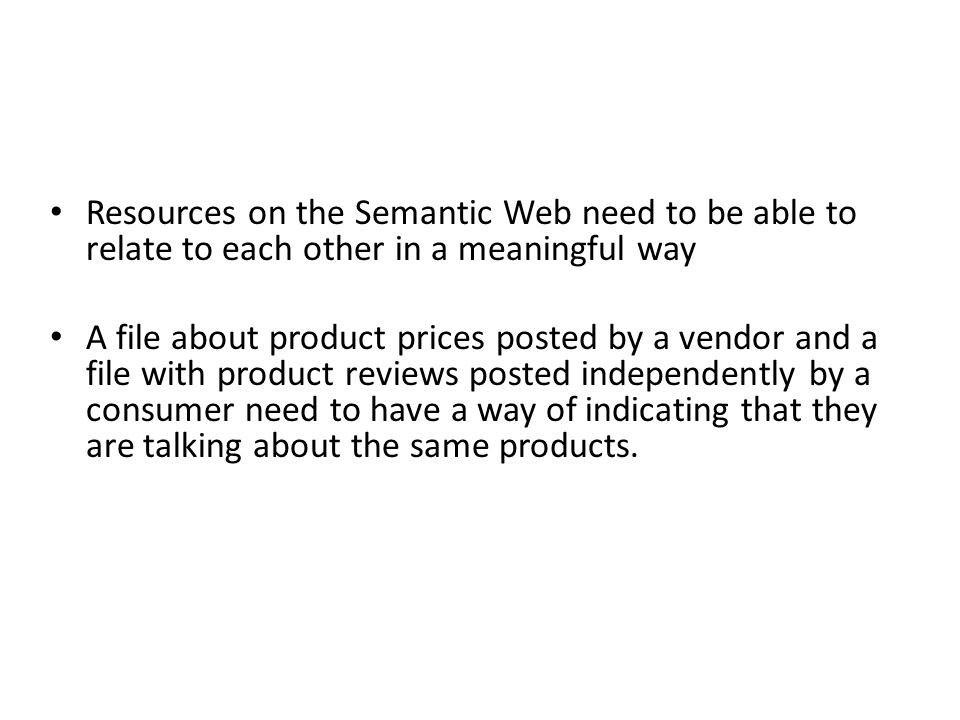

5. Resources on the Semantic Web need to be able to relate to each other in a meaningful way A file about product prices posted by a vendor and a file with product reviews posted independently by a consumer need to have a way of indicating that they are talking about the same products.

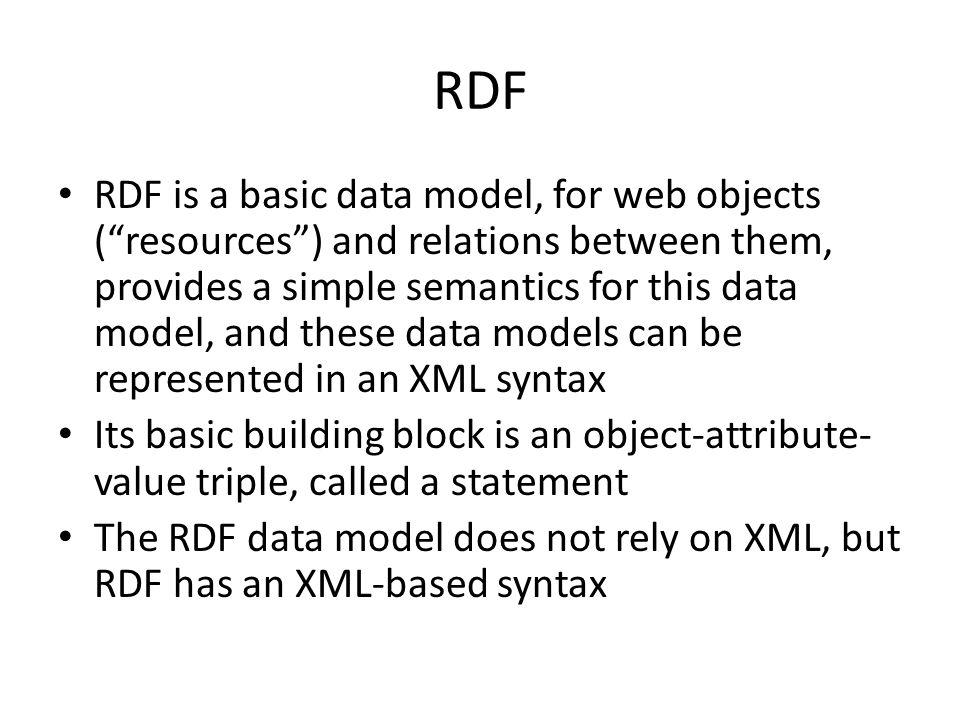

6. RDF RDF is a basic data model, for web objects (“resources”) and relations between them, provides a simple semantics for this data model, and these data models can be represented in an XML syntax Its basic building block is an object-attribute- value triple, called a statement The RDF data model does not rely on XML, but RDF has an XML-based syntax

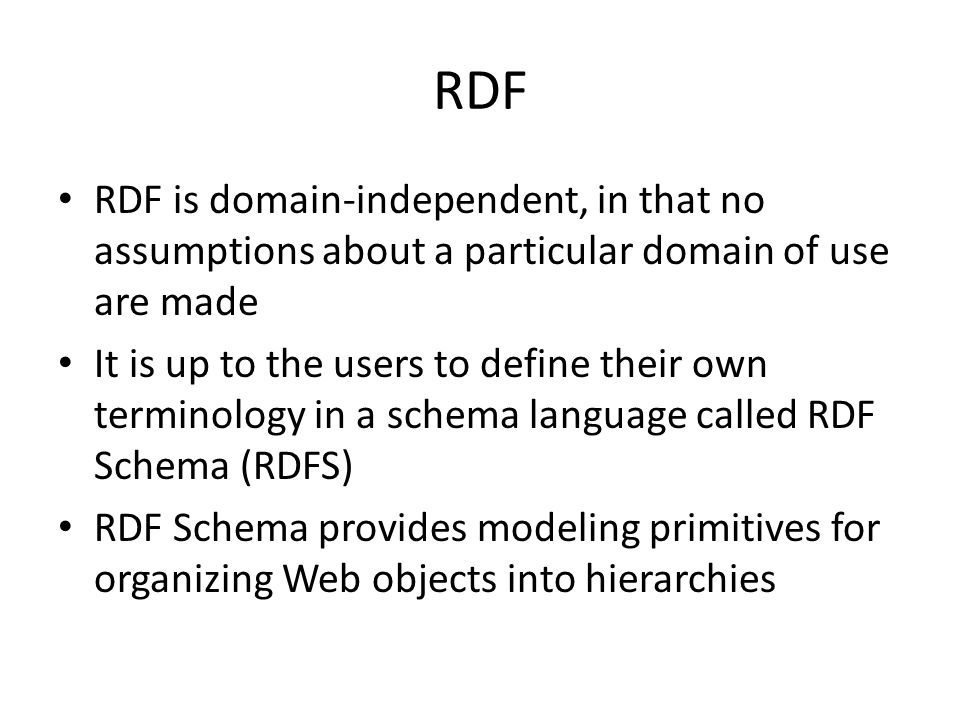

7. RDF RDF is domain-independent, in that no assumptions about a particular domain of use are made It is up to the users to define their own terminology in a schema language called RDF Schema (RDFS) RDF Schema provides modeling primitives for organizing Web objects into hierarchies

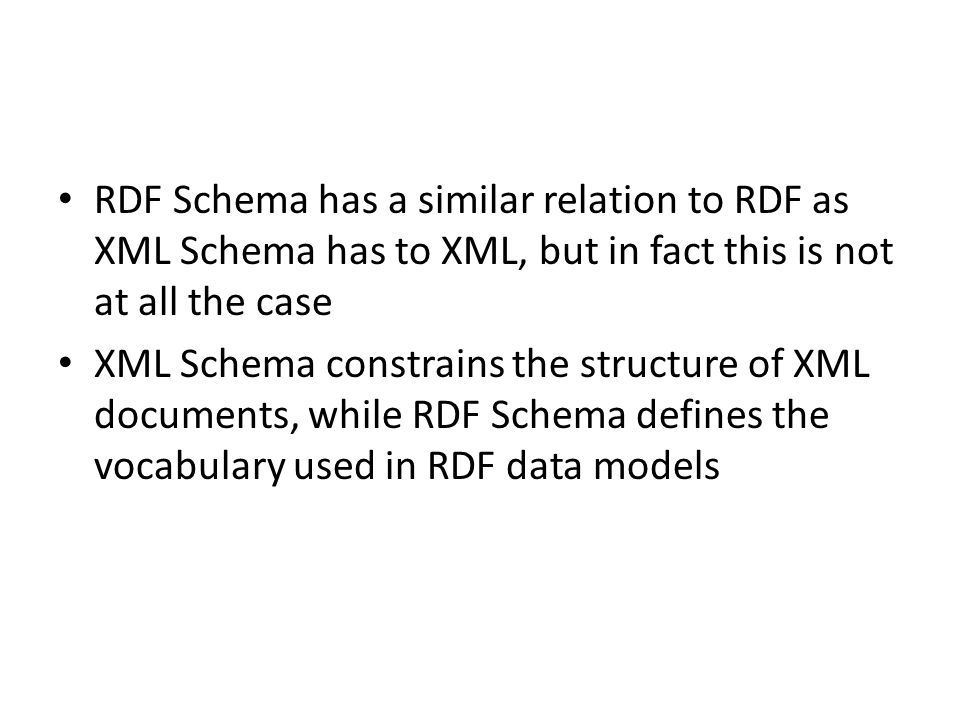

8. RDF Schema has a similar relation to RDF as XML Schema has to XML, but in fact this is not at all the case XML Schema constrains the structure of XML documents, while RDF Schema defines the vocabulary used in RDF data models

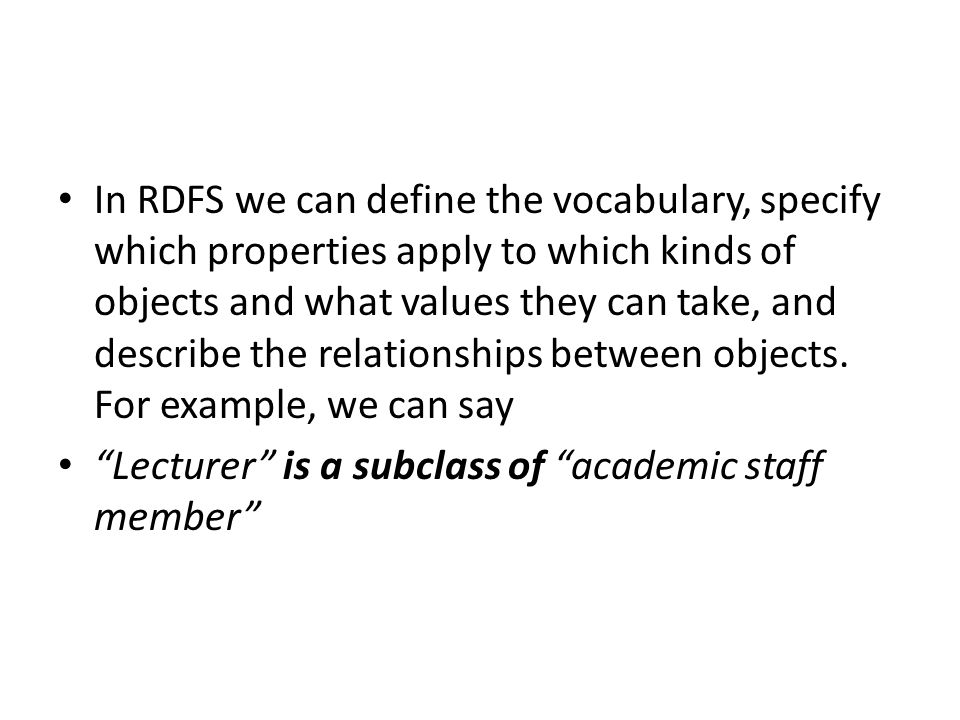

9. In RDFS we can define the vocabulary, specify which properties apply to which kinds of objects and what values they can take, and describe the relationships between objects. For example, we can say “Lecturer” is a subclass of “academic staff member”

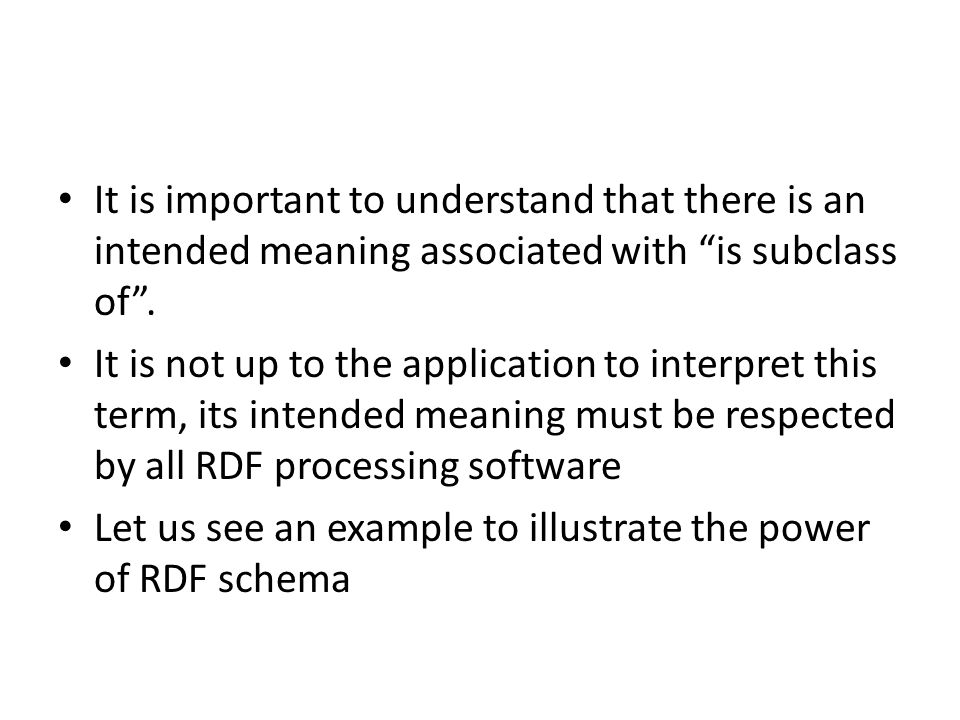

10. It is important to understand that there is an intended meaning associated with “is subclass of”. It is not up to the application to interpret this term, its intended meaning must be respected by all RDF processing software Let us see an example to illustrate the power of RDF schema

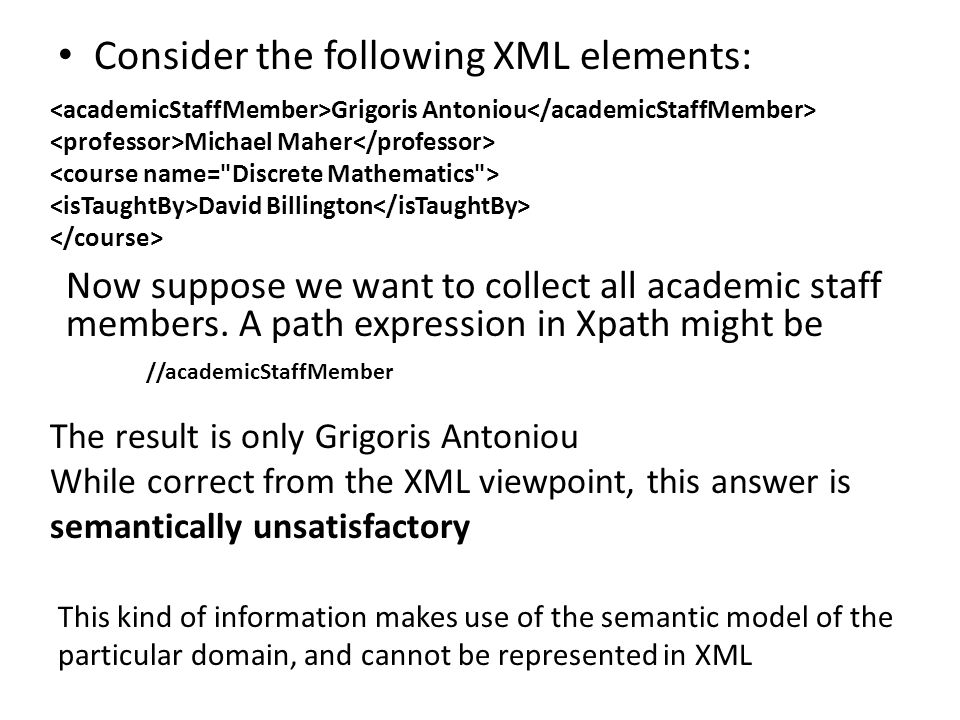

11. Consider the following XML elements: Grigoris Antoniou Michael Maher David Billington Now suppose we want to collect all academic staff members. A path expression in Xpath might be //academicStaffMember The result is only Grigoris Antoniou While correct from the XML viewpoint, this answer is semantically unsatisfactory This kind of information makes use of the semantic model of the particular domain, and cannot be represented in XML

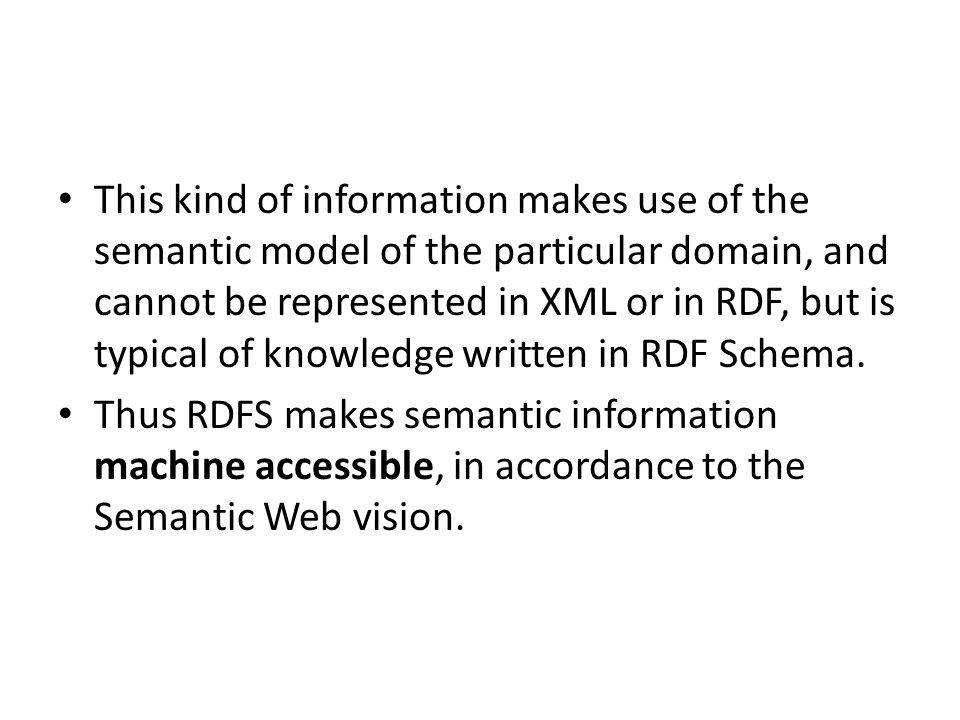

12. This kind of information makes use of the semantic model of the particular domain, and cannot be represented in XML or in RDF, but is typical of knowledge written in RDF Schema. Thus RDFS makes semantic information machine accessible, in accordance to the Semantic Web vision.

13. RDF What ?

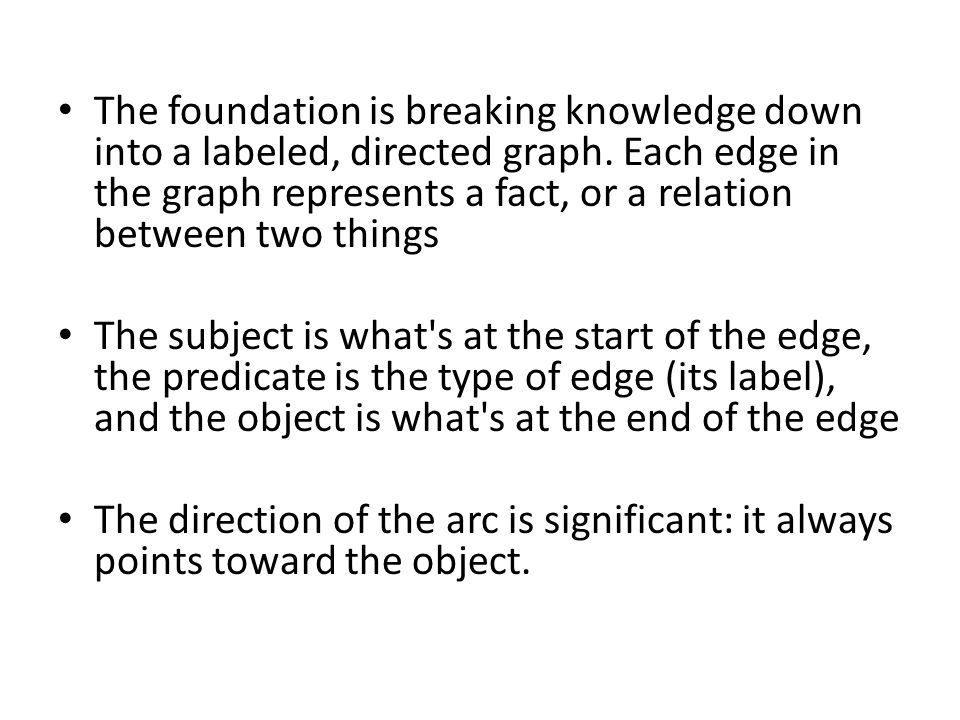

14. The foundation is breaking knowledge down into a labeled, directed graph. Each edge in the graph represents a fact, or a relation between two things The subject is what's at the start of the edge, the predicate is the type of edge (its label), and the object is what's at the end of the edge The direction of the arc is significant: it always points toward the object.

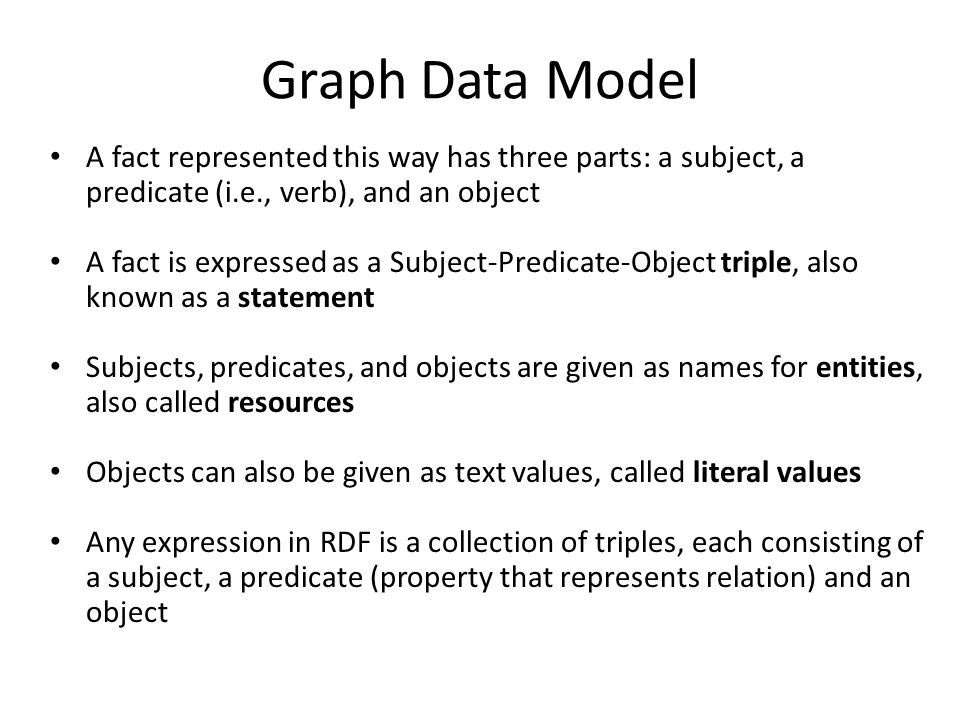

15. Graph Data Model A fact represented this way has three parts: a subject, a predicate (i.e., verb), and an object A fact is expressed as a Subject-Predicate-Object triple, also known as a statement Subjects, predicates, and objects are given as names for entities, also called resources Objects can also be given as text values, called literal values Any expression in RDF is a collection of triples, each consisting of a subject, a predicate (property that represents relation) and an object

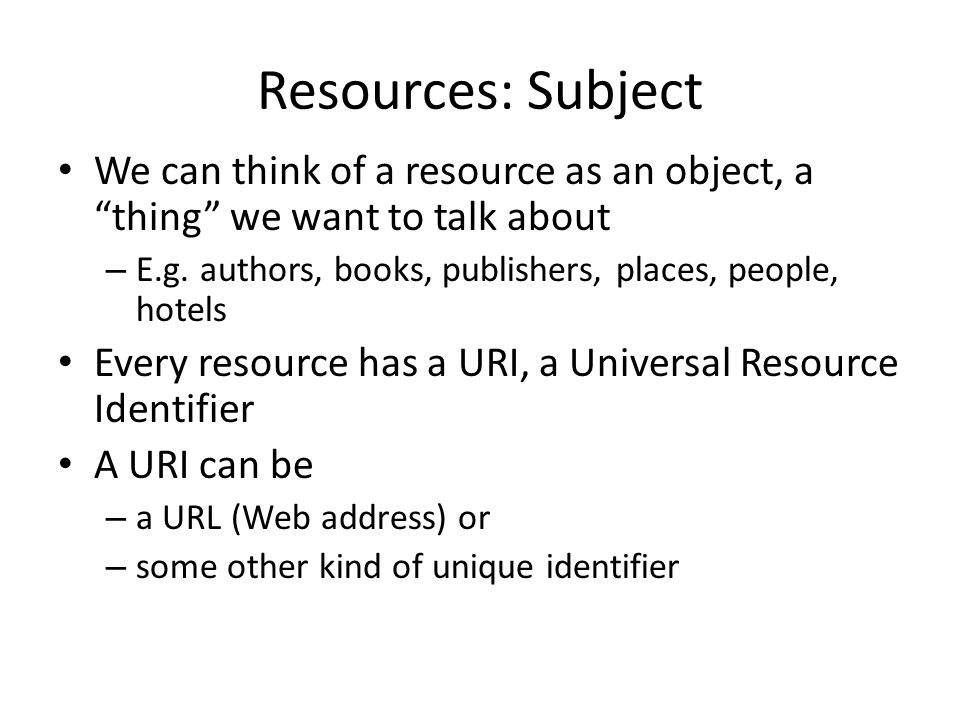

16. Resources: Subject We can think of a resource as an object, a “thing” we want to talk about – E.g. authors, books, publishers, places, people, hotels Every resource has a URI, a Universal Resource Identifier A URI can be – a URL (Web address) or – some other kind of unique identifier

17. Resources: Properties Properties are a special kind of resources They describe relations between resources – E.g. “written by”, “age”, “title”, etc. Properties are also identified by URIs Advantages of using URIs: – Α global, worldwide, unique naming scheme – Reduces the homonym problem of distributed data representation

18. Statements Statements assert the properties of resources A statement is an object-attribute-value triple – It consists of a resource, a property, and a value Values can be resources or literals – Literals are atomic values (strings)

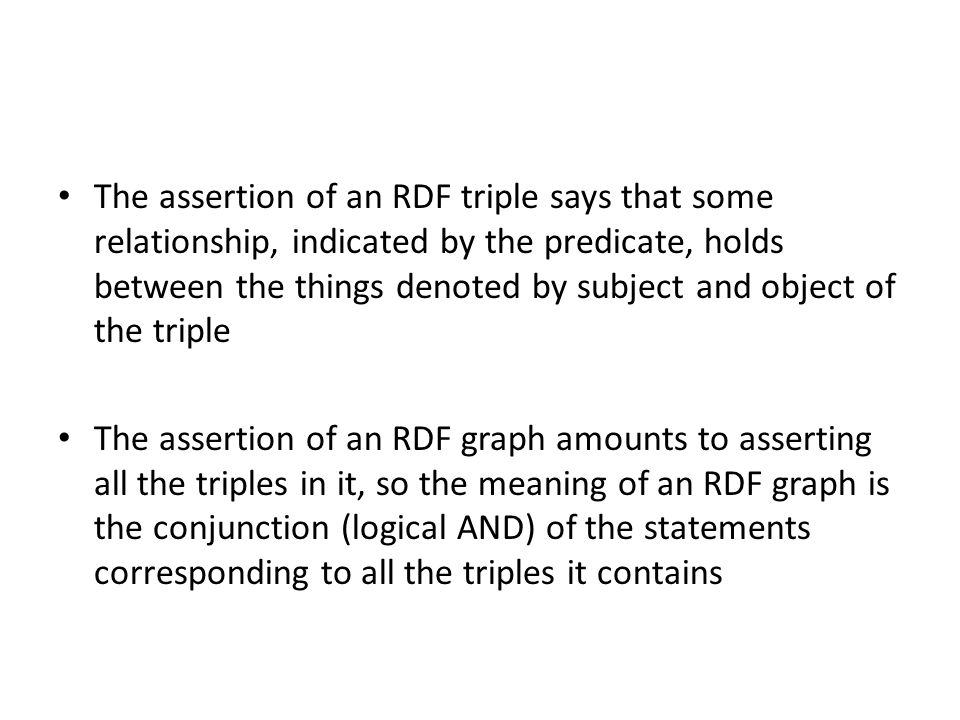

19. The assertion of an RDF triple says that some relationship, indicated by the predicate, holds between the things denoted by subject and object of the triple The assertion of an RDF graph amounts to asserting all the triples in it, so the meaning of an RDF graph is the conjunction (logical AND) of the statements corresponding to all the triples it contains

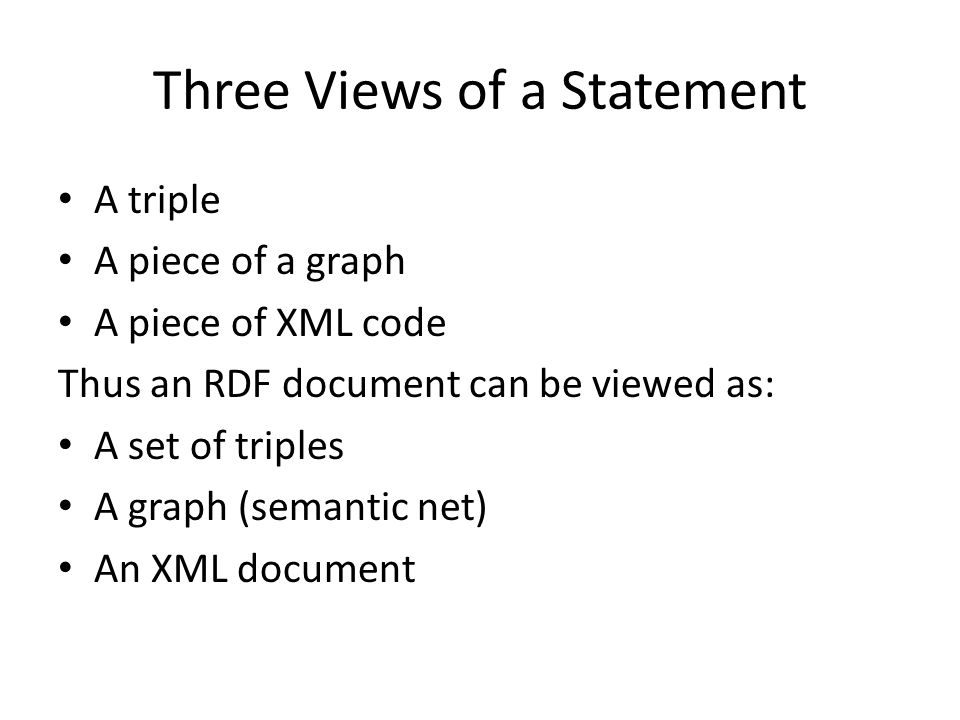

20. Three Views of a Statement A triple A piece of a graph A piece of XML code Thus an RDF document can be viewed as: A set of triples A graph (semantic net) An XML document

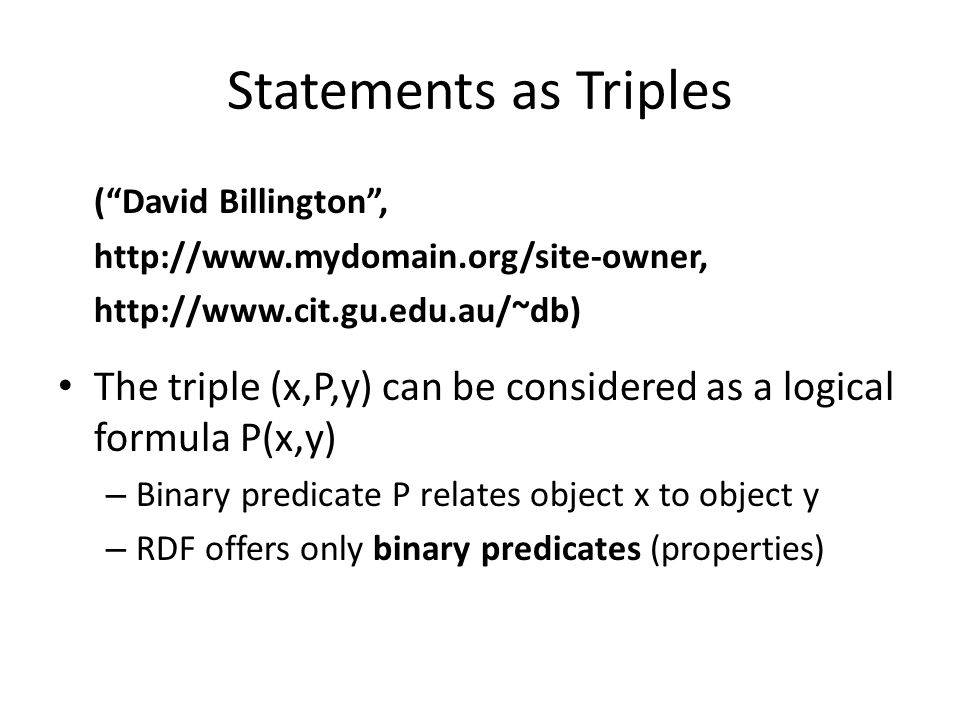

21. Statements as Triples (“David Billington”, http://www.mydomain.org/site-owner, http://www.cit.gu.edu.au/~db) The triple (x,P,y) can be considered as a logical formula P(x,y) – Binary predicate P relates object x to object y – RDF offers only binary predicates (properties)

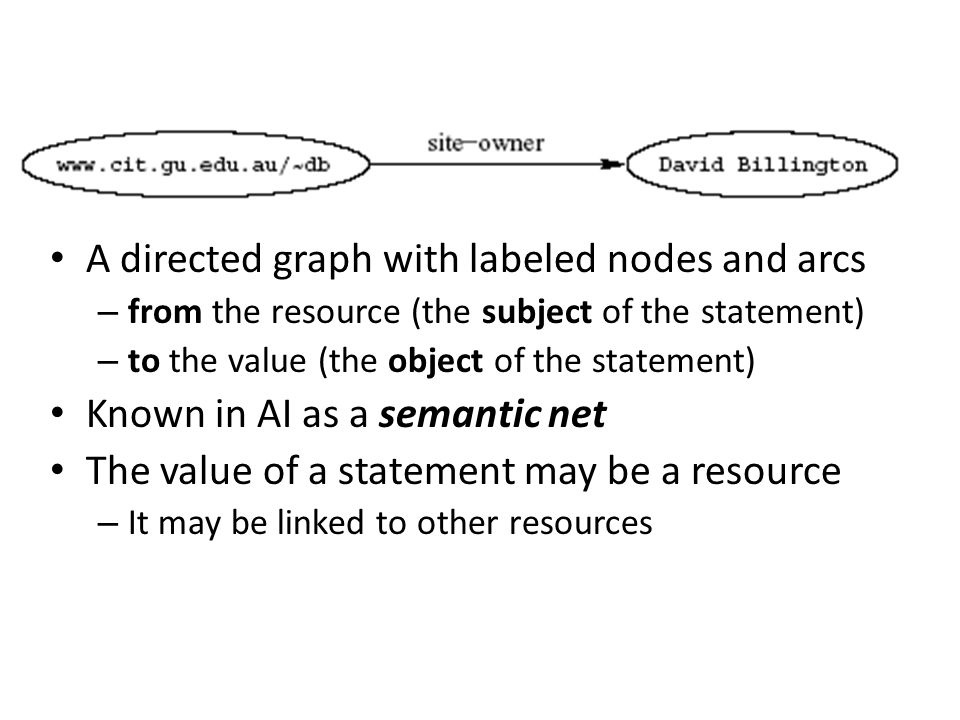

22. A directed graph with labeled nodes and arcs – from the resource (the subject of the statement) – to the value (the object of the statement) Known in AI as a semantic net The value of a statement may be a resource – Ιt may be linked to other resources

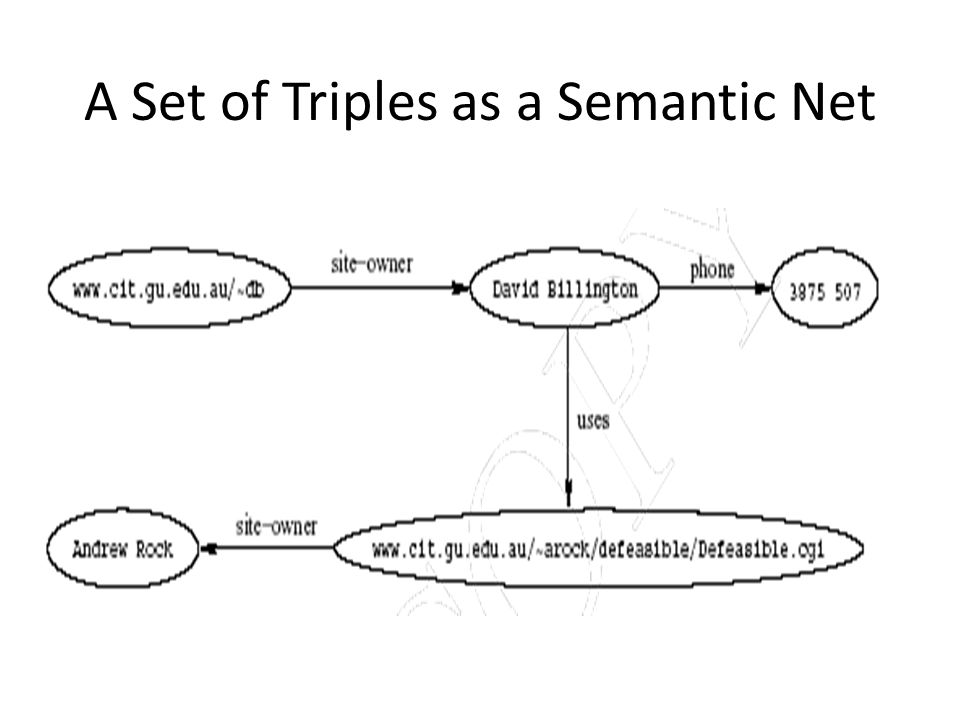

23. A Set of Triples as a Semantic Net

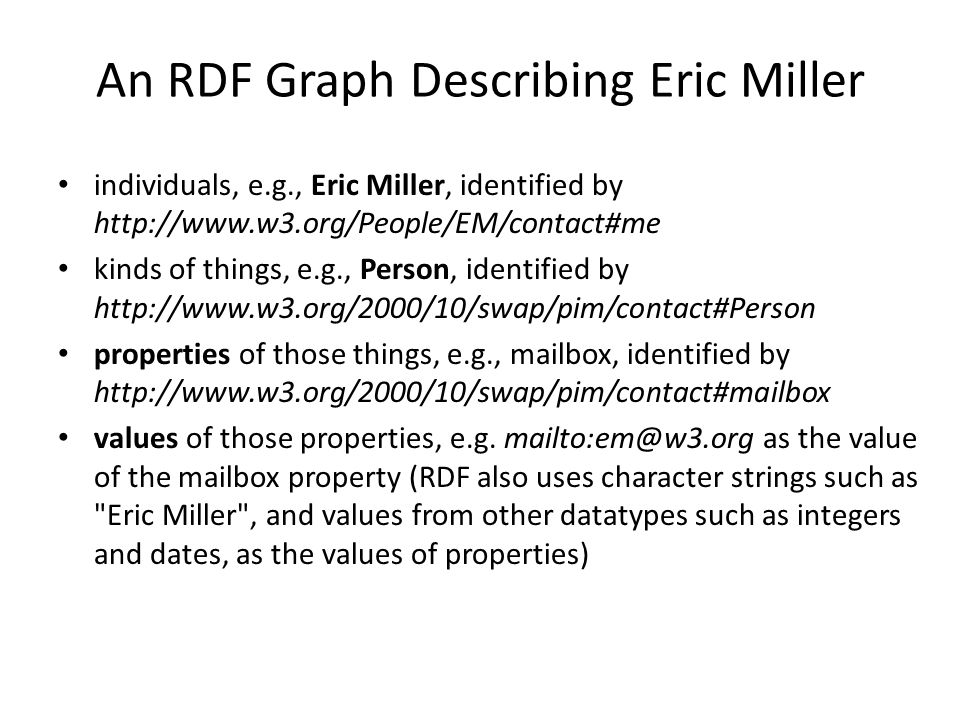

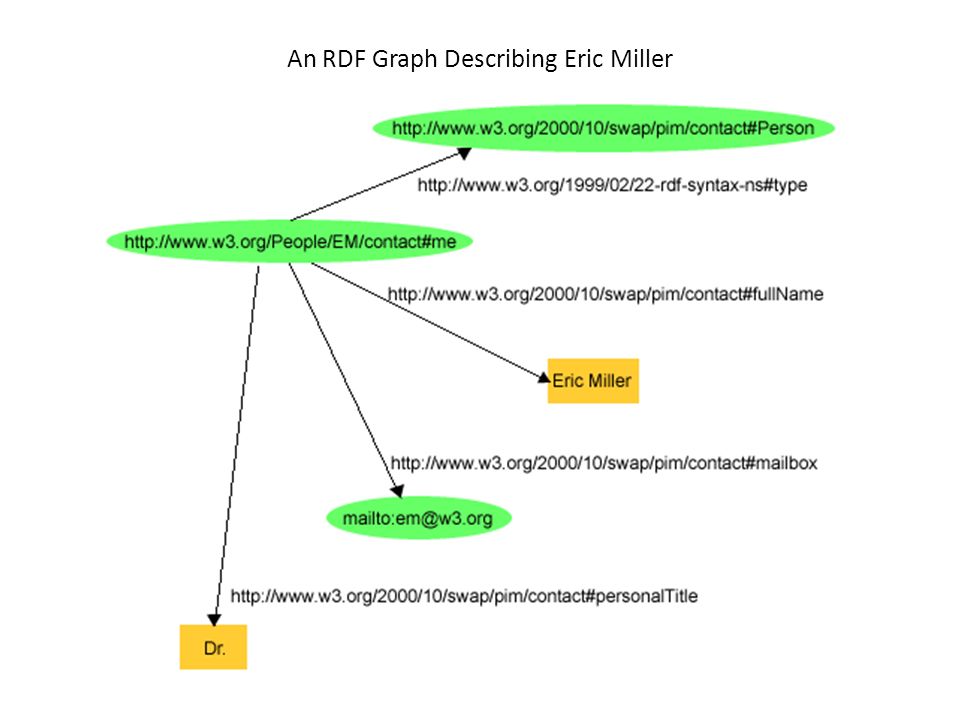

24. individuals, e.g., Eric Miller, identified by http://www.w3.org/People/EM/contact#me kinds of things, e.g., Person, identified by http://www.w3.org/2000/10/swap/pim/contact#Person properties of those things, e.g., mailbox, identified by http://www.w3.org/2000/10/swap/pim/contact#mailbox values of those properties, e.g. mailto:em@w3.org as the value of the mailbox property (RDF also uses character strings such as "Eric Miller", and values from other datatypes such as integers and dates, as the values of properties) An RDF Graph Describing Eric Miller

26. Several Statements About the Same Resource

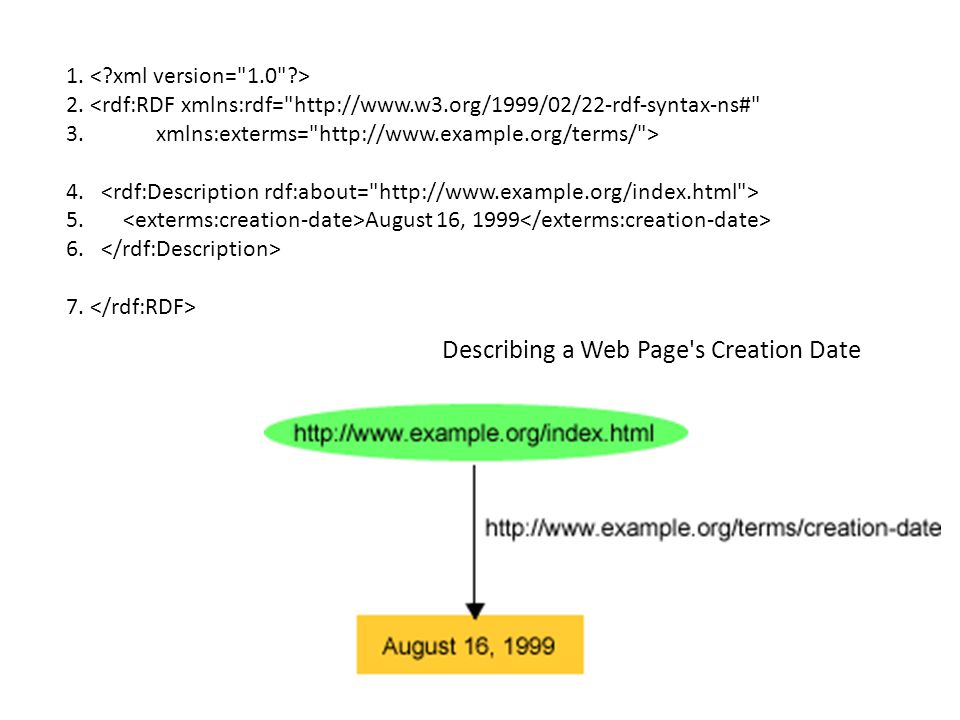

28. 1. 2. <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" 3. xmlns:exterms="http://www.example.org/terms/"> 4. 5. August 16, 1999 6. 7. Describing a Web Page's Creation Date

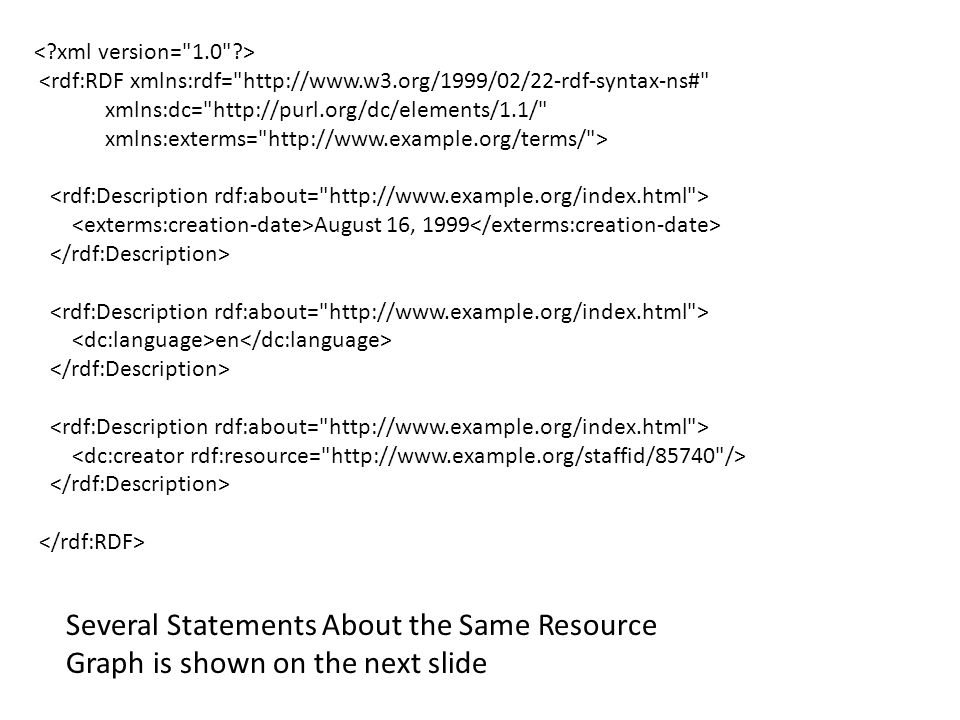

29. <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:exterms="http://www.example.org/terms/"> August 16, 1999 en Several Statements About the Same Resource Graph is shown on the next slide

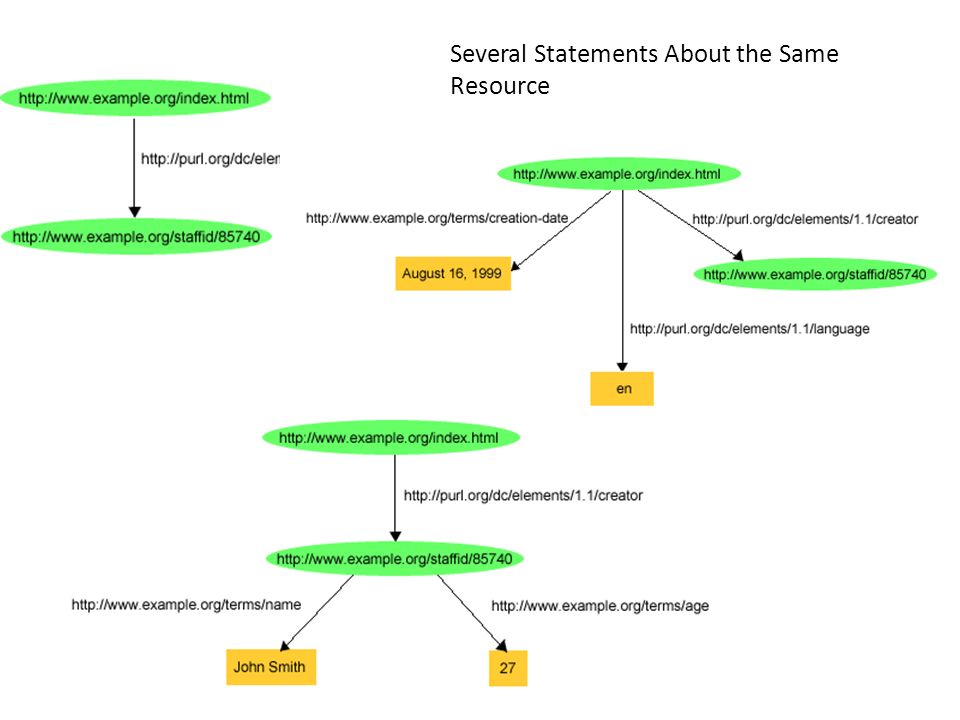

30. Several Statements About the Same Resource

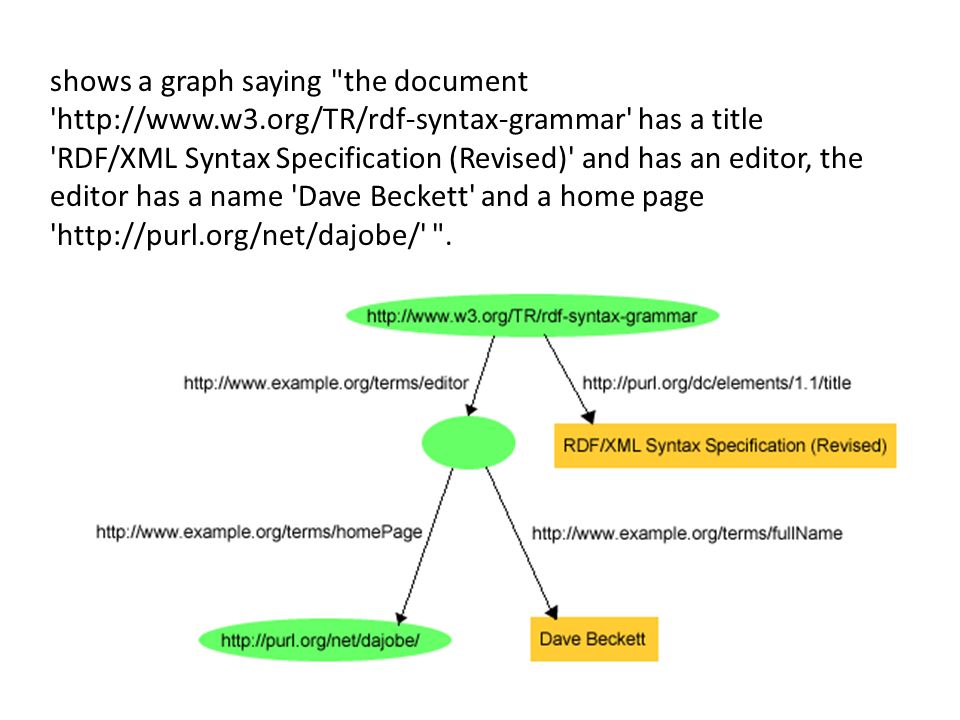

31. shows a graph saying "the document 'http://www.w3.org/TR/rdf-syntax-grammar' has a title 'RDF/XML Syntax Specification (Revised)' and has an editor, the editor has a name 'Dave Beckett' and a home page 'http://purl.org/net/dajobe/' ".
