Angles All about Sides Special Triangles Trig Ratios Solving Triangles 10 20 30 40 50.

Similar presentations


Presentation on theme: "Angles All about Sides Special Triangles Trig Ratios Solving Triangles 10 20 30 40 50."— Presentation transcript:

1

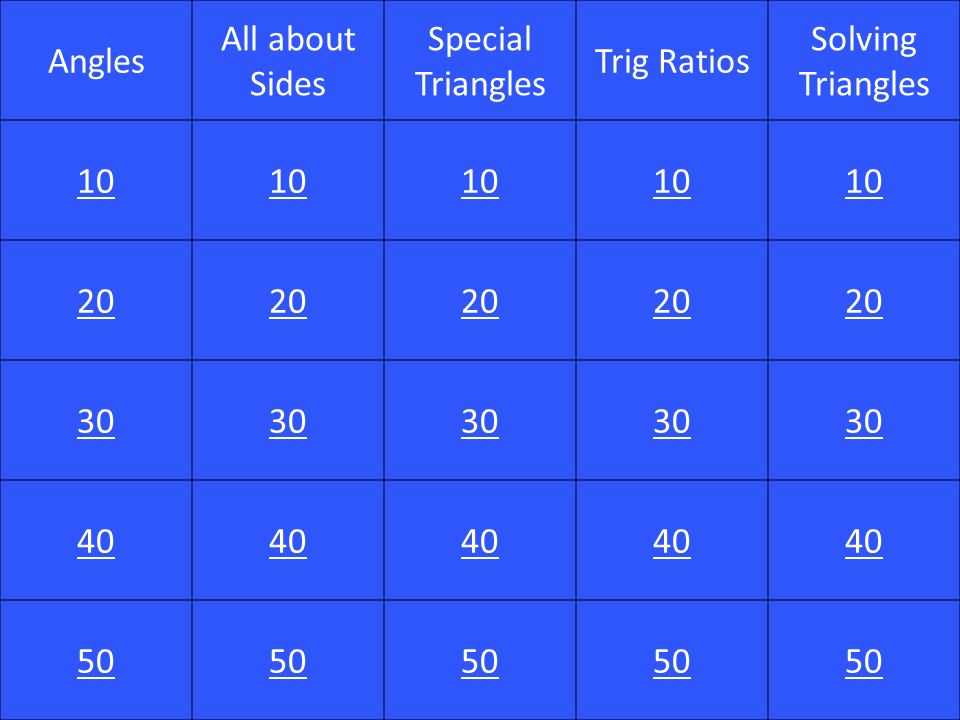

2 Angles All about Sides Special Triangles Trig Ratios Solving Triangles 10 20 30 40 50

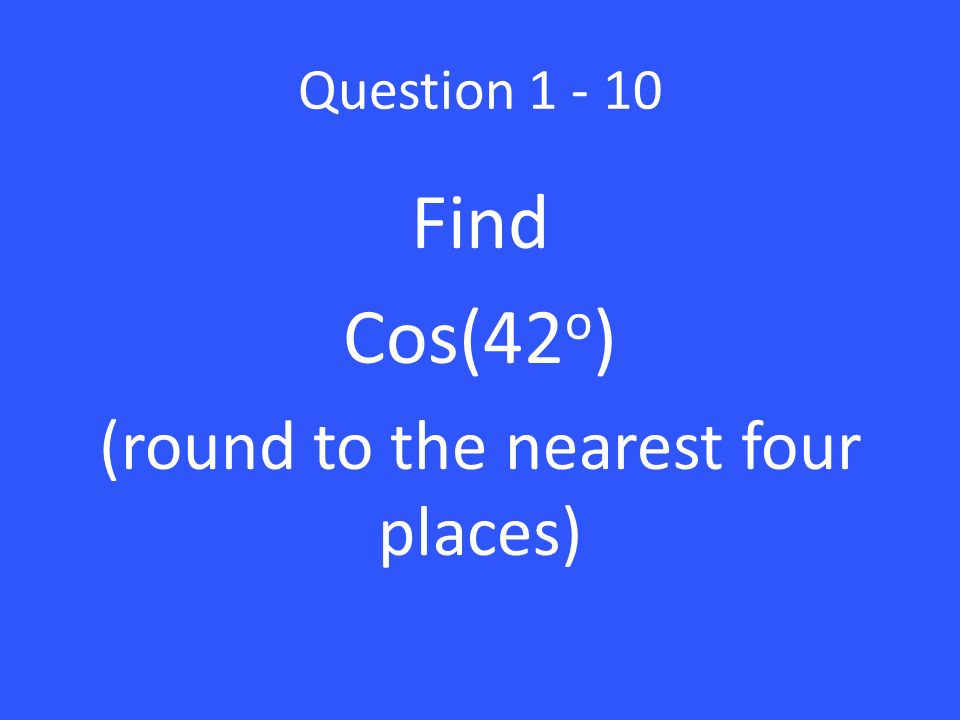

3 Question 1 - 10 Find Cos(42 o ) (round to the nearest four places)

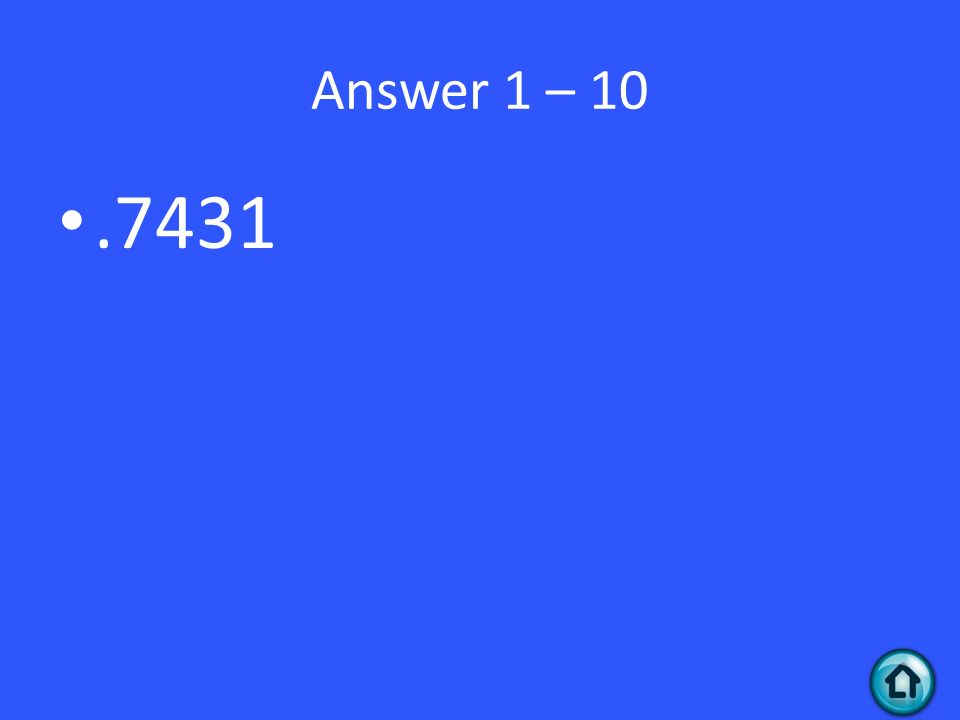

4 Answer 1 – 10.7431

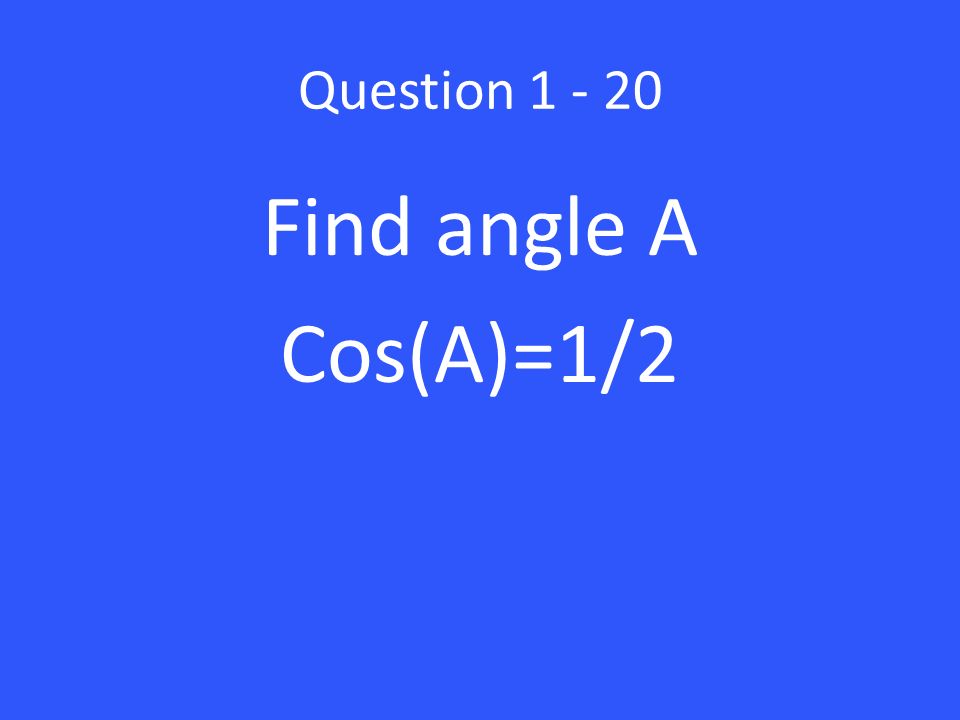

5 Question 1 - 20 Find angle A Cos(A)=1/2

6 Answer 1 – 20 60 degrees

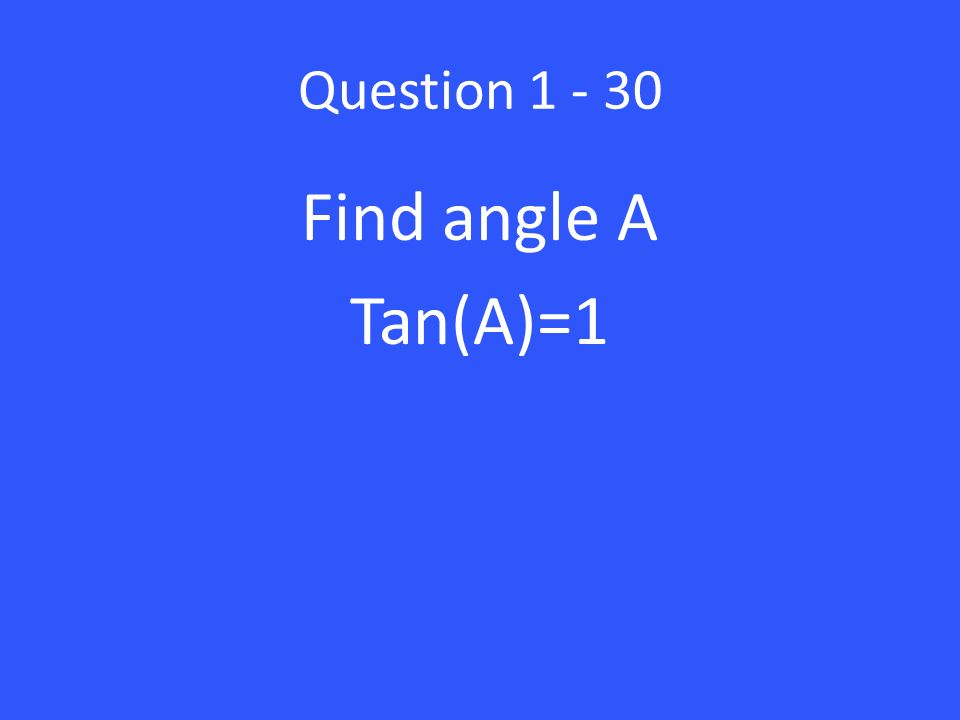

7 Question 1 - 30 Find angle A Tan(A)=1

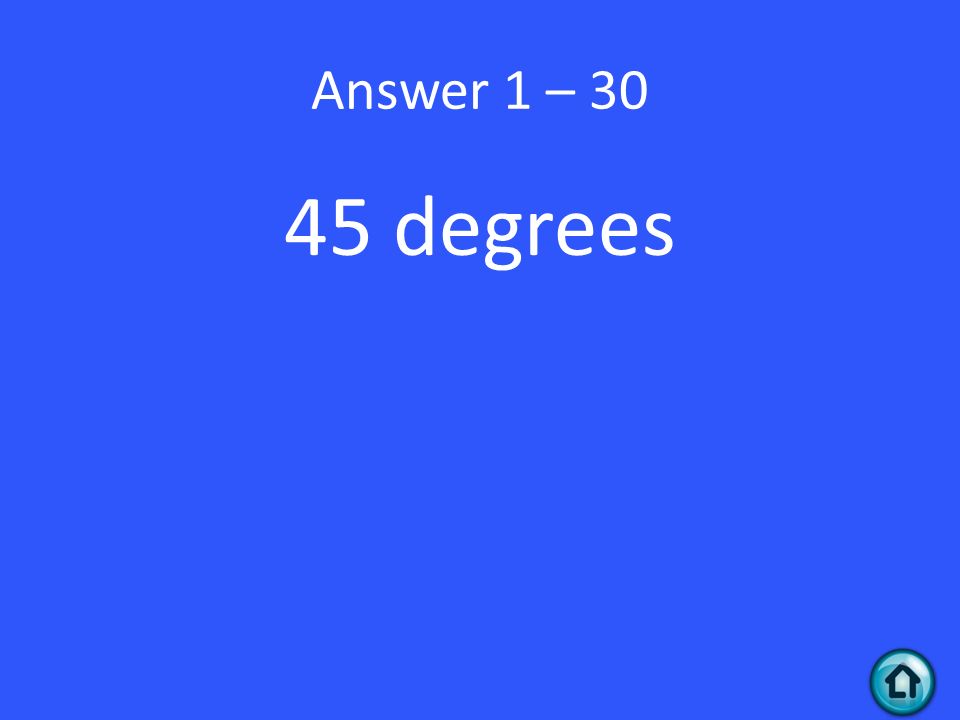

8 Answer 1 – 30 45 degrees

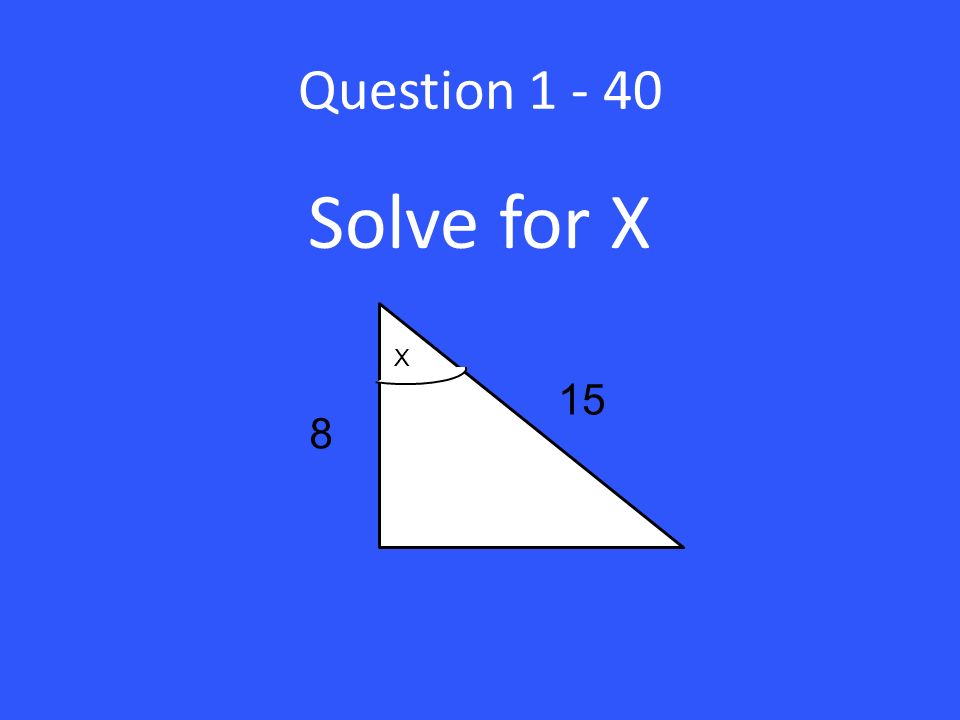

9 Question 1 - 40 Solve for X X 8 15

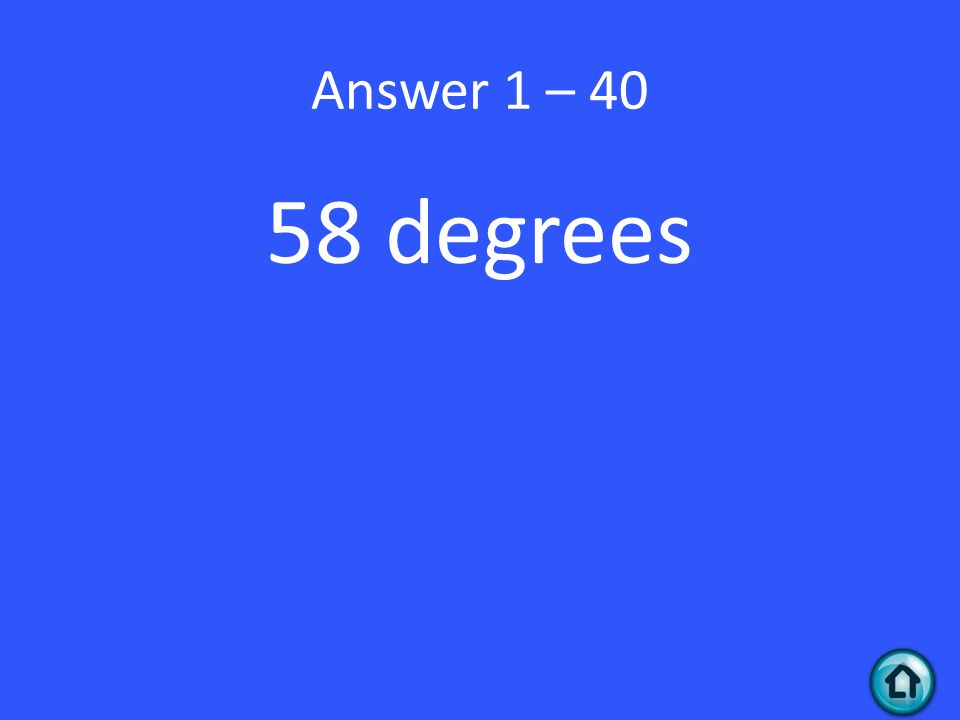

10 Answer 1 – 40 58 degrees

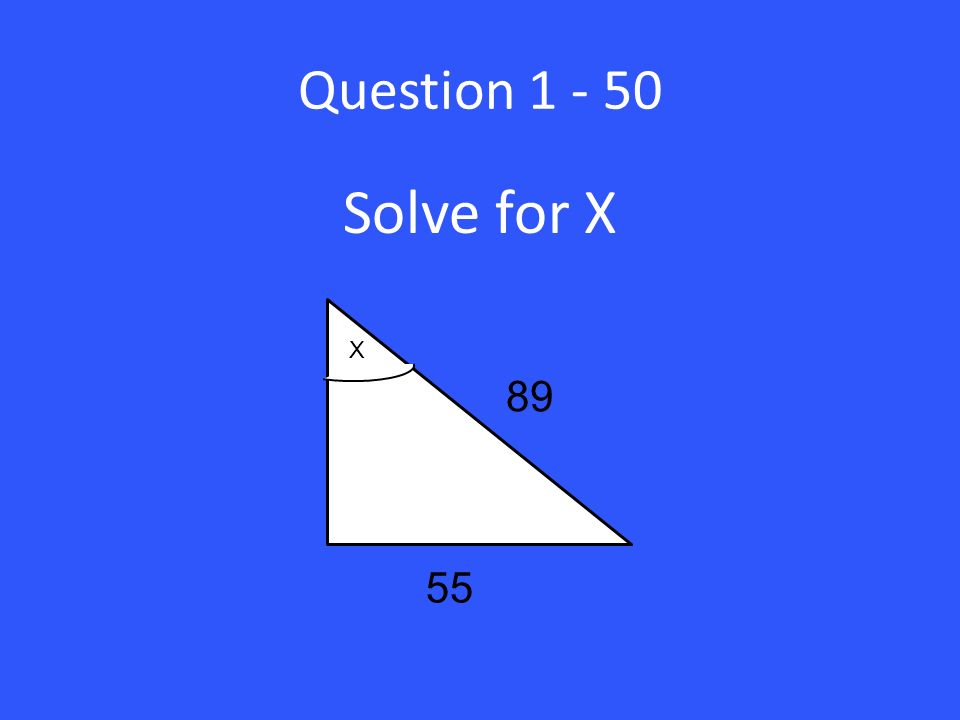

11 Question 1 - 50 Solve for X X 55 89

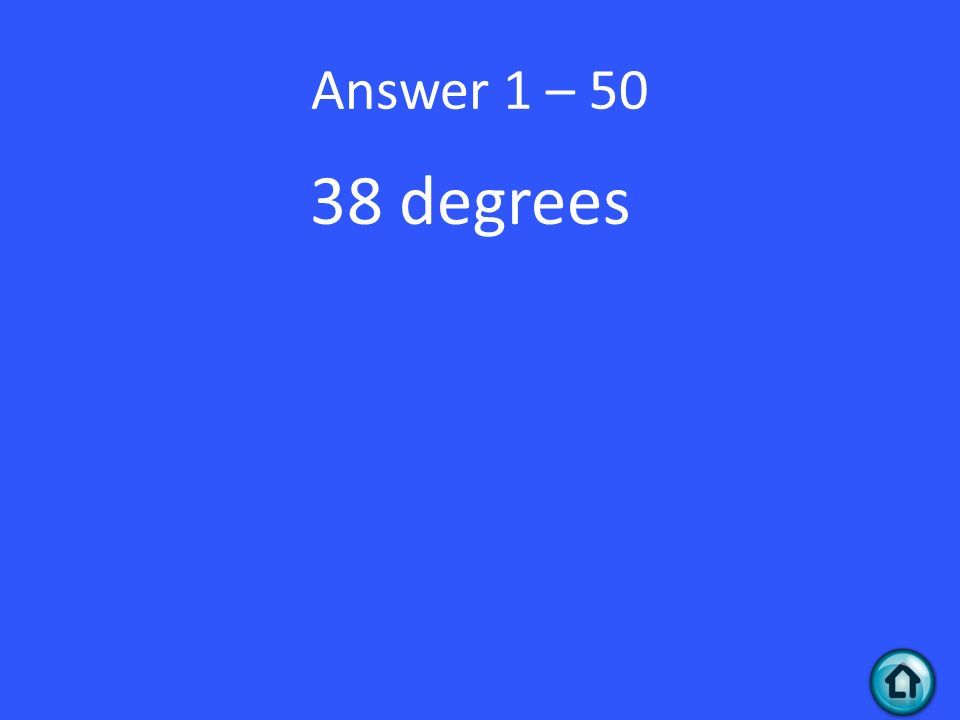

12 Answer 1 – 50 38 degrees

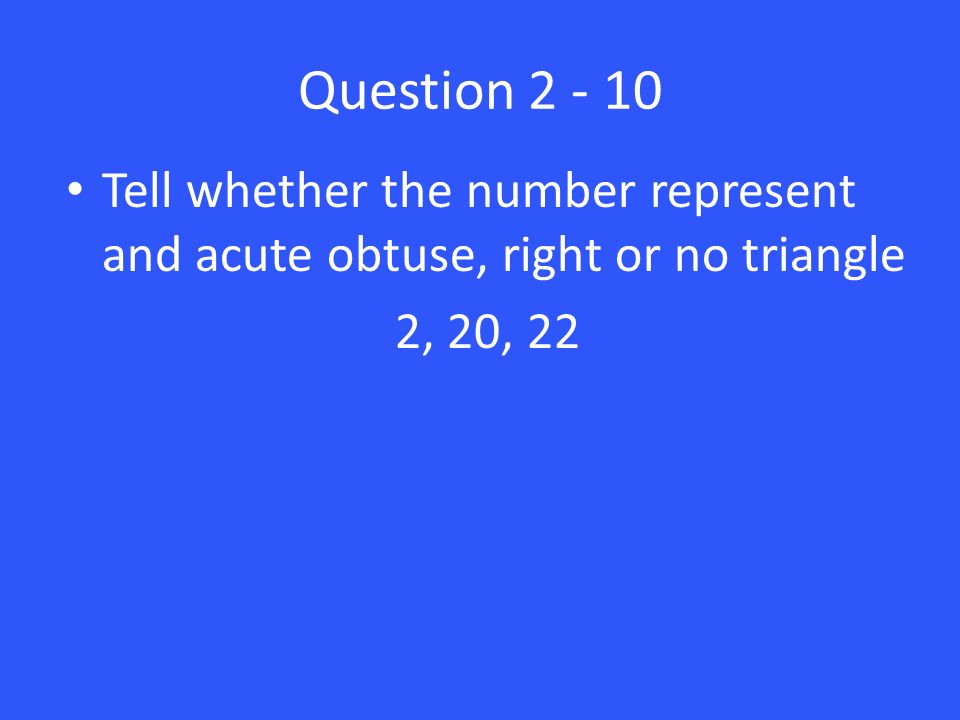

13 Question 2 - 10 Tell whether the number represent and acute obtuse, right or no triangle 2, 20, 22

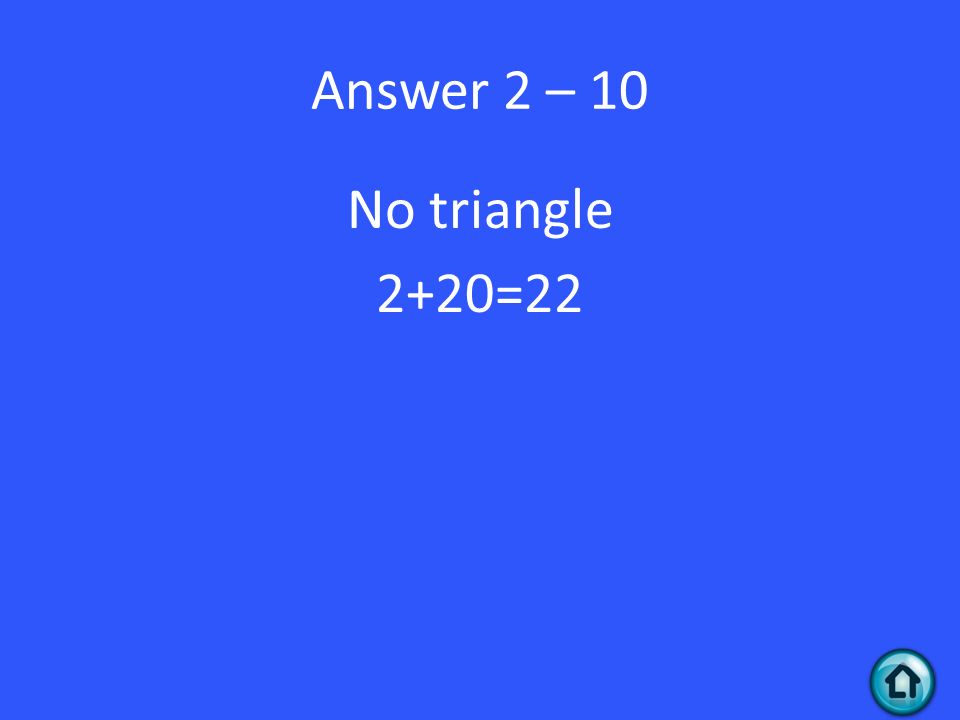

14 Answer 2 – 10 No triangle 2+20=22

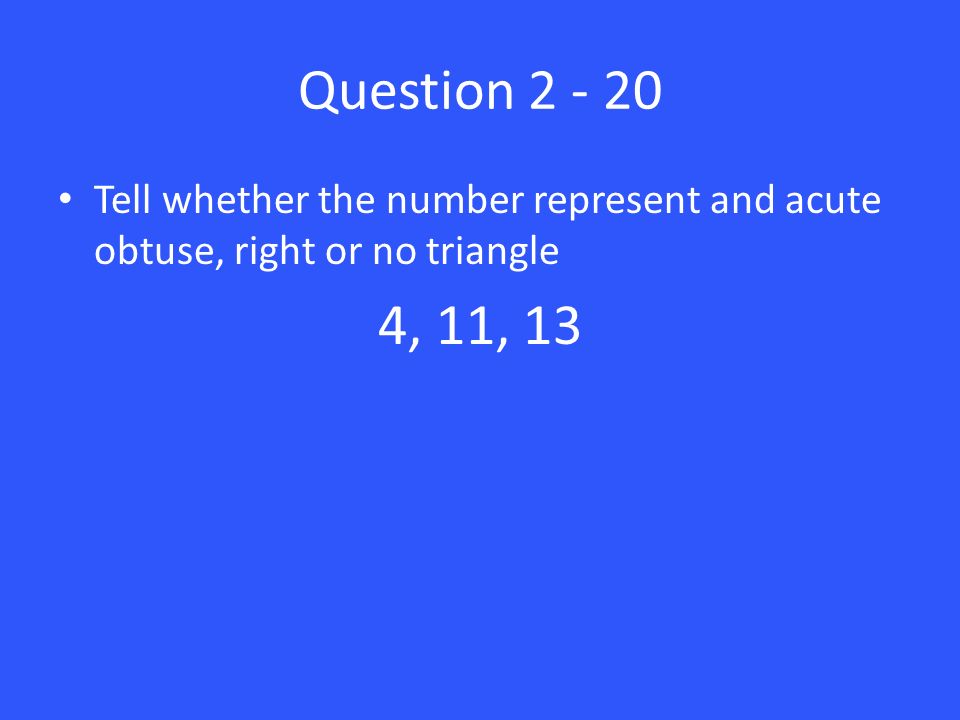

15 Question 2 - 20 Tell whether the number represent and acute obtuse, right or no triangle 4, 11, 13

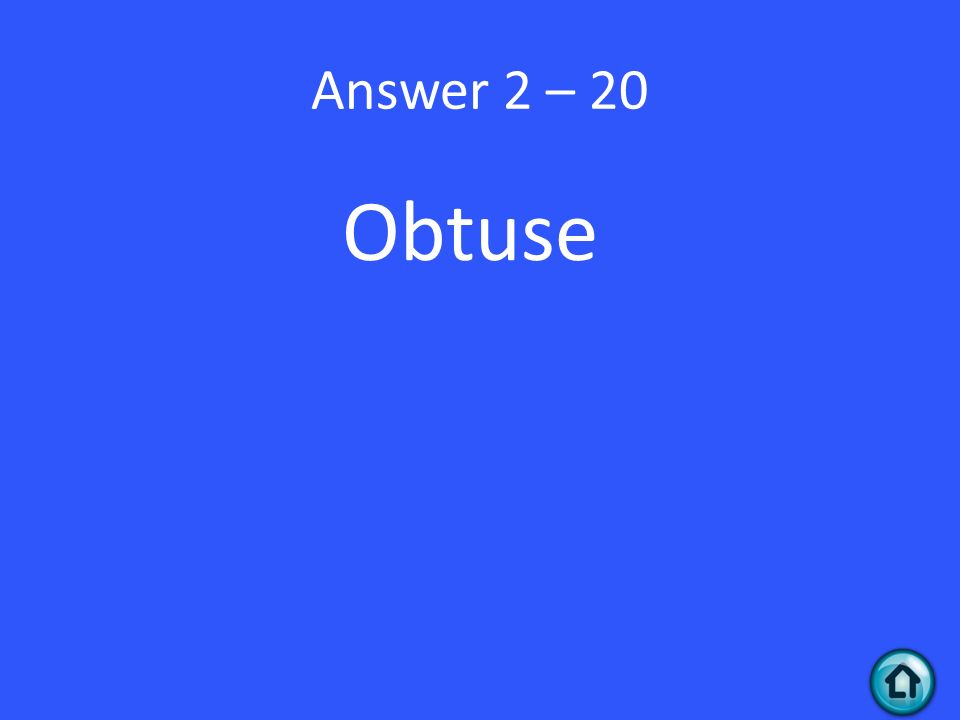

16 Answer 2 – 20 Obtuse

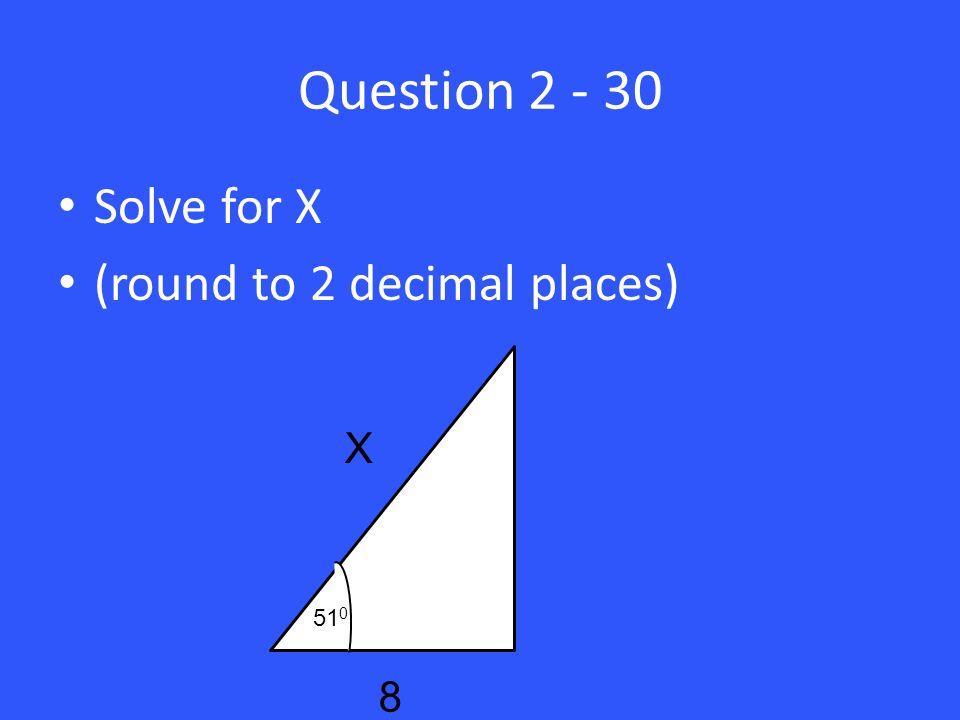

17 Question 2 - 30 Solve for X (round to 2 decimal places) 51 0 8 X

18 Answer 2 – 30 Cos(51)=8/x 8/Cos(51)= x X=12.71

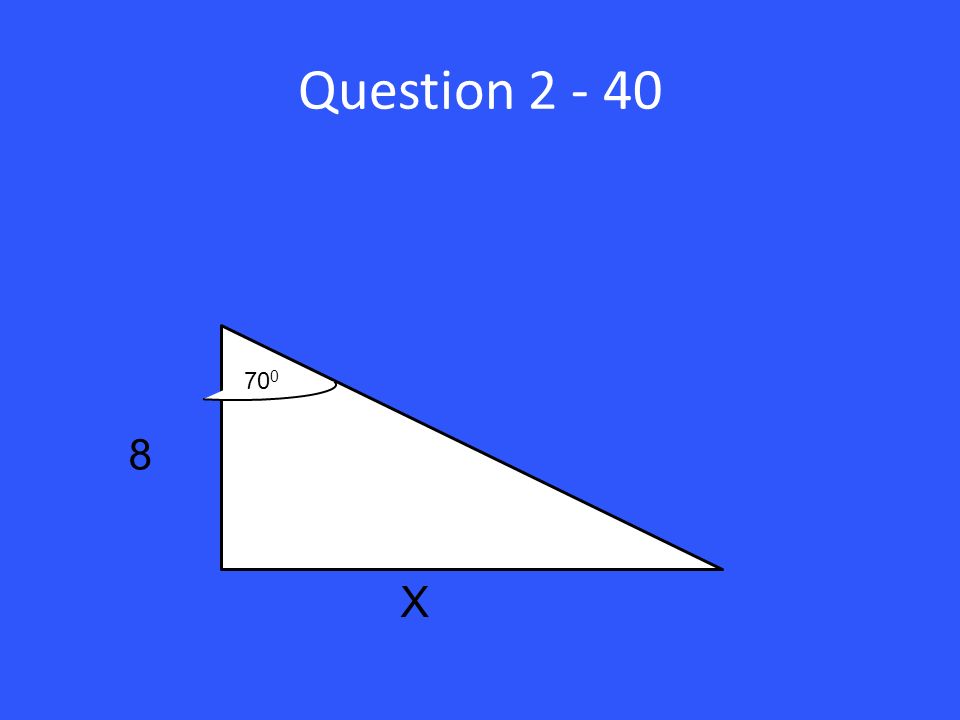

19 Question 2 - 40 70 0 8 X

20 Answer 2 – 40 X = 21.98

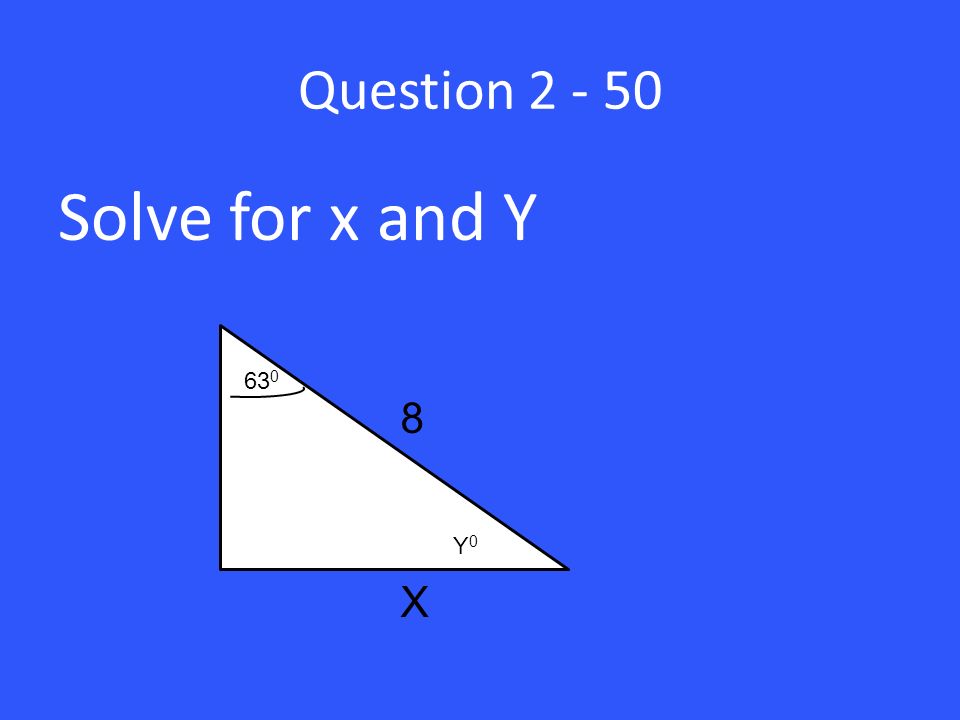

21 Question 2 - 50 Solve for x and Y 63 0 8 X Y0Y0

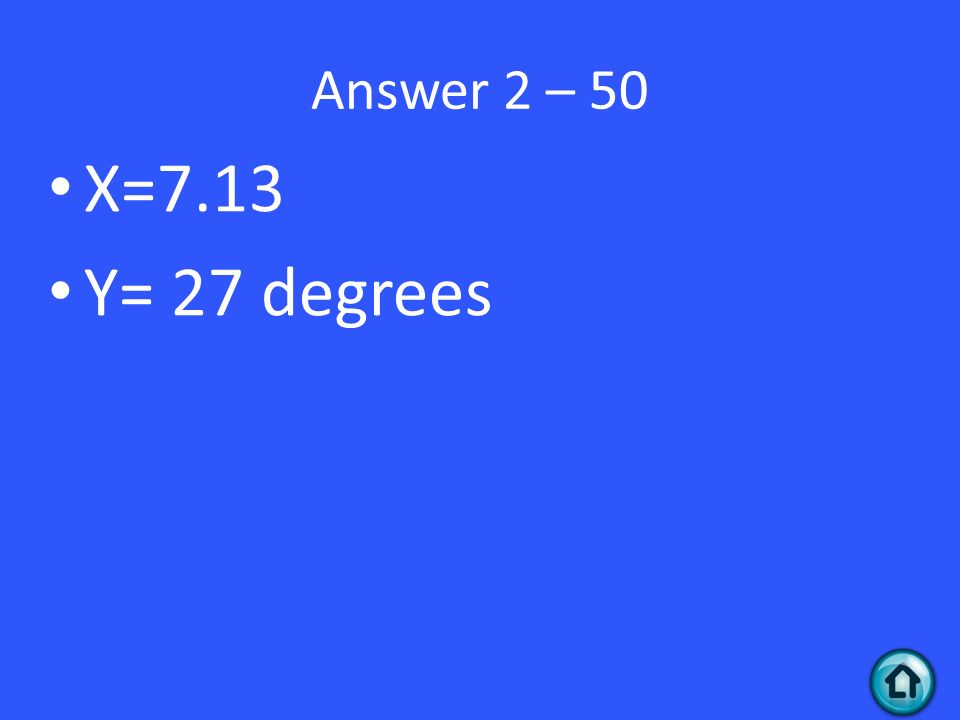

22 Answer 2 – 50 X=7.13 Y= 27 degrees

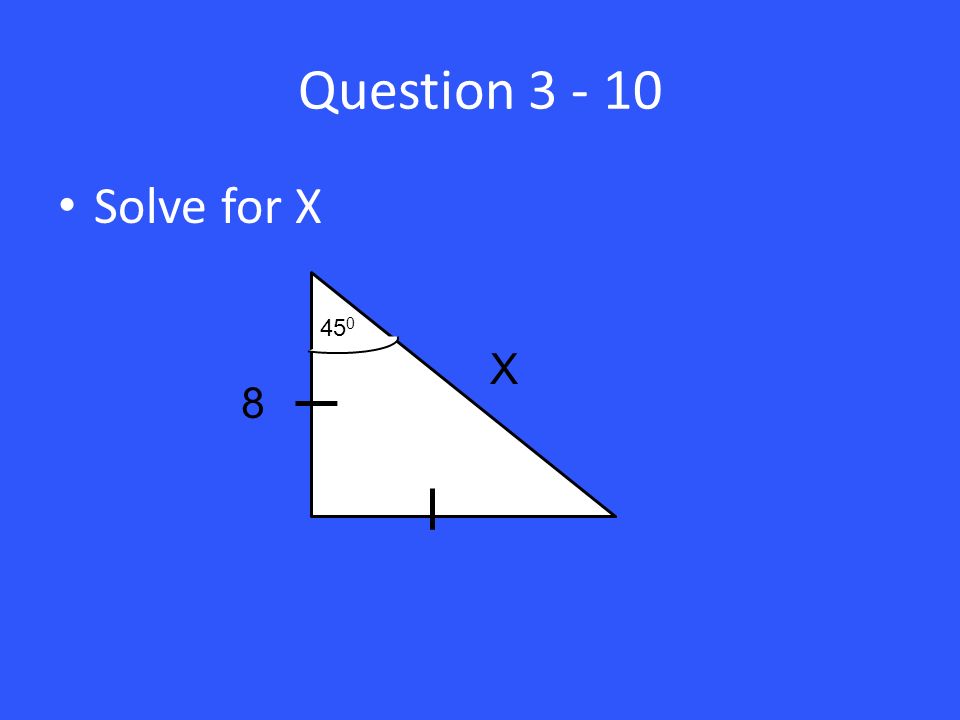

23 Question 3 - 10 Solve for X 45 0 8 X

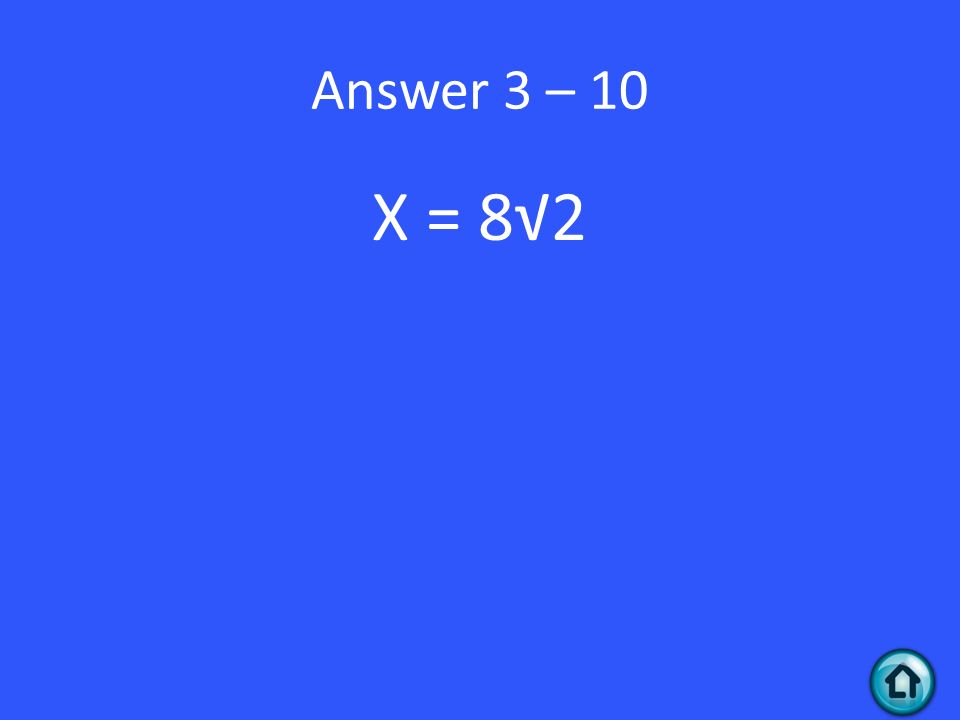

24 Answer 3 – 10 X = 8√2

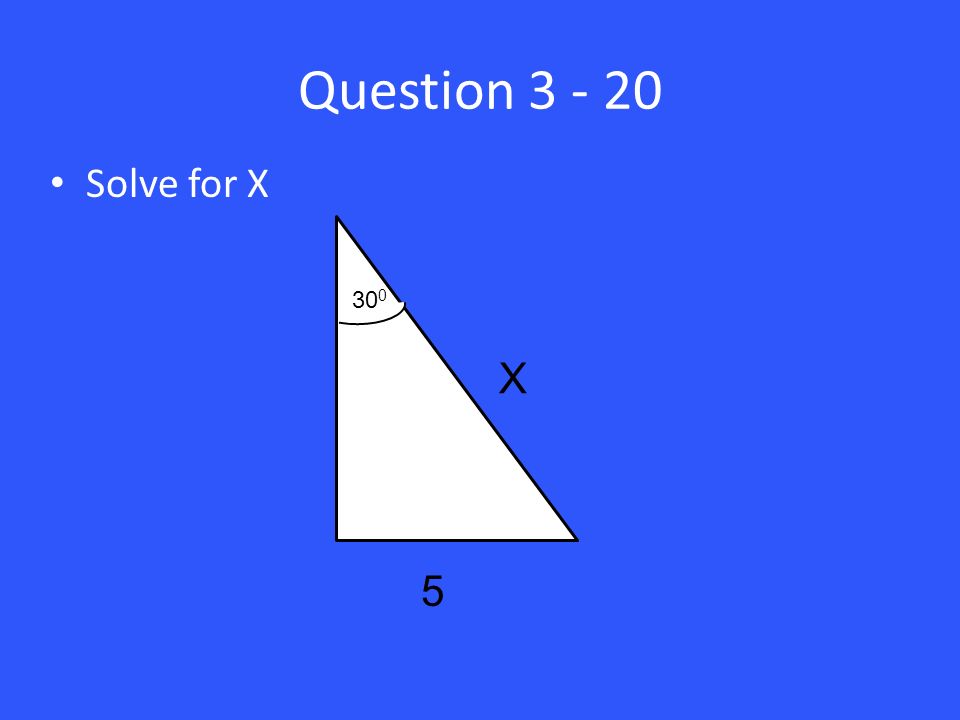

25 Question 3 - 20 Solve for X 30 0 5 X

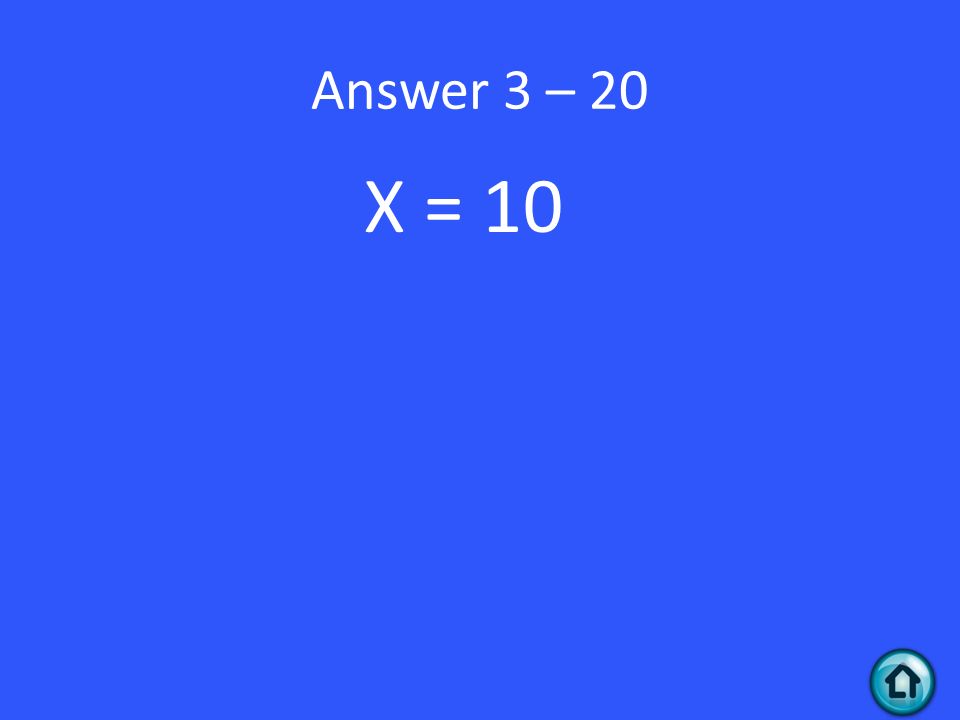

26 Answer 3 – 20 X = 10

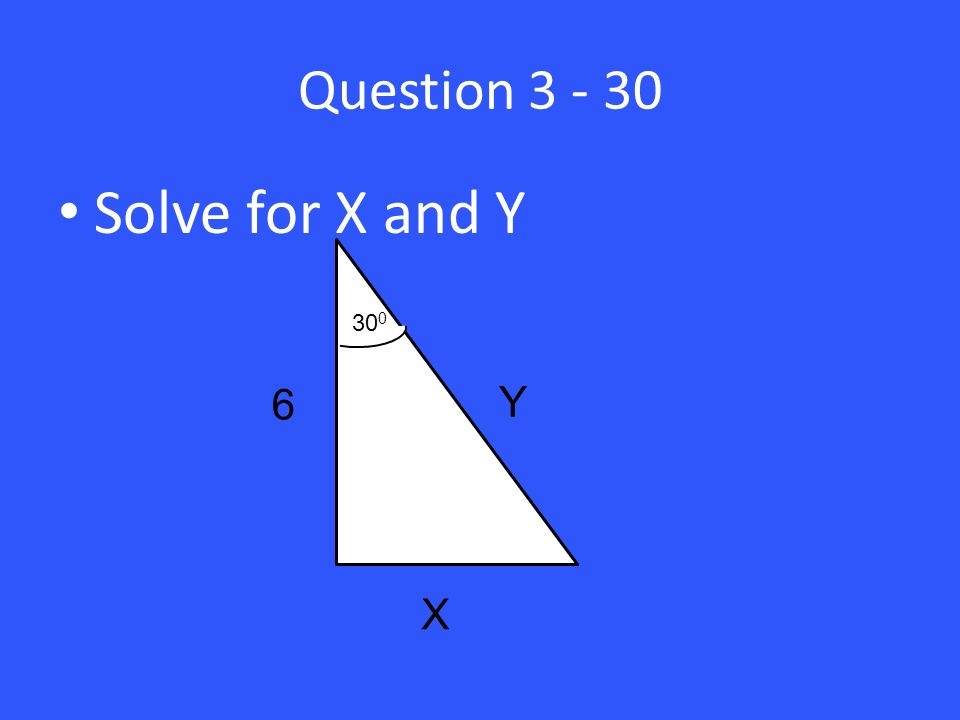

27 Question 3 - 30 Solve for X and Y 30 0 X Y 6

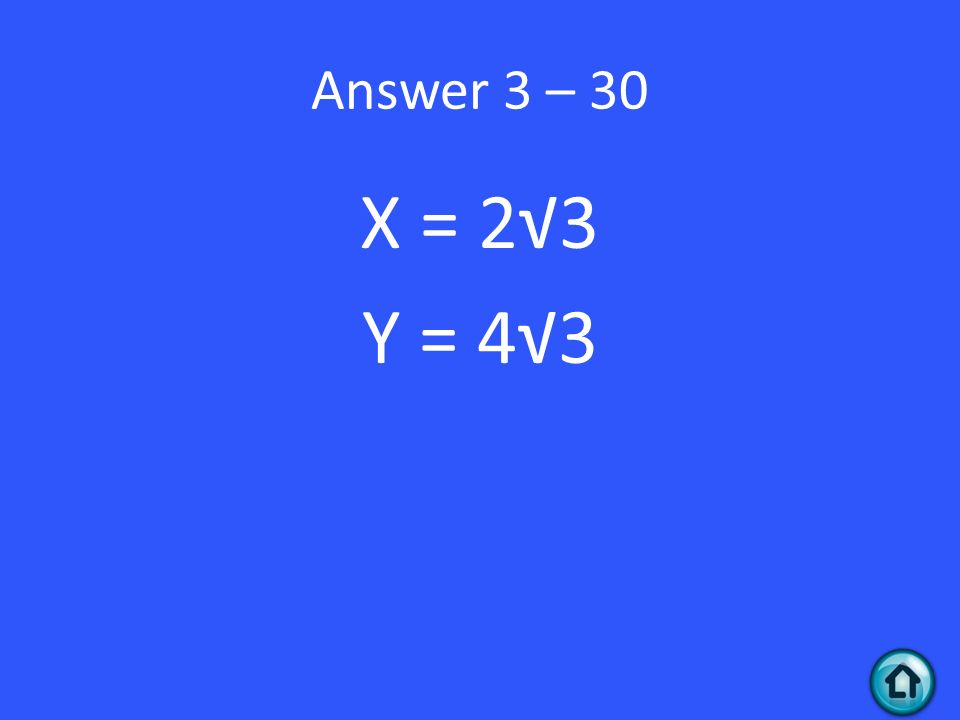

28 Answer 3 – 30 X = 2√3 Y = 4√3

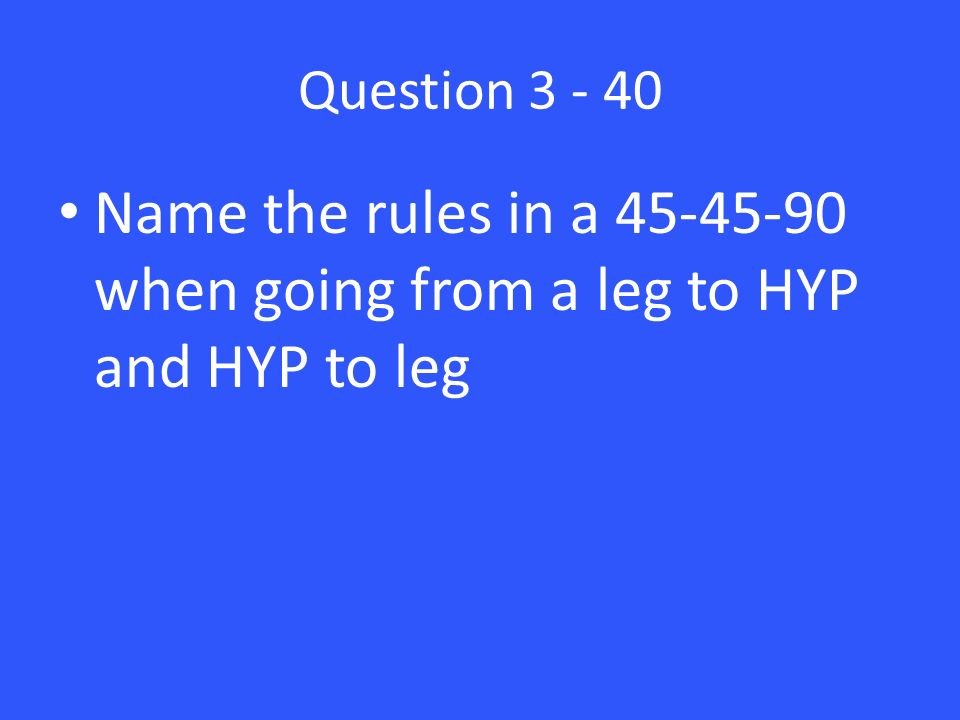

29 Question 3 - 40 Name the rules in a 45-45-90 when going from a leg to HYP and HYP to leg

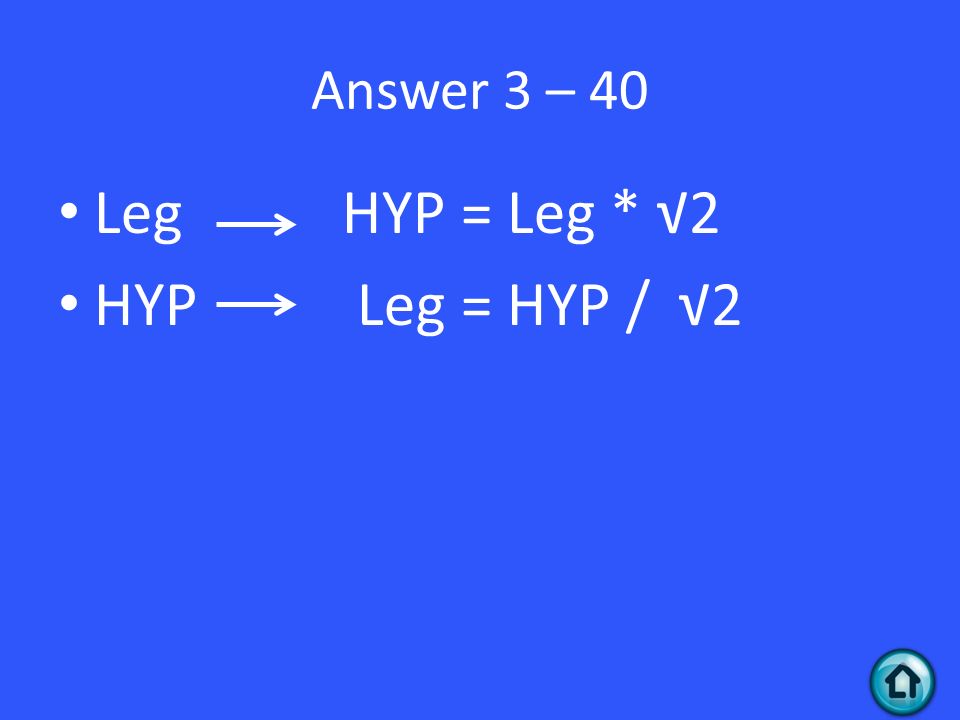

30 Answer 3 – 40 Leg HYP = Leg * √2 HYP Leg = HYP / √2

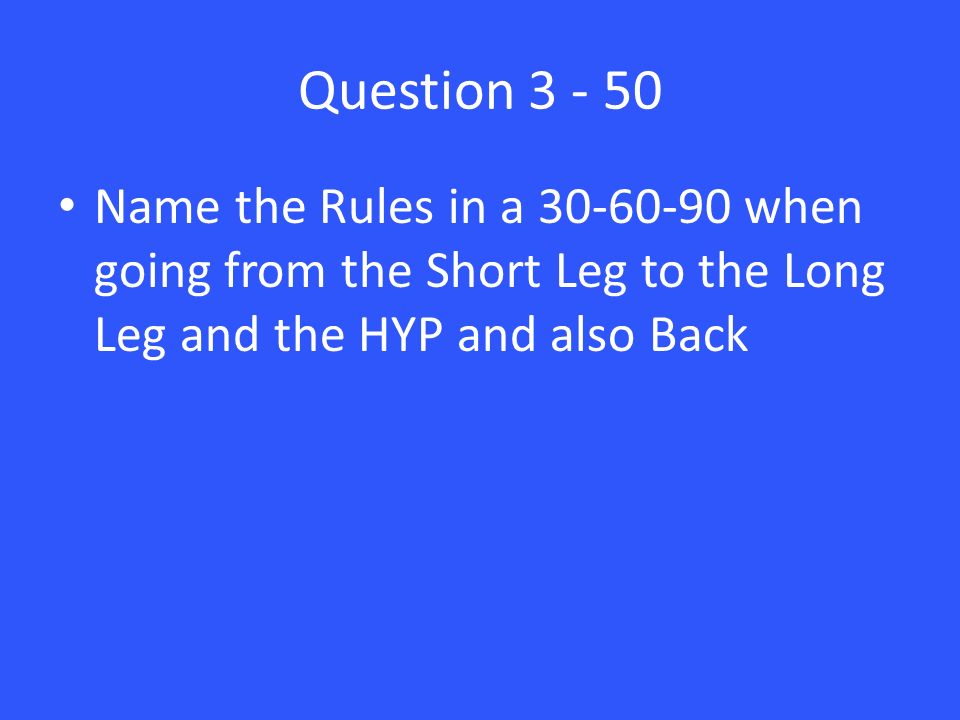

31 Question 3 - 50 Name the Rules in a 30-60-90 when going from the Short Leg to the Long Leg and the HYP and also Back

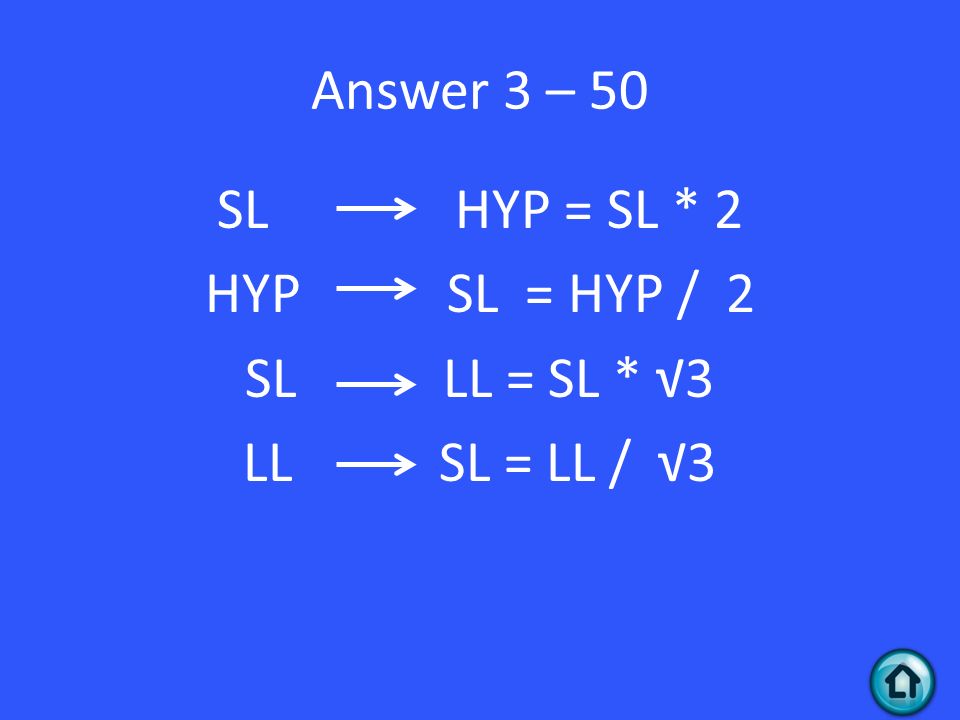

32 Answer 3 – 50 SL HYP = SL * 2 HYP SL = HYP / 2 SL LL = SL * √3 LL SL = LL / √3

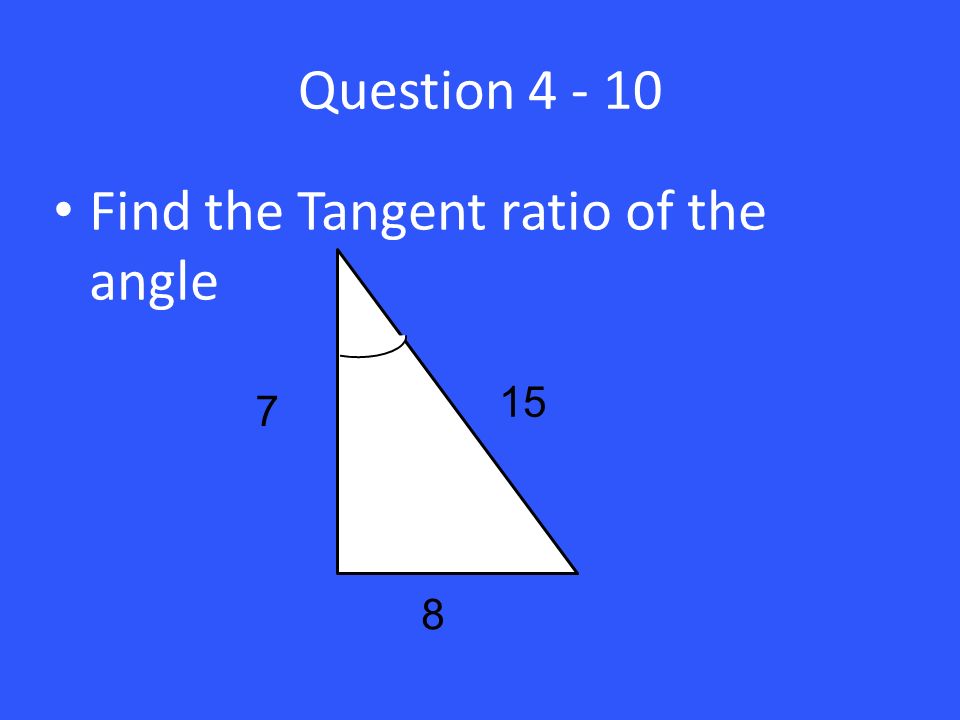

33 Question 4 - 10 Find the Tangent ratio of the angle 8 15 7

34 Answer 4 – 10 Tan = 8/7

35 Question 4 - 20 Find the Cosine and Sine ratios of the angle 8 15 7

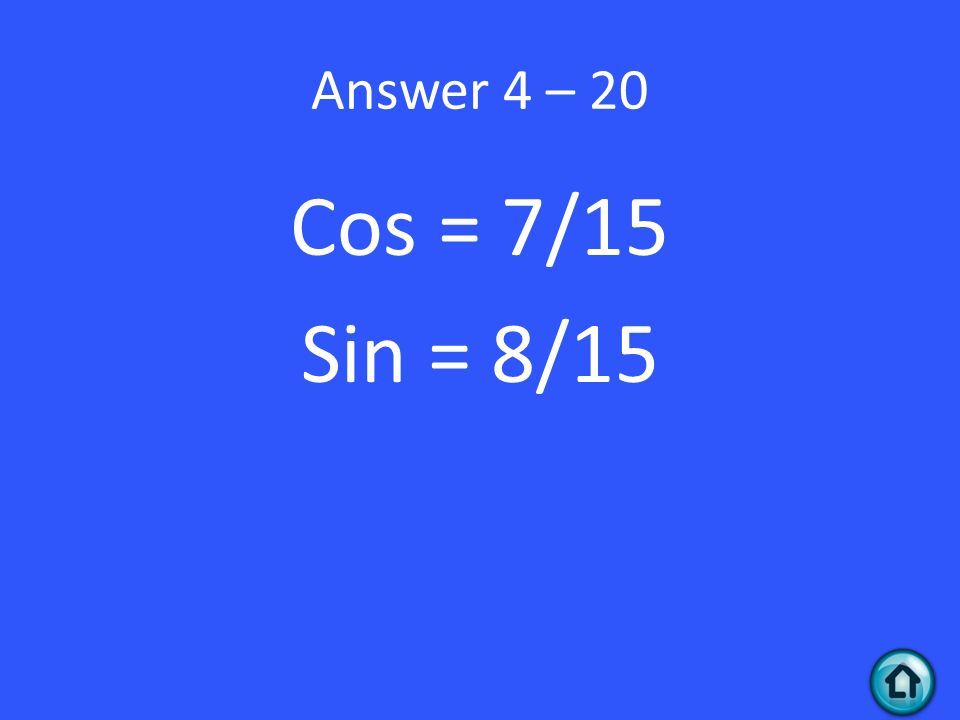

36 Answer 4 – 20 Cos = 7/15 Sin = 8/15

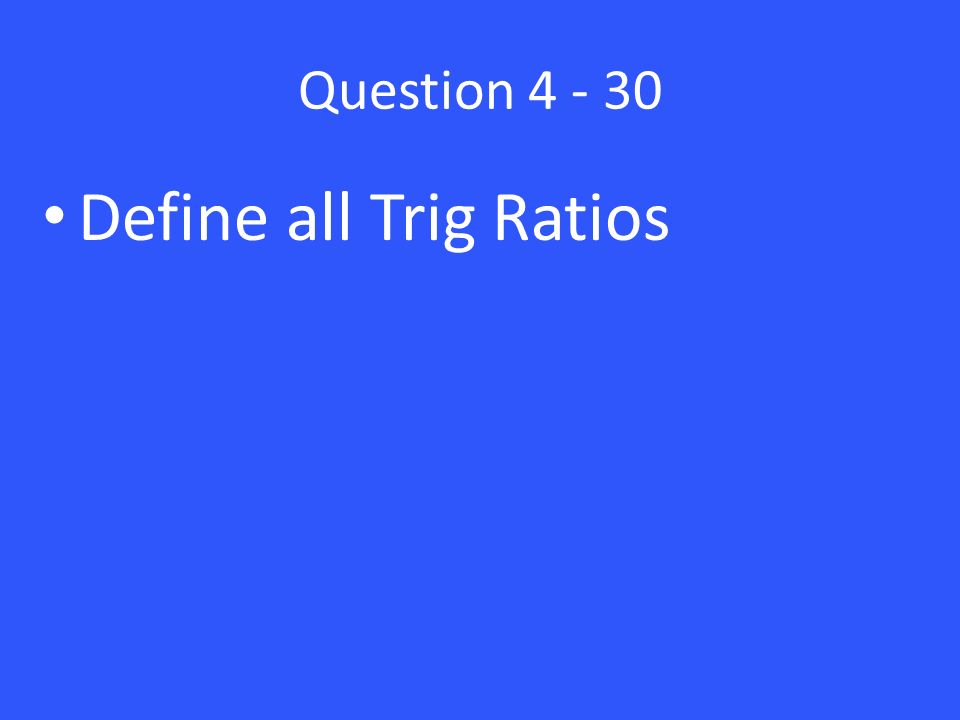

37 Question 4 - 30 Define all Trig Ratios

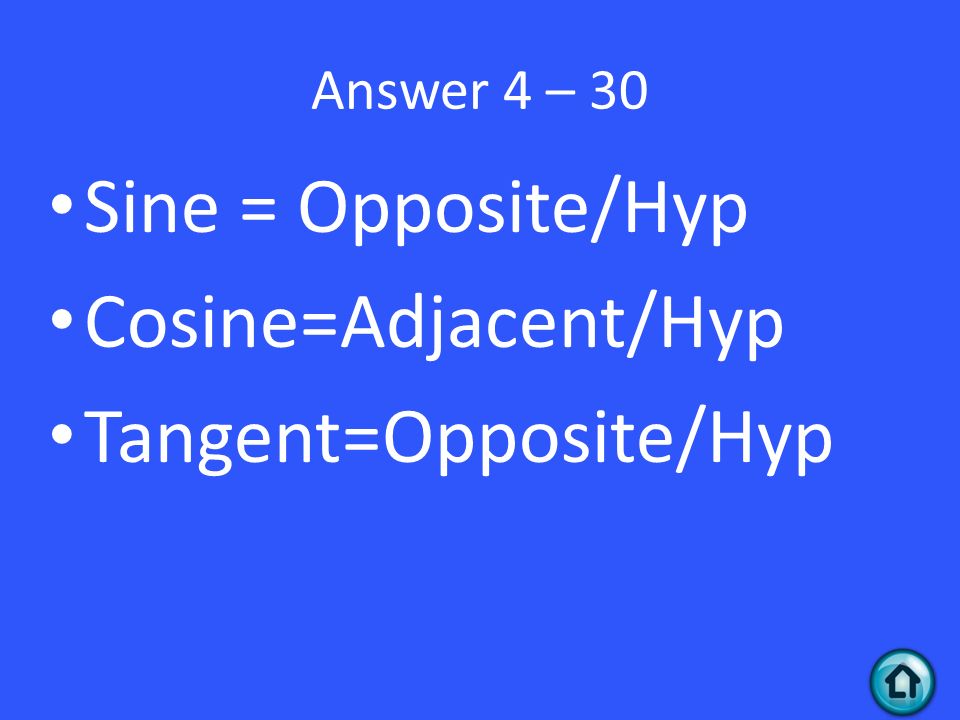

38 Answer 4 – 30 Sine = Opposite/Hyp Cosine=Adjacent/Hyp Tangent=Opposite/Hyp

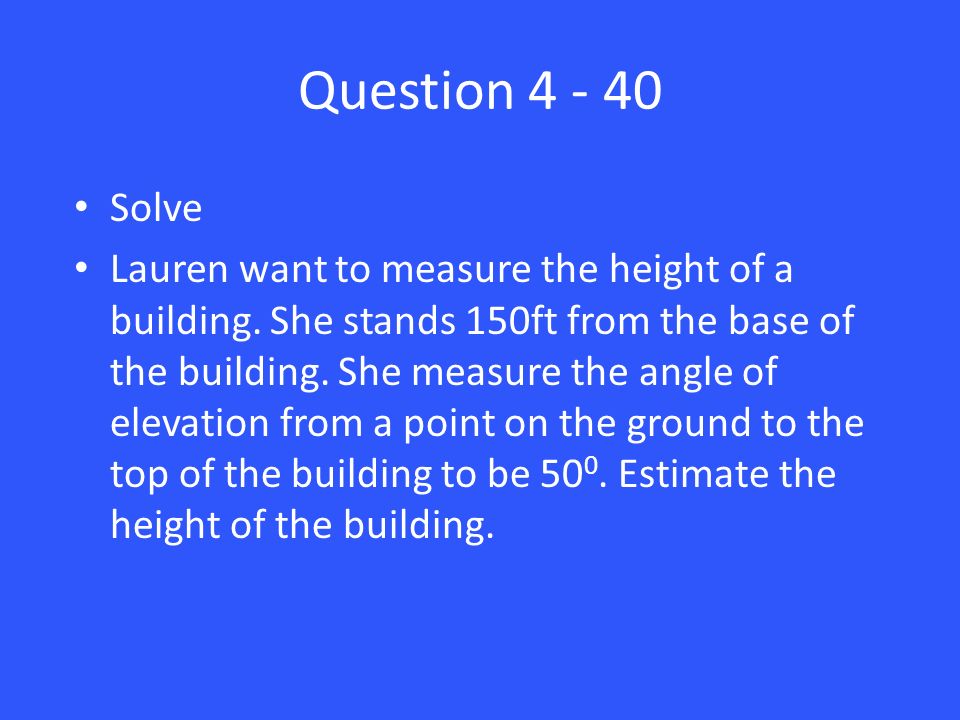

39 Question 4 - 40 Solve Lauren want to measure the height of a building. She stands 150ft from the base of the building. She measure the angle of elevation from a point on the ground to the top of the building to be 50 0. Estimate the height of the building.

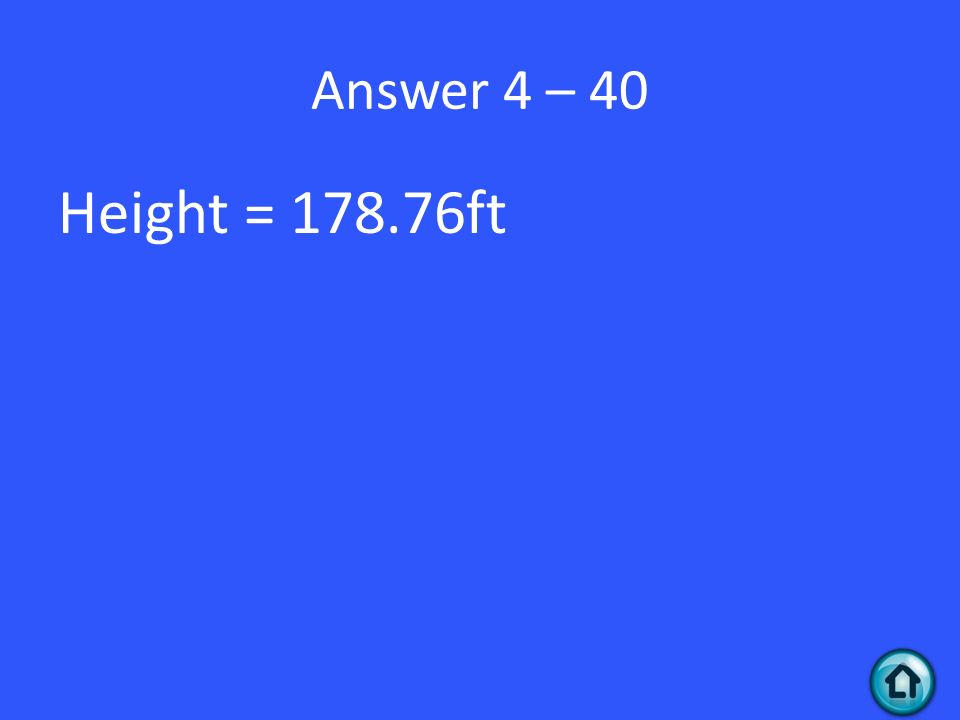

40 Answer 4 – 40 Height = 178.76ft

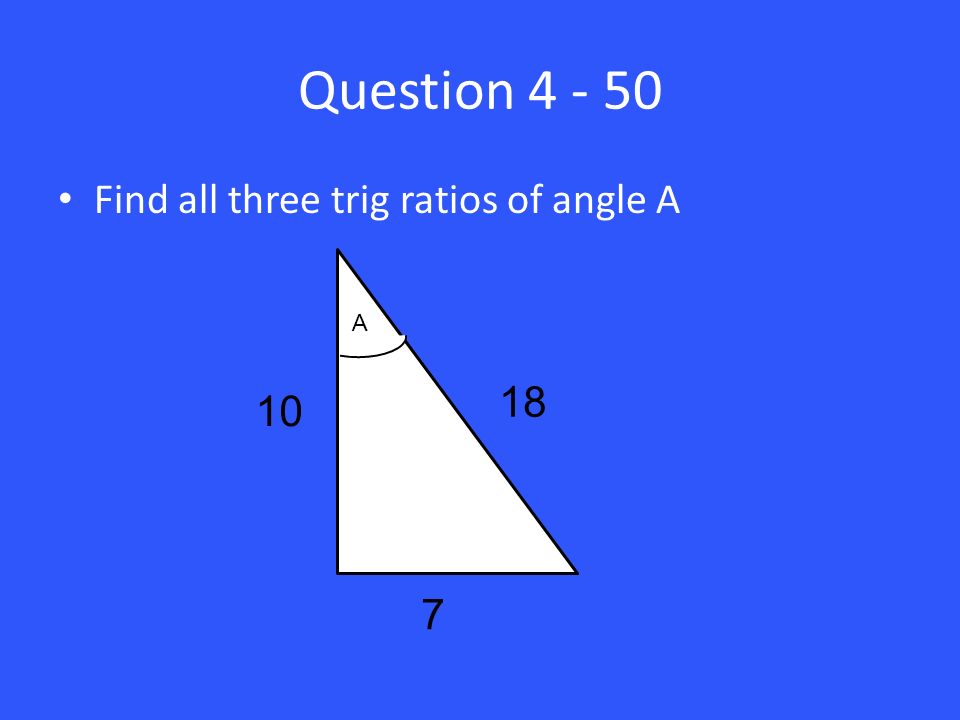

41 Question 4 - 50 A 7 18 Find all three trig ratios of angle A 10

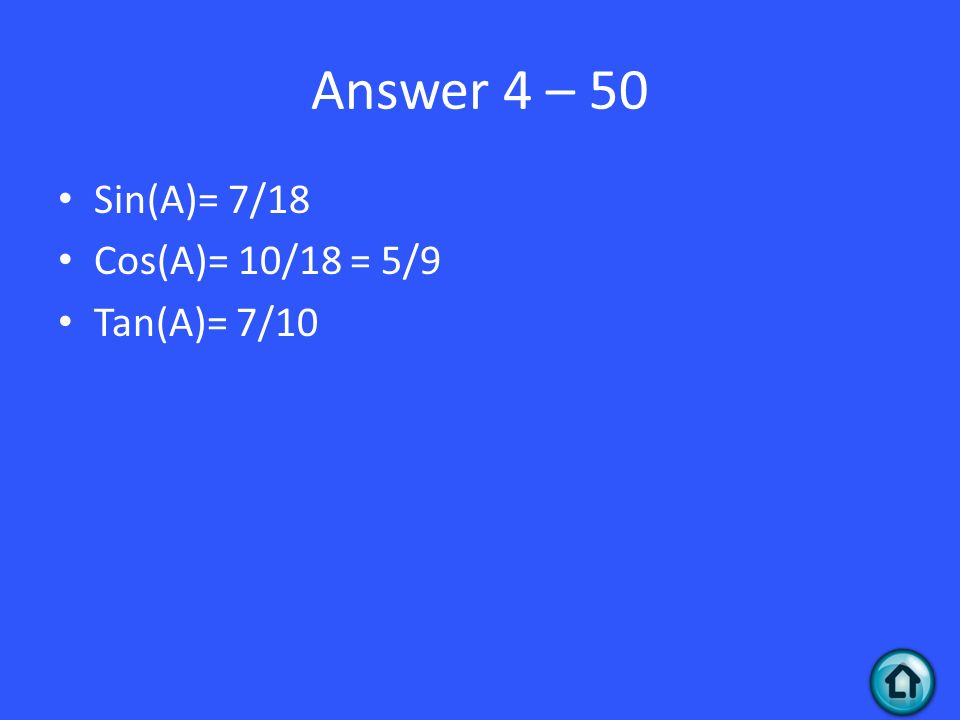

42 Answer 4 – 50 Sin(A)= 7/18 Cos(A)= 10/18 = 5/9 Tan(A)= 7/10

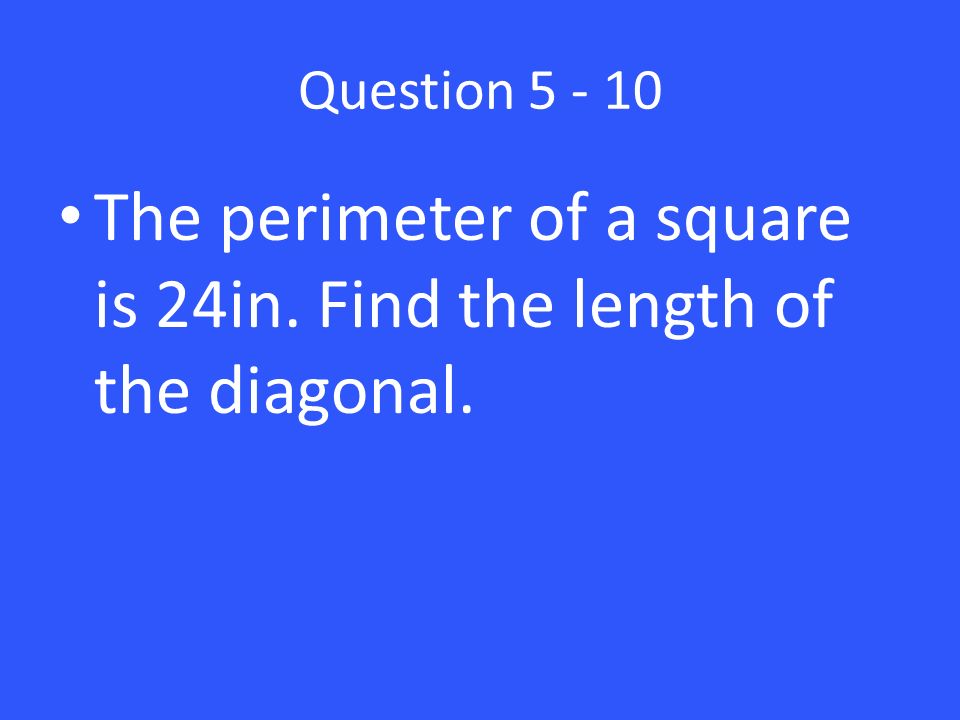

43 Question 5 - 10 The perimeter of a square is 24in. Find the length of the diagonal.

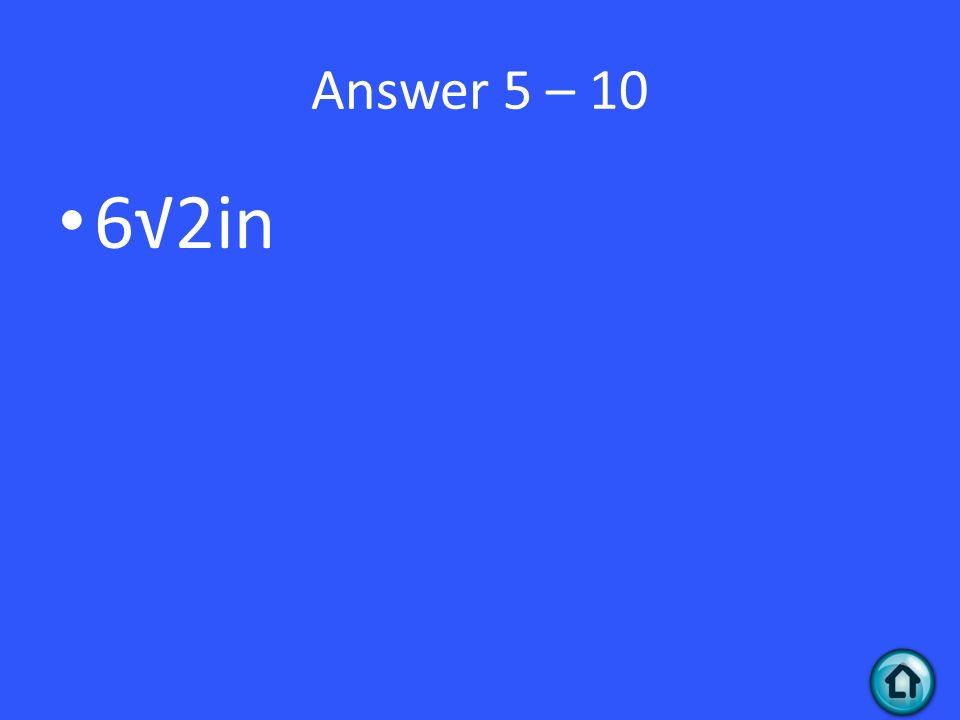

44 Answer 5 – 10 6√2in

45 Question 5 - 20 Solve for the missing angle (round to the nearst degree) A 12 5

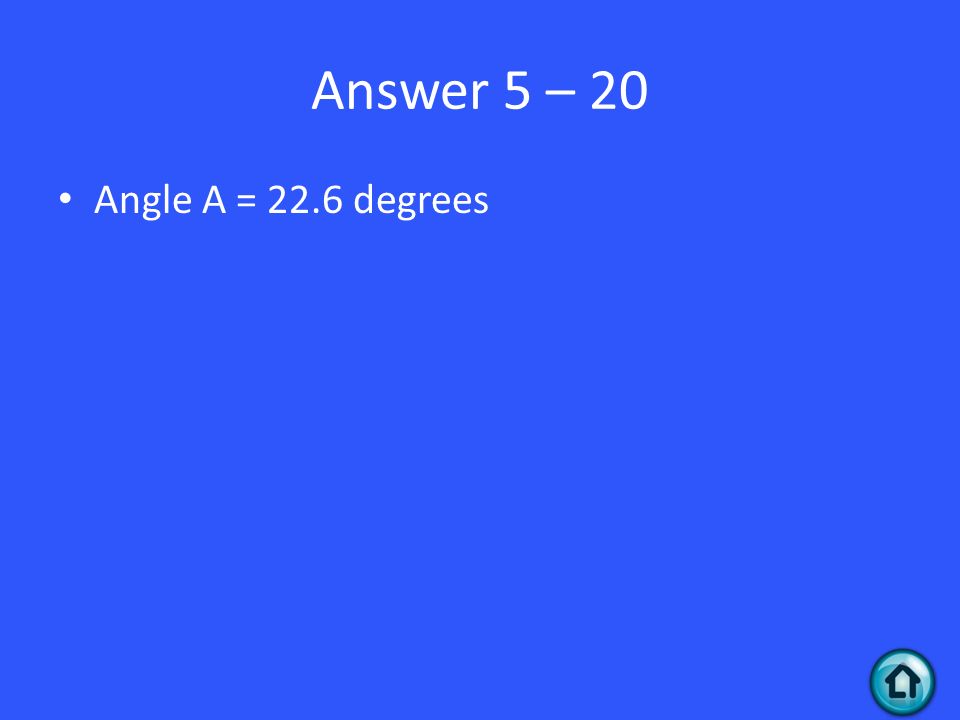

46 Answer 5 – 20 Angle A = 22.6 degrees

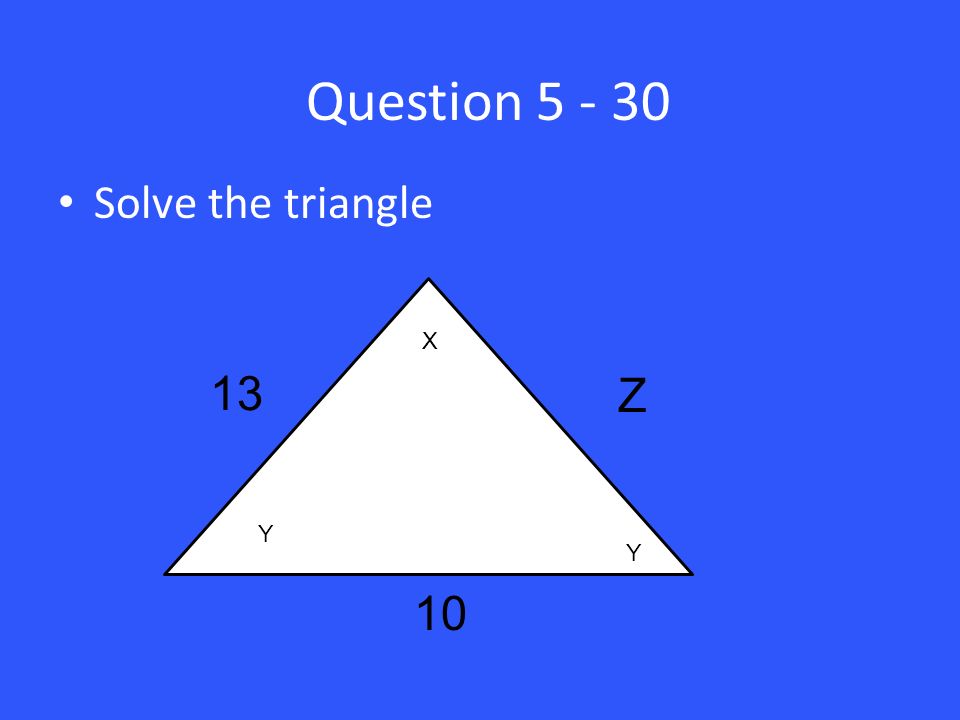

47 Question 5 - 30 13 Y Solve the triangle X Y 10 Z

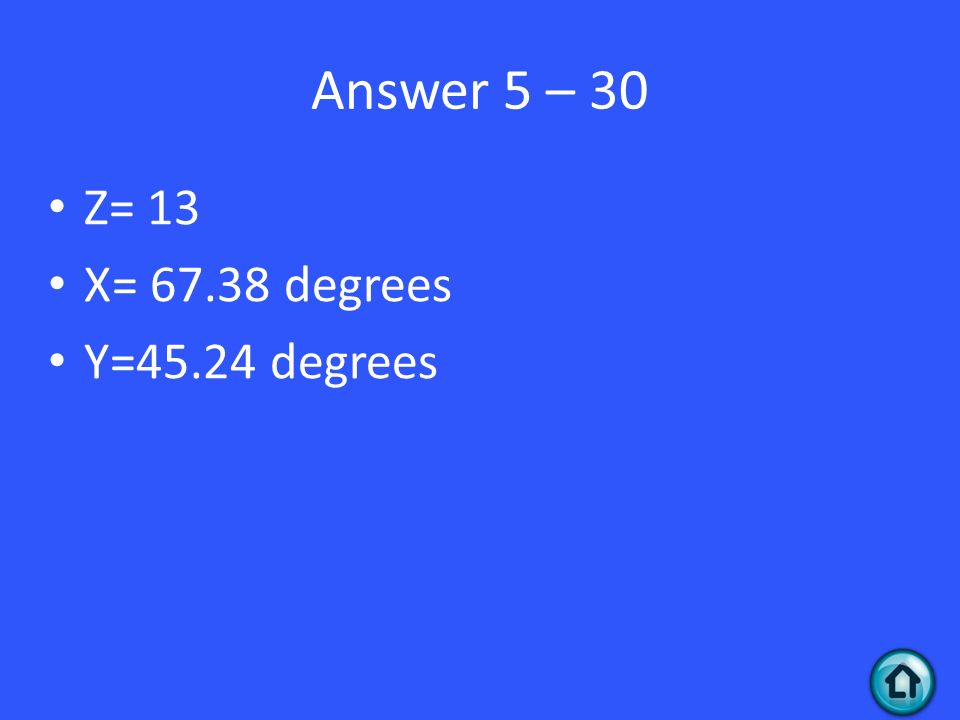

48 Answer 5 – 30 Z= 13 X= 67.38 degrees Y=45.24 degrees

49 Question 5 - 40 Solve for all parts of the triangle A 15 5 B X

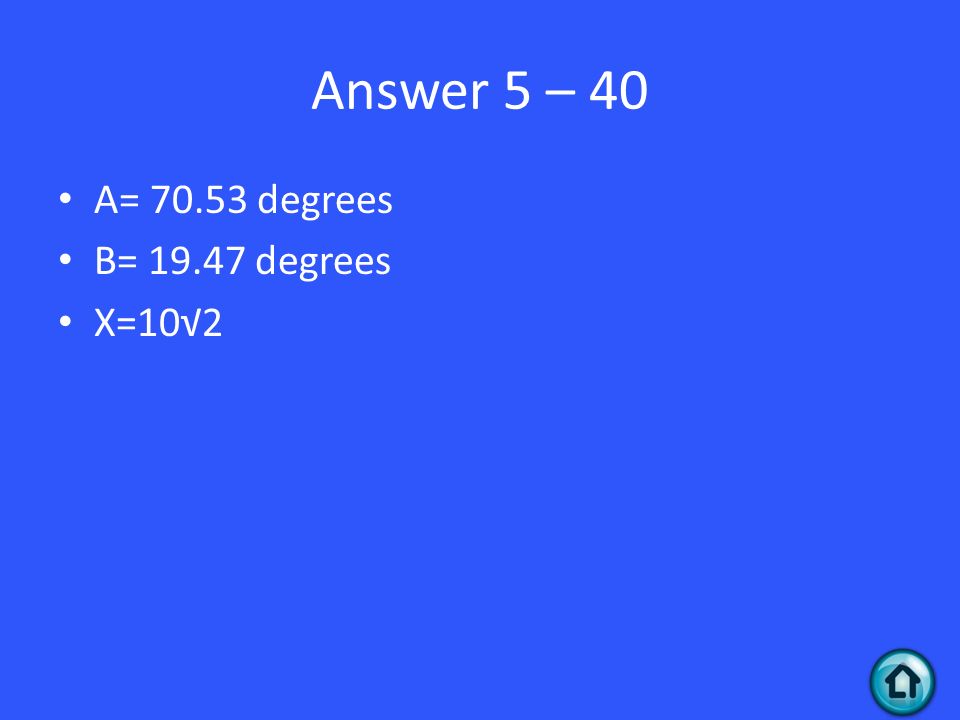

50 Answer 5 – 40 A= 70.53 degrees B= 19.47 degrees X=10√2

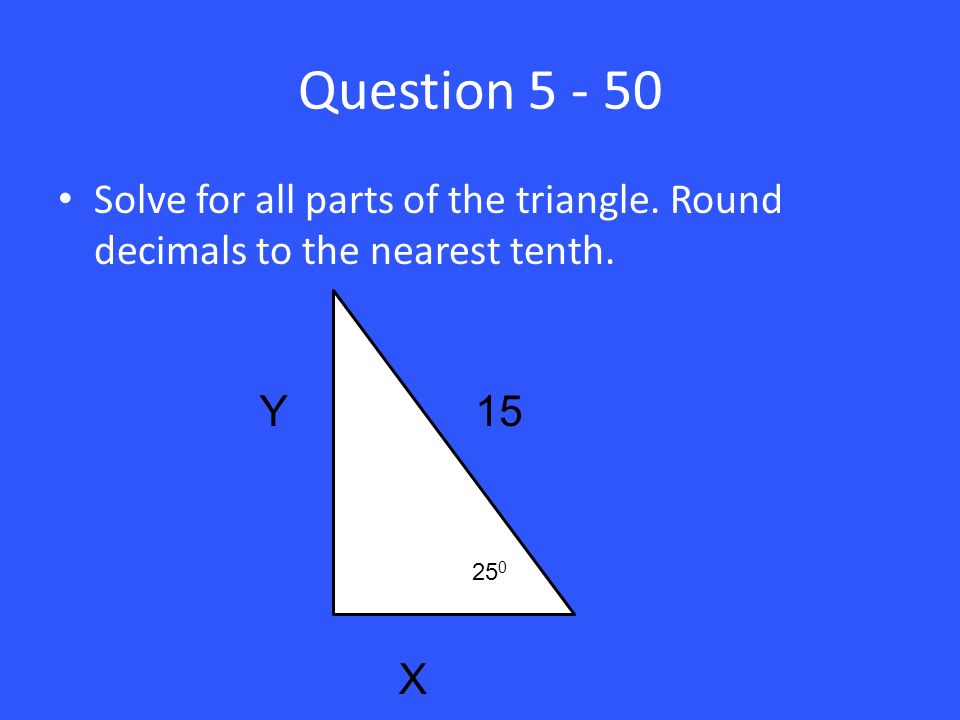

51 Question 5 - 50 Solve for all parts of the triangle. Round decimals to the nearest tenth. 15 Y 25 0 X

52 Answer 5 – 50 X =13.59 Y = 6.34
